1. © 2014 IBM Corporation
Connect to
Bluemix Docker Container
with Putty
Joseph Chang
Senior IT Specialist
IBM Cloud Group
Document number

2. © 2014 IBM Corporation2
Take me to Bluemix
Click Here

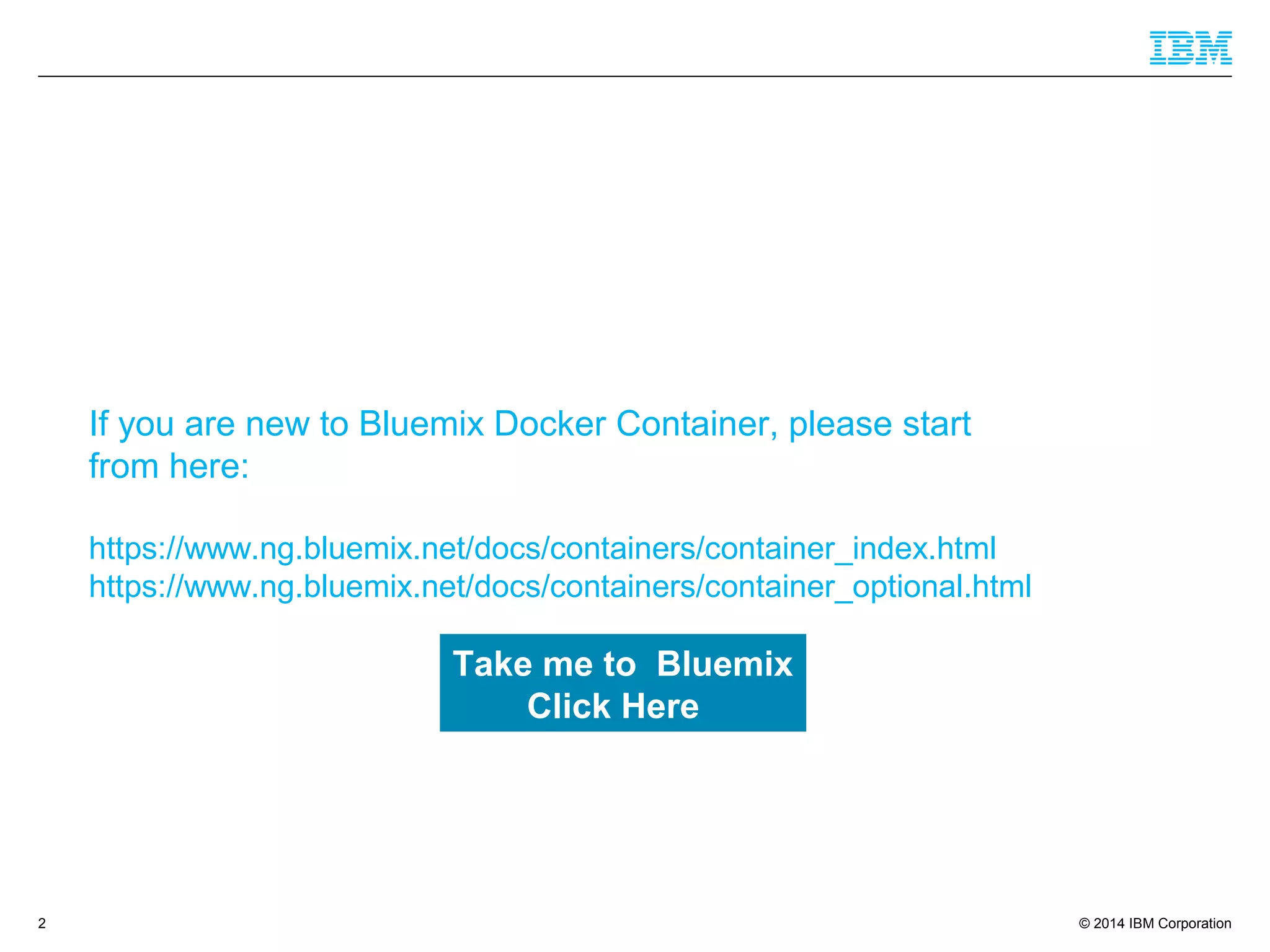

If you are new to Bluemix Docker Container, please start
from here:
https://www.ng.bluemix.net/docs/containers/container_index.html
https://www.ng.bluemix.net/docs/containers/container_optional.html

3. © 2014 IBM Corporation

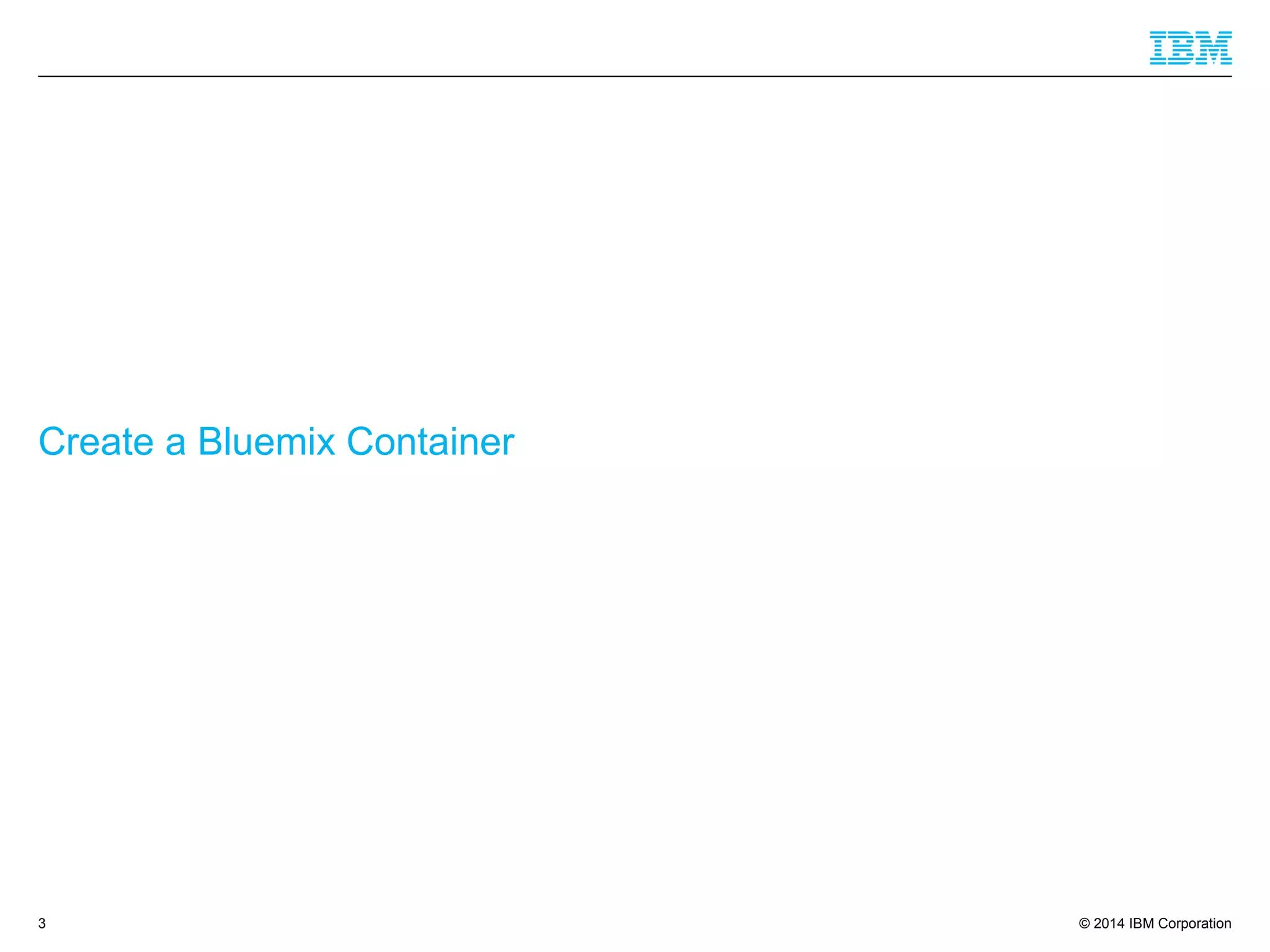

Create a Bluemix Container
3

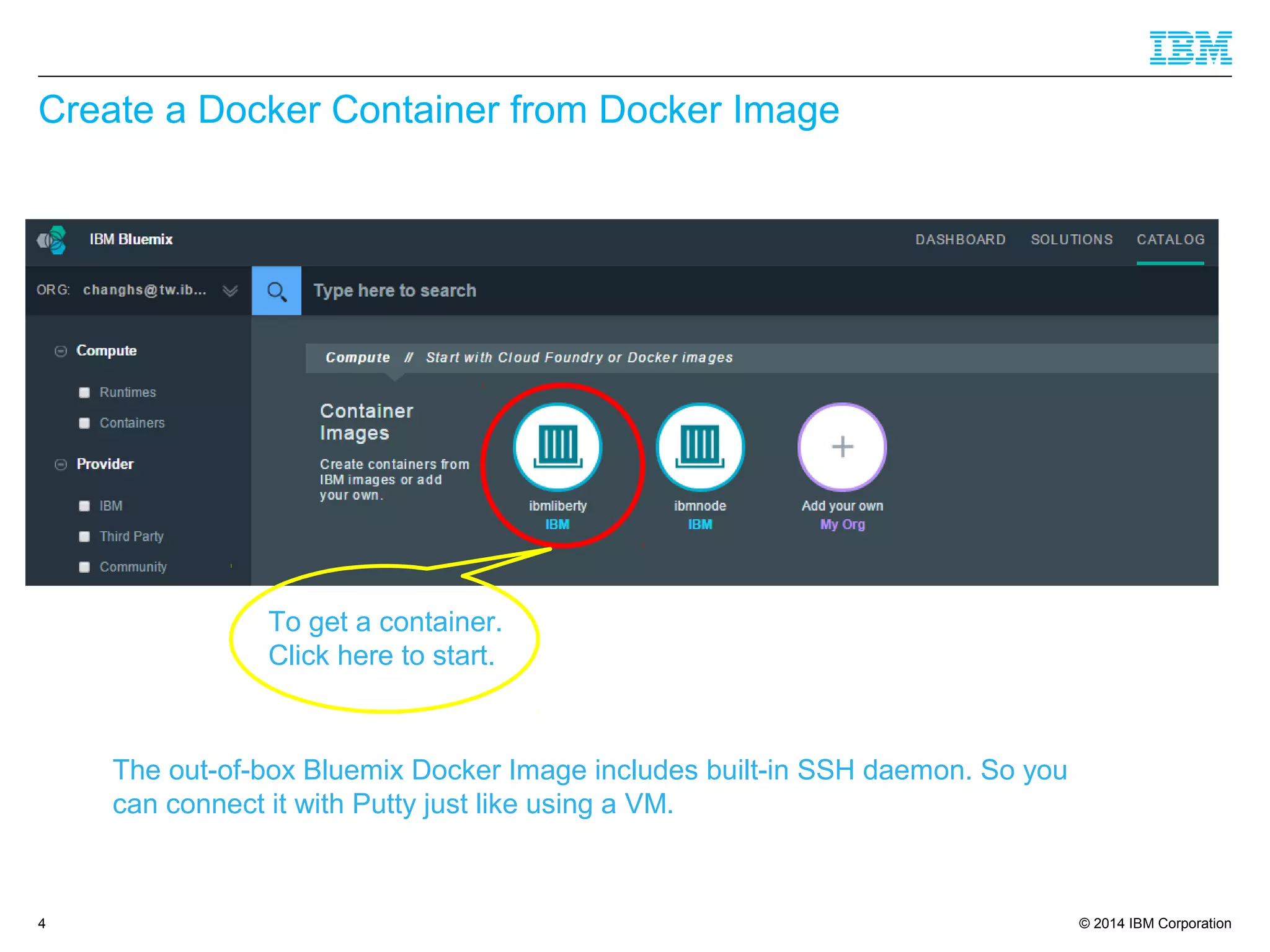

4. © 2014 IBM Corporation
Create a Docker Container from Docker Image
4
To get a container.
Click here to start.
The out-of-box Bluemix Docker Image includes built-in SSH daemon. So you
can connect it with Putty just like using a VM.

5. © 2014 IBM Corporation

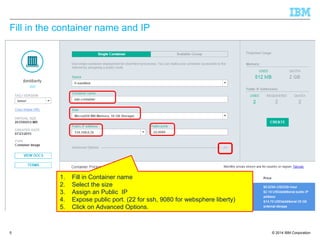

Fill in the container name and IP
5
1. Fill in Container name
2. Select the size
3. Assign an Public IP
4. Expose public port. (22 for ssh, 9080 for websphere liberty)
5. Click on Advanced Options.

6. © 2014 IBM Corporation

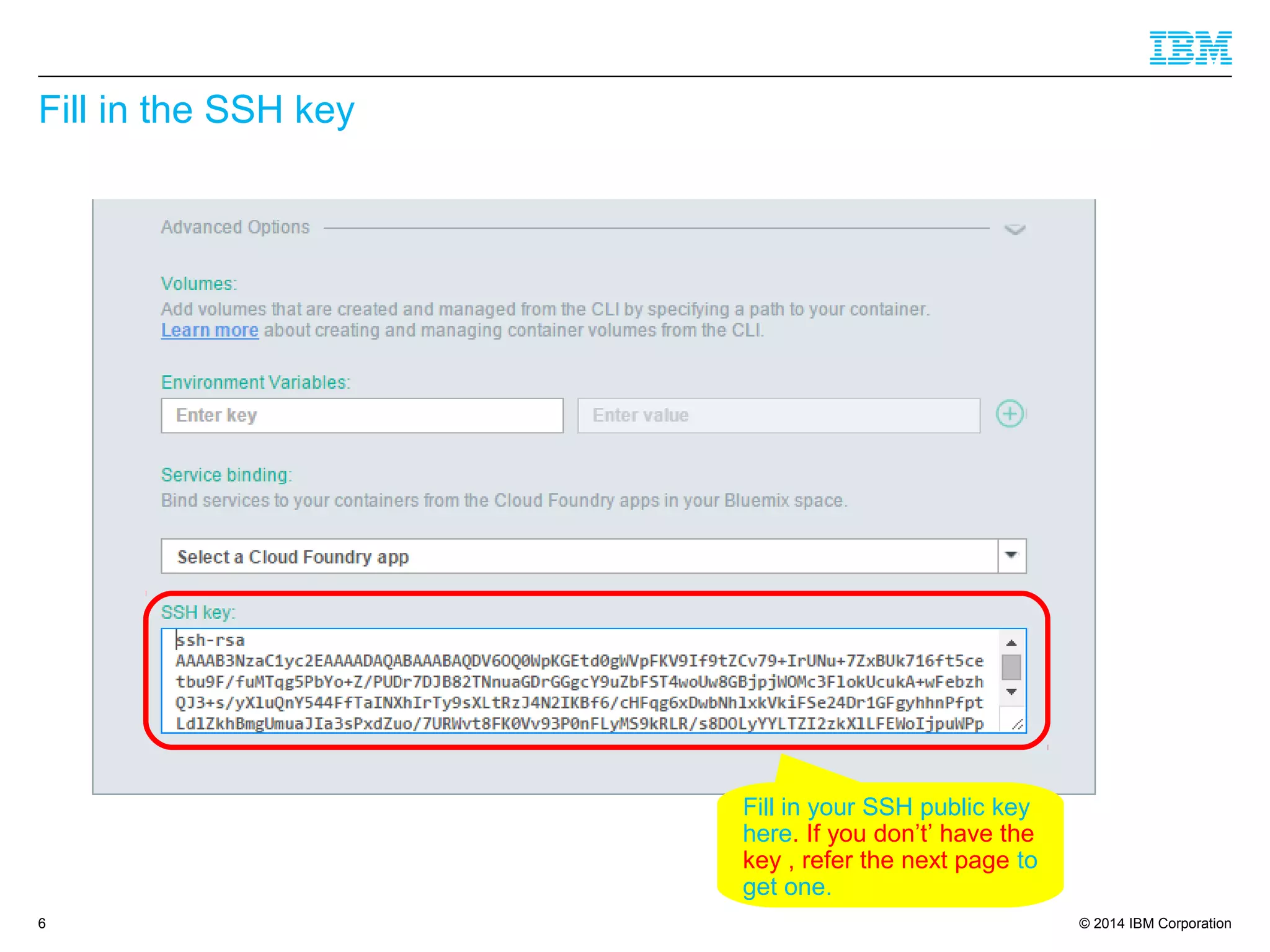

Fill in the SSH key
6
Fill in your SSH public key
here. If you don’t’ have the
key , refer the next page to
get one.

7. © 2014 IBM Corporation

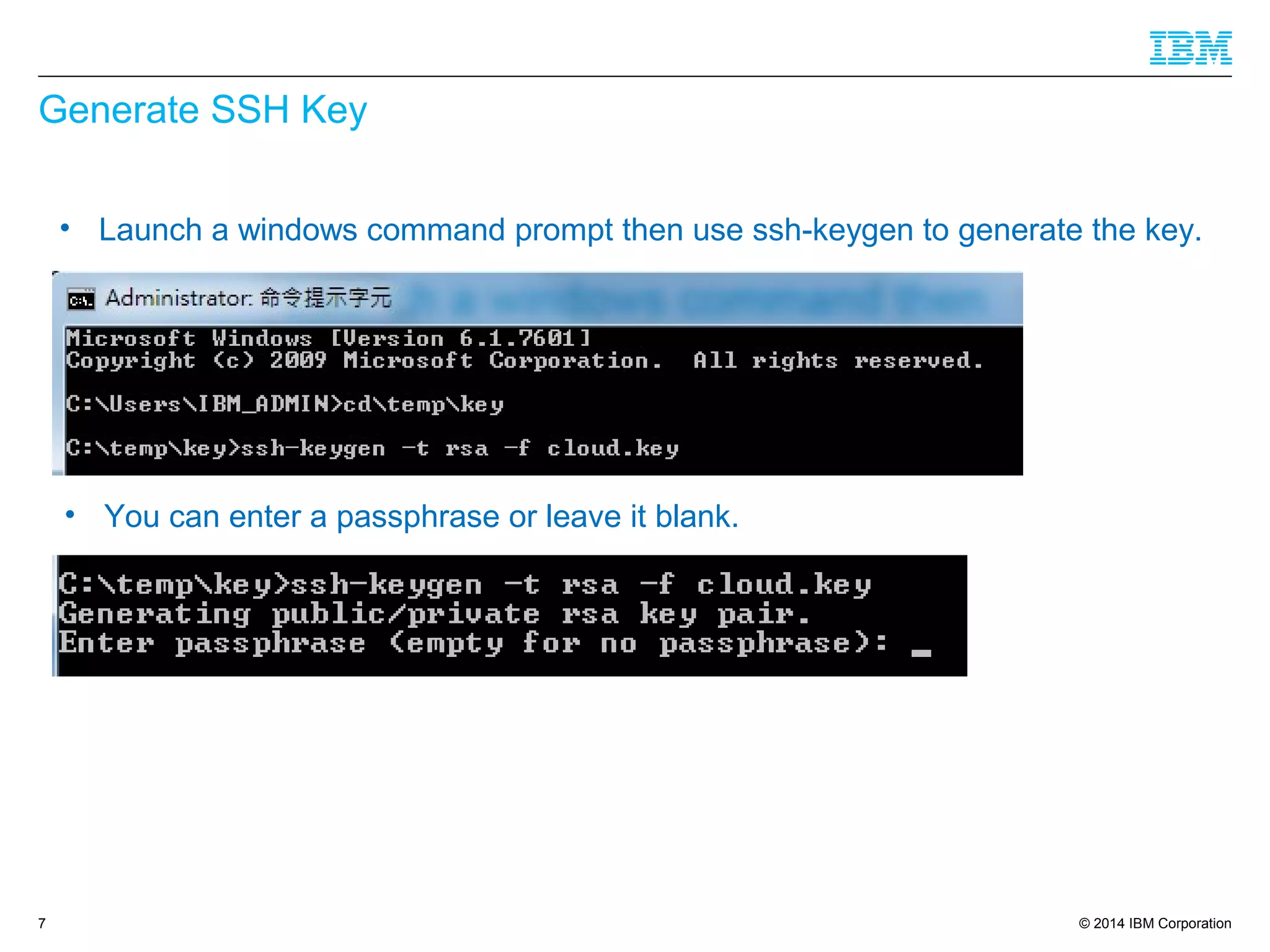

Generate SSH Key
7
• Launch a windows command prompt then use ssh-keygen to generate the key.
• You can enter a passphrase or leave it blank.

8. © 2014 IBM Corporation

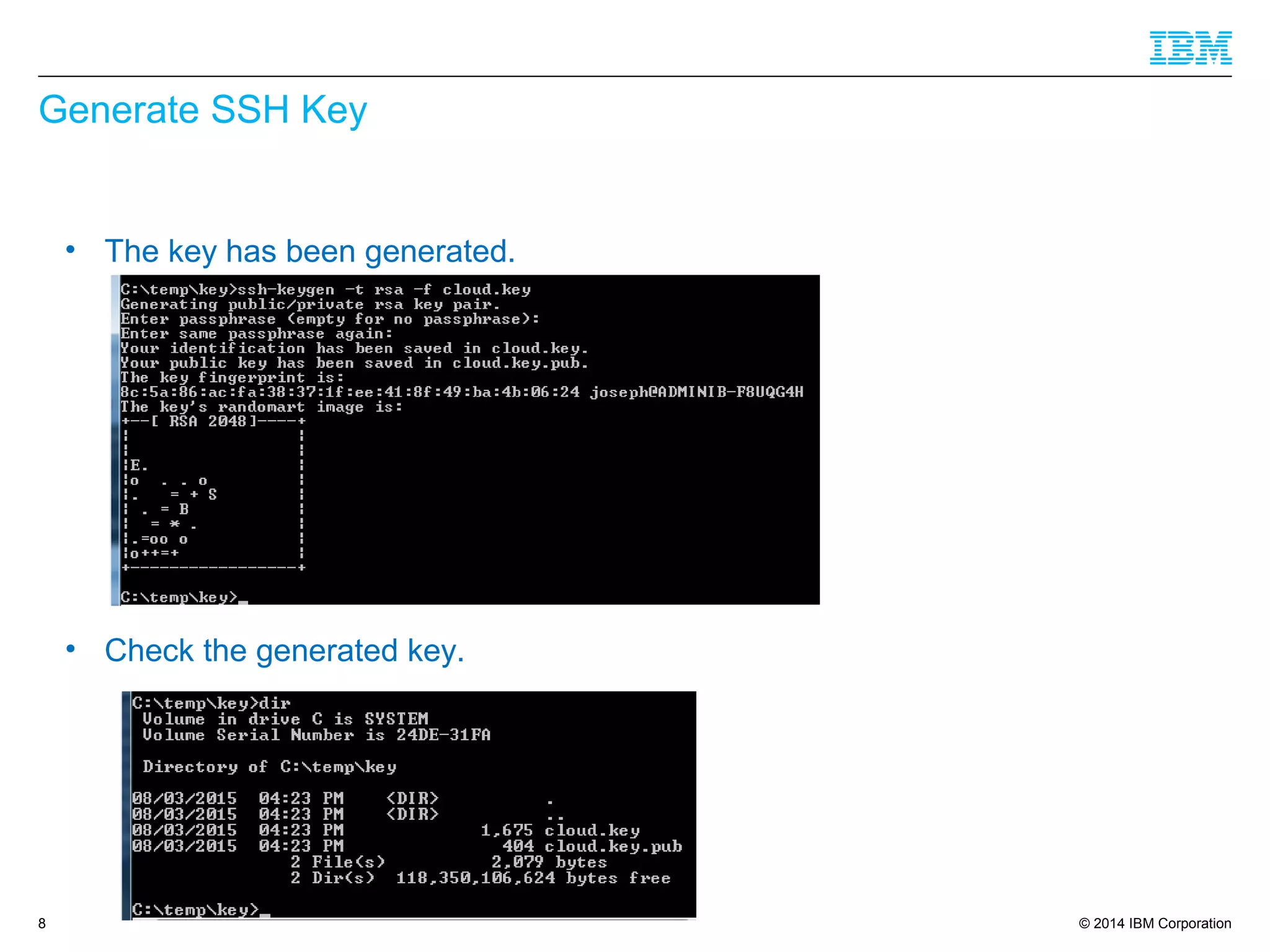

Generate SSH Key
8
• The key has been generated.
• Check the generated key.

9. © 2014 IBM Corporation

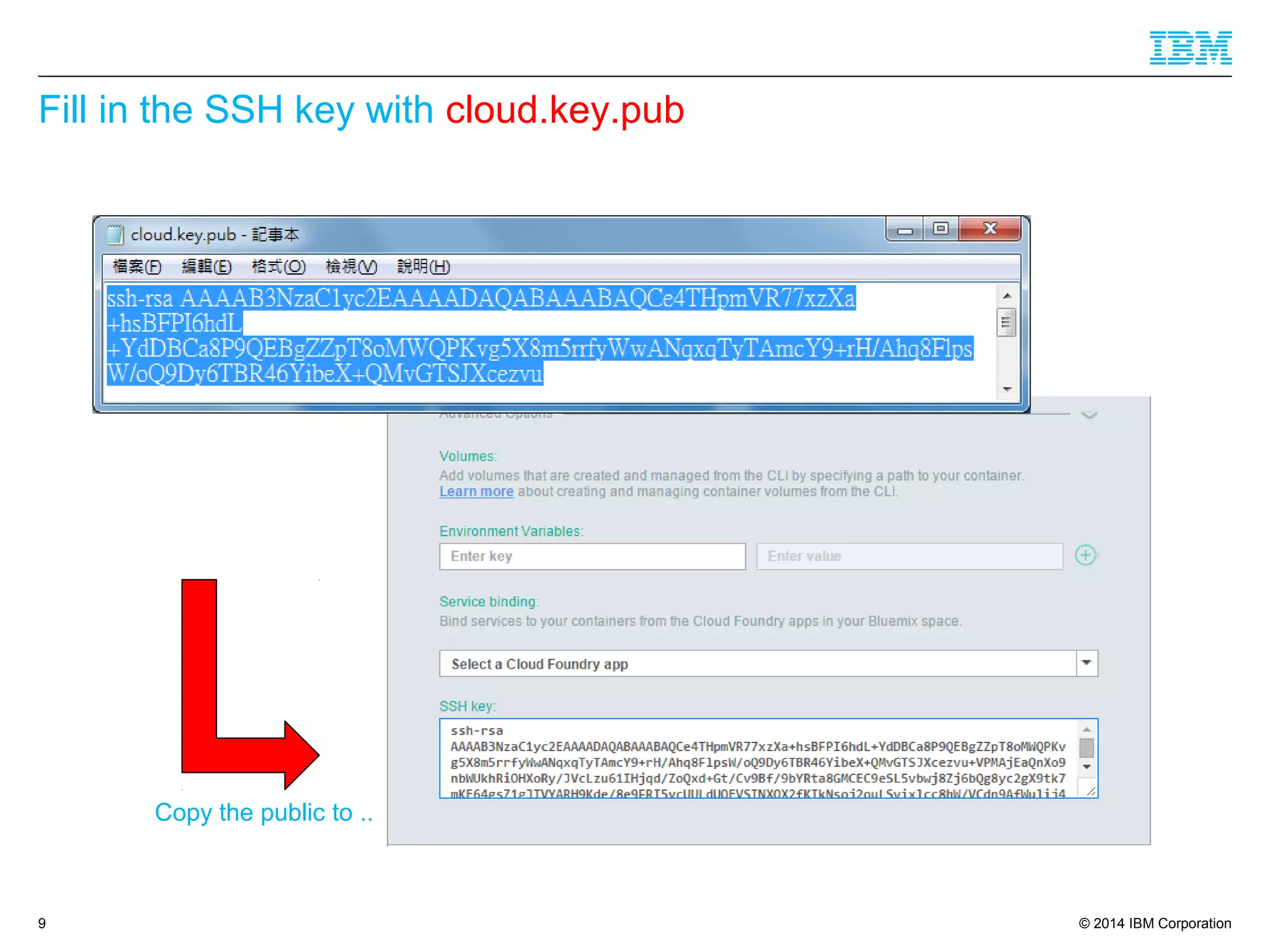

Fill in the SSH key with cloud.key.pub
9
Copy the public to ..

10. © 2014 IBM Corporation

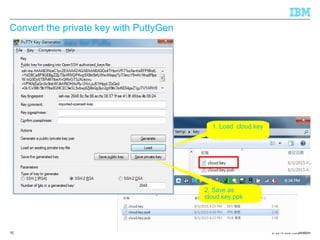

Convert the private key with PuttyGen
10
1. Load cloud.key
2. Save as
cloud.key.ppk

11. © 2014 IBM Corporation

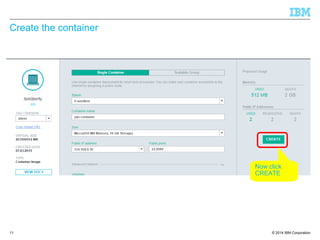

Create the container
11
Now click
CREATE

12. © 2014 IBM Corporation

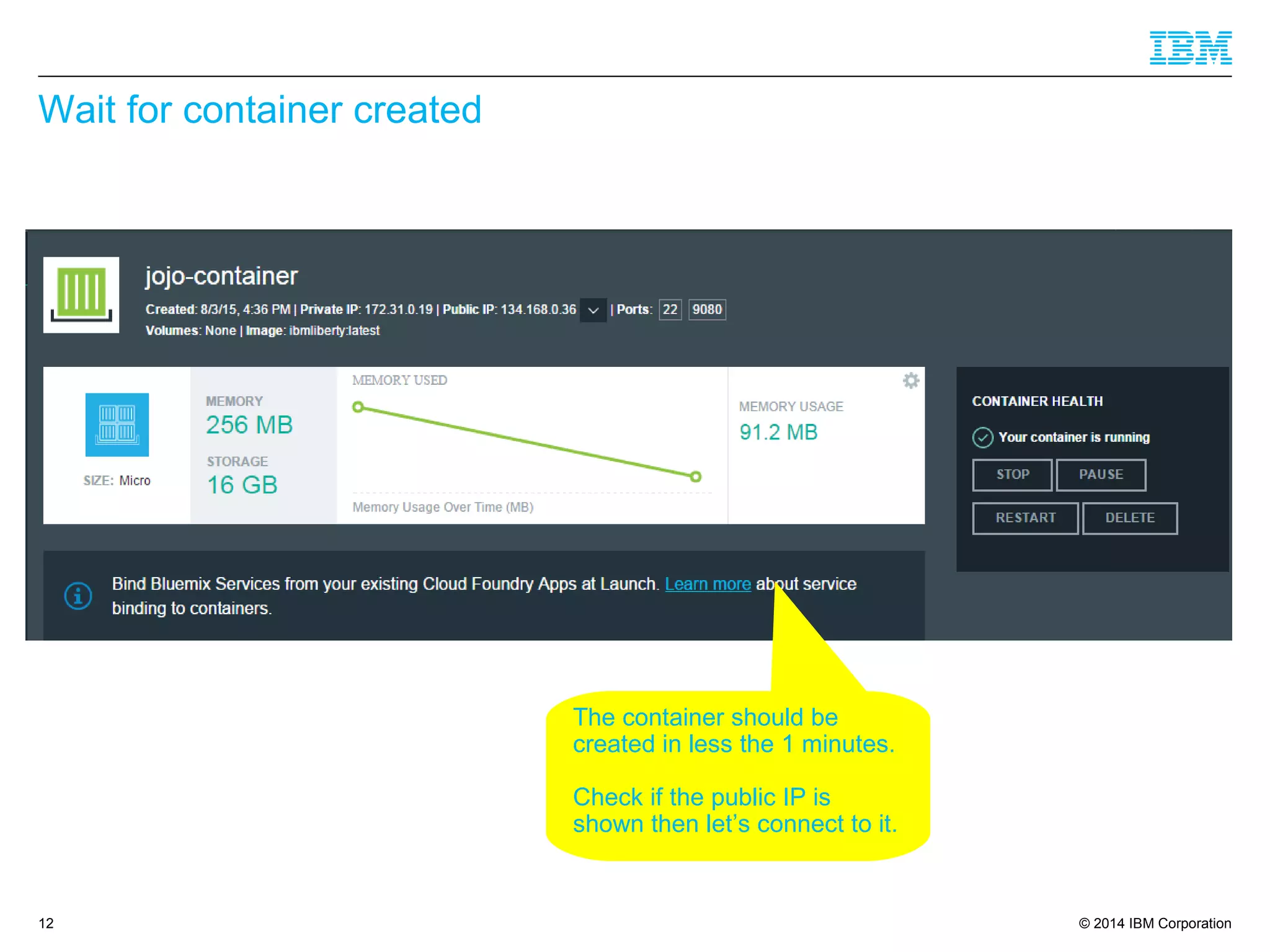

Wait for container created
12
The container should be
created in less the 1 minutes.
Check if the public IP is
shown then let’s connect to it.

13. © 2014 IBM Corporation
Ping the container with the public IP
13
Before connect with Putty,
ping it to check if the server is
alive.

14. © 2014 IBM Corporation

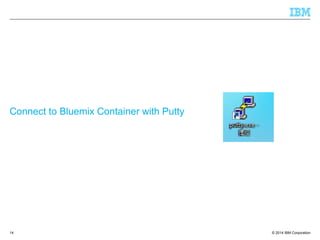

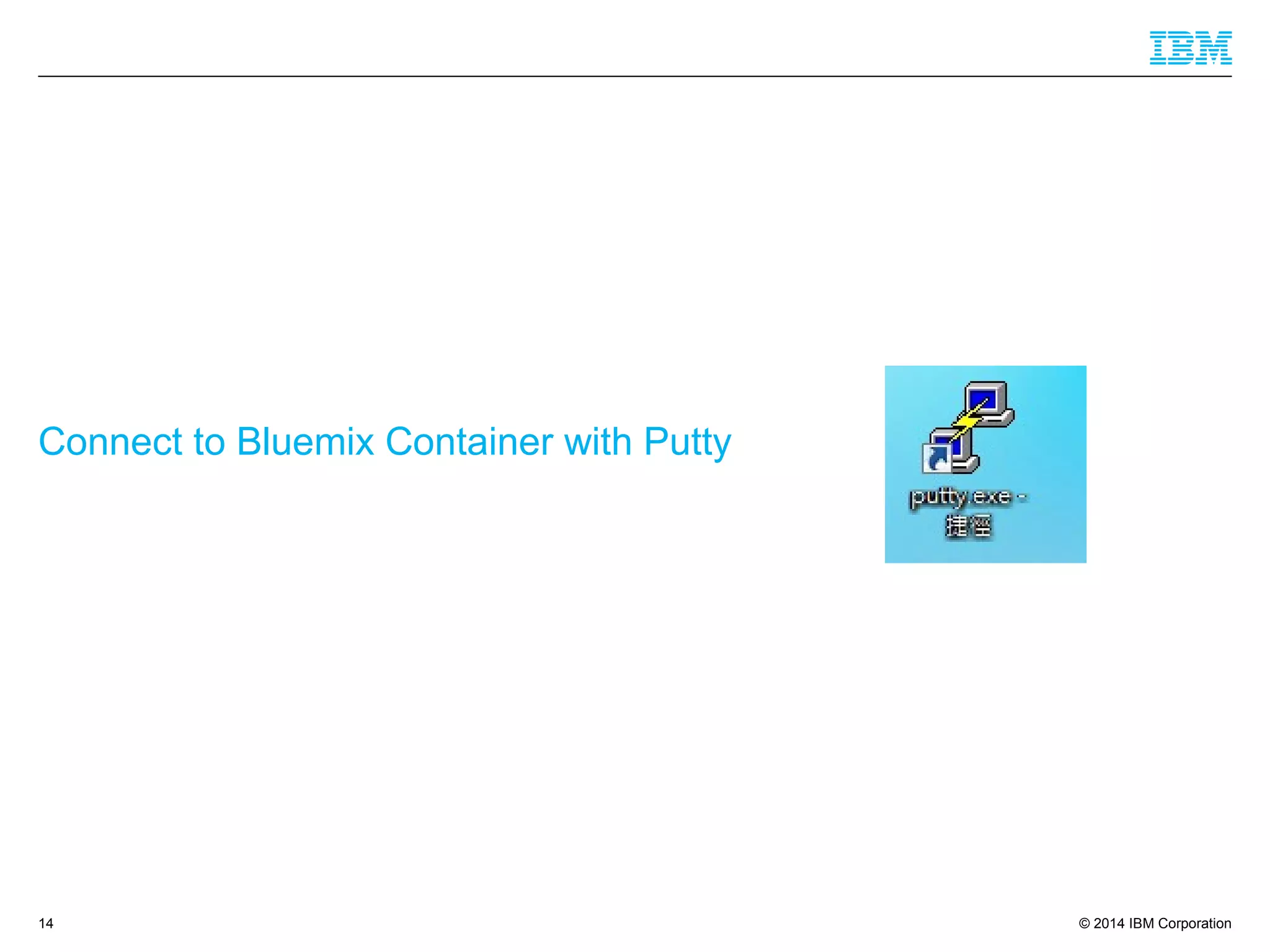

Connect to Bluemix Container with Putty
14

15. © 2014 IBM Corporation

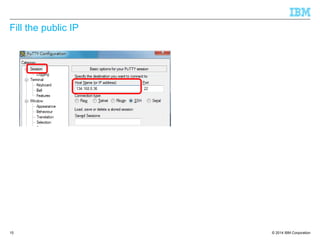

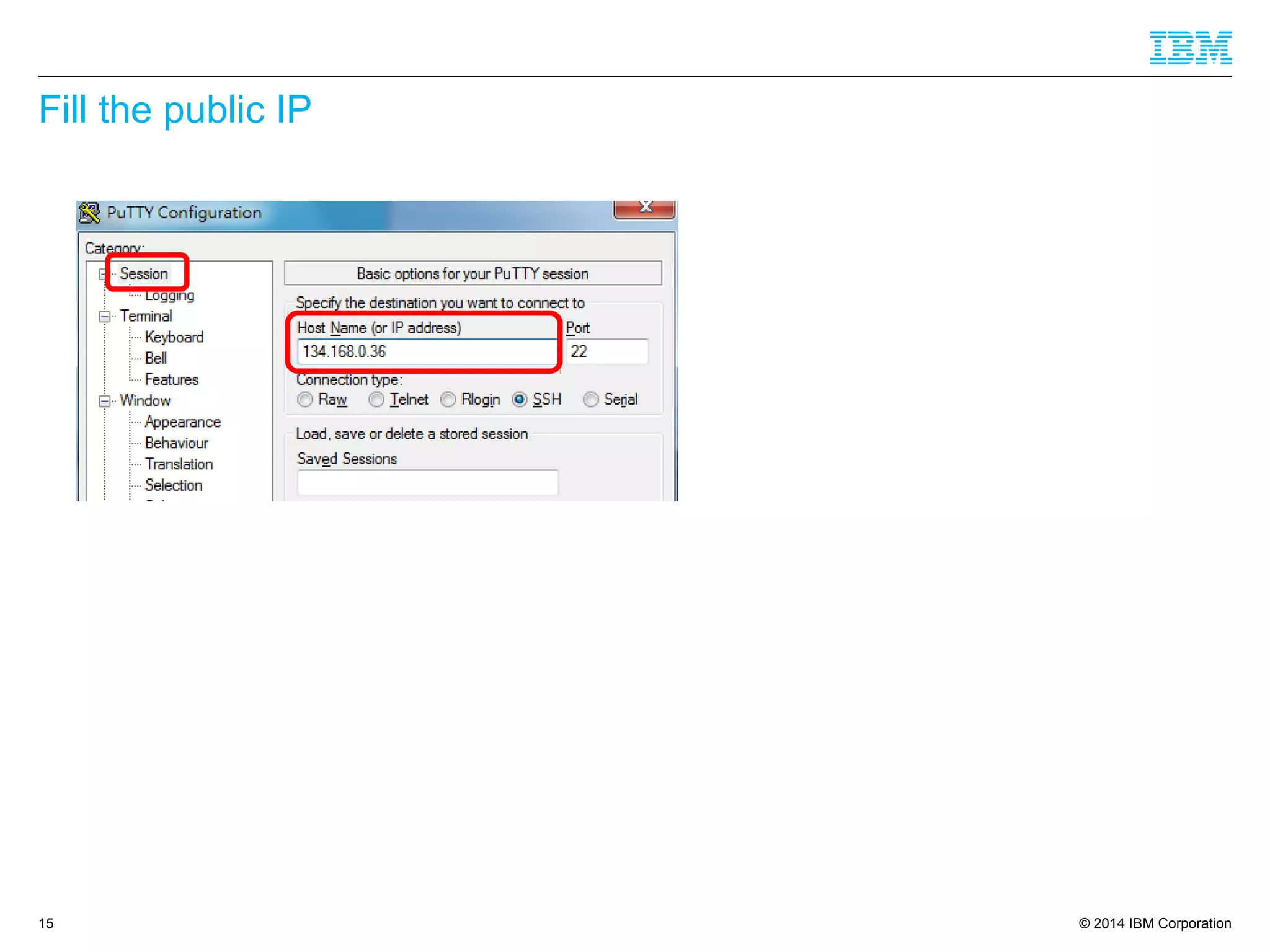

Fill the public IP
15

16. © 2014 IBM Corporation

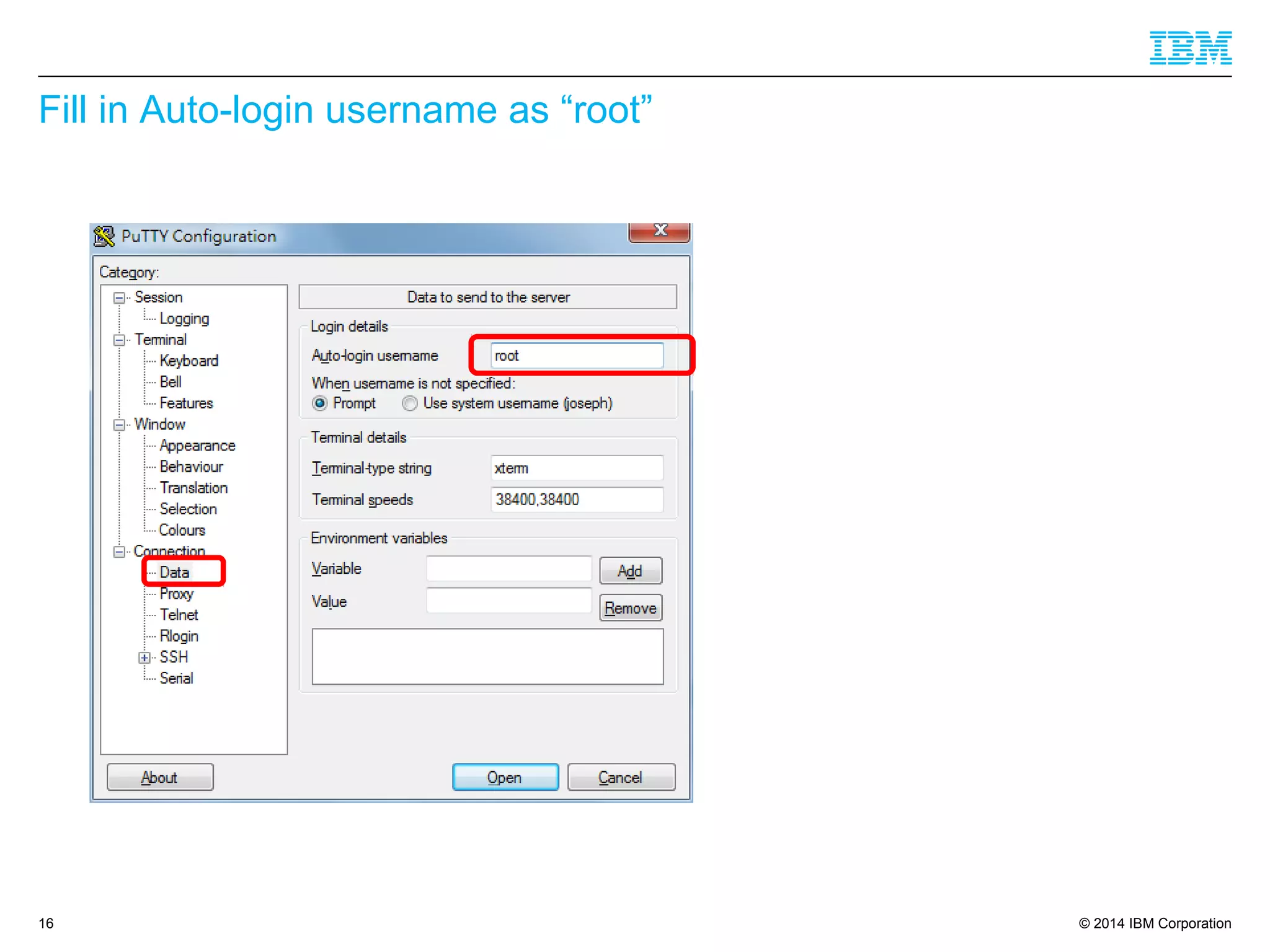

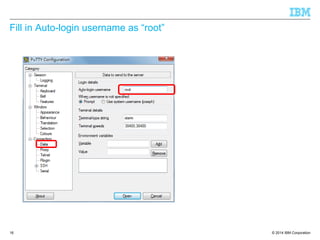

Fill in Auto-login username as “root”
16

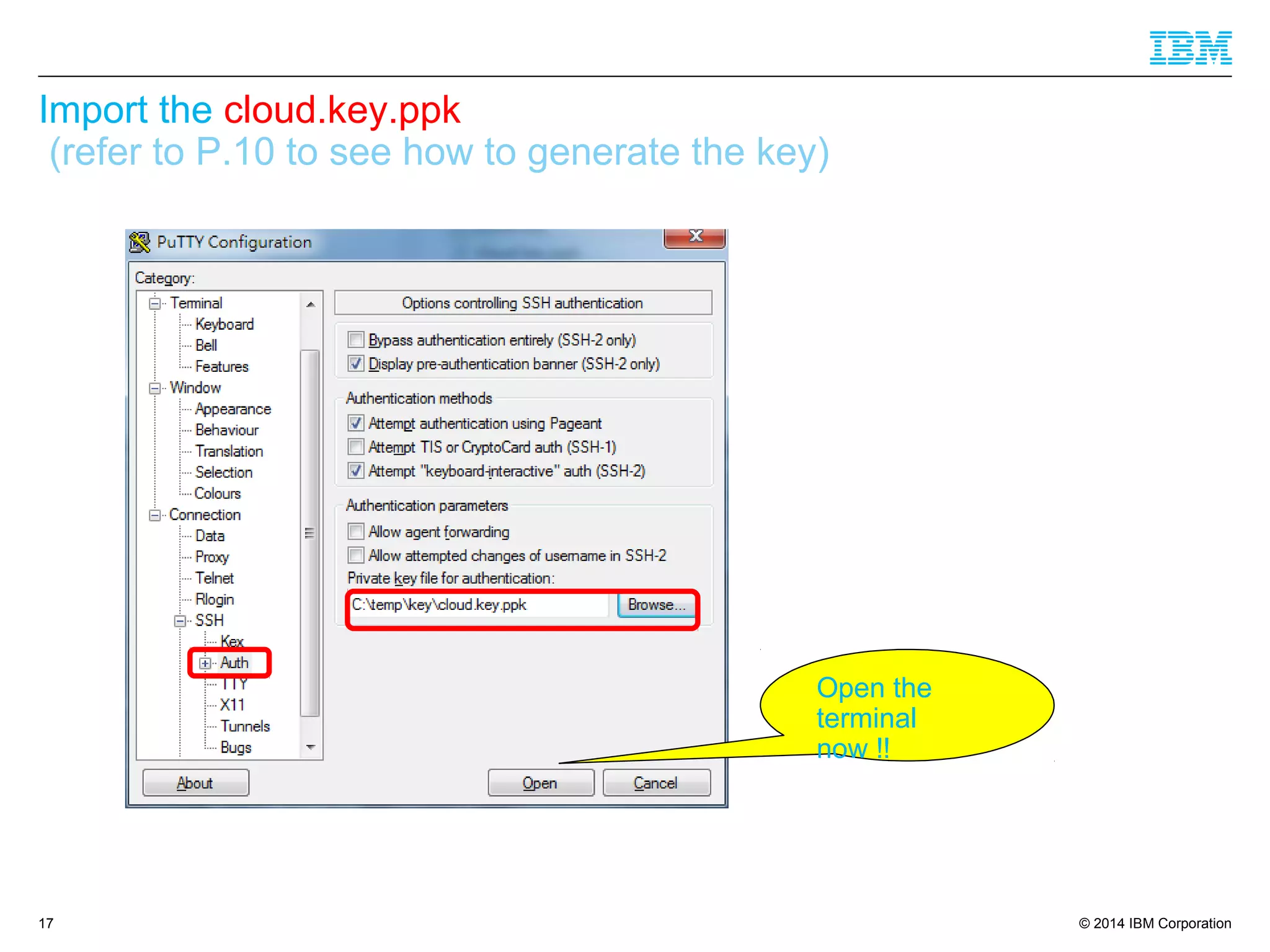

17. © 2014 IBM Corporation

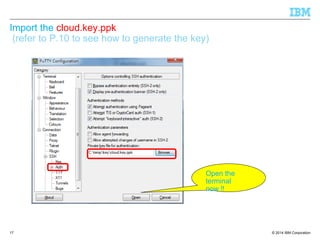

Import the cloud.key.ppk
(refer to P.10 to see how to generate the key)
17
Open the
terminal
now !!

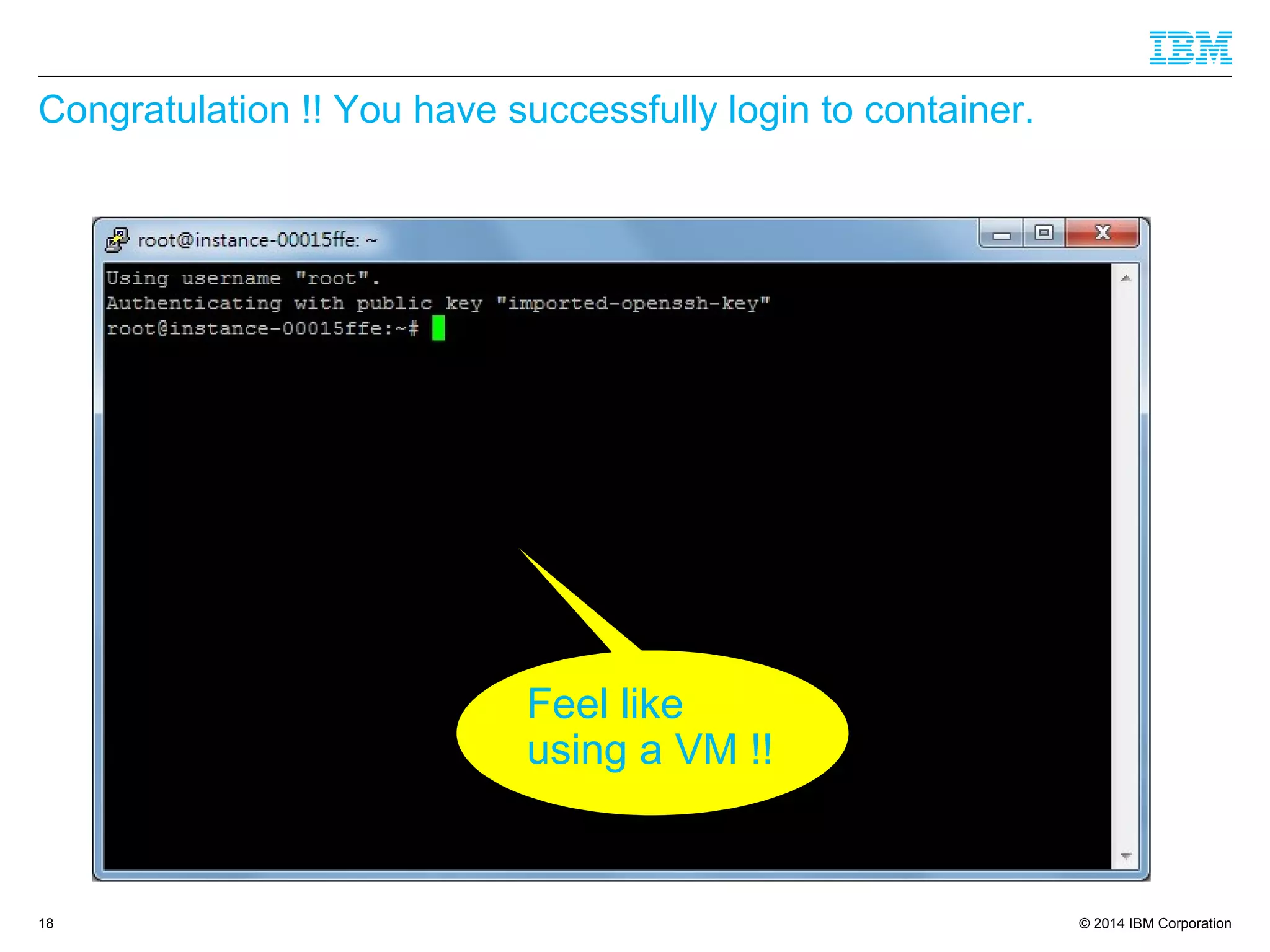

18. © 2014 IBM Corporation
Congratulation !! You have successfully login to container.
18
Feel like
using a VM !!

19. © 2014 IBM Corporation

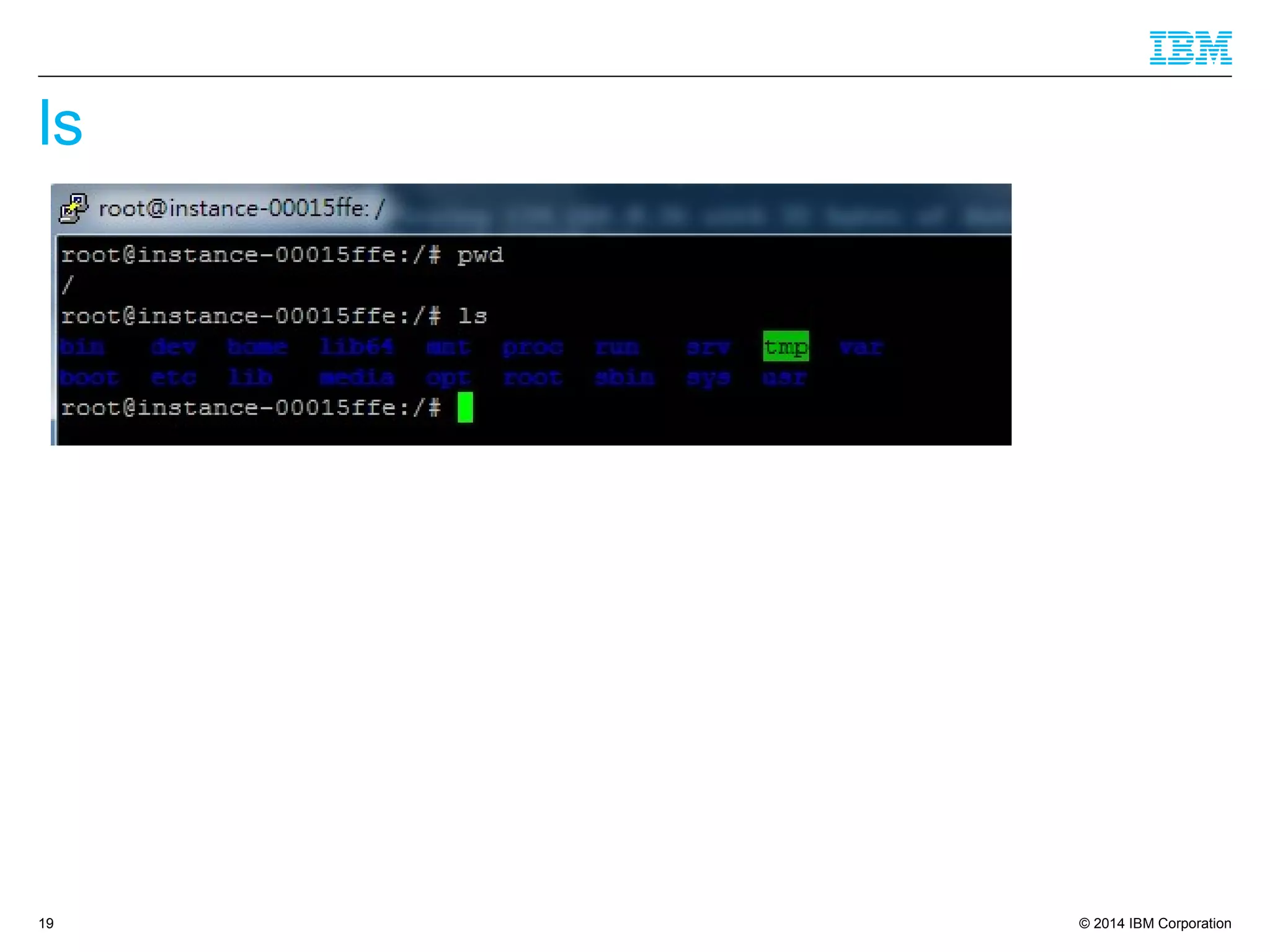

ls
19

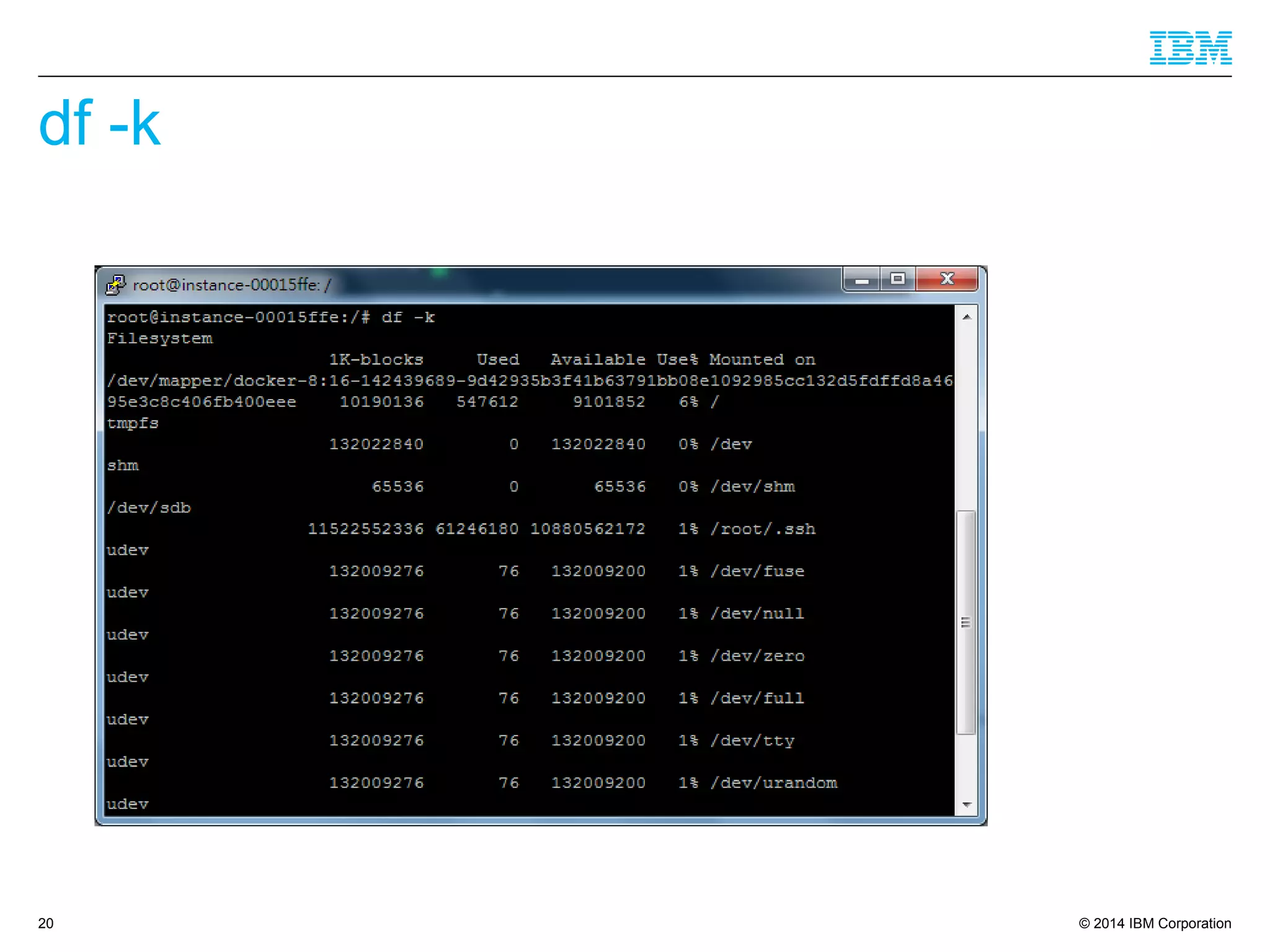

20. © 2014 IBM Corporation
df -k
20

21. © 2014 IBM Corporation

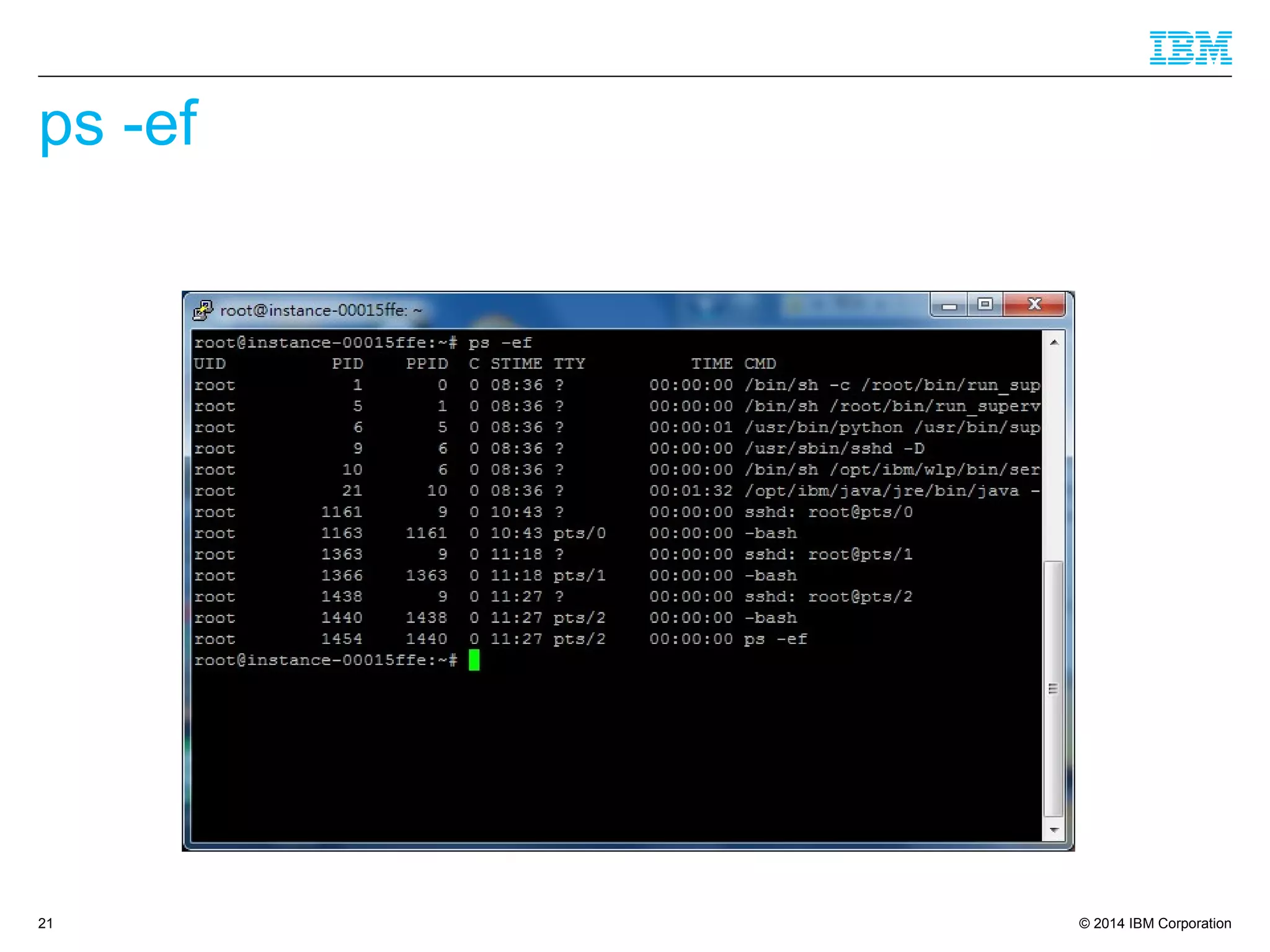

ps -ef
21

22. © 2014 IBM Corporation

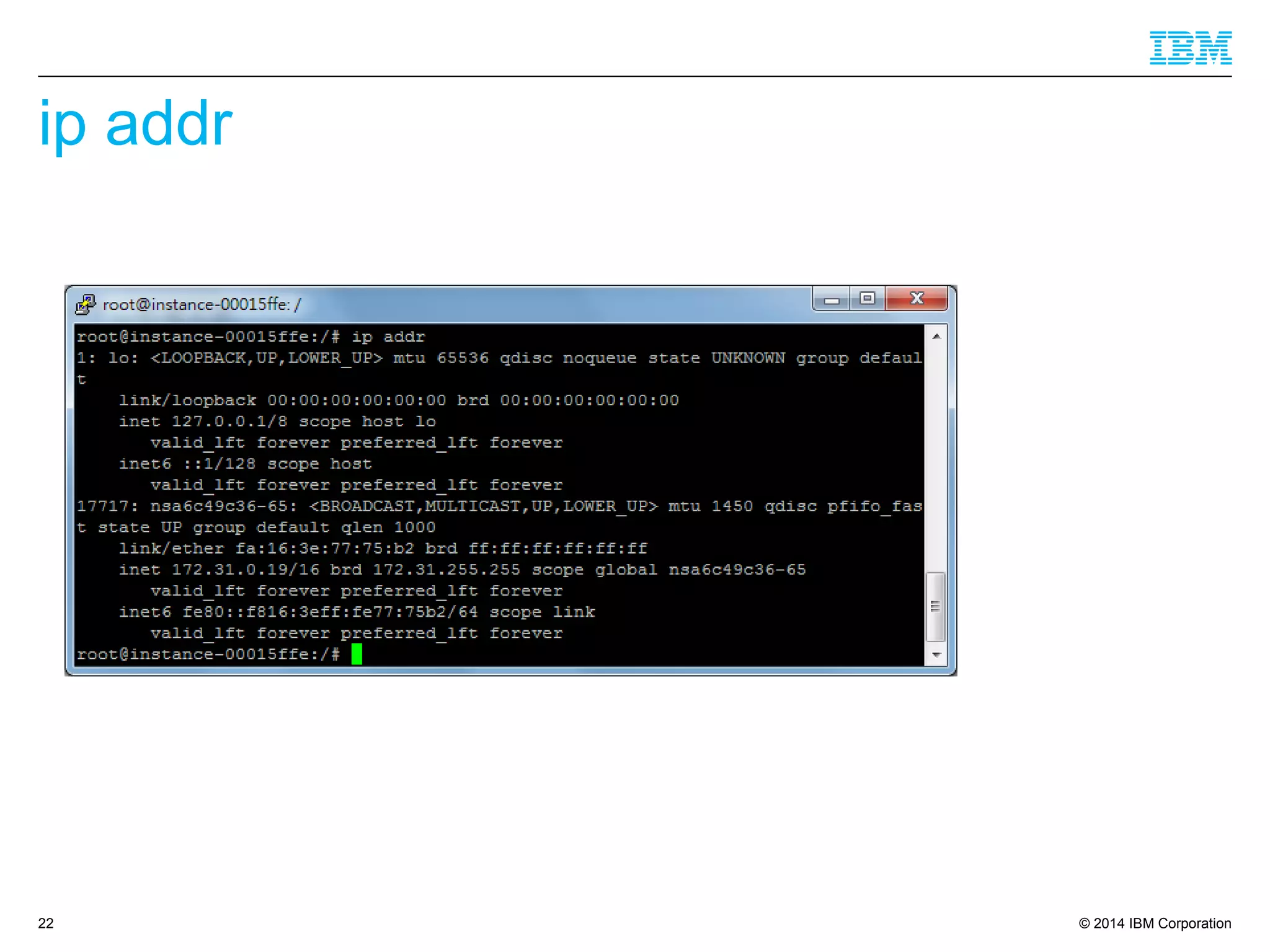

ip addr
22

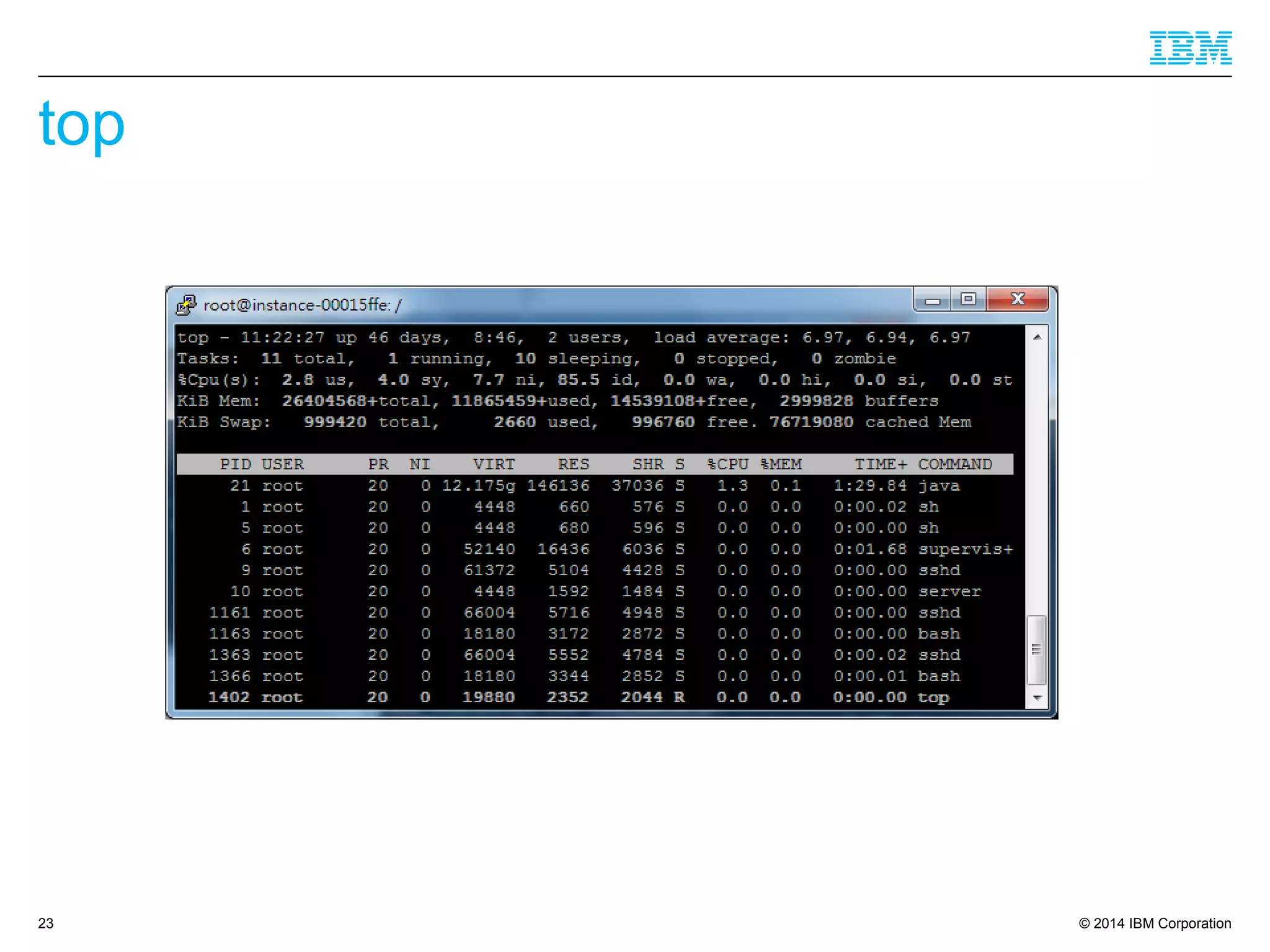

23. © 2014 IBM Corporation
top
23

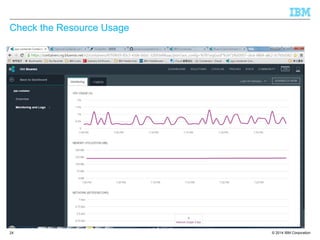

24. © 2014 IBM Corporation

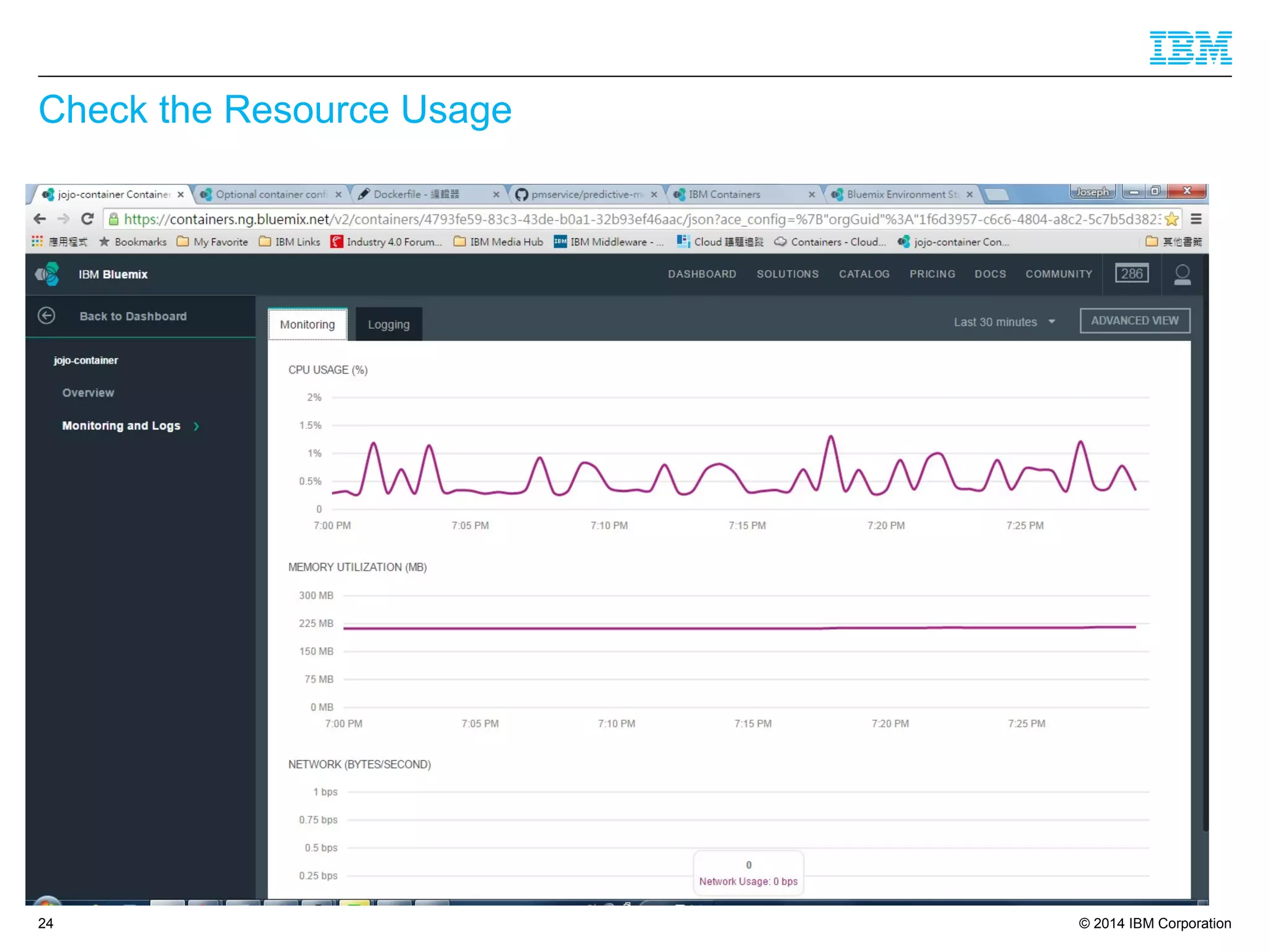

Check the Resource Usage
24

25. © 2014 IBM Corporation

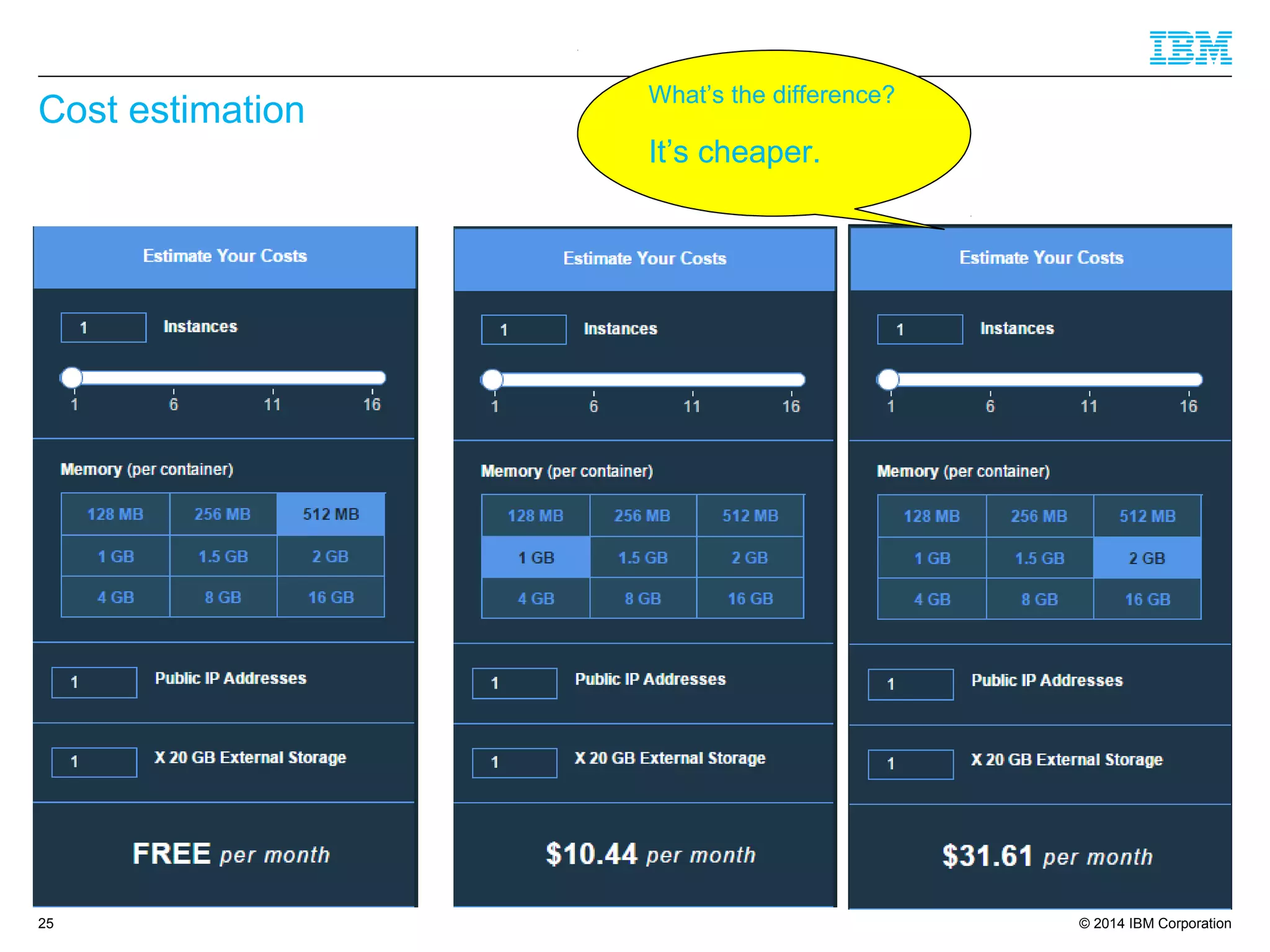

Cost estimation
25
What’s the difference?
It’s cheaper.

26. © 2014 IBM Corporation26

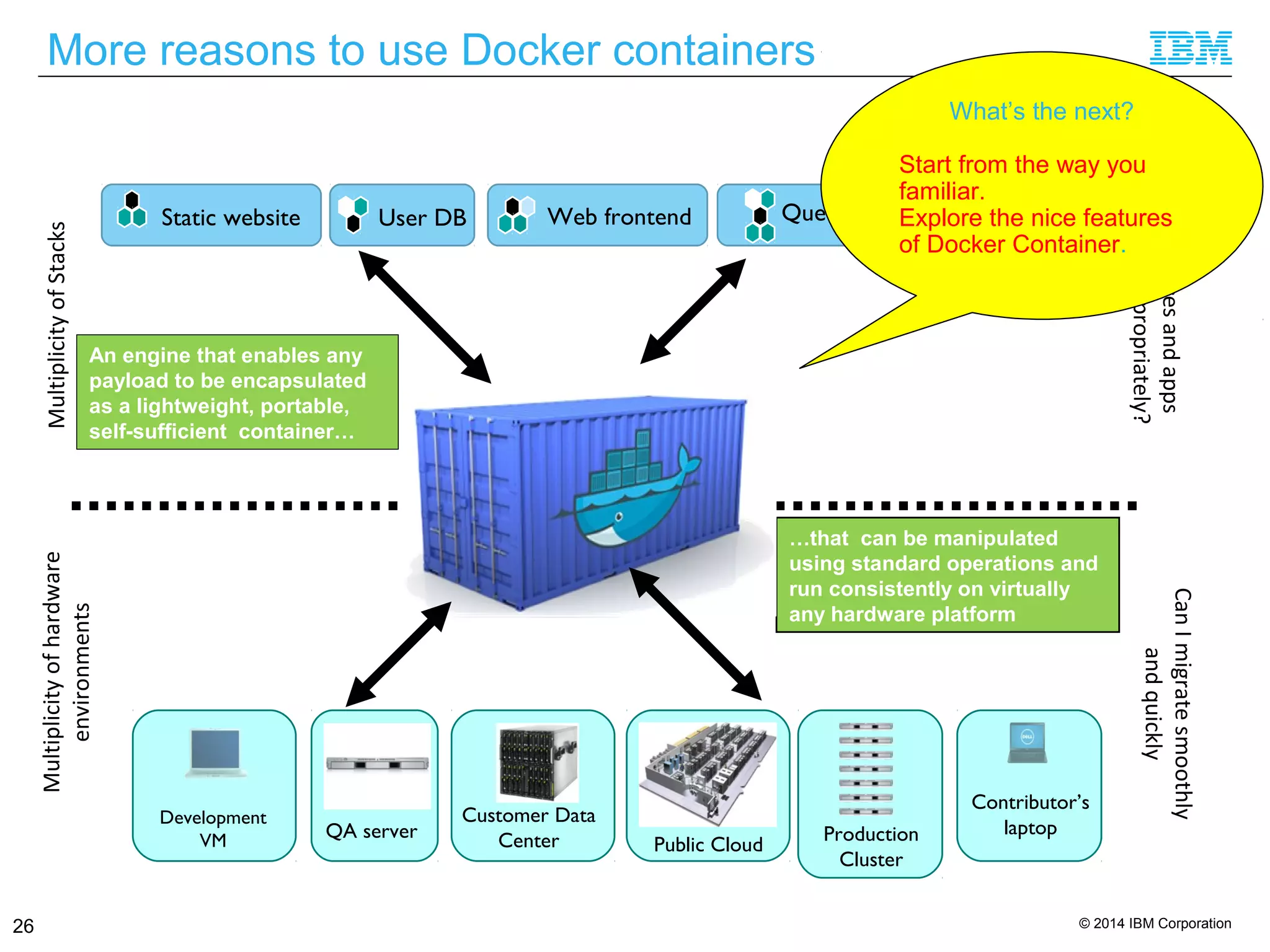

More reasons to use Docker containersMultiplicityofStacksMultiplicityofhardware
environments
QA server
Development
VM
Contributor’s
laptop
Customer Data
Center Production
Cluster
Public Cloud
Static website User DB Analytics DBQueueWeb frontend
CanImigratesmoothly
andquickly
…that can be manipulated
using standard operations and
run consistently on virtually
any hardware platform
An engine that enables any
payload to be encapsulated
as a lightweight, portable,
self-sufficient container…
Doservicesandapps
interactappropriately?
What’s the next?
Start from the way you
familiar.
Explore the nice features
of Docker Container.

27. © 2014 IBM Corporation

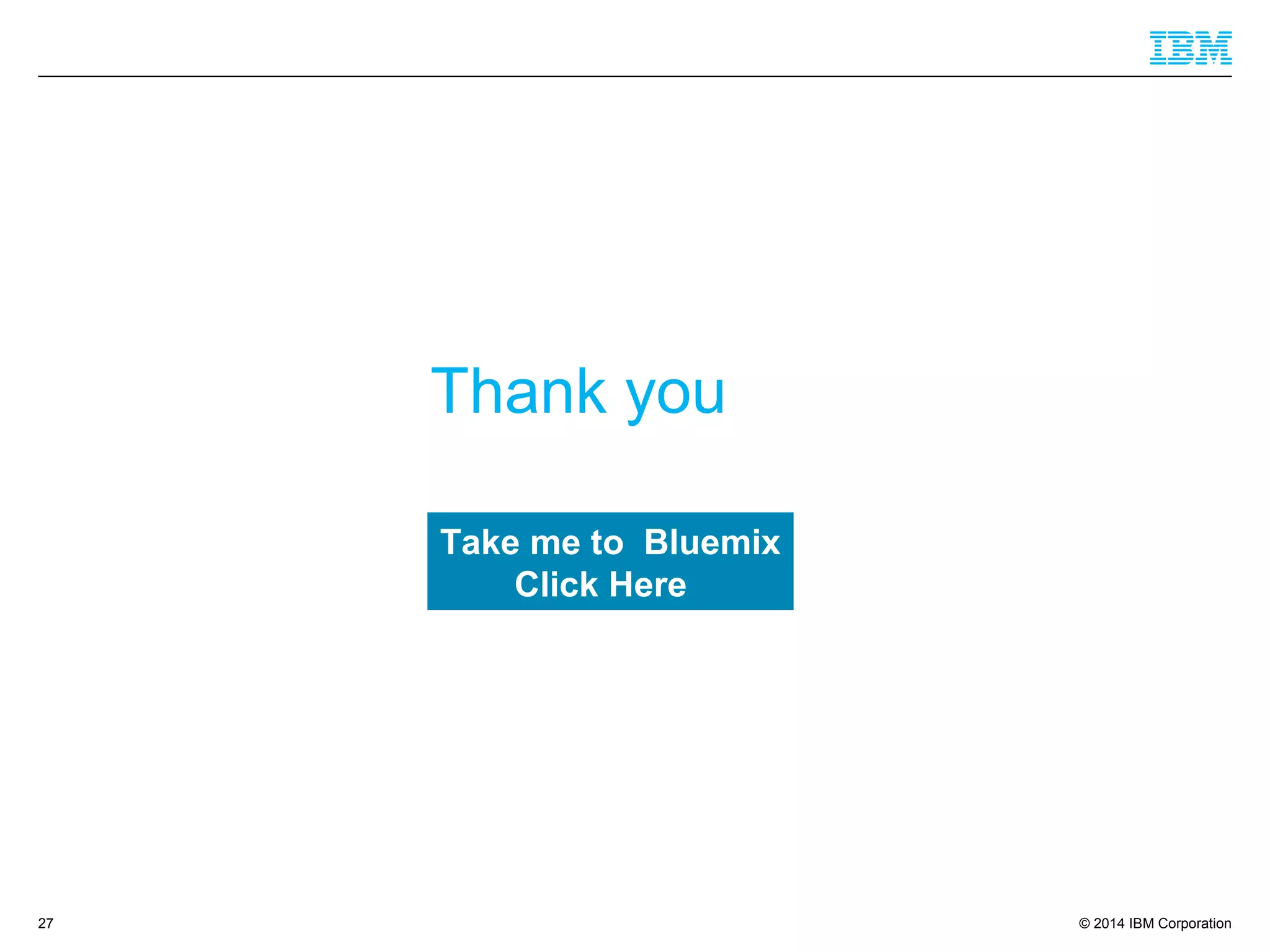

Thank you
27
