1. Extending an Android app using the IBM
Push for Bluemix cloud service
© 2009 IBM Corporation
Susan Rizzo – IBM Mobile Cloud
9 November 2014

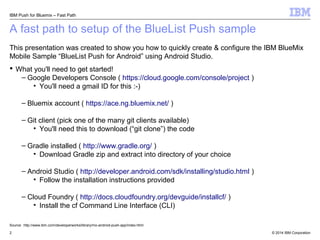

2. IBM Push for Bluemix – Fast Path
A fast path to setup of the BlueList Push sample
This presentation was created to show you how to quickly create & configure the IBM BlueMix
Mobile Sample “BlueList Push for Android” using Android Studio.
 What you'll need to get started!
– Google Developers Console ( https://cloud.google.com/console/project )
• You'll need a gmail ID for this :-)
– Bluemix account ( https://ace.ng.bluemix.net/ )
– Git client (pick one of the many git clients available)
• You'll need this to download (“git clone”) the code
– Gradle installed ( http://www.gradle.org/ )
• Download Gradle zip and extract into directory of your choice
– Android Studio ( http://developer.android.com/sdk/installing/studio.html )
• Follow the installation instructions provided
– Cloud Foundry ( http://docs.cloudfoundry.org/devguide/installcf/ )
• Install the cf Command Line Interface (CLI)
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 2 IBM Corporation

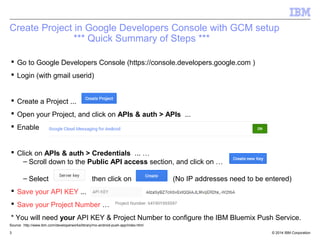

3. Create Project in Google Developers Console with GCM setup
*** Quick Summary of Steps ***
 Go to Google Developers Console (https://console.developers.google.com )
 Login (with gmail userid)
 Create a Project ...
 Open your Project, and click on APIs & auth > APIs ...
 Enable
 Click on APIs & auth > Credentials ... …
– Scroll down to the Public API access section, and click on …
– Select then click on (No IP addresses need to be entered)
 Save your API KEY ...
 Save your Project Number …
* You will need your API KEY & Project Number to configure the IBM Bluemix Push Service.
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 3 IBM Corporation

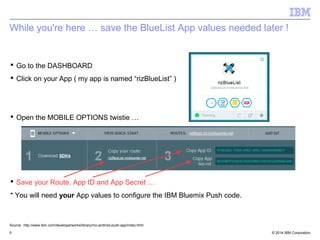

4. While you're here … save the BlueList App values needed later !
 Go to the DASHBOARD
 Click on your App ( my app is named “rizBlueList” )
 Open the MOBILE OPTIONS twistie …
 Save your Route, App ID and App Secret …
* You will need your App values to configure the IBM Bluemix Push code.
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 5 IBM Corporation

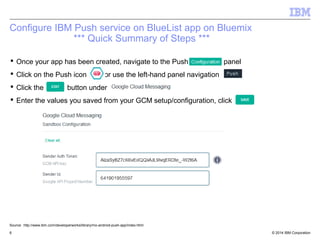

5. Configure IBM Push service on BlueList app on Bluemix
*** Quick Summary of Steps ***
 Once your app has been created, navigate to the Push panel
 Click on the Push icon or use the left-hand panel navigation
 Click the button under
 Enter the values you saved from your GCM setup/configuration, click
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 6 IBM Corporation

6. Configure IBM Push service on BlueList app on Bluemix
*** Quick Summary of Steps ***
 Once your app has been created, navigate to the Push panel
 Click on the Push icon or use the left-hand panel navigation
 Click the button under
 Enter the values you saved from your GCM setup/configuration, click
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 7 IBM Corporation

7. IBM Push for Bluemix – Fast Path

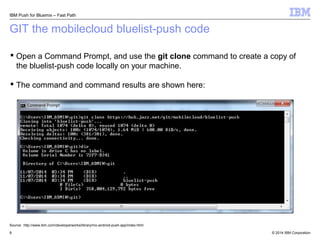

GIT the mobilecloud bluelist-push code
 Open a Command Prompt, and use the git clone command to create a copy of
the bluelist-push code locally on your machine.
 The command and command results are shown here:
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 8 IBM Corporation

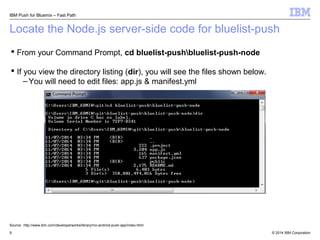

8. IBM Push for Bluemix – Fast Path
Locate the Node.js server-side code for bluelist-push
 From your Command Prompt, cd bluelist-pushbluelist-push-node
 If you view the directory listing (dir), you will see the files shown below.
–You will need to edit files: app.js & manifest.yml
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 9 IBM Corporation

9. IBM Push for Bluemix – Fast Path

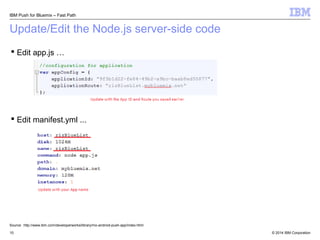

Update/Edit the Node.js server-side code
 Edit app.js …
 Edit manifest.yml ...
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 10 IBM Corporation

10. IBM Push for Bluemix – Fast Path

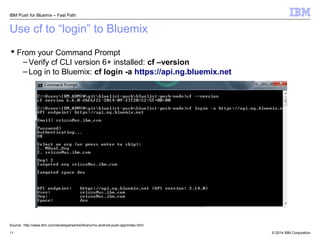

Use cf to “login” to Bluemix
 From your Command Prompt
– Verify cf CLI version 6+ installed: cf –version
– Log in to Bluemix: cf login -a https://api.ng.bluemix.net
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 11 IBM Corporation

11. IBM Push for Bluemix – Fast Path

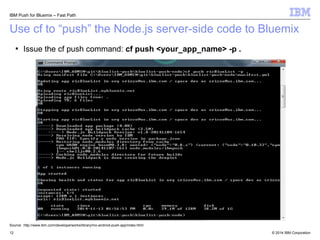

Use cf to “push” the Node.js server-side code to Bluemix
 Issue the cf push command: cf push <your_app_name> -p .
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 12 IBM Corporation

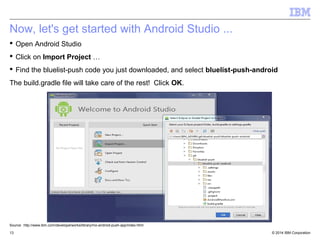

12. Now, let's get started with Android Studio ...
 Open Android Studio
 Click on Import Project …
 Find the bluelist-push code you just downloaded, and select bluelist-push-android
The build.gradle file will take care of the rest! Click OK.
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 13 IBM Corporation

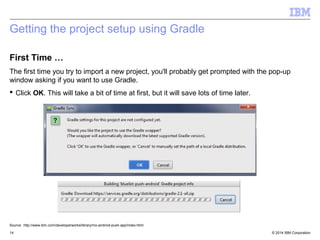

13. Getting the project setup using Gradle
First Time …
The first time you try to import a new project, you'll probably get prompted with the pop-up
window asking if you want to use Gradle.
 Click OK. This will take a bit of time at first, but it will save lots of time later.
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 14 IBM Corporation

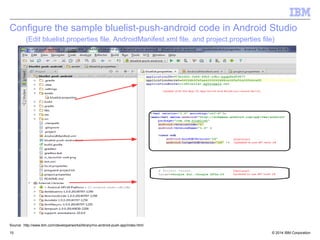

14. Configure the sample bluelist-push-android code in Android Studio
(Edit bluelist.properties file, AndroidManifest.xml file, and project.properties file)
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 15 IBM Corporation

15. Check your Android SDK Manager for Google Play services
 Open your Android SDK Manager …
 Make sure you have Google Play services installed …
 Check to see what Android API levels you have installed so you know what API levels your
Android emulator can use ( I have multiple API levels, but will be using API 19 here ) ...
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 16 IBM Corporation

16. Configure an Android emulator to run the mobile app
 Open your AVD (Android Virtual Device) Manager …
 Create a virtual device …
– Pick your device.
• I picked a Nexus 4 phone
– Pick your Release/API Level. Make sure it includes Google APIs.
• I picked KitKat (API 19) x86 Google APIs
– An AVD Name will be assigned, but you can change it to a more descriptive name.
• I renamed my device 'android API-19 Google'
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 17 IBM Corporation

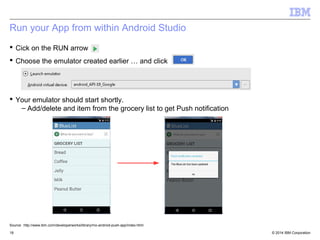

17. Run your App from within Android Studio
 Cick on the RUN arrow
 Choose the emulator created earlier … and click
 Your emulator should start shortly.
– Add/delete and item from the grocery list to get Push notification
Source: http://www.ibm.com/developerworks/library/mo-android-push-app/index.html
© 2014 18 IBM Corporation
