1. Architectural concepts
A guide to architectural
design concepts

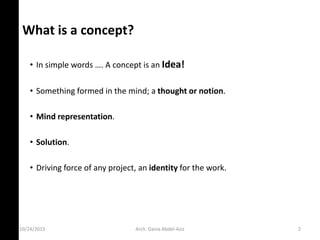

2. What is a concept?
• I si ple ords …. A o ept is a Idea!
• Something formed in the mind; a thought or notion.
• Mind representation.
• Solution.
• Driving force of any project, an identity for the work.
10/24/2015 Arch. Dania Abdel-Aziz 2

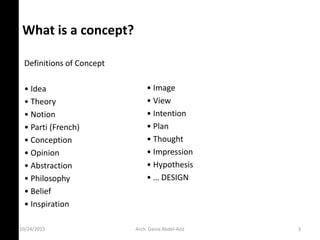

3. Definitions of Concept
• Idea
• Theor
• Notio
• Parti Fre h
• Co eptio
• Opi io
• A stra tio
• Philosoph
• Belief
• I spiratio
10/24/2015
What is a concept?
• Image
• View
• Intention
• Plan
• Thought
• Impression
• Hypothesis
• … DESIGN
Arch. Dania Abdel-Aziz 3

4. 10/24/2015 Arch. Dania Abdel-Aziz 4

5. 10/24/2015 Arch. Dania Abdel-Aziz 5

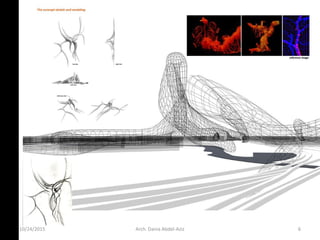

6. 10/24/2015 Arch. Dania Abdel-Aziz 6

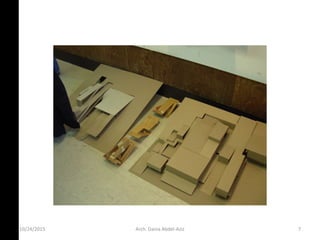

7. 10/24/2015 Arch. Dania Abdel-Aziz 7

8. 10/24/2015
Where do ideas (Concepts) come from?
• Site (site analysis)
• Program (functional requirements)
• Place / Culture / Society
• Technology / Materiel / Method
• Personal Architectural Influences
• Movement
• Space / Emotions
• Speed / Technology
• Memory / Place
• Precedent Research
Arch. Dania Abdel-Aziz 8

9. 10/24/2015

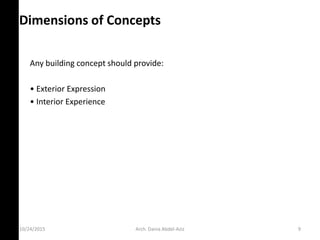

Dimensions of Concepts
Any building concept should provide:
• E terior E pressio
• I terior E perie e
Arch. Dania Abdel-Aziz 9

10. 10/24/2015

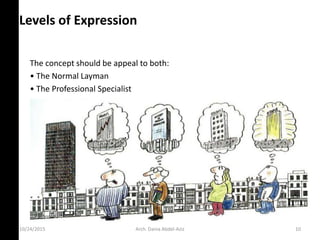

Levels of Expression
The concept should be appeal to both:
• The Nor al La a
• The Professio al Spe ialist
Arch. Dania Abdel-Aziz 10

11. 10/24/2015

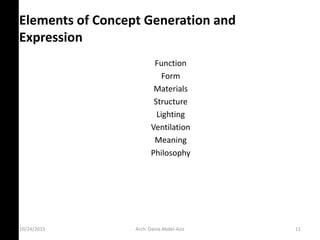

Elements of Concept Generation and
Expression
Function
Form
Materials
Structure
Lighting
Ventilation
Meaning
Philosophy
Arch. Dania Abdel-Aziz 11

12. 10/24/2015

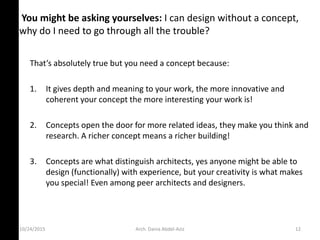

You might be asking yourselves: I can design without a concept,
why do I need to go through all the trouble?
That’s a solutel true ut ou eed a o ept e ause:
1. It gives depth and meaning to your work, the more innovative and
coherent your concept the more interesting your work is!
2. Concepts open the door for more related ideas, they make you think and
research. A richer concept means a richer building!
3. Concepts are what distinguish architects, yes anyone might be able to
design (functionally) with experience, but your creativity is what makes
you special! Even among peer architects and designers.
Arch. Dania Abdel-Aziz 12

13. 10/24/2015

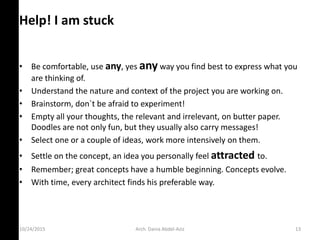

Help! I am stuck
• Be comfortable, use any, yes any way you find best to express what you
are thinking of.
• Understand the nature and context of the project you are working on.
• Brainstorm, don`t be afraid to experiment!
• Empty all your thoughts, the relevant and irrelevant, on butter paper.
Doodles are not only fun, but they usually also carry messages!
• Select one or a couple of ideas, work more intensively on them.
• Settle on the concept, an idea you personally feel attracted to.
• Remember; great concepts have a humble beginning. Concepts evolve.
• With time, every architect finds his preferable way.
Arch. Dania Abdel-Aziz 13

14. 10/24/2015
But also …

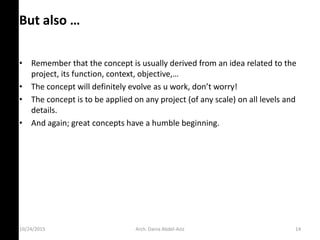

• Remember that the concept is usually derived from an idea related to the
proje t, its fu tio , o te t, o je ti e,…
• The concept will definitely e ol e as u ork, do ’t orr !
• The concept is to be applied on any project (of any scale) on all levels and
details.
• And again; great concepts have a humble beginning.
Arch. Dania Abdel-Aziz 14

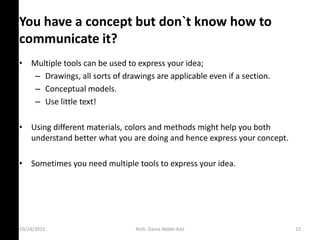

15. You have a concept but don`t know how to
communicate it?
• Multiple tools can be used to express your idea;
– Drawings, all sorts of drawings are applicable even if a section.
– Conceptual models.
– Use little text!
• Using different materials, colors and methods might help you both
understand better what you are doing and hence express your concept.
• Sometimes you need multiple tools to express your idea.
10/24/2015 Arch. Dania Abdel-Aziz 15

16. How can I express a concept?

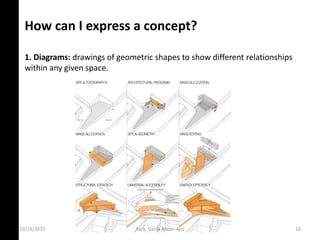

1. Diagrams: drawings of geometric shapes to show different relationships
within any given space.
10/24/2015 Arch. Dania Abdel-Aziz 16

17. 2. Parti: a type of diagram that serves as a
general idea to figure out a building's
program or layout . They are usually in the
form of quick sketches or even 3D models.
How can I express a concept?
10/24/2015 Arch. Dania Abdel-Aziz 17

18. Examples..

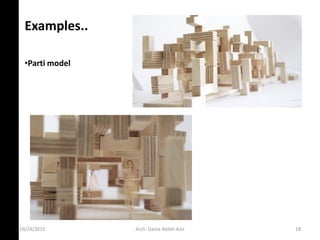

•Parti model
10/24/2015 Arch. Dania Abdel-Aziz 18

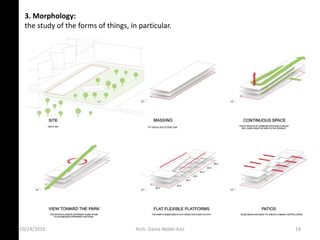

19. 3. Morphology:
the study of the forms of things, in particular.
10/24/2015 Arch. Dania Abdel-Aziz 19

20. 10/24/2015 Arch. Dania Abdel-Aziz 20

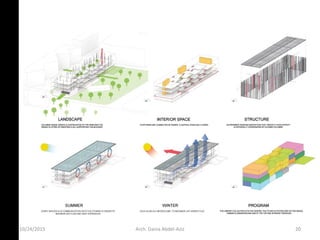

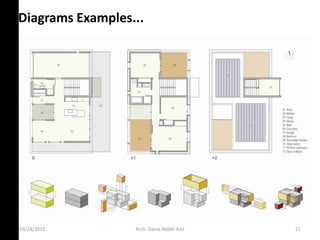

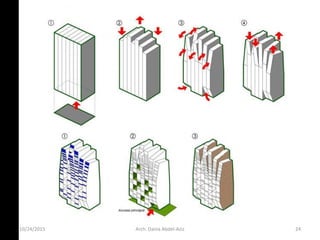

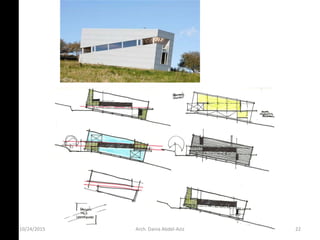

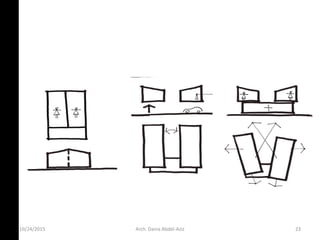

21. Diagrams Examples...
10/24/2015 Arch. Dania Abdel-Aziz 21

22. 10/24/2015 Arch. Dania Abdel-Aziz 22

23. 10/24/2015 Arch. Dania Abdel-Aziz 23

24. 10/24/2015 Arch. Dania Abdel-Aziz 24

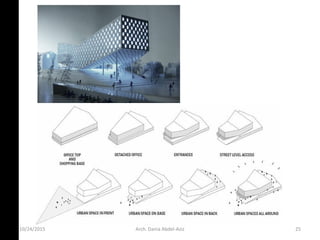

25. 10/24/2015 Arch. Dania Abdel-Aziz 25

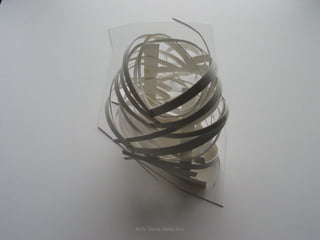

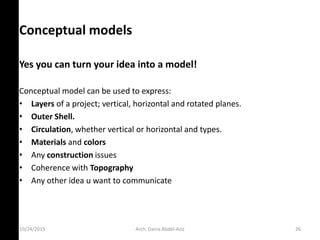

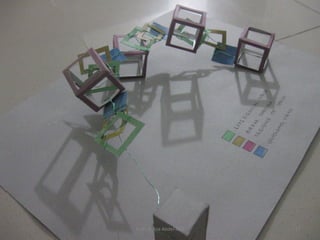

26. Conceptual models
Yes you can turn your idea into a model!
Conceptual model can be used to express:
• Layers of a project; vertical, horizontal and rotated planes.
• Outer Shell.
• Circulation, whether vertical or horizontal and types.
• Materials and colors
• Any construction issues
• Coherence with Topography
• Any other idea u want to communicate
10/24/2015 Arch. Dania Abdel-Aziz 26

27. 10/24/2015 Arch. Dania Abdel-Aziz 27

28. 10/24/2015 Arch. Dania Abdel-Aziz 28

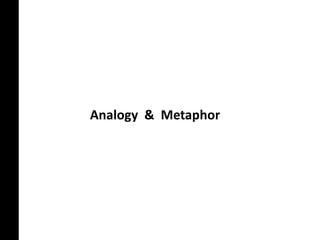

29. Analogy & Metaphor

30. Definition

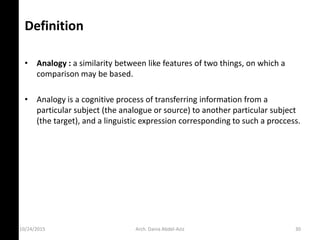

• Analogy : a similarity between like features of two things, on which a
comparison may be based.
• Analogy is a cognitive process of transferring information from a
particular subject (the analogue or source) to another particular subject
(the target), and a linguistic expression corresponding to such a proccess.
10/24/2015 Arch. Dania Abdel-Aziz 30

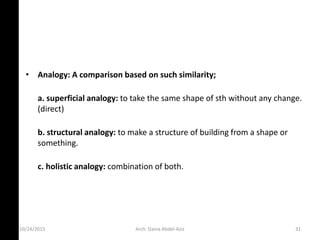

31. • Analogy: A comparison based on such similarity;
a. superficial analogy: to take the same shape of sth without any change.
(direct)
b. structural analogy: to make a structure of building from a shape or
something.
c. holistic analogy: combination of both.
10/24/2015 Arch. Dania Abdel-Aziz 31

32. Metaphor
• Metaphor is a literary term which means "carrying-over and a synonym is
the word transfer.
• It associates meanings, emotions, things , times and places which
otherwise would not have been related.
10/24/2015 Arch. Dania Abdel-Aziz 32

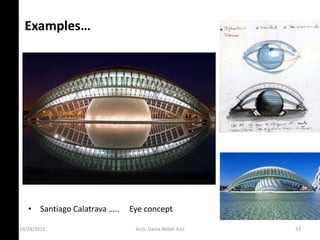

33. Examples…
• Sa tiago Calatra a ….. E e o ept
10/24/2015 Arch. Dania Abdel-Aziz 33

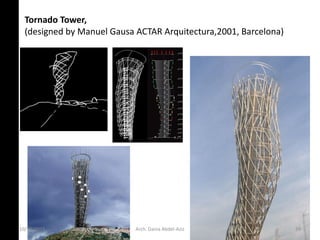

34. Tornado Tower,
(designed by Manuel Gausa ACTAR Arquitectura,2001, Barcelona)
10/24/2015 Arch. Dania Abdel-Aziz 34

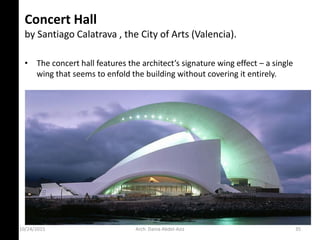

35. Concert Hall
by Santiago Calatrava , the City of Arts (Valencia).
• The o ert hall features the ar hite t’s sig ature i g effe t – a single
wing that seems to enfold the building without covering it entirely.
10/24/2015 Arch. Dania Abdel-Aziz 35

36. 10/24/2015 Arch. Dania Abdel-Aziz 36

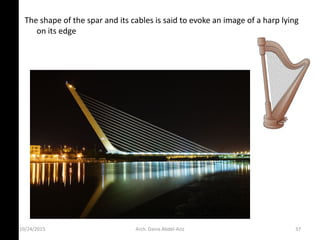

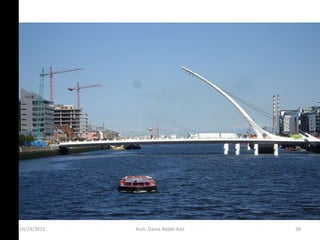

37. The shape of the spar and its cables is said to evoke an image of a harp lying
on its edge
10/24/2015 Arch. Dania Abdel-Aziz 37

38. 10/24/2015 Arch. Dania Abdel-Aziz 38

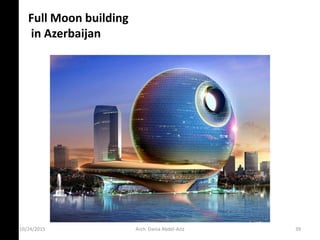

39. Full Moon building
in Azerbaijan
10/24/2015 Arch. Dania Abdel-Aziz 39

40. Steven holl;
Sponge concept
10/24/2015 Arch. Dania Abdel-Aziz 40

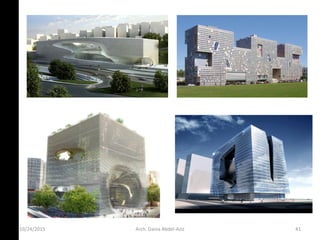

41. 10/24/2015 Arch. Dania Abdel-Aziz 41

42. Recommendations
• Be aware of the following:
– Overcomplicating the issue, remember your concept evolves.
– Being afraid of expressing you ideas.
– Using too much text.
– Not enjoying what you are doing.
10/24/2015 Arch. Dania Abdel-Aziz 42

43. Thank you


44. Examples 

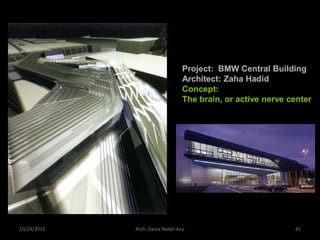

45. 10/24/2015 Arch. Dania Abdel-Aziz 45

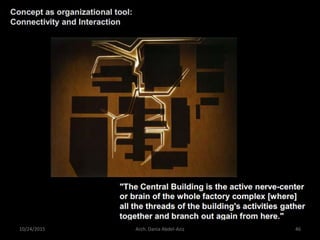

46. 10/24/2015 Arch. Dania Abdel-Aziz 46

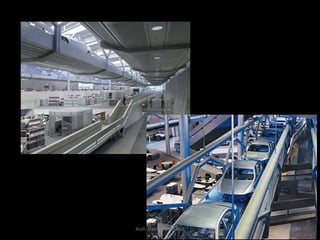

47. 10/24/2015 Arch. Dania Abdel-Aziz 47

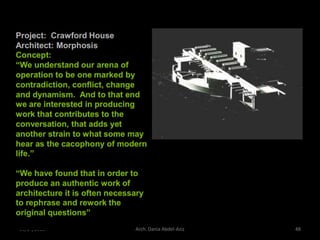

48. 10/24/2015 Arch. Dania Abdel-Aziz 48

49. 10/24/2015 Arch. Dania Abdel-Aziz 49

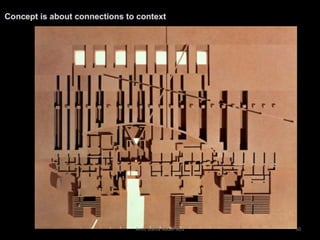

50. 10/24/2015 Arch. Dania Abdel-Aziz 50

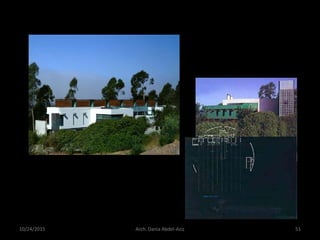

51. 10/24/2015 Arch. Dania Abdel-Aziz 51

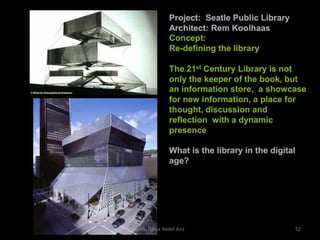

52. 10/24/2015 Arch. Dania Abdel-Aziz 52

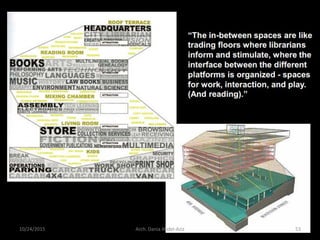

53. 10/24/2015 Arch. Dania Abdel-Aziz 53

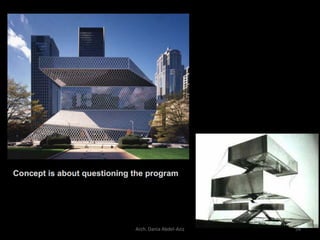

54. 10/24/2015 Arch. Dania Abdel-Aziz 54

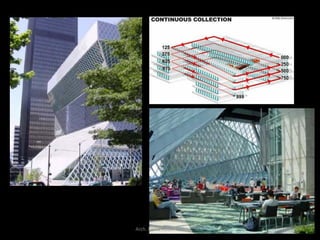

55. 10/24/2015 Arch. Dania Abdel-Aziz 55

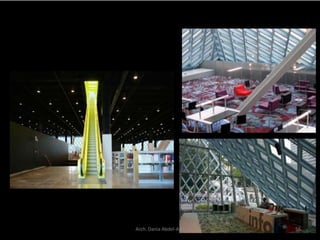

56. 10/24/2015 Arch. Dania Abdel-Aziz 56

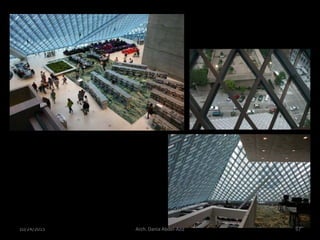

57. 10/24/2015 Arch. Dania Abdel-Aziz 57

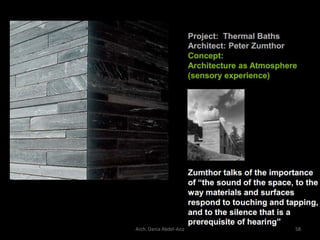

58. 10/24/2015 Arch. Dania Abdel-Aziz 58

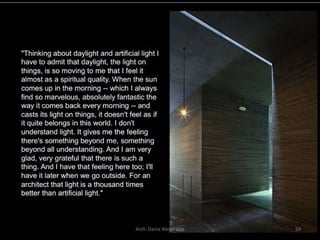

59. 10/24/2015 Arch. Dania Abdel-Aziz 59

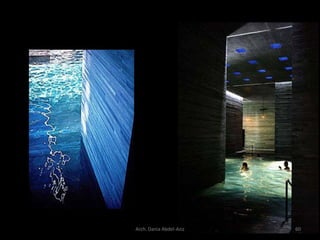

60. 10/24/2015 Arch. Dania Abdel-Aziz 60

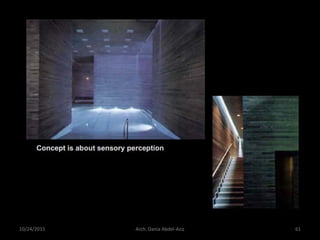

61. 10/24/2015 Arch. Dania Abdel-Aziz 61

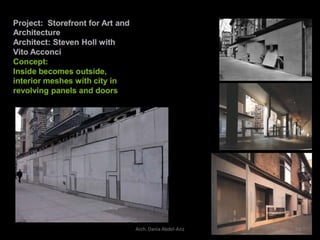

62. 10/24/2015 Arch. Dania Abdel-Aziz 62
