Nas net where model learn to generate models

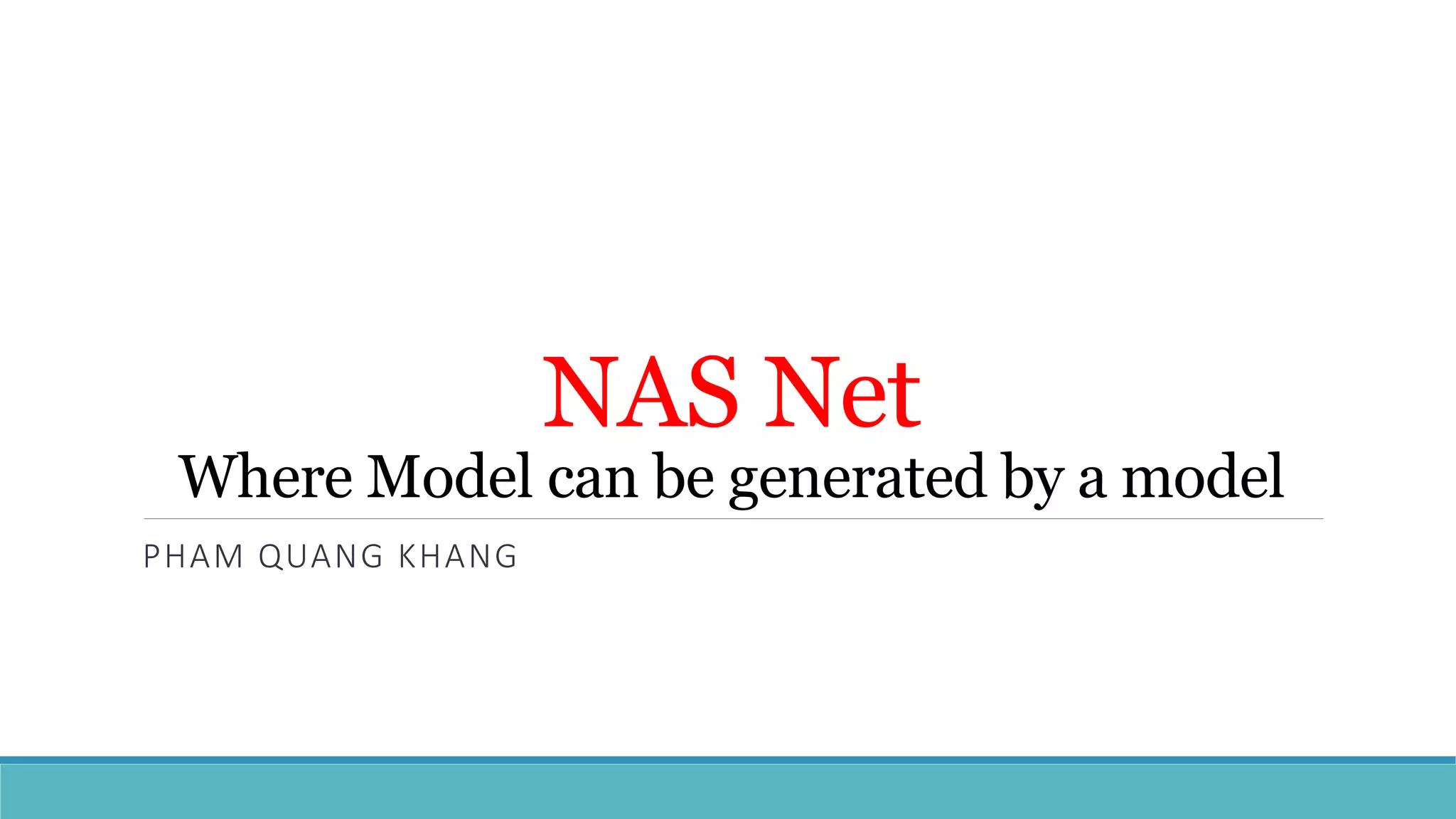

- 1. NAS Net Where Model can be generated by a model PHAM QUANG KHANG

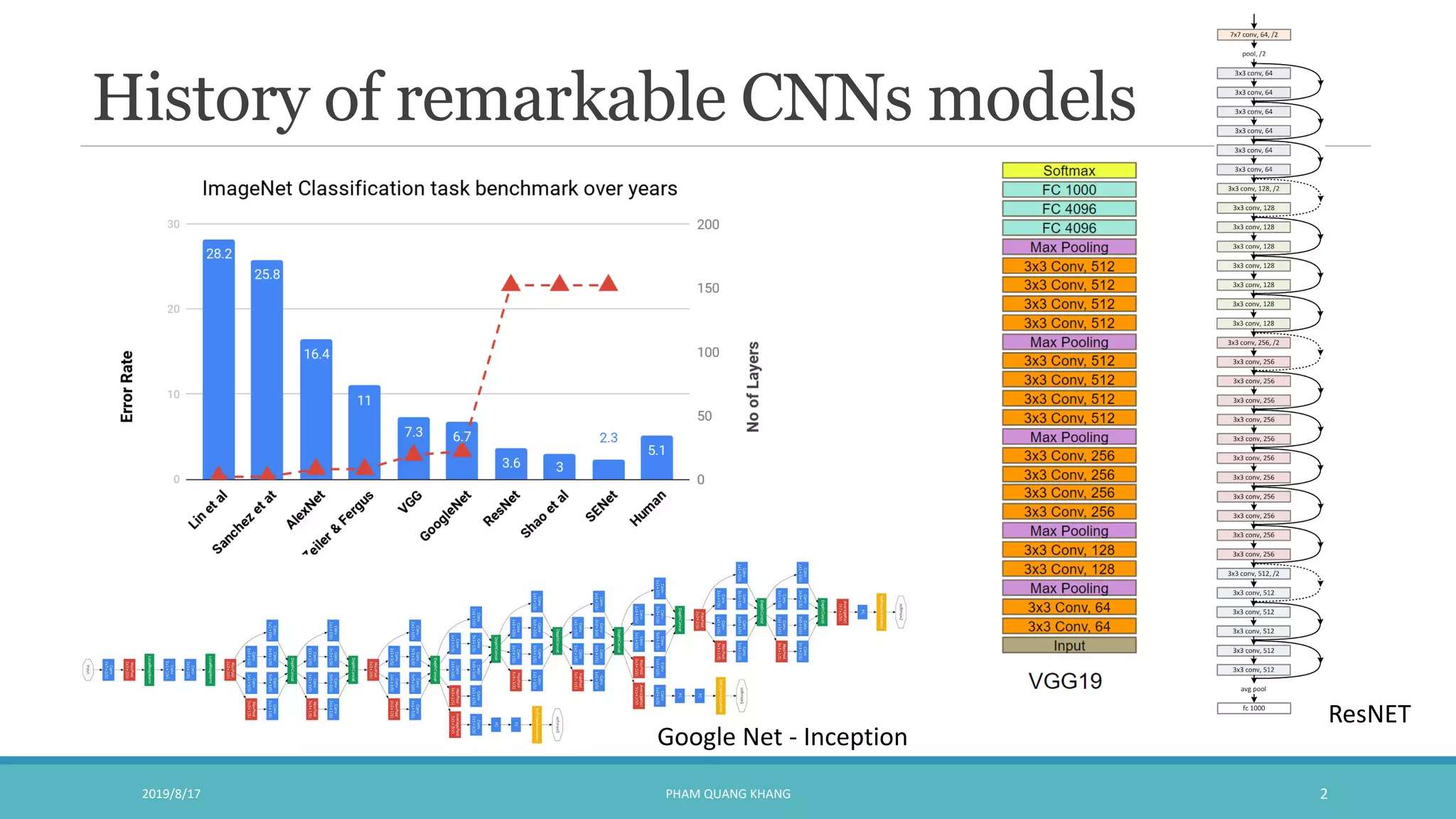

- 2. History of remarkable CNNs models 2019/8/17 PHAM QUANG KHANG 2 Google Net - Inception ResNET

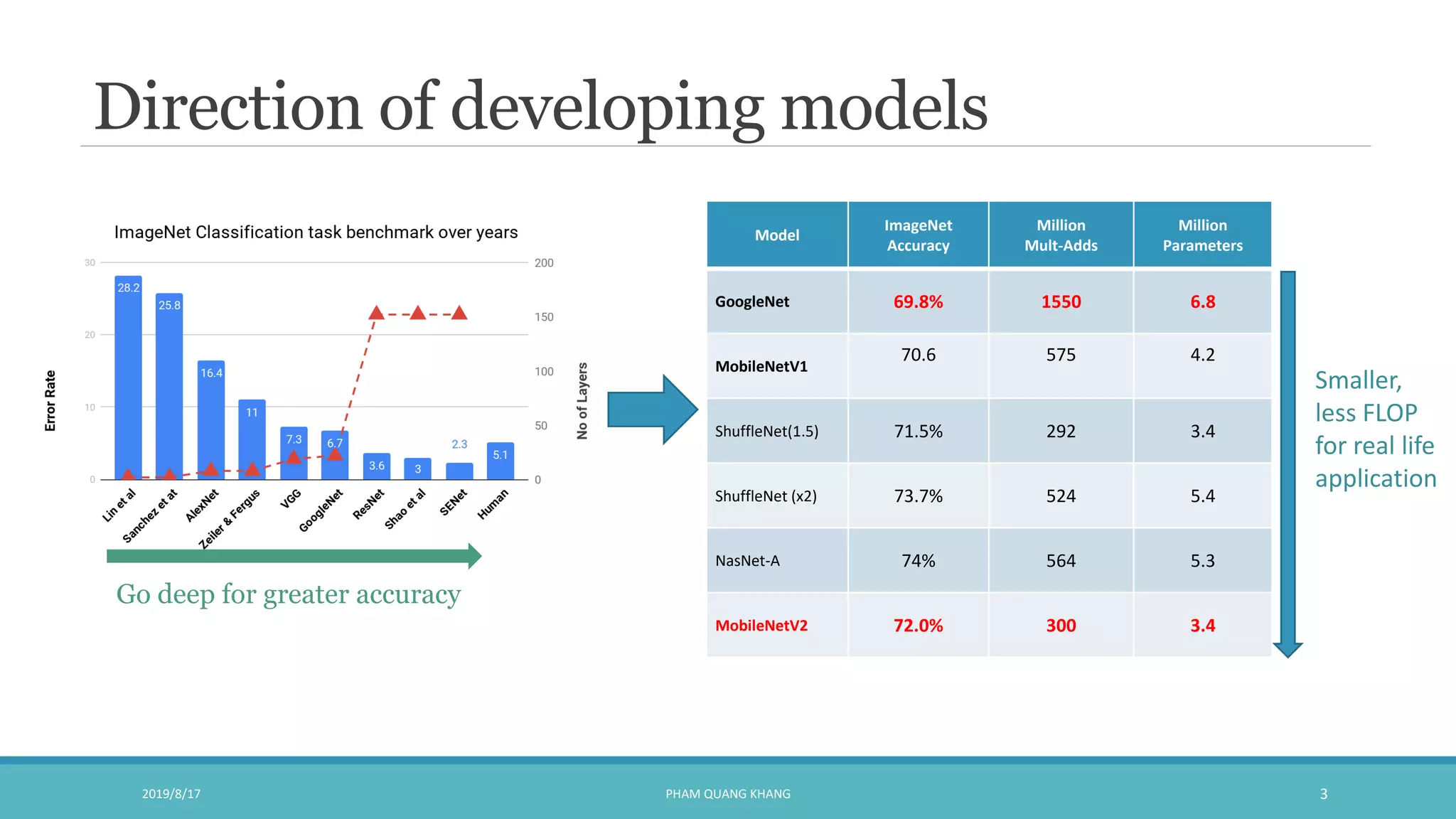

- 3. Direction of developing models 2019/8/17 PHAM QUANG KHANG 3 Model ImageNet Accuracy Million Mult-Adds Million Parameters GoogleNet 69.8% 1550 6.8 MobileNetV1 70.6 575 4.2 ShuffleNet(1.5) 71.5% 292 3.4 ShuffleNet (x2) 73.7% 524 5.4 NasNet-A 74% 564 5.3 MobileNetV2 72.0% 300 3.4 Go deep for greater accuracy Smaller, less FLOP for real life application

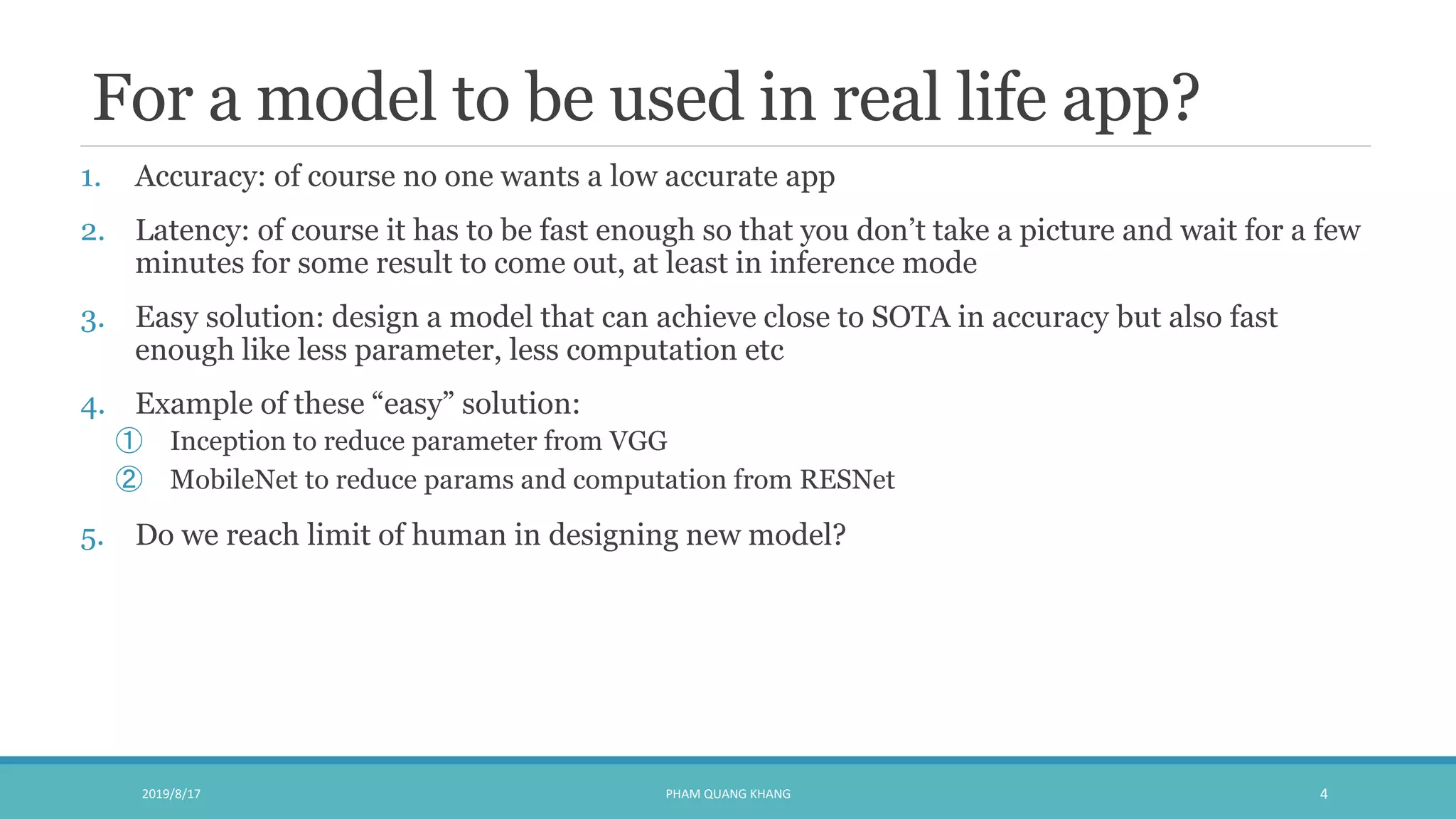

- 4. For a model to be used in real life app? 1. Accuracy: of course no one wants a low accurate app 2. Latency: of course it has to be fast enough so that you don’t take a picture and wait for a few minutes for some result to come out, at least in inference mode 3. Easy solution: design a model that can achieve close to SOTA in accuracy but also fast enough like less parameter, less computation etc 4. Example of these “easy” solution: ① Inception to reduce parameter from VGG ② MobileNet to reduce params and computation from RESNet 5. Do we reach limit of human in designing new model? 2019/8/17 PHAM QUANG KHANG 4

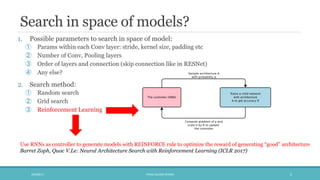

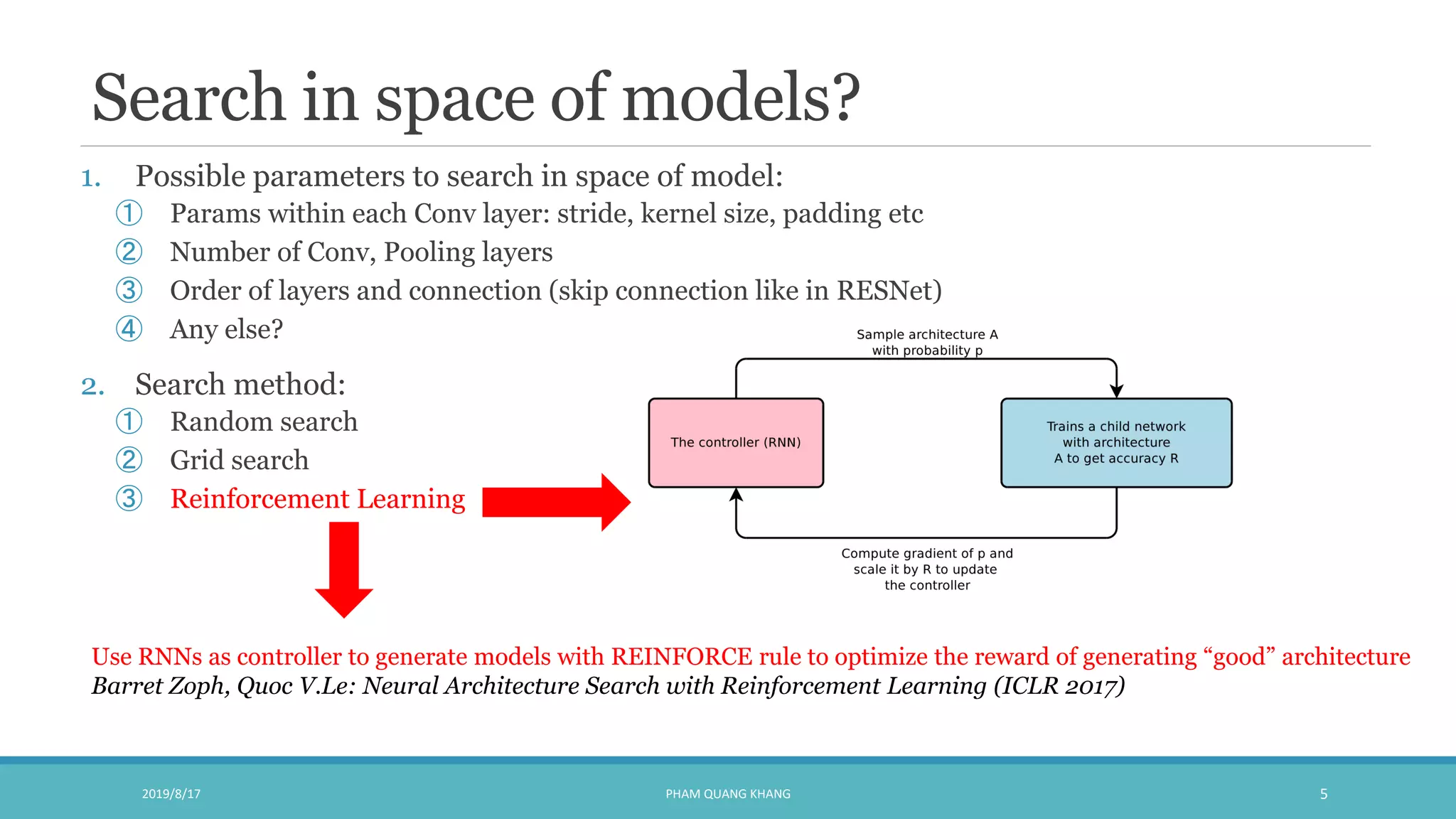

- 5. Search in space of models? 1. Possible parameters to search in space of model: ① Params within each Conv layer: stride, kernel size, padding etc ② Number of Conv, Pooling layers ③ Order of layers and connection (skip connection like in RESNet) ④ Any else? 2. Search method: ① Random search ② Grid search ③ Reinforcement Learning 2019/8/17 PHAM QUANG KHANG 5 Use RNNs as controller to generate models with REINFORCE rule to optimize the reward of generating “good” architecture Barret Zoph, Quoc V.Le: Neural Architecture Search with Reinforcement Learning (ICLR 2017)

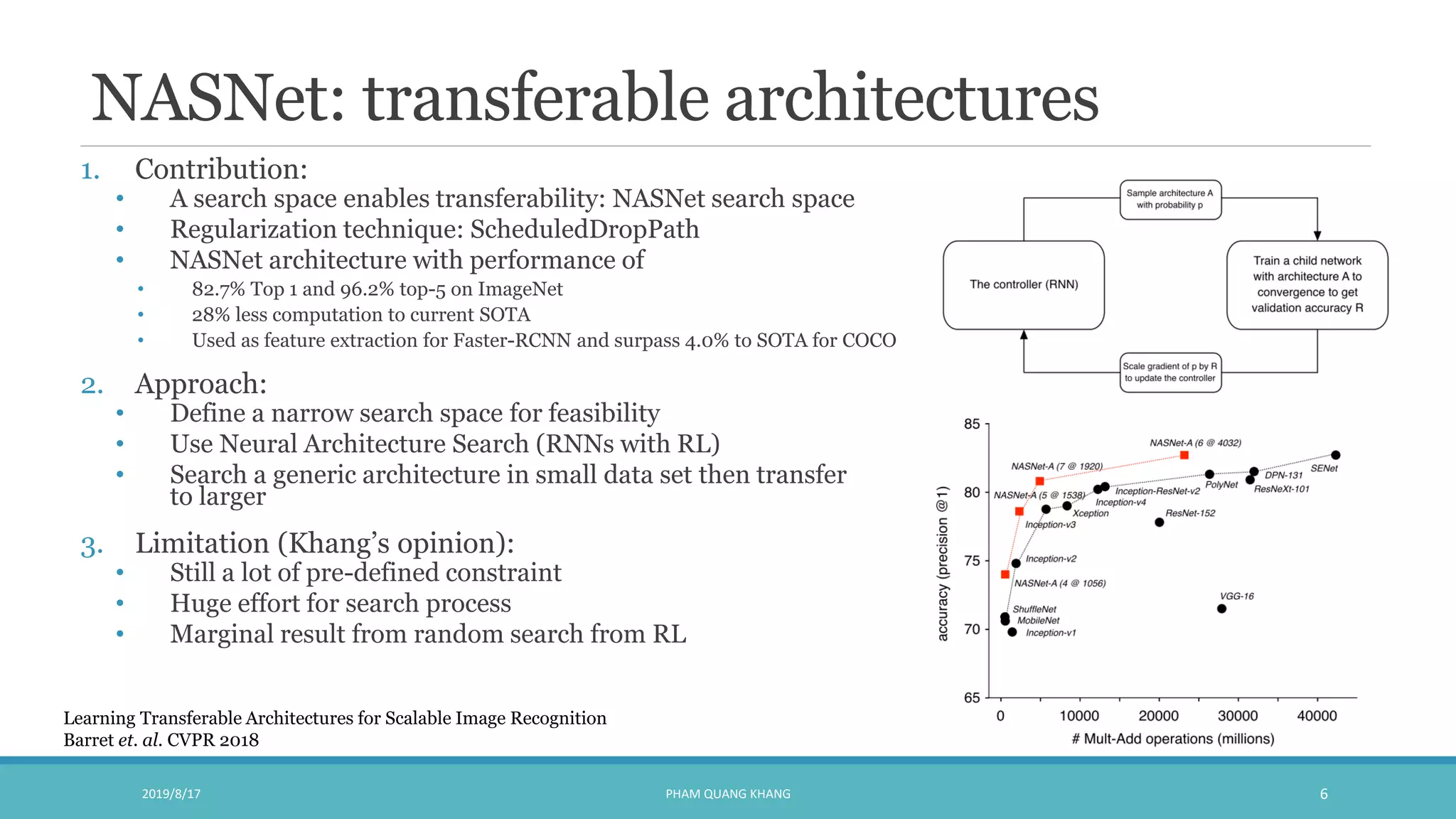

- 6. NASNet: transferable architectures 1. Contribution: • A search space enables transferability: NASNet search space • Regularization technique: ScheduledDropPath • NASNet architecture with performance of • 82.7% Top 1 and 96.2% top-5 on ImageNet • 28% less computation to current SOTA • Used as feature extraction for Faster-RCNN and surpass 4.0% to SOTA for COCO 2. Approach: • Define a narrow search space for feasibility • Use Neural Architecture Search (RNNs with RL) • Search a generic architecture in small data set then transfer to larger 3. Limitation (Khang’s opinion): • Still a lot of pre-defined constraint • Huge effort for search process • Marginal result from random search from RL 2019/8/17 PHAM QUANG KHANG 6 Learning Transferable Architectures for Scalable Image Recognition Barret et. al. CVPR 2018

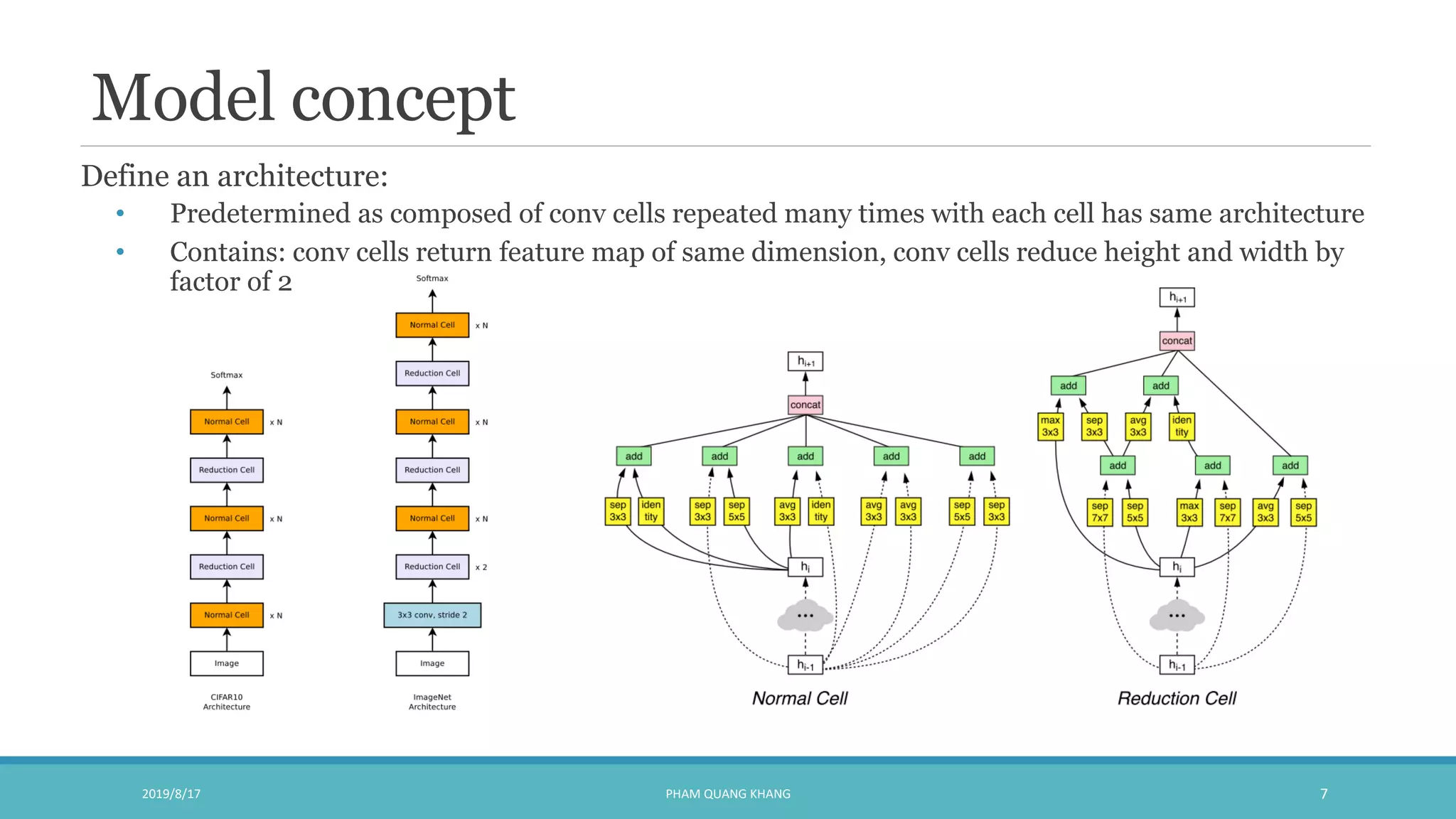

- 7. Model concept Define an architecture: • Predetermined as composed of conv cells repeated many times with each cell has same architecture • Contains: conv cells return feature map of same dimension, conv cells reduce height and width by factor of 2 2019/8/17 PHAM QUANG KHANG 7

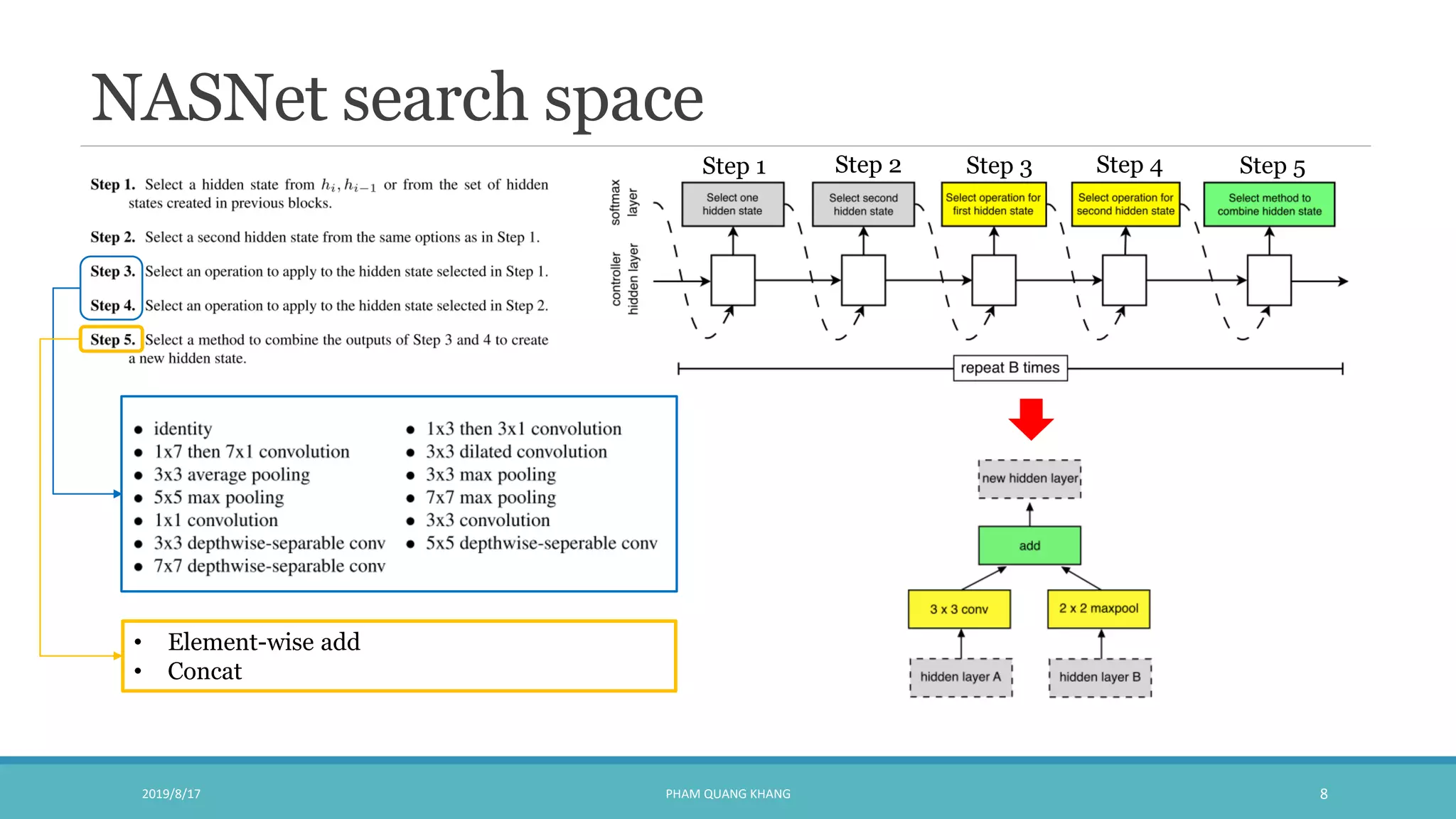

- 8. NASNet search space 2019/8/17 PHAM QUANG KHANG 8 • Element-wise add • Concat Step 1 Step 2 Step 3 Step 4 Step 5

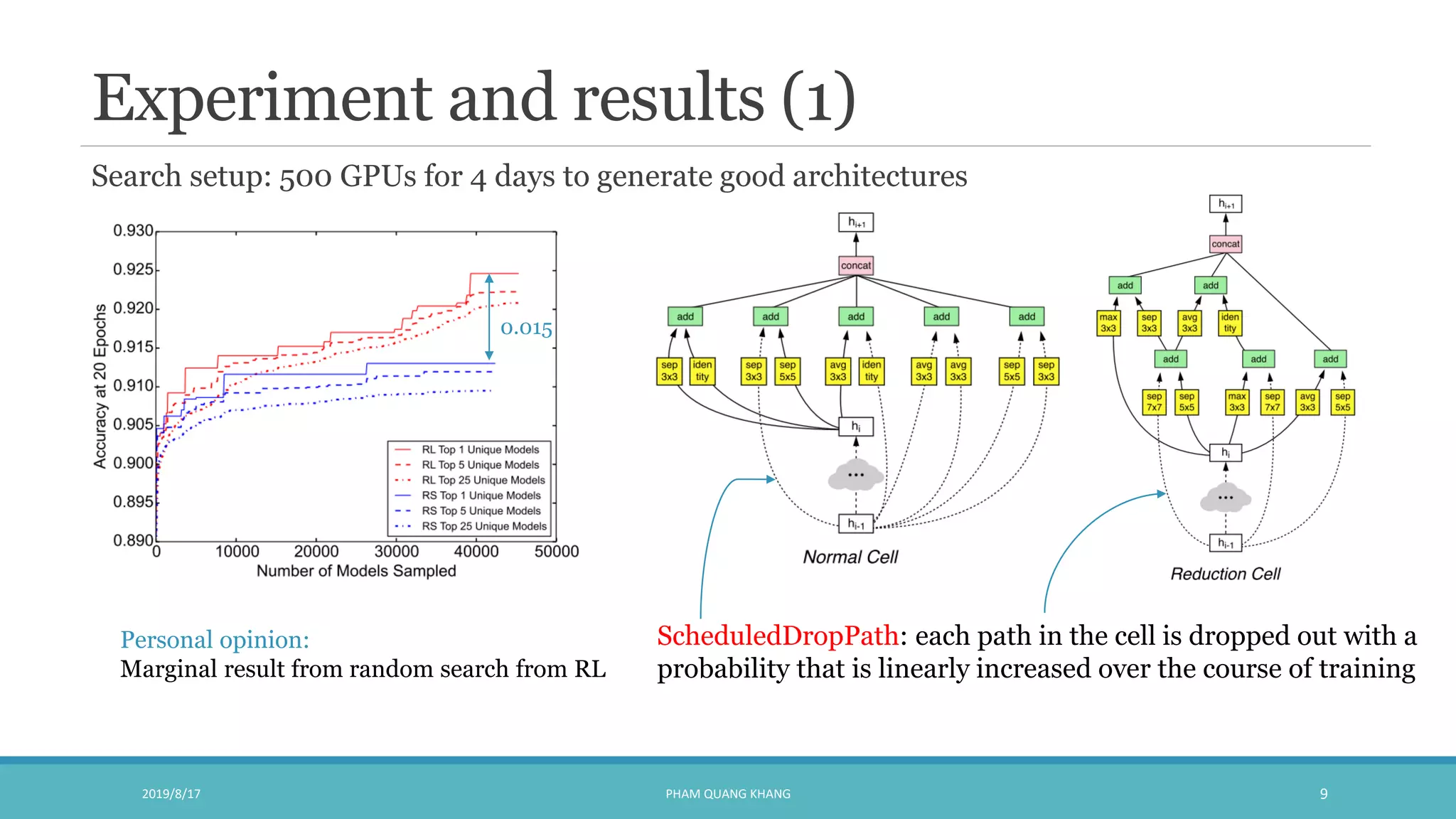

- 9. Experiment and results (1) Search setup: 500 GPUs for 4 days to generate good architectures 2019/8/17 PHAM QUANG KHANG 9 Personal opinion: Marginal result from random search from RL ScheduledDropPath: each path in the cell is dropped out with a probability that is linearly increased over the course of training 0.015

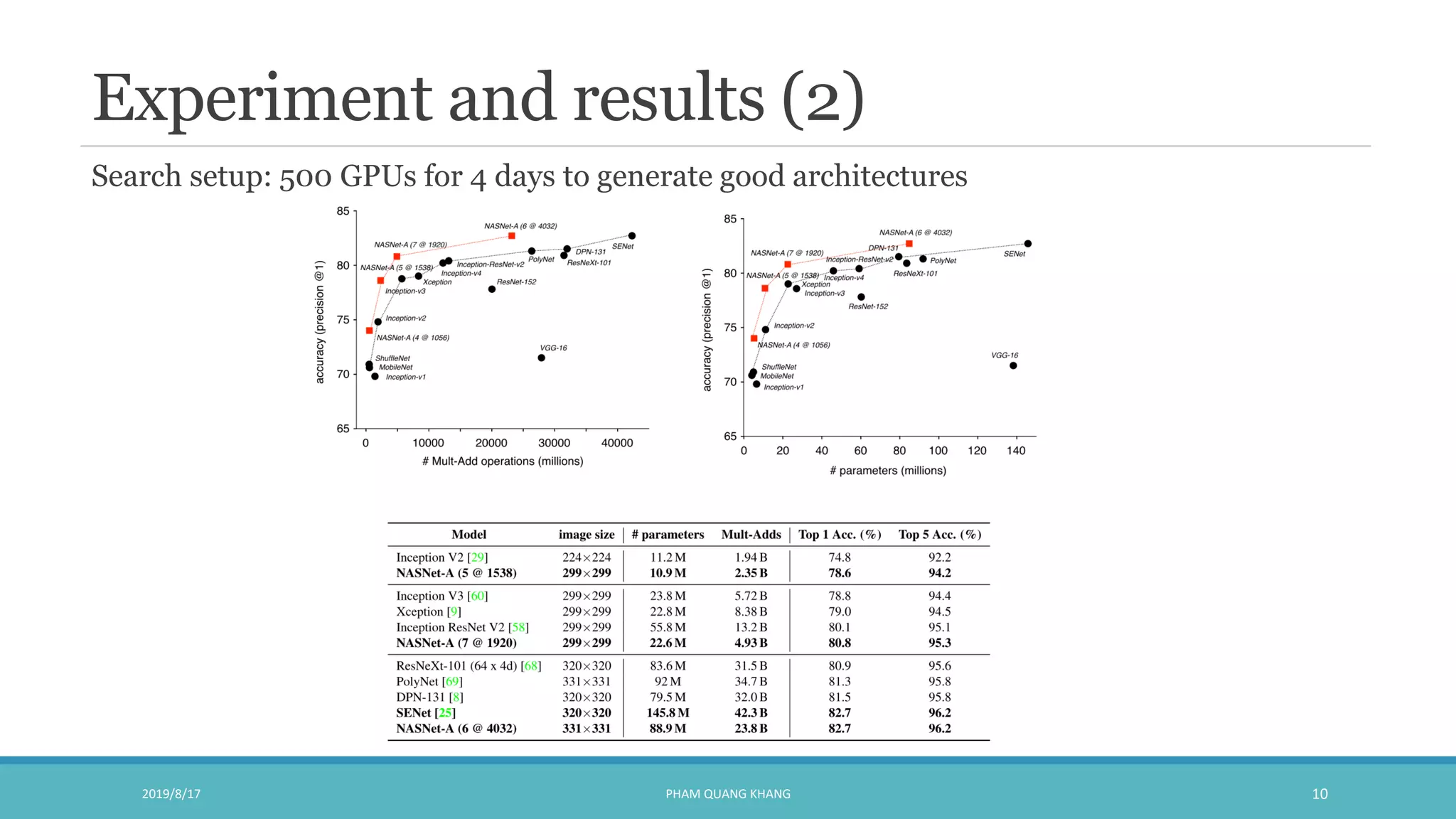

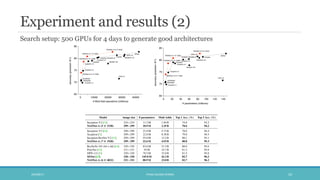

- 10. Experiment and results (2) Search setup: 500 GPUs for 4 days to generate good architectures 2019/8/17 PHAM QUANG KHANG 10

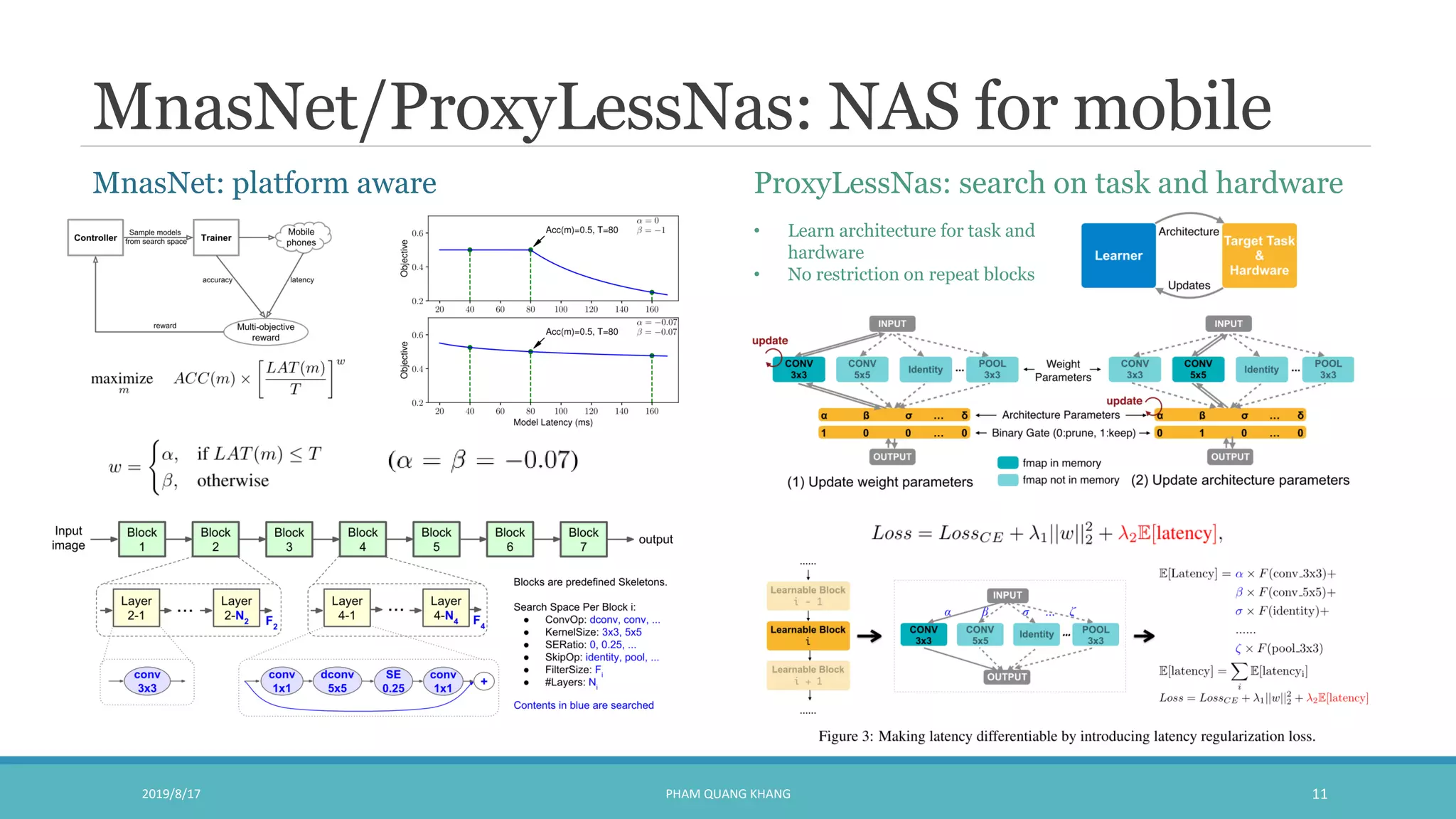

- 11. MnasNet/ProxyLessNas: NAS for mobile MnasNet: platform aware ProxyLessNas: search on task and hardware 2019/8/17 PHAM QUANG KHANG 11 • Learn architecture for task and hardware • No restriction on repeat blocks

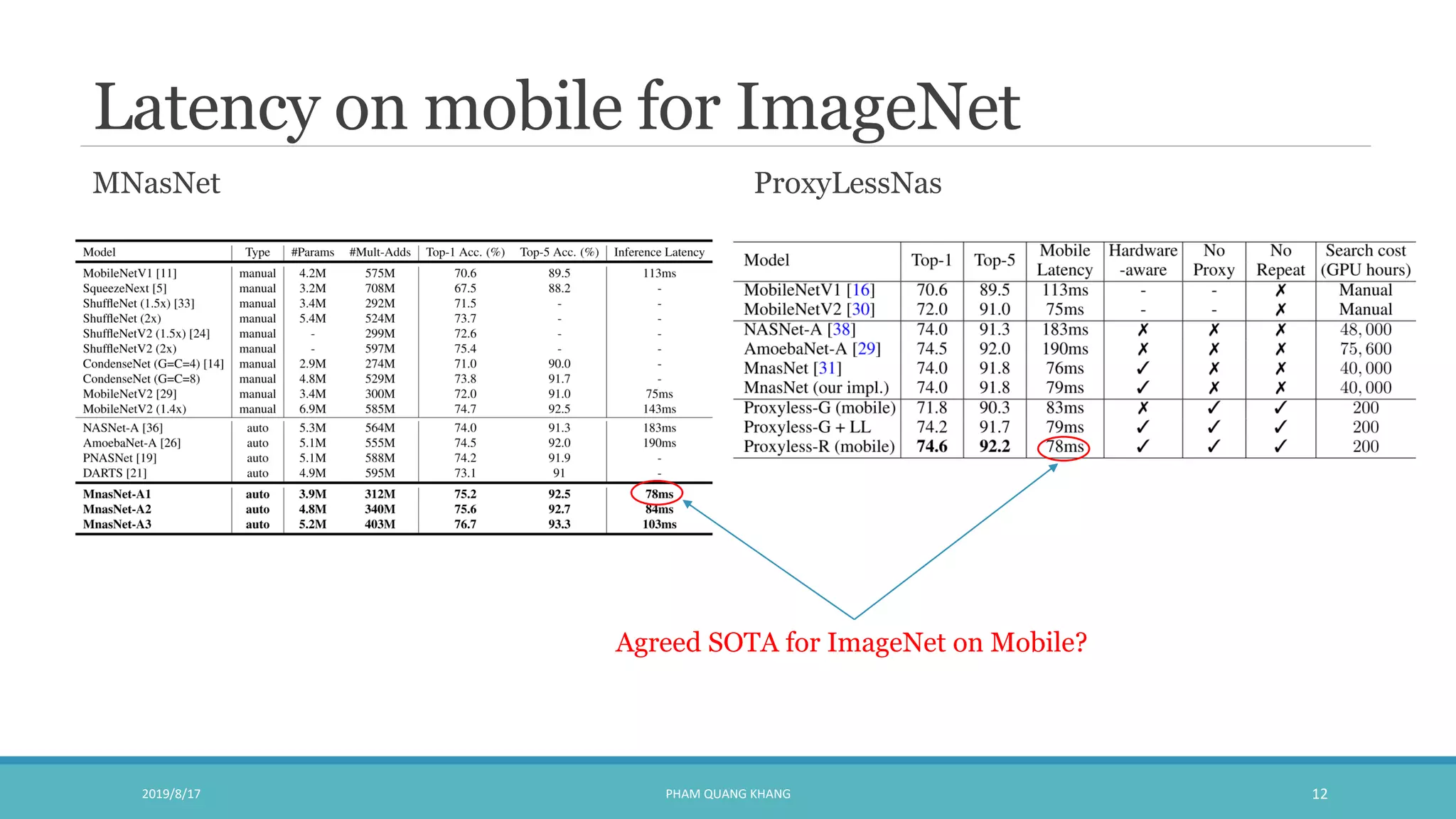

- 12. Latency on mobile for ImageNet MNasNet ProxyLessNas 2019/8/17 PHAM QUANG KHANG 12 Agreed SOTA for ImageNet on Mobile?

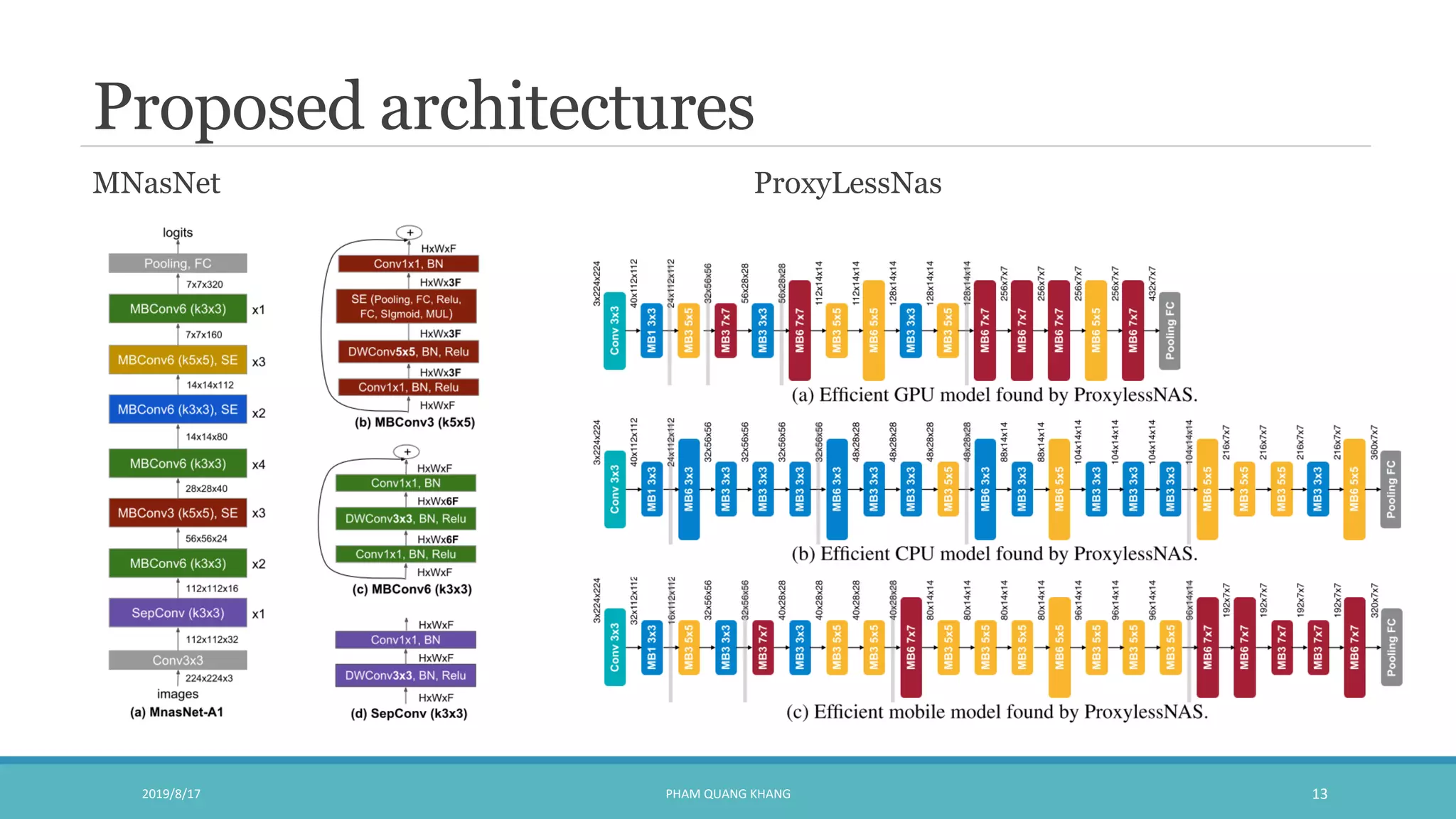

- 13. Proposed architectures MNasNet ProxyLessNas 2019/8/17 PHAM QUANG KHANG 13

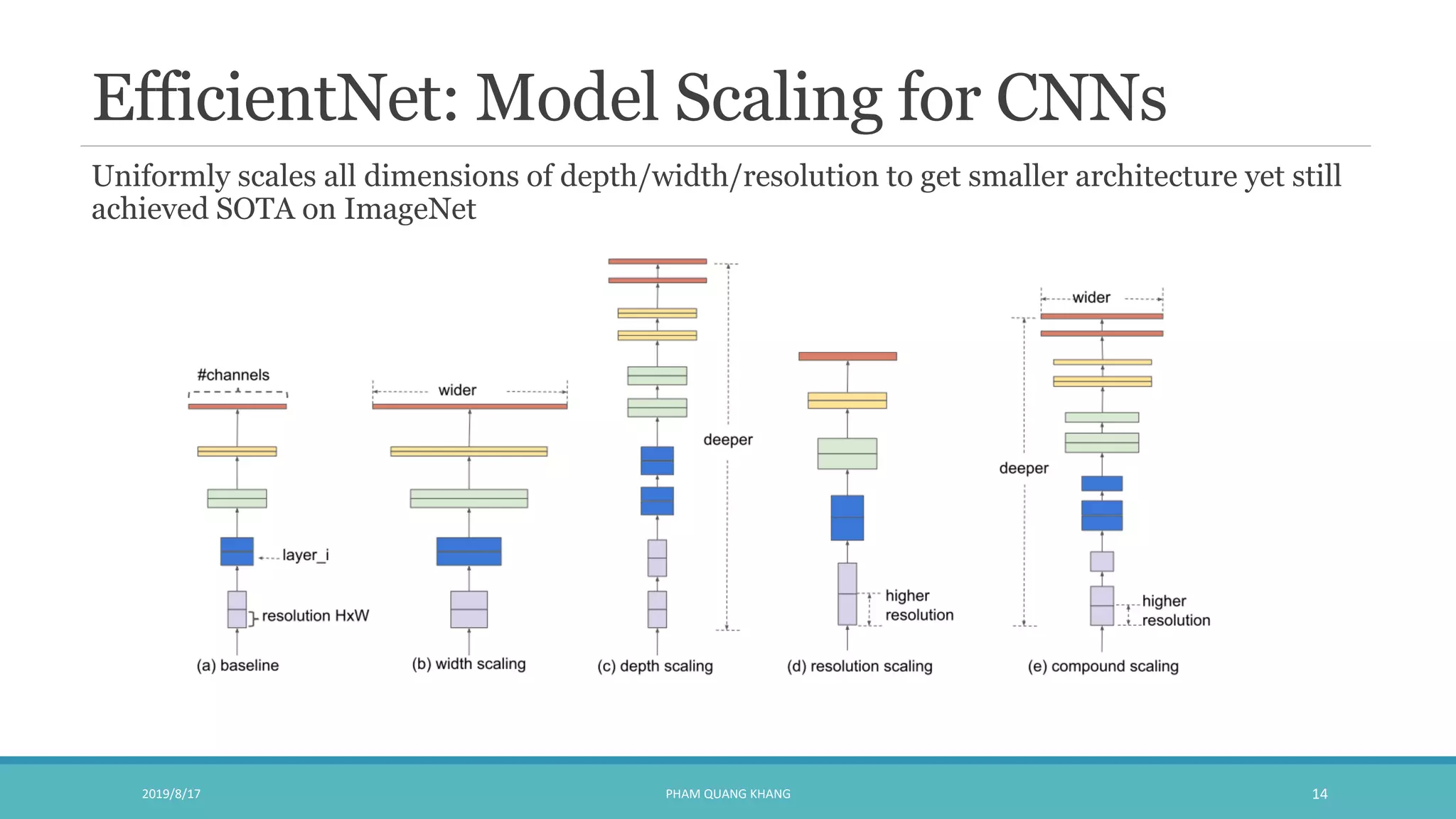

- 14. EfficientNet: Model Scaling for CNNs Uniformly scales all dimensions of depth/width/resolution to get smaller architecture yet still achieved SOTA on ImageNet 2019/8/17 PHAM QUANG KHANG 14

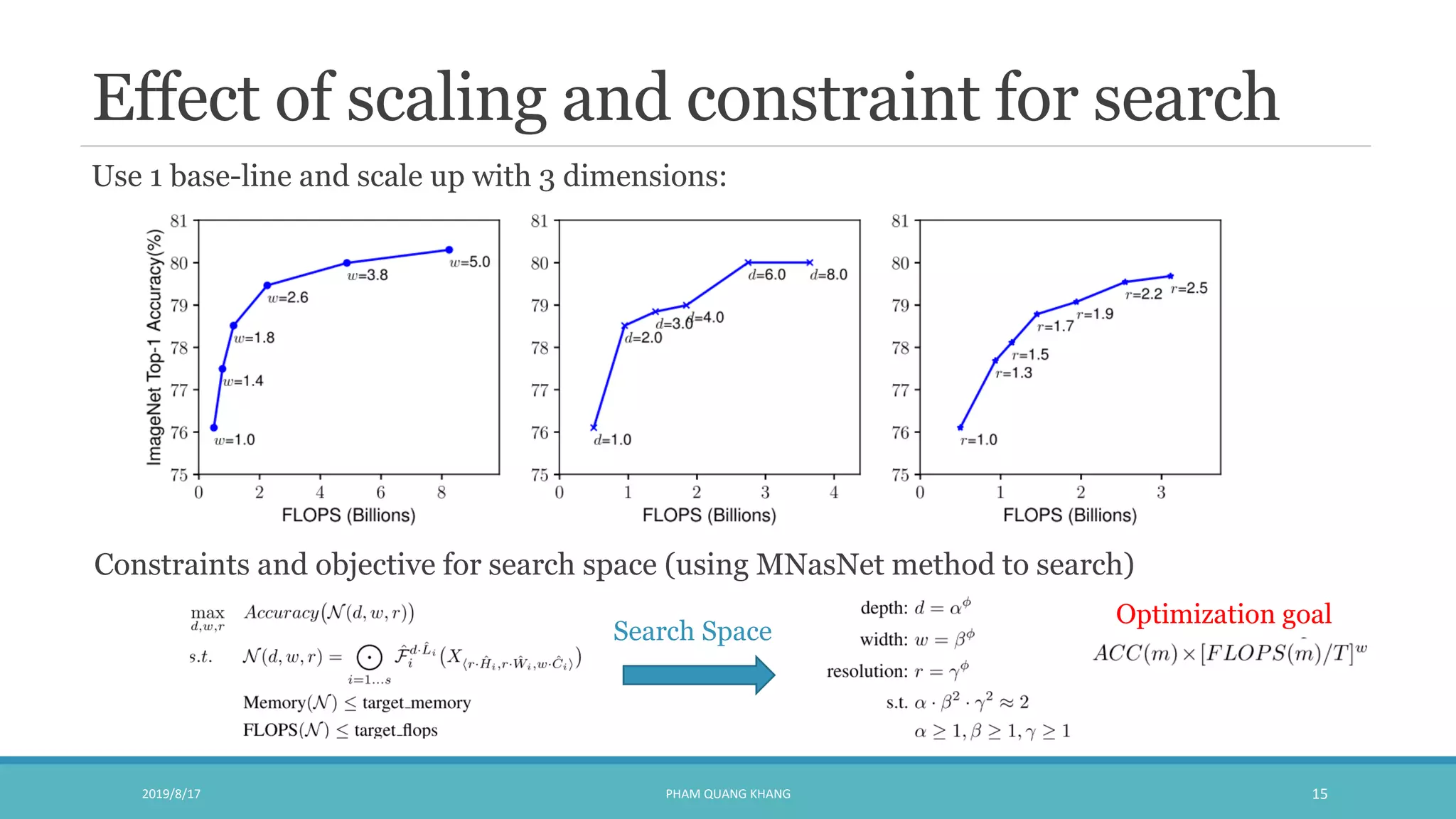

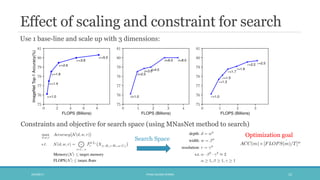

- 15. Effect of scaling and constraint for search Use 1 base-line and scale up with 3 dimensions: 2019/8/17 PHAM QUANG KHANG 15 Constraints and objective for search space (using MNasNet method to search) Search Space Optimization goal

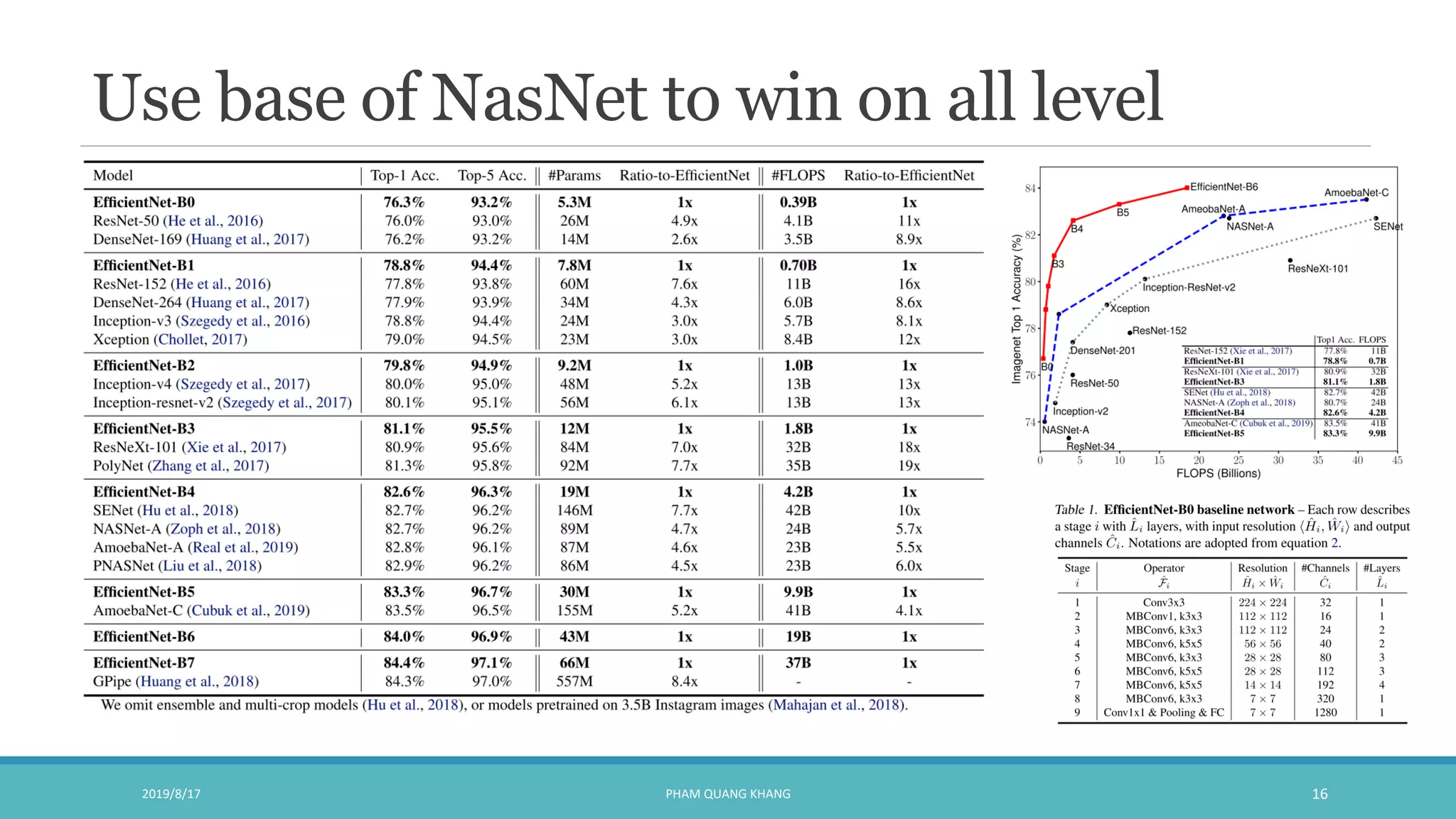

- 16. Use base of NasNet to win on all level 2019/8/17 PHAM QUANG KHANG 16
- 17. Thank you 2019/8/17 PHAM QUANG KHANG 17
