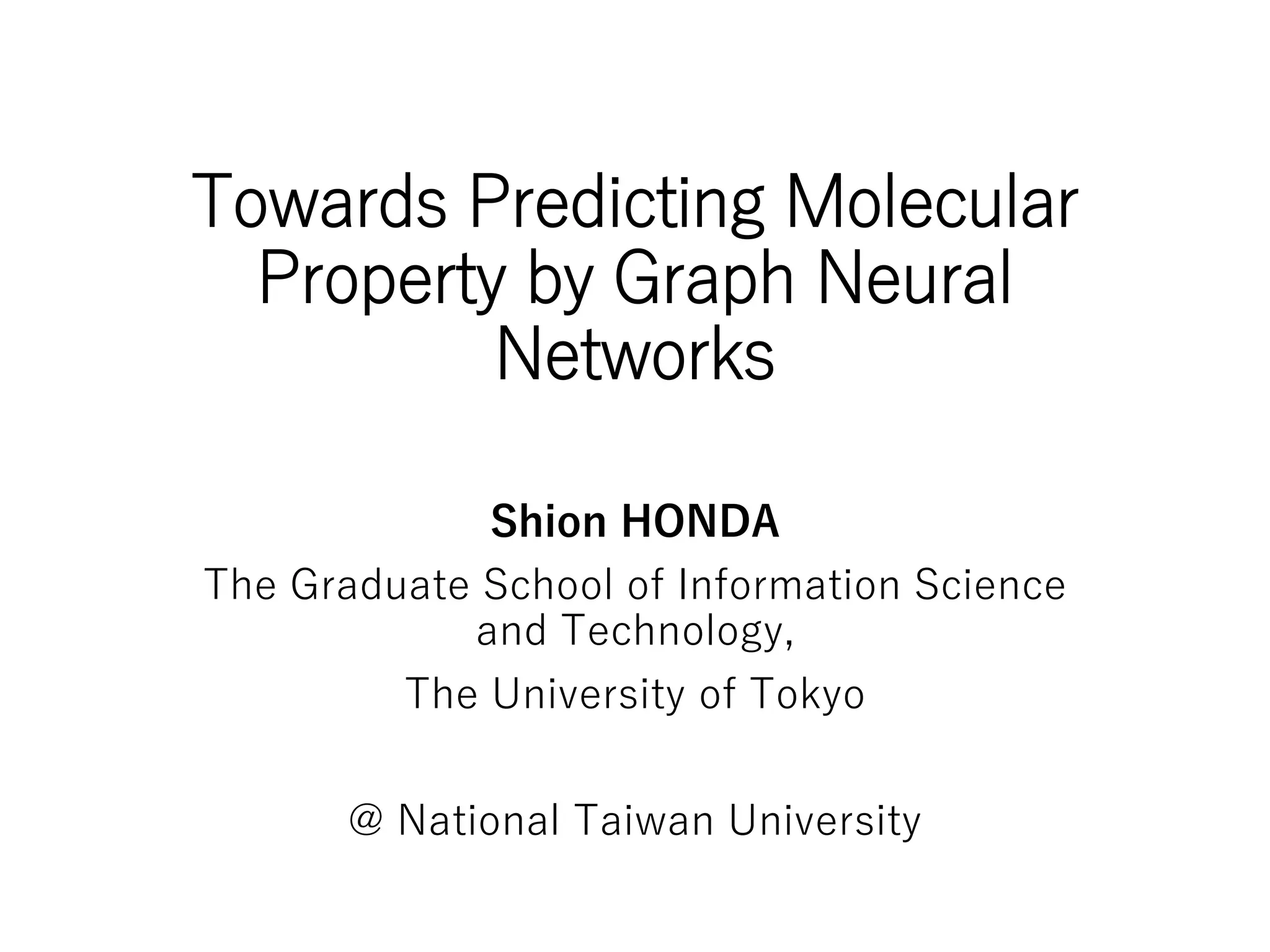

Towards Predicting Molecular
Property by Graph Neural
Networks
Shion HONDA
The Graduate School of Information Science
and Technology,
The University of Tokyo
@ National Taiwan University

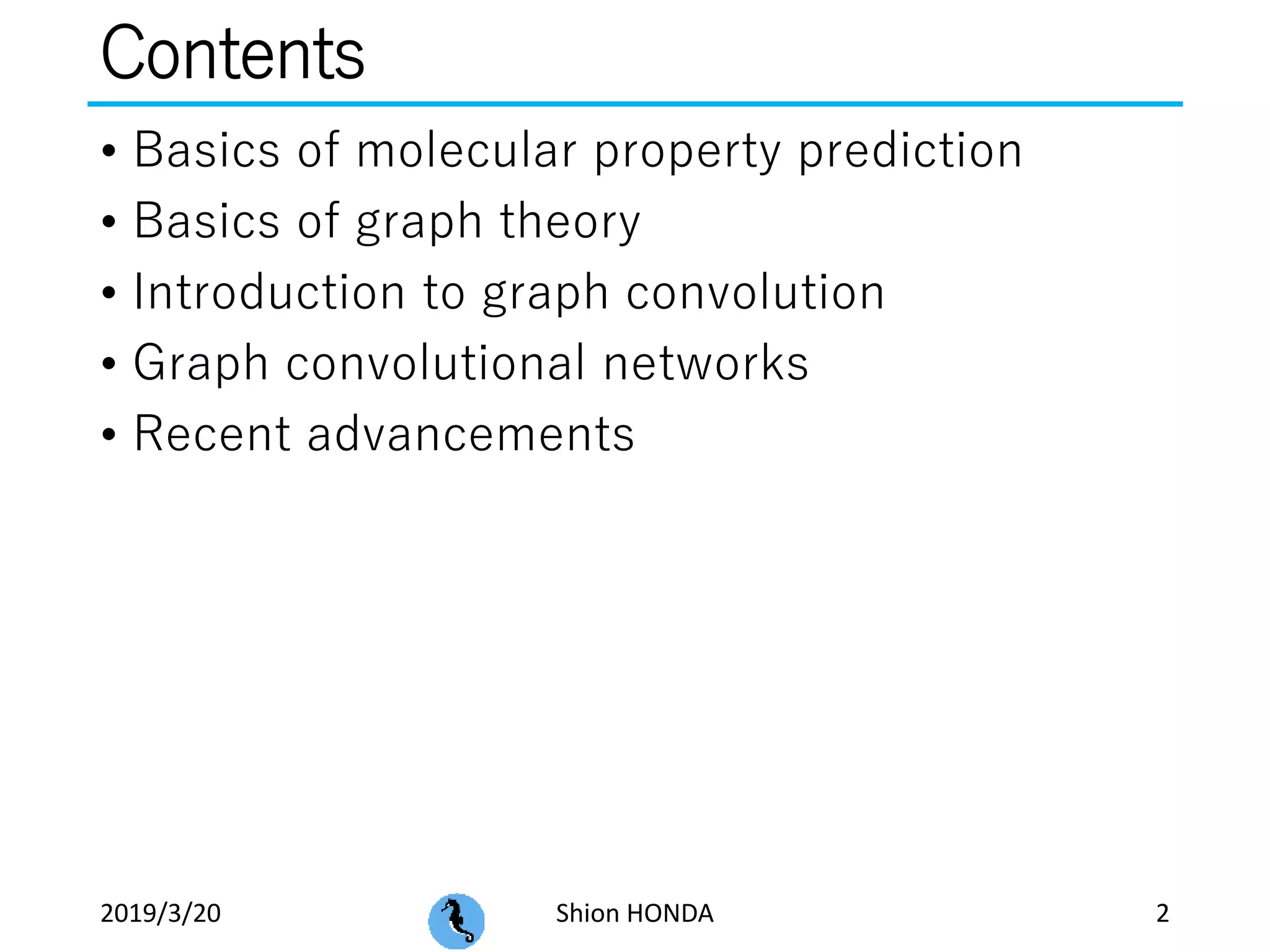

Contents
• Basics of molecular property prediction
• Basics of graph theory
• Introduction to graph convolution
• Graph convolutional networks
• Recent advancements
2019/3/20 Shion HONDA 2
Who Am I?
• Studying cheminformatics, or ML application
to drug discovery
• My interests: NLP, CV, GANs, RL etc
• SNS
2019/3/20 Shion HONDA 3
@shion_honda
@shionhonda
Why Graphs?
• Many kinds of data can be represented as
graphs
• Web
• Traffic network
• Social network
• Citation network
• Neuronal network
• Molecules
2019/3/20 Shion HONDA 4
Zachary’s karate club
Salicylic acid
Molecular Property Prediction
• When predicting molecular property by some
model, molecular fingerprints are useful
• Hand-crafted fingerprints
• MACCS Keys
• Circular fingerprint (most popular)
• Binary sparse vector
• Learned fingerprints
• SMILES-based
• Graph neural networks
2019/3/20 Shion HONDA 5
c1ccccc1C(=O)O
Graphs Are Difficult
• Unaligned structure
• Graphs are not aligned like images/texts
• Different structures and different tasks
• Directed vs undirected
• Weighted vs unweighted etc.
• Link prediction vs graph embedding
• Scalability
• Some graphs (e.g., web, SNS) are huge
• Domain knowledge
• In the case of molecules, link degrees are up to 5
• In the case of SNS, links are unevenly distributed
2019/3/20 Shion HONDA 6
Preliminaries And Definition
2019/3/20 Shion HONDA 7
Symbol Meaning
V, E Set of nodes, edges
N, M Number of nodes, edges
G=(V,E) Graph
𝐹 𝑉
, 𝐹 𝐸 Feature vector of nodes, edges
A Adjacency matrix
D Degree matrix
L=D-A Laplacian matrix
H Hidden vectors
Normalized Laplacian matrix
Learnable parameters
k-hop neighbors from node i
Graph Fourier Transform
• Eigen decomposition of normalized Laplacian
• U is a unitary matrix as L is a real symmetric
(Hermitian) matrix
• Graph Fourier transform of a signal on a
graph is defined as:
• Inverse operation
2019/3/20 Shion HONDA 8
Graph Convolution
• Convolution theorem
• Convolution of a filter
where
• Graph convolution is defined as a product of
matrices
2019/3/20 Shion HONDA 9
Naïve GCN
• is a filter
->Analogy of CNNs for images
• Arbitrary network can be
constructed by repeating
this operation
• Problems
• Eigen-decomposition has at least O(N^2) time
complexity
• Parameters cannot be shared over graphs of
different sizes
2019/3/20 Shion HONDA 10
ChebNet
• Eigen-decomposition can be avoided by
Chebyshev polynomials
• Learnable parameters are:
• Then graph convolution is defined as:
2019/3/20 Shion HONDA 11
GCN (Kipf & Welling)
• ChebNet when
• By assuming , graph conv. is
• By replacing and
stacking over channels to
where
2019/3/20 Shion HONDA 12
Independent of N
GCN Variants
• Neural Fingerprint
• PATCHY-SAN
• Message Passing Neural Network
• Graph Network
• Relational GCN
• Jumping Knowledge Network
2019/3/20 Shion HONDA 13
Recent Advances
• Autoencoder/VAE
• Decode in a non-parametric manner
• GAN + reinforcement learning
• Generate drug candidates
• e.g., MolGAN, GCPN
• Dynamic graphs
• In most of the real problems, graphs are dynamic
• e.g., web, electricity, SNS
• GCN+LSTM
2019/3/20 Shion HONDA 14
Summary
• Graph convolution can be defined with graph
Fourier transform
• Chebyshev polynomials approximation is
used to avoid computationally-expensive
eigen-decomposition
• Several other GCNs have been proposed
• Next direction: Generative models and
dynamic graphs
2019/3/20 Shion HONDA 15
References
[1] Z. Zhang et al., Deep Learning on Graphs: A Survey, arXiv, 2018.
[2] J. Zhou et al., Graph Neural Networks: A Review of Methods and
Applications, arXiv, 2018.
[3] Z. Wu et al., A Comprehensive Survey on Graph Neural Networks,
arXiv, 2019.
[4] D. I. Shuman et al., The Emerging Field of Signal Processing on
Graphs: Extending High-Dimensional Data Analysis to Networks and
Other Irregular Domains, IEEE Signal Processing Magazine, 2013.
[5]グラフラプラシアン - 初級Mathマニアの寝言
2019/3/20 Shion HONDA 16
