1. PRINCIPLES OF
SOFTWARE
ARCHITECTURE
IN RELATION TO TYPO3
TYPO3
CAMP
VENLO
22.4.2016

2. GERNOT SCHULMEISTER
Lives in Mönchengladbach
Developes websites with TYPO3 since Version 3.7
(2005)
Works for TeamWFP
Has a migration background and comes from
Southeast-Europe (Austria)
Likes operative CMS evaluations, Big Data,
Software Architecture, TYPO3 Events
facebook.com/gernot.schulmeister
twitter.com/mistakanista1
SEITE 2

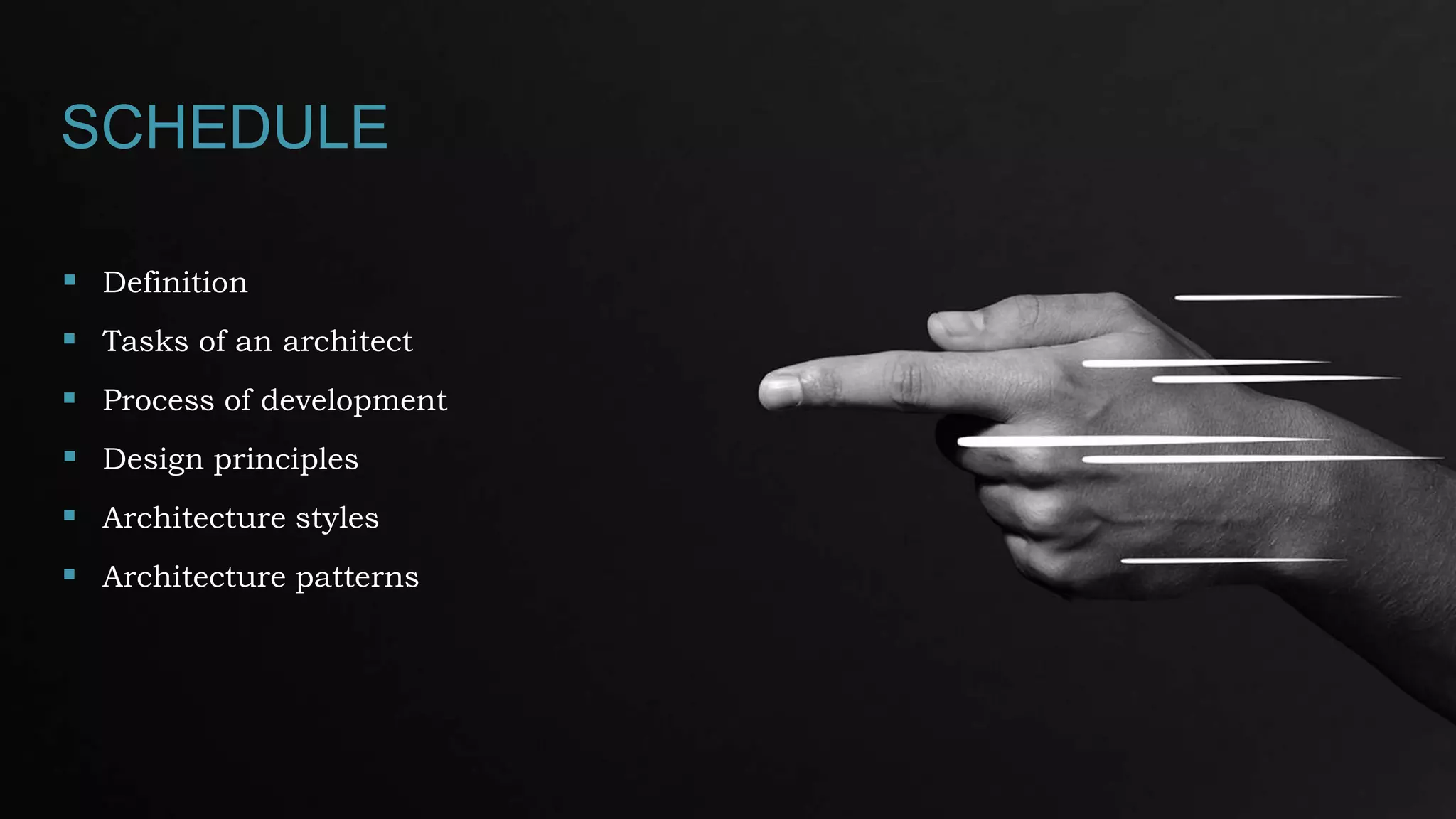

3. SCHEDULE
 Definition
 Tasks of an architect
 Process of development
 Design principles
 Architecture styles
 Architecture patterns

4. The fundamental organization of a
software system embodied in its
components, their relationships to
each other and to the
environment and the principles
guiding its design and evolution
DEFINITION

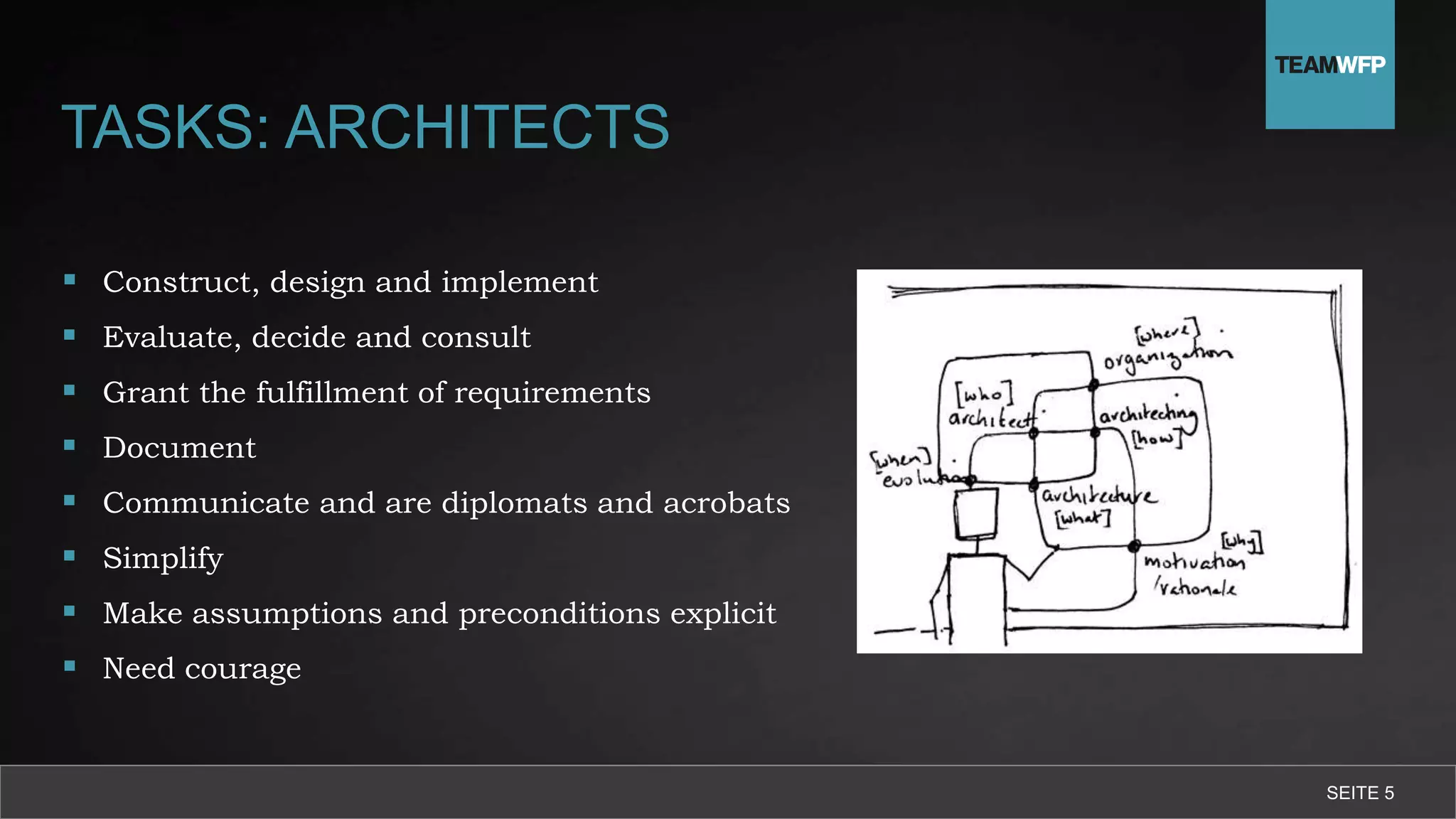

5. TASKS: ARCHITECTS
 Construct, design and implement
 Evaluate, decide and consult
 Grant the fulfillment of requirements
 Document
 Communicate and are diplomats and acrobats
 Simplify
 Make assumptions and preconditions explicit
 Need courage
SEITE 5

6. PROCESS OF
ARCHITECTURE
DEVELOPMENT
SEITE 6

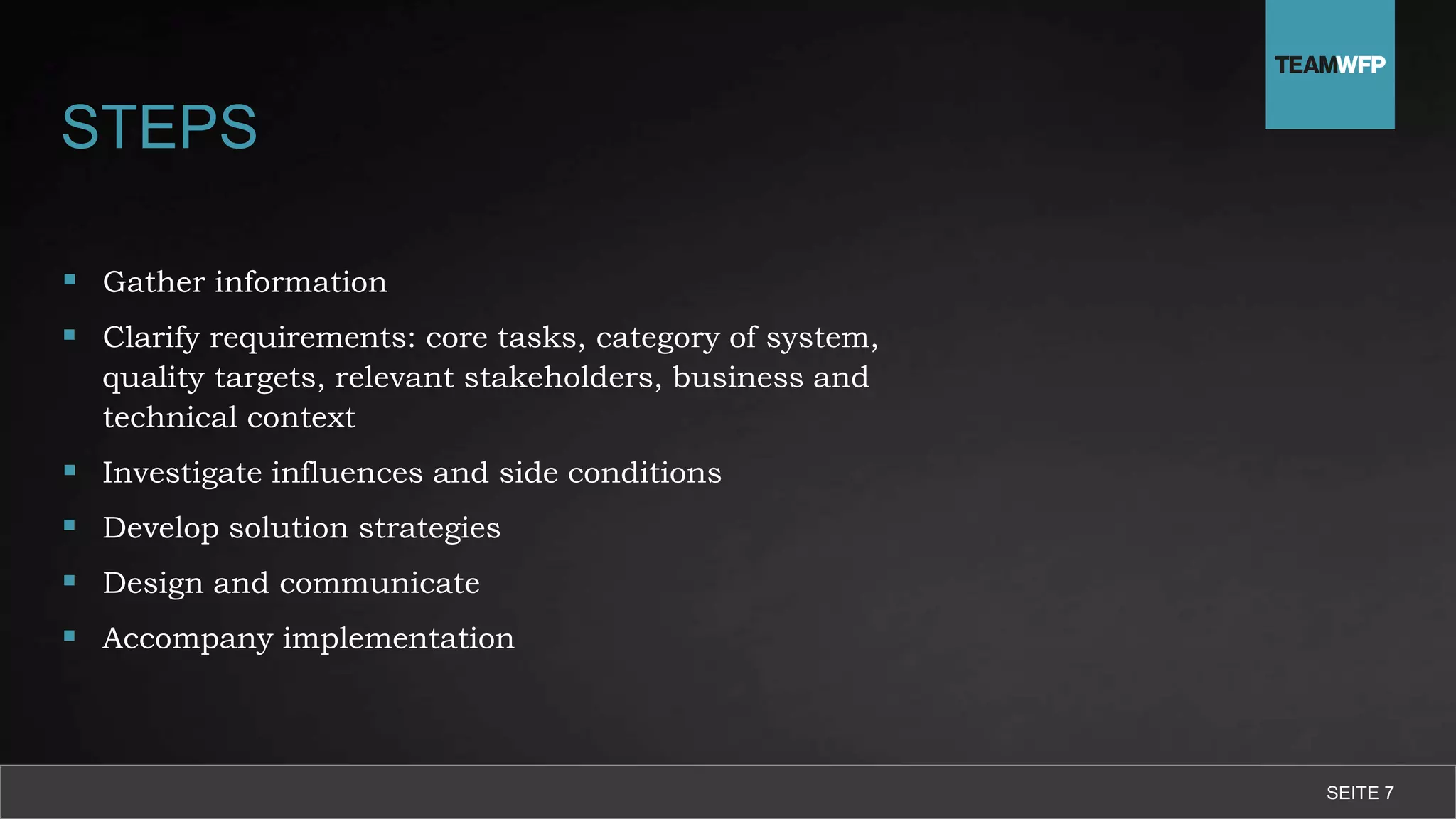

7. STEPS
 Gather information
 Clarify requirements: core tasks, category of system,
quality targets, relevant stakeholders, business and
technical context
 Investigate influences and side conditions
 Develop solution strategies
 Design and communicate
 Accompany implementation
SEITE 7

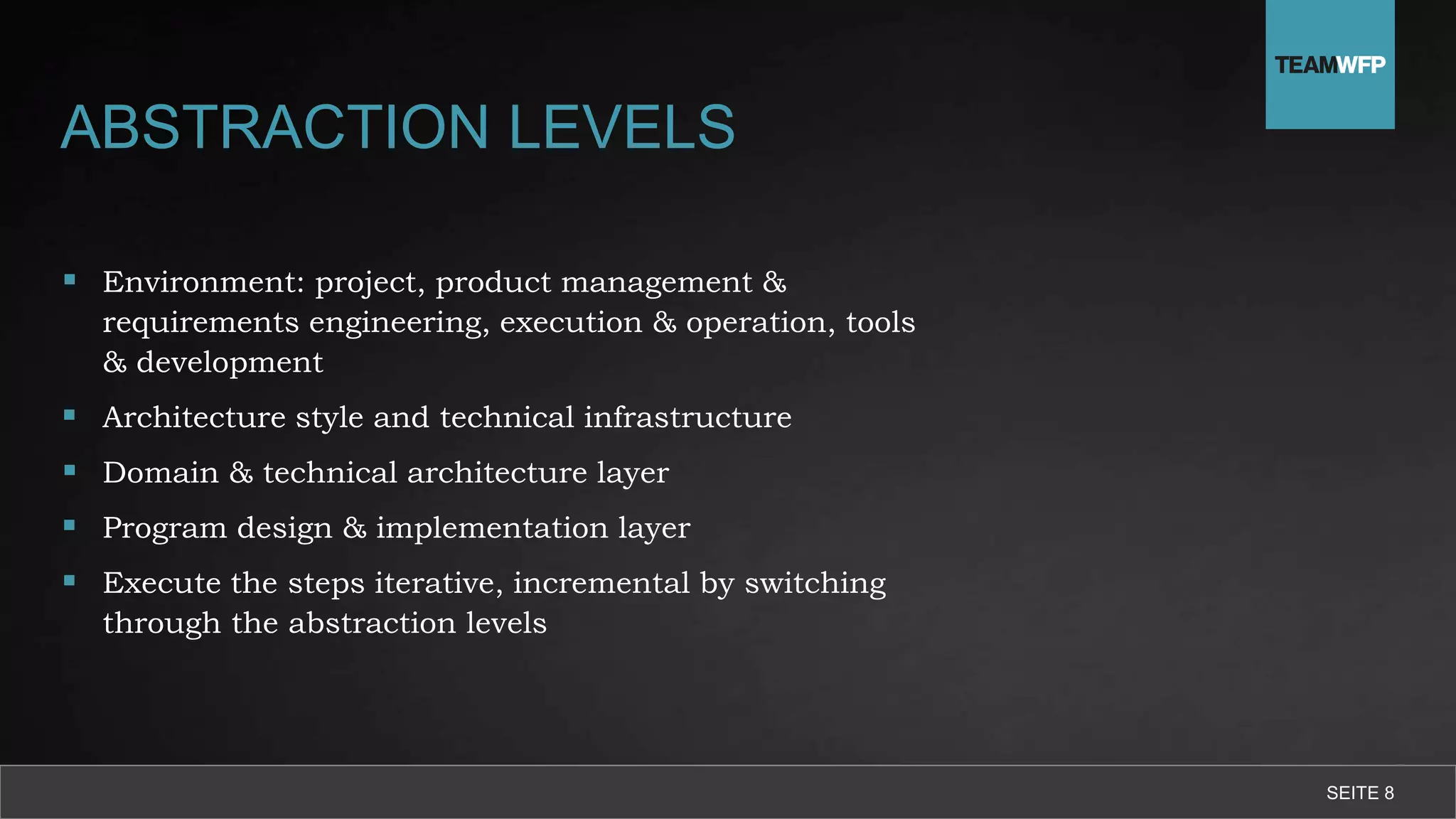

8. ABSTRACTION LEVELS
 Environment: project, product management &
requirements engineering, execution & operation, tools
& development
 Architecture style and technical infrastructure
 Domain & technical architecture layer
 Program design & implementation layer
 Execute the steps iterative, incremental by switching
through the abstraction levels
SEITE 8

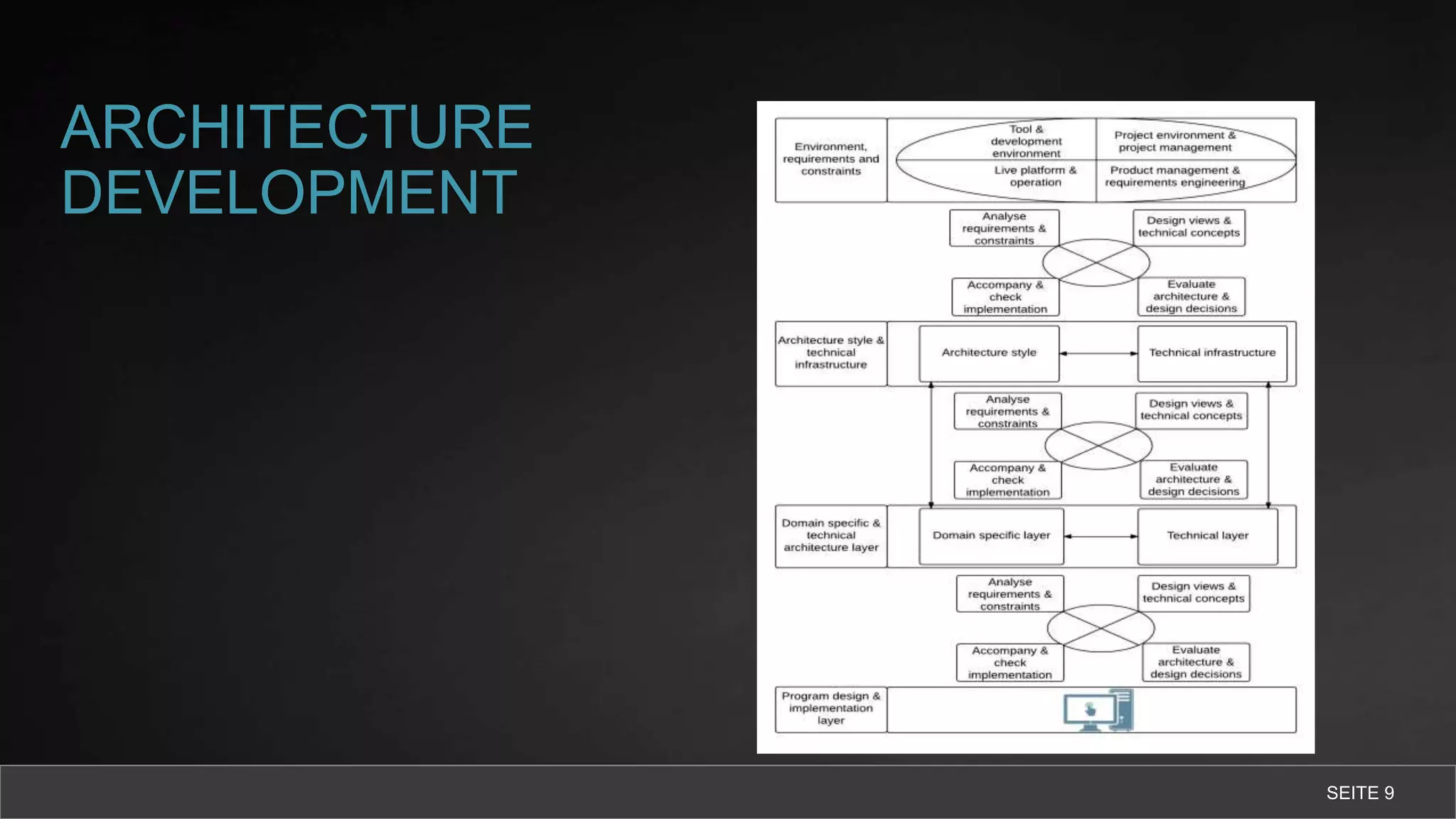

9. ARCHITECTURE
DEVELOPMENT
SEITE 9

10. DESIGN PRINCIPLES
SEITE 10

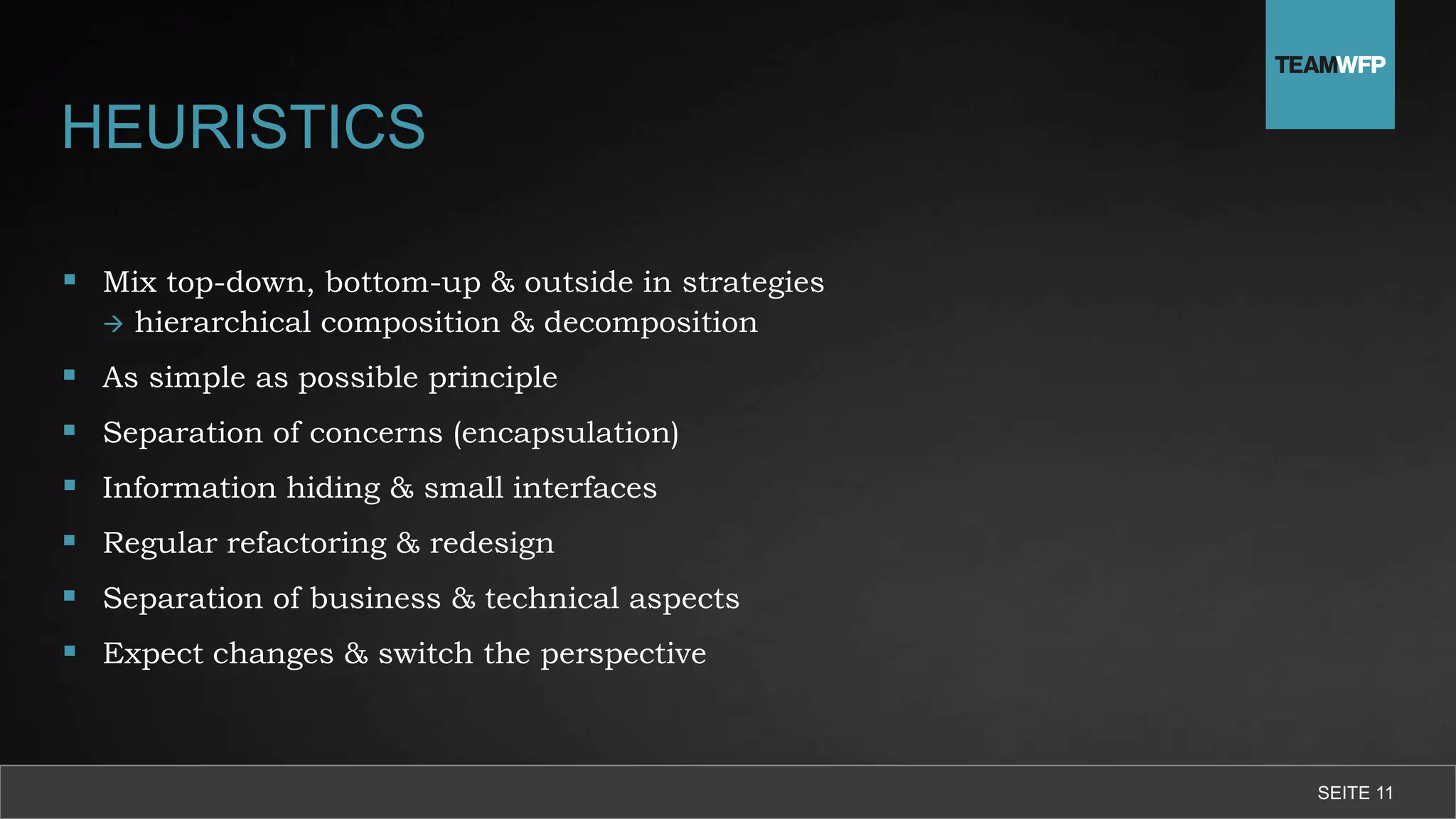

11. HEURISTICS
 Mix top-down, bottom-up & outside in strategies
 hierarchical composition & decomposition
 As simple as possible principle
 Separation of concerns (encapsulation)
 Information hiding & small interfaces
 Regular refactoring & redesign
 Separation of business & technical aspects
 Expect changes & switch the perspective
SEITE 11

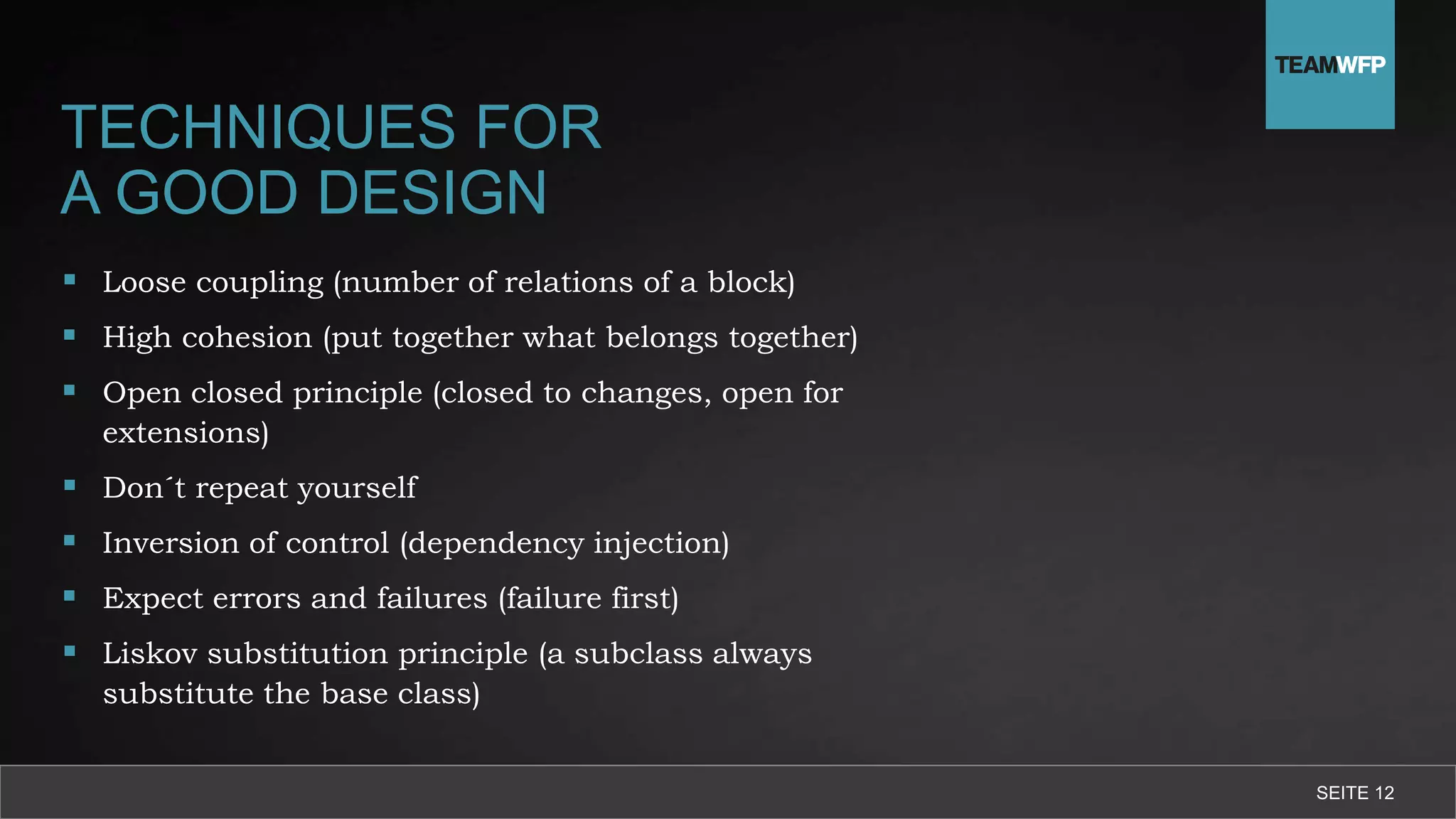

12. TECHNIQUES FOR
A GOOD DESIGN
 Loose coupling (number of relations of a block)
 High cohesion (put together what belongs together)
 Open closed principle (closed to changes, open for
extensions)
 Don´t repeat yourself
 Inversion of control (dependency injection)
 Expect errors and failures (failure first)
 Liskov substitution principle (a subclass always
substitute the base class)
SEITE 12

13. SEITE 13

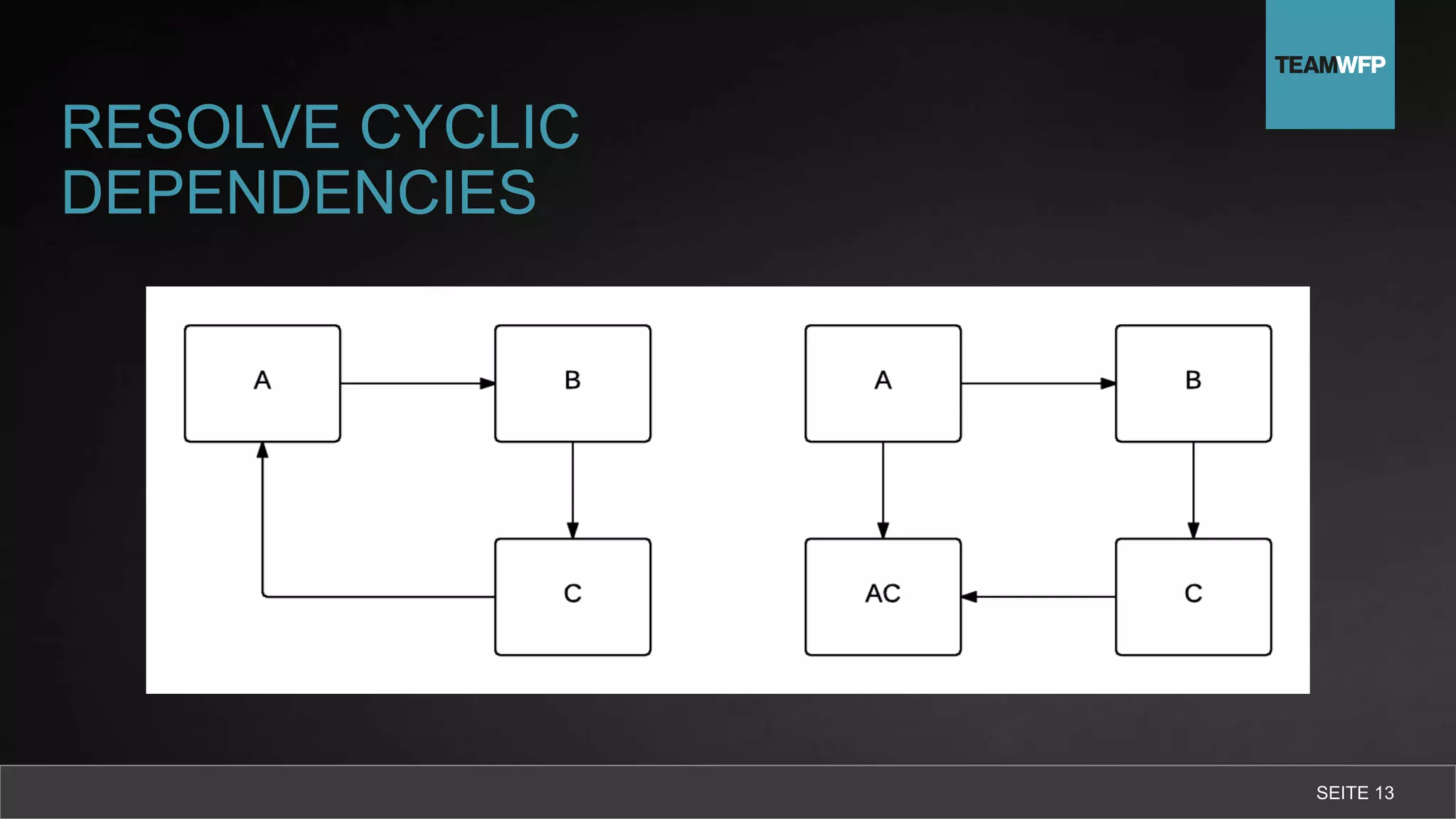

RESOLVE CYCLIC
DEPENDENCIES

14. ARCHITECTURE STYLES
SEITE 14

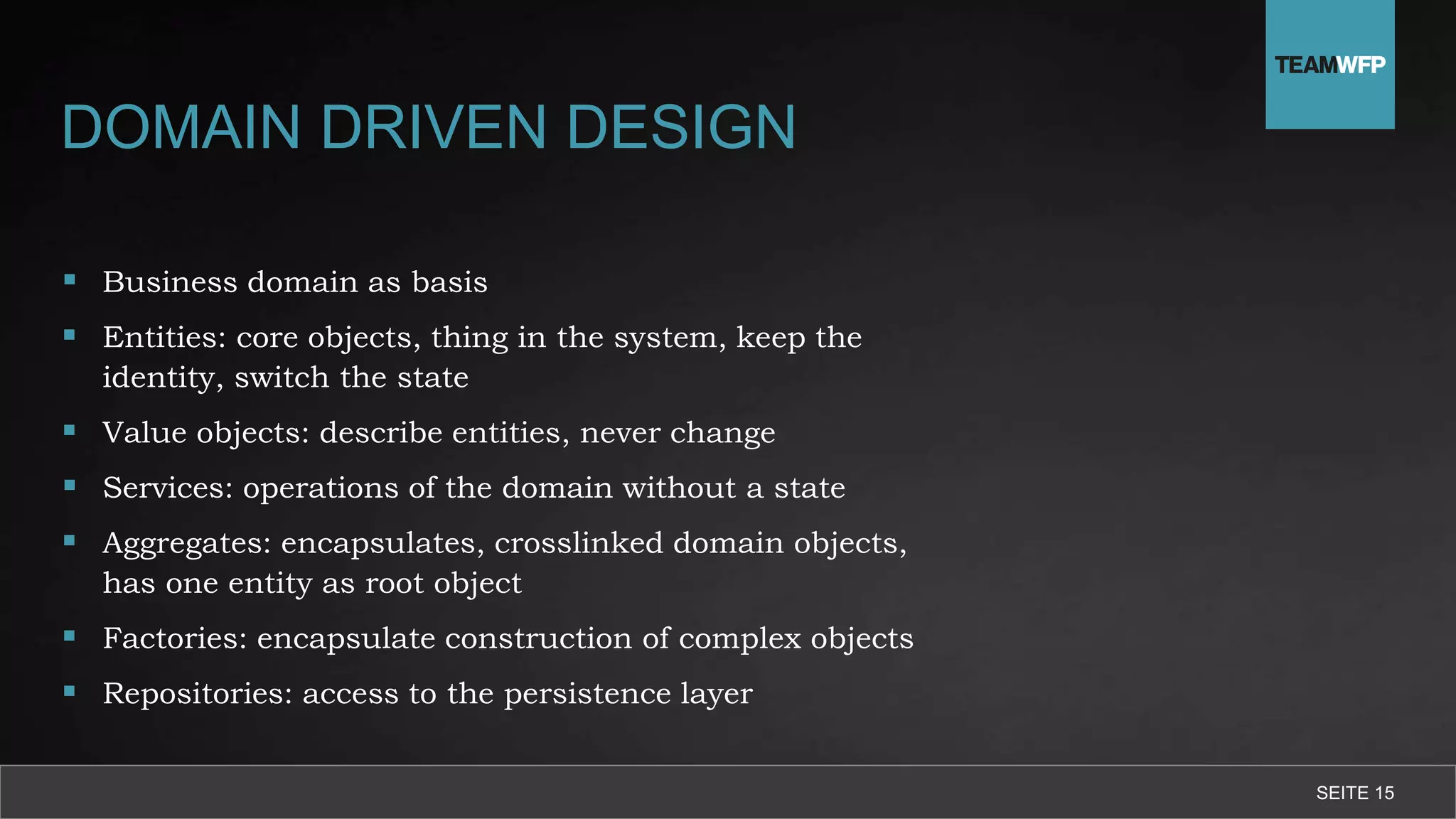

15. DOMAIN DRIVEN DESIGN
 Business domain as basis
 Entities: core objects, thing in the system, keep the
identity, switch the state
 Value objects: describe entities, never change
 Services: operations of the domain without a state
 Aggregates: encapsulates, crosslinked domain objects,
has one entity as root object
 Factories: encapsulate construction of complex objects
 Repositories: access to the persistence layer
SEITE 15

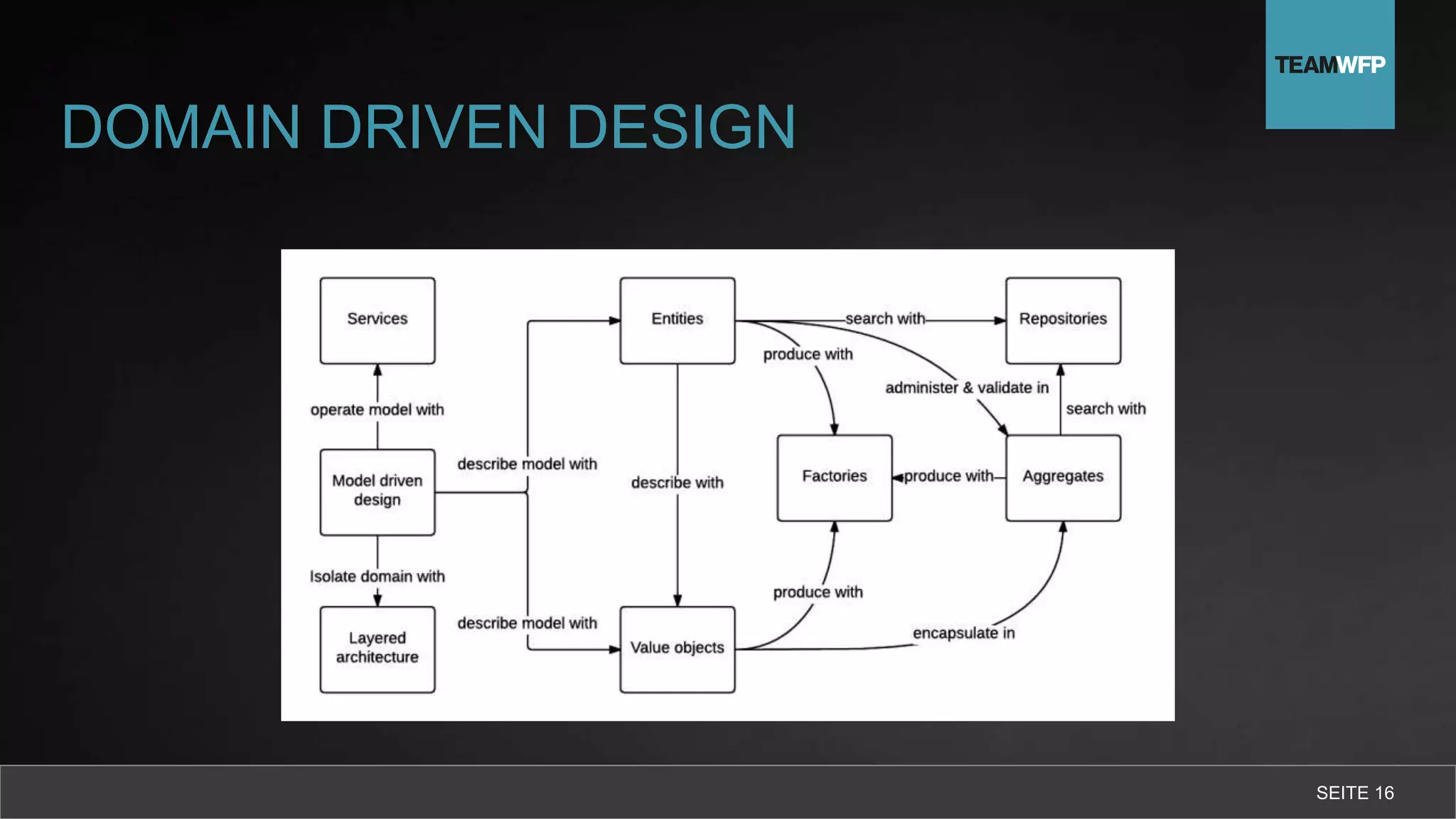

16. DOMAIN DRIVEN DESIGN
SEITE 16

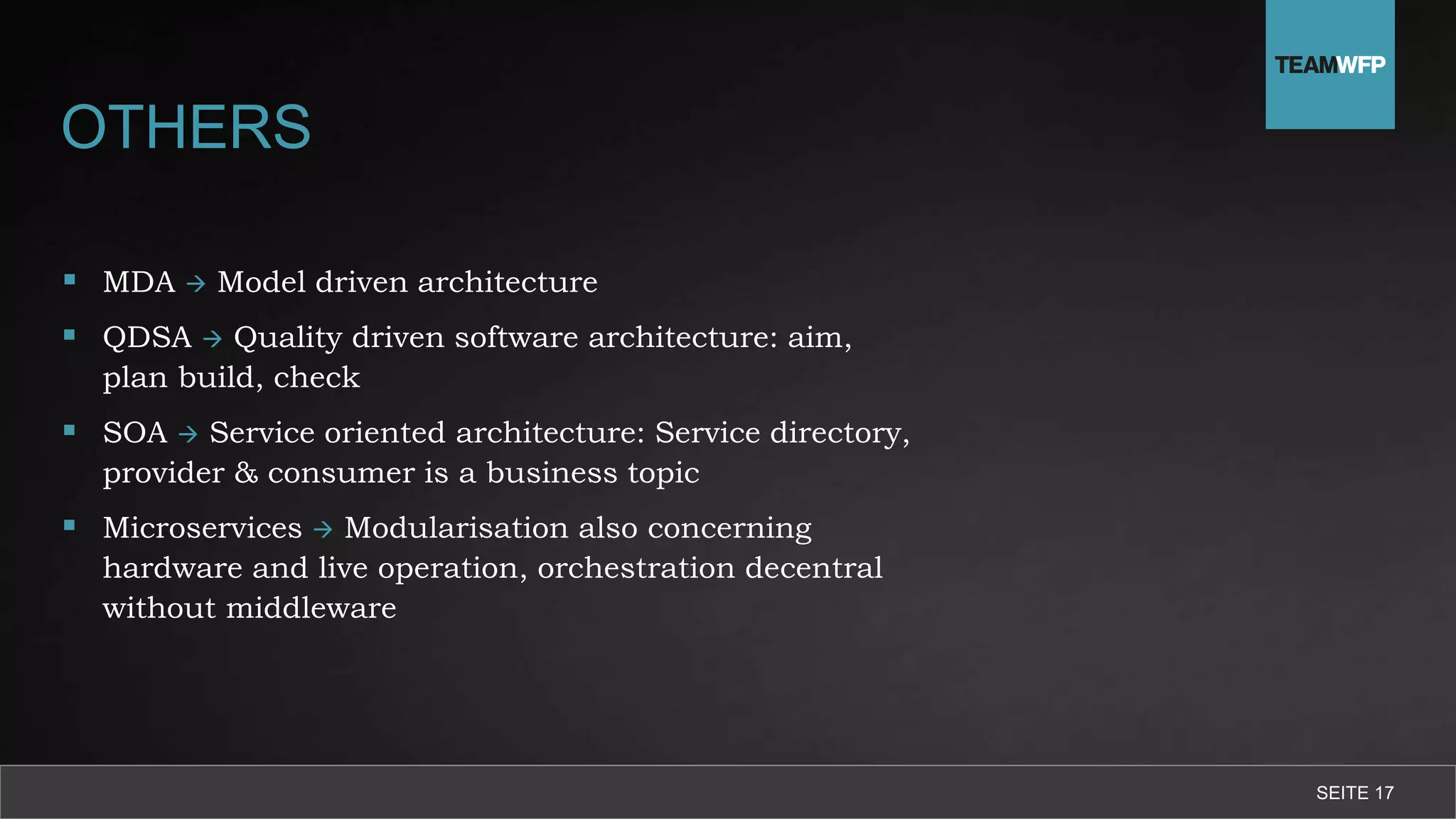

17. OTHERS
 MDA  Model driven architecture
 QDSA  Quality driven software architecture: aim,
plan build, check
 SOA  Service oriented architecture: Service directory,
provider & consumer is a business topic
 Microservices  Modularisation also concerning
hardware and live operation, orchestration decentral
without middleware
SEITE 17

18. ARCHITECTURE PATTERNS
INTERACTIVE SYSTEMS
SEITE 18

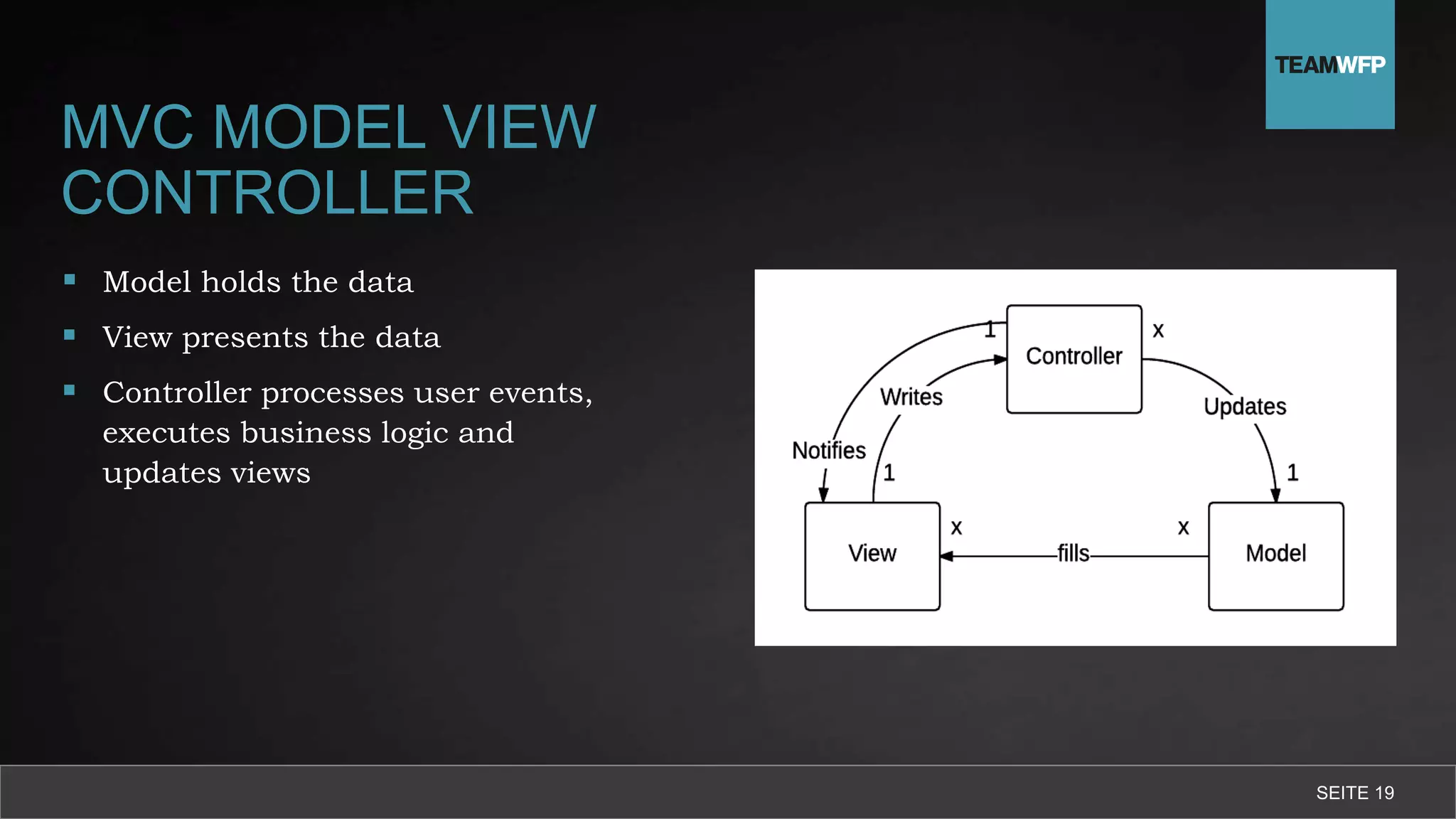

19. MVC MODEL VIEW
CONTROLLER
 Model holds the data
 View presents the data
 Controller processes user events,
executes business logic and
updates views
SEITE 19

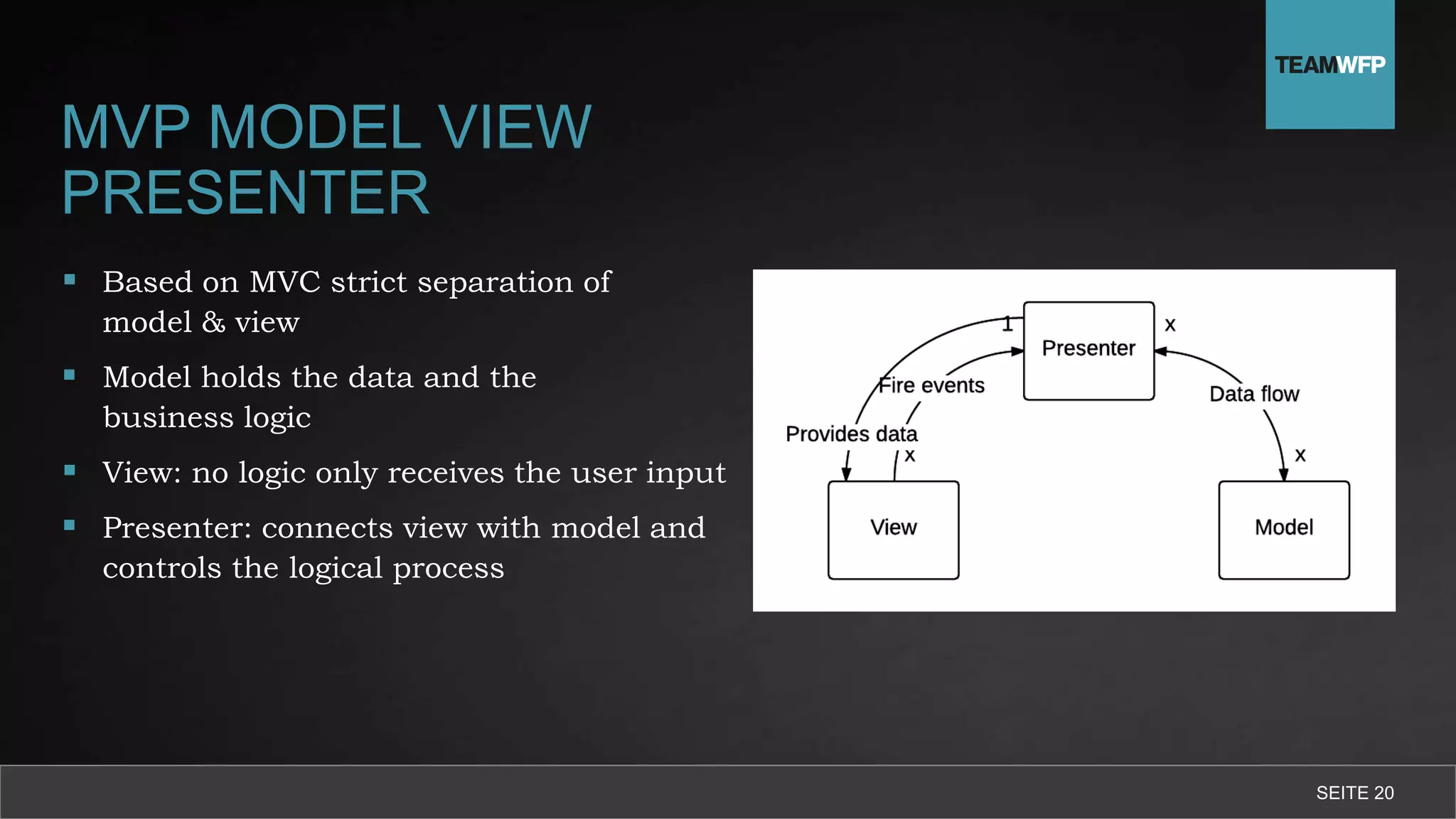

20. MVP MODEL VIEW
PRESENTER
 Based on MVC strict separation of
model & view
 Model holds the data and the
business logic
 View: no logic only receives the user input
 Presenter: connects view with model and
controls the logical process
SEITE 20

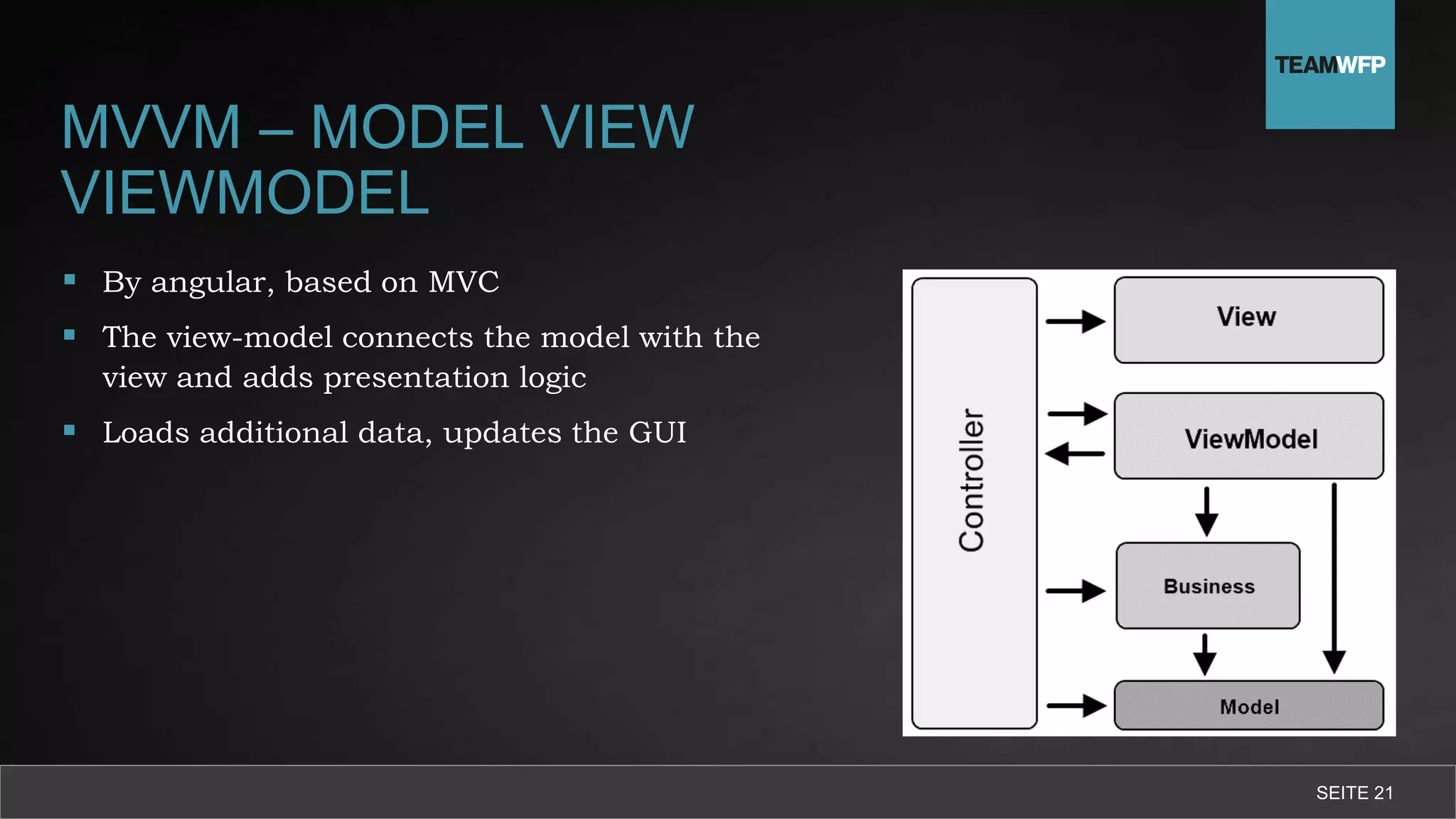

21. MVVM – MODEL VIEW
VIEWMODEL
 By angular, based on MVC
 The view-model connects the model with the
view and adds presentation logic
 Loads additional data, updates the GUI
SEITE 21

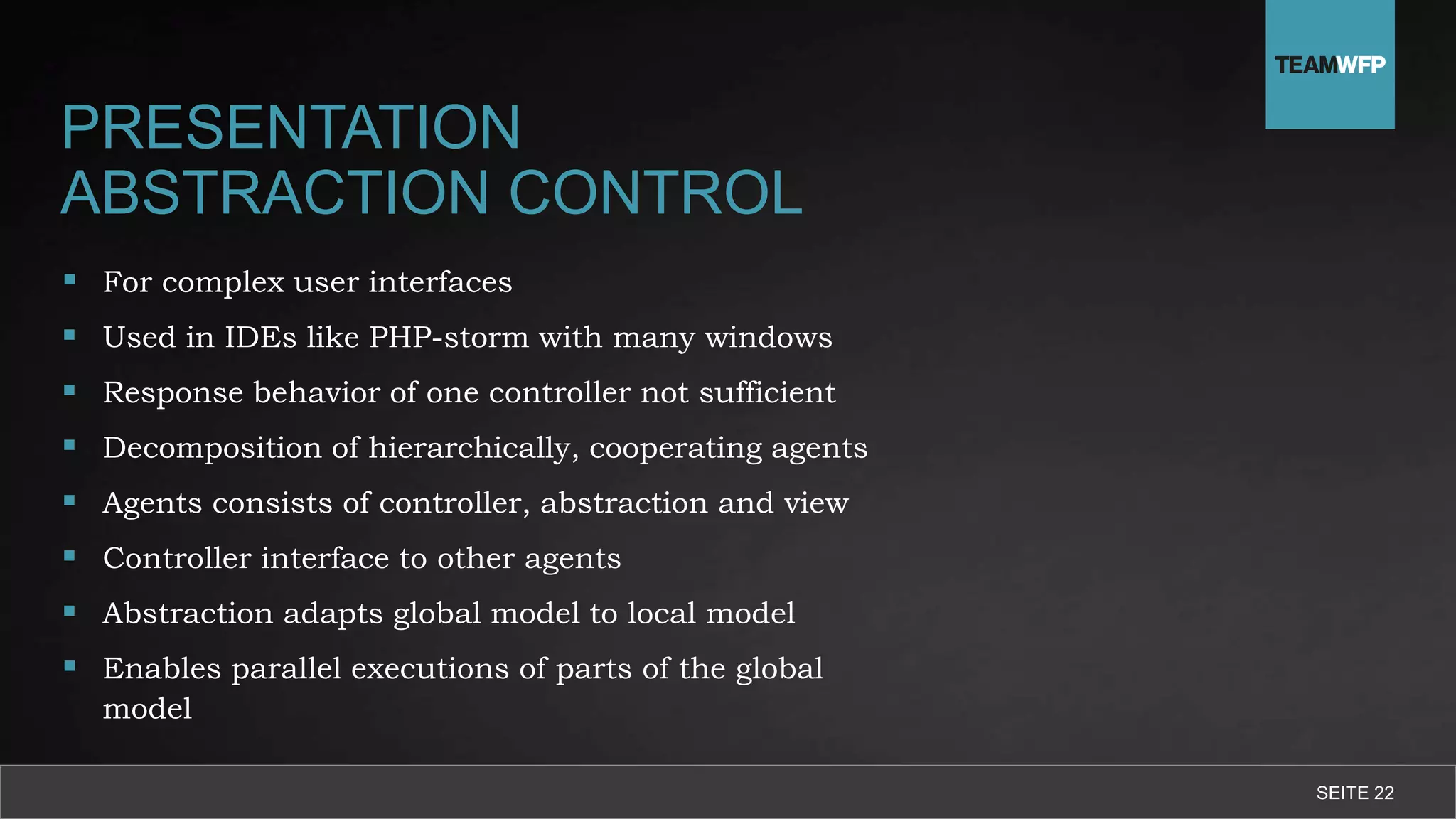

22. PRESENTATION
ABSTRACTION CONTROL
 For complex user interfaces
 Used in IDEs like PHP-storm with many windows
 Response behavior of one controller not sufficient
 Decomposition of hierarchically, cooperating agents
 Agents consists of controller, abstraction and view
 Controller interface to other agents
 Abstraction adapts global model to local model
 Enables parallel executions of parts of the global
model
SEITE 22

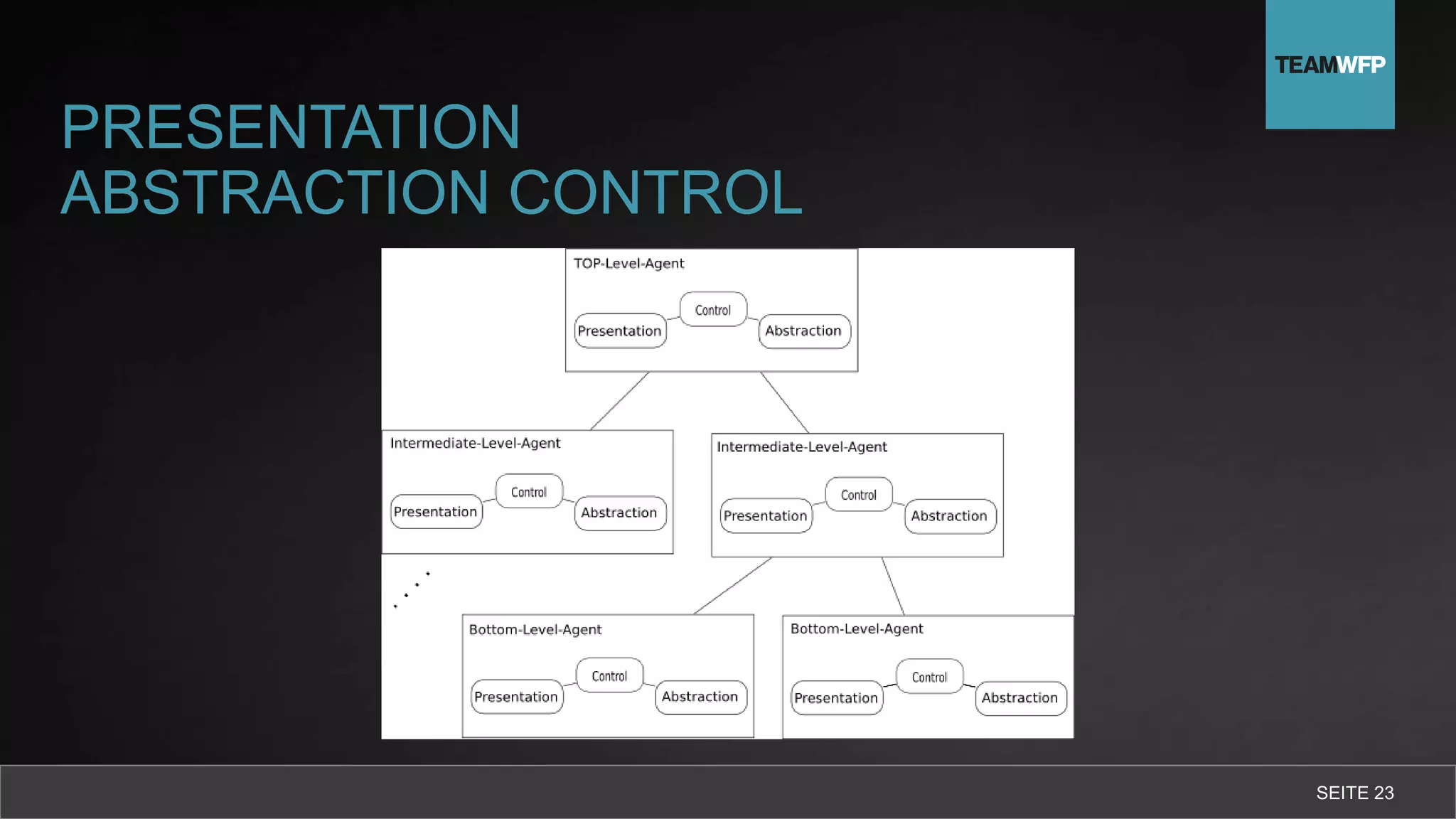

23. PRESENTATION
ABSTRACTION CONTROL
SEITE 23

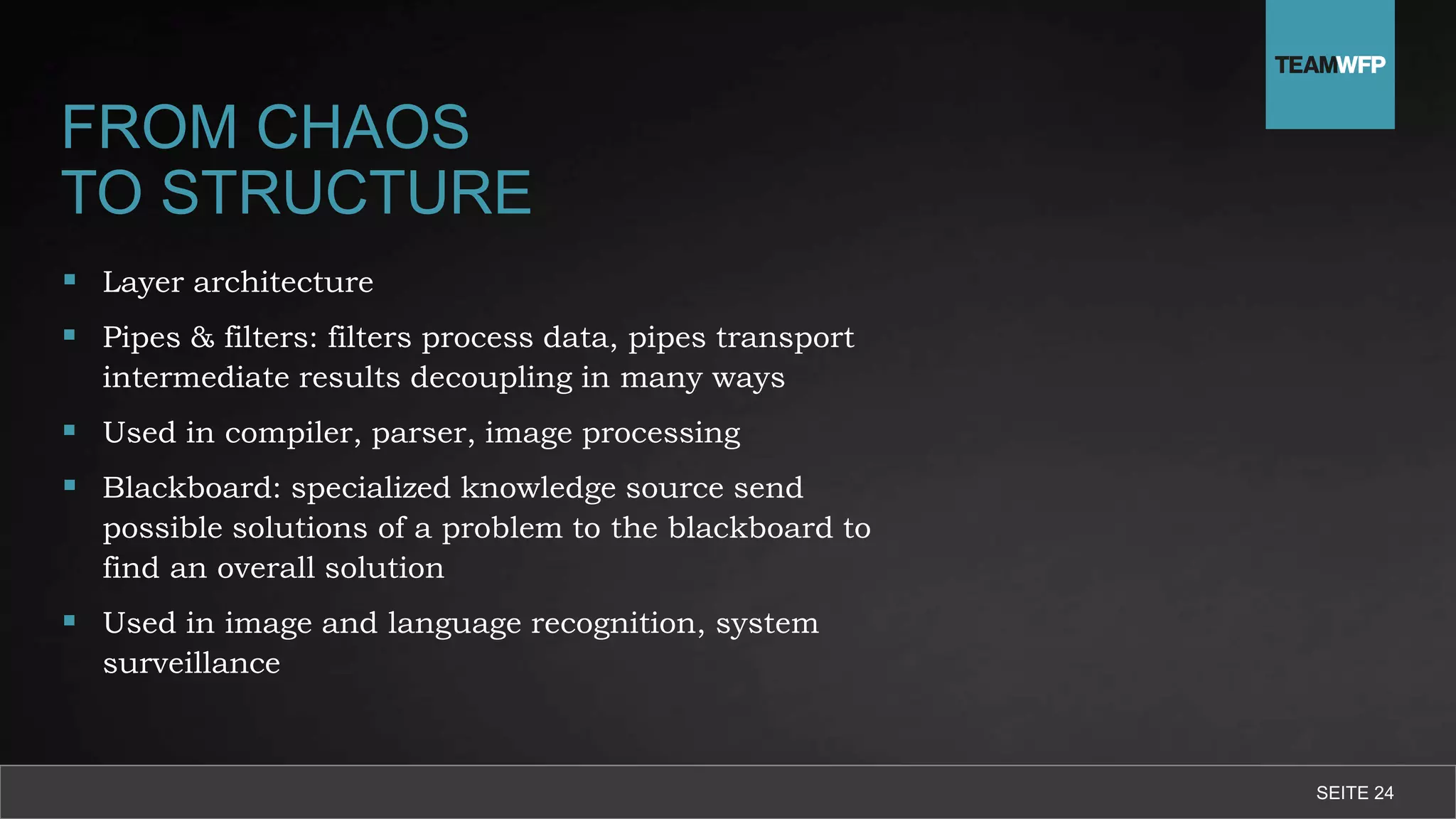

24. FROM CHAOS
TO STRUCTURE
 Layer architecture
 Pipes & filters: filters process data, pipes transport
intermediate results decoupling in many ways
 Used in compiler, parser, image processing
 Blackboard: specialized knowledge source send
possible solutions of a problem to the blackboard to
find an overall solution
 Used in image and language recognition, system
surveillance
SEITE 24

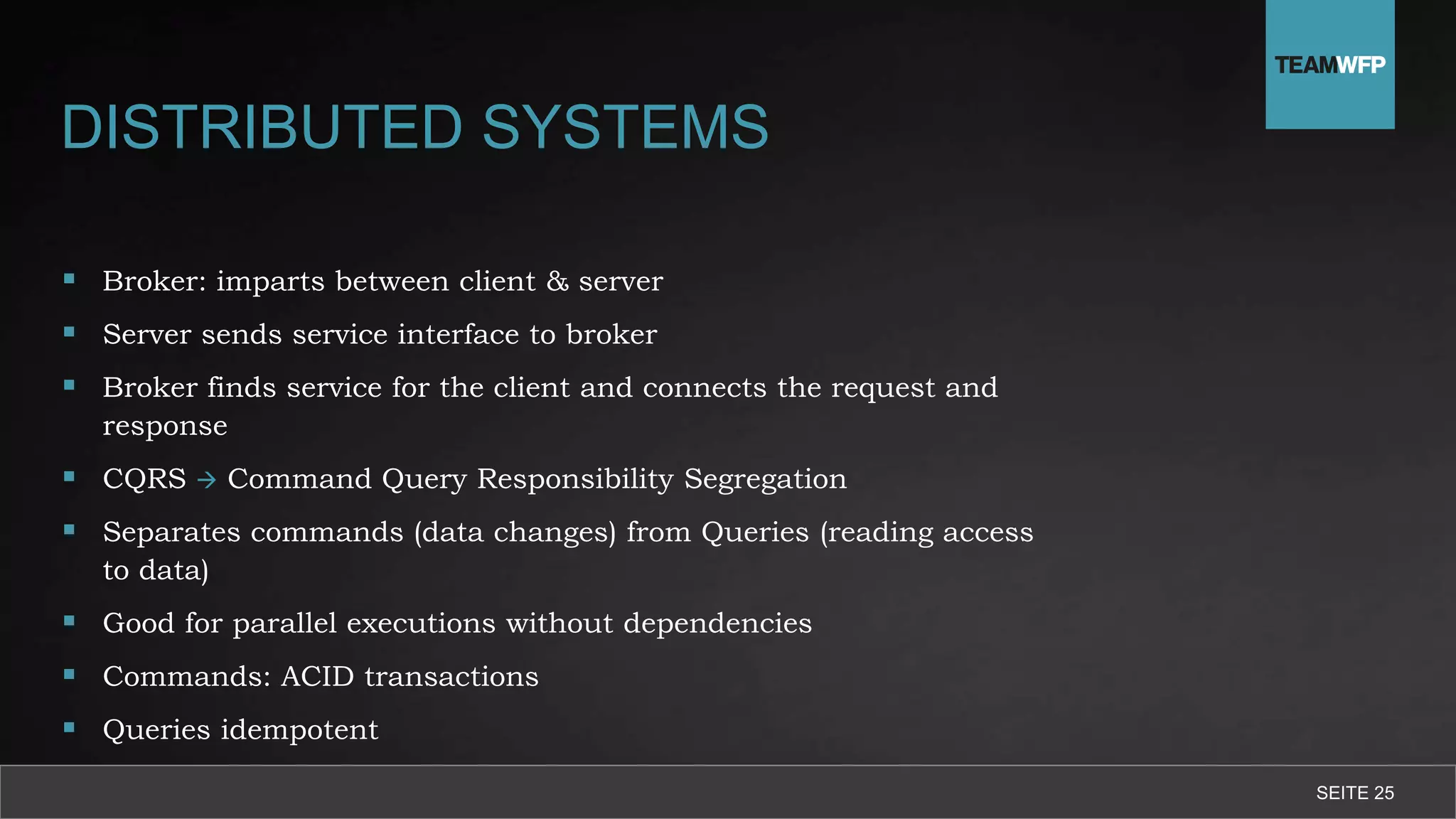

25. SEITE 25
DISTRIBUTED SYSTEMS
 Broker: imparts between client & server
 Server sends service interface to broker
 Broker finds service for the client and connects the request and
response
 CQRS  Command Query Responsibility Segregation
 Separates commands (data changes) from Queries (reading access
to data)
 Good for parallel executions without dependencies
 Commands: ACID transactions
 Queries idempotent

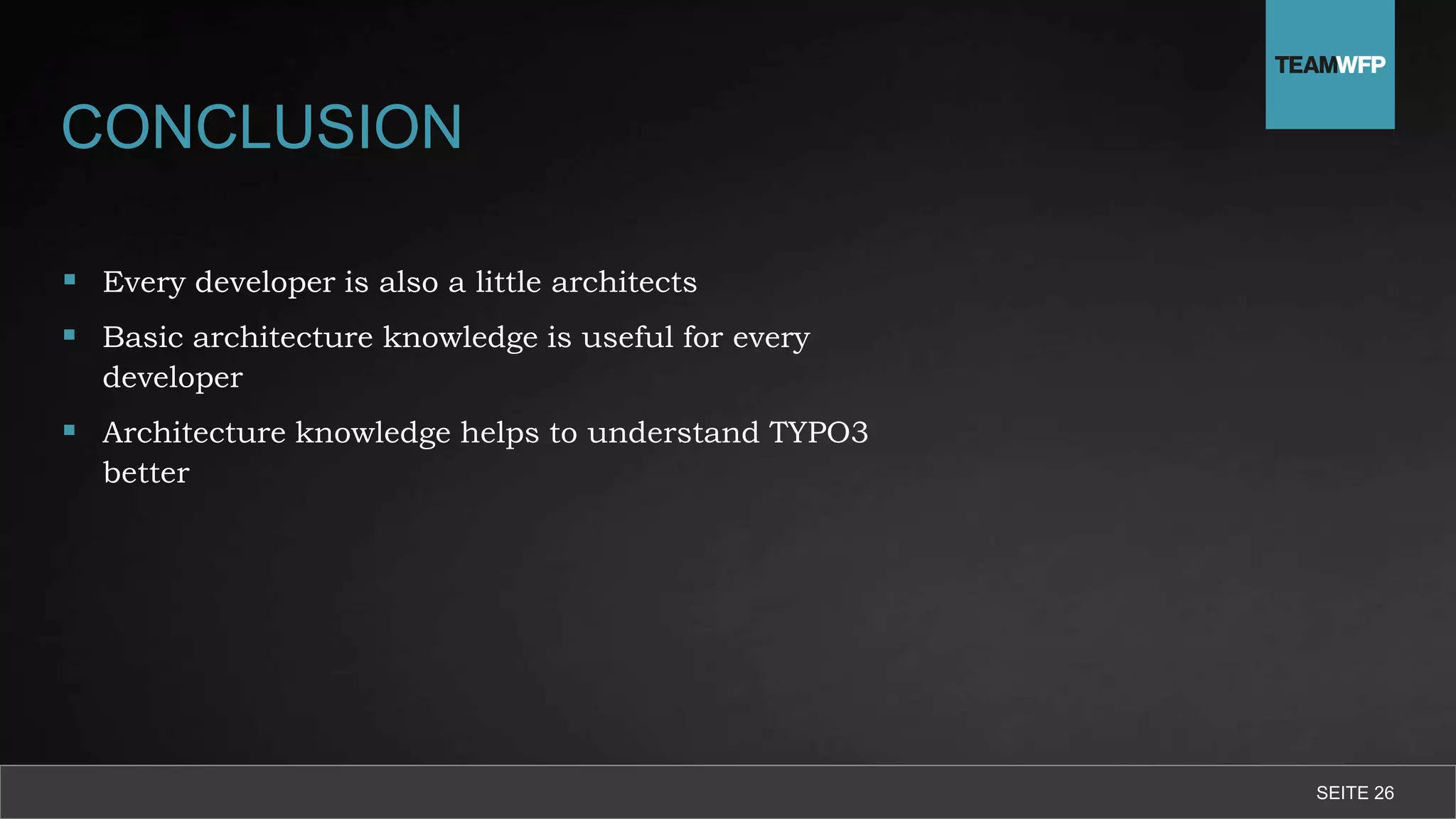

26. CONCLUSION
 Every developer is also a little architects
 Basic architecture knowledge is useful for every
developer
 Architecture knowledge helps to understand TYPO3
better
SEITE 26
