Collaboration with Statistician?
矩陣視覺化於探索式資料分析
1
陳君厚
中央研究院
統計科學研究所
中央研究院
人文社會科學館國際會議廳
August 30, 2014
2

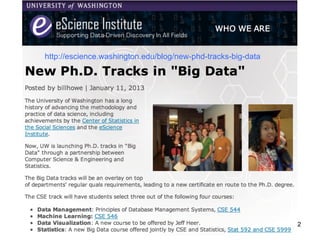

http://escience.washington.edu/blog/new-phd-tracks-big-data
3
Q:
君厚,
Big
Data
這麼熱,
我們是否應該排進統計系所學程?
A:
Big
Data?
現在的統計系所畢業學生能夠處理
Data
嗎?
4
胡海國
教授
台灣大學
醫學院
精神科主任
主要合作研究者
楊泮池
教授
台灣大學
醫學院
院長
陳章榮
研究員
美國
FDA
毒理研究所
李御賢
教授
長庚紀念醫院
核心實驗室
銘傳大學
白果能
研究員
中央研究院
生物醫學科學研究所
吳漢銘
教授
淡江大學
數學系
周正中
教授
中正大學
生命科學系
楊永正
教授
陽明大學
生物醫學資訊研究所
林文昌
研究員
中央研究院
生物醫學科學研究所
黃奇英
教授
陽明大學
臨床醫學研究所
楊欣洲
研究員
中央研究院
生物醫學科學研究所

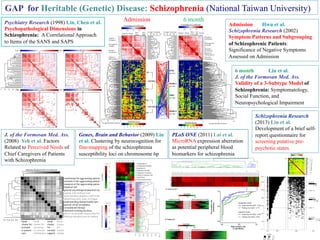

I. Collaboration with Statistician?
中研院賴明昭副院長推廣跨領域合作
(November
10,
2004)
合作不一定是資料分析
與統計學家合作很可能是需要資料分析

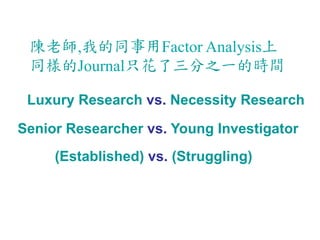

陳老師,我的同事用Factor Analysis上
同樣的Journal只花了三分之一的時間
Luxury Research vs. Necessity Research
Senior Researcher vs. Young Investigator
(Established) vs. (Struggling)
Corr.
-1 0 1
0 0.2 0.4 0.6 0.8 1
Corr.
-.1 .1
-1 0 1
Corr.
Corr.
-0.2 0.2 -0.4 0.4
-1 0 1
-1 0 1
Chun-houh, can you create some powerful
statistical/bioinformatics methods so we can
get our experiments published in Nature/
Science?
Sir, can you conduct some meaningful
biological/medical experiments so we can
get our methods published in Nature/
Science?
Mutual Trust
(XX
人在中研院
YY
會議中說)
統計所的陳君厚說你們
ZZ 所的生物晶片
都有問題
Mutual Understanding
You can remove Figure1
together with my name
from the paper
G7
N6
G13
N1
N4
N2
N3
N5
G10
G12
G5
P2
G11
N7
G15
G3
G6
G4
G16
G8
P7
S2
G14
S1
S3
P4
P5
G2
G1
P3
G9
P1
P6
Negative Disorg. Host./
Excit.
Del./
Hall.
G7
N6
G13
N1
N4
N2
N3
N5
G10
G12
G5
P2
G11
N7
G15
G3
G6
G4
G16
G8
P7
S2
G14
S1
S3
P4
P5
G2
G1
15 10 5 0
Average Euc lidean Distanc e
G1
GONEG
G2
G3
GWNEG
G4
PANSS Score
1 2 3 4 5 6 7
P3
G9
P1
P6
Average Correlation
1 0.8 0.6 0.4 0.2
Correlation Coefficient
-1 -0.5 0 0.5 1
Negative
Symptoms
Disorganized
Thought
Hostility /
Excitement
Delusion /
Ha llucination
Correlation Coefficient
-1 -0.5 0 0.5 1
Average Correlation Negative Disorg. Host./
PANSS Score
1 2 3 4 5 6 7
G7
N6
N3
N1
N2
N4
N5
G16
G10
N7
G5
G13
G11
P2
G15
G12
G8
P7
S1
G14
S2
S3
P4
P6
P3
G9
P1
P5
G4
G2
G1
G3
G6
G7
N6
N3
N1
N2
N4
N5
G16
G10
N7
G5
G13
G11
P2
G15
G12
G8
P7
S1
G14
S2
S3
P4
P6
P3
G9
P1
P5
G4
G2
G1
G3
G6
Negative
Symptoms
Disorganized
Thought
Hostility /
Excitement
Delusion /
Ha llucination
Anxiety
Symptoms
RMG
(n=61)
PDHG1
(n=14)
MBG
(n=50)
PDHG2
(n=38)
0 5 10
Average Euc lidean Distanc e
0.2 0.4 0.6 0.8 1
Excit.
Del./
Hall. Anxiety
II.
矩陣視覺化於探索式資料分析
9
Matrix Visualization:
Approaching Statistics and Statistical Approach
矩陣視覺化:
趨近統計與統計趨勢
Lab 309 (???) for Information Visualization
Dr. 田銀錦
Postdoc. Fellow
張勝傑
張文宗
陳柏旭
鐘雅齡
黃建勳
林香誼
劉勝宗
曾聖澧
葉紫君
吳怡真
林倩如
歐陽智聞
. . .
10
Mr. 高君豪
Ph.D. student
Prof. 吳漢銘
Dept. Math.
Tamkang U.
Prof. 須上英
Dept. Stat.
Nat’l Taipei U.
Ms. 石佳鑫
Research Assistant
Dr. 何孟如
Postdoc. Fellow
11

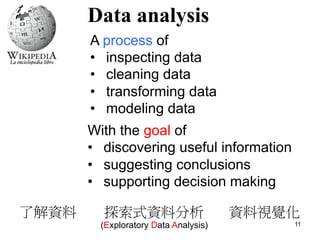

Data analysis
A process of
• inspecting data
• cleaning data
• transforming data
• modeling data
With the goal of
• discovering useful information
• suggesting conclusions
• supporting decision making
了解資料 探索式資料分析
(Exploratory Data Analysis)
資料視覺化
Exploratory Data Analysis
EDA, John Tukey (1977)
It is important to understand what you
CAN DO before you learn to measure
how WELL you seem to have DONE it.
1915~
2000
allow the data to speak for themselves
before standard assumptions or formal modeling
The greatest value of a picture is when it
forces us to notice what we never expected to see.
Matrix Visualization as an EDA tool for
assisting formal mathematical modeling
12
John
W.

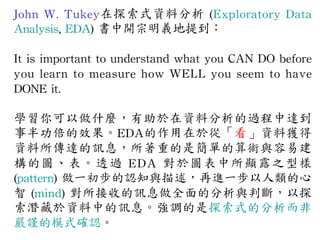

Tukey在探索式資料分析
(Exploratory
Data
Analysis,
EDA)
書中開宗明義地提到:
It
is
important
to
understand
what
you
CAN
DO
before
you
learn
to
measure
how
WELL
you
seem
to
have
DONE
it.
學習你可以做什麼,有助於在資料分析的過程中達到
事半功倍的效果。EDA的作用在於從「看」資料獲得
資料所傳達的訊息,所著重的是簡單的算術與容易建
構的圖、表。透過
E D A
對於圖表中所顯露之型樣
(pattern)
做一初步的認知與描述,再進一步以人類的心
智
(mind)
對所接收的訊息做全面的分析與判斷,以探
索潛藏於資料中的訊息。強調的是探索式的分析而非
嚴謹的模式確認。
14
資料視覺化需要統計嗎?
I. Setosa
I. Verginica
I. Versicolor
Species name
80
60
40
20
0
Pet É Pet É Sep É Sep É

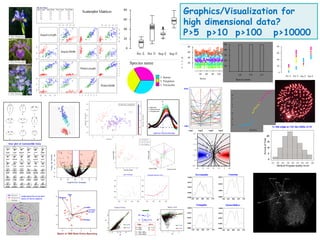

Graphics/Visualization for
high dimensional data?
P5 p10 p100 p10000
80
60
40
20
0
Pet É Pet É Sep É Sep É
80
60
40
20
30 60 90 120
Series
Dat
a
nscores
Pet
al widt
h
I.S I.V I.V
50
40
30
20
10
Species name
15

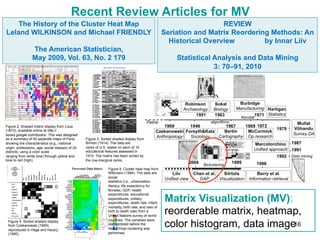

Recent Review Articles for MV
The History of the Cluster Heat Map
Leland WILKINSON and Michael FRIENDLY
The American Statistician,
May 2009, Vol. 63, No. 2 179
REVIEW
Seriation and Matrix Reordering Methods: An
Historical Overview by Innar Liiv
Statistical Analysis and Data Mining
3: 70–91, 2010
Figure 2. Shaded matrix display from Loua
(1873), available online at http://
books.google.com/books/. This was designed
as a summary of 40 separate maps of Paris,
showing the characteristics (e.g., national
origin, professions, age, social classes) of 20
districts, using a color scale
ranging from white (low) through yellow and
blue to red (high).
Figure 3. Sorted shaded display from
Brinton (1914). The data are
ranks of U.S. states on each of 10
educational features assessed in
1910. The matrix has been sorted by
the row-marginal ranks.
Figure 5. Sorted shaded display
from Czekanowski (1909),
reproduced in Hage and Harary
(1995).
Figure 9. Cluster heat map from
Wilkinson (1994). The data are
social
statistics (i.e., urbanization,
literacy, life expectancy for
females, GDP, health
expenditures, educational
expenditures, military
expenditures, death rate, infant
mortality, birth rate, and ratio of
birth to death rate) from a
United Nations survey of world
countries. The variables were
standardized before the
hierarchical clustering was
performed.
Matrix Visualization (MV):
reorderable matrix, heatmap,
color histogram, data image1 6
Data Matrix
50 題精神症狀量表
11000040000050000000000000000022233022200342203300
32111010001030000002000000000000000000000000000002
55500010000000000011110000000033333005315121444420
55554550055515505500100003000030022100000000200000
00000000010000000000000000000010000000000000000000
20200220200002000002202010000032312000002132212220
00000000030000000000000000022000000000000000000000
31100020000131300002503300000020202003043331300031
55100440000034404000550000000044443044414355413330
00000000030000000000000000000000000000000000000000
20200000030122032000000000000020101000000030200020
50100050045000000013400000000020012000000320442311
00050050000420000000200000200010001000000031410300
00000030155033000000400000000000000000000000040333
55500010000004403300304044000033323030000002332222
00000000020000000000000000032100000000000000000000
11100020000010000000503000000020022200200300302034
55400055000044404002000200000020020000000320404433
00000000000010000000000000000010002002222001211200
42400030040030000010402200023022322002000330301222
33300040000020000024404334002030230000000330400045
23100030000030000004003300000000030000000022454302
44400030000440030020233200000043433334433232222231
32100010022023002000000000000020022033302042413333
11100000055000000002403000000000000000000100010002
00000000000000000000300000000000000000000000000020
44400040044000000033243303300043333433300344424444
11100000130011120000301122221010111212211001212221
11111111111115000005001111111155555005511555555551
33100000030050000001004344111010110111100010111211
00000000040000000000002300044000000000000000000020
00000030010030000022103202200032323322202233303321
22110011000110000032103221200033223222323333313321
44100340020020000000500000000000000000000020200020
00000012000020000000000003000000000002200200000200
44000040100000000001500100100001111021002032202300
22000040000040000002100000000020000100100030202210
40400000020055300000000002000000000000010031212101
55550540000034444000500200000000000000010000000210
00000000000000000000000000000011012000200130203210
44140040000441140000100000000011101010000000223200
22200050000040001000010000000032324000002222220400
55000530040030000000500000000000000000000000000000
43400030000040000000000000000044434033311032444422
33300000004453000000003303000042333333302133333321
10020000000002000000200000000020032000021032211210
33200030000041330001210001000020102222211032323310
33300020030030000001102202200031202222201032202222
33300030040030000002102202000022202201100020202200
55511150551115555522335544101142424433454455445545
00000030020000000012003202300022212311200131322211
40000000033033333300305555004320111202031231110020
00000000000000000000002200043000000000000020000030
11000030200330000023203203000043333333302333333332
55000020000023301000003421004023332133444034311151
21110150111155552201000000000021234031111021335500
55500010100001000020002202004033342122122250552344
55500000000030000002200003000010000000320000000311
44400350001033332200402102211001000000100030202321
33000330030330020000304330003002200200000200000032
00000000050000000020303320143000021000000030000033
00000000020020000000300000020000000000000000200100
11102120122000000002215511115020102302411140411155
55500500050033410002000403433000000000000000000010
44400240040030033320505434204040022400000240414445
50500050000000000000000000000033313433101111113402
55500050000555500000000000000022221002100033312300
30330000000050000045000000000031243313304323303410
55100130031033000002500000000033322023123122411323
00000000000000000000002100230100000000000000000012
22100120000030000000200000000000000000000230210222
20000000030000000003200000004300000000000000000043
00000000030000000001300000020000000000000120000031
33300320023210300202303323000020002200022043220022
00000021010040100001003301100021001001301210103200
50400450040050000000500000000000000000033000000000
20000200000000000000100000000043434033202224012330
51100030000003000503003320000033344043154514411412
55000530013000000002000000000030002300000000355400
00000000000000002002000000000022201001200022200211
33000300044020000001422000021000000000000020100030
10000013020000000043004324304044434033412244402420
33300020030000200000003302044200000000000000000032
33000000000030000022323200000032222322310230202211
00000000131000000002212100033200100101100111100011
00000000030000000023200000033000000000000000000030
00000023020020000002300000022000000001100022120010
00000000040000000023200000032000000200000210100011
00000000020000000000100000022110000100000000220010
44400030030030000033300300023020000200000120000002
00000000030020000022202000032200000100000000000011
00000003040000000033310000043000000000000230000032
22200000000001000000002211000021221011101032000021
41400240000130000002503002000022000002200032432223
20200000031000000000400000243000000000000030000030
95 位精神醫學患者
Data Map
嚴重
5
0
正常
50 題精神症狀量表
95 位精神醫學患者

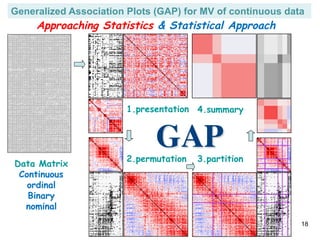

Generalized Association Plots (GAP) for MV of continuous data
GAP
2.permutation
4.summary
3.partition
Data Matrix
Continuous
ordinal
Binary
nominal
1.presentation
18
Approaching Statistics  Statistical Approach
11000040000050000000000000000022233022200342203300
32111010001030000002000000000000000000000000000002
55500010000000000011110000000033333005315121444420
55554550055515505500100003000030022100000000200000
00000000010000000000000000000010000000000000000000
20200220200002000002202010000032312000002132212220
00000000030000000000000000022000000000000000000000
31100020000131300002503300000020202003043331300031
55100440000034404000550000000044443044414355413330
00000000030000000000000000000000000000000000000000
20200000030122032000000000000020101000000030200020
50100050045000000013400000000020012000000320442311
00050050000420000000200000200010001000000031410300
00000030155033000000400000000000000000000000040333
55500010000004403300304044000033323030000002332222
00000000020000000000000000032100000000000000000000
11100020000010000000503000000020022200200300302034
55400055000044404002000200000020020000000320404433
00000000000010000000000000000010002002222001211200
42400030040030000010402200023022322002000330301222
33300040000020000024404334002030230000000330400045
23100030000030000004003300000000030000000022454302
44400030000440030020233200000043433334433232222231
32100010022023002000000000000020022033302042413333
11100000055000000002403000000000000000000100010002
00000000000000000000300000000000000000000000000020
44400040044000000033243303300043333433300344424444
11100000130011120000301122221010111212211001212221
11111111111115000005001111111155555005511555555551
33100000030050000001004344111010110111100010111211
00000000040000000000002300044000000000000000000020
00000030010030000022103202200032323322202233303321
22110011000110000032103221200033223222323333313321
44100340020020000000500000000000000000000020200020
00000012000020000000000003000000000002200200000200
44000040100000000001500100100001111021002032202300
22000040000040000002100000000020000100100030202210
40400000020055300000000002000000000000010031212101
55550540000034444000500200000000000000010000000210
00000000000000000000000000000011012000200130203210
44140040000441140000100000000011101010000000223200
22200050000040001000010000000032324000002222220400
55000530040030000000500000000000000000000000000000
43400030000040000000000000000044434033311032444422
33300000004453000000003303000042333333302133333321
10020000000002000000200000000020032000021032211210
33200030000041330001210001000020102222211032323310
33300020030030000001102202200031202222201032202222
33300030040030000002102202000022202201100020202200
55511150551115555522335544101142424433454455445545
00000030020000000012003202300022212311200131322211
40000000033033333300305555004320111202031231110020
00000000000000000000002200043000000000000020000030
11000030200330000023203203000043333333302333333332
55000020000023301000003421004023332133444034311151
21110150111155552201000000000021234031111021335500
55500010100001000020002202004033342122122250552344
55500000000030000002200003000010000000320000000311
44400350001033332200402102211001000000100030202321
33000330030330020000304330003002200200000200000032
00000000050000000020303320143000021000000030000033
00000000020020000000300000020000000000000000200100
11102120122000000002215511115020102302411140411155
55500500050033410002000403433000000000000000000010
44400240040030033320505434204040022400000240414445
50500050000000000000000000000033313433101111113402
55500050000555500000000000000022221002100033312300
30330000000050000045000000000031243313304323303410
55100130031033000002500000000033322023123122411323
00000000000000000000002100230100000000000000000012
22100120000030000000200000000000000000000230210222
20000000030000000003200000004300000000000000000043
00000000030000000001300000020000000000000120000031
33300320023210300202303323000020002200022043220022
00000021010040100001003301100021001001301210103200
50400450040050000000500000000000000000033000000000
20000200000000000000100000000043434033202224012330
51100030000003000503003320000033344043154514411412
55000530013000000002000000000030002300000000355400
00000000000000002002000000000022201001200022200211
33000300044020000001422000021000000000000020100030
10000013020000000043004324304044434033412244402420
33300020030000200000003302044200000000000000000032
33000000000030000022323200000032222322310230202211
00000000131000000002212100033200100101100111100011
00000000030000000023200000033000000000000000000030
00000023020020000002300000022000000001100022120010
00000000040000000023200000032000000200000210100011
00000000020000000000100000022110000100000000220010
44400030030030000033300300023020000200000120000002
00000000030020000022202000032200000100000000000011
00000003040000000033310000043000000000000230000032
22200000000001000000002211000021221011101032000021
41400240000130000002503002000022000002200032432223
20200000031000000000400000243000000000000030000030

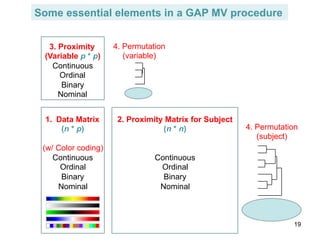

Some essential elements in a GAP MV procedure
1. Data Matrix
(n * p)
(w/ Color coding)
Continuous
Ordinal
Binary
Nominal
2. Proximity Matrix for Subject
(n * n)
Continuous
Ordinal
Binary
Nominal
3. Proximity
(Variable p * p)
Continuous
Ordinal
Binary
Nominal
4. Permutation
(variable)
4. Permutation
(subject)
19
Statistical Approach

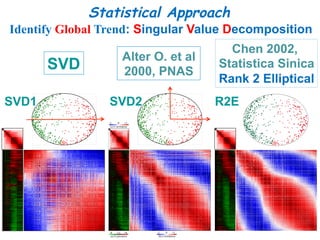

Identify Global Trend: Singular Value Decomposition
Chen 2002,
Statistica Sinica
Rank 2 Elliptical
R2E
20
SVD
SVD1
Alter O. et al
2000, PNAS
SVD2
-1 0 +1
(c) Correlation
-8 1:1 +8
(a) Expression
(d)
-1 0 +1
(b) Correlation
21
Eisen et al. (1998)

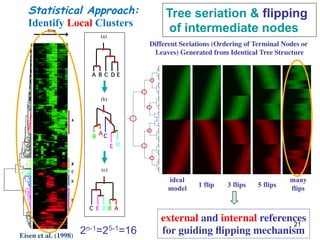

Tree seriation  flipping
of intermediate nodes (a)
A B C D E
D
(b)
A
E
B C
(c)
C E D B A
1 flip 3 flips 5 flips
many
flips
2n-1=25-1=16
Different Seriations (Ordering of Terminal Nodes or
Leaves) Generated from Identical Tree Structure
ideal
model
external and internal references
for guiding flipping mechanism
Statistical Approach:
Identify Local Clusters
-1 0 +1
(c) Correlation
-8 1:1 +8
(a) Expression
Approaching Statistics  Statistical Approach

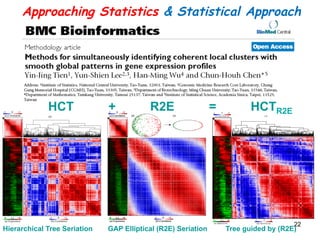

HCT + R2E = HCTR2E
(d)
-1 0 +1
(b) Correlation
-1 0 +1
(c) Correlation
(d) (e)
-1 0 +1
-8 1:1 +8
(a) Expression
(b) Correlation
- 1
0
+1
( c)
Correl at i on
( d)
- 1
0
+1
- 8
1: 1
+8
( a)
Expressi on ( b)
Correl at i on
Hierarchical Tree Seriation GAP Elliptical (R2E) Seriation Tree guided by (R2E) 22
GAP for Heritable (Genetic) Disease: Schizophrenia (National Taiwan University)
Admission
6 month
Psychiatry Research (1998) Lin, Chen et al.
Psychopathological Dimensions in
Schizophrenia: A Correlational Approach
to Items of the SANS and SAPS
Corr.
-1 0 1
0.2 0.4 0.6 0.8 1
Corr.
-0.2 0.2 -0.4 0.4
Absolute Random Error Coefficient
0 1
-.1 .1
G7
N6
G13
N1
N4
N2
N3
N5
G10
G12
G5
P2
G11
N7
G15
G3
G6
G4
G16
G8
P7
S2
G14
S1
S3
P4
P5
G2
G1
comforting the aggravating patient
assistant to the aggravating patient
transport of the aggravating patient to service setting
financial aid
general psychological/practical support
coping with medical team
understanding diagnosis and treatment
identifying early signs of relapse
understanding mental health laws
general social acceptance
occupational therapy
sheltered working facilities
advice on intimate relationship for patient
lifelong custodial care for patient
Need
cluster for
assistant
to patient
care
Need
cluster for
accessing
to relevant
information
Need
cluster
for
societal
support
Need
cluster
for
burden
release
Admission Hwu et al.
Schizophrenia Research (2002)
Symptom Patterns and Subgrouping
of Schizophrenic Patients:
Significance of Negative Symptoms
Assessed on Admission
0 0.2 0.4 0.6 0.8 1
Corr.
-1 0 1
Corr.
-1 0 1
-1 0 1
G7
N6
G13
N1
N4
N2
N3
N5
G10
G12
G5
P2
G11
N7
G15
G3
G6
G4
G16
G8
P7
S2
G14
S1
S3
P4
P5
G2
G1
G1
G2
G3
Average Correlation Negative Disorg. Host./
Genes, Brain and Behavior (2009) Lin
et al. Clustering by neurocognition for
fine-mapping of the schizophrenia
susceptibility loci on chromosome 6p
6 month Liu et al.
J. of the Formosan Med. Ass. (2012)
Medium-term course and outcome of
schizophrenia depicted by the sixth-month
subtype after an acute episode
P3
G9
P1
P6
Negative Disorg. Host./
Excit.
Del./
Hall.
15 10 5 0
Average Euc lidean Distanc e
GONEG
GWNEG
G4
PANSS Score
1 2 3 4 5 6 7
P3
G9
P1
P6
Average Correlation
1 0.8 0.6 0.4 0.2
Correlation Coefficient
-1 -0.5 0 0.5 1
Negative
Symptoms
Disorganized
Thought
Hostility /
Excitement
Delusion /
Ha llucination
Correlation Coefficient
-1 -0.5 0 0.5 1
PANSS Score
1 2 3 4 5 6 7
G7
N6
N3
N1
N2
N4
N5
G16
G10
N7
G5
G13
G11
P2
G15
G12
G8
P7
S1
G14
S2
S3
P4
P6
P3
G9
P1
P5
G4
G2
G1
G3
G6
G7
N6
N3
N1
N2
N4
N5
G16
G10
N7
G5
G13
G11
P2
G15
G12
G8
P7
S1
G14
S2
S3
P4
P6
P3
G9
P1
P5
G4
G2
G1
G3
G6
Negative
Symptoms
Disorganized
Thought
Hostility /
Excitement
Delusion /
Ha llucination
Anxiety
Symptoms
RMG
(n=61)
PDHG1
(n=14)
MBG
(n=50)
PDHG2
(n=38)
0 5 10
Average Euc lidean Distanc e
0.2 0.4 0.6 0.8 1
Excit.
Del./
Hall. Anxiety
J. of the Formosan Med. Ass.
(2008) Yeh et al. Factors
Related to Perceived Needs of
Chief Caregivers of Patients
with Schizophrenia
PLoS ONE (2011) Lai et al.
MicroRNA expression aberration
as potential peripheral blood
biomarkers for schizophrenia
Schizophrenia Research
(2013) Liu et al.
Development of a brief self-report
questionnaire for
screening putative pre-psychotic
states.
GAP for Comparative Metabolome: Chinese Herbal Medicine
Drs. Ning-Sun Yang, Lie-Fen Shyur, Wen-Chin Yang
Agricultural Biotechnology Research Center (ABRC) of Academia Sinica
BMC Genomics 9 (2008)
Genomics and proteomics of
immune modulatory effects
of a butanol fraction of
Echinacea purpurea in
human dendritic cells
Wang et al.
Phytochemistry 70 (2009) Anti-diabetic
properties of three common Bidens
pilosa variants in Taiwan
Chien et al.
Journal of Nutritional
Biochemistry 21 (2010)
Comparative metabolomics
approach coupled with cell-and
gene-based assays for
species classification and anti-inflammatory
bioactivity
validation of Echinacea plants
Hou et al.
BMC Complementary and
Alternative Medicine 13
(2013) Morus alba and active
compound oxyresveratrol exert
anti-inflammatory activity via
inhibition of leukocyte
migration involving MEK/
ERK signaling.
Chen et al.
紫錐菊
咸豐草
白桑

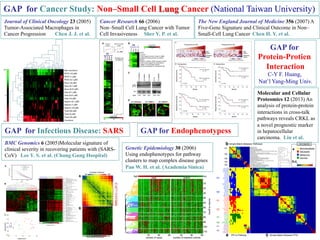

GAP for Cancer Study: Non–Small Cell Lung Cancer (National Taiwan University)
Journal of Clinical Oncology 23 (2005)
Tumor-Associated Macrophages in
Cancer Progression Chen J. J. et al.
The New England Journal of Medicine 356 (2007) A
Five-Gene Signature and Clinical Outcome in Non–
Small-Cell Lung Cancer Chen H. Y. et al.
Cancer Research 66 (2006)
Non–Small Cell Lung Cancer with Tumor
Cell Invasiveness Sher Y. P. et al.
BMC Genomics 6 (2005)Molecular
signature of clinical severity in recovering
patients with (SARS-CoV)
Lee Y. S. et al. (Chang Gung Hospital)
Open Access Scientific Reports 1 (2006) In silico
Therapeutic Drug Screening for Reversing the Lung
Adenocarcinoma Overexpressed Gene Signatures.
Kuo Y. L. et al. (Nat’l Yang-Ming Univ.)
GAP for Infectious Disease: SARS
Protein-Protien
Interaction
Nat’l Yang-Ming Univ.
Molecular and Cellular
Proteomics 12 (2013) An
analysis of protein-protein
interactions in cross-talk
pathways reveals CRKL as
a novel prognostic marker
in hepatocellular
carcinoma. Liu et al.
b Simple Match Between Pathways
F13A1,HSPB1!
MAPK14,EGFR!
EGFR,HSPB1!
STAT1,PDGFRB!
PDGFRB,CRKL!
HCK,CRKL!
ITGAV,PTK2!
FLT1,CRKL!
CRKL,MAPK1!
CRKL,RAF1!
MAPK3,PTPN11!
STAT5A,SHC1!
CRK,SRC!
GAB1,SOS1!
CRK,SHC1!
PXN,PTPN11!
PDGFRB,PTPN11!
PDGFRB,PLCG1!
PLCG1,PTK2!
CRKL,GAB1!
CRKL,PTPN11!
BAD,YWHAZ!
BAD,RAF1!
PTK2,PTEN!
PXN,PTEN!
CRKL,PIK3R1!
AKT1,HSPB1!
AKT1,PDPK1!
MAPK14,AKT1!
PIK3R1,SHC1!
PIK3R1,SRC!
HCK,SOS1!
CRKL,SOS1!
PDGFRB,RAF1!
FLT1,PTPN11!
HCK,PLCG1!
FLT1,PLCG1!
CRKL,EGFR!
CRK,KDR!
CRKL,PTK2!
FLT1,PTK2!
MAPK14,MAPK3!
BAD,MAPK8!
AKT1,SMAD4!
FLT1,HCK!
HCK,PIK3CB!
CTNNB1,FLT1!
PIK3R1,PXN!
FLT1,PIK3R1!
AKT1,PAK1!
AKT1,NOS3!
AKT1,MDM2!
PTK2,YES1!
PXN,MAPK8!
CRK,FLT1!
MAPK3,MAPK1!
PDGFRB,SLC9A3R1!
EGFR,HCK!
MCM7,CDC6!
CDC6,MCM6!
PLK1,PKMYT1!
E2F1,CDC6!
CCNB1,PKMYT1!
CDK7,E2F1!
PLK1,CCNB1!
CCNB1,CDC25A!
CCNA2,CCNB1!
GAP for
C-Y F. Huang,
a PPI to Pathway c Simple Match Between PPIs
M1!
M2!
B1!
B2!
H1!
H2!
A1!
A2!
P1!
P2!
P3!
P4!
P5!
Signalling to RAS!
Signaling by EGFR!
PDGFR-alpha signaling pathway!
PDGFR-beta signaling pathway!
Signaling events activated by Hepatocyte Growth Factor Receptor (c-Met)!
IGF1 pathway!
Signaling events mediated by VEGFR1 and VEGFR2!
role of pi3k subunit p85 in regulation of actin organization and cell migration!
PI3K/AKT signalling!
akt signaling pathway!
mTOR signaling pathway!
Hedgehog signaling events mediated by Gli proteins!
PPAR signaling pathway - Homo sapiens (human)!
Canonical Wnt signaling pathway!
Complement and coagulation cascades - Homo sapiens (human)!
Unwinding of DNA!
Activation of the pre-replicative complex!
cdk regulation of dna replication!
sonic hedgehog receptor ptc1 regulates cell cycle!
Cyclin A/B1 associated events during G2/M transition!
E2F mediated regulation of DNA replication!
a
Color legends
Not on the pathway!
Both Positive!
Mahlavu Only!
Huh7 Only!
b,c0 1

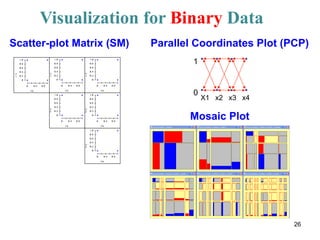

Visualization for Binary Data
Scatter-plot Matrix (SM) Parallel Coordinates Plot (PCP)
1
X1 x2 x3 x4 0
Mosaic Plot
26
Matrix Visualization for Binary Data
Essential elements in a GAP MV procedure?
Continuous Binary
1. Data
Matrix
2. Subject
Proximity
3. Variable
Proximity
1. Data
Matrix
2. Subject
Proximity
3. Variable
Proximity
Correlation
Covariance
polychoric
Correlation . . .
Euclidean Distance
Manhattan Distance
Correlation … ?
27
Commonly used similarity
coefficients for binary data
28
Tzeng et al. (BMEI 2009)
(IEEE Xplore Digital Library)
Binary GAP Example
http://CGMIM Online
www.bccrc.ca/ccr/CGMIM/
CGMIM performs automated text-mining of OMIM to identify genetically-related
cancers
Online Mendelian In Man (OMIM) is a computerized database of information
about genes and heritable traits in human populations
OMIM is maintained on the Internet by the
National Center for Biotechnology Information at the
US National Institutes of Health
CGMIM considers 21 anatomic sites based on the major cancers
identified by the National Cancer Institute of Canada
CGMIM compares each OMIM entry name and alternative name with a list of
gene names assigned by HUGO (HUman Genome Organization).
CGMIM produces the number of genes for which an OMIM entry mentions
each pair of cancers, as well as a ratio of the observed and expected number 29
of
genes for the combination
CGMIM

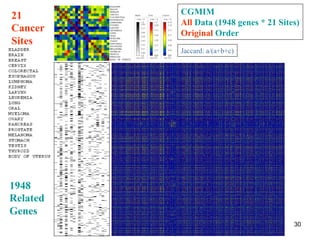

All Data (1948 genes * 21 Sites)
Original Order
21
Cancer
Sites
1948
Related
Genes
Jaccard: a/(a+b+c)
30

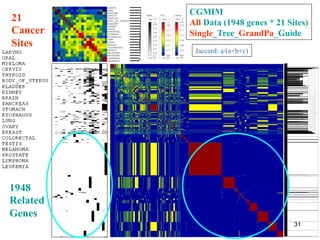

21
Cancer
Sites
1948
Related
Genes
CGMIM
All Data (1948 genes * 21 Sites)
Single_Tree_GrandPa_Guide
Jaccard: a/(a+b+c)
31
21
Cancer
Sites
768
Related
Genes
CGMIM

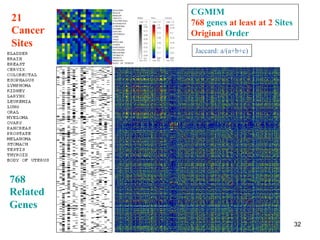

768 genes at least at 2 Sites
Original Order
Jaccard: a/(a+b+c)
32

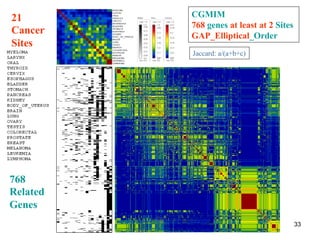

21
Cancer
Sites
768
Related
Genes
CGMIM
768 genes at least at 2 Sites
GAP_Elliptical_Order
Jaccard: a/(a+b+c)
33
Approaching Statistics  Statistical Approach
Matrix visualization
of nominal data
(GAP approach)
Example:
Classification of Animals Data
Shizuhiko Nishisato 2006
34
35

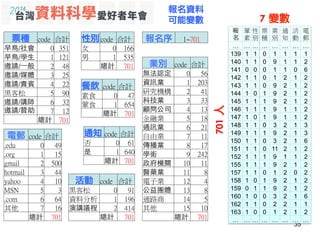

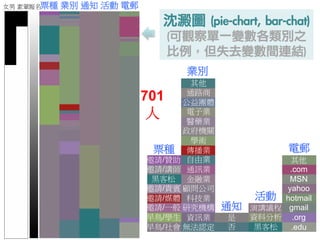

票種
code
合計
早鳥/社會 0
351
早鳥/學生 1
121
邀請/⼀一般 2
48
邀請/媒體 3
25
邀請/貴賓 4
22
黑客松
5
90
邀請/講師 6
32
邀請/贊助 7
12
總計 701
性別
code
合計
女
0
166
男
1
535
總計 701
業別
code
合計
無法認定 0
56
資訊業 1
203
研究機構
2
41
科技業 3
33
顧問公司 4
13
金融業
5
18
通訊業 6
21
自由業
7
11
傳播業 8
17
學術 9
242
政府機關 10
11
醫藥業 11
8
電子業
12
4
公益團體 13
8
通路商
14
5
其他 15
10
總計 701
餐飲
code
合計
素食
0
47
葷食
1
654
總計 701
通知
否
0
61
是 1
活動
code
合計
640
總計 701
code
合計
黑客松
0
91
資料分析
1
196
演講議程 2
414
總計 701
電郵
code
合計
.edu
0
49
.org
1
15
gmail
2
500
hotmail
3
44
yahoo
4
10
MSN
5
3
.com
6
64
其他
7
16
總計 701

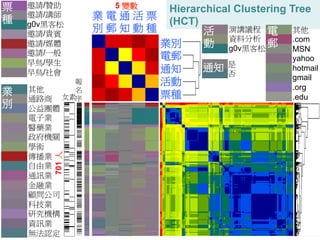

報名資料
可能變數
報名序
1~701
票
種
業
別
通
知
活
動
電
郵
…
…
…
…
…

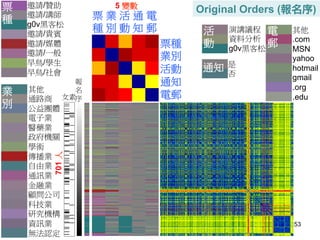

0 1 1 1 1
0 9 1 1 2
0 1 1 0 6
0 1 2 1 2
0 9 2 1 2
1 9 2 1 2
1 9 2 1 2
1 9 1 1 2
1 9 1 1 2
0 3 2 1 3
1 9 2 1 3
0 3 2 1 6
0 11 2 1 2
1 9 1 1 2
1 9 2 1 2
0 1 2 0 2
1 9 2 1 2
1 9 2 1 2
0 3 2 1 6
0 2 2 1 1
0 1 2 1 2
…
…
…
…
…
701 人
7 變數
報
名
葷
素
性
別
…
…
…
139
1
1
140
1
1
141
0
0
142
1
1
143
1
1
144
1
0
145
1
1
146
1
1
147
1
0
148
1
1
149
1
1
150
1
1
151
1
1
152
1
1
155
1
1
157
1
1
158
1
0
159
0
1
160
1
0
162
1
1
163
1
0
…
…
…

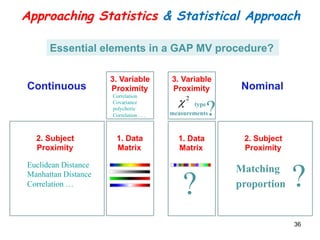

Approaching Statistics  Statistical Approach
Essential elements in a GAP MV procedure?
1. Data
Matrix
2. Subject
Proximity
3. Variable
Proximity
type
2
measurements
1. Data
Matrix
2. Subject
Proximity
3. Variable
Continuous Proximity Nominal
Correlation
Covariance
polychoric
Correlation . . .
Euclidean Distance
Manhattan Distance
Correlation … ?
Matching
proportion
χ ?
?
36
A typical nominal data
Shizuhiko
Nishisato,
2006
Classifica5on
of
Animals
35
animals
were
sorted
into
piles
of
similar
animals
by
15
students
Animal/Subject S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15
Alligator 8 1 6 9 6 1 3 4 1 4 3 4 3 6 4
Bear 6 3 2 6 6 1 3 4 4 5 5 1 4 2 2
Camel 4 3 9 3 1 4 3 5 4 2 5 1 7 7 8
Cat 6 3 7 4 0 1 1 2 3 3 1 1 6 3 5
Cheetah 3 3 7 4 0 1 3 5 4 3 6 1 6 2 2
Chiken 7 2 4 1 2 5 7 1 5 1 1 3 8 4 1
Chimpanzee 5 3 5 7 5 2 4 4 2 2 6 4 3 6 6
Cow 1 3 9 6 1 1 3 5 3 4 1 1 4 5 8
Crane 7 2 4 5 2 5 5 1 5 1 2 3 8 4 1
Crow 7 2 4 5 2 5 5 1 5 1 2 3 8 4 1
Dog 6 3 7 10 0 2 1 2 3 3 1 1 4 3 5
Duck 7 2 4 1 2 5 5 1 5 1 2 3 8 4 1
Elephant 4 3 6 3 1 4 3 5 4 5 3 1 7 7 2
Fox 6 3 7 4 0 1 6 2 3 3 3 1 4 3 5
Frog 8 1 3 2 3 3 2 3 1 4 4 2 1 1 3
Giraffe 1 3 8 3 1 4 3 5 4 2 5 1 7 7 8
Goat 3 3 9 6 1 4 6 5 3 3 1 1 5 3 5
Hawk 7 2 4 5 2 5 5 1 5 1 3 3 8 4 1
Hippopotamus 4 3 6 6 6 4 3 3 4 4 5 1 7 7 2
Horse 6 3 9 6 1 2 3 5 3 3 1 1 5 5 8
Leopard 1 3 7 4 0 1 3 5 4 3 3 1 6 2 2
Lion 5 3 7 4 6 1 3 5 4 3 3 1 7 2 2
Lizard 2 1 3 2 3 3 2 3 1 4 4 2 2 1 3
Monkey 6 3 5 7 5 2 4 4 2 2 6 4 3 6 6
Ostrich 3 2 4 1 2 5 3 1 5 1 5 3 8 7 8
Pig 1 3 9 6 1 1 6 5 3 3 1 1 5 5 5
Pigeon 7 2 4 5 2 5 5 1 5 1 2 1 8 4 1
Rabbit 6 3 1 6 0 4 6 2 3 3 1 1 5 3 5
Racoon 6 3 7 10 4 1 6 2 3 3 3 1 4 3 5
Rhinoceros 4 3 5 6 6 4 3 5 4 4 5 1 7 7 2
Snake 8 1 3 9 6 3 2 3 1 4 4 2 2 1 3
Sparrow 7 2 4 5 2 5 5 1 5 2 2 3 8 4 1
Tiger 5 3 7 4 0 1 3 5 4 3 3 1 6 2 2
Tortoise 8 1 3 9 3 3 2 3 1 5 4 2 1 1 3
Turkey 7 2 4 1 2 5 7 1 5 1 1 3 8 4 1

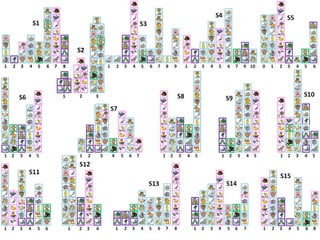

What about
3500 samples
1500 variables
?
37

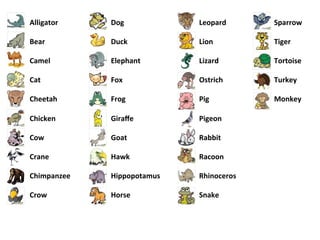

Alligator
Bear
Camel
Cat
Cheetah
Chicken
Cow
Crane
Chimpanzee
Crow
Dog
Duck
Elephant
Fox
Frog
Giraffe
Goat
Hawk
Hippopotamus
Horse
Leopard
Lion
Lizard
Ostrich
Pig
Pigeon
Rabbit
Racoon
Rhinoceros
Snake
Sparrow
Tiger
Tortoise
Turkey
Monkey
39

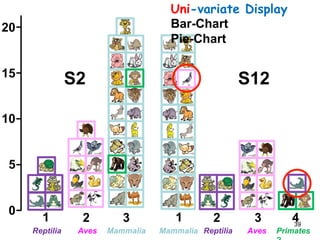

Uni-variate Display Bar-Chart Pie-Chart
S12
S2
Mammalia
Reptilia
Aves
Reptilia
AvesMammalia
Primates ?
20
15
10
5
0
12
3
1
2
3
4
1. Reptile
2. Bird3. Mammal
41
2. Reptile
3. Bird4. Primate?
1. Mammal
Bi-variate Display
Mosaic Display

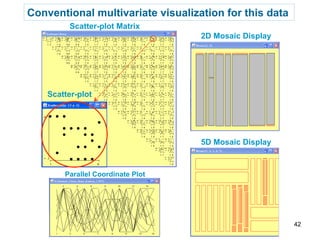

Conventional multivariate visualization for this data
2D Mosaic Display
5D Mosaic Display
Scatter-plot Matrix
Scatter-plot
Parallel Coordinate Plot
42

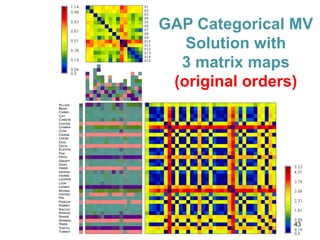

GAP Categorical MV
Solution with
3 matrix maps
(original orders)
43
Alliga
Bear
Camel
Cat
Cheeta
Chicke
Chimpa
Cow
Crane
Crow
Dog
Duck
Elepha
Fox
Frog
Giraff
Goat
Hawk
Hippop
Horse
Leopar
Lion
Lizard
Monke
Ostric
Pig
Pigeon
Rabbit
Racoo
Rhinoc
Snake
Sparro
Tiger
Tortoi
Turkey
GAP Categorical MV
44
Solution with
3 matrix maps
(R2E orders)
45
11
6
7
15
14
12
13
9
4
3
5
8
10
2
1
Ostri c
Turk e y
Chicke
Pigeon
Hawk
Sparro
Duck
Crow
Cran e
L i zard
Frog
Tor toi
Snake
Alli ga
Hippop
Bear
Rhinoc
Elepha
L i o n
Tiger
Leopar
Cow
Fox
Racoo
Cheeta
Cat
Dog
P i g
Rabbit
Hors e
Goat
Camel
Gir aff
Monke
Chimpa
11
6
7
15
14
12
13
9
4
3
5
8
10
2
1
Aves
Reptilia
Mammalia
Primates

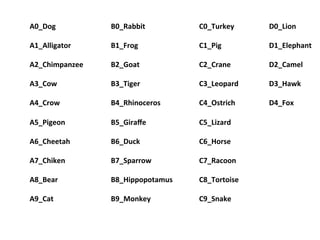

D0_Lion
D1_Elephant
D2_Camel
D3_Hawk
D4_Fox
A0_Dog
A1_Alligator
A2_Chimpanzee
A3_Cow
A4_Crow
A5_Pigeon
A6_Cheetah
A7_Chiken
A8_Bear
A9_Cat
B0_Rabbit
B1_Frog
B2_Goat
B3_Tiger
B4_Rhinoceros
B5_Giraffe
B6_Duck
B7_Sparrow
B8_Hippopotamus
B9_Monkey
C0_Turkey
C1_Pig
C2_Crane
C3_Leopard
C4_Ostrich
C5_Lizard
C6_Horse
C7_Racoon
C8_Tortoise
C9_Snake
Alligator
Bear
Camel
Cat
Cheetah
Chicken
Cow
Crane
Chimpanzee
Crow
Dog
Duck
Elephant
Fox
Frog
Giraffe
Goat
Hawk
Hippopotamus
Horse
Leopard
Lion
Lizard
Ostrich
Pig
Pigeon
Rabbit
Racoon
Rhinoceros
Snake
Sparrow
Tiger
Tortoise
Turkey
Monkey
?

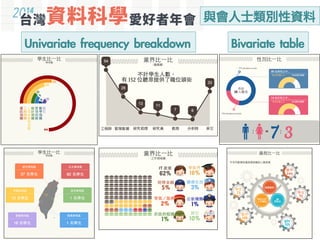

與會人士類別性資料
Univariate frequency breakdown
Bivariate table
48
49
票種
code
合計
早鳥票/社會人士 0
351
早鳥票/學生 1
121
邀請票/⼀一般 2
48
邀請票/媒體 3
25
邀請票/貴賓 4
22
g0v 黑客松票
5
90
邀請票/講師 6
32
邀請票/贊助 7
12
總計 701
性別
code
合計
女
0
166
男
1
535
總計 701
業別
code
合計
Missing、無法認定 0
56
資訊業 1
203
研究機構
2
41
科技業 3
33
顧問公司 4
13
金融業
5
18
通訊業 6
21
自由業
7
11
傳播業 8
17
學術 9
242
政府機關 10
11
醫藥業 11
8
電子業
12
4
公益團體 13
8
通路商
14
5
製造業、食品業、
運輸業、服務業 15
10
總計 701
餐飲需求
code
合計
素食
0
47
葷食
1
654
總計 701
參加活動
code
合計
g0v 黑客松
0
91
資料分析上手課程
1
196
演講議程 2
414
總計 701
日後通知
code
合計
否
0
61
是 1
640
總計 701
電郵
code
合計
.edu
0
49
.org
1
15
gmail
2
500
hotmail
3
44
yahoo
4
10
MSN
5
3
.com
6
64
未定、其他
7
16
總計 701

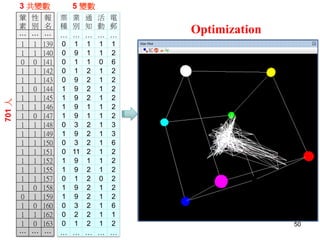

報名資料可能變數
報名序
1~701
50
701 人
5 變數
Optimization
票
種
業
別
通
知
活
動
電
郵
…
…
…
…
…
0 1 1 1 1
0 9 1 1 2
0 1 1 0 6
0 1 2 1 2
0 9 2 1 2
1 9 2 1 2
1 9 2 1 2
1 9 1 1 2
1 9 1 1 2
0 3 2 1 3
1 9 2 1 3
0 3 2 1 6
0 11 2 1 2
1 9 1 1 2
1 9 2 1 2
0 1 2 0 2
1 9 2 1 2
1 9 2 1 2
0 3 2 1 6
0 2 2 1 1
0 1 2 1 2
…
…
…
…
…
3 共變數
葷
素
性
別
報
名
…
…
…
1
1
139
1
1
140
0
0
141
1
1
142
1
1
143
1
0
144
1
1
145
1
1
146
1
0
147
1
1
148
1
1
149
1
1
150
1
1
151
1
1
152
1
1
155
1
1
157
1
0
158
0
1
159
1
0
160
1
1
162
1
0
163
…
…
…
51
其他
.com
MSN
Yahoo
Hotmail
Gmail
.org
.edu
是
否
業別
演講議程
資料分析
黑客松
其他
通路商
公益團體
電子業
醫藥業
政府機關
學術
傳播業
自由業
通訊業
金融業
顧問公司
科技業
研究機構
資訊業
無法認定
票種
邀請贊助
邀請講師
黑客松
邀請貴賓
邀請媒體
邀請一般
早鳥學生
早鳥社會
電郵
通知
活動
李育杰
701
人
5 變數
52
報
名
女素序
票 業 活 通 電
種 別 動 知 郵
票種
業別
活動
通知
電郵
5 變數
701 人
Original Orders (報名序)
5 變數 Original Orders (報名序)
53
邀請/贊助
邀請/講師
g0v黑客松
邀請/貴賓
邀請/媒體
邀請/一般
早鳥/學生
早鳥/社會
其他
通路商
公益團體
電子業
醫藥業
政府機關
學術
傳播業
自由業
通訊業
金融業
顧問公司
科技業
研究機構
資訊業
無法認定
其他
.com
MSN
yahoo
hotmail
gmail
.org
.edu
通知 是
否
活
動
演講議程
資料分析
g0v黑客松
報
名
序
票
種
業
別
電
郵
女素
票 業 活 通 電
種 別 動 知 郵
票種
業別
活動
通知
電郵
701 人
5 變數
票 通 活 電 業
種 知 動 郵 別
Random Orders
54
邀請/贊助
邀請/講師
g0v黑客松
邀請/貴賓
邀請/媒體
邀請/一般
早鳥/學生
早鳥/社會
其他
通路商
公益團體
電子業
醫藥業
政府機關
學術
傳播業
自由業
通訊業
金融業
顧問公司
科技業
研究機構
資訊業
無法認定
其他
.com
MSN
yahoo
hotmail
gmail
.org
.edu
通知 是
否
活
動
演講議程
資料分析
g0v黑客松
報
名
序
票
種
業
別
電
郵
票種
通知
活動
電郵
女素 業別
701 人
沈澱圖 (pie-chart, bar-chat)
(可觀察單一變數各類別之
比例,但失去變數間連結)
55
女男 素葷報 名票 種 業別 活動 通知 電郵
通知
活動
票種
業別
電郵
其他
.com
MSN
yahoo
hotmail
gmail
.org
.edu
是
否
演講議程
資料分析
黑客松
邀請/贊助
邀請/講師
黑客松
邀請/貴賓
邀請/媒體
邀請/一般
早鳥/學生
早鳥/社會
其他
通路商
公益團體
電子業
醫藥業
政府機關
學術
傳播業
自由業
通訊業
金融業
顧問公司
科技業
研究機構
資訊業
無法認定
701
人
166
電 通 活 票 業
郵 知 動 種 別 其他
56
邀請/贊助
邀請/講師
g0v黑客松
邀請/貴賓
邀請/媒體
邀請/一般
早鳥/學生
早鳥/社會
其他
通路商
公益團體
電子業
醫藥業
政府機關
學術
傳播業
自由業
通訊業
金融業
顧問公司
科技業
研究機構
資訊業
無法認定
報
名
序
票
種
業
別

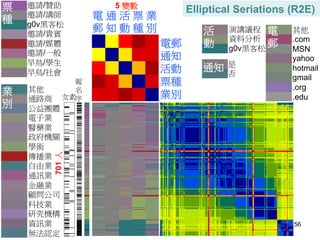

Elliptical Seriations (R2E)
電郵
通知
活動
票種
業別
.com
MSN
yahoo
hotmail
gmail
.org
.edu
通知 是
否
活
動
演講議程
資料分析
g0v黑客松
電
郵
5 變數
女素
701 人
業 電 通 活 票
別 郵 知 動 種
57
邀請/贊助
邀請/講師
g0v黑客松
邀請/貴賓
邀請/媒體
邀請/一般
早鳥/學生
早鳥/社會
其他
通路商
公益團體
電子業
醫藥業
政府機關
學術
傳播業
自由業
通訊業
金融業
顧問公司
科技業
研究機構
資訊業
無法認定
報
名
序
業別
電郵
通知
活動
票種
票
種
業
別
Hierarchical Clustering Tree
(HCT)
其他
.com
MSN
yahoo
hotmail
gmail
.org
.edu
通知 是
否
活
動
演講議程
資料分析
g0v黑客松
電
郵
5 變數
女素
701 人
電 通 活 票 業
郵 知 動 種 別
58
邀請/贊助
邀請/講師
g0v黑客松
邀請/貴賓
邀請/媒體
邀請/一般
早鳥/學生
早鳥/社會
其他
通路商
公益團體
電子業
醫藥業
政府機關
學術
傳播業
自由業
通訊業
金融業
顧問公司
科技業
研究機構
資訊業
無法認定
報
名
序
票
種
業
別

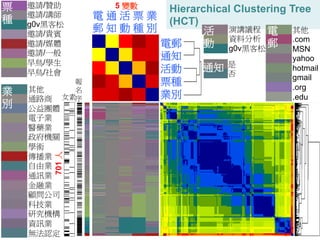

Hierarchical Clustering Tree
(HCT)
其他
.com
MSN
yahoo
hotmail
gmail
.org
.edu
通知 是
否
活
動
演講議程
資料分析
g0v黑客松
電
電郵 郵
通知
活動
票種
業別
5 變數
女素
701 人

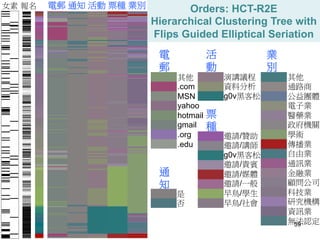

Hierarchical Clustering Tree with
Flips Guided Elliptical Seriation
59
電郵 通知 活動 票種 業別
報名 Orders: HCT-R2E
票
種
其他
通路商
公益團體
電子業
醫藥業
政府機關
學術
傳播業
自由業
通訊業
金融業
顧問公司
科技業
研究機構
資訊業
無法認定
業
別
電
郵
其他
.com
MSN
yahoo
hotmail
gmail
.org
.edu
通
知
是
否
活
動
演講議程
資料分析
g0v黑客松
邀請/贊助
邀請/講師
g0v黑客松
邀請/貴賓
邀請/媒體
邀請/一般
早鳥/學生
早鳥/社會
女素

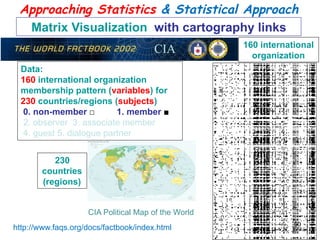

Approaching Statistics  Statistical Approach
CIA
Data:
160 international organization
membership pattern (variables) for
230 countries/regions (subjects)
0. non-member □ 1. member ■
2. observer 3. associate member
4. guest 5. dialogue partner
CIA Political Map of the World
230
countries
(regions)
http://www.faqs.org/docs/factbook/index.html
160 international
organization
60
Matrix Visualization with cartography links
Draw one membership map for each organization (variable)?
1 2 3
4 5 6
7 8 9
. . . 160 maps (?) . . .
158 159 160 61

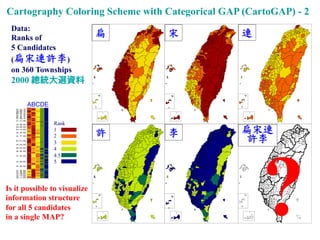

Cartography Coloring Scheme with Categorical GAP (CartoGAP) - 2
Data:
Ranks of
5 Candidates
(扁宋連許李)
on 360 Townships
2000 總統大選資料
Is it possible to visualize
information structure
for all 5 candidates
in a single MAP?
A B C
A B C
D E

D E
?
Rank
1
2
3
4
4.5
5








	#
!




ABCDE
扁
宋
連
許
扁宋連
許李
李
Cartography Coloring Scheme with GAP (CartoGAP)-2
(B). CateGAP Color Map for Each Individual Variable
A B C
E
A B C
D E
D
(C). Final Single
CateGAP Cartography
Color MAP for Complete
Information Visualization
扁
宋
連
李
扁宋連
許李
許
From physical maps to conceptual maps
64
Chromosome Map
Macro Biodiversity
Semiconductor
Wafer Quality
Control
Micro
Biodiversity
65

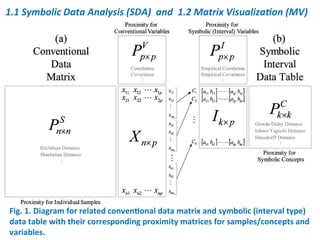

Matrix Visualization for
Symbolic Data (Analysis)
for Big Data?
1.1
Symbolic
Data
Analysis
(SDA)
and
1.2
Matrix
Visualizaon
(MV)
Fig.
1.
Diagram
for
related
conven5onal
data
matrix
and
symbolic
(interval
type)
data
table
with
their
corresponding
proximity
matrices
for
samples/concepts
and
variables.

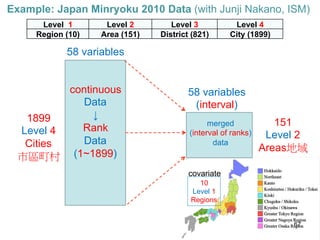

Example: Japan Minryoku 2010 Data (with Junji Nakano, ISM)
67
Level 1
Level 2
Level 3
Level 4
Region (10)
Area (151)
District (821)
City (1899)
58 variables
1899
Level 4
Cities
市區町村
58 variables
(interval)
151
Level 2
Areas地域
continuous
Data
↓
Rank
Data
(1~1899)
merged
(interval of ranks)
data
covariate
10
Level 1
Regions
Japan Minryoku 2010 Data

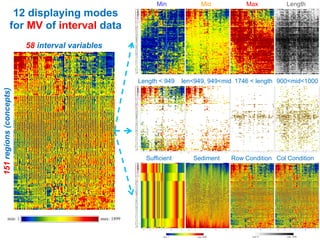

12 displaying modes
for MV of interval data
58 interval variables
151 regions (concepts)
Min
Mid
Max
Length
Length  949
len949, 949mid
1746  length
900mid1000
Sufficient
Sediment
Row Condition
Col Condition
Statisticians, Data Analysts,  Bioinformaticists
A statistician is someone who wants to get exactly the right
answer, even if it’s the answer to the wrong question.
A data analyst is someone who is willing to settle for an
approximate answer, as long as it’s the answer to the right
question.
A bioinformaticist is someone who is willing to settle for
answers of unknown accuracy, to questions that have not
been clearly articulated, as long as the results can be
graphed in color.
David B. Allison, Ph.D.
Department of Biostatistics
University of Alabama at Birmingham
Approaching Statistics  Statistical Approach
12. MV for Color Blind people
Types of color blind
Monochromacy
Dichromacy
Protanopia and deuteranopia
Hereditary tritanopia
Anomalous Trichromacy
http://www.vischeck.com/examples/
To act passively to prevent from using color systems that are
difficult for color blind people to understand. or
To work actively in assisting people with visual impairments to
have better visualization of data/information.
“I believe there are more mathematics/statistics
blind people than color blind people” 71

More Related Content

What's hot

La Programmation neuro linguistique
La Programmation neuro linguistiqueLa Programmation neuro linguistique
La Programmation neuro linguistique
Ayoub Zouak

Prise de parole en public francais
Prise de parole en public francais Prise de parole en public francais
Prise de parole en public francais
Lotfi Saibi

The 商社 概要とルール
The 商社 概要とルールThe 商社 概要とルール
The 商社 概要とルール
Yuya Takeshima

量子アニーリングのこれまでとこれから -- ハード・ソフト・アプリ三方向からの協調的展開 --
量子アニーリングのこれまでとこれから -- ハード・ソフト・アプリ三方向からの協調的展開 --量子アニーリングのこれまでとこれから -- ハード・ソフト・アプリ三方向からの協調的展開 --
量子アニーリングのこれまでとこれから -- ハード・ソフト・アプリ三方向からの協調的展開 --
Shu Tanaka

La communication interne en entreprise
La communication interne en entrepriseLa communication interne en entreprise
La communication interne en entreprise
Elsa ComDigitale

mros2 on Mbed
mros2 on Mbedmros2 on Mbed
mros2 on Mbed
smorita1

Pnl
PnlPnl
QGIS初級編2018
QGIS初級編2018QGIS初級編2018
QGIS初級編2018
Jyun Tanaka

CasualConc 3.0 —Universal Dependency タグを
利用した文法検索の試み— @ JAECS 2022
CasualConc 3.0 —Universal Dependency タグを
利用した文法検索の試み— @ JAECS 2022CasualConc 3.0 —Universal Dependency タグを
利用した文法検索の試み— @ JAECS 2022
CasualConc 3.0 —Universal Dependency タグを
利用した文法検索の試み— @ JAECS 2022
yasuimao

Pythonではじめる競技プログラミング
Pythonではじめる競技プログラミングPythonではじめる競技プログラミング
Pythonではじめる競技プログラミング
cocodrips

第34回CV勉強会「コンピュテーショナルフォトグラフィ」発表資料
第34回CV勉強会「コンピュテーショナルフォトグラフィ」発表資料第34回CV勉強会「コンピュテーショナルフォトグラフィ」発表資料
第34回CV勉強会「コンピュテーショナルフォトグラフィ」発表資料
Takuya Minagawa

La validation de l'idée d'entreprise
La validation de l'idée d'entrepriseLa validation de l'idée d'entreprise
La validation de l'idée d'entrepriseFranck Hermann Tanoh

Or seminar2011final
Or seminar2011finalOr seminar2011final
Or seminar2011finalMikio Kubo

OpenCVを用いた画像処理入門
OpenCVを用いた画像処理入門OpenCVを用いた画像処理入門
OpenCVを用いた画像処理入門
uranishi

AI時代の要件定義
AI時代の要件定義AI時代の要件定義
AI時代の要件定義
Zenji Kanzaki

Module management comportemental & stratégique
Module management comportemental & stratégiqueModule management comportemental & stratégique
Module management comportemental & stratégiqueJean Jerome Fauquet

Emotions Et Pratique Professionnelle
Emotions Et Pratique ProfessionnelleEmotions Et Pratique Professionnelle
Emotions Et Pratique Professionnelle
Mesloub


What's hot (20)

La Programmation neuro linguistique
La Programmation neuro linguistiqueLa Programmation neuro linguistique
La Programmation neuro linguistique

Prise de parole en public francais
Prise de parole en public francais Prise de parole en public francais
Prise de parole en public francais

Intelligence emotionnelle
Intelligence emotionnelleIntelligence emotionnelle
Intelligence emotionnelle

The 商社 概要とルール
The 商社 概要とルールThe 商社 概要とルール
The 商社 概要とルール

量子アニーリングのこれまでとこれから -- ハード・ソフト・アプリ三方向からの協調的展開 --
量子アニーリングのこれまでとこれから -- ハード・ソフト・アプリ三方向からの協調的展開 --量子アニーリングのこれまでとこれから -- ハード・ソフト・アプリ三方向からの協調的展開 --
量子アニーリングのこれまでとこれから -- ハード・ソフト・アプリ三方向からの協調的展開 --

Coaching a quoi sert il?
Coaching a quoi sert il?Coaching a quoi sert il?
Coaching a quoi sert il?

La communication interne en entreprise
La communication interne en entrepriseLa communication interne en entreprise
La communication interne en entreprise

mros2 on Mbed
mros2 on Mbedmros2 on Mbed
mros2 on Mbed

Pnl
PnlPnl
Pnl

QGIS初級編2018
QGIS初級編2018QGIS初級編2018
QGIS初級編2018

CasualConc 3.0 —Universal Dependency タグを
利用した文法検索の試み— @ JAECS 2022
CasualConc 3.0 —Universal Dependency タグを
利用した文法検索の試み— @ JAECS 2022CasualConc 3.0 —Universal Dependency タグを
利用した文法検索の試み— @ JAECS 2022
CasualConc 3.0 —Universal Dependency タグを
利用した文法検索の試み— @ JAECS 2022

PNL - Agile Dojo® du 12 Mars 2014
PNL - Agile Dojo® du 12 Mars 2014 PNL - Agile Dojo® du 12 Mars 2014
PNL - Agile Dojo® du 12 Mars 2014

Pythonではじめる競技プログラミング
Pythonではじめる競技プログラミングPythonではじめる競技プログラミング
Pythonではじめる競技プログラミング

第34回CV勉強会「コンピュテーショナルフォトグラフィ」発表資料
第34回CV勉強会「コンピュテーショナルフォトグラフィ」発表資料第34回CV勉強会「コンピュテーショナルフォトグラフィ」発表資料
第34回CV勉強会「コンピュテーショナルフォトグラフィ」発表資料

La validation de l'idée d'entreprise
La validation de l'idée d'entrepriseLa validation de l'idée d'entreprise
La validation de l'idée d'entreprise

Or seminar2011final
Or seminar2011finalOr seminar2011final
Or seminar2011final

OpenCVを用いた画像処理入門
OpenCVを用いた画像処理入門OpenCVを用いた画像処理入門
OpenCVを用いた画像処理入門

AI時代の要件定義
AI時代の要件定義AI時代の要件定義
AI時代の要件定義

Module management comportemental & stratégique
Module management comportemental & stratégiqueModule management comportemental & stratégique
Module management comportemental & stratégique

Emotions Et Pratique Professionnelle
Emotions Et Pratique ProfessionnelleEmotions Et Pratique Professionnelle
Emotions Et Pratique Professionnelle


Viewers also liked

[系列活動] 給工程師的統計學及資料分析 123
[系列活動] 給工程師的統計學及資料分析 123[系列活動] 給工程師的統計學及資料分析 123
[系列活動] 給工程師的統計學及資料分析 123
台灣資料科學年會

[系列活動] 智慧製造與生產線上的資料科學 (製造資料科學:從預測性思維到處方性決策)
[系列活動] 智慧製造與生產線上的資料科學 (製造資料科學:從預測性思維到處方性決策)[系列活動] 智慧製造與生產線上的資料科學 (製造資料科學:從預測性思維到處方性決策)
[系列活動] 智慧製造與生產線上的資料科學 (製造資料科學:從預測性思維到處方性決策)
台灣資料科學年會

Z > B 的資料科學
Z > B 的資料科學Z > B 的資料科學
Z > B 的資料科學
台灣資料科學年會

天下武功唯快不破:利用串流資料實做出即時分類器和即時推薦系統
天下武功唯快不破:利用串流資料實做出即時分類器和即時推薦系統天下武功唯快不破:利用串流資料實做出即時分類器和即時推薦系統
天下武功唯快不破:利用串流資料實做出即時分類器和即時推薦系統
台灣資料科學年會

李慕約&王向榮/如何備料:資料的抓取、清理以及串接
李慕約&王向榮/如何備料:資料的抓取、清理以及串接李慕約&王向榮/如何備料:資料的抓取、清理以及串接
李慕約&王向榮/如何備料:資料的抓取、清理以及串接
台灣資料科學年會

一個賭徒的告白:從預測市場看金融交易
一個賭徒的告白:從預測市場看金融交易一個賭徒的告白:從預測市場看金融交易
一個賭徒的告白:從預測市場看金融交易
台灣資料科學年會

林佳賢/資料視覺化的 20 個小訣竅
林佳賢/資料視覺化的 20 個小訣竅林佳賢/資料視覺化的 20 個小訣竅
林佳賢/資料視覺化的 20 個小訣竅
台灣資料科學年會

R統計軟體簡介
R統計軟體簡介R統計軟體簡介
R統計軟體簡介
Person Lin

R統計軟體 -安裝與使用
R統計軟體 -安裝與使用R統計軟體 -安裝與使用
R統計軟體 -安裝與使用
Person Lin

第一場預測
第一場預測第一場預測
第一場預測
R Ladies Taipei

機率統計 -- 使用 R 軟體
機率統計 -- 使用 R 軟體機率統計 -- 使用 R 軟體
機率統計 -- 使用 R 軟體
鍾誠 陳鍾誠

新手村-資料探索
新手村-資料探索新手村-資料探索
新手村-資料探索
R Ladies Taipei

Big-data analytics: challenges and opportunities
Big-data analytics: challenges and opportunitiesBig-data analytics: challenges and opportunities
Big-data analytics: challenges and opportunities
台灣資料科學年會

資料科學的第一堂課 Data Science Orientation
資料科學的第一堂課 Data Science Orientation資料科學的第一堂課 Data Science Orientation
資料科學的第一堂課 Data Science Orientation
Ryan Chung

不會寫程式的人友善上手機器學習-淺談 Azure machine learning studio
不會寫程式的人友善上手機器學習-淺談 Azure machine learning studio不會寫程式的人友善上手機器學習-淺談 Azure machine learning studio
不會寫程式的人友善上手機器學習-淺談 Azure machine learning studio
R Ladies Taipei

吳齊軒/漫談 R 的學習挑戰與 R 語言翻轉教室
吳齊軒/漫談 R 的學習挑戰與 R 語言翻轉教室吳齊軒/漫談 R 的學習挑戰與 R 語言翻轉教室
吳齊軒/漫談 R 的學習挑戰與 R 語言翻轉教室
台灣資料科學年會

[DSC 2016] 系列活動:許懷中 / R 語言資料探勘實務
[DSC 2016] 系列活動:許懷中 / R 語言資料探勘實務[DSC 2016] 系列活動:許懷中 / R 語言資料探勘實務
[DSC 2016] 系列活動:許懷中 / R 語言資料探勘實務
台灣資料科學年會

曾韵/沒有大數據怎麼辦 ? 會計師事務所的小數據科學
曾韵/沒有大數據怎麼辦 ? 會計師事務所的小數據科學曾韵/沒有大數據怎麼辦 ? 會計師事務所的小數據科學
曾韵/沒有大數據怎麼辦 ? 會計師事務所的小數據科學
台灣資料科學年會

初學R語言的60分鐘
初學R語言的60分鐘初學R語言的60分鐘
初學R語言的60分鐘
Chen-Pan Liao

那些你知道的,但還沒看過的 Big Data 風景 ─ 致 Hadooper
那些你知道的,但還沒看過的 Big Data 風景 ─ 致 Hadooper那些你知道的,但還沒看過的 Big Data 風景 ─ 致 Hadooper
那些你知道的,但還沒看過的 Big Data 風景 ─ 致 Hadooper
Fred Chiang


Viewers also liked (20)

[系列活動] 給工程師的統計學及資料分析 123
[系列活動] 給工程師的統計學及資料分析 123[系列活動] 給工程師的統計學及資料分析 123
[系列活動] 給工程師的統計學及資料分析 123

[系列活動] 智慧製造與生產線上的資料科學 (製造資料科學:從預測性思維到處方性決策)
[系列活動] 智慧製造與生產線上的資料科學 (製造資料科學:從預測性思維到處方性決策)[系列活動] 智慧製造與生產線上的資料科學 (製造資料科學:從預測性思維到處方性決策)
[系列活動] 智慧製造與生產線上的資料科學 (製造資料科學:從預測性思維到處方性決策)

Z > B 的資料科學
Z > B 的資料科學Z > B 的資料科學
Z > B 的資料科學

天下武功唯快不破:利用串流資料實做出即時分類器和即時推薦系統
天下武功唯快不破:利用串流資料實做出即時分類器和即時推薦系統天下武功唯快不破:利用串流資料實做出即時分類器和即時推薦系統
天下武功唯快不破:利用串流資料實做出即時分類器和即時推薦系統

李慕約&王向榮/如何備料:資料的抓取、清理以及串接
李慕約&王向榮/如何備料:資料的抓取、清理以及串接李慕約&王向榮/如何備料:資料的抓取、清理以及串接
李慕約&王向榮/如何備料:資料的抓取、清理以及串接

一個賭徒的告白:從預測市場看金融交易
一個賭徒的告白:從預測市場看金融交易一個賭徒的告白:從預測市場看金融交易
一個賭徒的告白:從預測市場看金融交易

林佳賢/資料視覺化的 20 個小訣竅
林佳賢/資料視覺化的 20 個小訣竅林佳賢/資料視覺化的 20 個小訣竅
林佳賢/資料視覺化的 20 個小訣竅

R統計軟體簡介
R統計軟體簡介R統計軟體簡介
R統計軟體簡介

R統計軟體 -安裝與使用
R統計軟體 -安裝與使用R統計軟體 -安裝與使用
R統計軟體 -安裝與使用

第一場預測
第一場預測第一場預測
第一場預測

機率統計 -- 使用 R 軟體
機率統計 -- 使用 R 軟體機率統計 -- 使用 R 軟體
機率統計 -- 使用 R 軟體

新手村-資料探索
新手村-資料探索新手村-資料探索
新手村-資料探索

Big-data analytics: challenges and opportunities
Big-data analytics: challenges and opportunitiesBig-data analytics: challenges and opportunities
Big-data analytics: challenges and opportunities

資料科學的第一堂課 Data Science Orientation
資料科學的第一堂課 Data Science Orientation資料科學的第一堂課 Data Science Orientation
資料科學的第一堂課 Data Science Orientation

不會寫程式的人友善上手機器學習-淺談 Azure machine learning studio
不會寫程式的人友善上手機器學習-淺談 Azure machine learning studio不會寫程式的人友善上手機器學習-淺談 Azure machine learning studio
不會寫程式的人友善上手機器學習-淺談 Azure machine learning studio

吳齊軒/漫談 R 的學習挑戰與 R 語言翻轉教室
吳齊軒/漫談 R 的學習挑戰與 R 語言翻轉教室吳齊軒/漫談 R 的學習挑戰與 R 語言翻轉教室
吳齊軒/漫談 R 的學習挑戰與 R 語言翻轉教室

[DSC 2016] 系列活動:許懷中 / R 語言資料探勘實務
[DSC 2016] 系列活動:許懷中 / R 語言資料探勘實務[DSC 2016] 系列活動:許懷中 / R 語言資料探勘實務
[DSC 2016] 系列活動:許懷中 / R 語言資料探勘實務

曾韵/沒有大數據怎麼辦 ? 會計師事務所的小數據科學
曾韵/沒有大數據怎麼辦 ? 會計師事務所的小數據科學曾韵/沒有大數據怎麼辦 ? 會計師事務所的小數據科學
曾韵/沒有大數據怎麼辦 ? 會計師事務所的小數據科學

初學R語言的60分鐘
初學R語言的60分鐘初學R語言的60分鐘
初學R語言的60分鐘

那些你知道的,但還沒看過的 Big Data 風景 ─ 致 Hadooper
那些你知道的,但還沒看過的 Big Data 風景 ─ 致 Hadooper那些你知道的,但還沒看過的 Big Data 風景 ─ 致 Hadooper
那些你知道的,但還沒看過的 Big Data 風景 ─ 致 Hadooper


Similar to Collaboration with Statistician? 矩陣視覺化於探索式資料分析

Lab 1 intro
Lab 1 introLab 1 intro
Lab 1 intro
Erik D. Davenport

Ml in genomics
Ml in genomicsMl in genomics
Ml in genomics
BrianSchilder

Oxford_15-03-22.pptx
Oxford_15-03-22.pptxOxford_15-03-22.pptx
Oxford_15-03-22.pptx
SaigeRutherford

Data analytics to support exposome research course slides
Data analytics to support exposome research course slidesData analytics to support exposome research course slides
Data analytics to support exposome research course slides
Chirag Patel

Statistics
StatisticsStatistics
1. Understanding research and statistics.ppt
1. Understanding research and statistics.ppt1. Understanding research and statistics.ppt
1. Understanding research and statistics.ppt
KamalAdhikari26

孔令傑 / 給工程師的統計學及資料分析 123 (2016/9/4)
孔令傑 / 給工程師的統計學及資料分析 123 (2016/9/4)孔令傑 / 給工程師的統計學及資料分析 123 (2016/9/4)
孔令傑 / 給工程師的統計學及資料分析 123 (2016/9/4)
台灣資料科學年會

Recent advances and challenges of digital mental healthcare
Recent advances and challenges of digital mental healthcareRecent advances and challenges of digital mental healthcare
Recent advances and challenges of digital mental healthcare
Yoon Sup Choi

poster presentation
poster presentationposter presentation
poster presentation
Zeyang Li

Curriculum_Amoroso_EN_28_07_2016
Curriculum_Amoroso_EN_28_07_2016Curriculum_Amoroso_EN_28_07_2016
Curriculum_Amoroso_EN_28_07_2016
Nicola Amoroso

Datascience Introduction WebSci Summer School 2014
Datascience Introduction WebSci Summer School 2014Datascience Introduction WebSci Summer School 2014
Datascience Introduction WebSci Summer School 2014
Claudia Wagner

AstraZeneca - The promise of graphs & graph-based learning in drug discovery
AstraZeneca - The promise of graphs & graph-based learning in drug discoveryAstraZeneca - The promise of graphs & graph-based learning in drug discovery
AstraZeneca - The promise of graphs & graph-based learning in drug discovery
Neo4j

CT AND SPECT ANALYSIS1CT and SPECT ProceduresA statistic.docx
CT AND SPECT ANALYSIS1CT and SPECT ProceduresA statistic.docxCT AND SPECT ANALYSIS1CT and SPECT ProceduresA statistic.docx
CT AND SPECT ANALYSIS1CT and SPECT ProceduresA statistic.docx
annettsparrow

(I’ll GO OVER STEP BY STEP IN CLASS TOMORROW)Part OneP.docx
(I’ll GO OVER STEP BY STEP IN CLASS TOMORROW)Part OneP.docx(I’ll GO OVER STEP BY STEP IN CLASS TOMORROW)Part OneP.docx
(I’ll GO OVER STEP BY STEP IN CLASS TOMORROW)Part OneP.docx
gertrudebellgrove

Methods to enhance the validity of precision guidelines emerging from big data
Methods to enhance the validity of precision guidelines emerging from big dataMethods to enhance the validity of precision guidelines emerging from big data
Methods to enhance the validity of precision guidelines emerging from big data
Chirag Patel

NeuroVault and the vision for data sharing in neuroimaging
NeuroVault and the vision for data sharing in neuroimagingNeuroVault and the vision for data sharing in neuroimaging
NeuroVault and the vision for data sharing in neuroimaging
Krzysztof Gorgolewski

5The Application of Clinical Systems to the Stud.docx
5The Application of Clinical Systems to the Stud.docx5The Application of Clinical Systems to the Stud.docx
5The Application of Clinical Systems to the Stud.docx
blondellchancy

Haladjian CV
Haladjian CVHaladjian CV
Haladjian CV
Harry Haladjian

Frankie Rybicki slide set for Deep Learning in Radiology / Medicine
Frankie Rybicki slide set for Deep Learning in Radiology / MedicineFrankie Rybicki slide set for Deep Learning in Radiology / Medicine
Frankie Rybicki slide set for Deep Learning in Radiology / Medicine
Frank Rybicki

If only access were our only infrastructure problem!
If only access were our only infrastructure problem!If only access were our only infrastructure problem!
If only access were our only infrastructure problem!
Björn Brembs


Similar to Collaboration with Statistician? 矩陣視覺化於探索式資料分析 (20)

Lab 1 intro
Lab 1 introLab 1 intro
Lab 1 intro

Ml in genomics
Ml in genomicsMl in genomics
Ml in genomics

Oxford_15-03-22.pptx
Oxford_15-03-22.pptxOxford_15-03-22.pptx
Oxford_15-03-22.pptx

Data analytics to support exposome research course slides
Data analytics to support exposome research course slidesData analytics to support exposome research course slides
Data analytics to support exposome research course slides

Statistics
StatisticsStatistics
Statistics

1. Understanding research and statistics.ppt
1. Understanding research and statistics.ppt1. Understanding research and statistics.ppt
1. Understanding research and statistics.ppt

孔令傑 / 給工程師的統計學及資料分析 123 (2016/9/4)
孔令傑 / 給工程師的統計學及資料分析 123 (2016/9/4)孔令傑 / 給工程師的統計學及資料分析 123 (2016/9/4)
孔令傑 / 給工程師的統計學及資料分析 123 (2016/9/4)

Recent advances and challenges of digital mental healthcare
Recent advances and challenges of digital mental healthcareRecent advances and challenges of digital mental healthcare
Recent advances and challenges of digital mental healthcare

poster presentation
poster presentationposter presentation
poster presentation

Curriculum_Amoroso_EN_28_07_2016
Curriculum_Amoroso_EN_28_07_2016Curriculum_Amoroso_EN_28_07_2016
Curriculum_Amoroso_EN_28_07_2016

Datascience Introduction WebSci Summer School 2014
Datascience Introduction WebSci Summer School 2014Datascience Introduction WebSci Summer School 2014
Datascience Introduction WebSci Summer School 2014

AstraZeneca - The promise of graphs & graph-based learning in drug discovery
AstraZeneca - The promise of graphs & graph-based learning in drug discoveryAstraZeneca - The promise of graphs & graph-based learning in drug discovery
AstraZeneca - The promise of graphs & graph-based learning in drug discovery

CT AND SPECT ANALYSIS1CT and SPECT ProceduresA statistic.docx
CT AND SPECT ANALYSIS1CT and SPECT ProceduresA statistic.docxCT AND SPECT ANALYSIS1CT and SPECT ProceduresA statistic.docx
CT AND SPECT ANALYSIS1CT and SPECT ProceduresA statistic.docx

(I’ll GO OVER STEP BY STEP IN CLASS TOMORROW)Part OneP.docx
(I’ll GO OVER STEP BY STEP IN CLASS TOMORROW)Part OneP.docx(I’ll GO OVER STEP BY STEP IN CLASS TOMORROW)Part OneP.docx
(I’ll GO OVER STEP BY STEP IN CLASS TOMORROW)Part OneP.docx

Methods to enhance the validity of precision guidelines emerging from big data
Methods to enhance the validity of precision guidelines emerging from big dataMethods to enhance the validity of precision guidelines emerging from big data
Methods to enhance the validity of precision guidelines emerging from big data

NeuroVault and the vision for data sharing in neuroimaging
NeuroVault and the vision for data sharing in neuroimagingNeuroVault and the vision for data sharing in neuroimaging
NeuroVault and the vision for data sharing in neuroimaging

5The Application of Clinical Systems to the Stud.docx
5The Application of Clinical Systems to the Stud.docx5The Application of Clinical Systems to the Stud.docx
5The Application of Clinical Systems to the Stud.docx

Haladjian CV
Haladjian CVHaladjian CV
Haladjian CV

Frankie Rybicki slide set for Deep Learning in Radiology / Medicine
Frankie Rybicki slide set for Deep Learning in Radiology / MedicineFrankie Rybicki slide set for Deep Learning in Radiology / Medicine
Frankie Rybicki slide set for Deep Learning in Radiology / Medicine

If only access were our only infrastructure problem!
If only access were our only infrastructure problem!If only access were our only infrastructure problem!
If only access were our only infrastructure problem!


More from 台灣資料科學年會

[台灣人工智慧學校] 人工智慧技術發展與應用
[台灣人工智慧學校] 人工智慧技術發展與應用[台灣人工智慧學校] 人工智慧技術發展與應用
[台灣人工智慧學校] 人工智慧技術發展與應用
台灣資料科學年會

[台灣人工智慧學校] 執行長報告
[台灣人工智慧學校] 執行長報告[台灣人工智慧學校] 執行長報告
[台灣人工智慧學校] 執行長報告
台灣資料科學年會

[台灣人工智慧學校] 工業 4.0 與智慧製造的發展趨勢與挑戰
[台灣人工智慧學校] 工業 4.0 與智慧製造的發展趨勢與挑戰[台灣人工智慧學校] 工業 4.0 與智慧製造的發展趨勢與挑戰
[台灣人工智慧學校] 工業 4.0 與智慧製造的發展趨勢與挑戰
台灣資料科學年會

[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機
[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機
[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機
台灣資料科學年會

[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機
[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機
[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機
台灣資料科學年會

[台灣人工智慧學校] 台北總校第三期結業典禮 - 執行長談話
[台灣人工智慧學校] 台北總校第三期結業典禮 - 執行長談話[台灣人工智慧學校] 台北總校第三期結業典禮 - 執行長談話
[台灣人工智慧學校] 台北總校第三期結業典禮 - 執行長談話
台灣資料科學年會

[TOxAIA台中分校] AI 引爆新工業革命,智慧機械首都台中轉型論壇
[TOxAIA台中分校] AI 引爆新工業革命,智慧機械首都台中轉型論壇[TOxAIA台中分校] AI 引爆新工業革命,智慧機械首都台中轉型論壇
[TOxAIA台中分校] AI 引爆新工業革命,智慧機械首都台中轉型論壇
台灣資料科學年會

[TOxAIA台中分校] 2019 台灣數位轉型 與產業升級趨勢觀察
[TOxAIA台中分校] 2019 台灣數位轉型 與產業升級趨勢觀察 [TOxAIA台中分校] 2019 台灣數位轉型 與產業升級趨勢觀察
[TOxAIA台中分校] 2019 台灣數位轉型 與產業升級趨勢觀察
台灣資料科學年會

[TOxAIA台中分校] 智慧製造成真! 產線導入AI的致勝關鍵
[TOxAIA台中分校] 智慧製造成真! 產線導入AI的致勝關鍵[TOxAIA台中分校] 智慧製造成真! 產線導入AI的致勝關鍵
[TOxAIA台中分校] 智慧製造成真! 產線導入AI的致勝關鍵
台灣資料科學年會

[台灣人工智慧學校] 從經濟學看人工智慧產業應用
[台灣人工智慧學校] 從經濟學看人工智慧產業應用[台灣人工智慧學校] 從經濟學看人工智慧產業應用
[台灣人工智慧學校] 從經濟學看人工智慧產業應用
台灣資料科學年會

[台灣人工智慧學校] 台中分校第二期開學典禮 - 執行長報告
[台灣人工智慧學校] 台中分校第二期開學典禮 - 執行長報告[台灣人工智慧學校] 台中分校第二期開學典禮 - 執行長報告
[台灣人工智慧學校] 台中分校第二期開學典禮 - 執行長報告
台灣資料科學年會

台灣人工智慧學校成果發表會
台灣人工智慧學校成果發表會台灣人工智慧學校成果發表會
台灣人工智慧學校成果發表會
台灣資料科學年會

[台中分校] 第一期結業典禮 - 執行長談話
[台中分校] 第一期結業典禮 - 執行長談話[台中分校] 第一期結業典禮 - 執行長談話
[台中分校] 第一期結業典禮 - 執行長談話
台灣資料科學年會

[TOxAIA新竹分校] 工業4.0潛力新應用! 多模式對話機器人
[TOxAIA新竹分校] 工業4.0潛力新應用! 多模式對話機器人[TOxAIA新竹分校] 工業4.0潛力新應用! 多模式對話機器人
[TOxAIA新竹分校] 工業4.0潛力新應用! 多模式對話機器人
台灣資料科學年會

[TOxAIA新竹分校] AI整合是重點! 竹科的關鍵轉型思維
[TOxAIA新竹分校] AI整合是重點! 竹科的關鍵轉型思維[TOxAIA新竹分校] AI整合是重點! 竹科的關鍵轉型思維
[TOxAIA新竹分校] AI整合是重點! 竹科的關鍵轉型思維
台灣資料科學年會

[TOxAIA新竹分校] 2019 台灣數位轉型與產業升級趨勢觀察
[TOxAIA新竹分校] 2019 台灣數位轉型與產業升級趨勢觀察[TOxAIA新竹分校] 2019 台灣數位轉型與產業升級趨勢觀察
[TOxAIA新竹分校] 2019 台灣數位轉型與產業升級趨勢觀察
台灣資料科學年會

[TOxAIA新竹分校] 深度學習與Kaggle實戰
[TOxAIA新竹分校] 深度學習與Kaggle實戰[TOxAIA新竹分校] 深度學習與Kaggle實戰
[TOxAIA新竹分校] 深度學習與Kaggle實戰
台灣資料科學年會

[台灣人工智慧學校] Bridging AI to Precision Agriculture through IoT
[台灣人工智慧學校] Bridging AI to Precision Agriculture through IoT[台灣人工智慧學校] Bridging AI to Precision Agriculture through IoT
[台灣人工智慧學校] Bridging AI to Precision Agriculture through IoT
台灣資料科學年會

[2018 台灣人工智慧學校校友年會] 產業經驗分享: 如何用最少的訓練樣本,得到最好的深度學習影像分析結果,減少一半人力,提升一倍品質 / 李明達
[2018 台灣人工智慧學校校友年會] 產業經驗分享: 如何用最少的訓練樣本,得到最好的深度學習影像分析結果,減少一半人力,提升一倍品質 / 李明達[2018 台灣人工智慧學校校友年會] 產業經驗分享: 如何用最少的訓練樣本,得到最好的深度學習影像分析結果,減少一半人力,提升一倍品質 / 李明達
[2018 台灣人工智慧學校校友年會] 產業經驗分享: 如何用最少的訓練樣本,得到最好的深度學習影像分析結果,減少一半人力,提升一倍品質 / 李明達
台灣資料科學年會

[2018 台灣人工智慧學校校友年會] 啟動物聯網新關鍵 - 未來由你「喚」醒 / 沈品勳
[2018 台灣人工智慧學校校友年會] 啟動物聯網新關鍵 - 未來由你「喚」醒 / 沈品勳[2018 台灣人工智慧學校校友年會] 啟動物聯網新關鍵 - 未來由你「喚」醒 / 沈品勳
[2018 台灣人工智慧學校校友年會] 啟動物聯網新關鍵 - 未來由你「喚」醒 / 沈品勳
台灣資料科學年會


More from 台灣資料科學年會 (20)

[台灣人工智慧學校] 人工智慧技術發展與應用
[台灣人工智慧學校] 人工智慧技術發展與應用[台灣人工智慧學校] 人工智慧技術發展與應用
[台灣人工智慧學校] 人工智慧技術發展與應用

[台灣人工智慧學校] 執行長報告
[台灣人工智慧學校] 執行長報告[台灣人工智慧學校] 執行長報告
[台灣人工智慧學校] 執行長報告

[台灣人工智慧學校] 工業 4.0 與智慧製造的發展趨勢與挑戰
[台灣人工智慧學校] 工業 4.0 與智慧製造的發展趨勢與挑戰[台灣人工智慧學校] 工業 4.0 與智慧製造的發展趨勢與挑戰
[台灣人工智慧學校] 工業 4.0 與智慧製造的發展趨勢與挑戰

[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機
[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機
[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機

[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機
[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機
[台灣人工智慧學校] 開創台灣產業智慧轉型的新契機

[台灣人工智慧學校] 台北總校第三期結業典禮 - 執行長談話
[台灣人工智慧學校] 台北總校第三期結業典禮 - 執行長談話[台灣人工智慧學校] 台北總校第三期結業典禮 - 執行長談話
[台灣人工智慧學校] 台北總校第三期結業典禮 - 執行長談話

[TOxAIA台中分校] AI 引爆新工業革命,智慧機械首都台中轉型論壇
[TOxAIA台中分校] AI 引爆新工業革命,智慧機械首都台中轉型論壇[TOxAIA台中分校] AI 引爆新工業革命,智慧機械首都台中轉型論壇
[TOxAIA台中分校] AI 引爆新工業革命,智慧機械首都台中轉型論壇

[TOxAIA台中分校] 2019 台灣數位轉型 與產業升級趨勢觀察
[TOxAIA台中分校] 2019 台灣數位轉型 與產業升級趨勢觀察 [TOxAIA台中分校] 2019 台灣數位轉型 與產業升級趨勢觀察
[TOxAIA台中分校] 2019 台灣數位轉型 與產業升級趨勢觀察

[TOxAIA台中分校] 智慧製造成真! 產線導入AI的致勝關鍵
[TOxAIA台中分校] 智慧製造成真! 產線導入AI的致勝關鍵[TOxAIA台中分校] 智慧製造成真! 產線導入AI的致勝關鍵
[TOxAIA台中分校] 智慧製造成真! 產線導入AI的致勝關鍵

[台灣人工智慧學校] 從經濟學看人工智慧產業應用
[台灣人工智慧學校] 從經濟學看人工智慧產業應用[台灣人工智慧學校] 從經濟學看人工智慧產業應用
[台灣人工智慧學校] 從經濟學看人工智慧產業應用

[台灣人工智慧學校] 台中分校第二期開學典禮 - 執行長報告
[台灣人工智慧學校] 台中分校第二期開學典禮 - 執行長報告[台灣人工智慧學校] 台中分校第二期開學典禮 - 執行長報告
[台灣人工智慧學校] 台中分校第二期開學典禮 - 執行長報告

台灣人工智慧學校成果發表會
台灣人工智慧學校成果發表會台灣人工智慧學校成果發表會
台灣人工智慧學校成果發表會

[台中分校] 第一期結業典禮 - 執行長談話
[台中分校] 第一期結業典禮 - 執行長談話[台中分校] 第一期結業典禮 - 執行長談話
[台中分校] 第一期結業典禮 - 執行長談話

[TOxAIA新竹分校] 工業4.0潛力新應用! 多模式對話機器人
[TOxAIA新竹分校] 工業4.0潛力新應用! 多模式對話機器人[TOxAIA新竹分校] 工業4.0潛力新應用! 多模式對話機器人
[TOxAIA新竹分校] 工業4.0潛力新應用! 多模式對話機器人

[TOxAIA新竹分校] AI整合是重點! 竹科的關鍵轉型思維
[TOxAIA新竹分校] AI整合是重點! 竹科的關鍵轉型思維[TOxAIA新竹分校] AI整合是重點! 竹科的關鍵轉型思維
[TOxAIA新竹分校] AI整合是重點! 竹科的關鍵轉型思維

[TOxAIA新竹分校] 2019 台灣數位轉型與產業升級趨勢觀察
[TOxAIA新竹分校] 2019 台灣數位轉型與產業升級趨勢觀察[TOxAIA新竹分校] 2019 台灣數位轉型與產業升級趨勢觀察
[TOxAIA新竹分校] 2019 台灣數位轉型與產業升級趨勢觀察

[TOxAIA新竹分校] 深度學習與Kaggle實戰
[TOxAIA新竹分校] 深度學習與Kaggle實戰[TOxAIA新竹分校] 深度學習與Kaggle實戰
[TOxAIA新竹分校] 深度學習與Kaggle實戰

[台灣人工智慧學校] Bridging AI to Precision Agriculture through IoT
[台灣人工智慧學校] Bridging AI to Precision Agriculture through IoT[台灣人工智慧學校] Bridging AI to Precision Agriculture through IoT
[台灣人工智慧學校] Bridging AI to Precision Agriculture through IoT

[2018 台灣人工智慧學校校友年會] 產業經驗分享: 如何用最少的訓練樣本,得到最好的深度學習影像分析結果,減少一半人力,提升一倍品質 / 李明達
[2018 台灣人工智慧學校校友年會] 產業經驗分享: 如何用最少的訓練樣本,得到最好的深度學習影像分析結果,減少一半人力,提升一倍品質 / 李明達[2018 台灣人工智慧學校校友年會] 產業經驗分享: 如何用最少的訓練樣本,得到最好的深度學習影像分析結果,減少一半人力,提升一倍品質 / 李明達
[2018 台灣人工智慧學校校友年會] 產業經驗分享: 如何用最少的訓練樣本,得到最好的深度學習影像分析結果,減少一半人力,提升一倍品質 / 李明達

[2018 台灣人工智慧學校校友年會] 啟動物聯網新關鍵 - 未來由你「喚」醒 / 沈品勳
[2018 台灣人工智慧學校校友年會] 啟動物聯網新關鍵 - 未來由你「喚」醒 / 沈品勳[2018 台灣人工智慧學校校友年會] 啟動物聯網新關鍵 - 未來由你「喚」醒 / 沈品勳
[2018 台灣人工智慧學校校友年會] 啟動物聯網新關鍵 - 未來由你「喚」醒 / 沈品勳


Recently uploaded

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6
DianaGray10

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption
Tatiana Kojar

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy
Tomaz Bratanic

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
shyamraj55

Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptxOcean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
SitimaJohn

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx
MichaelKnudsen27

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Speck&Tech

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024
Hiroshi SHIBATA

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
名前 です男

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques
Postman

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
saastr

Project Management Semester Long Project - Acuity
Project Management Semester Long Project - AcuityProject Management Semester Long Project - Acuity
Project Management Semester Long Project - Acuity
jpupo2018

Artificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopmentArtificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopment
Octavian Nadolu

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng

How to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptxHow to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptx
danishmna97


Recently uploaded (20)

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack

Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptxOcean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptx

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...

Project Management Semester Long Project - Acuity
Project Management Semester Long Project - AcuityProject Management Semester Long Project - Acuity
Project Management Semester Long Project - Acuity

Artificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopmentArtificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopment

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation

How to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptxHow to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptx


Collaboration with Statistician? 矩陣視覺化於探索式資料分析

  • 1. Collaboration with Statistician? 矩陣視覺化於探索式資料分析 1 陳君厚 中央研究院 統計科學研究所 中央研究院 人文社會科學館國際會議廳 August 30, 2014
  • 3. 3 Q: 君厚, Big Data 這麼熱, 我們是否應該排進統計系所學程? A: Big Data? 現在的統計系所畢業學生能夠處理 Data 嗎?
  • 4. 4 胡海國 教授 台灣大學 醫學院 精神科主任 主要合作研究者 楊泮池 教授 台灣大學 醫學院 院長 陳章榮 研究員 美國 FDA 毒理研究所 李御賢 教授 長庚紀念醫院 核心實驗室 銘傳大學 白果能 研究員 中央研究院 生物醫學科學研究所 吳漢銘 教授 淡江大學 數學系 周正中 教授 中正大學 生命科學系 楊永正 教授 陽明大學 生物醫學資訊研究所 林文昌 研究員 中央研究院 生物醫學科學研究所 黃奇英 教授 陽明大學 臨床醫學研究所 楊欣洲 研究員 中央研究院 生物醫學科學研究所
  • 5. I. Collaboration with Statistician? 中研院賴明昭副院長推廣跨領域合作 (November 10, 2004) 合作不一定是資料分析 與統計學家合作很可能是需要資料分析
  • 6. 陳老師,我的同事用Factor Analysis上 同樣的Journal只花了三分之一的時間 Luxury Research vs. Necessity Research Senior Researcher vs. Young Investigator (Established) vs. (Struggling) Corr. -1 0 1 0 0.2 0.4 0.6 0.8 1 Corr. -.1 .1 -1 0 1 Corr. Corr. -0.2 0.2 -0.4 0.4 -1 0 1 -1 0 1
  • 7. Chun-houh, can you create some powerful statistical/bioinformatics methods so we can get our experiments published in Nature/ Science? Sir, can you conduct some meaningful biological/medical experiments so we can get our methods published in Nature/ Science?
  • 8. Mutual Trust (XX 人在中研院 YY 會議中說) 統計所的陳君厚說你們 ZZ 所的生物晶片 都有問題 Mutual Understanding You can remove Figure1 together with my name from the paper G7 N6 G13 N1 N4 N2 N3 N5 G10 G12 G5 P2 G11 N7 G15 G3 G6 G4 G16 G8 P7 S2 G14 S1 S3 P4 P5 G2 G1 P3 G9 P1 P6 Negative Disorg. Host./ Excit. Del./ Hall. G7 N6 G13 N1 N4 N2 N3 N5 G10 G12 G5 P2 G11 N7 G15 G3 G6 G4 G16 G8 P7 S2 G14 S1 S3 P4 P5 G2 G1 15 10 5 0 Average Euc lidean Distanc e G1 GONEG G2 G3 GWNEG G4 PANSS Score 1 2 3 4 5 6 7 P3 G9 P1 P6 Average Correlation 1 0.8 0.6 0.4 0.2 Correlation Coefficient -1 -0.5 0 0.5 1 Negative Symptoms Disorganized Thought Hostility / Excitement Delusion / Ha llucination Correlation Coefficient -1 -0.5 0 0.5 1 Average Correlation Negative Disorg. Host./ PANSS Score 1 2 3 4 5 6 7 G7 N6 N3 N1 N2 N4 N5 G16 G10 N7 G5 G13 G11 P2 G15 G12 G8 P7 S1 G14 S2 S3 P4 P6 P3 G9 P1 P5 G4 G2 G1 G3 G6 G7 N6 N3 N1 N2 N4 N5 G16 G10 N7 G5 G13 G11 P2 G15 G12 G8 P7 S1 G14 S2 S3 P4 P6 P3 G9 P1 P5 G4 G2 G1 G3 G6 Negative Symptoms Disorganized Thought Hostility / Excitement Delusion / Ha llucination Anxiety Symptoms RMG (n=61) PDHG1 (n=14) MBG (n=50) PDHG2 (n=38) 0 5 10 Average Euc lidean Distanc e 0.2 0.4 0.6 0.8 1 Excit. Del./ Hall. Anxiety
  • 9. II. 矩陣視覺化於探索式資料分析 9 Matrix Visualization: Approaching Statistics and Statistical Approach 矩陣視覺化: 趨近統計與統計趨勢
  • 10. Lab 309 (???) for Information Visualization Dr. 田銀錦 Postdoc. Fellow 張勝傑 張文宗 陳柏旭 鐘雅齡 黃建勳 林香誼 劉勝宗 曾聖澧 葉紫君 吳怡真 林倩如 歐陽智聞 . . . 10 Mr. 高君豪 Ph.D. student Prof. 吳漢銘 Dept. Math. Tamkang U. Prof. 須上英 Dept. Stat. Nat’l Taipei U. Ms. 石佳鑫 Research Assistant Dr. 何孟如 Postdoc. Fellow
  • 11. 11 Data analysis A process of • inspecting data • cleaning data • transforming data • modeling data With the goal of • discovering useful information • suggesting conclusions • supporting decision making 了解資料 探索式資料分析 (Exploratory Data Analysis) 資料視覺化
  • 12. Exploratory Data Analysis EDA, John Tukey (1977) It is important to understand what you CAN DO before you learn to measure how WELL you seem to have DONE it. 1915~ 2000 allow the data to speak for themselves before standard assumptions or formal modeling The greatest value of a picture is when it forces us to notice what we never expected to see. Matrix Visualization as an EDA tool for assisting formal mathematical modeling 12
  • 13. John W. Tukey在探索式資料分析 (Exploratory Data Analysis, EDA) 書中開宗明義地提到: It is important to understand what you CAN DO before you learn to measure how WELL you seem to have DONE it. 學習你可以做什麼,有助於在資料分析的過程中達到 事半功倍的效果。EDA的作用在於從「看」資料獲得 資料所傳達的訊息,所著重的是簡單的算術與容易建 構的圖、表。透過 E D A 對於圖表中所顯露之型樣 (pattern) 做一初步的認知與描述,再進一步以人類的心 智 (mind) 對所接收的訊息做全面的分析與判斷,以探 索潛藏於資料中的訊息。強調的是探索式的分析而非 嚴謹的模式確認。
  • 15. I. Setosa I. Verginica I. Versicolor Species name 80 60 40 20 0 Pet É Pet É Sep É Sep É Graphics/Visualization for high dimensional data? P5 p10 p100 p10000 80 60 40 20 0 Pet É Pet É Sep É Sep É 80 60 40 20 30 60 90 120 Series Dat a nscores Pet al widt h I.S I.V I.V 50 40 30 20 10 Species name 15
  • 16. Recent Review Articles for MV The History of the Cluster Heat Map Leland WILKINSON and Michael FRIENDLY The American Statistician, May 2009, Vol. 63, No. 2 179 REVIEW Seriation and Matrix Reordering Methods: An Historical Overview by Innar Liiv Statistical Analysis and Data Mining 3: 70–91, 2010 Figure 2. Shaded matrix display from Loua (1873), available online at http:// books.google.com/books/. This was designed as a summary of 40 separate maps of Paris, showing the characteristics (e.g., national origin, professions, age, social classes) of 20 districts, using a color scale ranging from white (low) through yellow and blue to red (high). Figure 3. Sorted shaded display from Brinton (1914). The data are ranks of U.S. states on each of 10 educational features assessed in 1910. The matrix has been sorted by the row-marginal ranks. Figure 5. Sorted shaded display from Czekanowski (1909), reproduced in Hage and Harary (1995). Figure 9. Cluster heat map from Wilkinson (1994). The data are social statistics (i.e., urbanization, literacy, life expectancy for females, GDP, health expenditures, educational expenditures, military expenditures, death rate, infant mortality, birth rate, and ratio of birth to death rate) from a United Nations survey of world countries. The variables were standardized before the hierarchical clustering was performed. Matrix Visualization (MV): reorderable matrix, heatmap, color histogram, data image1 6
  • 17. Data Matrix 50 題精神症狀量表 11000040000050000000000000000022233022200342203300 32111010001030000002000000000000000000000000000002 55500010000000000011110000000033333005315121444420 55554550055515505500100003000030022100000000200000 00000000010000000000000000000010000000000000000000 20200220200002000002202010000032312000002132212220 00000000030000000000000000022000000000000000000000 31100020000131300002503300000020202003043331300031 55100440000034404000550000000044443044414355413330 00000000030000000000000000000000000000000000000000 20200000030122032000000000000020101000000030200020 50100050045000000013400000000020012000000320442311 00050050000420000000200000200010001000000031410300 00000030155033000000400000000000000000000000040333 55500010000004403300304044000033323030000002332222 00000000020000000000000000032100000000000000000000 11100020000010000000503000000020022200200300302034 55400055000044404002000200000020020000000320404433 00000000000010000000000000000010002002222001211200 42400030040030000010402200023022322002000330301222 33300040000020000024404334002030230000000330400045 23100030000030000004003300000000030000000022454302 44400030000440030020233200000043433334433232222231 32100010022023002000000000000020022033302042413333 11100000055000000002403000000000000000000100010002 00000000000000000000300000000000000000000000000020 44400040044000000033243303300043333433300344424444 11100000130011120000301122221010111212211001212221 11111111111115000005001111111155555005511555555551 33100000030050000001004344111010110111100010111211 00000000040000000000002300044000000000000000000020 00000030010030000022103202200032323322202233303321 22110011000110000032103221200033223222323333313321 44100340020020000000500000000000000000000020200020 00000012000020000000000003000000000002200200000200 44000040100000000001500100100001111021002032202300 22000040000040000002100000000020000100100030202210 40400000020055300000000002000000000000010031212101 55550540000034444000500200000000000000010000000210 00000000000000000000000000000011012000200130203210 44140040000441140000100000000011101010000000223200 22200050000040001000010000000032324000002222220400 55000530040030000000500000000000000000000000000000 43400030000040000000000000000044434033311032444422 33300000004453000000003303000042333333302133333321 10020000000002000000200000000020032000021032211210 33200030000041330001210001000020102222211032323310 33300020030030000001102202200031202222201032202222 33300030040030000002102202000022202201100020202200 55511150551115555522335544101142424433454455445545 00000030020000000012003202300022212311200131322211 40000000033033333300305555004320111202031231110020 00000000000000000000002200043000000000000020000030 11000030200330000023203203000043333333302333333332 55000020000023301000003421004023332133444034311151 21110150111155552201000000000021234031111021335500 55500010100001000020002202004033342122122250552344 55500000000030000002200003000010000000320000000311 44400350001033332200402102211001000000100030202321 33000330030330020000304330003002200200000200000032 00000000050000000020303320143000021000000030000033 00000000020020000000300000020000000000000000200100 11102120122000000002215511115020102302411140411155 55500500050033410002000403433000000000000000000010 44400240040030033320505434204040022400000240414445 50500050000000000000000000000033313433101111113402 55500050000555500000000000000022221002100033312300 30330000000050000045000000000031243313304323303410 55100130031033000002500000000033322023123122411323 00000000000000000000002100230100000000000000000012 22100120000030000000200000000000000000000230210222 20000000030000000003200000004300000000000000000043 00000000030000000001300000020000000000000120000031 33300320023210300202303323000020002200022043220022 00000021010040100001003301100021001001301210103200 50400450040050000000500000000000000000033000000000 20000200000000000000100000000043434033202224012330 51100030000003000503003320000033344043154514411412 55000530013000000002000000000030002300000000355400 00000000000000002002000000000022201001200022200211 33000300044020000001422000021000000000000020100030 10000013020000000043004324304044434033412244402420 33300020030000200000003302044200000000000000000032 33000000000030000022323200000032222322310230202211 00000000131000000002212100033200100101100111100011 00000000030000000023200000033000000000000000000030 00000023020020000002300000022000000001100022120010 00000000040000000023200000032000000200000210100011 00000000020000000000100000022110000100000000220010 44400030030030000033300300023020000200000120000002 00000000030020000022202000032200000100000000000011 00000003040000000033310000043000000000000230000032 22200000000001000000002211000021221011101032000021 41400240000130000002503002000022000002200032432223 20200000031000000000400000243000000000000030000030 95 位精神醫學患者 Data Map 嚴重 5 0 正常 50 題精神症狀量表 95 位精神醫學患者
  • 18. Generalized Association Plots (GAP) for MV of continuous data GAP 2.permutation 4.summary 3.partition Data Matrix Continuous ordinal Binary nominal 1.presentation 18 Approaching Statistics Statistical Approach 11000040000050000000000000000022233022200342203300 32111010001030000002000000000000000000000000000002 55500010000000000011110000000033333005315121444420 55554550055515505500100003000030022100000000200000 00000000010000000000000000000010000000000000000000 20200220200002000002202010000032312000002132212220 00000000030000000000000000022000000000000000000000 31100020000131300002503300000020202003043331300031 55100440000034404000550000000044443044414355413330 00000000030000000000000000000000000000000000000000 20200000030122032000000000000020101000000030200020 50100050045000000013400000000020012000000320442311 00050050000420000000200000200010001000000031410300 00000030155033000000400000000000000000000000040333 55500010000004403300304044000033323030000002332222 00000000020000000000000000032100000000000000000000 11100020000010000000503000000020022200200300302034 55400055000044404002000200000020020000000320404433 00000000000010000000000000000010002002222001211200 42400030040030000010402200023022322002000330301222 33300040000020000024404334002030230000000330400045 23100030000030000004003300000000030000000022454302 44400030000440030020233200000043433334433232222231 32100010022023002000000000000020022033302042413333 11100000055000000002403000000000000000000100010002 00000000000000000000300000000000000000000000000020 44400040044000000033243303300043333433300344424444 11100000130011120000301122221010111212211001212221 11111111111115000005001111111155555005511555555551 33100000030050000001004344111010110111100010111211 00000000040000000000002300044000000000000000000020 00000030010030000022103202200032323322202233303321 22110011000110000032103221200033223222323333313321 44100340020020000000500000000000000000000020200020 00000012000020000000000003000000000002200200000200 44000040100000000001500100100001111021002032202300 22000040000040000002100000000020000100100030202210 40400000020055300000000002000000000000010031212101 55550540000034444000500200000000000000010000000210 00000000000000000000000000000011012000200130203210 44140040000441140000100000000011101010000000223200 22200050000040001000010000000032324000002222220400 55000530040030000000500000000000000000000000000000 43400030000040000000000000000044434033311032444422 33300000004453000000003303000042333333302133333321 10020000000002000000200000000020032000021032211210 33200030000041330001210001000020102222211032323310 33300020030030000001102202200031202222201032202222 33300030040030000002102202000022202201100020202200 55511150551115555522335544101142424433454455445545 00000030020000000012003202300022212311200131322211 40000000033033333300305555004320111202031231110020 00000000000000000000002200043000000000000020000030 11000030200330000023203203000043333333302333333332 55000020000023301000003421004023332133444034311151 21110150111155552201000000000021234031111021335500 55500010100001000020002202004033342122122250552344 55500000000030000002200003000010000000320000000311 44400350001033332200402102211001000000100030202321 33000330030330020000304330003002200200000200000032 00000000050000000020303320143000021000000030000033 00000000020020000000300000020000000000000000200100 11102120122000000002215511115020102302411140411155 55500500050033410002000403433000000000000000000010 44400240040030033320505434204040022400000240414445 50500050000000000000000000000033313433101111113402 55500050000555500000000000000022221002100033312300 30330000000050000045000000000031243313304323303410 55100130031033000002500000000033322023123122411323 00000000000000000000002100230100000000000000000012 22100120000030000000200000000000000000000230210222 20000000030000000003200000004300000000000000000043 00000000030000000001300000020000000000000120000031 33300320023210300202303323000020002200022043220022 00000021010040100001003301100021001001301210103200 50400450040050000000500000000000000000033000000000 20000200000000000000100000000043434033202224012330 51100030000003000503003320000033344043154514411412 55000530013000000002000000000030002300000000355400 00000000000000002002000000000022201001200022200211 33000300044020000001422000021000000000000020100030 10000013020000000043004324304044434033412244402420 33300020030000200000003302044200000000000000000032 33000000000030000022323200000032222322310230202211 00000000131000000002212100033200100101100111100011 00000000030000000023200000033000000000000000000030 00000023020020000002300000022000000001100022120010 00000000040000000023200000032000000200000210100011 00000000020000000000100000022110000100000000220010 44400030030030000033300300023020000200000120000002 00000000030020000022202000032200000100000000000011 00000003040000000033310000043000000000000230000032 22200000000001000000002211000021221011101032000021 41400240000130000002503002000022000002200032432223 20200000031000000000400000243000000000000030000030
  • 19. Some essential elements in a GAP MV procedure 1. Data Matrix (n * p) (w/ Color coding) Continuous Ordinal Binary Nominal 2. Proximity Matrix for Subject (n * n) Continuous Ordinal Binary Nominal 3. Proximity (Variable p * p) Continuous Ordinal Binary Nominal 4. Permutation (variable) 4. Permutation (subject) 19
  • 20. Statistical Approach Identify Global Trend: Singular Value Decomposition Chen 2002, Statistica Sinica Rank 2 Elliptical R2E 20 SVD SVD1 Alter O. et al 2000, PNAS SVD2 -1 0 +1 (c) Correlation -8 1:1 +8 (a) Expression (d) -1 0 +1 (b) Correlation
  • 21. 21 Eisen et al. (1998) Tree seriation flipping of intermediate nodes (a) A B C D E D (b) A E B C (c) C E D B A 1 flip 3 flips 5 flips many flips 2n-1=25-1=16 Different Seriations (Ordering of Terminal Nodes or Leaves) Generated from Identical Tree Structure ideal model external and internal references for guiding flipping mechanism Statistical Approach: Identify Local Clusters
  • 22. -1 0 +1 (c) Correlation -8 1:1 +8 (a) Expression Approaching Statistics Statistical Approach HCT + R2E = HCTR2E (d) -1 0 +1 (b) Correlation -1 0 +1 (c) Correlation (d) (e) -1 0 +1 -8 1:1 +8 (a) Expression (b) Correlation - 1 0 +1 ( c) Correl at i on ( d) - 1 0 +1 - 8 1: 1 +8 ( a) Expressi on ( b) Correl at i on Hierarchical Tree Seriation GAP Elliptical (R2E) Seriation Tree guided by (R2E) 22
  • 23. GAP for Heritable (Genetic) Disease: Schizophrenia (National Taiwan University) Admission 6 month Psychiatry Research (1998) Lin, Chen et al. Psychopathological Dimensions in Schizophrenia: A Correlational Approach to Items of the SANS and SAPS Corr. -1 0 1 0.2 0.4 0.6 0.8 1 Corr. -0.2 0.2 -0.4 0.4 Absolute Random Error Coefficient 0 1 -.1 .1 G7 N6 G13 N1 N4 N2 N3 N5 G10 G12 G5 P2 G11 N7 G15 G3 G6 G4 G16 G8 P7 S2 G14 S1 S3 P4 P5 G2 G1 comforting the aggravating patient assistant to the aggravating patient transport of the aggravating patient to service setting financial aid general psychological/practical support coping with medical team understanding diagnosis and treatment identifying early signs of relapse understanding mental health laws general social acceptance occupational therapy sheltered working facilities advice on intimate relationship for patient lifelong custodial care for patient Need cluster for assistant to patient care Need cluster for accessing to relevant information Need cluster for societal support Need cluster for burden release Admission Hwu et al. Schizophrenia Research (2002) Symptom Patterns and Subgrouping of Schizophrenic Patients: Significance of Negative Symptoms Assessed on Admission 0 0.2 0.4 0.6 0.8 1 Corr. -1 0 1 Corr. -1 0 1 -1 0 1 G7 N6 G13 N1 N4 N2 N3 N5 G10 G12 G5 P2 G11 N7 G15 G3 G6 G4 G16 G8 P7 S2 G14 S1 S3 P4 P5 G2 G1 G1 G2 G3 Average Correlation Negative Disorg. Host./ Genes, Brain and Behavior (2009) Lin et al. Clustering by neurocognition for fine-mapping of the schizophrenia susceptibility loci on chromosome 6p 6 month Liu et al. J. of the Formosan Med. Ass. (2012) Medium-term course and outcome of schizophrenia depicted by the sixth-month subtype after an acute episode P3 G9 P1 P6 Negative Disorg. Host./ Excit. Del./ Hall. 15 10 5 0 Average Euc lidean Distanc e GONEG GWNEG G4 PANSS Score 1 2 3 4 5 6 7 P3 G9 P1 P6 Average Correlation 1 0.8 0.6 0.4 0.2 Correlation Coefficient -1 -0.5 0 0.5 1 Negative Symptoms Disorganized Thought Hostility / Excitement Delusion / Ha llucination Correlation Coefficient -1 -0.5 0 0.5 1 PANSS Score 1 2 3 4 5 6 7 G7 N6 N3 N1 N2 N4 N5 G16 G10 N7 G5 G13 G11 P2 G15 G12 G8 P7 S1 G14 S2 S3 P4 P6 P3 G9 P1 P5 G4 G2 G1 G3 G6 G7 N6 N3 N1 N2 N4 N5 G16 G10 N7 G5 G13 G11 P2 G15 G12 G8 P7 S1 G14 S2 S3 P4 P6 P3 G9 P1 P5 G4 G2 G1 G3 G6 Negative Symptoms Disorganized Thought Hostility / Excitement Delusion / Ha llucination Anxiety Symptoms RMG (n=61) PDHG1 (n=14) MBG (n=50) PDHG2 (n=38) 0 5 10 Average Euc lidean Distanc e 0.2 0.4 0.6 0.8 1 Excit. Del./ Hall. Anxiety J. of the Formosan Med. Ass. (2008) Yeh et al. Factors Related to Perceived Needs of Chief Caregivers of Patients with Schizophrenia PLoS ONE (2011) Lai et al. MicroRNA expression aberration as potential peripheral blood biomarkers for schizophrenia Schizophrenia Research (2013) Liu et al. Development of a brief self-report questionnaire for screening putative pre-psychotic states.
  • 24. GAP for Comparative Metabolome: Chinese Herbal Medicine Drs. Ning-Sun Yang, Lie-Fen Shyur, Wen-Chin Yang Agricultural Biotechnology Research Center (ABRC) of Academia Sinica BMC Genomics 9 (2008) Genomics and proteomics of immune modulatory effects of a butanol fraction of Echinacea purpurea in human dendritic cells Wang et al. Phytochemistry 70 (2009) Anti-diabetic properties of three common Bidens pilosa variants in Taiwan Chien et al. Journal of Nutritional Biochemistry 21 (2010) Comparative metabolomics approach coupled with cell-and gene-based assays for species classification and anti-inflammatory bioactivity validation of Echinacea plants Hou et al. BMC Complementary and Alternative Medicine 13 (2013) Morus alba and active compound oxyresveratrol exert anti-inflammatory activity via inhibition of leukocyte migration involving MEK/ ERK signaling. Chen et al. 紫錐菊 咸豐草 白桑
  • 25. GAP for Cancer Study: Non–Small Cell Lung Cancer (National Taiwan University) Journal of Clinical Oncology 23 (2005) Tumor-Associated Macrophages in Cancer Progression Chen J. J. et al. The New England Journal of Medicine 356 (2007) A Five-Gene Signature and Clinical Outcome in Non– Small-Cell Lung Cancer Chen H. Y. et al. Cancer Research 66 (2006) Non–Small Cell Lung Cancer with Tumor Cell Invasiveness Sher Y. P. et al. BMC Genomics 6 (2005)Molecular signature of clinical severity in recovering patients with (SARS-CoV) Lee Y. S. et al. (Chang Gung Hospital) Open Access Scientific Reports 1 (2006) In silico Therapeutic Drug Screening for Reversing the Lung Adenocarcinoma Overexpressed Gene Signatures. Kuo Y. L. et al. (Nat’l Yang-Ming Univ.) GAP for Infectious Disease: SARS Protein-Protien Interaction Nat’l Yang-Ming Univ. Molecular and Cellular Proteomics 12 (2013) An analysis of protein-protein interactions in cross-talk pathways reveals CRKL as a novel prognostic marker in hepatocellular carcinoma. Liu et al. b Simple Match Between Pathways F13A1,HSPB1! MAPK14,EGFR! EGFR,HSPB1! STAT1,PDGFRB! PDGFRB,CRKL! HCK,CRKL! ITGAV,PTK2! FLT1,CRKL! CRKL,MAPK1! CRKL,RAF1! MAPK3,PTPN11! STAT5A,SHC1! CRK,SRC! GAB1,SOS1! CRK,SHC1! PXN,PTPN11! PDGFRB,PTPN11! PDGFRB,PLCG1! PLCG1,PTK2! CRKL,GAB1! CRKL,PTPN11! BAD,YWHAZ! BAD,RAF1! PTK2,PTEN! PXN,PTEN! CRKL,PIK3R1! AKT1,HSPB1! AKT1,PDPK1! MAPK14,AKT1! PIK3R1,SHC1! PIK3R1,SRC! HCK,SOS1! CRKL,SOS1! PDGFRB,RAF1! FLT1,PTPN11! HCK,PLCG1! FLT1,PLCG1! CRKL,EGFR! CRK,KDR! CRKL,PTK2! FLT1,PTK2! MAPK14,MAPK3! BAD,MAPK8! AKT1,SMAD4! FLT1,HCK! HCK,PIK3CB! CTNNB1,FLT1! PIK3R1,PXN! FLT1,PIK3R1! AKT1,PAK1! AKT1,NOS3! AKT1,MDM2! PTK2,YES1! PXN,MAPK8! CRK,FLT1! MAPK3,MAPK1! PDGFRB,SLC9A3R1! EGFR,HCK! MCM7,CDC6! CDC6,MCM6! PLK1,PKMYT1! E2F1,CDC6! CCNB1,PKMYT1! CDK7,E2F1! PLK1,CCNB1! CCNB1,CDC25A! CCNA2,CCNB1! GAP for C-Y F. Huang, a PPI to Pathway c Simple Match Between PPIs M1! M2! B1! B2! H1! H2! A1! A2! P1! P2! P3! P4! P5! Signalling to RAS! Signaling by EGFR! PDGFR-alpha signaling pathway! PDGFR-beta signaling pathway! Signaling events activated by Hepatocyte Growth Factor Receptor (c-Met)! IGF1 pathway! Signaling events mediated by VEGFR1 and VEGFR2! role of pi3k subunit p85 in regulation of actin organization and cell migration! PI3K/AKT signalling! akt signaling pathway! mTOR signaling pathway! Hedgehog signaling events mediated by Gli proteins! PPAR signaling pathway - Homo sapiens (human)! Canonical Wnt signaling pathway! Complement and coagulation cascades - Homo sapiens (human)! Unwinding of DNA! Activation of the pre-replicative complex! cdk regulation of dna replication! sonic hedgehog receptor ptc1 regulates cell cycle! Cyclin A/B1 associated events during G2/M transition! E2F mediated regulation of DNA replication! a Color legends Not on the pathway! Both Positive! Mahlavu Only! Huh7 Only! b,c0 1
  • 26. Visualization for Binary Data Scatter-plot Matrix (SM) Parallel Coordinates Plot (PCP) 1 X1 x2 x3 x4 0 Mosaic Plot 26
  • 27. Matrix Visualization for Binary Data Essential elements in a GAP MV procedure? Continuous Binary 1. Data Matrix 2. Subject Proximity 3. Variable Proximity 1. Data Matrix 2. Subject Proximity 3. Variable Proximity Correlation Covariance polychoric Correlation . . . Euclidean Distance Manhattan Distance Correlation … ? 27
  • 28. Commonly used similarity coefficients for binary data 28 Tzeng et al. (BMEI 2009) (IEEE Xplore Digital Library)
  • 29. Binary GAP Example http://CGMIM Online www.bccrc.ca/ccr/CGMIM/ CGMIM performs automated text-mining of OMIM to identify genetically-related cancers Online Mendelian In Man (OMIM) is a computerized database of information about genes and heritable traits in human populations OMIM is maintained on the Internet by the National Center for Biotechnology Information at the US National Institutes of Health CGMIM considers 21 anatomic sites based on the major cancers identified by the National Cancer Institute of Canada CGMIM compares each OMIM entry name and alternative name with a list of gene names assigned by HUGO (HUman Genome Organization). CGMIM produces the number of genes for which an OMIM entry mentions each pair of cancers, as well as a ratio of the observed and expected number 29 of genes for the combination
  • 30. CGMIM All Data (1948 genes * 21 Sites) Original Order 21 Cancer Sites 1948 Related Genes Jaccard: a/(a+b+c) 30
  • 31. 21 Cancer Sites 1948 Related Genes CGMIM All Data (1948 genes * 21 Sites) Single_Tree_GrandPa_Guide Jaccard: a/(a+b+c) 31
  • 32. 21 Cancer Sites 768 Related Genes CGMIM 768 genes at least at 2 Sites Original Order Jaccard: a/(a+b+c) 32
  • 33. 21 Cancer Sites 768 Related Genes CGMIM 768 genes at least at 2 Sites GAP_Elliptical_Order Jaccard: a/(a+b+c) 33
  • 34. Approaching Statistics Statistical Approach Matrix visualization of nominal data (GAP approach) Example: Classification of Animals Data Shizuhiko Nishisato 2006 34
  • 35. 35 票種 code 合計 早鳥/社會 0 351 早鳥/學生 1 121 邀請/⼀一般 2 48 邀請/媒體 3 25 邀請/貴賓 4 22 黑客松 5 90 邀請/講師 6 32 邀請/贊助 7 12 總計 701 性別 code 合計 女 0 166 男 1 535 總計 701 業別 code 合計 無法認定 0 56 資訊業 1 203 研究機構 2 41 科技業 3 33 顧問公司 4 13 金融業 5 18 通訊業 6 21 自由業 7 11 傳播業 8 17 學術 9 242 政府機關 10 11 醫藥業 11 8 電子業 12 4 公益團體 13 8 通路商 14 5 其他 15 10 總計 701 餐飲 code 合計 素食 0 47 葷食 1 654 總計 701 通知 否 0 61 是 1 活動 code 合計 640 總計 701 code 合計 黑客松 0 91 資料分析 1 196 演講議程 2 414 總計 701 電郵 code 合計 .edu 0 49 .org 1 15 gmail 2 500 hotmail 3 44 yahoo 4 10 MSN 5 3 .com 6 64 其他 7 16 總計 701 報名資料 可能變數 報名序 1~701 票 種 業 別 通 知 活 動 電 郵 … … … … … 0 1 1 1 1 0 9 1 1 2 0 1 1 0 6 0 1 2 1 2 0 9 2 1 2 1 9 2 1 2 1 9 2 1 2 1 9 1 1 2 1 9 1 1 2 0 3 2 1 3 1 9 2 1 3 0 3 2 1 6 0 11 2 1 2 1 9 1 1 2 1 9 2 1 2 0 1 2 0 2 1 9 2 1 2 1 9 2 1 2 0 3 2 1 6 0 2 2 1 1 0 1 2 1 2 … … … … … 701 人 7 變數 報 名 葷 素 性 別 … … … 139 1 1 140 1 1 141 0 0 142 1 1 143 1 1 144 1 0 145 1 1 146 1 1 147 1 0 148 1 1 149 1 1 150 1 1 151 1 1 152 1 1 155 1 1 157 1 1 158 1 0 159 0 1 160 1 0 162 1 1 163 1 0 … … …
  • 36. Approaching Statistics Statistical Approach Essential elements in a GAP MV procedure? 1. Data Matrix 2. Subject Proximity 3. Variable Proximity type 2 measurements 1. Data Matrix 2. Subject Proximity 3. Variable Continuous Proximity Nominal Correlation Covariance polychoric Correlation . . . Euclidean Distance Manhattan Distance Correlation … ? Matching proportion χ ? ? 36
  • 37. A typical nominal data Shizuhiko Nishisato, 2006 Classifica5on of Animals 35 animals were sorted into piles of similar animals by 15 students Animal/Subject S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 Alligator 8 1 6 9 6 1 3 4 1 4 3 4 3 6 4 Bear 6 3 2 6 6 1 3 4 4 5 5 1 4 2 2 Camel 4 3 9 3 1 4 3 5 4 2 5 1 7 7 8 Cat 6 3 7 4 0 1 1 2 3 3 1 1 6 3 5 Cheetah 3 3 7 4 0 1 3 5 4 3 6 1 6 2 2 Chiken 7 2 4 1 2 5 7 1 5 1 1 3 8 4 1 Chimpanzee 5 3 5 7 5 2 4 4 2 2 6 4 3 6 6 Cow 1 3 9 6 1 1 3 5 3 4 1 1 4 5 8 Crane 7 2 4 5 2 5 5 1 5 1 2 3 8 4 1 Crow 7 2 4 5 2 5 5 1 5 1 2 3 8 4 1 Dog 6 3 7 10 0 2 1 2 3 3 1 1 4 3 5 Duck 7 2 4 1 2 5 5 1 5 1 2 3 8 4 1 Elephant 4 3 6 3 1 4 3 5 4 5 3 1 7 7 2 Fox 6 3 7 4 0 1 6 2 3 3 3 1 4 3 5 Frog 8 1 3 2 3 3 2 3 1 4 4 2 1 1 3 Giraffe 1 3 8 3 1 4 3 5 4 2 5 1 7 7 8 Goat 3 3 9 6 1 4 6 5 3 3 1 1 5 3 5 Hawk 7 2 4 5 2 5 5 1 5 1 3 3 8 4 1 Hippopotamus 4 3 6 6 6 4 3 3 4 4 5 1 7 7 2 Horse 6 3 9 6 1 2 3 5 3 3 1 1 5 5 8 Leopard 1 3 7 4 0 1 3 5 4 3 3 1 6 2 2 Lion 5 3 7 4 6 1 3 5 4 3 3 1 7 2 2 Lizard 2 1 3 2 3 3 2 3 1 4 4 2 2 1 3 Monkey 6 3 5 7 5 2 4 4 2 2 6 4 3 6 6 Ostrich 3 2 4 1 2 5 3 1 5 1 5 3 8 7 8 Pig 1 3 9 6 1 1 6 5 3 3 1 1 5 5 5 Pigeon 7 2 4 5 2 5 5 1 5 1 2 1 8 4 1 Rabbit 6 3 1 6 0 4 6 2 3 3 1 1 5 3 5 Racoon 6 3 7 10 4 1 6 2 3 3 3 1 4 3 5 Rhinoceros 4 3 5 6 6 4 3 5 4 4 5 1 7 7 2 Snake 8 1 3 9 6 3 2 3 1 4 4 2 2 1 3 Sparrow 7 2 4 5 2 5 5 1 5 2 2 3 8 4 1 Tiger 5 3 7 4 0 1 3 5 4 3 3 1 6 2 2 Tortoise 8 1 3 9 3 3 2 3 1 5 4 2 1 1 3 Turkey 7 2 4 1 2 5 7 1 5 1 1 3 8 4 1 What about 3500 samples 1500 variables ? 37
  • 38. Alligator Bear Camel Cat Cheetah Chicken Cow Crane Chimpanzee Crow Dog Duck Elephant Fox Frog Giraffe Goat Hawk Hippopotamus Horse Leopard Lion Lizard Ostrich Pig Pigeon Rabbit Racoon Rhinoceros Snake Sparrow Tiger Tortoise Turkey Monkey
  • 39. 39 Uni-variate Display Bar-Chart Pie-Chart S12 S2 Mammalia Reptilia Aves Reptilia AvesMammalia Primates ? 20 15 10 5 0 12 3 1 2 3 4
  • 40.
  • 41. 1. Reptile 2. Bird3. Mammal 41 2. Reptile 3. Bird4. Primate? 1. Mammal Bi-variate Display Mosaic Display
  • 42. Conventional multivariate visualization for this data 2D Mosaic Display 5D Mosaic Display Scatter-plot Matrix Scatter-plot Parallel Coordinate Plot 42
  • 43. GAP Categorical MV Solution with 3 matrix maps (original orders) 43 Alliga Bear Camel Cat Cheeta Chicke Chimpa Cow Crane Crow Dog Duck Elepha Fox Frog Giraff Goat Hawk Hippop Horse Leopar Lion Lizard Monke Ostric Pig Pigeon Rabbit Racoo Rhinoc Snake Sparro Tiger Tortoi Turkey
  • 44. GAP Categorical MV 44 Solution with 3 matrix maps (R2E orders)
  • 45. 45 11 6 7 15 14 12 13 9 4 3 5 8 10 2 1 Ostri c Turk e y Chicke Pigeon Hawk Sparro Duck Crow Cran e L i zard Frog Tor toi Snake Alli ga Hippop Bear Rhinoc Elepha L i o n Tiger Leopar Cow Fox Racoo Cheeta Cat Dog P i g Rabbit Hors e Goat Camel Gir aff Monke Chimpa 11 6 7 15 14 12 13 9 4 3 5 8 10 2 1 Aves Reptilia Mammalia Primates
  • 46. D0_Lion D1_Elephant D2_Camel D3_Hawk D4_Fox A0_Dog A1_Alligator A2_Chimpanzee A3_Cow A4_Crow A5_Pigeon A6_Cheetah A7_Chiken A8_Bear A9_Cat B0_Rabbit B1_Frog B2_Goat B3_Tiger B4_Rhinoceros B5_Giraffe B6_Duck B7_Sparrow B8_Hippopotamus B9_Monkey C0_Turkey C1_Pig C2_Crane C3_Leopard C4_Ostrich C5_Lizard C6_Horse C7_Racoon C8_Tortoise C9_Snake
  • 47. Alligator Bear Camel Cat Cheetah Chicken Cow Crane Chimpanzee Crow Dog Duck Elephant Fox Frog Giraffe Goat Hawk Hippopotamus Horse Leopard Lion Lizard Ostrich Pig Pigeon Rabbit Racoon Rhinoceros Snake Sparrow Tiger Tortoise Turkey Monkey ?
  • 48. 與會人士類別性資料 Univariate frequency breakdown Bivariate table 48
  • 49. 49 票種 code 合計 早鳥票/社會人士 0 351 早鳥票/學生 1 121 邀請票/⼀一般 2 48 邀請票/媒體 3 25 邀請票/貴賓 4 22 g0v 黑客松票 5 90 邀請票/講師 6 32 邀請票/贊助 7 12 總計 701 性別 code 合計 女 0 166 男 1 535 總計 701 業別 code 合計 Missing、無法認定 0 56 資訊業 1 203 研究機構 2 41 科技業 3 33 顧問公司 4 13 金融業 5 18 通訊業 6 21 自由業 7 11 傳播業 8 17 學術 9 242 政府機關 10 11 醫藥業 11 8 電子業 12 4 公益團體 13 8 通路商 14 5 製造業、食品業、 運輸業、服務業 15 10 總計 701 餐飲需求 code 合計 素食 0 47 葷食 1 654 總計 701 參加活動 code 合計 g0v 黑客松 0 91 資料分析上手課程 1 196 演講議程 2 414 總計 701 日後通知 code 合計 否 0 61 是 1 640 總計 701 電郵 code 合計 .edu 0 49 .org 1 15 gmail 2 500 hotmail 3 44 yahoo 4 10 MSN 5 3 .com 6 64 未定、其他 7 16 總計 701 報名資料可能變數 報名序 1~701
  • 50. 50 701 人 5 變數 Optimization 票 種 業 別 通 知 活 動 電 郵 … … … … … 0 1 1 1 1 0 9 1 1 2 0 1 1 0 6 0 1 2 1 2 0 9 2 1 2 1 9 2 1 2 1 9 2 1 2 1 9 1 1 2 1 9 1 1 2 0 3 2 1 3 1 9 2 1 3 0 3 2 1 6 0 11 2 1 2 1 9 1 1 2 1 9 2 1 2 0 1 2 0 2 1 9 2 1 2 1 9 2 1 2 0 3 2 1 6 0 2 2 1 1 0 1 2 1 2 … … … … … 3 共變數 葷 素 性 別 報 名 … … … 1 1 139 1 1 140 0 0 141 1 1 142 1 1 143 1 0 144 1 1 145 1 1 146 1 0 147 1 1 148 1 1 149 1 1 150 1 1 151 1 1 152 1 1 155 1 1 157 1 0 158 0 1 159 1 0 160 1 1 162 1 0 163 … … …
  • 51. 51 其他 .com MSN Yahoo Hotmail Gmail .org .edu 是 否 業別 演講議程 資料分析 黑客松 其他 通路商 公益團體 電子業 醫藥業 政府機關 學術 傳播業 自由業 通訊業 金融業 顧問公司 科技業 研究機構 資訊業 無法認定 票種 邀請贊助 邀請講師 黑客松 邀請貴賓 邀請媒體 邀請一般 早鳥學生 早鳥社會 電郵 通知 活動 李育杰 701 人 5 變數
  • 52. 52 報 名 女素序 票 業 活 通 電 種 別 動 知 郵 票種 業別 活動 通知 電郵 5 變數 701 人 Original Orders (報名序)
  • 53. 5 變數 Original Orders (報名序) 53 邀請/贊助 邀請/講師 g0v黑客松 邀請/貴賓 邀請/媒體 邀請/一般 早鳥/學生 早鳥/社會 其他 通路商 公益團體 電子業 醫藥業 政府機關 學術 傳播業 自由業 通訊業 金融業 顧問公司 科技業 研究機構 資訊業 無法認定 其他 .com MSN yahoo hotmail gmail .org .edu 通知 是 否 活 動 演講議程 資料分析 g0v黑客松 報 名 序 票 種 業 別 電 郵 女素 票 業 活 通 電 種 別 動 知 郵 票種 業別 活動 通知 電郵 701 人
  • 54. 5 變數 票 通 活 電 業 種 知 動 郵 別 Random Orders 54 邀請/贊助 邀請/講師 g0v黑客松 邀請/貴賓 邀請/媒體 邀請/一般 早鳥/學生 早鳥/社會 其他 通路商 公益團體 電子業 醫藥業 政府機關 學術 傳播業 自由業 通訊業 金融業 顧問公司 科技業 研究機構 資訊業 無法認定 其他 .com MSN yahoo hotmail gmail .org .edu 通知 是 否 活 動 演講議程 資料分析 g0v黑客松 報 名 序 票 種 業 別 電 郵 票種 通知 活動 電郵 女素 業別 701 人
  • 55. 沈澱圖 (pie-chart, bar-chat) (可觀察單一變數各類別之 比例,但失去變數間連結) 55 女男 素葷報 名票 種 業別 活動 通知 電郵 通知 活動 票種 業別 電郵 其他 .com MSN yahoo hotmail gmail .org .edu 是 否 演講議程 資料分析 黑客松 邀請/贊助 邀請/講師 黑客松 邀請/貴賓 邀請/媒體 邀請/一般 早鳥/學生 早鳥/社會 其他 通路商 公益團體 電子業 醫藥業 政府機關 學術 傳播業 自由業 通訊業 金融業 顧問公司 科技業 研究機構 資訊業 無法認定 701 人 166
  • 56. 電 通 活 票 業 郵 知 動 種 別 其他 56 邀請/贊助 邀請/講師 g0v黑客松 邀請/貴賓 邀請/媒體 邀請/一般 早鳥/學生 早鳥/社會 其他 通路商 公益團體 電子業 醫藥業 政府機關 學術 傳播業 自由業 通訊業 金融業 顧問公司 科技業 研究機構 資訊業 無法認定 報 名 序 票 種 業 別 Elliptical Seriations (R2E) 電郵 通知 活動 票種 業別 .com MSN yahoo hotmail gmail .org .edu 通知 是 否 活 動 演講議程 資料分析 g0v黑客松 電 郵 5 變數 女素 701 人
  • 57. 業 電 通 活 票 別 郵 知 動 種 57 邀請/贊助 邀請/講師 g0v黑客松 邀請/貴賓 邀請/媒體 邀請/一般 早鳥/學生 早鳥/社會 其他 通路商 公益團體 電子業 醫藥業 政府機關 學術 傳播業 自由業 通訊業 金融業 顧問公司 科技業 研究機構 資訊業 無法認定 報 名 序 業別 電郵 通知 活動 票種 票 種 業 別 Hierarchical Clustering Tree (HCT) 其他 .com MSN yahoo hotmail gmail .org .edu 通知 是 否 活 動 演講議程 資料分析 g0v黑客松 電 郵 5 變數 女素 701 人
  • 58. 電 通 活 票 業 郵 知 動 種 別 58 邀請/贊助 邀請/講師 g0v黑客松 邀請/貴賓 邀請/媒體 邀請/一般 早鳥/學生 早鳥/社會 其他 通路商 公益團體 電子業 醫藥業 政府機關 學術 傳播業 自由業 通訊業 金融業 顧問公司 科技業 研究機構 資訊業 無法認定 報 名 序 票 種 業 別 Hierarchical Clustering Tree (HCT) 其他 .com MSN yahoo hotmail gmail .org .edu 通知 是 否 活 動 演講議程 資料分析 g0v黑客松 電 電郵 郵 通知 活動 票種 業別 5 變數 女素 701 人
  • 59. Hierarchical Clustering Tree with Flips Guided Elliptical Seriation 59 電郵 通知 活動 票種 業別 報名 Orders: HCT-R2E 票 種 其他 通路商 公益團體 電子業 醫藥業 政府機關 學術 傳播業 自由業 通訊業 金融業 顧問公司 科技業 研究機構 資訊業 無法認定 業 別 電 郵 其他 .com MSN yahoo hotmail gmail .org .edu 通 知 是 否 活 動 演講議程 資料分析 g0v黑客松 邀請/贊助 邀請/講師 g0v黑客松 邀請/貴賓 邀請/媒體 邀請/一般 早鳥/學生 早鳥/社會 女素
  • 60. Approaching Statistics Statistical Approach CIA Data: 160 international organization membership pattern (variables) for 230 countries/regions (subjects) 0. non-member □ 1. member ■ 2. observer 3. associate member 4. guest 5. dialogue partner CIA Political Map of the World 230 countries (regions) http://www.faqs.org/docs/factbook/index.html 160 international organization 60 Matrix Visualization with cartography links
  • 61. Draw one membership map for each organization (variable)? 1 2 3 4 5 6 7 8 9 . . . 160 maps (?) . . . 158 159 160 61
  • 62. Cartography Coloring Scheme with Categorical GAP (CartoGAP) - 2 Data: Ranks of 5 Candidates (扁宋連許李) on 360 Townships 2000 總統大選資料 Is it possible to visualize information structure for all 5 candidates in a single MAP? A B C A B C D E D E ? Rank 1 2 3 4 4.5 5 #
  • 63. ! ABCDE 扁 宋 連 許 扁宋連 許李 李
  • 64. Cartography Coloring Scheme with GAP (CartoGAP)-2 (B). CateGAP Color Map for Each Individual Variable A B C E A B C D E D (C). Final Single CateGAP Cartography Color MAP for Complete Information Visualization 扁 宋 連 李 扁宋連 許李 許
  • 65. From physical maps to conceptual maps 64 Chromosome Map Macro Biodiversity Semiconductor Wafer Quality Control Micro Biodiversity
  • 66. 65 Matrix Visualization for Symbolic Data (Analysis) for Big Data?
  • 67. 1.1 Symbolic Data Analysis (SDA) and 1.2 Matrix Visualizaon (MV) Fig. 1. Diagram for related conven5onal data matrix and symbolic (interval type) data table with their corresponding proximity matrices for samples/concepts and variables.
  • 68. Example: Japan Minryoku 2010 Data (with Junji Nakano, ISM) 67 Level 1 Level 2 Level 3 Level 4 Region (10) Area (151) District (821) City (1899) 58 variables 1899 Level 4 Cities 市區町村 58 variables (interval) 151 Level 2 Areas地域 continuous Data ↓ Rank Data (1~1899) merged (interval of ranks) data covariate 10 Level 1 Regions
  • 70. 12 displaying modes for MV of interval data 58 interval variables 151 regions (concepts) Min Mid Max Length Length 949 len949, 949mid 1746 length 900mid1000 Sufficient Sediment Row Condition Col Condition
  • 71. Statisticians, Data Analysts, Bioinformaticists A statistician is someone who wants to get exactly the right answer, even if it’s the answer to the wrong question. A data analyst is someone who is willing to settle for an approximate answer, as long as it’s the answer to the right question. A bioinformaticist is someone who is willing to settle for answers of unknown accuracy, to questions that have not been clearly articulated, as long as the results can be graphed in color. David B. Allison, Ph.D. Department of Biostatistics University of Alabama at Birmingham
  • 72. Approaching Statistics Statistical Approach 12. MV for Color Blind people Types of color blind Monochromacy Dichromacy Protanopia and deuteranopia Hereditary tritanopia Anomalous Trichromacy http://www.vischeck.com/examples/ To act passively to prevent from using color systems that are difficult for color blind people to understand. or To work actively in assisting people with visual impairments to have better visualization of data/information. “I believe there are more mathematics/statistics blind people than color blind people” 71
