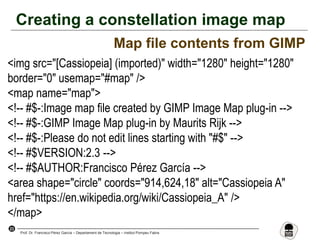

Creating a constellation image map
Map file contents from GIMP
<img src="[Cassiopeia] (imported)" width="1280" height="1280"
border="0" usemap="#map" />
<map name="map">
<!-- #$-:Image map file created by GIMP Image Map plug-in -->
<!-- #$-:GIMP Image Map plug-in by Maurits Rijk -->
<!-- #$-:Please do not edit lines starting with "#$" -->
<!-- #$VERSION:2.3 -->
<!-- #$AUTHOR:Francisco Pérez García -->
<area shape="circle" coords="914,624,18" alt="Cassiopeia A"
href="https://en.wikipedia.org/wiki/Cassiopeia_A" />
</map>](https://image.slidesharecdn.com/codingtools-220223113054/85/Coding-tools-23-320.jpg)
Uploaded byFrancisco Perez
Coding tools
This document discusses various coding tools and science and technology projects that can be used in education. It provides examples of projects on air pollution measurement and analysis, astronomy research including analyzing supernovas and exoplanets, and in silico research on herbal drugs against coronavirus. It describes tools for block-based and text-based programming, machine learning, and data analysis. Specific coding tools highlighted include Scratch, MIT App Inventor, p5.js, and ml5.js. Details and resources are given for each sample project.
More Related Content
More from Francisco Perez
Coding tools
- 1. 1 Unitat de Farmacologiai Farmacognòsia - Facultat de Farmàcia Coding tools in Science and Technology projects Prof. Dr. Francisco Pérez García Department of Technology Pompeu Fabra High School, Martorell, Barcelona (Spain) SCIENTIX Ambassador Datura stramonium Transatlantic Education Dialogue Collaboration Corner 27 February 2022

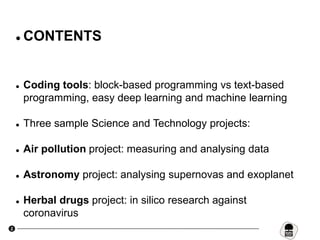

- 2. 2 CONTENTS Codingtools: block-based programming vs text-based programming, easy deep learning and machine learning Three sample Science and Technology projects: Air pollution project: measuring and analysing data Astronomy project: analysing supernovas and exoplanet Herbal drugs project: in silico research against coronavirus
- 3.

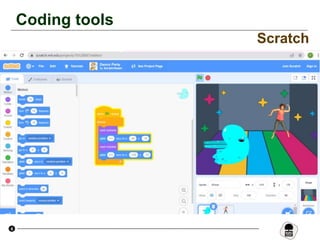

- 4.

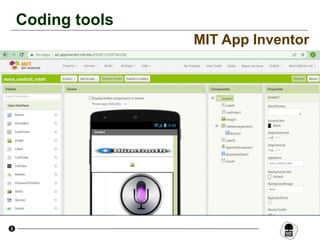

- 5. 5 Coding tools MIT AppInventor
- 6.
- 7.

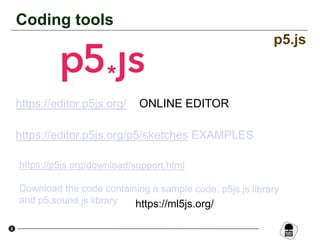

- 8. 8 Coding tools p5.js https://ml5js.org/ https://editor.p5js.org/ ONLINEEDITOR https://editor.p5js.org/p5/sketches EXAMPLES

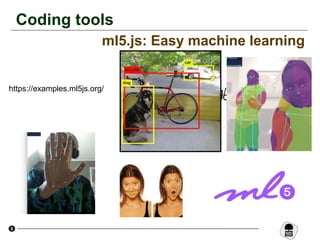

- 9. 9 Coding tools ml5.js: Easymachine learning https://ml5js.org/ https://www.w3schools.com/ https://examples.ml5js.org/
- 10.

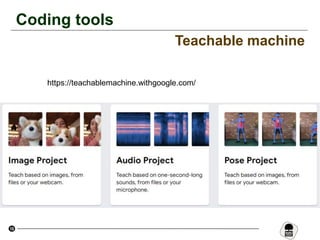

- 11. 11 Teachable machine example Teachablemachine https://pompeu.neocities.org/tensorflow

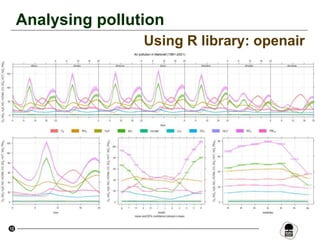

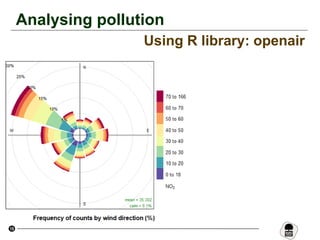

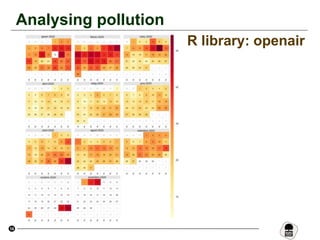

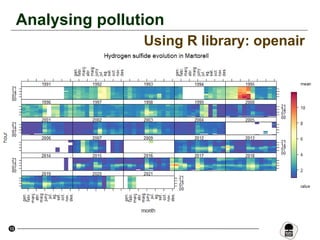

- 12. 12 Analysing pollution Using Rlibrary: openair
- 13. 13 Analysing pollution Using Rlibrary: openair
- 14. 14 Analysing pollution Using Rlibrary: openair
- 15. 15 Analysing pollution Using Rlibrary: openair

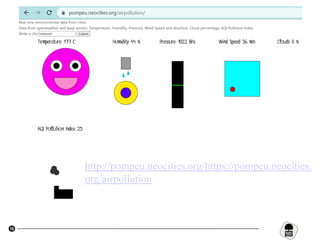

- 16.
- 17. 17 Analysing pollution Using Rlibrary: openair https://davidcarslaw.github.io/openair/ TUTORIALS, FREE BOOK AND DOCUMENTATION https://blocs.xtec.cat/tecno/science/environment/openair-r/ http://xtec.cat/~fperez5/medi_ambient.html

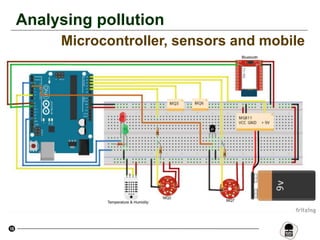

- 18.
- 19. 19 Mobile and pollutionsensor https://youtu.be/WzXjr05mrQg
- 20. 20 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing the Universe Objectives • One student analyse one constellation including myth or history • Creation of an interactive image map of a constellation using GIMP Image Map option and mapper.js Javascript library and locating sky objects. Another possibility is to use skysphere.js library. • Analysis of quick spectra using js9.si.edu website or SAOImageDS9 software and imageJ to know the chemical composition percentages.

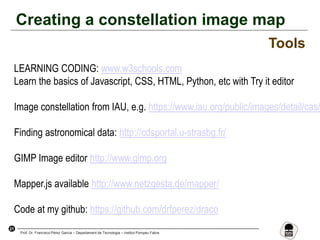

- 21. 21 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Creating a constellation image map Tools LEARNING CODING: www.w3schools.com Learn the basics of Javascript, CSS, HTML, Python, etc with Try it editor Image constellation from IAU, e.g. https://www.iau.org/public/images/detail/cas/ Finding astronomical data: http://cdsportal.u-strasbg.fr/ GIMP Image editor http://www.gimp.org Mapper.js available http://www.netzgesta.de/mapper/ Code at my github: https://github.com/drfperez/draco
- 22. 22 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Creating a constellation image map Tools Available at http://www.gimp.org
- 23. 23 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Creating a constellation image map Map file contents from GIMP <img src="[Cassiopeia] (imported)" width="1280" height="1280" border="0" usemap="#map" /> <map name="map"> <!-- #$-:Image map file created by GIMP Image Map plug-in --> <!-- #$-:GIMP Image Map plug-in by Maurits Rijk --> <!-- #$-:Please do not edit lines starting with "#$" --> <!-- #$VERSION:2.3 --> <!-- #$AUTHOR:Francisco Pérez García --> <area shape="circle" coords="914,624,18" alt="Cassiopeia A" href="https://en.wikipedia.org/wiki/Cassiopeia_A" /> </map>

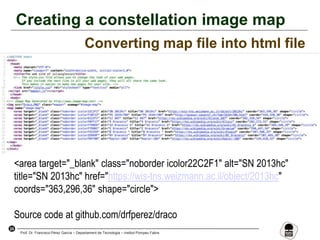

- 24. 24 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Creating a constellation image map Converting map file into html file <area target="_blank" class="noborder icolor22C2F1" alt="SN 2013hc" title="SN 2013hc" href="https://wis-tns.weizmann.ac.il/object/2013hc" coords="363,296,36" shape="circle"> Source code at github.com/drfperez/draco
- 25. 25 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Creating an interactive sky sphere Results Source code available at: http://github.com/drfperez/skysphere Visible at http://pompeu.neocities.org/skysphere

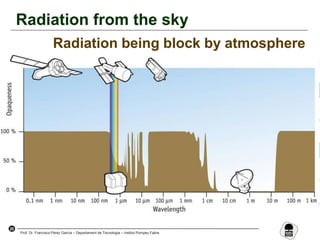

- 26. 26 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Radiation from the sky Radiation being block by atmosphere

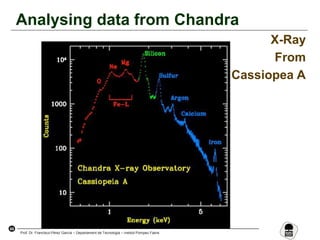

- 27. 27 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Chandra space telescope

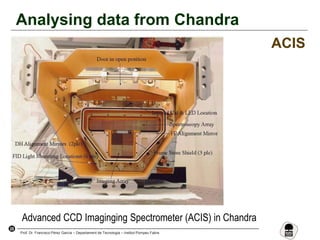

- 28. 28 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra ACIS Advanced CCD Imaginging Spectrometer (ACIS) in Chandra

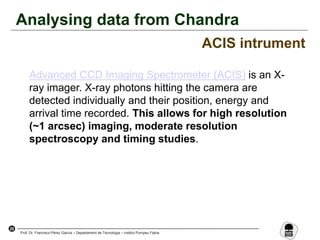

- 29. 29 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra ACIS intrument Advanced CCD Imaging Spectrometer (ACIS) is an X- ray imager. X-ray photons hitting the camera are detected individually and their position, energy and arrival time recorded. This allows for high resolution (~1 arcsec) imaging, moderate resolution spectroscopy and timing studies.
- 30. 30 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Resources Chandra X-Ray Observatory Education: https://chandra.harvard.edu/edu/ Prof. Kholena (Duke University) website: https://webhome.phy.duke.edu/~kolena/astroteach.html Prof. Matilsky (Rutgers University) MOOC: https://es.coursera.org/learn/analyze
- 31. 31 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Finding data to analyse

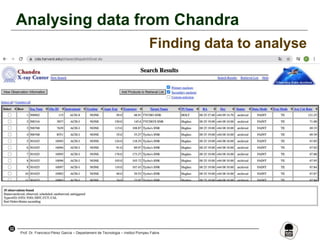

- 32. 32 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Finding data to analyse
- 33. 33 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Finding data to analyse
- 34. 34 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Finding data to analyse
- 35. 35 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Opening data to analyse

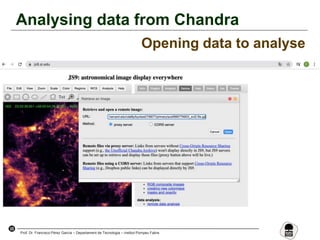

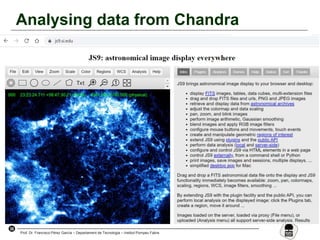

- 36. 36 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Tools
- 37. 37 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Tools

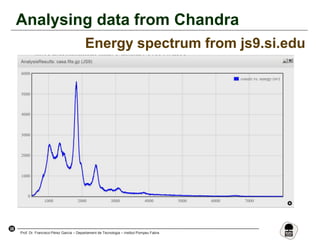

- 38. 38 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Energy spectrum from js9.si.edu
- 39. 39 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Analysing different areas in js9

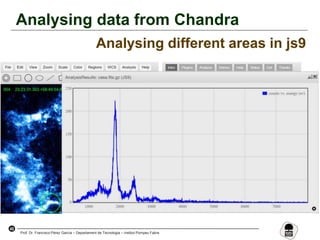

- 40. 40 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Analysing different areas in js9

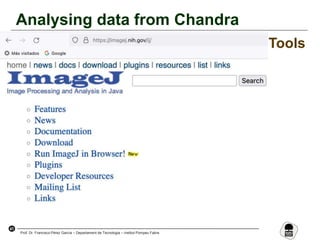

- 41. 41 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Tools

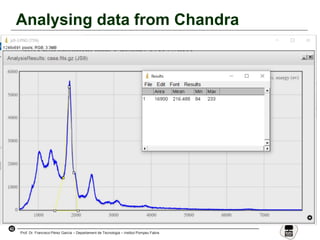

- 42. 42 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Tools
- 43. 43 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Measuring total area in imageJ
- 44. 44 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra X-Ray From Cassiopea A

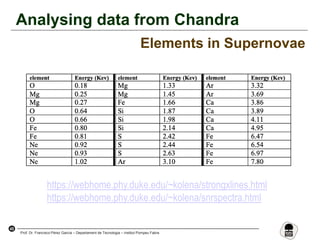

- 45. 45 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Elements in Supernovae https://webhome.phy.duke.edu/~kolena/strongxlines.html https://webhome.phy.duke.edu/~kolena/snrspectra.html
- 46. 46 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Fe XVIII: 0.8 keV Ne X:1.0 keV Mg XI: 1.34keV Si XIII: 1.83keV, 2.16 keV S XV: 2.41 keV Ar XVII: 3.08keV Ca XIX: 3.84 keV Fe XXV: 6.4-6.8 keV Si XIII means 13 electrons removed from Silicium atom, moving from upper level 2 to lower level 1 (1.83keV) and from level 13 to 1 (2.7keV)

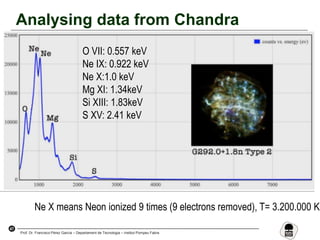

- 47. 47 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Tools O VII: 0.557 keV Ne IX: 0.922 keV Ne X:1.0 keV Mg XI: 1.34keV Si XIII: 1.83keV S XV: 2.41 keV Ne X means Neon ionized 9 times (9 electrons removed), T= 3.200.000 K

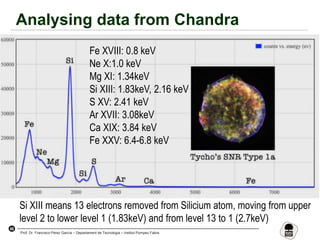

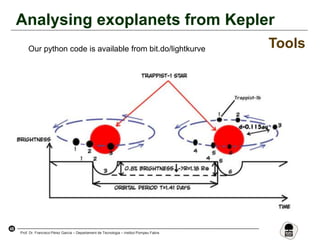

- 48. 48 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing exoplanets from Kepler Tools Our python code is available from bit.do/lightkurve
- 49. 49 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing anisotropies from supernova Tools IMAGEJ and SAOImageDS9

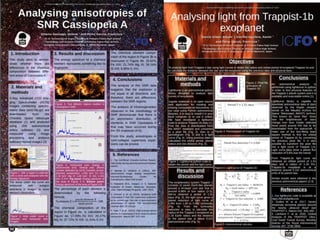

- 50.
- 51. 51 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Tools
- 52. 52 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Tools
- 53. 53 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Tools

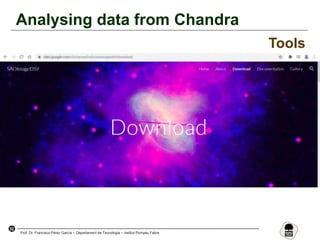

- 54. 54 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Analysing data from Chandra Results from students Some of my students’ websites: https://juliaiglesis.neocities.org https://bertadelvalle.neocities.org/ https://juliaarcas.neocities.org https://marinamiras.neocities.org/ https://claudiaortiz.neocities.org/ https://ainhoafernandez.neocities.org/ https://claudiaortiz.neocities.org/ https://luciamelero.neocities.org/ https://lauraapolzan.neocities.org/ Some of my websites: http://blocs.xtec.cat/tecno General blog http://xtec.cat/~fperez5/index.html https://pompeu.neocities.org Work in progress
- 55. 55 Erasmus+ 2019-2022 schoolproject “Touching the past to reach the future” Ref: 2019-1-TR01-KA229-074244-1 High Schools from Martorell (Spain), Florence (Italy), Trabzon (Turkey), Bodrum (Turkey), Naoussa (Greece) and Prague (Czech Republic) Prof. Dr. Francisco Pérez García – Departament de Tecnologia – Institut Pompeu Fabra

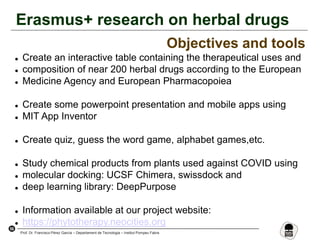

- 56. 56 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Erasmus+ research on herbal drugs Objectives and tools Create an interactive table containing the therapeutical uses and composition of near 200 herbal drugs according to the European Medicine Agency and European Pharmacopoiea Create some powerpoint presentation and mobile apps using MIT App Inventor Create quiz, guess the word game, alphabet games,etc. Study chemical products from plants used against COVID using molecular docking: UCSF Chimera, swissdock and deep learning library: DeepPurpose Information available at our project website: https://phytotherapy.neocities.org

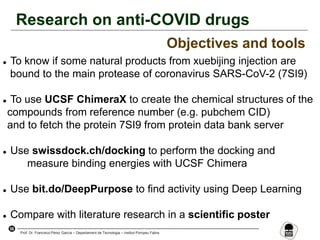

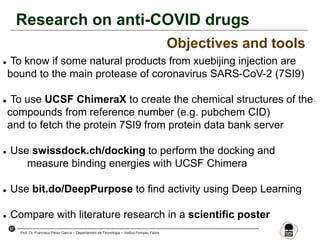

- 57. 57 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Research on anti-COVID drugs Objectives and tools To know if some natural products from xuebijing injection are bound to the main protease of coronavirus SARS-CoV-2 (7SI9) To use UCSF ChimeraX to create the chemical structures of the compounds from reference number (e.g. pubchem CID) and to fetch the protein 7SI9 from protein data bank server Use swissdock.ch/docking to perform the docking and measure binding energies with UCSF Chimera Use bit.do/DeepPurpose to find activity using Deep Learning Compare with literature research in a scientific poster
- 58. 58 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Research on anti-COVID drugs Objectives and tools To know if some natural products from xuebijing injection are bound to the main protease of coronavirus SARS-CoV-2 (7SI9) To use UCSF ChimeraX to create the chemical structures of the compounds from reference number (e.g. pubchem CID) and to fetch the protein 7SI9 from protein data bank server Use swissdock.ch/docking to perform the docking and measure binding energies with UCSF Chimera Use bit.do/DeepPurpose to find activity using Deep Learning Compare with literature research in a scientific poster
- 59. 59 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Find possible antiCOVID compounds Xuebijing

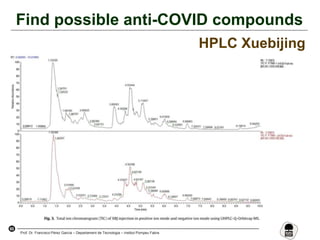

- 60. 60 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Find possible anti-COVID compounds HPLC Xuebijing

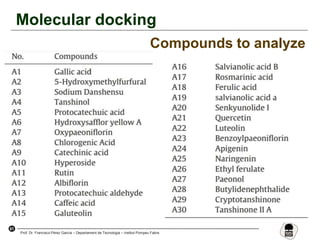

- 61. 61 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Molecular docking Compounds to analyze

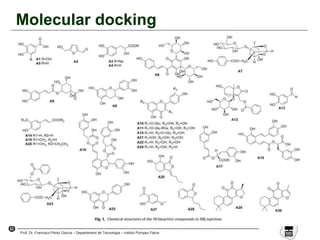

- 62. 62 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Molecular docking Compounds to analyze

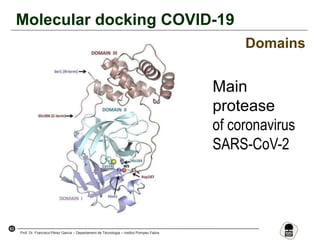

- 63. 63 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Molecular docking COVID-19 Domains Main protease of coronavirus SARS-CoV-2

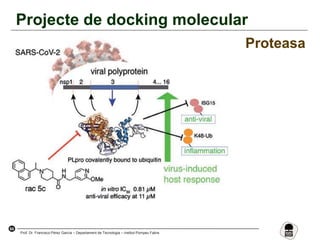

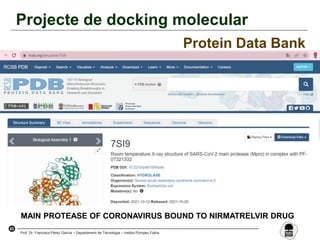

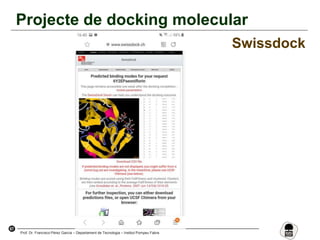

- 64. 64 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Proteasa
- 65. 65 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Protein Data Bank MAIN PROTEASE OF CORONAVIRUS BOUND TO NIRMATRELVIR DRUG
- 66. 66 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Swissdock
- 67. 67 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Swissdock
- 68. 68 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Swissdock
- 69. 69 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Swissdock

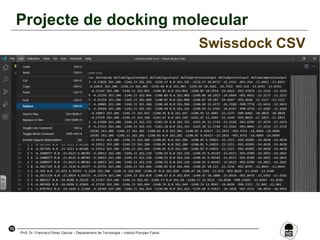

- 70. 70 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Swissdock CSV
- 71. 71 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Swissdock CSV

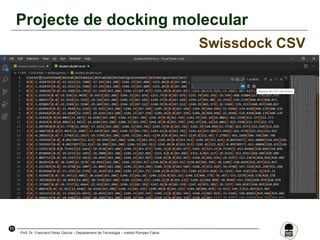

- 72. 72 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Swissdock CSV

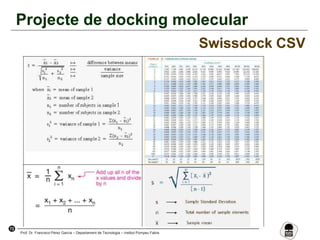

- 73. 73 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Swissdock CSV

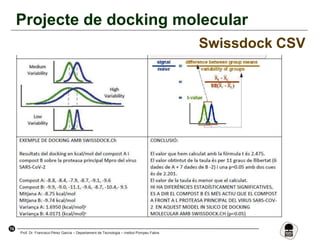

- 74. 74 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Swissdock CSV

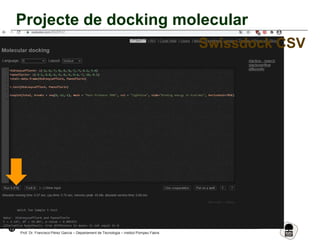

- 75. 75 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Swissdock CSV

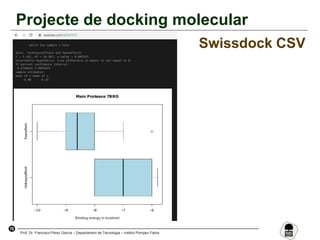

- 76. 76 Prof. Dr. FranciscoPérez García – Departament de Tecnologia – Institut Pompeu Fabra Projecte de docking molecular Swissdock CSV
- 77. 77 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra

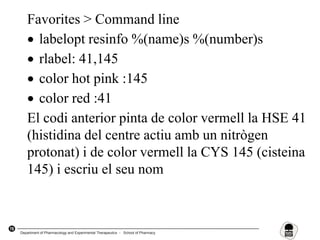

- 78. 78 Favorites > Commandline labelopt resinfo %(name)s %(number)s rlabel: 41,145 color hot pink :145 color red :41 El codi anterior pinta de color vermell la HSE 41 (histidina del centre actiu amb un nitrògen protonat) i de color vermell la CYS 145 (cisteina 145) i escriu el seu nom Department of Pharmacology and Experimental Therapeutics - School of Pharmacy

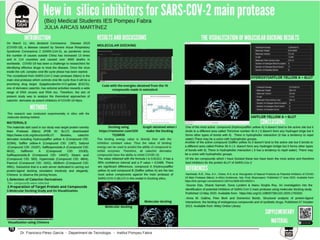

- 79. 79 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra

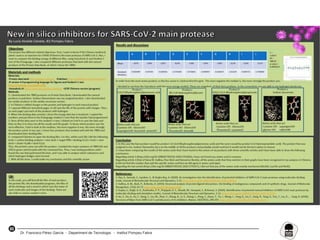

- 80. 80 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra

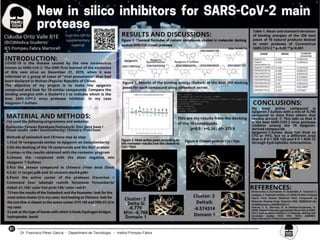

- 81. 81 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra

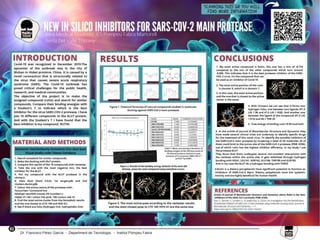

- 82. 82 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra

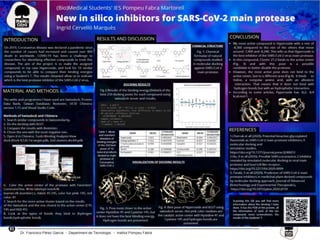

- 83. 83 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra
- 84. 84 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra

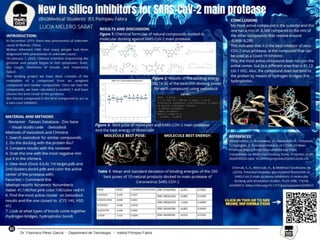

- 85. 85 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra
- 86. 86 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra

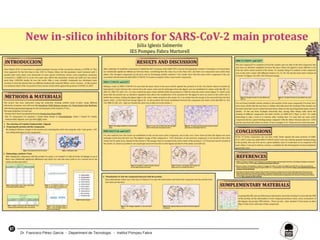

- 87. 87 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra

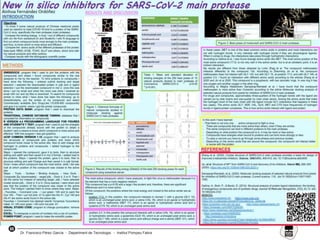

- 88. 88 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra

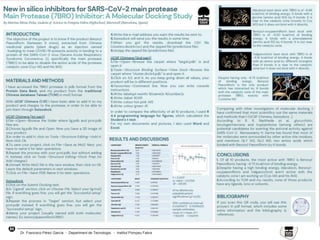

- 89. 89 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra

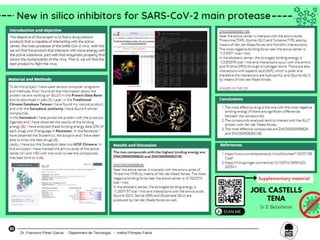

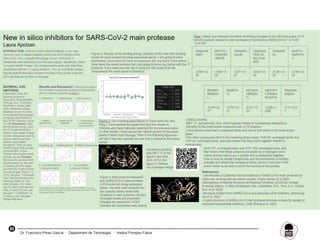

- 90. 90 Dr. Francisco PérezGarcía - Department de Tecnologia - Institut Pompeu Fabra
- 91. 91 Thank you Questions tofperez5@xtec.cat https://blocs.xtec.cat/tecno https://pompeu.neocities.org http://xtec.cat/~fperez5
