1. Introduction to Data
Transfer Modes

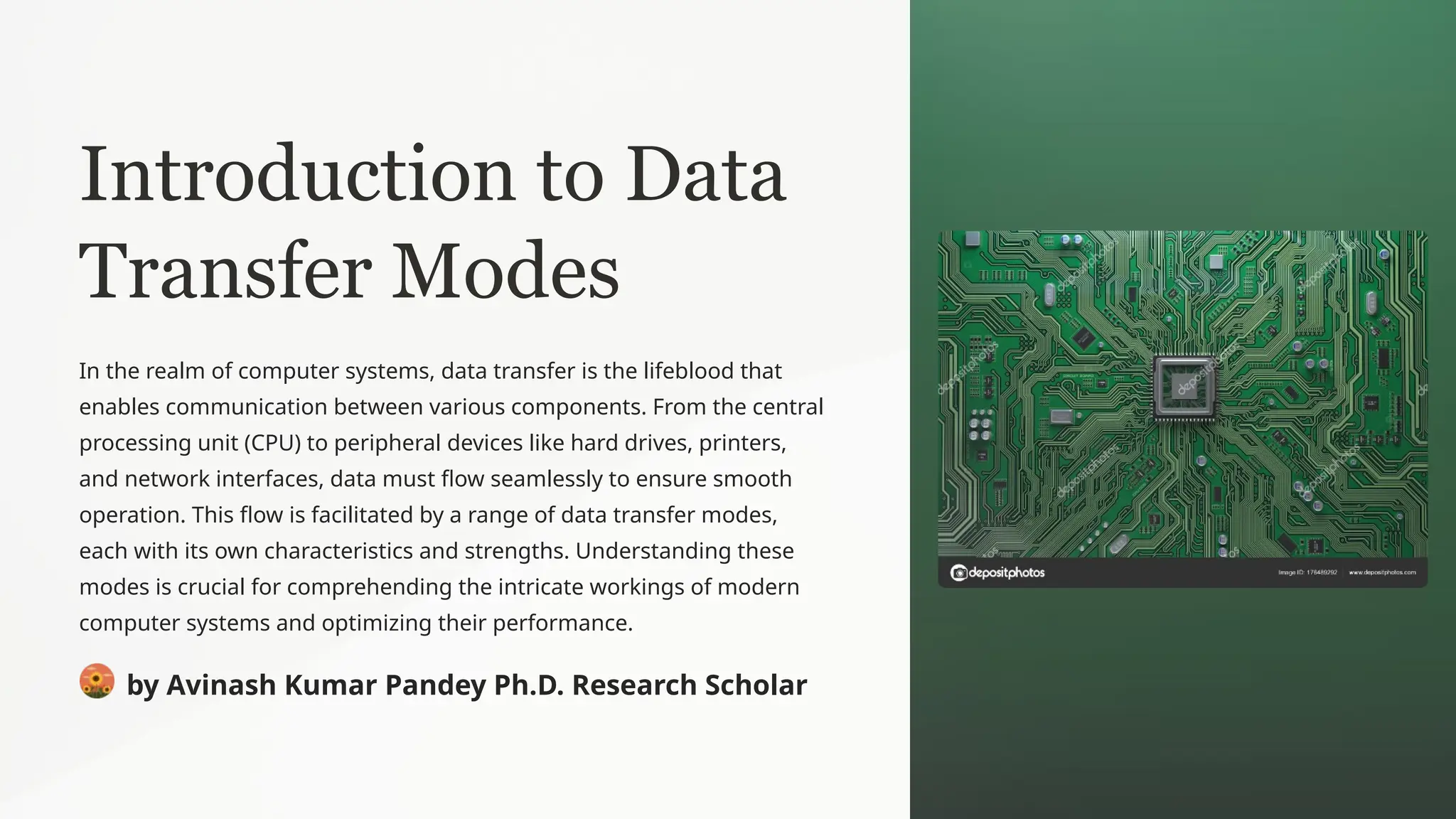

In the realm of computer systems, data transfer is the lifeblood that
enables communication between various components. From the central
processing unit (CPU) to peripheral devices like hard drives, printers,
and network interfaces, data must flow seamlessly to ensure smooth
operation. This flow is facilitated by a range of data transfer modes,
each with its own characteristics and strengths. Understanding these
modes is crucial for comprehending the intricate workings of modern
computer systems and optimizing their performance.
by Avinash Kumar Pandey Ph.D. Research Scholar

2. Programmed I/O
Programmed Input/Output (PIO) is the most basic data transfer mode. It involves
the CPU directly controlling data transfers between itself and peripheral devices.
The CPU checks the status of the device, sends commands to initiate data transfer,
and then waits for the device to complete the operation. This method is simple to
implement but can be inefficient as the CPU is tied up while waiting for the device,
potentially delaying other tasks.
Simplicity
Programmed I/O is simple to
implement, requiring minimal
hardware support.
Direct Control
The CPU maintains direct control
over data transfers, allowing for
flexibility and fine-grained control.
Resource Intensive
The CPU is tied up during data
transfer, leading to inefficient
resource utilization.
Suitable for Slow Devices
Programmed I/O is suitable for slow
devices where the CPU's waiting
time is not a major concern.

3. Interrupt Initiated I/O
Interrupt Initiated I/O is an improvement over PIO. It allows the CPU to continue executing other
tasks while waiting for a peripheral device to complete a transfer. The peripheral device signals the
CPU when it is ready to transfer data by generating an interrupt. This interrupt causes the CPU to
temporarily switch to a special interrupt handler routine, which processes the data transfer and
then returns the CPU to its original task.
1 Device Ready
The peripheral device sends an interrupt signal to the CPU.
2 CPU Interrupt Handling
The CPU switches to the interrupt handler routine.
3 Data Transfer
The interrupt handler manages the data transfer between the device and the CPU.
4 CPU Resumes Original Task
The CPU returns to its original task after completing the data transfer.

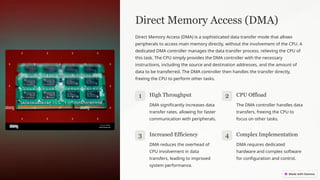

4. Direct Memory Access (DMA)
Direct Memory Access (DMA) is a sophisticated data transfer mode that allows
peripherals to access main memory directly, without the involvement of the CPU. A
dedicated DMA controller manages the data transfer process, relieving the CPU of
this task. The CPU simply provides the DMA controller with the necessary
instructions, including the source and destination addresses, and the amount of
data to be transferred. The DMA controller then handles the transfer directly,
freeing the CPU to perform other tasks.
1 High Throughput
DMA significantly increases data
transfer rates, allowing for faster
communication with peripherals.
2 CPU Offload
The DMA controller handles data
transfers, freeing the CPU to
focus on other tasks.
3 Increased Efficiency
DMA reduces the overhead of
CPU involvement in data
transfers, leading to improved
system performance.
4 Complex Implementation
DMA requires dedicated
hardware and complex software
for configuration and control.

5. I/O Channels
I/O Channels are specialized hardware components that manage data transfers between the CPU and peripheral devices.
They act as intermediaries, handling the complexities of data transfer protocols and freeing the CPU from this responsibility.
I/O channels can control multiple peripherals simultaneously, providing efficient and parallel data transfer capabilities.
Advantages
• Increased CPU Efficiency
• Parallel Data Transfers
• Improved Performance
Disadvantages
• Higher Hardware Cost
• Increased Complexity
• Potentially Reduced Flexibility
Applications
• Large Computer Systems
• High-Performance Applications
• Systems with Complex I/O
Requirements

6. I/O Processors
I/O Processors (IOPs) are specialized processors designed to handle I/O
operations. They are similar to I/O channels but have more processing
power and can perform complex operations, such as data formatting,
error checking, and data buffering. IOPs can handle a wide range of I/O
devices, including high-speed storage devices, network interfaces, and
graphics cards.
Feature I/O Channels I/O Processors
Processing Power Limited High
Functionality Basic data transfer Complex I/O
operations
Applications General-purpose
systems
High-performance
systems

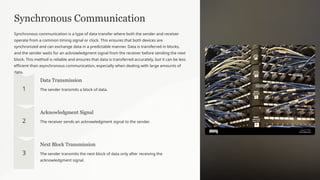

7. Synchronous Communication
Synchronous communication is a type of data transfer where both the sender and receiver
operate from a common timing signal or clock. This ensures that both devices are
synchronized and can exchange data in a predictable manner. Data is transferred in blocks,
and the sender waits for an acknowledgment signal from the receiver before sending the next
block. This method is reliable and ensures that data is transferred accurately, but it can be less
efficient than asynchronous communication, especially when dealing with large amounts of
data.
Data Transmission
The sender transmits a block of data.
Acknowledgment Signal
The receiver sends an acknowledgment signal to the sender.
Next Block Transmission
The sender transmits the next block of data only after receiving the
acknowledgment signal.

8. Asynchronous Communication
Asynchronous communication is a more flexible data transfer method where the sender
and receiver do not rely on a shared clock. Instead, each device has its own clock, and data
is transferred in individual units or characters. The sender includes start and stop bits at
the beginning and end of each character to ensure that the receiver can correctly identify
the data. This method is more efficient than synchronous communication, as the sender
does not have to wait for an acknowledgment signal from the receiver before transmitting
the next character.
Independent Clocks
Sender and receiver operate with their own
independent clocks.
Individual Data Units
Data is transferred in individual characters
or units.
Higher Efficiency
Asynchronous communication is generally
more efficient than synchronous
communication.
Increased Flexibility
Allows for communication between devices
with different clock speeds.

9. Standard Communication Interfaces
Standard communication interfaces are standardized protocols that define the physical and electrical connections between
devices, as well as the rules for exchanging data. These interfaces ensure that devices from different manufacturers can
communicate seamlessly. Some common examples include:
• Universal Serial Bus (USB)
• Serial ATA (SATA)
• Ethernet
• FireWire

10. Conclusion and Key
Takeaways
Understanding the various data transfer modes is essential for
comprehending the underlying mechanisms of modern computer
systems. Each mode offers distinct advantages and disadvantages,
making them suitable for different applications. Programmed I/O is
basic and simple, interrupt-initiated I/O improves efficiency, while DMA
offers high throughput. I/O channels and processors provide specialized
capabilities for managing complex I/O operations. Synchronous and
asynchronous communication offer different trade-offs in terms of
reliability and efficiency, while standard communication interfaces
ensure interoperability between devices. By understanding these
concepts, we gain valuable insights into the intricacies of data transfer
and its crucial role in the seamless operation of computer systems.
