This document discusses CloudFormation and Elastic Beanstalk. CloudFormation allows provisioning and managing AWS resources through templates, while Elastic Beanstalk provides a web service for deploying and scaling web applications using predefined templates. The document compares the two services and provides examples of use cases where each would be more suitable. It also discusses how tools like Mobingi can provide application lifecycle management across multiple cloud platforms.

1. MasterCloud

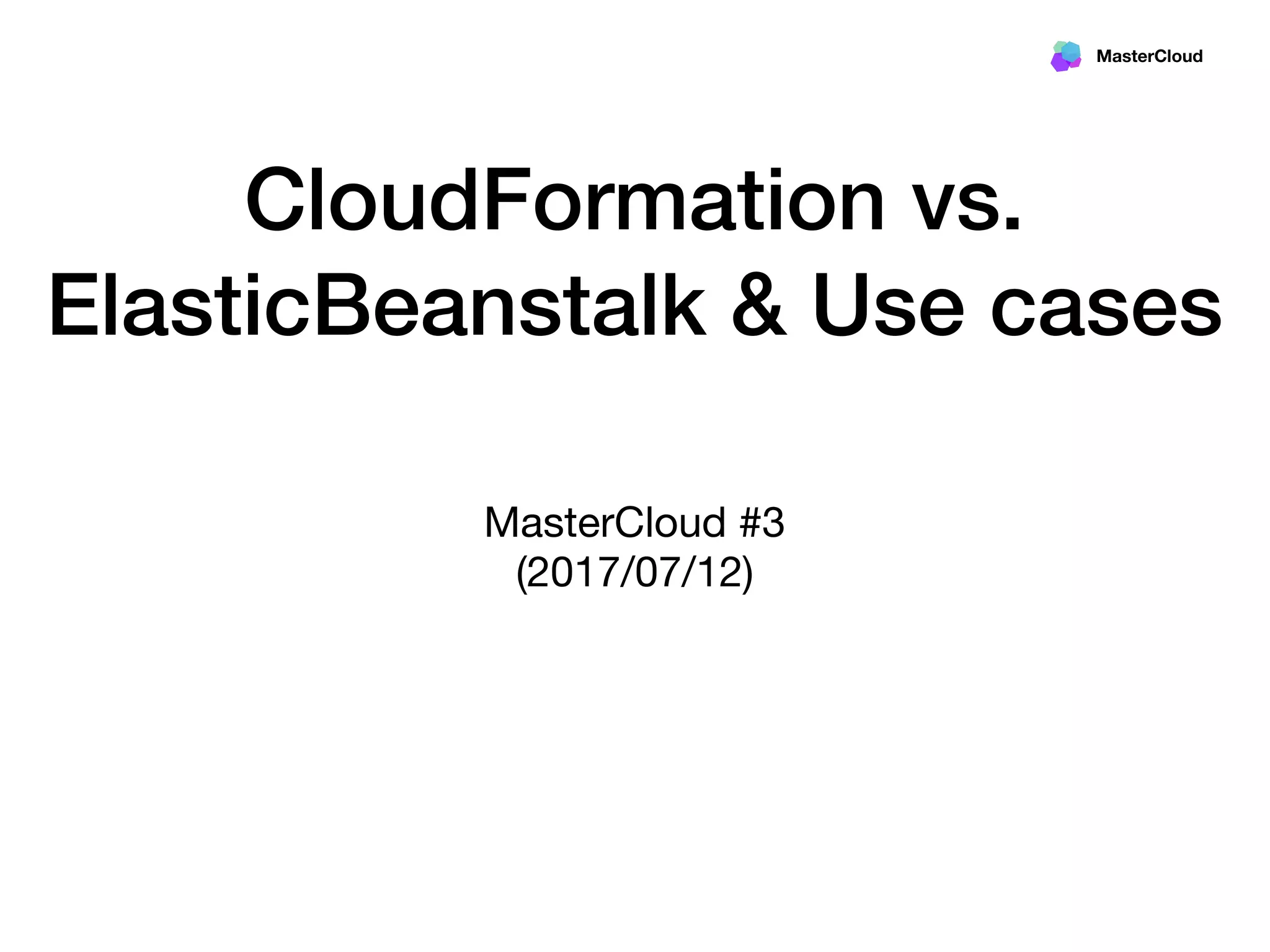

CloudFormation vs.
ElasticBeanstalk & Use cases
MasterCloud #3
(2017/07/12)

2. MasterCloud

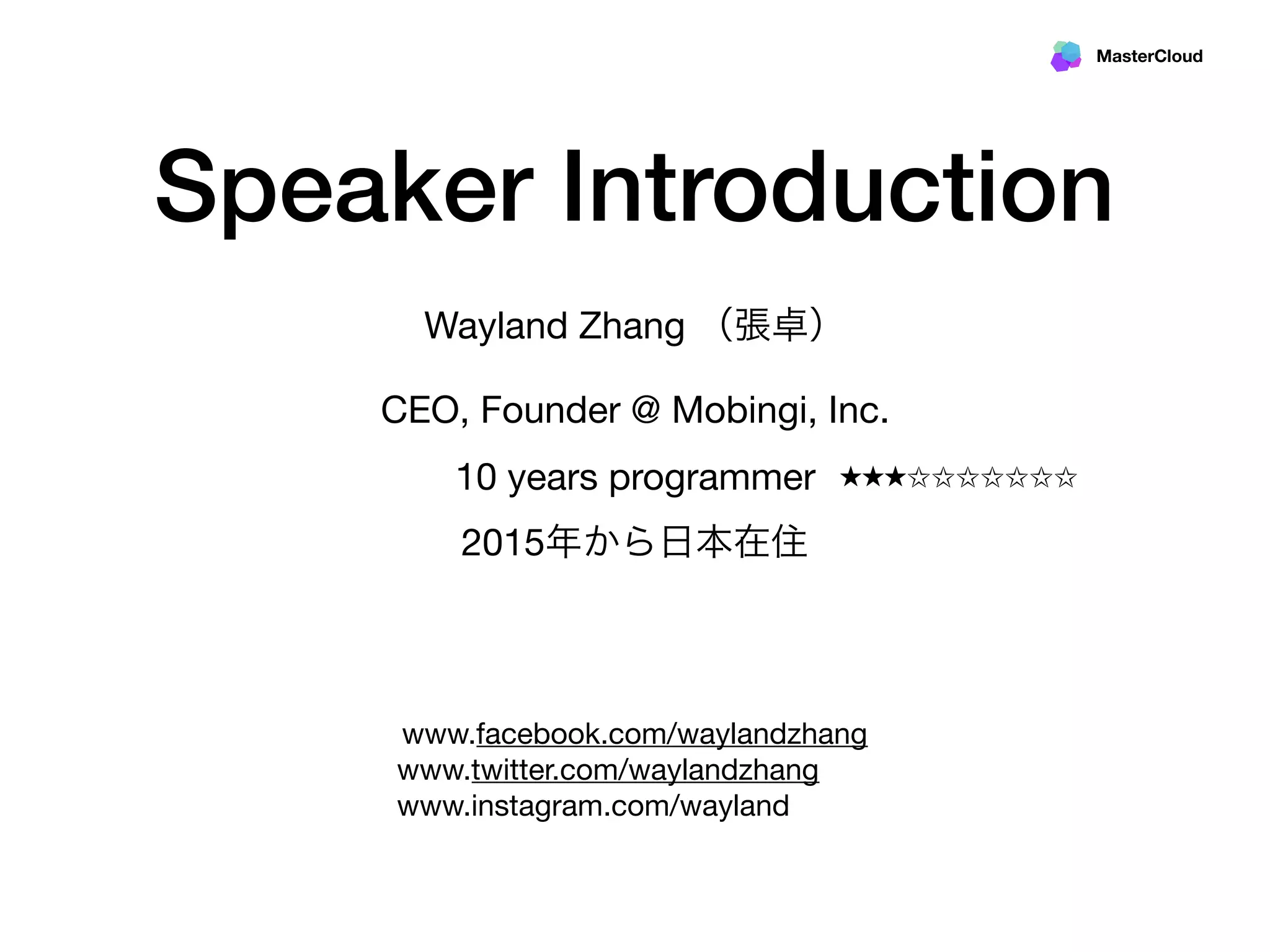

Speaker Introduction
Wayland Zhang （張卓）
CEO, Founder @ Mobingi, Inc.
10 years programmer
2015年から日本在住
★★★✩✩✩✩✩✩✩
www.facebook.com/waylandzhang
www.twitter.com/waylandzhang
www.instagram.com/wayland

3. MasterCloud
日本語は、居酒屋語だけ！
生ふたず 枝豆 鶏皮 塩でHighball とりあえず！

4. Mobingi, Inc.
• ALM (Application Lifecycle Management)
• Docker Container Integrated (Docker knowledge not required)
• Open source around 2017 September
Partner Partner

5. MasterCloud
CloudFormation

6. MasterCloud

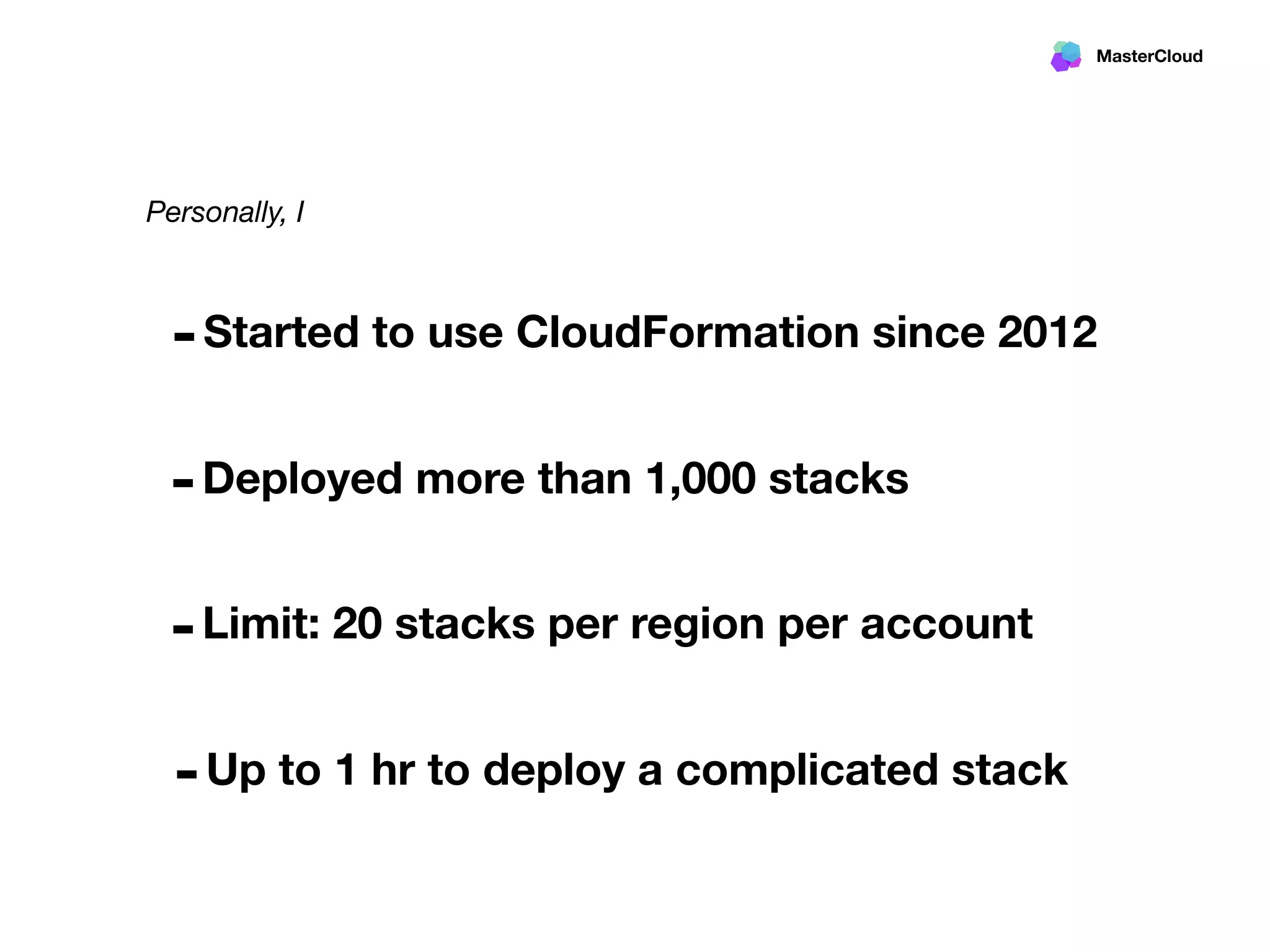

-Deployed more than 1,000 stacks
-Started to use CloudFormation since 2012
-Limit: 20 stacks per region per account
-Up to 1 hr to deploy a complicated stack
Personally, I

7. MasterCloud
CloudFormation

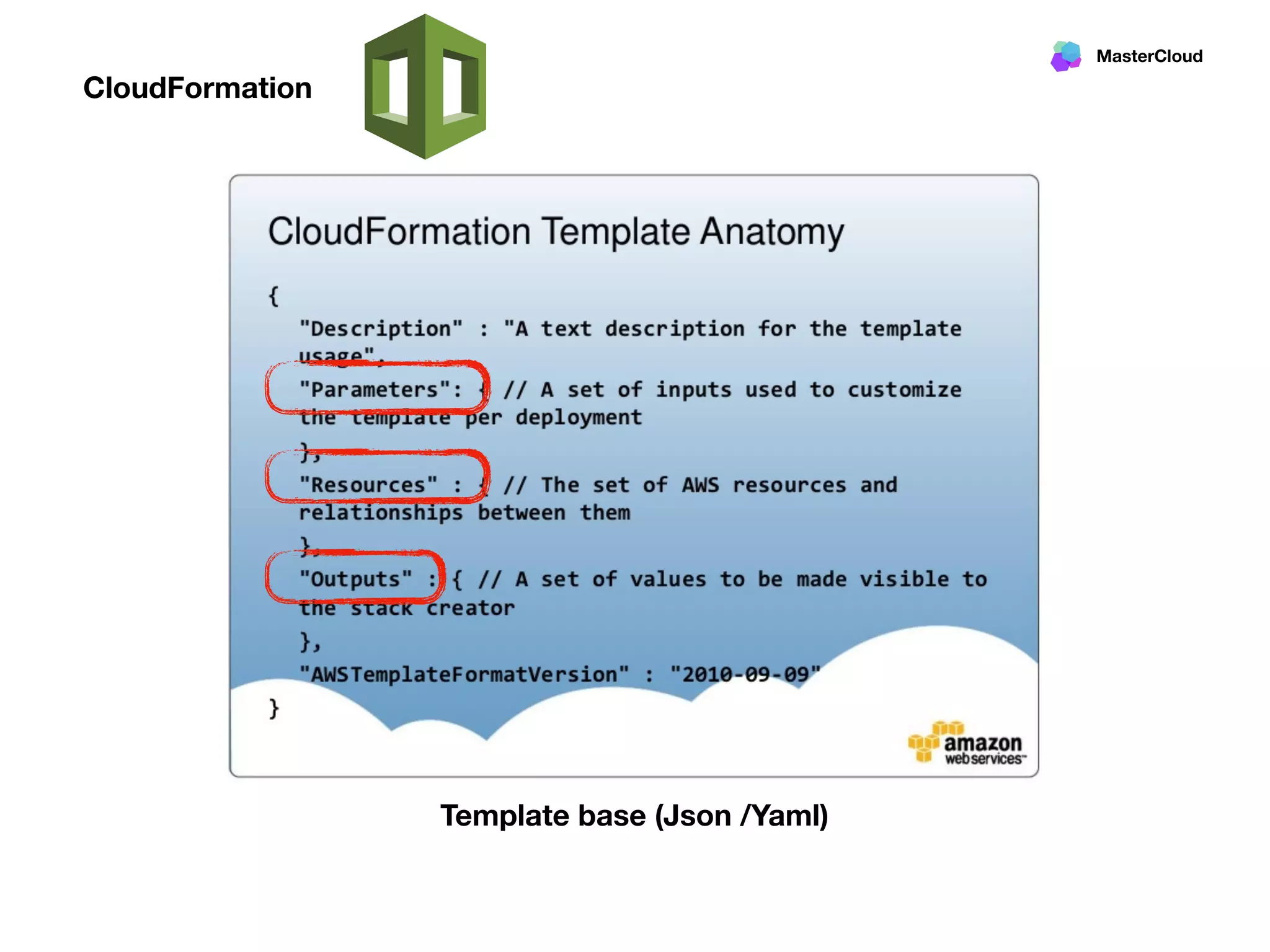

Template base (Json /Yaml)

8. MasterCloud
CloudFormation

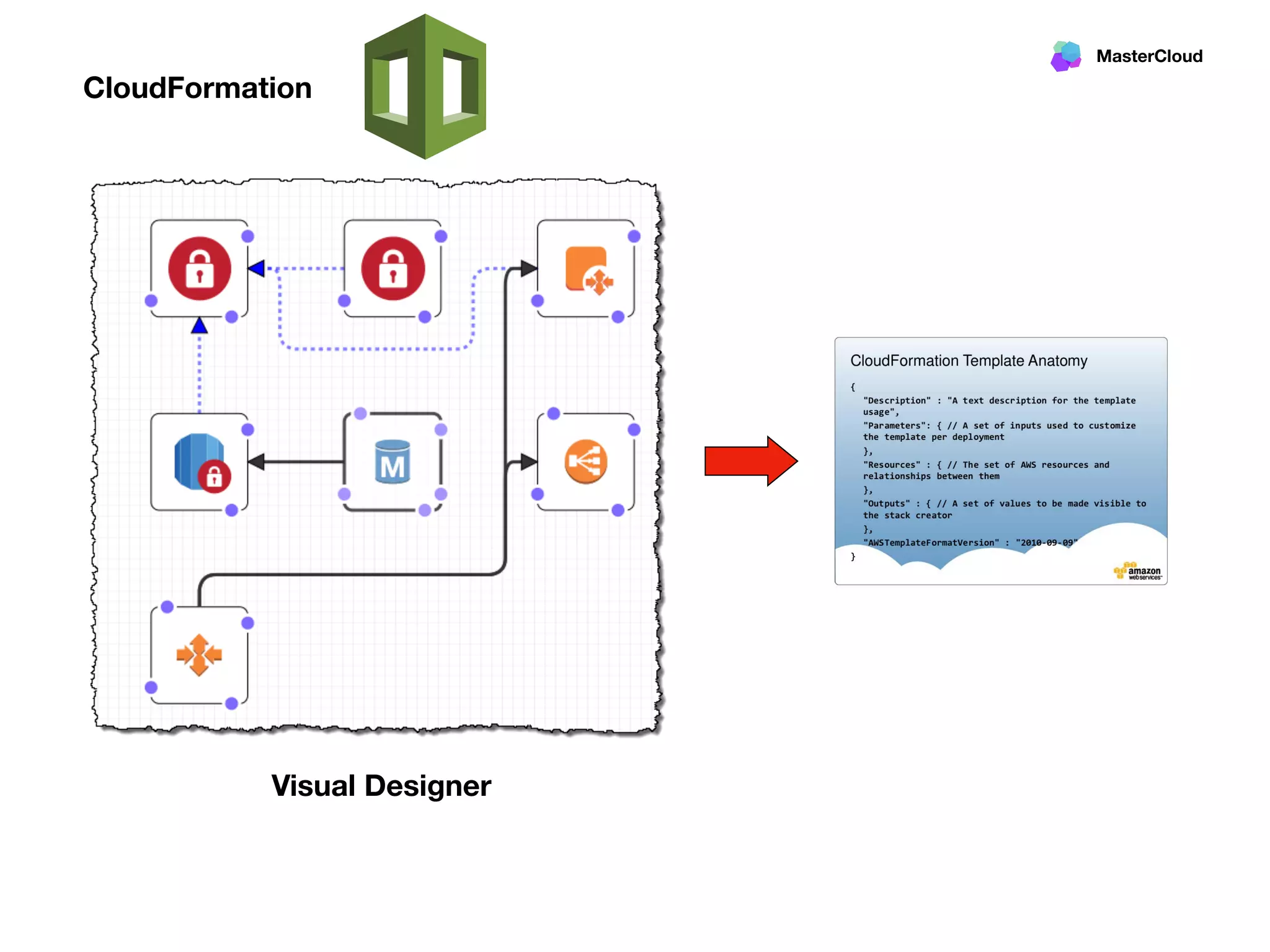

Visual Designer

9. MasterCloud

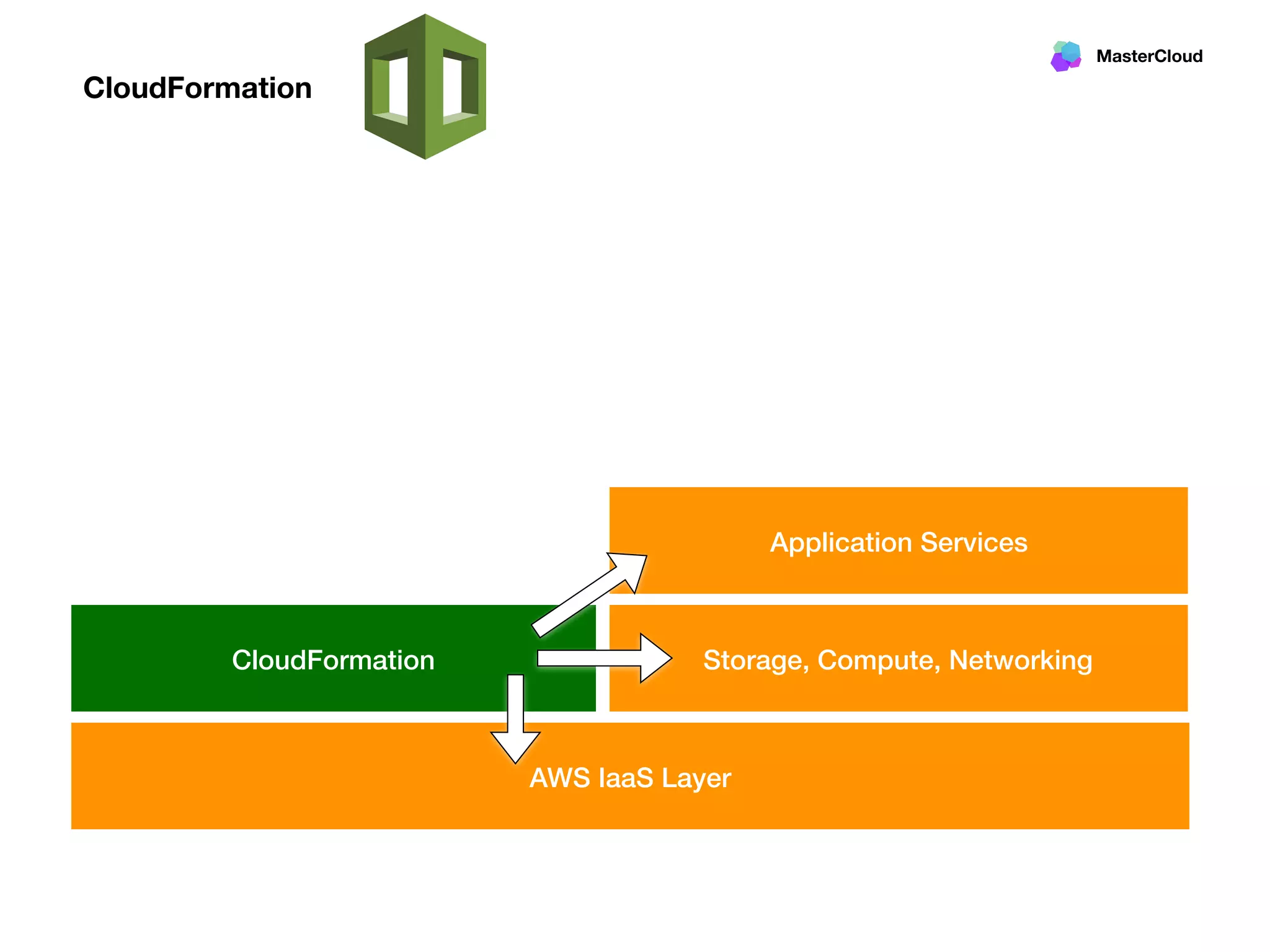

AWS IaaS Layer
CloudFormation Storage, Compute, Networking
Application Services
CloudFormation

10. MasterCloud
{

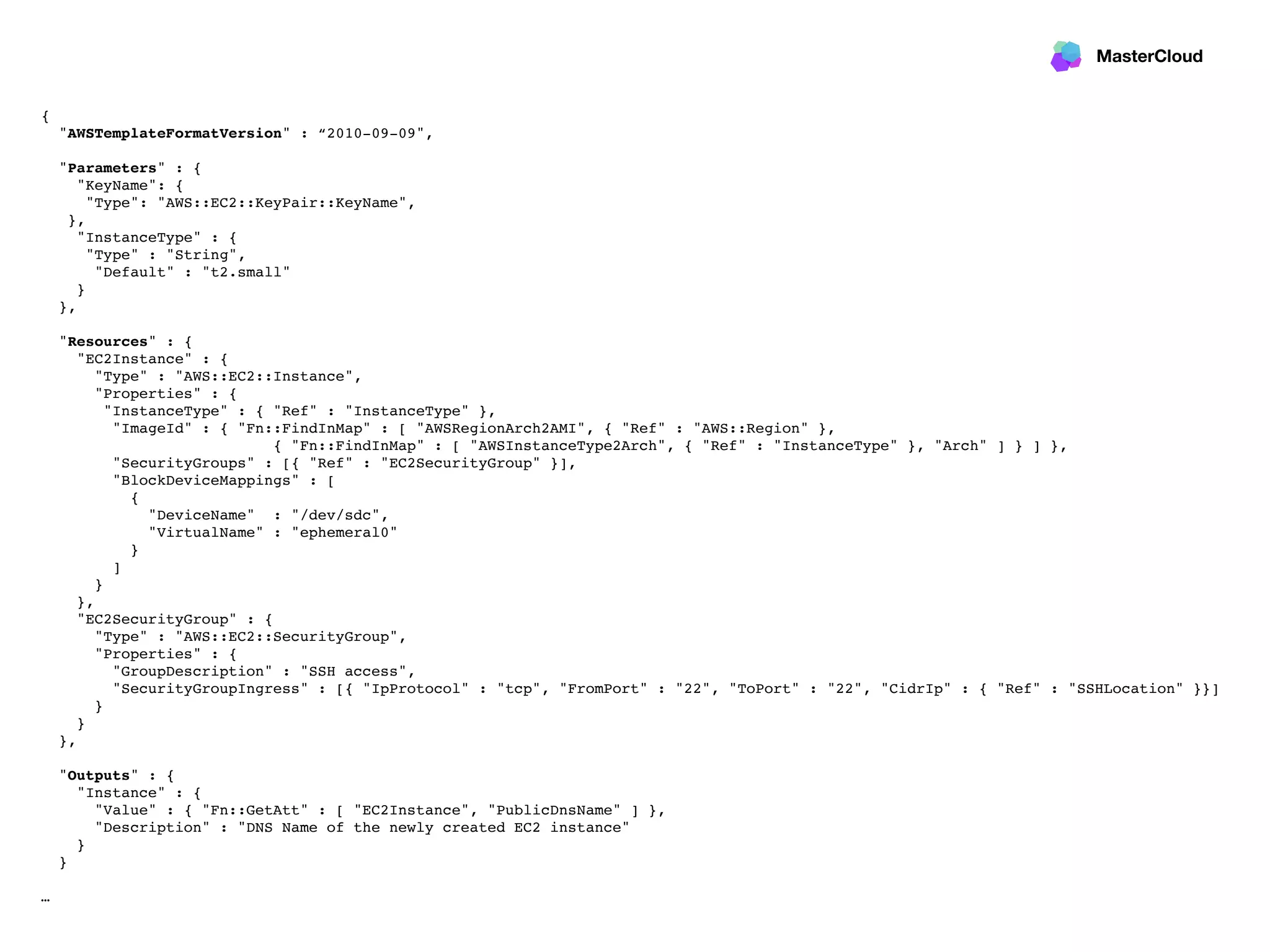

"AWSTemplateFormatVersion" : “2010-09-09",
"Parameters" : {
"KeyName": {
"Type": "AWS::EC2::KeyPair::KeyName",
},
"InstanceType" : {
"Type" : "String",
"Default" : "t2.small"
}
},
"Resources" : {
"EC2Instance" : {
"Type" : "AWS::EC2::Instance",
"Properties" : {
"InstanceType" : { "Ref" : "InstanceType" },
"ImageId" : { "Fn::FindInMap" : [ "AWSRegionArch2AMI", { "Ref" : "AWS::Region" },
{ "Fn::FindInMap" : [ "AWSInstanceType2Arch", { "Ref" : "InstanceType" }, "Arch" ] } ] },
"SecurityGroups" : [{ "Ref" : "EC2SecurityGroup" }],
"BlockDeviceMappings" : [
{
"DeviceName" : "/dev/sdc",
"VirtualName" : "ephemeral0"
}
]
}
},
"EC2SecurityGroup" : {
"Type" : "AWS::EC2::SecurityGroup",
"Properties" : {
"GroupDescription" : "SSH access",
"SecurityGroupIngress" : [{ "IpProtocol" : "tcp", "FromPort" : "22", "ToPort" : "22", "CidrIp" : { "Ref" : "SSHLocation" }}]
}
}
},
"Outputs" : {
"Instance" : {
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "PublicDnsName" ] },
"Description" : "DNS Name of the newly created EC2 instance"
}
}
…

11. MasterCloud
{
"AWSTemplateFormatVersion" : “2010-09-09",
"Parameters" : {
"KeyName": {
"Type": "AWS::EC2::KeyPair::KeyName",
},
"InstanceType" : {
"Type" : "String",
"Default" : "t2.small"
}
},
"Resources" : {
"EC2Instance" : {
"Type" : "AWS::EC2::Instance",
"Properties" : {
"InstanceType" : { "Ref" : "InstanceType" },
"ImageId" : { "Fn::FindInMap" : [ "AWSRegionArch2AMI", { "Ref" : "AWS::Region" },
{ "Fn::FindInMap" : [ "AWSInstanceType2Arch", { "Ref" : "InstanceType" }, "Arch" ] } ] },
"SecurityGroups" : [{ "Ref" : "EC2SecurityGroup" }],
"BlockDeviceMappings" : [
{
"DeviceName" : "/dev/sdc",
"VirtualName" : "ephemeral0"
}
]
}
},
"EC2SecurityGroup" : {
"Type" : "AWS::EC2::SecurityGroup",
"Properties" : {
"GroupDescription" : "SSH access",
"SecurityGroupIngress" : [{ "IpProtocol" : "tcp", "FromPort" : "22", "ToPort" : "22", "CidrIp" : { "Ref" : "SSHLocation" }}]
}
}
},
"Outputs" : {
"Instance" : {
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "PublicDnsName" ] },
"Description" : "DNS Name of the newly created EC2 instance"
}
}
…

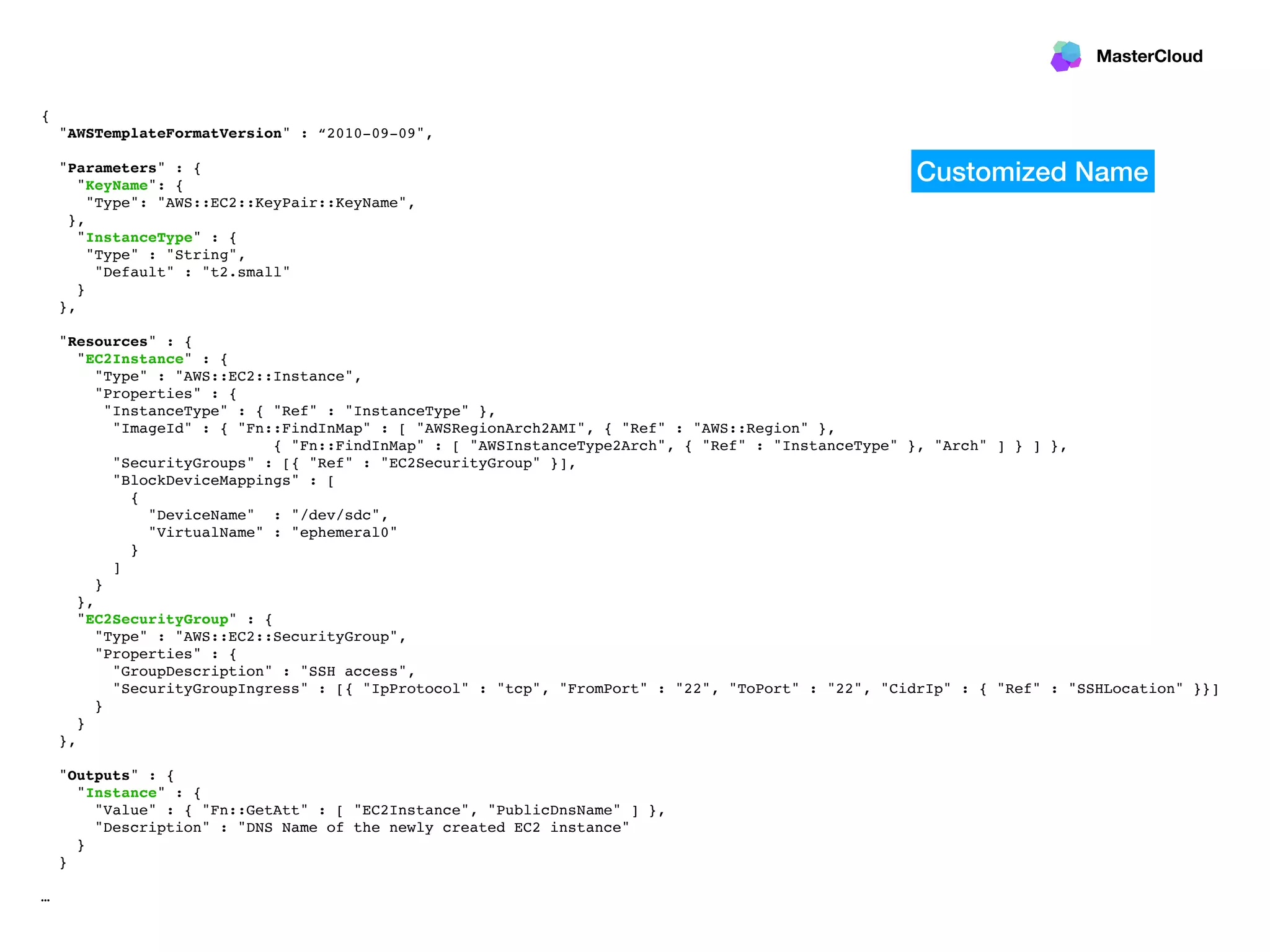

Customized Name

12. MasterCloud
{

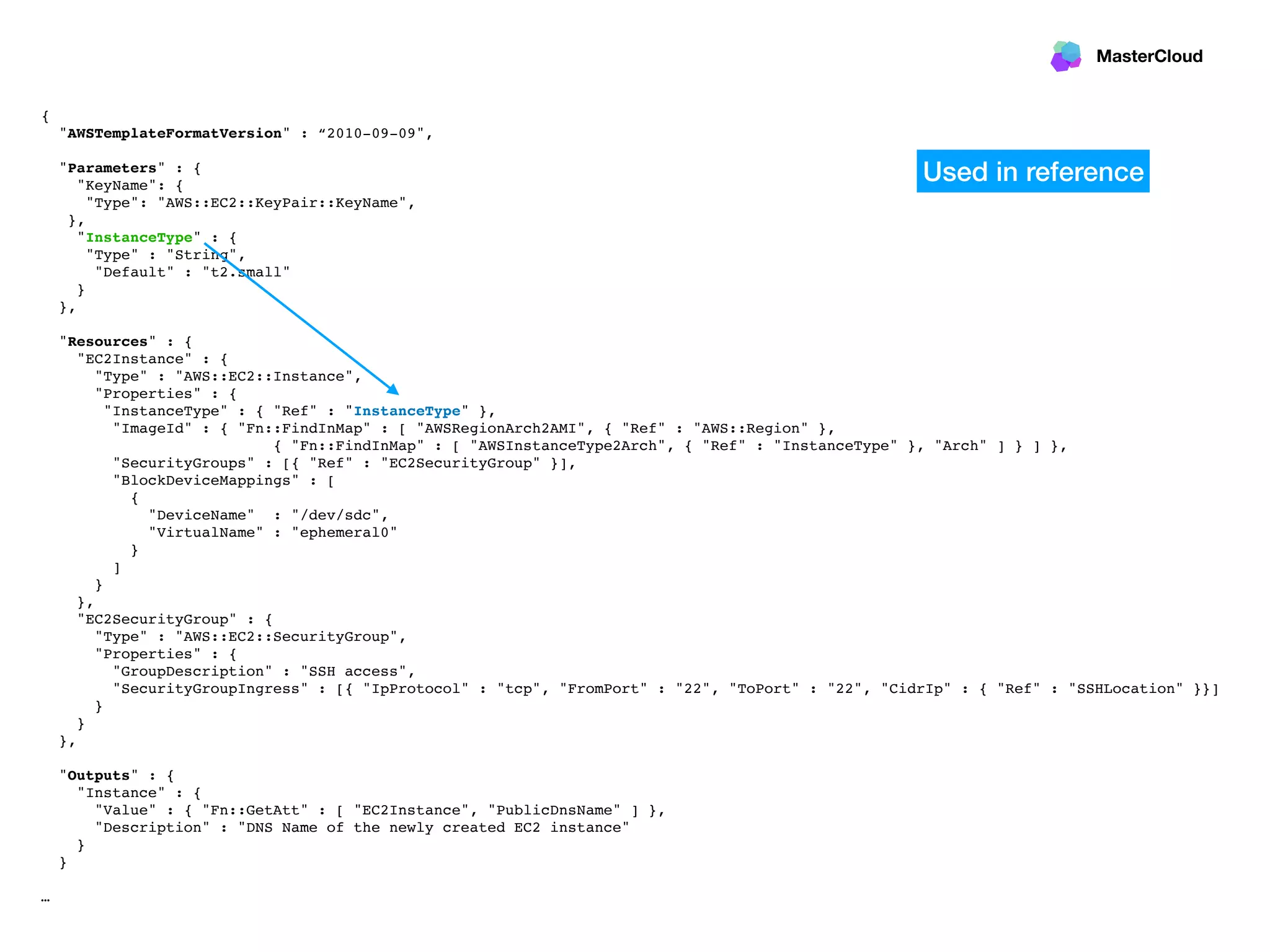

"AWSTemplateFormatVersion" : “2010-09-09",
"Parameters" : {
"KeyName": {
"Type": "AWS::EC2::KeyPair::KeyName",
},
"InstanceType" : {
"Type" : "String",
"Default" : "t2.small"
}
},
"Resources" : {
"EC2Instance" : {
"Type" : "AWS::EC2::Instance",
"Properties" : {
"InstanceType" : { "Ref" : "InstanceType" },
"ImageId" : { "Fn::FindInMap" : [ "AWSRegionArch2AMI", { "Ref" : "AWS::Region" },
{ "Fn::FindInMap" : [ "AWSInstanceType2Arch", { "Ref" : "InstanceType" }, "Arch" ] } ] },
"SecurityGroups" : [{ "Ref" : "EC2SecurityGroup" }],
"BlockDeviceMappings" : [
{
"DeviceName" : "/dev/sdc",
"VirtualName" : "ephemeral0"
}
]
}
},
"EC2SecurityGroup" : {
"Type" : "AWS::EC2::SecurityGroup",
"Properties" : {
"GroupDescription" : "SSH access",
"SecurityGroupIngress" : [{ "IpProtocol" : "tcp", "FromPort" : "22", "ToPort" : "22", "CidrIp" : { "Ref" : "SSHLocation" }}]
}
}
},
"Outputs" : {
"Instance" : {
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "PublicDnsName" ] },
"Description" : "DNS Name of the newly created EC2 instance"
}
}
…
Used in reference

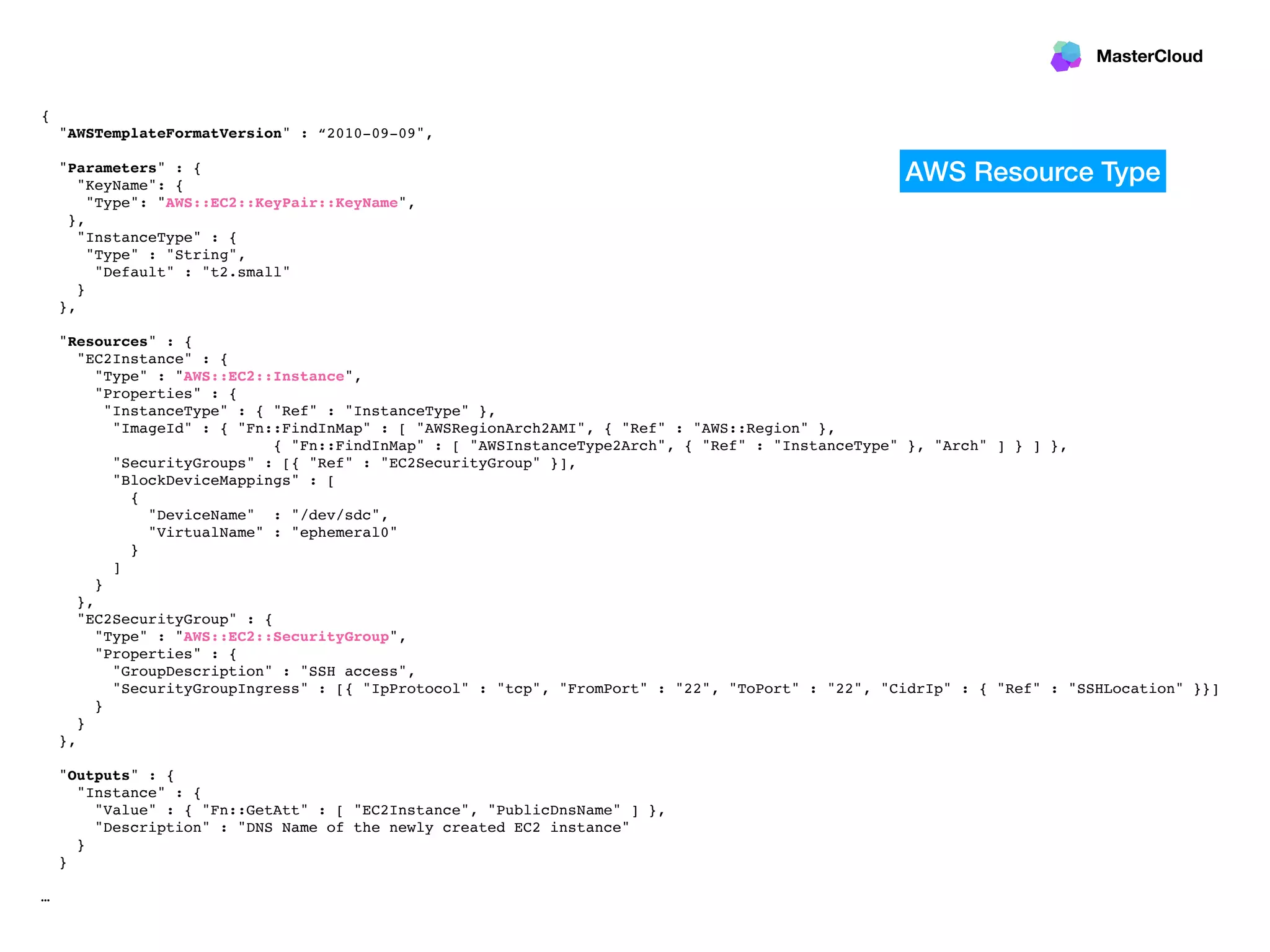

13. MasterCloud
{
"AWSTemplateFormatVersion" : “2010-09-09",
"Parameters" : {
"KeyName": {
"Type": "AWS::EC2::KeyPair::KeyName",
},
"InstanceType" : {
"Type" : "String",
"Default" : "t2.small"
}
},
"Resources" : {
"EC2Instance" : {
"Type" : "AWS::EC2::Instance",
"Properties" : {
"InstanceType" : { "Ref" : "InstanceType" },
"ImageId" : { "Fn::FindInMap" : [ "AWSRegionArch2AMI", { "Ref" : "AWS::Region" },
{ "Fn::FindInMap" : [ "AWSInstanceType2Arch", { "Ref" : "InstanceType" }, "Arch" ] } ] },
"SecurityGroups" : [{ "Ref" : "EC2SecurityGroup" }],
"BlockDeviceMappings" : [
{
"DeviceName" : "/dev/sdc",
"VirtualName" : "ephemeral0"
}
]
}
},
"EC2SecurityGroup" : {
"Type" : "AWS::EC2::SecurityGroup",
"Properties" : {
"GroupDescription" : "SSH access",
"SecurityGroupIngress" : [{ "IpProtocol" : "tcp", "FromPort" : "22", "ToPort" : "22", "CidrIp" : { "Ref" : "SSHLocation" }}]
}
}
},
"Outputs" : {
"Instance" : {
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "PublicDnsName" ] },
"Description" : "DNS Name of the newly created EC2 instance"
}
}
…
AWS Resource Type

14. MasterCloud
{
"AWSTemplateFormatVersion" : “2010-09-09",
"Parameters" : {
"KeyName": {
"Type": "AWS::EC2::KeyPair::KeyName",
},
"InstanceType" : {
"Type" : "String",
"Default" : "t2.small"
}
},
"Resources" : {
"EC2Instance" : {
"Type" : "AWS::EC2::Instance",
"Properties" : {
"InstanceType" : { "Ref" : "InstanceType" },
"ImageId" : { "Fn::FindInMap" : [ "AWSRegionArch2AMI", { "Ref" : "AWS::Region" },
{ "Fn::FindInMap" : [ "AWSInstanceType2Arch", { "Ref" : "InstanceType" }, "Arch" ] } ] },
"SecurityGroups" : [{ "Ref" : "EC2SecurityGroup" }],
"BlockDeviceMappings" : [
{
"DeviceName" : "/dev/sdc",
"VirtualName" : "ephemeral0"
}
]
}
},
"EC2SecurityGroup" : {
"Type" : "AWS::EC2::SecurityGroup",
"Properties" : {
"GroupDescription" : "SSH access",
"SecurityGroupIngress" : [{ "IpProtocol" : "tcp", "FromPort" : "22", "ToPort" : "22", "CidrIp" : { "Ref" : "SSHLocation" }}]
}
}
},
"Outputs" : {
"Instance" : {
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "PublicDnsName" ] },
"Description" : "DNS Name of the newly created EC2 instance"
}
}
…

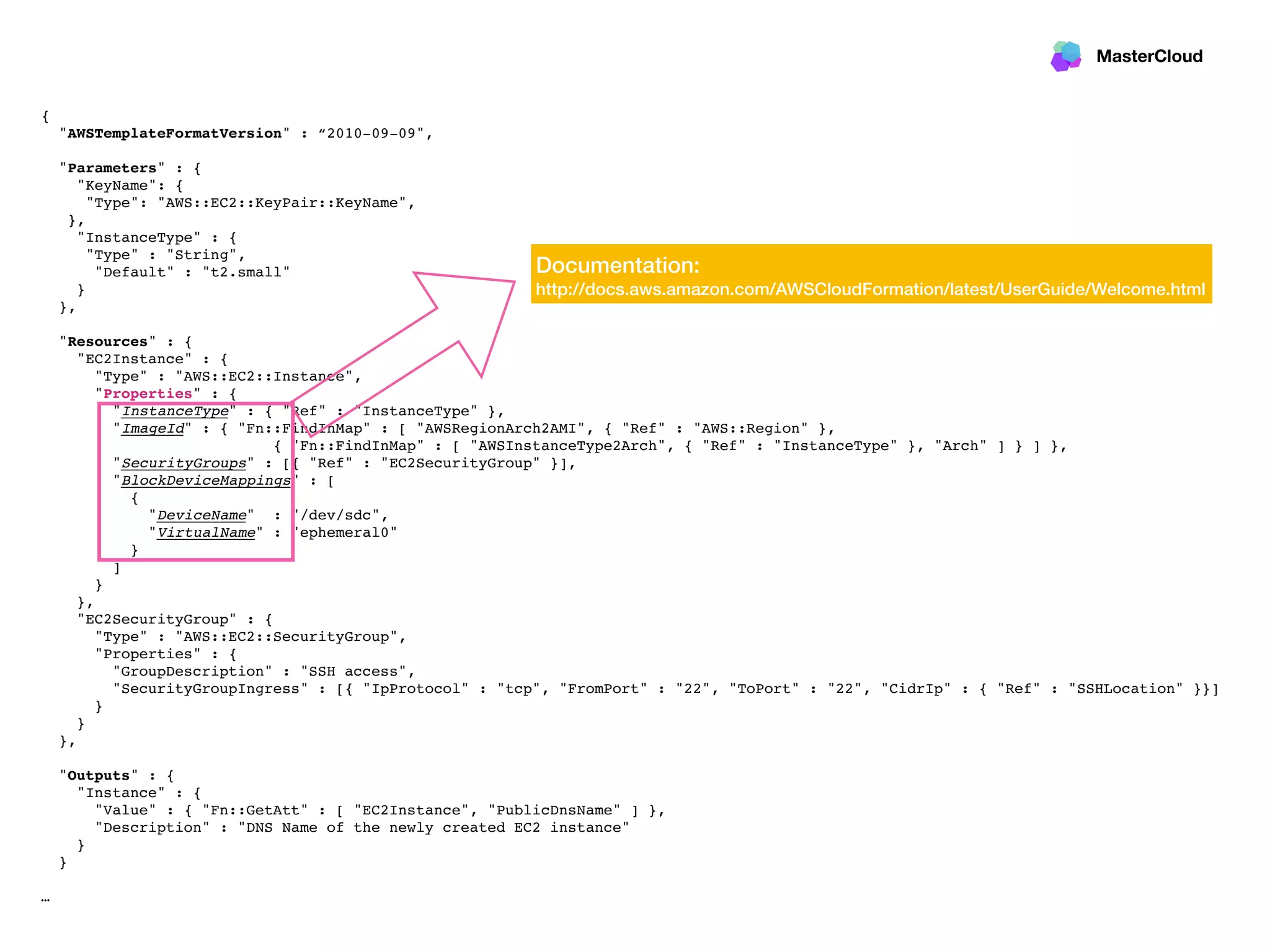

Documentation:
http://docs.aws.amazon.com/AWSCloudFormation/latest/UserGuide/Welcome.html

15. MasterCloud
{
"AWSTemplateFormatVersion" : “2010-09-09",
"Parameters" : {
"KeyName": {
"Type": "AWS::EC2::KeyPair::KeyName",
},
"InstanceType" : {
"Type" : "String",
"Default" : "t2.small"
}
},
"Resources" : {
"EC2Instance" : {
"Type" : "AWS::EC2::Instance",
"Properties" : {
"InstanceType" : { "Ref" : "InstanceType" },
"ImageId" : { "Fn::FindInMap" : [ "AWSRegionArch2AMI", { "Ref" : "AWS::Region" },
{ "Fn::FindInMap" : [ "AWSInstanceType2Arch", { "Ref" : "InstanceType" }, "Arch" ] } ] },
"SecurityGroups" : [{ "Ref" : "EC2SecurityGroup" }],
"BlockDeviceMappings" : [
{
"DeviceName" : "/dev/sdc",
"VirtualName" : "ephemeral0"
}
]
}
},
"EC2SecurityGroup" : {
"Type" : "AWS::EC2::SecurityGroup",
"Properties" : {
"GroupDescription" : "SSH access",
"SecurityGroupIngress" : [{ "IpProtocol" : "tcp", "FromPort" : "22", "ToPort" : "22", "CidrIp" : { "Ref" : "SSHLocation" }}]
}
}
},
"Outputs" : {
"Instance" : {
"Value" : { "Fn::GetAtt" : [ "EC2Instance", "PublicDnsName" ] },
"Description" : "DNS Name of the newly created EC2 instance"
}
}
…

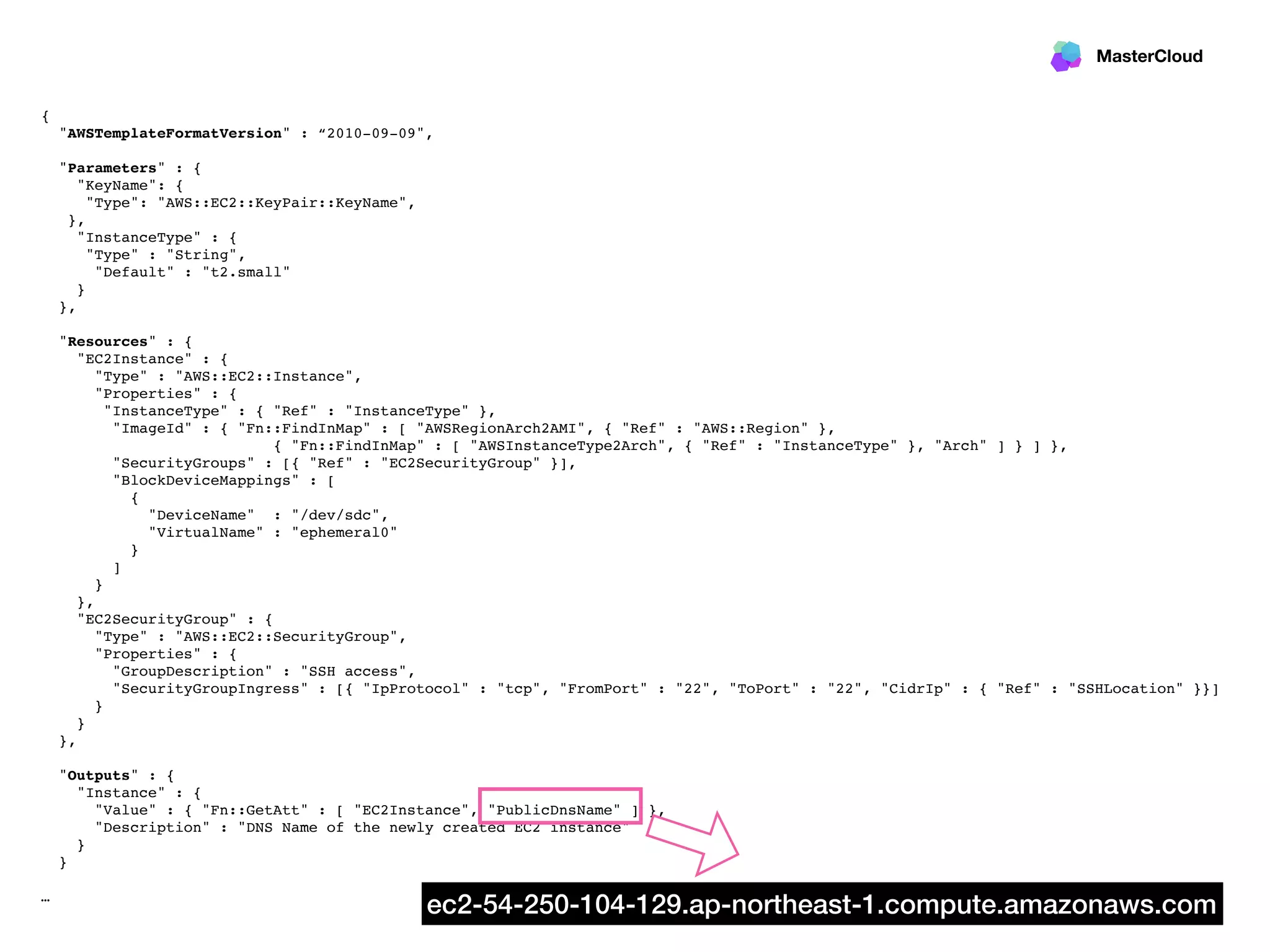

ec2-54-250-104-129.ap-northeast-1.compute.amazonaws.com

16. MasterCloud

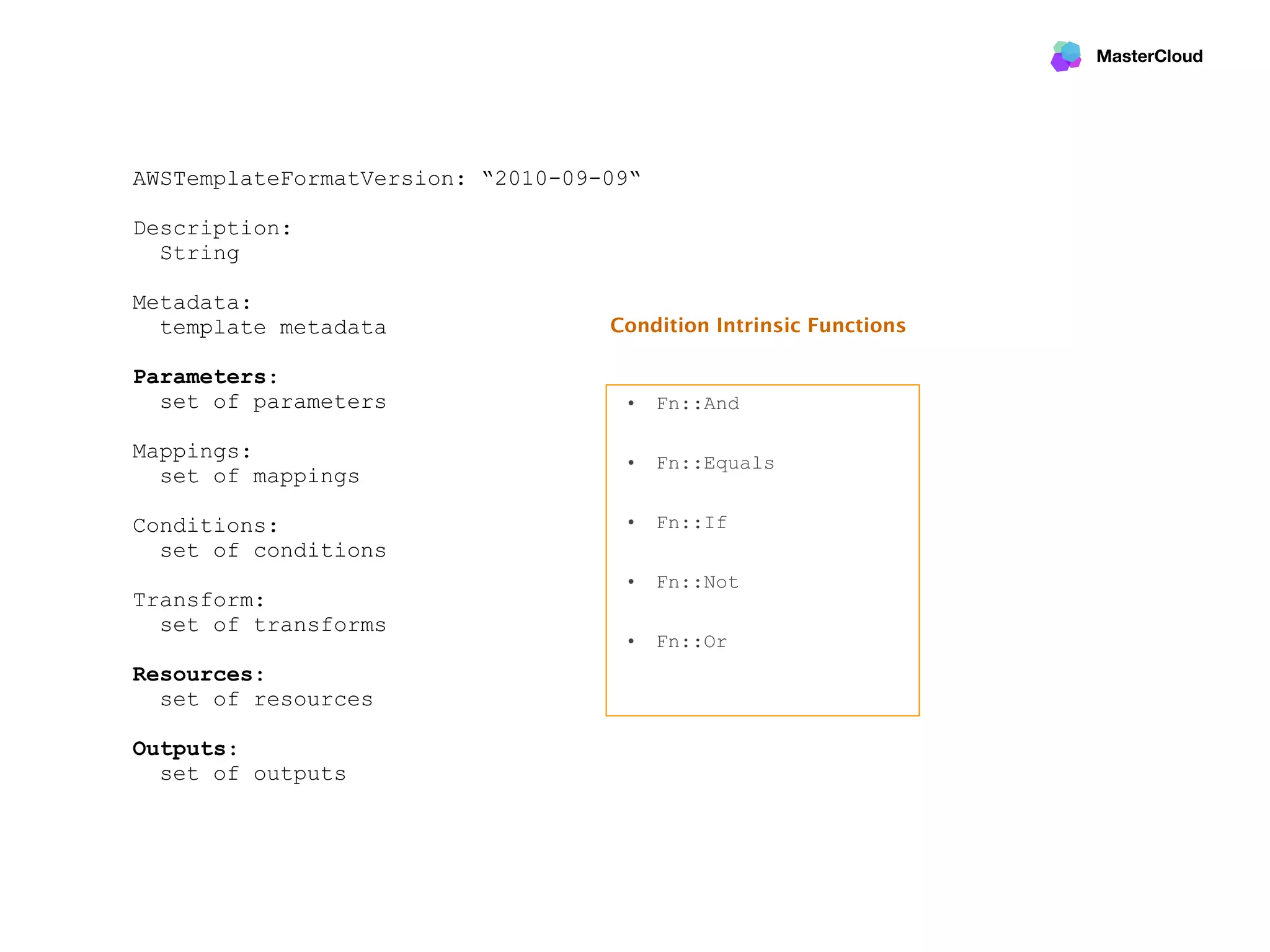

AWSTemplateFormatVersion: “2010-09-09“
Description:
String
Metadata:
template metadata
Parameters:
set of parameters
Mappings:
set of mappings
Conditions:
set of conditions
Transform:
set of transforms
Resources:
set of resources
Outputs:
set of outputs
• Fn::And
• Fn::Equals
• Fn::If
• Fn::Not
• Fn::Or
Condition Intrinsic Functions

17. MasterCloud
Elastic Beanstalk

18. MasterCloud

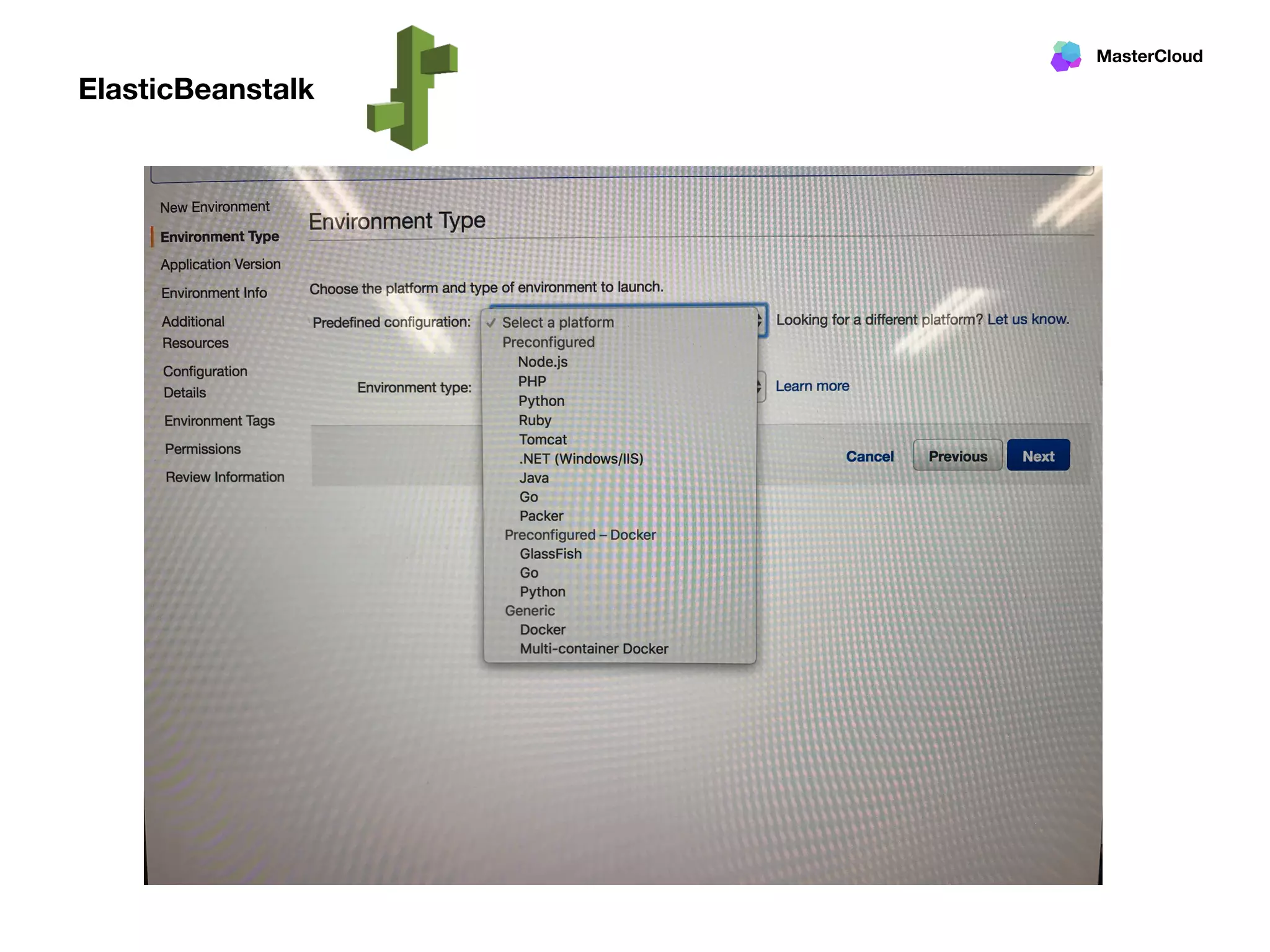

ElasticBeanstalk

19. MasterCloud
AWS IaaS Layer
CloudFormation Storage, Compute, Networking
Application Services
CloudFormation

20. MasterCloud
ElasticBeanstalk

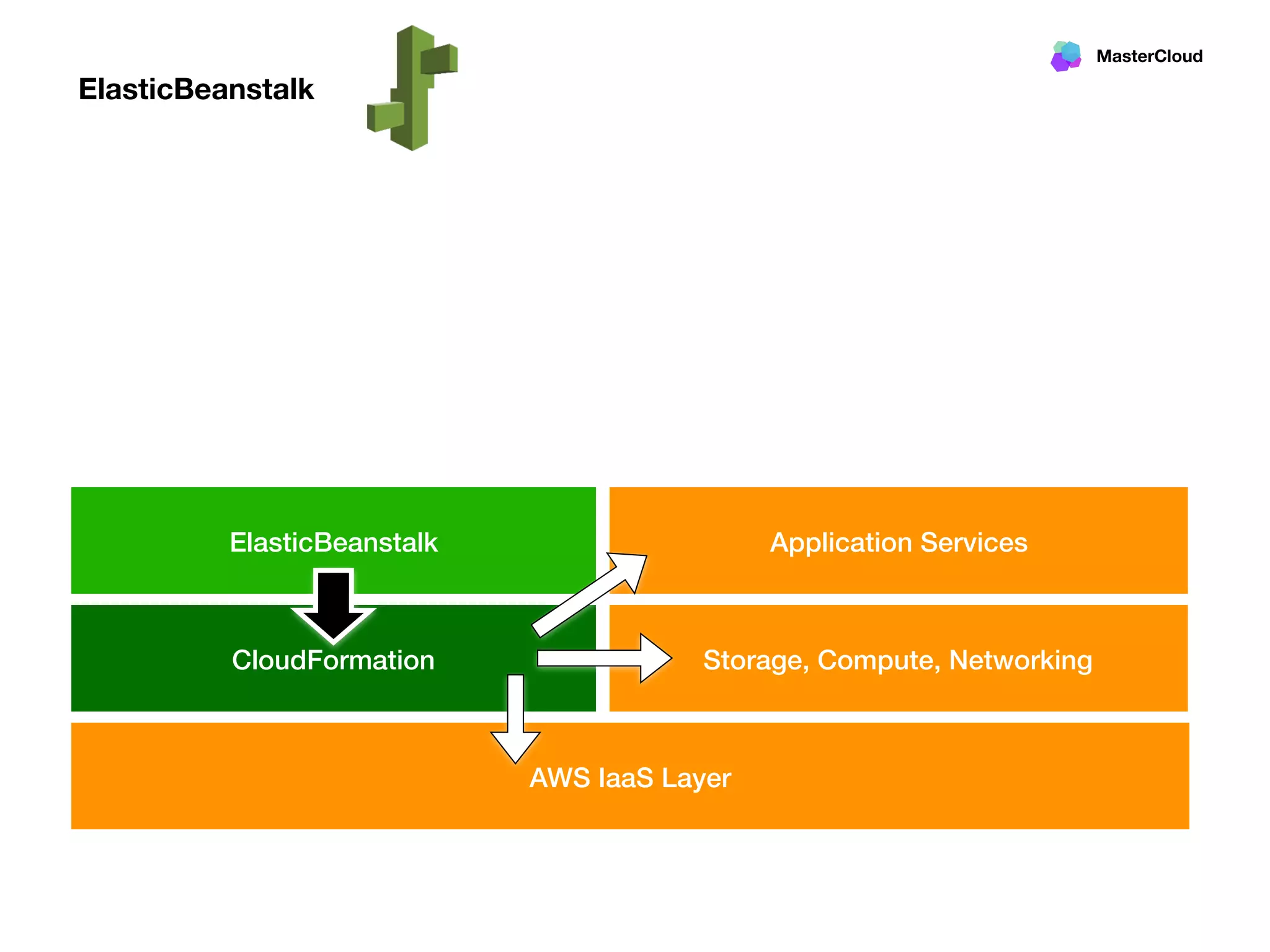

AWS IaaS Layer
CloudFormation Storage, Compute, Networking
Application ServicesElasticBeanstalk

21. MasterCloud

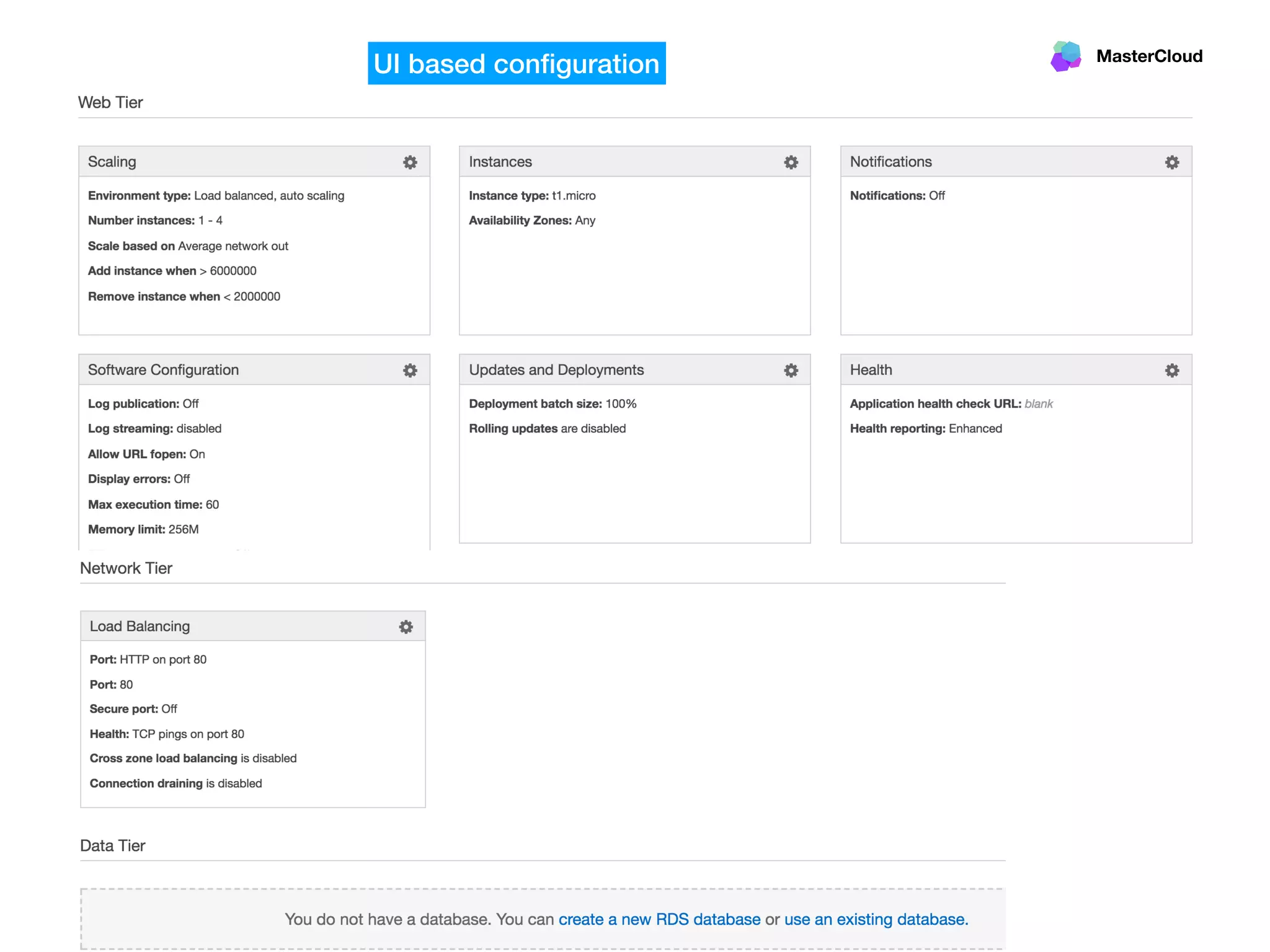

UI based configuration

22. MasterCloud

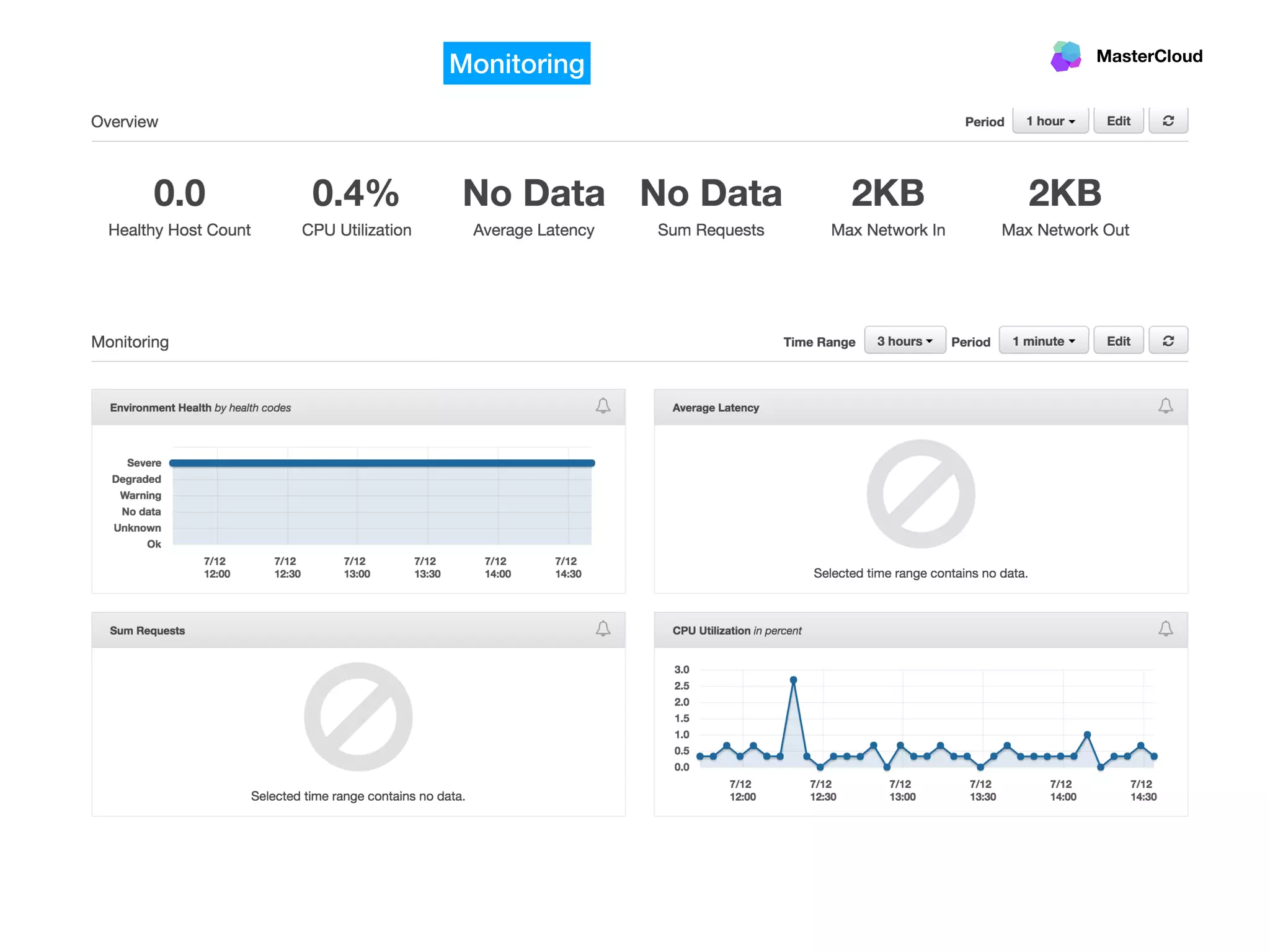

Monitoring

23. MasterCloud

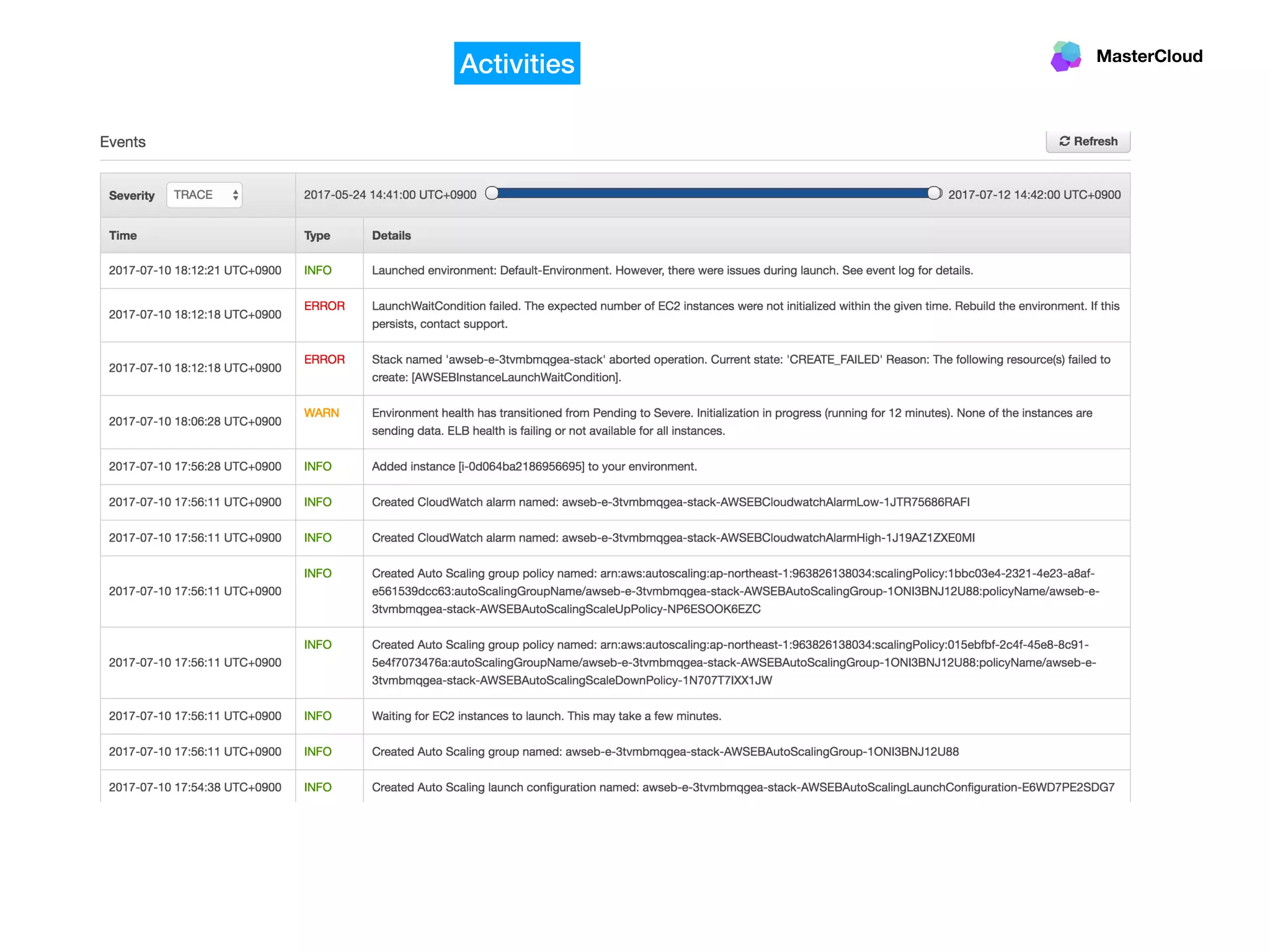

Activities

24. MasterCloud

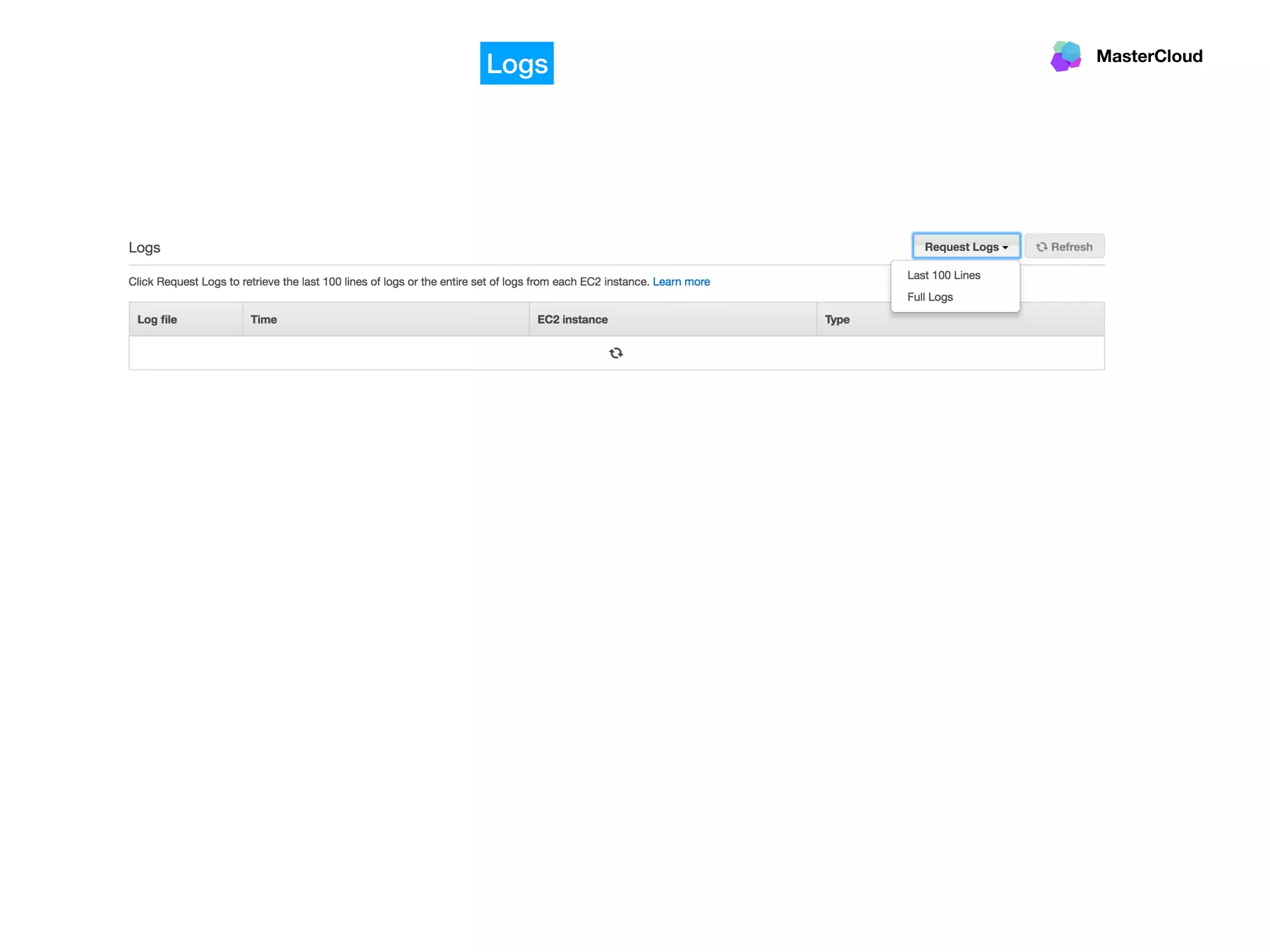

Logs

25. MasterCloud

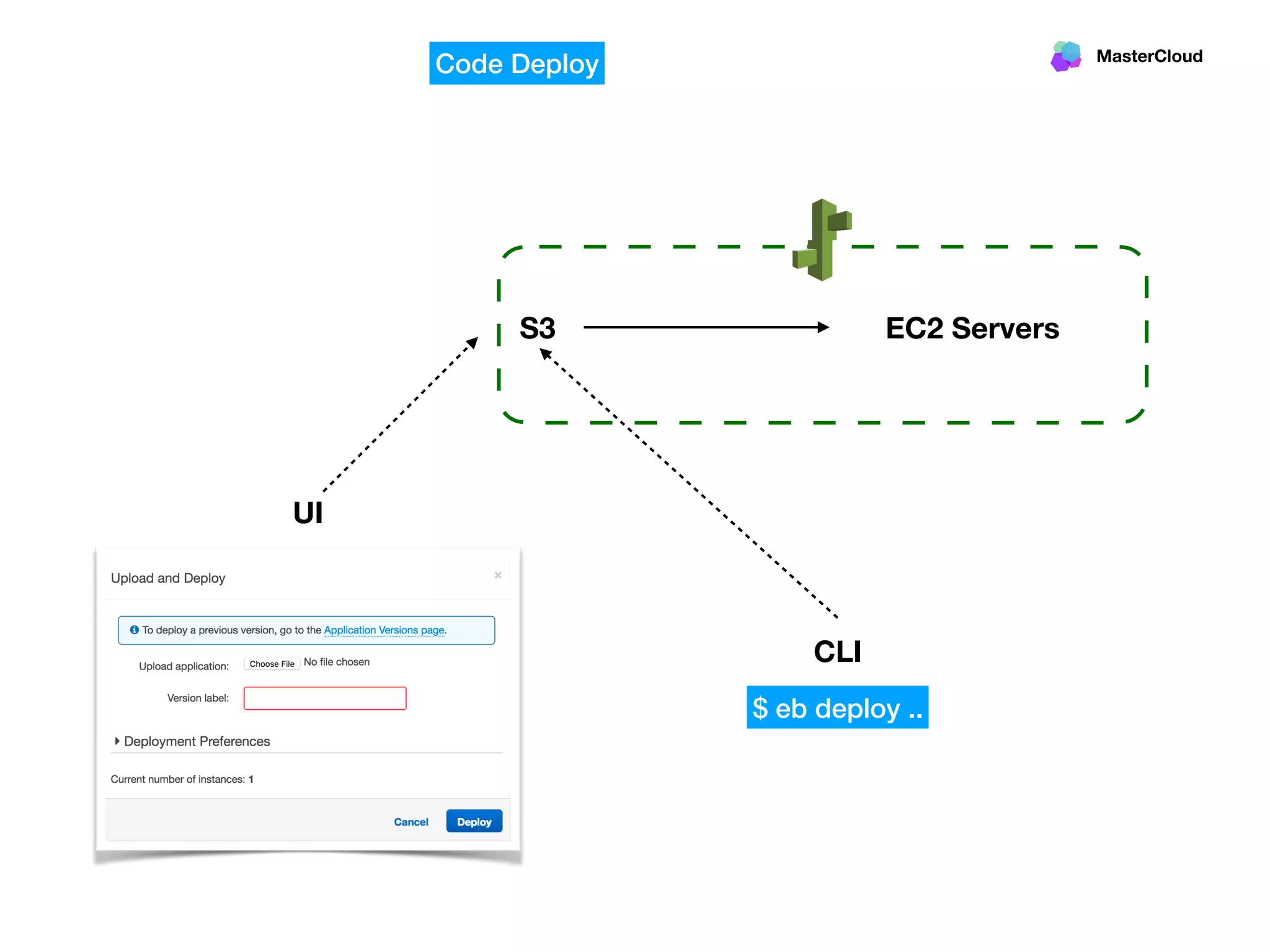

UI
S3 EC2 Servers
Code Deploy
$ eb deploy ..
CLI

26. MasterCloud

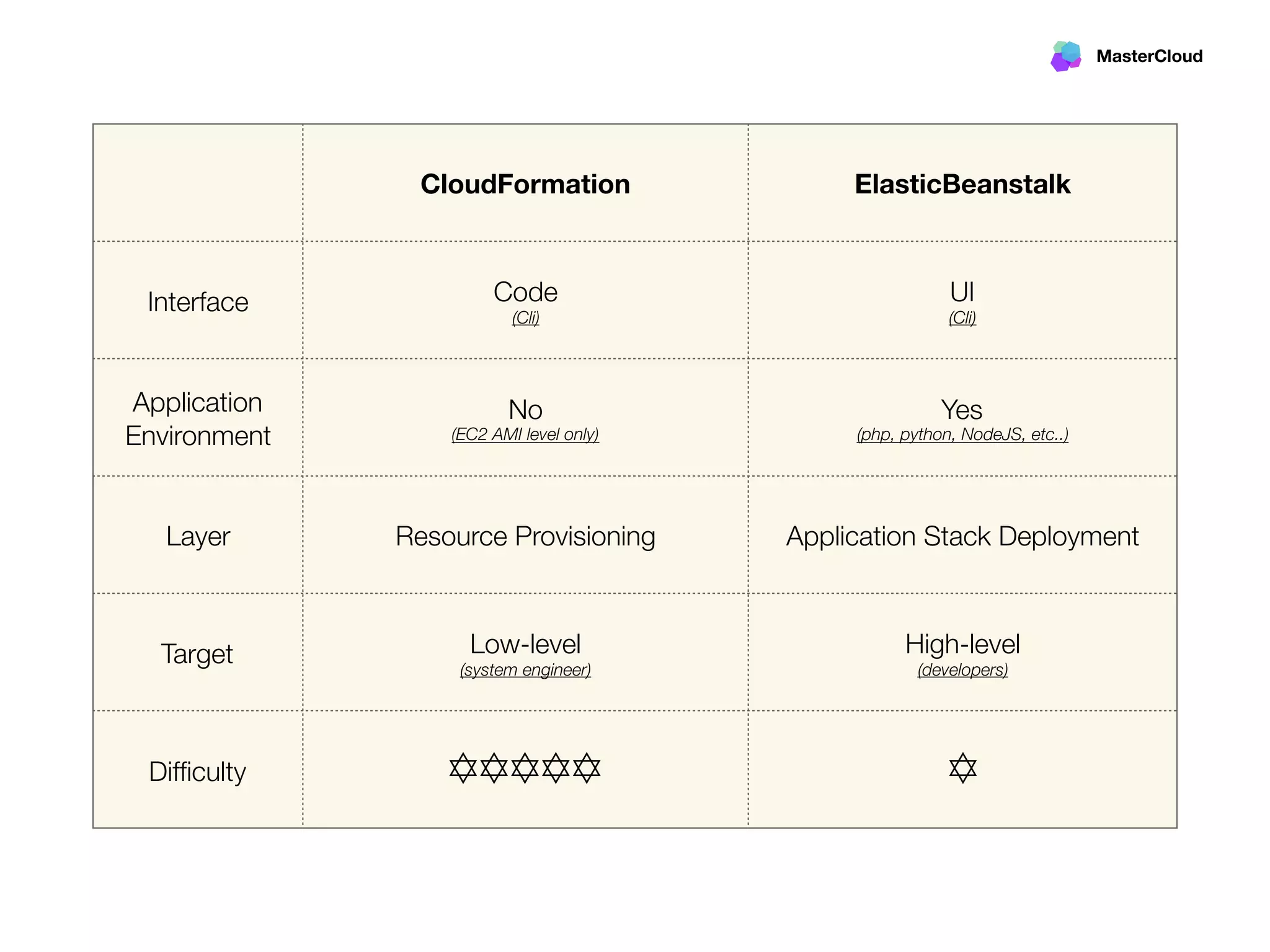

CloudFormation ElasticBeanstalk
Interface Code
(Cli)
UI
(Cli)
Application
Environment
No
(EC2 AMI level only)
Yes
(php, python, NodeJS, etc..)
Layer Resource Provisioning Application Stack Deployment
Target Low-level
(system engineer)
High-level
(developers)
Difficulty ✡✡✡✡✡ ✡

27. MasterCloud

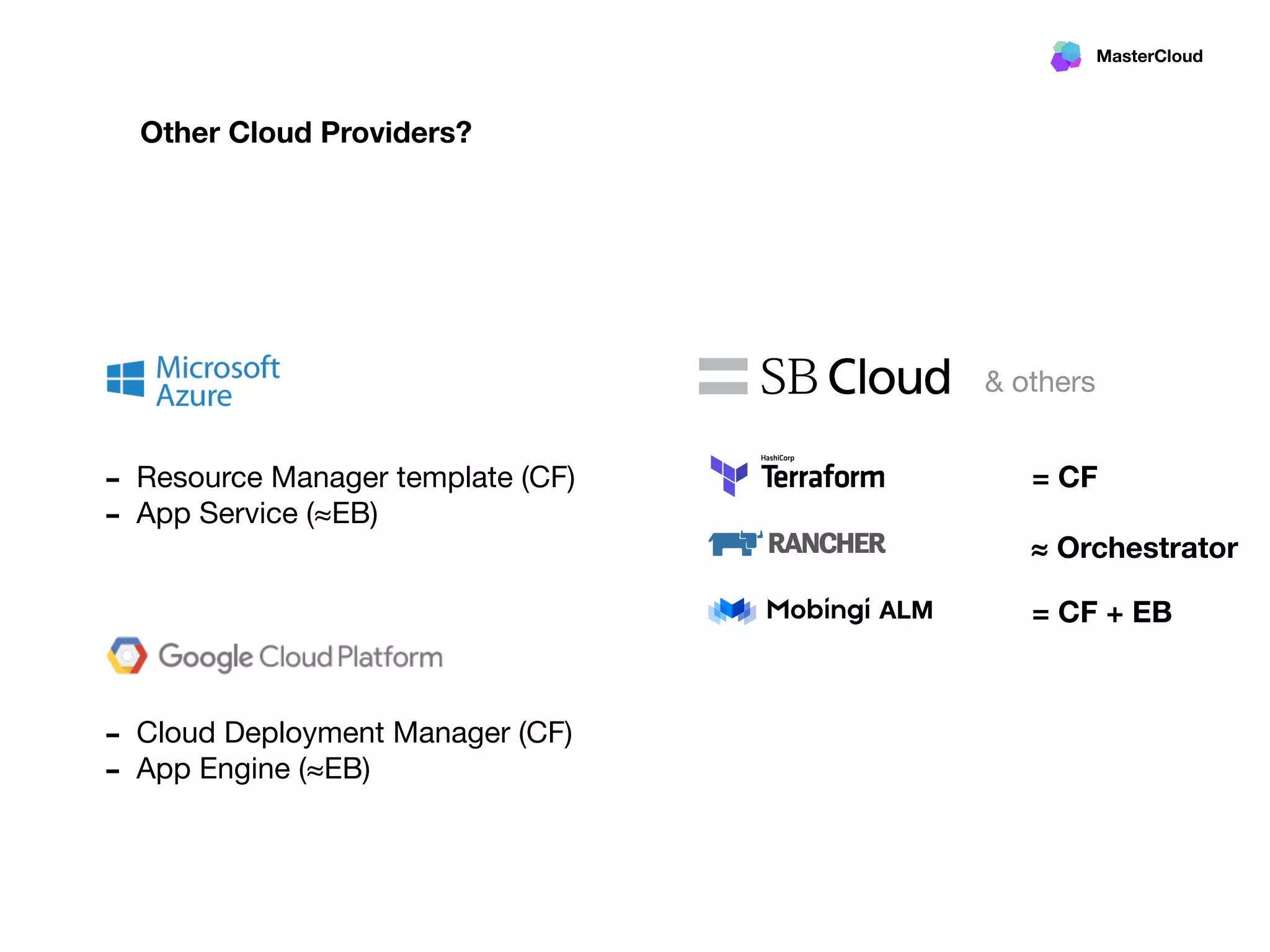

Other Cloud Providers?
- Resource Manager template (CF)
- App Service (≈EB)
& others
ALM
- Cloud Deployment Manager (CF)
- App Engine (≈EB)
= CF
≈ Orchestrator
= CF + EB

28. MasterCloud
Use cases

29. MasterCloud

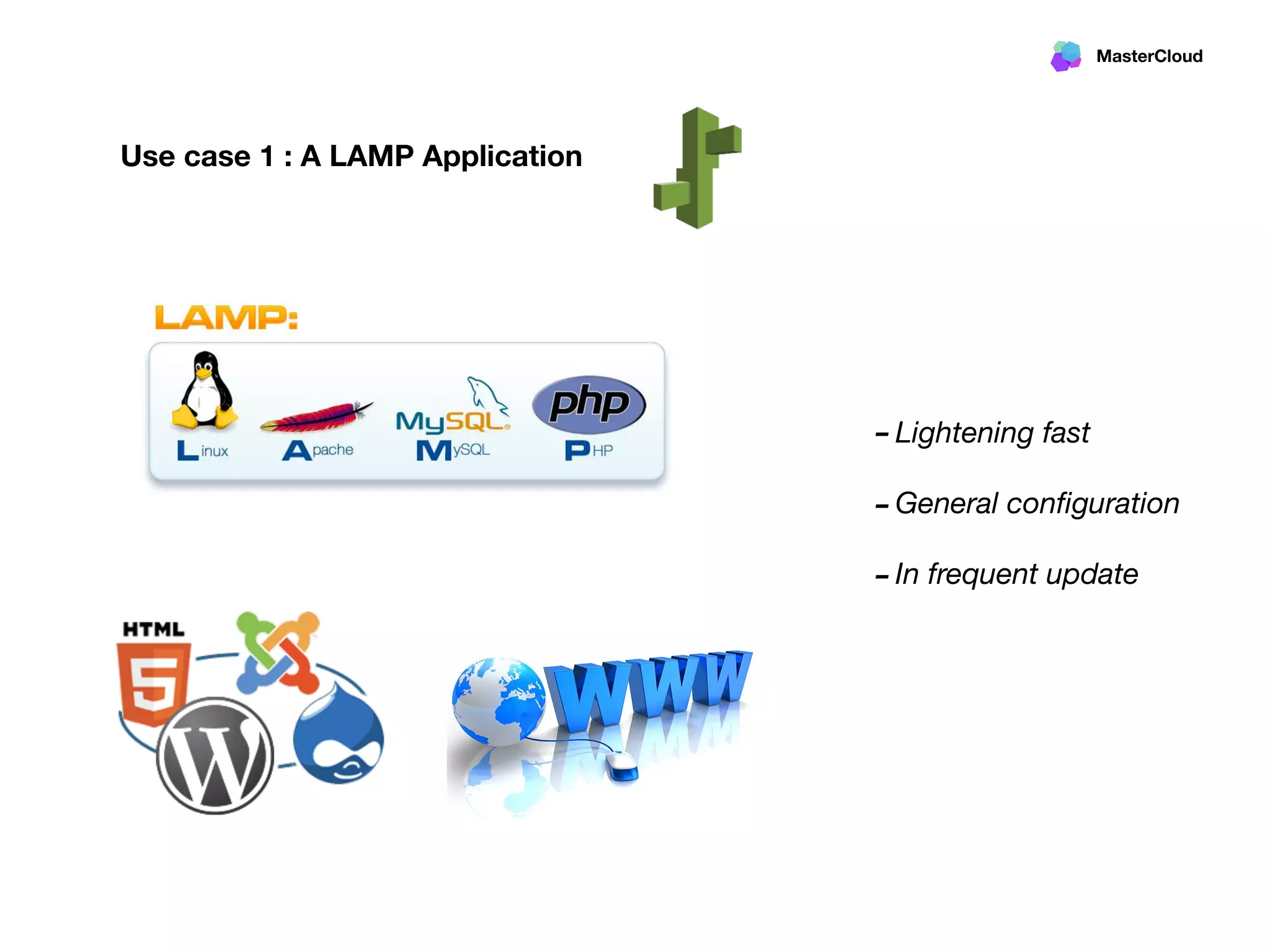

Use case 1 : A LAMP Application
-Lightening fast
-General configuration
-In frequent update

30. MasterCloud

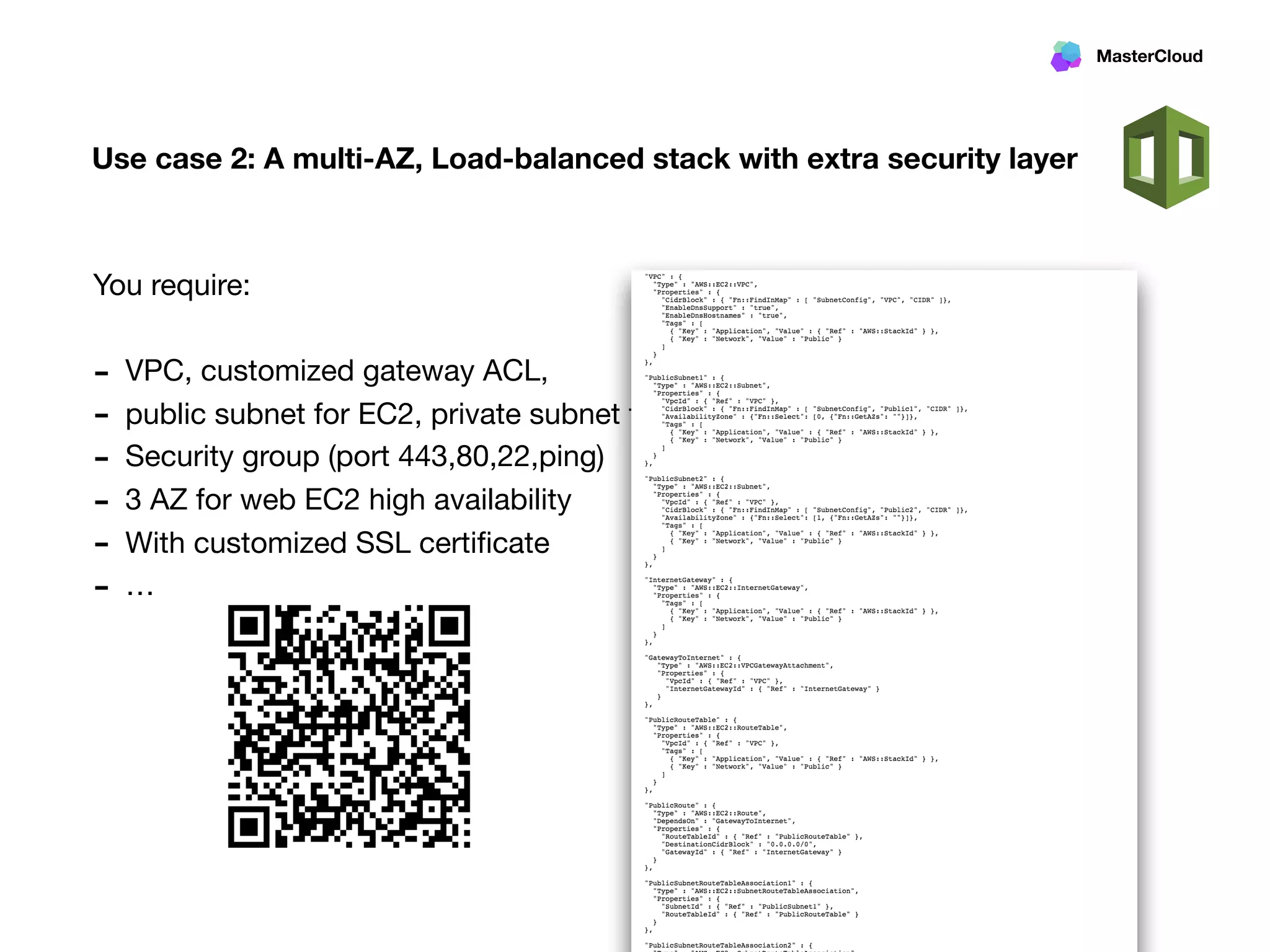

Use case 2: A multi-AZ, Load-balanced stack with extra security layer
You require:
- VPC, customized gateway ACL,
- public subnet for EC2, private subnet for Multi-AZ RDS
- Security group (port 443,80,22,ping)
- 3 AZ for web EC2 high availability
- With customized SSL certificate
- …

31. MasterCloud

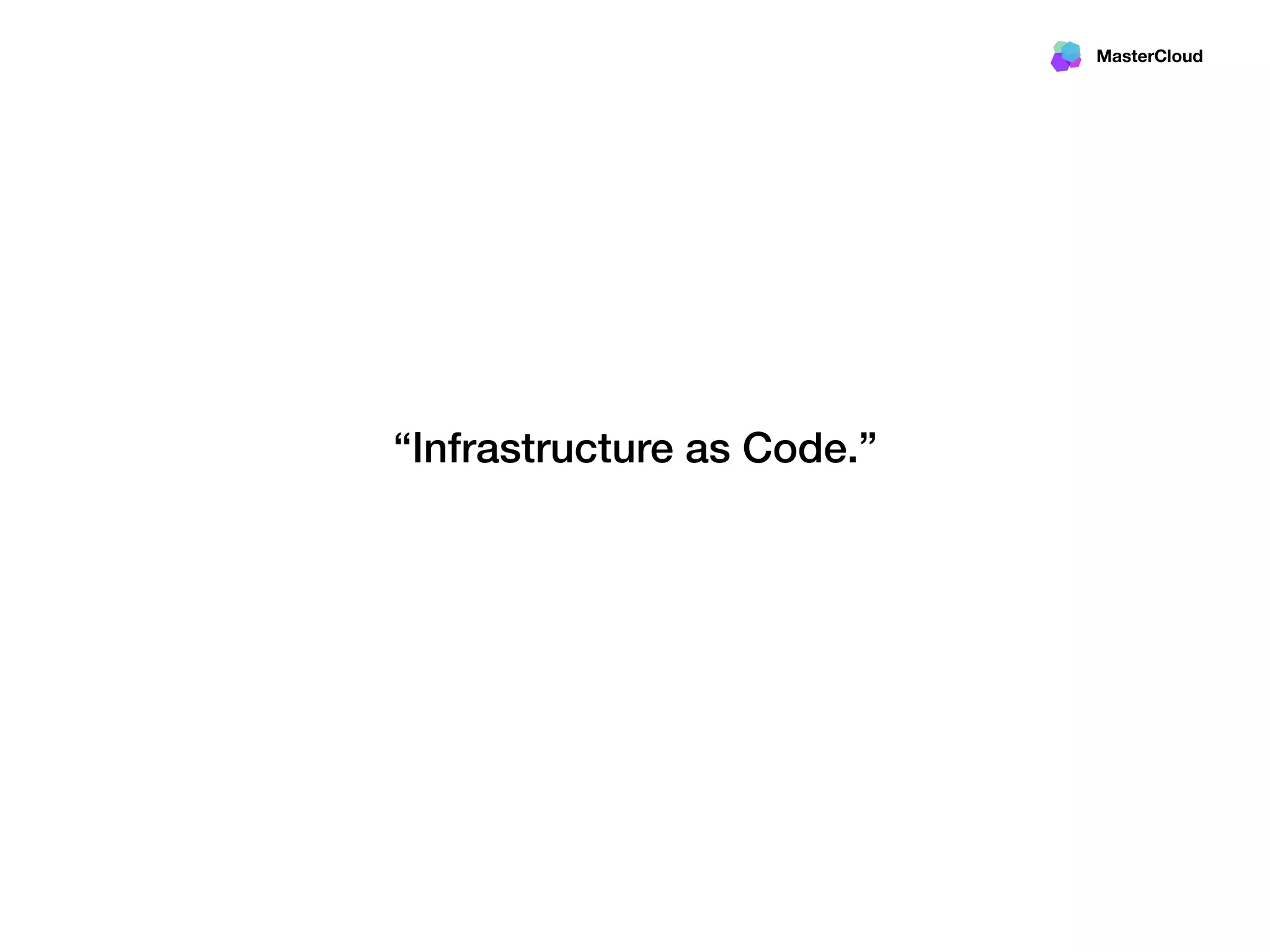

“Infrastructure as Code.”

32. MasterCloud
Infra Provision >> Configuration >> Deploy & Run >> Monitor & Secure >>
“Infrastructure as Code.”
Networking
Storage
Compute VM
OS
Softwares
Package
Environment
Git Logging
Secret management
Audit
Secure Access
“Application Automation”
“Application Lifecycle
Management”
Scaling
CD/CI

33. MasterCloud
Usage case 4 (SBCloud): Application Stack with Mobingi ALM

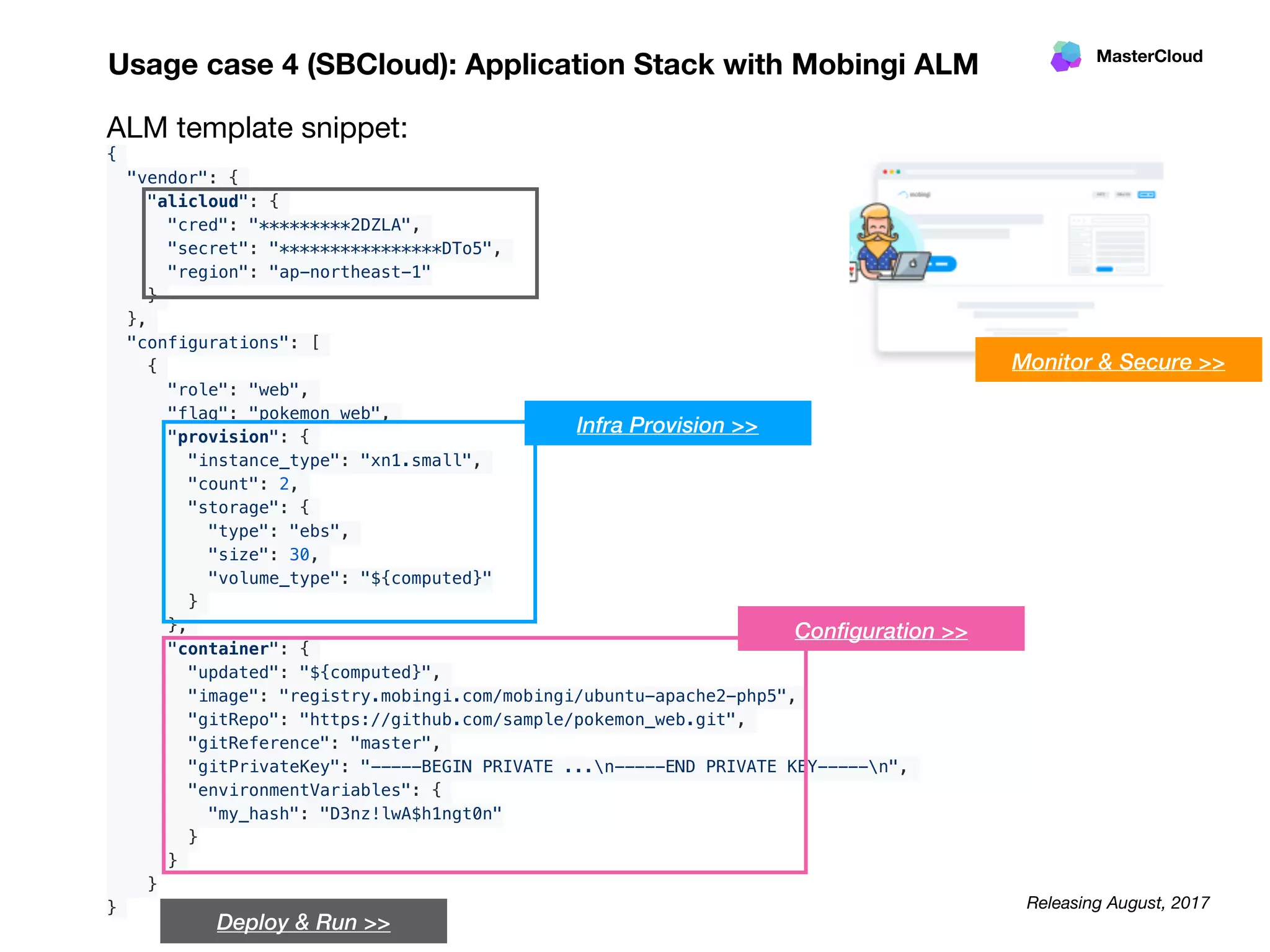

ALM template snippet:
{
"vendor": {
"alicloud": {
"cred": "*********2DZLA",
"secret": "****************DTo5",
"region": "ap-northeast-1"
}
},
"configurations": [
{
"role": "web",
"flag": "pokemon_web",
"provision": {
"instance_type": "xn1.small",
"count": 2,
"storage": {
"type": "ebs",
"size": 30,
"volume_type": "${computed}"
}
},
"container": {
"updated": "${computed}",
"image": "registry.mobingi.com/mobingi/ubuntu-apache2-php5",
"gitRepo": "https://github.com/sample/pokemon_web.git",
"gitReference": "master",
"gitPrivateKey": "-----BEGIN PRIVATE ...n-----END PRIVATE KEY-----n",
"environmentVariables": {
"my_hash": "D3nz!lwA$h1ngt0n"
}
}
}
} Releasing August, 2017
Infra Provision >>
Configuration >>
Deploy & Run >>
Monitor & Secure >>

34. MasterCloud
http://slack.mobingi.com
