On one hand media enterprises using workflows involving thick apps and traditional server based workflows have business opportunities of lifting and shifting from on-prem infrastructure to off-prem cloud or centralized data centers. On the other hand, cloud native micro-services architectures and web apps provide options to implement new services and apps rapidly and dynamically. This talk provides insights into the different hosting patterns observed from these media enterprises, and discusses a common framework provided by Avid’s Media Central Platform to realize the business opportunities under the different hosting models. Speaker : Shailendra Mathur, VP Architecture, AVID

1. 1
Cloud Transition Patterns for Media
Enterprises
Shailendra Mathur
Vice President of Architecture, Avid

2. 2 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.

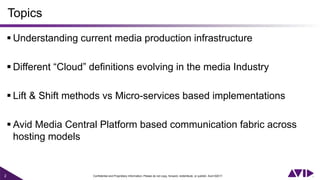

Topics
 Understanding current media production infrastructure
 Different “Cloud” definitions evolving in the media Industry
 Lift & Shift methods vs Micro-services based implementations
 Avid Media Central Platform based communication fabric across
hosting models

3. 3 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.
Source: http://ngcodec.com/fpga-encoder-markets/

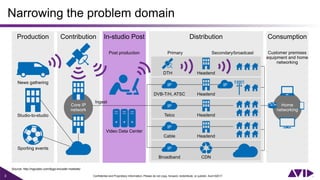

Narrowing the problem domain

4. 4 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.

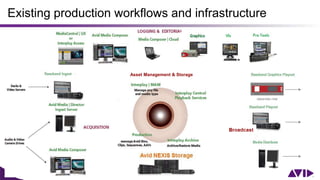

Existing production workflows and infrastructure
Asset Management & Storage

5. 5 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.
Machine Rooms/Datacenter
• VM/Bare Metal
• Single Customer Instance
• Network Storage
• Edge servers (SDI/IP)

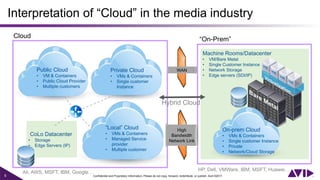

Interpretation of “Cloud” in the media industry
On-prem Cloud
• VMs & Containers
• Single customer Instance
• Private
• Network/Cloud Storage
Private Cloud
• VMs & Containers
• Single customer
Instance
Public Cloud
• VM & Containers
• Public Cloud Provider
• Multiple customers
“Local” Cloud
• VMs & Containers
• Managed Service
provider
• Multiple customer
CoLo Datacenter
• Storage
• Edge Servers (IP)
Cloud “On-Prem”
WAN
High
Bandwidth
Network Link
Hybrid Cloud
Ali, AWS, MSFT, IBM, Google…
HP, Dell, VMWare, IBM, MSFT, Huawei…

6. 6 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.

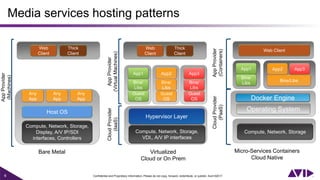

Media services hosting patterns
Host OS
Any
App
Any
App
Any
App
Bare Metal
Hypervisor Layer
Guest
OS
App1
Compute, Network, Storage,
VDI,, A/V IP interfaces
Bins/
Libs
Guest
OS
App2
Bins/
Libs
Guest
OS
App3
Bins/
Libs
CloudProvider
(IaaS)
AppProvider
(VirtualMachines)
Virtualized
Cloud or On Prem
Operating System
App1
Compute, Network, Storage
Bins/
Libs
CloudProvider
(PaaS)
AppProvider
(Containers)
Bins/Libs
App2 App3
Micro-Services Containers
Cloud Native
Docker Engine
AppProvider
(Machines)
Compute, Network, Storage,
Display, A/V IP/SDI
interfaces, Controllers
Web Client
Web
Client
Thick
Client
Web
Client
Thick
Client

7. 7 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.

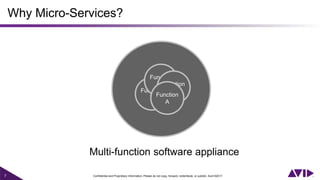

Why Micro-Services?
Multi-function software appliance

8. 8 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2015

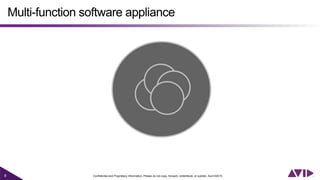

Multi-function software appliance

9. 9 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2015

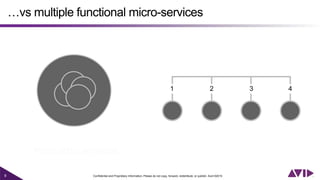

…vs multiple functional micro-services
1 2 3 4

10. 10 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2015
Service hosting and communication
App Provider
Communication Fabric
App Provider
Communication Fabric
Cloud Provider
Communication Fabric
Bare Metal Virtualized
Cloud or On Prem
Micro-services Containers
Cloud Native

11. 11 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2015

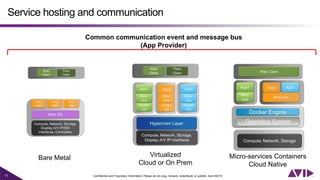

Service hosting and communication
Common communication event and message bus
(App Provider)
Bare Metal Virtualized
Cloud or On Prem
Micro-services Containers
Cloud Native

12. 12 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.

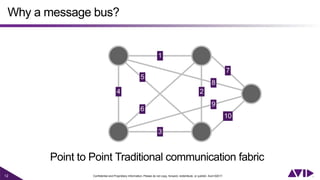

Why a message bus?
1
3
4 2
5
6
7
8
9
10
Point to Point Traditional communication fabric

13. 13 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2015
Traditional communication fabric

14. 14 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2015

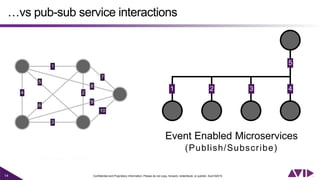

…vs pub-sub service interactions
5
Event Enabled Microservices
(Publish/Subscribe)
1 2 3 4

15. 15 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.

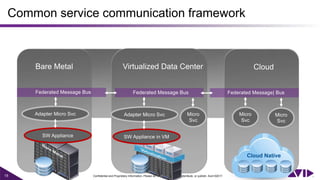

Common service communication framework
Cloud Native
Federated Message BusFederated Message Bus Federated Message| Bus
Bare Metal Virtualized Data Center Cloud

16. 16 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.

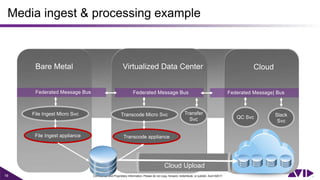

Media ingest & processing example
Federated Message BusFederated Message Bus Federated Message| Bus
Cloud Upload
Bare Metal Virtualized Data Center Cloud

17. 17 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.

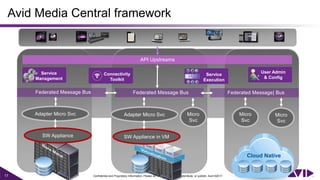

Avid Media Central framework
Service
Management
Service
Execution
User Admin
& Config
Connectivity
Toolkit
Cloud Native
API Upstreams
Federated Message BusFederated Message Bus Federated Message| Bus

18. 18 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.
Summary
 “Cloud” has different hosting interpretations
 The Media Industry looking to implement both Lift and Shift and
Cloud native models
 Avid Media Central Framework bridges the different hosting models

20. 20 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.

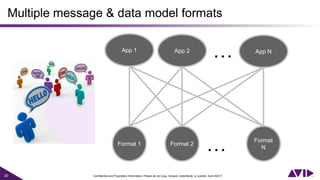

Multiple message & data model formats
…
…

21. 21 Confidential and Proprietary Information. Please do not copy, forward, redistribute, or publish. Avid ©2017.

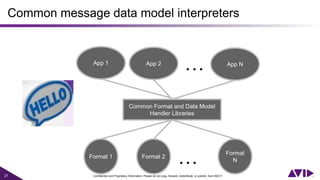

Common message data model interpreters
…
…
