Client-side Transformations



                    @johnboxall
                         @vanjs
                    march 9 2011

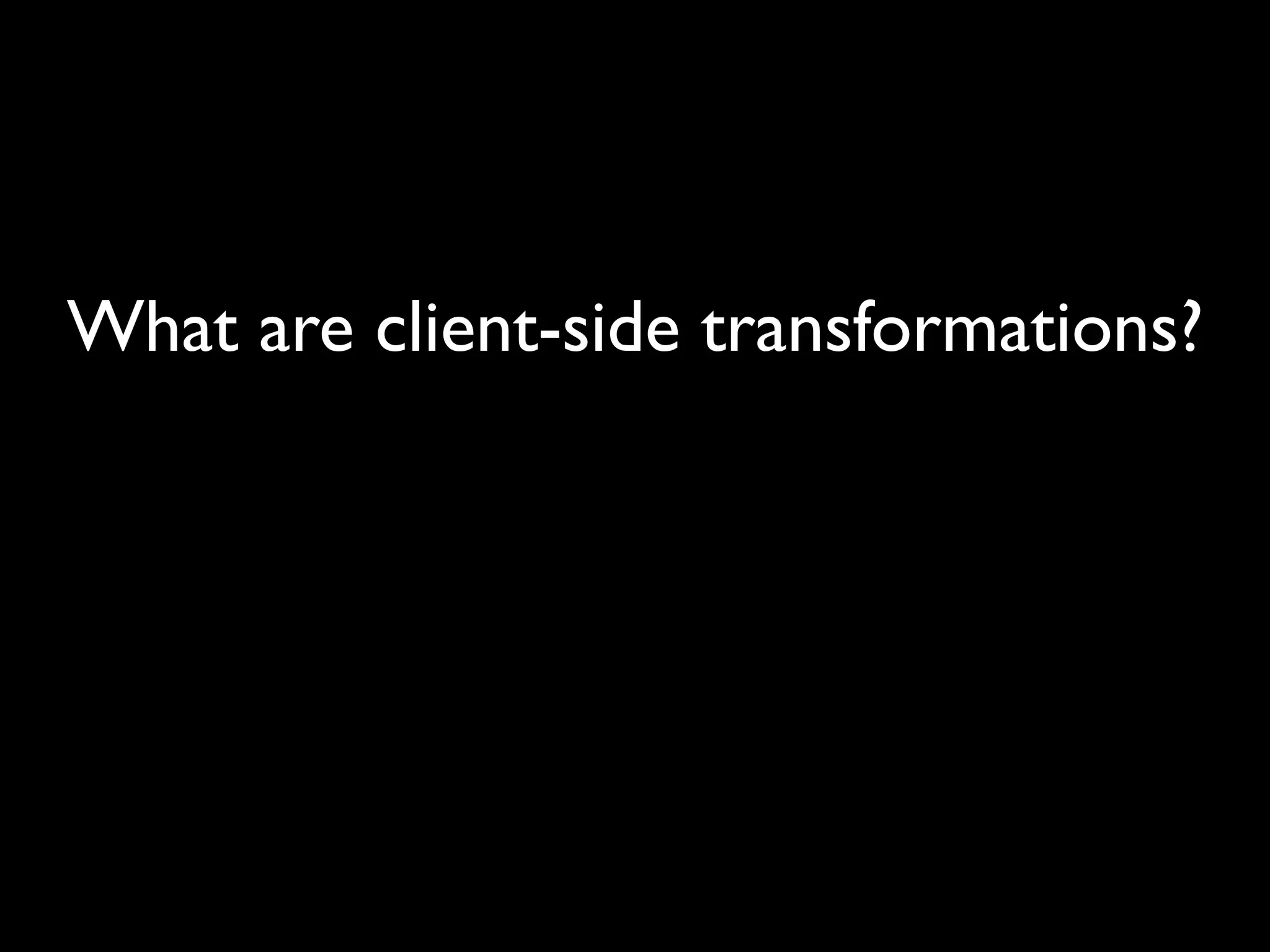

What are client-side transformations?

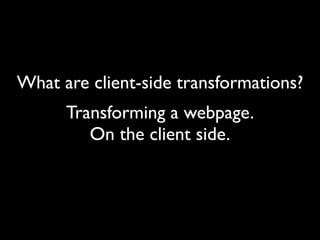

What are client-side transformations?
      Transforming a webpage.
         On the client side.

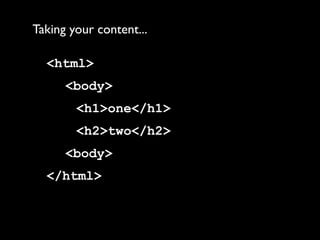

Taking your content...

  <html>
      <body>
        <h1>one</h1>
        <h2>two</h2>
      <body>
  </html>

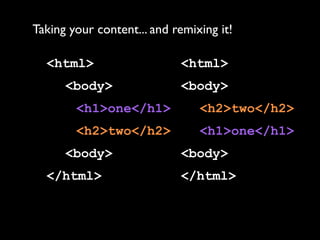

Taking your content... and remixing it!

  <html>                    <html>
      <body>                <body>
        <h1>one</h1>            <h2>two</h2>
        <h2>two</h2>            <h1>one</h1>
      <body>                <body>
  </html>                   </html>
Why would you ever want to do this?
Why would you ever want to do this?

Because you make mobile websites!

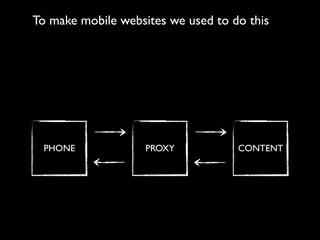

To make mobile websites we used to do this




 PHONE              PROXY           CONTENT
To make mobile websites we used to do this
• good                  • bad
• layout control        • politics
• resource control      • operations



  PHONE              PROXY             CONTENT

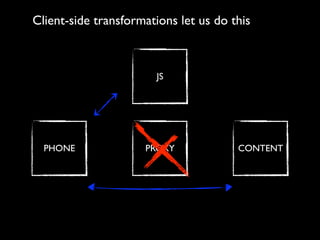

Client-side transformations let us do this



                       JS




  PHONE              PROXY             CONTENT

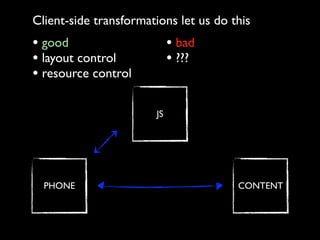

Client-side transformations let us do this

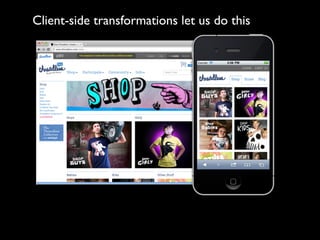

Client-side transformations let us do this
• good                      • bad
• layout control            • ???
• resource control

                       JS




  PHONE                                CONTENT
How should we implement layout control?


  <html>                 <html>
     <body>              <body>
       <h1>one</h1>         <h2>two</h2>
       <h2>two</h2>         <h1>one</h1>
     <body>              <body>
  </html>                </html>

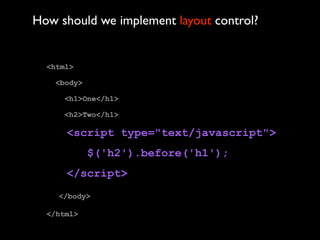

How should we implement layout control?


  <html>

    <body>

     <h1>One</h1>

     <h2>Two</h1>

      <script type="text/javascript">
             $('h2').before('h1');
      </script>
    </body>

  </html>

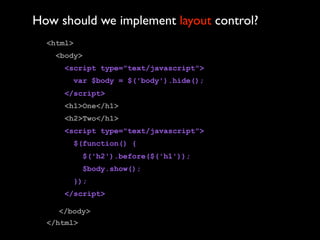

How should we implement layout control?
  <html>
    <body>
      <script type="text/javascript">
        var $body = $('body').hide();
      </script>
     <h1>One</h1>
     <h2>Two</h1>
      <script type="text/javascript">
        $(function() {
             $('h2').before($('h1'));
             $body.show();
        });
      </script>

    </body>
  </html>

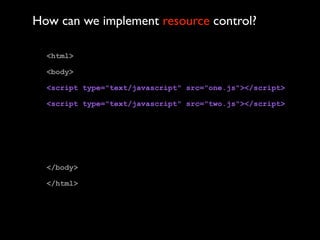

How can we implement resource control?

  <html>

  <body>

  <script type="text/javascript" src="one.js"></script>

  <script type="text/javascript" src="two.js"></script>




  </body>

  </html>

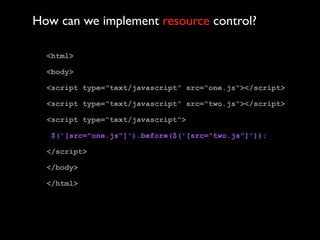

How can we implement resource control?

  <html>

  <body>

  <script type="text/javascript" src="one.js"></script>

  <script type="text/javascript" src="two.js"></script>

  <script type="text/javascript">

   $('[src="one.js"]').before($('[src="two.js"]'));

  </script>

  </body>

  </html>
How can we implement resource control?



<script type="text/javascript">
  var $doc = $(document).bind('beforeload', function(e) {
      e.preventDefault();
    });
</script>

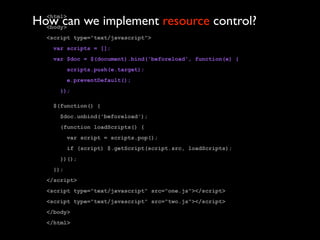

How can we implement resource control?
  <html>
  <body>
  <script type="text/javascript">
   var scripts = [];
   var $doc = $(document).bind('beforeload', function(e) {
         scripts.push(e.target);
         e.preventDefault();
     });

   $(function() {
     $doc.unbind('beforeload');
     (function loadScripts() {
         var script = scripts.pop();
         if (script) $.getScript(script.src, loadScripts);
     })();
   });
  </script>
  <script type="text/javascript" src="one.js"></script>
  <script type="text/javascript" src="two.js"></script>
  </body>
  </html>

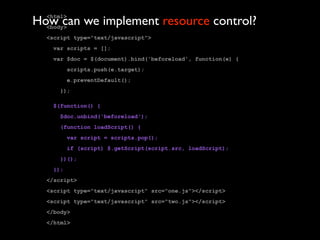

How can we implement resource control?
  <html>
  <body>
  <script type="text/javascript">
   var scripts = [];
   var $doc = $(document).bind('beforeload', function(e) {
         scripts.push(e.target);
         e.preventDefault();
     });

   $(function() {
     $doc.unbind('beforeload');
     (function loadScript() {
         var script = scripts.pop();
         if (script) $.getScript(script.src, loadScript);
     })();
   });
  </script>
  <script type="text/javascript" src="one.js"></script>
  <script type="text/javascript" src="two.js"></script>
  </body>
  </html>

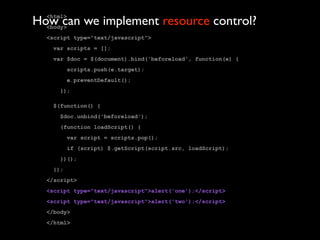

How can we implement resource control?
  <html>
  <body>
  <script type="text/javascript">
   var scripts = [];
   var $doc = $(document).bind('beforeload', function(e) {
         scripts.push(e.target);
         e.preventDefault();
     });

   $(function() {
     $doc.unbind('beforeload');
     (function loadScript() {
         var script = scripts.pop();
         if (script) $.getScript(script.src, loadScript);
     })();
   });
  </script>
  <script type="text/javascript">alert('one');</script>
  <script type="text/javascript">alert('two');</script>
  </body>
  </html>

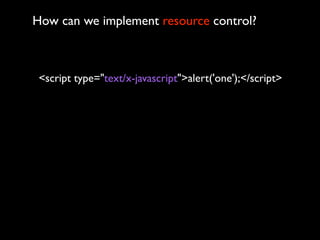

How can we implement resource control?



 <script type="text/x-javascript">alert('one');</script>

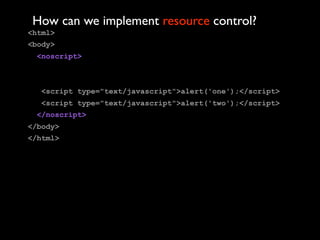

How can we implement resource control?
<html>
<body>
 <noscript>



  <script type="text/javascript">alert('one');</script>
  <script type="text/javascript">alert('two');</script>
 </noscript>
</body>
</html>
How can we implement resource control?
<html>
<body>
 <script type="text/javascript">
   document.write('x3Cnoscript>');
 </script>
  <script type="text/javascript">alert('one');</script>
  <script type="text/javascript">alert('two');</script>
 </noscript>
</body>
</html>
How can we implement resource control?
<html>
<body>
 <script type="text/javascript">
   document.write('x3Cnoscript>');
 </script>
  <script type="text/javascript">alert('one');</script>
  <script type="text/javascript">alert('two');</script>
 </noscript>
</body>
</html>

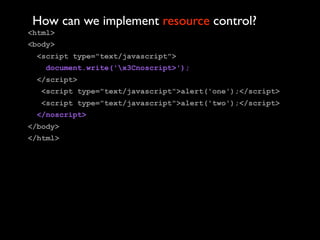

How can we implement resource control?
<html>
<body>
 <script type="text/javascript">
   document.write('x3Cnoscript>');
 </script>
  <script type="text/javascript">alert('one');</script>
  <script type="text/javascript">alert('two');</script>
 </noscript>
</body>
</html>

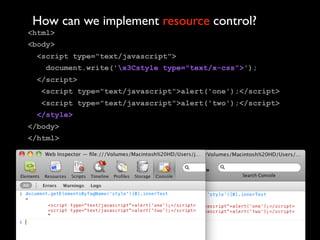

How can we implement resource control?
<html>
<body>
 <script type="text/javascript">
   document.write('x3Cstyle type="text/x-css">');
 </script>
  <script type="text/javascript">alert('one');</script>
  <script type="text/javascript">alert('two');</script>
 </style>
</body>
</html>

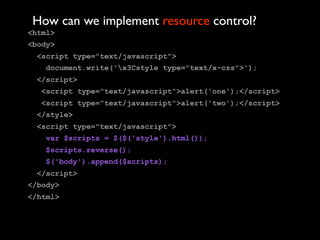

How can we implement resource control?
<html>
<body>
 <script type="text/javascript">
   document.write('x3Cstyle type="text/x-css">');
 </script>
  <script type="text/javascript">alert('one');</script>
  <script type="text/javascript">alert('two');</script>
 </style>
 <script type="text/javascript">
   var $scripts = $($('style').html());
   $scripts.reverse();
   $('body').append($scripts);
 </script>
</body>
</html>

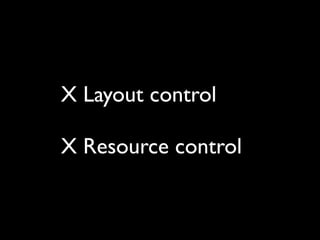

X Layout control

X Resource control
Let’s build a mobile site using CST.

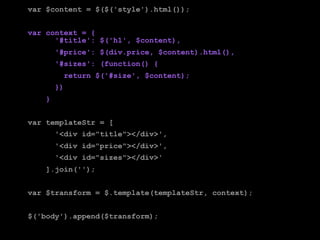

var $content = $($('style').html());


var context = {
      '#title': $('h1', $content),
        '#price': $(div.price, $content).html(),
        '#sizes': (function() {
          return $('#size', $content);
        })
    }


var templateStr = [
        '<div id="title"></div>',
        '<div id="price"></div>',
        '<div id="sizes"></div>'
    ].join('');


var $transform = $.template(templateStr, context);


$('body').append($transform);
var $content = $($('style').html());


var context = {
      '#title': $('h1', $content),
        '#price': $(div.price, $content).html(),
        '#sizes': (function() {
          return $('#size', $content);
        })
    }


var templateStr = [
        '<div id="title"></div>',
        '<div id="price"></div>',
        '<div id="sizes"></div>'
    ].join('');


var $transform = $.template(templateStr, context);


$('body').append($transform);

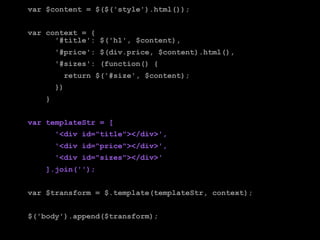

var $content = $($('style').html());


var context = {
      '#title': $('h1', $content),
        '#price': $(div.price, $content).html(),
        '#sizes': (function() {
          return $('#size', $content);
        })
    }


var templateStr = [
        '<div id="title"></div>',
        '<div id="price"></div>',
        '<div id="sizes"></div>'
    ].join('');


var $transform = $.template(templateStr, context);


$('body').append($transform);

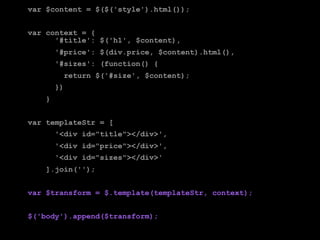

var $content = $($('style').html());


var context = {
      '#title': $('h1', $content),
        '#price': $(div.price, $content).html(),
        '#sizes': (function() {
          return $('#size', $content);
        })
    }


var templateStr = [
        '<div id="title"></div>',
        '<div id="price"></div>',
        '<div id="sizes"></div>'
    ].join('');


var $transform = $.template(templateStr, context);


$('body').append($transform);
Client-side Transformations
       PS. We’re hiring:

    http://mobify.me/jobs/
                           @johnboxall
                                @vanjs
                           march 9 2011
