1. Developing Curator Tool Wizards
June 6, 2018 – Portugal Workshop
I N I A V / T R U S T - P O R T O P O R T U G A L
Edwin Rojas (CIP) & Carlos Velasquez (CIP) & Pete Cyr (USDA)
GG Developers

2. Agenda
• General aspects for GG Wizards
• GRIN-Global Platform Architectural for CT and Wizards
• General flow to create and deploy a new Wizard
• Panel for Wizards in Curator Tool
• License terms & Copyright used for GG software
• Download & Running Curator Tool Source Code
• Prerequisites
• Projects in the GRINGlobal.Client solution
• Running the main project
• CIP Wizards (5 wizards)
• Requirements to Create GRIN-Global Wizards
• How to Create a Welcome Wizard
• Internal architectural of Wizards
• Internal architectural of the Interface
• Sequence Diagram
• Technical specifications of the Wizard project
• Questions to the Participants
• How to Create a List Comparison Wizard
• Overview and run
• Download and open

3. Database Server
Data tier
Web Server
Middle tier
(Business + Webservices)
GRIN-Global Platform Architectural for CT and Wizards
GG Central
Database
PC
User Interface
Curator Tool
GG
Client
Core
Wizards
Forms
Reports
GG Local
Database
GG
Server
core
GG
Webservice
ASPNET ASMX -SOAP

4. General flow to create and deploy a new Wizard
GitLab on Web Developer PC
GRIN-Global Server
(VS Solution in C#)
GRIN-Global Curator Tool
(VS Solution in C#)
https://gitlab.com/GRIN-Global
User PC
DLL file
Directory to copy DLL file:
GRIN-Global>GRIN-Global Curator Tool>
Wizards
.NET Framework 4.6.2
Curator Tool 1.9.8.17
184 Mb + .git = 643 Mb
Local Database
Contribution

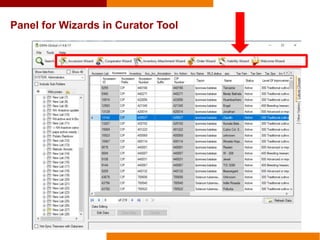

5. Panel for Wizards in Curator Tool

6. License terms used for GRIN-Global software:
Where is the disclaimer text?
Curator Tool  Menu Help  About  Disclaimer text

7. License terms used for GRIN-Global software:
What is the disclaimer text?
The disclaimer text contains the 'License terms' under which USDA-ARS is
granting access to the user:
USDA grants to each Recipient of this software non-exclusive, royalty free, world-
wide, permission to use, copy, modify, publish, distribute, perform publicly and
display publicly this software.
Notice of this permission as well as the other paragraphs in this notice shall be
included in all copies or modifications of this software.
And for additional piece of software that will connect to GRIN-Global like new
Wizards you could prefer use Apache 2.0 license.
GNU license:
https://www.apache.org/licenses/LICENSE-2.0
Copyrigth sample:
Copyright © CIP 2018

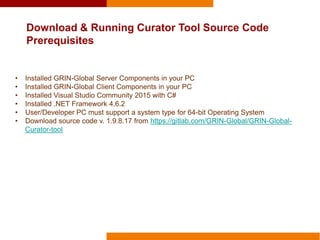

8. Download & Running Curator Tool Source Code
Prerequisites
• Installed GRIN-Global Server Components in your PC
• Installed GRIN-Global Client Components in your PC
• Installed Visual Studio Community 2015 with C#
• Installed .NET Framework 4.6.2
• User/Developer PC must support a system type for 64-bit Operating System
• Download source code v. 1.9.8.17 from https://gitlab.com/GRIN-Global/GRIN-Global-
Curator-tool

9. Download & Running Curator Tool Source Code
Projects in the GRINGlobal.Client solution
Solution
P
r
o
j
e
c
t
s
Wizards
Wizards
CT Core Business Logic
Curator Tool EXE
Search Tool EXEWindows Application (2)
Class Library (11)

10. 1. Open Visual Studio Community 2015
2. Open the solution GRINGlobal.Client.sln that was cloned from:
3. Rebuild the solution two times if errors are produced then uninstall/install four NuGet
packages for CrystalDecisions for the project ‘'GRINGlobal.Client.Common’:
1) CrystalDecisions.CrystalReports.Engine - version 1.0.0
2) CrystalDecisions.ReportSource - version 1.0.0
3) CrystalDecisions.Shared - version 1.0.0
4) CrystalDecisions.Windows.Forms - version 1.0.0
4. Verify the services for local and central database are running
5. Set as StartUp project to ‘GRINGlobal.Client.CuratorTool’
6. Click the “Start” button
Download & Running Curator Tool Source Code
Running the main project
https://gitlab.com/GRIN-Global/GRIN-Global-Curator-tool

11. CIP Wizards - Batch Wizard: Allow update accessions with their related information from Excel files in one single
upload process.
The most frequent uploads

12. CIP Wizards - List Wizard: Allow comparing two lists to match accessions, showing the results in a new list.

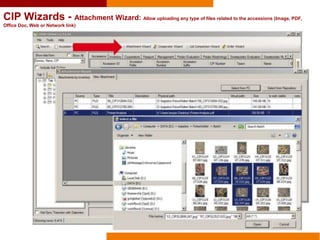

13. CIP Wizards - Attachment Wizard: Allow uploading any type of files related to the accessions (Image, PDF,
Office Doc, Web or Network link)

14. CIP Wizards - Search Wizard: Allow cross multiple filters of descriptors or traits to query accessions at the
accession level or inside subsets.
Store the
most
frequent
searches

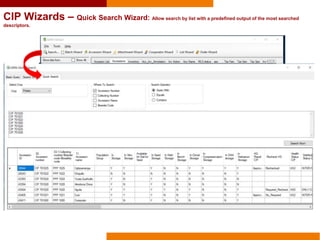

15. CIP Wizards – Quick Search Wizard: Allow search by list with a predefined output of the most searched
descriptors.

16. Requirements to create GRIN-Global Wizards
• Installed GRIN-Global Server Components in your PC
• Installed GRIN-Global Client Components in your PC
• Installed Visual Studio Community 2015 with C#
• Installed .NET Framework 4.6.2
• Developer PC must support a system type for 64-bit Operating System
• Download source code v. 1.9.8.17 from https://gitlab.com/GRIN-Global/GRIN-Global-
Curator-tool

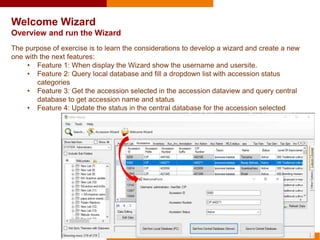

17. Welcome Wizard
Overview and run the Wizard
The purpose of exercise is to learn the considerations to develop a wizard and create a new
one with the next features:
• Feature 1: When display the Wizard show the username and usersite.
• Feature 2: Query local database and fill a dropdown list with accession status
categories
• Feature 3: Get the accession selected in the accession dataview and query central
database to get accession name and status
• Feature 4: Update the status in the central database for the accession selected

18. 1. Open Visual Studio Community
2. Clone solution from
https://gitlab.com/Portugal2018/Welc
omeWizard.git
3. Open the solution
GRINGlobal.Client.sln
Welcome Wizard
Download and Open
(32 Mb)

19. User PC
Curator Tool
GG Local Database
SQL Express
Welcome Wizard
Internal architectural of Wizards
GG
Webservices
Wizard
GRINGlobal.Client.CuratorTool
Windows Application
GRINGlobal.Client.Common
Class library
WelcomeWizardDemo
Class Library
Interface
Wizard
Logic
HTTP

20. pKeys = IDs of selected rows separated by semicolon
:accessionid=; (example :ACCESSIONID=18510;18723;1258)
:inventoryid=;
:orderrequestid=;
:cooperatorid=;
:geographyid=;
:taxonomygenusid=;
:cropid=;
Interface
IGRINGlobalDataWizard
Welcome Wizard
Internal architectural of the Interface: IGRINGlobalDataWizard
pKeys
sharedUtils
Username
User Cooperator ID
Password
User Language Code
UserSite
GetLocalData
GetWebServiceData
SaveWebServiceData
BindComboboxToCodeValue
Properties
Methods

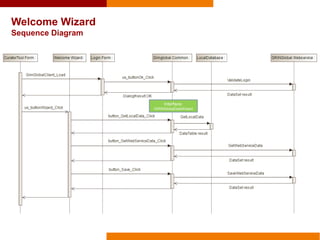

21. Welcome Wizard
Sequence Diagram
Interface:
IGRINGlobalDataWizard

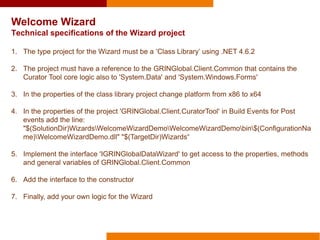

22. Welcome Wizard
Technical specifications of the Wizard project
1. The type project for the Wizard must be a ‘Class Library’ using .NET 4.6.2
2. The project must have a reference to the GRINGlobal.Client.Common that contains the
Curator Tool core logic also to 'System.Data' and 'System.Windows.Forms'
3. In the properties of the class library project change platform from x86 to x64
4. In the properties of the project 'GRINGlobal.Client.CuratorTool' in Build Events for Post
events add the line:
"$(SolutionDir)WizardsWelcomeWizardDemoWelcomeWizardDemobin$(ConfigurationNa
me)WelcomeWizardDemo.dll" "$(TargetDir)Wizards“
5. Implement the interface 'IGRINGlobalDataWizard' to get access to the properties, methods
and general variables of GRINGlobal.Client.Common
6. Add the interface to the constructor
7. Finally, add your own logic for the Wizard

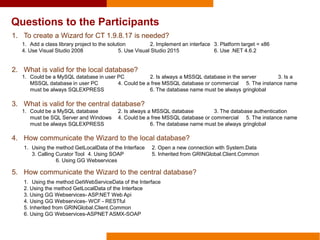

23. Questions to the Participants
1. To create a Wizard for CT 1.9.8.17 is needed?
2. What is valid for the local database?
3. What is valid for the central database?
4. How communicate the Wizard to the local database?
5. How communicate the Wizard to the central database?
1. Add a class library project to the solution 2. Implement an interface 3. Platform target = x86
4. Use Visual Studio 2008 5. Use Visual Studio 2015 6. Use .NET 4.6.2
1. Could be a MySQL database in user PC 2. Is always a MSSQL database in the server 3. Is a
MSSQL database in user PC 4. Could be a free MSSQL database or commercial 5. The instance name
must be always SQLEXPRESS 6. The database name must be always gringlobal
1. Could be a MySQL database 2. Is always a MSSQL database 3. The database authentication
must be SQL Server and Windows 4. Could be a free MSSQL database or commercial 5. The instance name
must be always SQLEXPRESS 6. The database name must be always gringlobal
1. Using the method GetLocalData of the Interface 2. Open a new connection with System.Data
3. Calling Curator Tool 4. Using SOAP 5. Inherited from GRINGlobal.Client.Common
6. Using GG Webservices
1. Using the method GetWebServiceData of the Interface
2. Using the method GetLocalData of the Interface
3. Using GG Webservices- ASP.NET Web Api
4. Using GG Webservices- WCF - RESTful
5. Inherited from GRINGlobal.Client.Common
6. Using GG Webservices-ASPNET ASMX-SOAP

24. List Comparison Wizard
Overview and run the Wizard
The purpose of this exercise is to learn the considerations to develop an advanced wizard that
allow comparing two lists to match accessions, showing the results in a new list.

25. 1. Open Visual Studio Community
2. Clone solution from
https://gitlab.com/Portugal2018/ListComp
arisonWizard.git (38 Mb)
3. Open the solution GRINGlobal.Client.sln
List Comparison Wizard
Download and Open
