1. Slice of DevOps - Automate Everything
Packer, Ansible, OpenSCAP, Vagrant and Kubernetes
Mihai Criveti, Cloud Native Competency Leader at IBM
October 12, 2019
1

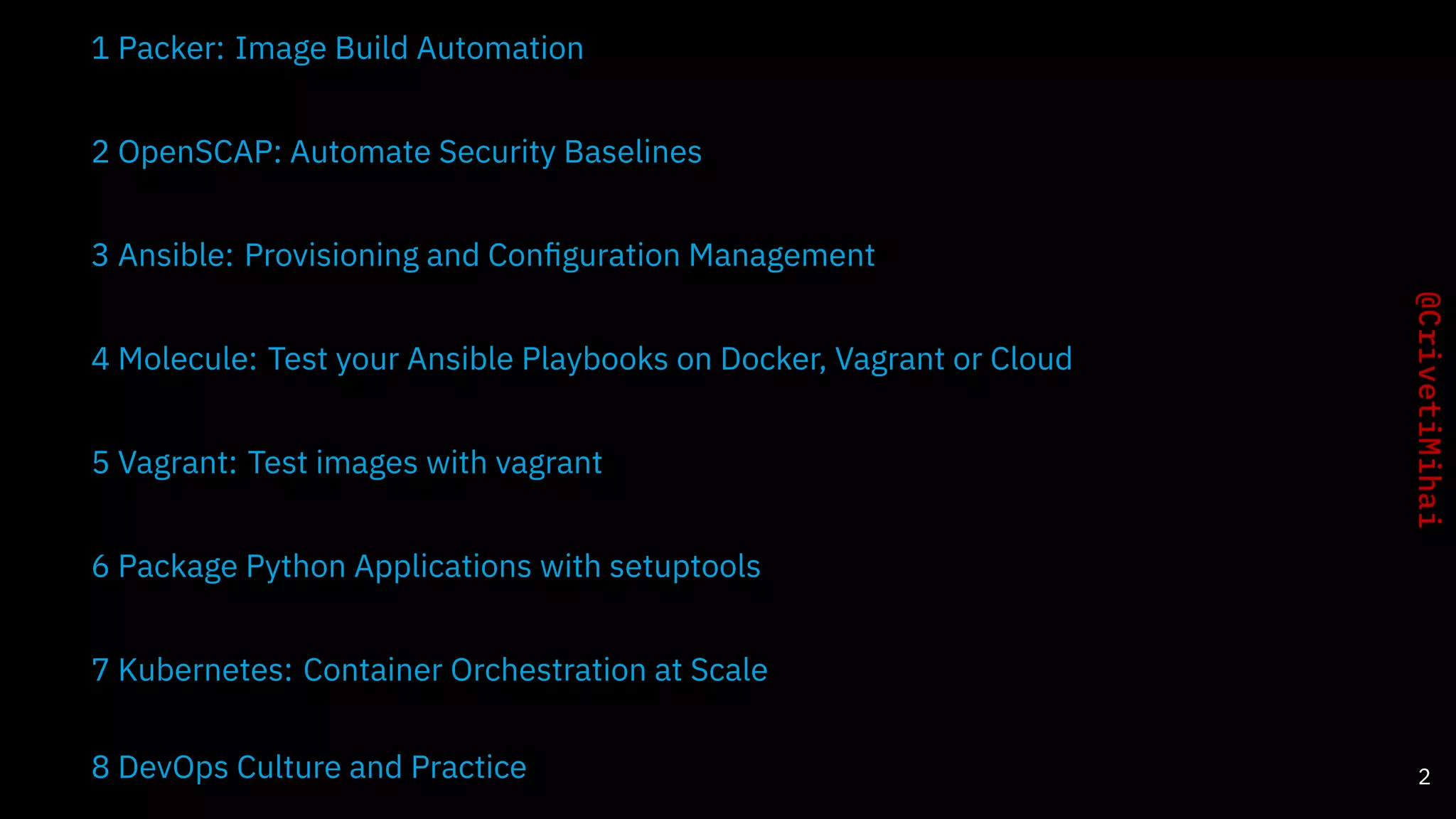

2. 1 Packer: Image Build Automation
2 OpenSCAP: Automate Security Baselines
3 Ansible: Provisioning and Configuration Management
4 Molecule: Test your Ansible Playbooks on Docker, Vagrant or Cloud
5 Vagrant: Test images with vagrant
6 Package Python Applications with setuptools
7 Kubernetes: Container Orchestration at Scale
8 DevOps Culture and Practice 2

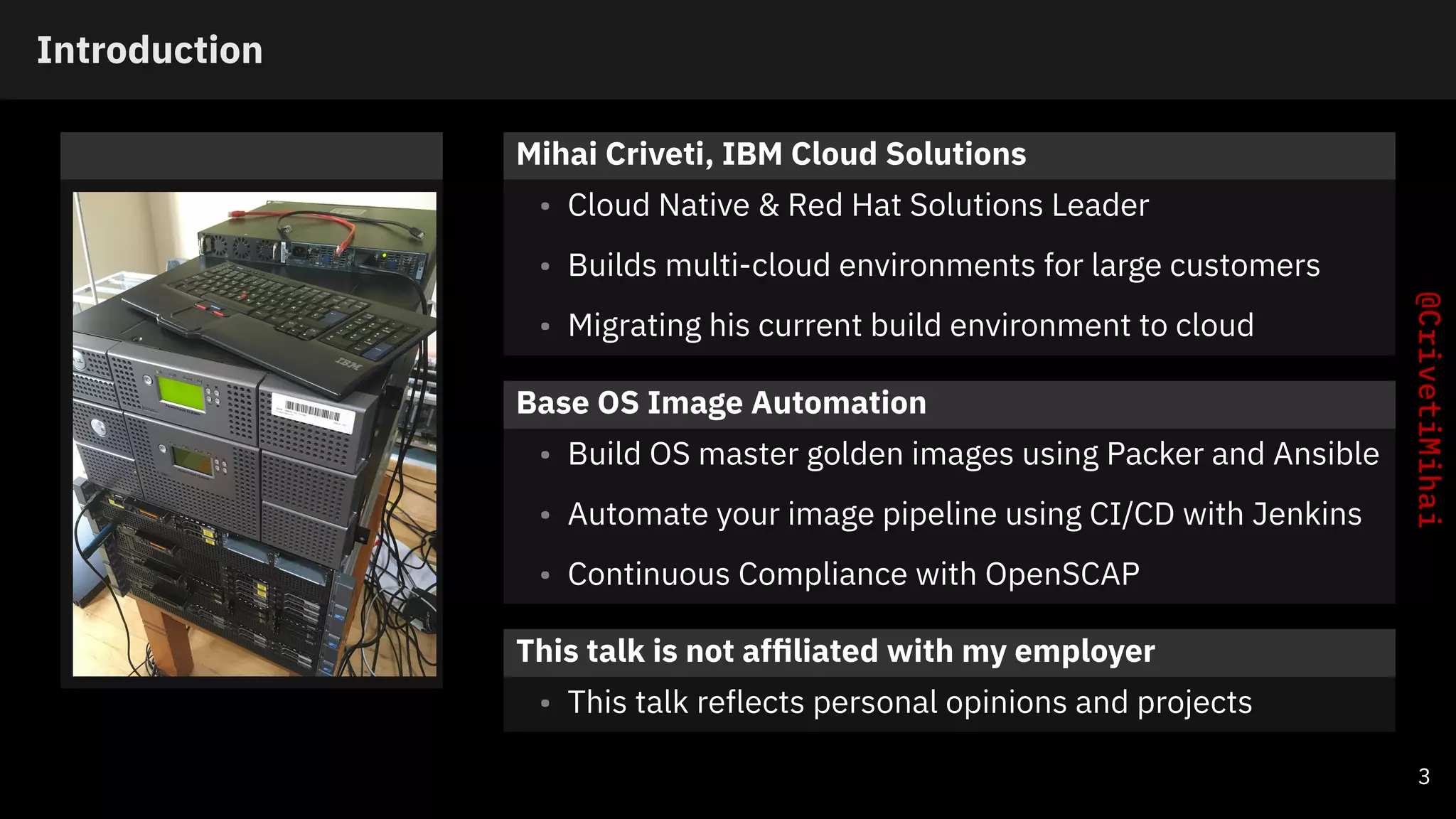

3. Introduction
Mihai Criveti, IBM Cloud Solutions
• Cloud Native & Red Hat Solutions Leader
• Builds multi-cloud environments for large customers
• Migrating his current build environment to cloud
Base OS Image Automation
• Build OS master golden images using Packer and Ansible
• Automate your image pipeline using CI/CD with Jenkins
• Continuous Compliance with OpenSCAP
This talk is not affiliated with my employer
• This talk reflects personal opinions and projects
3

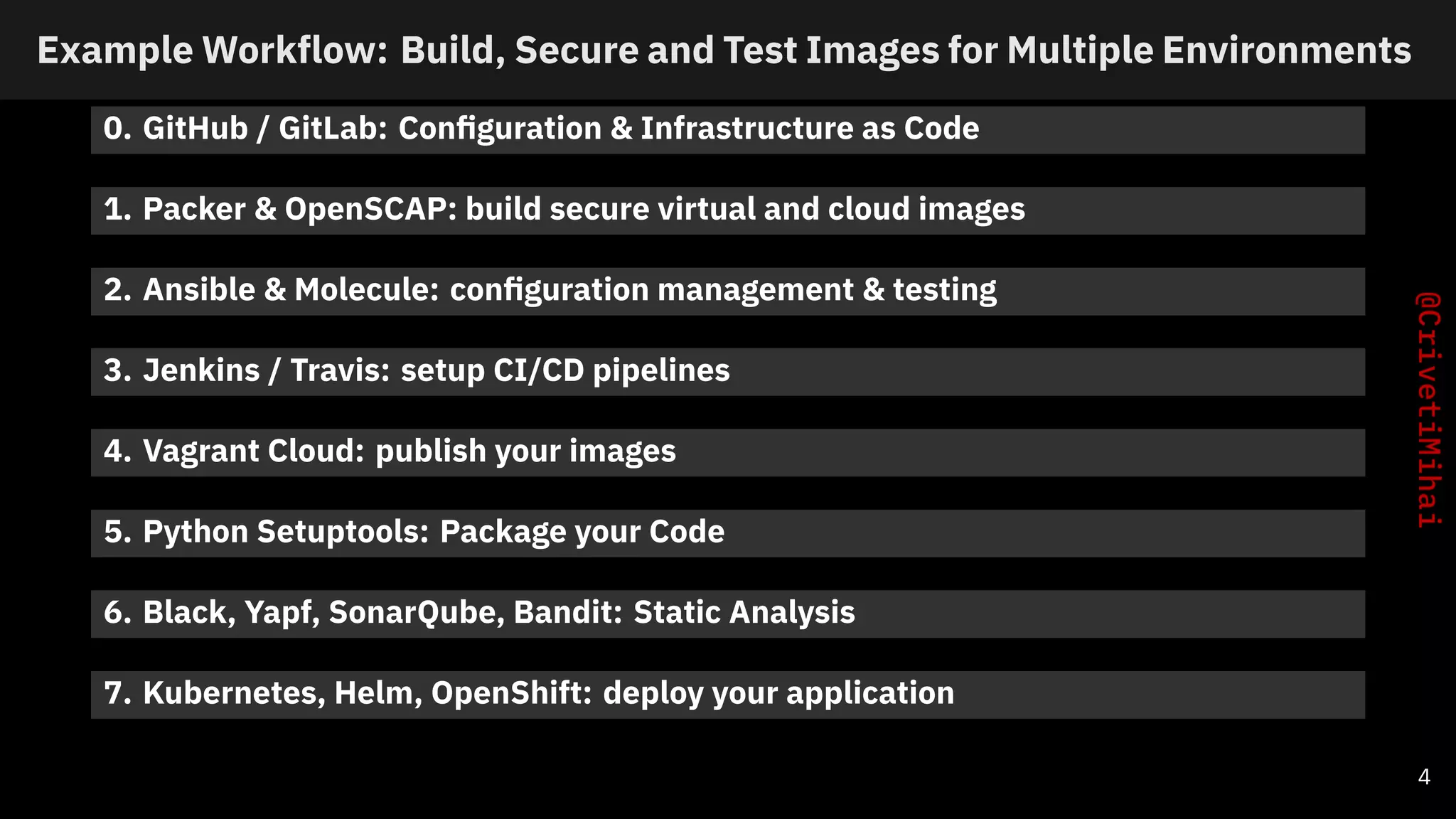

4. Example Workflow: Build, Secure and Test Images for Multiple Environments
0. GitHub / GitLab: Configuration & Infrastructure as Code
1. Packer & OpenSCAP: build secure virtual and cloud images
2. Ansible & Molecule: configuration management & testing
3. Jenkins / Travis: setup CI/CD pipelines
4. Vagrant Cloud: publish your images
5. Python Setuptools: Package your Code
6. Black, Yapf, SonarQube, Bandit: Static Analysis
7. Kubernetes, Helm, OpenShift: deploy your application
4

5. 1 Packer: Image Build
Automation

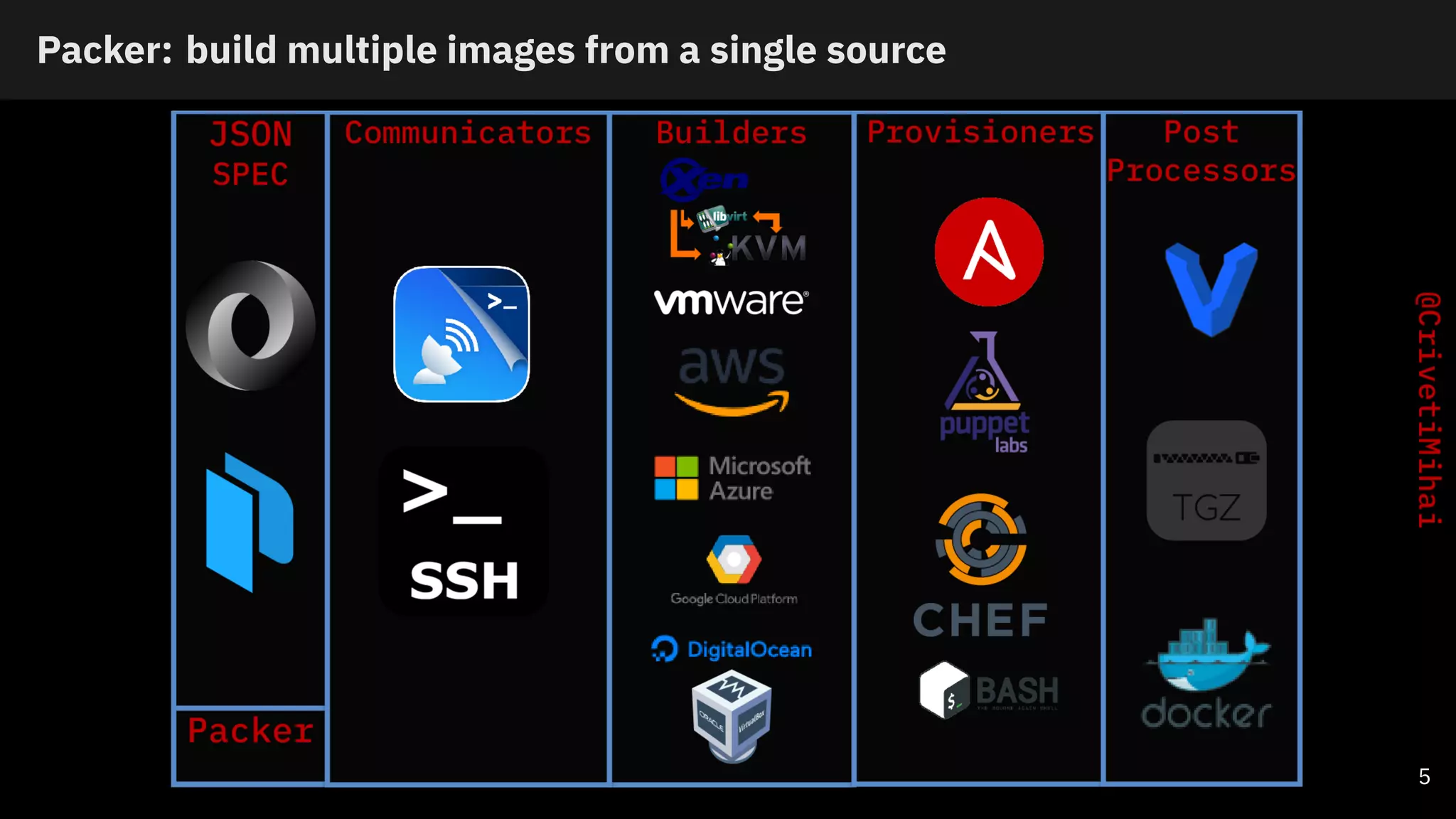

6. Packer: build multiple images from a single source
5

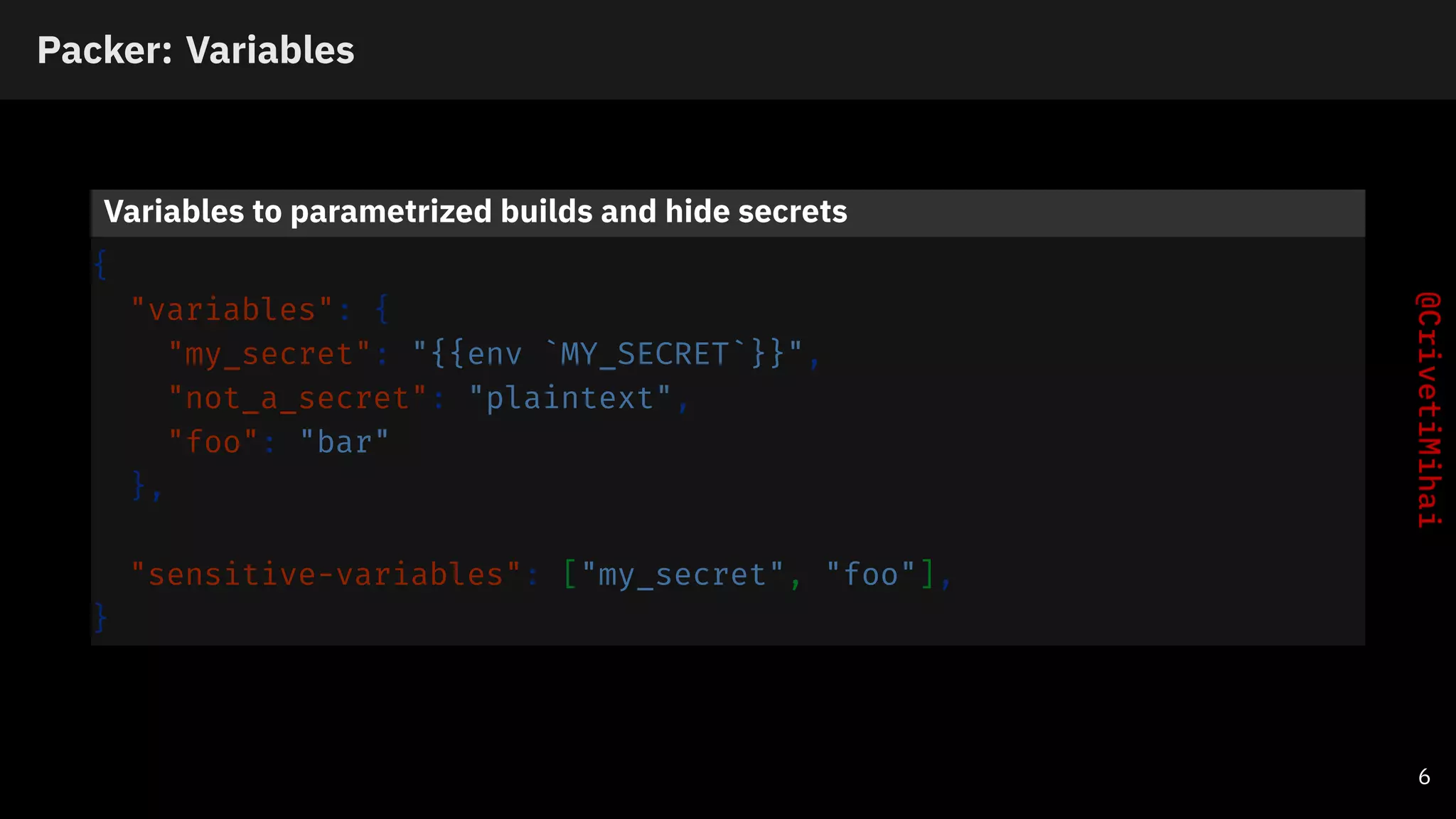

7. Packer: Variables
Variables to parametrized builds and hide secrets
{
"variables": {
"my_secret": "{{env `MY_SECRET`}}",
"not_a_secret": "plaintext",
"foo": "bar"
},
"sensitive-variables": ["my_secret", "foo"],
}
6

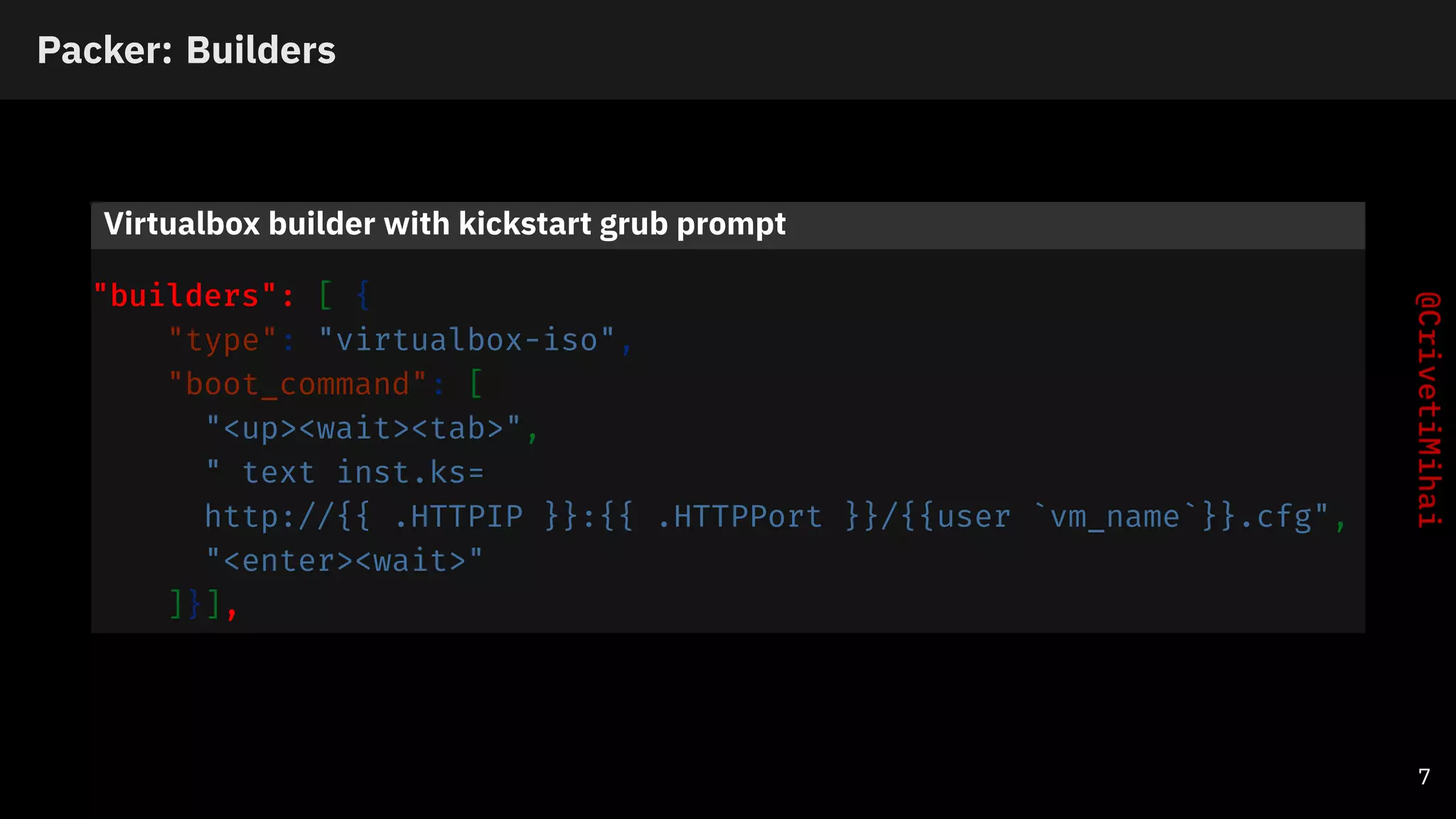

8. Packer: Builders
Virtualbox builder with kickstart grub prompt
"builders": [ {
"type": "virtualbox-iso",
"boot_command": [
"<up><wait><tab>",
" text inst.ks=
http://{{ .HTTPIP }}:{{ .HTTPPort }}/{{user `vm_name`}}.cfg",
"<enter><wait>"
]}],
7

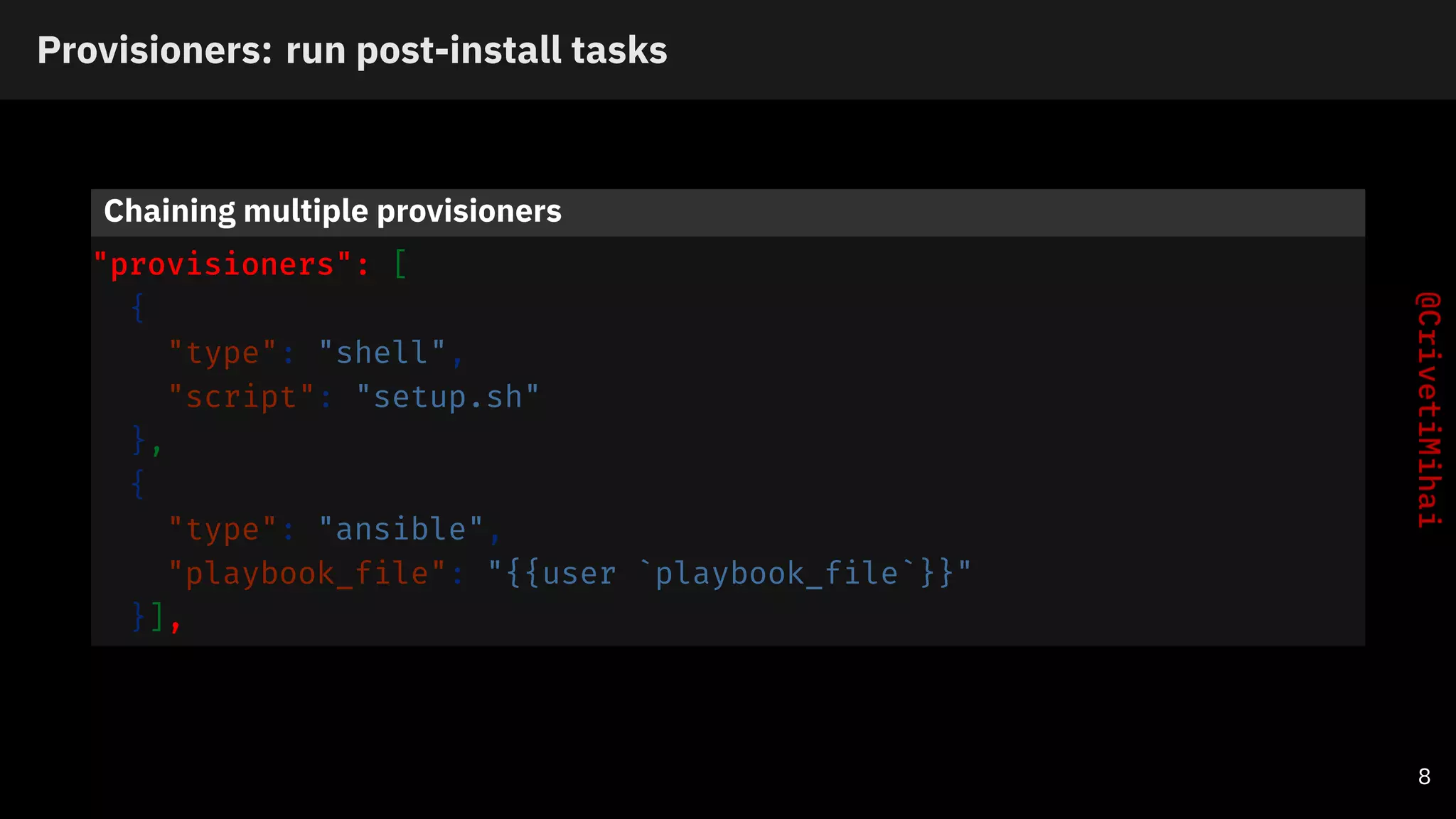

9. Provisioners: run post-install tasks
Chaining multiple provisioners
"provisioners": [
{
"type": "shell",
"script": "setup.sh"
},
{
"type": "ansible",
"playbook_file": "{{user `playbook_file`}}"
}],
8

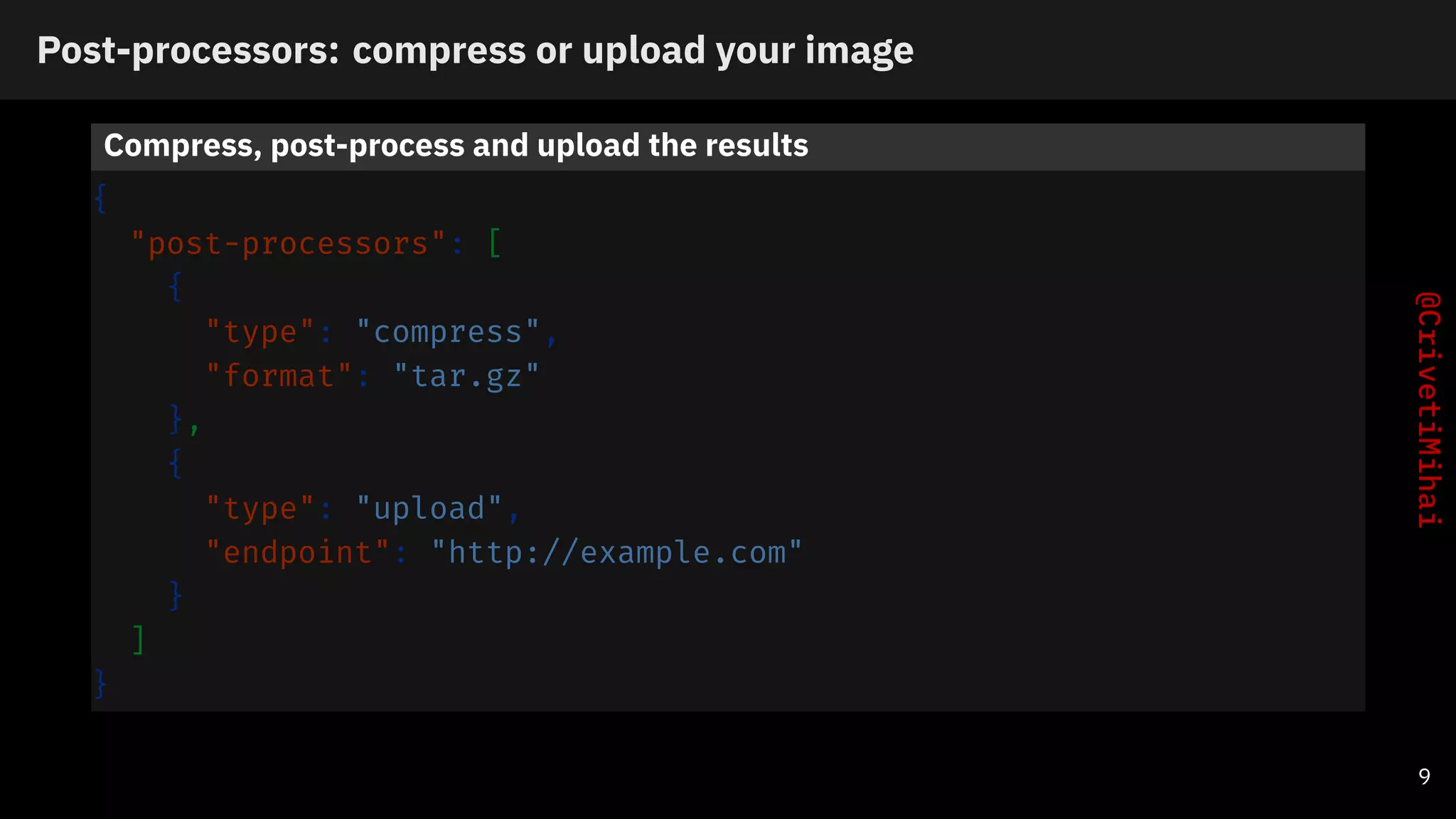

10. Post-processors: compress or upload your image
Compress, post-process and upload the results
{
"post-processors": [
{
"type": "compress",
"format": "tar.gz"
},
{
"type": "upload",
"endpoint": "http://example.com"
}
]
}
9

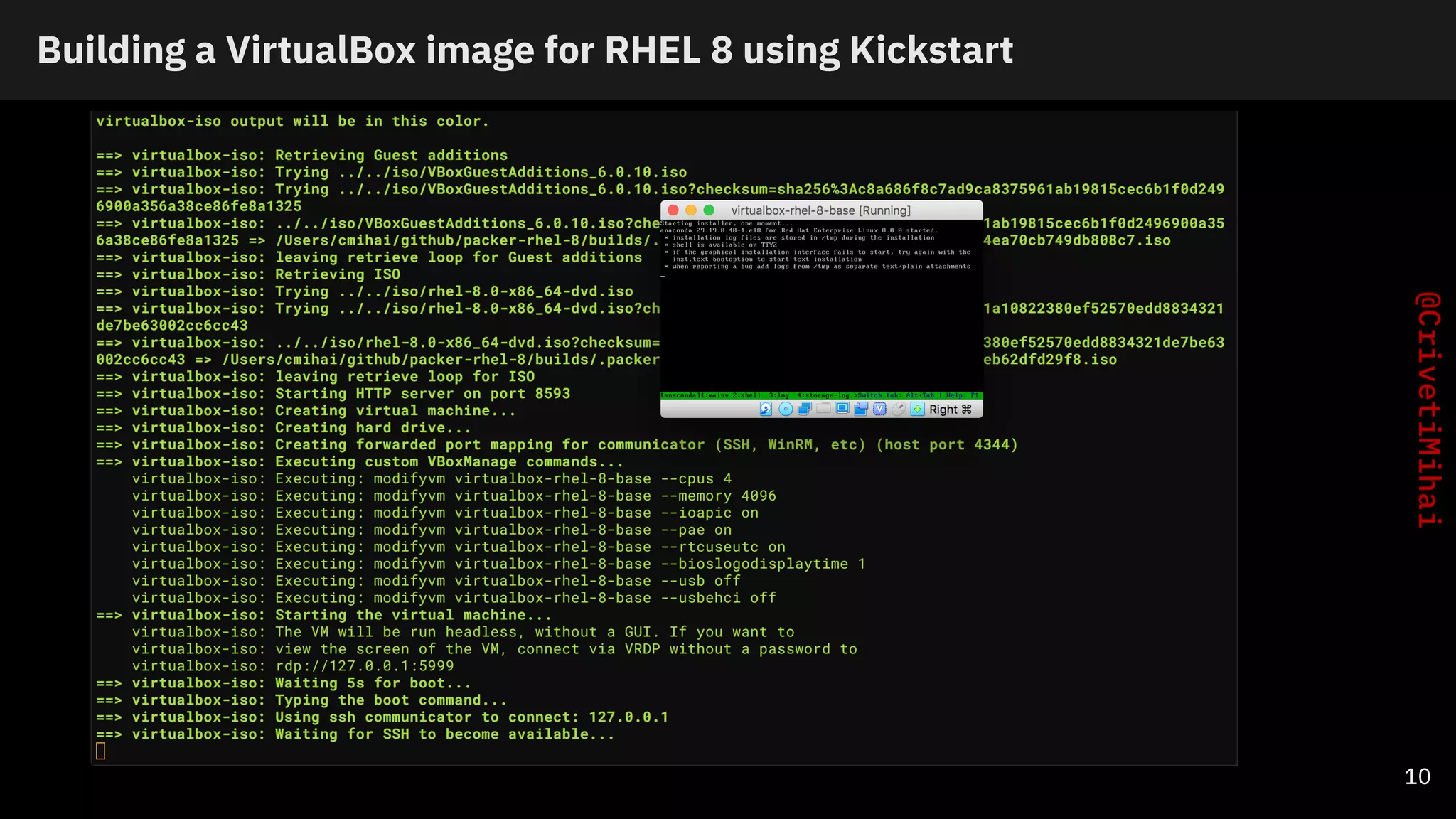

11. Building a VirtualBox image for RHEL 8 using Kickstart
10

12. 2 OpenSCAP: Automate Security
Baselines

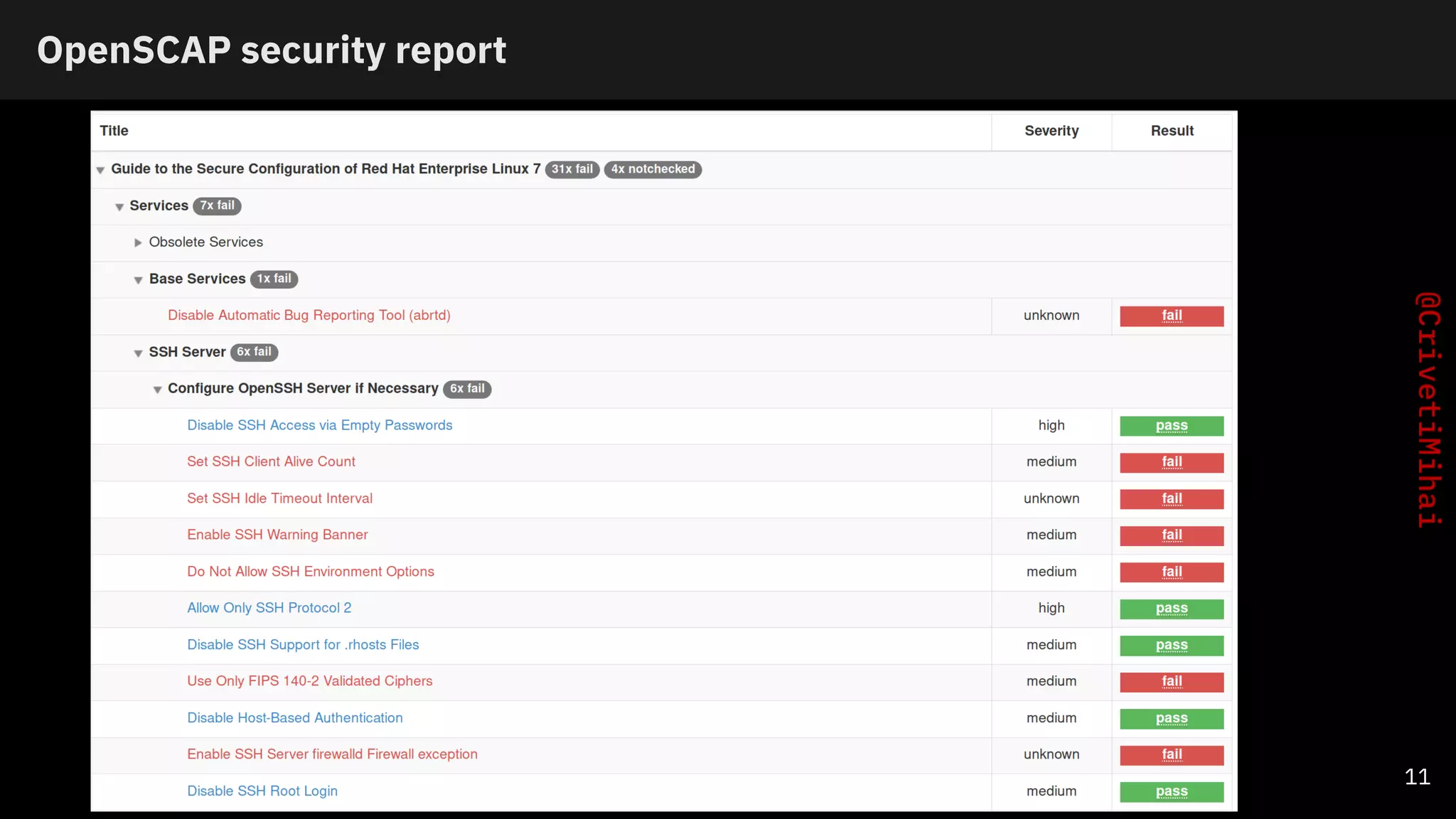

13. OpenSCAP security report
11

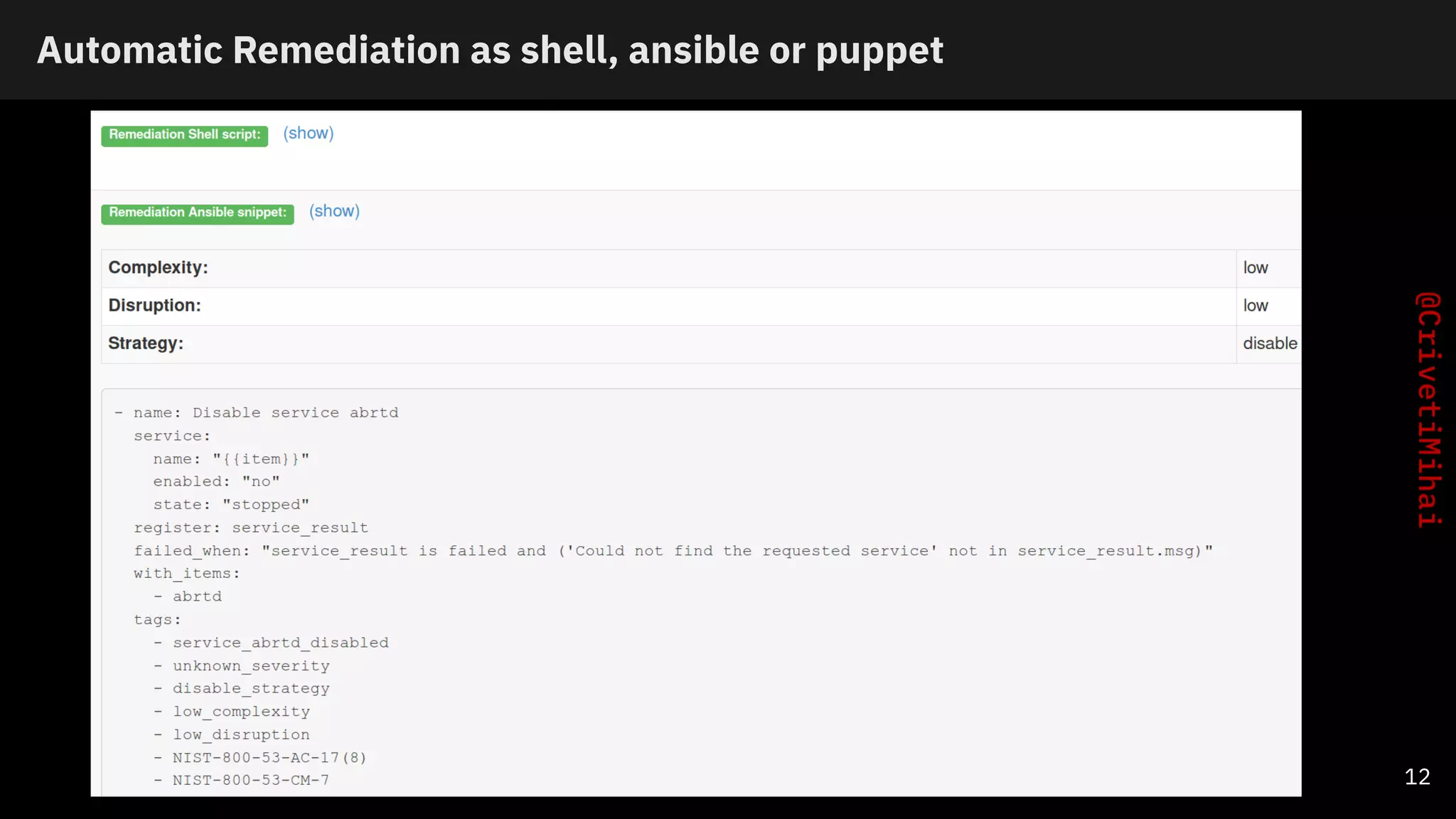

14. Automatic Remediation as shell, ansible or puppet
12

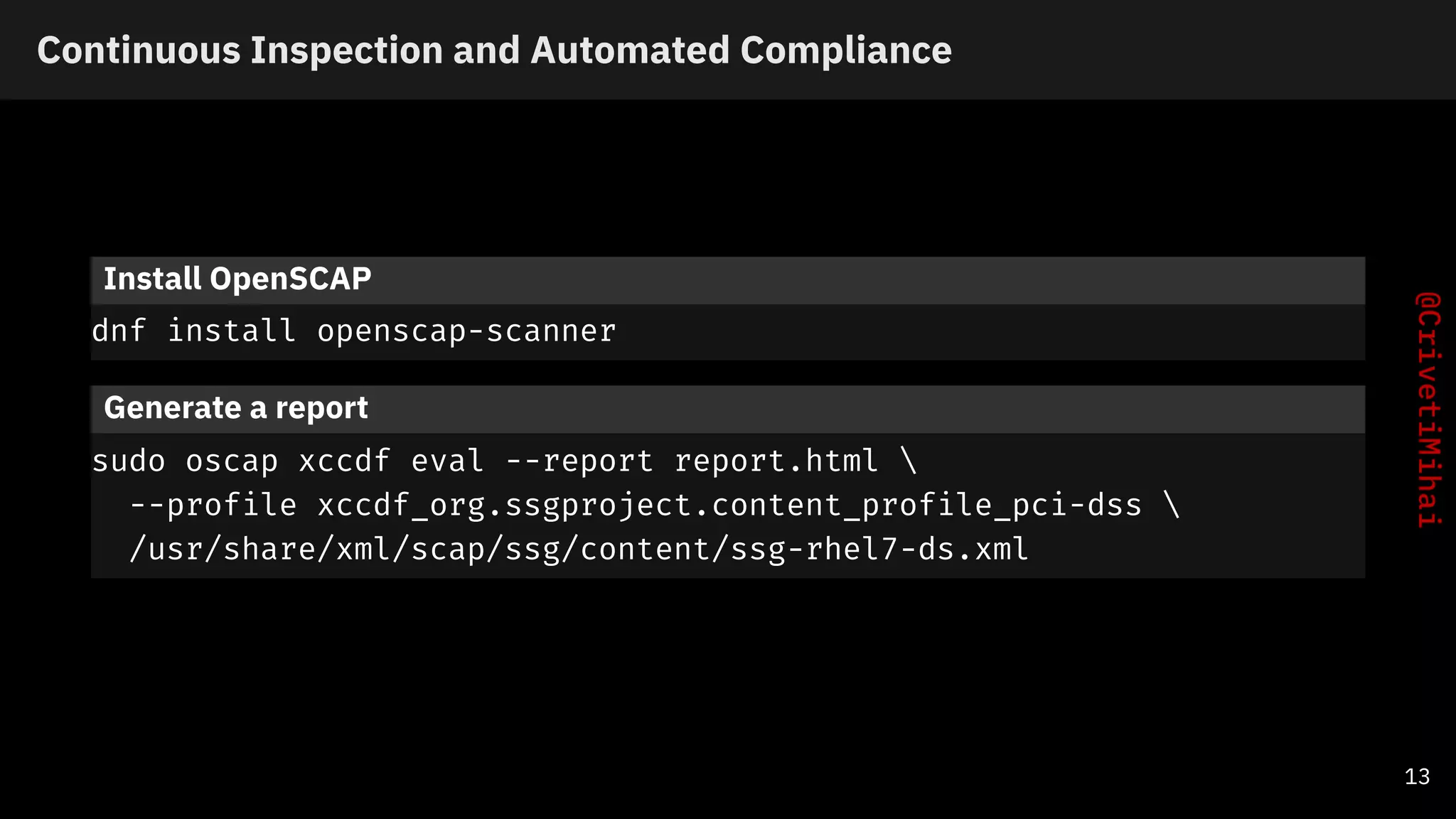

15. Continuous Inspection and Automated Compliance
Install OpenSCAP
dnf install openscap-scanner
Generate a report
sudo oscap xccdf eval --report report.html
--profile xccdf_org.ssgproject.content_profile_pci-dss
/usr/share/xml/scap/ssg/content/ssg-rhel7-ds.xml
13

16. 3 Ansible: Provisioning and
Configuration Management

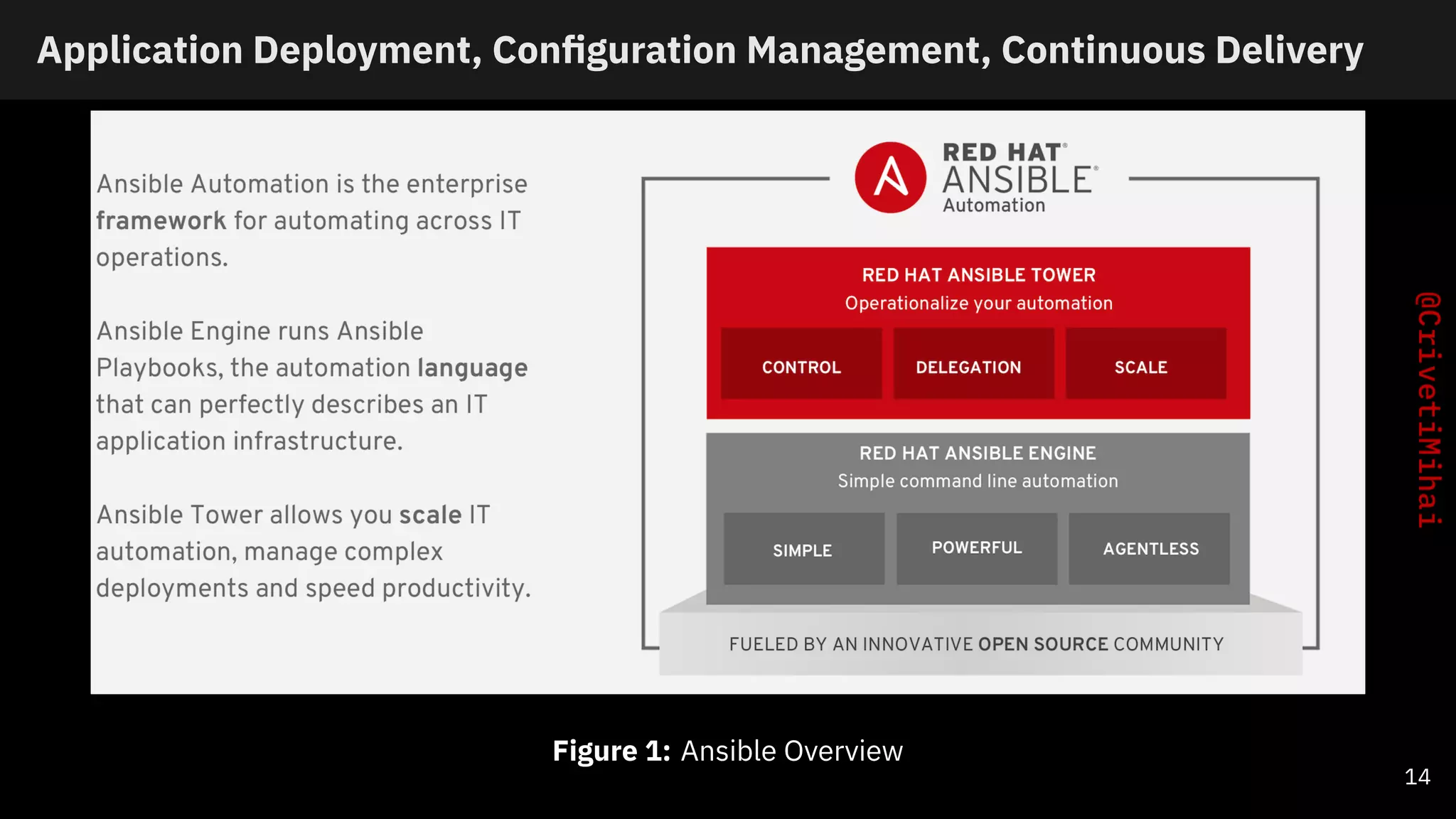

17. Application Deployment, Configuration Management, Continuous Delivery
Figure 1: Ansible Overview
14

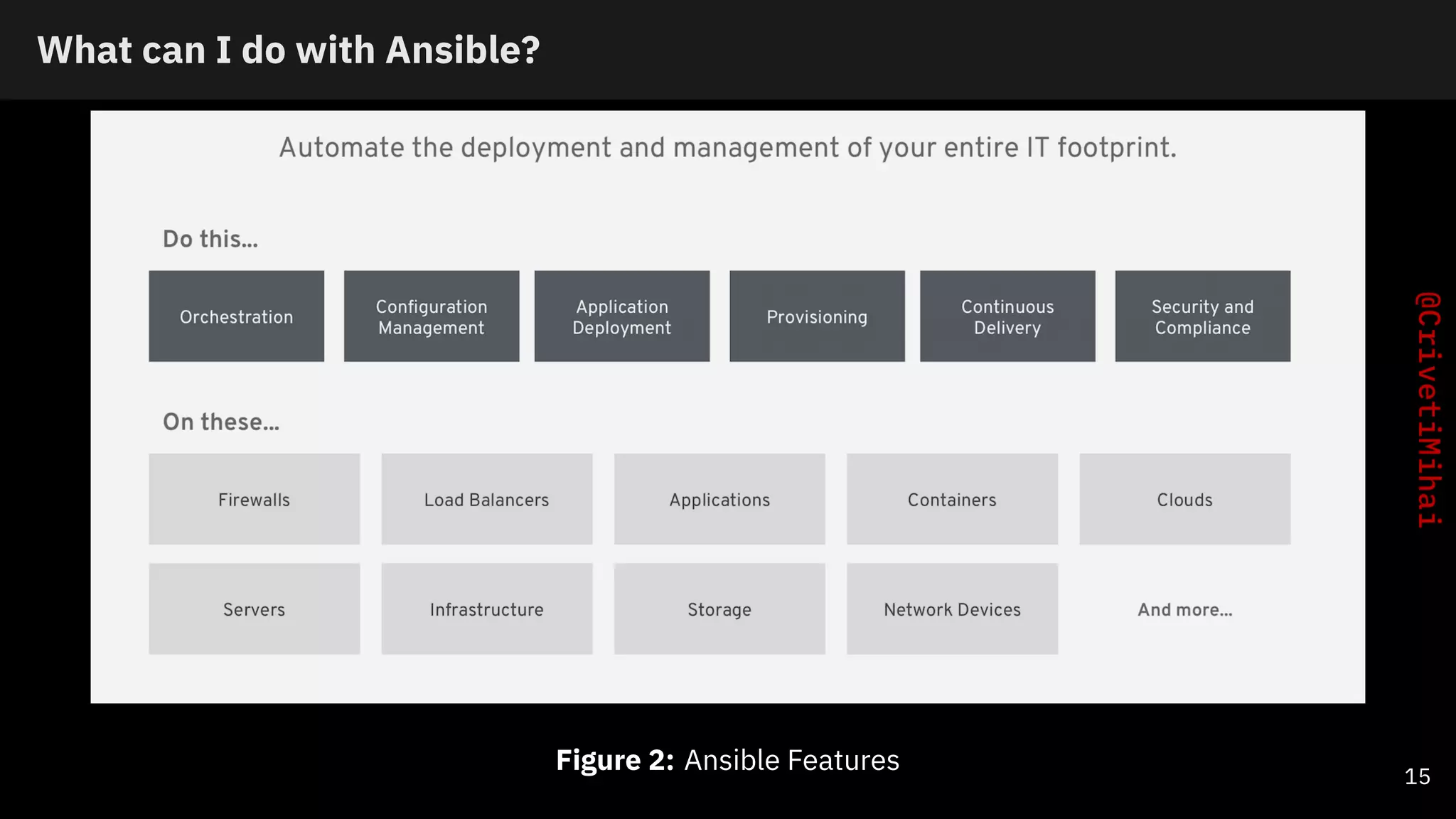

18. What can I do with Ansible?
Figure 2: Ansible Features 15

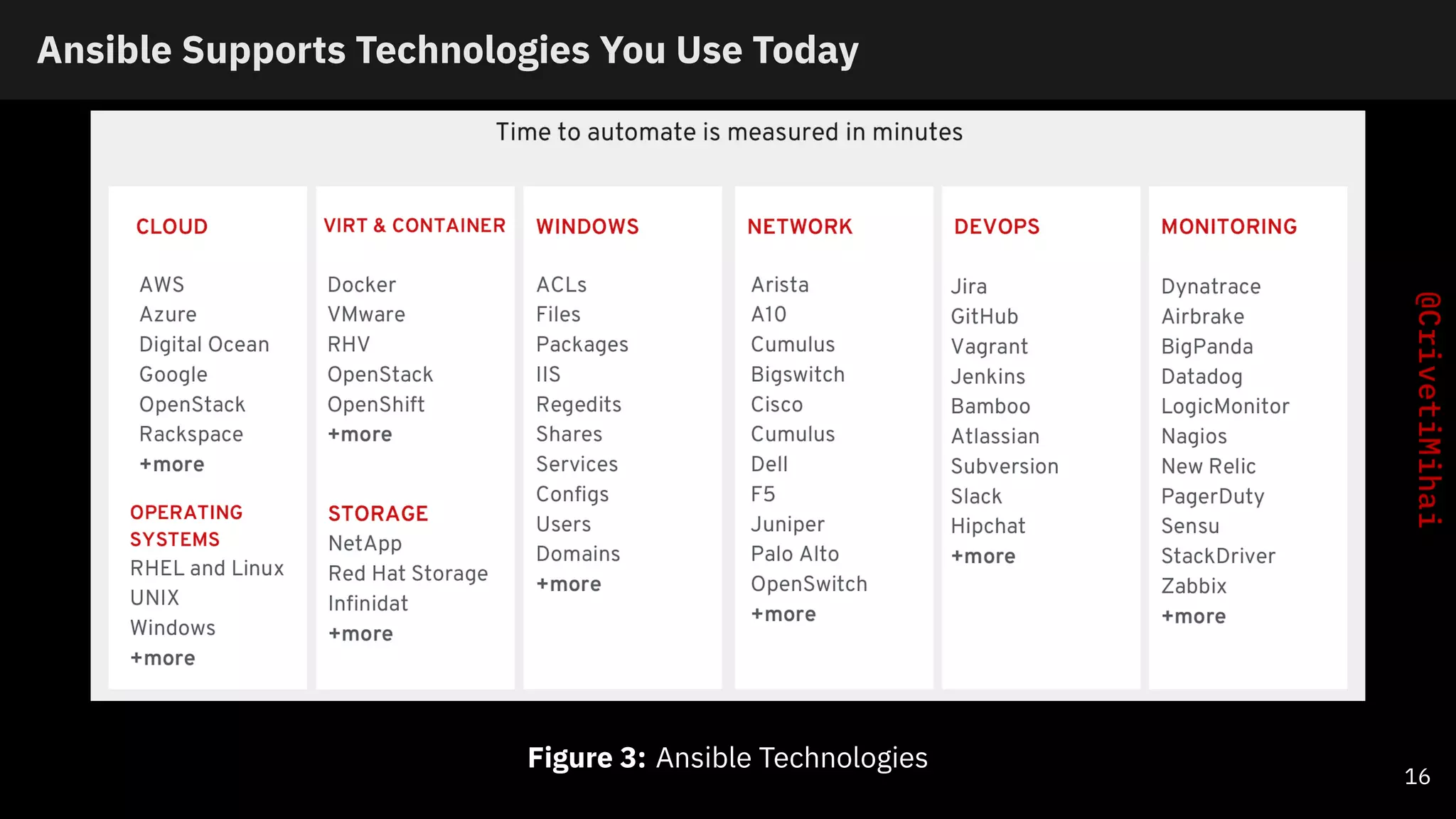

19. Ansible Supports Technologies You Use Today
Figure 3: Ansible Technologies
16

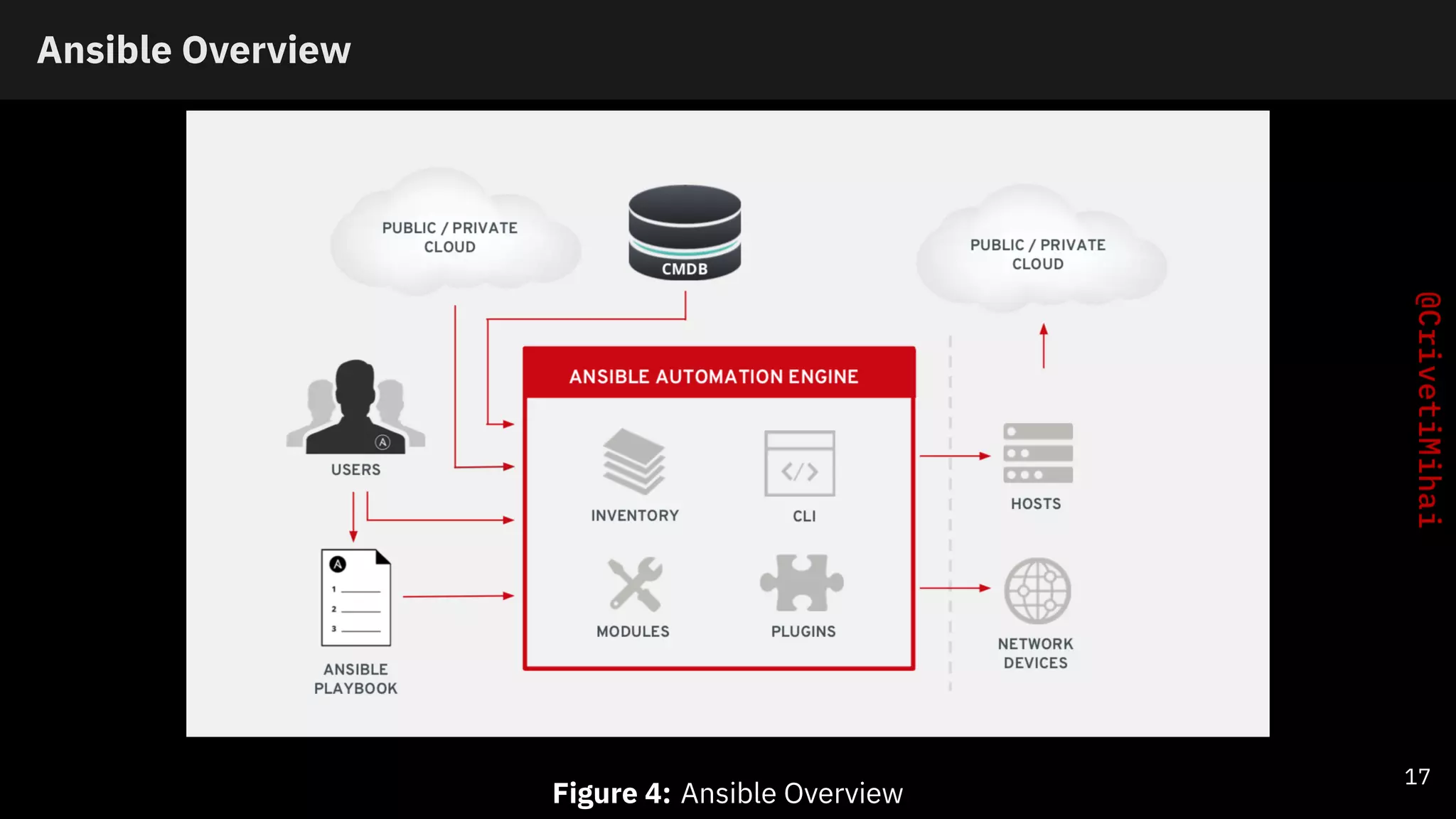

20. Ansible Overview
Figure 4: Ansible Overview
17

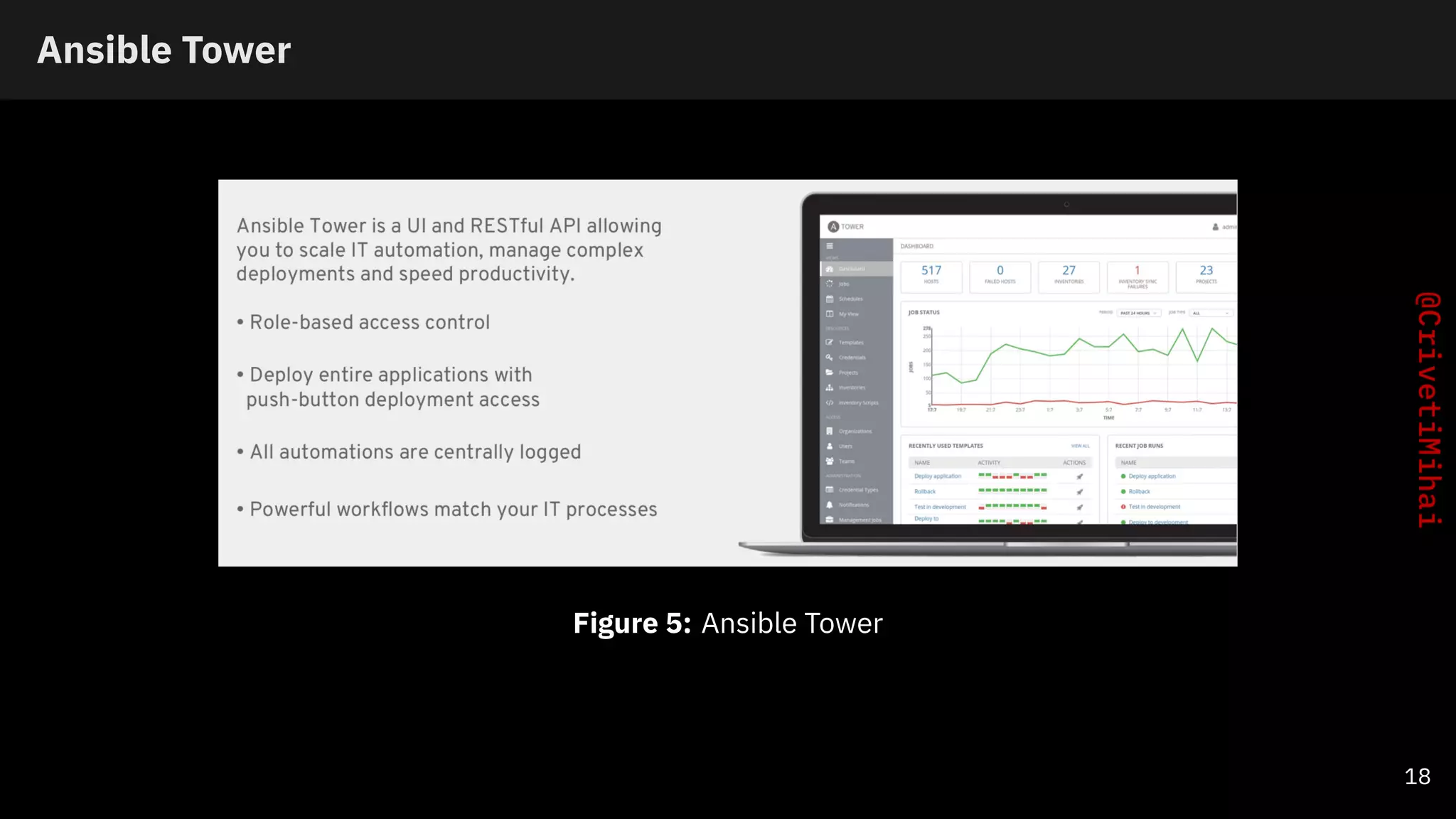

21. Ansible Tower
Figure 5: Ansible Tower
18

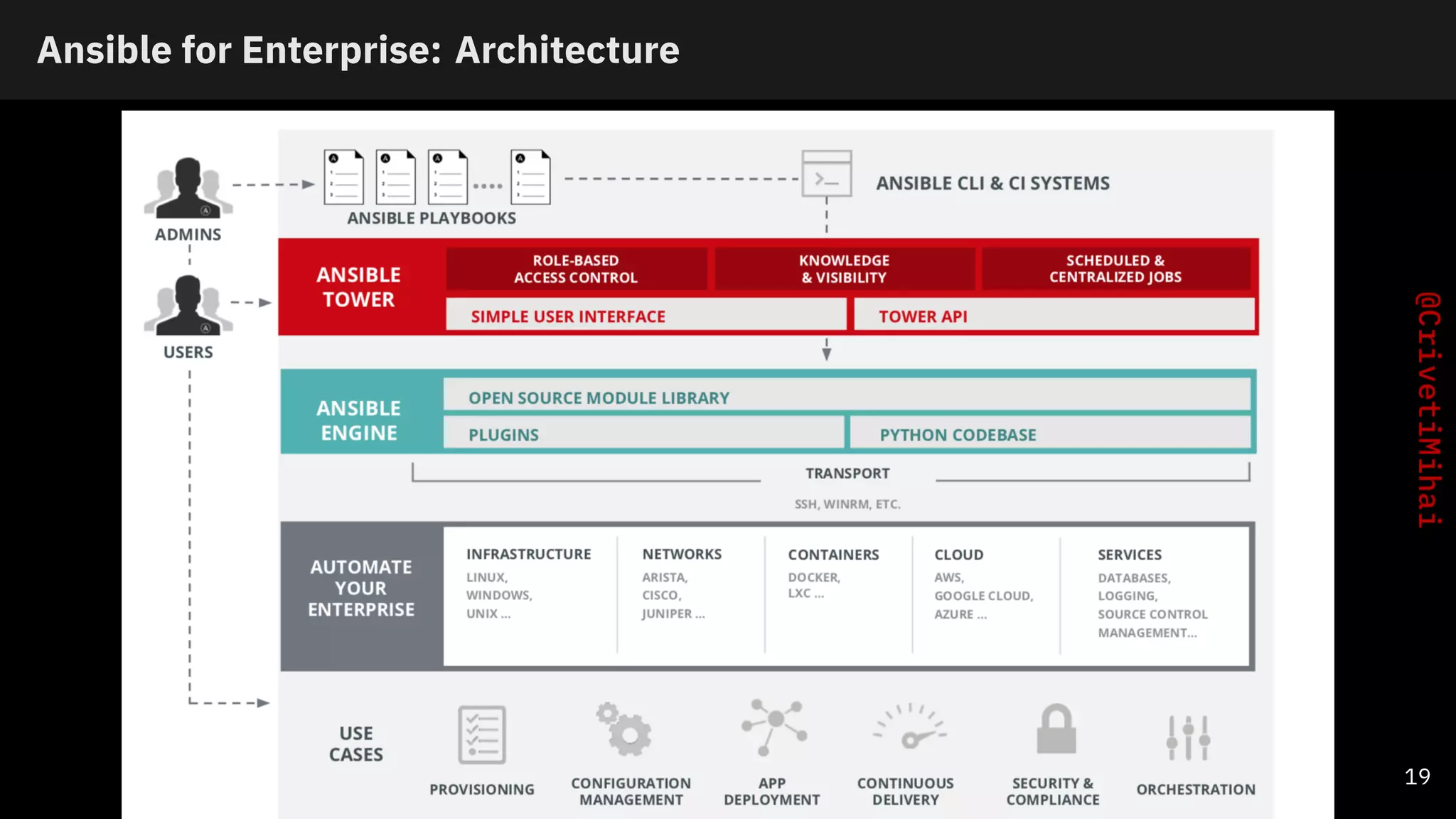

22. Ansible for Enterprise: Architecture
19

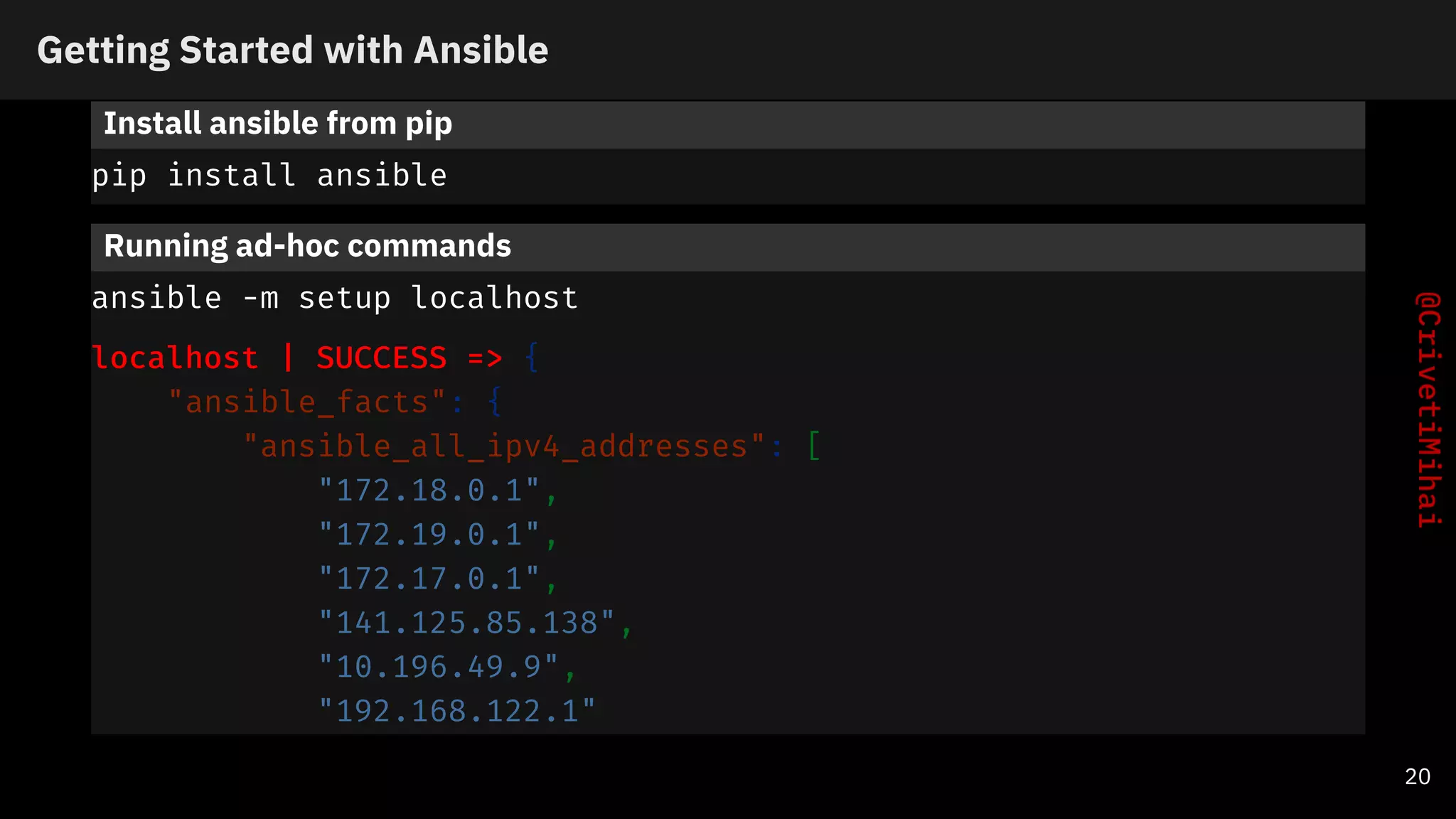

23. Getting Started with Ansible
Install ansible from pip
pip install ansible
Running ad-hoc commands
ansible -m setup localhost
localhost | SUCCESS => {
"ansible_facts": {
"ansible_all_ipv4_addresses": [
"172.18.0.1",
"172.19.0.1",
"172.17.0.1",
"141.125.85.138",
"10.196.49.9",
"192.168.122.1"
20

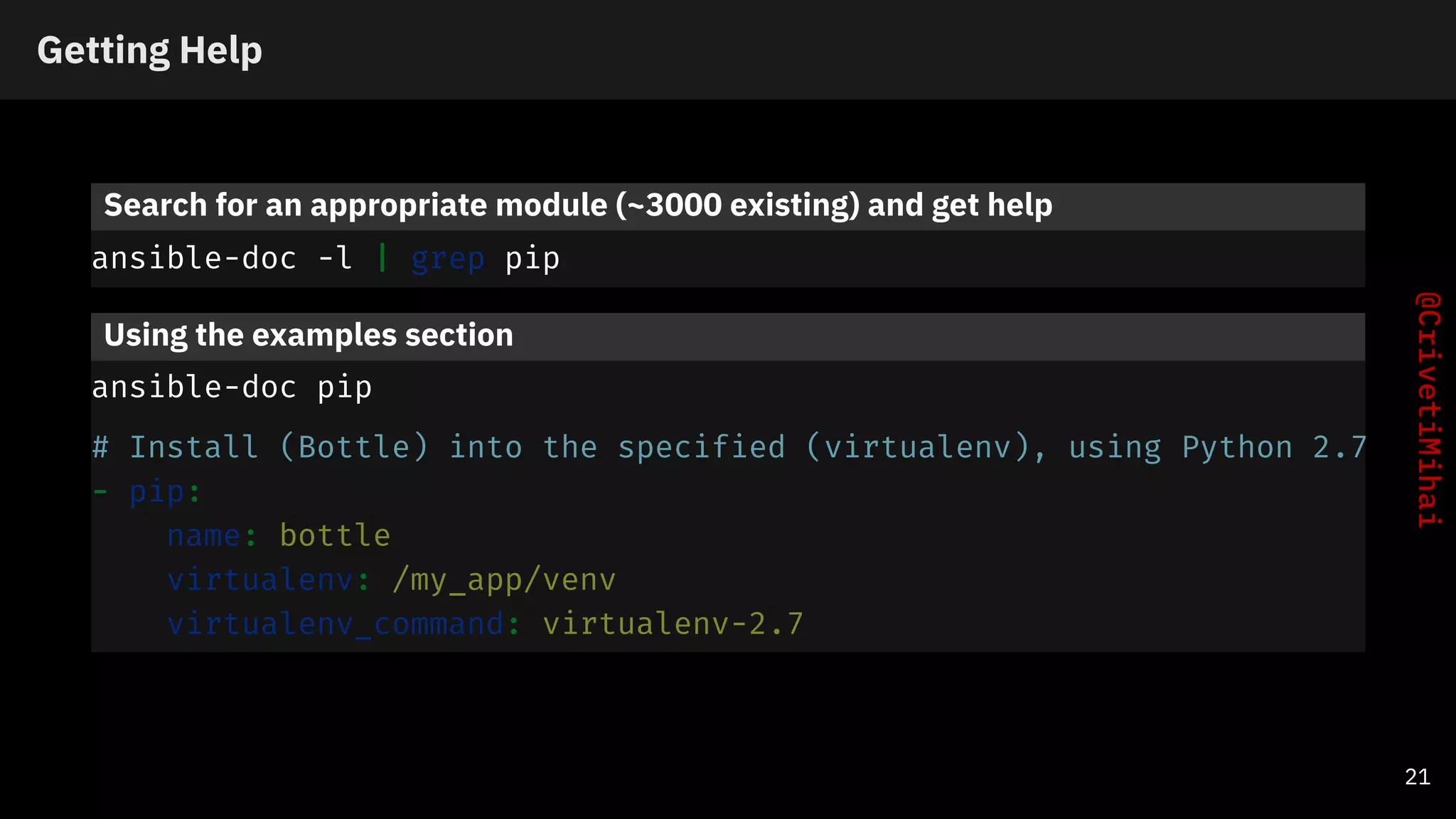

24. Getting Help
Search for an appropriate module (~3000 existing) and get help
ansible-doc -l | grep pip
Using the examples section
ansible-doc pip
# Install (Bottle) into the specified (virtualenv), using Python 2.7
- pip:
name: bottle
virtualenv: /my_app/venv
virtualenv_command: virtualenv-2.7
21

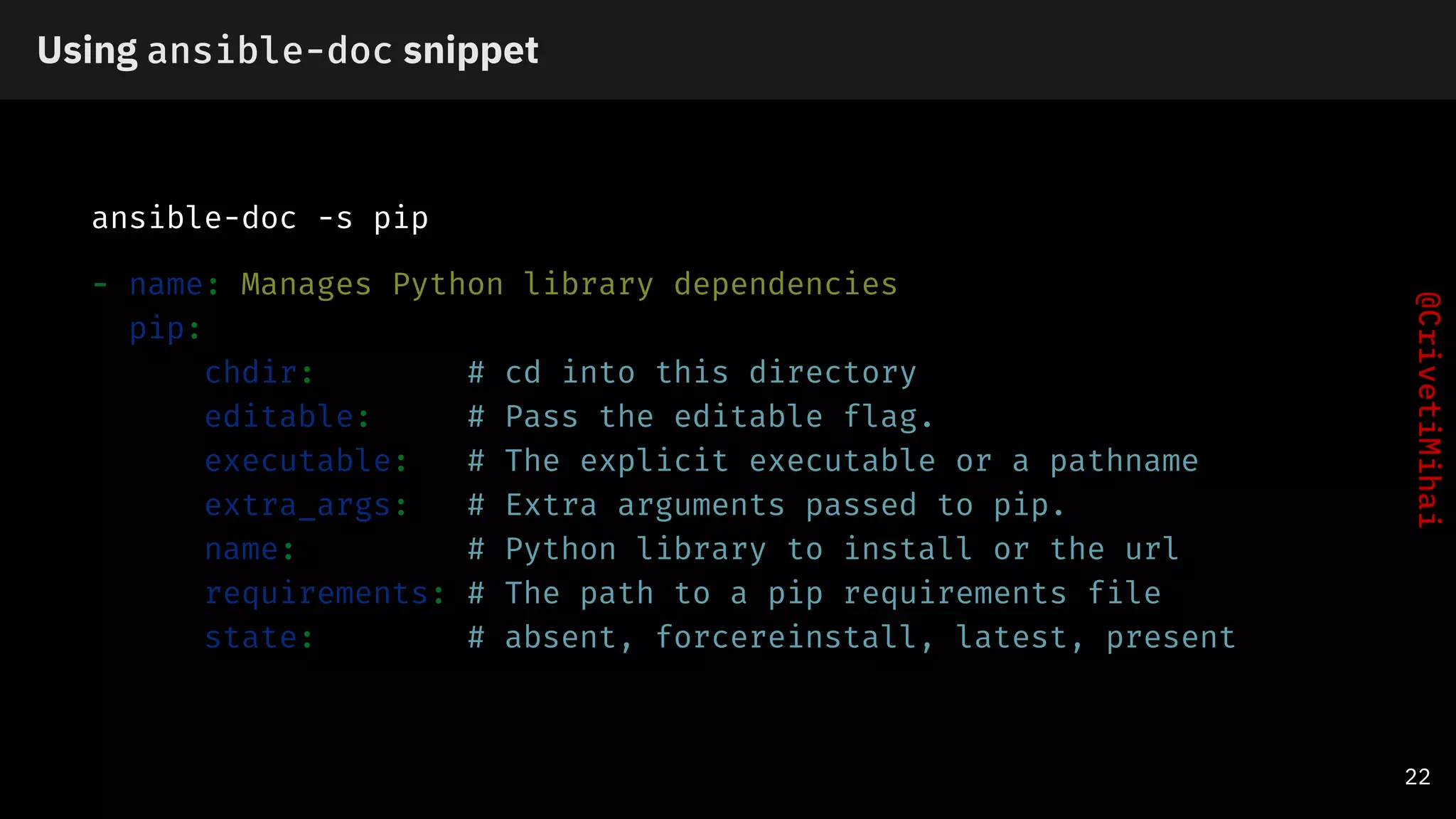

25. Using ansible-doc snippet
ansible-doc -s pip
- name: Manages Python library dependencies
pip:
chdir: # cd into this directory
editable: # Pass the editable flag.
executable: # The explicit executable or a pathname
extra_args: # Extra arguments passed to pip.
name: # Python library to install or the url
requirements: # The path to a pip requirements file
state: # absent, forcereinstall, latest, present
22

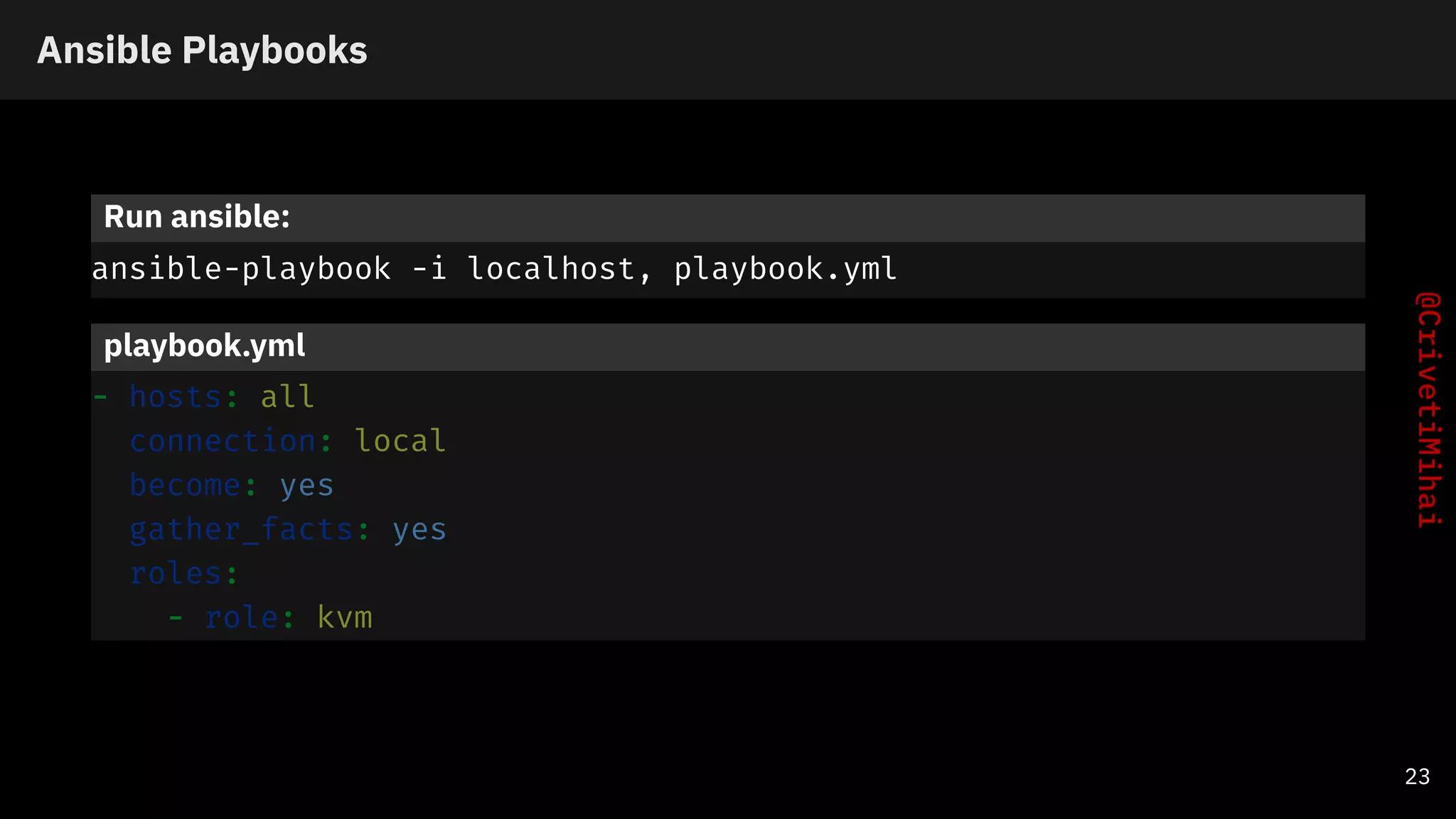

26. Ansible Playbooks
Run ansible:
ansible-playbook -i localhost, playbook.yml
playbook.yml
- hosts: all
connection: local
become: yes
gather_facts: yes
roles:
- role: kvm
23

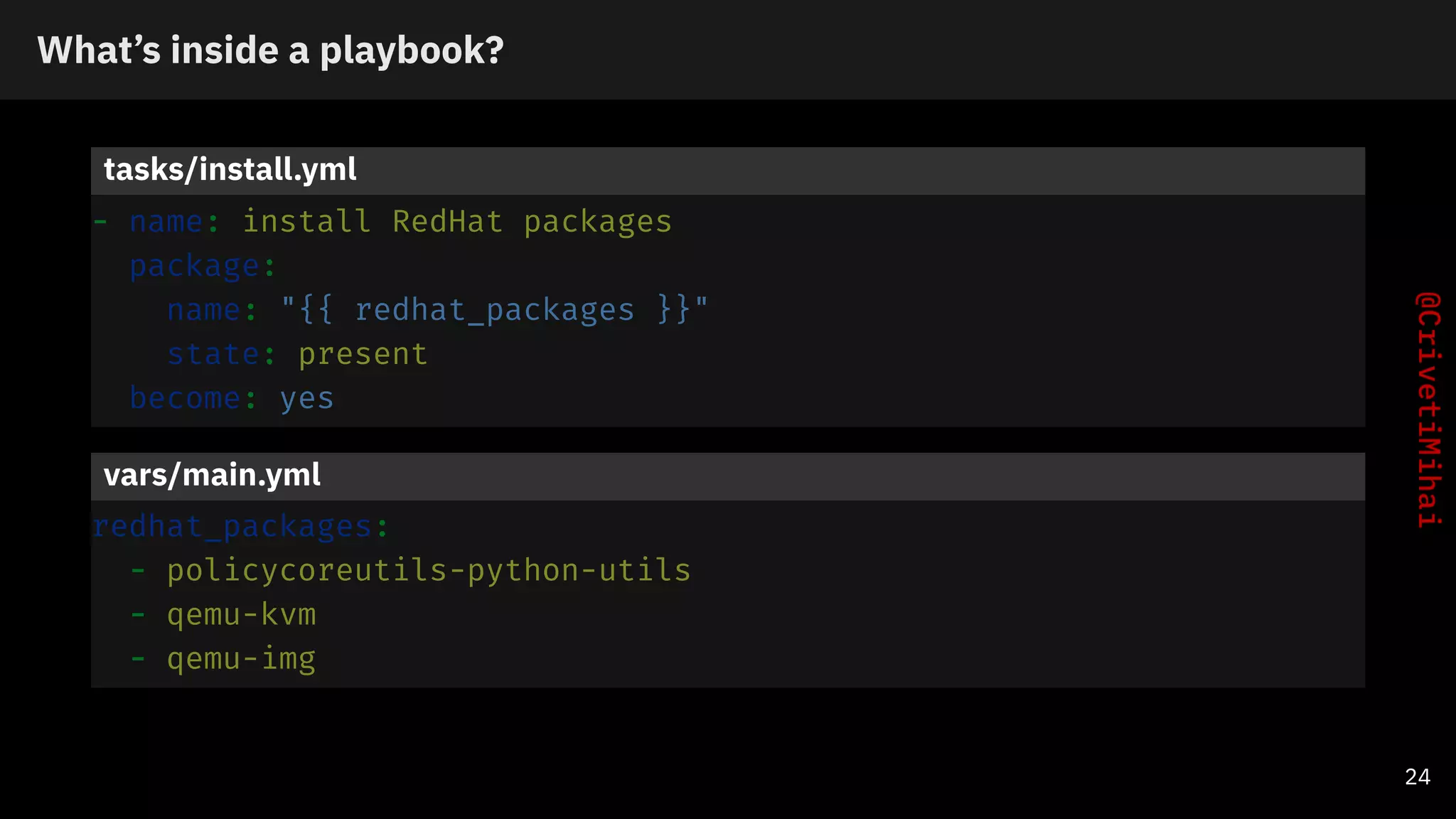

27. What’s inside a playbook?
tasks/install.yml
- name: install RedHat packages
package:
name: "{{ redhat_packages }}"
state: present
become: yes
vars/main.yml
redhat_packages:
- policycoreutils-python-utils
- qemu-kvm
- qemu-img
24

28. 4 Molecule: Test your Ansible
Playbooks on Docker, Vagrant or
Cloud

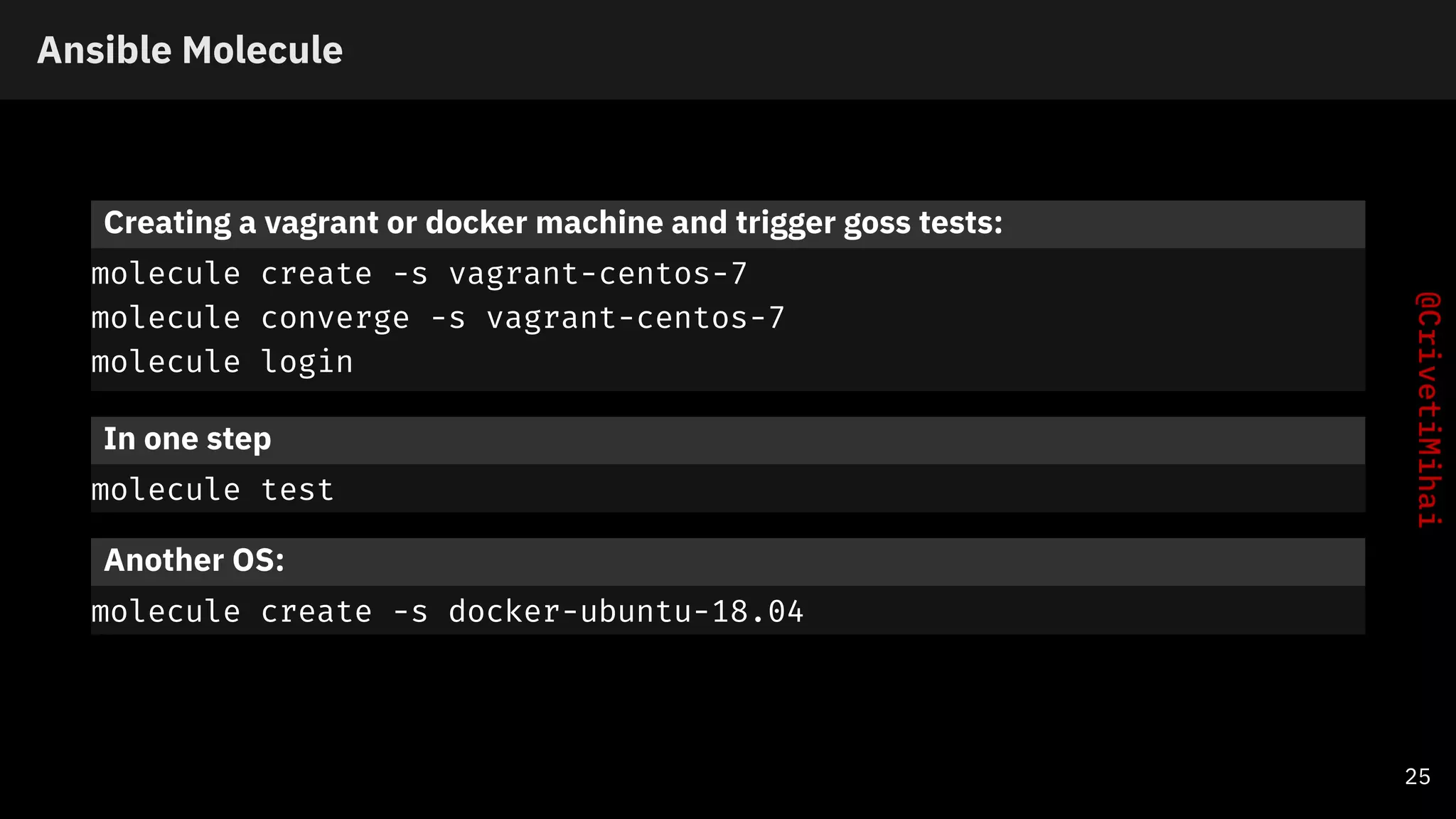

29. Ansible Molecule
Creating a vagrant or docker machine and trigger goss tests:
molecule create -s vagrant-centos-7
molecule converge -s vagrant-centos-7
molecule login
In one step
molecule test
Another OS:
molecule create -s docker-ubuntu-18.04
25

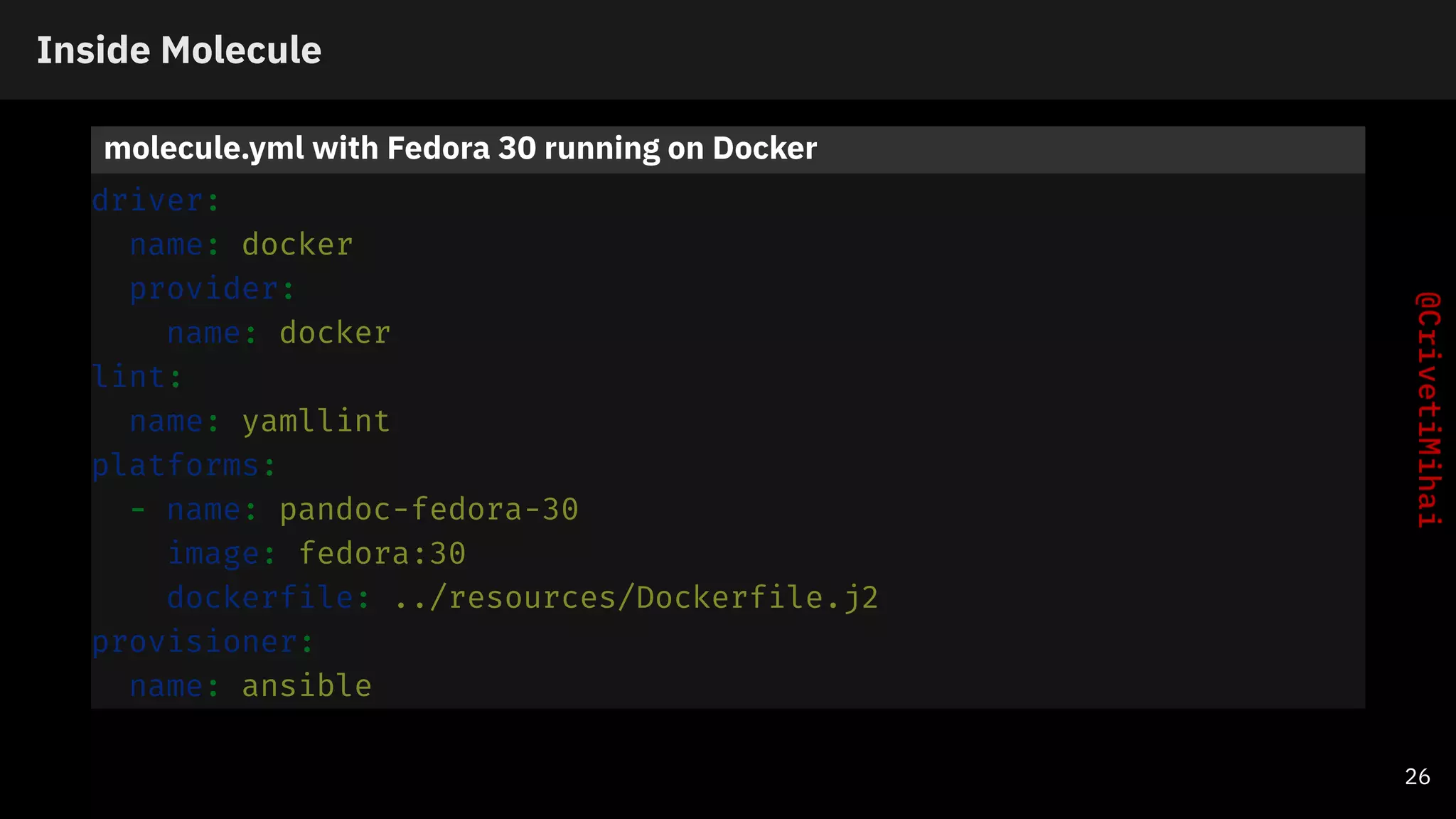

30. Inside Molecule
molecule.yml with Fedora 30 running on Docker
driver:
name: docker
provider:
name: docker
lint:
name: yamllint
platforms:
- name: pandoc-fedora-30
image: fedora:30
dockerfile: ../resources/Dockerfile.j2
provisioner:
name: ansible
26

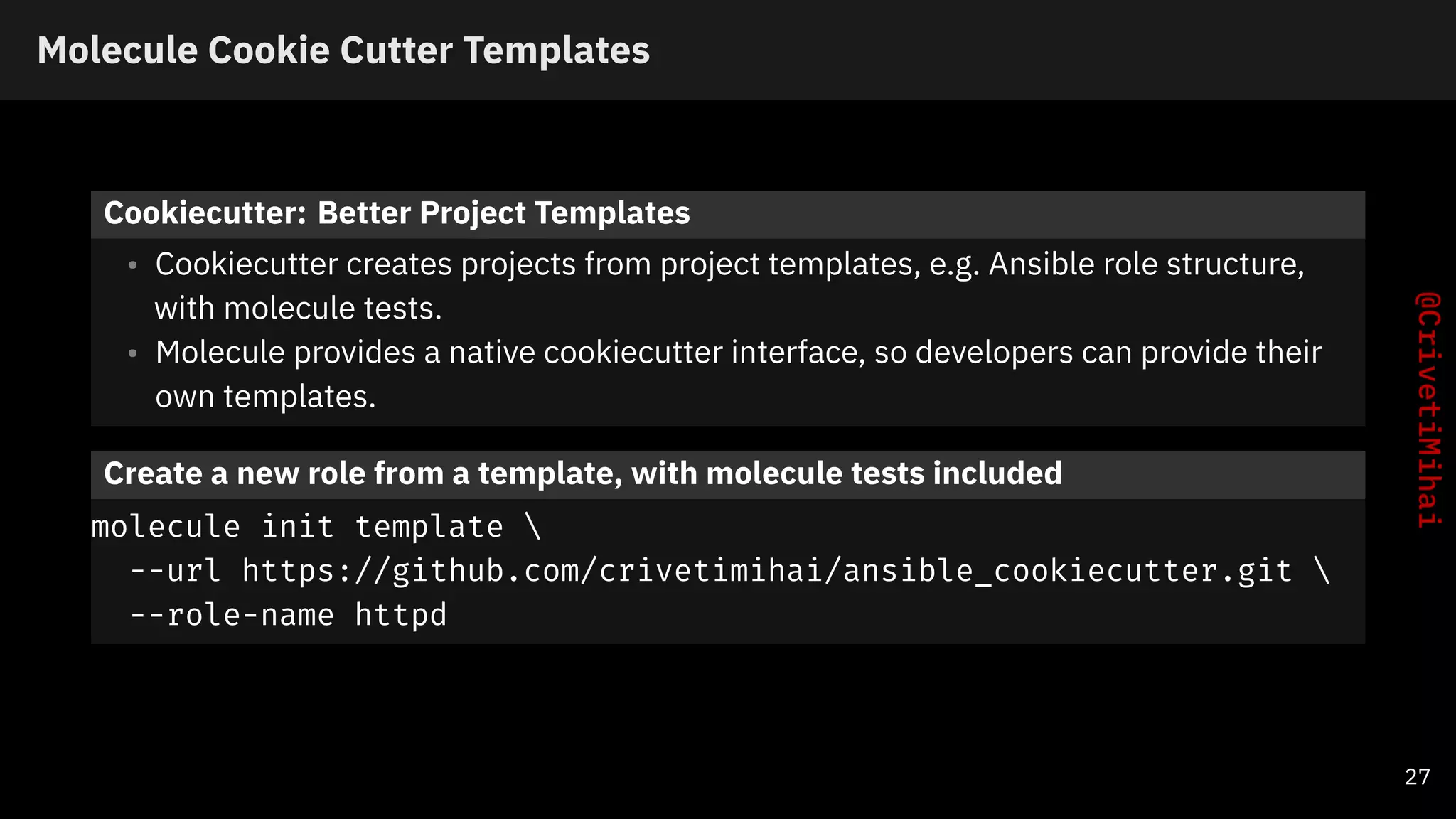

31. Molecule Cookie Cutter Templates
Cookiecutter: Better Project Templates
• Cookiecutter creates projects from project templates, e.g. Ansible role structure,
with molecule tests.
• Molecule provides a native cookiecutter interface, so developers can provide their
own templates.
Create a new role from a template, with molecule tests included
molecule init template
--url https://github.com/crivetimihai/ansible_cookiecutter.git
--role-name httpd
27

32. 5 Vagrant: Test images with
vagrant

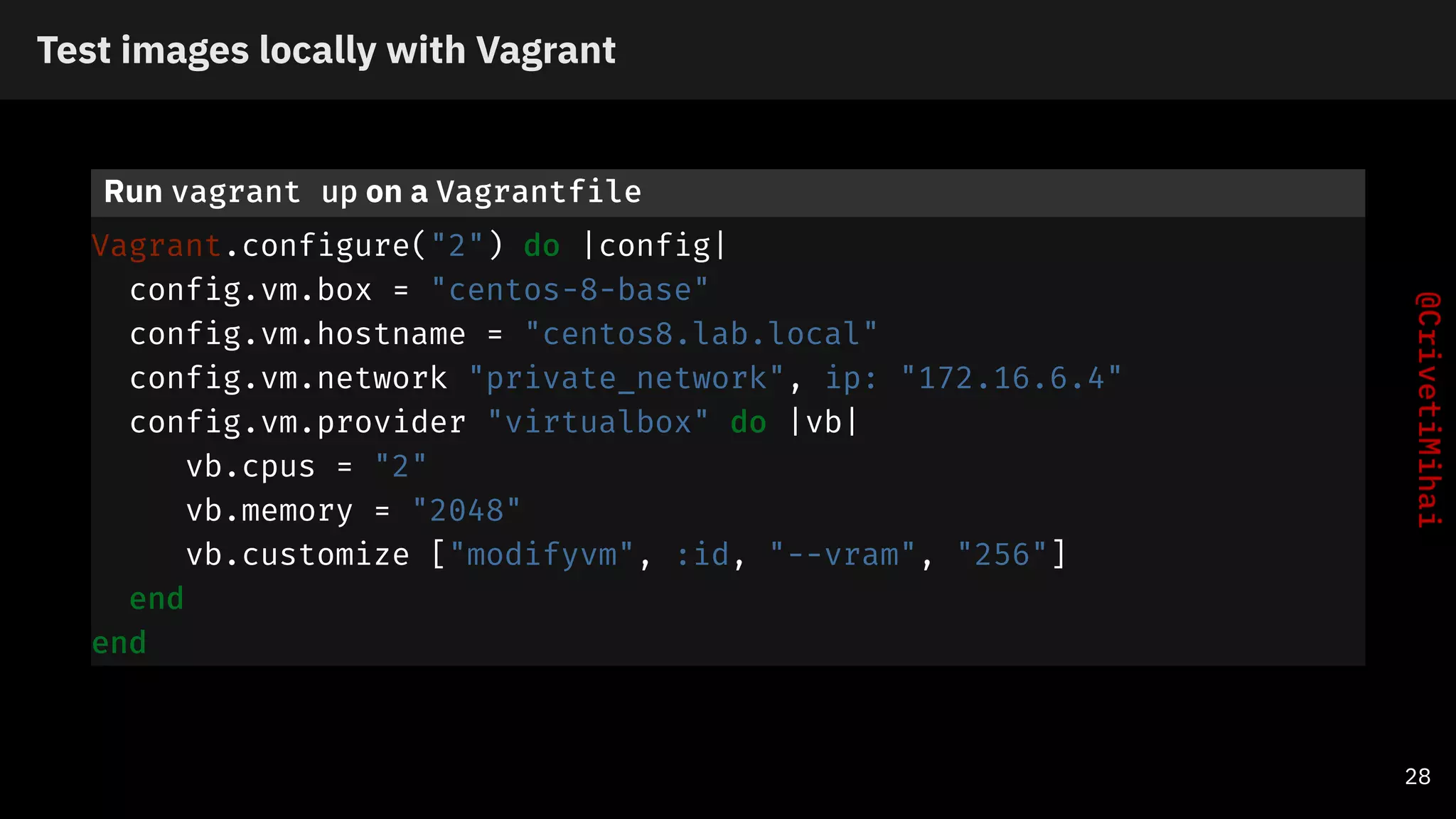

33. Test images locally with Vagrant
Run vagrant up on a Vagrantfile
Vagrant.configure("2") do |config|
config.vm.box = "centos-8-base"
config.vm.hostname = "centos8.lab.local"
config.vm.network "private_network", ip: "172.16.6.4"
config.vm.provider "virtualbox" do |vb|
vb.cpus = "2"
vb.memory = "2048"
vb.customize ["modifyvm", :id, "--vram", "256"]
end
end
28

34. 6 Package Python Applications
with setuptools

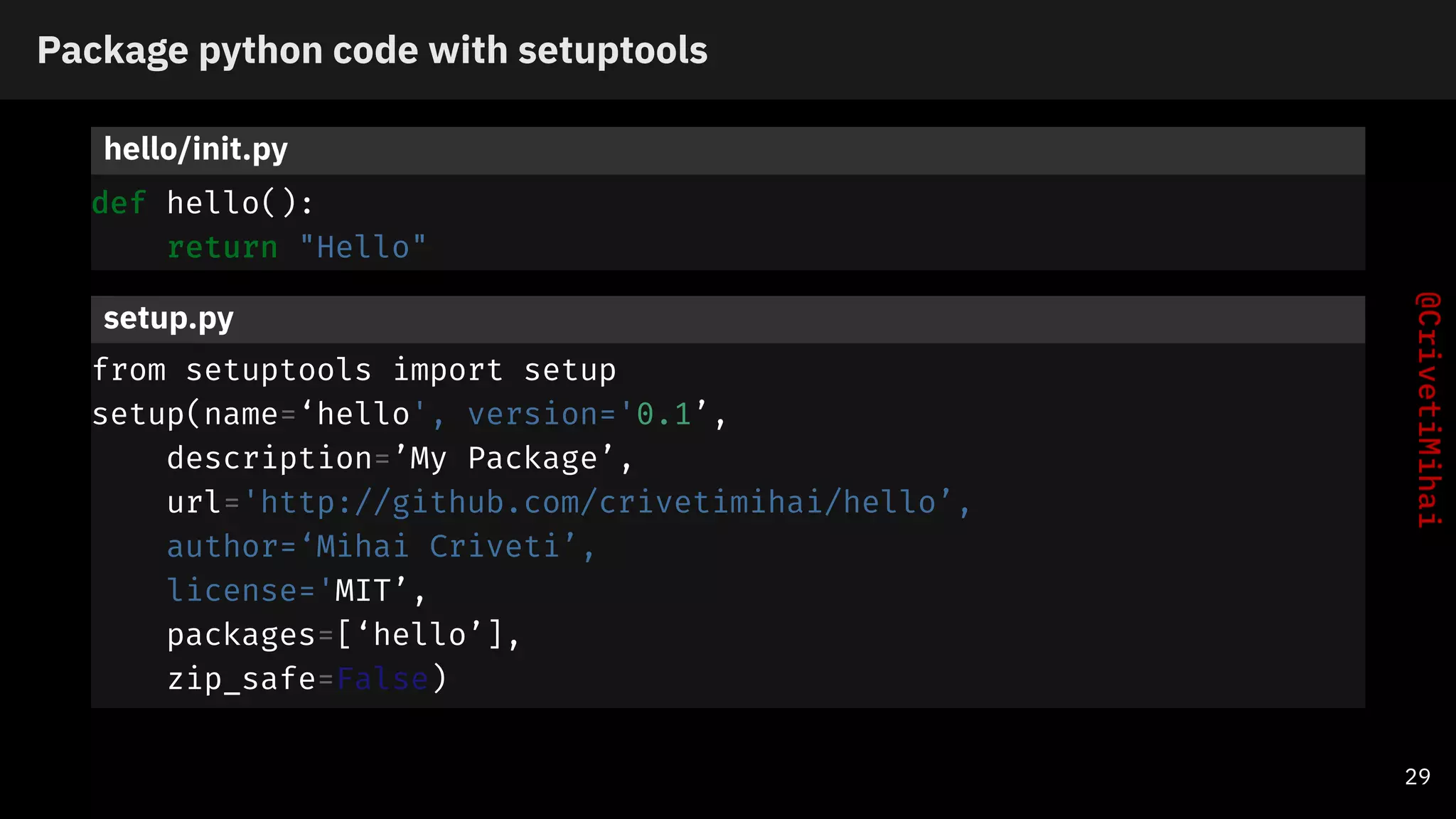

35. Package python code with setuptools
hello/init.py
def hello():
return "Hello"
setup.py
from setuptools import setup
setup(name=‘hello', version='0.1’,
description=’My Package’,
url='http://github.com/crivetimihai/hello’,
author=‘Mihai Criveti’,
license='MIT’,
packages=[‘hello’],
zip_safe=False)
29

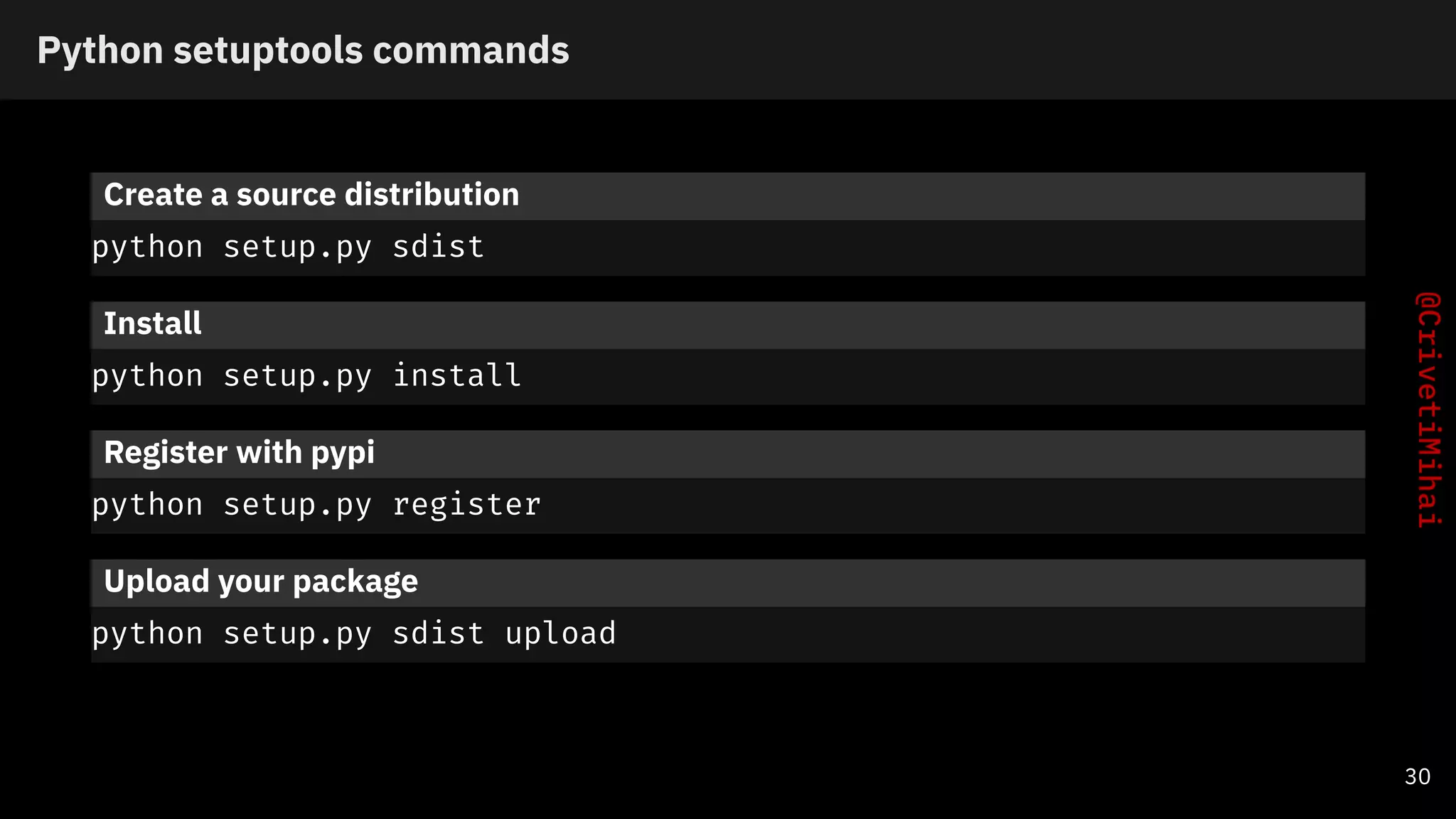

36. Python setuptools commands
Create a source distribution
python setup.py sdist
Install
python setup.py install
Register with pypi
python setup.py register
Upload your package
python setup.py sdist upload
30

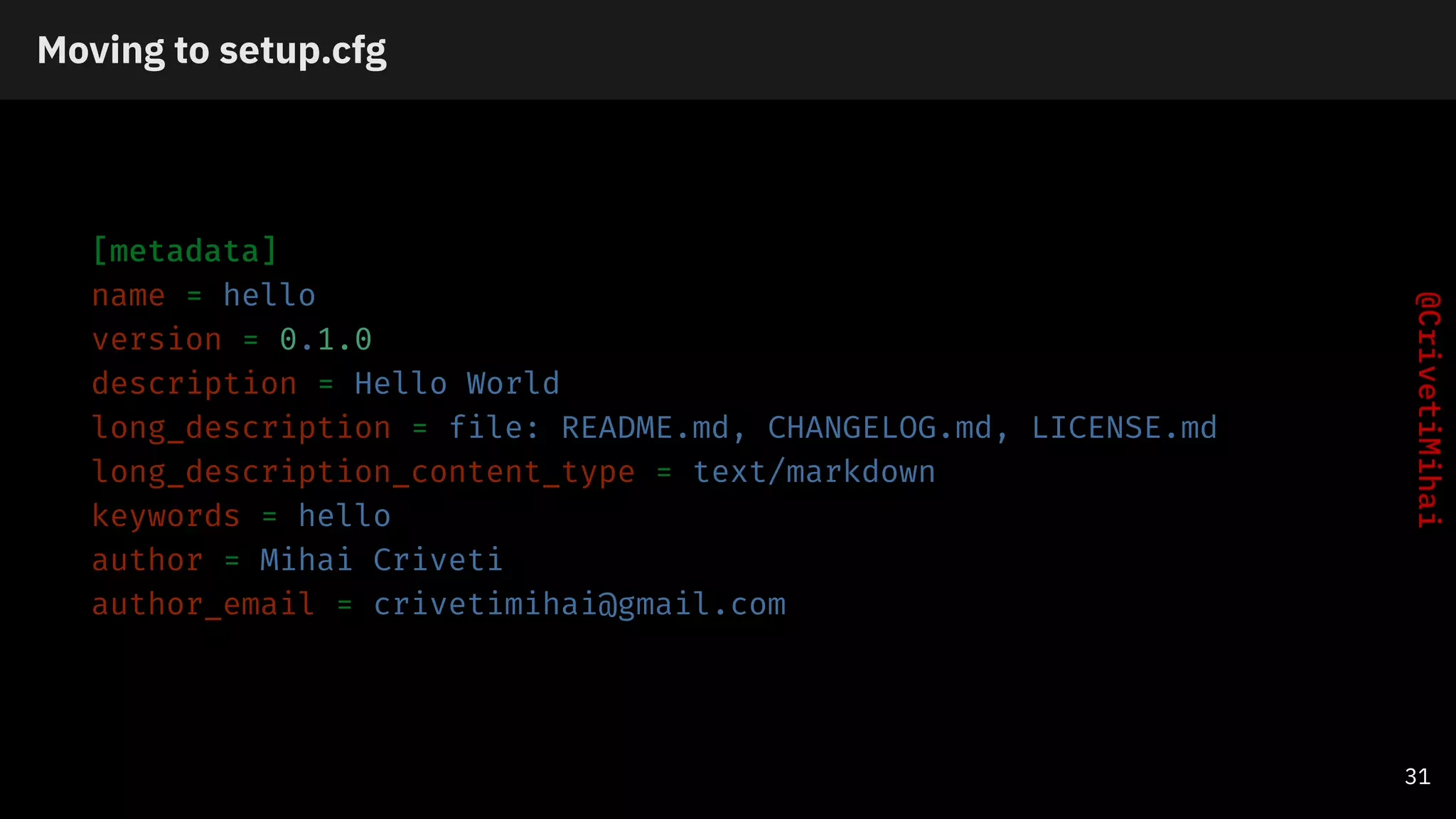

37. Moving to setup.cfg
[metadata]
name = hello
version = 0.1.0
description = Hello World
long_description = file: README.md, CHANGELOG.md, LICENSE.md
long_description_content_type = text/markdown
keywords = hello
author = Mihai Criveti
author_email = crivetimihai@gmail.com
31

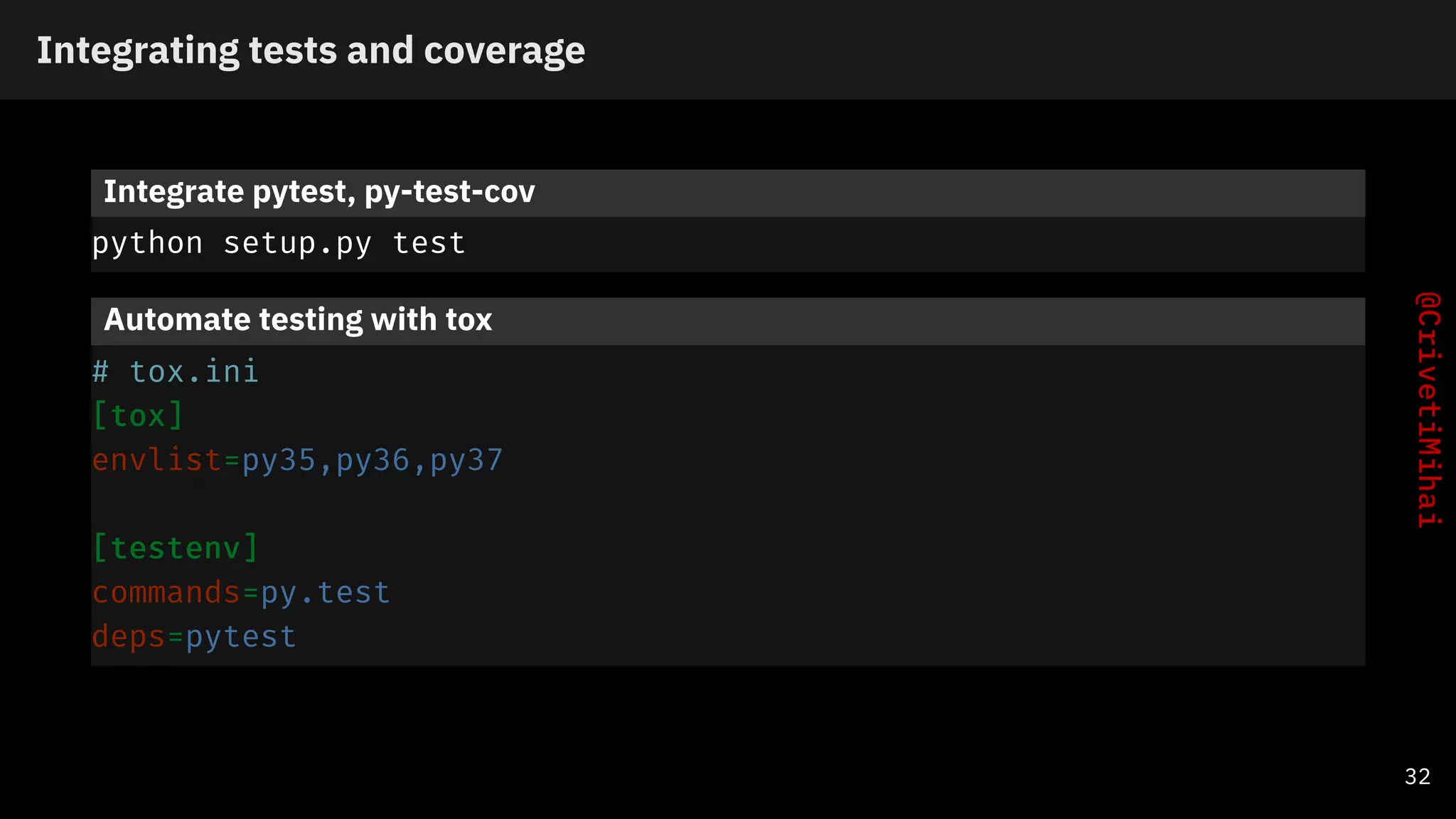

38. Integrating tests and coverage
Integrate pytest, py-test-cov
python setup.py test
Automate testing with tox
# tox.ini
[tox]
envlist=py35,py36,py37
[testenv]
commands=py.test
deps=pytest
32

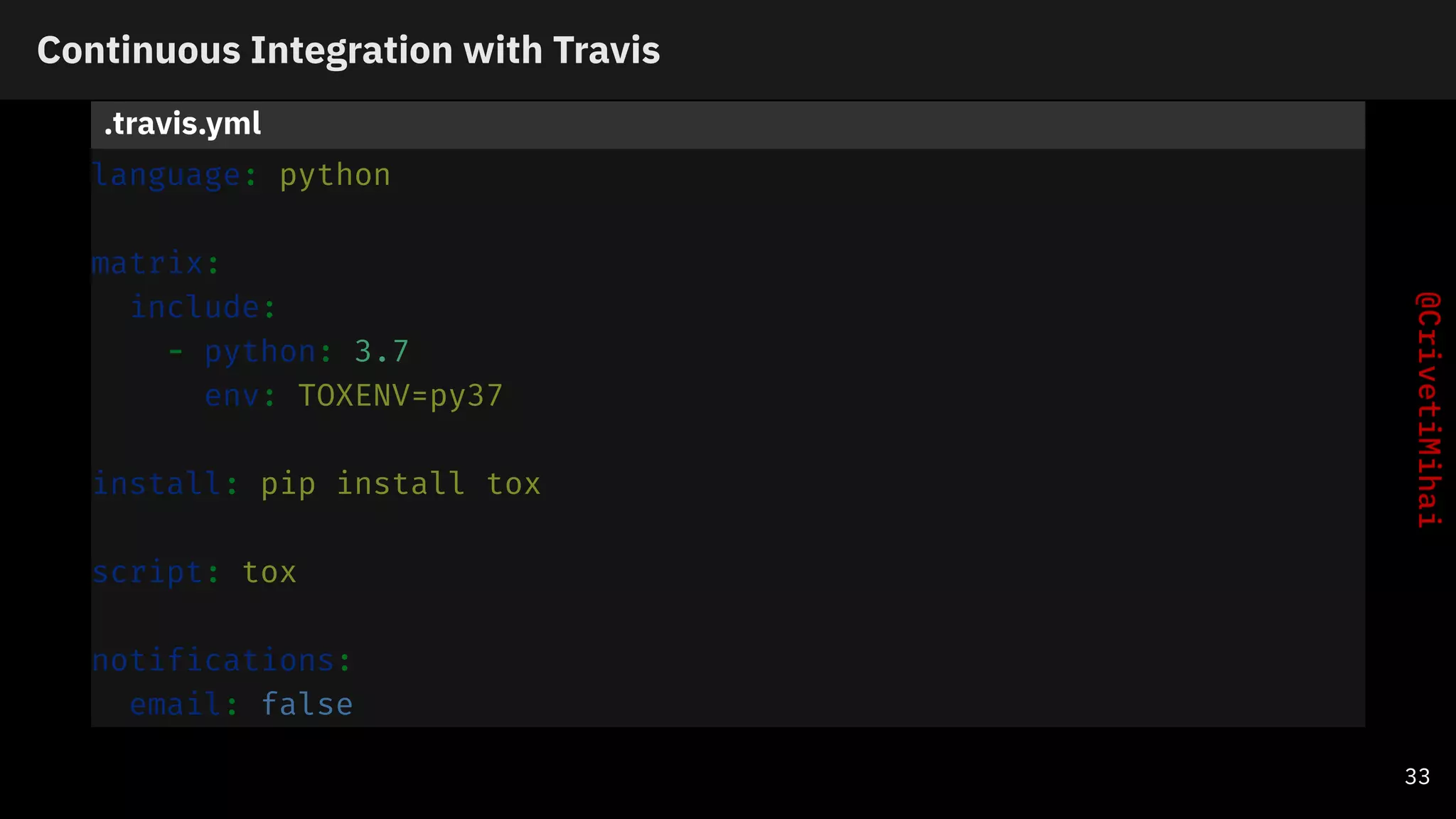

39. Continuous Integration with Travis
.travis.yml
language: python
matrix:
include:
- python: 3.7
env: TOXENV=py37
install: pip install tox
script: tox
notifications:
email: false
33

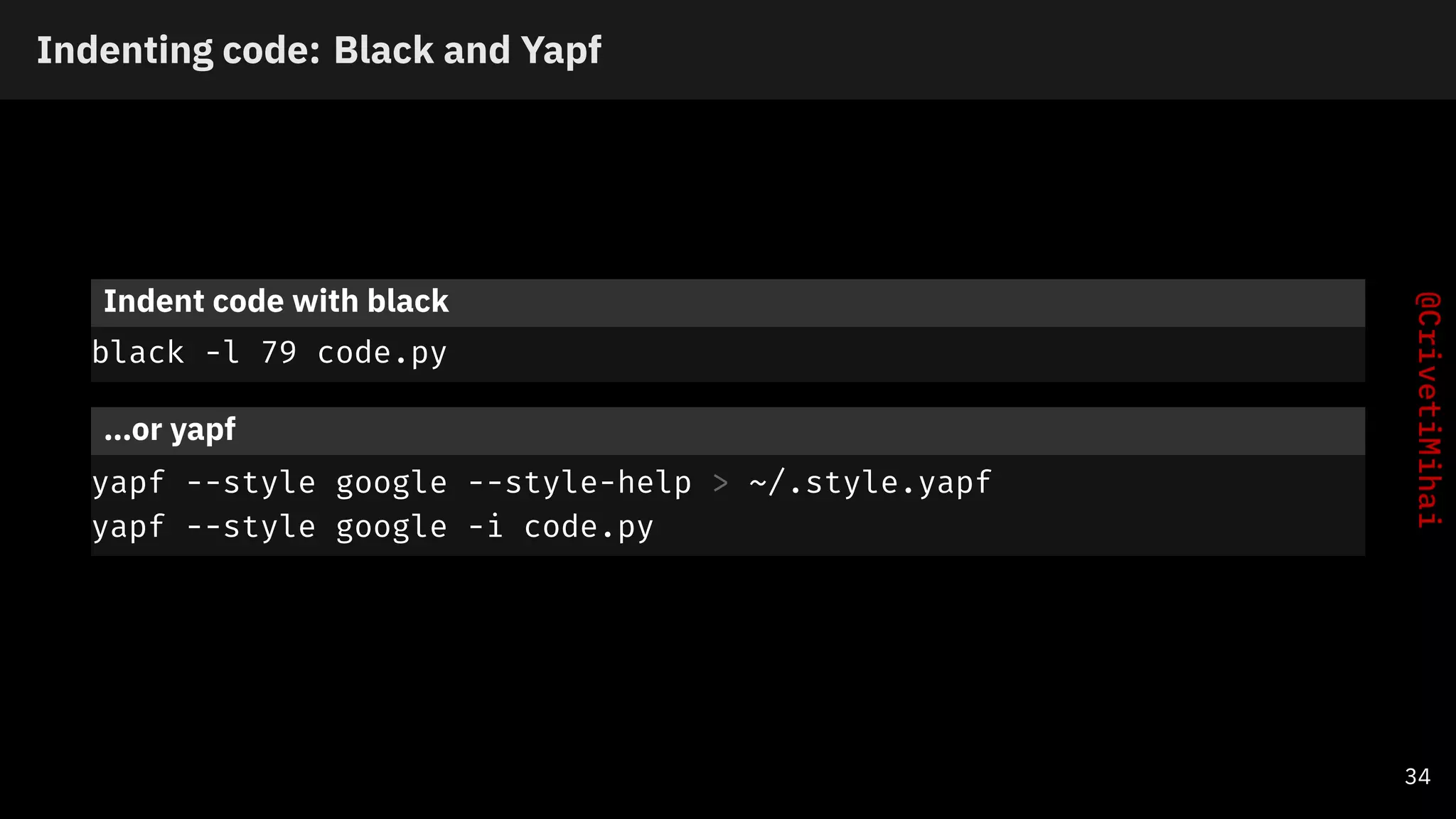

40. Indenting code: Black and Yapf
Indent code with black
black -l 79 code.py
…or yapf
yapf --style google --style-help > ~/.style.yapf
yapf --style google -i code.py
34

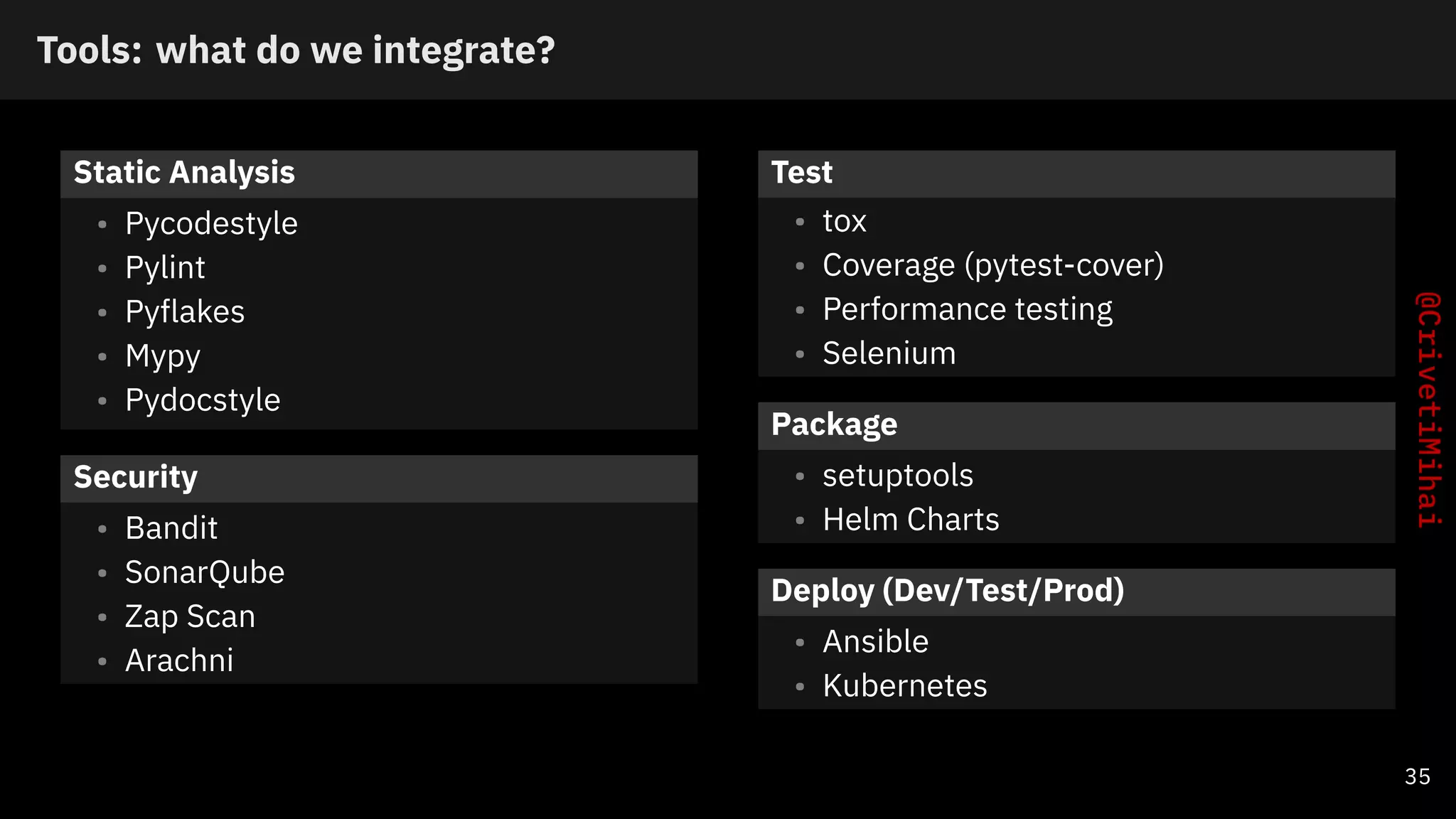

41. Tools: what do we integrate?
Static Analysis
• Pycodestyle
• Pylint
• Pyflakes
• Mypy
• Pydocstyle
Security
• Bandit
• SonarQube
• Zap Scan
• Arachni
Test
• tox
• Coverage (pytest-cover)
• Performance testing
• Selenium
Package
• setuptools
• Helm Charts
Deploy (Dev/Test/Prod)
• Ansible
• Kubernetes
35

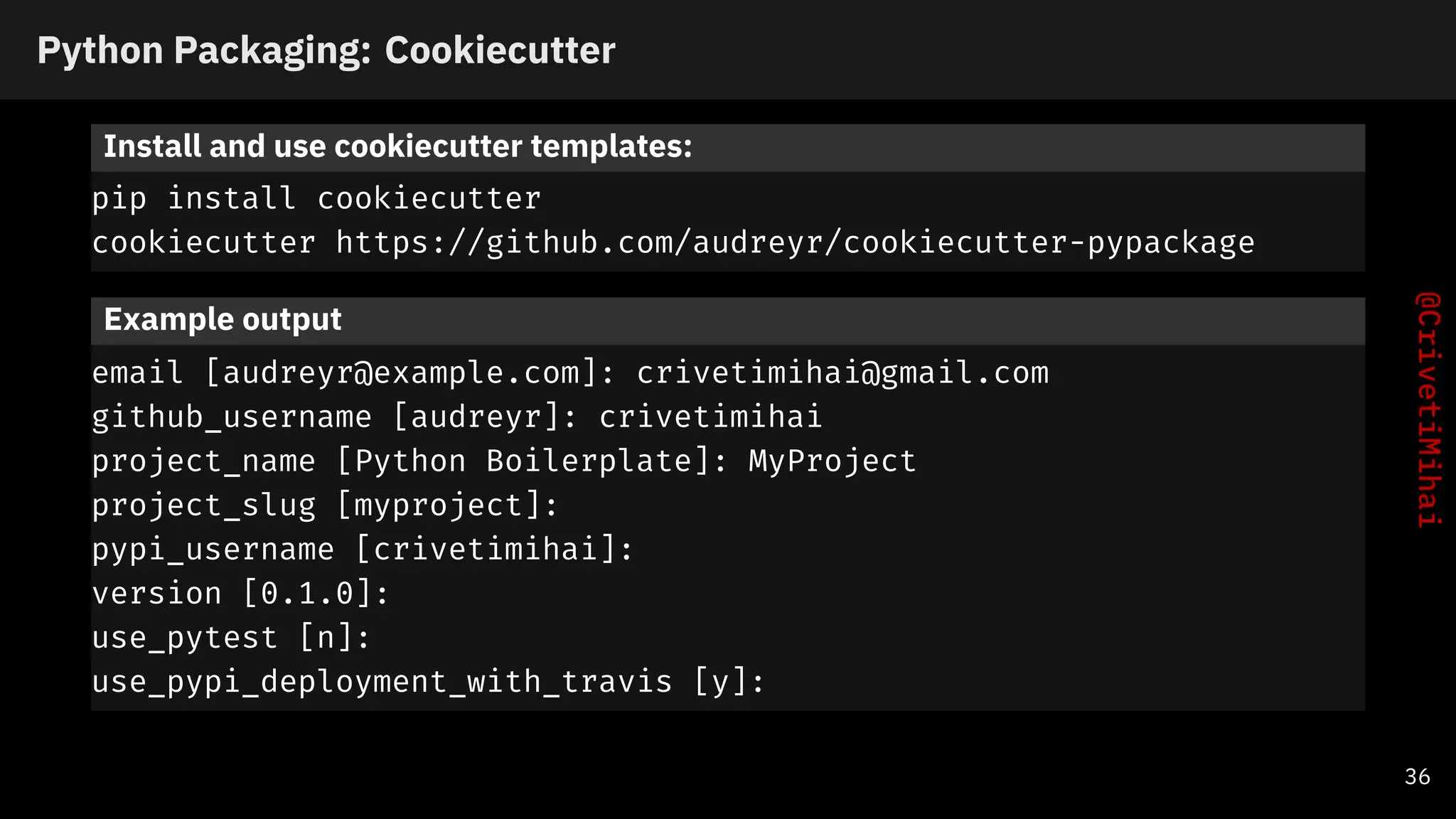

42. Python Packaging: Cookiecutter
Install and use cookiecutter templates:
pip install cookiecutter
cookiecutter https://github.com/audreyr/cookiecutter-pypackage
Example output
email [audreyr@example.com]: crivetimihai@gmail.com
github_username [audreyr]: crivetimihai
project_name [Python Boilerplate]: MyProject
project_slug [myproject]:
pypi_username [crivetimihai]:
version [0.1.0]:
use_pytest [n]:
use_pypi_deployment_with_travis [y]:
36

43. 7 Kubernetes: Container
Orchestration at Scale

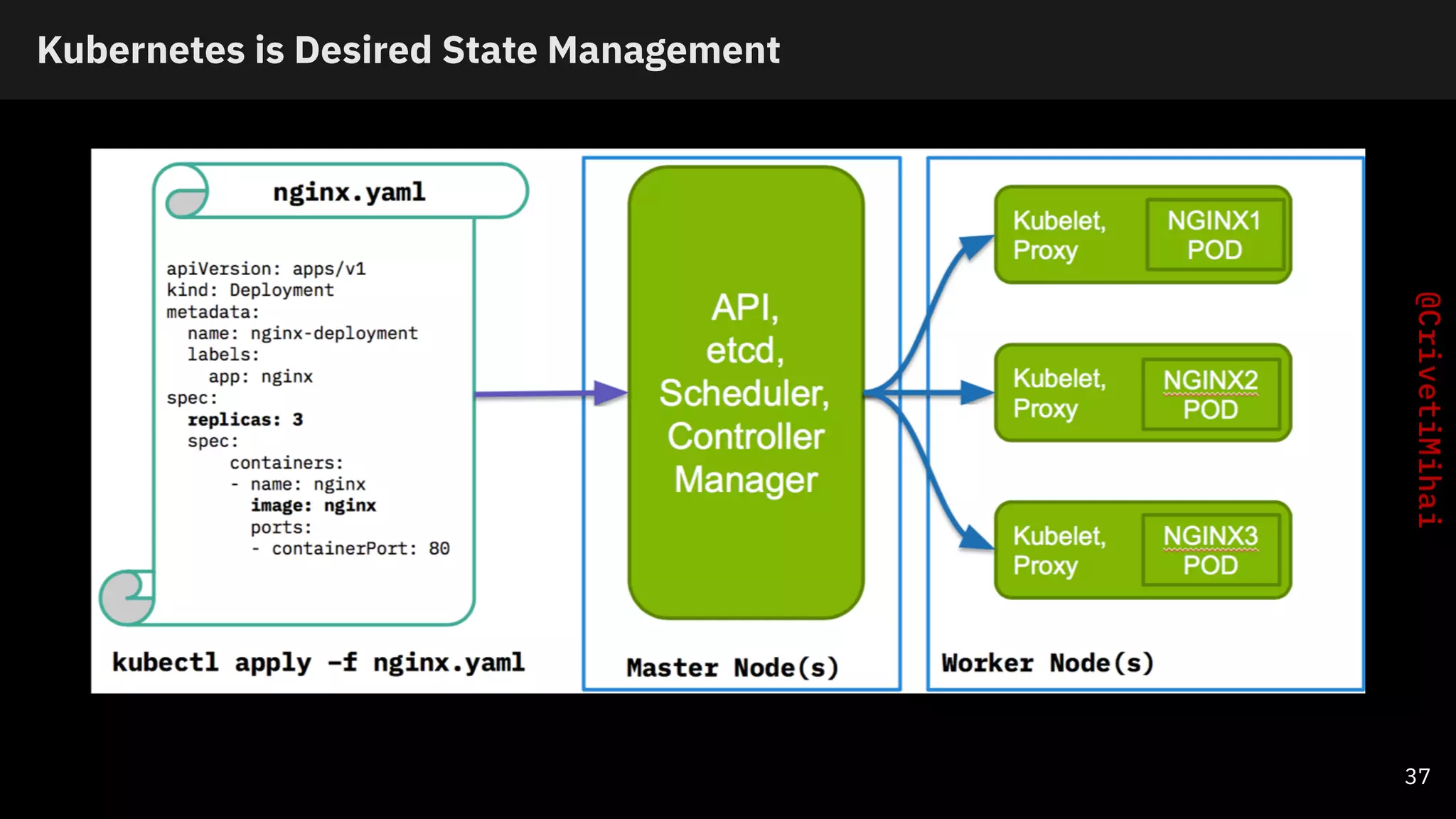

44. Kubernetes is Desired State Management
37

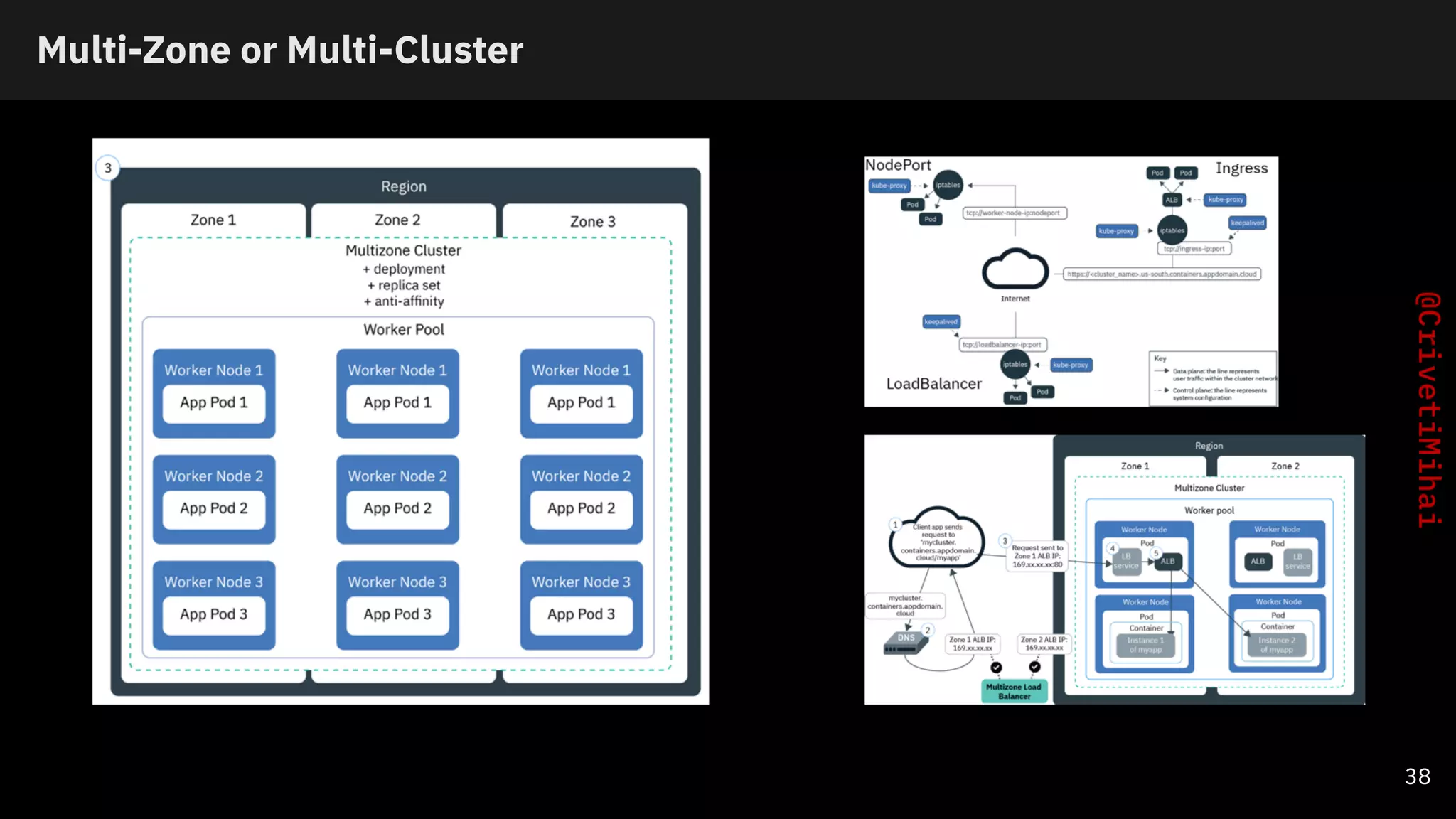

45. Multi-Zone or Multi-Cluster
38

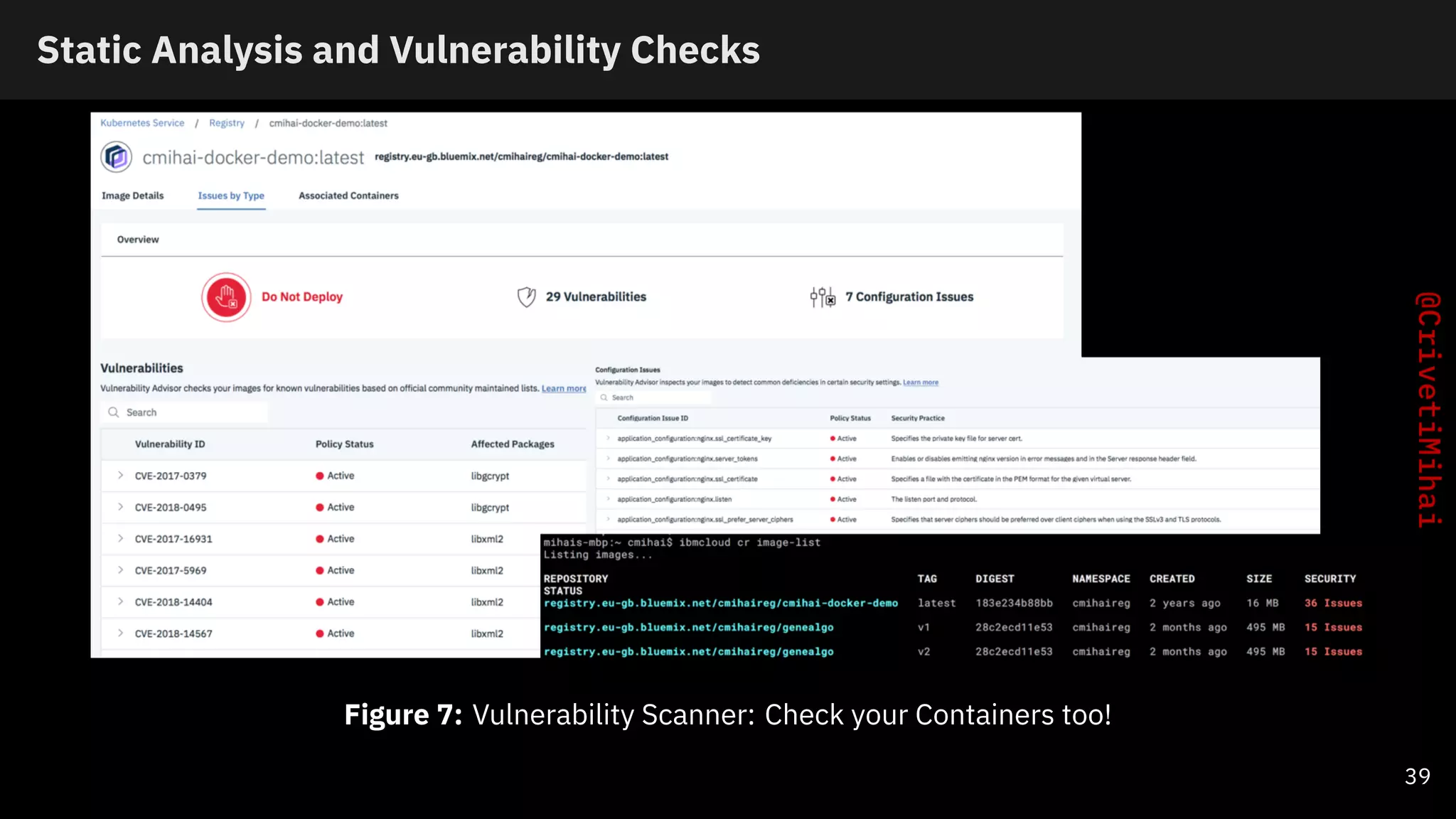

46. Static Analysis and Vulnerability Checks
Figure 7: Vulnerability Scanner: Check your Containers too!
39

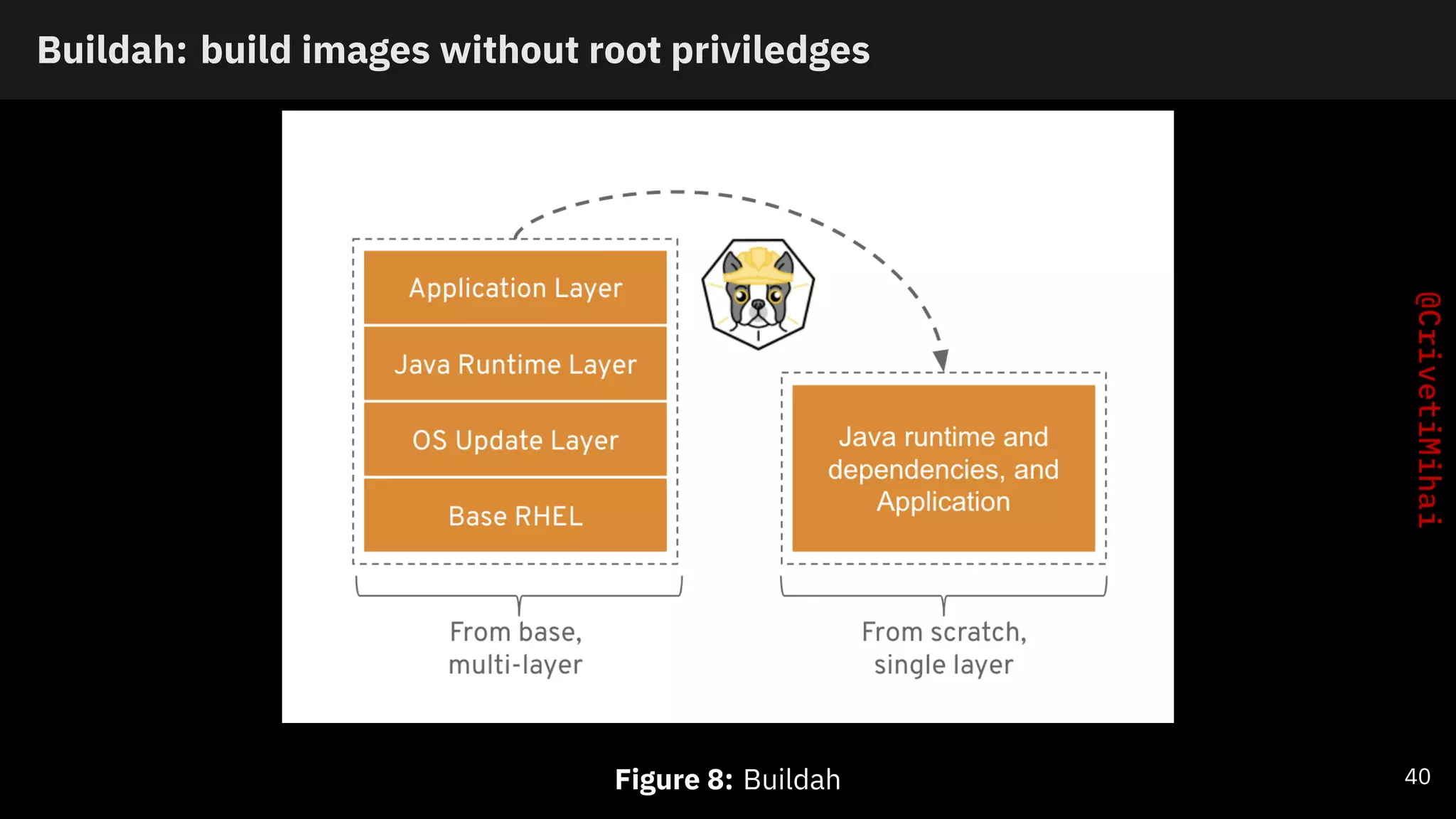

47. Buildah: build images without root priviledges
Figure 8: Buildah 40

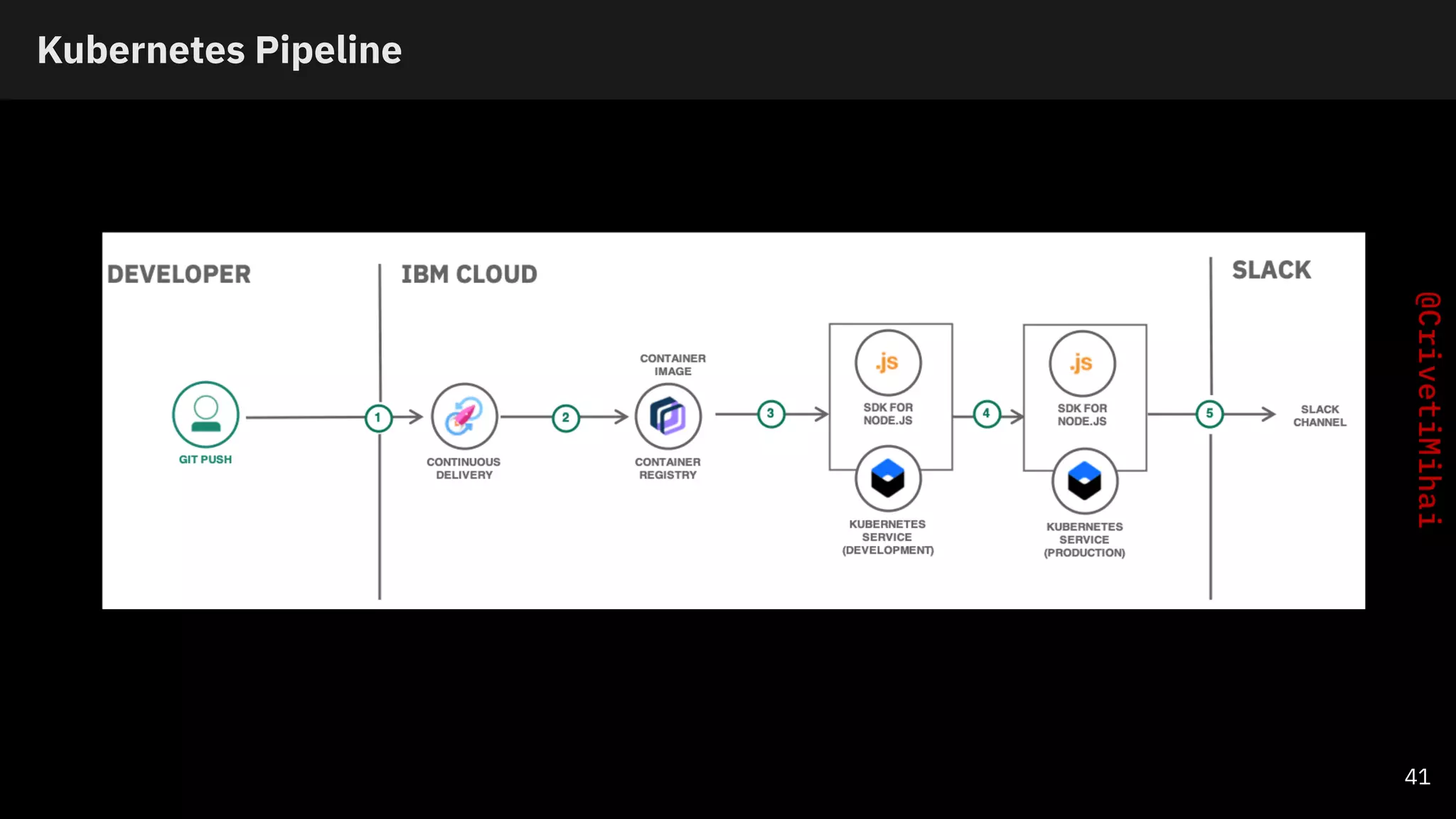

48. Kubernetes Pipeline
41

49. 8 DevOps Culture and Practice

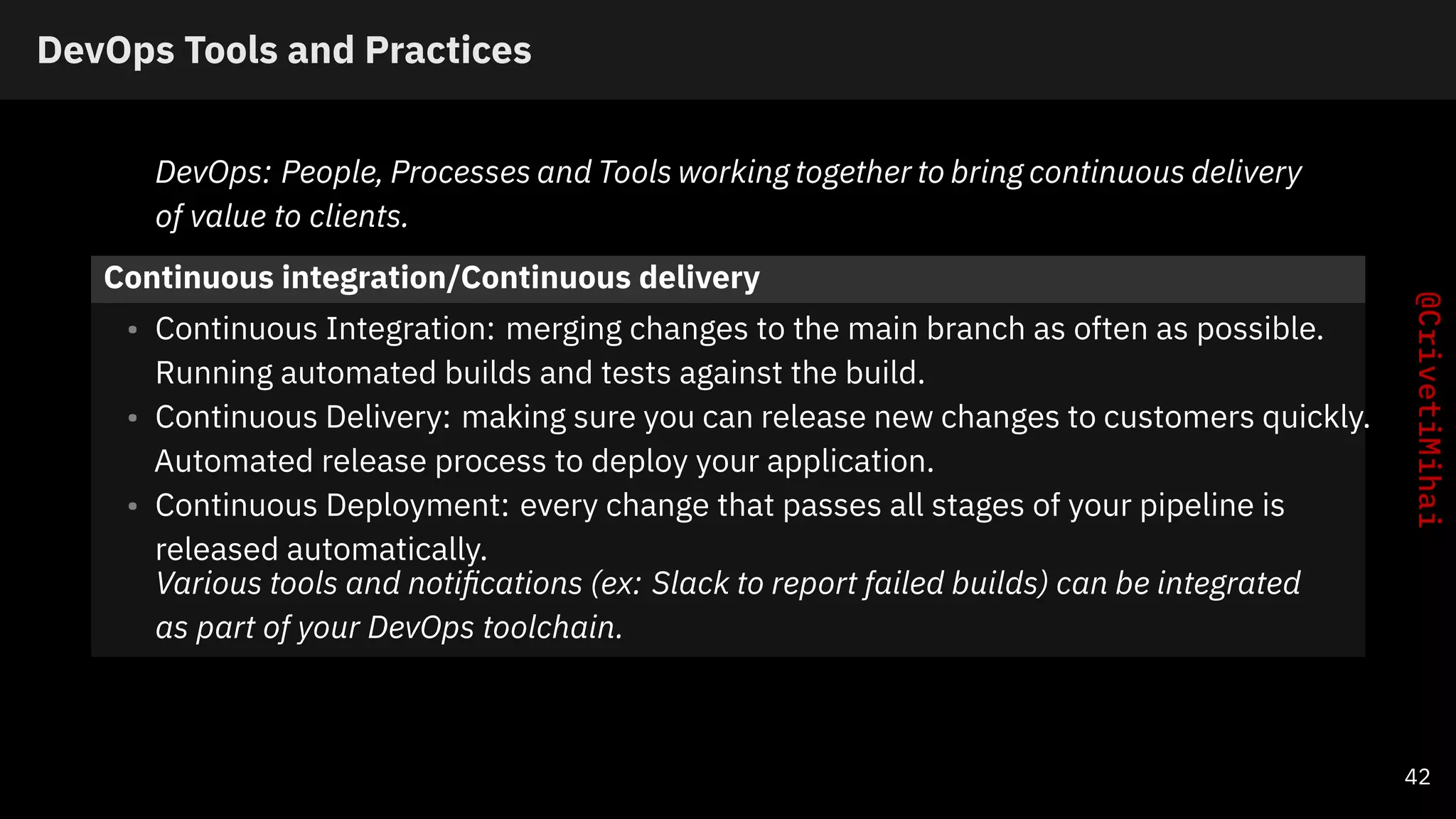

50. DevOps Tools and Practices
DevOps: People, Processes and Tools working together to bring continuous delivery
of value to clients.
Continuous integration/Continuous delivery
• Continuous Integration: merging changes to the main branch as often as possible.
Running automated builds and tests against the build.
• Continuous Delivery: making sure you can release new changes to customers quickly.
Automated release process to deploy your application.
• Continuous Deployment: every change that passes all stages of your pipeline is
released automatically.
Various tools and notifications (ex: Slack to report failed builds) can be integrated
as part of your DevOps toolchain.
42

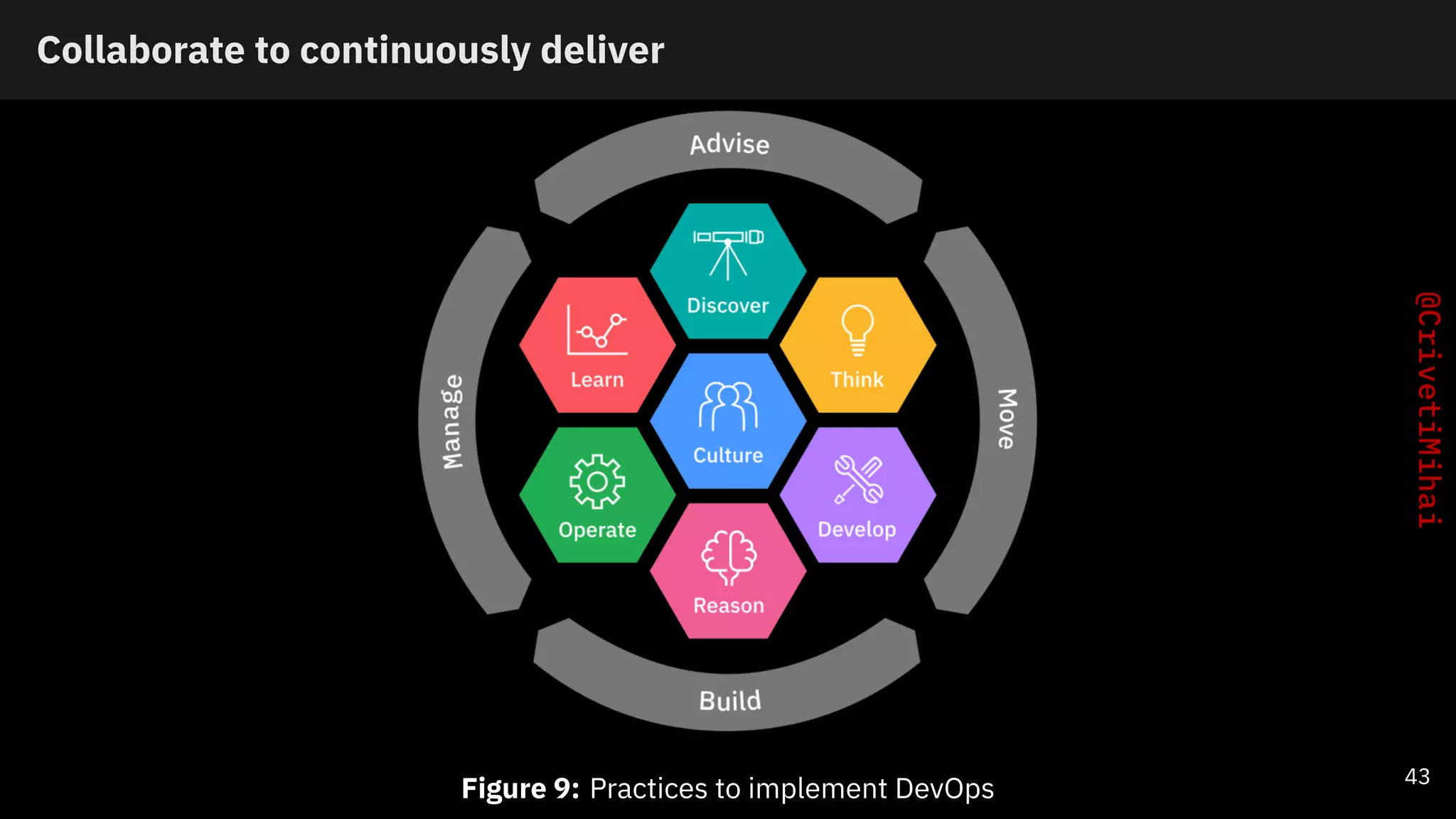

51. Collaborate to continuously deliver
Figure 9: Practices to implement DevOps 43

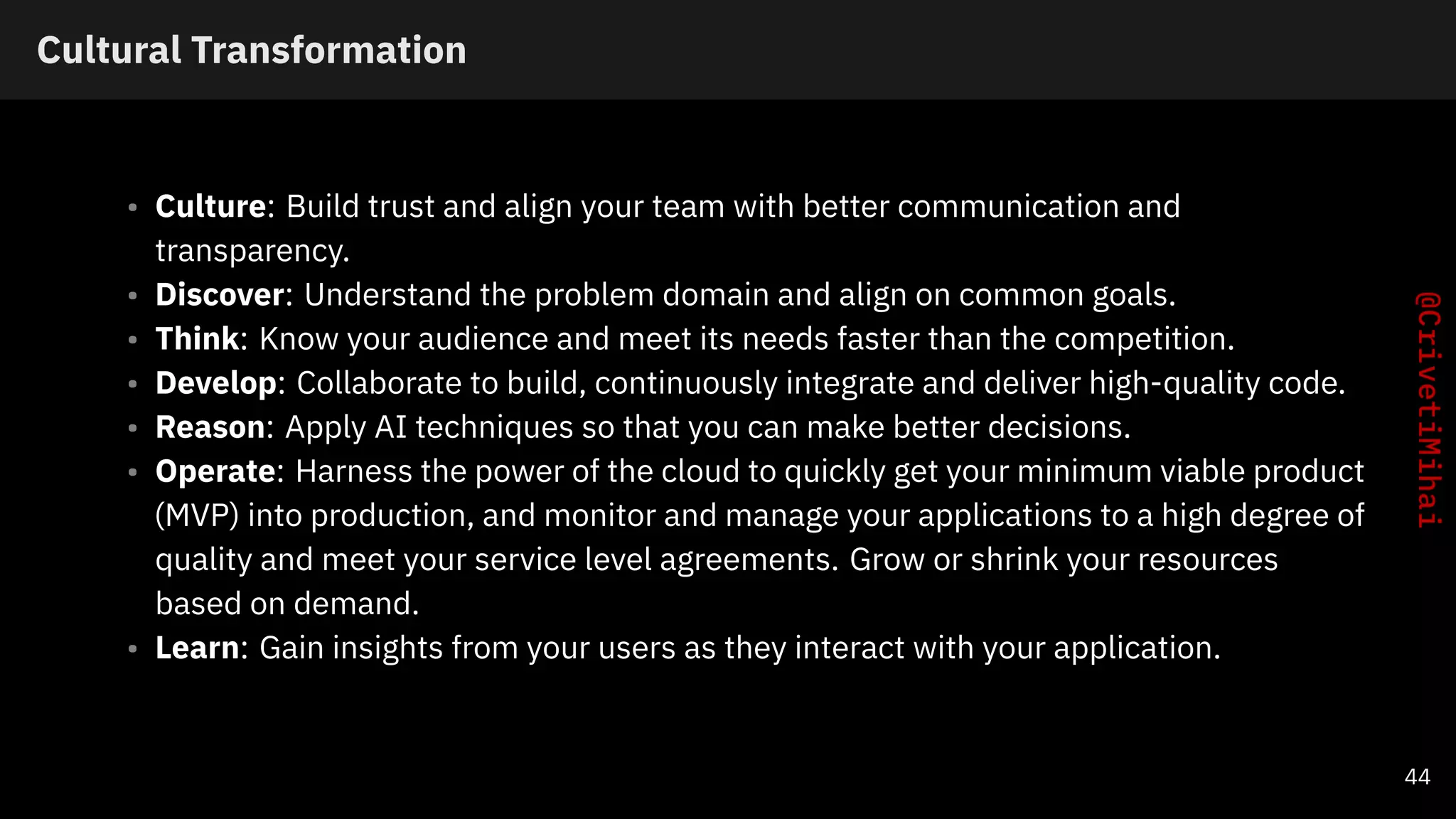

52. Cultural Transformation
• Culture: Build trust and align your team with better communication and
transparency.
• Discover: Understand the problem domain and align on common goals.
• Think: Know your audience and meet its needs faster than the competition.
• Develop: Collaborate to build, continuously integrate and deliver high-quality code.
• Reason: Apply AI techniques so that you can make better decisions.
• Operate: Harness the power of the cloud to quickly get your minimum viable product
(MVP) into production, and monitor and manage your applications to a high degree of
quality and meet your service level agreements. Grow or shrink your resources
based on demand.
• Learn: Gain insights from your users as they interact with your application.
44

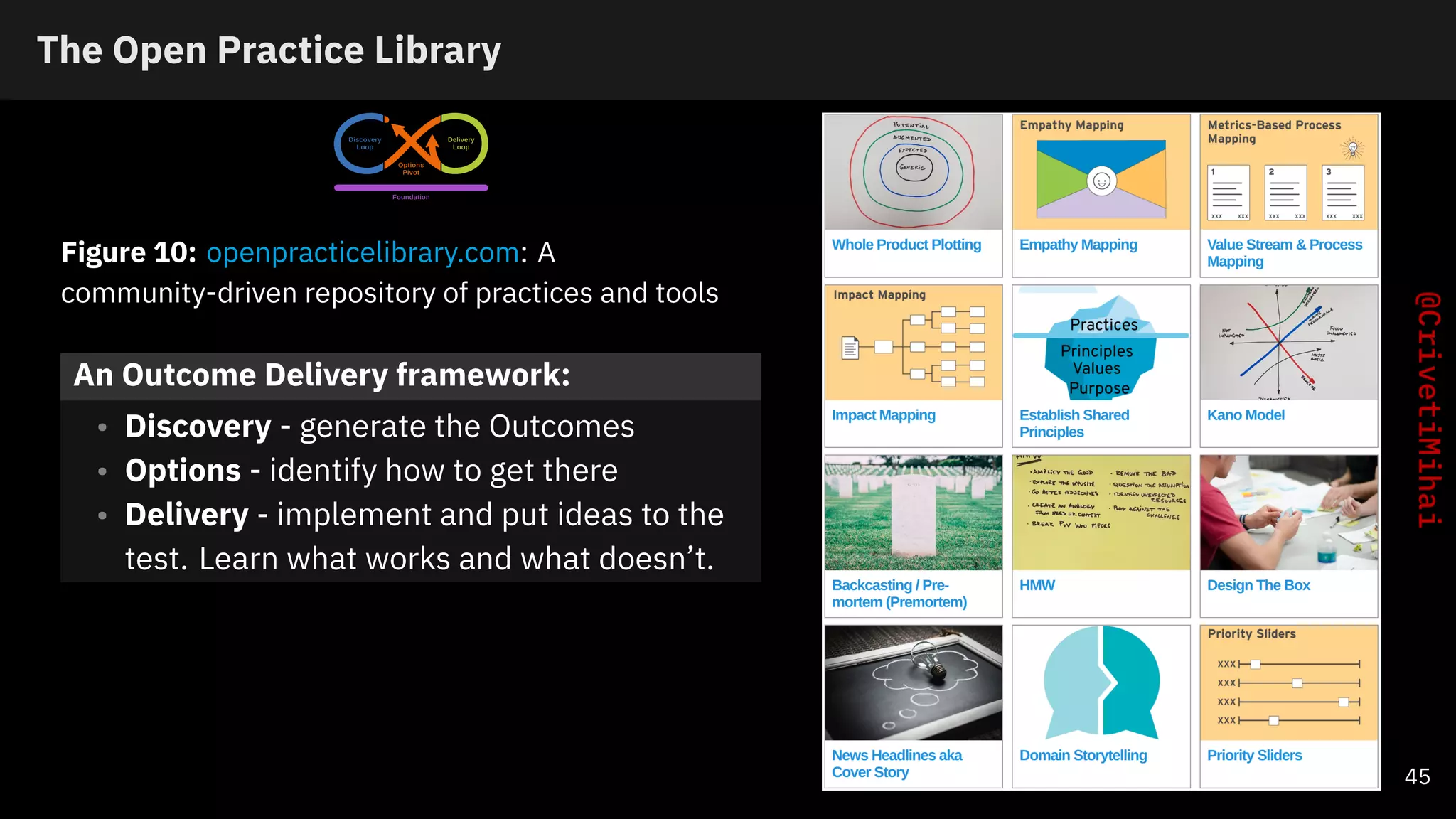

53. The Open Practice Library
Figure 10: openpracticelibrary.com: A
community-driven repository of practices and tools
An Outcome Delivery framework:
• Discovery - generate the Outcomes
• Options - identify how to get there
• Delivery - implement and put ideas to the
test. Learn what works and what doesn’t.
45

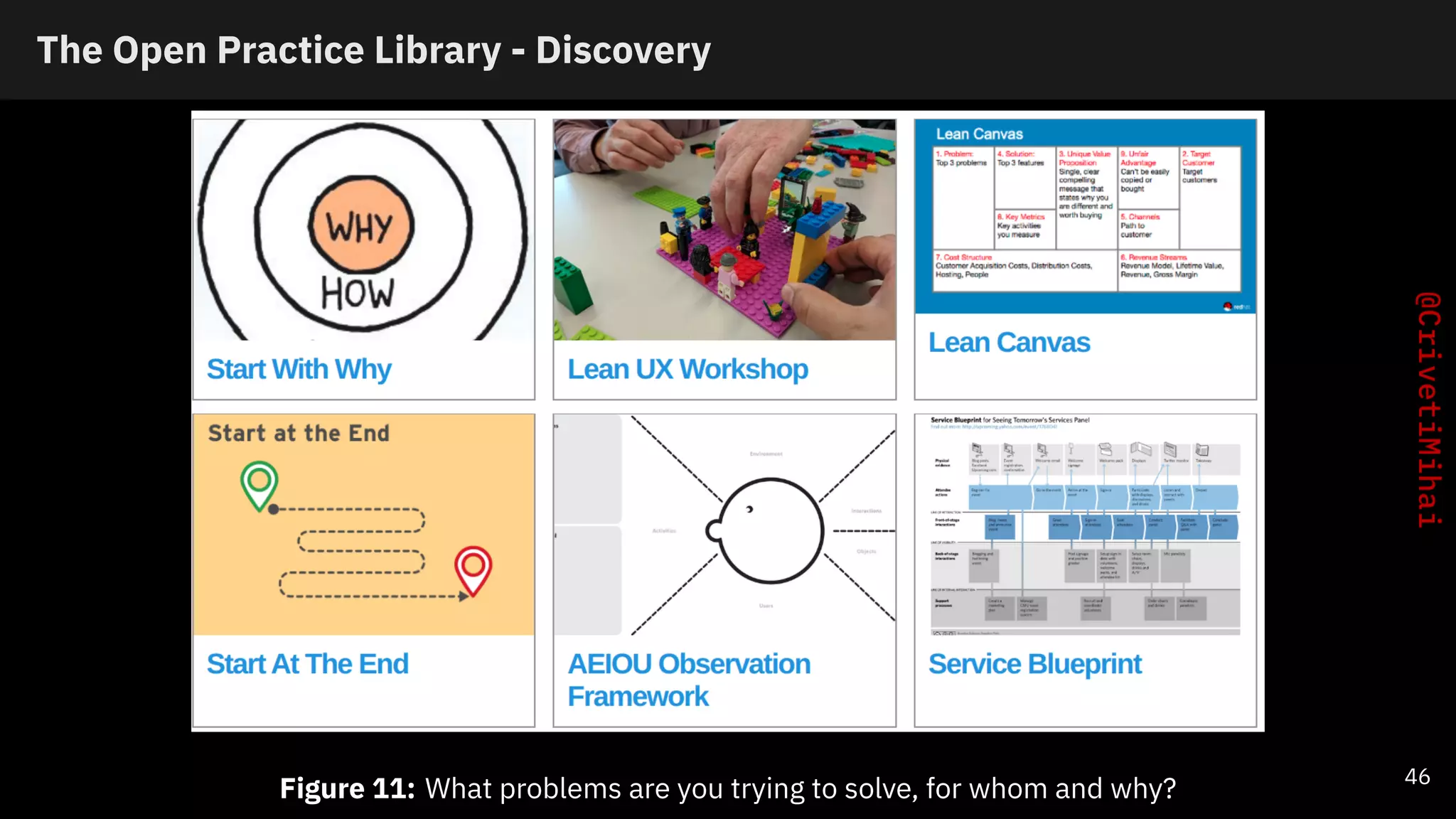

54. The Open Practice Library - Discovery
Figure 11: What problems are you trying to solve, for whom and why? 46

55. The Open Practice Library - Options Pivot
Figure 12: What are the different options? What do you need to make this happen? 47

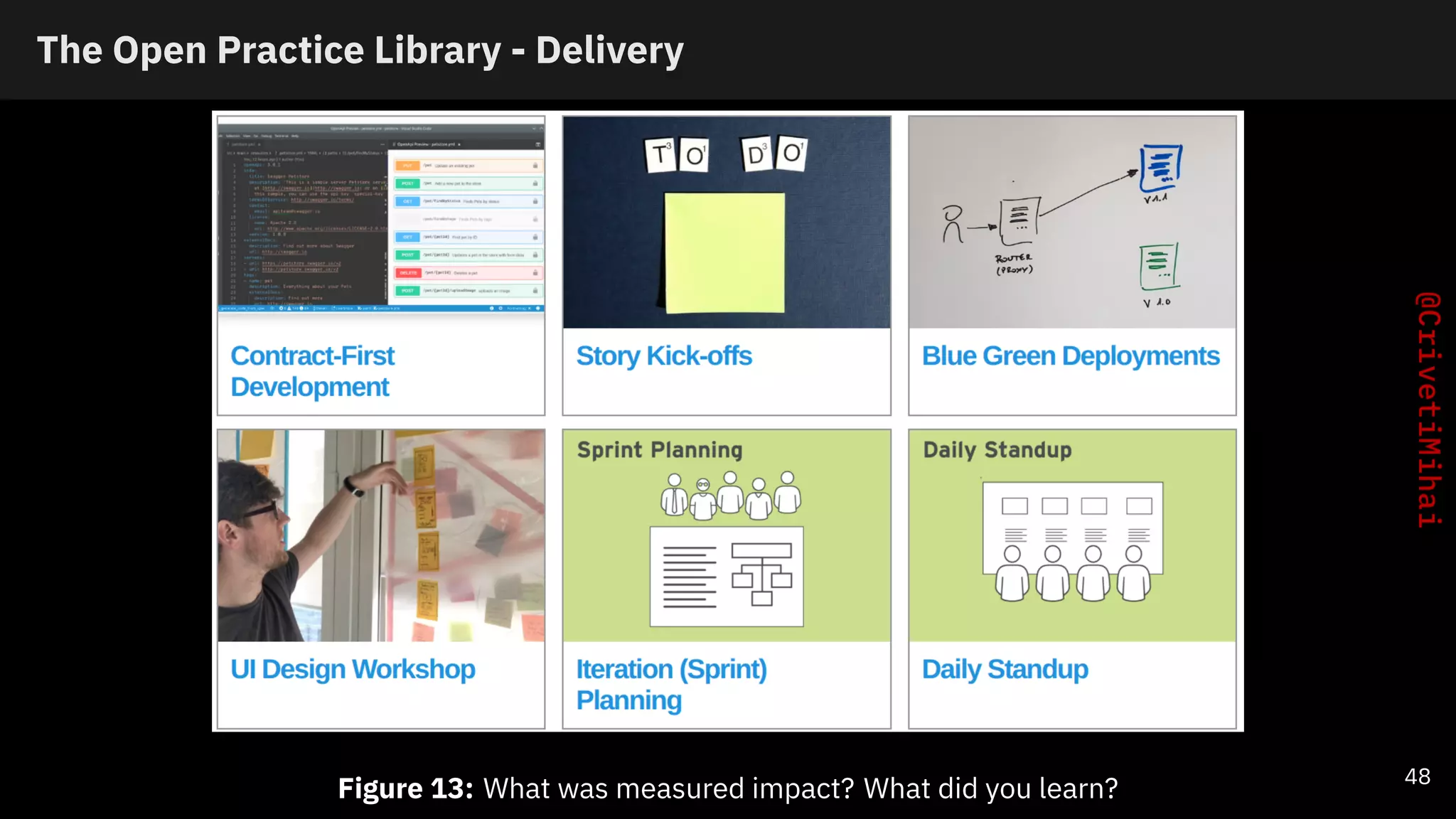

56. The Open Practice Library - Delivery
Figure 13: What was measured impact? What did you learn? 48

57. The Open Practice Library - Foundation
Figure 14: Creating a team culture 49

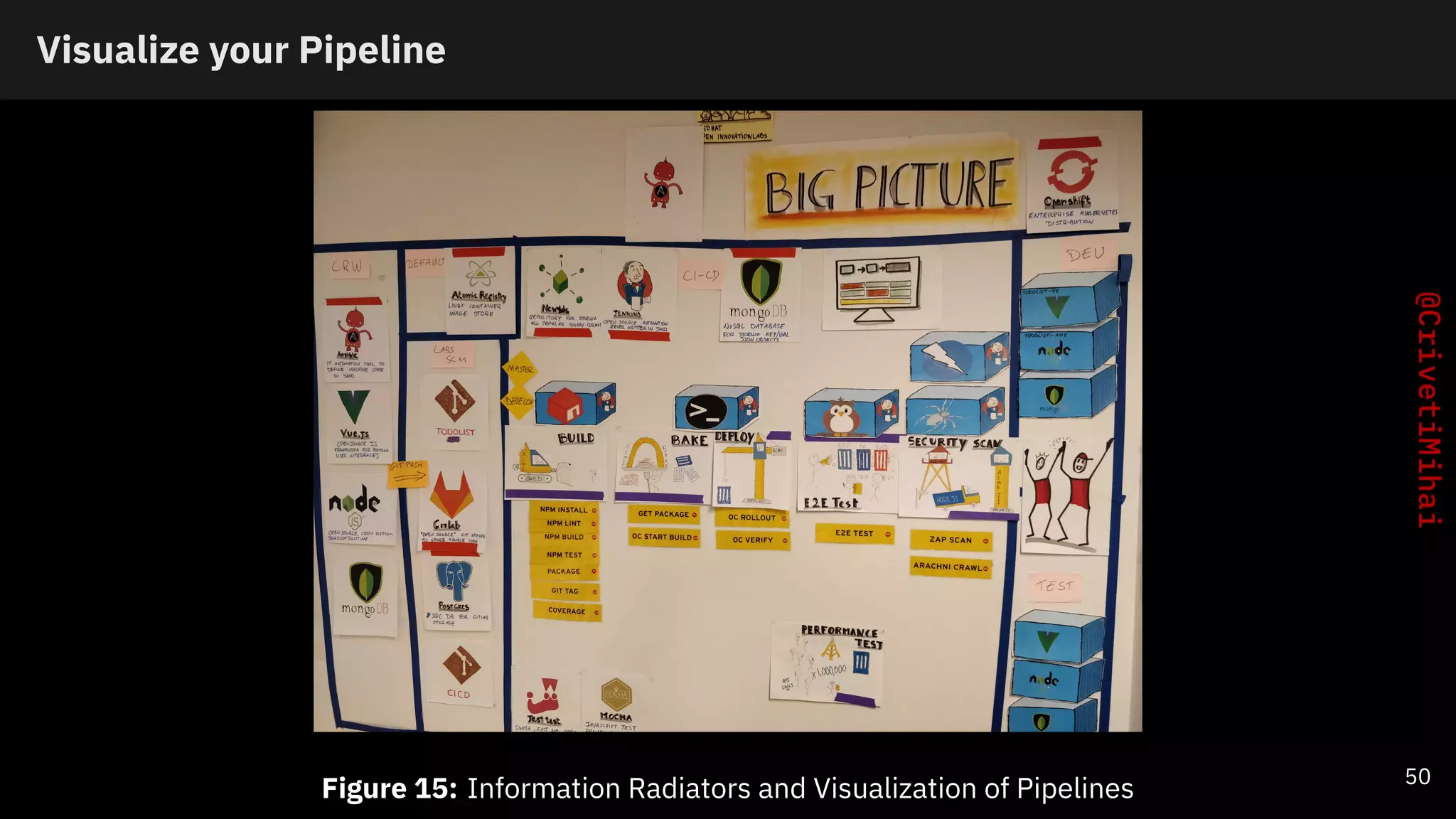

58. Visualize your Pipeline
Figure 15: Information Radiators and Visualization of Pipelines 50

59. Questions and Contact
Thank you!
Twitter: @CrivetiMihai
LinkedIn: https://www.linkedin.com/in/crivetimihai/
GitHub: crivetimihai
Ansible Galaxy: https://galaxy.ansible.com/crivetimihai
All presentations: https://kubernetes-native.github.io/k8s-workshop/docs/
Ask me about jobs at IBM
51
