Chip Multiprocessing and the Cell Broadband Engine.pdf

The document discusses the Cell Broadband Engine (CBE) architecture, focusing on the challenges of chip multiprocessing and the limitations of traditional frequency scaling. It highlights the need for improved power-performance efficiency, memory subsystem efficiency, and the importance of leveraging application-level parallelism to achieve significant performance gains. The architecture is designed to enhance data processing capabilities while addressing memory access issues, ultimately aiming for a scalable and cost-effective computing solution.

Embed presentation

Cell Broadband Engine © 2006 IBM Corporation Chip Multiprocessing and the Cell Broadband Engine Michael Gschwind ACM Computing Frontiers 2006

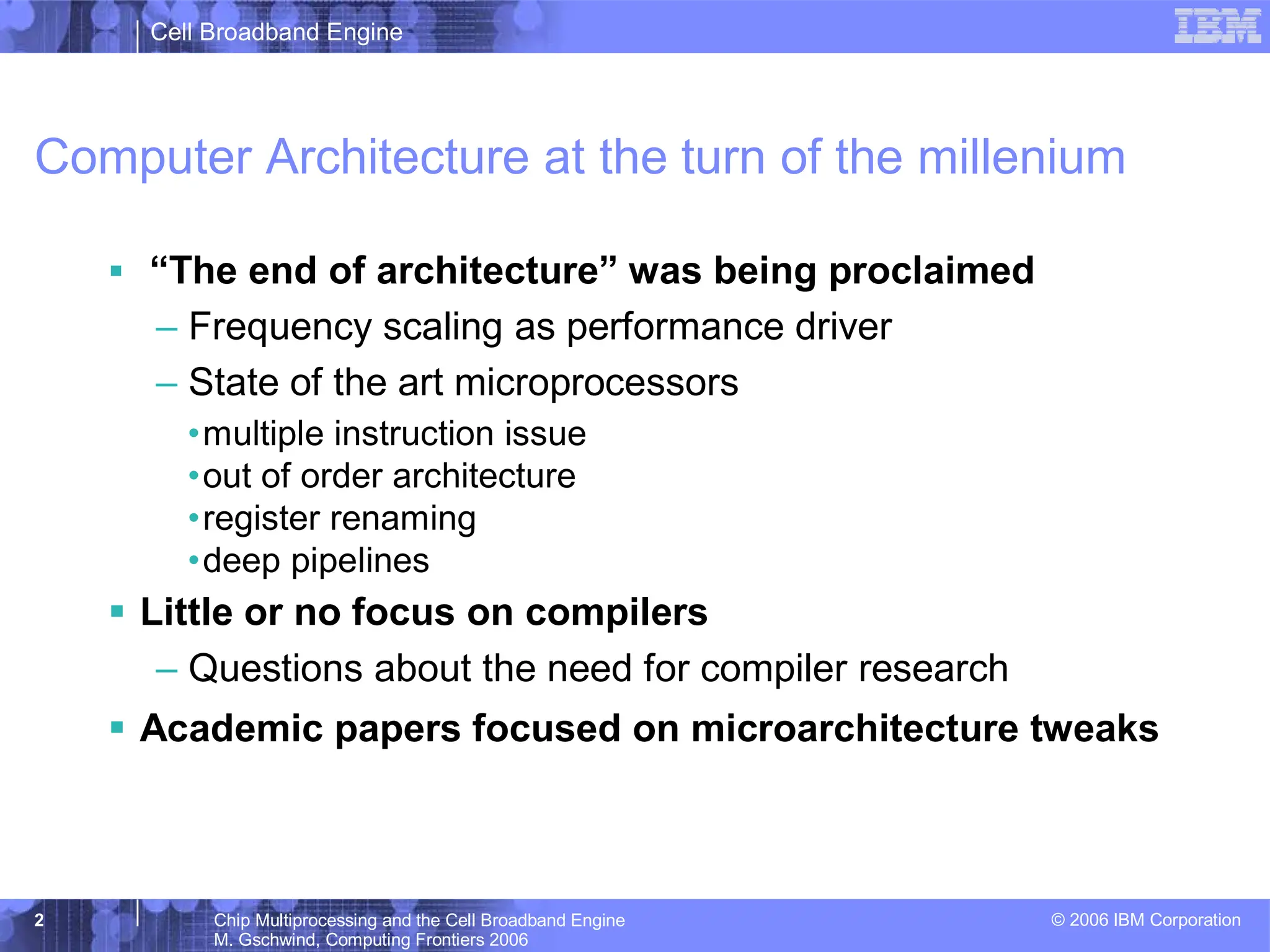

Cell Broadband Engine © 2006 IBM Corporation 2 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Computer Architecture at the turn of the millenium ƒ “The end of architecture” was being proclaimed – Frequency scaling as performance driver – State of the art microprocessors •multiple instruction issue •out of order architecture •register renaming •deep pipelines ƒ Little or no focus on compilers – Questions about the need for compiler research ƒ Academic papers focused on microarchitecture tweaks

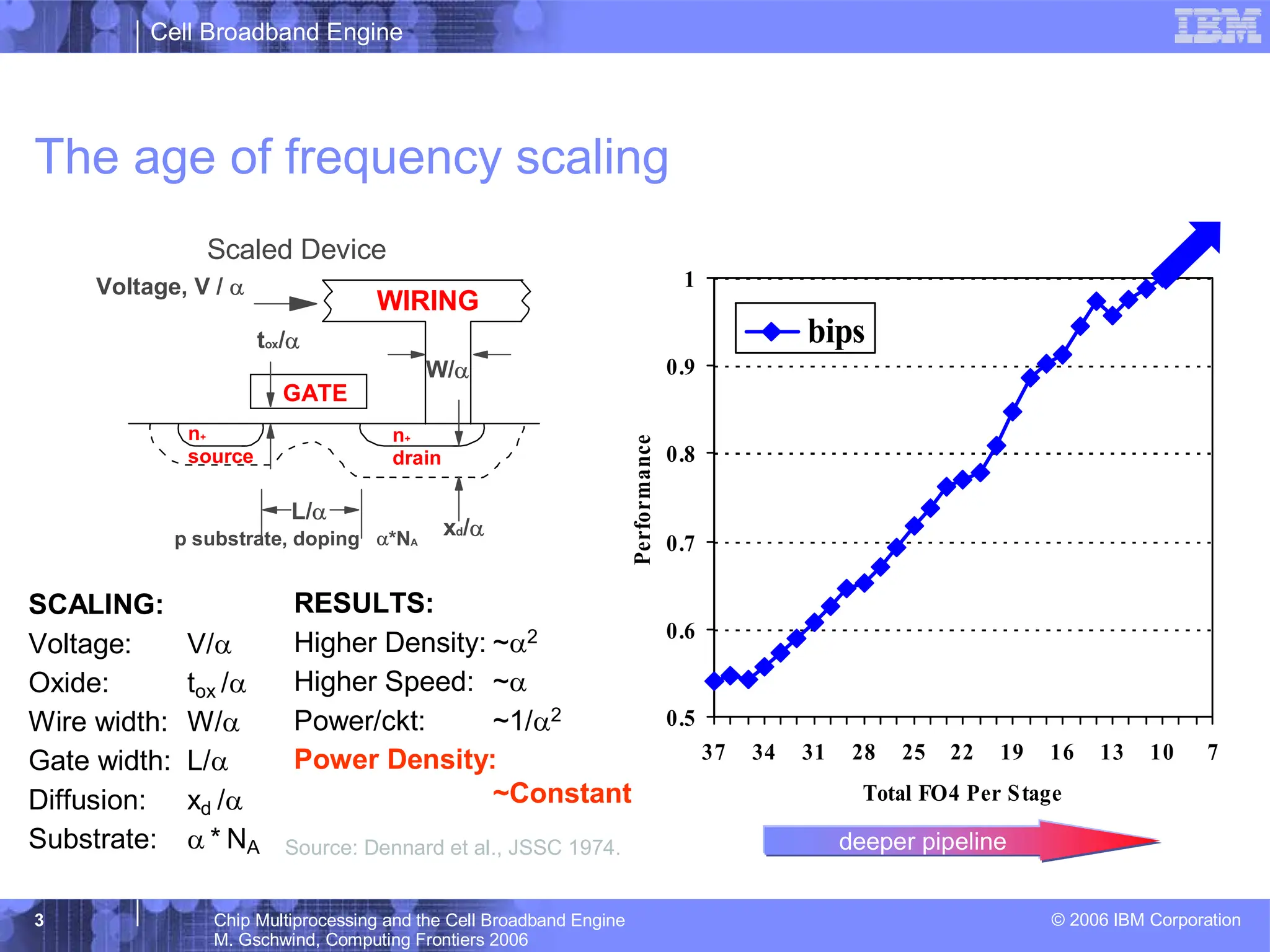

Cell Broadband Engine © 2006 IBM Corporation 3 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 The age of frequency scaling SCALING: Voltage: V/α Oxide: tox /α Wire width: W/α Gate width: L/α Diffusion: xd /α Substrate: α * NA RESULTS: Higher Density: ~α2 Higher Speed: ~α Power/ckt: ~1/α2 Power Density: ~Constant p substrate, doping α*NA Scaled Device L/α xd/α GATE n+ source n+ drain WIRING Voltage, V / α W/α tox/α Source: Dennard et al., JSSC 1974. 0.5 0.6 0.7 0.8 0.9 1 7 10 13 16 19 22 25 28 31 34 37 Total FO4 Per Stage Performance bips deeper pipeline
Cell Broadband Engine © 2006 IBM Corporation 4 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Frequency scaling ƒ A trusted standby – Frequency as the tide that raises all boats – Increased performance across all applications – Kept the industry going for a decade ƒ Massive investment to keep going – Equipment cost – Power increase – Manufacturing variability – New materials

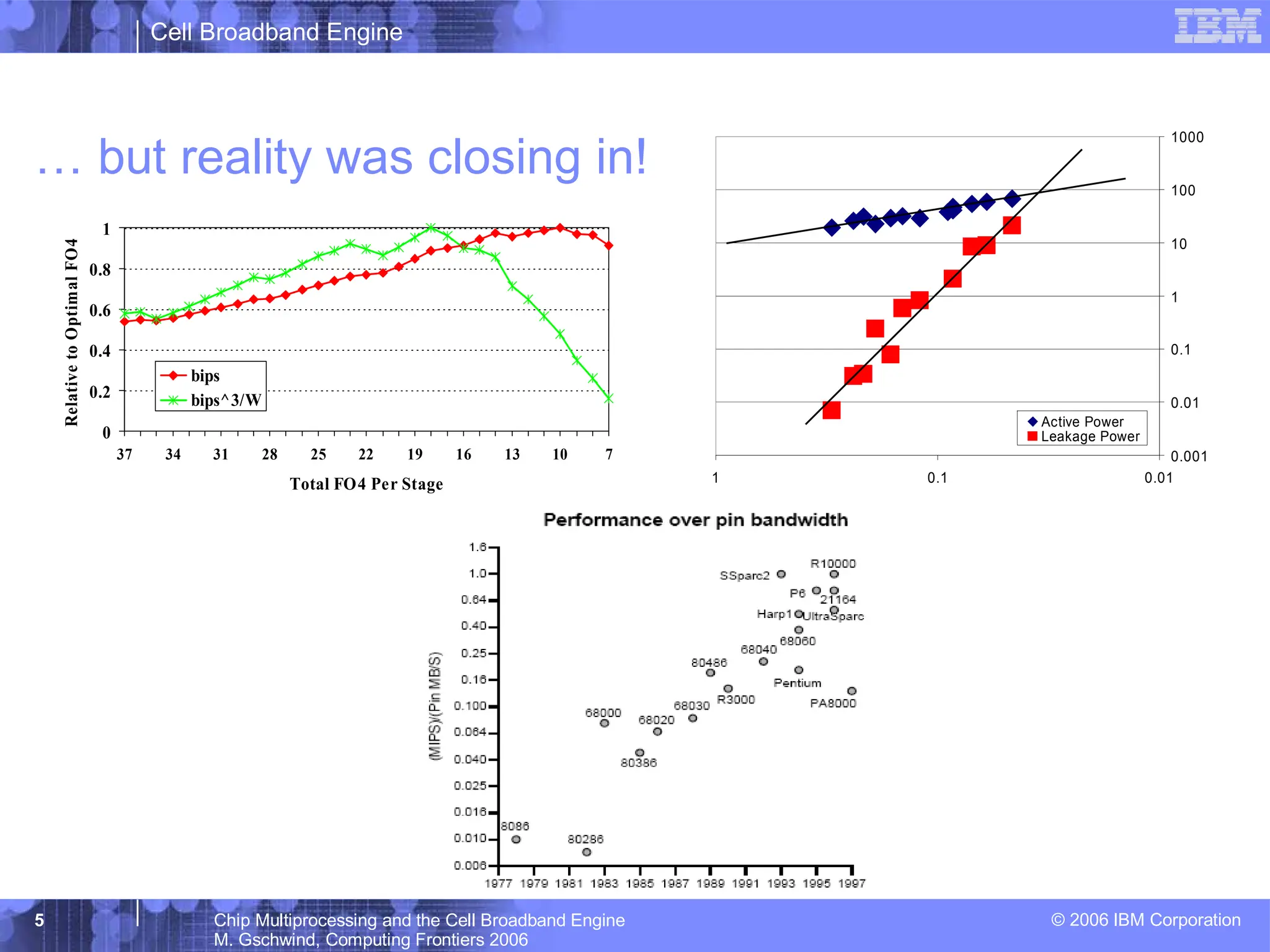

Cell Broadband Engine © 2006 IBM Corporation 5 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 … but reality was closing in! 0 0.2 0.4 0.6 0.8 1 7 10 13 16 19 22 25 28 31 34 37 Total FO4 Per Stage Relative to Optimal FO4 bips bips^3/W 0.001 0.01 0.1 1 10 100 1000 0.01 0.1 1 Active Power Leakage Power

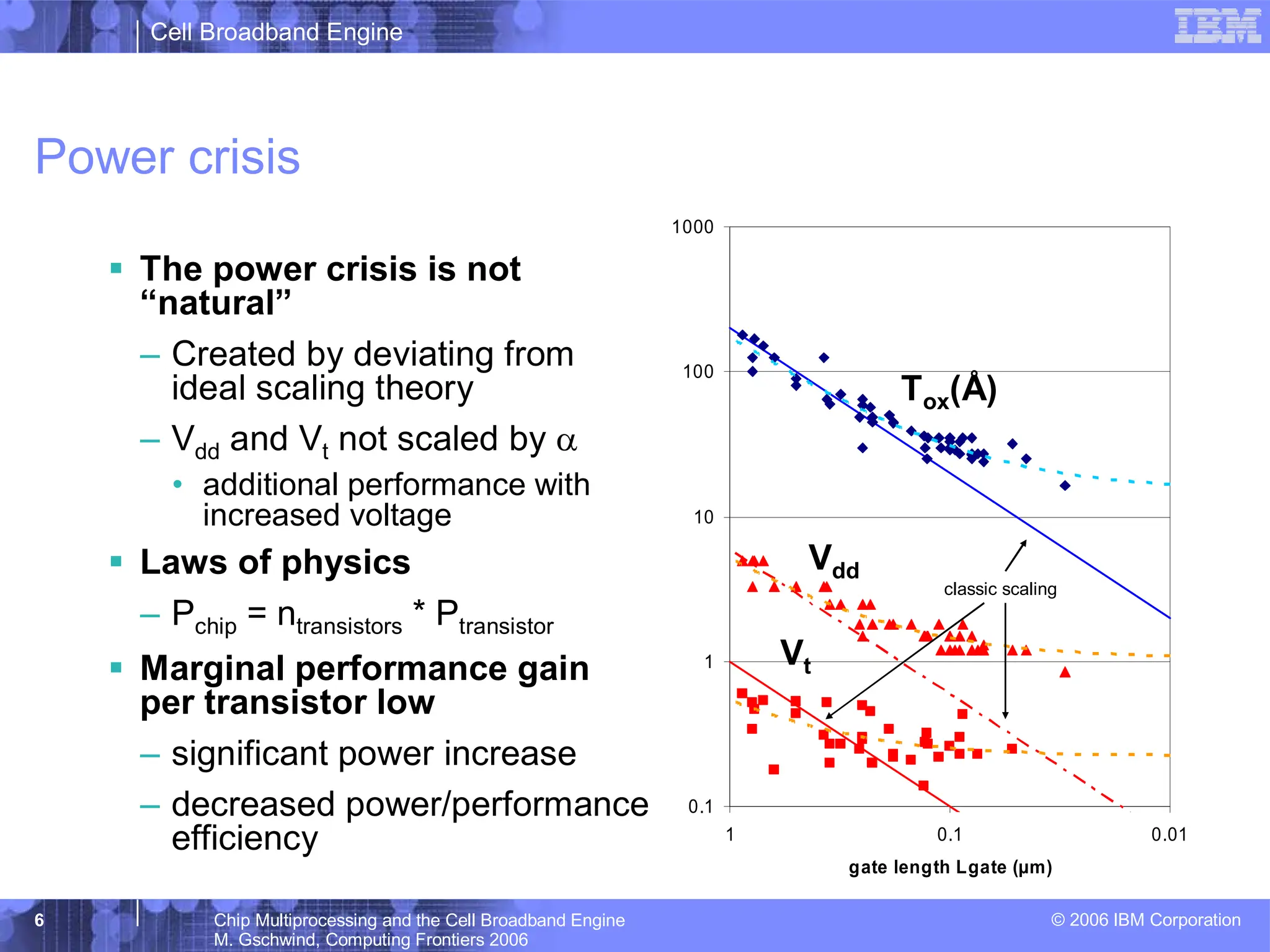

Cell Broadband Engine © 2006 IBM Corporation 6 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Power crisis 0.1 1 10 100 1000 0.01 0.1 1 gate length Lgate (µm) classic scaling Tox(Å) Vdd Vt ƒ The power crisis is not “natural” – Created by deviating from ideal scaling theory – Vdd and Vt not scaled by α • additional performance with increased voltage ƒ Laws of physics – Pchip = ntransistors * Ptransistor ƒ Marginal performance gain per transistor low – significant power increase – decreased power/performance efficiency

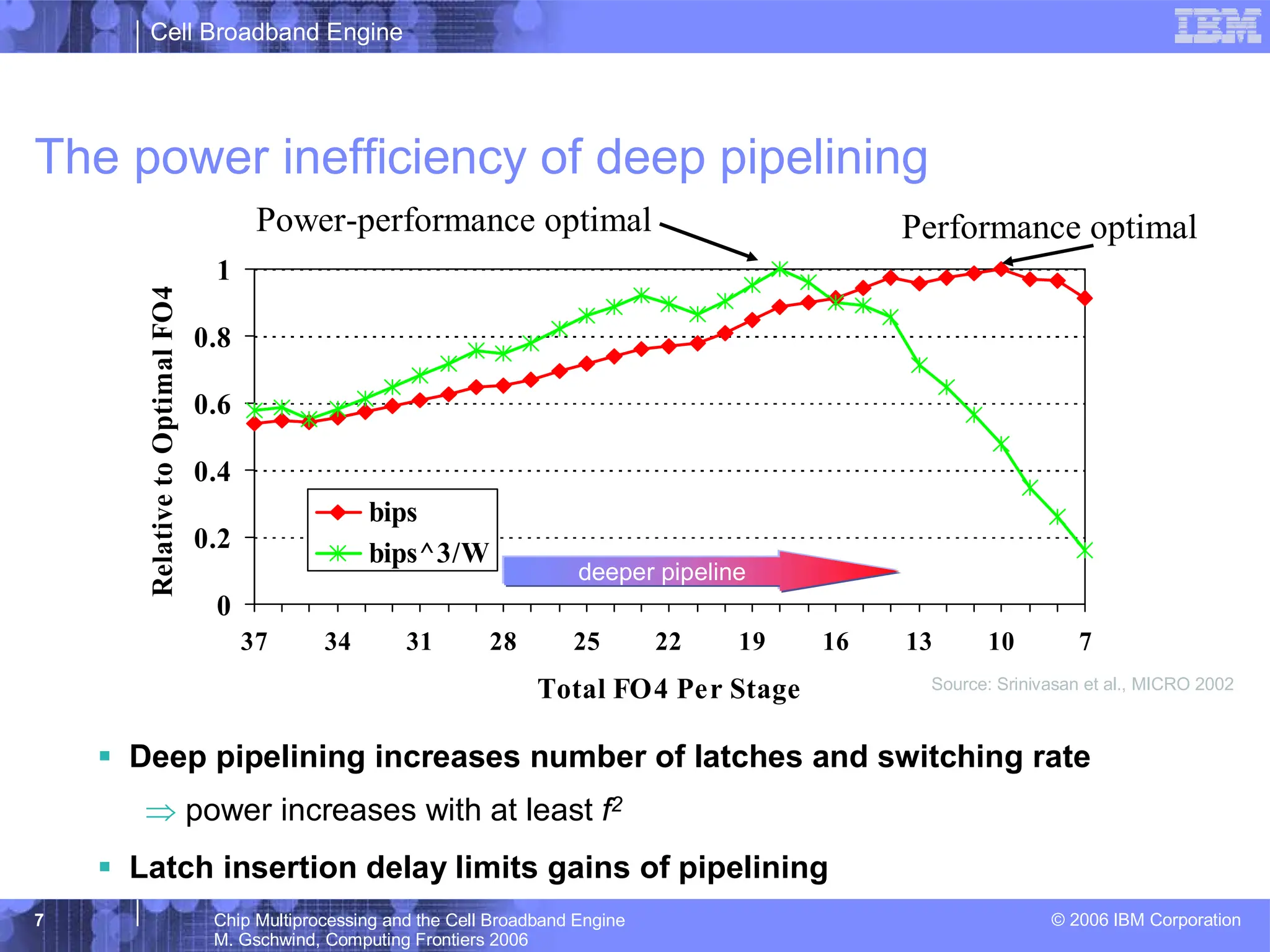

Cell Broadband Engine © 2006 IBM Corporation 7 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 The power inefficiency of deep pipelining 0 0.2 0.4 0.6 0.8 1 7 10 13 16 19 22 25 28 31 34 37 Total FO4 Per Stage Relative to Optimal FO4 bips bips^3/W ƒ Deep pipelining increases number of latches and switching rate ⇒ power increases with at least f2 ƒ Latch insertion delay limits gains of pipelining Power-performance optimal Performance optimal Source: Srinivasan et al., MICRO 2002 deeper pipeline

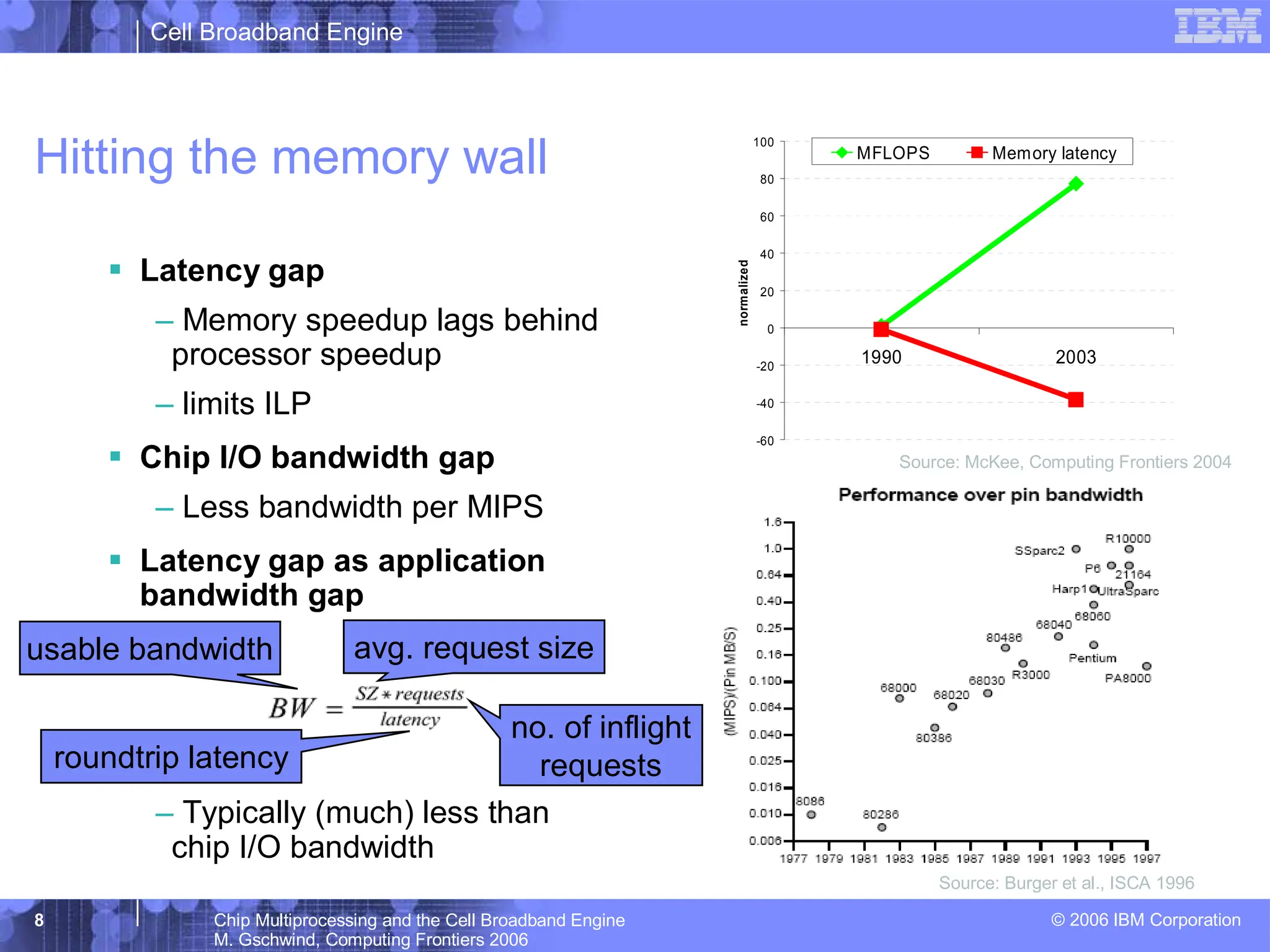

Cell Broadband Engine © 2006 IBM Corporation 8 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Hitting the memory wall ƒ Latency gap – Memory speedup lags behind processor speedup – limits ILP ƒ Chip I/O bandwidth gap – Less bandwidth per MIPS ƒ Latency gap as application bandwidth gap – Typically (much) less than chip I/O bandwidth -60 -40 -20 0 20 40 60 80 100 1990 2003 normalized MFLOPS Memory latency Source: McKee, Computing Frontiers 2004 Source: Burger et al., ISCA 1996 usable bandwidth avg. request size roundtrip latency no. of inflight requests

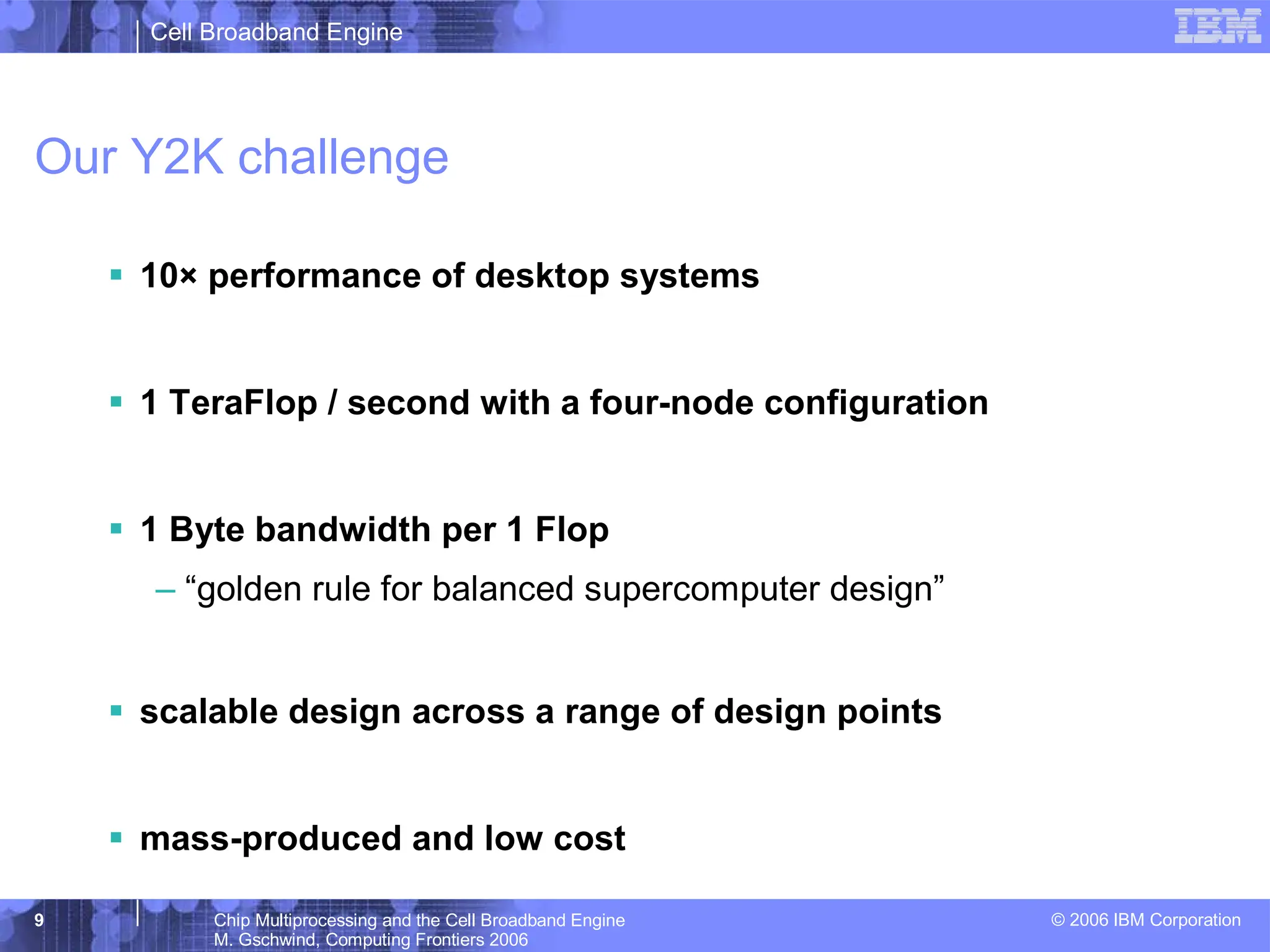

Cell Broadband Engine © 2006 IBM Corporation 9 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Our Y2K challenge ƒ 10× performance of desktop systems ƒ 1 TeraFlop / second with a four-node configuration ƒ 1 Byte bandwidth per 1 Flop – “golden rule for balanced supercomputer design” ƒ scalable design across a range of design points ƒ mass-produced and low cost

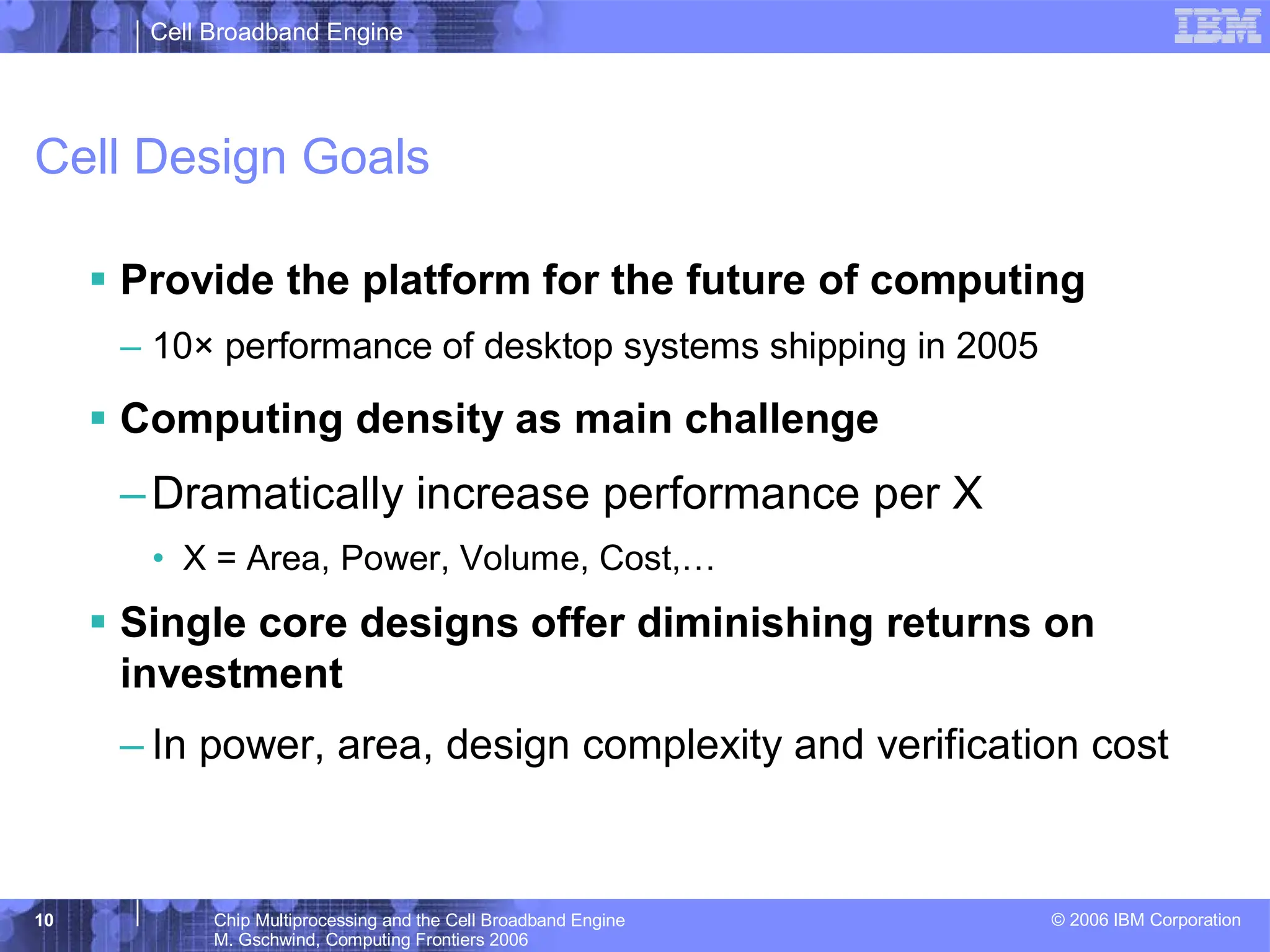

Cell Broadband Engine © 2006 IBM Corporation 10 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Cell Design Goals ƒ Provide the platform for the future of computing – 10× performance of desktop systems shipping in 2005 ƒ Computing density as main challenge –Dramatically increase performance per X • X = Area, Power, Volume, Cost,… ƒ Single core designs offer diminishing returns on investment – In power, area, design complexity and verification cost

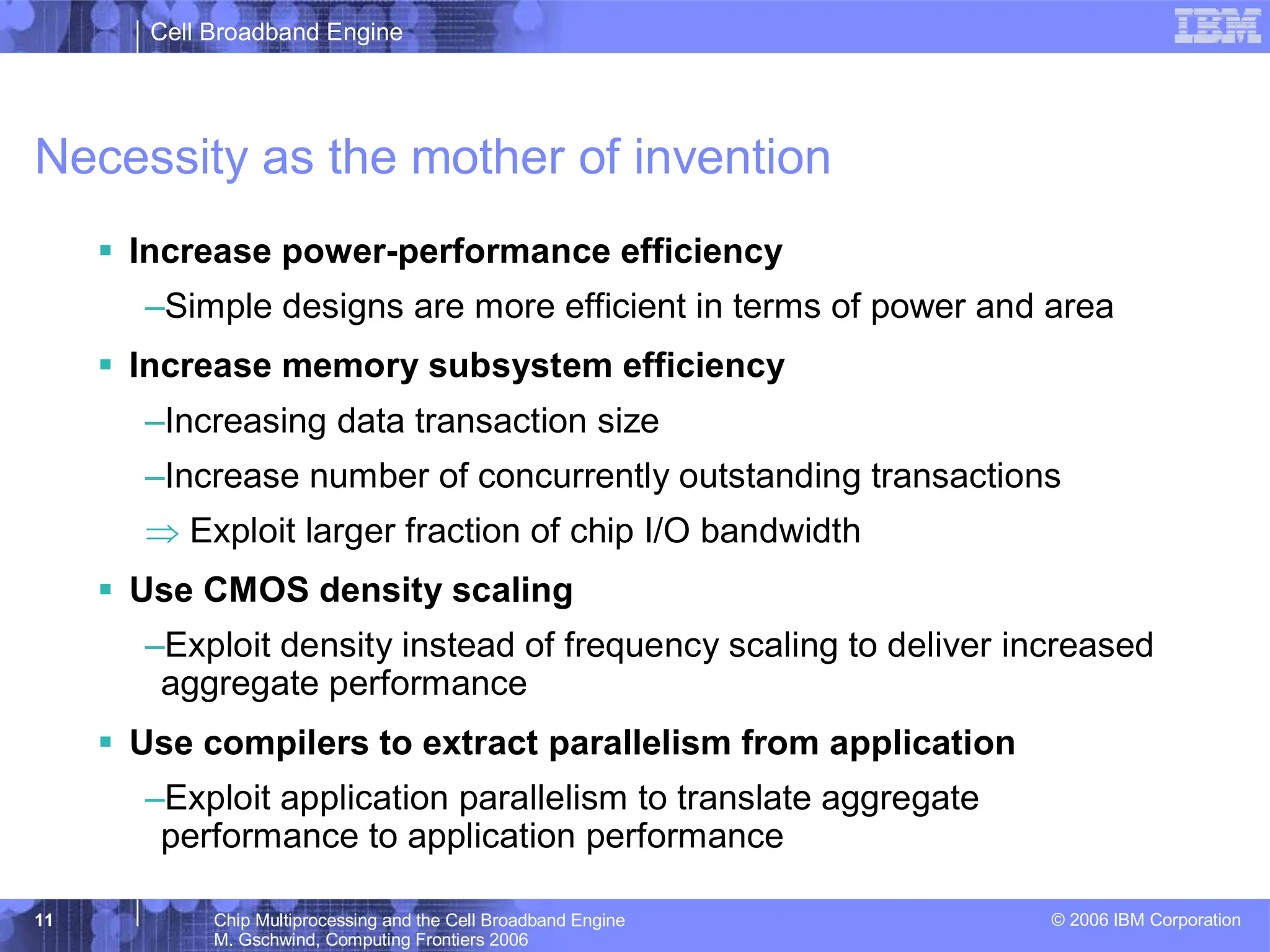

Cell Broadband Engine © 2006 IBM Corporation 11 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Necessity as the mother of invention ƒ Increase power-performance efficiency –Simple designs are more efficient in terms of power and area ƒ Increase memory subsystem efficiency –Increasing data transaction size –Increase number of concurrently outstanding transactions ⇒ Exploit larger fraction of chip I/O bandwidth ƒ Use CMOS density scaling –Exploit density instead of frequency scaling to deliver increased aggregate performance ƒ Use compilers to extract parallelism from application –Exploit application parallelism to translate aggregate performance to application performance

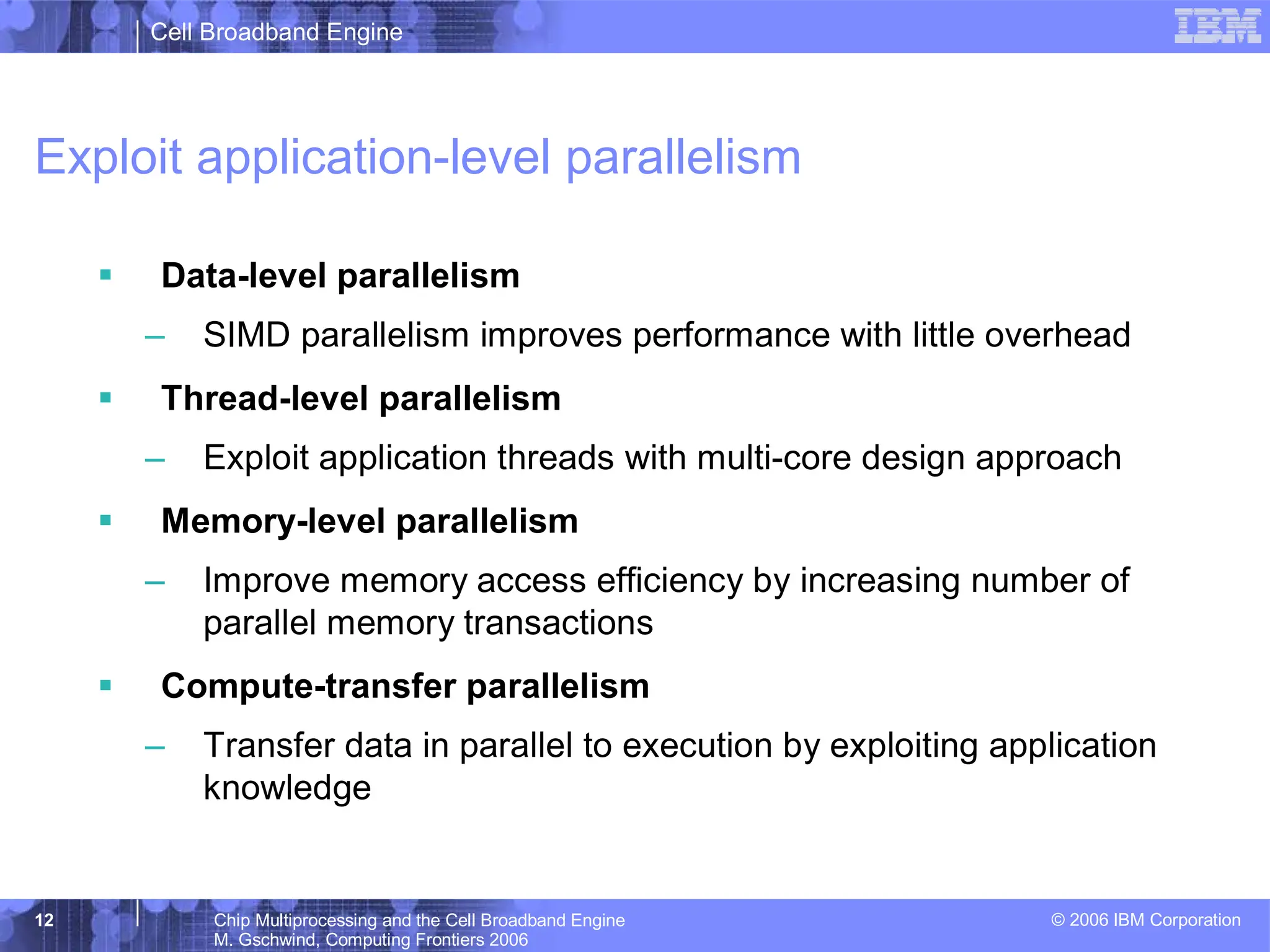

Cell Broadband Engine © 2006 IBM Corporation 12 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Exploit application-level parallelism ƒ Data-level parallelism – SIMD parallelism improves performance with little overhead ƒ Thread-level parallelism – Exploit application threads with multi-core design approach ƒ Memory-level parallelism – Improve memory access efficiency by increasing number of parallel memory transactions ƒ Compute-transfer parallelism – Transfer data in parallel to execution by exploiting application knowledge

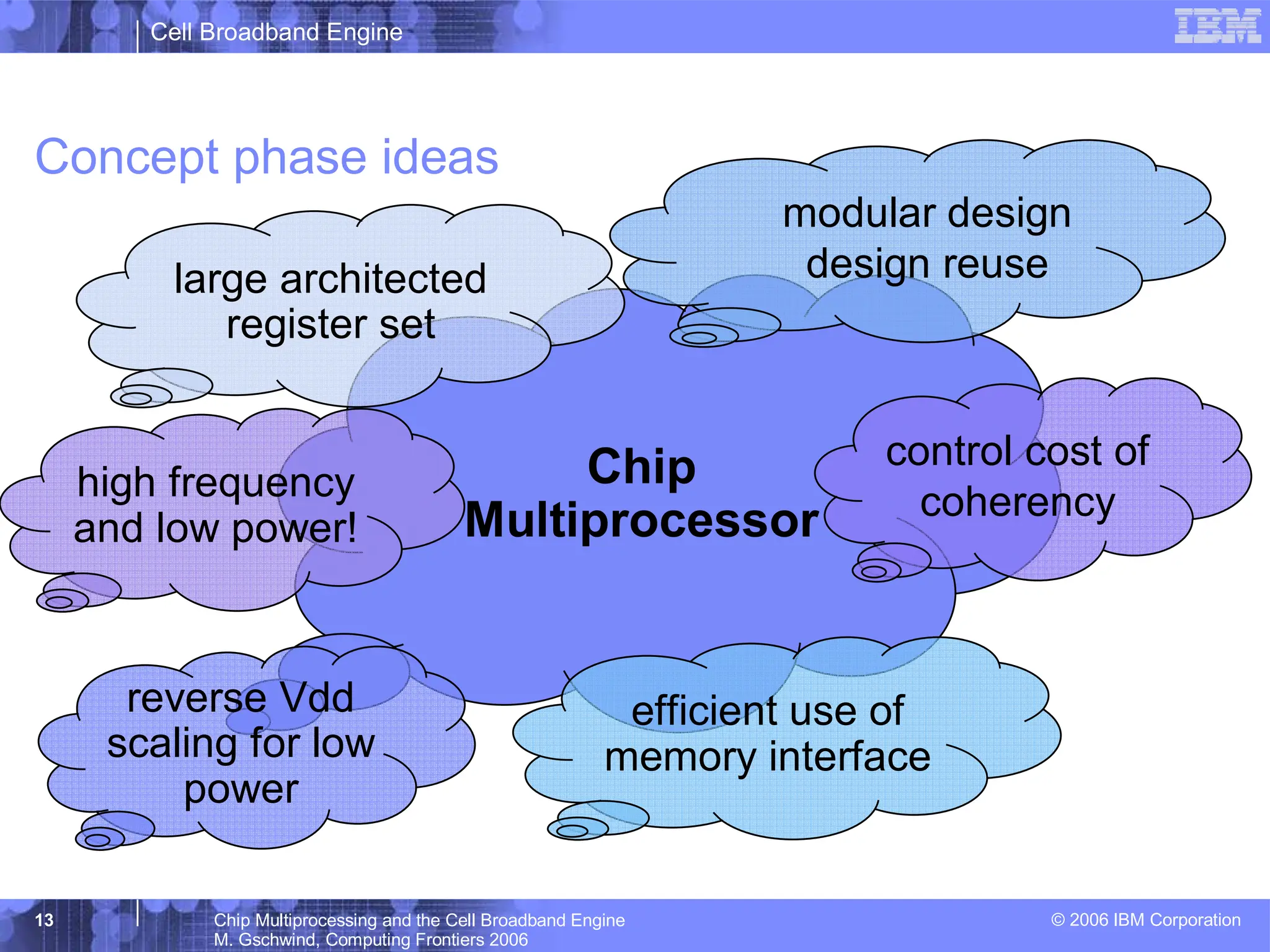

Cell Broadband Engine © 2006 IBM Corporation 13 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Concept phase ideas Chip Multiprocessor efficient use of memory interface large architected register set high frequency and low power! reverse Vdd scaling for low power modular design design reuse control cost of coherency

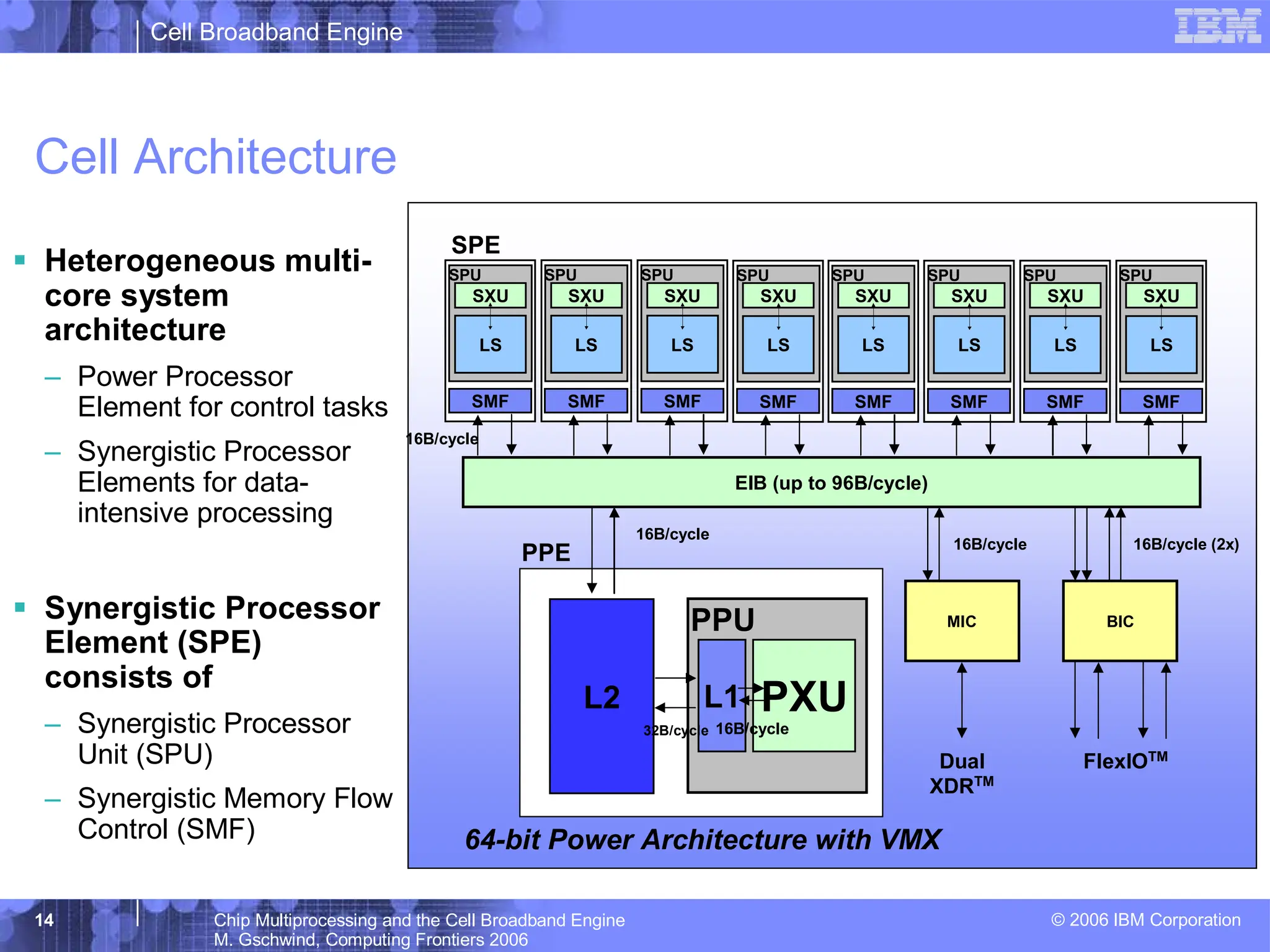

Cell Broadband Engine © 2006 IBM Corporation 14 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Cell Architecture ƒ Heterogeneous multi- core system architecture – Power Processor Element for control tasks – Synergistic Processor Elements for data- intensive processing ƒ Synergistic Processor Element (SPE) consists of – Synergistic Processor Unit (SPU) – Synergistic Memory Flow Control (SMF) 16B/cycle (2x) 16B/cycle BIC FlexIOTM MIC Dual XDRTM 16B/cycle EIB (up to 96B/cycle) 16B/cycle 64-bit Power Architecture with VMX PPE SPE LS SXU SPU SMF PXU L1 PPU 16B/cycle L2 32B/cycle LS SXU SPU SMF LS SXU SPU SMF LS SXU SPU SMF LS SXU SPU SMF LS SXU SPU SMF LS SXU SPU SMF LS SXU SPU SMF

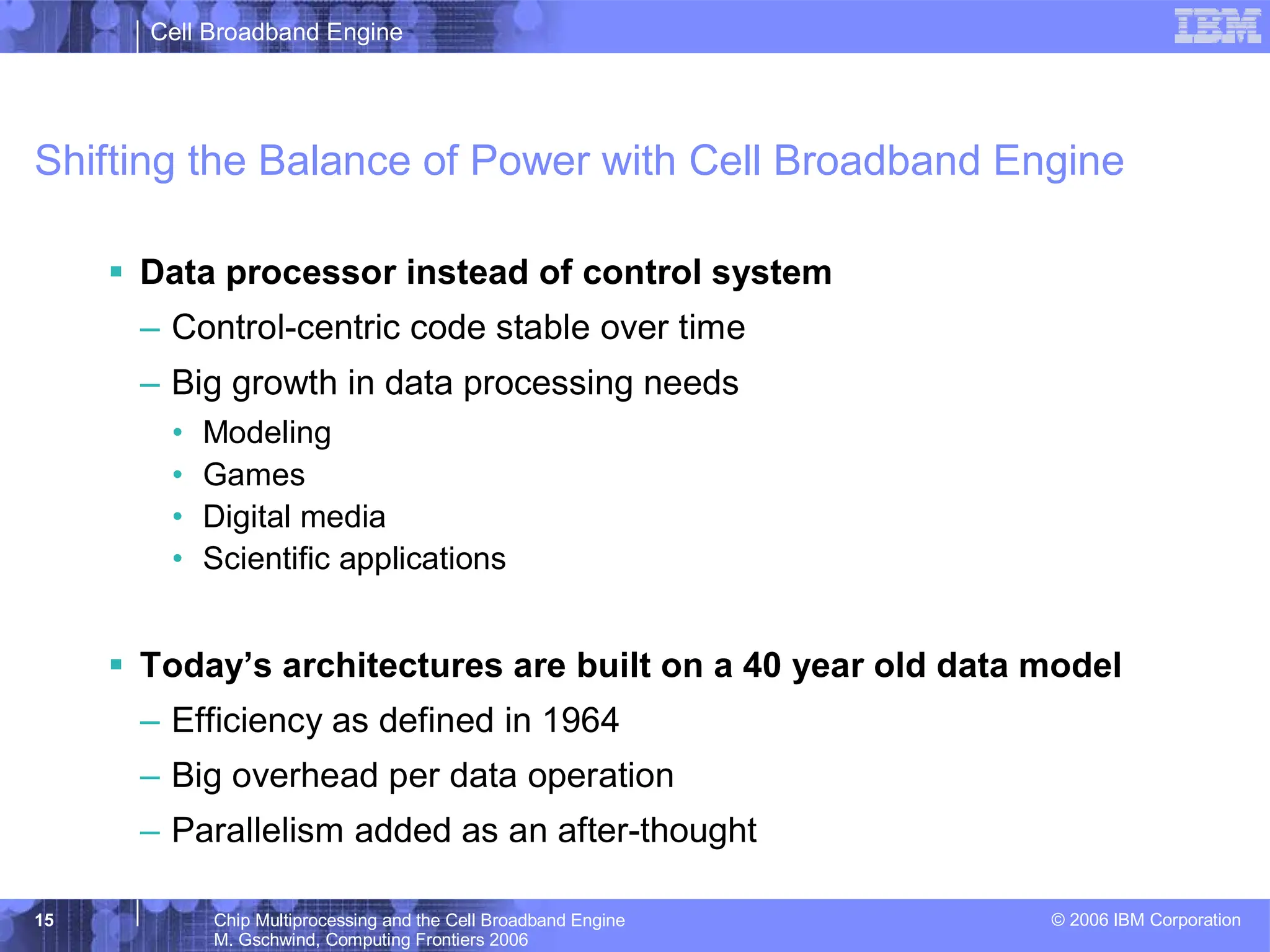

Cell Broadband Engine © 2006 IBM Corporation 15 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Shifting the Balance of Power with Cell Broadband Engine ƒ Data processor instead of control system – Control-centric code stable over time – Big growth in data processing needs • Modeling • Games • Digital media • Scientific applications ƒ Today’s architectures are built on a 40 year old data model – Efficiency as defined in 1964 – Big overhead per data operation – Parallelism added as an after-thought

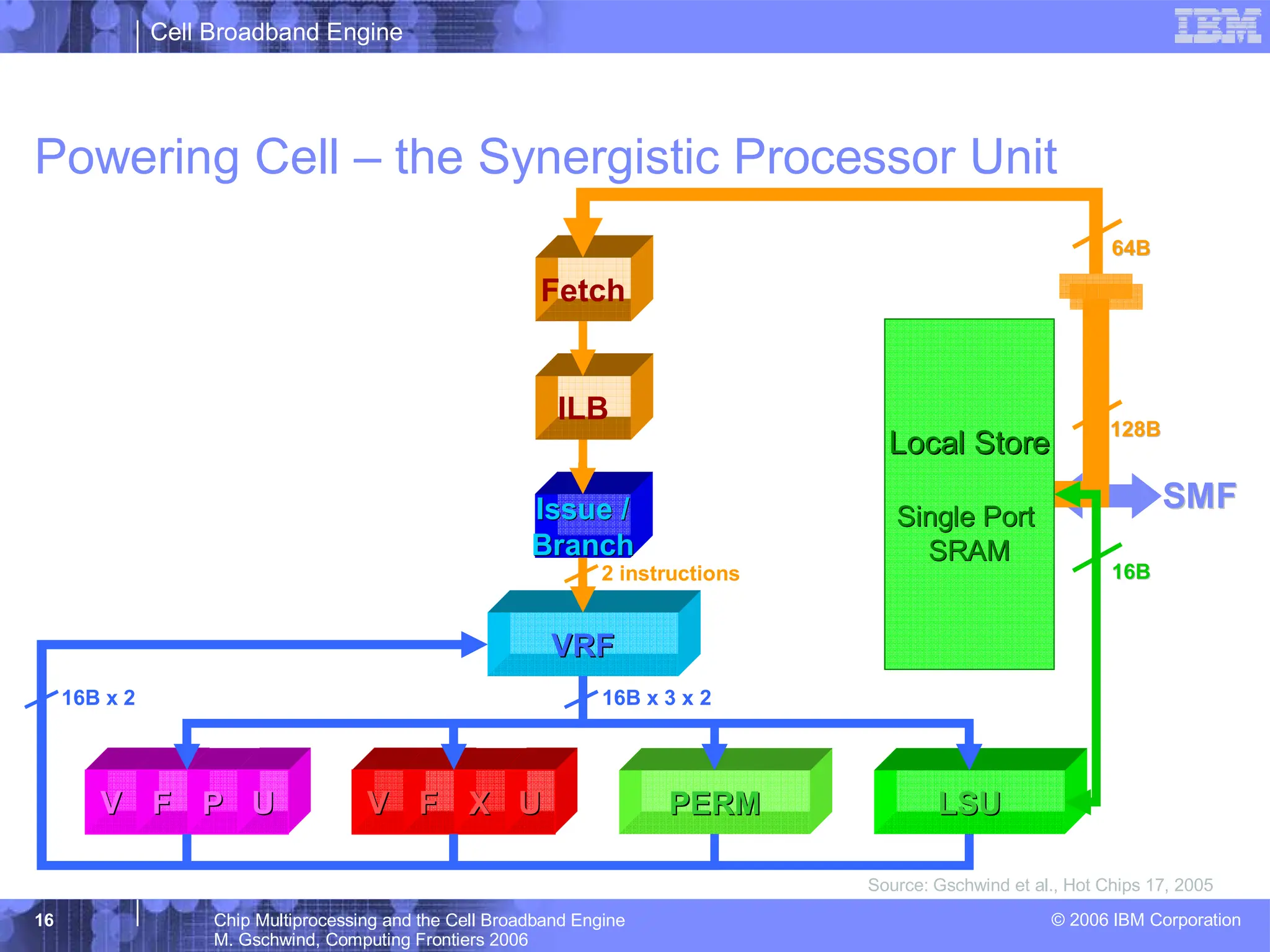

Cell Broadband Engine © 2006 IBM Corporation 16 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Powering Cell – the Synergistic Processor Unit VRF VRF PERM PERM LSU LSU V V F F P P U U V V F F X X U U Local Store Local Store Single Port Single Port SRAM SRAM Issue / Issue / Branch Branch Fetch ILB 16B x 2 2 instructions 16B x 3 x 2 64B 64B 16B 16B 128B 128B Source: Gschwind et al., Hot Chips 17, 2005 SMF SMF

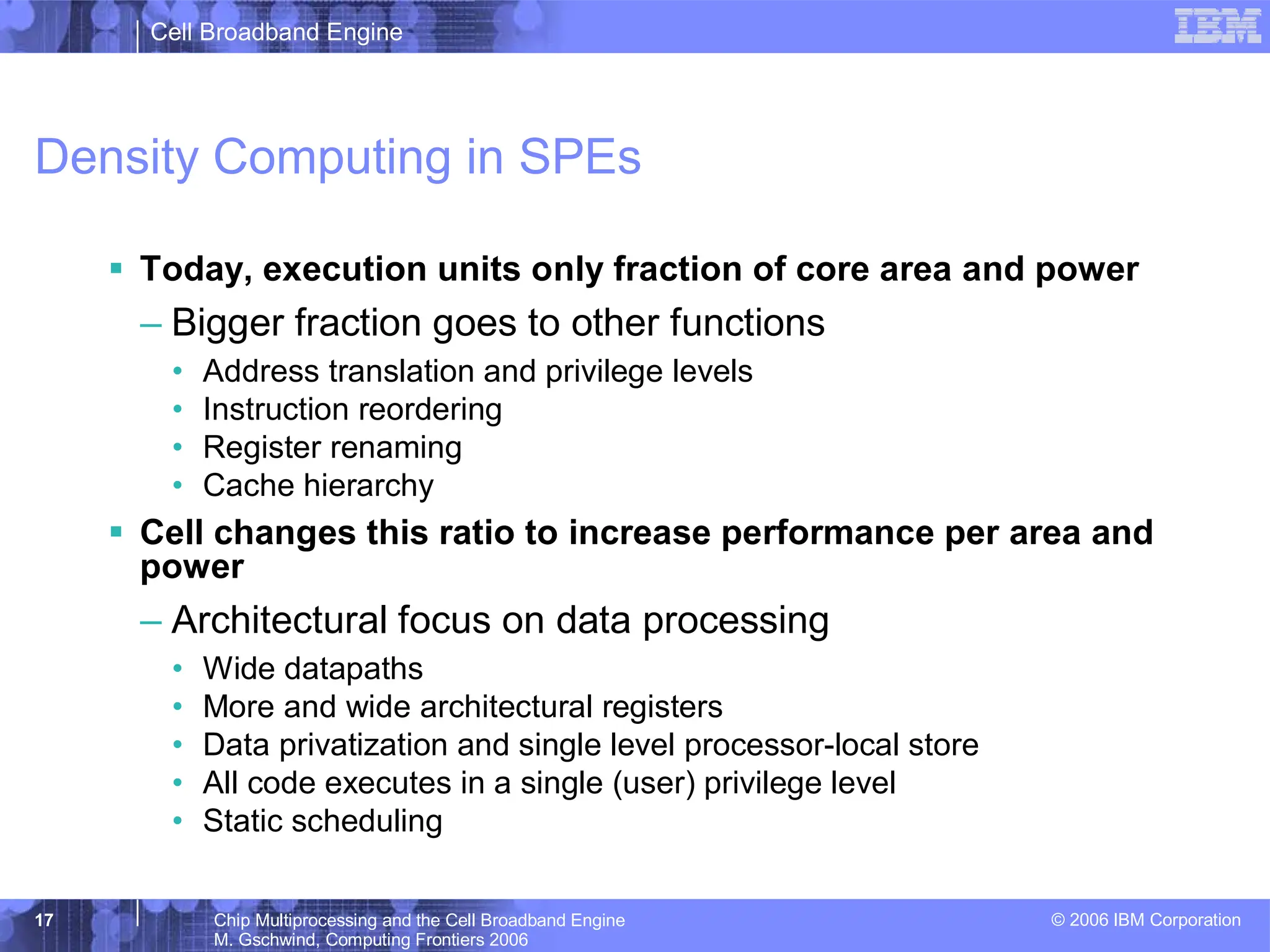

Cell Broadband Engine © 2006 IBM Corporation 17 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Density Computing in SPEs ƒ Today, execution units only fraction of core area and power – Bigger fraction goes to other functions • Address translation and privilege levels • Instruction reordering • Register renaming • Cache hierarchy ƒ Cell changes this ratio to increase performance per area and power – Architectural focus on data processing • Wide datapaths • More and wide architectural registers • Data privatization and single level processor-local store • All code executes in a single (user) privilege level • Static scheduling

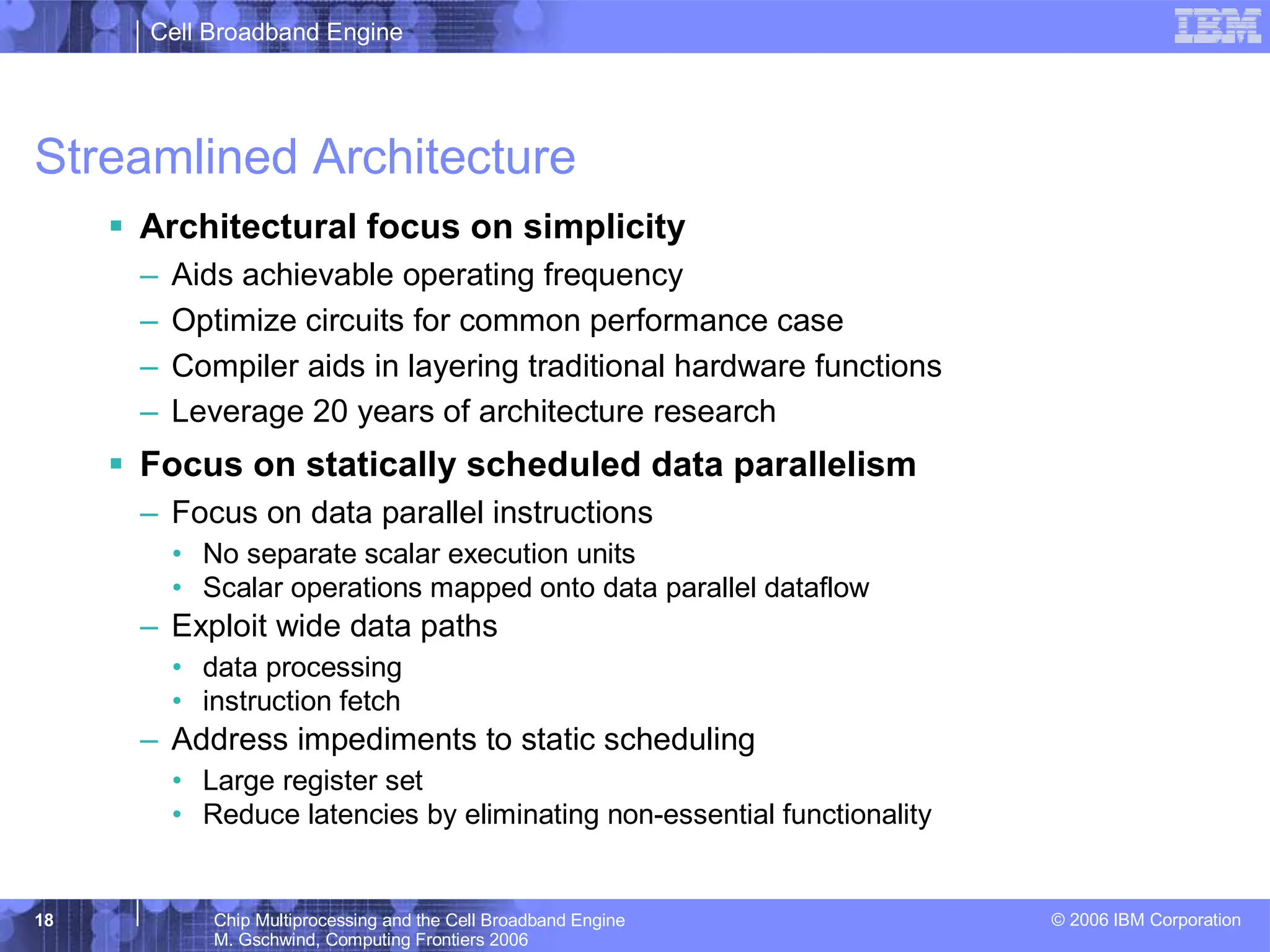

Cell Broadband Engine © 2006 IBM Corporation 18 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Streamlined Architecture ƒ Architectural focus on simplicity – Aids achievable operating frequency – Optimize circuits for common performance case – Compiler aids in layering traditional hardware functions – Leverage 20 years of architecture research ƒ Focus on statically scheduled data parallelism – Focus on data parallel instructions • No separate scalar execution units • Scalar operations mapped onto data parallel dataflow – Exploit wide data paths • data processing • instruction fetch – Address impediments to static scheduling • Large register set • Reduce latencies by eliminating non-essential functionality
Cell Broadband Engine © 2006 IBM Corporation 19 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 SPE Highlights ƒ RISC organization – 32 bit fixed instructions – Load/store architecture – Unified register file ƒ User-mode architecture – No page translation within SPU ƒ SIMD dataflow – Broad set of operations (8, 16, 32, 64 Bit) – Graphics SP-Float – IEEE DP-Float ƒ 256KB Local Store – Combined I & D ƒ DMA block transfer – using Power Architecture memory translation LS LS LS LS GPR FXU ODD FXU EVN SFP DP CONTROL CHANNEL DMA SMM ATO SBI RTB BE B FWD 14.5mm2 (90nm SOI) Source: Kahle, Spring Processor Forum 2005

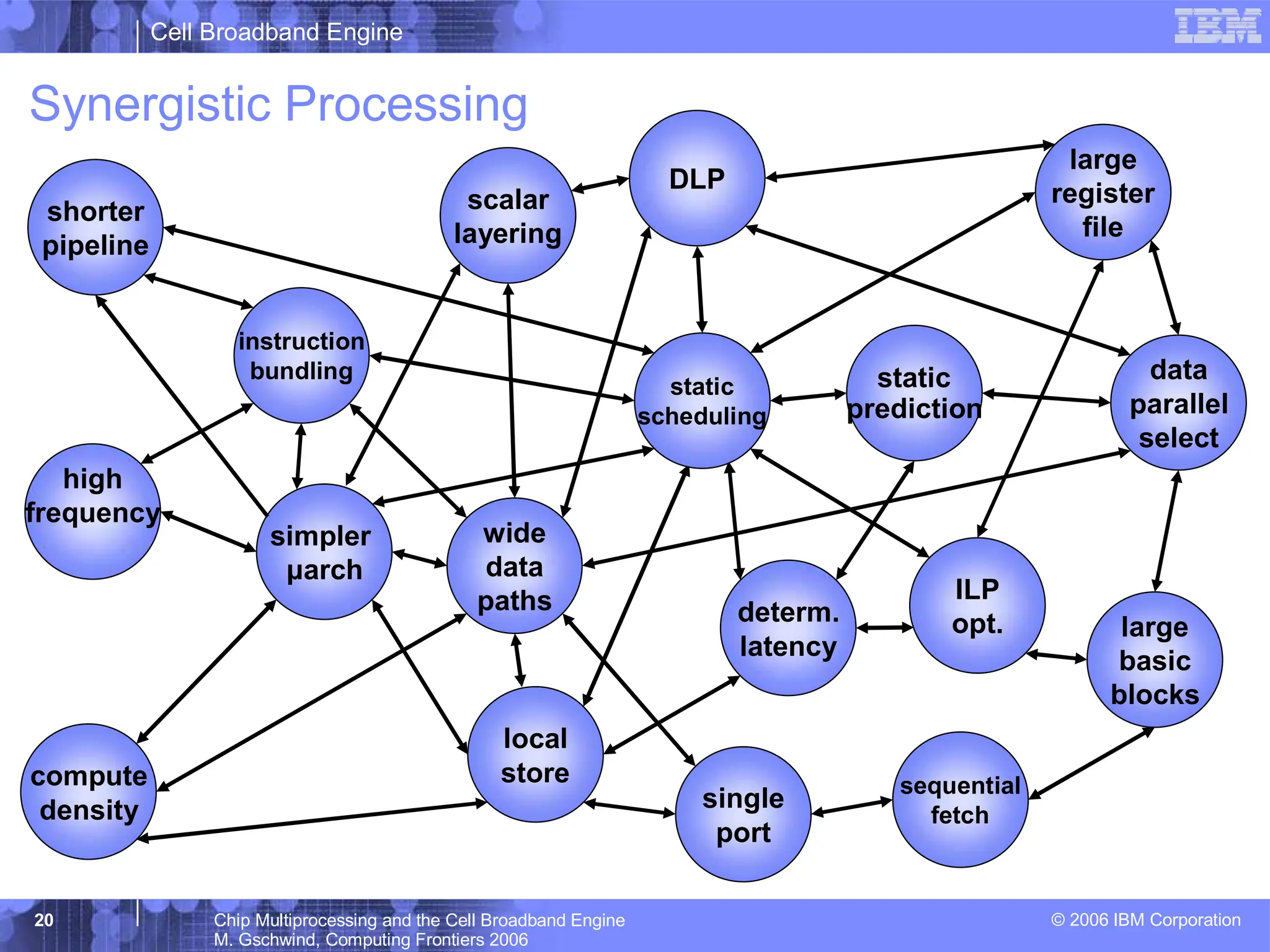

Cell Broadband Engine © 2006 IBM Corporation 20 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 data parallel select static prediction simpler μarch sequential fetch local store high frequency shorter pipeline large basic blocks determ. latency large register file instruction bundling DLP wide data paths compute density Synergistic Processing single port static scheduling scalar layering ILP opt.

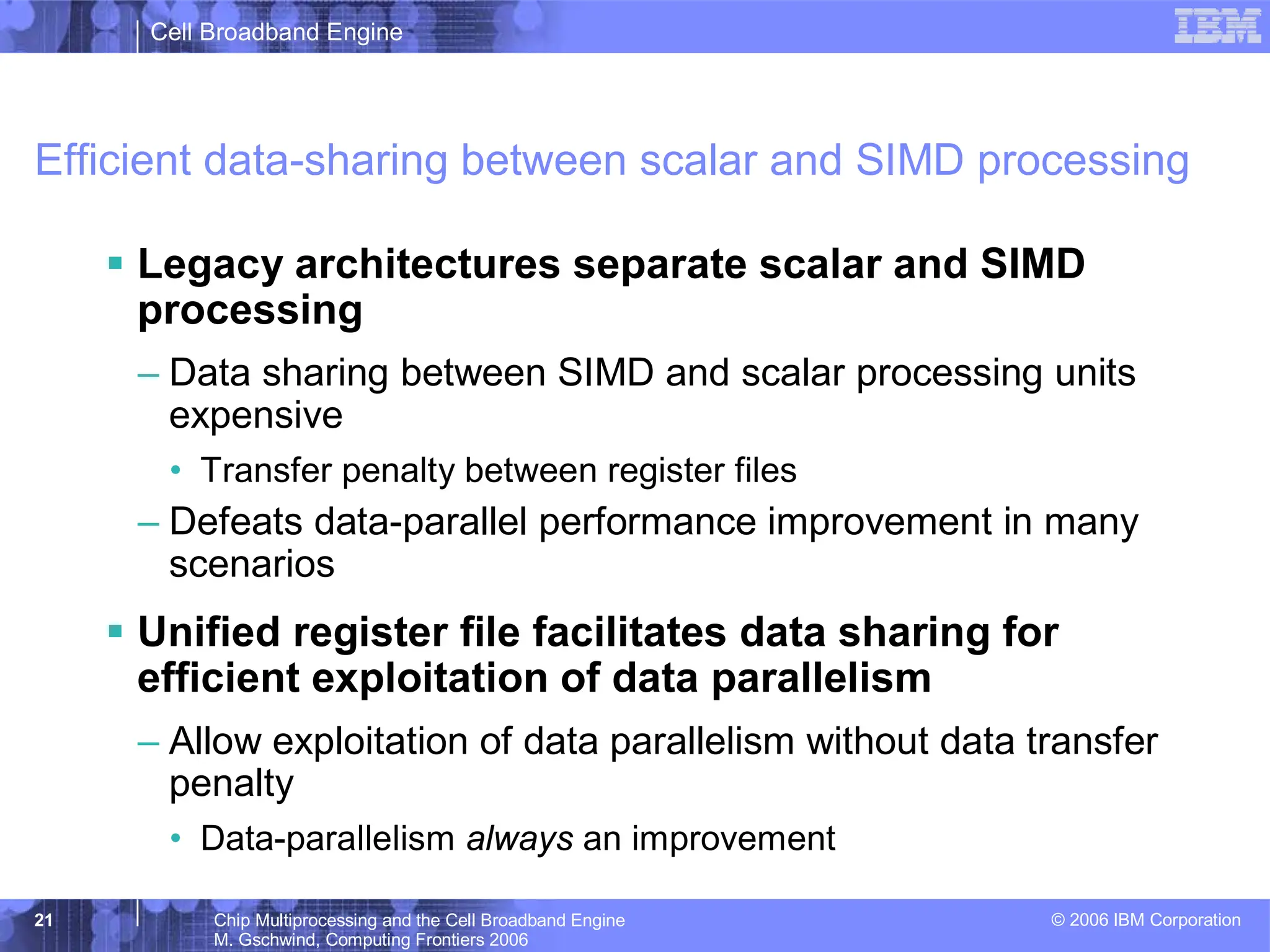

Cell Broadband Engine © 2006 IBM Corporation 21 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Efficient data-sharing between scalar and SIMD processing ƒ Legacy architectures separate scalar and SIMD processing – Data sharing between SIMD and scalar processing units expensive • Transfer penalty between register files – Defeats data-parallel performance improvement in many scenarios ƒ Unified register file facilitates data sharing for efficient exploitation of data parallelism – Allow exploitation of data parallelism without data transfer penalty • Data-parallelism always an improvement

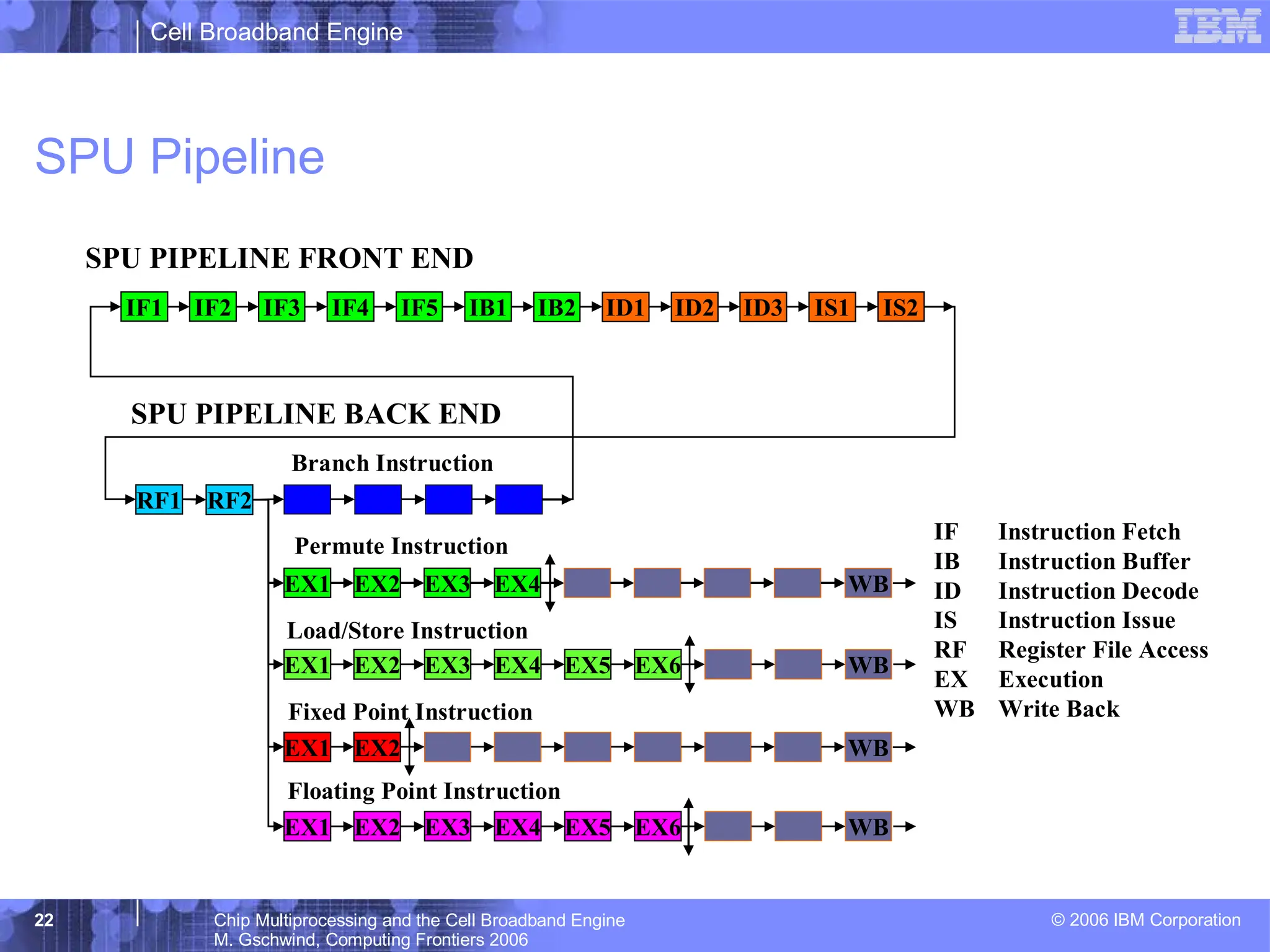

Cell Broadband Engine © 2006 IBM Corporation 22 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 SPU PIPELINE FRONT END SPU PIPELINE BACK END Branch Instruction Load/Store Instruction IF Instruction Fetch IB Instruction Buffer ID Instruction Decode IS Instruction Issue RF Register File Access EX Execution WB Write Back Floating Point Instruction Permute Instruction EX1 EX2 EX3 EX4 EX1 EX2 EX3 EX4 EX5 EX6 EX1 EX2 WB WB RF1 RF2 WB Fixed Point Instruction EX1 EX2 EX3 EX4 EX5 EX6 WB IF1 IF2 IF3 IF4 IF5 IB1 IB2 ID1 ID2 ID3 IS1 IS2 SPU Pipeline
Cell Broadband Engine © 2006 IBM Corporation 23 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Permute Unit Load-Store Unit Floating-Point Unit Fixed-Point Unit Branch Unit Channel Unit Result Forwarding and Staging Register File Local Store (256kB) Single Port SRAM 128B Read 128B Write DMA Unit Instruction Issue Unit / Instruction Line Buffer 8 Byte/Cycle 16 Byte/Cycle 128 Byte/Cycle 64 Byte/Cycle On-Chip Coherent Bus SPE Block Diagram
Cell Broadband Engine © 2006 IBM Corporation 24 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Synergistic Memory Flow Control Data Bus Snoop Bus Control Bus Translate Ld/St MMIO DMA Engine DMA Queue RMT MMU Atomic Facility Bus I/F Control LS SXU SPU MMIO SPE SMF ƒ SMF implements memory management and mapping ƒ SMF operates in parallel to SPU – Independent compute and transfer – Command interface from SPU • DMA queue decouples SMF & SPU • MMIO-interface for remote nodes ƒ Block transfer between system memory and local store ƒ SPE programs reference system memory using user-level effective address space – Ease of data sharing – Local store to local store transfers – Protection

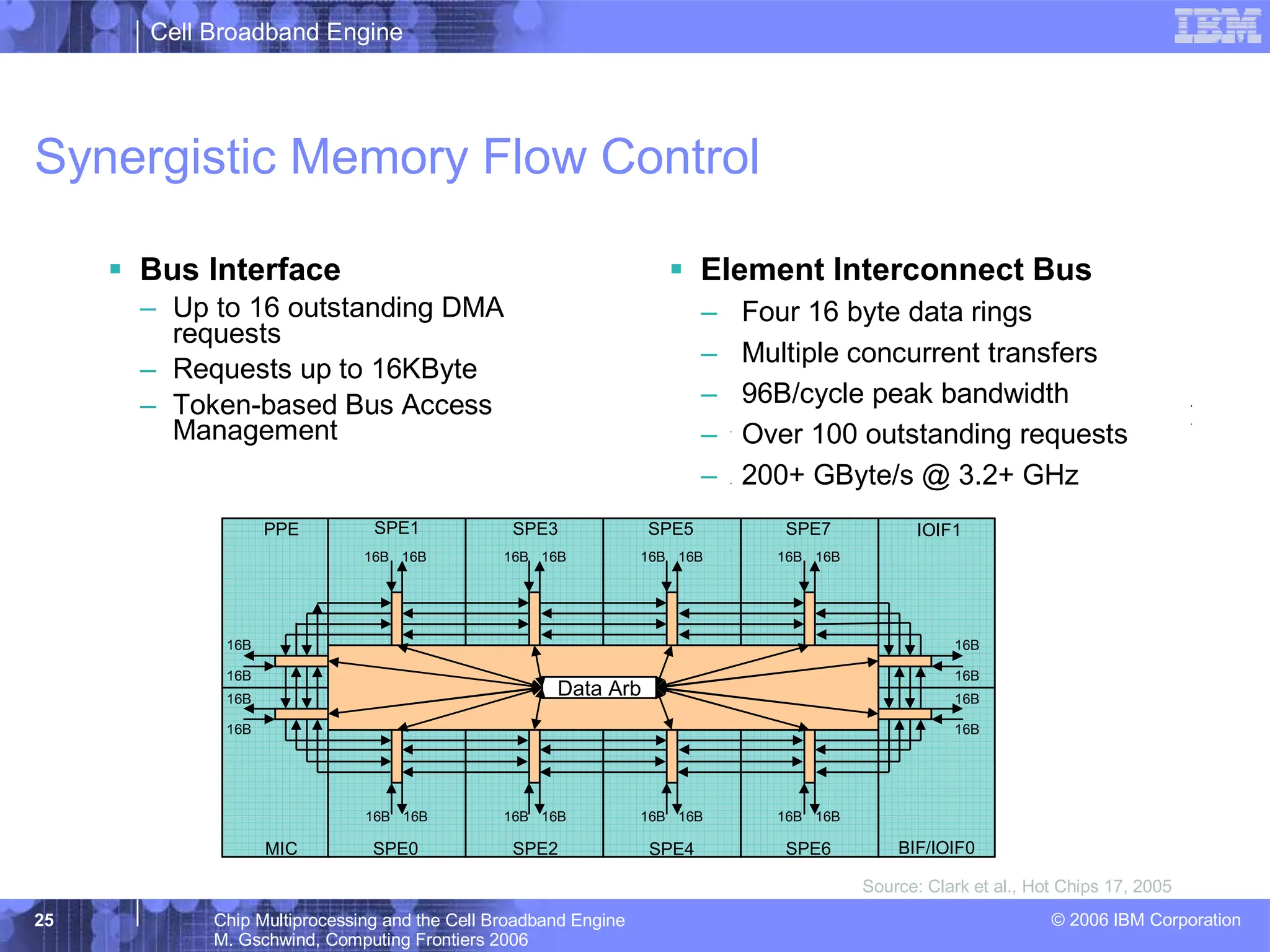

Cell Broadband Engine © 2006 IBM Corporation 25 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Synergistic Memory Flow Control ƒ Bus Interface – Up to 16 outstanding DMA requests – Requests up to 16KByte – Token-based Bus Access Management Source: Clark et al., Hot Chips 17, 2005 ƒ Element Interconnect Bus – Four 16 byte data rings – Multiple concurrent transfers – 96B/cycle peak bandwidth – Over 100 outstanding requests – 200+ GByte/s @ 3.2+ GHz 16B 16B 16B 16B Data Arb 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B SPE0 SPE2 SPE4 SPE6 SPE7 SPE5 SPE3 SPE1 MIC PPE BIF/IOIF0 IOIF1

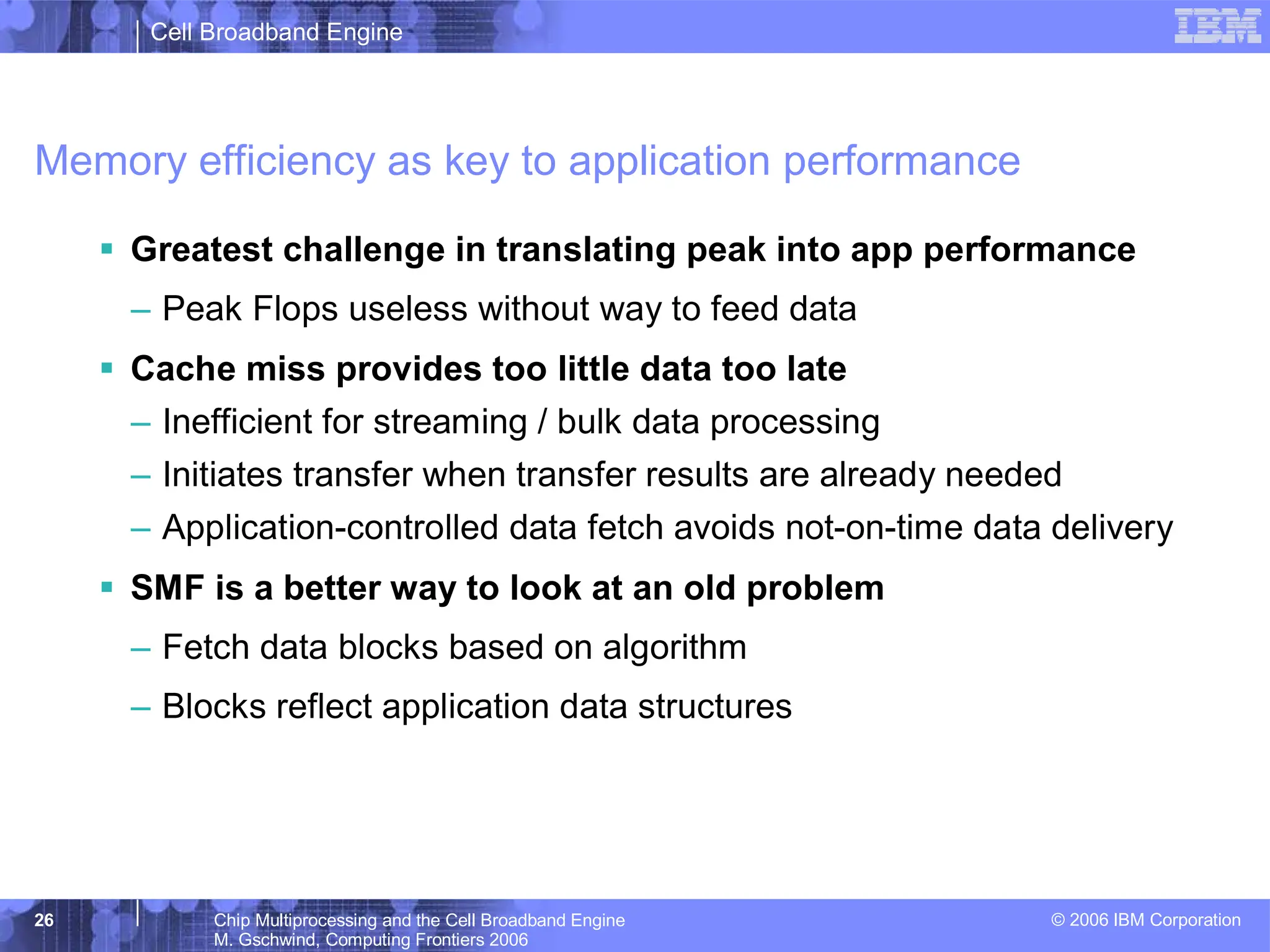

Cell Broadband Engine © 2006 IBM Corporation 26 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Memory efficiency as key to application performance ƒ Greatest challenge in translating peak into app performance – Peak Flops useless without way to feed data ƒ Cache miss provides too little data too late – Inefficient for streaming / bulk data processing – Initiates transfer when transfer results are already needed – Application-controlled data fetch avoids not-on-time data delivery ƒ SMF is a better way to look at an old problem – Fetch data blocks based on algorithm – Blocks reflect application data structures

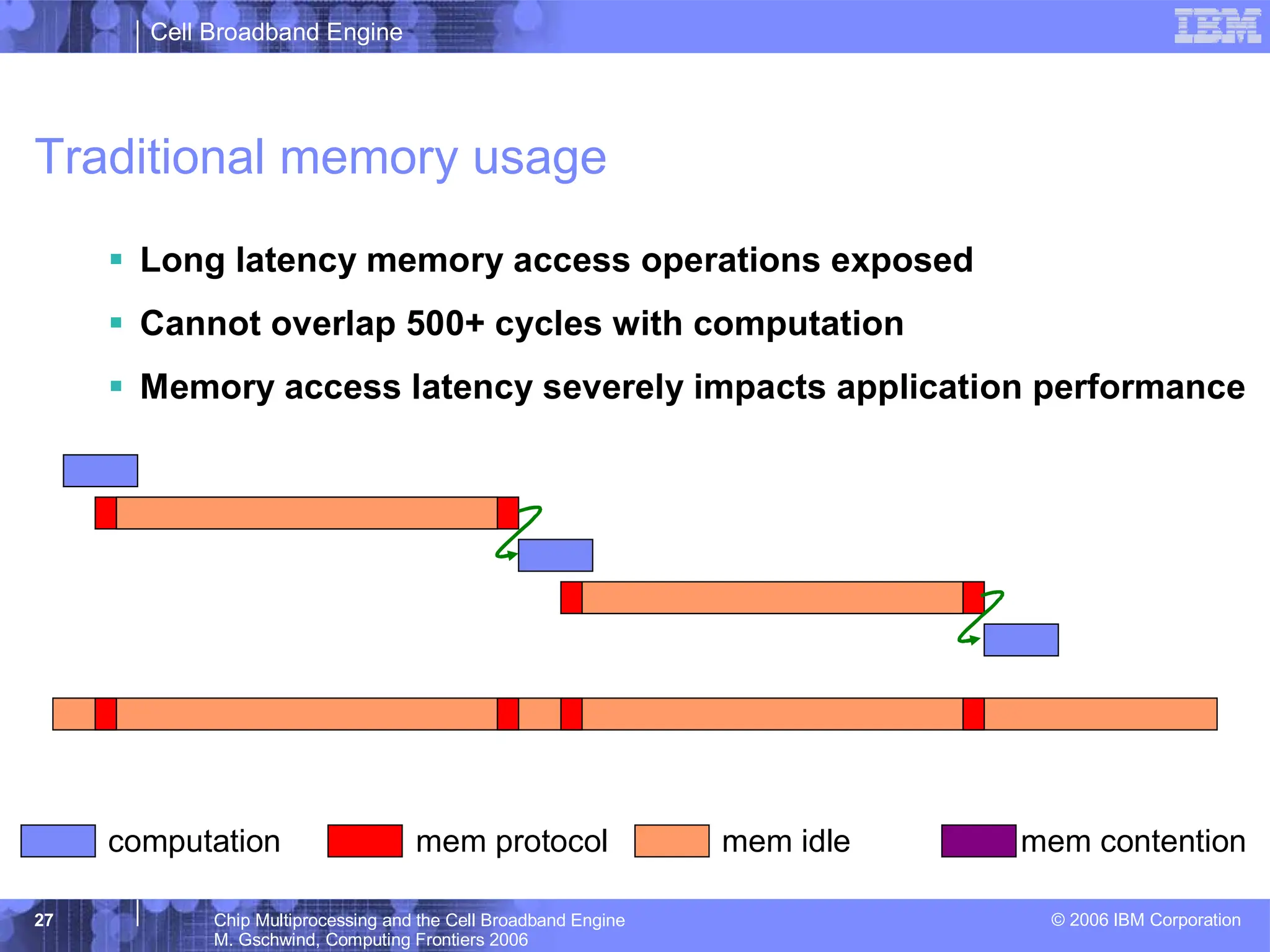

Cell Broadband Engine © 2006 IBM Corporation 27 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Traditional memory usage ƒ Long latency memory access operations exposed ƒ Cannot overlap 500+ cycles with computation ƒ Memory access latency severely impacts application performance computation mem protocol mem idle mem contention

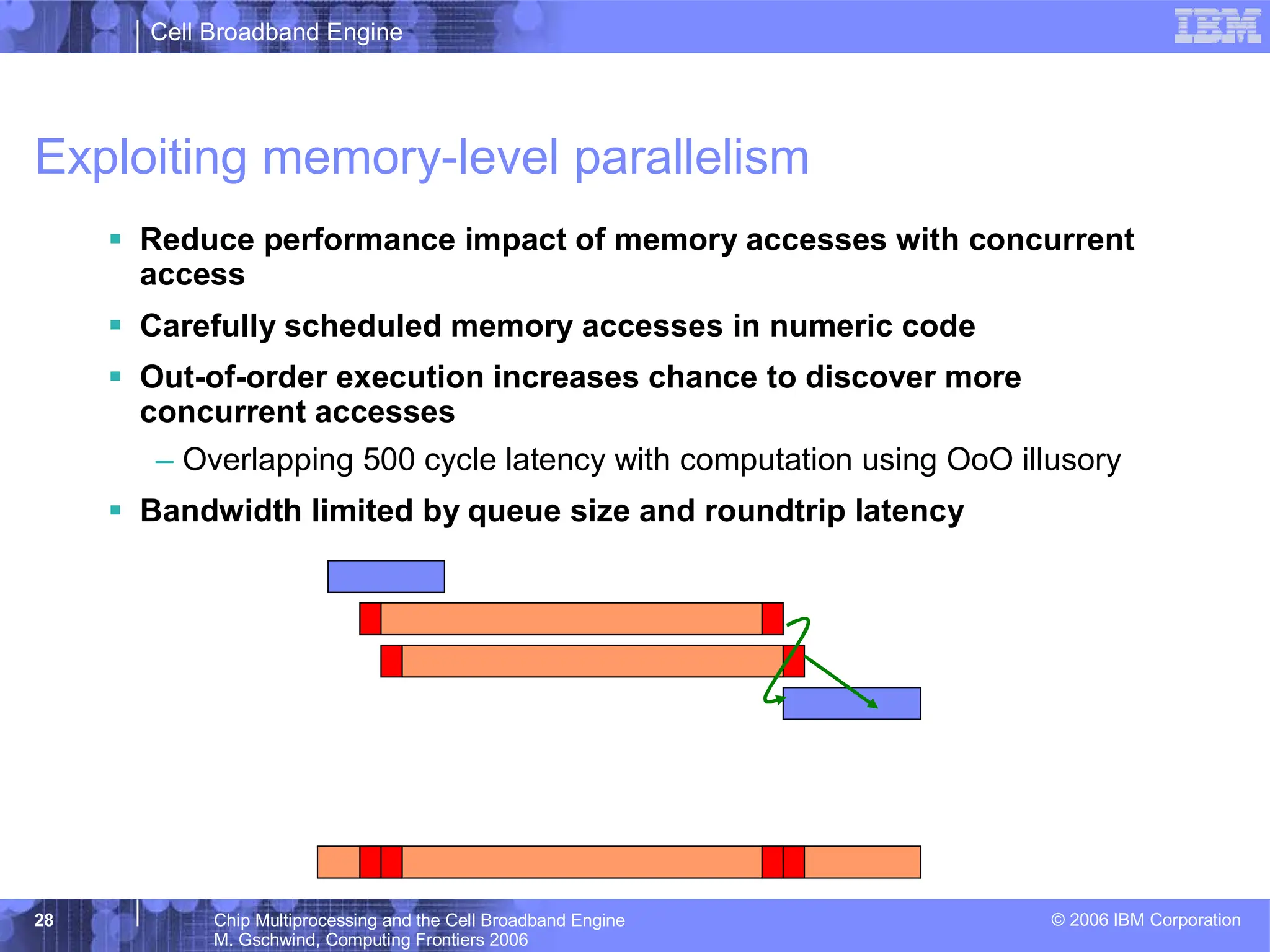

Cell Broadband Engine © 2006 IBM Corporation 28 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Exploiting memory-level parallelism ƒ Reduce performance impact of memory accesses with concurrent access ƒ Carefully scheduled memory accesses in numeric code ƒ Out-of-order execution increases chance to discover more concurrent accesses – Overlapping 500 cycle latency with computation using OoO illusory ƒ Bandwidth limited by queue size and roundtrip latency

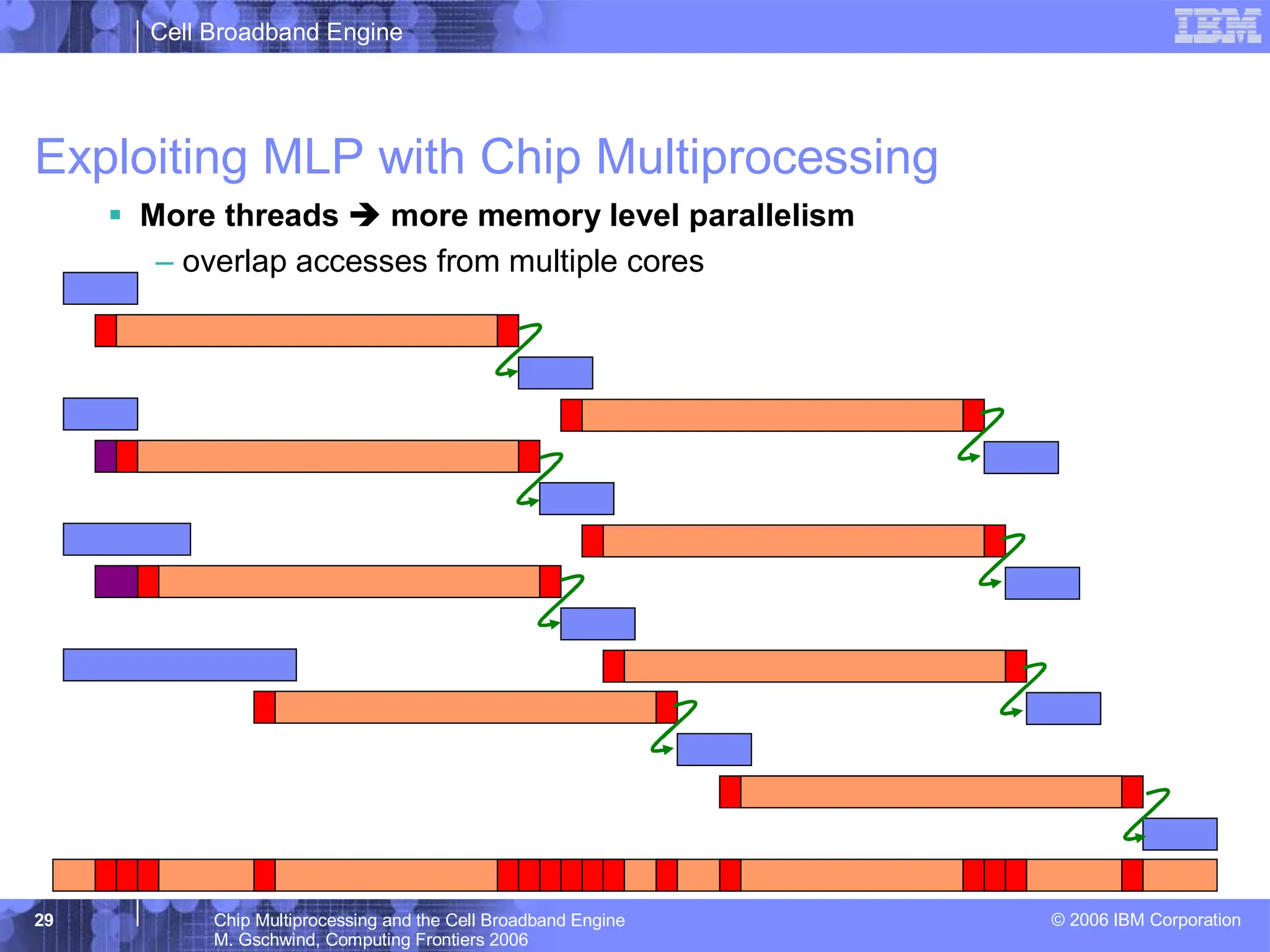

Cell Broadband Engine © 2006 IBM Corporation 29 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Exploiting MLP with Chip Multiprocessing ƒ More threads Î more memory level parallelism – overlap accesses from multiple cores

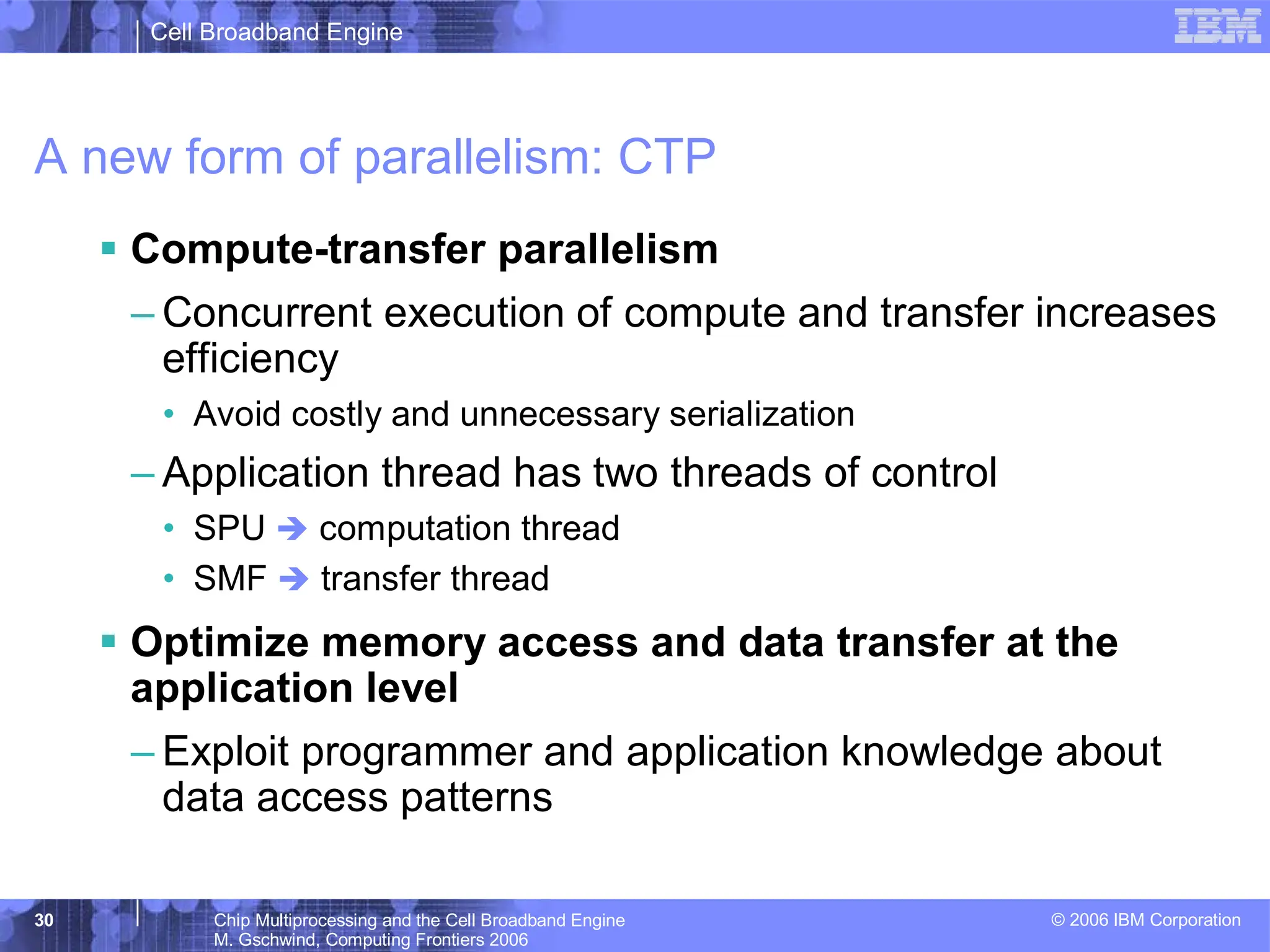

Cell Broadband Engine © 2006 IBM Corporation 30 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 A new form of parallelism: CTP ƒ Compute-transfer parallelism – Concurrent execution of compute and transfer increases efficiency • Avoid costly and unnecessary serialization – Application thread has two threads of control • SPU Î computation thread • SMF Î transfer thread ƒ Optimize memory access and data transfer at the application level – Exploit programmer and application knowledge about data access patterns

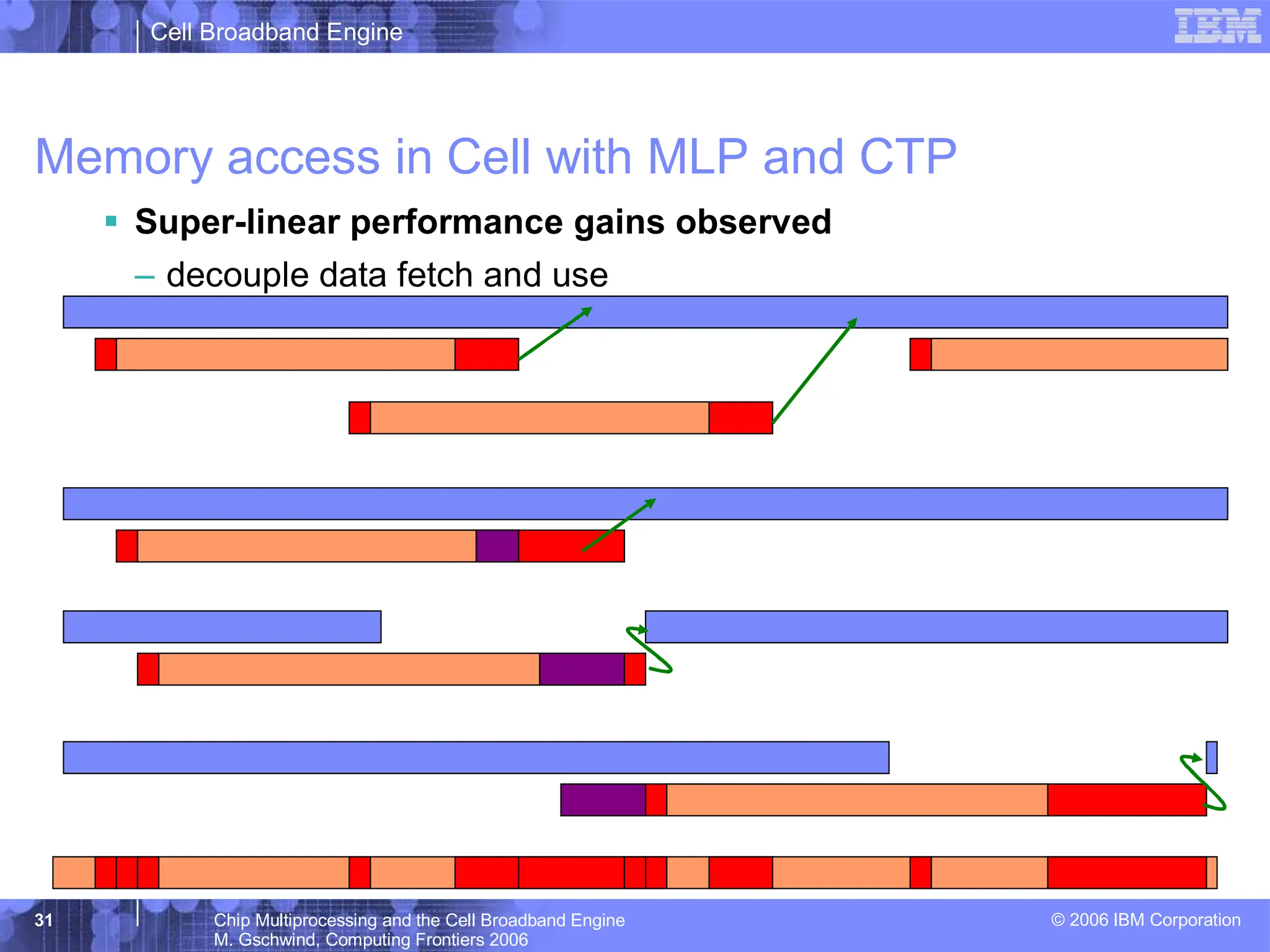

Cell Broadband Engine © 2006 IBM Corporation 31 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Memory access in Cell with MLP and CTP ƒ Super-linear performance gains observed – decouple data fetch and use

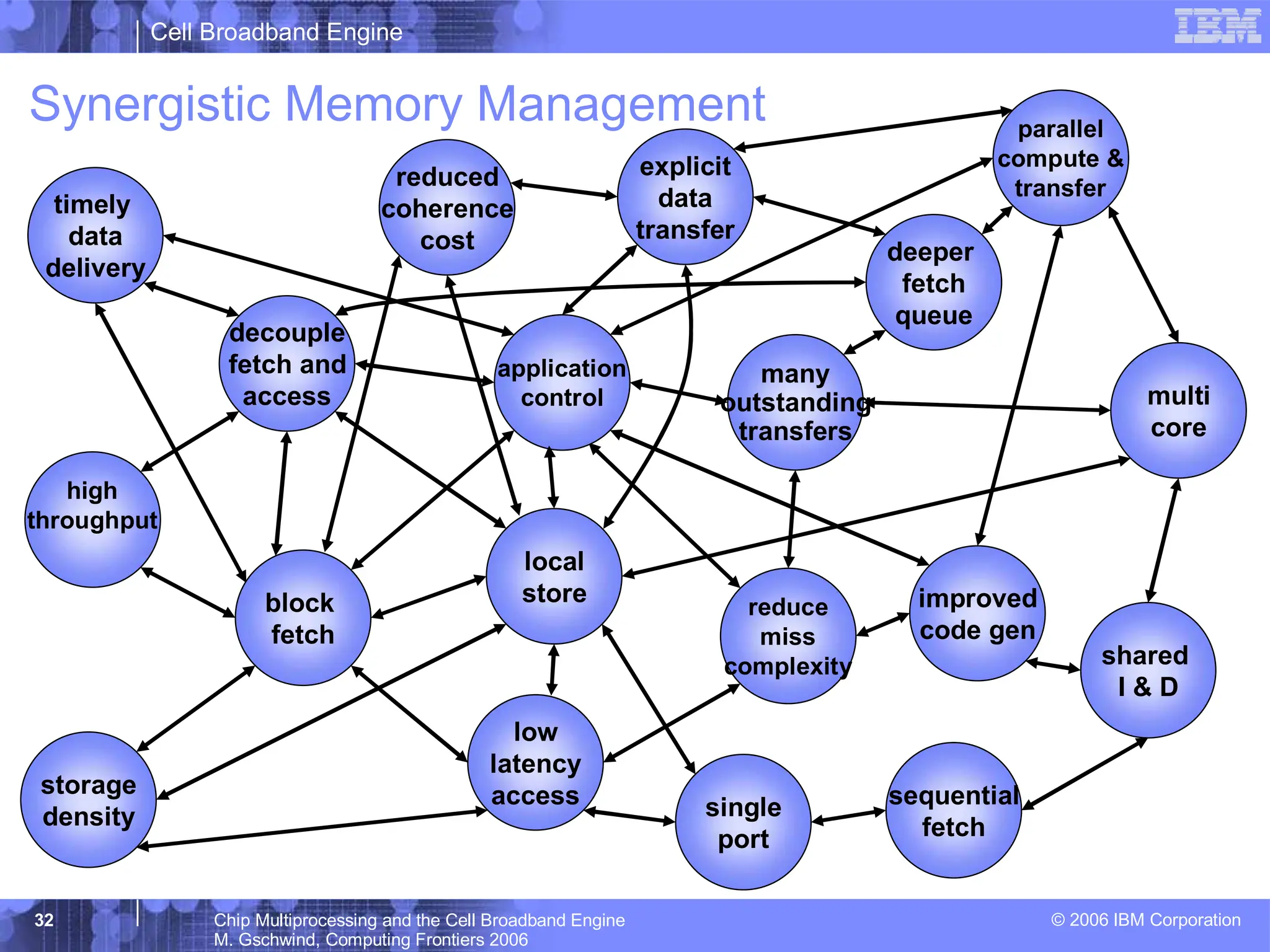

Cell Broadband Engine © 2006 IBM Corporation 32 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 multi core many outstanding transfers sequential fetch high throughput timely data delivery shared I & D reduce miss complexity parallel compute & transfer improved code gen decouple fetch and access explicit data transfer storage density Synergistic Memory Management single port application control reduced coherence cost low latency access block fetch deeper fetch queue local store
Cell Broadband Engine © 2006 IBM Corporation 33 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Cell BE Implementation Characteristics ƒ 241M transistors ƒ 235mm2 ƒ Design operates across wide frequency range – Optimize for power & yield ƒ > 200 GFlops (SP) @3.2GHz ƒ > 20 GFlops (DP) @3.2GHz ƒ Up to 25.6 GB/s memory bandwidth ƒ Up to 75 GB/s I/O bandwidth ƒ 100+ simultaneous bus transactions – 16+8 entry DMA queue per SPE Relative Frequency Increase vs. Power Consumption Voltage Source: Kahle, Spring Processor Forum 2005
Cell Broadband Engine © 2006 IBM Corporation 34 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Cell Broadband Engine

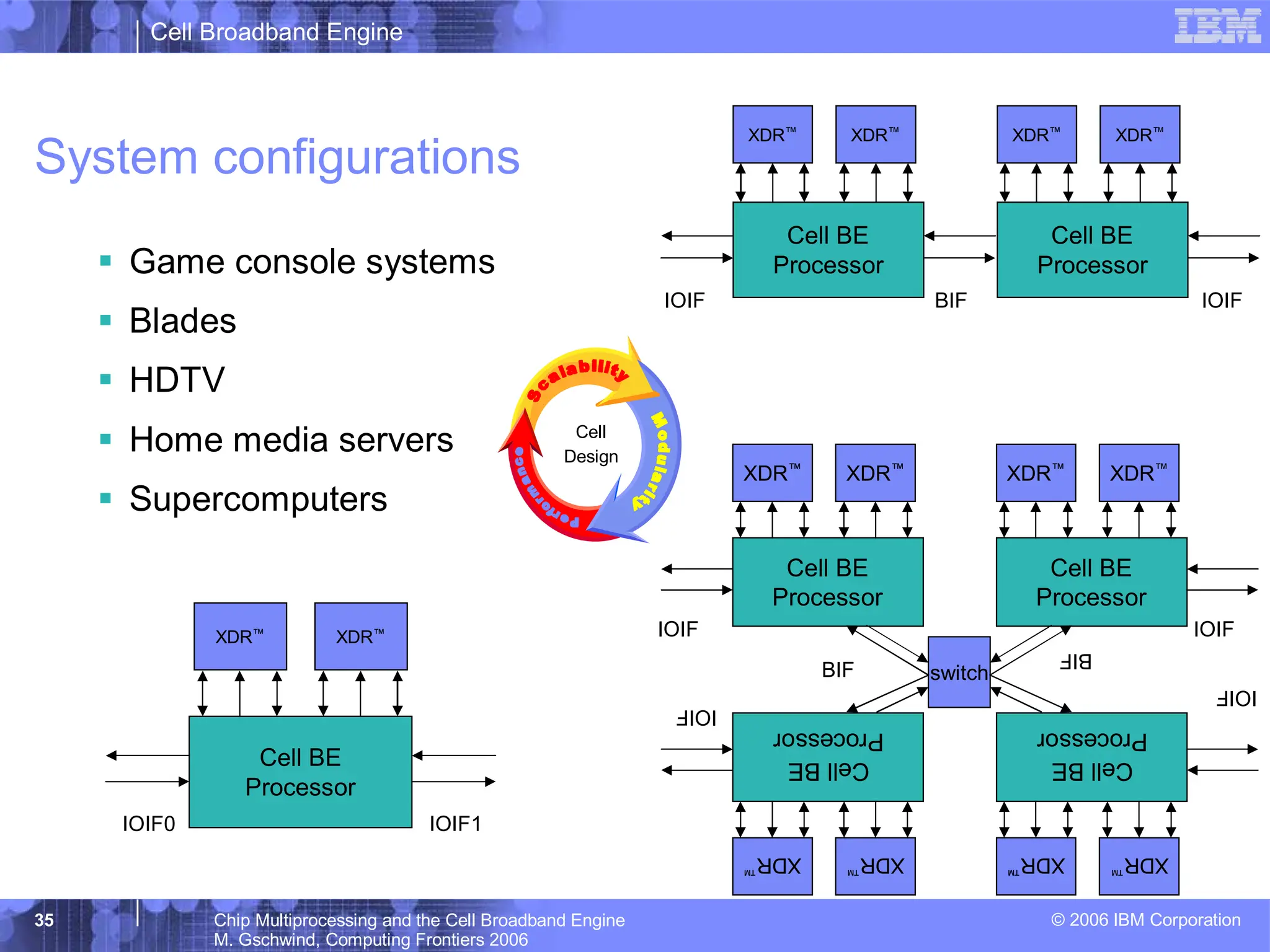

Cell Broadband Engine © 2006 IBM Corporation 35 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 System configurations Cell BE Processor XDR™ XDR™ IOIF BIF Cell BE Processor XDR™ XDR™ IOIF Cell BE Processor XDR ™ XDR ™ IOIF BIF Cell BE Processor XDR ™ XDR ™ IOIF switch Cell BE Processor XDR™ XDR™ IOIF BIF Cell BE Processor XDR™ XDR™ IOIF Cell BE Processor XDR™ XDR™ IOIF0 IOIF1 ƒ Game console systems ƒ Blades ƒ HDTV ƒ Home media servers ƒ Supercomputers Cell Design

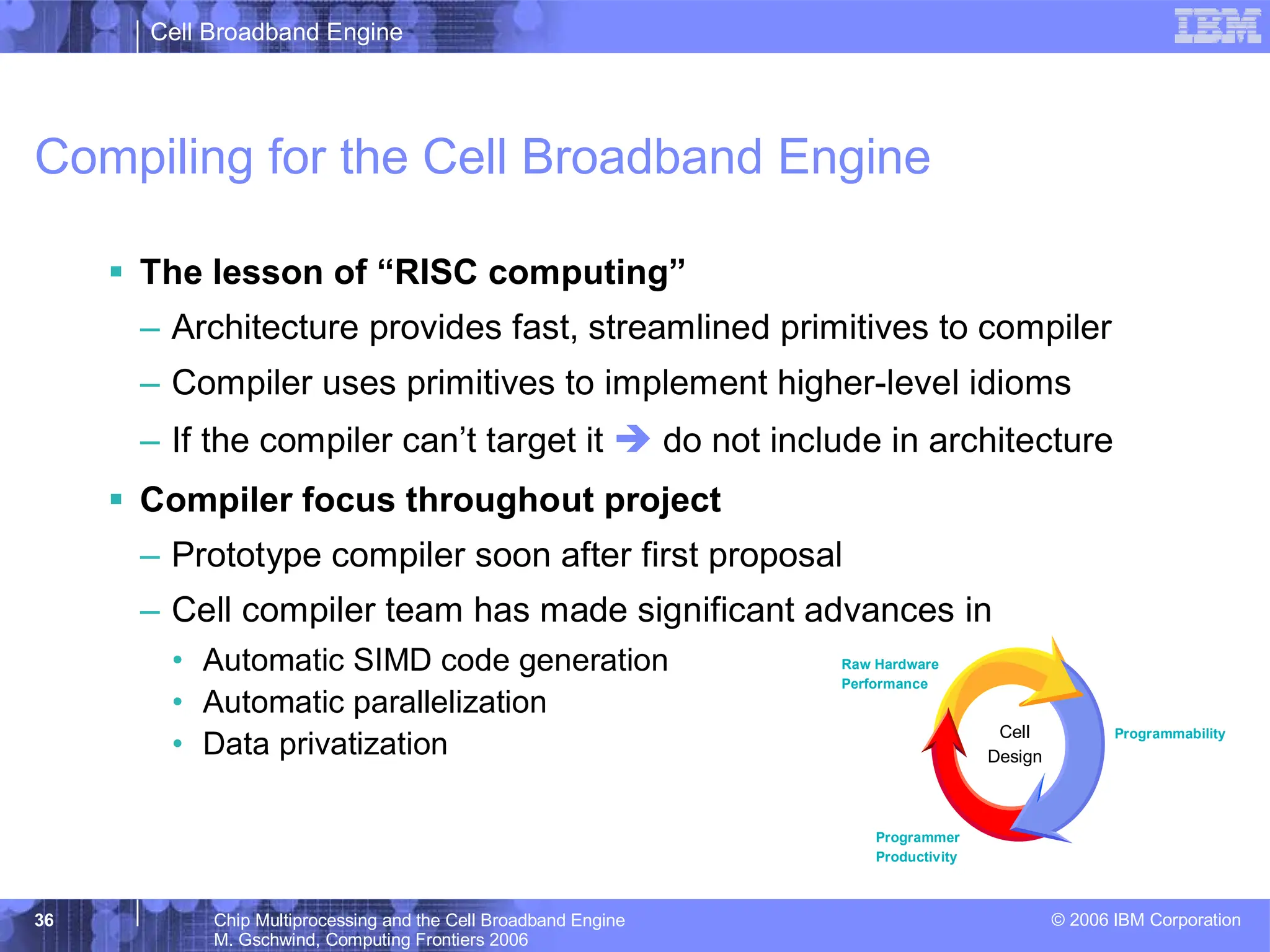

Cell Broadband Engine © 2006 IBM Corporation 36 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Compiling for the Cell Broadband Engine ƒ The lesson of “RISC computing” – Architecture provides fast, streamlined primitives to compiler – Compiler uses primitives to implement higher-level idioms – If the compiler can’t target it Î do not include in architecture ƒ Compiler focus throughout project – Prototype compiler soon after first proposal – Cell compiler team has made significant advances in • Automatic SIMD code generation • Automatic parallelization • Data privatization Programmability Programmer Productivity Raw Hardware Performance Cell Design

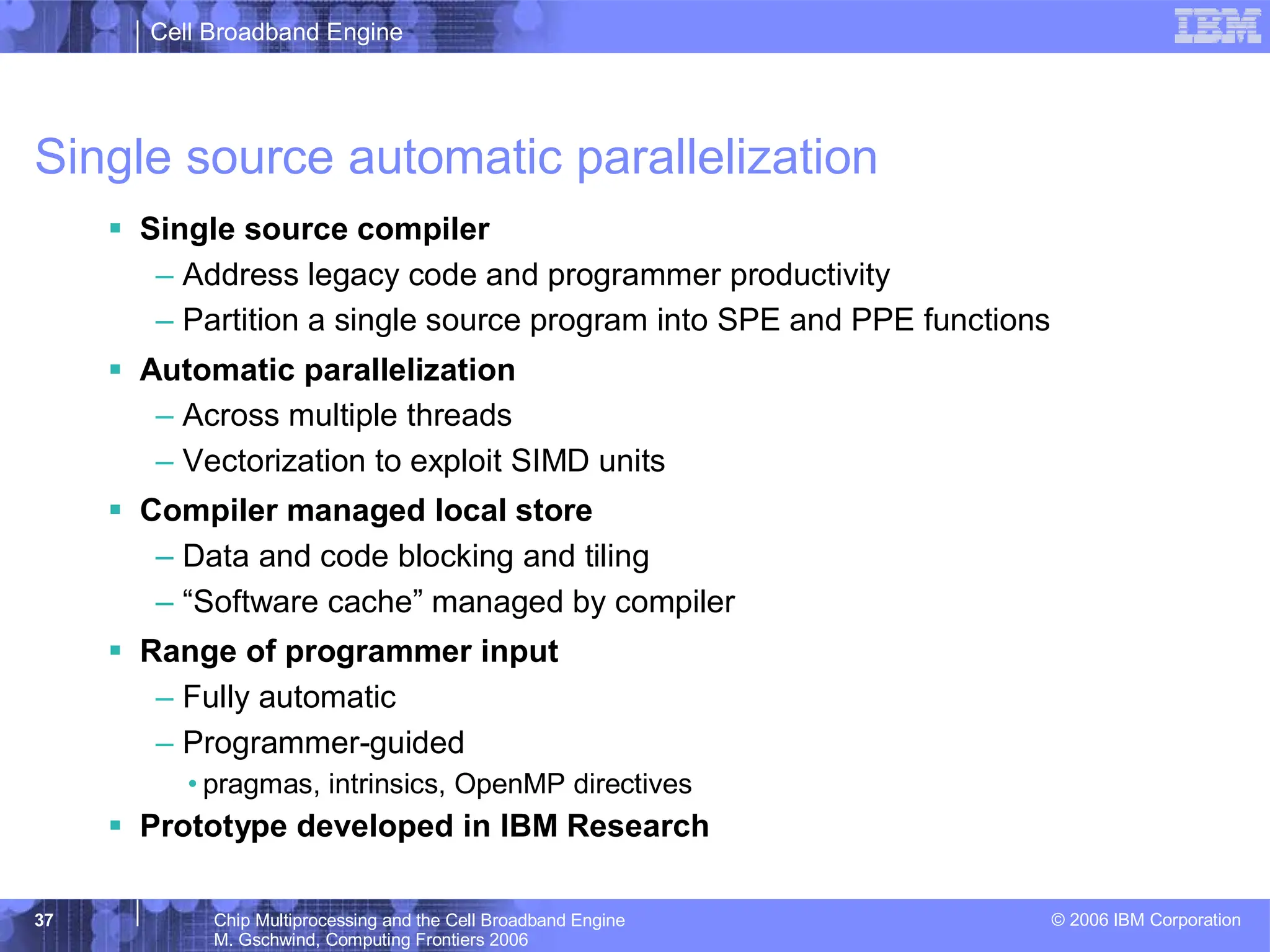

Cell Broadband Engine © 2006 IBM Corporation 37 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Single source automatic parallelization ƒ Single source compiler – Address legacy code and programmer productivity – Partition a single source program into SPE and PPE functions ƒ Automatic parallelization – Across multiple threads – Vectorization to exploit SIMD units ƒ Compiler managed local store – Data and code blocking and tiling – “Software cache” managed by compiler ƒ Range of programmer input – Fully automatic – Programmer-guided • pragmas, intrinsics, OpenMP directives ƒ Prototype developed in IBM Research
Cell Broadband Engine © 2006 IBM Corporation 38 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Compiler-driven performance ƒ Code partitioning – Thread-level parallelism – Handle local store size – “Outlining” into SPE overlays ƒ Data partitioning – Data access sequencing – Double buffering – “Software cache” ƒ Data parallelization – SIMD vectorization – Handling of data with .unknown alignment Source: Eichenberger et al., PACT 2005

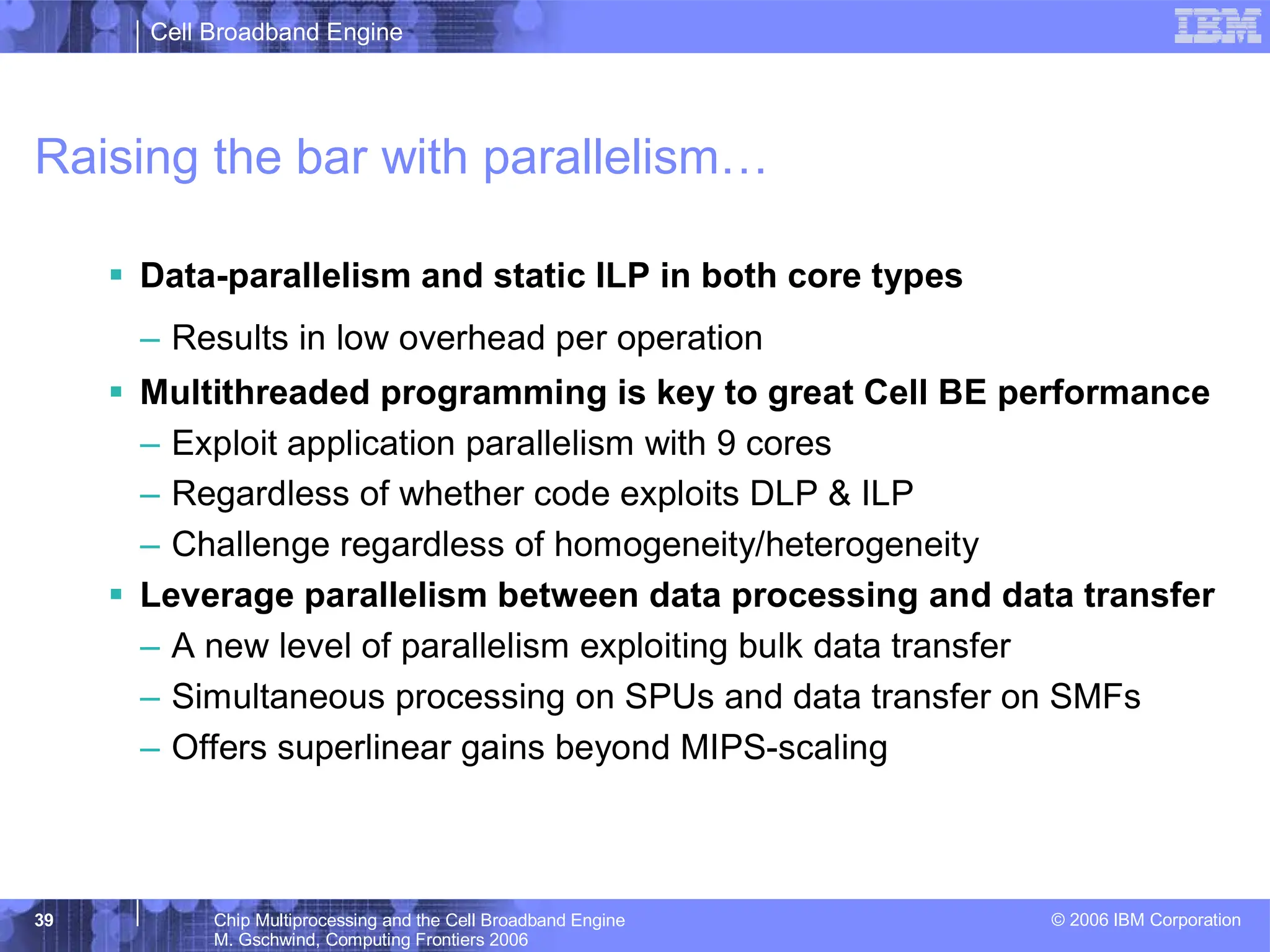

Cell Broadband Engine © 2006 IBM Corporation 39 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Raising the bar with parallelism… ƒ Data-parallelism and static ILP in both core types – Results in low overhead per operation ƒ Multithreaded programming is key to great Cell BE performance – Exploit application parallelism with 9 cores – Regardless of whether code exploits DLP & ILP – Challenge regardless of homogeneity/heterogeneity ƒ Leverage parallelism between data processing and data transfer – A new level of parallelism exploiting bulk data transfer – Simultaneous processing on SPUs and data transfer on SMFs – Offers superlinear gains beyond MIPS-scaling

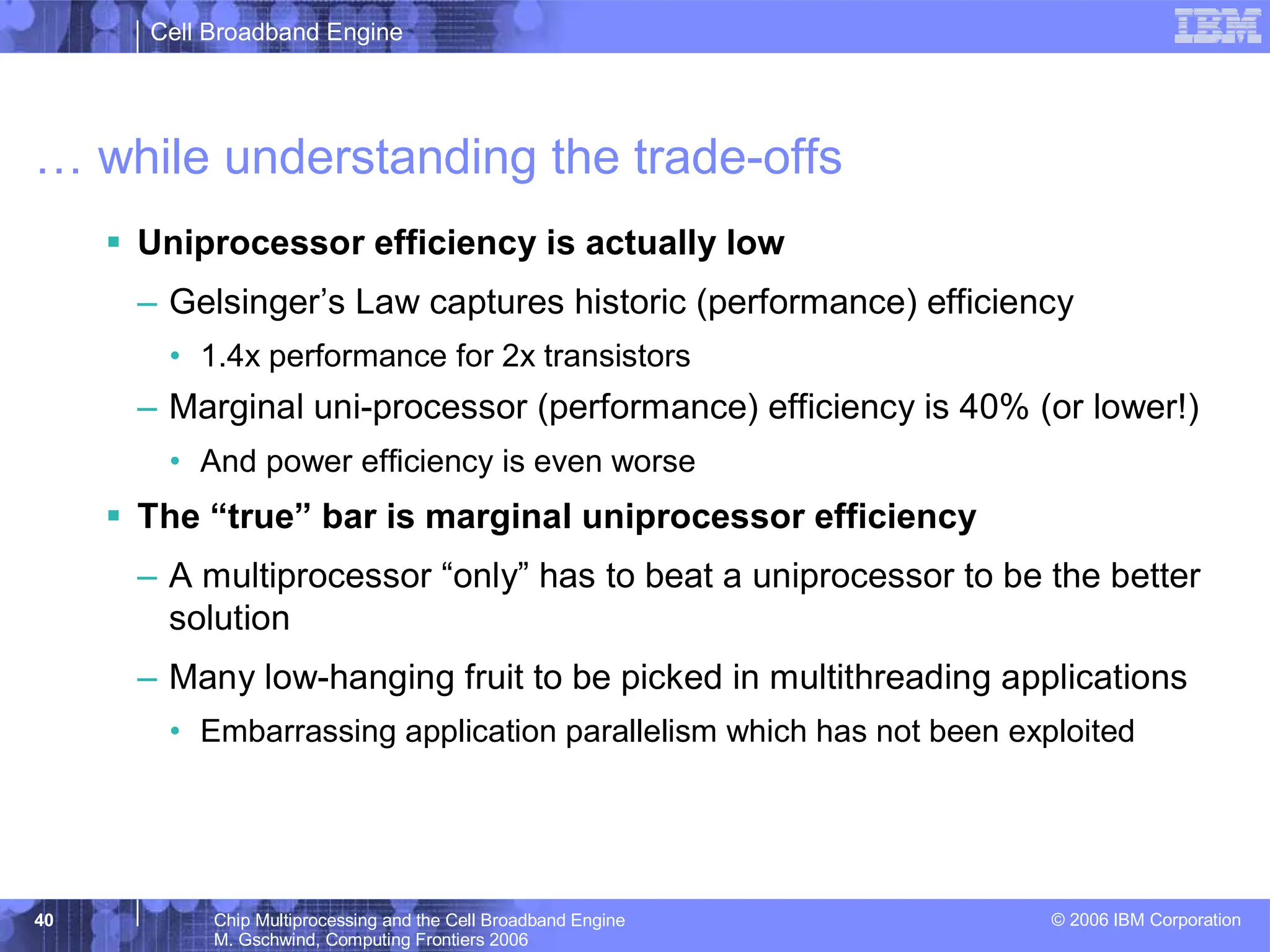

Cell Broadband Engine © 2006 IBM Corporation 40 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 … while understanding the trade-offs ƒ Uniprocessor efficiency is actually low – Gelsinger’s Law captures historic (performance) efficiency • 1.4x performance for 2x transistors – Marginal uni-processor (performance) efficiency is 40% (or lower!) • And power efficiency is even worse ƒ The “true” bar is marginal uniprocessor efficiency – A multiprocessor “only” has to beat a uniprocessor to be the better solution – Many low-hanging fruit to be picked in multithreading applications • Embarrassing application parallelism which has not been exploited

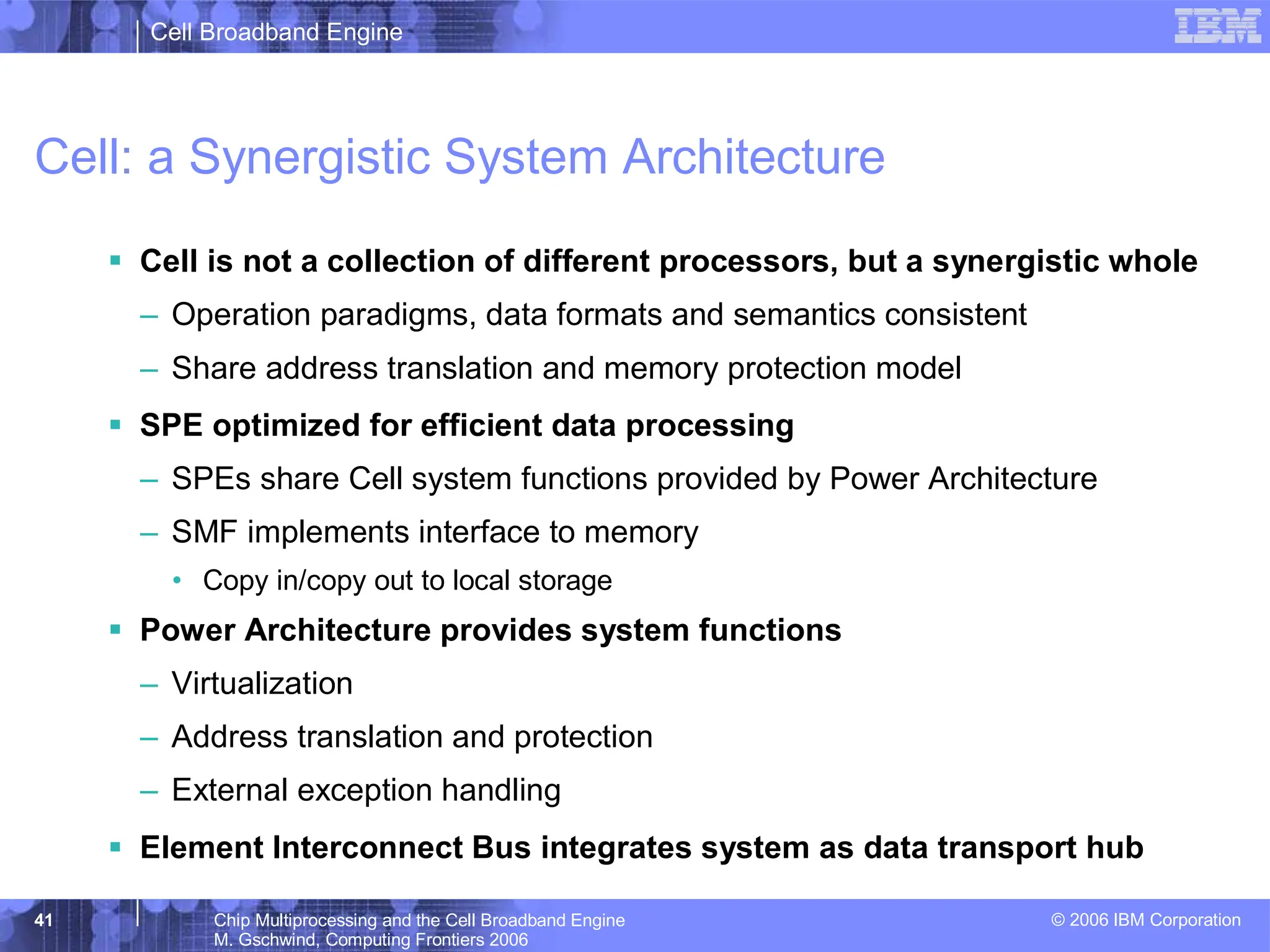

Cell Broadband Engine © 2006 IBM Corporation 41 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Cell: a Synergistic System Architecture ƒ Cell is not a collection of different processors, but a synergistic whole – Operation paradigms, data formats and semantics consistent – Share address translation and memory protection model ƒ SPE optimized for efficient data processing – SPEs share Cell system functions provided by Power Architecture – SMF implements interface to memory • Copy in/copy out to local storage ƒ Power Architecture provides system functions – Virtualization – Address translation and protection – External exception handling ƒ Element Interconnect Bus integrates system as data transport hub

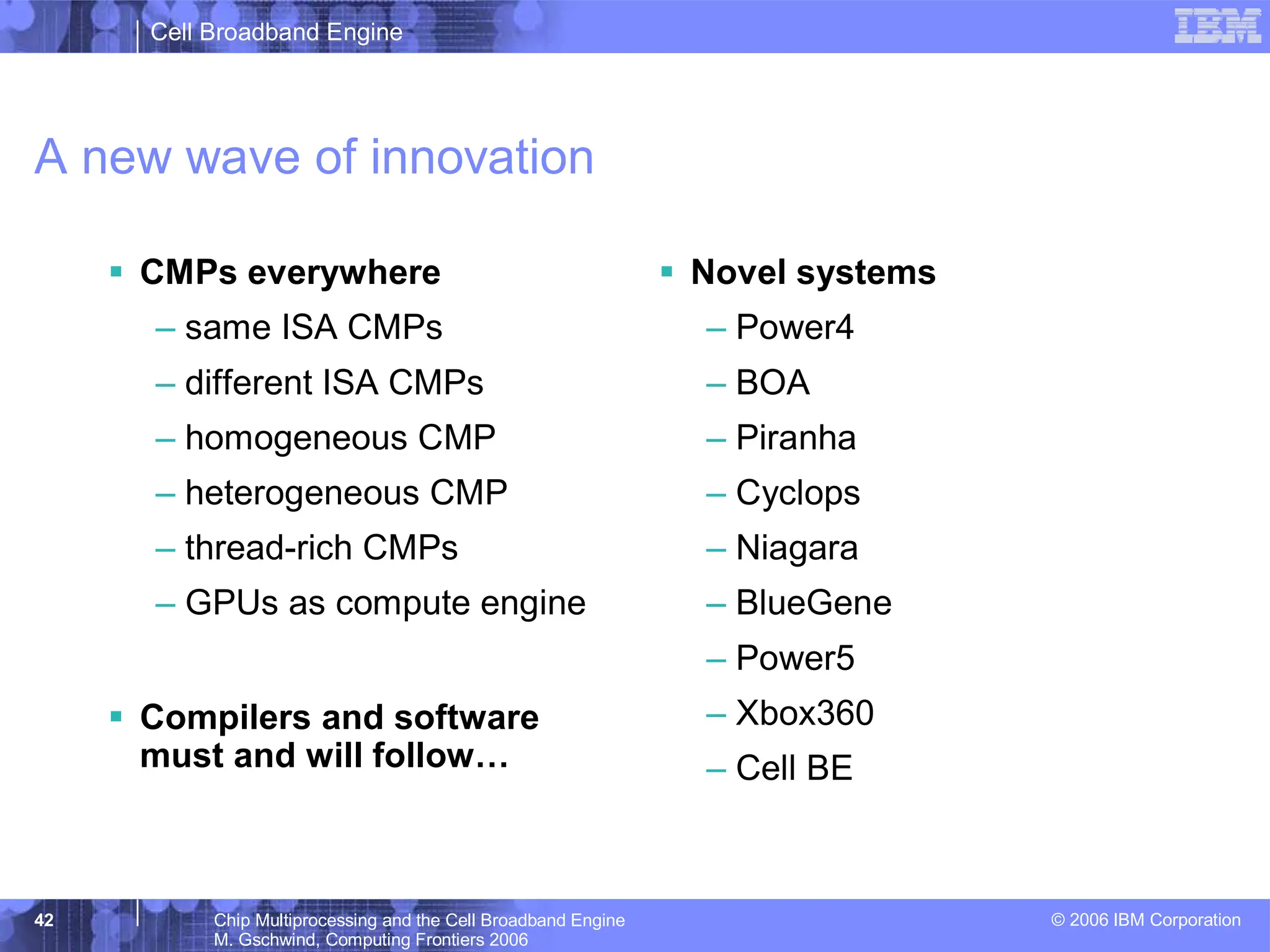

Cell Broadband Engine © 2006 IBM Corporation 42 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 A new wave of innovation ƒ CMPs everywhere – same ISA CMPs – different ISA CMPs – homogeneous CMP – heterogeneous CMP – thread-rich CMPs – GPUs as compute engine ƒ Compilers and software must and will follow… ƒ Novel systems – Power4 – BOA – Piranha – Cyclops – Niagara – BlueGene – Power5 – Xbox360 – Cell BE

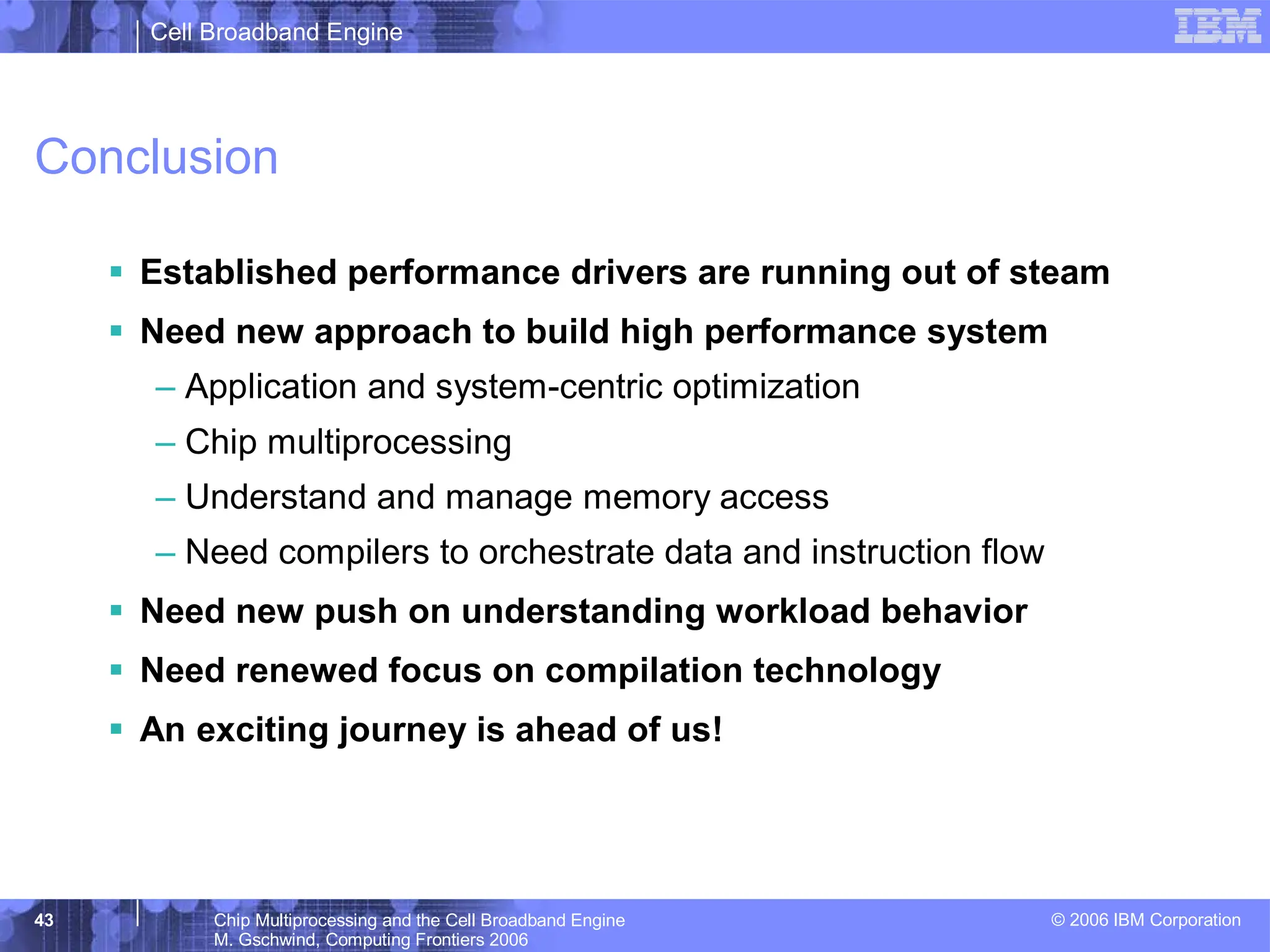

Cell Broadband Engine © 2006 IBM Corporation 43 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Conclusion ƒ Established performance drivers are running out of steam ƒ Need new approach to build high performance system – Application and system-centric optimization – Chip multiprocessing – Understand and manage memory access – Need compilers to orchestrate data and instruction flow ƒ Need new push on understanding workload behavior ƒ Need renewed focus on compilation technology ƒ An exciting journey is ahead of us!
Cell Broadband Engine © 2006 IBM Corporation 44 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 © Copyright International Business Machines Corporation 2005,6. All Rights Reserved. Printed in the United States May 2006. The following are trademarks of International Business Machines Corporation in the United States, or other countries, or both. IBM IBM Logo Power Architecture Other company, product and service names may be trademarks or service marks of others. All information contained in this document is subject to change without notice. The products described in this document are NOT intended for use in applications such as implantation, life support, or other hazardous uses where malfunction could result in death, bodily injury, or catastrophic property damage. The information contained in this document does not affect or change IBM product specifications or warranties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of IBM or third parties. All information contained in this document was obtained in specific environments, and is presented as an illustration. The results obtained in other operating environments may vary. While the information contained herein is believed to be accurate, such information is preliminary, and should not be relied upon for accuracy or completeness, and no representations or warranties of accuracy or completeness are made. THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN "AS IS" BASIS. In no event will IBM be liable for damages arising directly or indirectly from any use of the information contained in this document.

More Related Content

PDF
Michael Gschwind, Cell Broadband Engine: Exploiting multiple levels of parall...
byMichael Gschwind

PDF
Cell Today and Tomorrow - IBM Systems and Technology Group
bySlide_N

PPT
The Cell Processor
byHeiko Joerg Schick

PDF
Flexible and Scalable Domain-Specific Architectures
byNetronome

PDF
M. Gschwind, A novel SIMD architecture for the Cell heterogeneous chip multip...
byMichael Gschwind

PPT
Valladolid final-septiembre-2010
byTELECOM I+D

PDF
Michael Gschwind et al, "An Open Source Environment for Cell Broadband Engine...
byMichael Gschwind

PPT
Day 1 - 01 - Welcome
bywebhostingguy

Michael Gschwind, Cell Broadband Engine: Exploiting multiple levels of parall...
byMichael Gschwind

Cell Today and Tomorrow - IBM Systems and Technology Group
bySlide_N

The Cell Processor
byHeiko Joerg Schick

Flexible and Scalable Domain-Specific Architectures
byNetronome

M. Gschwind, A novel SIMD architecture for the Cell heterogeneous chip multip...
byMichael Gschwind

Valladolid final-septiembre-2010
byTELECOM I+D

Michael Gschwind et al, "An Open Source Environment for Cell Broadband Engine...
byMichael Gschwind

Day 1 - 01 - Welcome
bywebhostingguy


Similar to Chip Multiprocessing and the Cell Broadband Engine.pdf

PDF
Future Commodity Chip Called CELL for HPC
bySlide_N

PDF
QPACE - QCD Parallel Computing on the Cell Broadband Engine™ (Cell/B.E.)
byHeiko Joerg Schick

PDF
Barcelona Supercomputing Center, Generador de Riqueza
byFacultad de Informática UCM

PDF
Hardware and Software Architectures for the CELL BROADBAND ENGINE processor
bySlide_N

PPT
Technology
byNishant Rayan

PPT
Technology
byNishant Rayan

PPT
Ibm cell
byVyanktesh Dorlikar

PPT
Future of microprocessor in applied physics
byRakeshPatil2528

PDF
Microprocessor Architecture From Simple Pipelines To Chip Multiprocessors Jea...
bylelluakpai

PPT
Parallel architecture
byMr SMAK

PDF
Synergistic processing in cell's multicore architecture
byMichael Gschwind

PPT
Parallelism Processor Design
bySri Prasanna

PPT
Technology
byNishant Rayan

PPT
L05 parallel
byMEPCO Schlenk Engineering College

PPTX
Seminario utovrm
byDario Pennisi

PDF
Scalability and Efficiency in Accelerator Sharing on FPGA Devices
byNECST Lab @ Politecnico di Milano

PDF
IBM: Introduction to the Cell Multiprocessor
bySlide_N

PPTX
Nae
byHarshitParkar6677

PPTX
Nae
byHarshitParkar6677

PDF
HPC_June2011
bycfloare

Future Commodity Chip Called CELL for HPC
bySlide_N

QPACE - QCD Parallel Computing on the Cell Broadband Engine™ (Cell/B.E.)
byHeiko Joerg Schick

Barcelona Supercomputing Center, Generador de Riqueza
byFacultad de Informática UCM

Hardware and Software Architectures for the CELL BROADBAND ENGINE processor
bySlide_N

Technology
byNishant Rayan

Technology
byNishant Rayan

Ibm cell
byVyanktesh Dorlikar

Future of microprocessor in applied physics
byRakeshPatil2528

Microprocessor Architecture From Simple Pipelines To Chip Multiprocessors Jea...
bylelluakpai

Parallel architecture
byMr SMAK

Synergistic processing in cell's multicore architecture
byMichael Gschwind

Parallelism Processor Design
bySri Prasanna

Technology
byNishant Rayan

L05 parallel
byMEPCO Schlenk Engineering College

Seminario utovrm
byDario Pennisi

Scalability and Efficiency in Accelerator Sharing on FPGA Devices
byNECST Lab @ Politecnico di Milano

IBM: Introduction to the Cell Multiprocessor
bySlide_N

Nae
byHarshitParkar6677

Nae
byHarshitParkar6677

HPC_June2011
bycfloare


More from Slide_N

PDF
IBM POWER8 Systems Technology Group Development
bySlide_N

PDF
POWER9: IBM’s Next Generation POWER Processor
bySlide_N

PDF
Toshiba's Approach to Consumer Product Applications by Cell and Desire/Challe...
bySlide_N

PDF
Roadrunner Tutorial: An Introduction to Roadrunner and the Cell Processor
bySlide_N

PDF
SpursEngine A High-performance Stream Processor Derived from Cell/B.E. for Me...
bySlide_N

PDF
IBM POWER8: The first OpenPOWER processor
bySlide_N

PDF
Roadrunner and hybrid computing - Conference on High-Speed Computing
bySlide_N

PDF
The Cell at Los Alamos: From Ray Tracing to Roadrunner
bySlide_N

PDF
Roadrunner: Heterogeneous Petascale Computing for Predictive Simulation
bySlide_N

PDF
IBM: Introduction to the Cell Broadband Engine Architecture
bySlide_N

PDF
Common Software Models and Platform for Cell and SpursEngine
bySlide_N

PDF
Efficient Usage of Compute Shaders on Xbox One and PS4
bySlide_N

PDF
Towards Cell Broadband Engine - Together with Playstation
bySlide_N

PDF
Deferred Pixel Shading on the PlayStation 3
bySlide_N

PDF
Parallel Vector Tile-Optimized Library (PVTOL) Architecture-v3.pdf
bySlide_N

PDF
Toward an Open and Unified Model for Heterogeneous and Accelerated Multicore ...
bySlide_N

PDF
Petascale Visualization: Approaches and Initial Results
bySlide_N

PDF
Driving a Hybrid in the Fast-lane: The Petascale Roadrunner System at Los Alamos
bySlide_N

PDF
Cryptologic Applications of the PlayStation 3: Cell SPEED
bySlide_N

PDF
AMD: The Next Generation of Microprocessors
bySlide_N

IBM POWER8 Systems Technology Group Development
bySlide_N

POWER9: IBM’s Next Generation POWER Processor
bySlide_N

Toshiba's Approach to Consumer Product Applications by Cell and Desire/Challe...
bySlide_N

Roadrunner Tutorial: An Introduction to Roadrunner and the Cell Processor
bySlide_N

SpursEngine A High-performance Stream Processor Derived from Cell/B.E. for Me...
bySlide_N

IBM POWER8: The first OpenPOWER processor
bySlide_N

Roadrunner and hybrid computing - Conference on High-Speed Computing
bySlide_N

The Cell at Los Alamos: From Ray Tracing to Roadrunner
bySlide_N

Roadrunner: Heterogeneous Petascale Computing for Predictive Simulation
bySlide_N

IBM: Introduction to the Cell Broadband Engine Architecture
bySlide_N

Common Software Models and Platform for Cell and SpursEngine
bySlide_N

Efficient Usage of Compute Shaders on Xbox One and PS4
bySlide_N

Towards Cell Broadband Engine - Together with Playstation
bySlide_N

Deferred Pixel Shading on the PlayStation 3
bySlide_N

Parallel Vector Tile-Optimized Library (PVTOL) Architecture-v3.pdf
bySlide_N

Toward an Open and Unified Model for Heterogeneous and Accelerated Multicore ...
bySlide_N

Petascale Visualization: Approaches and Initial Results
bySlide_N

Driving a Hybrid in the Fast-lane: The Petascale Roadrunner System at Los Alamos
bySlide_N

Cryptologic Applications of the PlayStation 3: Cell SPEED
bySlide_N

AMD: The Next Generation of Microprocessors
bySlide_N


Recently uploaded

PDF
Real-Time Data Insight Using Microsoft Forms for Business
byElevate

DOCX
iRobot Post‑Mortem and Alternative Paths - Discussion Document for Boards and...
byDave Litwiller

PDF
Security Forum Sessions from Houston 2025 Event
byMark Simos

PDF
Internet_of_Things_IoT_for_Next_Generation_Smart_Systems_Utilizing.pdf
byRoshanSyed12

PPTX
Conversational Agents – Building Intelligent Assistants [Virtual Hands-on Wor...
byUiPathCommunity

PPTX
Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]
byUiPathCommunity

PDF
Making Sense of Raster: From Bit Depth to Better Workflows
bySafe Software

PDF
Access Control 2025: From Security Silo to Software-Defined Ecosystem
byMemoori

PDF
The year in review - MarvelClient in 2025
bypanagenda

PDF
Day 3 - Data and Application Security - 2nd Sight Lab Cloud Security Class
by2nd Sight Lab

PDF
Our Digital Tribe_ Cultivating Connection and Growth in Our Slack Community 🌿...
bysanjeetmishra30

PPTX
Software Analysis &Design ethiopia chap-2.pptx
byAbbas484771

PDF
Usage Control for Process Discovery through a Trusted Execution Environment
byValerioGoretti

PDF
Eredità digitale sugli smartphone: cosa resta di noi nei dispositivi mobili
bySpeck&Tech

PPTX
wob-report.pptxwob-report.pptxwob-report.pptx
byssuser0d171c

PPTX
Data Privacy and Protection: Safeguarding Information in a Connected World
byYasir Naveed Riaz

PPTX
THIS IS CYBER SECURITY NOTES USED IN CLASS ON VARIOUS TOPICS USED IN CYBERSEC...
byMelissaGblinwon

PPTX
Protecting Data in an AI Driven World - Cybersecurity in 2026
byYasir Naveed Riaz

PDF
The major tech developments for 2026 by Pluralsight, a research and training ...
byChris Skinner

PDF
TrustArc Webinar - Looking Ahead: The 2026 Privacy Landscape
byTrustArc

Real-Time Data Insight Using Microsoft Forms for Business
byElevate

iRobot Post‑Mortem and Alternative Paths - Discussion Document for Boards and...
byDave Litwiller

Security Forum Sessions from Houston 2025 Event
byMark Simos

Internet_of_Things_IoT_for_Next_Generation_Smart_Systems_Utilizing.pdf
byRoshanSyed12

Conversational Agents – Building Intelligent Assistants [Virtual Hands-on Wor...
byUiPathCommunity

Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]
byUiPathCommunity

Making Sense of Raster: From Bit Depth to Better Workflows
bySafe Software

Access Control 2025: From Security Silo to Software-Defined Ecosystem
byMemoori

The year in review - MarvelClient in 2025
bypanagenda

Day 3 - Data and Application Security - 2nd Sight Lab Cloud Security Class
by2nd Sight Lab

Our Digital Tribe_ Cultivating Connection and Growth in Our Slack Community 🌿...
bysanjeetmishra30

Software Analysis &Design ethiopia chap-2.pptx
byAbbas484771

Usage Control for Process Discovery through a Trusted Execution Environment
byValerioGoretti

Eredità digitale sugli smartphone: cosa resta di noi nei dispositivi mobili
bySpeck&Tech

wob-report.pptxwob-report.pptxwob-report.pptx
byssuser0d171c

Data Privacy and Protection: Safeguarding Information in a Connected World
byYasir Naveed Riaz

THIS IS CYBER SECURITY NOTES USED IN CLASS ON VARIOUS TOPICS USED IN CYBERSEC...
byMelissaGblinwon

Protecting Data in an AI Driven World - Cybersecurity in 2026
byYasir Naveed Riaz

The major tech developments for 2026 by Pluralsight, a research and training ...
byChris Skinner

TrustArc Webinar - Looking Ahead: The 2026 Privacy Landscape
byTrustArc


Chip Multiprocessing and the Cell Broadband Engine.pdf

  • 1.
    Cell Broadband Engine ©2006 IBM Corporation Chip Multiprocessing and the Cell Broadband Engine Michael Gschwind ACM Computing Frontiers 2006
  • 2.
    Cell Broadband Engine ©2006 IBM Corporation 2 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Computer Architecture at the turn of the millenium ƒ “The end of architecture” was being proclaimed – Frequency scaling as performance driver – State of the art microprocessors •multiple instruction issue •out of order architecture •register renaming •deep pipelines ƒ Little or no focus on compilers – Questions about the need for compiler research ƒ Academic papers focused on microarchitecture tweaks
  • 3.
    Cell Broadband Engine ©2006 IBM Corporation 3 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 The age of frequency scaling SCALING: Voltage: V/α Oxide: tox /α Wire width: W/α Gate width: L/α Diffusion: xd /α Substrate: α * NA RESULTS: Higher Density: ~α2 Higher Speed: ~α Power/ckt: ~1/α2 Power Density: ~Constant p substrate, doping α*NA Scaled Device L/α xd/α GATE n+ source n+ drain WIRING Voltage, V / α W/α tox/α Source: Dennard et al., JSSC 1974. 0.5 0.6 0.7 0.8 0.9 1 7 10 13 16 19 22 25 28 31 34 37 Total FO4 Per Stage Performance bips deeper pipeline
  • 4.
    Cell Broadband Engine ©2006 IBM Corporation 4 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Frequency scaling ƒ A trusted standby – Frequency as the tide that raises all boats – Increased performance across all applications – Kept the industry going for a decade ƒ Massive investment to keep going – Equipment cost – Power increase – Manufacturing variability – New materials
  • 5.
    Cell Broadband Engine ©2006 IBM Corporation 5 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 … but reality was closing in! 0 0.2 0.4 0.6 0.8 1 7 10 13 16 19 22 25 28 31 34 37 Total FO4 Per Stage Relative to Optimal FO4 bips bips^3/W 0.001 0.01 0.1 1 10 100 1000 0.01 0.1 1 Active Power Leakage Power
  • 6.
    Cell Broadband Engine ©2006 IBM Corporation 6 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Power crisis 0.1 1 10 100 1000 0.01 0.1 1 gate length Lgate (µm) classic scaling Tox(Å) Vdd Vt ƒ The power crisis is not “natural” – Created by deviating from ideal scaling theory – Vdd and Vt not scaled by α • additional performance with increased voltage ƒ Laws of physics – Pchip = ntransistors * Ptransistor ƒ Marginal performance gain per transistor low – significant power increase – decreased power/performance efficiency
  • 7.
    Cell Broadband Engine ©2006 IBM Corporation 7 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 The power inefficiency of deep pipelining 0 0.2 0.4 0.6 0.8 1 7 10 13 16 19 22 25 28 31 34 37 Total FO4 Per Stage Relative to Optimal FO4 bips bips^3/W ƒ Deep pipelining increases number of latches and switching rate ⇒ power increases with at least f2 ƒ Latch insertion delay limits gains of pipelining Power-performance optimal Performance optimal Source: Srinivasan et al., MICRO 2002 deeper pipeline
  • 8.
    Cell Broadband Engine ©2006 IBM Corporation 8 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Hitting the memory wall ƒ Latency gap – Memory speedup lags behind processor speedup – limits ILP ƒ Chip I/O bandwidth gap – Less bandwidth per MIPS ƒ Latency gap as application bandwidth gap – Typically (much) less than chip I/O bandwidth -60 -40 -20 0 20 40 60 80 100 1990 2003 normalized MFLOPS Memory latency Source: McKee, Computing Frontiers 2004 Source: Burger et al., ISCA 1996 usable bandwidth avg. request size roundtrip latency no. of inflight requests
  • 9.
    Cell Broadband Engine ©2006 IBM Corporation 9 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Our Y2K challenge ƒ 10× performance of desktop systems ƒ 1 TeraFlop / second with a four-node configuration ƒ 1 Byte bandwidth per 1 Flop – “golden rule for balanced supercomputer design” ƒ scalable design across a range of design points ƒ mass-produced and low cost
  • 10.
    Cell Broadband Engine ©2006 IBM Corporation 10 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Cell Design Goals ƒ Provide the platform for the future of computing – 10× performance of desktop systems shipping in 2005 ƒ Computing density as main challenge –Dramatically increase performance per X • X = Area, Power, Volume, Cost,… ƒ Single core designs offer diminishing returns on investment – In power, area, design complexity and verification cost
  • 11.
    Cell Broadband Engine ©2006 IBM Corporation 11 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Necessity as the mother of invention ƒ Increase power-performance efficiency –Simple designs are more efficient in terms of power and area ƒ Increase memory subsystem efficiency –Increasing data transaction size –Increase number of concurrently outstanding transactions ⇒ Exploit larger fraction of chip I/O bandwidth ƒ Use CMOS density scaling –Exploit density instead of frequency scaling to deliver increased aggregate performance ƒ Use compilers to extract parallelism from application –Exploit application parallelism to translate aggregate performance to application performance
  • 12.
    Cell Broadband Engine ©2006 IBM Corporation 12 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Exploit application-level parallelism ƒ Data-level parallelism – SIMD parallelism improves performance with little overhead ƒ Thread-level parallelism – Exploit application threads with multi-core design approach ƒ Memory-level parallelism – Improve memory access efficiency by increasing number of parallel memory transactions ƒ Compute-transfer parallelism – Transfer data in parallel to execution by exploiting application knowledge
  • 13.
    Cell Broadband Engine ©2006 IBM Corporation 13 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Concept phase ideas Chip Multiprocessor efficient use of memory interface large architected register set high frequency and low power! reverse Vdd scaling for low power modular design design reuse control cost of coherency
  • 14.
    Cell Broadband Engine ©2006 IBM Corporation 14 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Cell Architecture ƒ Heterogeneous multi- core system architecture – Power Processor Element for control tasks – Synergistic Processor Elements for data- intensive processing ƒ Synergistic Processor Element (SPE) consists of – Synergistic Processor Unit (SPU) – Synergistic Memory Flow Control (SMF) 16B/cycle (2x) 16B/cycle BIC FlexIOTM MIC Dual XDRTM 16B/cycle EIB (up to 96B/cycle) 16B/cycle 64-bit Power Architecture with VMX PPE SPE LS SXU SPU SMF PXU L1 PPU 16B/cycle L2 32B/cycle LS SXU SPU SMF LS SXU SPU SMF LS SXU SPU SMF LS SXU SPU SMF LS SXU SPU SMF LS SXU SPU SMF LS SXU SPU SMF
  • 15.
    Cell Broadband Engine ©2006 IBM Corporation 15 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Shifting the Balance of Power with Cell Broadband Engine ƒ Data processor instead of control system – Control-centric code stable over time – Big growth in data processing needs • Modeling • Games • Digital media • Scientific applications ƒ Today’s architectures are built on a 40 year old data model – Efficiency as defined in 1964 – Big overhead per data operation – Parallelism added as an after-thought
  • 16.
    Cell Broadband Engine ©2006 IBM Corporation 16 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Powering Cell – the Synergistic Processor Unit VRF VRF PERM PERM LSU LSU V V F F P P U U V V F F X X U U Local Store Local Store Single Port Single Port SRAM SRAM Issue / Issue / Branch Branch Fetch ILB 16B x 2 2 instructions 16B x 3 x 2 64B 64B 16B 16B 128B 128B Source: Gschwind et al., Hot Chips 17, 2005 SMF SMF
  • 17.
    Cell Broadband Engine ©2006 IBM Corporation 17 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Density Computing in SPEs ƒ Today, execution units only fraction of core area and power – Bigger fraction goes to other functions • Address translation and privilege levels • Instruction reordering • Register renaming • Cache hierarchy ƒ Cell changes this ratio to increase performance per area and power – Architectural focus on data processing • Wide datapaths • More and wide architectural registers • Data privatization and single level processor-local store • All code executes in a single (user) privilege level • Static scheduling
  • 18.
    Cell Broadband Engine ©2006 IBM Corporation 18 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Streamlined Architecture ƒ Architectural focus on simplicity – Aids achievable operating frequency – Optimize circuits for common performance case – Compiler aids in layering traditional hardware functions – Leverage 20 years of architecture research ƒ Focus on statically scheduled data parallelism – Focus on data parallel instructions • No separate scalar execution units • Scalar operations mapped onto data parallel dataflow – Exploit wide data paths • data processing • instruction fetch – Address impediments to static scheduling • Large register set • Reduce latencies by eliminating non-essential functionality
  • 19.
    Cell Broadband Engine ©2006 IBM Corporation 19 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 SPE Highlights ƒ RISC organization – 32 bit fixed instructions – Load/store architecture – Unified register file ƒ User-mode architecture – No page translation within SPU ƒ SIMD dataflow – Broad set of operations (8, 16, 32, 64 Bit) – Graphics SP-Float – IEEE DP-Float ƒ 256KB Local Store – Combined I & D ƒ DMA block transfer – using Power Architecture memory translation LS LS LS LS GPR FXU ODD FXU EVN SFP DP CONTROL CHANNEL DMA SMM ATO SBI RTB BE B FWD 14.5mm2 (90nm SOI) Source: Kahle, Spring Processor Forum 2005
  • 20.
    Cell Broadband Engine ©2006 IBM Corporation 20 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 data parallel select static prediction simpler μarch sequential fetch local store high frequency shorter pipeline large basic blocks determ. latency large register file instruction bundling DLP wide data paths compute density Synergistic Processing single port static scheduling scalar layering ILP opt.
  • 21.
    Cell Broadband Engine ©2006 IBM Corporation 21 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Efficient data-sharing between scalar and SIMD processing ƒ Legacy architectures separate scalar and SIMD processing – Data sharing between SIMD and scalar processing units expensive • Transfer penalty between register files – Defeats data-parallel performance improvement in many scenarios ƒ Unified register file facilitates data sharing for efficient exploitation of data parallelism – Allow exploitation of data parallelism without data transfer penalty • Data-parallelism always an improvement
  • 22.
    Cell Broadband Engine ©2006 IBM Corporation 22 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 SPU PIPELINE FRONT END SPU PIPELINE BACK END Branch Instruction Load/Store Instruction IF Instruction Fetch IB Instruction Buffer ID Instruction Decode IS Instruction Issue RF Register File Access EX Execution WB Write Back Floating Point Instruction Permute Instruction EX1 EX2 EX3 EX4 EX1 EX2 EX3 EX4 EX5 EX6 EX1 EX2 WB WB RF1 RF2 WB Fixed Point Instruction EX1 EX2 EX3 EX4 EX5 EX6 WB IF1 IF2 IF3 IF4 IF5 IB1 IB2 ID1 ID2 ID3 IS1 IS2 SPU Pipeline
  • 23.
    Cell Broadband Engine ©2006 IBM Corporation 23 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Permute Unit Load-Store Unit Floating-Point Unit Fixed-Point Unit Branch Unit Channel Unit Result Forwarding and Staging Register File Local Store (256kB) Single Port SRAM 128B Read 128B Write DMA Unit Instruction Issue Unit / Instruction Line Buffer 8 Byte/Cycle 16 Byte/Cycle 128 Byte/Cycle 64 Byte/Cycle On-Chip Coherent Bus SPE Block Diagram
  • 24.
    Cell Broadband Engine ©2006 IBM Corporation 24 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Synergistic Memory Flow Control Data Bus Snoop Bus Control Bus Translate Ld/St MMIO DMA Engine DMA Queue RMT MMU Atomic Facility Bus I/F Control LS SXU SPU MMIO SPE SMF ƒ SMF implements memory management and mapping ƒ SMF operates in parallel to SPU – Independent compute and transfer – Command interface from SPU • DMA queue decouples SMF & SPU • MMIO-interface for remote nodes ƒ Block transfer between system memory and local store ƒ SPE programs reference system memory using user-level effective address space – Ease of data sharing – Local store to local store transfers – Protection
  • 25.
    Cell Broadband Engine ©2006 IBM Corporation 25 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Synergistic Memory Flow Control ƒ Bus Interface – Up to 16 outstanding DMA requests – Requests up to 16KByte – Token-based Bus Access Management Source: Clark et al., Hot Chips 17, 2005 ƒ Element Interconnect Bus – Four 16 byte data rings – Multiple concurrent transfers – 96B/cycle peak bandwidth – Over 100 outstanding requests – 200+ GByte/s @ 3.2+ GHz 16B 16B 16B 16B Data Arb 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B 16B SPE0 SPE2 SPE4 SPE6 SPE7 SPE5 SPE3 SPE1 MIC PPE BIF/IOIF0 IOIF1
  • 26.
    Cell Broadband Engine ©2006 IBM Corporation 26 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Memory efficiency as key to application performance ƒ Greatest challenge in translating peak into app performance – Peak Flops useless without way to feed data ƒ Cache miss provides too little data too late – Inefficient for streaming / bulk data processing – Initiates transfer when transfer results are already needed – Application-controlled data fetch avoids not-on-time data delivery ƒ SMF is a better way to look at an old problem – Fetch data blocks based on algorithm – Blocks reflect application data structures
  • 27.
    Cell Broadband Engine ©2006 IBM Corporation 27 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Traditional memory usage ƒ Long latency memory access operations exposed ƒ Cannot overlap 500+ cycles with computation ƒ Memory access latency severely impacts application performance computation mem protocol mem idle mem contention
  • 28.
    Cell Broadband Engine ©2006 IBM Corporation 28 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Exploiting memory-level parallelism ƒ Reduce performance impact of memory accesses with concurrent access ƒ Carefully scheduled memory accesses in numeric code ƒ Out-of-order execution increases chance to discover more concurrent accesses – Overlapping 500 cycle latency with computation using OoO illusory ƒ Bandwidth limited by queue size and roundtrip latency
  • 29.
    Cell Broadband Engine ©2006 IBM Corporation 29 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Exploiting MLP with Chip Multiprocessing ƒ More threads Î more memory level parallelism – overlap accesses from multiple cores
  • 30.
    Cell Broadband Engine ©2006 IBM Corporation 30 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 A new form of parallelism: CTP ƒ Compute-transfer parallelism – Concurrent execution of compute and transfer increases efficiency • Avoid costly and unnecessary serialization – Application thread has two threads of control • SPU Î computation thread • SMF Î transfer thread ƒ Optimize memory access and data transfer at the application level – Exploit programmer and application knowledge about data access patterns
  • 31.
    Cell Broadband Engine ©2006 IBM Corporation 31 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Memory access in Cell with MLP and CTP ƒ Super-linear performance gains observed – decouple data fetch and use
  • 32.
    Cell Broadband Engine ©2006 IBM Corporation 32 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 multi core many outstanding transfers sequential fetch high throughput timely data delivery shared I & D reduce miss complexity parallel compute & transfer improved code gen decouple fetch and access explicit data transfer storage density Synergistic Memory Management single port application control reduced coherence cost low latency access block fetch deeper fetch queue local store
  • 33.
    Cell Broadband Engine ©2006 IBM Corporation 33 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Cell BE Implementation Characteristics ƒ 241M transistors ƒ 235mm2 ƒ Design operates across wide frequency range – Optimize for power & yield ƒ > 200 GFlops (SP) @3.2GHz ƒ > 20 GFlops (DP) @3.2GHz ƒ Up to 25.6 GB/s memory bandwidth ƒ Up to 75 GB/s I/O bandwidth ƒ 100+ simultaneous bus transactions – 16+8 entry DMA queue per SPE Relative Frequency Increase vs. Power Consumption Voltage Source: Kahle, Spring Processor Forum 2005
  • 34.
    Cell Broadband Engine ©2006 IBM Corporation 34 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Cell Broadband Engine
  • 35.
    Cell Broadband Engine ©2006 IBM Corporation 35 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 System configurations Cell BE Processor XDR™ XDR™ IOIF BIF Cell BE Processor XDR™ XDR™ IOIF Cell BE Processor XDR ™ XDR ™ IOIF BIF Cell BE Processor XDR ™ XDR ™ IOIF switch Cell BE Processor XDR™ XDR™ IOIF BIF Cell BE Processor XDR™ XDR™ IOIF Cell BE Processor XDR™ XDR™ IOIF0 IOIF1 ƒ Game console systems ƒ Blades ƒ HDTV ƒ Home media servers ƒ Supercomputers Cell Design
  • 36.
    Cell Broadband Engine ©2006 IBM Corporation 36 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Compiling for the Cell Broadband Engine ƒ The lesson of “RISC computing” – Architecture provides fast, streamlined primitives to compiler – Compiler uses primitives to implement higher-level idioms – If the compiler can’t target it Î do not include in architecture ƒ Compiler focus throughout project – Prototype compiler soon after first proposal – Cell compiler team has made significant advances in • Automatic SIMD code generation • Automatic parallelization • Data privatization Programmability Programmer Productivity Raw Hardware Performance Cell Design
  • 37.
    Cell Broadband Engine ©2006 IBM Corporation 37 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Single source automatic parallelization ƒ Single source compiler – Address legacy code and programmer productivity – Partition a single source program into SPE and PPE functions ƒ Automatic parallelization – Across multiple threads – Vectorization to exploit SIMD units ƒ Compiler managed local store – Data and code blocking and tiling – “Software cache” managed by compiler ƒ Range of programmer input – Fully automatic – Programmer-guided • pragmas, intrinsics, OpenMP directives ƒ Prototype developed in IBM Research
  • 38.
    Cell Broadband Engine ©2006 IBM Corporation 38 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Compiler-driven performance ƒ Code partitioning – Thread-level parallelism – Handle local store size – “Outlining” into SPE overlays ƒ Data partitioning – Data access sequencing – Double buffering – “Software cache” ƒ Data parallelization – SIMD vectorization – Handling of data with .unknown alignment Source: Eichenberger et al., PACT 2005
  • 39.
    Cell Broadband Engine ©2006 IBM Corporation 39 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Raising the bar with parallelism… ƒ Data-parallelism and static ILP in both core types – Results in low overhead per operation ƒ Multithreaded programming is key to great Cell BE performance – Exploit application parallelism with 9 cores – Regardless of whether code exploits DLP & ILP – Challenge regardless of homogeneity/heterogeneity ƒ Leverage parallelism between data processing and data transfer – A new level of parallelism exploiting bulk data transfer – Simultaneous processing on SPUs and data transfer on SMFs – Offers superlinear gains beyond MIPS-scaling
  • 40.
    Cell Broadband Engine ©2006 IBM Corporation 40 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 … while understanding the trade-offs ƒ Uniprocessor efficiency is actually low – Gelsinger’s Law captures historic (performance) efficiency • 1.4x performance for 2x transistors – Marginal uni-processor (performance) efficiency is 40% (or lower!) • And power efficiency is even worse ƒ The “true” bar is marginal uniprocessor efficiency – A multiprocessor “only” has to beat a uniprocessor to be the better solution – Many low-hanging fruit to be picked in multithreading applications • Embarrassing application parallelism which has not been exploited
  • 41.
    Cell Broadband Engine ©2006 IBM Corporation 41 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Cell: a Synergistic System Architecture ƒ Cell is not a collection of different processors, but a synergistic whole – Operation paradigms, data formats and semantics consistent – Share address translation and memory protection model ƒ SPE optimized for efficient data processing – SPEs share Cell system functions provided by Power Architecture – SMF implements interface to memory • Copy in/copy out to local storage ƒ Power Architecture provides system functions – Virtualization – Address translation and protection – External exception handling ƒ Element Interconnect Bus integrates system as data transport hub
  • 42.
    Cell Broadband Engine ©2006 IBM Corporation 42 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 A new wave of innovation ƒ CMPs everywhere – same ISA CMPs – different ISA CMPs – homogeneous CMP – heterogeneous CMP – thread-rich CMPs – GPUs as compute engine ƒ Compilers and software must and will follow… ƒ Novel systems – Power4 – BOA – Piranha – Cyclops – Niagara – BlueGene – Power5 – Xbox360 – Cell BE
  • 43.
    Cell Broadband Engine ©2006 IBM Corporation 43 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 Conclusion ƒ Established performance drivers are running out of steam ƒ Need new approach to build high performance system – Application and system-centric optimization – Chip multiprocessing – Understand and manage memory access – Need compilers to orchestrate data and instruction flow ƒ Need new push on understanding workload behavior ƒ Need renewed focus on compilation technology ƒ An exciting journey is ahead of us!
  • 44.
    Cell Broadband Engine ©2006 IBM Corporation 44 Chip Multiprocessing and the Cell Broadband Engine M. Gschwind, Computing Frontiers 2006 © Copyright International Business Machines Corporation 2005,6. All Rights Reserved. Printed in the United States May 2006. The following are trademarks of International Business Machines Corporation in the United States, or other countries, or both. IBM IBM Logo Power Architecture Other company, product and service names may be trademarks or service marks of others. All information contained in this document is subject to change without notice. The products described in this document are NOT intended for use in applications such as implantation, life support, or other hazardous uses where malfunction could result in death, bodily injury, or catastrophic property damage. The information contained in this document does not affect or change IBM product specifications or warranties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of IBM or third parties. All information contained in this document was obtained in specific environments, and is presented as an illustration. The results obtained in other operating environments may vary. While the information contained herein is believed to be accurate, such information is preliminary, and should not be relied upon for accuracy or completeness, and no representations or warranties of accuracy or completeness are made. THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN "AS IS" BASIS. In no event will IBM be liable for damages arising directly or indirectly from any use of the information contained in this document.
