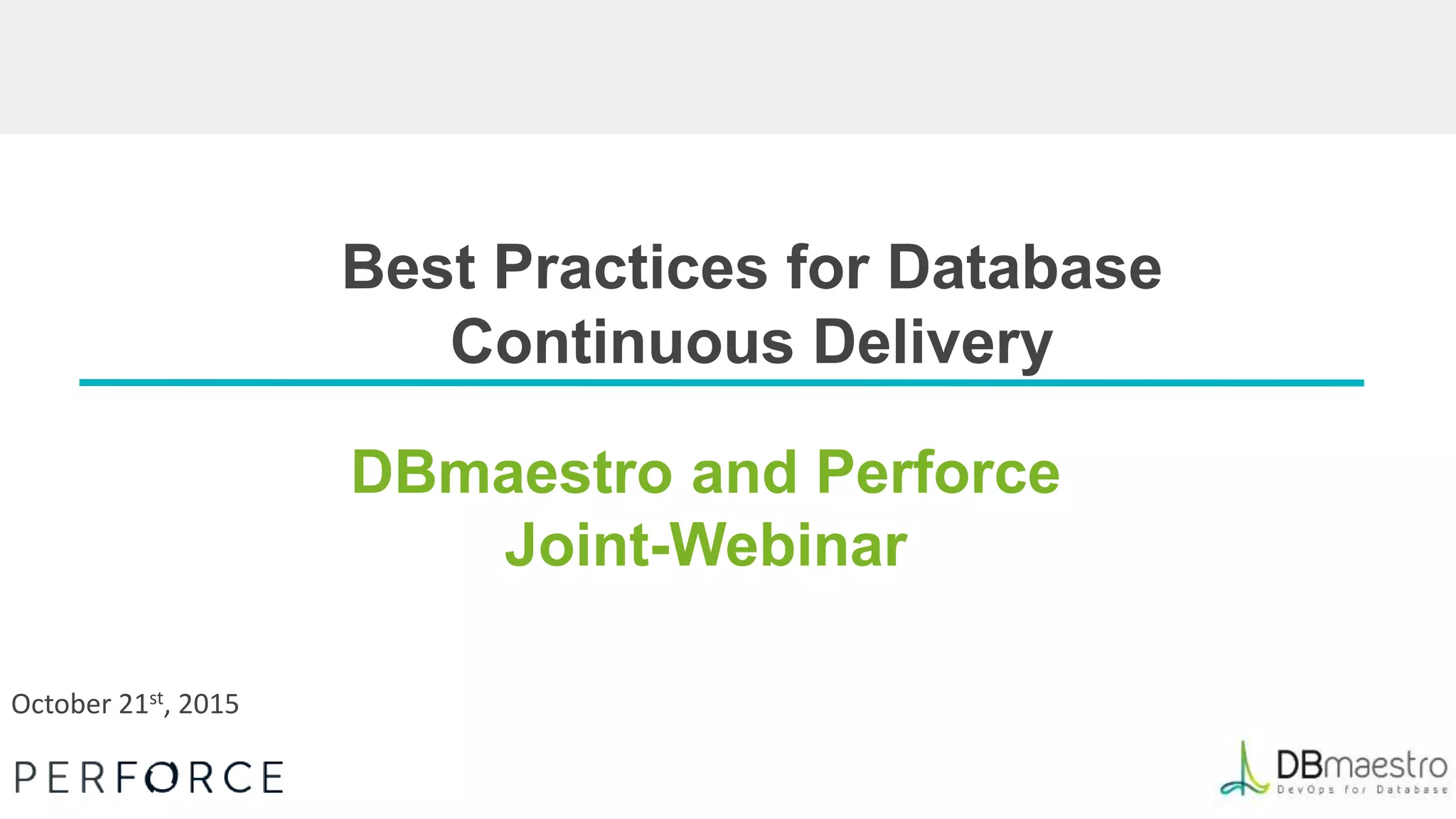

1. Best Practices for Database
Continuous Delivery
DBmaestro and Perforce
Joint-Webinar
October 21st, 2015

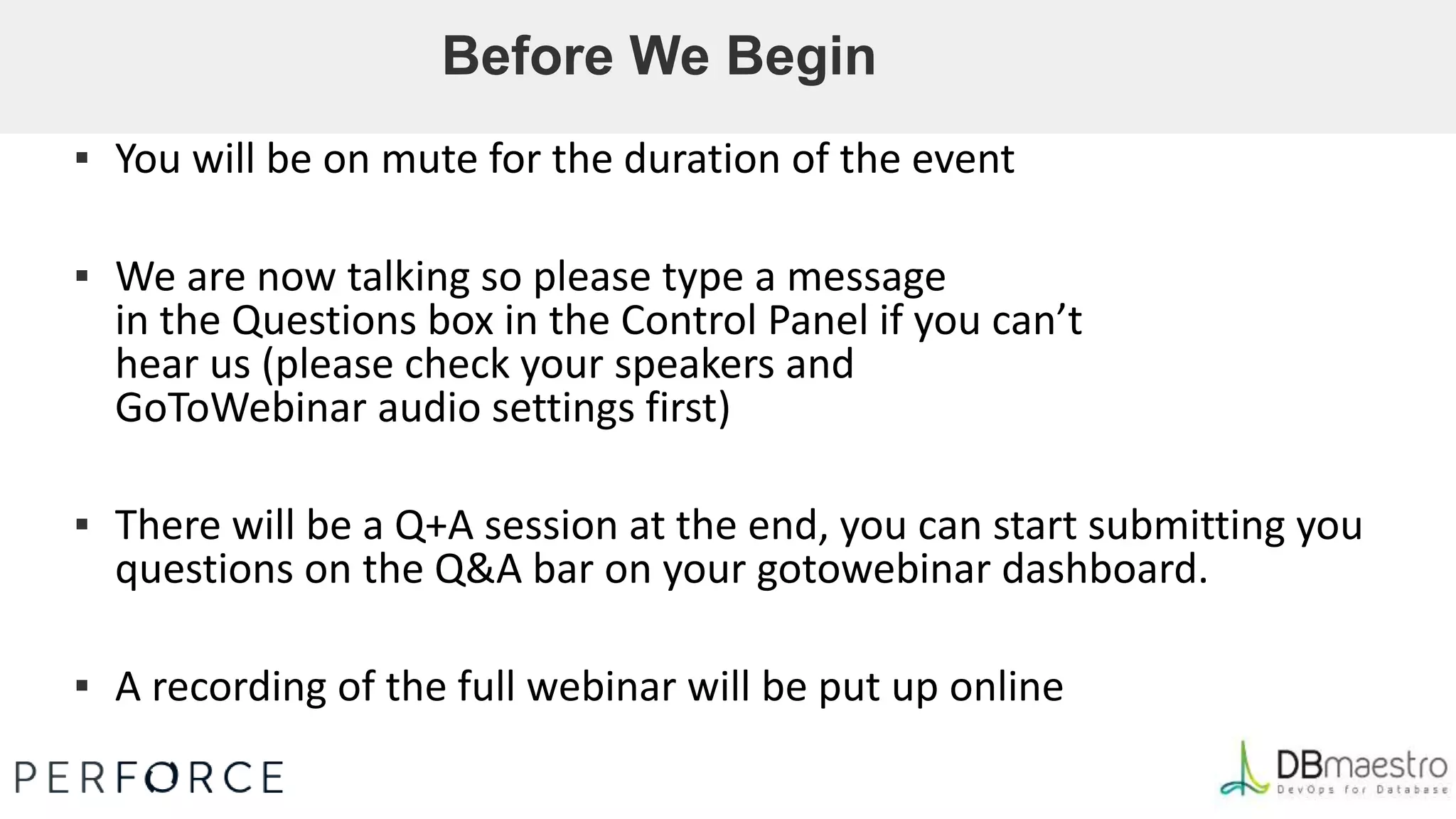

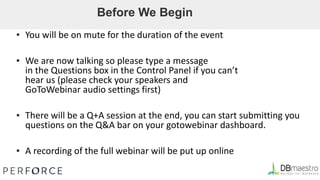

2. ▪ You will be on mute for the duration of the event
▪ We are now talking so please type a message
in the Questions box in the Control Panel if you can’t
hear us (please check your speakers and
GoToWebinar audio settings first)
▪ There will be a Q+A session at the end, you can start submitting you
questions on the Q&A bar on your gotowebinar dashboard.
▪ A recording of the full webinar will be put up online
Before We Begin

3. Presenters
Mark Warren
Product Marketing Director, Perforce
Mark has over 20 years experience as a user and developer of tools to
improve software delivery processes.

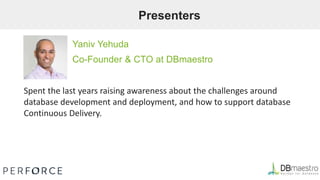

4. Presenters
Yaniv Yehuda
Co-Founder & CTO at DBmaestro
Spent the last years raising awareness about the challenges around
database development and deployment, and how to support database
Continuous Delivery.

5. Outline
▪ The Adoption of Continuous Delivery
▪ The Reasons why the Database is Often Left Behind
▪ Single Source of Truth for your Database
▪ Best Practices for Including the Database in CD
▪ The Bigger Picture – Automation and Stopping the Line
▪ Q&A

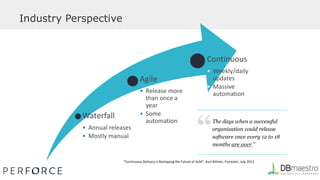

6. Industry Perspective
Waterfall
• Annual releases
• Mostly manual
Agile
• Release more
than once a
year
• Some
automation
Continuous
• Weekly/daily
updates
• Massive
automation
“The days when a successful
organization could release
software once every 12 to 18
months are over.”
“Continuous Delivery is Reshaping the Future of ALM”, Kurt Bittner, Forrester, July 2013

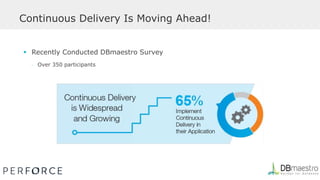

7. Continuous Delivery Is Moving Ahead!
 Recently Conducted DBmaestro Survey
• Over 350 participants

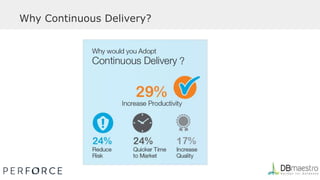

8. Why Continuous Delivery?

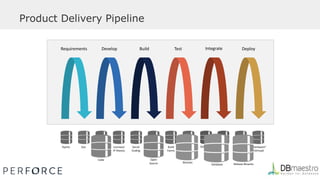

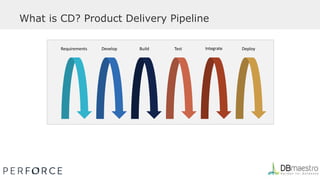

9. What is CD? Product Delivery Pipeline
Requirements Develop Build Test Integrate Deploy

10. BuildRequirements Develop IntegrateTest Deploy
Rqmts Doc Licenses/
IP History
Social
Coding
Build
Farms
Database Scripts “Hardware”
(Virtual)
Code Open
Source
Binaries Release
Binaries
Code Open
Source Binaries
Release BinariesDatabase
Product Delivery Pipeline

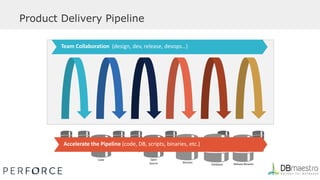

11. BuildRequirements Develop IntegrateTest Deploy
Rqmts Doc Licenses/
IP History
Social
Coding
Build
Farms
Scripts “Hardware”
(Virtual)
Code Open
Source
Team Collaboration (design, dev, release, devops…)
Binaries
Release BinariesDatabase
Accelerate the Pipeline (code, DB, scripts, binaries, etc.)
Product Delivery Pipeline

12. Less Efficient Product Delivery
 Poor visibility between
teams introduce friction and
design errors
 Poor component reuse
results in higher production
cost
 More delays, less efficient
product delivery
 Increased risk of
quality issues
DevOps

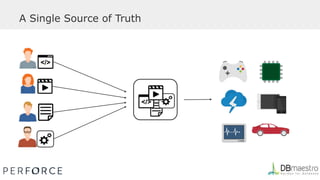

13. A Single Source of Truth

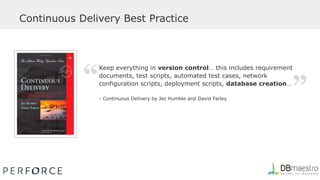

14. Continuous Delivery Best Practice
Keep everything in version control… this includes requirement
documents, test scripts, automated test cases, network
configuration scripts, deployment scripts, database creation…
- Continuous Delivery by Jez Humble and David Farley
“
“

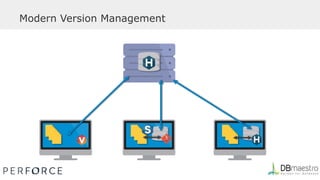

15. Modern Version Management

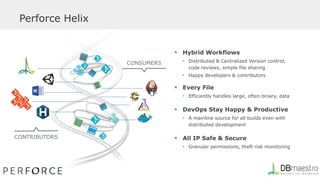

16.  Hybrid Workflows
• Distributed & Centralized Version control,
code reviews, simple file sharing
• Happy developers & contributors
 Every File
• Efficiently handles large, often binary, data
 DevOps Stay Happy & Productive
• A mainline source for all builds even with
distributed development
 All IP Safe & Secure
• Granular permissions, theft risk monitoring
Perforce Helix
CONTRIBUTORS
CONSUMERS

17. Perforce Manages IP for Market Leaders
13,000 
20,000 users
9,500 users
500+ terabytes
5,000+ users
coders & designers
10,000,000
Perforce xact/day
Everything! 11,000+ users
Chips
Games
& Animation
Cloud/SW Electronics Systems Automotive
And > 15,000 other companies across industries

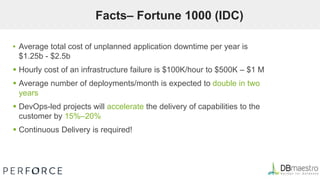

18. Facts– Fortune 1000 (IDC)
▪ Average total cost of unplanned application downtime per year is
$1.25b - $2.5b
 Hourly cost of an infrastructure failure is $100K/hour to $500K – $1 M
 Average number of deployments/month is expected to double in two
years
 DevOps-led projects will accelerate the delivery of capabilities to the
customer by 15%–20%
 Continuous Delivery is required!

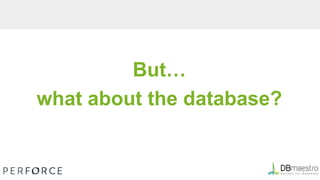

19. But…
what about the database?

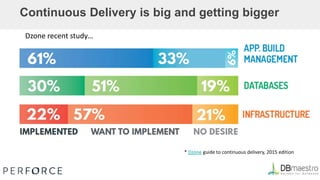

20. Continuous Delivery is big and getting bigger
Dzone recent study…
* Dzone guide to continuous delivery, 2015 edition

21. What about the database?

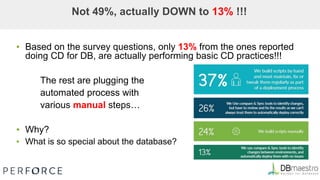

22. ▪ Based on the survey questions, only 13% from the ones reported
doing CD for DB, are actually performing basic CD practices!!!
The rest are plugging the
automated process with
various manual steps…
▪ Why?
▪ What is so special about the database?
Not 49%, actually DOWN to 13% !!!

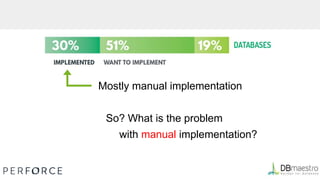

23. Mostly manual implementation
So? What is the problem
with manual implementation?

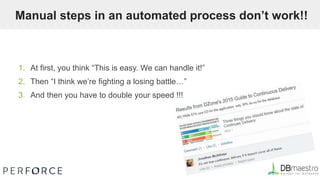

24. Manual steps in an automated process don’t work!!
1. At first, you think “This is easy. We can handle it!”
2. Then “I think we’re fighting a losing battle…”
3. And then you have to double your speed !!!

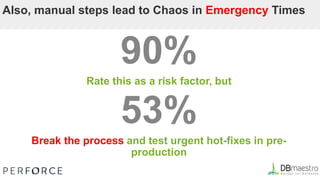

25. Also, manual steps lead to Chaos in Emergency Times
90%
Rate this as a risk factor, but
53%
Break the process and test urgent hot-fixes in pre-
production

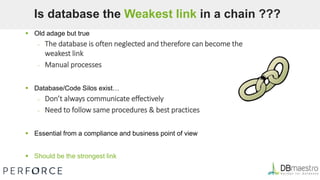

26.  Old adage but true
– The database is often neglected and therefore can become the
weakest link
– Manual processes
 Database/Code Silos exist…
– Don’t always communicate effectively
– Need to follow same procedures & best practices
 Essential from a compliance and business point of view
 Should be the strongest link
Is database the Weakest link in a chain ???

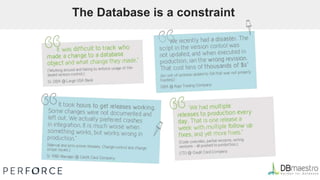

27. The Database is a constraint

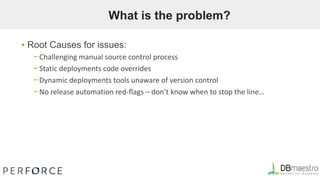

28. What is the problem?
▪ Root Causes for issues:
− Challenging manual source control process
− Static deployments code overrides
− Dynamic deployments tools unaware of version control
− No release automation red-flags – don’t know when to stop the line…

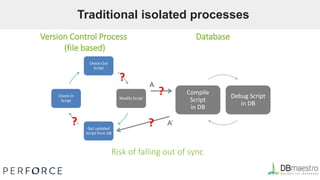

29. Version Control Process
(file based)
Database
Check-Out
Script
Modify Script
Get updated
Script from DB
Check-In
Script
Compile
Script
in DB
Debug Script
in DB
?
?
?
?
A
A’
Traditional isolated processes
Risk of falling out of sync

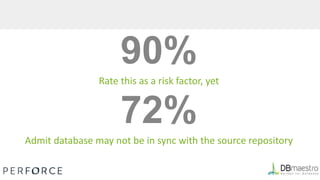

30. 90%
Rate this as a risk factor, yet
72%
Admit database may not be in sync with the source repository

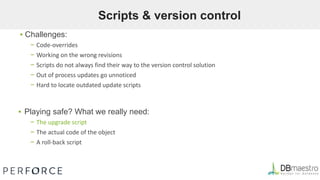

31. Scripts & version control
▪ Challenges:
− Code-overrides
− Working on the wrong revisions
− Scripts do not always find their way to the version control solution
− Out of process updates go unnoticed
− Hard to locate outdated update scripts
▪ Playing safe? What we really need:
− The upgrade script
− The actual code of the object
− A roll-back script

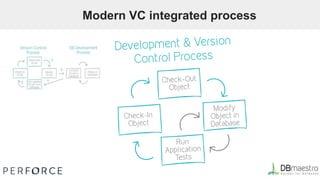

32. Modern VC integrated process

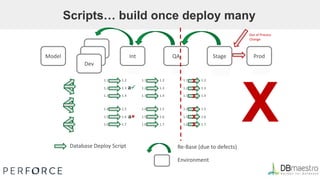

33. X
1.11.1.11.11.21.31.41.51.61.7
Scripts… build once deploy many
Int QA Stage Prod
Database Deploy Script
Environment
Re-Base (due to defects)
Dev
Dev
Dev
Model
1.1 1.2
1.2 1.3
1.3 1.4
1.4 1.5
1.5 1.6
1.6 1.7
1.11.11.41.7
1.1 1.2
1.2 1.3
1.3 1.4
1.4 1.5
1.5 1.6
1.6 1.7
1.1 1.2
1.2 1.3
1.3 1.4
1.4 1.5
1.5 1.6
1.6 1.7
Out of Process
Change
X
X
X
X
X
? 1.1.1
X
a
a

34. 60%Of those manually building scripts have to fix or tweak them
regularly as part of a deployment process

35. 80%
Rate this as a risk factor, yet
71%
Follow manual processes to create their database deploy scripts

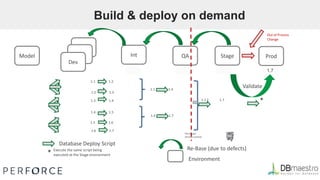

36. Build & deploy on demand
1.11.21.31.41.51.61.7
*
Int QA Stage Prod
Database Deploy Script
Environment
* Execute the same script being
executed at the Stage environment
Re-Base (due to defects)
Dev
Dev
Dev
Model
1.1 1.2
1.2 1.3
1.3 1.4
1.4 1.5
1.5 1.6
1.6 1.7
1.1 1.4
1.4 1.7
1.1.1 1.7
1.1 1.1 1.11.41.7
File Based
Version Control
Out of Process
Change
1.1.11.7 1.1.11.7
Validate

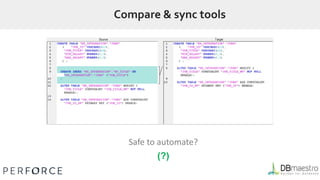

37. Safe to automate?
(?)
Compare & sync tools

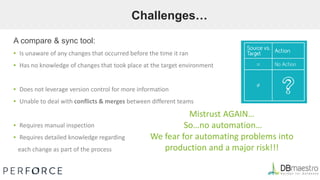

38. Challenges…
A compare & sync tool:
▪ Is unaware of any changes that occurred before the time it ran
▪ Has no knowledge of changes that took place at the target environment
▪ Does not leverage version control for more information
▪ Unable to deal with conflicts & merges between different teams
▪ Requires manual inspection
▪ Requires detailed knowledge regarding
each change as part of the process
Mistrust AGAIN…
So…no automation…
We fear for automating problems into
production and a major risk!!!

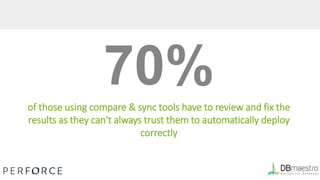

39. 70%of those using compare & sync tools have to review and fix the
results as they can't always trust them to automatically deploy
correctly

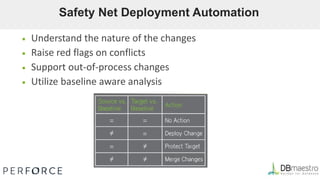

40. ￭ Understand the nature of the changes
￭ Raise red flags on conflicts
￭ Support out-of-process changes
￭ Utilize baseline aware analysis
Safety Net Deployment Automation

41. Deploying changes if needed
Development Baseline
Previous Label /
Production Golden Copy
Production
If we had the index in the baseline =>
we should take it down from production…
(Deploy Change)

42. Or protecting target environment…
Development Baseline
Previous Label /
Production Golden Copy
Production
BUT… If no index in baseline =>
we should protect the NEW index on production!!!
(Protect Target)

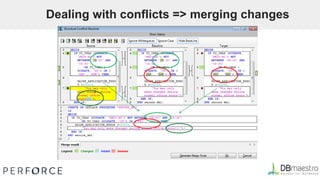

43. Dealing with conflicts => merging changes

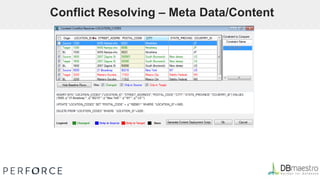

44. Conflict Resolving – Meta Data/Content

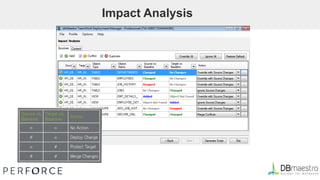

45. Impact Analysis

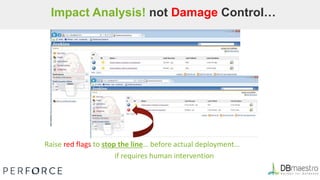

46. Impact Analysis! not Damage Control…
Raise red flags to stop the line… before actual deployment…
if requires human intervention

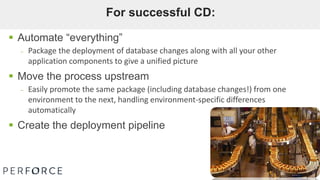

47.  Automate “everything”
– Package the deployment of database changes along with all your other
application components to give a unified picture
 Move the process upstream
– Easily promote the same package (including database changes!) from one
environment to the next, handling environment-specific differences
automatically
 Create the deployment pipeline
For successful CD:

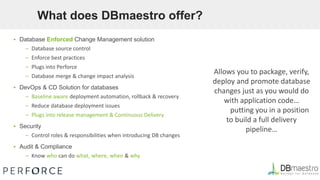

48. What does DBmaestro offer?
▪ Database Enforced Change Management solution
– Database source control
– Enforce best practices
– Plugs into Perforce
– Database merge & change impact analysis
▪ DevOps & CD Solution for databases
– Baseline aware deployment automation, rollback & recovery
– Reduce database deployment issues
– Plugs into release management & Continuous Delivery
▪ Security
– Control roles & responsibilities when introducing DB changes
▪ Audit & Compliance
– Know who can do what, where, when & why
Allows you to package, verify,
deploy and promote database
changes just as you would do
with application code…
putting you in a position
to build a full delivery
pipeline…

49. ▪ Focusing on changes rather than managing changes and
dealing with re-work, boosted overall productivity of 250
developers. We estimate we were able to do 15% more with the
same resources.
▪We went from several fix-centric deployments a day, to one
feature-centric deployment a week.
▪The amount of incidents in production has declined as well. We
had 20% less incidents.
▪CIO @ Credit Card company
“
Testimonials - Efficiency
“

50. About DBmaestro
▪ The leading provider of DevOps for Database
▪ Database Development and Continuous Delivery

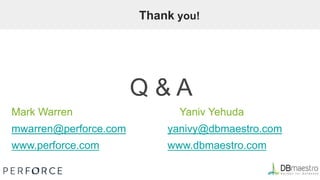

51. Thank you!
Q & A
Mark Warren Yaniv Yehuda
mwarren@perforce.com yanivy@dbmaestro.com
www.perforce.com www.dbmaestro.com
