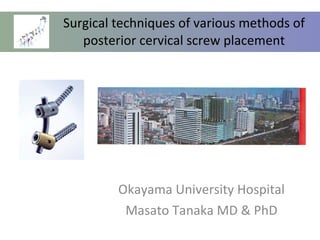

The document summarizes various surgical techniques for posterior cervical screw placement at different levels of the cervical spine. It describes techniques for C1 lateral mass screws, C1/2 transarticular screws, C2 laminar screws, C2 pedicle screws, C2 pars interarticularis screws, C3-7 lateral mass screws, C3-7 transarticular screws, and C7 laminar screws. For each technique, it provides details on entry point, angle of insertion, length of screw, and any variations in methodology reported in literature.
