This document provides specifications for a plastic IR dome camera including: 1) It uses a Sony 672/673 + EOS801 image sensor with 24 IR LEDs providing illumination up to 20 meters. 2) Features include DWDR, OSD, DNR, BLC, AWB, and a 3.6mm F2.0 board lens. 3) The camera has dimensions of 94mm diameter x 85mm height and a weight of 500g.

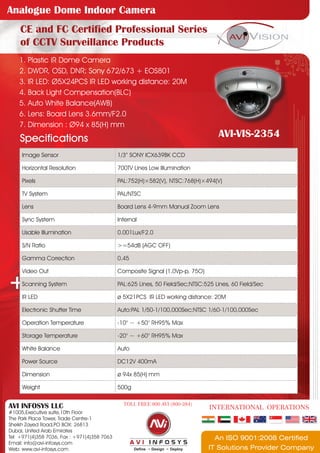

1. 1. Plastic IR Dome Camera
2. DWDR, OSD, DNR; Sony 672/673 + EOS801
3. IR LED: Ø5X24PCS IR LED working distance: 20M
4. Back Light Compensation(BLC)
5. Auto White Balance(AWB)
6. Lens: Board Lens 3.6mm/F2.0
7. Dimension : Ø94 x 85(H) mm
Image Sensor 1/3” SONY ICX639BK CCD
Horizontal Resolution 700TV Lines Low Illumination
Pixels PAL:752(H)×582(V), NTSC:768(H)×494(V)
TV System PAL/NTSC
Lens Board Lens 4-9mm Manual Zoom Lens
Sync System Internal
Usable Illumination 0.001Lux/F2.0
S/N Ratio >=54dB (AGC OFF)
Gamma Correction 0.45
Video Out Composite Signal (1.0Vp-p, 75O)
Scanning System PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
IR LED ø 5X21PCS IR LED working distance: 20M
Electronic Shutter Time Auto:PAL 1/50-1/100,000Sec;NTSC 1/60-1/100,000Sec
Operation Temperature -10° ~ +50° RH95% Max
Storage Temperature -20° ~ +60° RH95% Max
White Balance Auto
Power Source DC12V 400mA
Dimension ø 94x 85(H) mm
Weight 500g
Specifications
INTERNATIONAL OPERATIONS
#1005,Executive suite,10th Floor
The Park Place Tower, Trade Centre-1
Sheikh Zayed Road,PO BOX: 26813
Dubai, United Arab Emirates
Tel +971(4)358 7036, Fax : +971(4)358 7063
Email: info@avi-infosys.com
Web: www.avi-infosys.com
AVI INFOSYS LLC
An ISO 9001:2008 Certified
IT Solutions Provider Company
TOLL FREE 800 AVI (800-284)
Analogue Dome Indoor Camera
AVI-VIS-2354
CE and FC Certified Professional Series
of CCTV Surveillance Products
