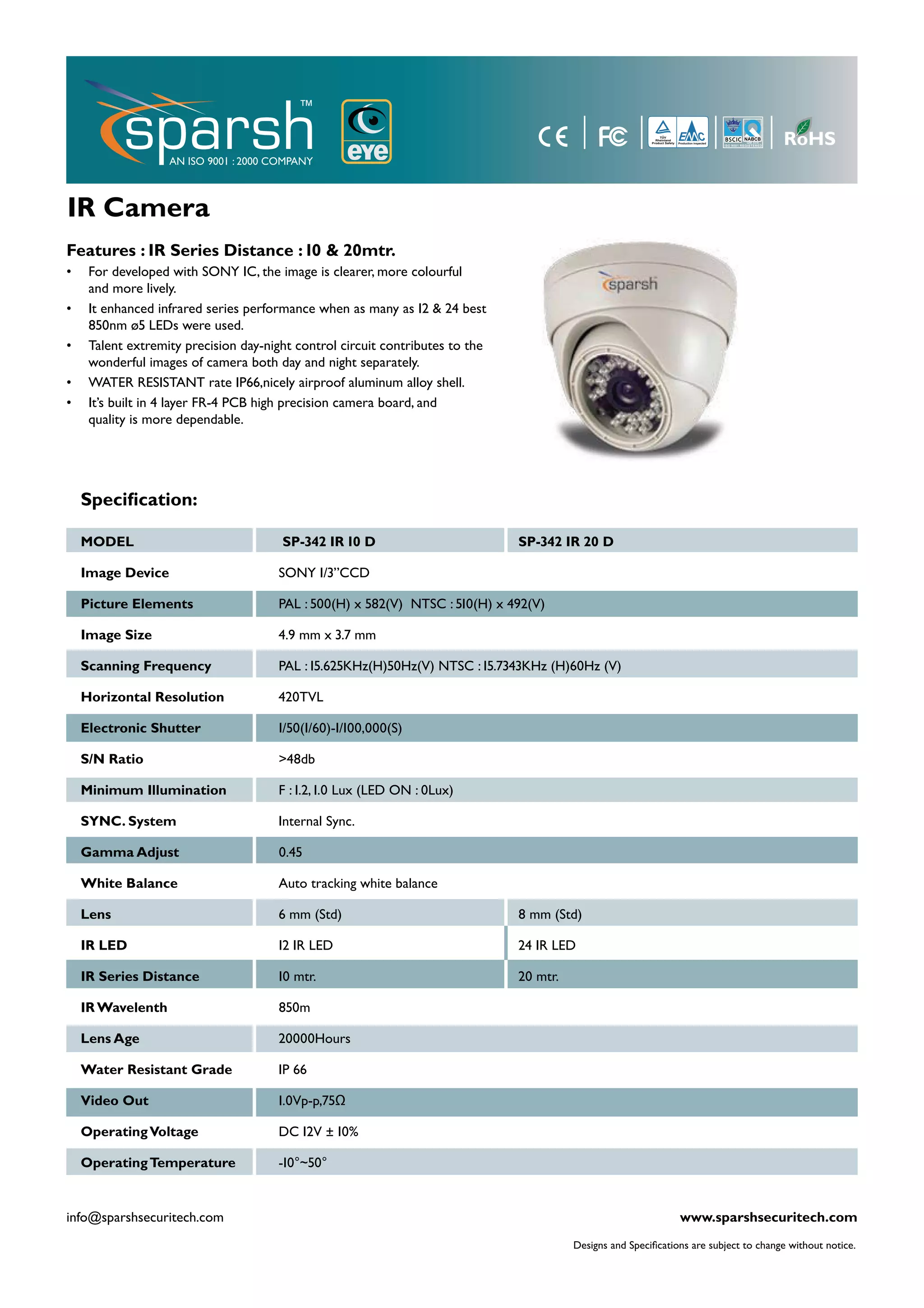

1. IR Camera
Features : IR Series Distance : 10 & 20mtr.
• For developed with SONY IC, the image is clearer, more colourful
and more lively.
• It enhanced infrared series performance when as many as 12 & 24 best
850nm ø5 LEDs were used.
• Talent extremity precision day-night control circuit contributes to the
wonderful images of camera both day and night separately.
• WATER RESISTANT rate IP66,nicely airproof aluminum alloy shell.
• It’s built in 4 layer FR-4 PCB high precision camera board, and
quality is more dependable.
Specification:
MODEL SP-342 IR 10 D SP-342 IR 20 D
Image Device SONY 1/3”CCD
Picture Elements PAL : 500(H) x 582(V) NTSC : 510(H) x 492(V)
Image Size 4.9 mm x 3.7 mm
Scanning Frequency PAL : 15.625KHz(H)50Hz(V) NTSC : 15.7343KHz (H)60Hz (V)
Horizontal Resolution 420TVL
Electronic Shutter 1/50(1/60)-1/100,000(S)
S/N Ratio >48db
Minimum Illumination F : 1.2, 1.0 Lux (LED ON : 0Lux)
SYNC. System Internal Sync.
Gamma Adjust 0.45
White Balance Auto tracking white balance
Lens 6 mm (Std) 8 mm (Std)
IR LED 12 IR LED 24 IR LED
IR Series Distance 10 mtr. 20 mtr.
IR Wavelenth 850m
Lens Age 20000Hours
Water Resistant Grade IP 66
Video Out 1.0Vp-p,75Ω
Operating Voltage DC 12V ± 10%
Operating Temperature -10°~50°
info@sparshsecuritech.com www.sparshsecuritech.com
Designs and Specifications are subject to change without notice.
