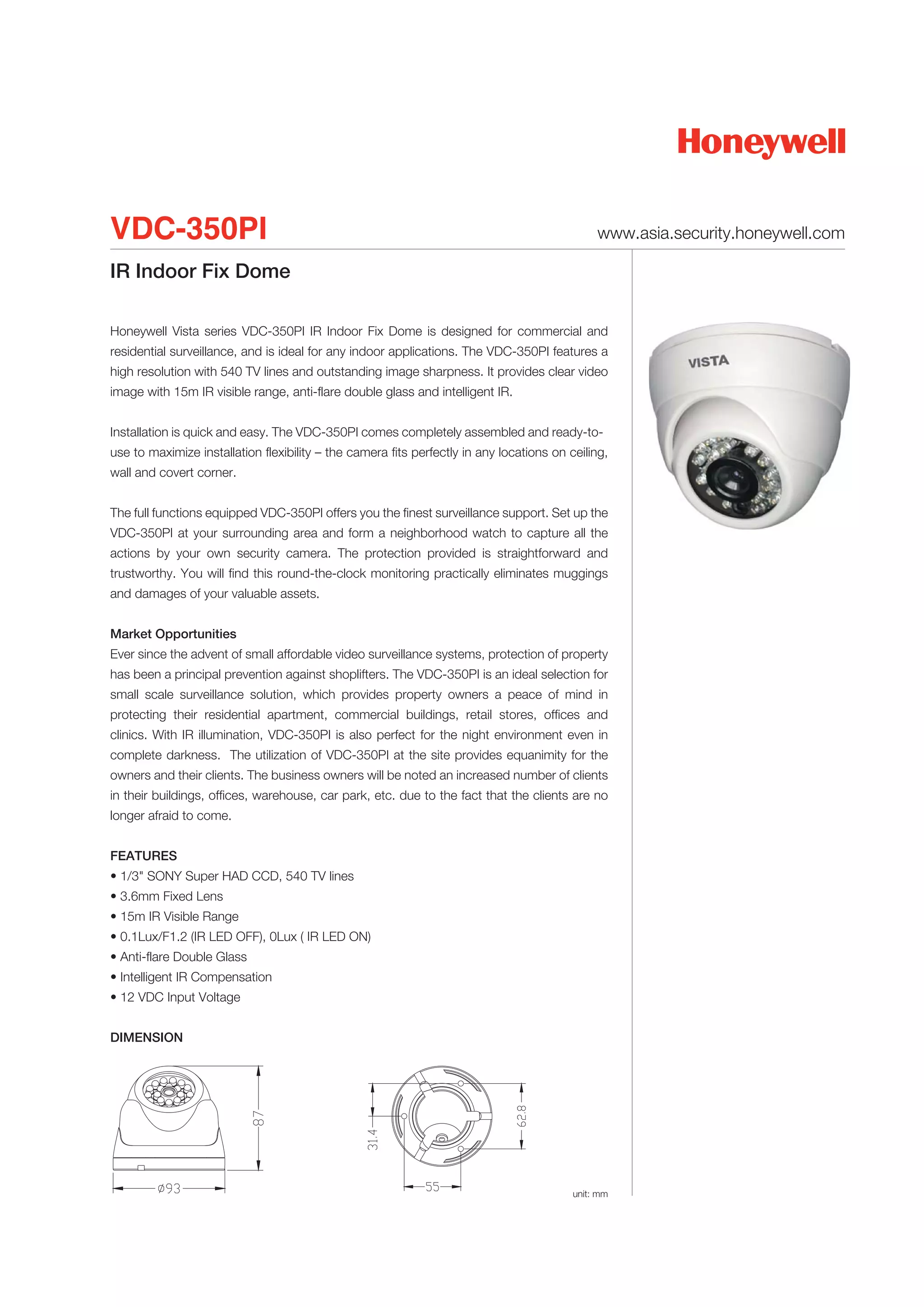

1. VDC-350PI www.asia.security.honeywell.com
IR Indoor Fix Dome
Honeywell Vista series VDC-350PI IR Indoor Fix Dome is designed for commercial and
residential surveillance, and is ideal for any indoor applications. The VDC-350PI features a
high resolution with 540 TV lines and outstanding image sharpness. It provides clear video
image with 15m IR visible range, anti-flare double glass and intelligent IR.
Installation is quick and easy. The VDC-350PI comes completely assembled and ready-to-
use to maximize installation flexibility – the camera fits perfectly in any locations on ceiling,
wall and covert corner.
The full functions equipped VDC-350PI offers you the finest surveillance support. Set up the
VDC-350PI at your surrounding area and form a neighborhood watch to capture all the
actions by your own security camera. The protection provided is straightforward and
trustworthy. You will find this round-the-clock monitoring practically eliminates muggings
and damages of your valuable assets.
Market Opportunities
Ever since the advent of small affordable video surveillance systems, protection of property
has been a principal prevention against shoplifters. The VDC-350PI is an ideal selection for
small scale surveillance solution, which provides property owners a peace of mind in
protecting their residential apartment, commercial buildings, retail stores, offices and
clinics. With IR illumination, VDC-350PI is also perfect for the night environment even in
complete darkness. The utilization of VDC-350PI at the site provides equanimity for the
owners and their clients. The business owners will be noted an increased number of clients
in their buildings, offices, warehouse, car park, etc. due to the fact that the clients are no
longer afraid to come.
FEATURES
• 1/3" SONY Super HAD CCD, 540 TV lines
• 3.6mm Fixed Lens
• 15m IR Visible Range
• 0.1Lux/F1.2 (IR LED OFF), 0Lux ( IR LED ON)
• Anti-flare Double Glass
• Intelligent IR Compensation
• 12 VDC Input Voltage
DIMENSION
unit: mm

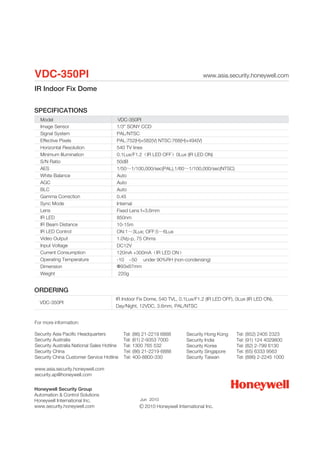

2. VDC-350PI www.asia.security.honeywell.com
IR Indoor Fix Dome
SPECIFICATIONS
Model VDC-350PI
Image Sensor 1/3" SONY CCD
Signal System PAL/NTSC
Effective Pixels PAL:752(H)×582(V) NTSC:768(H)×494(V)
Horizontal Resolution 540 TV lines
Minimum Illumination 0.1Lux/F1.2（IR LED OFF）0Lux (IR LED ON)
S/N Ratio 50dB
AES 1/50～1/100,000/sec(PAL),1/60～1/100,000/sec(NTSC)
White Balance Auto
AGC Auto
BLC Auto
Gamma Correction 0.45
Sync Mode Internal
Lens Fixed Lens f=3.6mm
IR LED 850nm
IR Beam Distance 10-15m
IR LED Control ON:1～3Lux; OFF:5～6Lux
Video Output 1.0Vp-p, 75 Ohms
Input Voltage DC12V
Current Consumption 120mA +300mA（IR LED ON）
Operating Temperature -10 ~50 under 90%RH (non-condensing)
Dimension Ф93x87mm
Weight 220g
ORDERING
IR Indoor Fix Dome, 540 TVL, 0.1Lux/F1.2 (IR LED OFF), 0Lux (IR LED ON),
VDC-350PI
Day/Night, 12VDC, 3.6mm, PAL/NTSC
