This document provides specifications for the DH-BTS26N2 high resolution IR bullet camera. It has a 1/3" Sony CCD image sensor, 520 TVL resolution, and can capture images down to 0 lux with its 24 LED infrared illuminators that provide night vision up to 20 meters. It has a 3.6mm fixed lens, IP65 weatherproof housing, and certifications including CE and FCC.

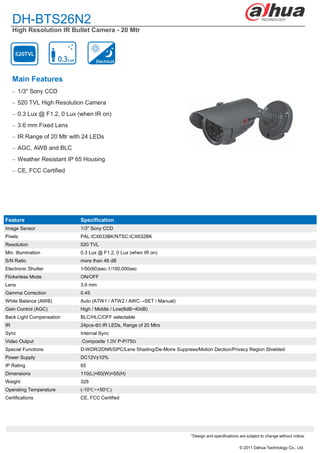

1. DH-BTS26N2
High Resolution IR Bullet Camera - 20 Mtr
Main Features
 1/3" Sony CCD
 520 TVL High Resolution Camera
 0.3 Lux @ F1.2, 0 Lux (when IR on)
 3.6 mm Fixed Lens
 IR Range of 20 Mtr with 24 LEDs
 AGC, AWB and BLC
 Weather Resistant IP 65 Housing
 CE, FCC Certified
Feature Specification
Image Sensor 1/3" Sony CCD
Pixels PAL:ICX633BK/NTSC:ICX632BK
Resolution 520 TVL
Min. Illumination 0.3 Lux @ F1.2, 0 Lux (when IR on)
S/N Ratio more than 48 dB
Electronic Shutter 1/50(60)sec-1/100,000sec
Flickerless Mode ON/OFF
Lens 3.6 mm
Gamma Correction 0.45
White Balance (AWB) Auto (ATW1 / ATW2 / AWC→SET / Manual)
Gain Control (AGC) High / Middle / Low(6dB~40dB)
Back Light Compensation BLC/HLC/OFF selectable
IR 24pcs-Φ5 IR LEDs, Range of 20 Mtrs
Sync Internal Sync
Video Output Composite 1.0V P-P/75Ω
Special Functions D-WDR/2DNR/DPC/Lens Shading/De-Moire Suppress/Motion Dection/Privacy Region Shielded
Power Supply DC12V±10%
IP Rating 65
Dimensions 110(L)×60(W)×55(H)
Weight 328
Operating Temperature (-10℃ ~+50℃ )
Certifications CE, FCC Certified
*Design and specifications are subject to change without notice.
© 2011 Dahua Technology Co., Ltd.
