1. CCTNS
Prepared By:
Deepa.S
&
Jayakumar.PP
Prepared By:
Deepa.S
&
Jayakumar.PP

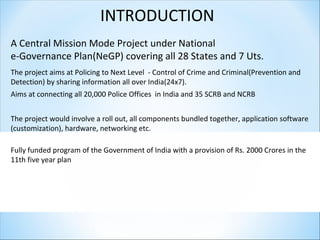

2. INTRODUCTION
A Central Mission Mode Project under National
e-Governance Plan(NeGP) covering all 28 States and 7 Uts.
The project aims at Policing to Next Level - Control of Crime and Criminal(Prevention and
Detection) by sharing information all over India(24x7).
Aims at connecting all 20,000 Police Offices in India and 35 SCRB and NCRB
The project would involve a roll out, all components bundled together, application software
(customization), hardware, networking etc.
Fully funded program of the Government of India with a provision of Rs. 2000 Crores in the
11th five year plan

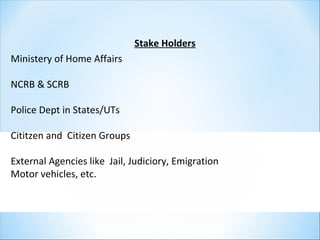

3. Stake Holders
Ministery of Home Affairs
NCRB & SCRB
Police Dept in States/UTs
Cititzen and Citizen Groups
External Agencies like Jail, Judiciory, Emigration
Motor vehicles, etc.

4. Background of Police Systems in India
7 Integrated Forms – Standardisation of Forms
CCIS – District Level
CIPA – Police Station Level
New initiative , ie CCTNS !!!!

5. OBJECTIVE OF CCTNS
Provide access to information for Investigation, Crime
Prevention, Maintenance of Law & Order, Traffic
Management etc.
Increase Operational Efficiency of End-User i.e. Police &
Citizen
Create a platform for sharing crime & Criminal information
across India
Improved service delivery to the public/ citizen

6. OUTCOME SERVICES & SERVICE-LEVELS

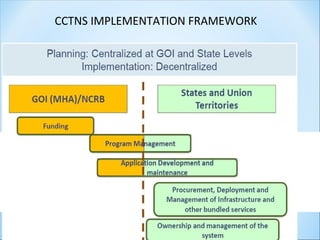

7. CCTNS IMPLEMENTATION FRAMEWORK

8. CORE APPLICATION SOFTWARE(CAS) FEATURES
1
2
3
4
5
6
CCTNS
CAS
CCTNS
CAS

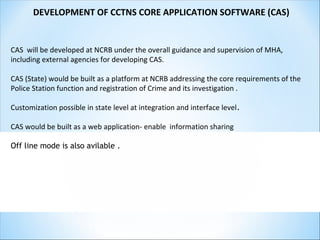

9. DEVELOPMENT OF CCTNS CORE APPLICATION SOFTWARE (CAS)
CAS will be developed at NCRB under the overall guidance and supervision of MHA,
including external agencies for developing CAS.
CAS (State) would be built as a platform at NCRB addressing the core requirements of the
Police Station function and registration of Crime and its investigation .
Customization possible in state level at integration and interface level.
CAS would be built as a web application- enable information sharing
Off line mode is also avilable .

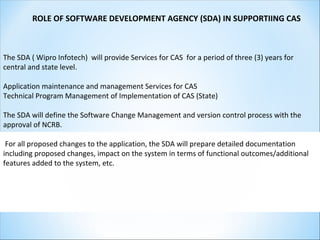

10. ROLE OF SOFTWARE DEVELOPMENT AGENCY (SDA) IN SUPPORTIING CAS
The SDA ( Wipro Infotech) will provide Services for CAS for a period of three (3) years for
central and state level.
Application maintenance and management Services for CAS
Technical Program Management of Implementation of CAS (State)
The SDA will define the Software Change Management and version control process with the
approval of NCRB.
For all proposed changes to the application, the SDA will prepare detailed documentation
including proposed changes, impact on the system in terms of functional outcomes/additional
features added to the system, etc.

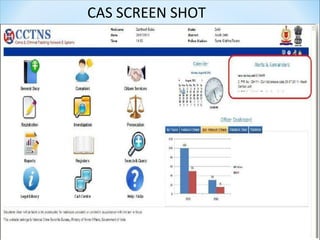

11. CAS SCREEN SHOT

12. TECHNOLOGY ARCHITECTURE
State
Data
Centre

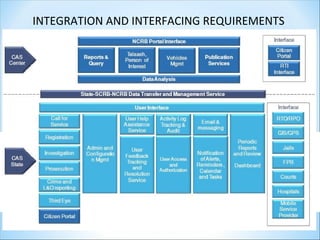

13. INTEGRATION AND INTERFACING REQUIREMENTS

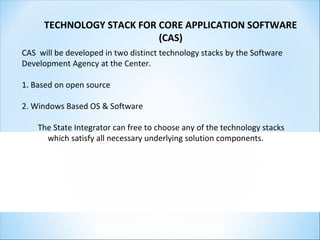

14. TECHNOLOGY STACK FOR CORE APPLICATION SOFTWARE
(CAS)
CAS will be developed in two distinct technology stacks by the Software
Development Agency at the Center.
1. Based on open source
2. Windows Based OS & Software
The State Integrator can free to choose any of the technology stacks
which satisfy all necessary underlying solution components.

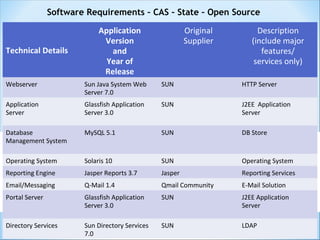

15. Software Requirements – CAS – State – Open Source
Technical Details
Application
Version
and
Year of
Release
Original
Supplier
Description
(include major
features/
services only)
Webserver Sun Java System Web
Server 7.0
SUN HTTP Server
Application
Server
Glassfish Application
Server 3.0
SUN J2EE Application
Server
Database
Management System
MySQL 5.1 SUN DB Store
Operating System Solaris 10 SUN Operating System
Reporting Engine Jasper Reports 3.7 Jasper Reporting Services
Email/Messaging Q-Mail 1.4 Qmail Community E-Mail Solution
Portal Server Glassfish Application
Server 3.0
SUN J2EE Application
Server
Directory Services Sun Directory Services
7.0
SUN LDAP

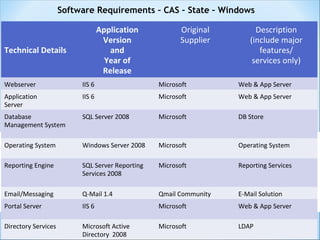

16. Technical Details
Application
Version
and
Year of
Release
Original
Supplier
Description
(include major
features/
services only)
Webserver IIS 6 Microsoft Web & App Server
Application
Server
IIS 6 Microsoft Web & App Server
Database
Management System
SQL Server 2008 Microsoft DB Store
Operating System Windows Server 2008 Microsoft Operating System
Reporting Engine SQL Server Reporting
Services 2008
Microsoft Reporting Services
Email/Messaging Q-Mail 1.4 Qmail Community E-Mail Solution
Portal Server IIS 6 Microsoft Web & App Server
Directory Services Microsoft Active
Directory 2008
Microsoft LDAP
Software Requirements – CAS – State – Windows

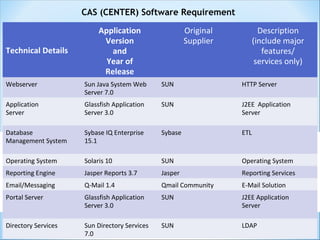

17. CAS (CENTER) Software Requirement
Technical Details
Application
Version
and
Year of
Release
Original
Supplier
Description
(include major
features/
services only)
Webserver Sun Java System Web
Server 7.0
SUN HTTP Server
Application
Server
Glassfish Application
Server 3.0
SUN J2EE Application
Server
Database
Management System
Sybase IQ Enterprise
15.1
Sybase ETL
Operating System Solaris 10 SUN Operating System
Reporting Engine Jasper Reports 3.7 Jasper Reporting Services
Email/Messaging Q-Mail 1.4 Qmail Community E-Mail Solution
Portal Server Glassfish Application
Server 3.0
SUN J2EE Application
Server
Directory Services Sun Directory Services
7.0
SUN LDAP

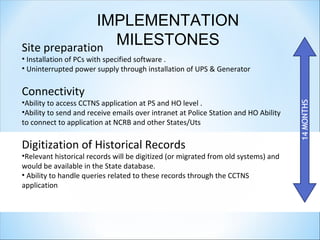

18. IMPLEMENTATION
MILESTONESSite preparation
• Installation of PCs with specified software .
• Uninterrupted power supply through installation of UPS & Generator
Connectivity
•Ability to access CCTNS application at PS and HO level .
•Ability to send and receive emails over intranet at Police Station and HO Ability
to connect to application at NCRB and other States/Uts
Digitization of Historical Records
•Relevant historical records will be digitized (or migrated from old systems) and
would be available in the State database.
• Ability to handle queries related to these records through the CCTNS
application

19. PRESENT STATUS OF CCTNS IN KERALA
Kerala is one among the three pilot states selected for CCTNS project implementation
(Other states are UP and Assam).
Locations are :-
3 Police Stations & 2 Higher Offices
•Parassala PS (Thiruvananthapuram Rural)
•Kattappana PS (Idukki)
•Ernakulam Central PS (Kochi City)
•SCRB, Pattom, Thiruvananthapuram
•District Police Office, Thiruvananthapuram Rural
The Project Implementation Report (PIM) submitted by Kerala approved by MHA 15th
February, 2011.
Total Contract amount is Rs. 4670.43 lakhs (One year Implementation and 5 year post
implementation charges)
Under the guidance of Software Developing Agency (SDA) viz M/s Wipro Ltd, the
Intensive Field Testing /User Acceptance Testing (UAT) of the Core Application
Software (CAS) in online started from all pilot locations from 13/02/2012 and the same
is going on.

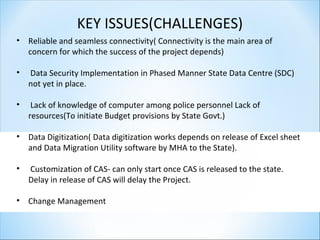

20. KEY ISSUES(CHALLENGES)
• Reliable and seamless connectivity( Connectivity is the main area of
concern for which the success of the project depends)
• Data Security Implementation in Phased Manner State Data Centre (SDC)
not yet in place.
• Lack of knowledge of computer among police personnel Lack of
resources(To initiate Budget provisions by State Govt.)
• Data Digitization( Data digitization works depends on release of Excel sheet
and Data Migration Utility software by MHA to the State).
• Customization of CAS- can only start once CAS is released to the state.
Delay in release of CAS will delay the Project.
• Change Management
