0913252   • NORASHIKIN MUSTAFA

0917992     • MARIAM NABILAH

0910592   • WAN NURUL HAZIRAH

0913838   • NUR AFIFAH’ AMALINA

0914606    • WAN NOR AMALINA

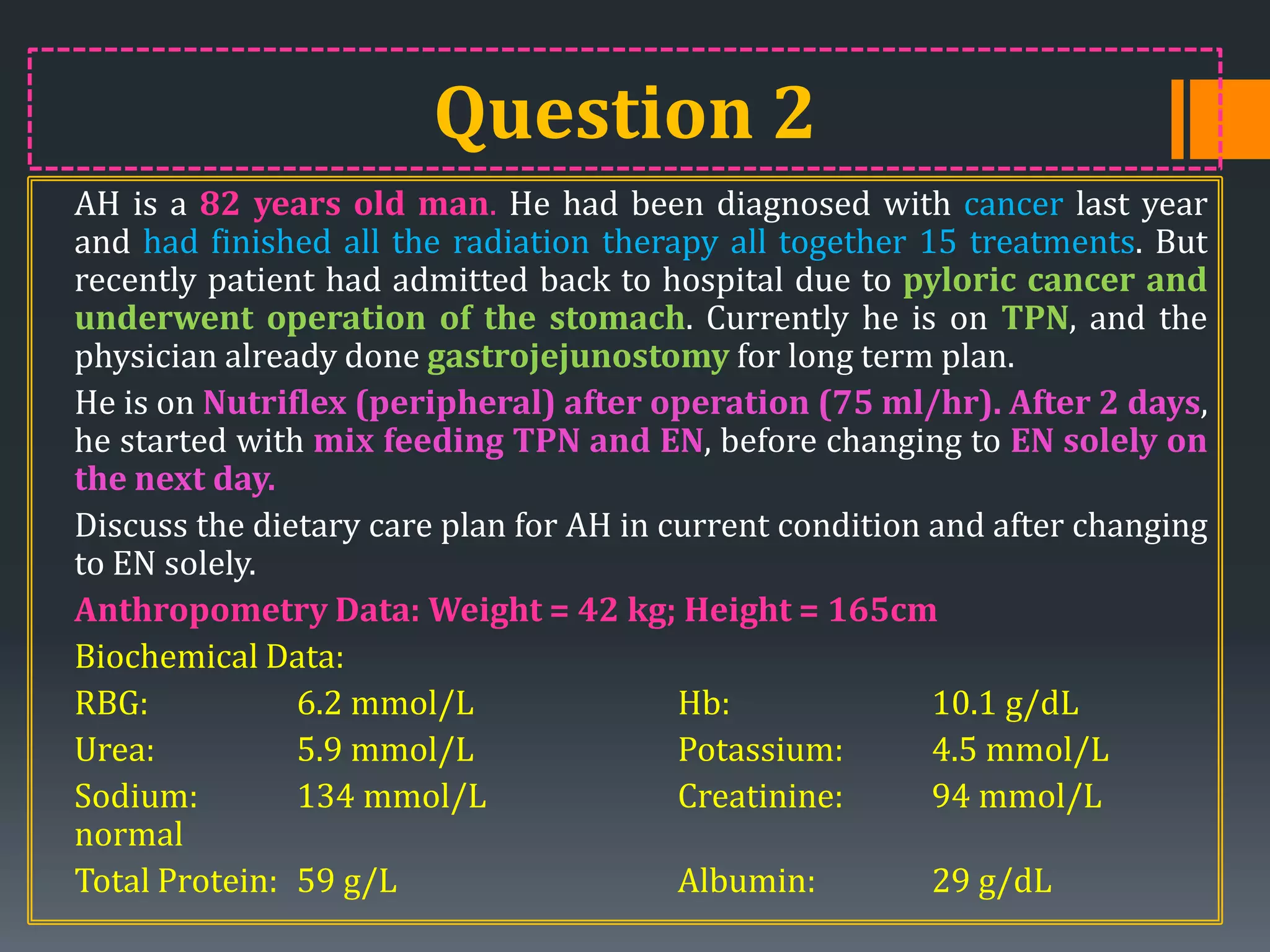

Question 2
AH is a 82 years old man. He had been diagnosed with cancer last year
and had finished all the radiation therapy all together 15 treatments. But
recently patient had admitted back to hospital due to pyloric cancer and
underwent operation of the stomach. Currently he is on TPN, and the
physician already done gastrojejunostomy for long term plan.
He is on Nutriflex (peripheral) after operation (75 ml/hr). After 2 days,
he started with mix feeding TPN and EN, before changing to EN solely on
the next day.
Discuss the dietary care plan for AH in current condition and after changing
to EN solely.
Anthropometry Data: Weight = 42 kg; Height = 165cm
Biochemical Data:
RBG:           6.2 mmol/L                Hb:              10.1 g/dL
Urea:          5.9 mmol/L                Potassium:       4.5 mmol/L
Sodium:        134 mmol/L                Creatinine:      94 mmol/L
normal
Total Protein: 59 g/L                    Albumin:         29 g/dL

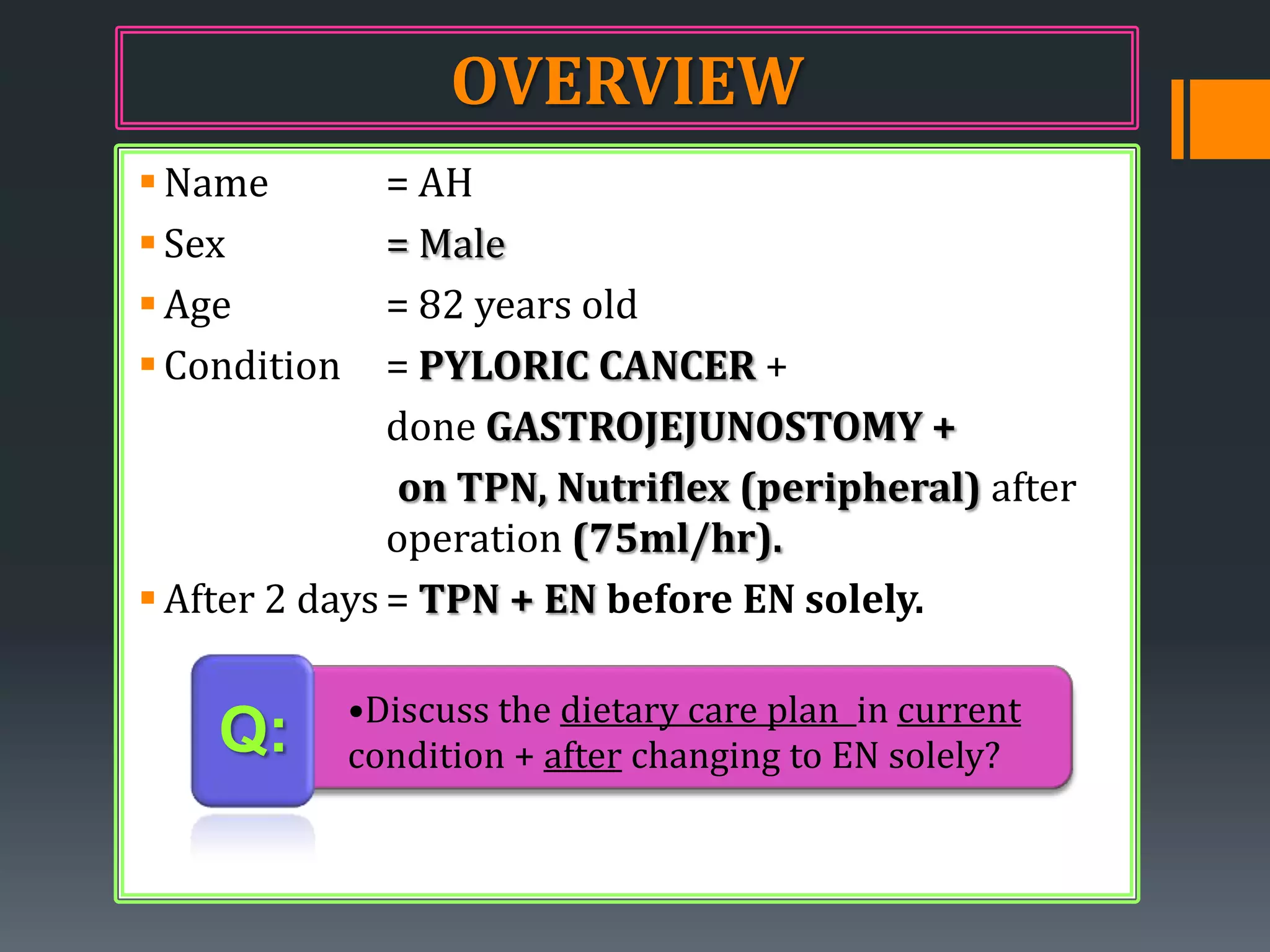

OVERVIEW
 Name         = AH
 Sex          = Male
 Age          = 82 years old
 Condition    = PYLORIC CANCER +
               done GASTROJEJUNOSTOMY +
                on TPN, Nutriflex (peripheral) after
               operation (75ml/hr).
 After 2 days = TPN + EN before EN solely.

              •Discuss the dietary care plan in current
    Q:        condition + after changing to EN solely?

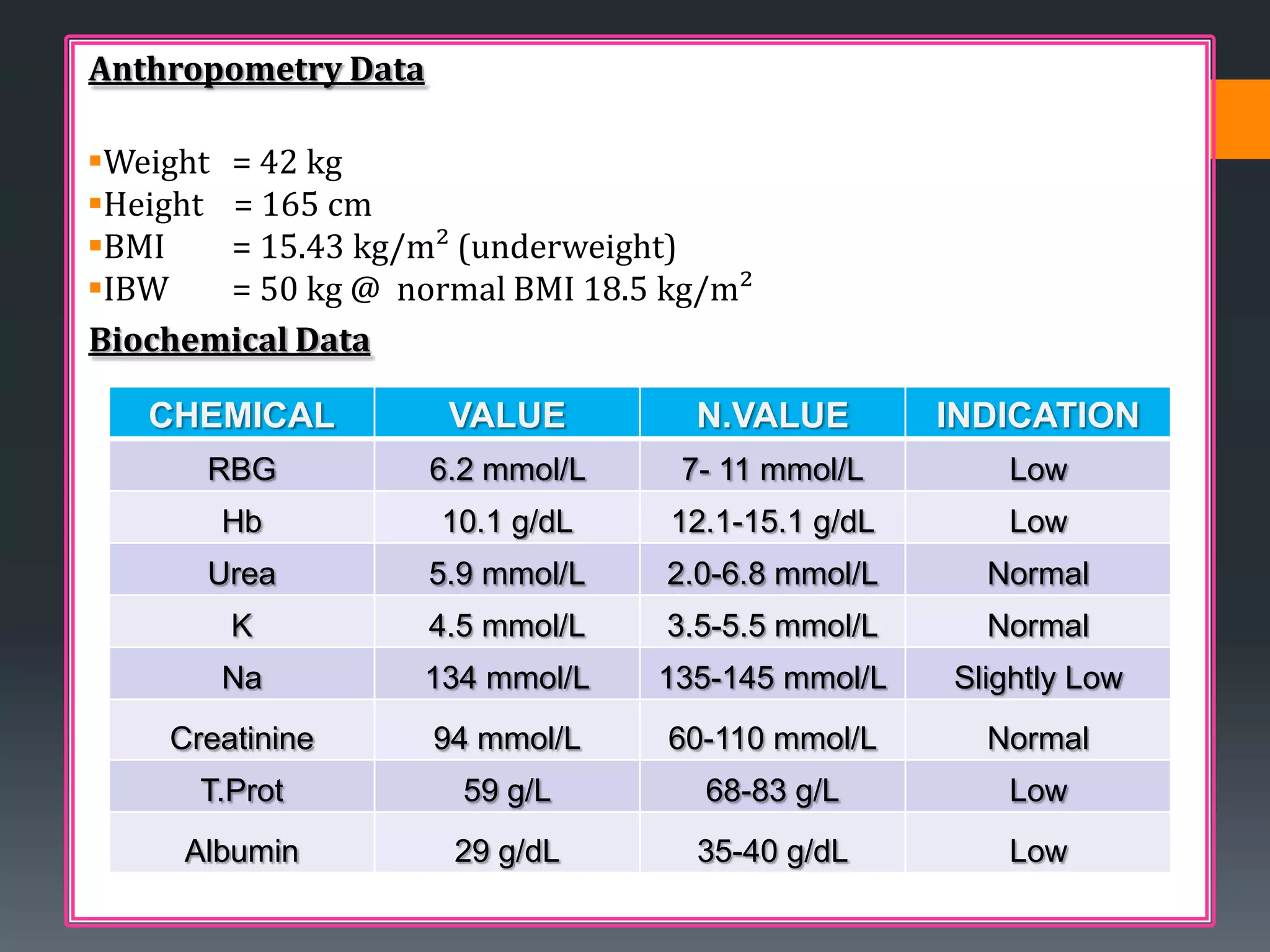

Anthropometry Data

Weight = 42 kg
Height = 165 cm
BMI    = 15.43 kg/m² (underweight)
IBW    = 50 kg @ normal BMI 18.5 kg/m²
Biochemical Data

   CHEMICAL           VALUE         N.VALUE        INDICATION
       RBG           6.2 mmol/L    7- 11 mmol/L       Low
       : Hb          10.1 g/dL    12.1-15.1 g/dL      Low
       Urea          5.9 mmol/L   2.0-6.8 mmol/L     Normal
        K            4.5 mmol/L   3.5-5.5 mmol/L     Normal
       Na          134 mmol/L     135-145 mmol/L   Slightly Low
    Creatinine       94 mmol/L    60-110 mmol/L      Normal
      T.Prot           59 g/L       68-83 g/L         Low
     Albumin          29 g/dL       35-40 g/dL        Low

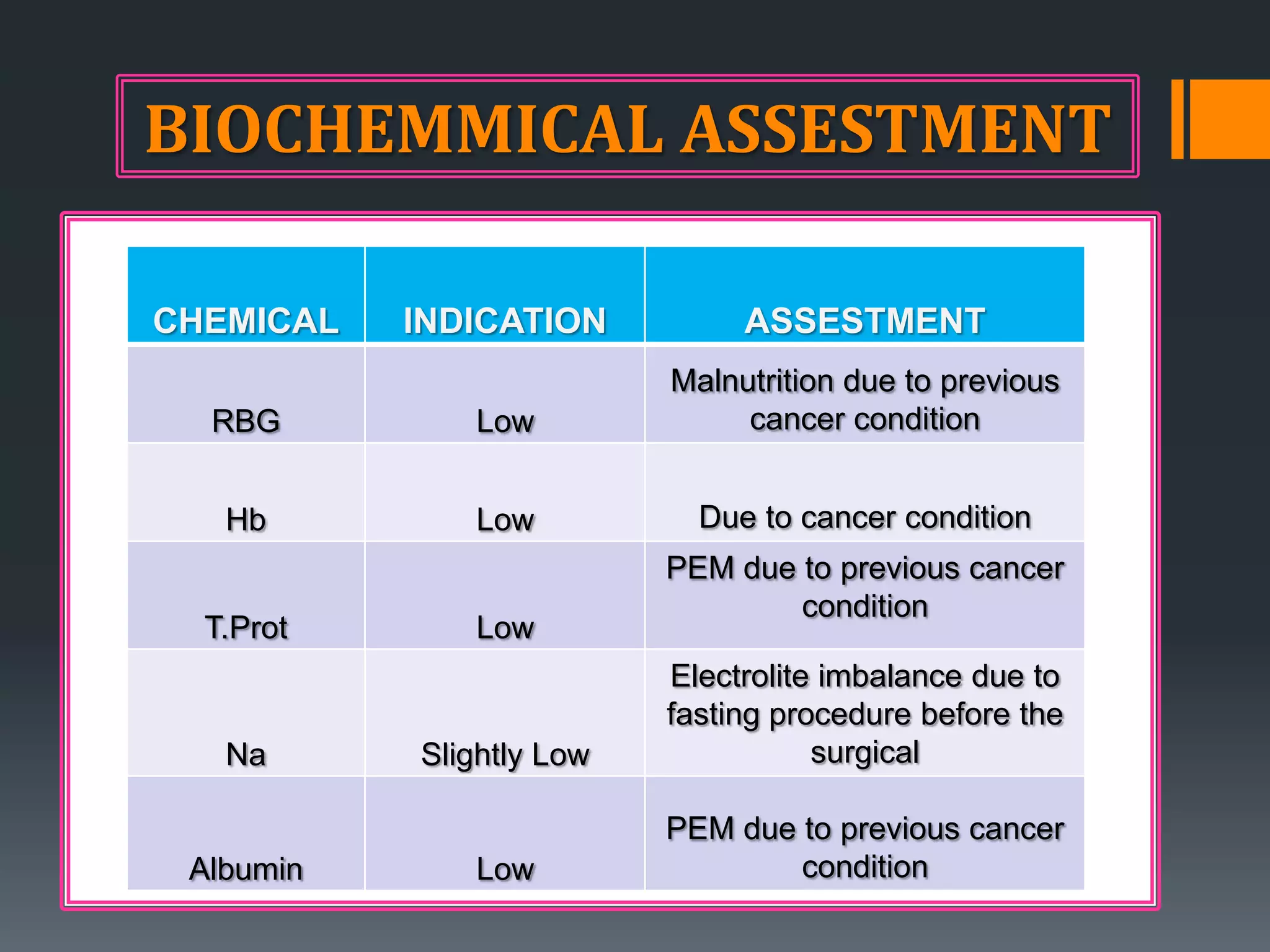

BIOCHEMMICAL ASSESTMENT

CHEMICAL   INDICATION          ASSESTMENT
                          Malnutrition due to previous
  RBG         Low              cancer condition


      Hb      Low           Due to cancer condition
                          PEM due to previous cancer
                                  condition
  T.Prot      Low
                          Electrolite imbalance due to
                          fasting procedure before the
      Na   Slightly Low              surgical

  :                       PEM due to previous cancer
 Albumin      Low                 condition

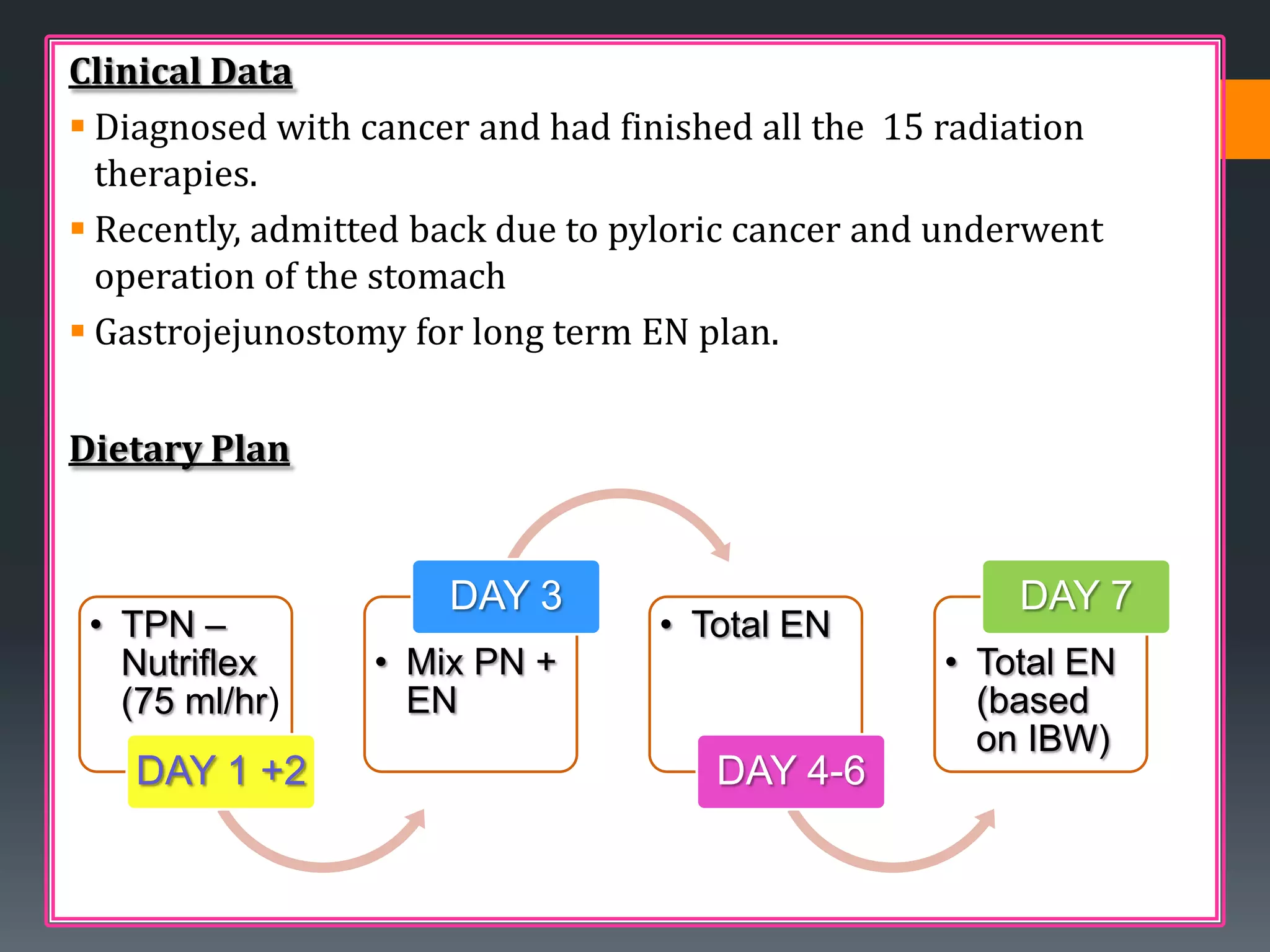

Clinical Data
 Diagnosed with cancer and had finished all the 15 radiation
  therapies.
 Recently, admitted back due to pyloric cancer and underwent
  operation of the stomach
 Gastrojejunostomy for long term EN plan.


Dietary Plan


                      DAY 3                             DAY 7
 • TPN –                          • Total EN
   Nutriflex      • Mix PN +                       • Total EN
   (75 ml/hr)       EN                               (based
                                                     on IBW)
   DAY 1 +2                           DAY 4-6

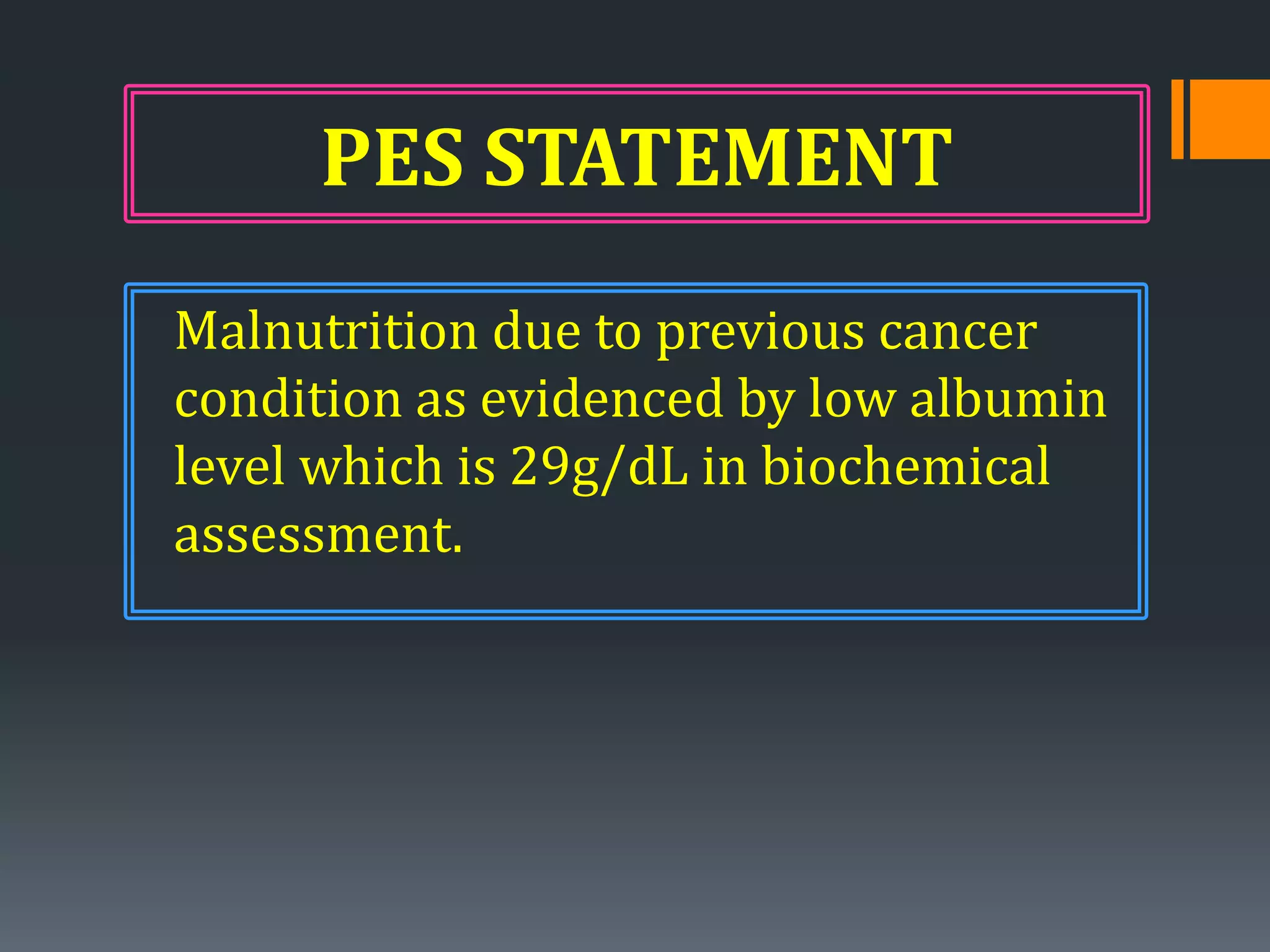

PES STATEMENT
Malnutrition due to previous cancer
condition as evidenced by low albumin
level which is 29g/dL in biochemical
assessment.

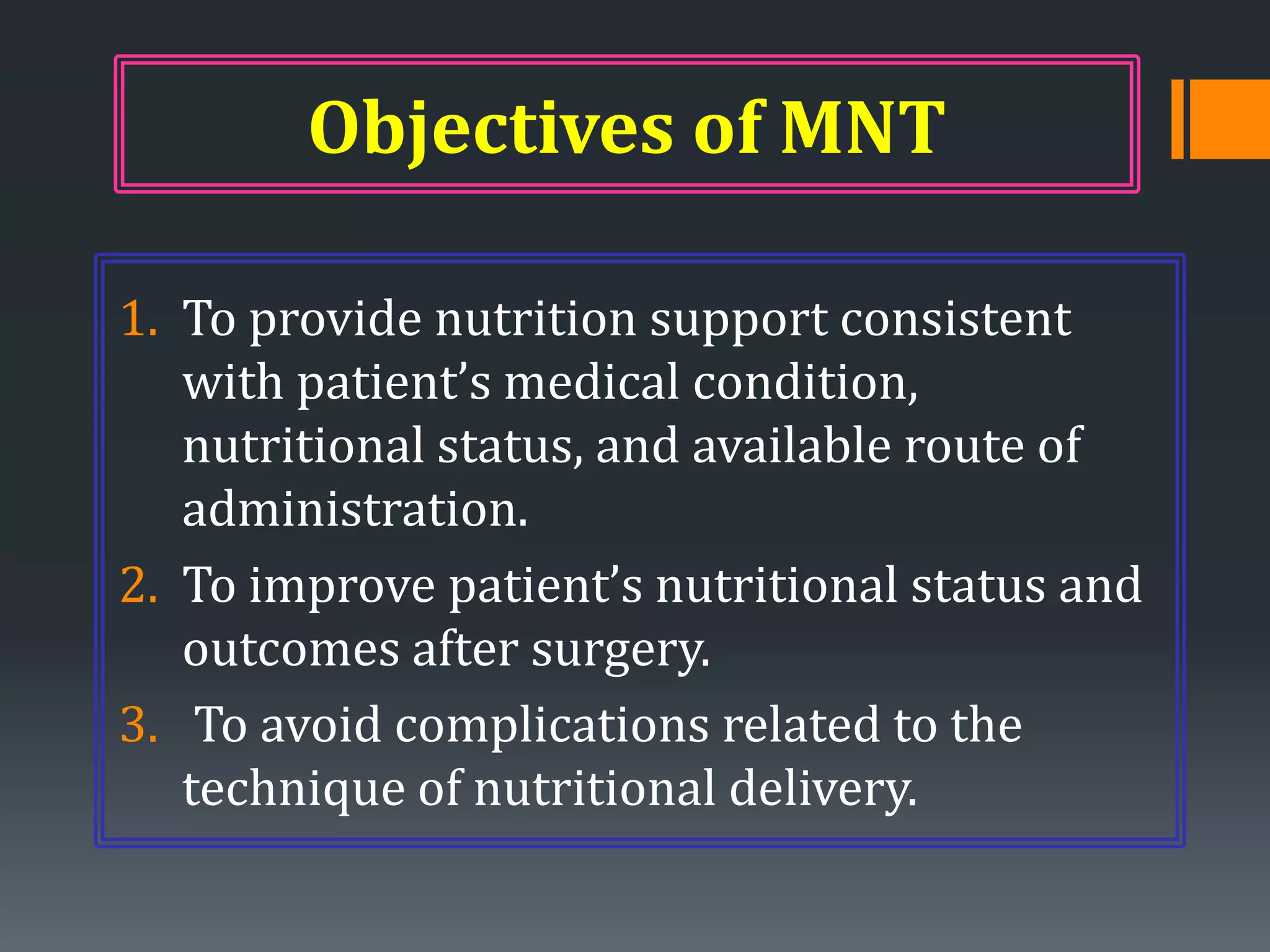

Objectives of MNT

1. To provide nutrition support consistent
   with patient’s medical condition,
   nutritional status, and available route of
   administration.
2. To improve patient’s nutritional status and
   outcomes after surgery.
3. To avoid complications related to the
   technique of nutritional delivery.

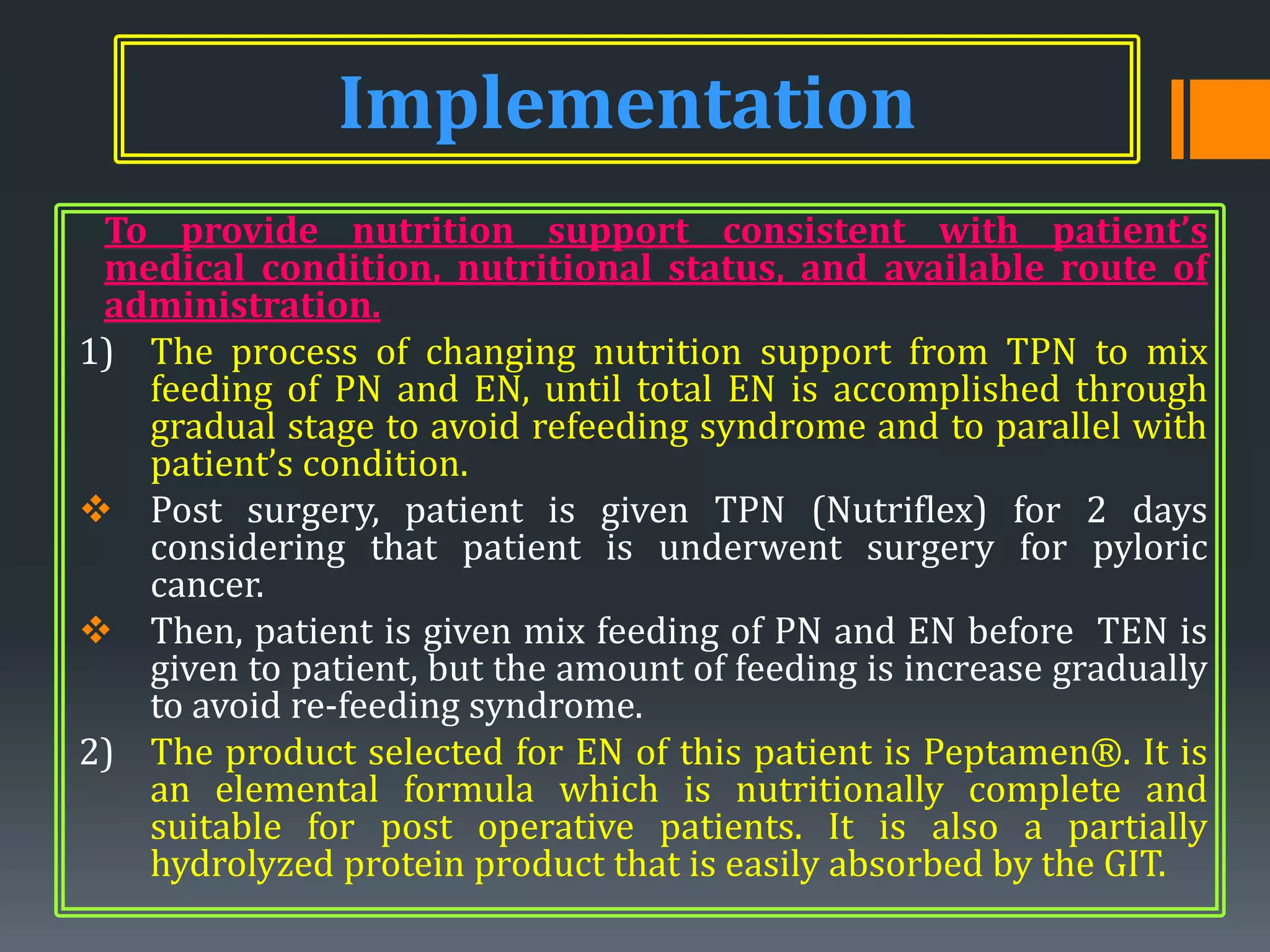

Implementation
 To provide nutrition support consistent with patient’s
 medical condition, nutritional status, and available route of
 administration.
1) The process of changing nutrition support from TPN to mix
   feeding of PN and EN, until total EN is accomplished through
   gradual stage to avoid refeeding syndrome and to parallel with
   patient’s condition.
 Post surgery, patient is given TPN (Nutriflex) for 2 days
   considering that patient is underwent surgery for pyloric
   cancer.
 Then, patient is given mix feeding of PN and EN before TEN is
   given to patient, but the amount of feeding is increase gradually
   to avoid re-feeding syndrome.
2) The product selected for EN of this patient is Peptamen®. It is
   an elemental formula which is nutritionally complete and
   suitable for post operative patients. It is also a partially
   hydrolyzed protein product that is easily absorbed by the GIT.

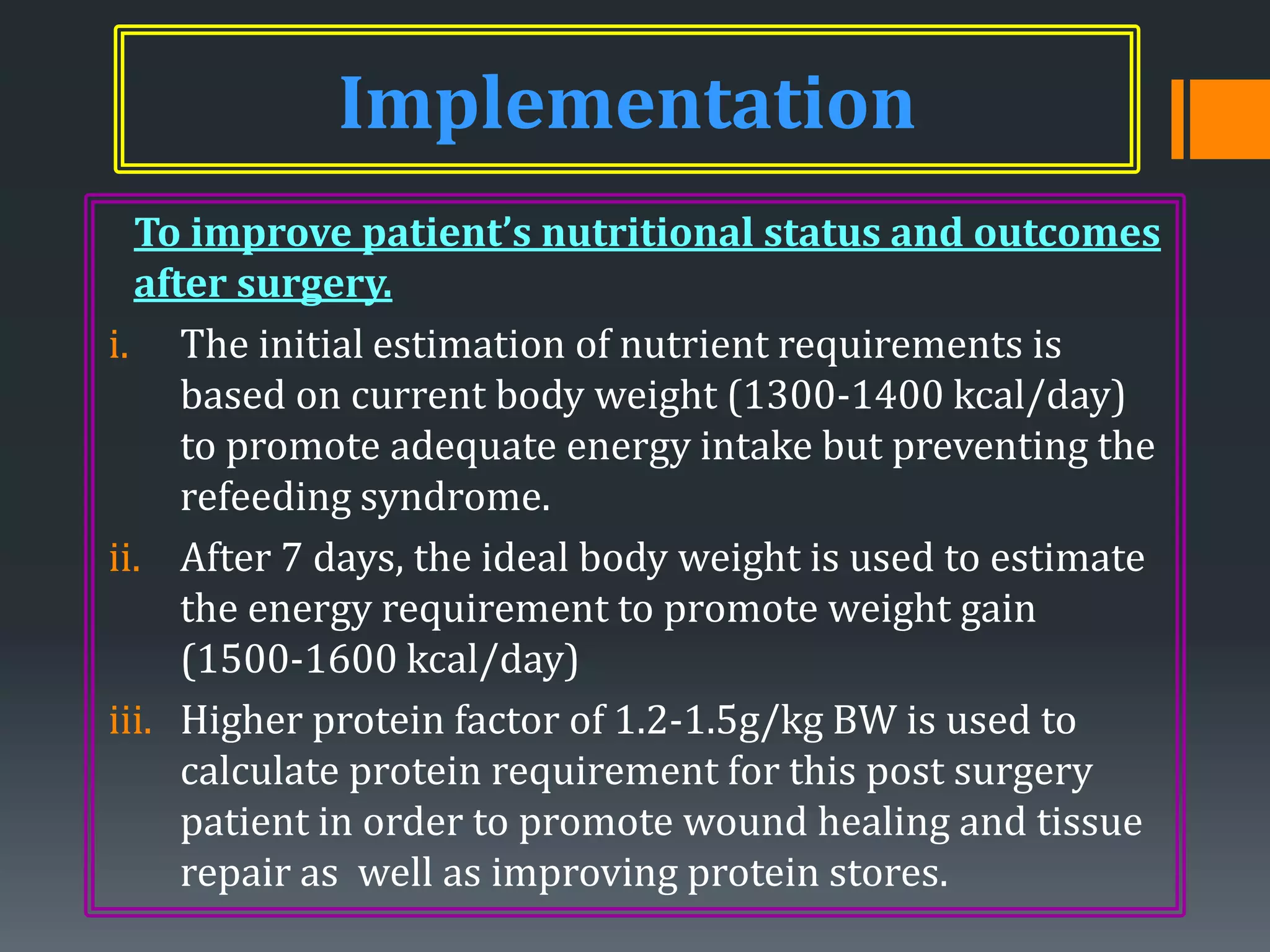

Implementation
  To improve patient’s nutritional status and outcomes
  after surgery.
i. The initial estimation of nutrient requirements is
     based on current body weight (1300-1400 kcal/day)
     to promote adequate energy intake but preventing the
     refeeding syndrome.
ii. After 7 days, the ideal body weight is used to estimate
     the energy requirement to promote weight gain
     (1500-1600 kcal/day)
iii. Higher protein factor of 1.2-1.5g/kg BW is used to
     calculate protein requirement for this post surgery
     patient in order to promote wound healing and tissue
     repair as well as improving protein stores.

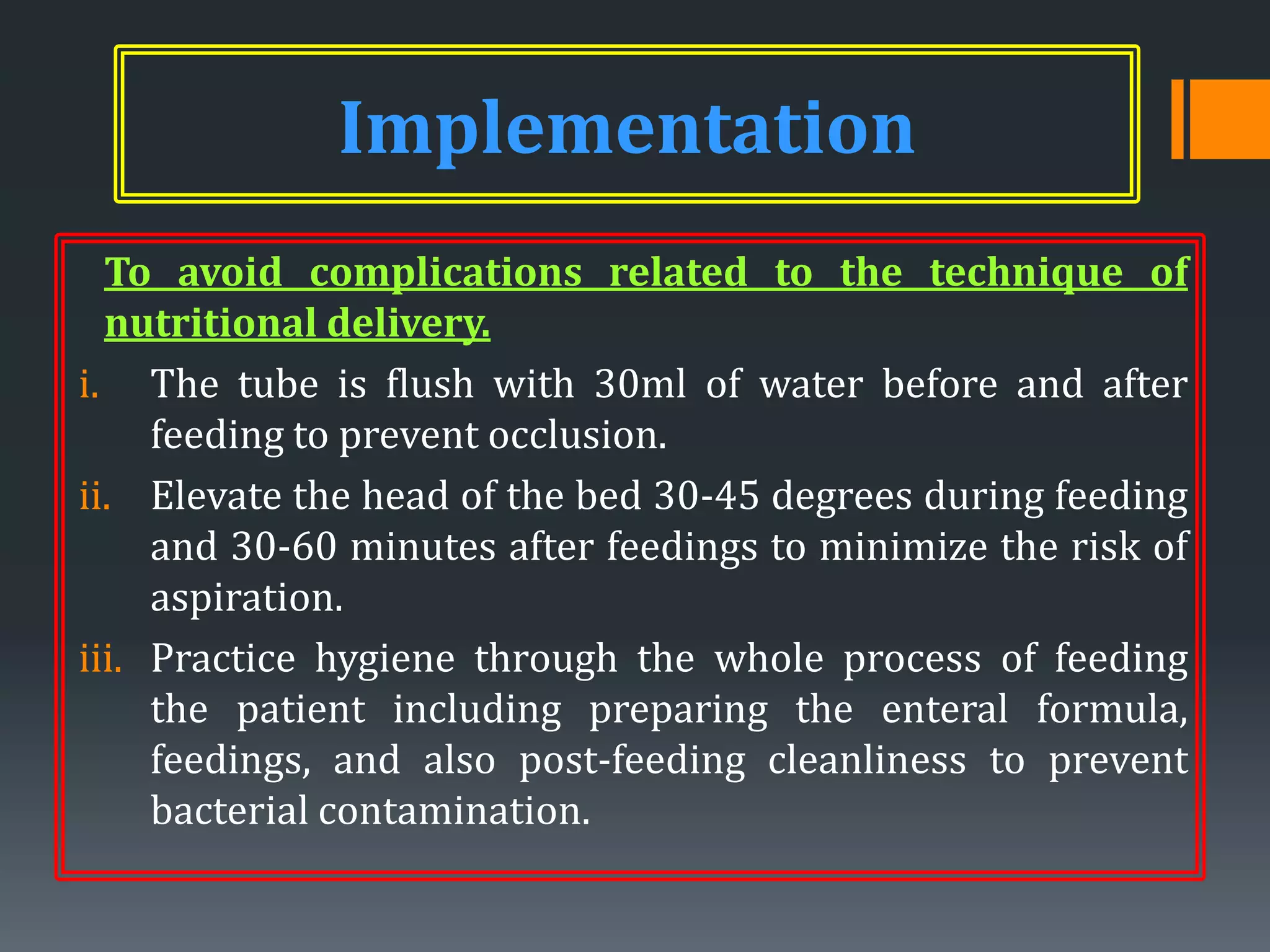

Implementation
  To avoid complications related to the technique of
  nutritional delivery.
i. The tube is flush with 30ml of water before and after
     feeding to prevent occlusion.
ii. Elevate the head of the bed 30-45 degrees during feeding
     and 30-60 minutes after feedings to minimize the risk of
     aspiration.
iii. Practice hygiene through the whole process of feeding
     the patient including preparing the enteral formula,
     feedings, and also post-feeding cleanliness to prevent
     bacterial contamination.

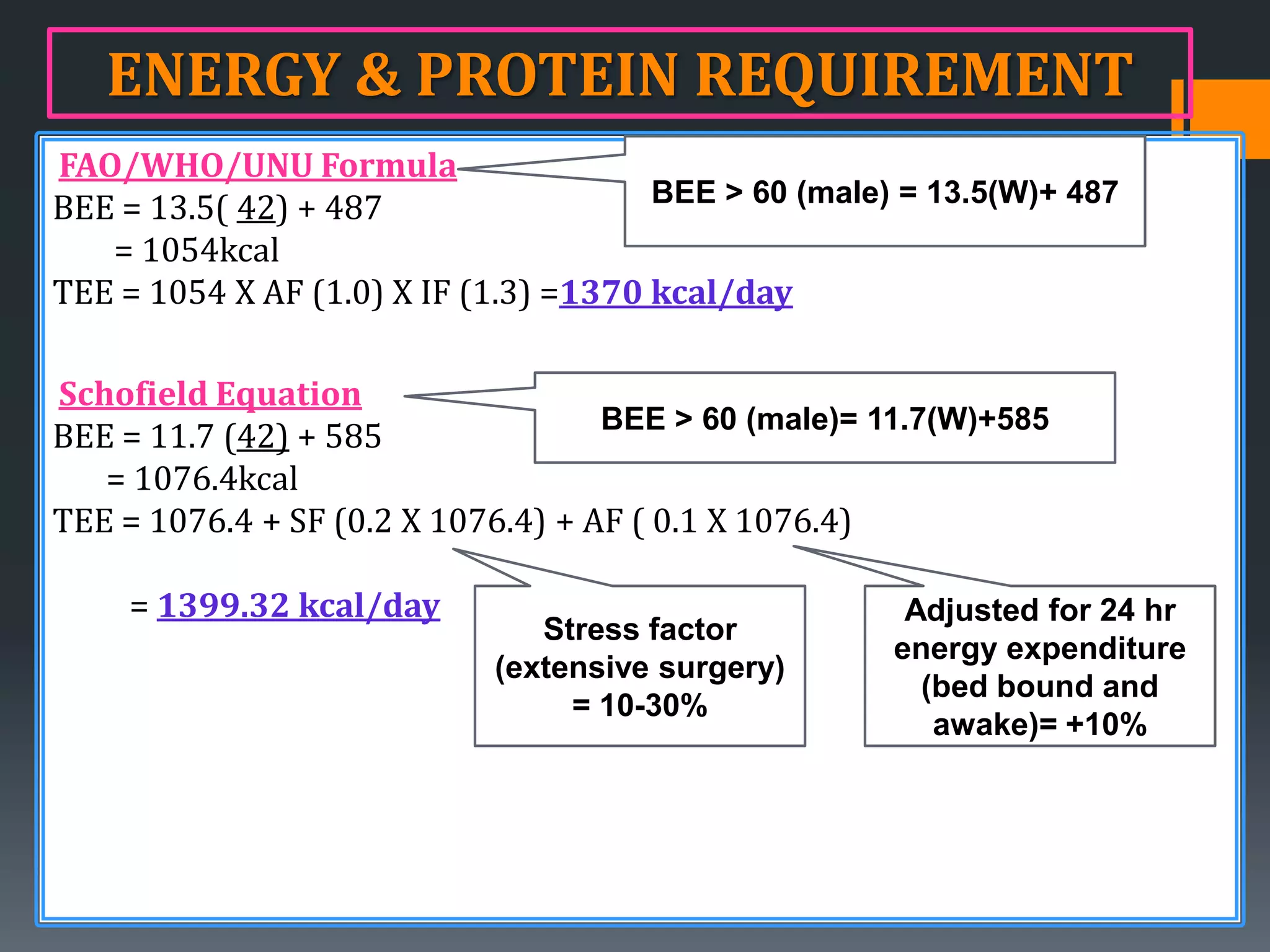

ENERGY & PROTEIN REQUIREMENT
FAO/WHO/UNU Formula
                                       BEE > 60 (male) = 13.5(W)+ 487
BEE = 13.5( 42) + 487
   = 1054kcal
TEE = 1054 X AF (1.0) X IF (1.3) =1370 kcal/day

Schofield Equation
                                    BEE > 60 (male)= 11.7(W)+585
BEE = 11.7 (42) + 585
   = 1076.4kcal
TEE = 1076.4 + SF (0.2 X 1076.4) + AF ( 0.1 X 1076.4)

    = 1399.32 kcal/day                                 Adjusted for 24 hr
                               Stress factor
                                                      energy expenditure
                            (extensive surgery)
                                                        (bed bound and
                                 = 10-30%
                                                         awake)= +10%

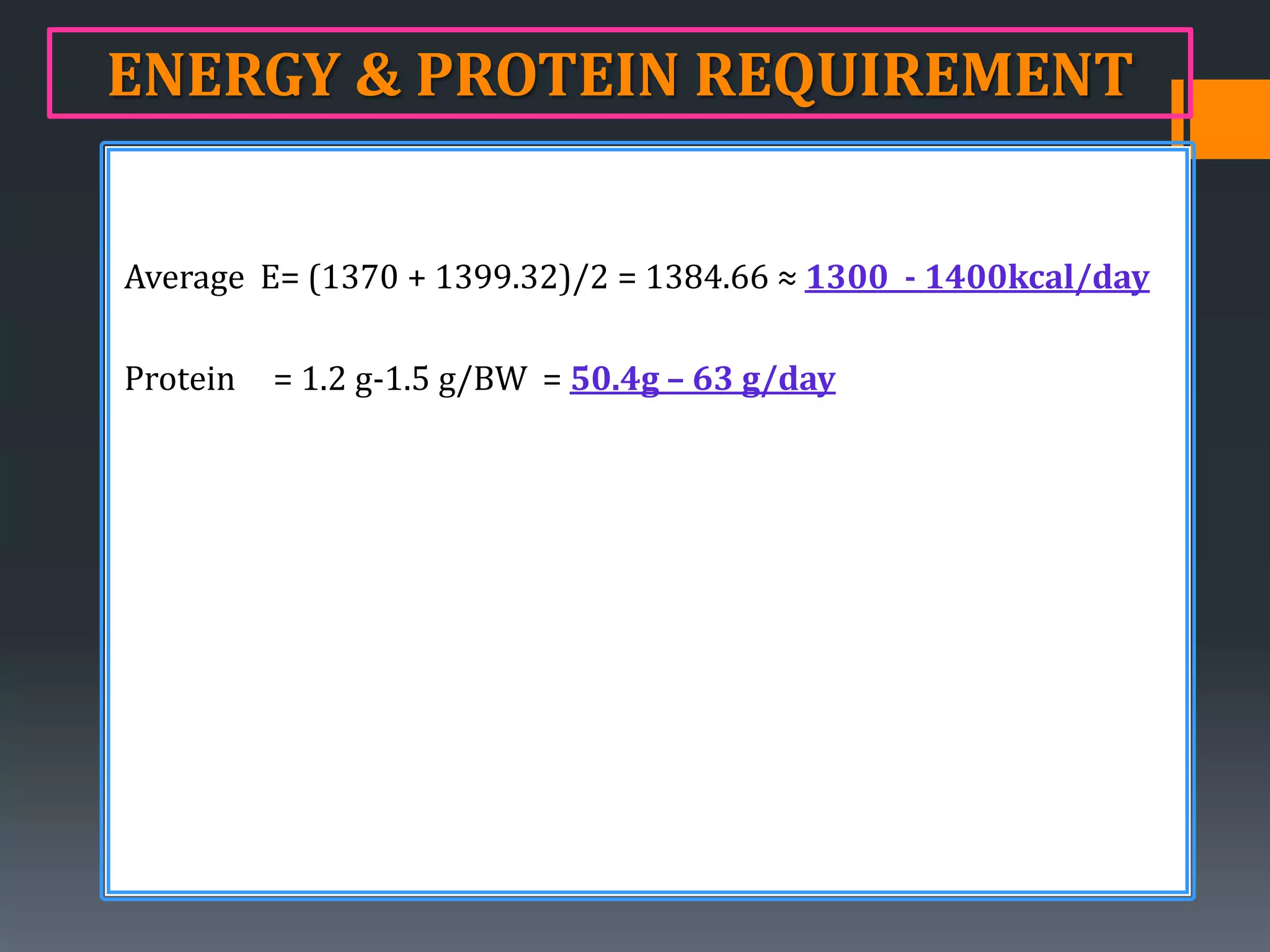

ENERGY & PROTEIN REQUIREMENT


Average E= (1370 + 1399.32)/2 = 1384.66 ≈ 1300 - 1400kcal/day

Protein   = 1.2 g-1.5 g/BW = 50.4g – 63 g/day

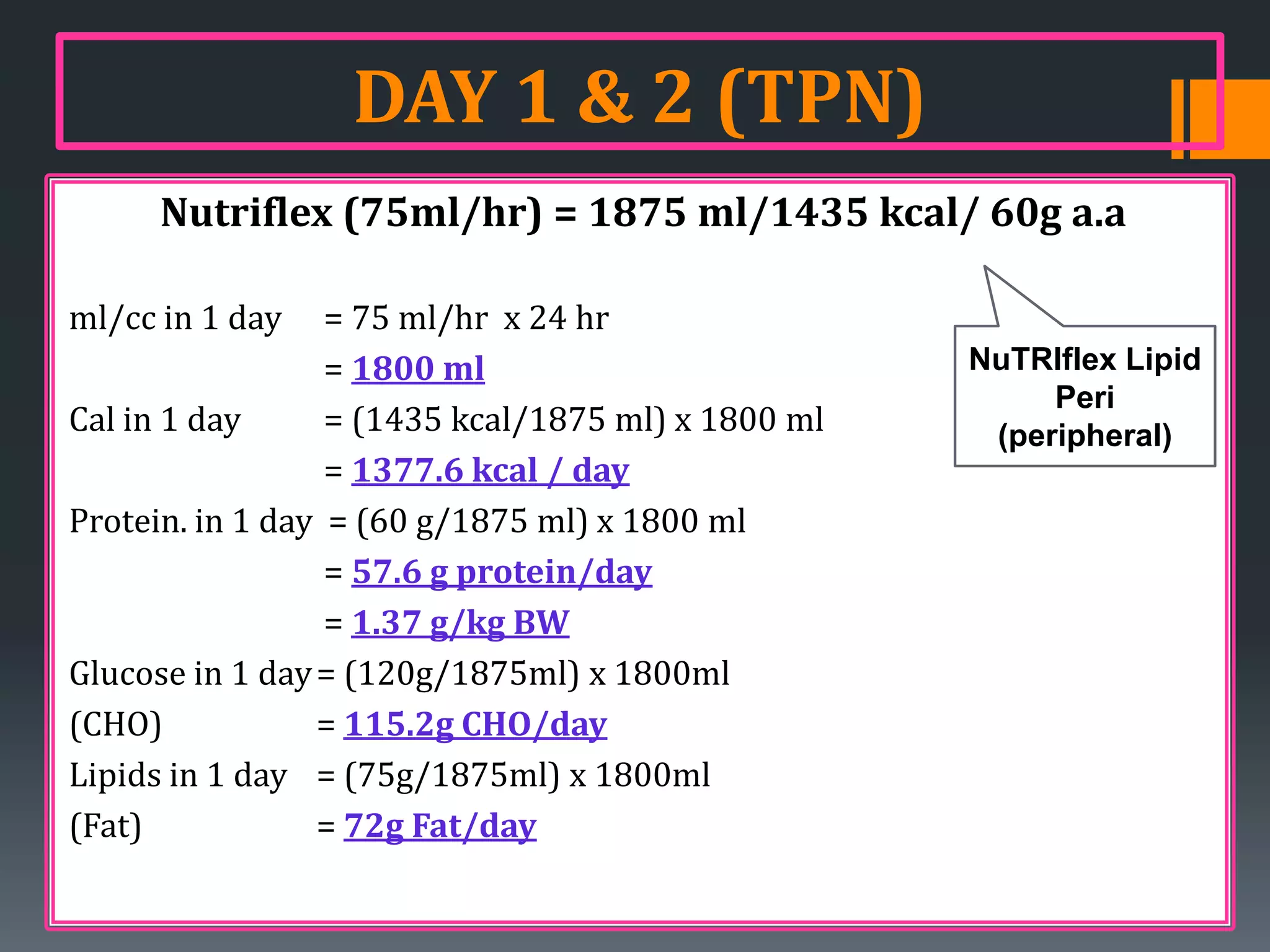

DAY 1 & 2 (TPN)
     Nutriflex (75ml/hr) = 1875 ml/1435 kcal/ 60g a.a

ml/cc in 1 day    = 75 ml/hr x 24 hr
                  = 1800 ml                         NuTRIflex Lipid
                                                         Peri
Cal in 1 day      = (1435 kcal/1875 ml) x 1800 ml    (peripheral)
                  = 1377.6 kcal / day
Protein. in 1 day = (60 g/1875 ml) x 1800 ml
                  = 57.6 g protein/day
                  = 1.37 g/kg BW
Glucose in 1 day = (120g/1875ml) x 1800ml
(CHO)            = 115.2g CHO/day
Lipids in 1 day = (75g/1875ml) x 1800ml
(Fat)            = 72g Fat/day

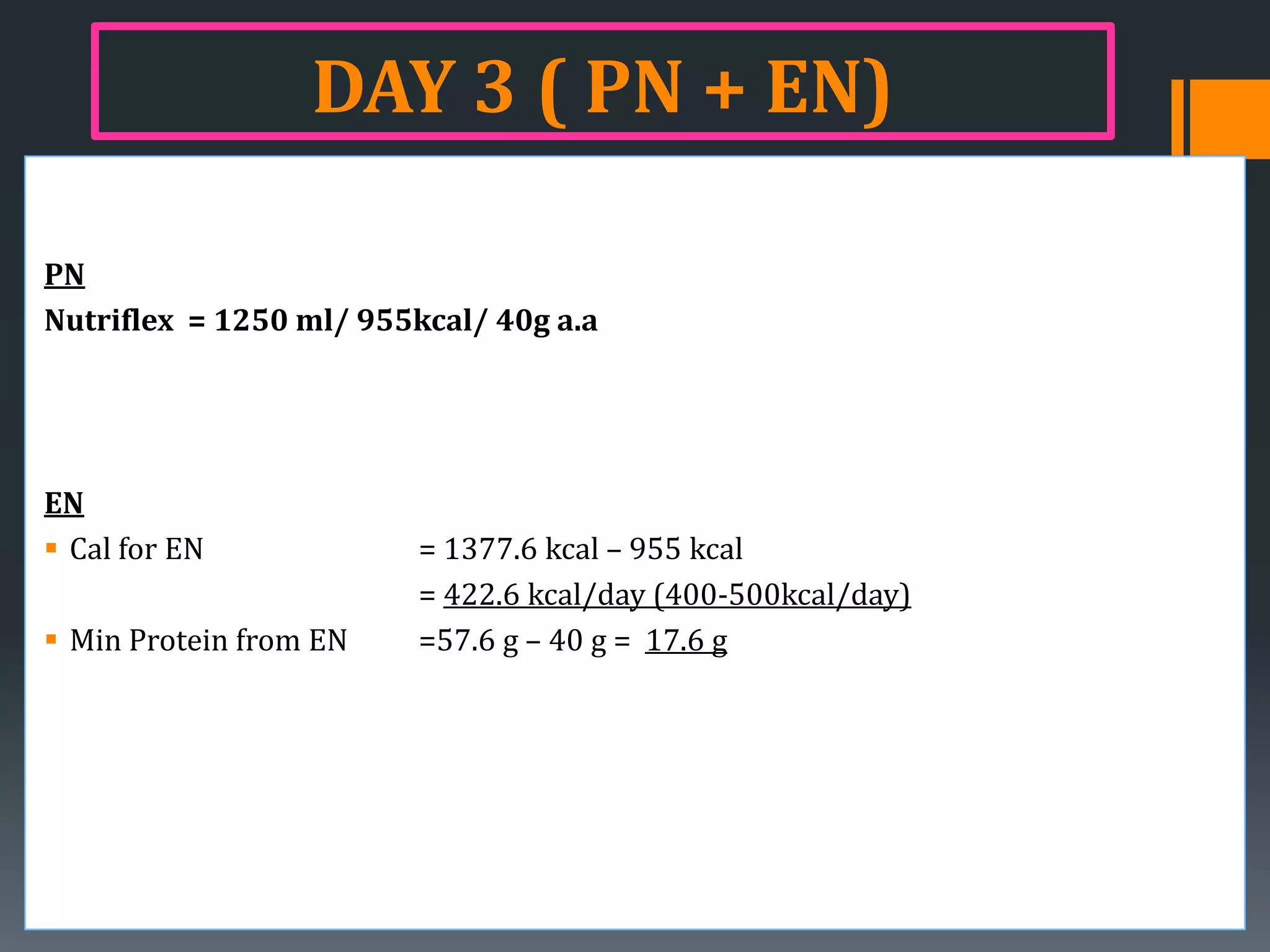

DAY 3 ( PN + EN)

PN
Nutriflex = 1250 ml/ 955kcal/ 40g a.a




EN
 Cal for EN             = 1377.6 kcal – 955 kcal
                         = 422.6 kcal/day (400-500kcal/day)
 Min Protein from EN    =57.6 g – 40 g = 17.6 g

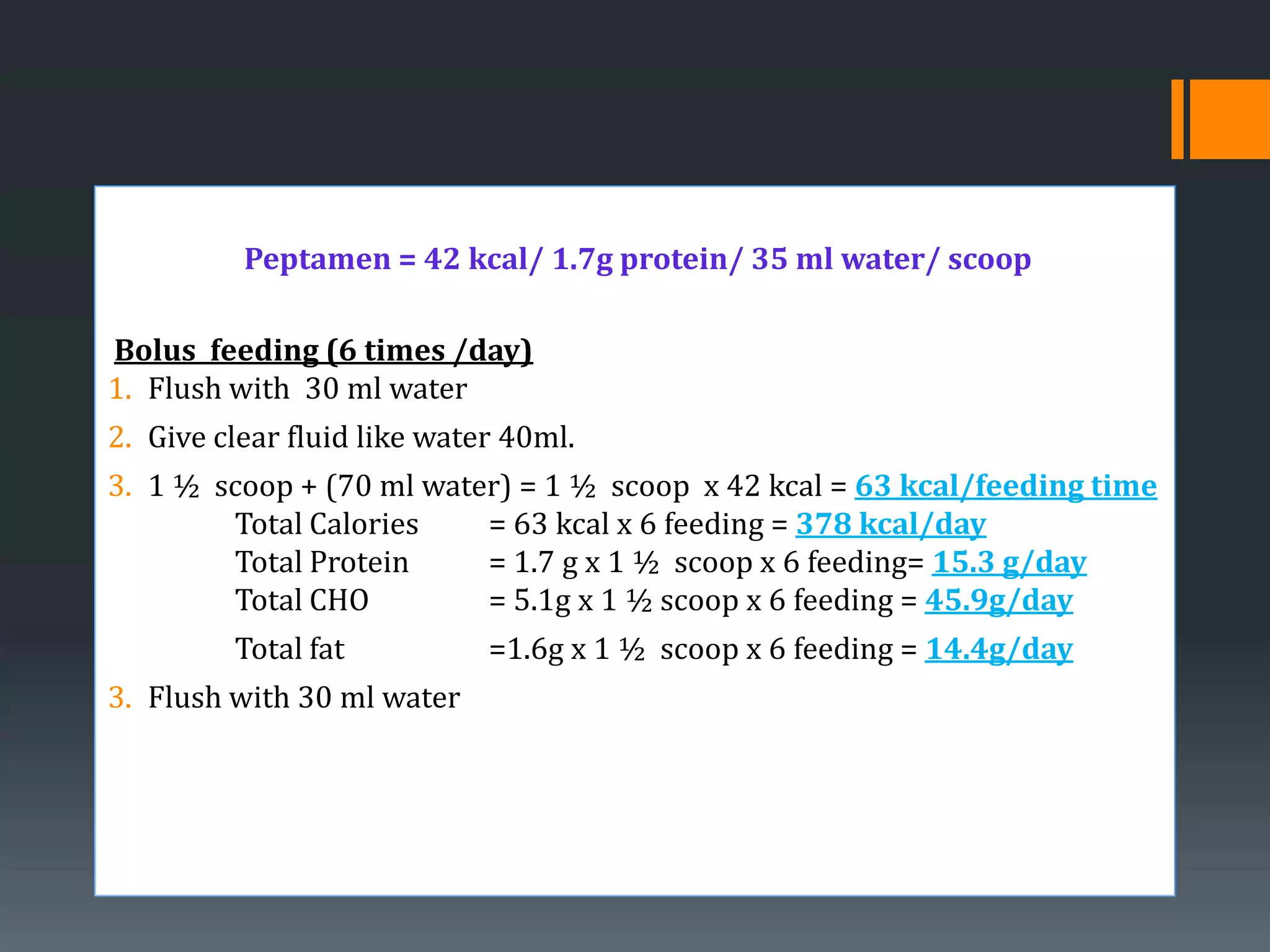

Peptamen = 42 kcal/ 1.7g protein/ 35 ml water/ scoop

Bolus feeding (6 times /day)
1. Flush with 30 ml water
2. Give clear fluid like water 40ml.
3. 1 ½ scoop + (70 ml water) = 1 ½ scoop x 42 kcal = 63 kcal/feeding time
        Total Calories    = 63 kcal x 6 feeding = 378 kcal/day
        Total Protein     = 1.7 g x 1 ½ scoop x 6 feeding= 15.3 g/day
        Total CHO         = 5.1g x 1 ½ scoop x 6 feeding = 45.9g/day
         Total fat           =1.6g x 1 ½ scoop x 6 feeding = 14.4g/day
3. Flush with 30 ml water

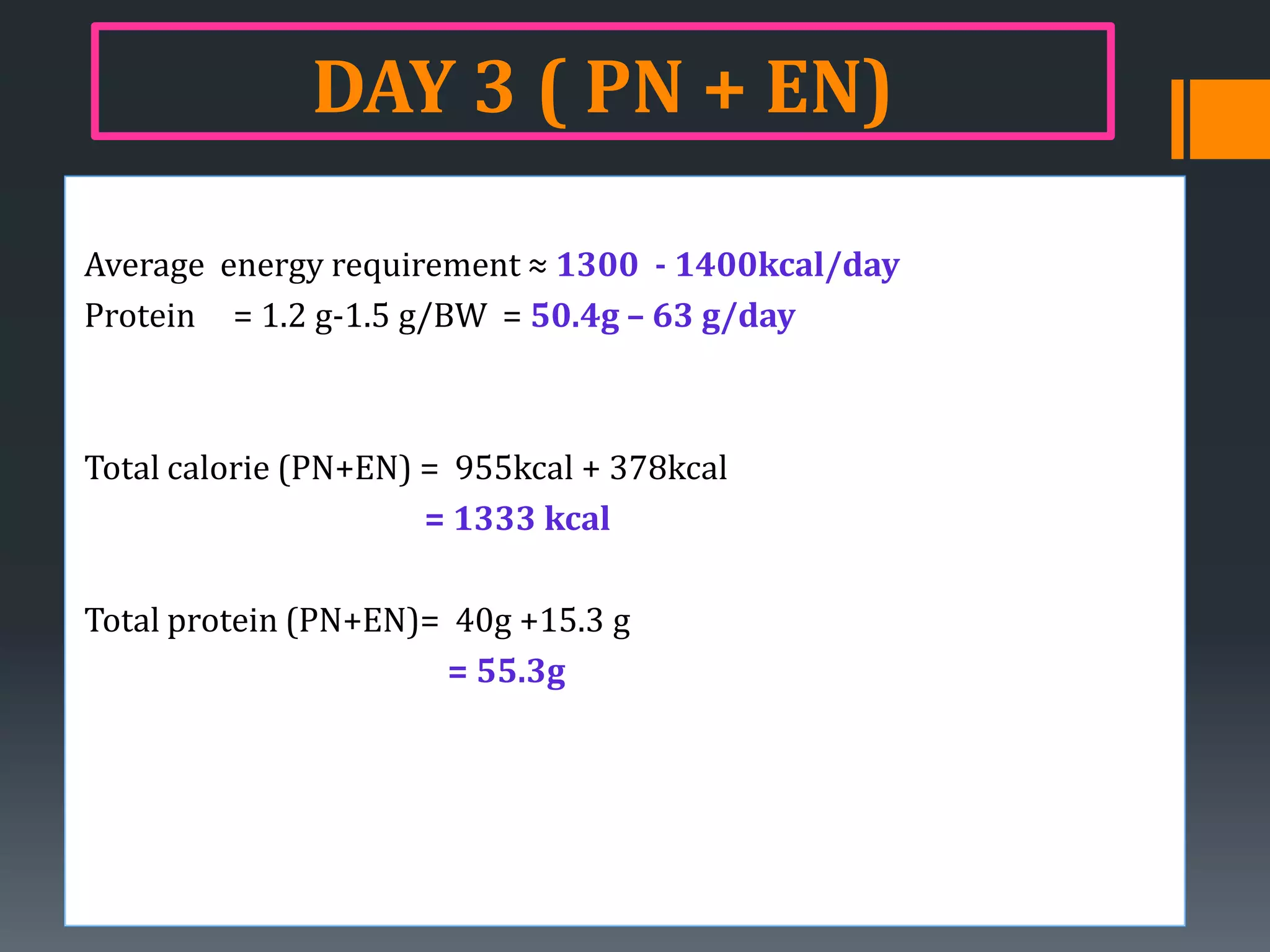

DAY 3 ( PN + EN)

Average energy requirement ≈ 1300 - 1400kcal/day
Protein = 1.2 g-1.5 g/BW = 50.4g – 63 g/day



Total calorie (PN+EN) = 955kcal + 378kcal
                      = 1333 kcal

Total protein (PN+EN)= 40g +15.3 g
                      = 55.3g

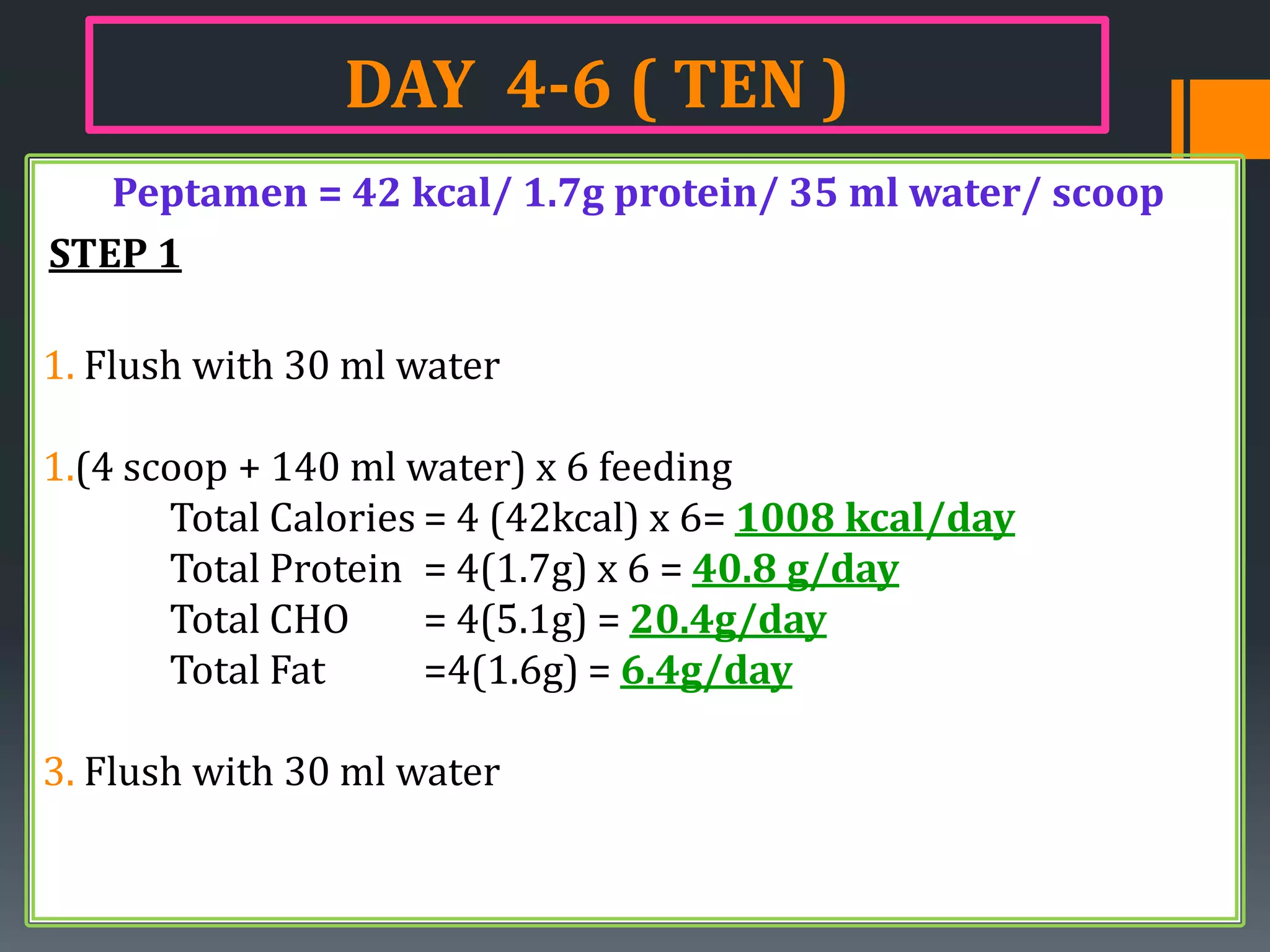

DAY 4-6 ( TEN )
   Peptamen = 42 kcal/ 1.7g protein/ 35 ml water/ scoop
STEP 1

1. Flush with 30 ml water

1.(4 scoop + 140 ml water) x 6 feeding
       Total Calories = 4 (42kcal) x 6= 1008 kcal/day
       Total Protein = 4(1.7g) x 6 = 40.8 g/day
       Total CHO      = 4(5.1g) = 20.4g/day
       Total Fat      =4(1.6g) = 6.4g/day

3. Flush with 30 ml water

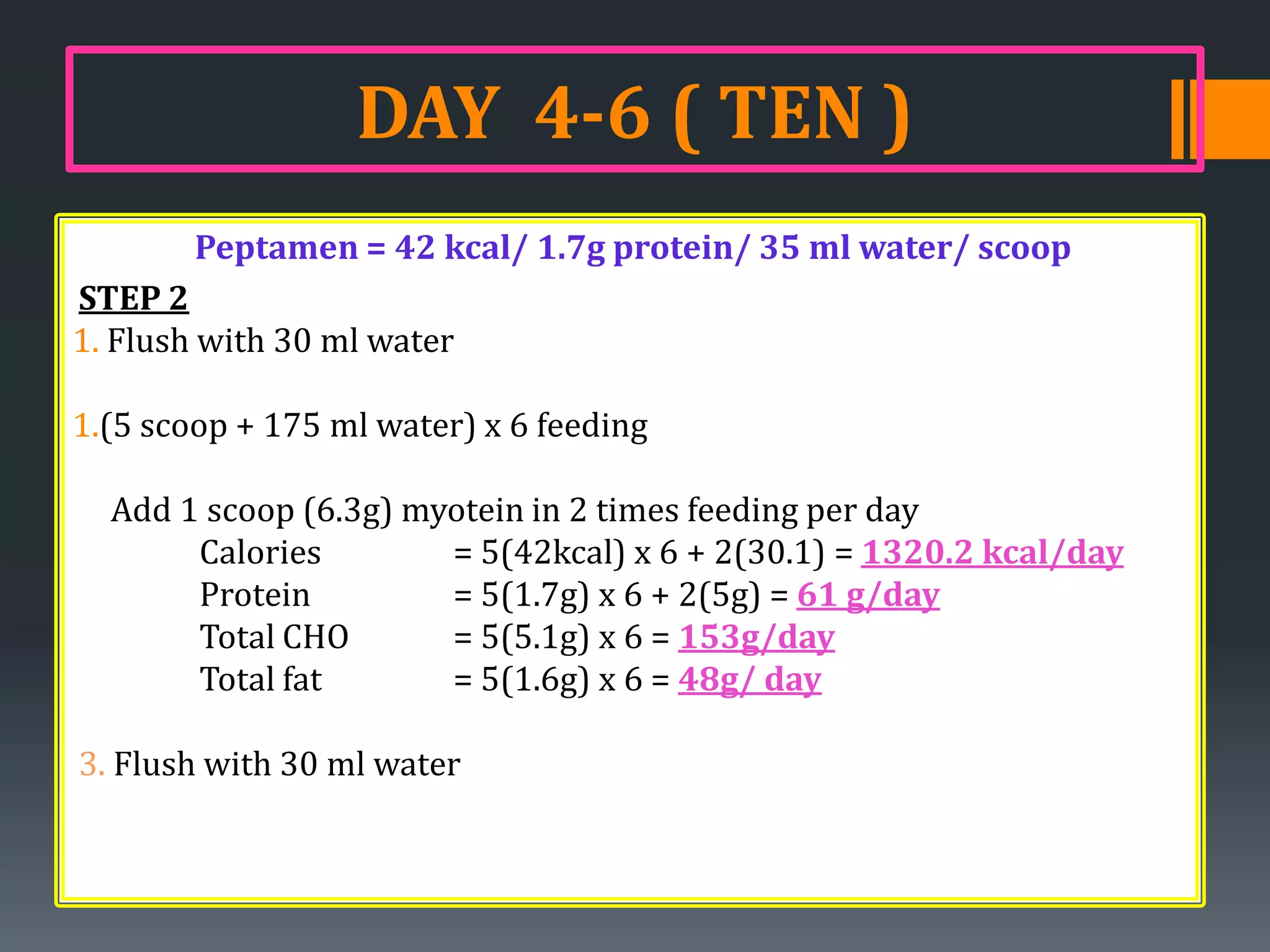

DAY 4-6 ( TEN )
        Peptamen = 42 kcal/ 1.7g protein/ 35 ml water/ scoop
STEP 2
1. Flush with 30 ml water

1.(5 scoop + 175 ml water) x 6 feeding

  Add 1 scoop (6.3g) myotein in 2 times feeding per day
       Calories        = 5(42kcal) x 6 + 2(30.1) = 1320.2 kcal/day
       Protein         = 5(1.7g) x 6 + 2(5g) = 61 g/day
       Total CHO       = 5(5.1g) x 6 = 153g/day
       Total fat       = 5(1.6g) x 6 = 48g/ day

3. Flush with 30 ml water

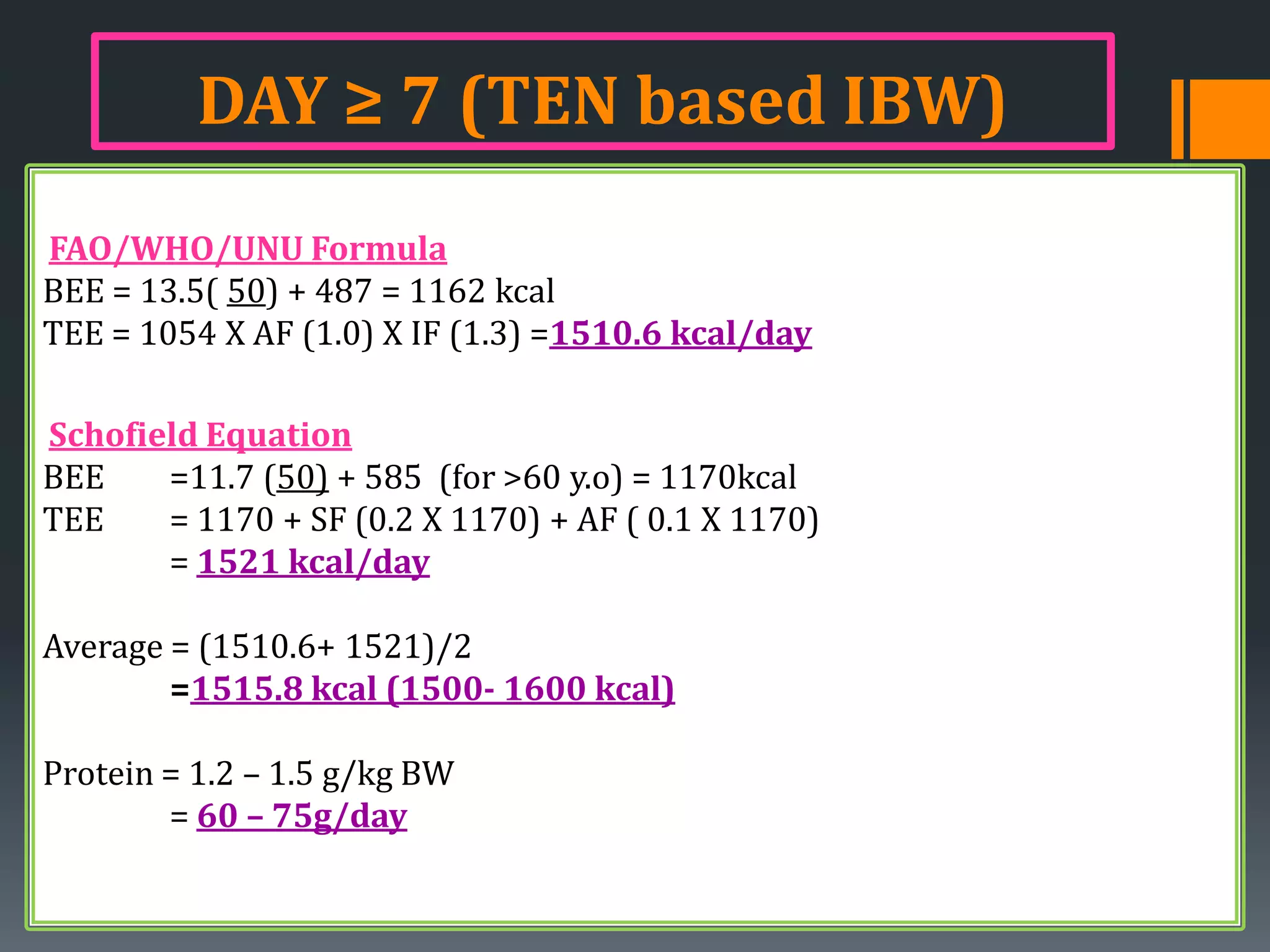

DAY ≥ 7 (TEN based IBW)
FAO/WHO/UNU Formula
BEE = 13.5( 50) + 487 = 1162 kcal
TEE = 1054 X AF (1.0) X IF (1.3) =1510.6 kcal/day

Schofield Equation
BEE    =11.7 (50) + 585 (for >60 y.o) = 1170kcal
TEE    = 1170 + SF (0.2 X 1170) + AF ( 0.1 X 1170)
       = 1521 kcal/day

Average = (1510.6+ 1521)/2
        =1515.8 kcal (1500- 1600 kcal)

Protein = 1.2 – 1.5 g/kg BW
        = 60 – 75g/day

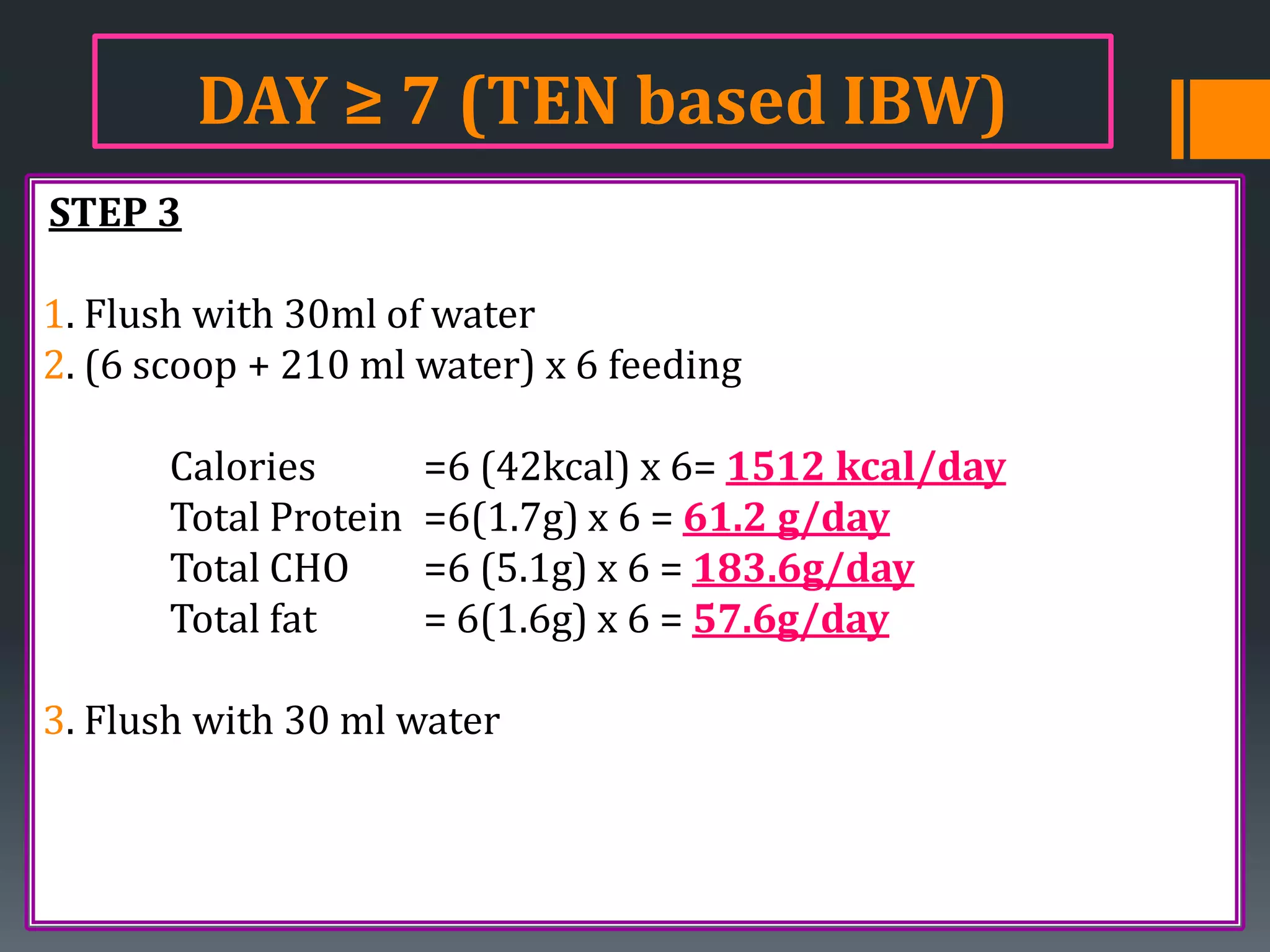

DAY ≥ 7 (TEN based IBW)
STEP 3

1. Flush with 30ml of water
2. (6 scoop + 210 ml water) x 6 feeding

       Calories        =6 (42kcal) x 6= 1512 kcal/day
       Total Protein   =6(1.7g) x 6 = 61.2 g/day
       Total CHO       =6 (5.1g) x 6 = 183.6g/day
       Total fat       = 6(1.6g) x 6 = 57.6g/day

3. Flush with 30 ml water
~The End~
 ~Thank
  You~
