CA Spectrum® Just Keeps Getting Better and Better

Pre Conference Education:
CA Spectrum Just Keeps Getting
Better and Better
Kiran Diwakar
DevOps: Agile Ops
CA Technologies
Director, Product Management
DO5X88E
@Kiran_Diwakar
#CAWorld
Jayakrishna Karicharla (JK)
CA Technologies
Principal Software Engineer

2 © 2015 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD
© 2015 CA. All rights reserved. All trademarks referenced herein belong to their respective companies.
The content provided in this CA World 2015 presentation is intended for informational purposes only and does not form any type of
warranty. The information provided by a CA partner and/or CA customer has not been reviewed for accuracy by CA.
For Informational Purposes Only
Terms of this Presentation

Abstract
Recent years have seen more substantial releases from
Spectrum. Join us in this session to explore some of the
new features, such as Spectrum 64 bit, the new Web
Client for Operators, Software-Defined Networks (SDN)
support, Bi-directional integration with CA Unified
Infrastructure Management, support for ModSecurity,
and simplified reporting. This will be a combination of
slides, demos and hands-on practice.
Kiran Diwakar
Jayakrishna
Karicharla (JK)
CA Technologies

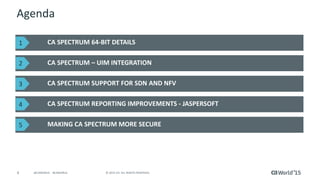

Agenda
CA SPECTRUM 64-BIT DETAILS
CA SPECTRUM – UIM INTEGRATION

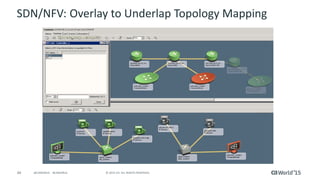

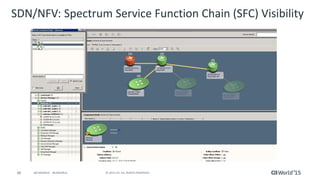

CA SPECTRUM SUPPORT FOR SDN AND NFV
CA SPECTRUM REPORTING IMPROVEMENTS - JASPERSOFT

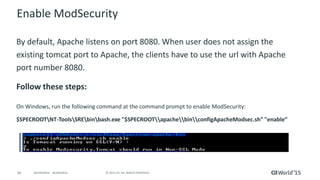

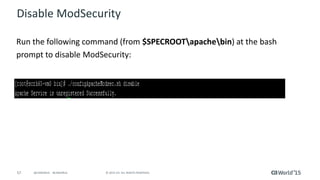

MAKING CA SPECTRUM MORE SECURE
1
2
3
4
5

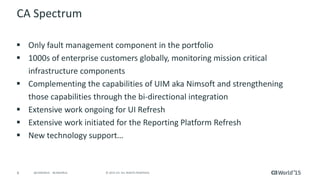

CA Spectrum
A Critical Component of the CA IM Portfolio

CA Spectrum
 Only fault management component in the portfolio
 1000s of enterprise customers globally, monitoring mission critical
infrastructure components
 Complementing the capabilities of CA UIM aka Nimsoft and strengthening
those capabilities through the bi-directional integration
 Extensive work ongoing for UI Refresh
 Extensive work initiated for the Reporting Platform Refresh
 New technology support…
Join us for the roadmap session to know more...

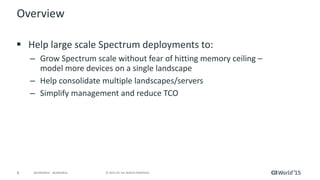

Overview
 Help large scale Spectrum delpoyments to:
– Grow Spectrum scale without fear of hitting memory ceiling - model
more devices on a single landscape
– Help consolidate multiple landscapes/servers
– Simplify management and reduce TCO

How Was x64 Done…
 Data structure revamp and consolidation of pointer arithmetic
to hold 64-bit pointers.
 Deprecated unused code without affecting core functionality.
 Max number of resources are being planned to be increased
to better utilize them.

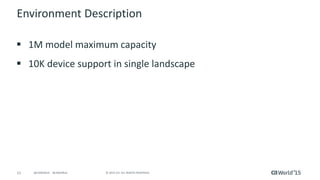

 1M model maximum capacity
 10K-15K device support in single landscape

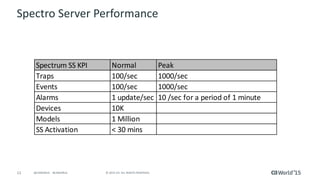

Extensive Performance Benchmarking
Spectrum SS KPI Normal Peak
Traps 100/sec 1000/sec
Events 100/sec 1000/sec
Alarms 1 update/sec 10 /sec for a period of 1 minute
Devices 10K
Models 1 Million
SS Activation < 30 mins

OneClick Performance Benchmarking
Spectrum OC KPI Description Component Load Measure Win Lin Sol
OC Client launch time
Time taken to launch the
Oneclick Console right from
clicking the “Start Console” in
OC Admin page to load the
(Devices, Models, Alarms,
GCs, etc) until some operation
can be performed using the
OC Client.
Complete Alarms to be
loaded in alarms Tab.
o 40K Devices
o 2.5M Models
o 400 GC’s, each with 30K
Models
o 100K Alarms
2 Minutes
2 Minutes 20
Seconds
2 Minutes 10 Seconds
OC Client Launch time
–EEM and SSL enabled
Same as above + EEM + SSL Same as above 3 minutes TBD TBD
One Click Server startup
time
Time taken to start the
OneClick Server (Tomcat)
o 40K Devices
o 2.5M Models
o 400 GC’s, each with 30K
Models
o 100K Alarms
5 minutes 0:01:15 0:01:05
Time taken to search 50K
elements through locator
search.
30 secs 56-60 secs 1 Minute 15 Seconds
Time taken to createrender
50K elements through Global
Collection (Static & Dynamic).
30 secs
Creation Time: 2-5
minutes
Rendering Time: 56-
60 Sec
Creation Time: 2-5
minutes
Rendering Time: 50-
55 Sec
Time taken to locate the
model using search box
3 secs 6 – 10 Sec 6 – 10 Sec
Topology Rendering
Time taken to render the
topology
o Topology with 10K
devices and 1M Models
30 secs 25 – 30 Sec 25 – 30 sec
Rendering the Information
View
Time taken to render the
Information view for
Manager Models
o Managers with dynamic
information tables
10 secs 5 -10 Sec 5 -10 Sec
Time taken for NCM Global
Sync
o Discover 2K NCM
enabled devices
90 mins for 2K
devices.
59 Minutes for 2K
Devices with 25K
Lines
59 Minutes for 2K
Devices with 25K
Lines
Time taken to upload device
configuration file – TFTP
o Upload a file with 50K
lines – TFPT
5 mins.
Cannot be done
due to lack of
environment.
Cannot be done due
to lack of
environment.
Autodiscovery
Time taken to discover
multiple subnets (1500
devices per discovery)
o Discover 10000 devices
1500 per configuration
20 mins for
discovering 1500
devices ( 15K
models)
Range 1 - 0:10:41
Range 2 - 0:10:41
Range 3 - 0:09:54
Range 4 - 1:09:36
Range 5 - 0:39:29
Note: Discovery
Only
Range 1 - 0:01:02
Range 2 - 0:01:05
Range 3 - 0:03:16
Range 4 - 0:57:07
Range 5 - 0:03:47
Note: Discovery Only
Modeling Gateway
Time taken to load the
models through modeling
gateway
o Load 5000 devices (50K
models)
6 hrs. 3-4 hrs. 3-4 hrs.
Search Operations
o Query is run when
overall 3M models are
available in OC
NCM Global Sync

CA Spectrum 64-bit Support – Caveats
 64-bit clients are required to take advantage of the increased capacity of
64-bit Spectrum 10
 As a general rule, the maximum heap size of 32-bit clients on Windows
systems will range from 1.4 to 1.6G of memory, while on 32-bit Solaris the
address space is limited to 2G
– If this is exceeded the client will no longer launch until a 64-bit client is utilized
 Spectrum 10 does not officially support 32-bit java clients as it has not
been QA tested

Upgrade/Migration Considerations
 Upgrade as-is, same number of SS
 Migrate data as-is, same number of SS
 Consolidation of SS, leverage scale improvements best
practice
– MLS (and key servers) should be upgraded only
 The servers with data, like Archive Manager etc
– Use Modelling Gateway to converge the remaining SS
 Export from multiple SS & import into 1 new scaled SS

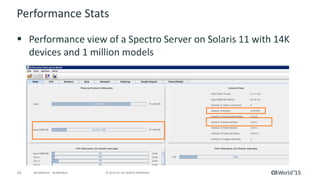

CA Spectrum x64 – Live In Action

CA Spectrum – CA UIM Integration

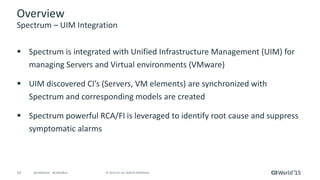

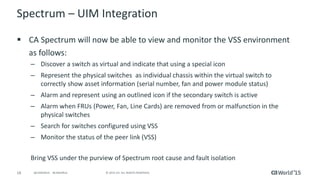

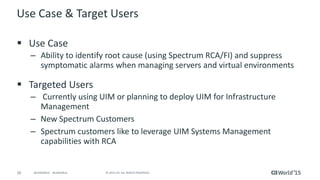

Overview
Current Spectrum – UIM Integration
 Spectrum is integrated with Unified Infrastructure Management (UIM) for
managing Servers and Virtual environments (VMware)
 UIM discovered CI’s (Servers, VM elements) are synchronized with
Spectrum and corresponding models are created
 Spectrum powerful RCA/FI is leveraged to identify root cause and suppress
symptomatic alarms

Workflows

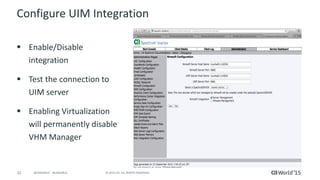

Configure UIM Integration
 Enable/Disable
integration
 Test the connection to
UIM server
 Enabling Virtualization
will permanently disable
VHM Manager

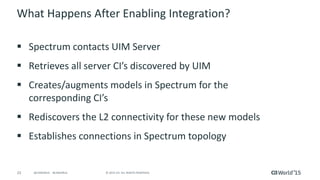

What Happens After Enabling Integration?
 Spectrum contacts UIM Server
 Retrieves all server CI’s discovered by UIM
 Creates/augments models in Spectrum for the
corresponding CI’s
 Rediscovers the L2 connectivity for these new models
 Establishes connections in Spectrum topology

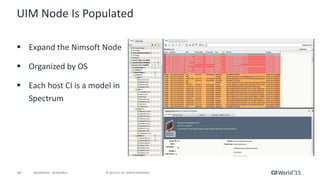

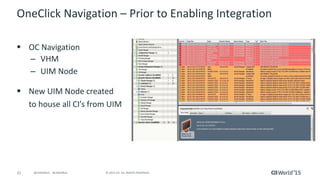

UIM Node/Folder Is Populated
 Expand the Nimsoft Node
 Organized by OS
 Each host CI is a model in
Spectrum

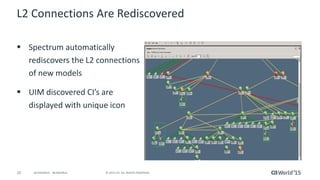

L2 Connections Are (Re) discovered
 Spectrum automatically
rediscovers the L2 connections
of new models
 UIM discovered CI’s are
displayed with unique icon

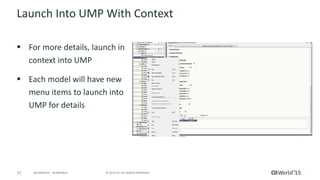

Launch Into UMP with Context
 For more details, launch in
context into UMP
 Each model will have new
menu items to launch into
UMP for details

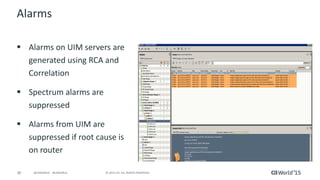

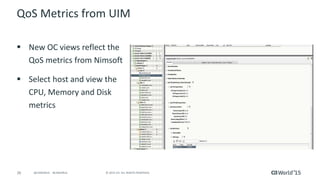

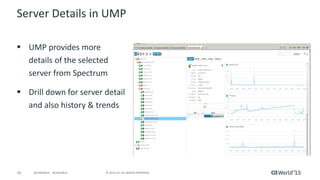

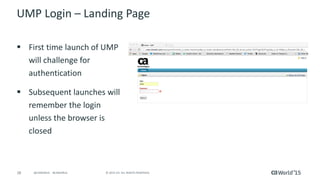

Alarms
 Alarms on UIM servers are
generated using RCA and
Correlation
 Spectrum alarms are
suppressed
 Alarms from UIM are
suppressed if root cause is
on router

Spectrum-UIM Integration- Live In Action

CA Spectrum UIM Bi-Directional
Integration

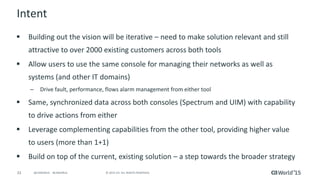

Intent
 Building out the vision will be iterative – need to make solution relevant and still
attractive to over 2000 existing customers across both tools
 Allow users to use the same console for managing their networks as well as
systems (and other IT domains)
– Drive fault, performance, flows alarm management from either tool
 Same, synchronized data across both consoles (Spectrum and UIM) with capability
to drive actions from either
 Leverage complementing capabilities from the other tool, providing higher value
to users (more than 1+1)
 Build on top of the current, existing solution – a step towards the broader strategy

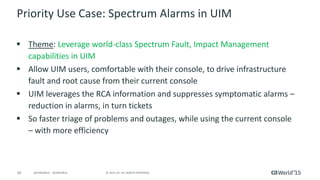

Priority Use Case: Spectrum Alarms in UIM
 Theme: Leverage world-class Spectrum Fault, Impact Management
capabilities in UIM
 Allow UIM users, comfortable with their console, to drive infrastructure
fault and root cause from their current console
 UIM leverages the RCA information and suppresses symptomatic alarms –
reduction in alarms, in turn tickets
 So faster triage of problems and outages, while using the current console
– with more efficiency

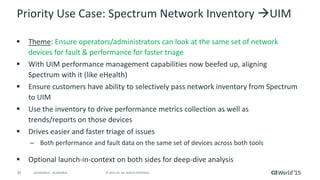

Priority Use Case: Spectrum Network Inventory UIM
 Theme: Ensure operators/administrators can look at the same set of network
devices for fault & performance for faster triage
 With UIM performance management capabilities now beefed up, aligning
Spectrum with it (like eHealth)
 Ensure customers have ability to selectively pass network inventory from Spectrum
to UIM
 Use the inventory to drive performance metrics collection as well as
trends/reports on those devices
 Drives easier and faster triage of issues
– Both performance and fault data on the same set of devices across both tools
 Optional launch-in-context on both sides for deep-dive analysis

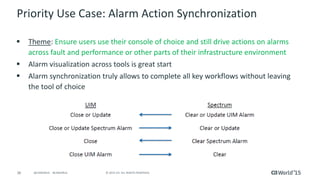

Priority Use Case: Alarm Action Synchronization
 Theme: Ensure users use their console of choice and still drive actions on alarms
across fault and performance or other parts of their infrastructure environment
 Alarm visualization across tools is great start
 Alarm synchronization truly allows to complete all key workflows without leaving
the tool of choice

Additional Use Cases Being Researched
 Embed alarm consoles in portals directly
 Domain specific inventory sync up across tools
 Expand RCA across storage, DB and other domains
 Enhance the scale of the solution
 Lot more……

Architecture

Current UIM to Spectrum Integration: View UIM
alarms in Spectrum
nas
Spectro
Server
SNMP
traps
NAS
lifecycle
alarms
alarm_new
alarm_close
alarm_update
snmpgtw
alarm_close
_gtw
alarm_close2
AlertMap EventDisp
Southbound
Interface
Spectrum
events
Nis db
Nisapi
(REST)
Pull
• Inventory pull triggered on new alarms
• Uses hostname in alarm as inventory key
• Attempts to match IP address
• Creates new model in Spectrum
UIM
Alarm
Spectrum
View
Approach: UIM alarms sent as SNMP traps via UIM snmpgtw to Spectrum southbound interface
Drilldown/cross launch

2-Way Architecture
UIM
View/Manage Alarms
Spectrum
View/Manage Alarms
UDM Probe
Enrich alarms
Inventory sync
RESTAPI
Integration
probe
OneClick
Server
EMS Probe
Spectrum and
EMS Alarms
NAS Probe
NAS Alarms
AlarmAPI
Loop prevention
Update/close alarms via EmsClient API
Query alarms via EmsClient API
Discovery
ServerReconcile
Query inventory changes
Query alarm changes
Open/update/close alarms
Create Spectrum alarms via EmsEvent API

Chassis 4
Inventory Sync
Goal: Synchronize inventory to ensure alarms go to the right Spectrum/UIM device
Serve
r 1
Disk
1
Serve
r 2
Disk
2
Server 1
Server 2
Server 4
Chassis 4
Spectrum UIM
Server 1
Disk 1
Server 2
Disk 2
Server 3
Disk 3
Inventory
Serve
r 3
Disk
3
Serve
r 1
Disk
1
Serve
r 2
Disk
2
Serve
r 3
Disk
3
Server
4
Serve
r 4
Server 1
Server 2
Server 4
Chassis 4
Spectrum UIM
Server 1
Disk 1
Server 2
Disk 2
Server 3
Disk 3
Server 4
InventoryBeforeAfter
Sync Sync
Chassis 4
Server
4
• IP devices only
• UIM Discovery Server correlates and
reconciles between Spectrum and
UIM
Key

Example Inventory and Alarm Sync
Serve
r 1
Disk
1
Serve
r 2
Disk
2
Server 1
Server 2
Server 4
Spectrum UIM
Server 1
Disk 1
Server 2
Disk 2
Server 3
Disk 3
Inventory
Server 1
S Server Alarm 1
U Server Alarm 1
U Disk Alarm 1
EventModel
U Server Alarm 3
Server 4
S Server Alarm 4
Spectrum UIM
Server 1
S Server Alarm 1
U Server Alarm 1
U Disk Alarm 1
Server 3
U Server Alarm 3
Server 4
S Server Alarm 4
Alarms
Serve
r 3
Disk
3
Server
4
Serve
r 1
Disk
1
Serve
r 2
Disk
2
Serve
r 3
Disk
3
Server
4
Serve
r 4
Server 1
Server 2
Server 4
Spectrum UIM
Server 1
Disk 1
Server 2
Disk 2
Server 3
Disk 3
Server 4
Inventory
Server 1
S Server Alarm 1
Server 4
S Server Alarm 4
Spectrum UIM
Server 1
U Server Alarm 1
U Disk Alarm 1
Server 3
U Server Alarm 3
Alarms
BeforeAfter
Sync Sync Sync

CA Spectrum Support for Software-defined
Networks (SDN) and Network Functions
Virtualization (NFV)

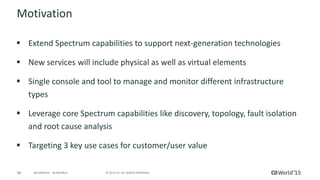

Motivation
 Extend Spectrum capabilities to support next-generation technologies
 New services will include physical as well as virtual elements
 Single console and tool to manage and monitor different infrastructure
types
 Leverage core Spectrum capabilities like discovery, topology, fault isolation
and root cause analysis
 Targeting 3 key use cases for customer/user value

SDN/NFV Use Case #1
 Topology for Virtual Overlay
– Showcase the service chain, the virtual topology in Spectrum
 Also show the individual virtual elements and their status
– Use the Spectrum tried and tested discovery and modelling capabilities
– Visual representation vis-à-vis the other elements in the IT
infrastructure
 All this from the same console, Spectrum OneClick

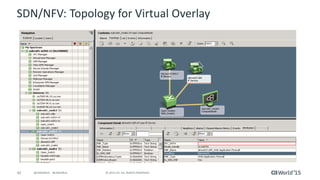

SDN/NFV: Topology for Virtual Overlay

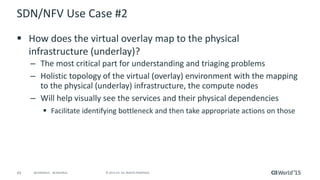

SDN/NFV Use Case #2
 How does the virtual overlay map to the physical
infrastructure (underlay)?
– The most critical part for understanding and triaging problems
– Holistic topology of the virtual (overlay) environment with the mapping
to the physical (underlay) infrastructure, the compute nodes
– Will help visually see the services and their physical dependencies
 Facilitate identifying bottleneck and then take appropriate actions on those

Complete End to End Visibility in Single View
SFC View, gives a
logical representation
of typical flow of
packets defined in
that SFC

SDN/NFV Use Case #3
 Fault isolation
– What Spectrum does best, pin point the problem/s, minimize the
number of actionable alarms
– Use relationships and information acquired through implementation of
UC1 & UC2
– Which VM, which tunnel, which logical and/or physical entity is
affected
– In lieu of that, which users/subscribers are affected

Root Cause Analysis & Fault Management

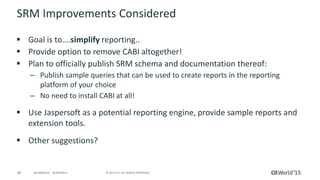

CA Spectrum Reporting Improvements

SRM Refresh..
 Goal is to….simplify reporting..
 Provide option to remove CABI altogether!
 Plan to officially publish SRM schema and documentation thereof:
– Publish sample queries that can be used to create reports in the reporting
platform of your choice
– No need to install CABI at all!
 Use Jaspersoft as a potential reporting engine, provide sample reports and
extension tools.

Work in Progress..

Schema & Table Documentation Structure Review..

Jaspersoft Performance Benchmarking

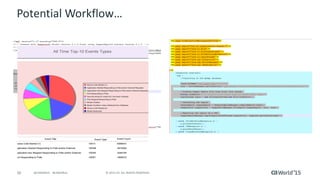

Jaspersoft Reporting – Live In Action

Making CA Spectrum More Secure

CA Spectrum: Notified Vulnerability
Assessment:
The Three Step Approach

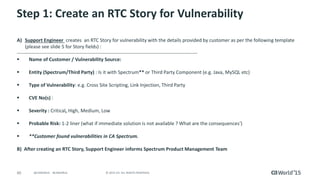

Step 1: Create an RTC Story for vulnerability
A) Support Engineer creates an RTC Story for vulnerability with the details provided by customer as per the
following template (please see slide 5 for Story fields) :
----------------------------------------------------------------------------------------------------------------
Name of Customer / Vulnerability Source:
Entity (Spectrum/Third Party) : Is it with Spectrum** or Third Party Component (e.g. Java, MySQL etc)
Type of Vulnerability: e.g. Cross Site Scripting, Link Injection, Third Party
CVE No(s) :
Severity : Critical, High, Medium, Low
Probable Risk: 1-2 liner (what if immediate solution is not available ? What are the consequences‘)
**Customer found vulnerabilities in CA Spectrum.
B) After creating an RTC Story, Support Engineer informs Spectrum Product Management Team

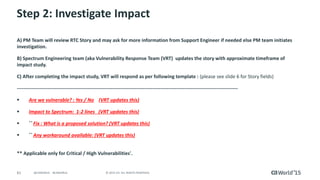

Step 2: Investigate Impact
A) PM Team will review RTC Story and may ask for more information from Support Engineer if needed else PM
team initiates investigation.
B) Spectrum Engineering team (aka Vulnerability Response Team (VRT) updates the story with approximate
timeframe of impact study.
C) After completing the impact study, VRT will respond as per following template : (please see slide 6 for Story
fields)
-----------------------------------------------------------------------------------------------------------------------------------------
Are we vulnerable? : Yes / No (VRT updates this)
Impact to Spectrum: 1-2 lines (VRT updates this)
** Fix : What is a proposed solution? (VRT updates this)
** Any workaround available: (VRT updates this)
** Applicable only for Critical / High Vulnerabilities'.

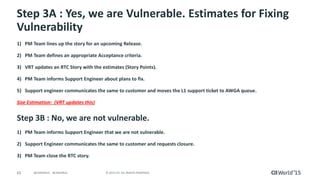

Step 3A : Yes, we are vulnerable. Estimates for fixing vulnerability
1) PM Team lines up the story for an upcoming Release.
2) PM Team defines an appropriate Acceptance criteria.
3) VRT updates an RTC Story with the estimates (Story Points).
4) PM Team informs Support Engineer about plans to fix.
5) Support engineer communicates the same to customer and moves the L1 support ticket to AWGA queue.
Size Estimation: (VRT updates this)
Step 3B : No, we are not vulnerable.
1) PM Team informs Support Engineer that we are not vulnerable.
2) Support Engineer communicates the same to customer and requests closure.
3) PM Team close the RTC story.

Sample RTC Story for Vulnerability Report

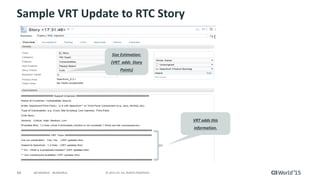

Sample VRT Update to RTC Story
Size Estimation:
(VRT adds Story
Points)
VRT adds this
information.

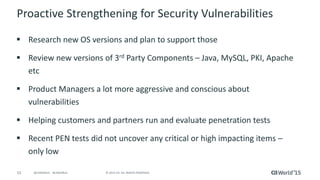

Proactive Strengthening For Security Vulnerabilities
 Research new OS versions and plan to support those
 Review new versions of 3rd Party Components – Java, MySQL, PKI, Apache
etc
 Product Managers a lot more aggressive and conscious about
vulnerabilities
 Helping customers and partners run and evaluate penetration tests
 Recent PEN tests did not uncover any critical or high impacting items –
only low

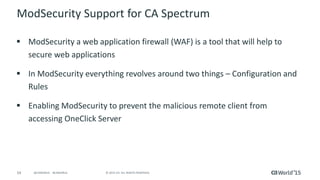

ModSecurity Support for CA Spectrum
 ModSecurity a web application firewall (WAF) is a tool that will help to
secure web applications
 In ModSecurity everything revolves around two things – Configuration and
Rules
 Enabling ModSecurity to prevent the malicious remote client from
accessing OneClick Server

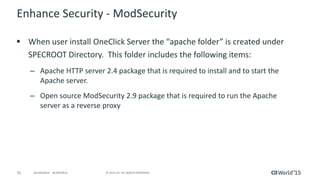

Enhance Security - ModSecurity
 When user install OneClick Server the “apache folder” is created under
SPECROOT Directory. This folder includes the following items:
– Apache HTTP server 2.4 package that is required to install and to start the
Apache server.
– Open source ModSecurity 2.9 package that is required to run the Apache
server as a reverse proxy

Enable ModSecurity
By default, Apache listens on port 8080. When user does not assign the
existing tomcat port to Apache, the clients have to use the url with Apache
port number 8080.
Follow these steps:
On Windows, run the following command at the command prompt to enable ModSecurity:
$SPECROOTNT-ToolsSREbinbash.exe "$SPECROOTapachebinconfigApacheModsec.sh" "enable“

Disable ModSecurity
Run the following command (from $SPECROOTapachebin) at the bash
prompt to disable ModSecurity:

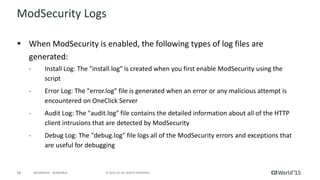

ModSecurity Logs
 When ModSecurity is enabled, the following types of log files are
generated:
- Install Log: The "install.log" is created when you first enable ModSecurity using the
script
- Error Log: The "error.log" file is generated when an error or any malicious attempt is
encountered on OneClick Server
- Audit Log: The "audit.log" file contains the detailed information about all of the HTTP
client intrusions that are detected by ModSecurity
- Debug Log: The "debug.log" file logs all of the ModSecurity errors and exceptions that
are useful for debugging

ModSecurity – Live In Action

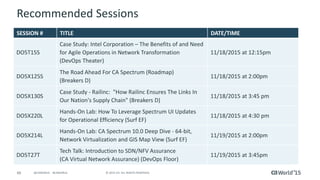

Recommended Sessions
SESSION # TITLE DATE/TIME
DO5T15S
Case Study: Intel Corporation – The Benefits of and Need
for Agile Operations in Network Transformation
(DevOps Theater)
11/18/2015 at 12:15pm
DO5X125S
The Road Ahead For CA Spectrum (Roadmap)
(Breakers D)
11/18/2015 at 2:00pm
DO5X130S
Case Study - Railinc: "How Railinc Ensures The Links In
Our Nation's Supply Chain" (Breakers D)
11/18/2015 at 3:45 pm
DO5X220L
Hands-On Lab: How To Leverage Spectrum UI Updates
for Operational Efficiency (Surf EF)
11/18/2015 at 4:30 pm
DO5X214L
Hands-On Lab: CA Spectrum 10.0 Deep Dive - 64-bit,
Network Virtualization and GIS Map View (Surf EF)
11/19/2015 at 2:00pm
DO5T27T
Tech Talk: Introduction to SDN/NFV Assurance
(CA Virtual Network Assurance) (DevOps Floor)
11/19/2015 at 3:45pm

Must See Demos
Integrate Event
Mgmt, Fault Isolation
and Root Cause
Analysis
CA Spectrum
Theater 5
CA UIM
CA Unified
Infrastructure
Management
Theater 5
Deploy SDN/NFV
without Adding More
Monitoring Tools
CA Virtual Network
Assurance
Theater 5
Ensure Service
Delivery Across
Complex
Infrastructures
CA Performance
Management
Theater 5

Follow On Conversations At…
Tech Talks
Intro to CA Virtual
Network Assurance
3:45pm-4:15pm
Thursday, Nov 19
Theater 5

Q & A

For More Information
To learn more, please visit:
http://cainc.to/Nv2VOe
CA World ’15

CA Spectrum® Just Keeps Getting Better and Better

More Related Content

What's hot

Viewers also liked

Similar to CA Spectrum® Just Keeps Getting Better and Better

More from CA Technologies

Recently uploaded

CA Spectrum® Just Keeps Getting Better and Better
