Hands-On Lab: Using CA Mobile Application Analytics REST APIs

1 © 2015 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD
Hands-On Lab: Using CA Mobile
Application Analytics REST APIs
Vamsee Lakamsani and
Harish Lakshminarasimhan
DevOps: Agile Ops
CA Technologies
Product Management
DO5X239L
@lakamsani
#CAWorld

© 2015 CA. All rights reserved. All trademarks referenced herein belong to their respective companies.
The content provided in this CA World 2015 presentation is intended for informational purposes only and does not form any type of
warranty. The information provided by a CA partner and/or CA customer has not been reviewed for accuracy by CA.

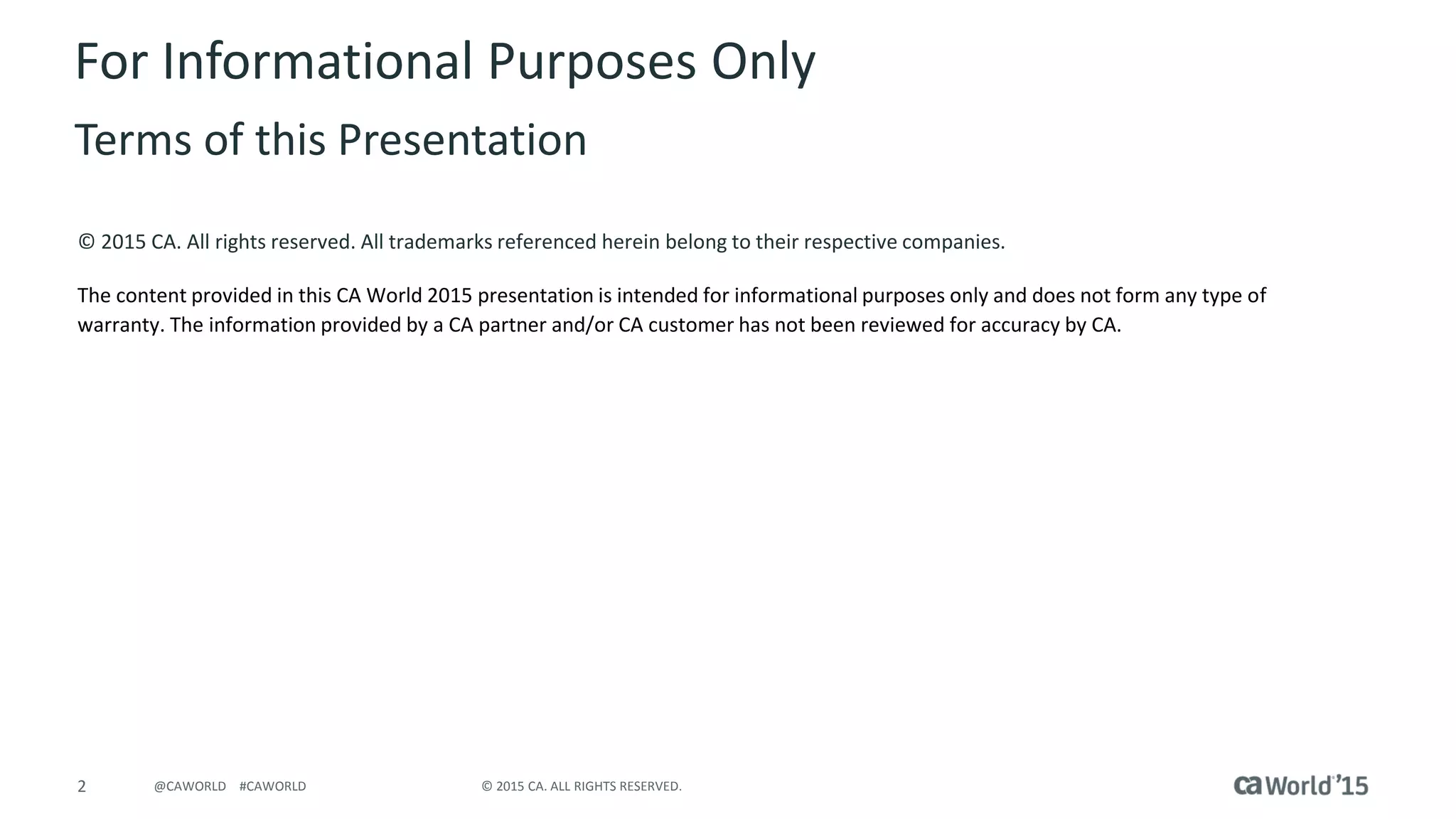

For Informational Purposes Only
Terms of this Presentation

Abstract
In this API driven world, gaining API access to your enterprise’s app
analytics data is critical to being proactive about resolving issues and
building tools like your own executive insights dashboard with KPI. In this
guided, hands-on lab session, learn how to use the REST APIs provided by
CA Mobile App Analytics to access analytics data using command line
tools like ‘cURL' or browser based tools like Advanced REST Client. These
are the same APIs used by the advanced analytics visualization displayed
in the Mobile Application Analytics Admin Console. We will also show an
example Android mobile app that consumes these APIs and shows a
subset of the CA Mobile App Analytics data in a mobile friendly manner.
Vamsee
Lakamsani
Harish
Lakshminarasimhan
CA Technologies
Product Management

Agenda
GETTING STARTED
OVERVIEW OF MAA APIS AND USAGE IN MAA ADMIN UI
DEMO ANDROID APP USING MAA APIS
INVOKE MAA APIS USING CURL
INVOKE MAA APIS USING ADVANCED REST CLIENT
INVOKE MAA APIS USING SWAGGER
1
2
3
4
5
6

Recommended Sessions
SESSION # TITLE DATE/TIME
DO5X187S
T-Mobile Provides End-to-End Monitoring of Its New
Mission Critical Applications
11/19/2015 at 2:00 pm
DO5X199S
Orange Goes from Dev "Oops" to DevOps with CA
Application Performance Management—Accelerating
Deployment Time and Boosting Application Quality
11/19/2015 at 3:45 pm
DO5X193S
Customize CA Application Performance Management
with Tips for Using the CA Application Performance
Management Open APIs
11/19/2015 at 4:30 pm

Must See Demos
Application Performance
Management and DevOps,
featuring APM use in
preproduction scenarios
Mobile App Analytics
Theater 5
Management, Modern
Monitoring, featuring the
new APM Team Center
Management
Theater 5
Ensuring a “5 star” mobile
app experience with CA
Management
Theater 5
“Mobile to Mainframe”
user experience
management
Theater 5

Follow On Conversations At…
Smart Bar
Mobile App
Analytics
Theater 5
Tech Talks
Mobile App
Analytics
Theater 5

Getting Started
 Make sure you can log on to your Workstation to the Windows VM we will be using for the lab
– Username: Administrator Password: CAdemo123
 On your desktop, please check to see if you find the following
– Testscripts folder with sample cURL scripts that invoke MAA APIs. We will use as a starting point
– Google Chrome browser shortcut with Advanced REST Client plugin
– Cygwin short curt with curl and json commands pre-installed
– URL shortcuts for MAA Admin Console
 The login for the MAA Admin console
– User id:- caworld15@gmail.com
– Password:- CAworld@15
– Tenant ID:- CAW15
Follow These Pre-requisites While we get Started With This Session
HANDS ON LAB – PRE REQUISITES

Overview of MAA APIs and Usage in MAA
Admin UI

MAA Architecture
https://wiki.ca.com/CAMAA

MAA APIs

API Details

API usage in MAA Admin UI
 REST APIs used by the MAA Admin UI to display reports
and dashboards
 Demo via MAA Admin UI using Chrome Developer Console
 Separate (non-public) API used by MAA SDK to send data
to MAA

Invoke MAA APIs Using cURL

Overview
 POST request to obtain access token using base64 encoded
tenant id
 Construct a Bearer token using the obtained Basic token,
tenant scope and Boolean value
 GET request to obtain reports and app data using base64
encoded Bearer token
 Same sequence of steps for cURL, Advaned REST Client,
Swagger or mobile app

Authentication APIs

Authenticating to MAA REST API
POST
Obtain token
“205ee65d-459b-417b-
8995-46e4050f697c"
Construct Bearer
token
{"tkn":"205ee65d-459b-417b-8995-
46e4050f697c","all":"true"}
GET
Obtain data
Encode
Tenant ID
Encode
Bearer
User, pwd,
tenant id
REST requests
Non-REST
operations
(scripted)
Modeled after Oauth2

Hands-on cURL: Step#1
 Open a Cygwin terminal
 Open testscripts/ops-curl.sh
 Change this 
 To look like this 

 Run the script like this: ./ops-curl.sh GET apps
 It invokes the http GET operation on the MAA /apps
REST resource
 Successful response will return a series of MAA app records in
JSON format as shown below

 Review the first few lines of the ops-curl.sh script to see:
– how the tenant id is encoded
– The encoded tenant is sent in the http Authorization: Basic
header in in a POST to /ess/security/v1/token (the MAA
security server) with a body of user name/password grant_type
– The tkn is field (authorization token) is extracted from the response
– The token is then sent via the http Authorization: Bearer
header field on subsequent REST API calls
– We can use the token with other tools like Advanced REST Client
and Swagger

$SERVER/mdo/v1/performance/apps?aggregation=day&end_date=2015-06-17&start_date=2014-06-10
$SERVER/mdo/v1/performance/apps
/mdo/v1/apps
/mdo/v1/performance/apps
/mdo/v1/performance/urls
/mdo/v1/usage/users
/mdo/v1/usage/geo
/mdo/v1/sessions
/mdo/v1/sessions/list
/mdo/v1/profiles
aggregation=day
day
week
month
end_date=2015-06-17&start_date=2014-06-10
Only this date format
Filtering via MAA REST APIs

Invoke MAA APIs Using Advanced
REST Client

Hands-on: Chrome Advanced Rest Client POST get token

Hands-on: POST /token Response

Hands-on: Chrome Advanced Rest Client – use token, GET
/apps
Token from previous step or from cURL exercise

Get /apps Response

Invoke MAA APIs Using Swagger

Swagger : Step#1
a) Login to MAA Admin console
b) Click on HELP

Swagger : Step#2 a) Click on Reporting API
b) Expand Authentication
Operations
c) Select PASSWORD for
grant_type
d) Enter username
and password
e) Encode tenant using
openssl as before and
enter into
Authorization:
field

Swagger : Step#3
a) Token is returned
in the response
b) Copy the token
c) Use openssl to
encode token
with tenant as in
previous steps to
generate a
Bearer token

Swagger : Step#4
a) Enter the Bearer token in
the Authorization
field
b) Invoke /apps API using
the Bearer token
c) JSON app records are
returned as before with a
200 status code.

Demo Android App Using MAA APIs

- The app accepts login, reminds about missing and
required login information and displays error messages
- Before processing request, the app checks if URL
has connectivity

- Several reports and time filters are available

- User selects report and filter, and clicks on ‘submit’ to
see data
- Data can also be viewed in raw format

Experiences
Custom reports and mobile
apps can be built using
these APIs
Key topics
CA Mobile App Analytics
dashboards are driven by
REST APIs
Findings
There are multiple ways to
invoke the REST APIs
Summary
A Few Words to Review

Q & A

For More Information
To learn more, please visit:
http://cainc.to/Nv2VOe
