WebSphere Commerce Developer Enterprise
®

Commerce Developer Professional

Version 6.0

Installation Guide

GC10-4255-06

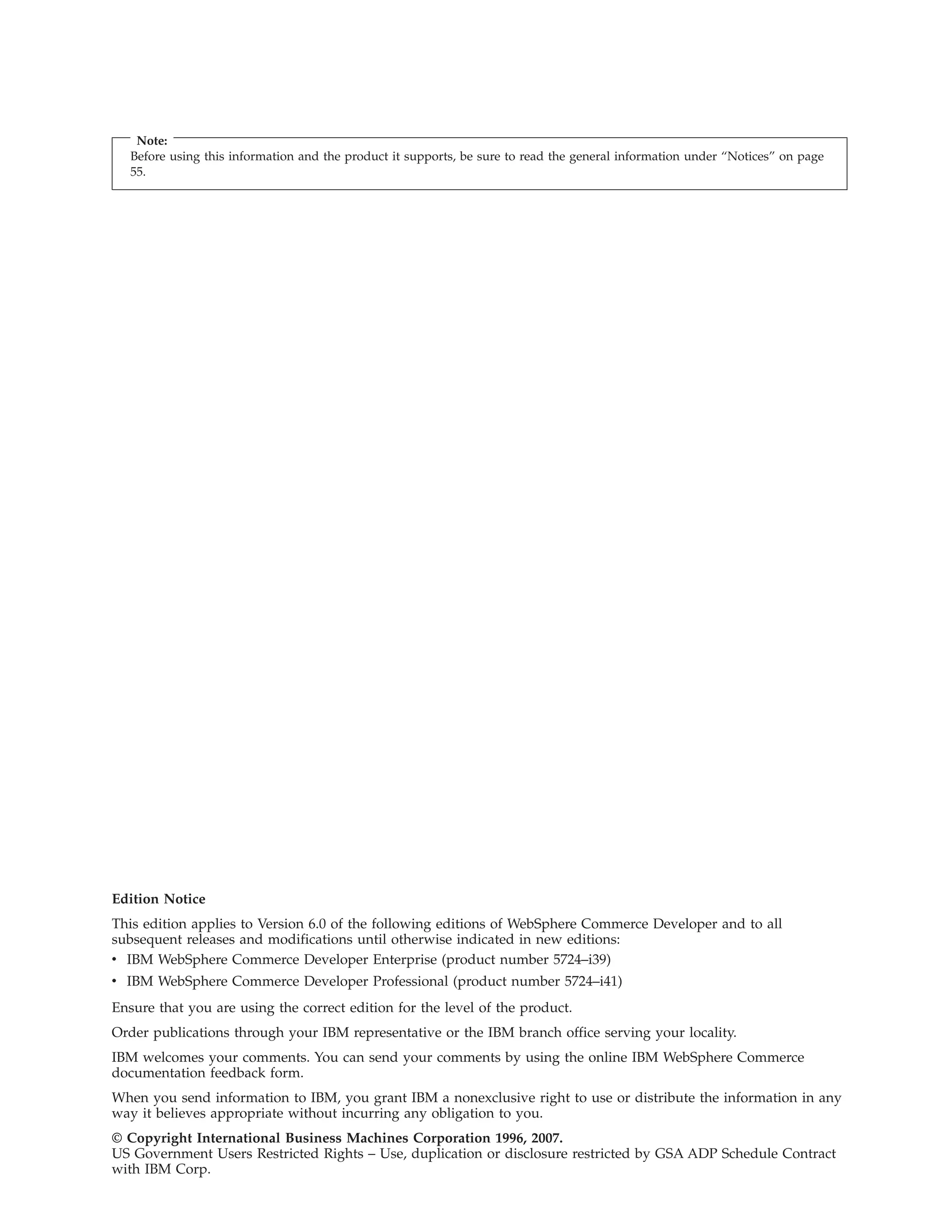

Note:
Before using this information and the product it supports, be sure to read the general information under “Notices” on page
55.

Edition Notice
This edition applies to Version 6.0 of the following editions of WebSphere Commerce Developer and to all
subsequent releases and modifications until otherwise indicated in new editions:
v IBM WebSphere Commerce Developer Enterprise (product number 5724–i39)
v IBM WebSphere Commerce Developer Professional (product number 5724–i41)
Ensure that you are using the correct edition for the level of the product.
Order publications through your IBM representative or the IBM branch office serving your locality.
IBM welcomes your comments. You can send your comments by using the online IBM WebSphere Commerce
documentation feedback form.
When you send information to IBM, you grant IBM a nonexclusive right to use or distribute the information in any
way it believes appropriate without incurring any obligation to you.
© Copyright International Business Machines Corporation 1996, 2007.
US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.

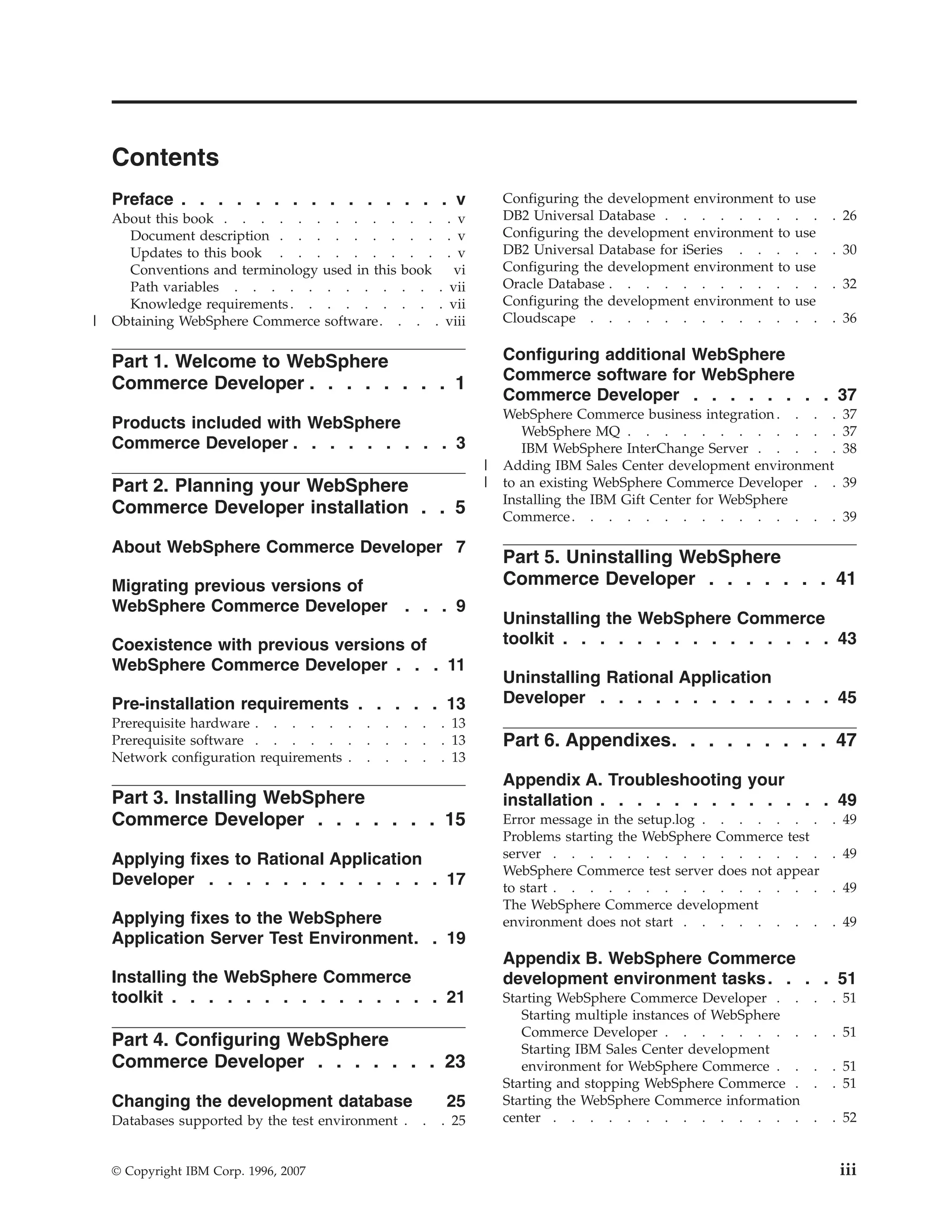

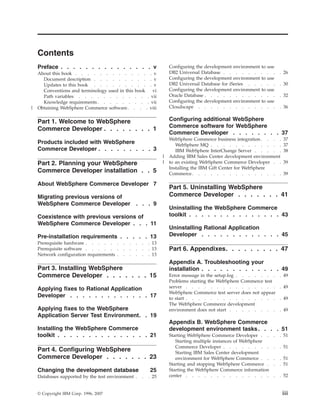

Contents
Preface . . . . . . . . . . . . . . . v Configuring the development environment to use
About this book . . . . . . . . . . . . . v DB2 Universal Database . . . . . . . . . . 26
Document description . . . . . . . . . . v Configuring the development environment to use

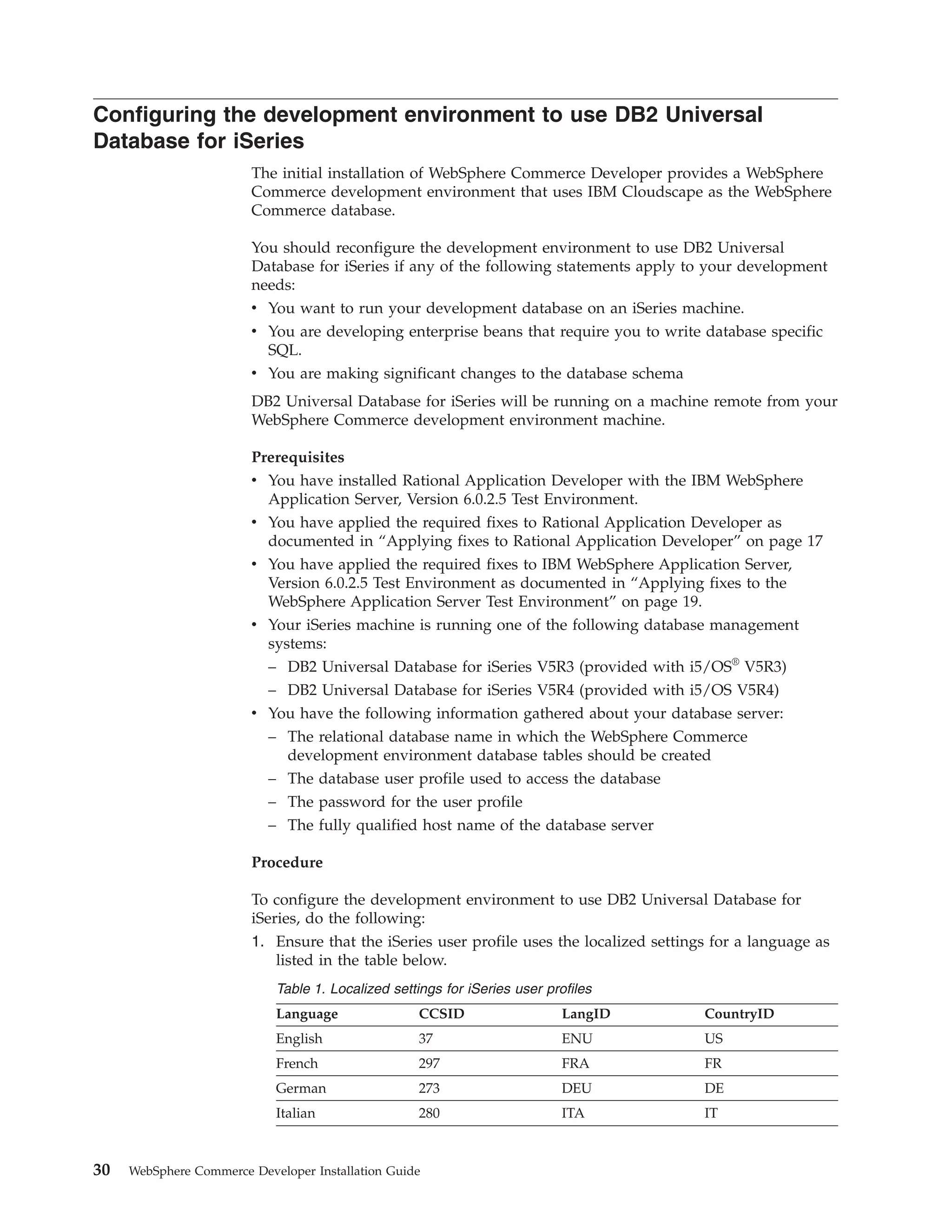

Updates to this book . . . . . . . . . . v DB2 Universal Database for iSeries . . . . . . 30
Conventions and terminology used in this book vi Configuring the development environment to use

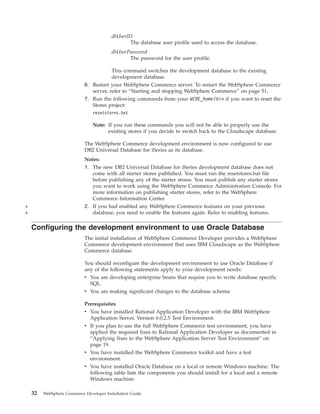

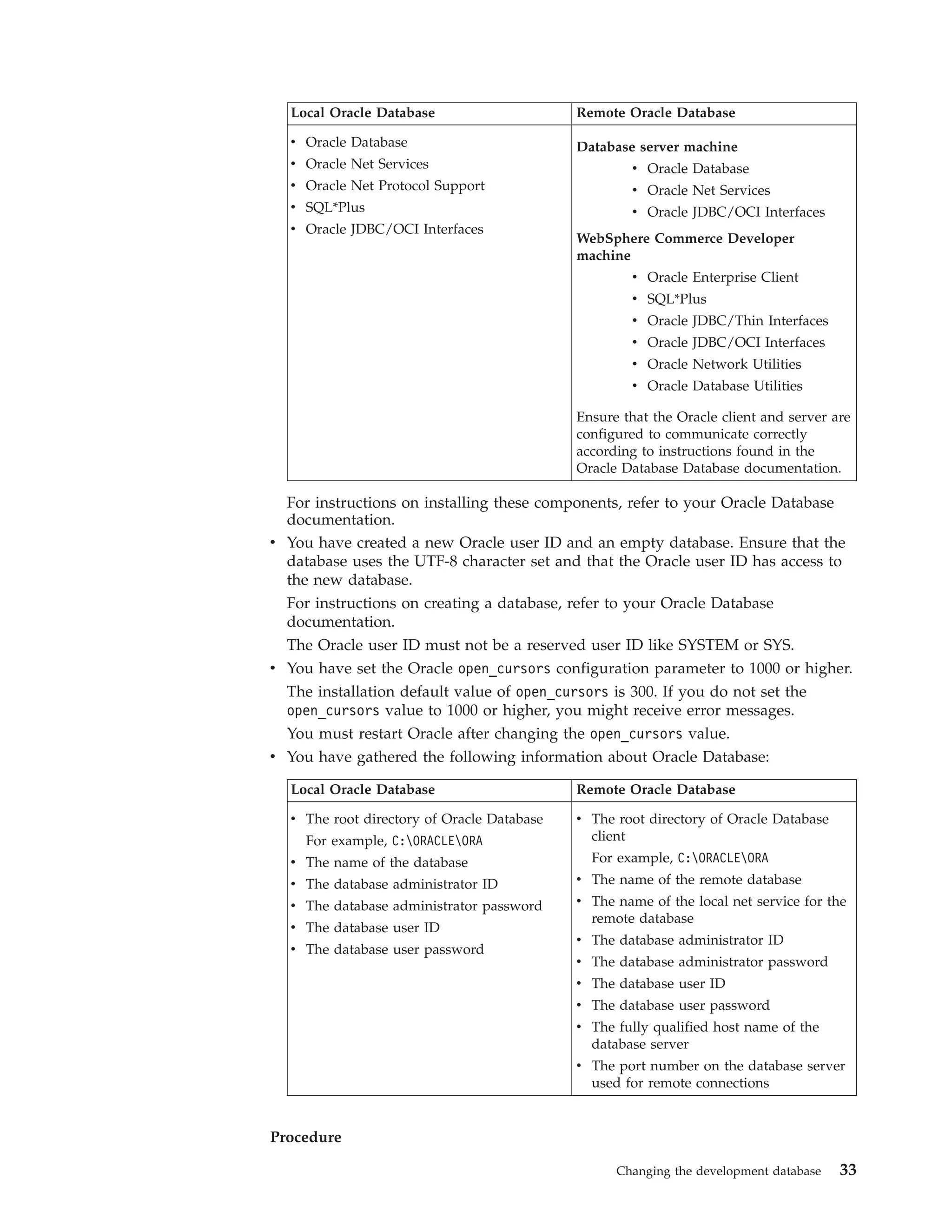

Path variables . . . . . . . . . . . . vii Oracle Database . . . . . . . . . . . . . 32
Knowledge requirements . . . . . . . . . vii Configuring the development environment to use
| Obtaining WebSphere Commerce software. . . . viii Cloudscape . . . . . . . . . . . . . . 36

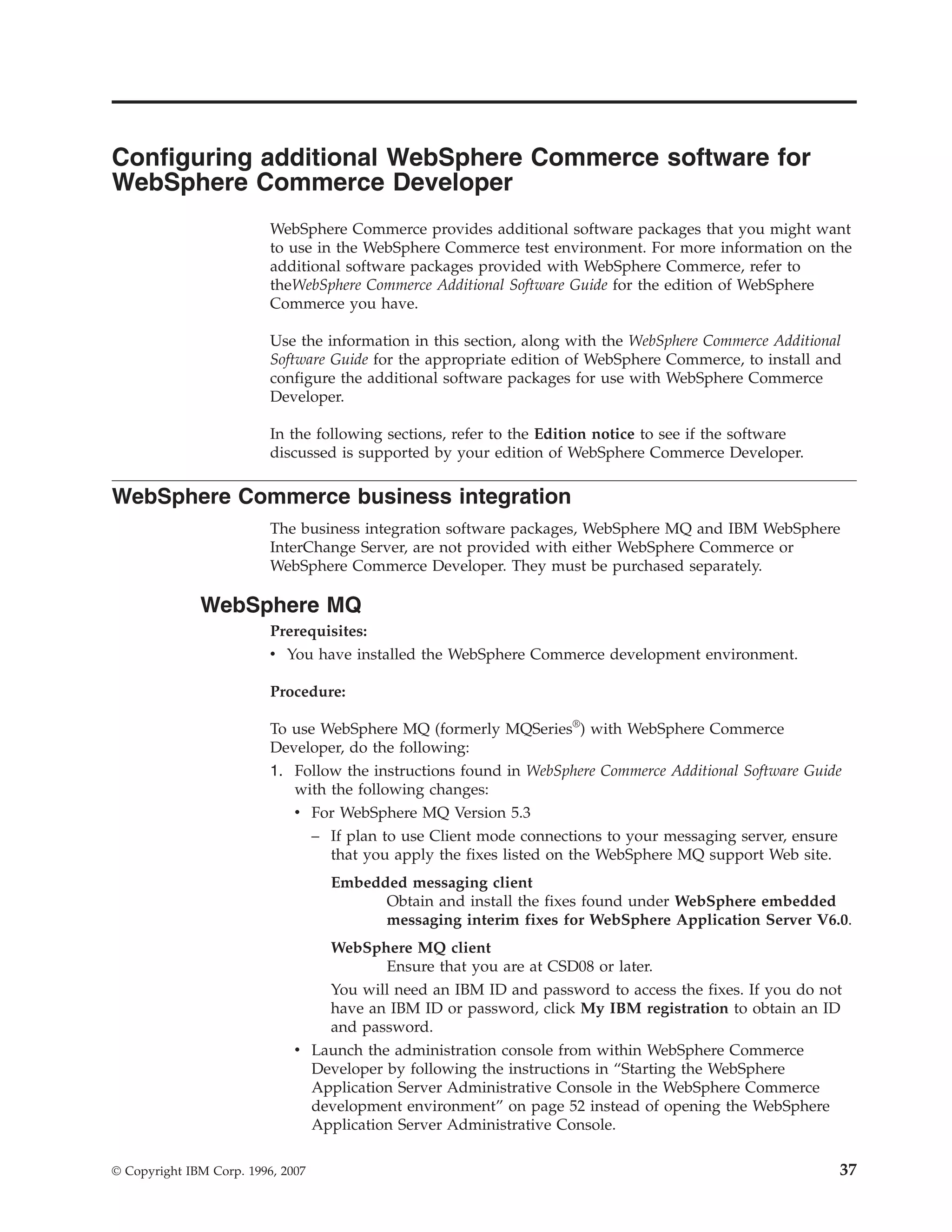

Part 1. Welcome to WebSphere Configuring additional WebSphere
Commerce software for WebSphere
Commerce Developer . . . . . . . . 1
Commerce Developer . . . . . . . . 37
WebSphere Commerce business integration . . . . 37
Products included with WebSphere WebSphere MQ . . . . . . . . . . . . 37
Commerce Developer . . . . . . . . . 3 IBM WebSphere InterChange Server . . . . . 38

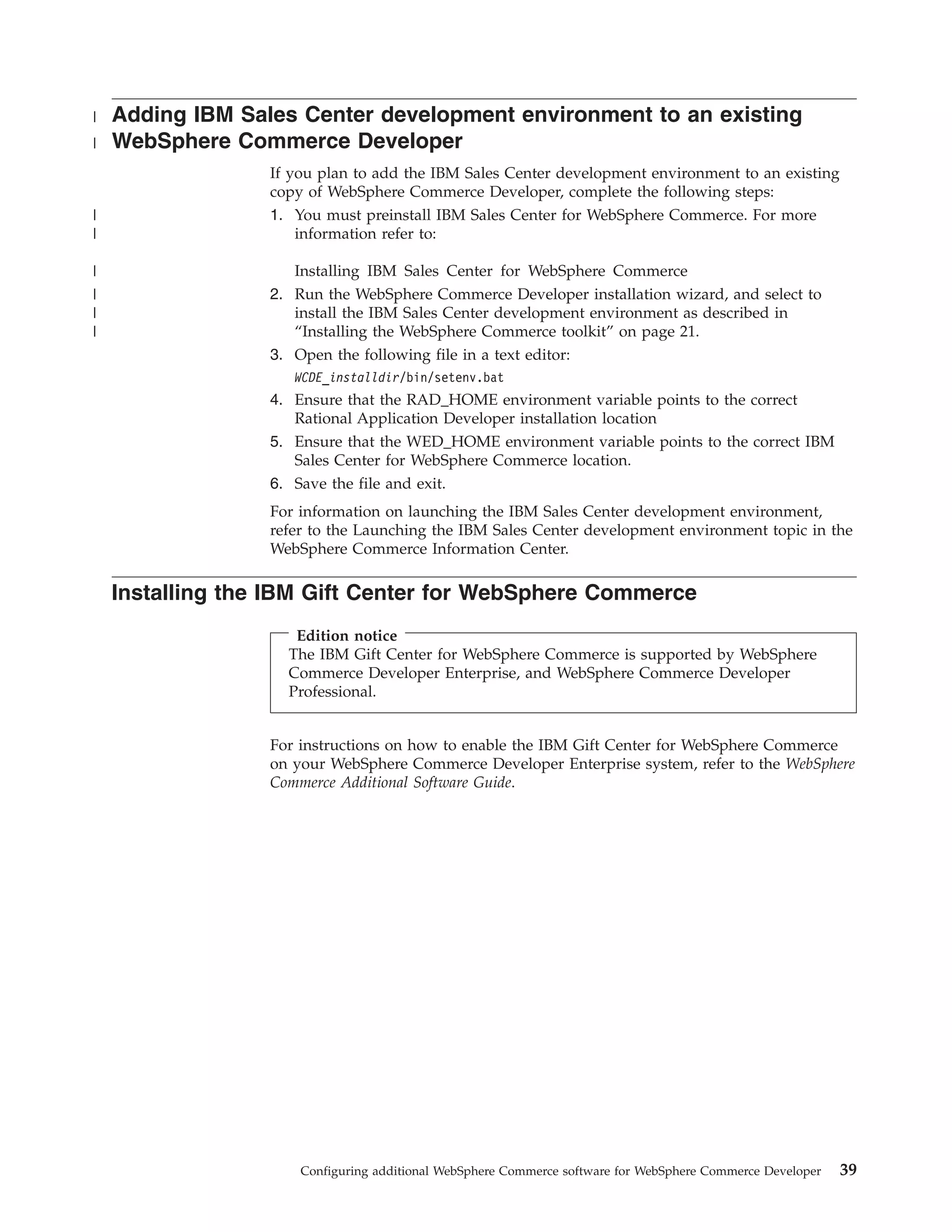

| Adding IBM Sales Center development environment

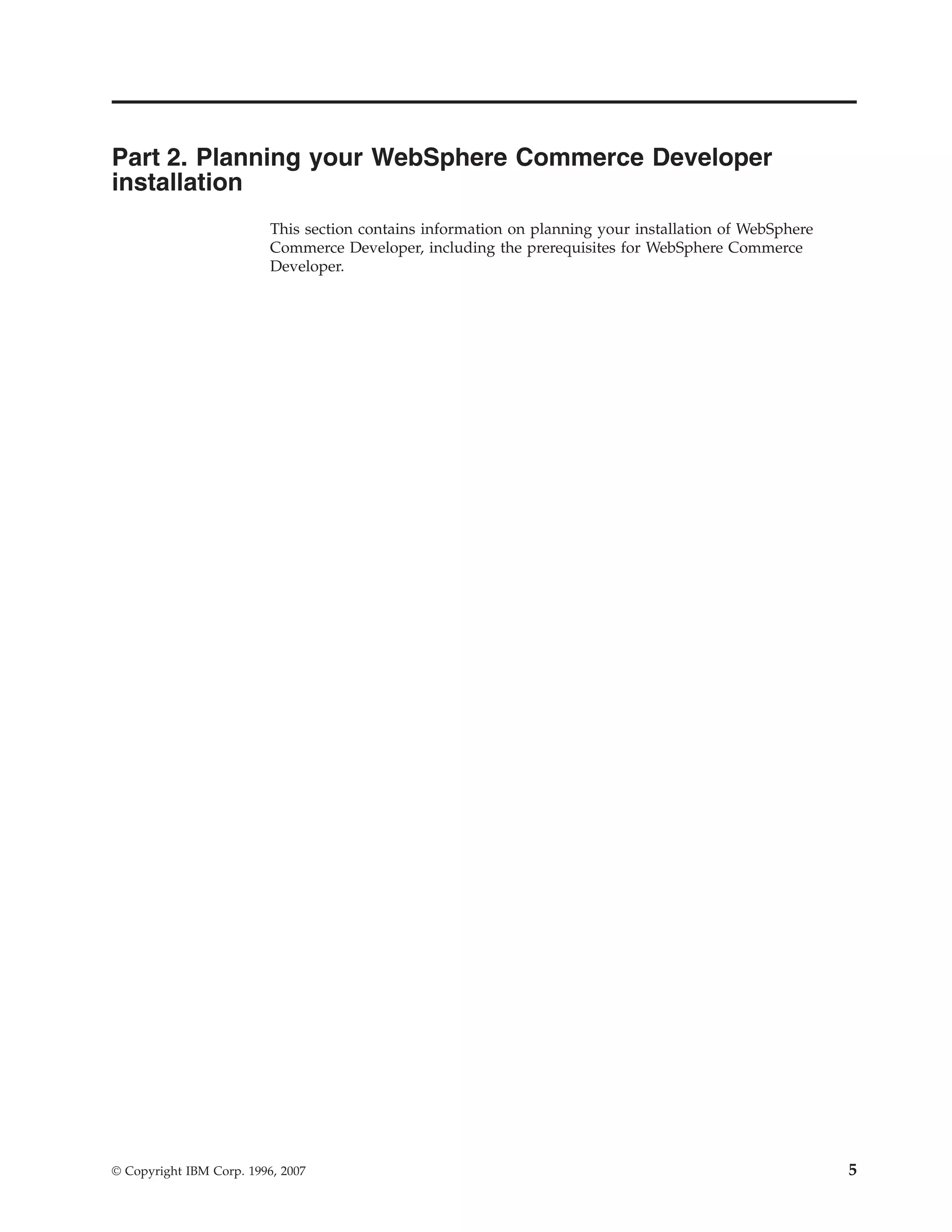

Part 2. Planning your WebSphere | to an existing WebSphere Commerce Developer . . 39
Installing the IBM Gift Center for WebSphere
Commerce Developer installation . . 5 Commerce . . . . . . . . . . . . . . . 39

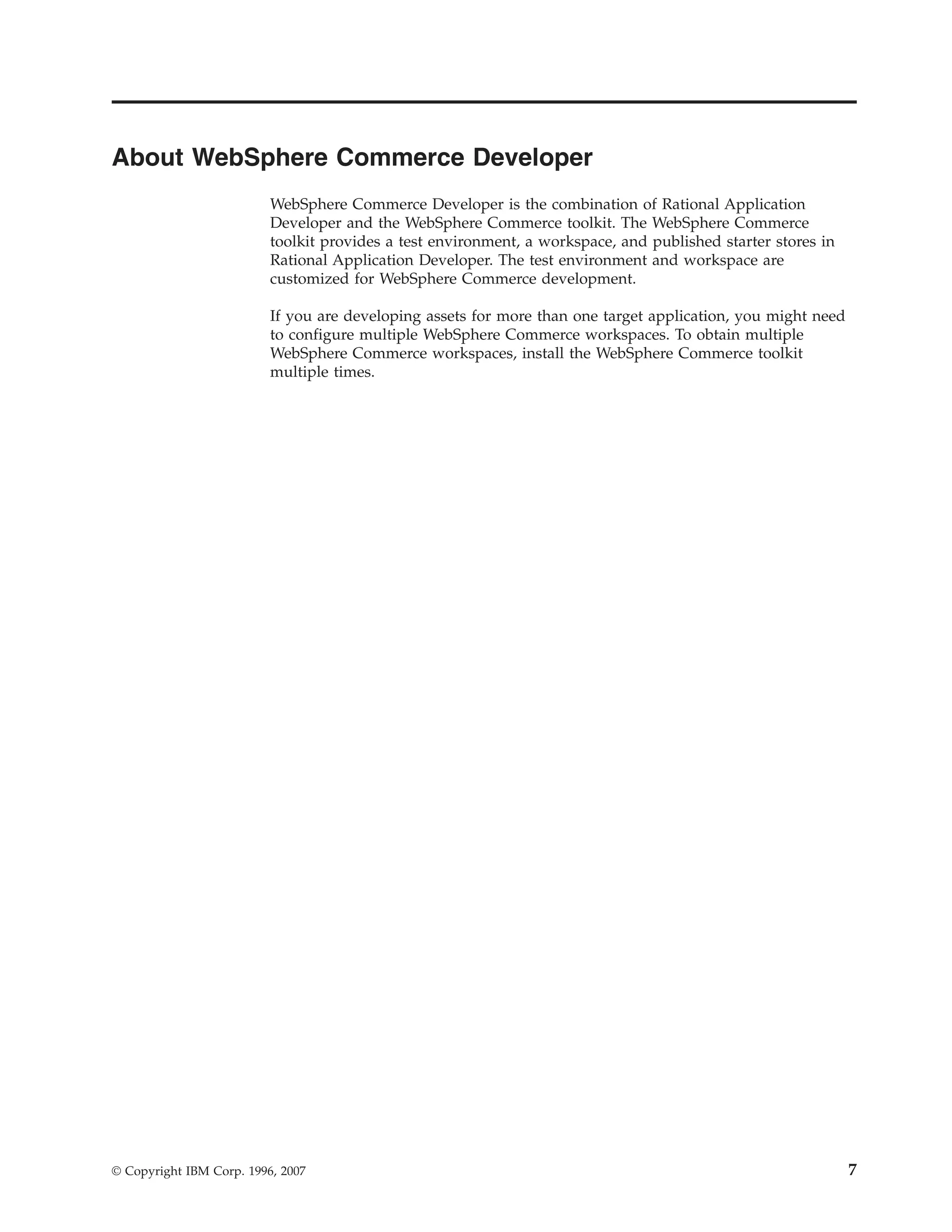

About WebSphere Commerce Developer 7
Part 5. Uninstalling WebSphere

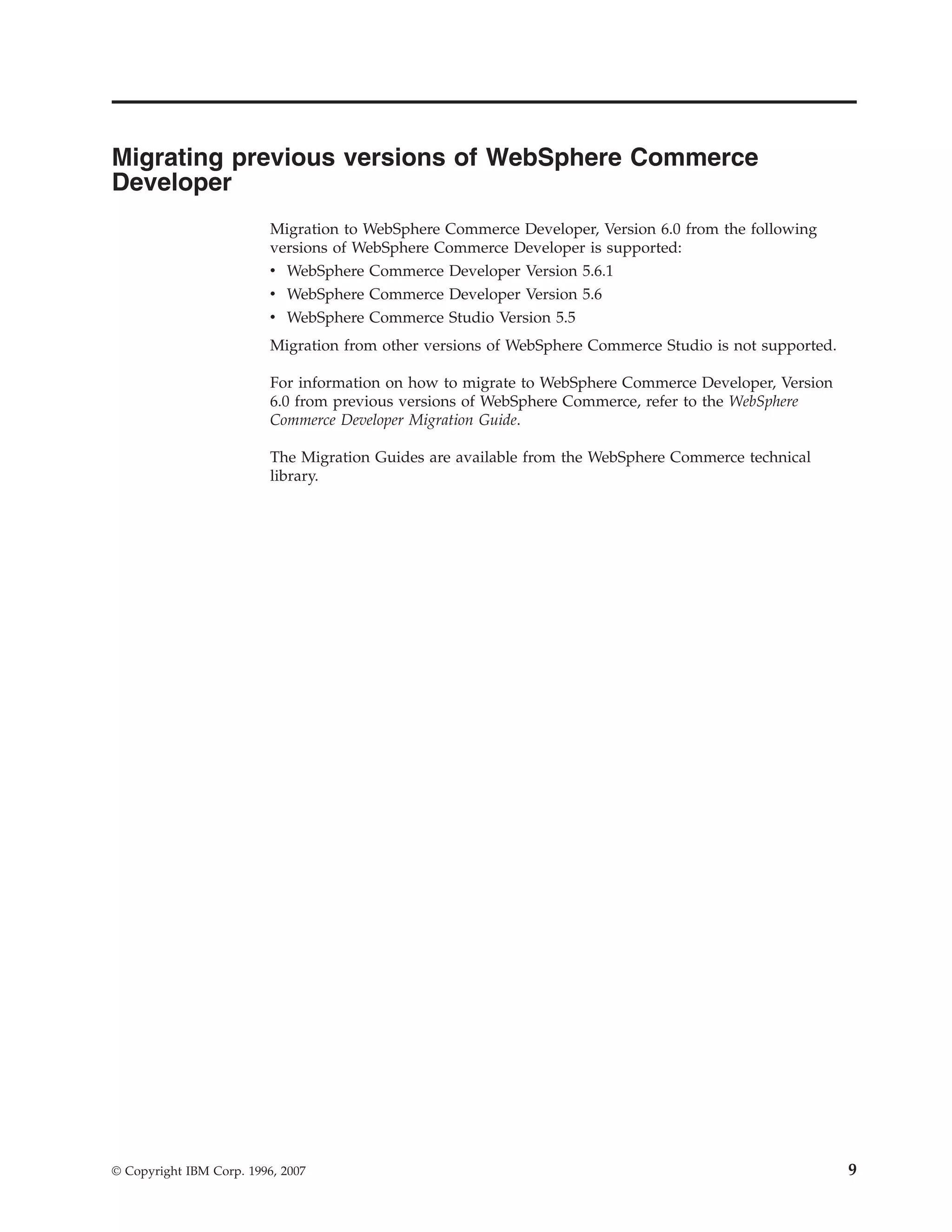

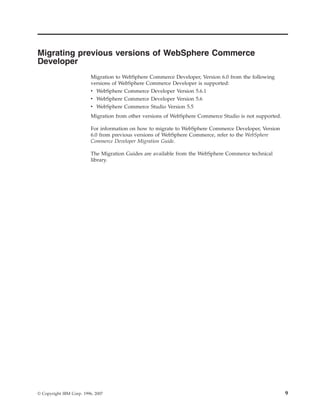

Migrating previous versions of Commerce Developer . . . . . . . 41
WebSphere Commerce Developer . . . 9

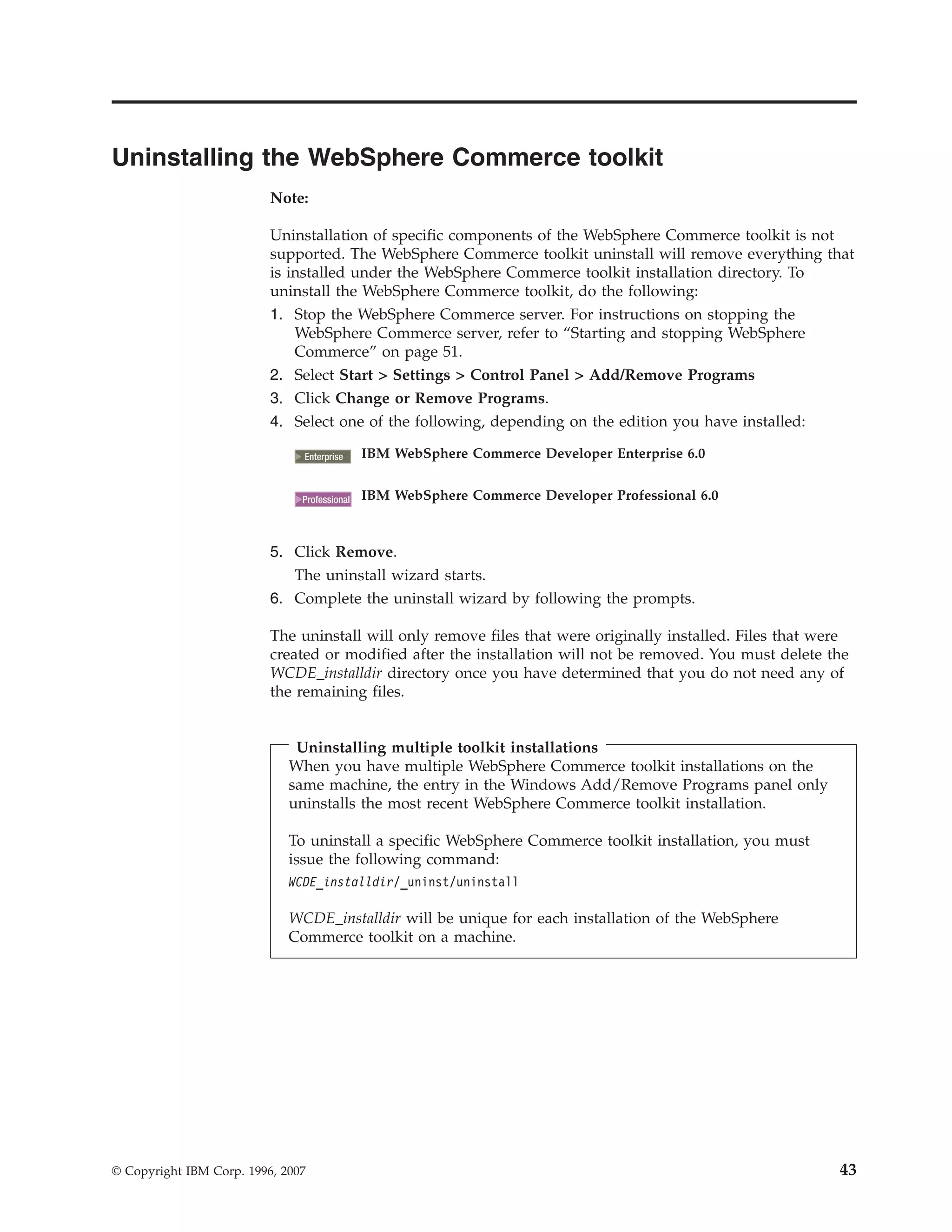

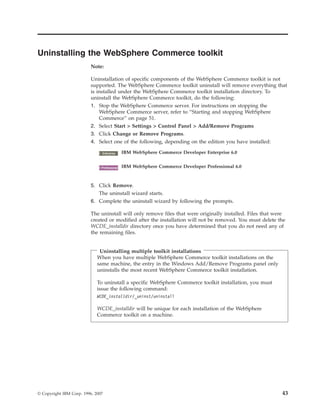

Uninstalling the WebSphere Commerce
Coexistence with previous versions of toolkit . . . . . . . . . . . . . . . 43
WebSphere Commerce Developer . . . 11

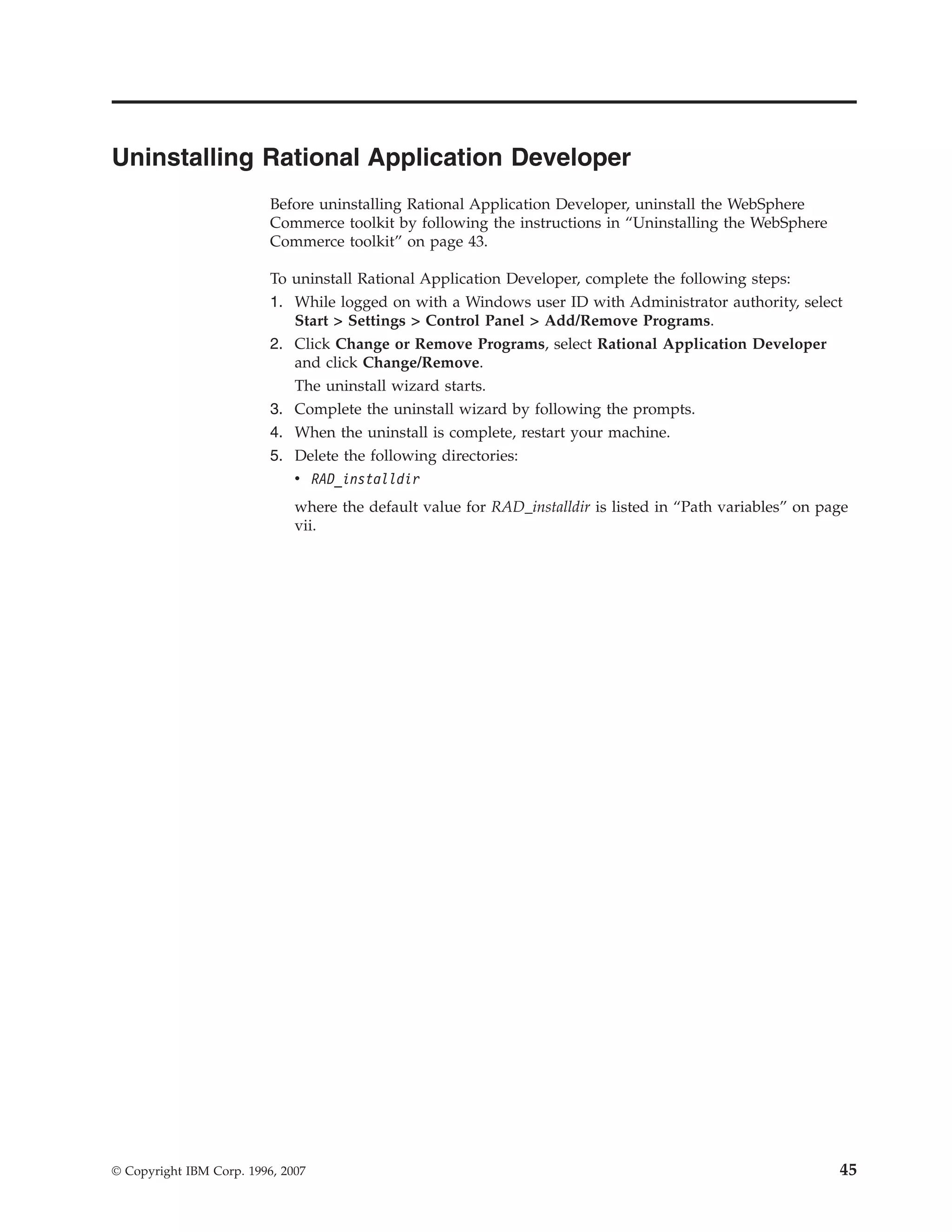

Uninstalling Rational Application

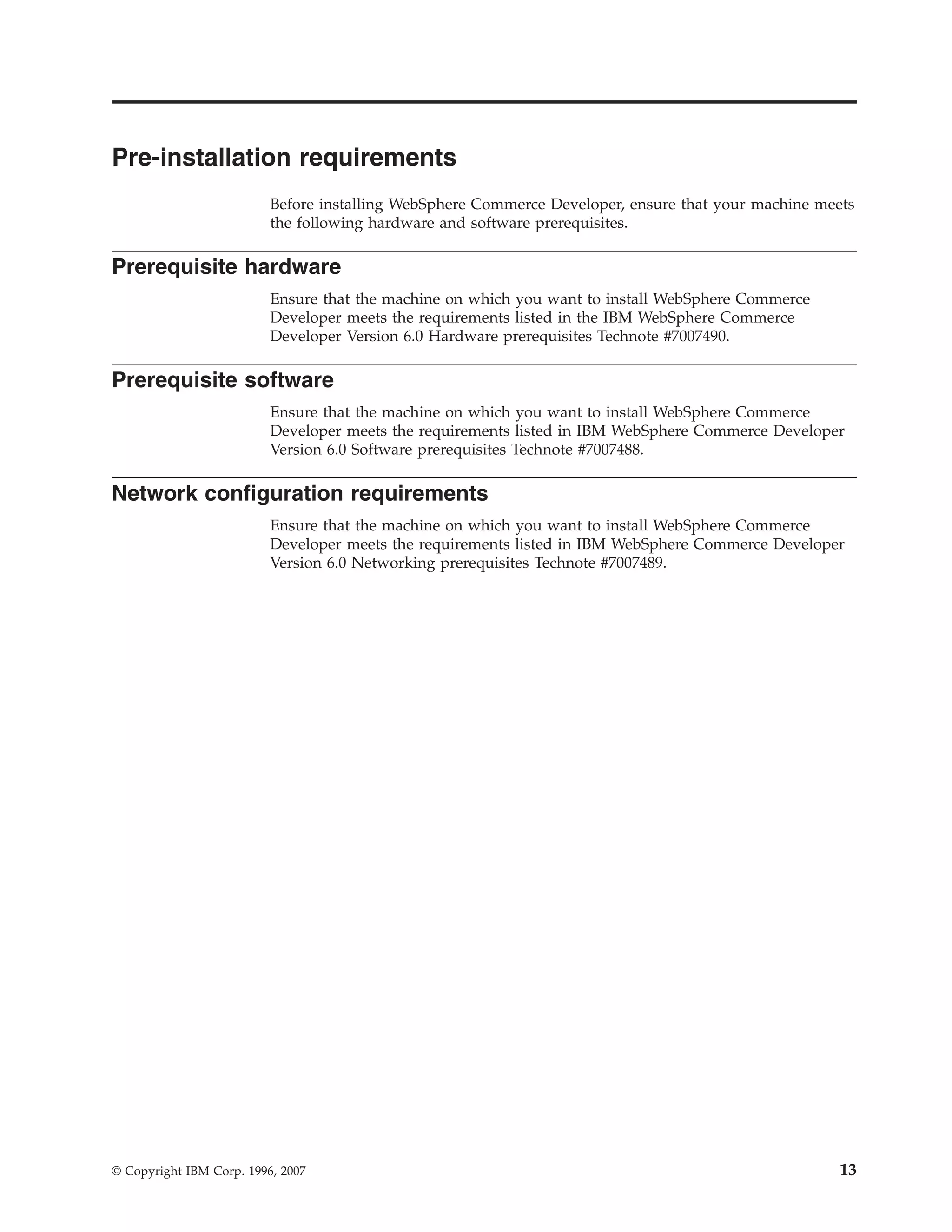

Pre-installation requirements . . . . . 13 Developer . . . . . . . . . . . . . 45
Prerequisite hardware . . . . . . . . . . . 13

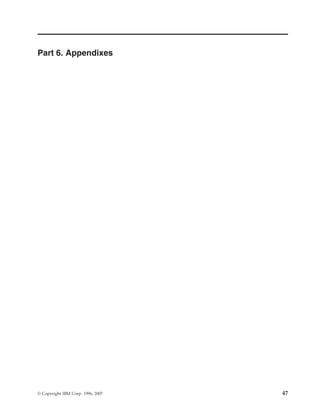

Prerequisite software . . . . . . . . . . . 13 Part 6. Appendixes. . . . . . . . . 47
Network configuration requirements . . . . . . 13

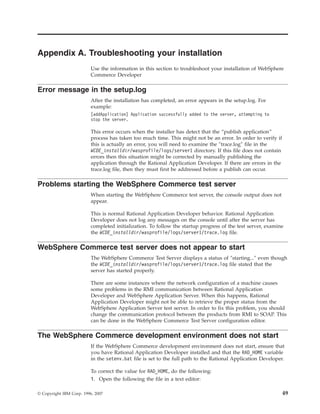

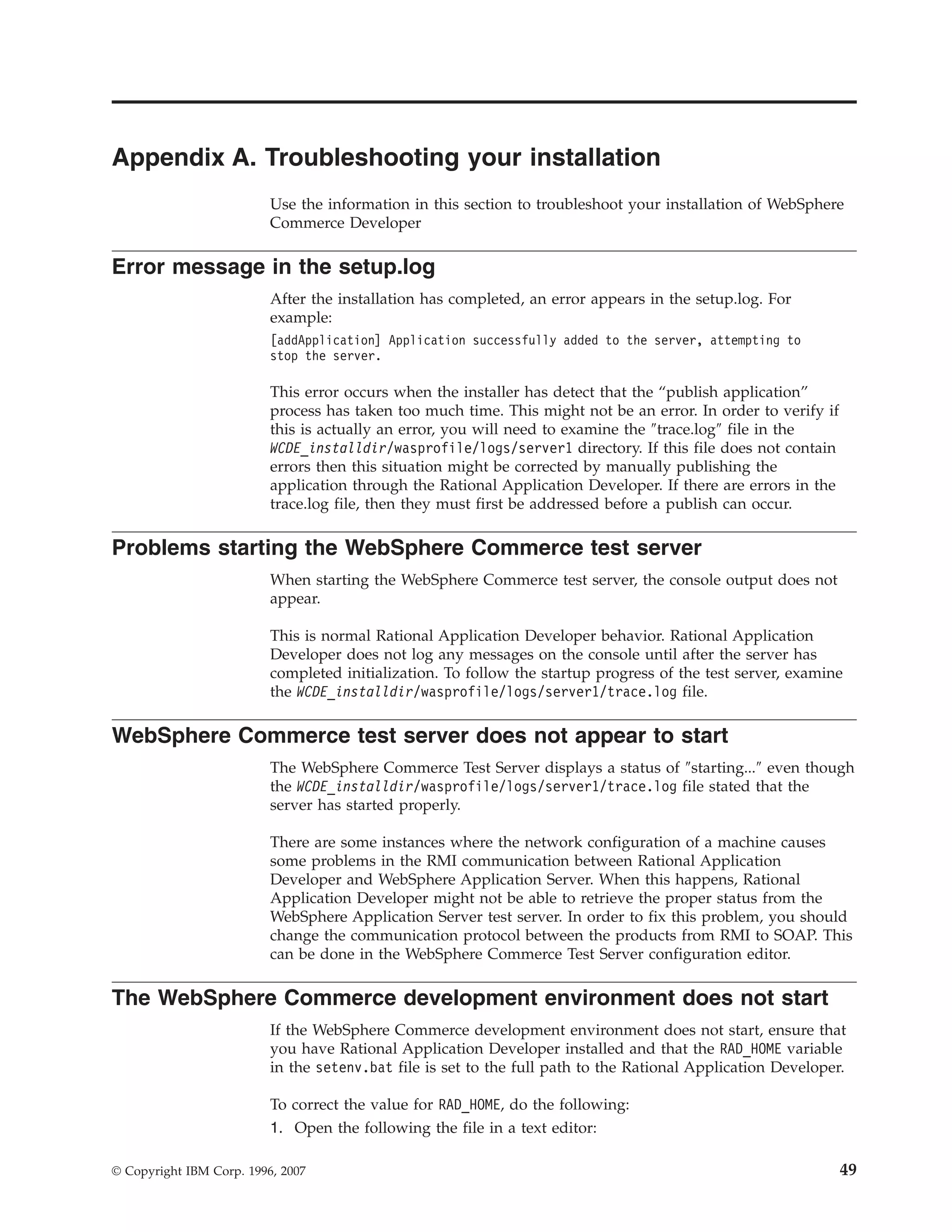

Appendix A. Troubleshooting your
Part 3. Installing WebSphere installation . . . . . . . . . . . . . 49
Commerce Developer . . . . . . . 15 Error message in the setup.log . . . . . . . . 49
Problems starting the WebSphere Commerce test

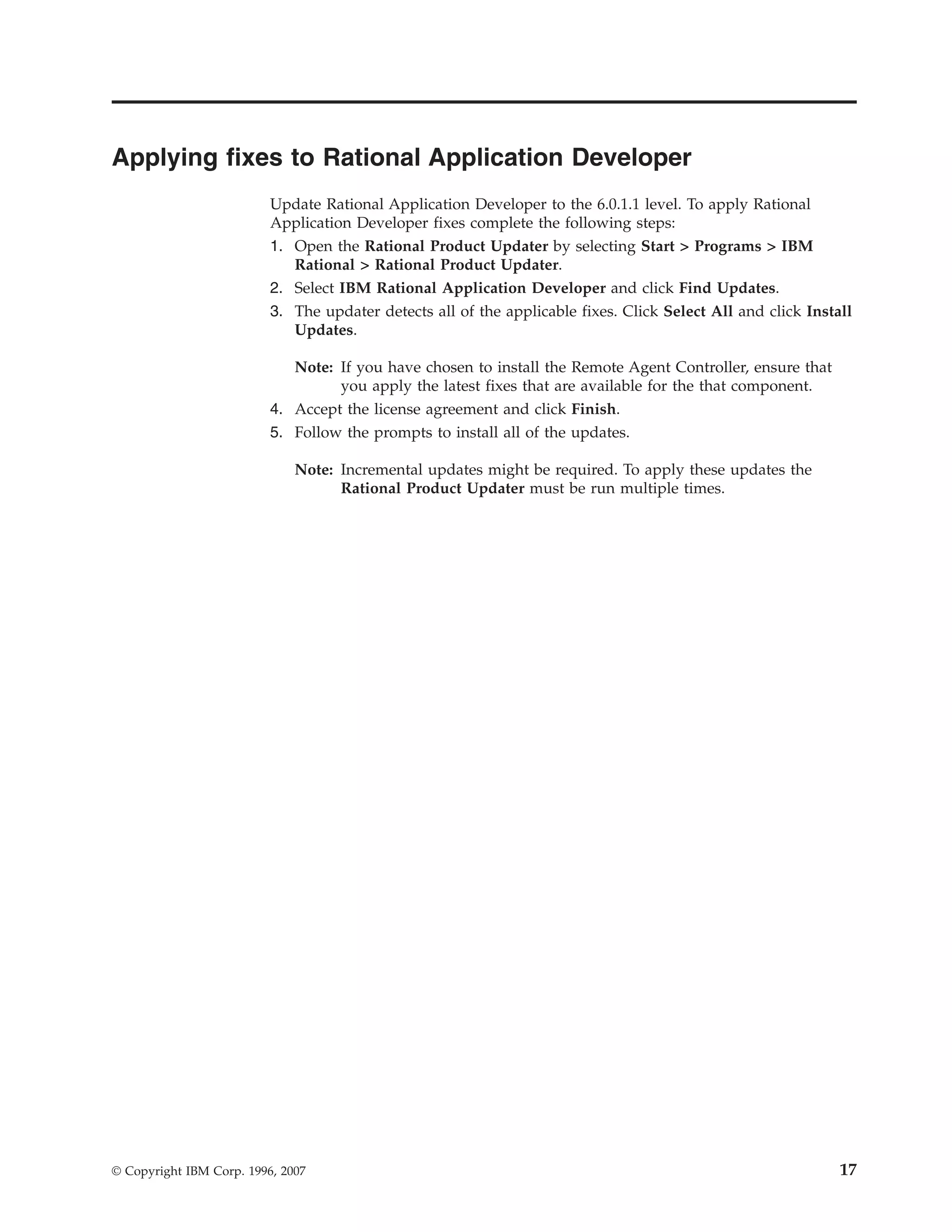

Applying fixes to Rational Application server . . . . . . . . . . . . . . . . 49
WebSphere Commerce test server does not appear
Developer . . . . . . . . . . . . . 17 to start . . . . . . . . . . . . . . . . 49
The WebSphere Commerce development

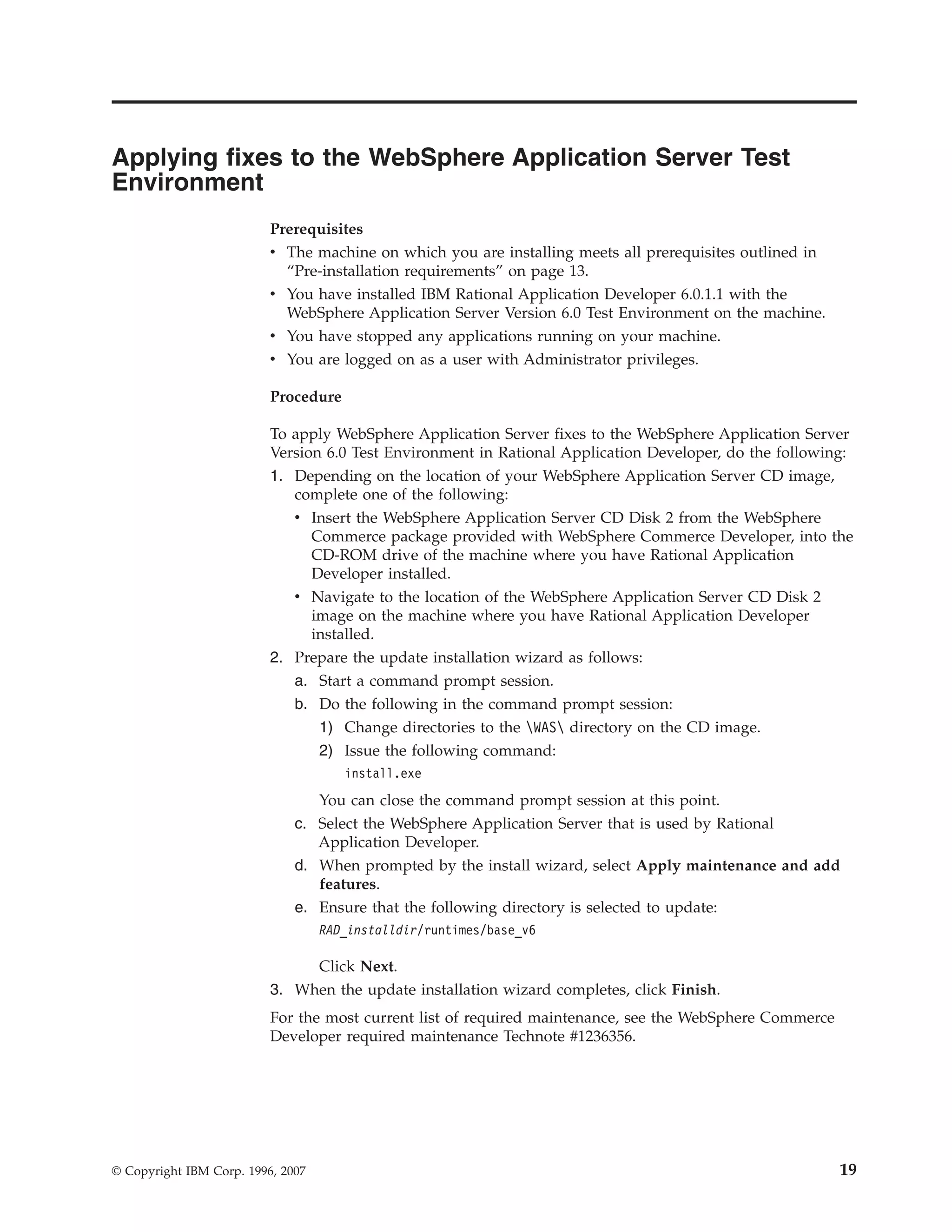

Applying fixes to the WebSphere environment does not start . . . . . . . . . 49
Application Server Test Environment. . 19

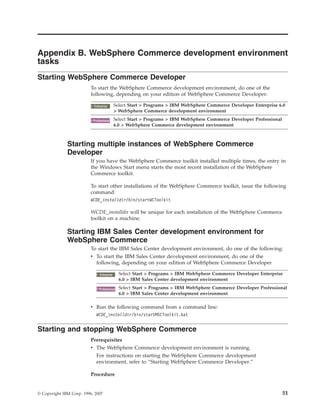

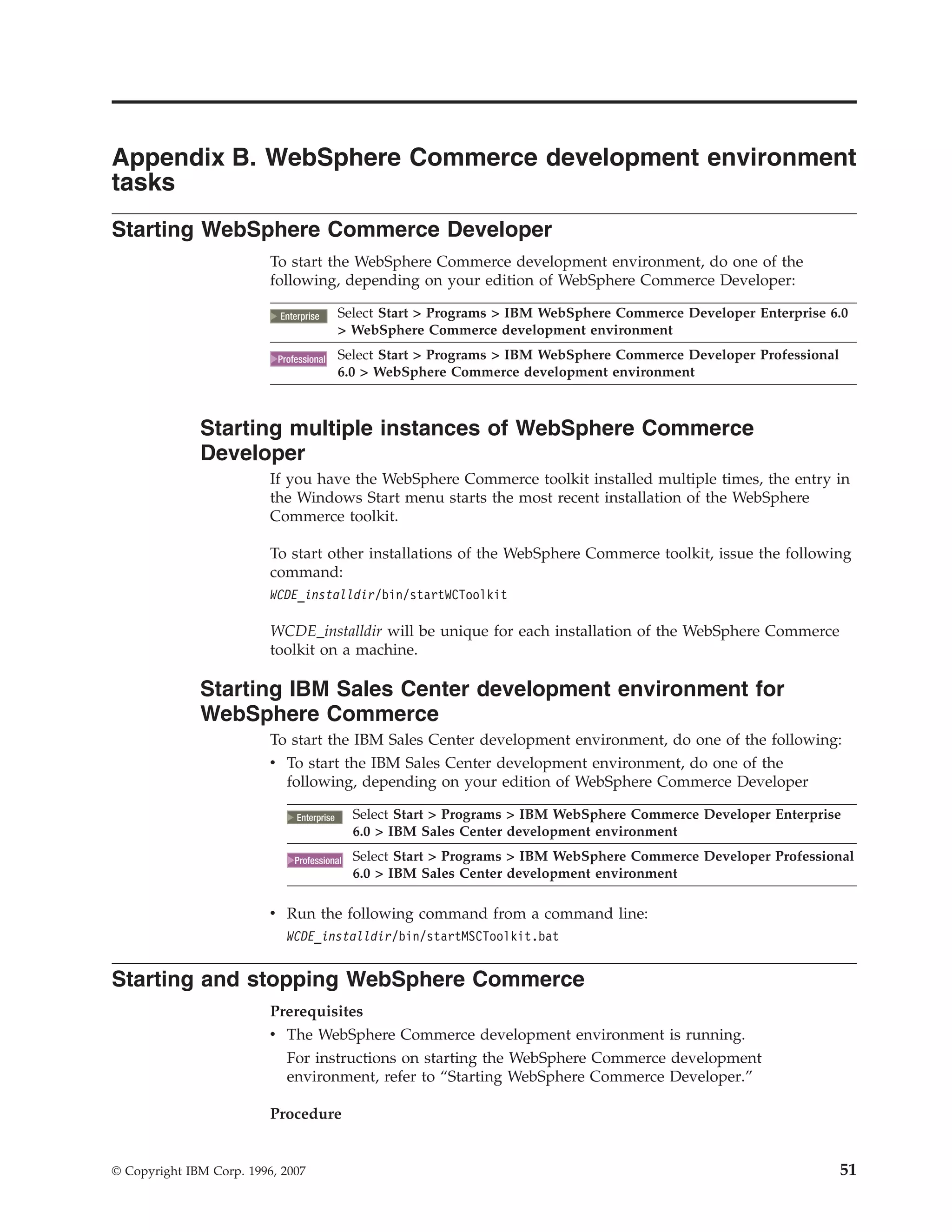

Appendix B. WebSphere Commerce

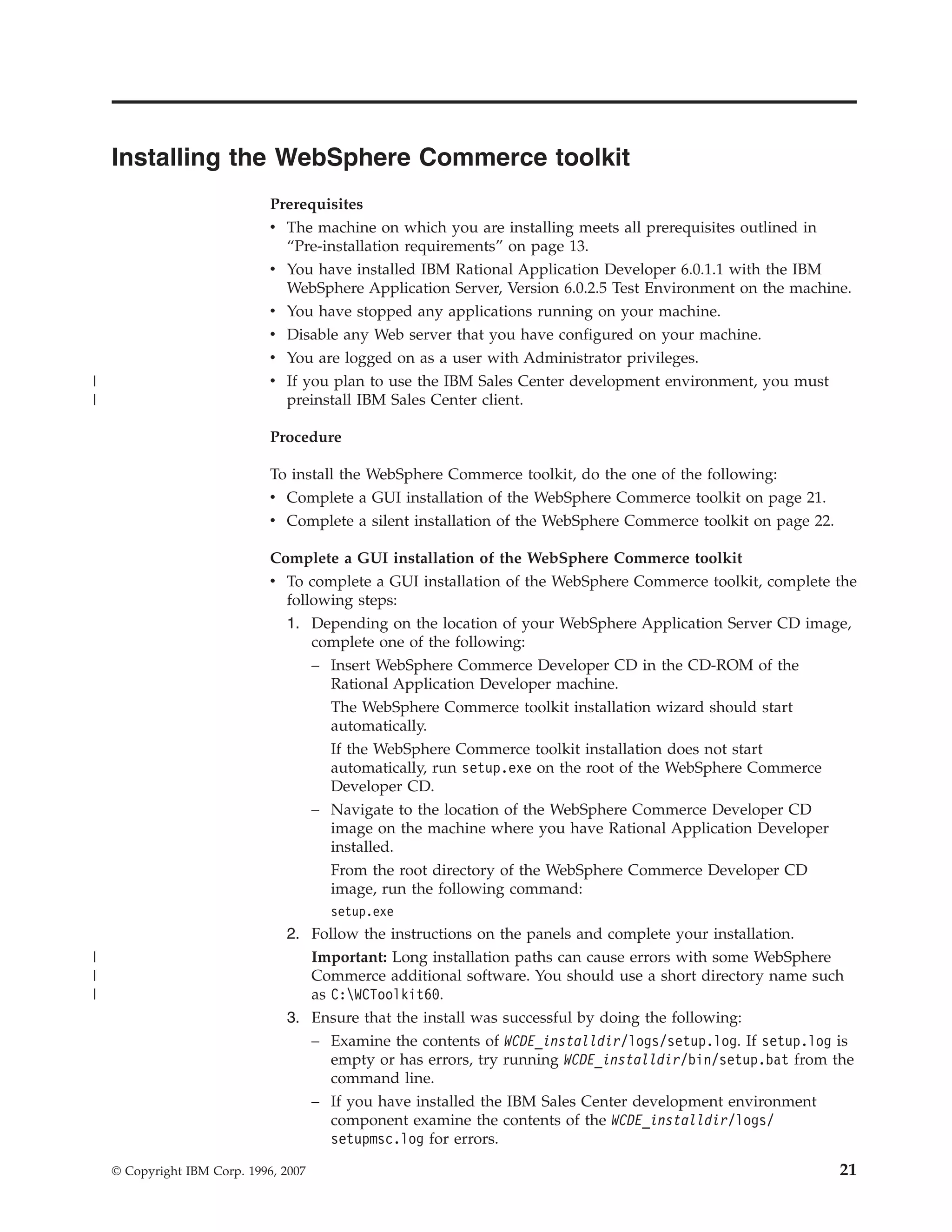

Installing the WebSphere Commerce development environment tasks . . . . 51
toolkit . . . . . . . . . . . . . . . 21 Starting WebSphere Commerce Developer . . . . 51
Starting multiple instances of WebSphere
Commerce Developer . . . . . . . . . . 51

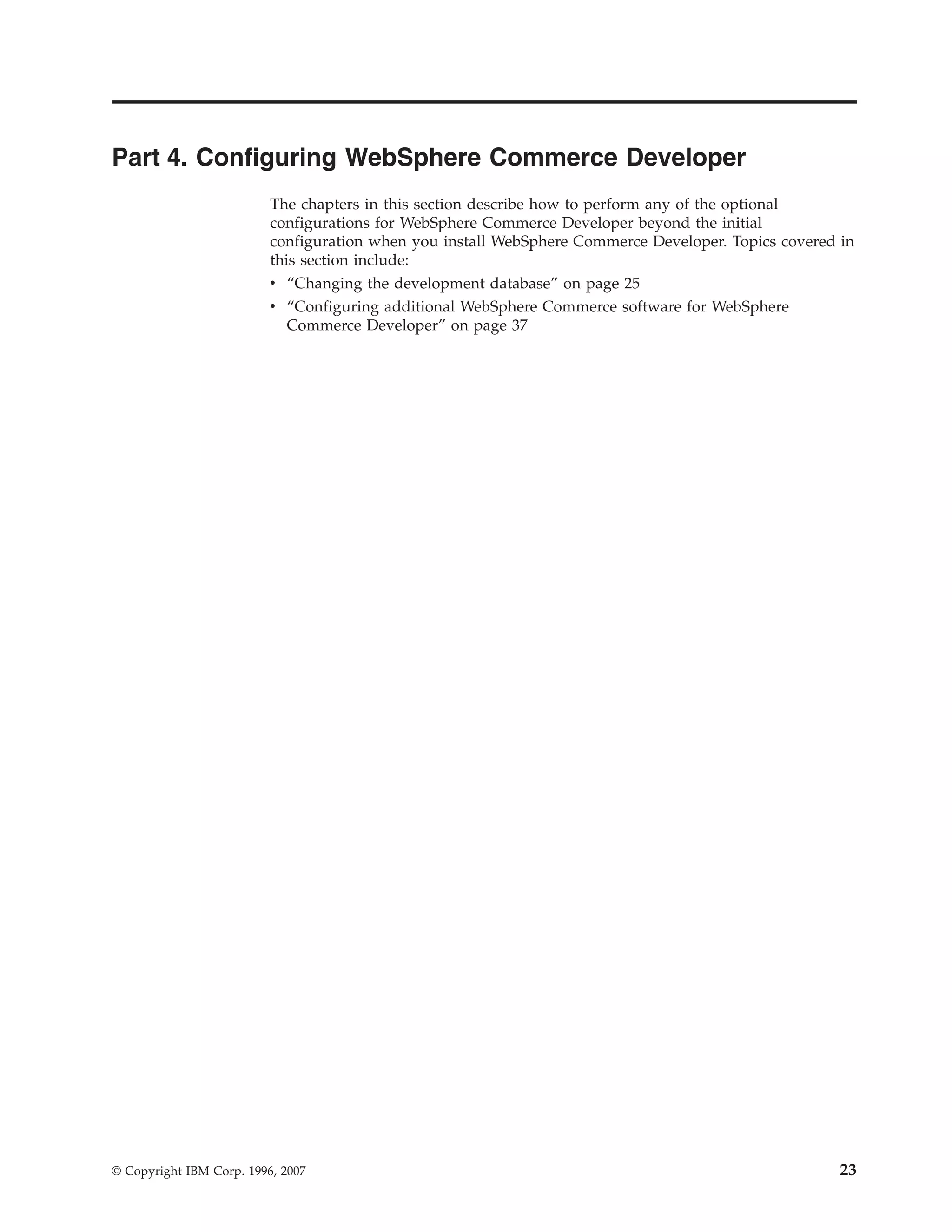

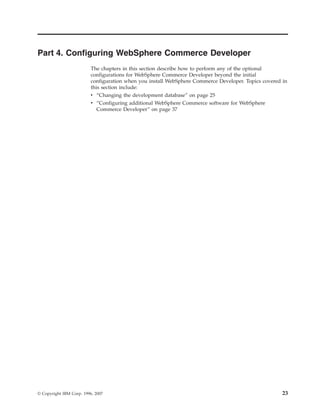

Part 4. Configuring WebSphere Starting IBM Sales Center development
Commerce Developer . . . . . . . 23 environment for WebSphere Commerce . . . . 51
Starting and stopping WebSphere Commerce . . . 51

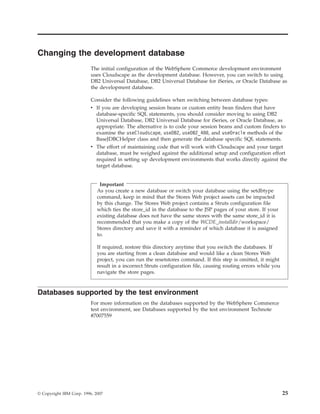

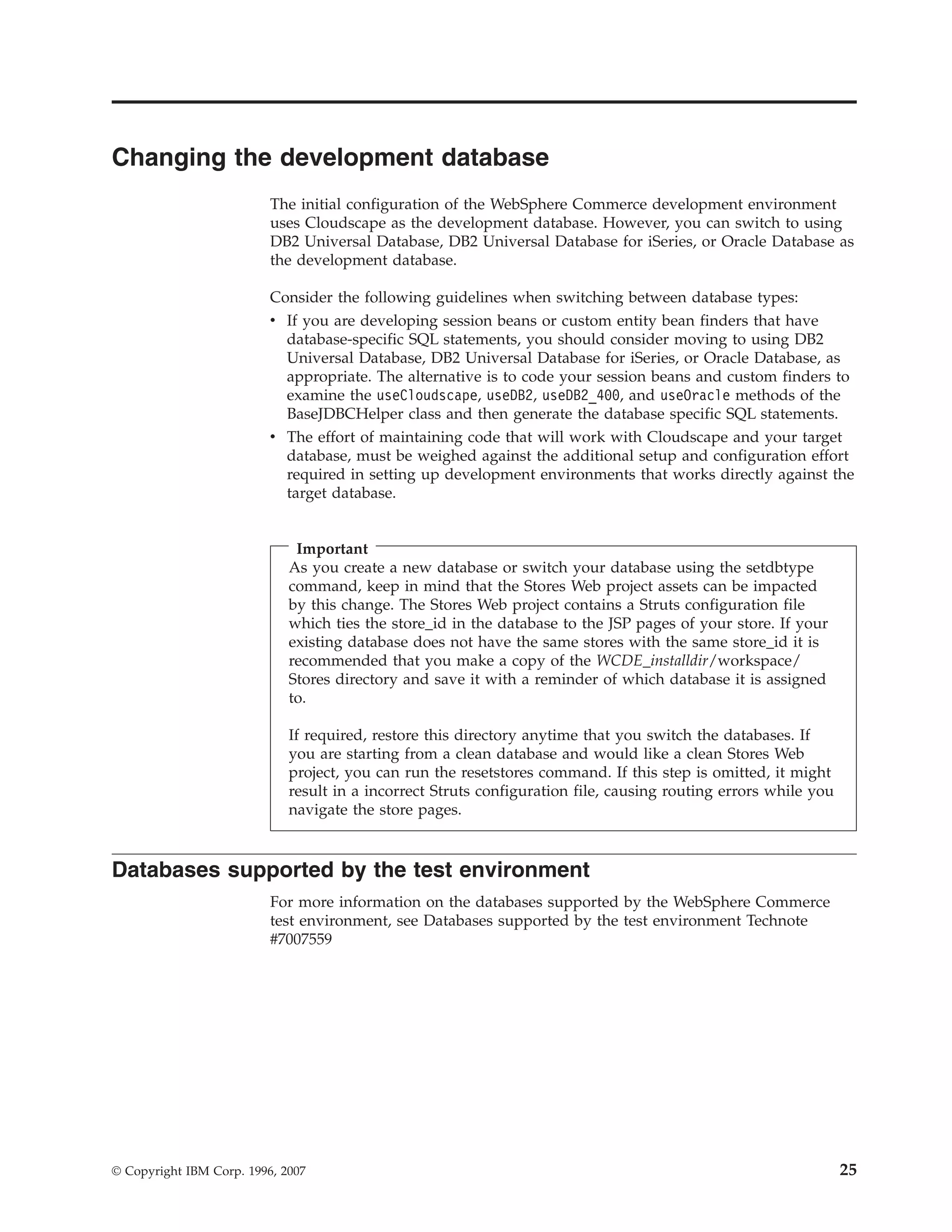

Changing the development database 25 Starting the WebSphere Commerce information
Databases supported by the test environment . . . 25 center . . . . . . . . . . . . . . . . 52

© Copyright IBM Corp. 1996, 2007 iii

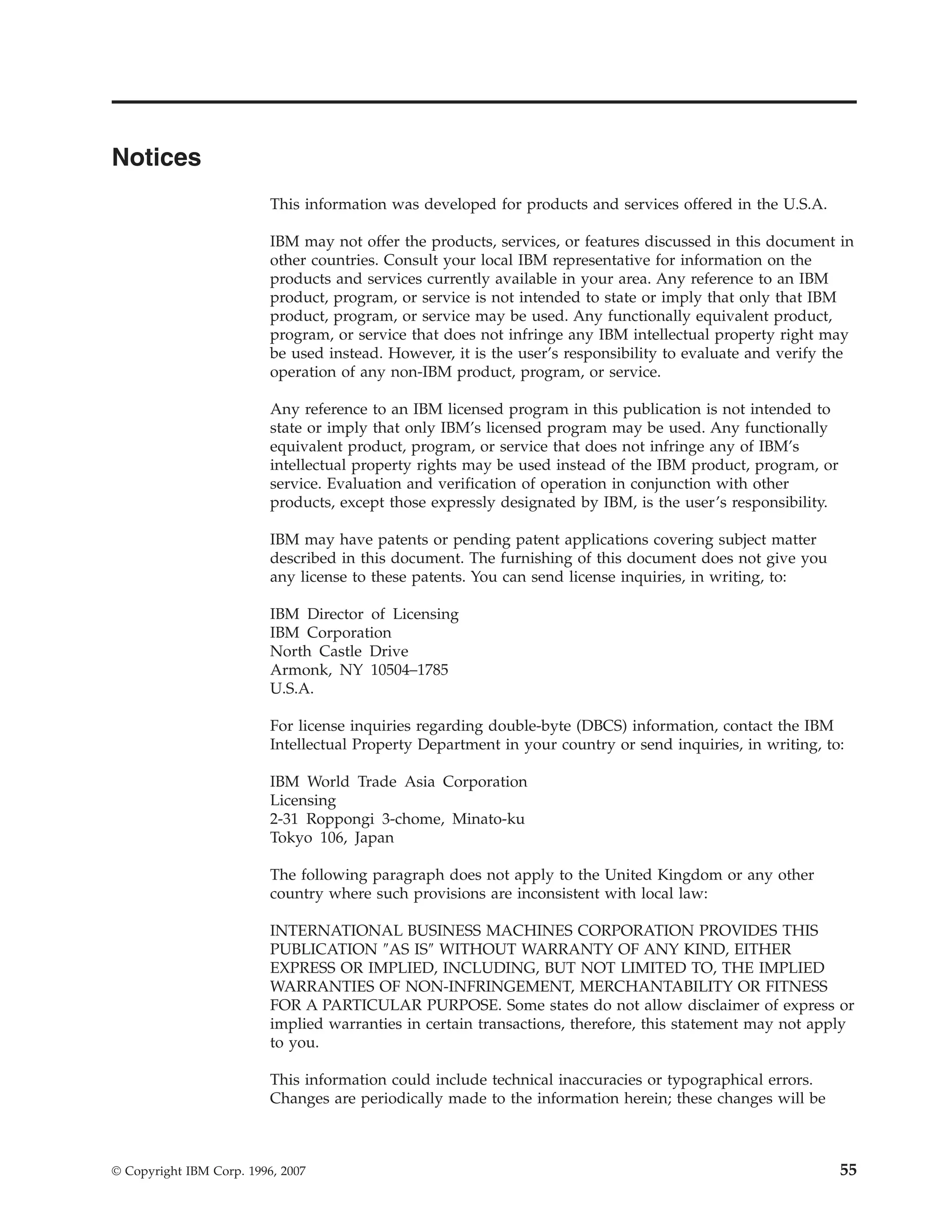

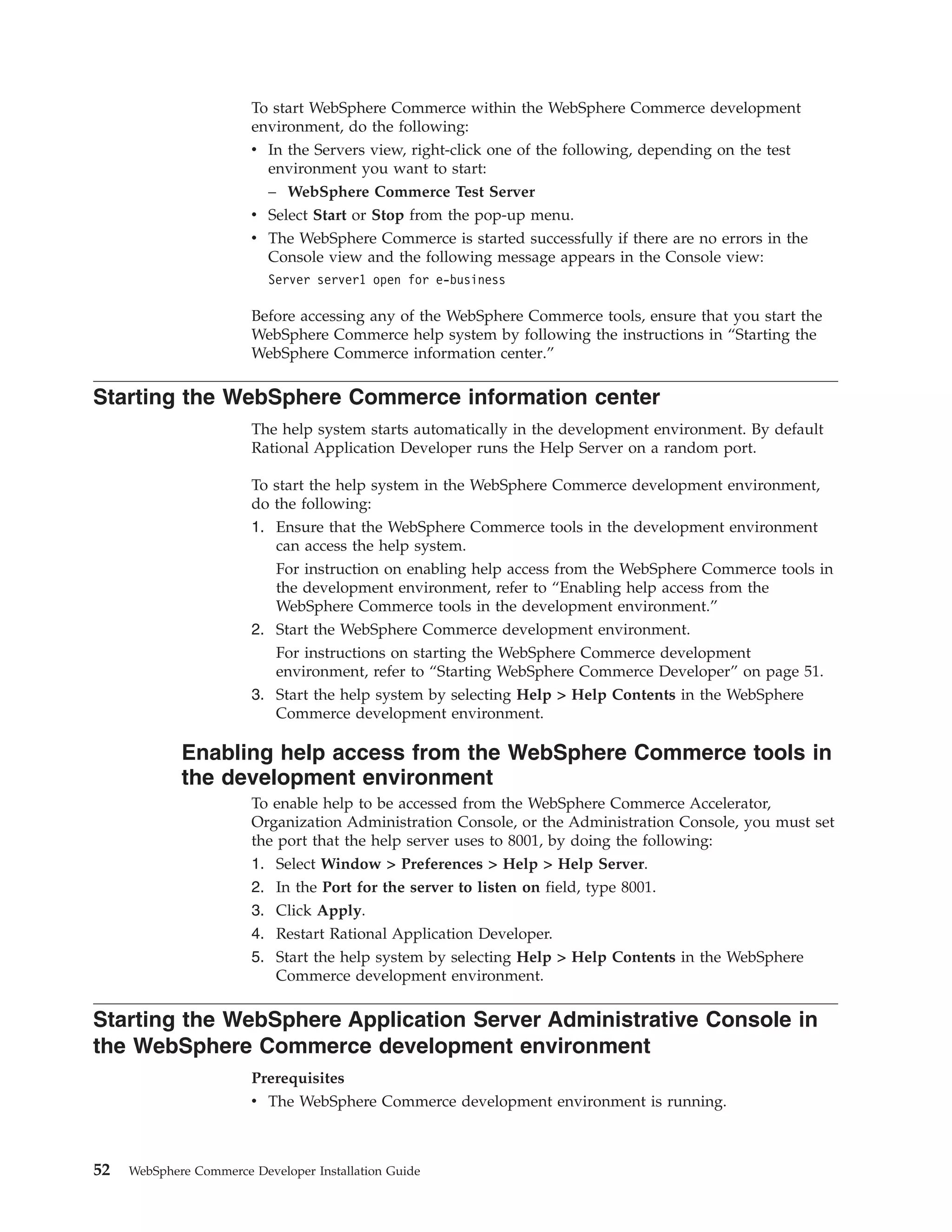

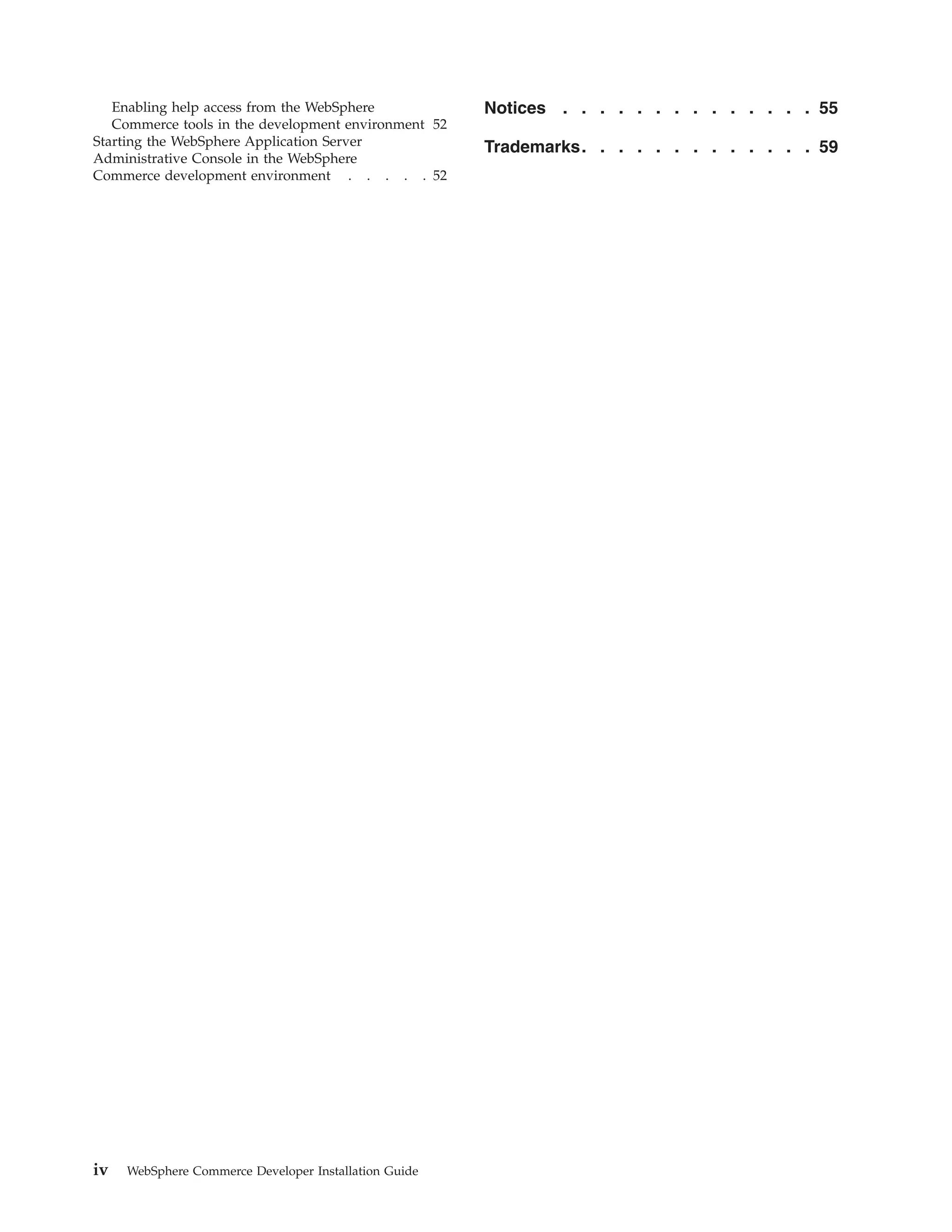

Enabling help access from the WebSphere Notices . . . . . . . . . . . . . . 55
Commerce tools in the development environment 52

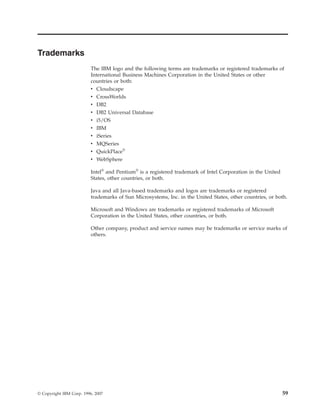

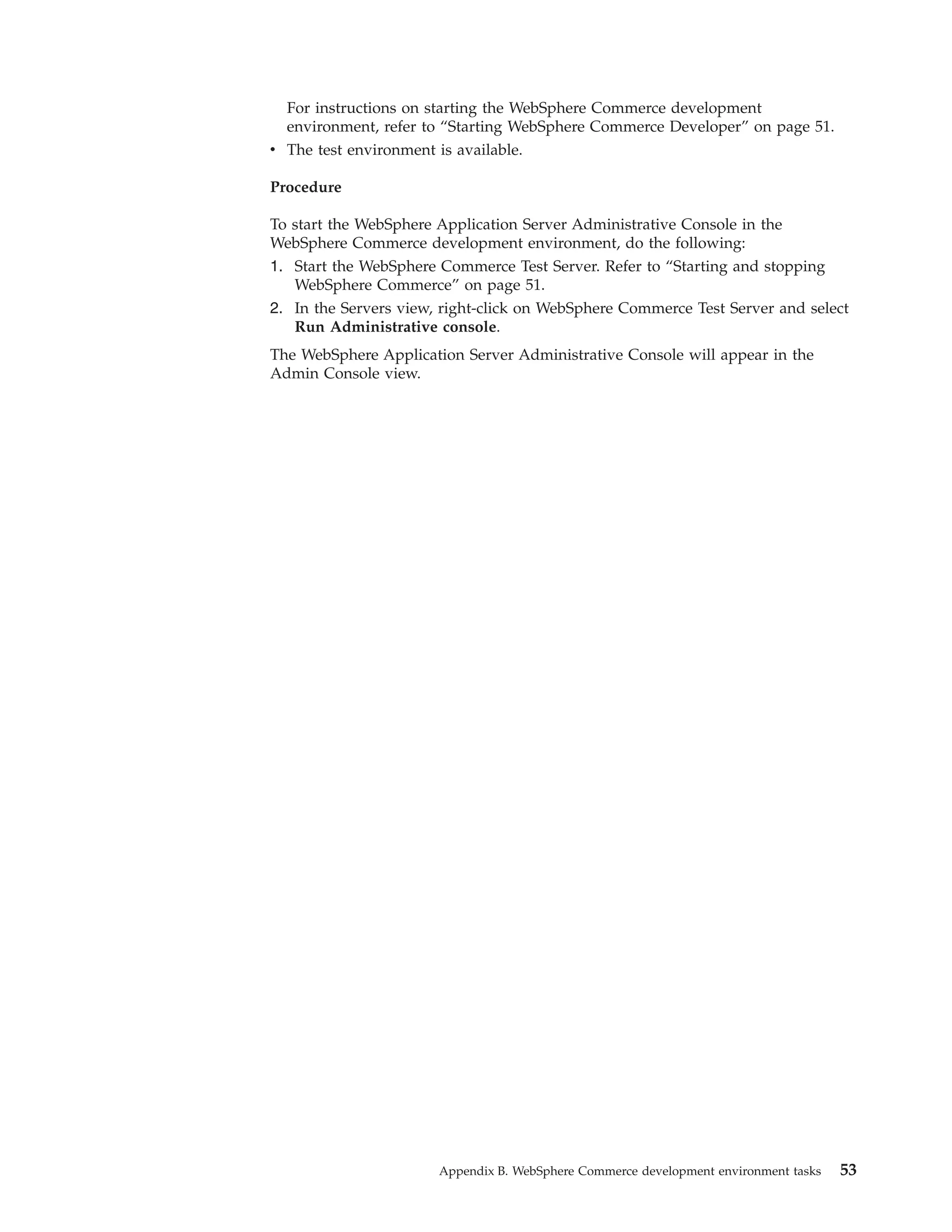

Starting the WebSphere Application Server Trademarks. . . . . . . . . . . . . 59
Administrative Console in the WebSphere
Commerce development environment . . . . . 52

iv WebSphere Commerce Developer Installation Guide

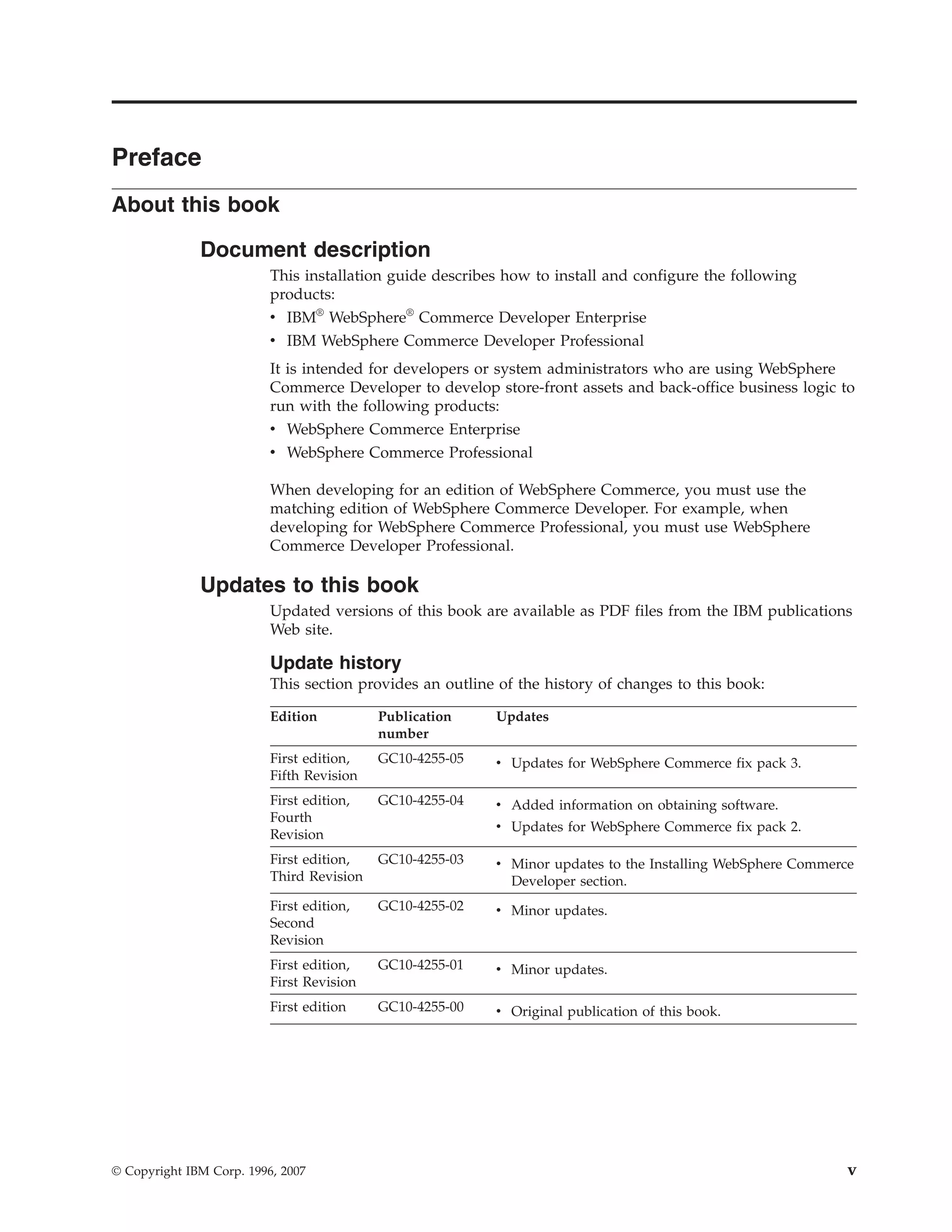

Preface
About this book

Document description
This installation guide describes how to install and configure the following
products:
v IBM® WebSphere® Commerce Developer Enterprise
v IBM WebSphere Commerce Developer Professional
It is intended for developers or system administrators who are using WebSphere
Commerce Developer to develop store-front assets and back-office business logic to
run with the following products:
v WebSphere Commerce Enterprise
v WebSphere Commerce Professional

When developing for an edition of WebSphere Commerce, you must use the
matching edition of WebSphere Commerce Developer. For example, when
developing for WebSphere Commerce Professional, you must use WebSphere
Commerce Developer Professional.

Updates to this book
Updated versions of this book are available as PDF files from the IBM publications
Web site.

Update history
This section provides an outline of the history of changes to this book:

Edition Publication Updates
number
First edition, GC10-4255-05 v Updates for WebSphere Commerce fix pack 3.
Fifth Revision
First edition, GC10-4255-04 v Added information on obtaining software.
Fourth
v Updates for WebSphere Commerce fix pack 2.
Revision
First edition, GC10-4255-03 v Minor updates to the Installing WebSphere Commerce
Third Revision Developer section.
First edition, GC10-4255-02 v Minor updates.
Second
Revision
First edition, GC10-4255-01 v Minor updates.
First Revision
First edition GC10-4255-00 v Original publication of this book.

© Copyright IBM Corp. 1996, 2007 v

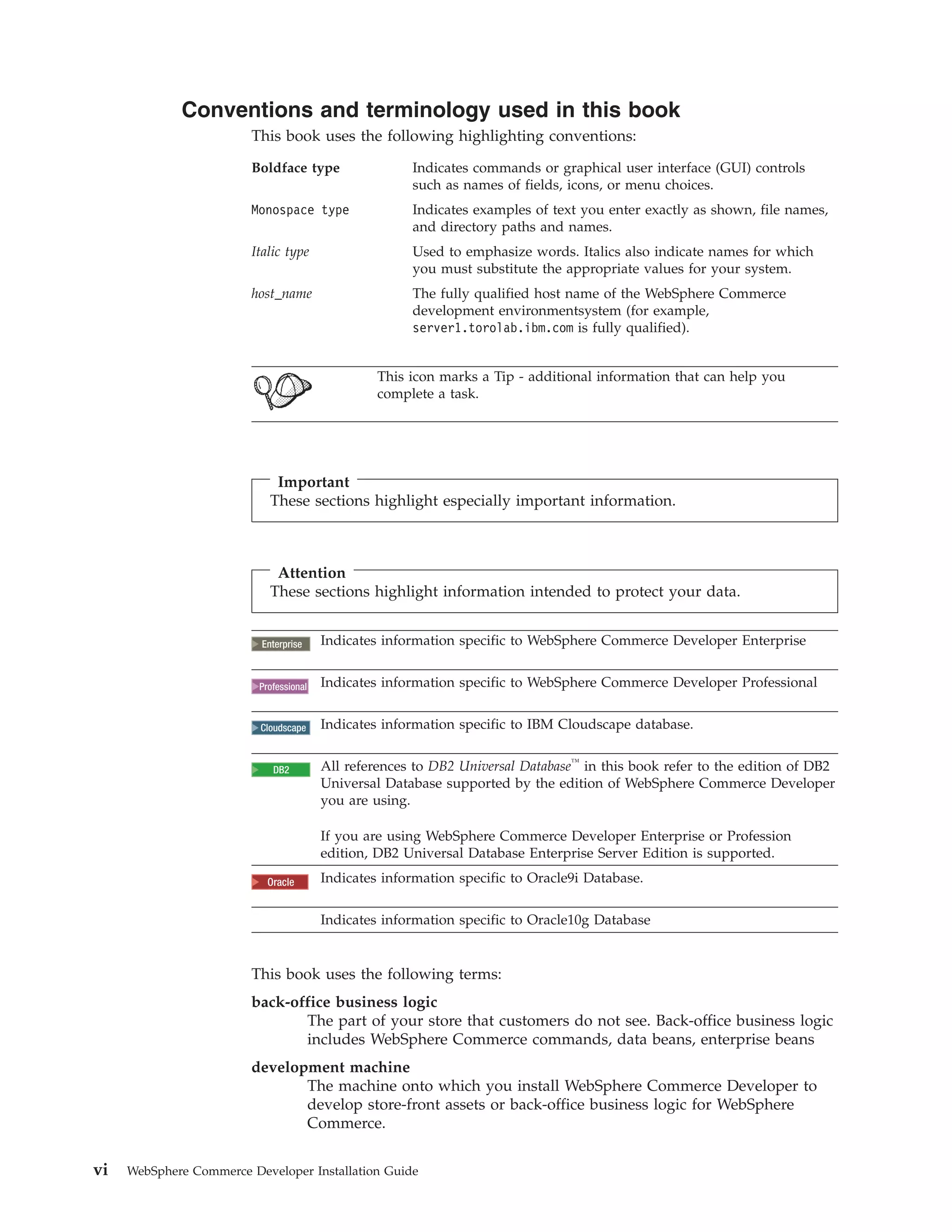

Conventions and terminology used in this book
This book uses the following highlighting conventions:

Boldface type Indicates commands or graphical user interface (GUI) controls
such as names of fields, icons, or menu choices.
Monospace type Indicates examples of text you enter exactly as shown, file names,
and directory paths and names.
Italic type Used to emphasize words. Italics also indicate names for which
you must substitute the appropriate values for your system.
host_name The fully qualified host name of the WebSphere Commerce
development environmentsystem (for example,
server1.torolab.ibm.com is fully qualified).

This icon marks a Tip - additional information that can help you
complete a task.

Important
These sections highlight especially important information.

Attention
These sections highlight information intended to protect your data.

2000
Enterprise Indicates information specific to WebSphere Commerce Developer Enterprise

2000
Professional Indicates information specific to WebSphere Commerce Developer Professional

Cloudscape Indicates information specific to IBM Cloudscape database.

2000
DB2 All references to DB2 Universal Database™ in this book refer to the edition of DB2
Universal Database supported by the edition of WebSphere Commerce Developer
you are using.

If you are using WebSphere Commerce Developer Enterprise or Profession
edition, DB2 Universal Database Enterprise Server Edition is supported.

Oracle
2000 Indicates information specific to Oracle9i Database.

Indicates information specific to Oracle10g Database

This book uses the following terms:
back-office business logic
The part of your store that customers do not see. Back-office business logic
includes WebSphere Commerce commands, data beans, enterprise beans
development machine
The machine onto which you install WebSphere Commerce Developer to
develop store-front assets or back-office business logic for WebSphere
Commerce.

vi WebSphere Commerce Developer Installation Guide

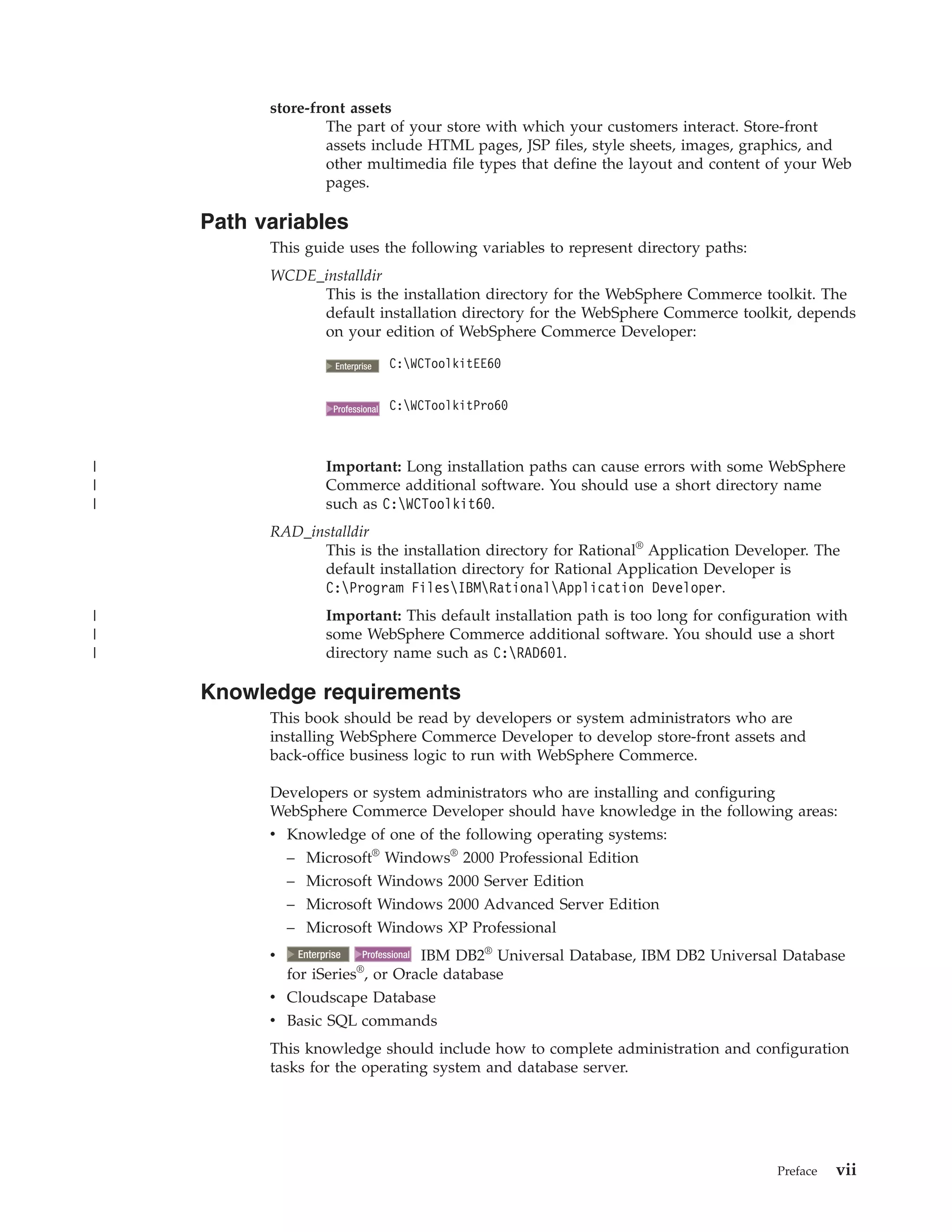

store-front assets
The part of your store with which your customers interact. Store-front
assets include HTML pages, JSP files, style sheets, images, graphics, and
other multimedia file types that define the layout and content of your Web
pages.

Path variables
This guide uses the following variables to represent directory paths:
WCDE_installdir
This is the installation directory for the WebSphere Commerce toolkit. The
default installation directory for the WebSphere Commerce toolkit, depends
on your edition of WebSphere Commerce Developer:

2000
Enterprise C:WCToolkitEE60

2000
Professional C:WCToolkitPro60

| Important: Long installation paths can cause errors with some WebSphere
| Commerce additional software. You should use a short directory name
| such as C:WCToolkit60.
RAD_installdir
This is the installation directory for Rational® Application Developer. The
default installation directory for Rational Application Developer is
C:Program FilesIBMRationalApplication Developer.
| Important: This default installation path is too long for configuration with
| some WebSphere Commerce additional software. You should use a short
| directory name such as C:RAD601.

Knowledge requirements
This book should be read by developers or system administrators who are
installing WebSphere Commerce Developer to develop store-front assets and
back-office business logic to run with WebSphere Commerce.

Developers or system administrators who are installing and configuring
WebSphere Commerce Developer should have knowledge in the following areas:
v Knowledge of one of the following operating systems:
– Microsoft® Windows® 2000 Professional Edition
– Microsoft Windows 2000 Server Edition
– Microsoft Windows 2000 Advanced Server Edition
– Microsoft Windows XP Professional
v 2000
Enterprise IBM DB2® Universal Database, IBM DB2 Universal Database
2000
Professional
®
for iSeries , or Oracle database
v Cloudscape Database
v Basic SQL commands
This knowledge should include how to complete administration and configuration
tasks for the operating system and database server.

Preface vii

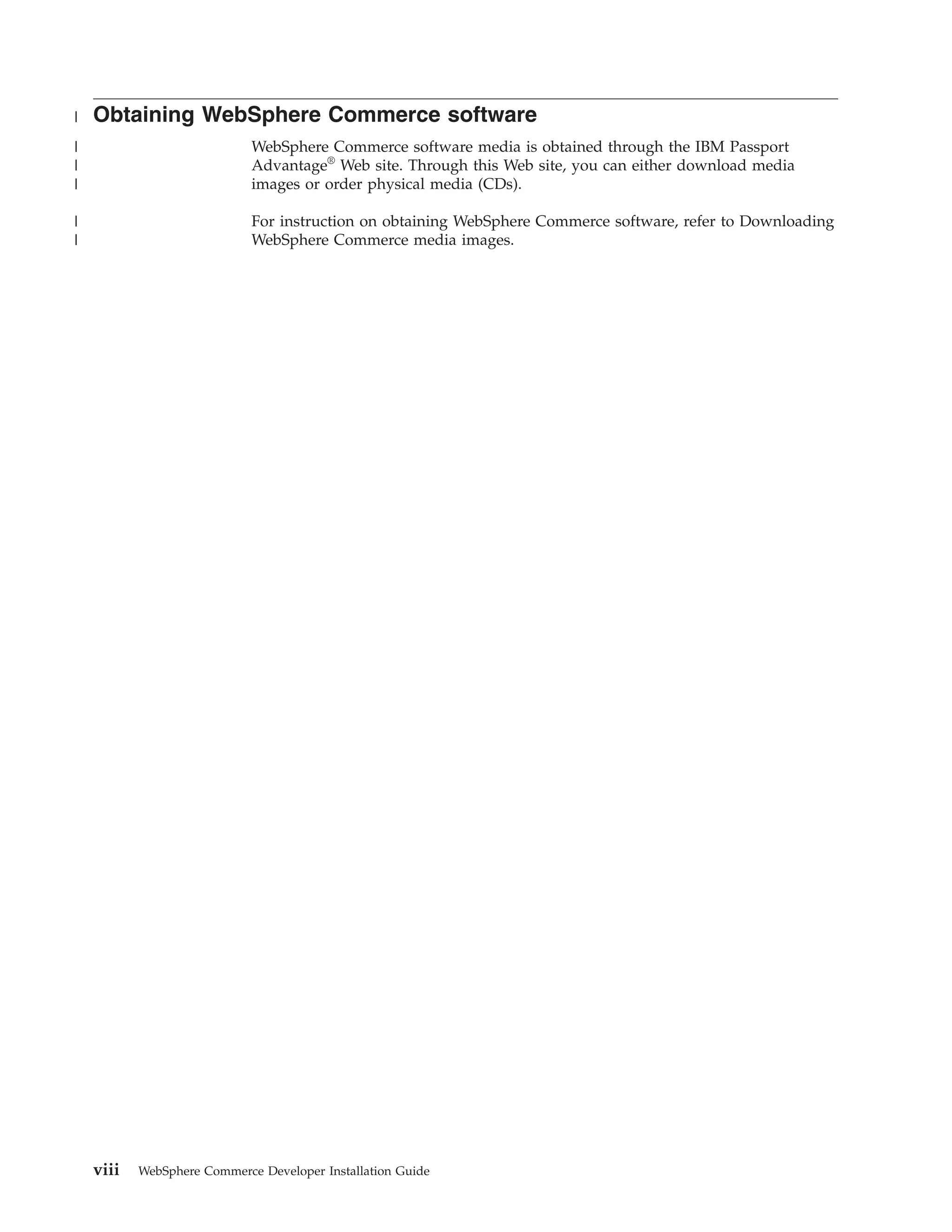

| Obtaining WebSphere Commerce software
| WebSphere Commerce software media is obtained through the IBM Passport
| Advantage® Web site. Through this Web site, you can either download media
| images or order physical media (CDs).

| For instruction on obtaining WebSphere Commerce software, refer to Downloading
| WebSphere Commerce media images.

viii WebSphere Commerce Developer Installation Guide

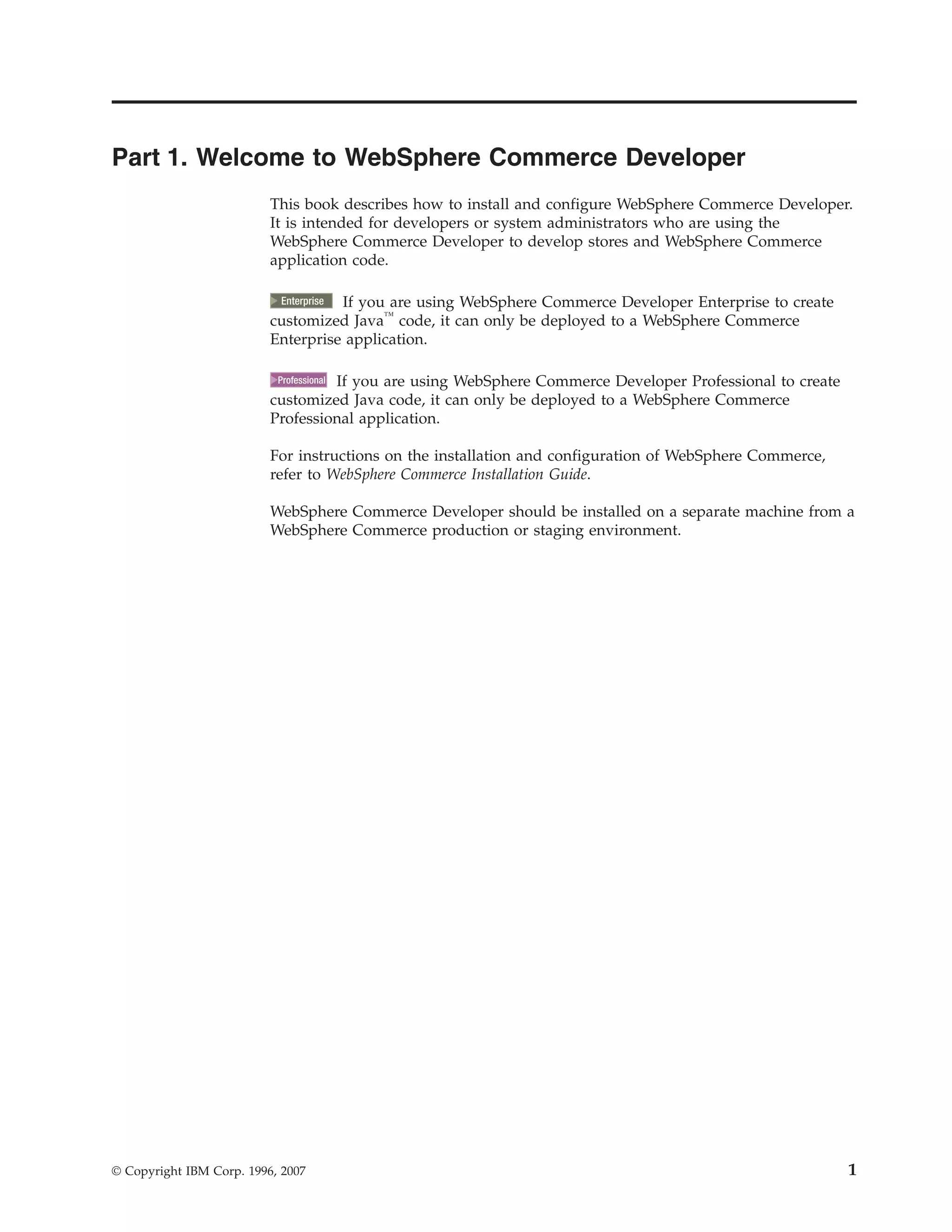

Part 1. Welcome to WebSphere Commerce Developer
This book describes how to install and configure WebSphere Commerce Developer.
It is intended for developers or system administrators who are using the
WebSphere Commerce Developer to develop stores and WebSphere Commerce
application code.

2000 If you are using WebSphere Commerce Developer Enterprise to create
Enterprise
customized Java™ code, it can only be deployed to a WebSphere Commerce
Enterprise application.

2000 If you are using WebSphere Commerce Developer Professional to create
Professional

customized Java code, it can only be deployed to a WebSphere Commerce
Professional application.

For instructions on the installation and configuration of WebSphere Commerce,
refer to WebSphere Commerce Installation Guide.

WebSphere Commerce Developer should be installed on a separate machine from a
WebSphere Commerce production or staging environment.

© Copyright IBM Corp. 1996, 2007 1

2 WebSphere Commerce Developer Installation Guide

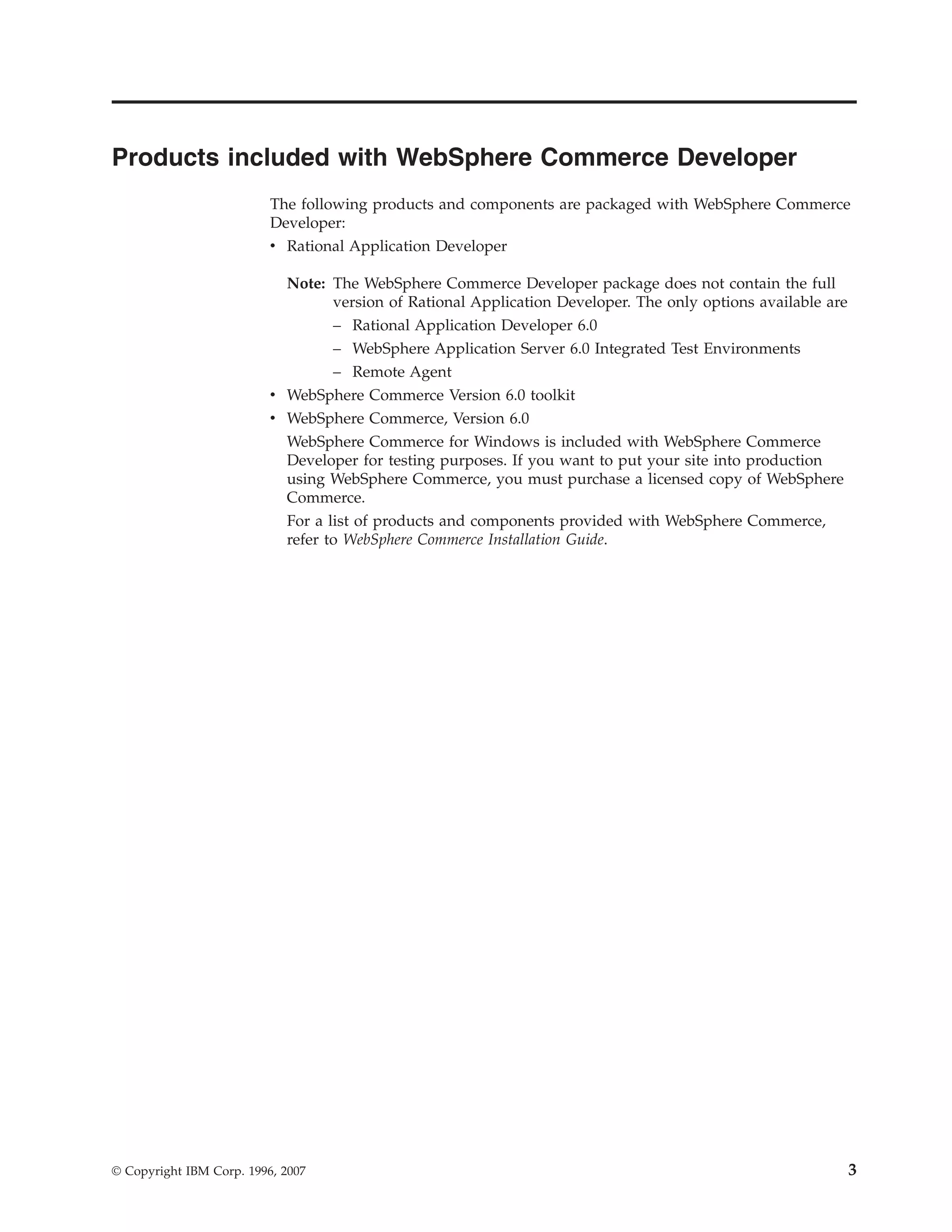

Products included with WebSphere Commerce Developer
The following products and components are packaged with WebSphere Commerce
Developer:
v Rational Application Developer

Note: The WebSphere Commerce Developer package does not contain the full
version of Rational Application Developer. The only options available are
– Rational Application Developer 6.0
– WebSphere Application Server 6.0 Integrated Test Environments
– Remote Agent
v WebSphere Commerce Version 6.0 toolkit
v WebSphere Commerce, Version 6.0
WebSphere Commerce for Windows is included with WebSphere Commerce
Developer for testing purposes. If you want to put your site into production
using WebSphere Commerce, you must purchase a licensed copy of WebSphere
Commerce.
For a list of products and components provided with WebSphere Commerce,
refer to WebSphere Commerce Installation Guide.

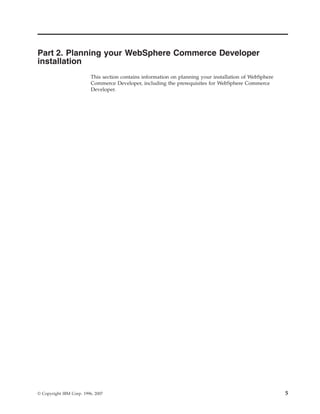

Part 2. Planning your WebSphere Commerce Developer
installation
This section contains information on planning your installation of WebSphere
Commerce Developer, including the prerequisites for WebSphere Commerce
Developer.


About WebSphere Commerce Developer
WebSphere Commerce Developer is the combination of Rational Application
Developer and the WebSphere Commerce toolkit. The WebSphere Commerce
toolkit provides a test environment, a workspace, and published starter stores in
Rational Application Developer. The test environment and workspace are
customized for WebSphere Commerce development.

If you are developing assets for more than one target application, you might need
to configure multiple WebSphere Commerce workspaces. To obtain multiple
WebSphere Commerce workspaces, install the WebSphere Commerce toolkit
multiple times.


Migrating previous versions of WebSphere Commerce
Developer
Migration to WebSphere Commerce Developer, Version 6.0 from the following
versions of WebSphere Commerce Developer is supported:
v WebSphere Commerce Developer Version 5.6.1
v WebSphere Commerce Developer Version 5.6
v WebSphere Commerce Studio Version 5.5
Migration from other versions of WebSphere Commerce Studio is not supported.

For information on how to migrate to WebSphere Commerce Developer, Version
6.0 from previous versions of WebSphere Commerce, refer to the WebSphere
Commerce Developer Migration Guide.

The Migration Guides are available from the WebSphere Commerce technical
library.

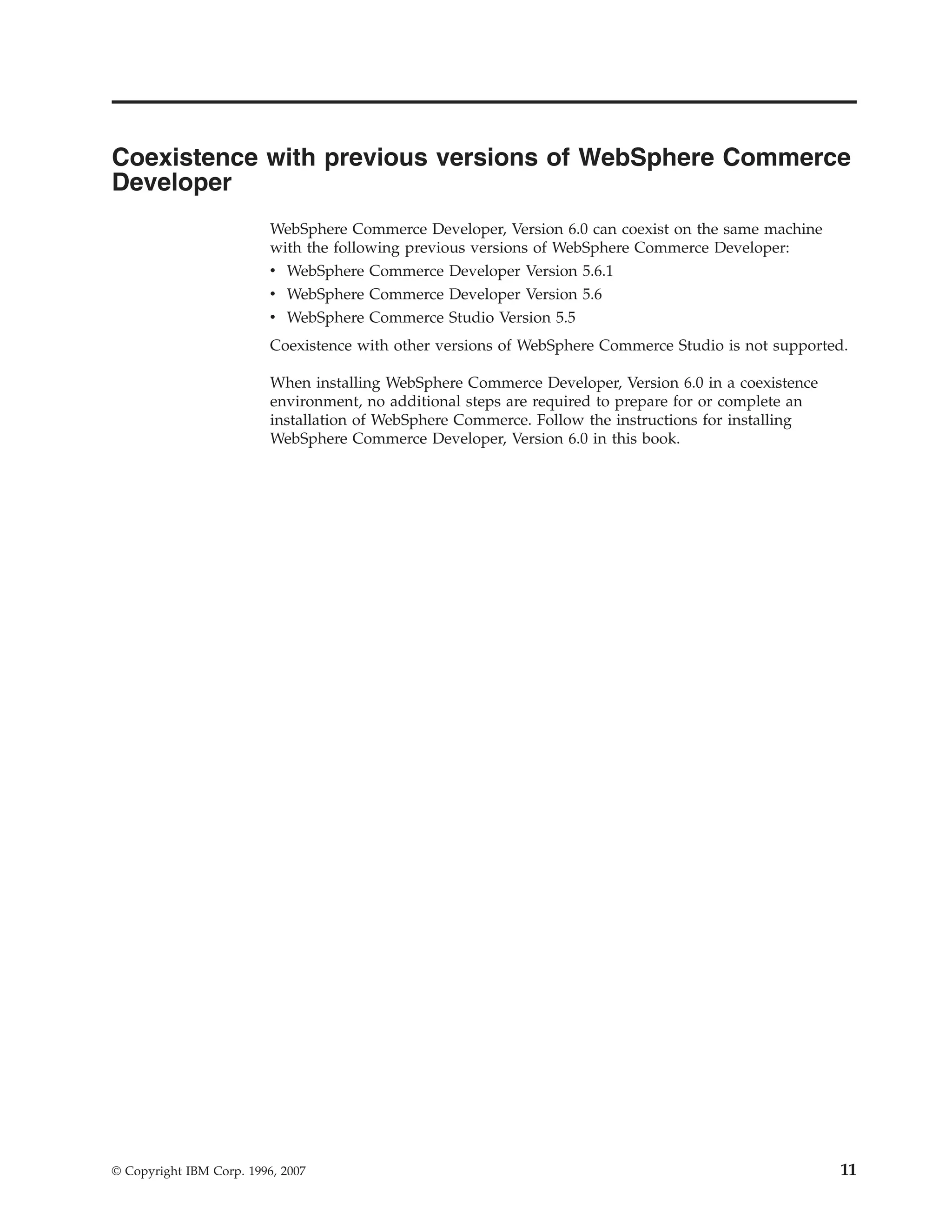

Coexistence with previous versions of WebSphere Commerce
Developer
WebSphere Commerce Developer, Version 6.0 can coexist on the same machine
with the following previous versions of WebSphere Commerce Developer:
v WebSphere Commerce Developer Version 5.6.1
v WebSphere Commerce Developer Version 5.6
v WebSphere Commerce Studio Version 5.5
Coexistence with other versions of WebSphere Commerce Studio is not supported.

When installing WebSphere Commerce Developer, Version 6.0 in a coexistence
environment, no additional steps are required to prepare for or complete an
installation of WebSphere Commerce. Follow the instructions for installing
WebSphere Commerce Developer, Version 6.0 in this book.


Pre-installation requirements
Before installing WebSphere Commerce Developer, ensure that your machine meets
the following hardware and software prerequisites.

Prerequisite hardware
Ensure that the machine on which you want to install WebSphere Commerce
Developer meets the requirements listed in the IBM WebSphere Commerce
Developer Version 6.0 Hardware prerequisites Technote #7007490.

Prerequisite software
Developer meets the requirements listed in IBM WebSphere Commerce Developer
Version 6.0 Software prerequisites Technote #7007488.

Network configuration requirements
Developer meets the requirements listed in IBM WebSphere Commerce Developer
Version 6.0 Networking prerequisites Technote #7007489.

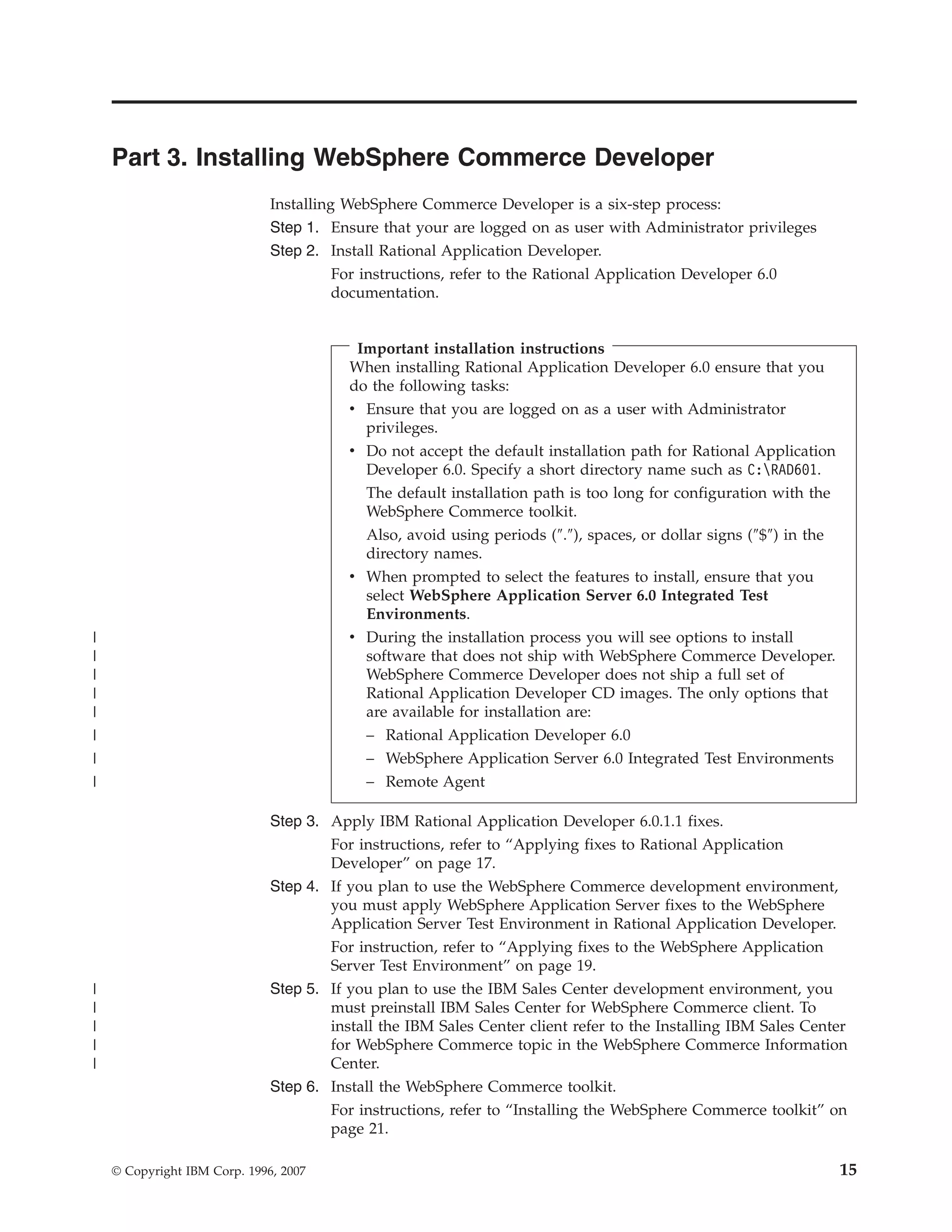

Part 3. Installing WebSphere Commerce Developer
Installing WebSphere Commerce Developer is a six-step process:
Step 1. Ensure that your are logged on as user with Administrator privileges
Step 2. Install Rational Application Developer.
For instructions, refer to the Rational Application Developer 6.0
documentation.

Important installation instructions
When installing Rational Application Developer 6.0 ensure that you
do the following tasks:
v Ensure that you are logged on as a user with Administrator
privileges.
v Do not accept the default installation path for Rational Application
Developer 6.0. Specify a short directory name such as C:RAD601.
The default installation path is too long for configuration with the
WebSphere Commerce toolkit.
Also, avoid using periods (″.″), spaces, or dollar signs (″$″) in the
directory names.
v When prompted to select the features to install, ensure that you
select WebSphere Application Server 6.0 Integrated Test
Environments.
| v During the installation process you will see options to install
| software that does not ship with WebSphere Commerce Developer.
| WebSphere Commerce Developer does not ship a full set of
| Rational Application Developer CD images. The only options that
| are available for installation are:
| – Rational Application Developer 6.0
| – WebSphere Application Server 6.0 Integrated Test Environments
| – Remote Agent

Step 3. Apply IBM Rational Application Developer 6.0.1.1 fixes.
For instructions, refer to “Applying fixes to Rational Application
Developer” on page 17.
Step 4. If you plan to use the WebSphere Commerce development environment,
you must apply WebSphere Application Server fixes to the WebSphere
Application Server Test Environment in Rational Application Developer.
For instruction, refer to “Applying fixes to the WebSphere Application
Server Test Environment” on page 19.
| Step 5. If you plan to use the IBM Sales Center development environment, you
| must preinstall IBM Sales Center for WebSphere Commerce client. To
| install the IBM Sales Center client refer to the Installing IBM Sales Center
| for WebSphere Commerce topic in the WebSphere Commerce Information
| Center.
Step 6. Install the WebSphere Commerce toolkit.
For instructions, refer to “Installing the WebSphere Commerce toolkit” on
page 21.

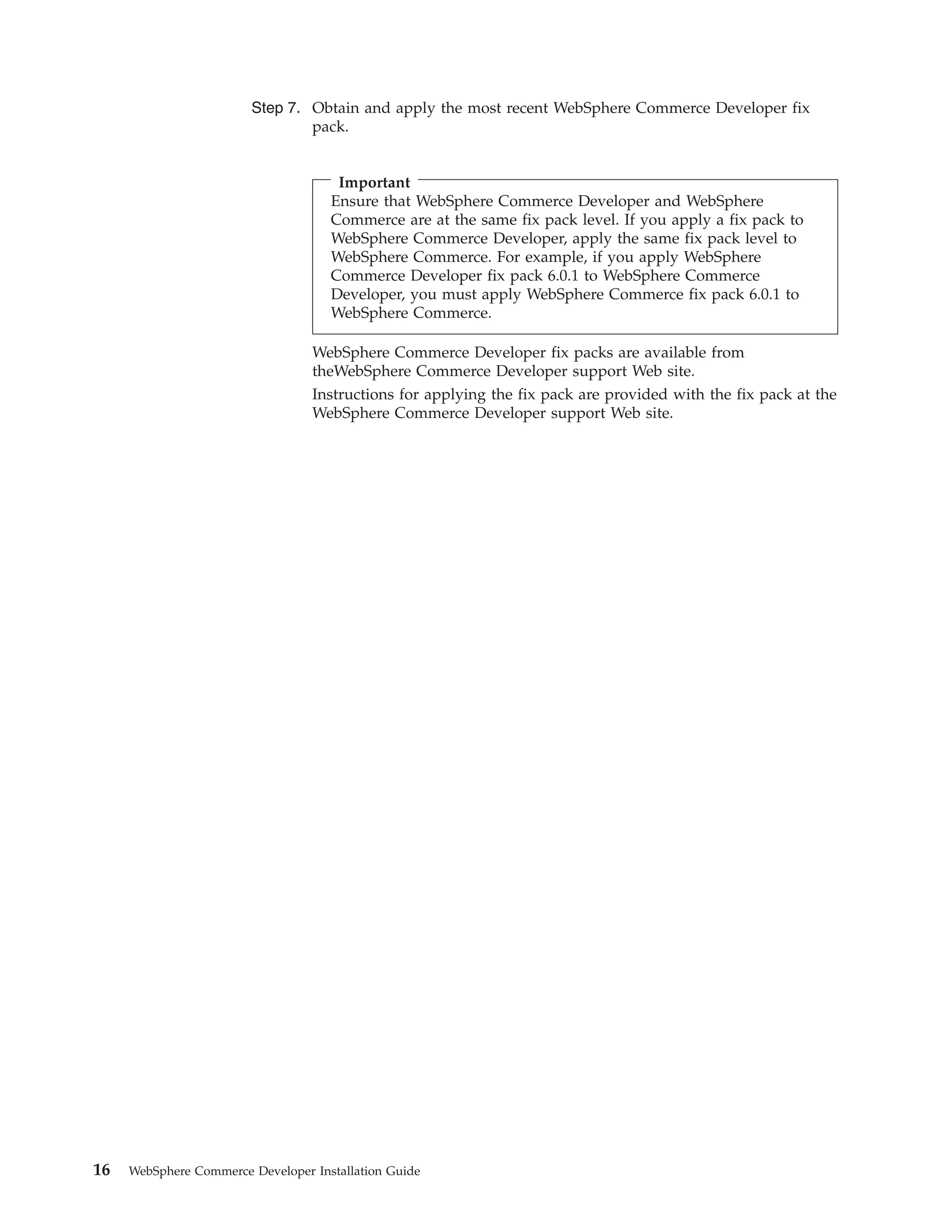

Step 7. Obtain and apply the most recent WebSphere Commerce Developer fix
pack.

Important
Ensure that WebSphere Commerce Developer and WebSphere
Commerce are at the same fix pack level. If you apply a fix pack to
WebSphere Commerce Developer, apply the same fix pack level to
WebSphere Commerce. For example, if you apply WebSphere
Commerce Developer fix pack 6.0.1 to WebSphere Commerce
Developer, you must apply WebSphere Commerce fix pack 6.0.1 to
WebSphere Commerce.

WebSphere Commerce Developer fix packs are available from
theWebSphere Commerce Developer support Web site.
Instructions for applying the fix pack are provided with the fix pack at the
WebSphere Commerce Developer support Web site.


Applying fixes to Rational Application Developer
Update Rational Application Developer to the 6.0.1.1 level. To apply Rational
Application Developer fixes complete the following steps:
1. Open the Rational Product Updater by selecting Start > Programs > IBM
Rational > Rational Product Updater.
2. Select IBM Rational Application Developer and click Find Updates.
3. The updater detects all of the applicable fixes. Click Select All and click Install
Updates.

Note: If you have chosen to install the Remote Agent Controller, ensure that
you apply the latest fixes that are available for the that component.
4. Accept the license agreement and click Finish.
5. Follow the prompts to install all of the updates.

Note: Incremental updates might be required. To apply these updates the
Rational Product Updater must be run multiple times.


Applying fixes to the WebSphere Application Server Test
Environment
Prerequisites
v The machine on which you are installing meets all prerequisites outlined in
“Pre-installation requirements” on page 13.
v You have installed IBM Rational Application Developer 6.0.1.1 with the
WebSphere Application Server Version 6.0 Test Environment on the machine.
v You have stopped any applications running on your machine.
v You are logged on as a user with Administrator privileges.

Procedure

To apply WebSphere Application Server fixes to the WebSphere Application Server
Version 6.0 Test Environment in Rational Application Developer, do the following:
1. Depending on the location of your WebSphere Application Server CD image,
complete one of the following:
v Insert the WebSphere Application Server CD Disk 2 from the WebSphere
Commerce package provided with WebSphere Commerce Developer, into the
CD-ROM drive of the machine where you have Rational Application
Developer installed.
v Navigate to the location of the WebSphere Application Server CD Disk 2
image on the machine where you have Rational Application Developer
installed.
2. Prepare the update installation wizard as follows:
a. Start a command prompt session.
b. Do the following in the command prompt session:
1) Change directories to the WAS directory on the CD image.
2) Issue the following command:
install.exe
You can close the command prompt session at this point.
c. Select the WebSphere Application Server that is used by Rational
Application Developer.
d. When prompted by the install wizard, select Apply maintenance and add
features.
e. Ensure that the following directory is selected to update:
RAD_installdir/runtimes/base_v6

Click Next.
3. When the update installation wizard completes, click Finish.
For the most current list of required maintenance, see the WebSphere Commerce
Developer required maintenance Technote #1236356.


Installing the WebSphere Commerce toolkit
Prerequisites
v The machine on which you are installing meets all prerequisites outlined in
“Pre-installation requirements” on page 13.
v You have installed IBM Rational Application Developer 6.0.1.1 with the IBM
WebSphere Application Server, Version 6.0.2.5 Test Environment on the machine.
v You have stopped any applications running on your machine.
v Disable any Web server that you have configured on your machine.
v You are logged on as a user with Administrator privileges.
| v If you plan to use the IBM Sales Center development environment, you must
| preinstall IBM Sales Center client.

Procedure

To install the WebSphere Commerce toolkit, do the one of the following:
v Complete a GUI installation of the WebSphere Commerce toolkit on page 21.
v Complete a silent installation of the WebSphere Commerce toolkit on page 22.

Complete a GUI installation of the WebSphere Commerce toolkit
v To complete a GUI installation of the WebSphere Commerce toolkit, complete the
following steps:
– Insert WebSphere Commerce Developer CD in the CD-ROM of the
Rational Application Developer machine.
The WebSphere Commerce toolkit installation wizard should start
automatically.
If the WebSphere Commerce toolkit installation does not start
automatically, run setup.exe on the root of the WebSphere Commerce
Developer CD.
– Navigate to the location of the WebSphere Commerce Developer CD
image on the machine where you have Rational Application Developer
installed.
From the root directory of the WebSphere Commerce Developer CD
image, run the following command:
setup.exe
2. Follow the instructions on the panels and complete your installation.
| Important: Long installation paths can cause errors with some WebSphere
| Commerce additional software. You should use a short directory name such
| as C:WCToolkit60.
3. Ensure that the install was successful by doing the following:
– Examine the contents of WCDE_installdir/logs/setup.log. If setup.log is
empty or has errors, try running WCDE_installdir/bin/setup.bat from the
command line.
– If you have installed the IBM Sales Center development environment
component examine the contents of the WCDE_installdir/logs/
setupmsc.log for errors.


– If errors appear in the log, examine the WCDE_installdir/bin/setenv.bat
file. Ensure that the RAD_HOME environment variable points to the
correct Rational Application Developer installation location, and that the
WED_HOME environment variable points to the correct IBM Sales Center
for WebSphere Commerce location.
– Check that the install was able to properly detect Rational Application
Developer on your system by ensuring that WCDE_installdir/bin/
setenv.bat sets the RAD_HOME environment variable to RAD_installdir
correctly.

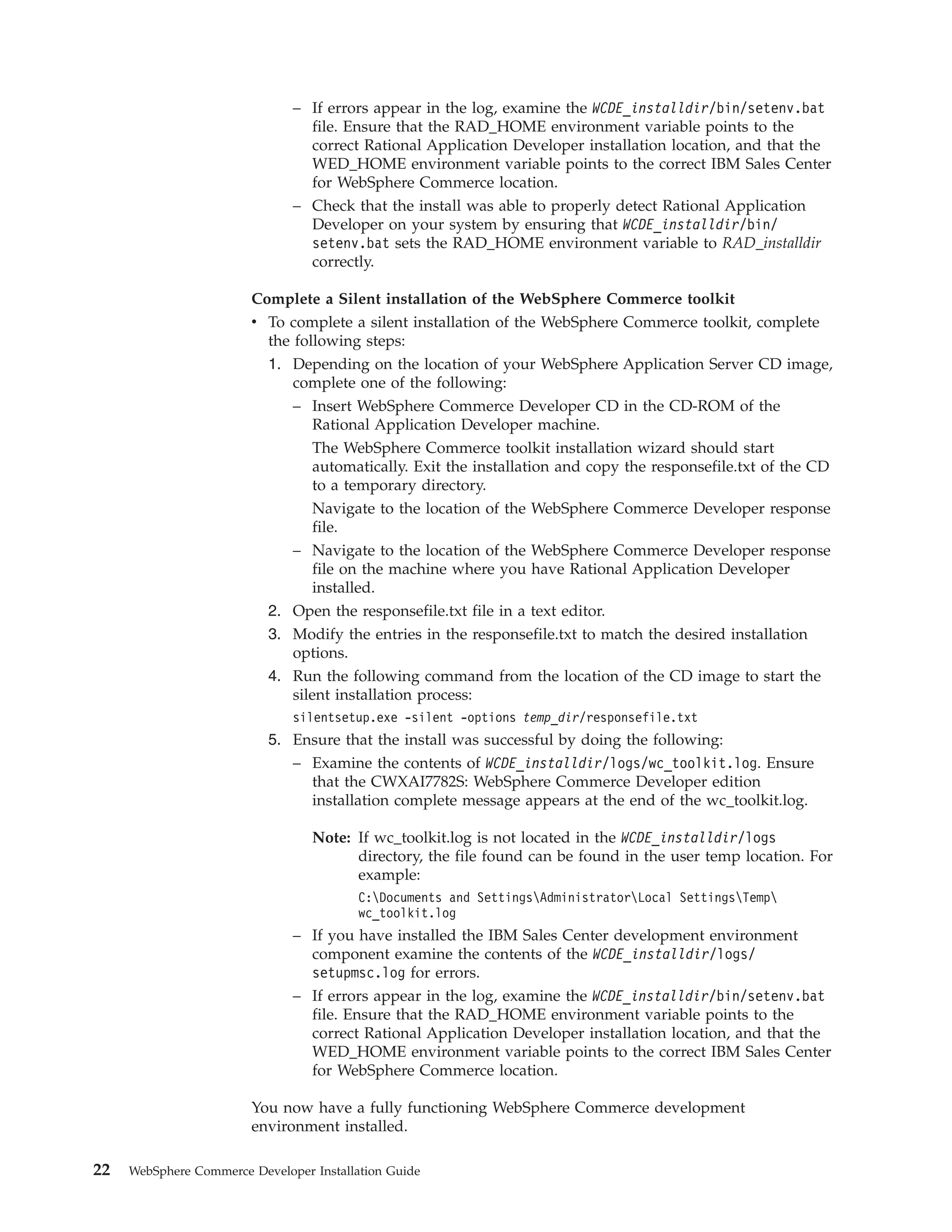

Complete a Silent installation of the WebSphere Commerce toolkit
v To complete a silent installation of the WebSphere Commerce toolkit, complete
the following steps:
– Insert WebSphere Commerce Developer CD in the CD-ROM of the
Rational Application Developer machine.
The WebSphere Commerce toolkit installation wizard should start
automatically. Exit the installation and copy the responsefile.txt of the CD
to a temporary directory.
Navigate to the location of the WebSphere Commerce Developer response
file.
– Navigate to the location of the WebSphere Commerce Developer response
file on the machine where you have Rational Application Developer
installed.
2. Open the responsefile.txt file in a text editor.
3. Modify the entries in the responsefile.txt to match the desired installation
options.
4. Run the following command from the location of the CD image to start the
silent installation process:
silentsetup.exe -silent -options temp_dir/responsefile.txt
5. Ensure that the install was successful by doing the following:
– Examine the contents of WCDE_installdir/logs/wc_toolkit.log. Ensure
that the CWXAI7782S: WebSphere Commerce Developer edition
installation complete message appears at the end of the wc_toolkit.log.

Note: If wc_toolkit.log is not located in the WCDE_installdir/logs
directory, the file found can be found in the user temp location. For
example:
C:Documents and SettingsAdministratorLocal SettingsTemp
wc_toolkit.log
– If you have installed the IBM Sales Center development environment
component examine the contents of the WCDE_installdir/logs/
setupmsc.log for errors.
– If errors appear in the log, examine the WCDE_installdir/bin/setenv.bat
file. Ensure that the RAD_HOME environment variable points to the
correct Rational Application Developer installation location, and that the
WED_HOME environment variable points to the correct IBM Sales Center
for WebSphere Commerce location.

You now have a fully functioning WebSphere Commerce development
environment installed.


Part 4. Configuring WebSphere Commerce Developer
The chapters in this section describe how to perform any of the optional
configurations for WebSphere Commerce Developer beyond the initial
configuration when you install WebSphere Commerce Developer. Topics covered in
this section include:
v “Changing the development database” on page 25
v “Configuring additional WebSphere Commerce software for WebSphere
Commerce Developer” on page 37


Changing the development database
The initial configuration of the WebSphere Commerce development environment
uses Cloudscape as the development database. However, you can switch to using
DB2 Universal Database, DB2 Universal Database for iSeries, or Oracle Database as
the development database.

Consider the following guidelines when switching between database types:
v If you are developing session beans or custom entity bean finders that have
database-specific SQL statements, you should consider moving to using DB2
Universal Database, DB2 Universal Database for iSeries, or Oracle Database, as
appropriate. The alternative is to code your session beans and custom finders to
examine the useCloudscape, useDB2, useDB2_400, and useOracle methods of the
BaseJDBCHelper class and then generate the database specific SQL statements.
v The effort of maintaining code that will work with Cloudscape and your target
database, must be weighed against the additional setup and configuration effort
required in setting up development environments that works directly against the
target database.

Important
As you create a new database or switch your database using the setdbtype
command, keep in mind that the Stores Web project assets can be impacted
by this change. The Stores Web project contains a Struts configuration file
which ties the store_id in the database to the JSP pages of your store. If your
existing database does not have the same stores with the same store_id it is
recommended that you make a copy of the WCDE_installdir/workspace/
Stores directory and save it with a reminder of which database it is assigned
to.

If required, restore this directory anytime that you switch the databases. If
you are starting from a clean database and would like a clean Stores Web
project, you can run the resetstores command. If this step is omitted, it might
result in a incorrect Struts configuration file, causing routing errors while you
navigate the store pages.

Databases supported by the test environment
For more information on the databases supported by the WebSphere Commerce
test environment, see Databases supported by the test environment Technote
#7007559

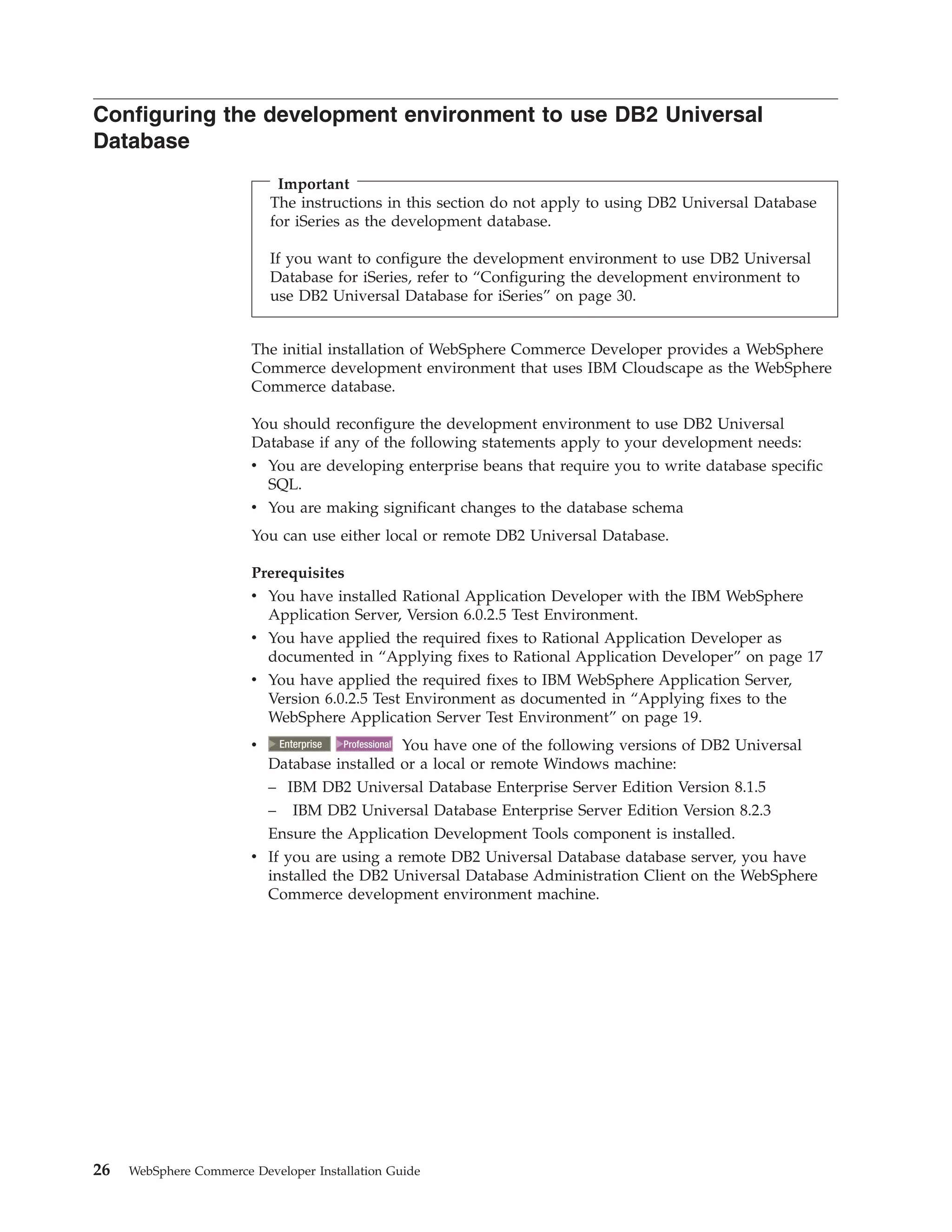

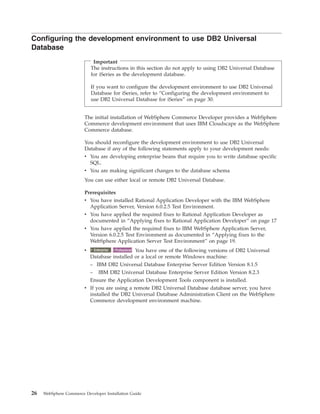

Configuring the development environment to use DB2 Universal
Database
Important
The instructions in this section do not apply to using DB2 Universal Database
for iSeries as the development database.

If you want to configure the development environment to use DB2 Universal
Database for iSeries, refer to “Configuring the development environment to
use DB2 Universal Database for iSeries” on page 30.

The initial installation of WebSphere Commerce Developer provides a WebSphere
Commerce development environment that uses IBM Cloudscape as the WebSphere
Commerce database.

You should reconfigure the development environment to use DB2 Universal
Database if any of the following statements apply to your development needs:
v You are developing enterprise beans that require you to write database specific
SQL.
v You are making significant changes to the database schema
You can use either local or remote DB2 Universal Database.

Prerequisites
v You have installed Rational Application Developer with the IBM WebSphere
Application Server, Version 6.0.2.5 Test Environment.
v You have applied the required fixes to Rational Application Developer as
documented in “Applying fixes to Rational Application Developer” on page 17
v You have applied the required fixes to IBM WebSphere Application Server,
Version 6.0.2.5 Test Environment as documented in “Applying fixes to the
WebSphere Application Server Test Environment” on page 19.
v 2000
Enterprise Professional You have one of the following versions of DB2 Universal
2000
Database installed or a local or remote Windows machine:
– IBM DB2 Universal Database Enterprise Server Edition Version 8.1.5
– IBM DB2 Universal Database Enterprise Server Edition Version 8.2.3
Ensure the Application Development Tools component is installed.
v If you are using a remote DB2 Universal Database database server, you have
installed the DB2 Universal Database Administration Client on the WebSphere
Commerce development environment machine.

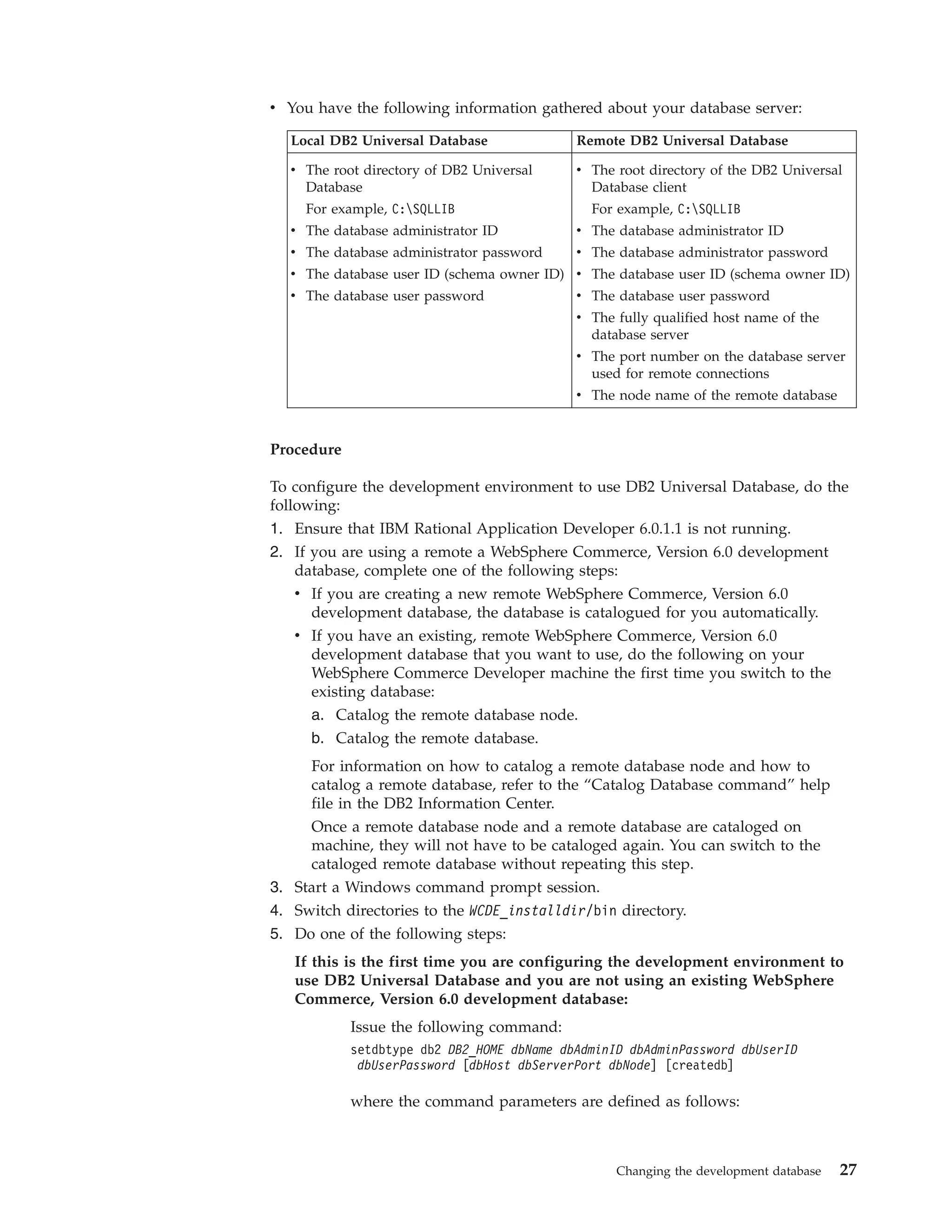

v You have the following information gathered about your database server:

Local DB2 Universal Database Remote DB2 Universal Database

v The root directory of DB2 Universal v The root directory of the DB2 Universal
Database Database client
For example, C:SQLLIB For example, C:SQLLIB
v The database administrator ID v The database administrator ID
v The database administrator password v The database administrator password
v The database user ID (schema owner ID) v The database user ID (schema owner ID)
v The database user password v The database user password
v The fully qualified host name of the
database server
v The port number on the database server
used for remote connections
v The node name of the remote database

Procedure

To configure the development environment to use DB2 Universal Database, do the
following:
1. Ensure that IBM Rational Application Developer 6.0.1.1 is not running.
2. If you are using a remote a WebSphere Commerce, Version 6.0 development
database, complete one of the following steps:
v If you are creating a new remote WebSphere Commerce, Version 6.0
development database, the database is catalogued for you automatically.
v If you have an existing, remote WebSphere Commerce, Version 6.0
development database that you want to use, do the following on your
WebSphere Commerce Developer machine the first time you switch to the
existing database:
a. Catalog the remote database node.
b. Catalog the remote database.
For information on how to catalog a remote database node and how to
catalog a remote database, refer to the “Catalog Database command” help
file in the DB2 Information Center.
Once a remote database node and a remote database are cataloged on
machine, they will not have to be cataloged again. You can switch to the
cataloged remote database without repeating this step.
3. Start a Windows command prompt session.
4. Switch directories to the WCDE_installdir/bin directory.
5. Do one of the following steps:
If this is the first time you are configuring the development environment to
use DB2 Universal Database and you are not using an existing WebSphere
Commerce, Version 6.0 development database:
Issue the following command:
setdbtype db2 DB2_HOME dbName dbAdminID dbAdminPassword dbUserID
dbUserPassword [dbHost dbServerPort dbNode] [createdb]

where the command parameters are defined as follows:

Changing the development database 27

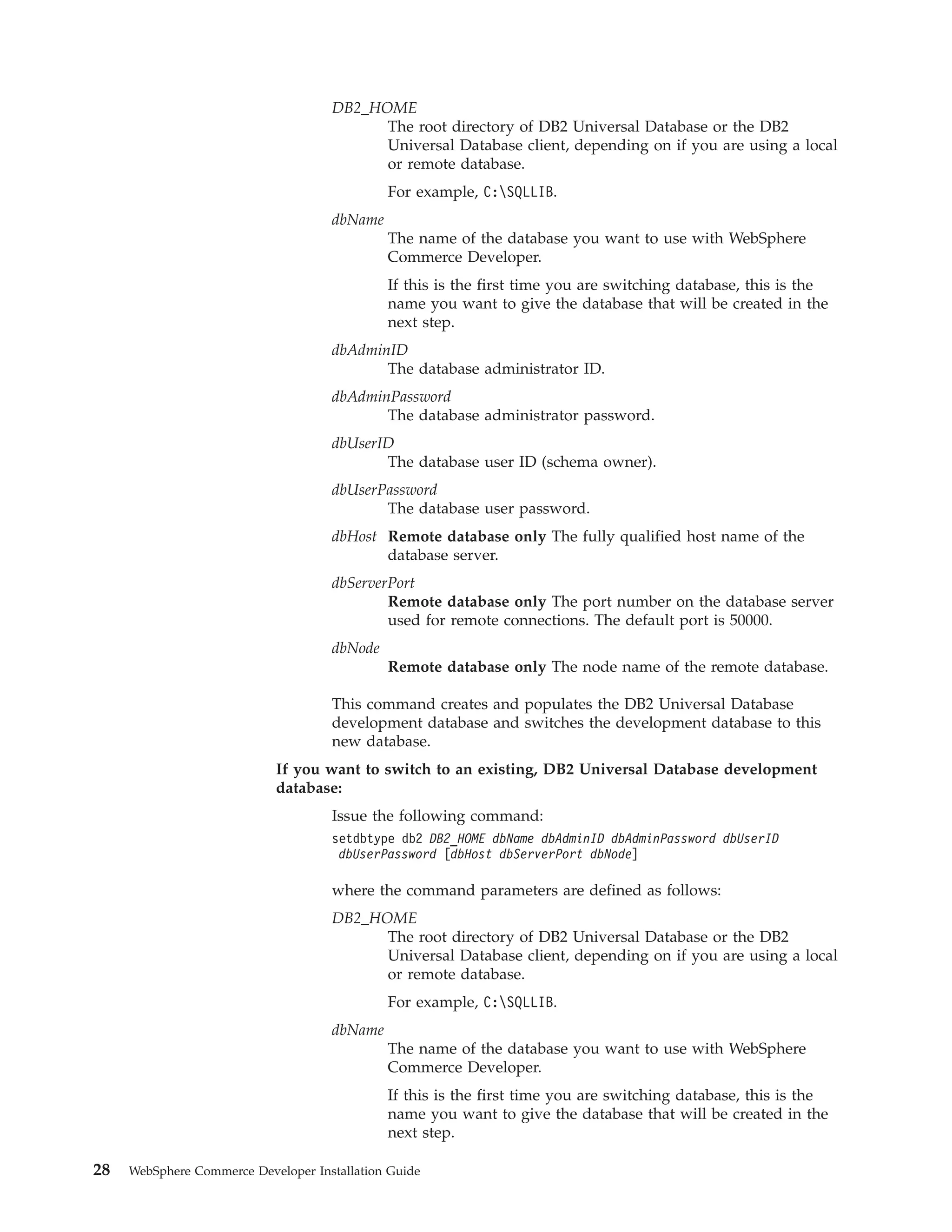

DB2_HOME
The root directory of DB2 Universal Database or the DB2
Universal Database client, depending on if you are using a local
or remote database.
For example, C:SQLLIB.
dbName
The name of the database you want to use with WebSphere
Commerce Developer.
If this is the first time you are switching database, this is the
name you want to give the database that will be created in the
next step.
dbAdminID
The database administrator ID.
dbAdminPassword
The database administrator password.
dbUserID
The database user ID (schema owner).
dbUserPassword
The database user password.
dbHost Remote database only The fully qualified host name of the
database server.
dbServerPort
Remote database only The port number on the database server
used for remote connections. The default port is 50000.
dbNode
Remote database only The node name of the remote database.

This command creates and populates the DB2 Universal Database
development database and switches the development database to this
new database.
If you want to switch to an existing, DB2 Universal Database development
database:
setdbtype db2 DB2_HOME dbName dbAdminID dbAdminPassword dbUserID
dbUserPassword [dbHost dbServerPort dbNode]

DB2_HOME
The root directory of DB2 Universal Database or the DB2
Universal Database client, depending on if you are using a local
or remote database.
For example, C:SQLLIB.
dbName
Commerce Developer.
If this is the first time you are switching database, this is the
name you want to give the database that will be created in the
next step.

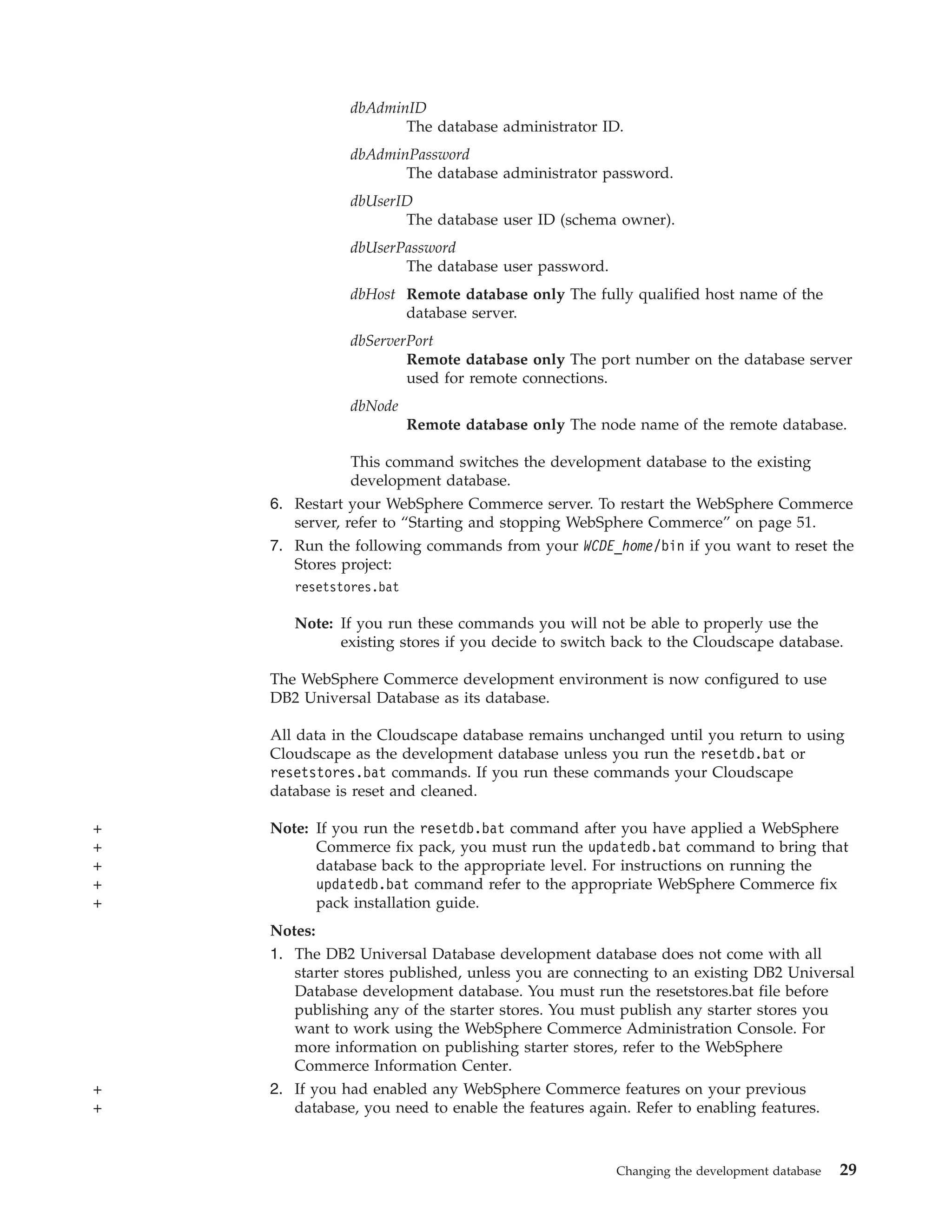

dbAdminID
dbAdminPassword
dbUserID
The database user ID (schema owner).
dbUserPassword
database server.
dbServerPort
used for remote connections.
dbNode
Remote database only The node name of the remote database.

This command switches the development database to the existing
development database.
6. Restart your WebSphere Commerce server. To restart the WebSphere Commerce
server, refer to “Starting and stopping WebSphere Commerce” on page 51.
7. Run the following commands from your WCDE_home/bin if you want to reset the
Stores project:
resetstores.bat

Note: If you run these commands you will not be able to properly use the
existing stores if you decide to switch back to the Cloudscape database.

The WebSphere Commerce development environment is now configured to use
DB2 Universal Database as its database.

All data in the Cloudscape database remains unchanged until you return to using
Cloudscape as the development database unless you run the resetdb.bat or
resetstores.bat commands. If you run these commands your Cloudscape
database is reset and cleaned.

+ Note: If you run the resetdb.bat command after you have applied a WebSphere
+ Commerce fix pack, you must run the updatedb.bat command to bring that
+ database back to the appropriate level. For instructions on running the
+ updatedb.bat command refer to the appropriate WebSphere Commerce fix
+ pack installation guide.
Notes:
1. The DB2 Universal Database development database does not come with all
starter stores published, unless you are connecting to an existing DB2 Universal
Database development database. You must run the resetstores.bat file before
publishing any of the starter stores. You must publish any starter stores you
want to work using the WebSphere Commerce Administration Console. For
more information on publishing starter stores, refer to the WebSphere
Commerce Information Center.
+ 2. If you had enabled any WebSphere Commerce features on your previous
+ database, you need to enable the features again. Refer to enabling features.


Configuring the development environment to use DB2 Universal
Database for iSeries
Commerce database.

You should reconfigure the development environment to use DB2 Universal
Database for iSeries if any of the following statements apply to your development
needs:
v You want to run your development database on an iSeries machine.
SQL.
DB2 Universal Database for iSeries will be running on a machine remote from your
WebSphere Commerce development environment machine.

Prerequisites
v You have applied the required fixes to Rational Application Developer as
documented in “Applying fixes to Rational Application Developer” on page 17
v You have applied the required fixes to IBM WebSphere Application Server,
Version 6.0.2.5 Test Environment as documented in “Applying fixes to the
WebSphere Application Server Test Environment” on page 19.
v Your iSeries machine is running one of the following database management
systems:
– DB2 Universal Database for iSeries V5R3 (provided with i5/OS® V5R3)
– DB2 Universal Database for iSeries V5R4 (provided with i5/OS V5R4)
v You have the following information gathered about your database server:
– The relational database name in which the WebSphere Commerce
development environment database tables should be created
– The database user profile used to access the database
– The password for the user profile
– The fully qualified host name of the database server

Procedure

To configure the development environment to use DB2 Universal Database for
iSeries, do the following:
1. Ensure that the iSeries user profile uses the localized settings for a language as
listed in the table below.
Table 1. Localized settings for iSeries user profiles
Language CCSID LangID CountryID
English 37 ENU US
French 297 FRA FR
German 273 DEU DE
Italian 280 ITA IT

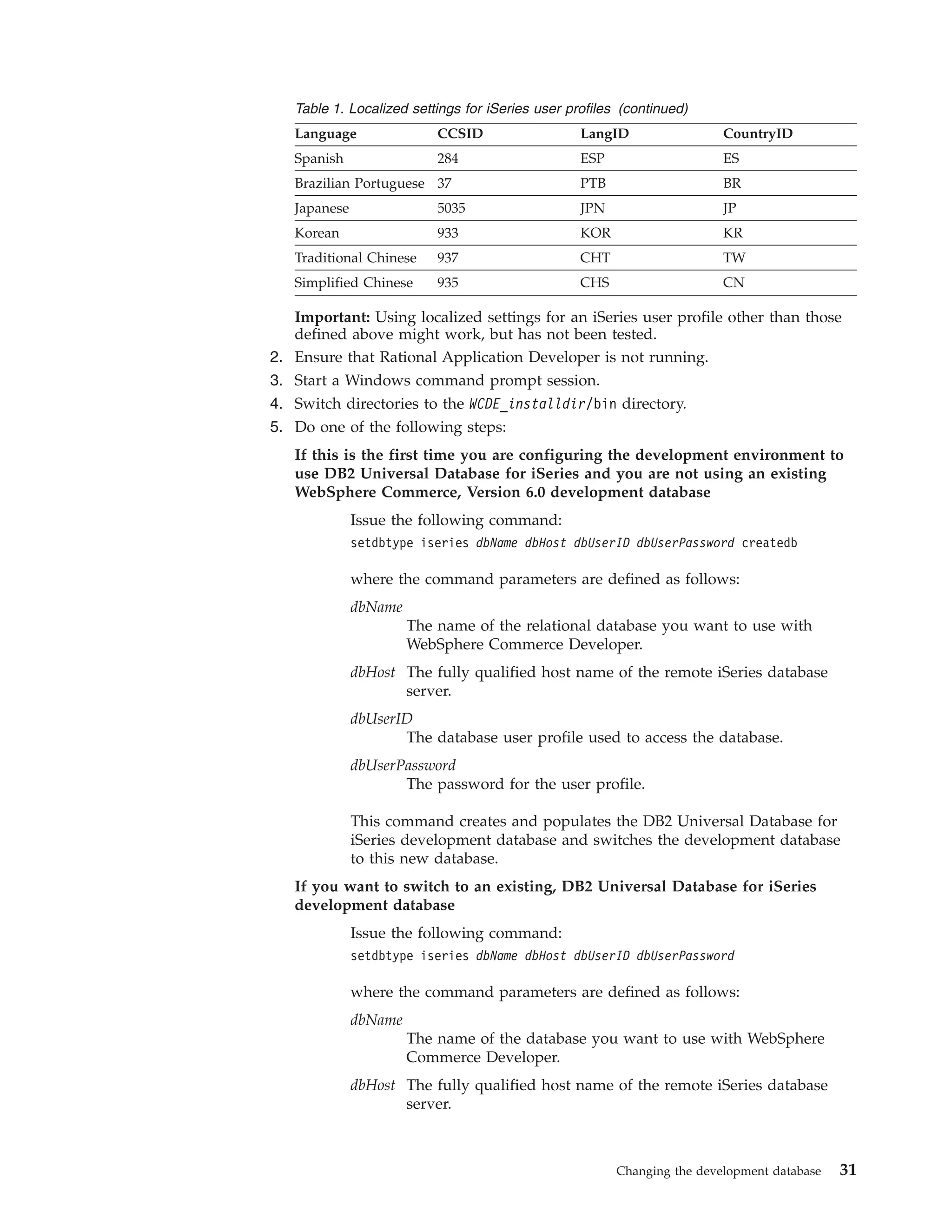

Table 1. Localized settings for iSeries user profiles (continued)
Language CCSID LangID CountryID
Spanish 284 ESP ES
Brazilian Portuguese 37 PTB BR
Japanese 5035 JPN JP
Korean 933 KOR KR
Traditional Chinese 937 CHT TW
Simplified Chinese 935 CHS CN

Important: Using localized settings for an iSeries user profile other than those
defined above might work, but has not been tested.
2. Ensure that Rational Application Developer is not running.
use DB2 Universal Database for iSeries and you are not using an existing
WebSphere Commerce, Version 6.0 development database
setdbtype iseries dbName dbHost dbUserID dbUserPassword createdb

dbName
The name of the relational database you want to use with
WebSphere Commerce Developer.
dbHost The fully qualified host name of the remote iSeries database
server.
dbUserID
The database user profile used to access the database.
dbUserPassword
The password for the user profile.

This command creates and populates the DB2 Universal Database for
iSeries development database and switches the development database
to this new database.
If you want to switch to an existing, DB2 Universal Database for iSeries
development database
setdbtype iseries dbName dbHost dbUserID dbUserPassword

dbName
Commerce Developer.
dbHost The fully qualified host name of the remote iSeries database
server.


dbUserID
The database user profile used to access the database.
dbUserPassword
The password for the user profile.

This command switches the development database to the existing
7. Run the following commands from your WCDE_home/bin if you want to reset the
Stores project:
resetstores.bat


DB2 Universal Database for iSeries as its database.
Notes:
1. The new DB2 Universal Database for iSeries development database does not
come with all starter stores published. You must run the resetstores.bat file
before publishing any of the starter stores. You must publish any starter stores
you want to work using the WebSphere Commerce Administration Console. For
more information on publishing starter stores, refer to the WebSphere
Commerce Information Center.

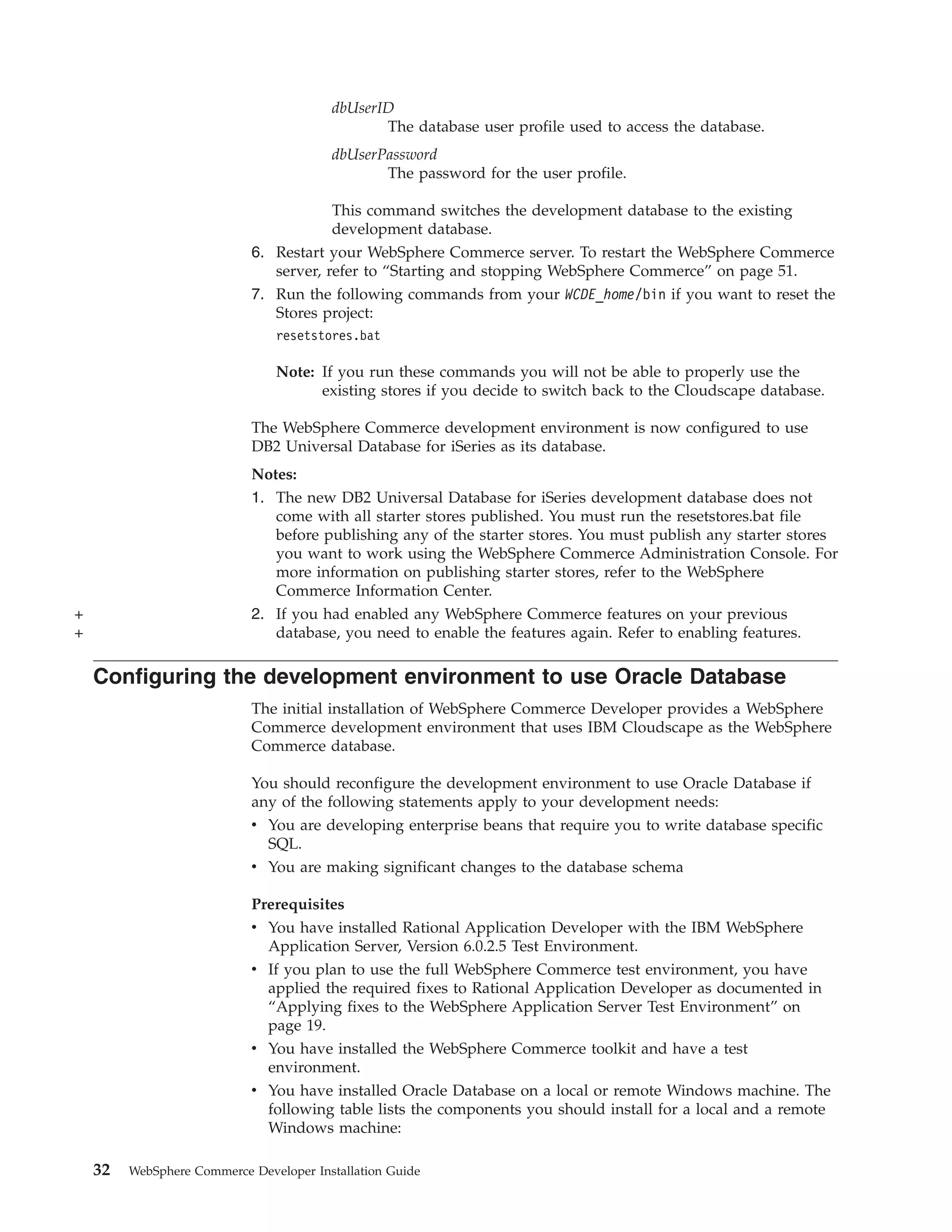

Configuring the development environment to use Oracle Database
Commerce database.

You should reconfigure the development environment to use Oracle Database if
any of the following statements apply to your development needs:
SQL.

Prerequisites
v If you plan to use the full WebSphere Commerce test environment, you have
applied the required fixes to Rational Application Developer as documented in
“Applying fixes to the WebSphere Application Server Test Environment” on
page 19.
v You have installed the WebSphere Commerce toolkit and have a test
environment.
v You have installed Oracle Database on a local or remote Windows machine. The
following table lists the components you should install for a local and a remote
Windows machine:


Local Oracle Database Remote Oracle Database

v Oracle Database Database server machine
v Oracle Net Services v Oracle Database
v Oracle Net Protocol Support v Oracle Net Services
v SQL*Plus v Oracle JDBC/OCI Interfaces
v Oracle JDBC/OCI Interfaces
WebSphere Commerce Developer
machine
v Oracle Enterprise Client
v SQL*Plus
v Oracle JDBC/Thin Interfaces
v Oracle JDBC/OCI Interfaces
v Oracle Network Utilities
v Oracle Database Utilities

Ensure that the Oracle client and server are
configured to communicate correctly
according to instructions found in the
Oracle Database Database documentation.

For instructions on installing these components, refer to your Oracle Database
documentation.
v You have created a new Oracle user ID and an empty database. Ensure that the
database uses the UTF-8 character set and that the Oracle user ID has access to
the new database.
For instructions on creating a database, refer to your Oracle Database
documentation.
The Oracle user ID must not be a reserved user ID like SYSTEM or SYS.
v You have set the Oracle open_cursors configuration parameter to 1000 or higher.
The installation default value of open_cursors is 300. If you do not set the
open_cursors value to 1000 or higher, you might receive error messages.
You must restart Oracle after changing the open_cursors value.
v You have gathered the following information about Oracle Database:

Local Oracle Database Remote Oracle Database

v The root directory of Oracle Database v The root directory of Oracle Database
For example, C:ORACLEORA client
v The name of the database For example, C:ORACLEORA
v The database administrator ID v The name of the remote database
v The database administrator password v The name of the local net service for the
remote database
v The database user ID
v The database administrator ID
v The database user password
v The database administrator password
v The database user ID
v The database user password
v The fully qualified host name of the
database server
v The port number on the database server
used for remote connections

Procedure

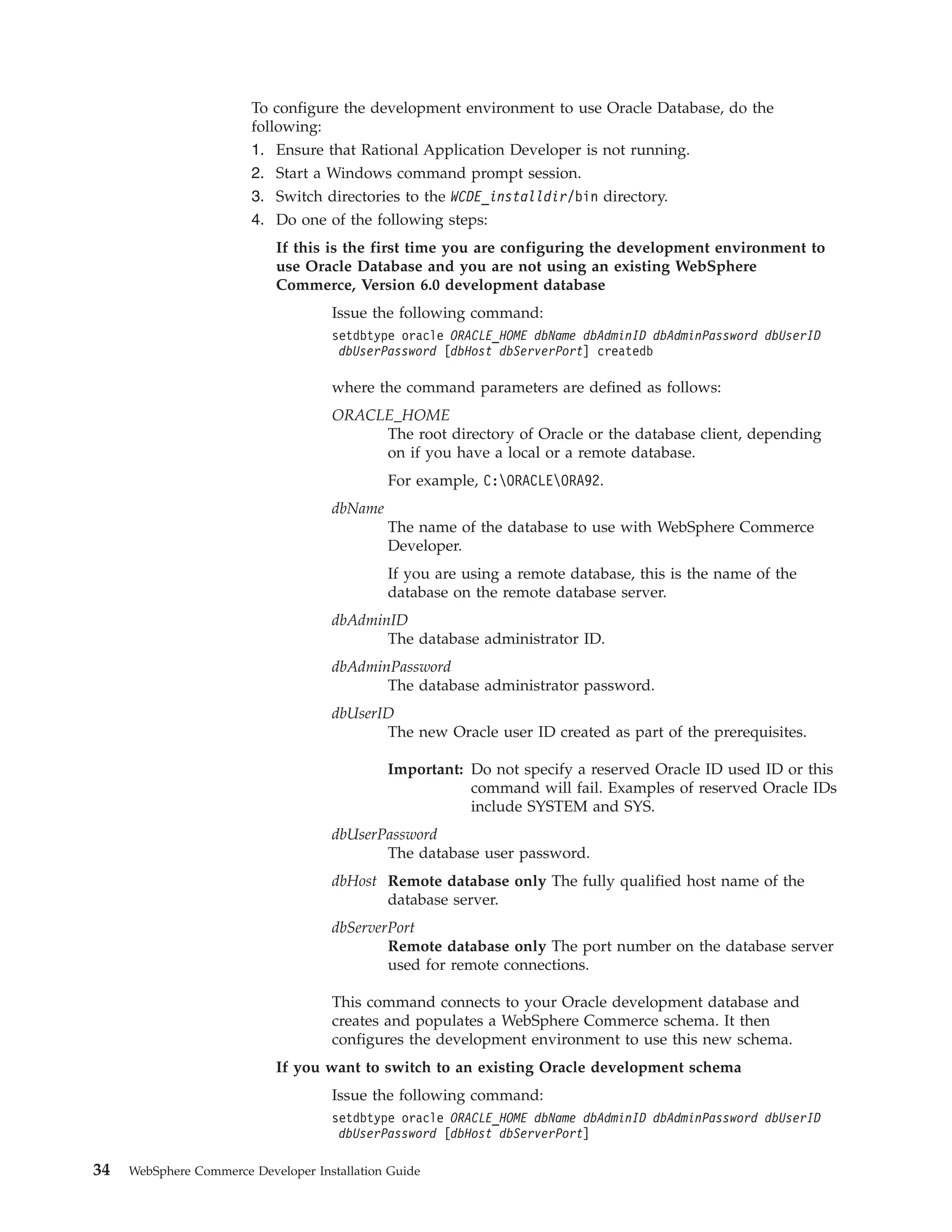

To configure the development environment to use Oracle Database, do the
following:
use Oracle Database and you are not using an existing WebSphere
Commerce, Version 6.0 development database
setdbtype oracle ORACLE_HOME dbName dbAdminID dbAdminPassword dbUserID
dbUserPassword [dbHost dbServerPort] createdb

ORACLE_HOME
The root directory of Oracle or the database client, depending
on if you have a local or a remote database.
For example, C:ORACLEORA92.
dbName
The name of the database to use with WebSphere Commerce
Developer.
If you are using a remote database, this is the name of the
database on the remote database server.
dbAdminID
dbAdminPassword
dbUserID
The new Oracle user ID created as part of the prerequisites.

Important: Do not specify a reserved Oracle ID used ID or this
command will fail. Examples of reserved Oracle IDs
include SYSTEM and SYS.
dbUserPassword
database server.
dbServerPort

This command connects to your Oracle development database and
creates and populates a WebSphere Commerce schema. It then
configures the development environment to use this new schema.

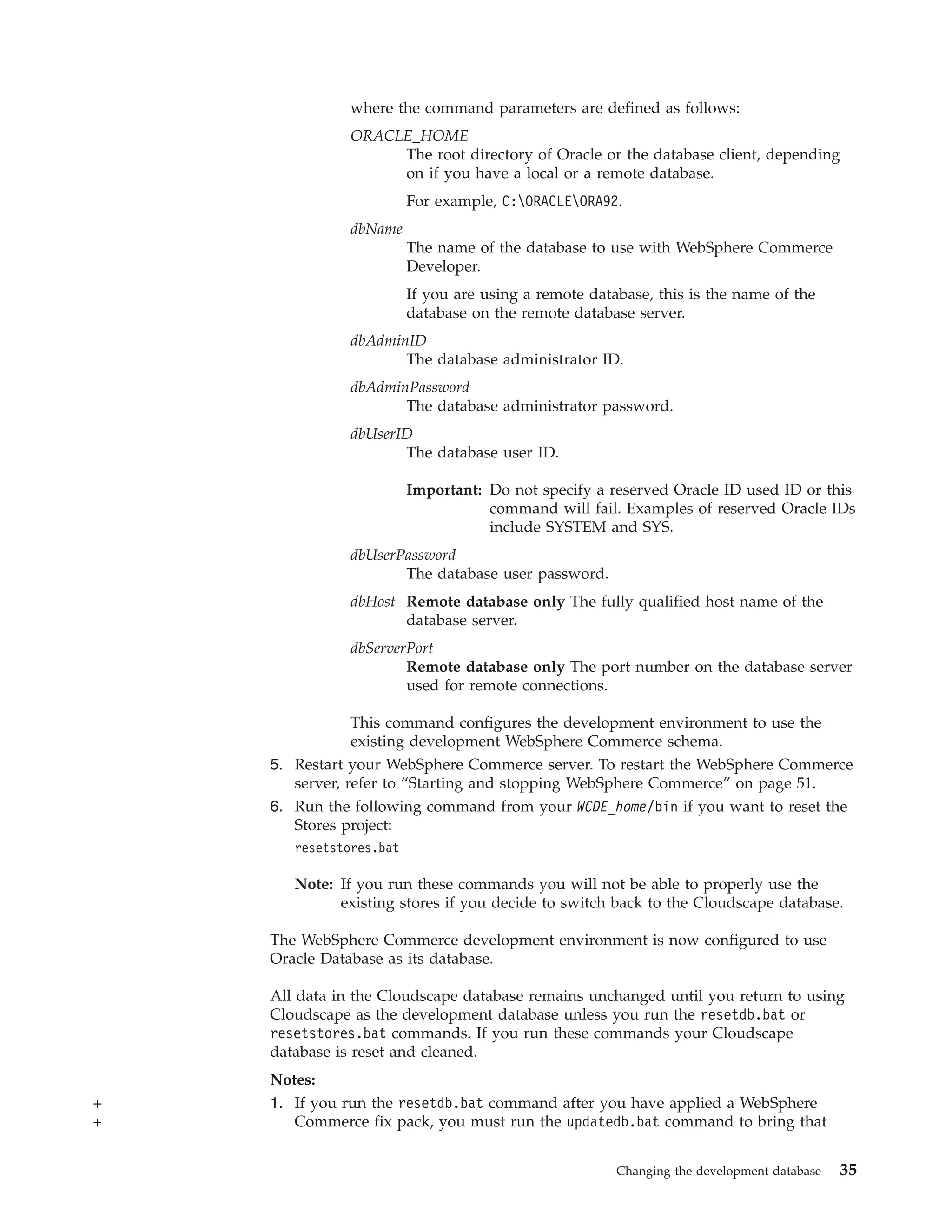

If you want to switch to an existing Oracle development schema
setdbtype oracle ORACLE_HOME dbName dbAdminID dbAdminPassword dbUserID
dbUserPassword [dbHost dbServerPort]


ORACLE_HOME
The root directory of Oracle or the database client, depending
on if you have a local or a remote database.
For example, C:ORACLEORA92.
dbName
The name of the database to use with WebSphere Commerce
Developer.
If you are using a remote database, this is the name of the
database on the remote database server.
dbAdminID
dbAdminPassword
dbUserID
The database user ID.

Important: Do not specify a reserved Oracle ID used ID or this
command will fail. Examples of reserved Oracle IDs
include SYSTEM and SYS.
dbUserPassword
database server.
dbServerPort

This command configures the development environment to use the
existing development WebSphere Commerce schema.
6. Run the following command from your WCDE_home/bin if you want to reset the
Stores project:
resetstores.bat


Oracle Database as its database.

All data in the Cloudscape database remains unchanged until you return to using
Cloudscape as the development database unless you run the resetdb.bat or
resetstores.bat commands. If you run these commands your Cloudscape
database is reset and cleaned.
Notes:

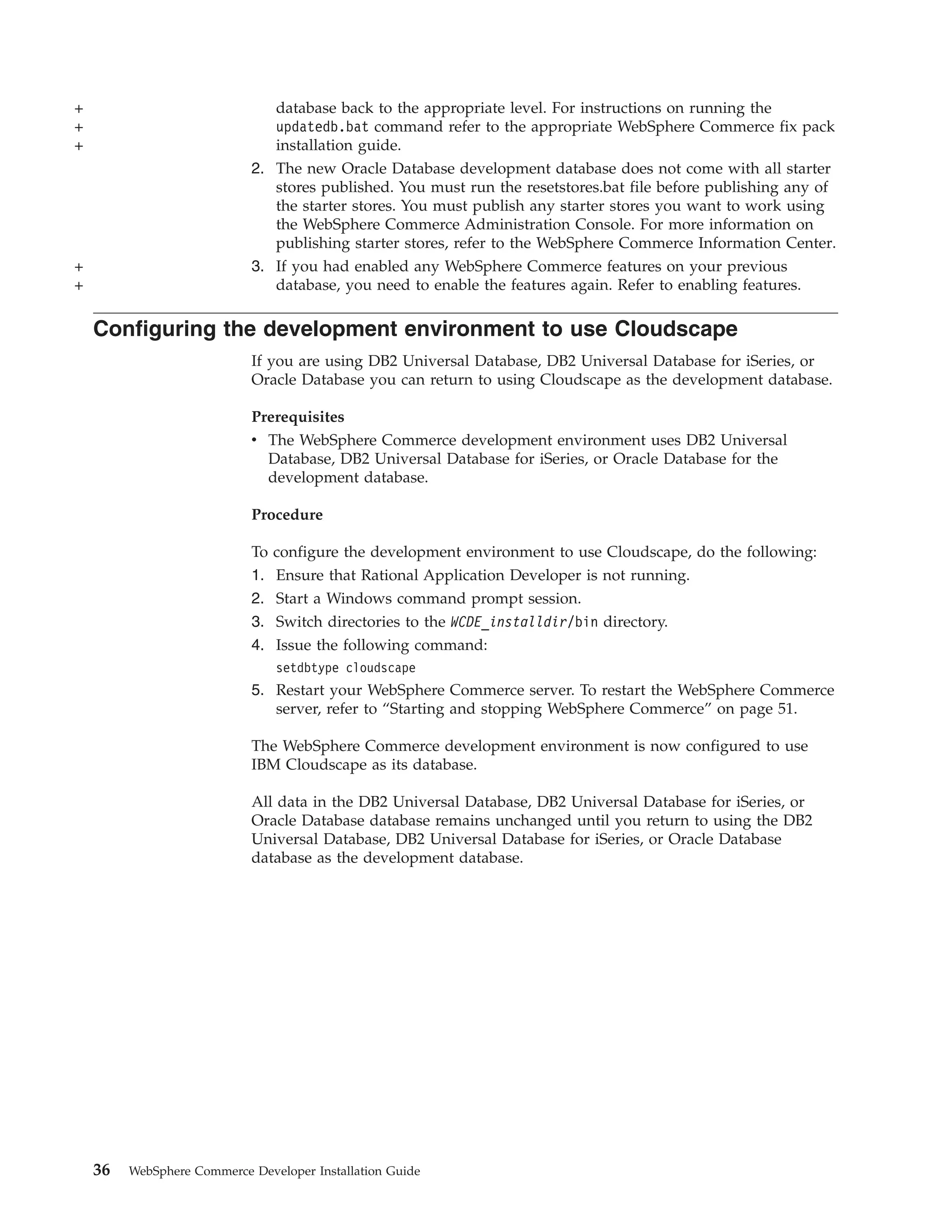

+ 1. If you run the resetdb.bat command after you have applied a WebSphere
+ Commerce fix pack, you must run the updatedb.bat command to bring that


+ database back to the appropriate level. For instructions on running the
+ updatedb.bat command refer to the appropriate WebSphere Commerce fix pack
+ installation guide.
2. The new Oracle Database development database does not come with all starter
stores published. You must run the resetstores.bat file before publishing any of
the starter stores. You must publish any starter stores you want to work using
the WebSphere Commerce Administration Console. For more information on
publishing starter stores, refer to the WebSphere Commerce Information Center.

Configuring the development environment to use Cloudscape
If you are using DB2 Universal Database, DB2 Universal Database for iSeries, or
Oracle Database you can return to using Cloudscape as the development database.

Prerequisites
v The WebSphere Commerce development environment uses DB2 Universal
Database, DB2 Universal Database for iSeries, or Oracle Database for the

Procedure

To configure the development environment to use Cloudscape, do the following:
4. Issue the following command:
setdbtype cloudscape

IBM Cloudscape as its database.

All data in the DB2 Universal Database, DB2 Universal Database for iSeries, or
Oracle Database database remains unchanged until you return to using the DB2
Universal Database, DB2 Universal Database for iSeries, or Oracle Database
database as the development database.


Configuring additional WebSphere Commerce software for
WebSphere Commerce Developer
WebSphere Commerce provides additional software packages that you might want
to use in the WebSphere Commerce test environment. For more information on the
additional software packages provided with WebSphere Commerce, refer to
theWebSphere Commerce Additional Software Guide for the edition of WebSphere
Commerce you have.

Use the information in this section, along with the WebSphere Commerce Additional
Software Guide for the appropriate edition of WebSphere Commerce, to install and
configure the additional software packages for use with WebSphere Commerce
Developer.

In the following sections, refer to the Edition notice to see if the software
discussed is supported by your edition of WebSphere Commerce Developer.

WebSphere Commerce business integration
The business integration software packages, WebSphere MQ and IBM WebSphere
InterChange Server, are not provided with either WebSphere Commerce or
WebSphere Commerce Developer. They must be purchased separately.

WebSphere MQ
Prerequisites:
v You have installed the WebSphere Commerce development environment.

Procedure:

To use WebSphere MQ (formerly MQSeries®) with WebSphere Commerce
Developer, do the following:
1. Follow the instructions found in WebSphere Commerce Additional Software Guide
with the following changes:
v For WebSphere MQ Version 5.3
– If plan to use Client mode connections to your messaging server, ensure
that you apply the fixes listed on the WebSphere MQ support Web site.
Embedded messaging client
Obtain and install the fixes found under WebSphere embedded
messaging interim fixes for WebSphere Application Server V6.0.
WebSphere MQ client
Ensure that you are at CSD08 or later.
You will need an IBM ID and password to access the fixes. If you do not
have an IBM ID or password, click My IBM registration to obtain an ID
and password.
v Launch the administration console from within WebSphere Commerce
Developer by following the instructions in “Starting the WebSphere
Application Server Administrative Console in the WebSphere Commerce
development environment” on page 52 instead of opening the WebSphere
Application Server Administrative Console.


v Scope changes to the WebSphere Commerce application server by selecting
Server from list of available scopes.
You cannot scope any changes to the WebSphere Commerce application
server by entering the name of the WebSphere Commerce application server
in the Server field as this field is unavailable when the WebSphere
Application Server Administrative Console runs in the WebSphere Commerce
test environment.
v Update the listener for WebSphere MQ server. To update the listener,
complete the following steps:
a. Open the WebSphere Commerce configuration file in a text editor. For
example:
WCDE_installdir/xml/config/wc-server.xml
b. Search for “Listener for WebSphere MQ”.
c. Update the Enable field from false to true.
d. Save the file and exit.

IBM WebSphere InterChange Server
2000
Enterprise

Prerequisites:
v You have installed the WebSphere Commerce development environment.

Procedure:

To use IBM WebSphere InterChange Server (formerly IBM CrossWorlds) with
WebSphere Commerce Developer, do the following:
v Follow the instructions found in WebSphere Commerce Additional Software Guide
with the following changes:
– Replace all occurrences of WC_installdir with WCDE_installdir.
– When tasks refer to the WebSphere Commerce machine, use the WebSphere
Commerce Developer machine.
– Launch the administration console from within WebSphere Commerce
Developer by following the instructions in “Starting the WebSphere
Application Server Administrative Console in the WebSphere Commerce
development environment” on page 52 instead of opening the WebSphere
Application Server Administrative Console.
– Complete the following steps:
1. Open the WebSphere Commerce configuration file in a text editor. For
example:
WCDE_installdir/xml/config/wc-server.xml
2. Search for CWSAI.
3. Complete the fields as described in the WebSphere Commerce Additional
Software Guide.
– Scope changes to the WebSphere Commerce application server by selecting
Server from list of available scopes.
You cannot scope any changes to the WebSphere Commerce application
server by entering the name of the WebSphere Commerce application server
in the Server field as this field is unavailable when the WebSphere
Application Server Administrative Console runs in the WebSphere Commerce
test environment.


| Adding IBM Sales Center development environment to an existing
| WebSphere Commerce Developer
If you plan to add the IBM Sales Center development environment to an existing
copy of WebSphere Commerce Developer, complete the following steps:
| 1. You must preinstall IBM Sales Center for WebSphere Commerce. For more
| information refer to:

| Installing IBM Sales Center for WebSphere Commerce
| 2. Run the WebSphere Commerce Developer installation wizard, and select to
| install the IBM Sales Center development environment as described in
| “Installing the WebSphere Commerce toolkit” on page 21.
3. Open the following file in a text editor:
WCDE_installdir/bin/setenv.bat
4. Ensure that the RAD_HOME environment variable points to the correct
Rational Application Developer installation location
5. Ensure that the WED_HOME environment variable points to the correct IBM
Sales Center for WebSphere Commerce location.
6. Save the file and exit.
For information on launching the IBM Sales Center development environment,
refer to the Launching the IBM Sales Center development environment topic in the
WebSphere Commerce Information Center.

Installing the IBM Gift Center for WebSphere Commerce
Edition notice
The IBM Gift Center for WebSphere Commerce is supported by WebSphere
Commerce Developer Enterprise, and WebSphere Commerce Developer
Professional.

For instructions on how to enable the IBM Gift Center for WebSphere Commerce
on your WebSphere Commerce Developer Enterprise system, refer to the WebSphere
Commerce Additional Software Guide.

Configuring additional WebSphere Commerce software for WebSphere Commerce Developer 39

Part 5. Uninstalling WebSphere Commerce Developer


Uninstalling the WebSphere Commerce toolkit
Note:

Uninstallation of specific components of the WebSphere Commerce toolkit is not
supported. The WebSphere Commerce toolkit uninstall will remove everything that
is installed under the WebSphere Commerce toolkit installation directory. To
uninstall the WebSphere Commerce toolkit, do the following:
1. Stop the WebSphere Commerce server. For instructions on stopping the
WebSphere Commerce server, refer to “Starting and stopping WebSphere
Commerce” on page 51.
2. Select Start > Settings > Control Panel > Add/Remove Programs
3. Click Change or Remove Programs.
4. Select one of the following, depending on the edition you have installed:

2000
Enterprise IBM WebSphere Commerce Developer Enterprise 6.0

2000
Professional IBM WebSphere Commerce Developer Professional 6.0

5. Click Remove.
The uninstall wizard starts.
6. Complete the uninstall wizard by following the prompts.

The uninstall will only remove files that were originally installed. Files that were
created or modified after the installation will not be removed. You must delete the
WCDE_installdir directory once you have determined that you do not need any of
the remaining files.

Uninstalling multiple toolkit installations
When you have multiple WebSphere Commerce toolkit installations on the
same machine, the entry in the Windows Add/Remove Programs panel only
uninstalls the most recent WebSphere Commerce toolkit installation.

To uninstall a specific WebSphere Commerce toolkit installation, you must
issue the following command:
WCDE_installdir/_uninst/uninstall

WCDE_installdir will be unique for each installation of the WebSphere
Commerce toolkit on a machine.


Uninstalling Rational Application Developer
Before uninstalling Rational Application Developer, uninstall the WebSphere
Commerce toolkit by following the instructions in “Uninstalling the WebSphere
Commerce toolkit” on page 43.

To uninstall Rational Application Developer, complete the following steps:
1. While logged on with a Windows user ID with Administrator authority, select
Start > Settings > Control Panel > Add/Remove Programs.
2. Click Change or Remove Programs, select Rational Application Developer
and click Change/Remove.
The uninstall wizard starts.
3. Complete the uninstall wizard by following the prompts.
4. When the uninstall is complete, restart your machine.
5. Delete the following directories:
v RAD_installdir
where the default value for RAD_installdir is listed in “Path variables” on page
vii.


Part 6. Appendixes


Appendix A. Troubleshooting your installation
Use the information in this section to troubleshoot your installation of WebSphere
Commerce Developer

Error message in the setup.log
After the installation has completed, an error appears in the setup.log. For
example:
[addApplication] Application successfully added to the server, attempting to
stop the server.

This error occurs when the installer has detect that the “publish application”
process has taken too much time. This might not be an error. In order to verify if
this is actually an error, you will need to examine the ″trace.log″ file in the
WCDE_installdir/wasprofile/logs/server1 directory. If this file does not contain
errors then this situation might be corrected by manually publishing the
application through the Rational Application Developer. If there are errors in the
trace.log file, then they must first be addressed before a publish can occur.

Problems starting the WebSphere Commerce test server
When starting the WebSphere Commerce test server, the console output does not
appear.

This is normal Rational Application Developer behavior. Rational Application
Developer does not log any messages on the console until after the server has
completed initialization. To follow the startup progress of the test server, examine
the WCDE_installdir/wasprofile/logs/server1/trace.log file.

WebSphere Commerce test server does not appear to start
The WebSphere Commerce Test Server displays a status of ″starting...″ even though
the WCDE_installdir/wasprofile/logs/server1/trace.log file stated that the
server has started properly.

There are some instances where the network configuration of a machine causes
some problems in the RMI communication between Rational Application
Developer and WebSphere Application Server. When this happens, Rational
Application Developer might not be able to retrieve the proper status from the
WebSphere Application Server test server. In order to fix this problem, you should
change the communication protocol between the products from RMI to SOAP. This
can be done in the WebSphere Commerce Test Server configuration editor.

The WebSphere Commerce development environment does not start
If the WebSphere Commerce development environment does not start, ensure that
you have Rational Application Developer installed and that the RAD_HOME variable
in the setenv.bat file is set to the full path to the Rational Application Developer.

To correct the value for RAD_HOME, do the following:
1. Open the following the file in a text editor:


WCDE_installdir/bin/setenv.bat
2. Locate the line containing RAD_HOME and ensure that it points to the full path of
the Rational Application Developer (RAD_installdir).
3. Save any changes and exit the text editor


Appendix B. WebSphere Commerce development environment
tasks
Starting WebSphere Commerce Developer
To start the WebSphere Commerce development environment, do one of the
following, depending on your edition of WebSphere Commerce Developer:

2000
Enterprise Select Start > Programs > IBM WebSphere Commerce Developer Enterprise 6.0
> WebSphere Commerce development environment

2000
Professional Select Start > Programs > IBM WebSphere Commerce Developer Professional
6.0 > WebSphere Commerce development environment

Starting multiple instances of WebSphere Commerce
Developer
If you have the WebSphere Commerce toolkit installed multiple times, the entry in
the Windows Start menu starts the most recent installation of the WebSphere
Commerce toolkit.

To start other installations of the WebSphere Commerce toolkit, issue the following
command:
WCDE_installdir/bin/startWCToolkit

WCDE_installdir will be unique for each installation of the WebSphere Commerce
toolkit on a machine.

Starting IBM Sales Center development environment for
WebSphere Commerce
To start the IBM Sales Center development environment, do one of the following:
v To start the IBM Sales Center development environment, do one of the
following, depending on your edition of WebSphere Commerce Developer

2000
Enterprise Select Start > Programs > IBM WebSphere Commerce Developer Enterprise
6.0 > IBM Sales Center development environment

2000
Professional Select Start > Programs > IBM WebSphere Commerce Developer Professional
6.0 > IBM Sales Center development environment

v Run the following command from a command line:
WCDE_installdir/bin/startMSCToolkit.bat

Starting and stopping WebSphere Commerce
Prerequisites
v The WebSphere Commerce development environment is running.
For instructions on starting the WebSphere Commerce development
environment, refer to “Starting WebSphere Commerce Developer.”

Procedure


To start WebSphere Commerce within the WebSphere Commerce development
environment, do the following:
v In the Servers view, right-click one of the following, depending on the test
environment you want to start:
– WebSphere Commerce Test Server
v Select Start or Stop from the pop-up menu.
v The WebSphere Commerce is started successfully if there are no errors in the
Console view and the following message appears in the Console view:
Server server1 open for e-business

Before accessing any of the WebSphere Commerce tools, ensure that you start the
WebSphere Commerce help system by following the instructions in “Starting the
WebSphere Commerce information center.”

Starting the WebSphere Commerce information center
The help system starts automatically in the development environment. By default
Rational Application Developer runs the Help Server on a random port.

To start the help system in the WebSphere Commerce development environment,
do the following:
1. Ensure that the WebSphere Commerce tools in the development environment
can access the help system.
For instruction on enabling help access from the WebSphere Commerce tools in
the development environment, refer to “Enabling help access from the
WebSphere Commerce tools in the development environment.”
2. Start the WebSphere Commerce development environment.
environment, refer to “Starting WebSphere Commerce Developer” on page 51.
3. Start the help system by selecting Help > Help Contents in the WebSphere
Commerce development environment.

Enabling help access from the WebSphere Commerce tools in
the development environment
To enable help to be accessed from the WebSphere Commerce Accelerator,
Organization Administration Console, or the Administration Console, you must set
the port that the help server uses to 8001, by doing the following:
1. Select Window > Preferences > Help > Help Server.
2. In the Port for the server to listen on field, type 8001.
3. Click Apply.
4. Restart Rational Application Developer.
5. Start the help system by selecting Help > Help Contents in the WebSphere
Commerce development environment.

Starting the WebSphere Application Server Administrative Console in
the WebSphere Commerce development environment
Prerequisites
v The WebSphere Commerce development environment is running.


environment, refer to “Starting WebSphere Commerce Developer” on page 51.
v The test environment is available.

Procedure

To start the WebSphere Application Server Administrative Console in the
WebSphere Commerce development environment, do the following:
1. Start the WebSphere Commerce Test Server. Refer to “Starting and stopping
WebSphere Commerce” on page 51.
2. In the Servers view, right-click on WebSphere Commerce Test Server and select
Run Administrative console.
The WebSphere Application Server Administrative Console will appear in the
Admin Console view.

Appendix B. WebSphere Commerce development environment tasks 53

Notices
This information was developed for products and services offered in the U.S.A.

IBM may not offer the products, services, or features discussed in this document in
other countries. Consult your local IBM representative for information on the
products and services currently available in your area. Any reference to an IBM
product, program, or service is not intended to state or imply that only that IBM
product, program, or service may be used. Any functionally equivalent product,
program, or service that does not infringe any IBM intellectual property right may
be used instead. However, it is the user’s responsibility to evaluate and verify the
operation of any non-IBM product, program, or service.

Any reference to an IBM licensed program in this publication is not intended to
state or imply that only IBM’s licensed program may be used. Any functionally
equivalent product, program, or service that does not infringe any of IBM’s
intellectual property rights may be used instead of the IBM product, program, or
service. Evaluation and verification of operation in conjunction with other
products, except those expressly designated by IBM, is the user’s responsibility.

IBM may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you
any license to these patents. You can send license inquiries, in writing, to:

IBM Director of Licensing
IBM Corporation
North Castle Drive
Armonk, NY 10504–1785
U.S.A.

For license inquiries regarding double-byte (DBCS) information, contact the IBM
Intellectual Property Department in your country or send inquiries, in writing, to:

IBM World Trade Asia Corporation
Licensing
2-31 Roppongi 3-chome, Minato-ku
Tokyo 106, Japan

The following paragraph does not apply to the United Kingdom or any other
country where such provisions are inconsistent with local law:

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS
PUBLICATION ″AS IS″ WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or
implied warranties in certain transactions, therefore, this statement may not apply
to you.

This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be


incorporated in new editions of the publication. IBM may make improvements
and/or changes in the product(s) and/or the program(s) described in this
publication at any time without notice.

Any references in this information to non-IBM Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those Web
sites. The materials at those Web sites are not part of the materials for this IBM
product and use of those Web sites is at your own risk.

IBM may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.

Licensees of this program who want to have information about it for the purpose
of enabling: (i) the exchange of information between independently created
programs and other programs (including this one) and (ii) the mutual use of the
information which has been exchanged, should contact:

IBM Canada Ltd.
Office of the Lab Director
8200 Warden Avenue
Markham, Ontario
L6G 1C7
Canada

Such information may be available, subject to appropriate terms and conditions,
including in some cases payment of a fee.

The licensed program described in this document and all licensed material
available for it are provided by IBM under terms of the IBM Customer Agreement,
IBM International Program License Agreement or any equivalent agreement
between us.

Any performance data contained herein was determined in a controlled
environment. Therefore, the results obtained in other operating environments may
vary significantly. Some measurements may have been made on development-level
systems and there is no guarantee that these measurements will be the same on
generally available systems. Furthermore, some measurement may have been
estimated through extrapolation. Actual results may vary. Users of this document
should verify the applicable data for their specific environment.

Information concerning non-IBM products was obtained from the suppliers of
those products, their published announcements or other publicly available sources.
IBM has not tested those products and cannot confirm the accuracy of
performance, compatibility or any other claims related to non-IBM products.
Questions on the capabilities of non-IBM products should be addressed to the
suppliers of those products.

All statements regarding IBM’s future direction or intent are subject to change or
withdrawal without notice, and represent goals and objectives only.

This information is for planning purposes only. The information herein is subject to
change before the products described become available.

This information contains examples of data and reports used in daily business
operations. To illustrate them as completely as possible, the examples include the


names of individuals, companies, brands, and products. All of these names are
fictitious and any similarity to the names and addresses used by an actual business
enterprise is entirely coincidental.

Credit card images, trademarks and trade names provided in this product should
be used only by merchants authorized by the credit card mark’s owner to accept
payment via that credit card.

Notices 57

Trademarks
The IBM logo and the following terms are trademarks or registered trademarks of
International Business Machines Corporation in the United States or other
countries or both:
v Cloudscape
v CrossWorlds
v DB2
v DB2 Universal Database
v i5/OS
v IBM
v iSeries
v MQSeries
v QuickPlace®
v WebSphere

Intel® and Pentium® is a registered trademark of Intel Corporation in the United
States, other countries, or both.

Java and all Java-based trademarks and logos are trademarks or registered
trademarks of Sun Microsystems, Inc. in the United States, other countries, or both.

Microsoft and Windows are trademarks or registered trademarks of Microsoft
Corporation in the United States, other countries, or both.

Other company, product and service names may be trademarks or service marks of
others.


Printed in USA

GC10-4255-06

websphere commerce server v6 install guide

More Related Content

What's hot

Similar to websphere commerce server v6 install guide

Recently uploaded

websphere commerce server v6 install guide
