2. Thyroid carcinomaDr. Zahoor AhmadPGR, SU-ISZMC/H. RYK, Pakisatan

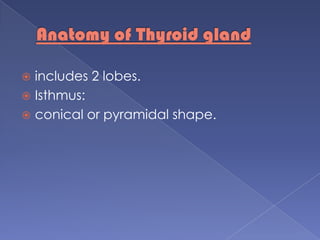

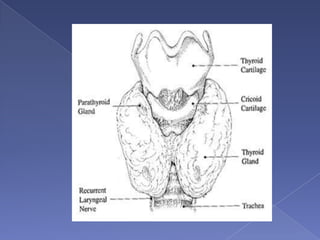

3. Anatomy of Thyroid gland includes 2 lobes.Isthmus: conical or pyramidal shape.

6. Embryology• 4th week: thyroid gland appears.• 5th week: break down of the thyroglossal duct, thyroid gland continue descending• 7th week: thyroid gland migrates to its position, anterior to the trachea• 10th week: thyroglossal duct disappears

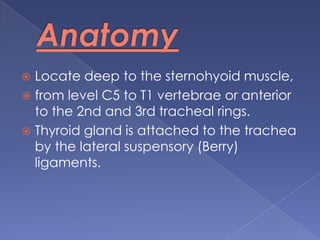

7. AnatomyLocate deep to the sternohyoid muscle, from level C5 to T1 vertebrae or anterior to the 2nd and 3rd tracheal rings.Thyroid gland is attached to the trachea by the lateral suspensory (Berry) ligaments.

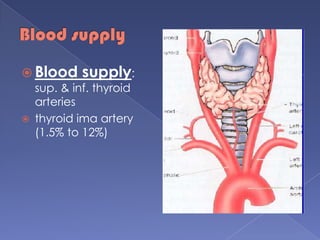

8. Blood supplyBlood supply: sup. & inf. thyroid arteriesthyroid ima artery (1.5% to 12%)

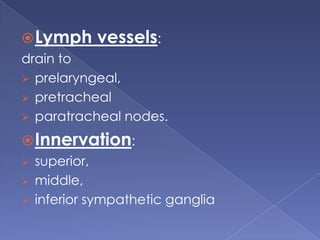

9. Lymph vessels: drain to prelaryngeal,

10. pretracheal

11. paratrachealnodes.

12. Innervation:

13. superior,

14. middle,

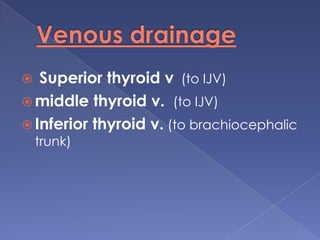

15. inferior sympathetic gangliaVenous drainage Superior thyroid v (to IJV)middle thyroid v. (to IJV)Inferior thyroid v. (to brachiocephalic trunk)

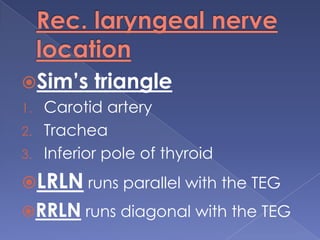

17. Rec. laryngeal nerve locationSim’s triangleCarotid artery TracheaInferior pole of thyroid LRLN runs parallel with the TEG

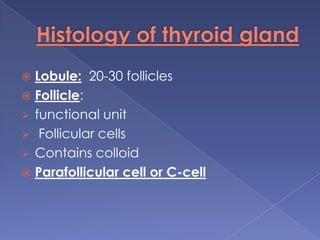

18. RRLN runs diagonal with the TEGHistology of thyroid glandLobule: 20-30 folliclesFollicle:functional unit

19. Follicular cells

20. Contains colloidParafollicular cell or C-cell

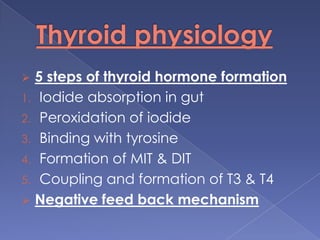

22. Thyroid physiology5 steps of thyroid hormone formationIodide absorption in gutPeroxidation of iodideBinding with tyrosineFormation of MIT & DITCoupling and formation of T3 & T4Negative feed back mechanismFrequency17,000 cases diagnosed annually.Women 3 times more than men.Peak incidence 30-40s.Papillary 80%, follicular 10%, medullary 5-10%, anaplastic 1-2%.

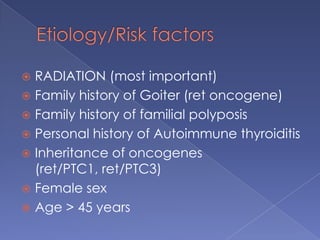

23. Etiology/Risk factorsRADIATION (most important)

24. Family history of Goiter (ret oncogene)

25. Family history of familial polyposis

26. Personal history of Autoimmune thyroiditis

27. Inheritance of oncogenes (ret/PTC1, ret/PTC3)

28. Female sex

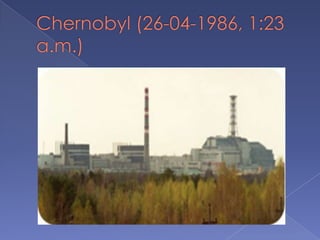

29. Age > 45 yearsChernobyl (26-04-1986, 1:23 a.m.)

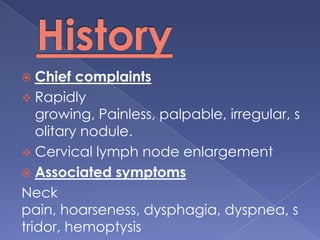

30. HistoryChief complaints

31. Rapidly growing, Painless, palpable, irregular, solitary nodule.

32. Cervical lymph node enlargement

33. Associated symptomsNeck pain, hoarseness, dysphagia, dyspnea, stridor, hemoptysis

34. Physical ExaminationThyroid glandSoft tissues of neckSolid, soft, mobile, or fixed?Tenderness?Laryngoscopy if hoarse preop!

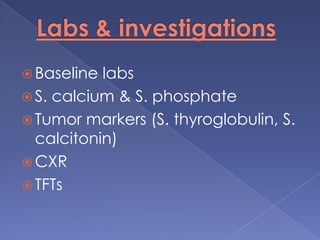

36. Labs & investigationsBaseline labsS. calcium & S. phosphateTumor markers (S. thyroglobulin, S. calcitonin)CXR TFTs

37. Labs & investigations(cont.....)FNACTrucut biopsyIncisional biopsyUSG neckCT scan neck & thoraxMRI Thyroid scan

38. Classification ofCA thyroid

39. According to origin of cellTumors of Follicular Cell OriginDifferentiated„ „ Papillary 75%„ „ Follicular 10%„ „ Hurthle Cell 5%Undifferentiated „ „ Anaplastic 5%Tumors of Parafollicular„ „ Medullary 5%„Other„ „ Lymphoma <1%

40. TypesPrimaryFollicular cells (papillary, follicular, and anaplastic)Para-follicular cells (medullary)Lymphocytes (lymphoma)SecondaryMetastasesLocal infiltration

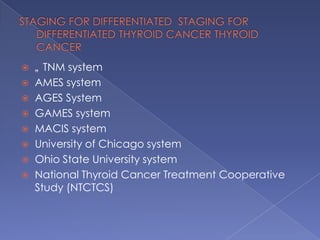

41. STAGING FOR DIFFERENTIATED STAGING FOR DIFFERENTIATED THYROID CANCER THYROID CANCER„TNM systemAMES systemAGES SystemGAMES systemMACIS systemUniversity of Chicago systemOhio State University systemNational Thyroid Cancer Treatment Cooperative Study (NTCTCS)

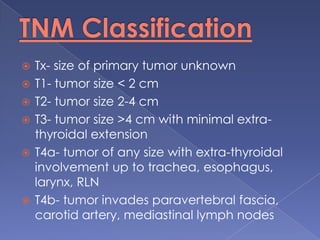

42. TNM ClassificationTx- size of primary tumor unknownT1- tumor size < 2 cmT2- tumor size 2-4 cmT3- tumor size >4 cm with minimal extra-thyroidal extensionT4a- tumor of any size with extra-thyroidal involvement up to trachea, esophagus, larynx, RLNT4b- tumor invades paravertebral fascia, carotid artery, mediastinal lymph nodes

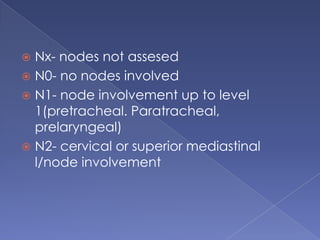

43. Nx- nodes not assesedN0- no nodes involvedN1- node involvement up to level 1(pretracheal. Paratracheal, prelaryngeal)N2- cervical or superior mediastinal l/node involvement

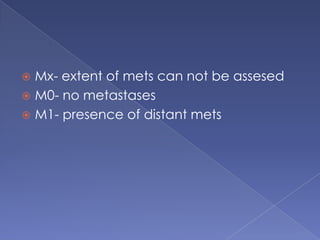

44. Mx- extent of mets can not be assesedM0- no metastasesM1- presence of distant mets

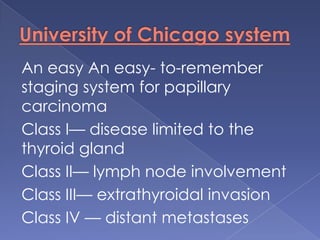

45. University of Chicago systemAn easy An easy- to-remember staging system for papillary carcinoma Class I— disease limited to the thyroid glandClass II— lymph node involvementClass III— extrathyroidal invasionClass IV — distant metastases

46. National Thyroid Cancer Treatment Cooperative Study (NTCTCS)The NTCTCS created a staging approach that wasapplied prospectively to a registry of patients drawnfrom 14 cooperating institutions . pathologic staging was based upon:„ „ patient age at diagnosis„ „ tumor histology„ „ tumor size„ „ intrathyroidalmultifocality„ „ extraglandular invasion„ „ metastases„ „ tumor differentiation

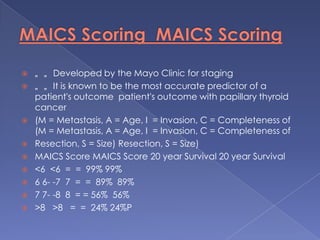

47. MAICS Scoring MAICS Scoring„ „ Developed by the Mayo Clinic for staging„ „ It is known to be the most accurate predictor of a patient's outcome patient's outcome with papillary thyroid cancer(M = Metastasis, A = Age, I = Invasion, C = Completeness of (M = Metastasis, A = Age, I = Invasion, C = Completeness of Resection, S = Size) Resection, S = Size)MAICS Score MAICS Score 20 year Survival 20 year Survival<6 <6 = = 99% 99%6 6- -7 7 = = 89% 89% 7 7- -8 8 = = 56% 56% >8 >8 = = 24% 24%P

48. Papillary CarcinomaMost common (80%)Women 3 times more common30-40 years of ageFamilial alsoRadiation exposure as a childPatients with Hashimoto’s thyroiditisSlow growing, TSH sensitive, take up iodine, TSH stimulation produces thryroglobulin response.

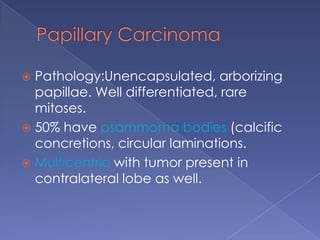

49. Papillary CarcinomaPathology:Unencapsulated, arborizing papillae. Well differentiated, rare mitoses.50% have psammoma bodies (calcific concretions, circular laminations.Multicentric with tumor present in contralateral lobe as well.

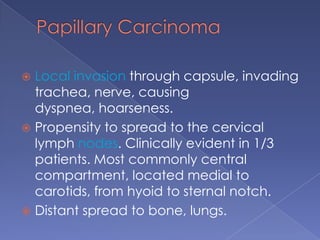

50. Papillary CarcinomaLocal invasion through capsule, invading trachea, nerve, causing dyspnea, hoarseness.Propensity to spread to the cervical lymph nodes. Clinically evident in 1/3 patients. Most commonly central compartment, located medial to carotids, from hyoid to sternal notch.Distant spread to bone, lungs.

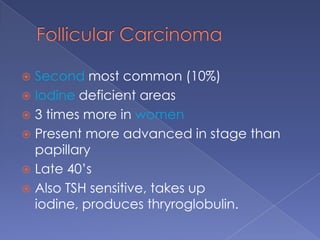

52. Follicular CarcinomaSecond most common (10%)Iodine deficient areas3 times more in womenPresent more advanced in stage than papillaryLate 40’sAlso TSH sensitive, takes up iodine, produces thryroglobulin.

53. Follicular CarcinomaPathology: round, encapsulated, cystic changes, fibrosis, hemorrhages. Microscopically, neoplastic follicular cells.Differentiated from follicular adenomas by the presence of capsule invasion, vascular invasion.Cannot reliably diagnose basedon FNA.

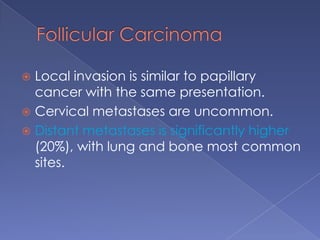

55. Follicular CarcinomaLocal invasion is similar to papillary cancer with the same presentation.Cervical metastases are uncommon.Distant metastases is significantly higher (20%), with lung and bone most common sites.

56. Treatment and PrognosisControversy regarding extent of therapy continues.Surgical excision whenever possible.Total thyroidectomy has been mainstay (all apparent thyroid tissue removed). Complications include nerve damage bilaterally, parathyroid injury bilaterally.After, get radioiodine scan, ablation if residual disease or recurrence.

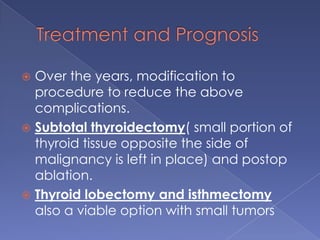

57. Treatment and PrognosisOver the years, modification to procedure to reduce the above complications.Subtotal thyroidectomy( small portion of thyroid tissue opposite the side of malignancy is left in place) and postop ablation.Thyroid lobectomy and isthmectomy also a viable option with small tumors
