Presentation on alternative nature based STP in Bangalore. Ways in which waste water is being reused currently. Possible way for the future

1. Water
WASTE WATER AS A RESOURCE
Rebuilding a water
culture
Shubha Ramachandran
Biome Environmental Trust

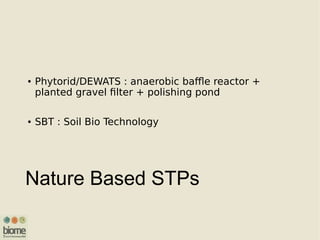

3. Nature Based STPs

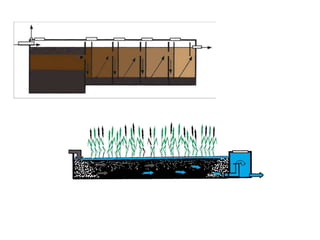

● Phytorid/DEWATS : anaerobic baffle reactor +
planted gravel filter + polishing pond
● SBT : Soil Bio Technology

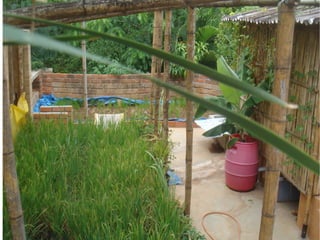

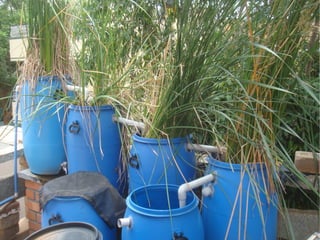

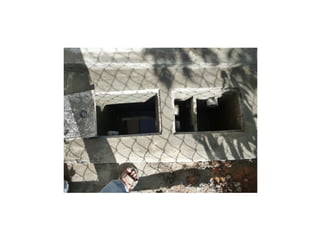

4. DEWATS AT HOME LEVEL

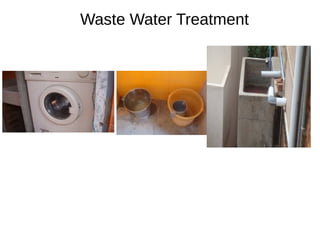

5. Waste Water Treatment

11. The product  

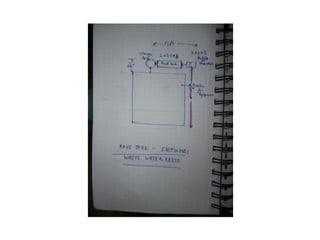

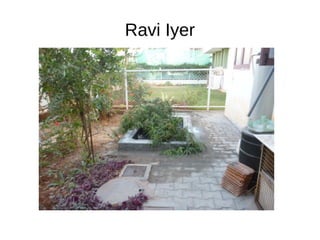

16. Ravi Iyer

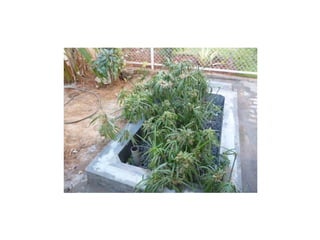

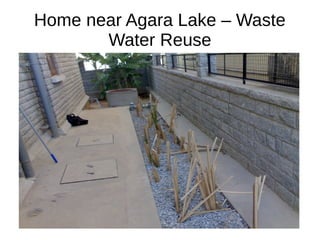

17. Home near Agara Lake – Waste
Water Reuse

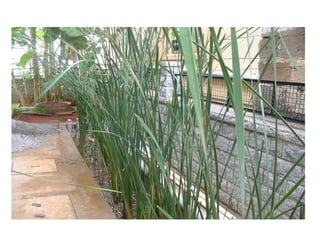

20. Phytorid

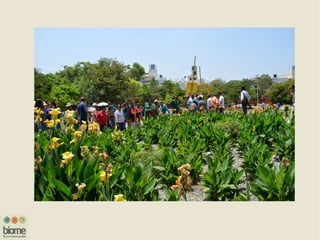

23. Delhi Jal Board/CSE

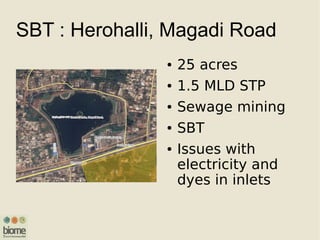

24. SBT : Herohalli, Magadi Road
● 25 acres
● 1.5 MLD STP
● Sewage mining
● SBT
● Issues with
electricity and
dyes in inlets

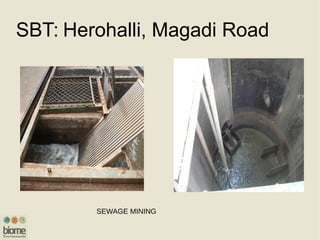

25. SBT: Herohalli, Magadi Road
SEWAGE MINING

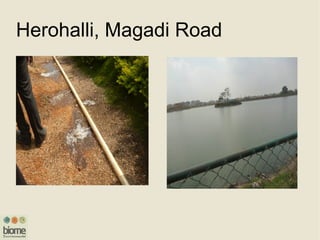

26. Herohalli, Magadi Road

27. REUSE FOR FLUSHING/GARDENING

28. REUSE FOR
CONSTRUCTION

29. DISCHARGE INTO LAKES

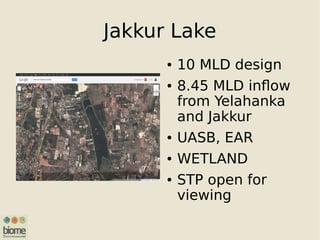

30. Jakkur Lake
● 10 MLD design
● 8.45 MLD inflow
from Yelahanka
and Jakkur
● UASB, EAR
● WETLAND
● STP open for
viewing

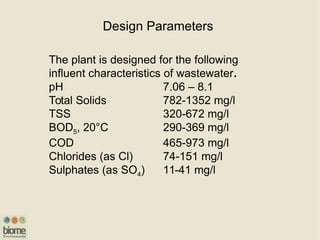

31. Design Parameters
The plant is designed for the following
influent characteristics of wastewater.
pH 7.06 – 8.1
Total Solids 782-1352 mg/l
TSS 320-672 mg/l
BOD5, 20°C 290-369 mg/l
COD 465-973 mg/l
Chlorides (as Cl) 74-151 mg/l
Sulphates (as SO4) 11-41 mg/l

32. Design Parameters
The plant is designed for the following
characteristics of treated water.
BOD5 ≤ 20 mg/l
Suspended solids ≤ 30 mg/l
pH 5.5 – 9
Oil & Grease ≤ 10 mg/l
Residual Chlorine ≤ 1 mg/l
Colour & Odour See Note
Iron(as Fe) 3 mg/L
Nitrate Nitrogen 10 mg/L
Note: all efforts are to be made to remove
colour and odour as far as practicable

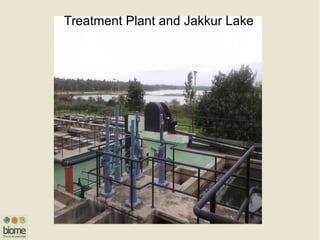

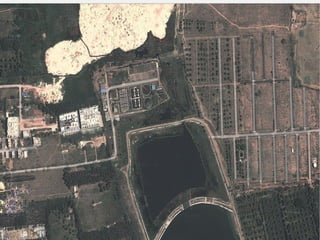

34. Treatment Plant and Jakkur Lake

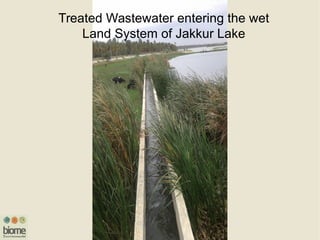

35. Treated Wastewater entering the wet
Land System of Jakkur Lake

36. Nature as further treatment

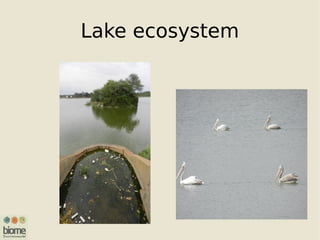

37. Lake ecosystem

38. Fisheries

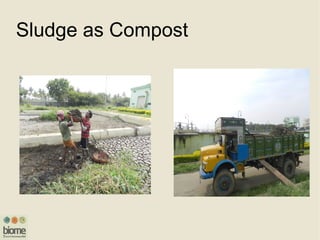

39. Sludge as Compost

40. Groundwater

42. Community – Jala Poshan

43. Puttenahalli
● 13 acres
● 5-8 MLD from
private STP
● Provision for
WETLAND
● New Idea/Hope

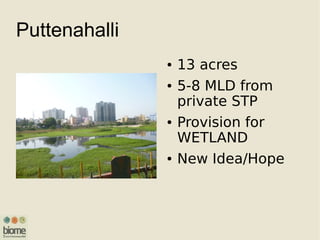

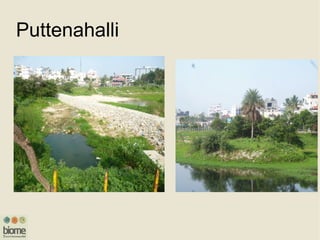

44. Puttenahalli

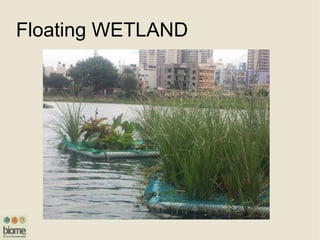

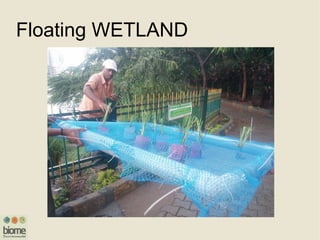

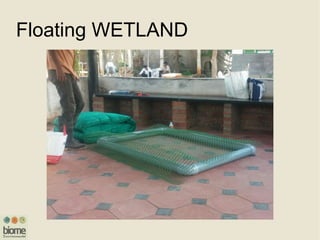

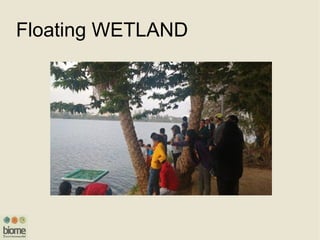

46. Floating WETLAND

47. Floating WETLAND

48. Floating WETLAND

49. Floating WETLAND

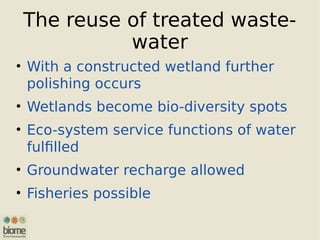

50. The reuse of treated waste-
water
• With a constructed wetland further
polishing occurs
• Wetlands become bio-diversity spots
• Eco-system service functions of water
fulfilled
• Groundwater recharge allowed
• Fisheries possible

51. IRRIGATION IN COMMON
AREAS
LOWER AMBALIPURA

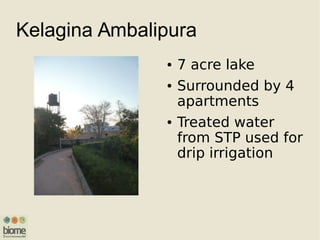

52. Kelagina Ambalipura
● 7 acre lake
● Surrounded by 4
apartments
● Treated water
from STP used for
drip irrigation

53. Kelagina Ambalipura

54. 100% REUSE - TZED

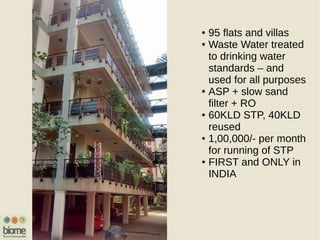

55. ● 95 flats and villas
● Waste Water treated
to drinking water
standards – and
used for all purposes
● ASP + slow sand
filter + RO
● 60KLD STP, 40KLD
reused
● 1,00,000/- per month
for running of STP
● FIRST and ONLY in
INDIA

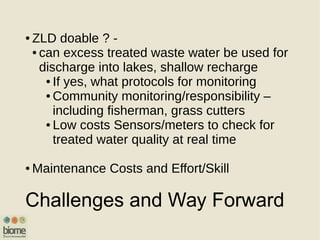

56. Challenges and Way Forward
● ZLD doable ? -
● can excess treated waste water be used for
discharge into lakes, shallow recharge
● If yes, what protocols for monitoring
● Community monitoring/responsibility –
including fisherman, grass cutters
● Low costs Sensors/meters to check for
treated water quality at real time
● Maintenance Costs and Effort/Skill

57. Biome Environmental Solutions Pvt Ltd
BIOME Environmental Trust
(Rainwater Club)
www.biome-solutions.com
Www.rainwaterclub.org
1022, 1st
floor, 6th
Block,
HMT Layout, Vidyaranyapura,
Bangalore – 560 097,
Phone : 080 41672790
THANK YOU !!
