Built to Last
- 1. Built to Last Buildingscalable front-end application architectures with business logic.
- 2. Dan Lynch Engineer &Artist questions/thoughts? @skatalynch
- 3.
- 4. Building Things 1999, AutoCAD 10
- 5. I like helpingother people build SideFX city builder interface 2006
- 6. Building things thatbuild things Vim3D vim interface to building 3D
- 7. famo.us our biz devbuilt this app on the first famo.us framework

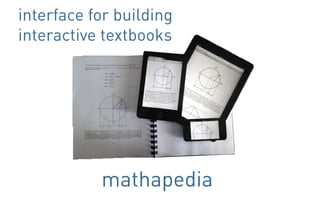

- 8. interface for building interactivetextbooks mathapedia
- 9. building tools forpeople

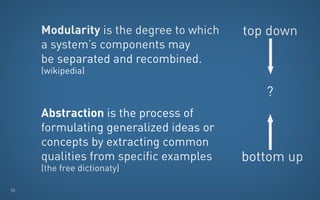

- 10. Modularity is thedegree to which top down a system’s components may be separated and recombined. (wikipedia) ? Abstraction is the process of formulating generalized ideas or concepts by extracting common qualities from specific examples bottom up (the free dictionaty) 10
- 11. Modularity top down • odules m • xtensions e large-scale rapid development Abstraction • outing r • ages p bottom up • ata/APIs d 11
- 12.

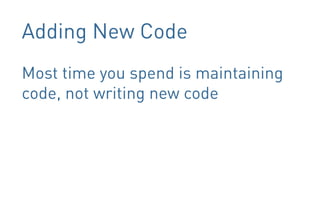

- 13. Adding New Code Mosttime you spend is maintaining code, not writing new code
- 14. Intuitive Co-workers depend onyour code to make sense

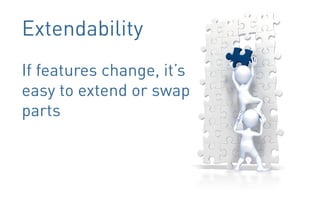

- 15. Extendability If features change,it’s easy to extend or swap parts
- 16. Debug/Test It’s easy totest individual modules
- 17. The Mythical ManMonth Frederick Brooks Jr. “Men and months are interchangeable commodi- ties only when a task can be partitioned among many workers with no communication among them”
- 18.
- 19. Spaghetti Code • specificto application • not reusable • the app is the testing framework
- 20.
- 21. Modules • interdependent • little knowledge aboutthe application • it is the sum of the modules that makes up the application
- 22. Module: Each ofa set of standardized parts or independent units that can be used to con- struct a more complex structure (google definition)

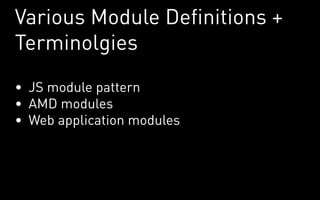

- 23. Various Module Definitions+ Terminolgies • JS module pattern • AMD modules • Web application modules
- 24. JavaScript Module Pattern privateand public encapsulation using closures
- 25.

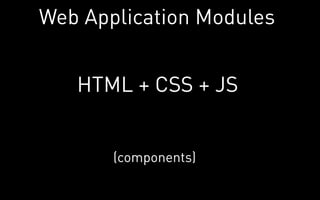

- 26. Web Application Modules HTML + CSS + JS (components)

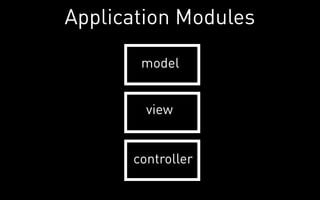

- 27. Application Modules model view controller
- 28. Application Framework “An ApplicationFramework is like a playground for your code” - Nicholas Zakas
- 29. Application Framework module module module module sandbox module extension extension core extension extension
- 30. Where to start backboneboilerplate modular + build for production aura modular + widgets + message passing
- 31. Sandbox facade “The programmer ismost effective if shielded from, rather than exposed to the details of construction of system parts other than his own“ -Frederick Brooks Jr.
- 32. each module hasa sandbox module module module module sandbox module extension extension core extension extension This promotes loose coupling so you can change modules without affecting others
- 33. each module hasa sandbox
- 34. sandbox exposes functionality module module module sandbox core
- 35.
- 36. application core module module module module sandbox module extension extension core extension extension
- 37. module registration, lifecycle, andintercommunication
- 38. application core isresponsible for: message passing module life-cycle
- 39. application core -the mediator • communication hub & centralized controller • intermediary between interdependent modules
- 40. application core -the mediator only N channels! module module mediator module modules use transitive communication through mediator
- 41.
- 42. publish “get-fb-photos” Gallery Module
- 43.
- 44. subscribe “get-fb-photos” FB Integration Module
- 45.
- 46.
- 47.
- 48.

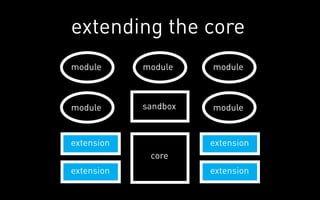

- 49. extending the core module module module module sandbox module extension extension core extension extension
- 50. Where is mylayout? Where do my routes go? Where does my data live?
- 51. Decouple Your WebApp Navigation URLs/routes/controllers Data data/models/collections Pages layouts/views/templates

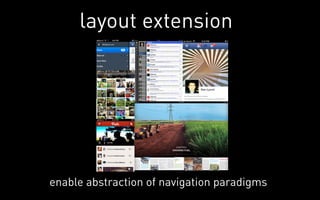

- 53. layout extension enable abstractionof navigation paradigms
- 54. route:books router route:books module mediator render:books render:books layout
- 55.
- 56.

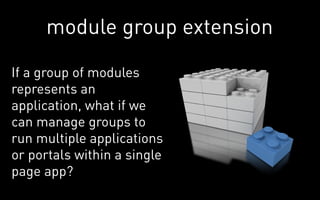

- 57. module group extension Ifa group of modules represents an application, what if we can manage groups to run multiple applications or portals within a single page app?
- 58.
- 59. no change group v route yes route group? controller
- 60.
- 61. change group swap layout afterRender() start modules $.when.apply($, promises).done
- 62.
- 63. typical backend flow yes route middleware controller no middleware can protect resources
- 64. can the front-endJS function like the backend? route controller (typical Backbone routing with no FSM)
- 65. Finite State Machine • events • states • transitions • actions
- 67. fail() v no route yes route fsm controller Backbone routing with FSM
- 68. v swap layout fail() no no start modules yes route FSM group? yes enter() controller resetRoutes()
- 71. router extension • manage routes,delegate route callbacks to FSM module groups extension • modify core to handle groups with async/dfd layout extension • render views using message passing fsm extension • manage state (group) • if routes pass, send allow controllers to callback data extension • manage model/collection cache
- 72. what we covered how to take core components of a web application (routes, navigation, layouts, etc) and divy them up into modules/extensions so that the application can grow efficiently; without the need to refactor. bottom up + top down!
- 73. node.js tech to use and checkout end-to-end JS! backbone boilerplate great for build + gettings started aura widgets and module lifecycle backbone layout manager views/layouts async.js asyncronous flow control grunt.js build require.js module loading r.js optimizer
- 74. props, credit, andpeople to checkout Tim Branyen Addy Osmoni Nicholas Zakas
- 77. Thank You! @skatalynch
