Containerizing (building an image) with a Dockerfile
• 2014: using Dockerfile
• 2017: multi-stage builds
FROM openjdk
COPY target/*runner.jar /app/app-runner.jar
WORKDIR /app
EXPOSE 8080
ENTRYPOINT [ "java","-jar" ]
CMD ["app-runner.jar"]
./mvnw clean package
docker build -f src/main/docker/Dockerfile -t myapp .
FROM openjdk as build
COPY . /workspace
WORKDIR /workspace
RUN ./mvnw clean package
FROM azul/zulu-openjdk-alpine
COPY --from=build /workspace/target/*runner.jar /app/app-runner.jar
WORKDIR /app
EXPOSE 8080
ENTRYPOINT [ "java","-jar" ]
CMD ["app-runner.jar"]
docker build -f src/main/docker/Dockerfile.multi -t myapp .](https://image.slidesharecdn.com/confoo-2023-buildpacks-230223154545-958794be/75/Buildpacks-the-other-way-to-build-container-images-7-2048.jpg)
Uploaded byAnthony Dahanne
Buildpacks: the other way to build container images
The document discusses the use of buildpacks in creating container images, detailing their origins, specifications, and integration with various programming languages and tools. It covers the differences between traditional Docker builds and the advantages of using buildpacks, including customization options and the use of tools like Paketo buildpacks. Additionally, it outlines buildpacks support for diverse CI/CD environments, emphasizing their significance in cloud-native application development.
More Related Content
Similar to Buildpacks: the other way to build container images
Buildpacks: the other way to build container images
- 1. Buildpacks: the other wayto build container images Confoo, February 23th 2023 Anthony Dahanne Software Engineer @anthonydahanne@framapiaf.org https://blog.dahanne.net
- 2.
- 3. Picture Placehlder PicturePlaceholder Picture Placeholder https://github.com/anthonydahanne Montreal JUG co-lead Your presenter for this session Java and Go developer, Cloud architect, Devops guy… But also community leader! blog.dahanne.net @anthonydahanne@framapiaf.org Devoxx4kids QC co-lead CNCF Eastern Canada co-organizer

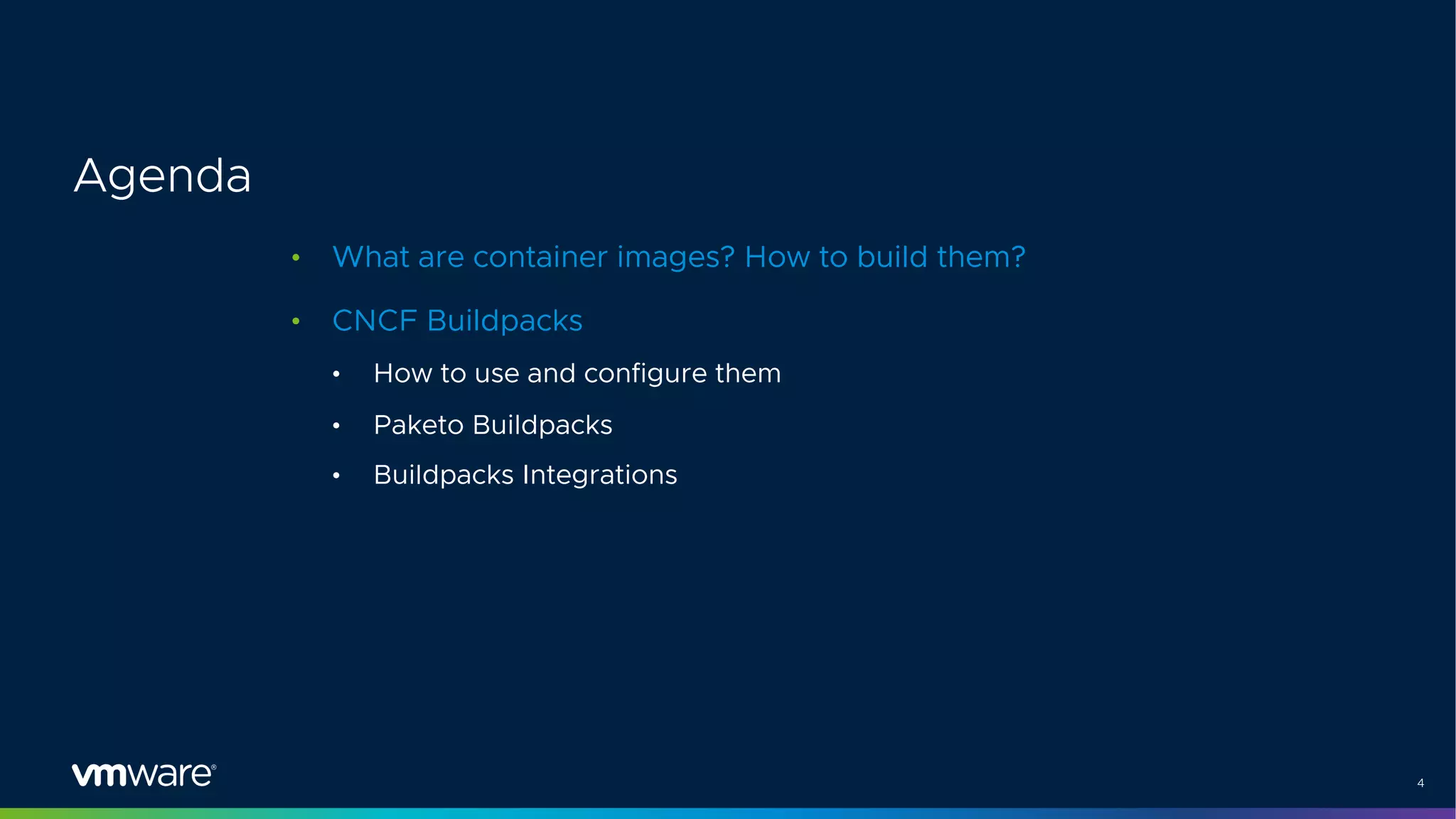

- 4. Agenda 4 • What arecontainer images? How to build them? • CNCF Buildpacks • How to use and configure them • Paketo Buildpacks • Buildpacks Integrations
- 5. 5 Container Images aka OCIimages aka Docker images

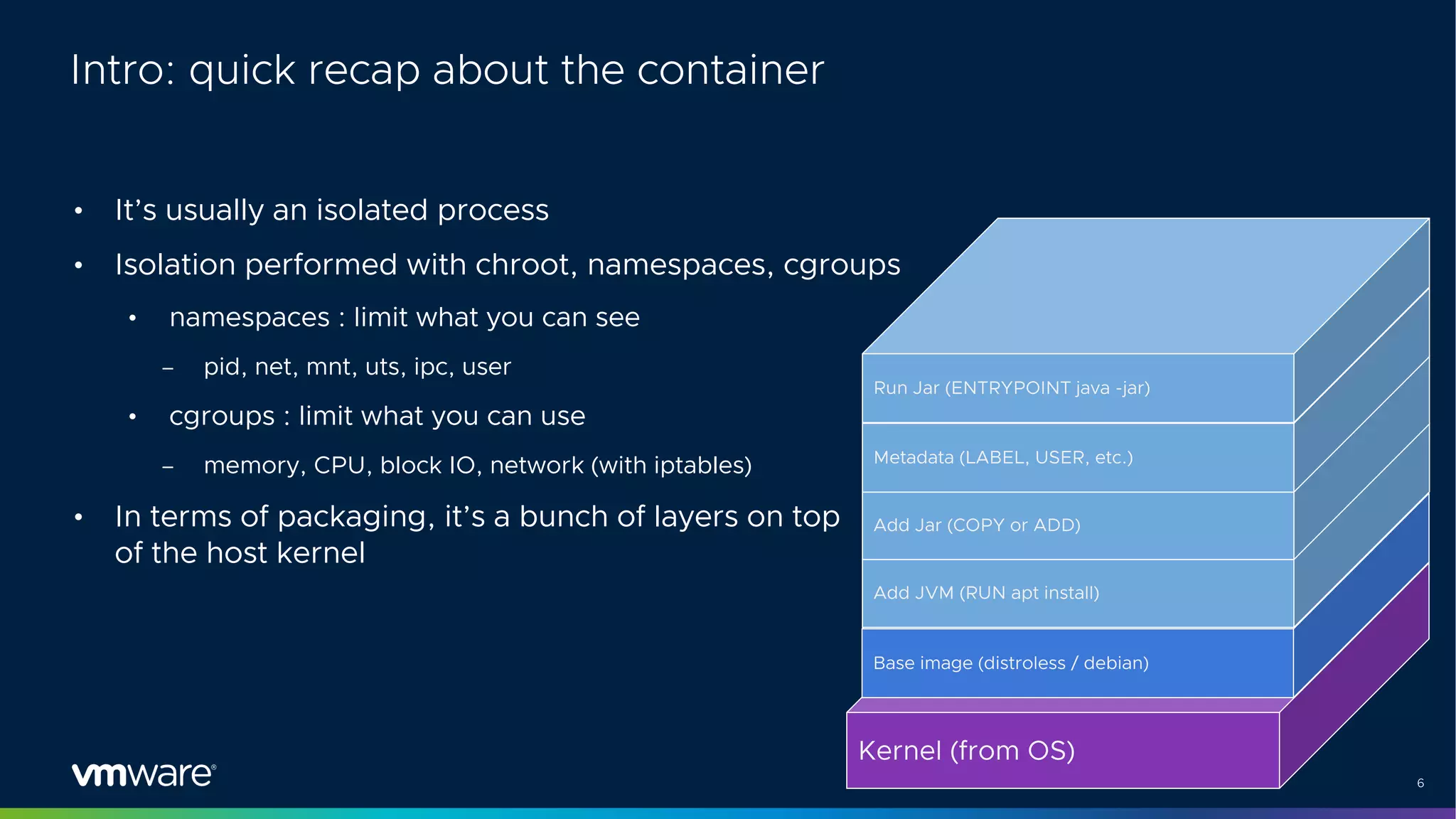

- 6. 6 Intro: quick recapabout the container • It’s usually an isolated process • Isolation performed with chroot, namespaces, cgroups • namespaces : limit what you can see – pid, net, mnt, uts, ipc, user • cgroups : limit what you can use – memory, CPU, block IO, network (with iptables) • In terms of packaging, it’s a bunch of layers on top of the host kernel Kernel (from OS) Base image (distroless / debian) Add JVM (RUN apt install) Add Jar (COPY or ADD) Metadata (LABEL, USER, etc.) Run Jar (ENTRYPOINT java -jar)

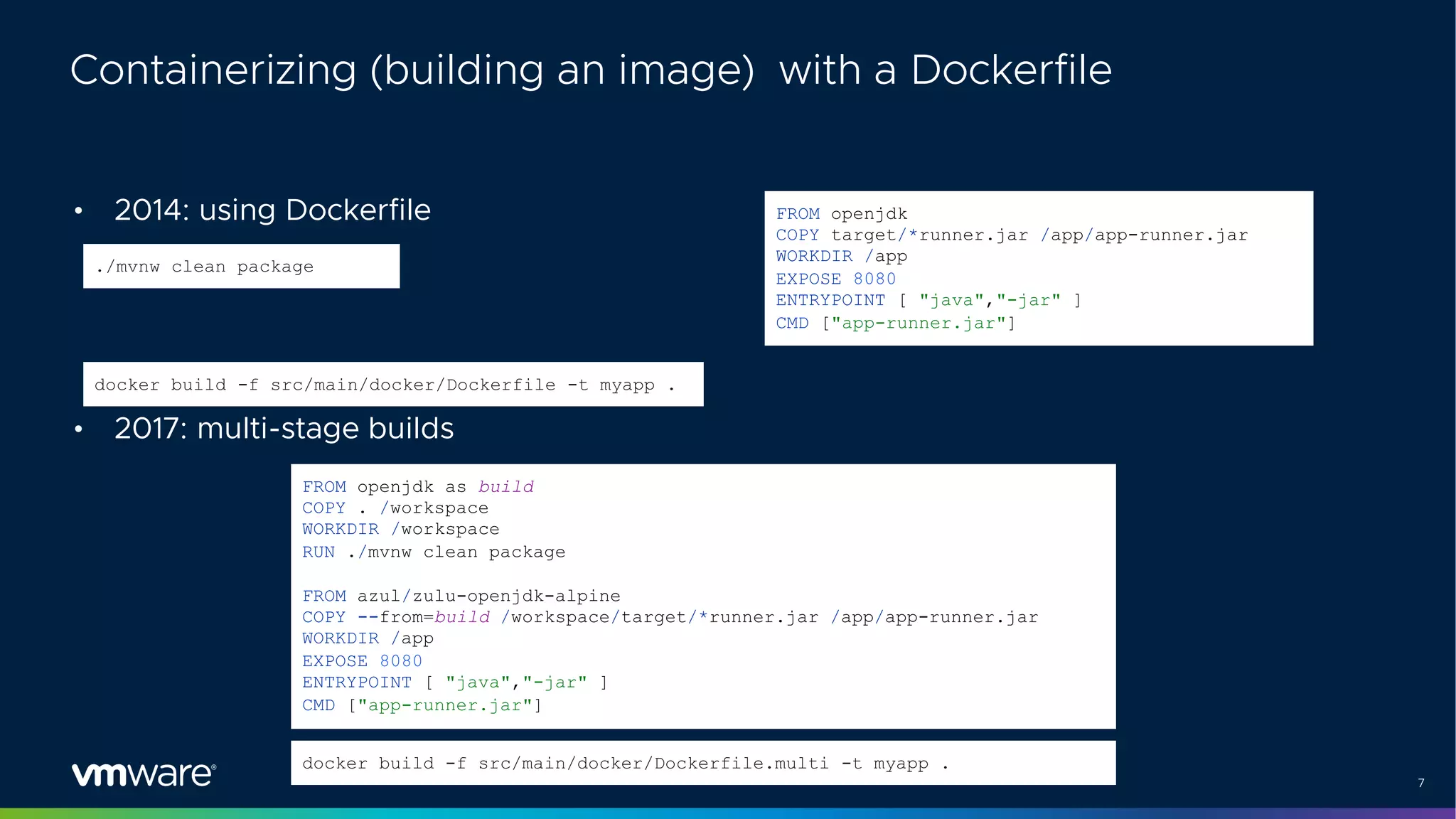

- 7. 7 Containerizing (building animage) with a Dockerfile • 2014: using Dockerfile • 2017: multi-stage builds FROM openjdk COPY target/*runner.jar /app/app-runner.jar WORKDIR /app EXPOSE 8080 ENTRYPOINT [ "java","-jar" ] CMD ["app-runner.jar"] ./mvnw clean package docker build -f src/main/docker/Dockerfile -t myapp . FROM openjdk as build COPY . /workspace WORKDIR /workspace RUN ./mvnw clean package FROM azul/zulu-openjdk-alpine COPY --from=build /workspace/target/*runner.jar /app/app-runner.jar WORKDIR /app EXPOSE 8080 ENTRYPOINT [ "java","-jar" ] CMD ["app-runner.jar"] docker build -f src/main/docker/Dockerfile.multi -t myapp .

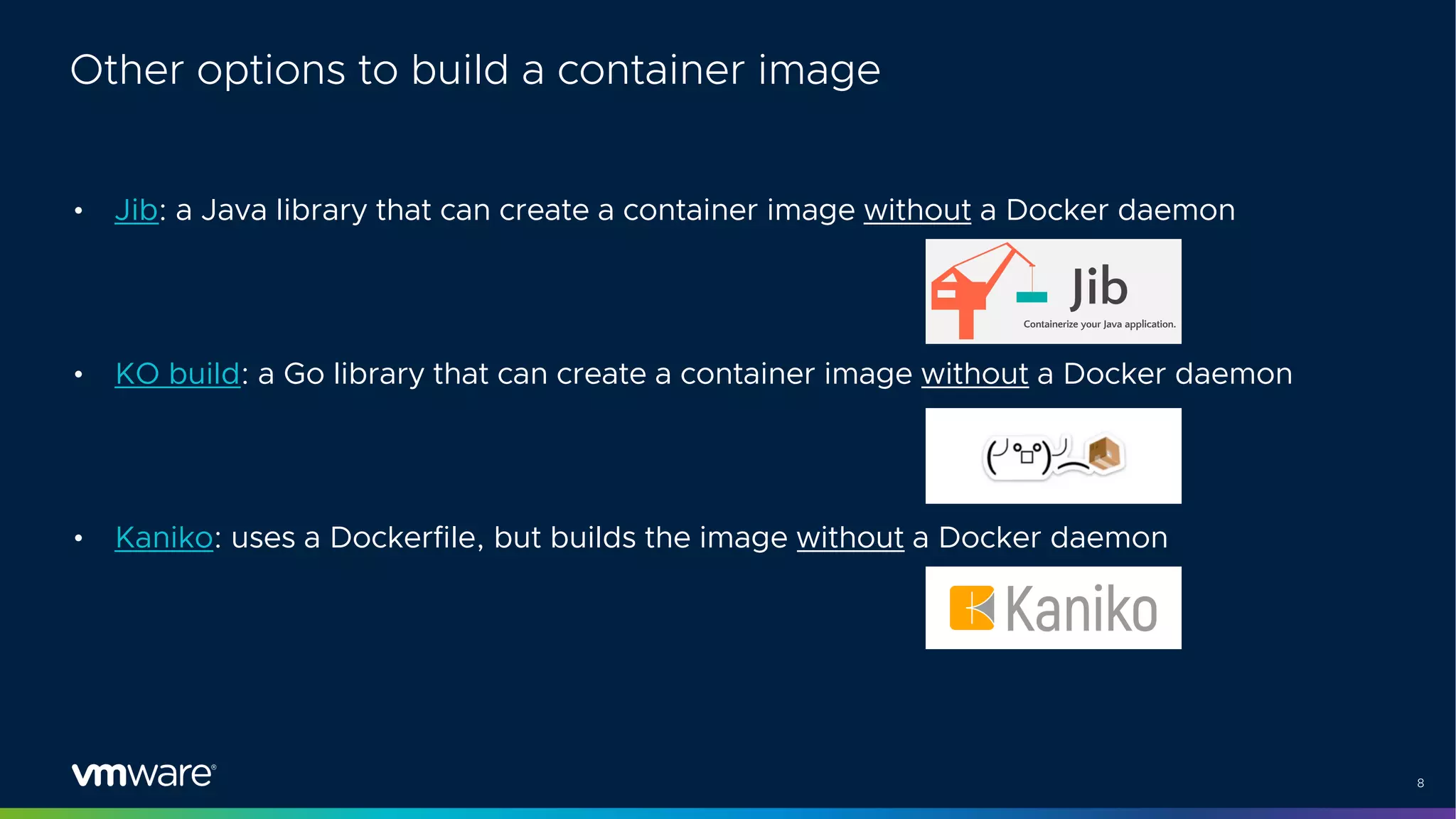

- 8. 8 Other options tobuild a container image • Jib: a Java library that can create a container image without a Docker daemon • KO build: a Go library that can create a container image without a Docker daemon • Kaniko: uses a Dockerfile, but builds the image without a Docker daemon
- 9. 9 Cloud Native Buildpacks akaBuildpacks v3 aka CNCF Buildpacks

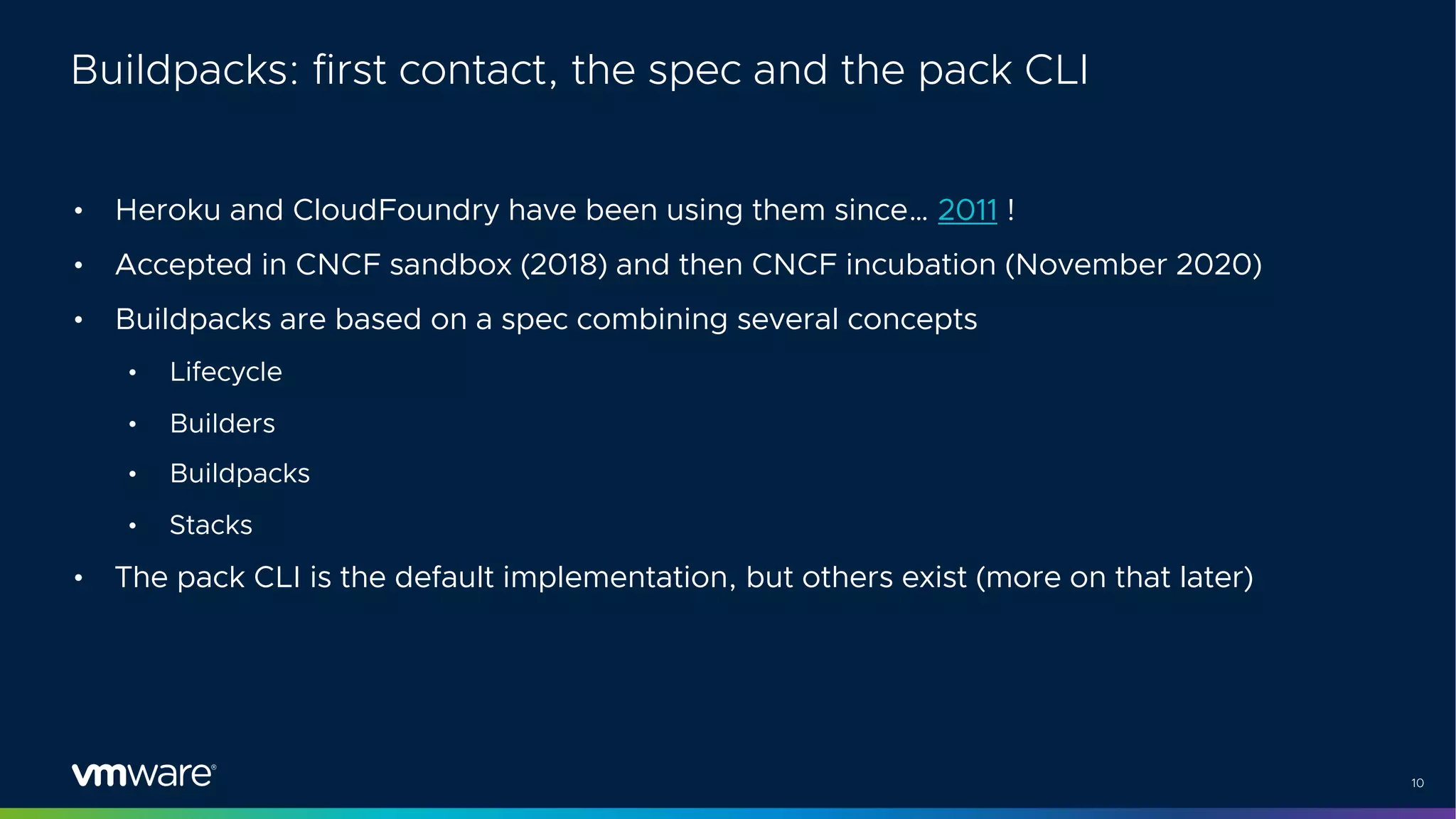

- 10. 10 Buildpacks: first contact,the spec and the pack CLI • Heroku and CloudFoundry have been using them since… 2011 ! • Accepted in CNCF sandbox (2018) and then CNCF incubation (November 2020) • Buildpacks are based on a spec combining several concepts • Lifecycle • Builders • Buildpacks • Stacks • The pack CLI is the default implementation, but others exist (more on that later)

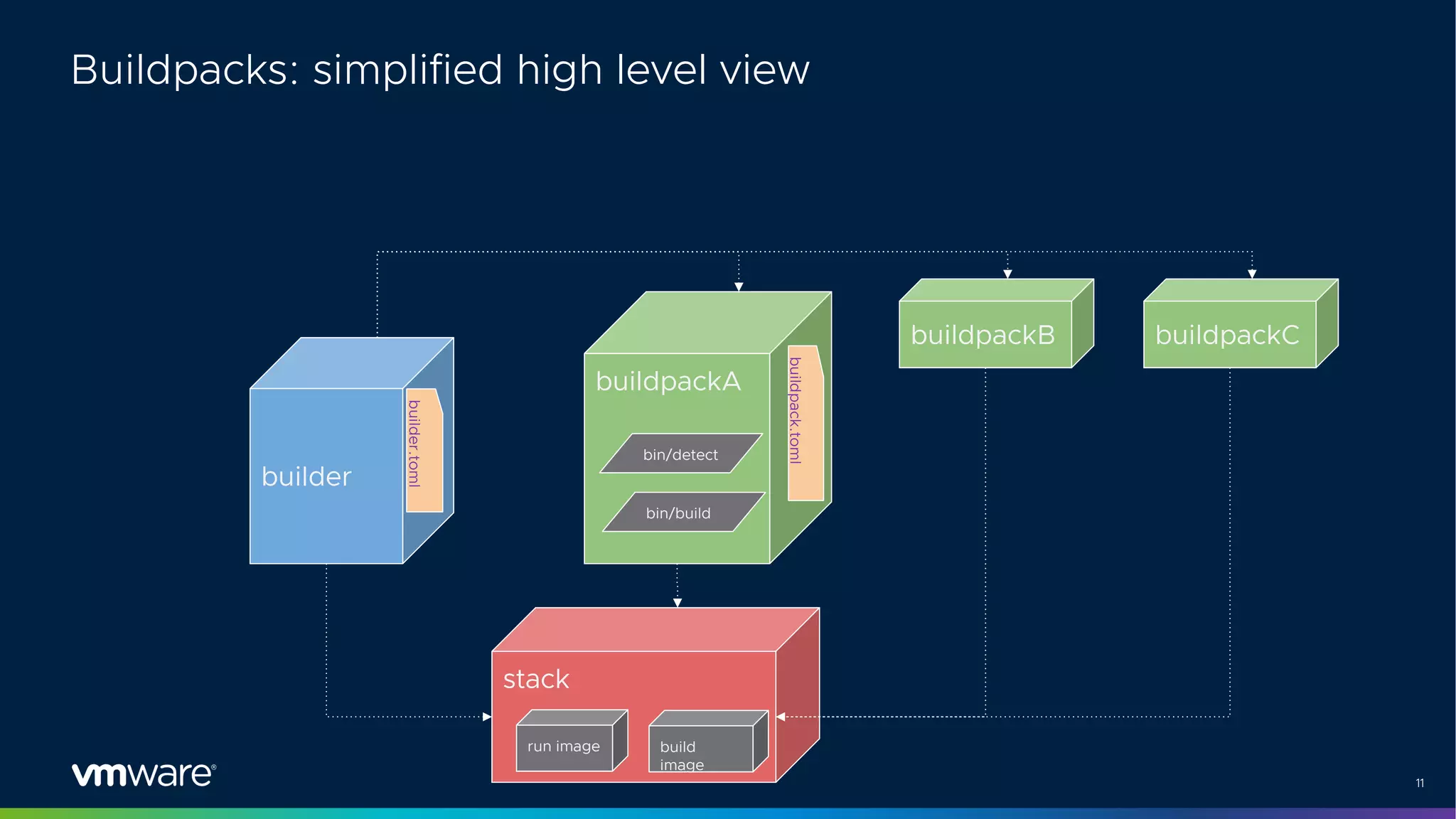

- 11. 11 Buildpacks: simplified highlevel view third builder second buildpackA buildpackB buildpackC stack run image build image bin/detect bin/build buildpack.toml builder.toml

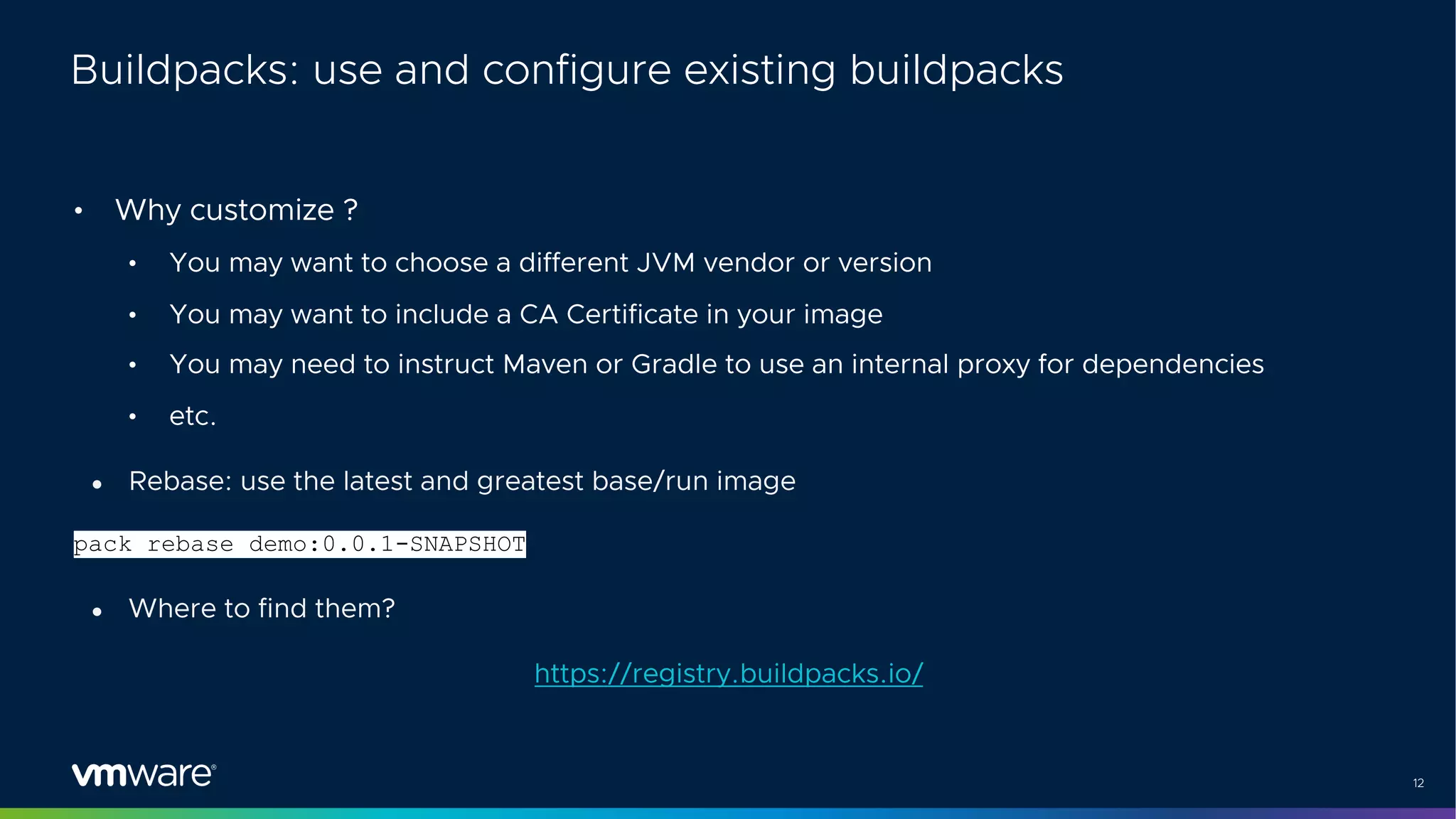

- 12. 12 Buildpacks: use andconfigure existing buildpacks • Why customize ? • You may want to choose a different JVM vendor or version • You may want to include a CA Certificate in your image • You may need to instruct Maven or Gradle to use an internal proxy for dependencies • etc. ● Rebase: use the latest and greatest base/run image pack rebase demo:0.0.1-SNAPSHOT ● Where to find them? https://registry.buildpacks.io/

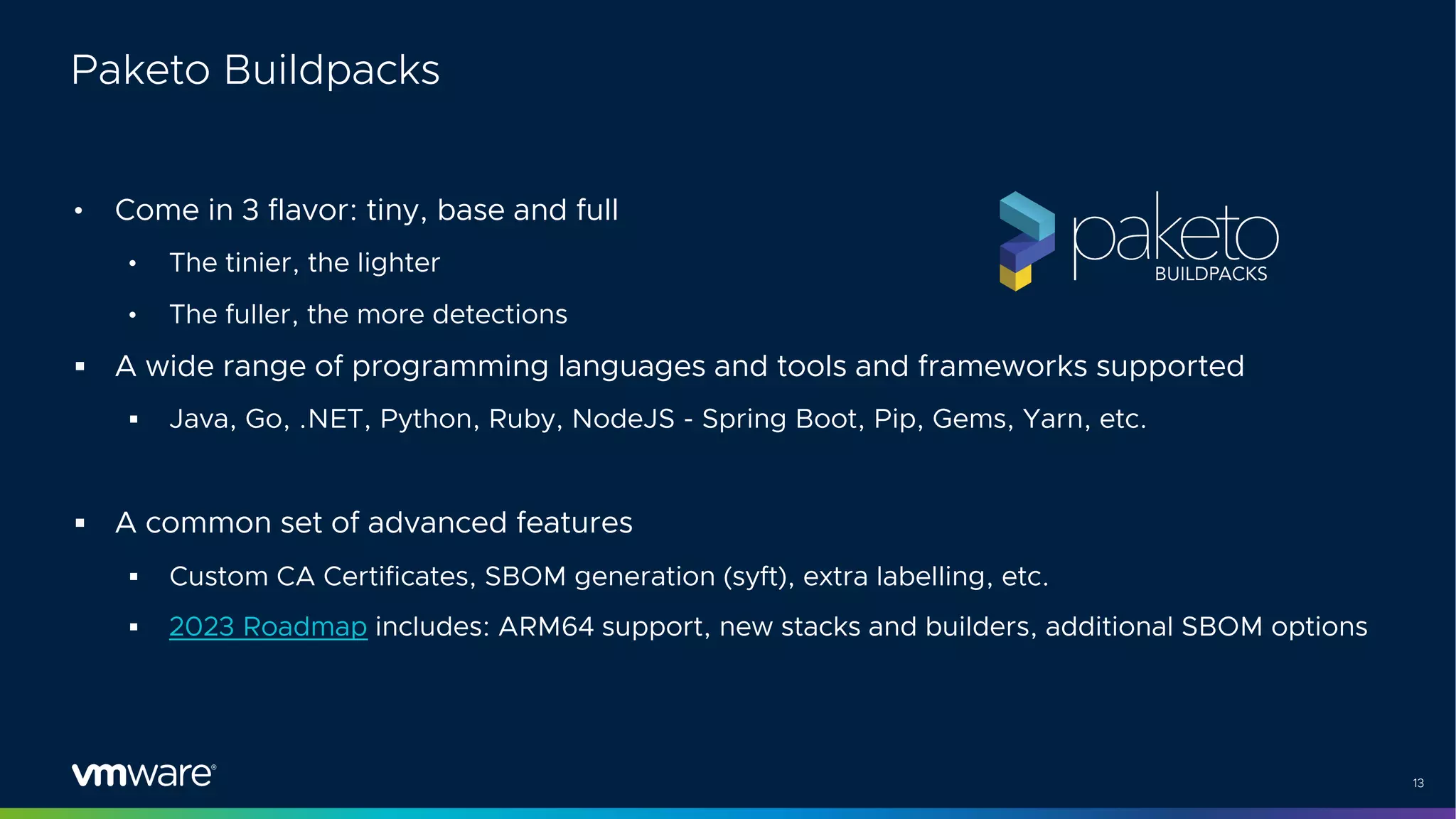

- 13. 13 Paketo Buildpacks • Comein 3 flavor: tiny, base and full • The tinier, the lighter • The fuller, the more detections § A wide range of programming languages and tools and frameworks supported § Java, Go, .NET, Python, Ruby, NodeJS - Spring Boot, Pip, Gems, Yarn, etc. § A common set of advanced features § Custom CA Certificates, SBOM generation (syft), extra labelling, etc. § 2023 Roadmap includes: ARM64 support, new stacks and builders, additional SBOM options

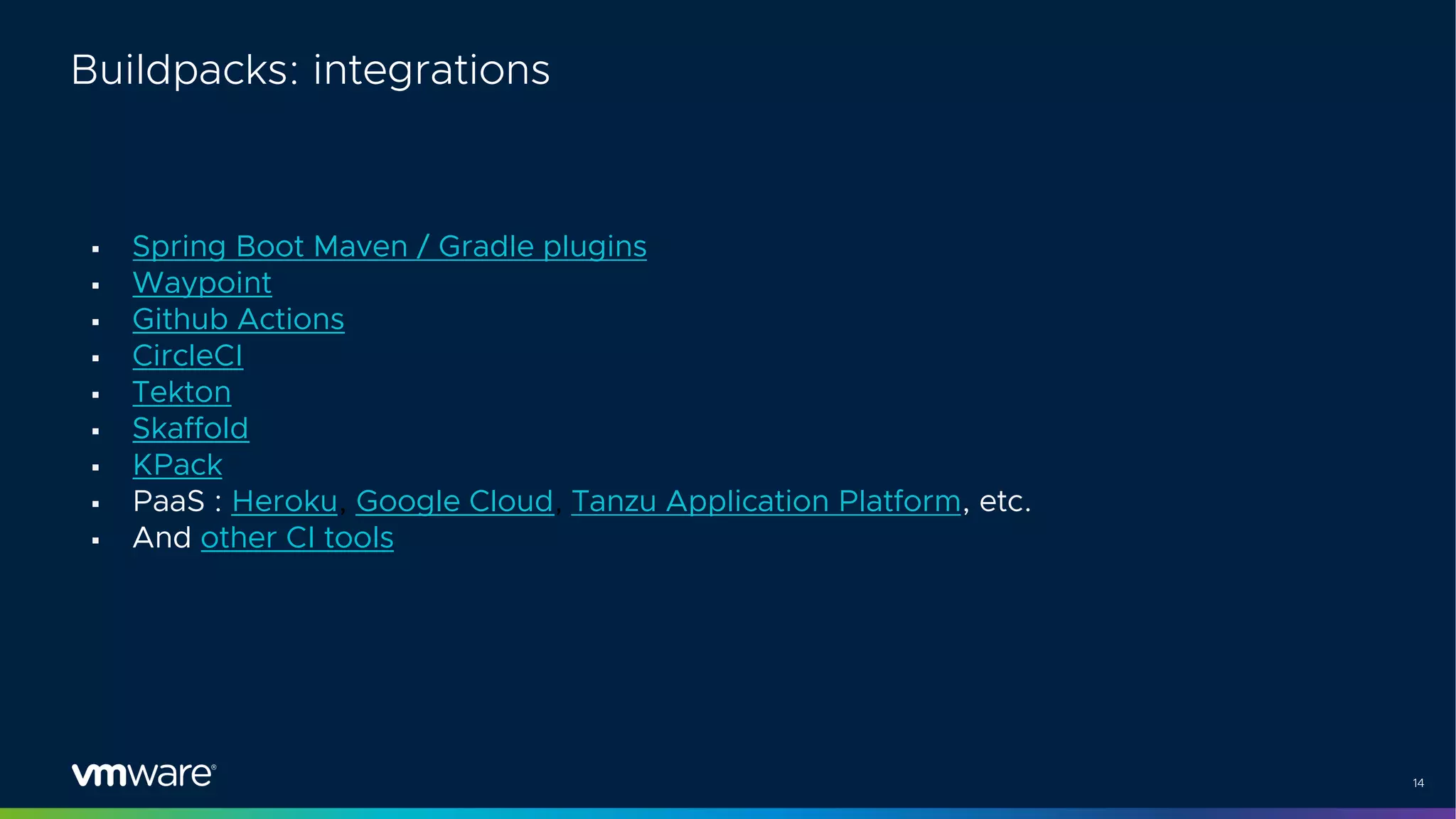

- 14. 14 Buildpacks: integrations § SpringBoot Maven / Gradle plugins § Waypoint § Github Actions § CircleCI § Tekton § Skaffold § KPack § PaaS : Heroku, Google Cloud, Tanzu Application Platform, etc. § And other CI tools
