This document discusses building Universal Windows Platform (UWP) apps with React Native. It provides an overview of React, React Native, and UWP. Key points covered include using React Native on Windows 10 and Xbox One by leveraging the ChakraCore JavaScript engine, and including platform specific code for Windows using files like index.windows.js. Navigation is handled differently on each platform, for example using native Android components on Android but cross-platform components on Windows. The document also discusses replacing the BackAndroid handler with BackWindows and using controls specific to UWP like SplitViewWindows.

2. Building UWP apps
with React Native

3. Who am I?
Maurice de Beijer
The Problem Solver
Microsoft Azure MVP
Freelance developer/instructor
Twitter: @mauricedb & @React_Tutorial
Web: http://www.TheProblemSolver.nl
E-mail: maurice.de.beijer@gmail.com

4. What are we ging to
cover?
What is React?
What is React Native?
What is the Universal Windows Platform (UWP)?
Building React Native UWP apps

5. What is React
React is a JavaScript library for creating user interfaces
Runs in the browser
Compose components into the user interface
Declarative
Unidirectional data ຨow

6. 25. ReactDOM.render(
26. <App/>, document.getElementById('root'));
14. export class App extends Component {
15. render() {
16. return (
17. <div>
18. <Hello name={'Maurice'}/>
19. </div>
20. );
21. }
22. }
23.
24.
27.
Use ReactDOM.render() to run the application

7. What is React Native
A framework for building native apps using React
Build on top of React
Target mobile devices
Android
IOS

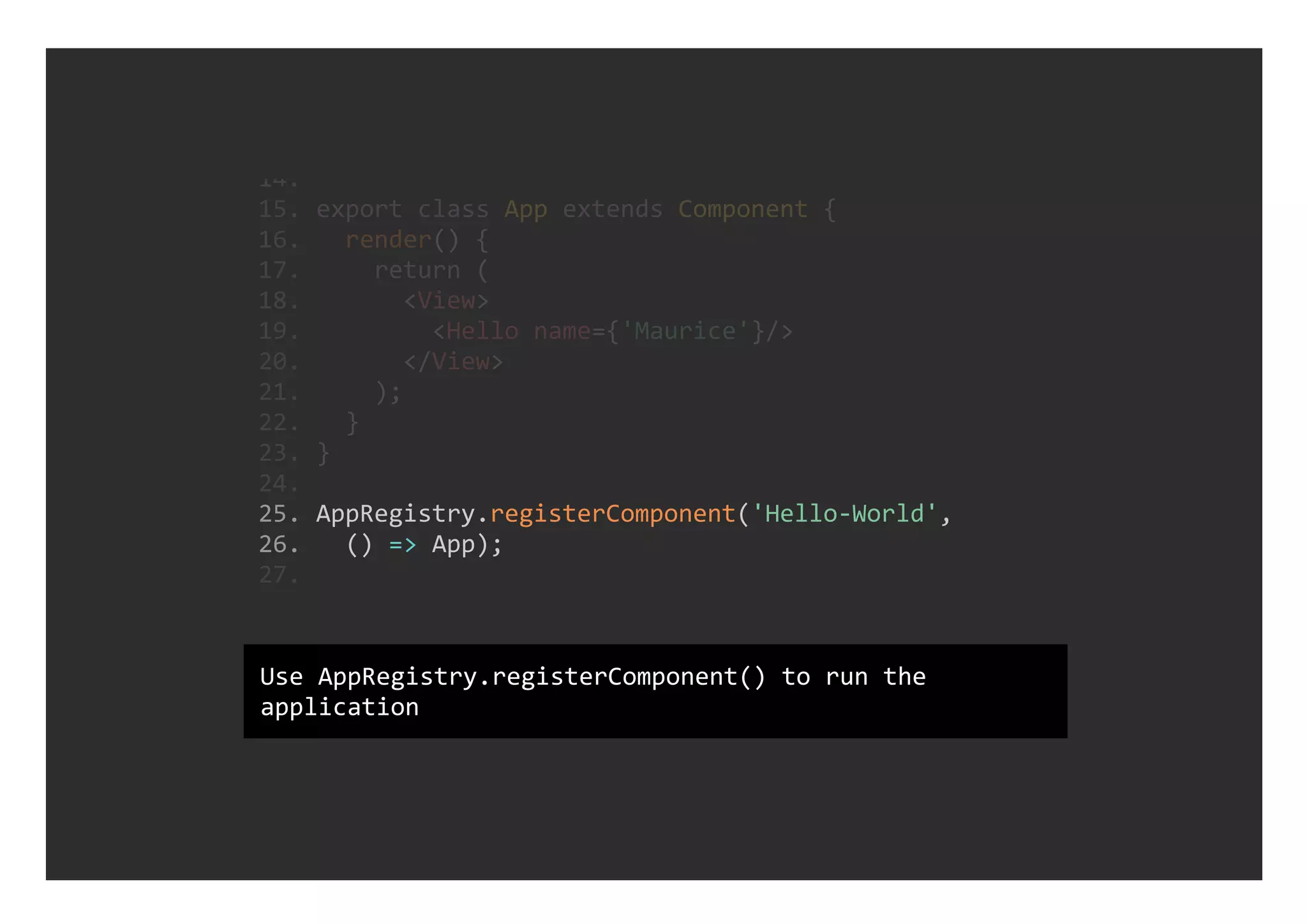

8. 25. AppRegistry.registerComponent('Hello‐World',
26. () => App);
14.
15. export class App extends Component {
16. render() {
17. return (
18. <View>
19. <Hello name={'Maurice'}/>
20. </View>
21. );
22. }
23. }
24.
27.
Use AppRegistry.registerComponent() to run the
application

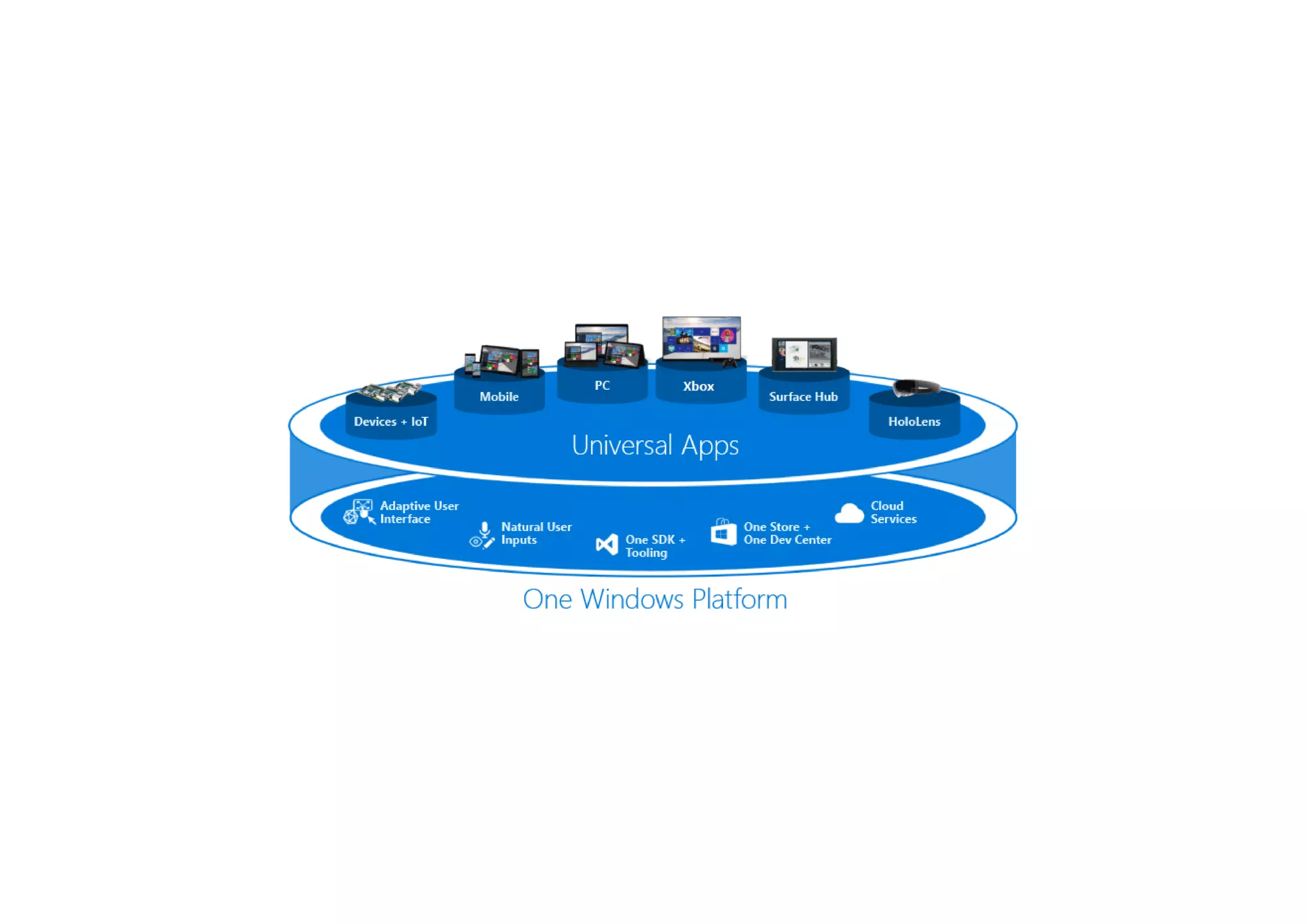

9. Universal Windows
Platform (UWP)
A common app platform for Windows applications
Targets every Windows 10 device
Create a single app package
One Windows Store targets all devices

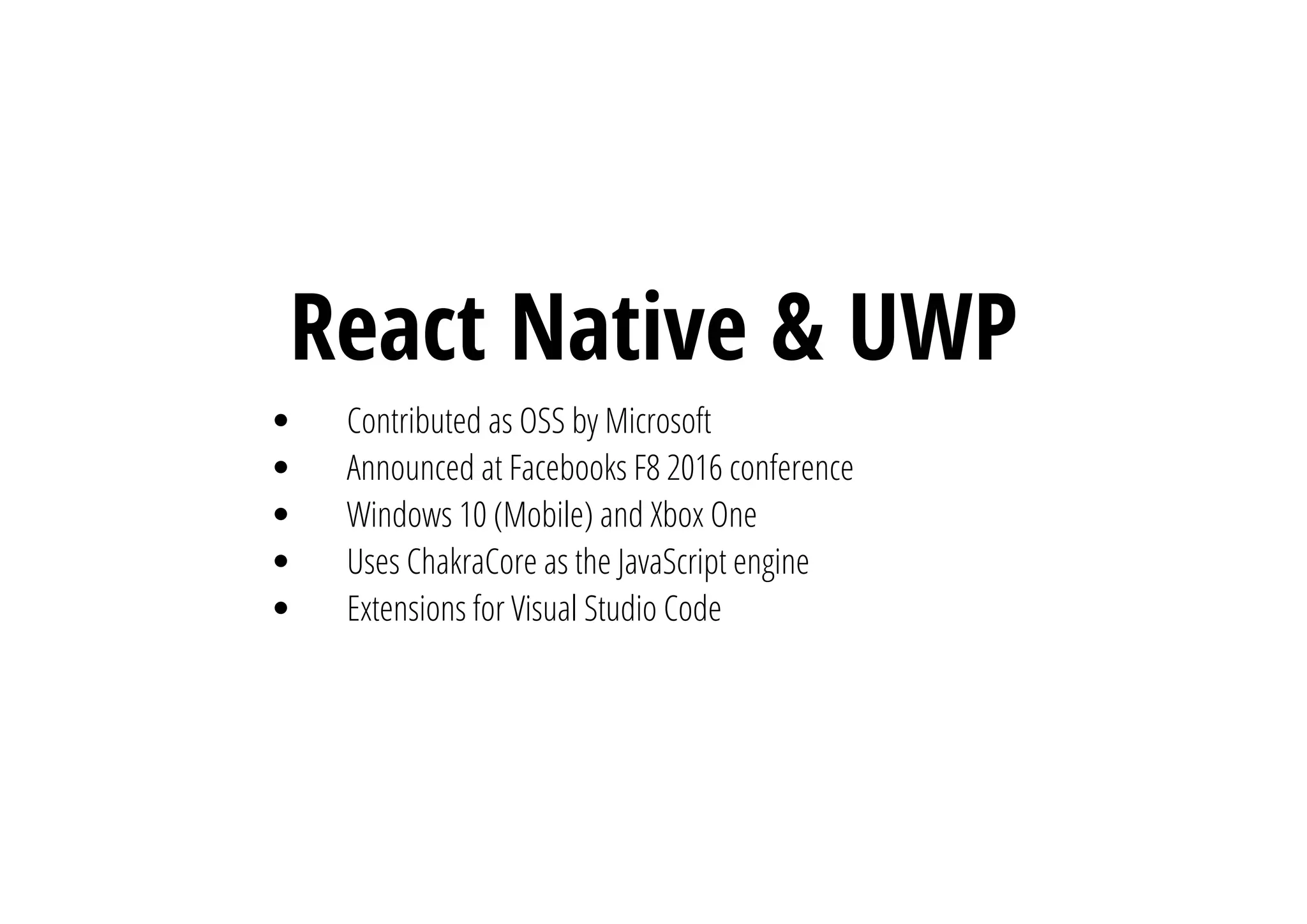

11. React Native & UWP
Contributed as OSS by Microsoft
Announced at Facebooks F8 2016 conference
Windows 10 (Mobile) and Xbox One
Uses ChakraCore as the JavaScript engine
Extensions for Visual Studio Code

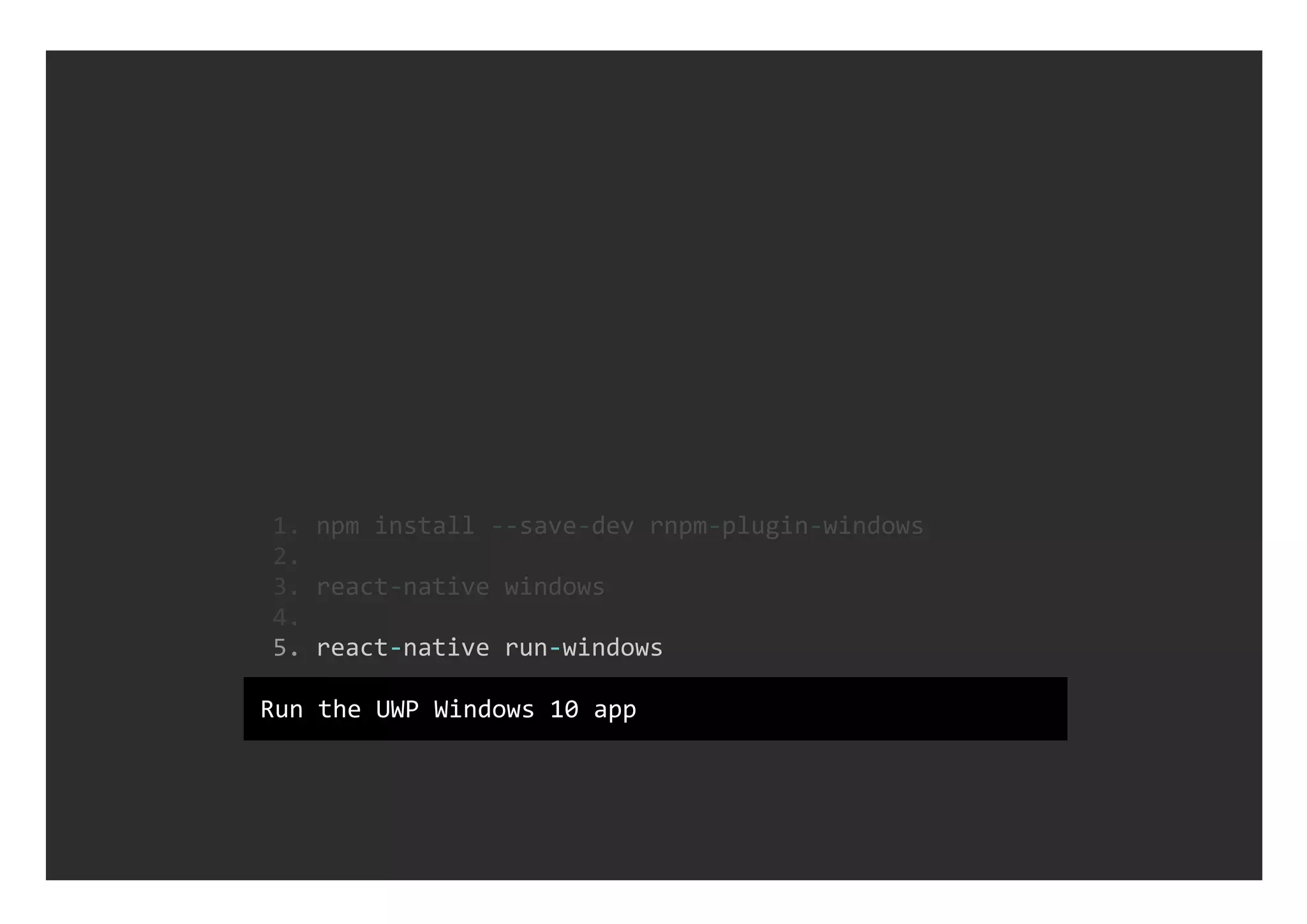

12. 5. react‐native run‐windows
1. npm install ‐‐save‐dev rnpm‐plugin‐windows
2.
3. react‐native windows
4.
Run the UWP Windows 10 app

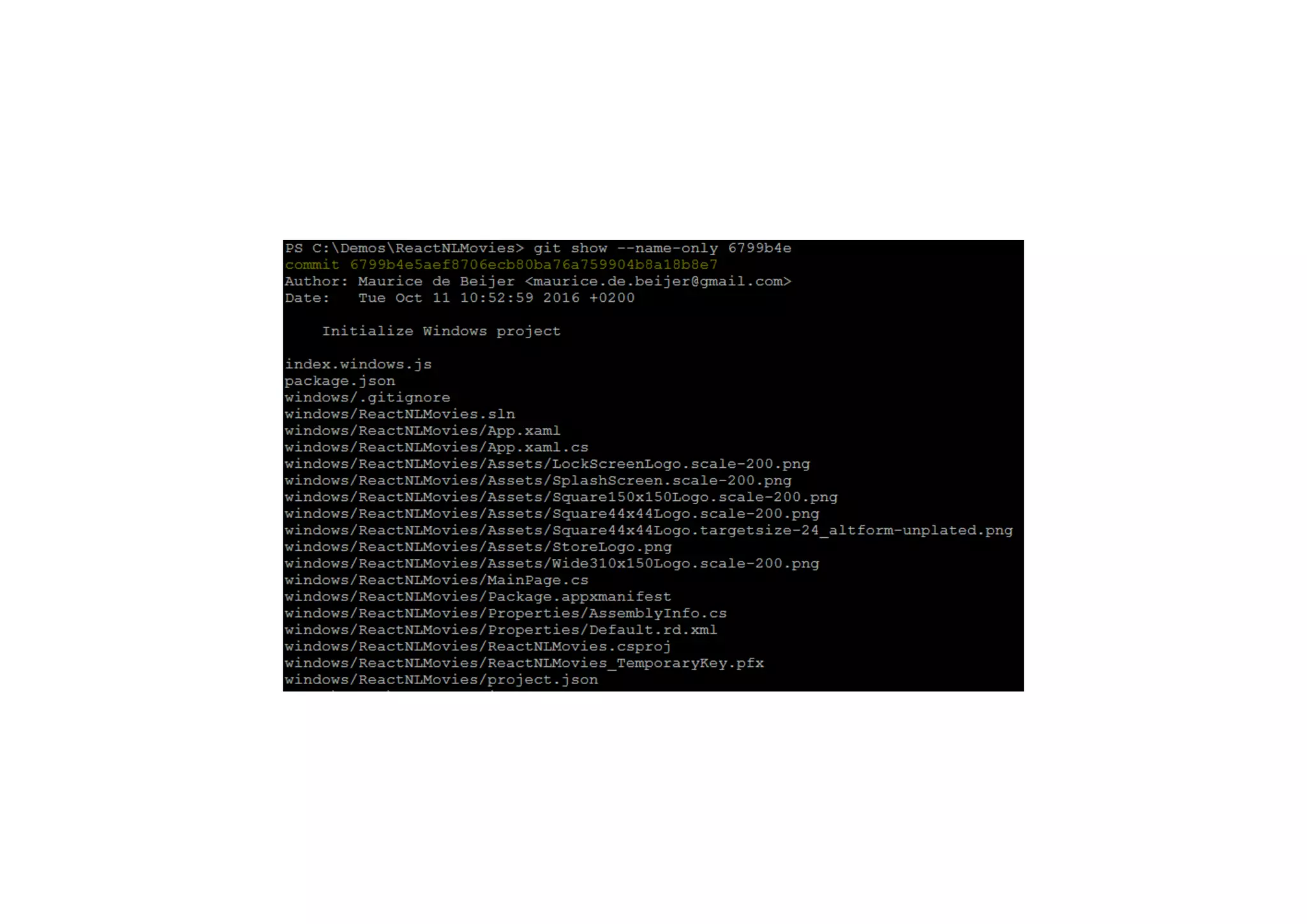

13. What is added?
Entry point for the RN app: index.windows.js
The react-native-windows NPM package
Visual Studio 2015 Solution and Project
VS2015 Community will work

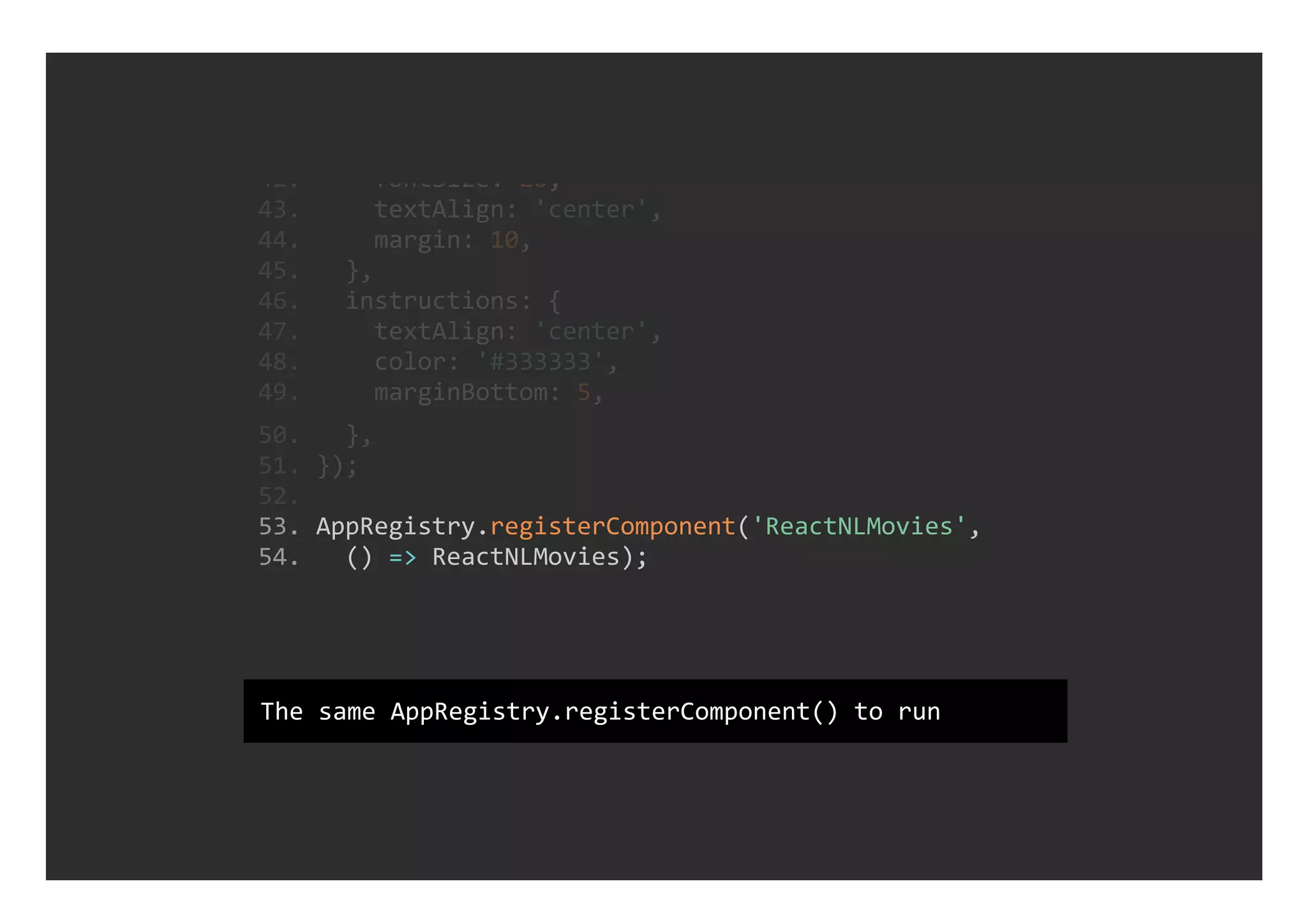

16. 53. AppRegistry.registerComponent('ReactNLMovies',
54. () => ReactNLMovies);
42. fontSize: 20,
43. textAlign: 'center',
44. margin: 10,
45. },
46. instructions: {
47. textAlign: 'center',
48. color: '#333333',
49. marginBottom: 5,
50. },
51. });
52.
The same AppRegistry.registerComponent() to run

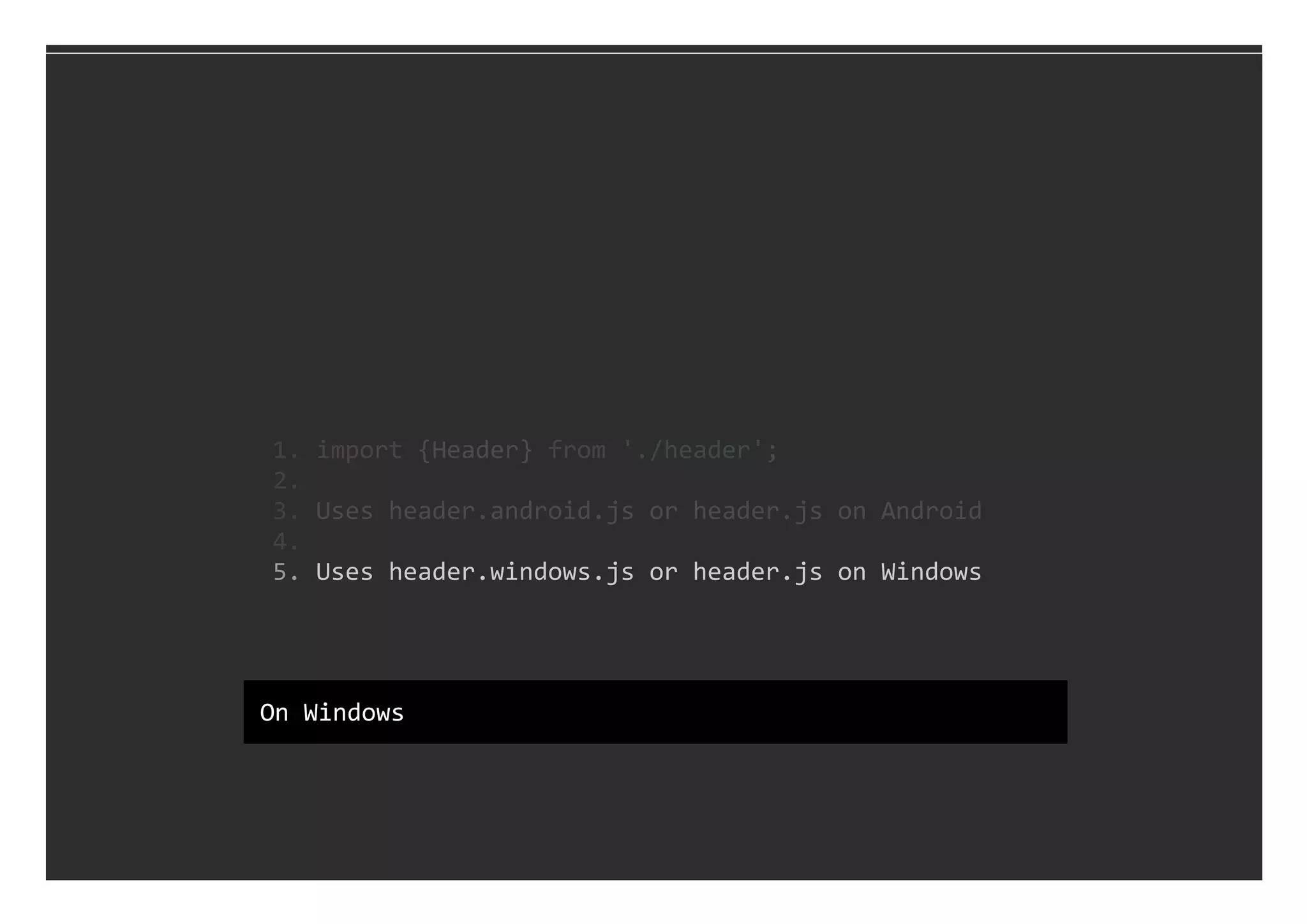

17. 5. Uses header.windows.js or header.js on Windows
1. import {Header} from './header';
2.
3. Uses header.android.js or header.js on Android
4.
On Windows

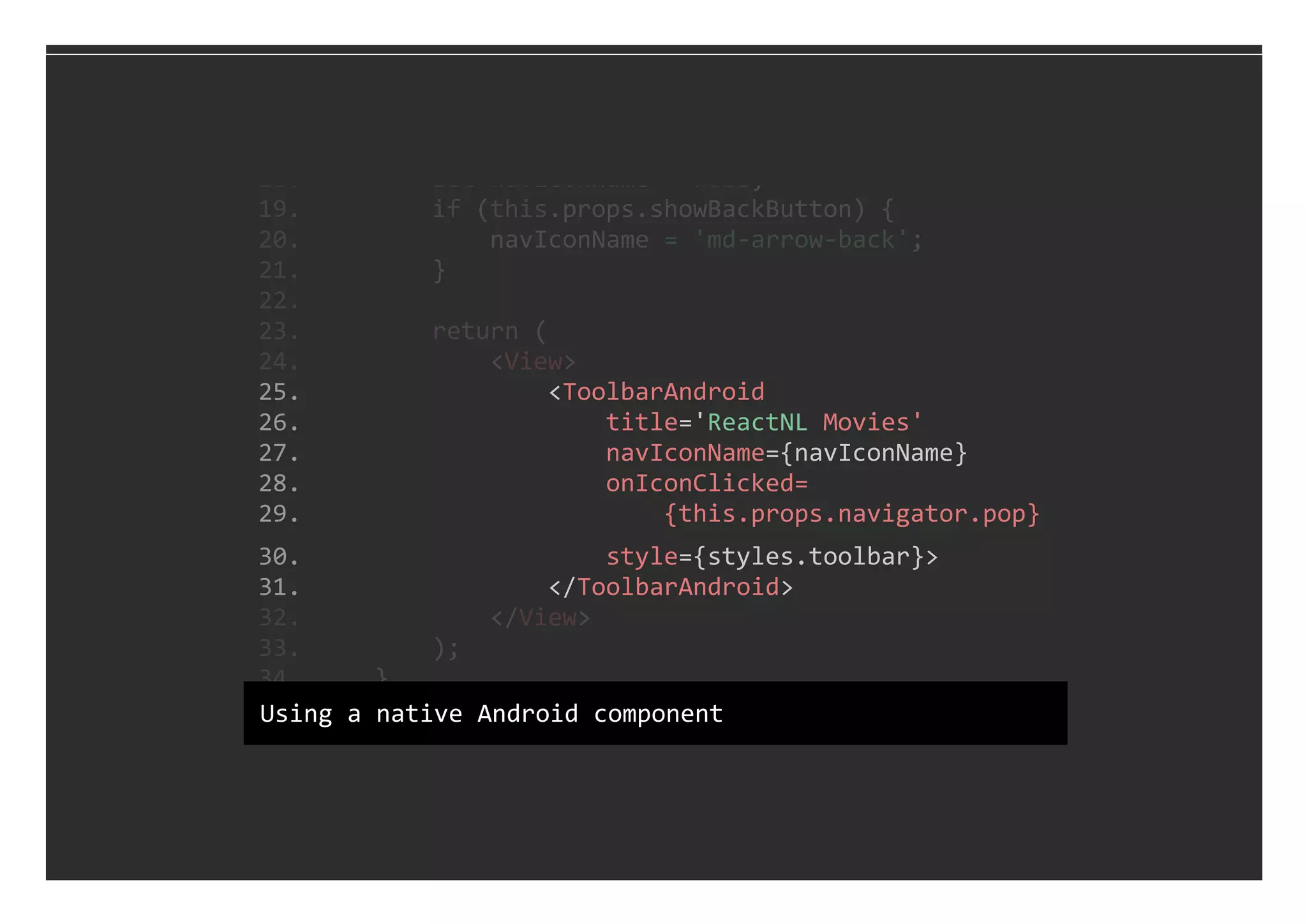

18. 25. <ToolbarAndroid
26. title='ReactNL Movies'
27. navIconName={navIconName}
28. onIconClicked=
29. {this.props.navigator.pop}
30. style={styles.toolbar}>
31. </ToolbarAndroid>
18. let navIconName = null;
19. if (this.props.showBackButton) {
20. navIconName = 'md‐arrow‐back';
21. }
22.
23. return (
24. <View>
32. </View>
33. );
34. }
35. }Using a native Android component

19. 30. <View style={styles.toolbar}>
31. {navIcon}
32. <Text style={styles.header}>
33. ReactNL Movies
34. </Text>
35. </View>
24. onPress=
{this.props.navigator.pop}>ᾆ
25. </Text>
26. }
27.
28. return (
29. <View>
36. </View>
37. );
38.
39. //
40. }
41. }
Using a cross platfom component

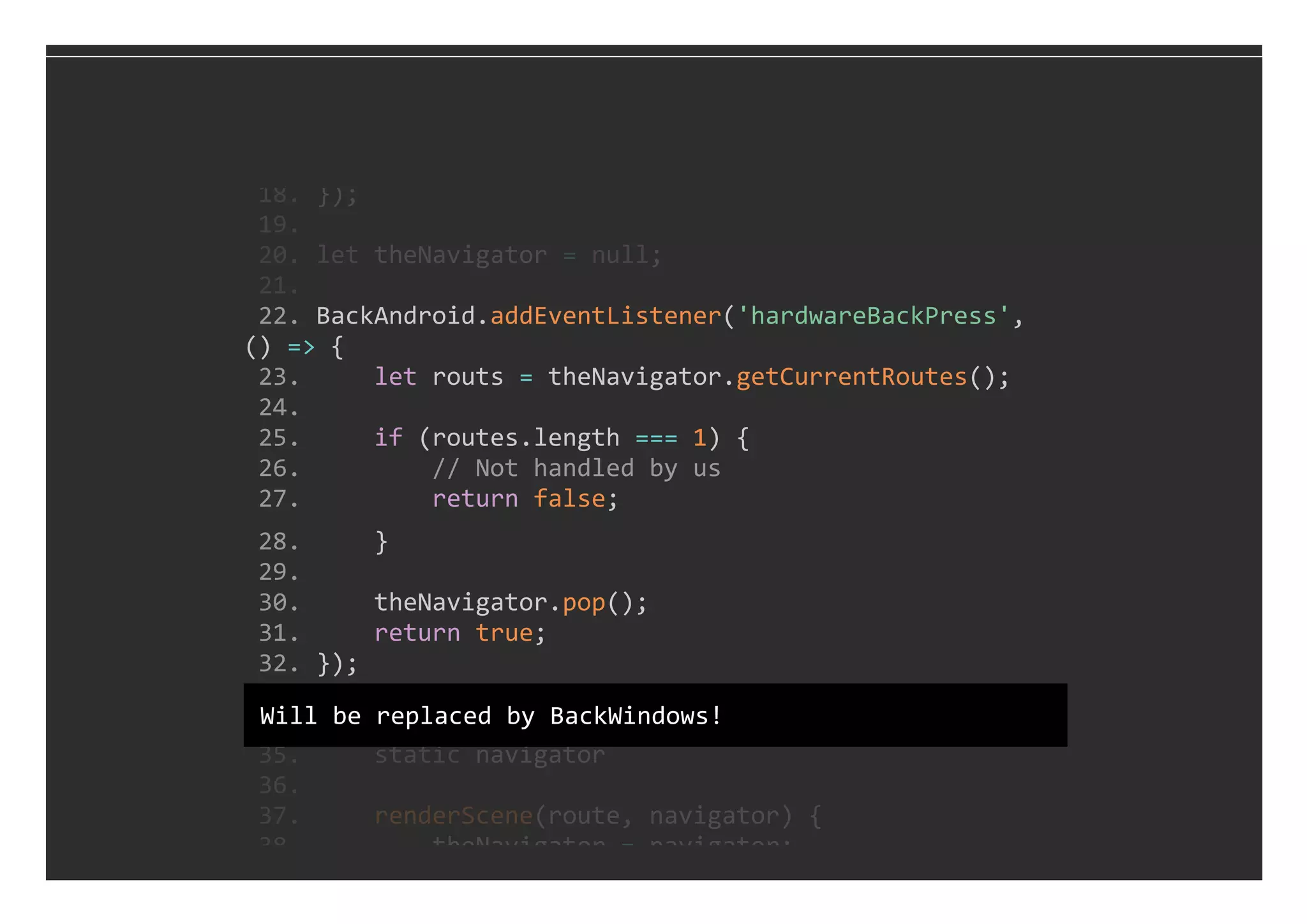

20. 22. BackAndroid.addEventListener('hardwareBackPress',
() => {
23. let routs = theNavigator.getCurrentRoutes();
24.
25. if (routes.length === 1) {
26. // Not handled by us
27. return false;
28. }
29.
30. theNavigator.pop();
31. return true;
32. });
18. });
19.
20. let theNavigator = null;
21.
33.
34. export class MainWindow extends Component {
35. static navigator
36.
37. renderScene(route, navigator) {
38. theNavigator = navigator;
Will be replaced by BackWindows!

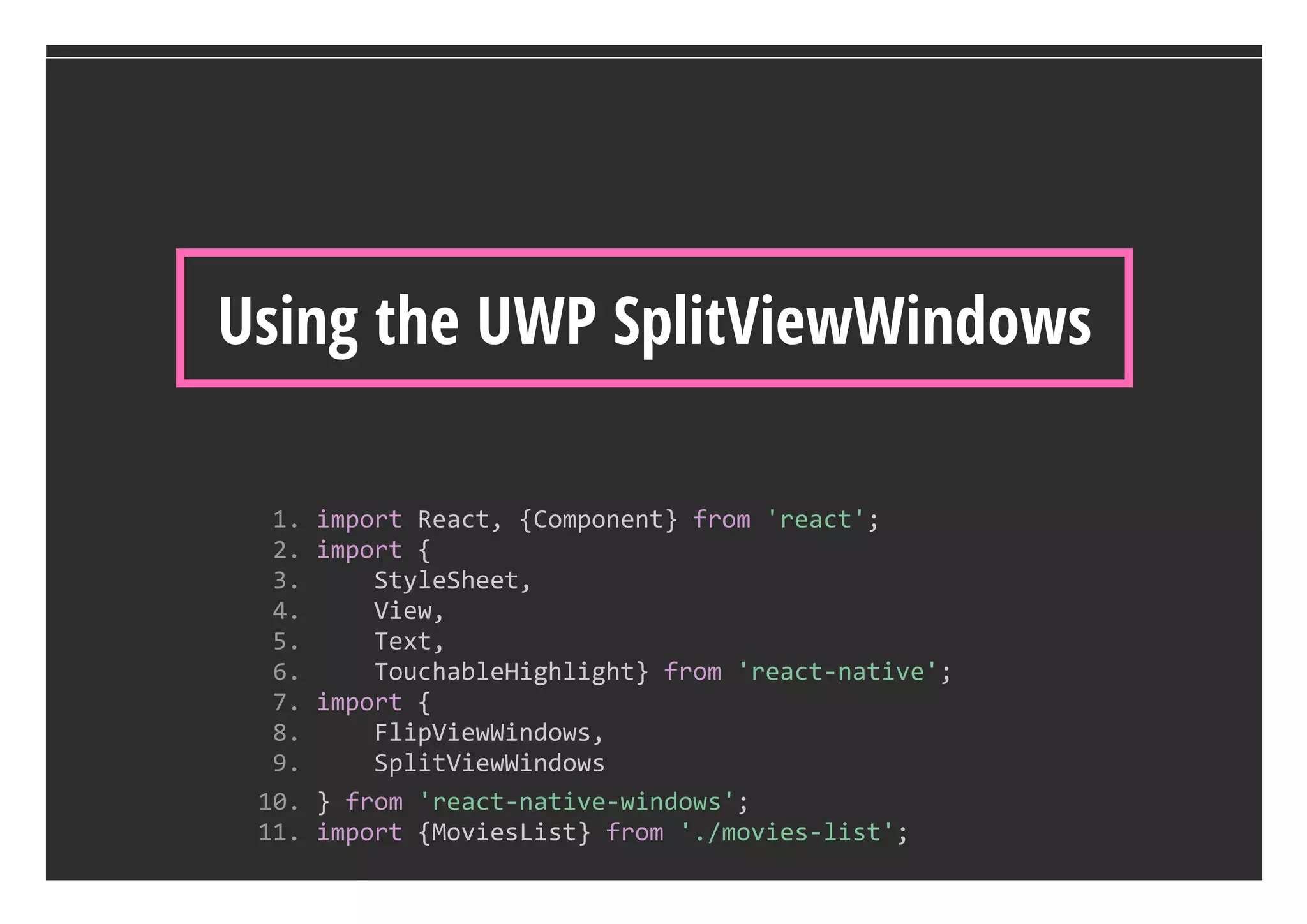

21. Using the UWP SplitViewWindows
1. import React, {Component} from 'react';
2. import {
3. StyleSheet,
4. View,
5. Text,
6. TouchableHighlight} from 'react‐native';
7. import {
8. FlipViewWindows,
9. SplitViewWindows
10. } from 'react‐native‐windows';
11. import {MoviesList} from './movies‐list';

22. Maurice de Beijer - @mauricedb
