| © Copyright 2022, InfluxData
Workshop: Building an IoT
Monitoring App with
InfluxDB and LoRa
February 2022
Jay Clifford, Developer Advocate
| © Copyright 2022, InfluxData
2
Jay Clifford
Developer Advocate, InfluxData
● Past life: Sales Engineer for IIoT Solutions
● Passion: OT, Autonomous and Vision based projects
● Driven: To make IoT accessible to all
● Belief: Industrial IoT’s success belongs to the domain
experts.
LINKEDIN
GITHUB

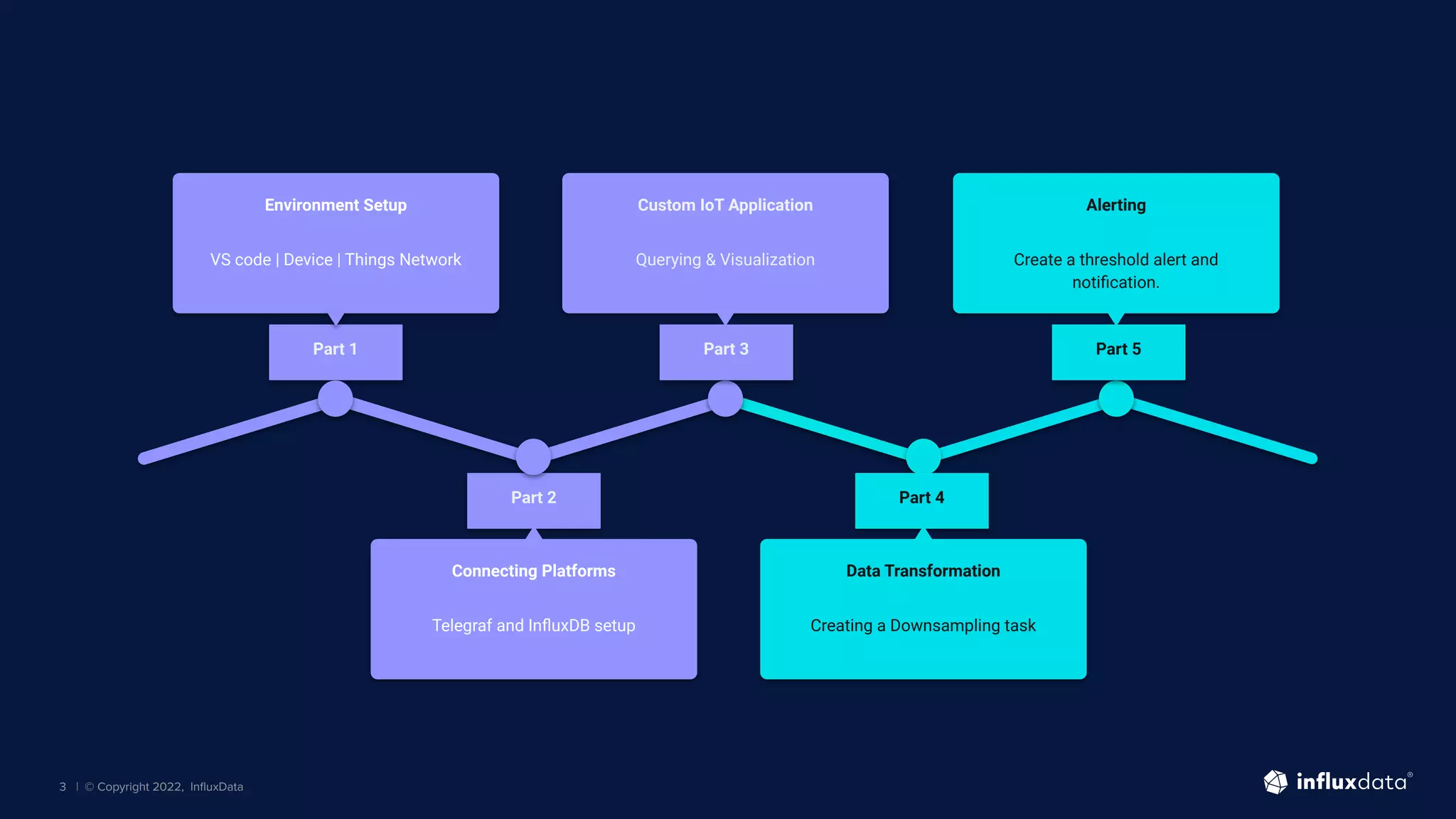

| © Copyright 2022, InfluxData
3
Part 2
Connecting Platforms
Telegraf and InfluxDB setup
Part 4
Data Transformation
Creating a Downsampling task
Part 1
Environment Setup
VS code | Device | Things Network
Part 5
Alerting
Create a threshold alert and
notification.
Part 3
Custom IoT Application
Querying & Visualization
| © Copyright 2022, InfluxData
4

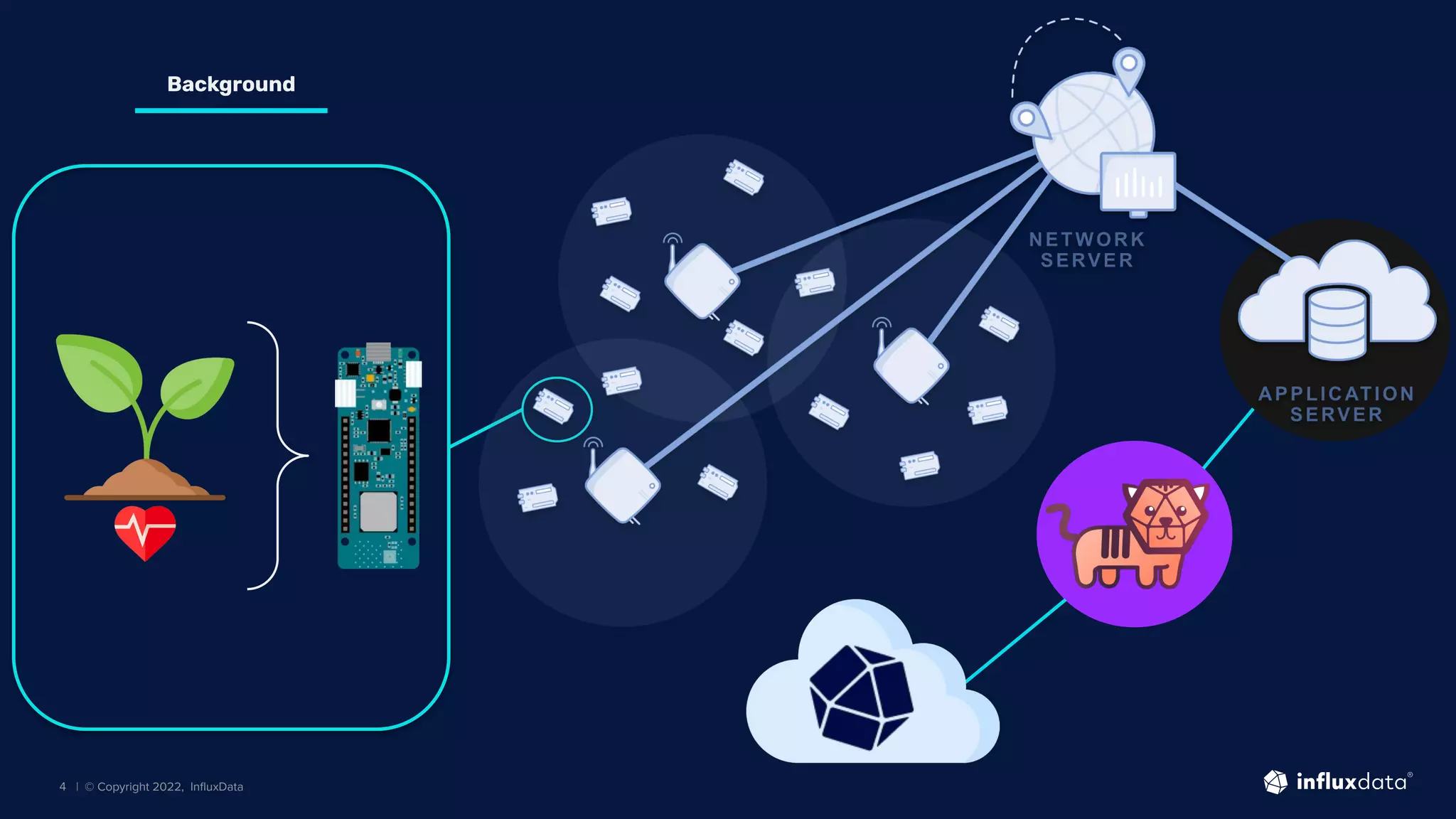

Background
| © Copyright 2022, InfluxData
Environment Setup
| © Copyright 2022, InfluxData
6

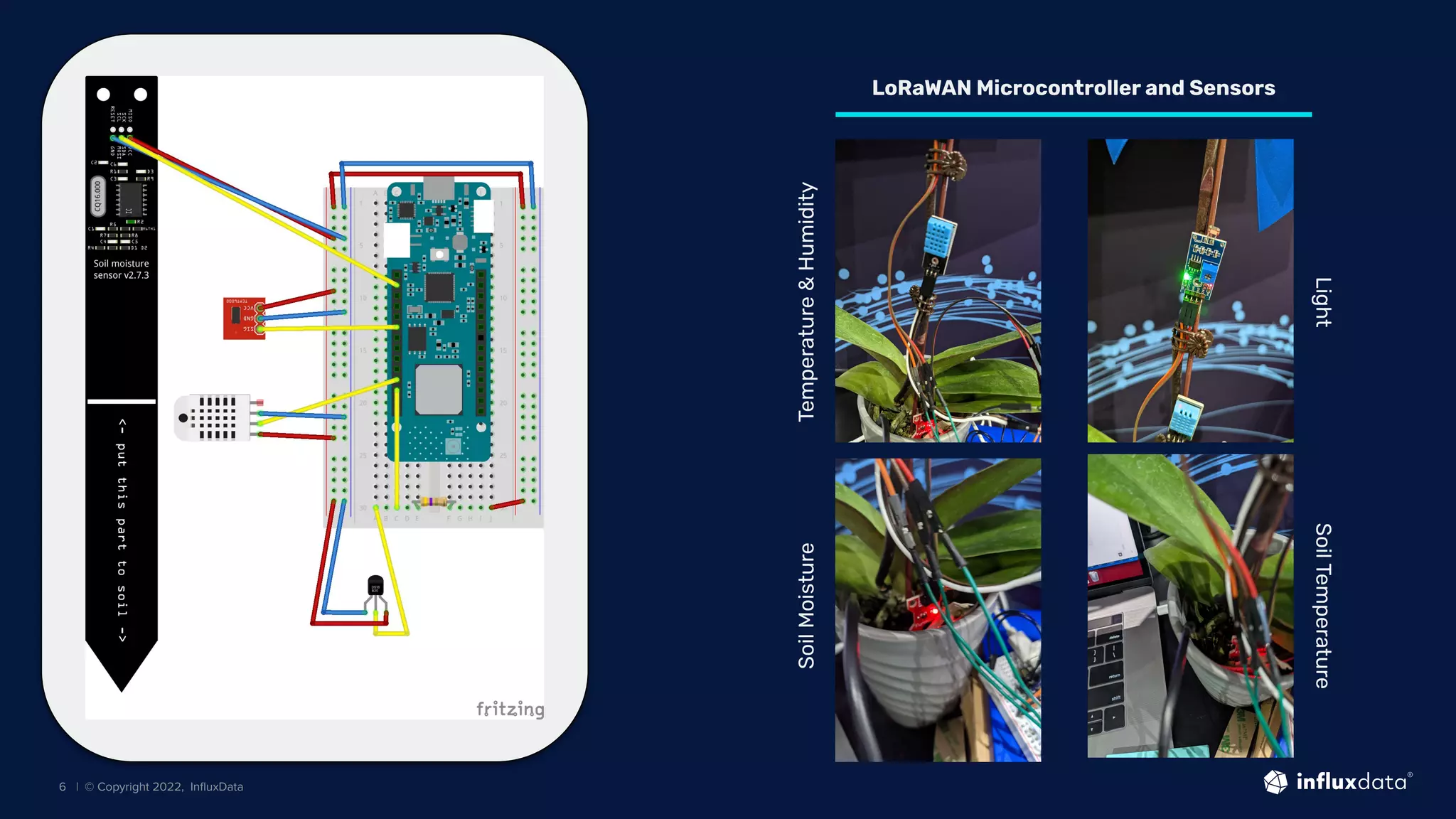

LoRaWAN Microcontroller and Sensors
Temperature
&
Humidity
Soil
Moisture
Light
Soil
Temperature
| © Copyright 2022, InfluxData
7
VS Code Flux Plugin
1. Install Plugin
2. Add InfluxDB Instance
| © Copyright 2022, InfluxData
8

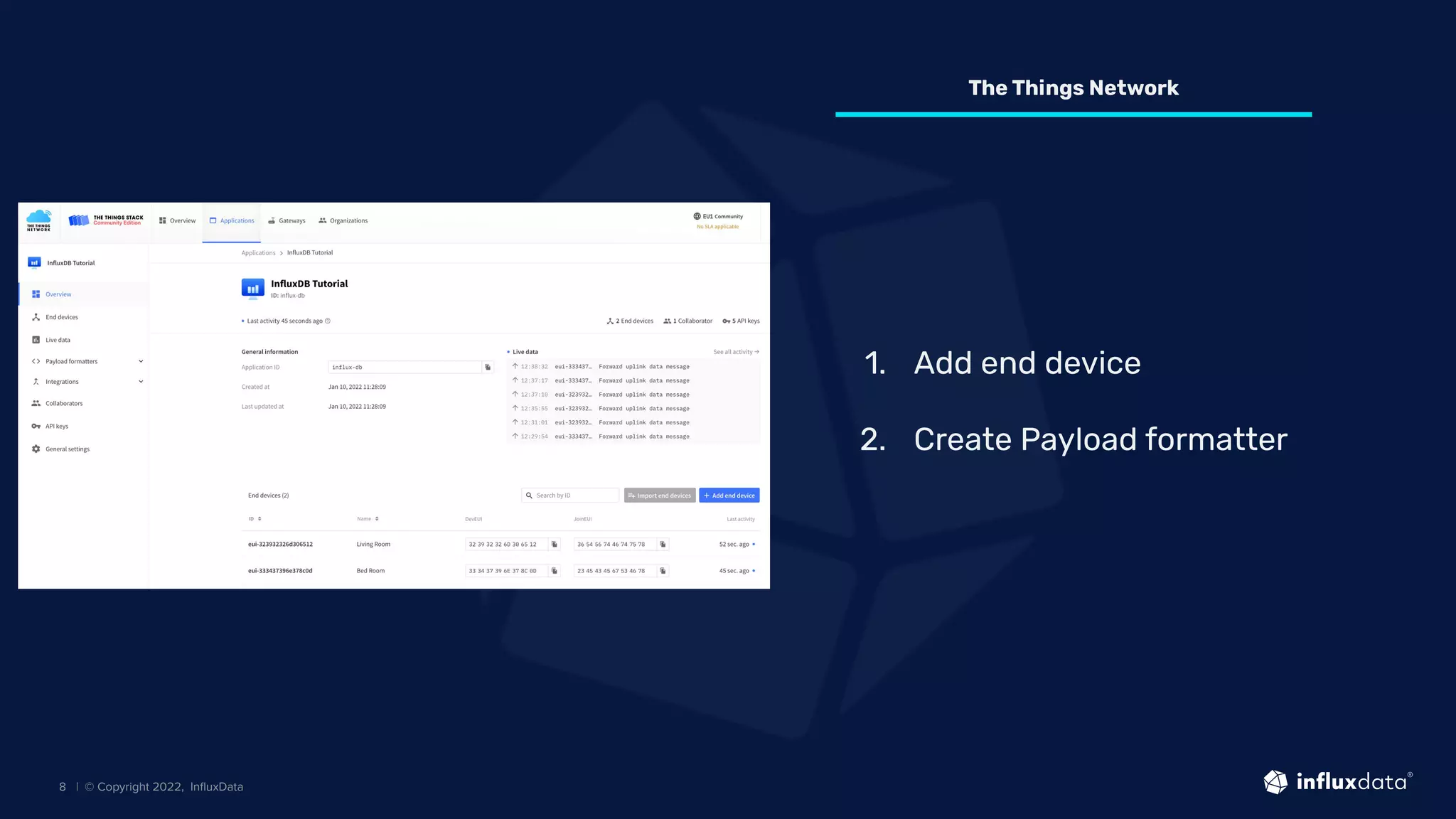

The Things Network
1. Add end device
2. Create Payload formatter
| © Copyright 2022, InfluxData
Connecting Platforms
| © Copyright 2022, InfluxData
10

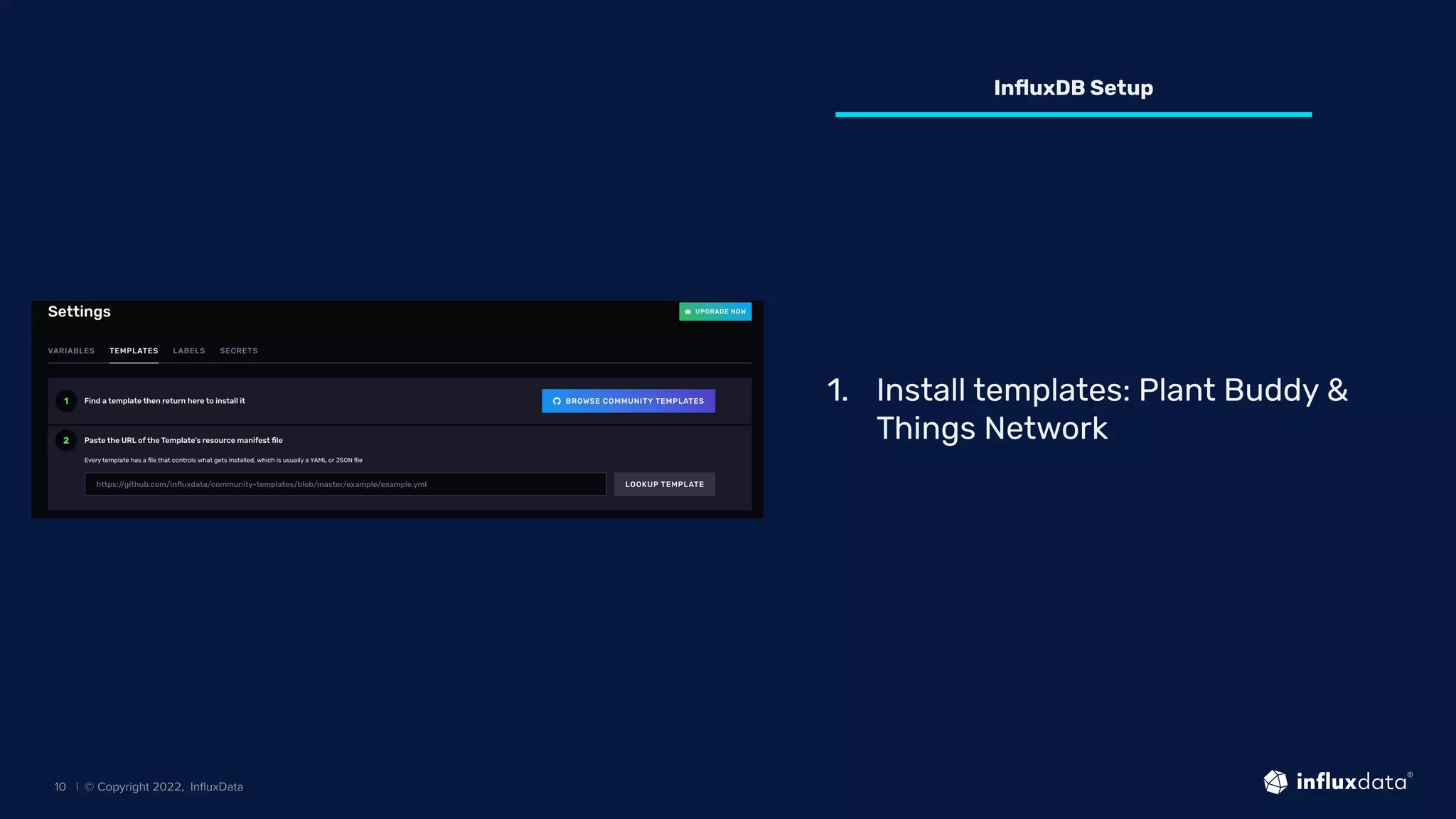

InfluxDB Setup
1. Install templates: Plant Buddy &
Things Network
| © Copyright 2022, InfluxData
11
Telegraf Config
1. Create .env file
2. Generate Things Network
broker password.
telegraf —debug –config /path/to/telegraf.conf
| © Copyright 2022, InfluxData
Custom IoT Application
| © Copyright 2022, InfluxData
13

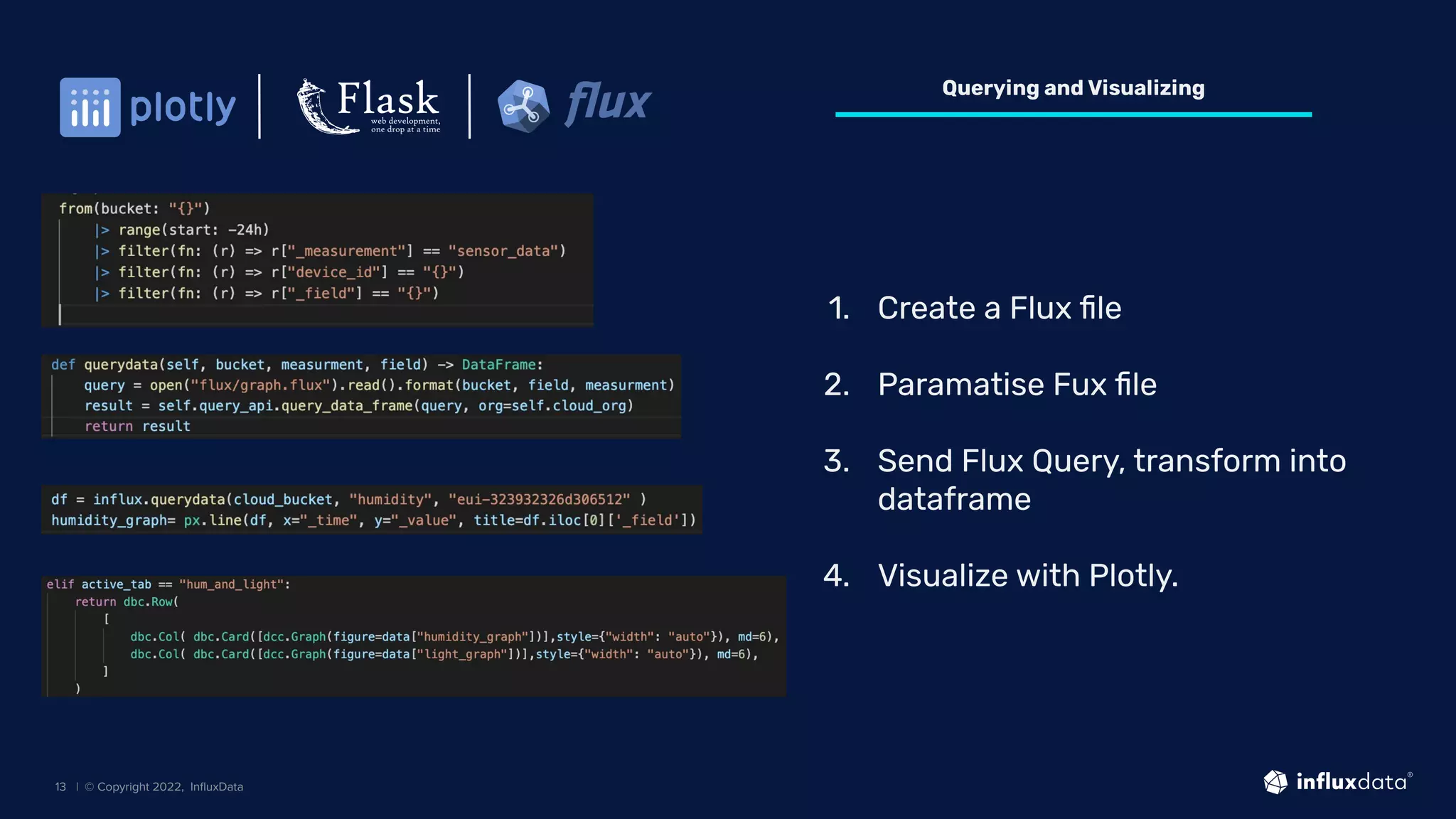

Querying and Visualizing
1. Create a Flux file
2. Paramatise Fux file
3. Send Flux Query, transform into
dataframe
4. Visualize with Plotly.
| © Copyright 2022, InfluxData

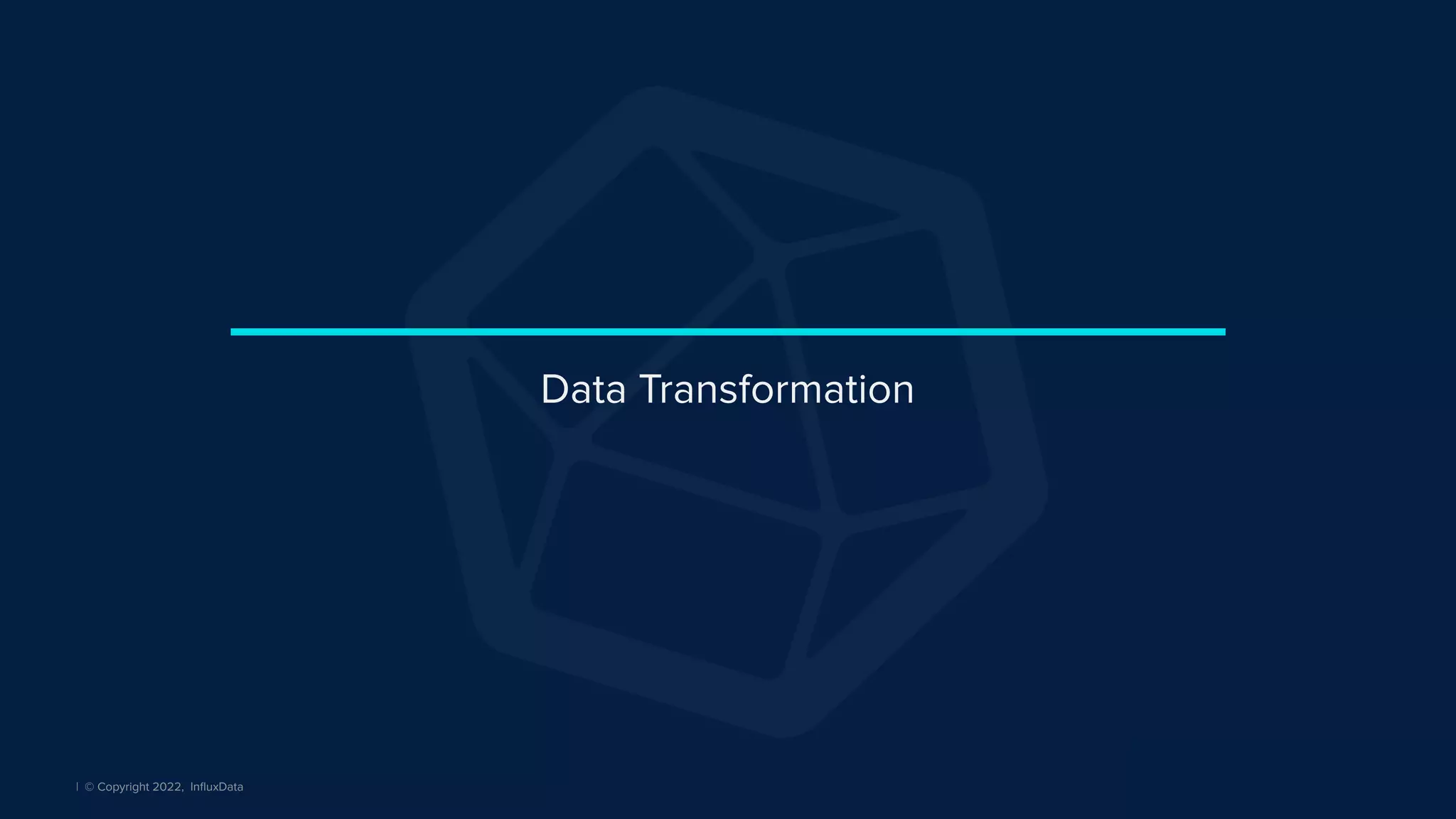

Data Transformation
| © Copyright 2022, InfluxData
15
Downsampling Task
1. Generate a new task using the
Flux VS Code extension.
2. Aggregate data every 10
minutes
| © Copyright 2022, InfluxData
Alerting
| © Copyright 2022, InfluxData
17

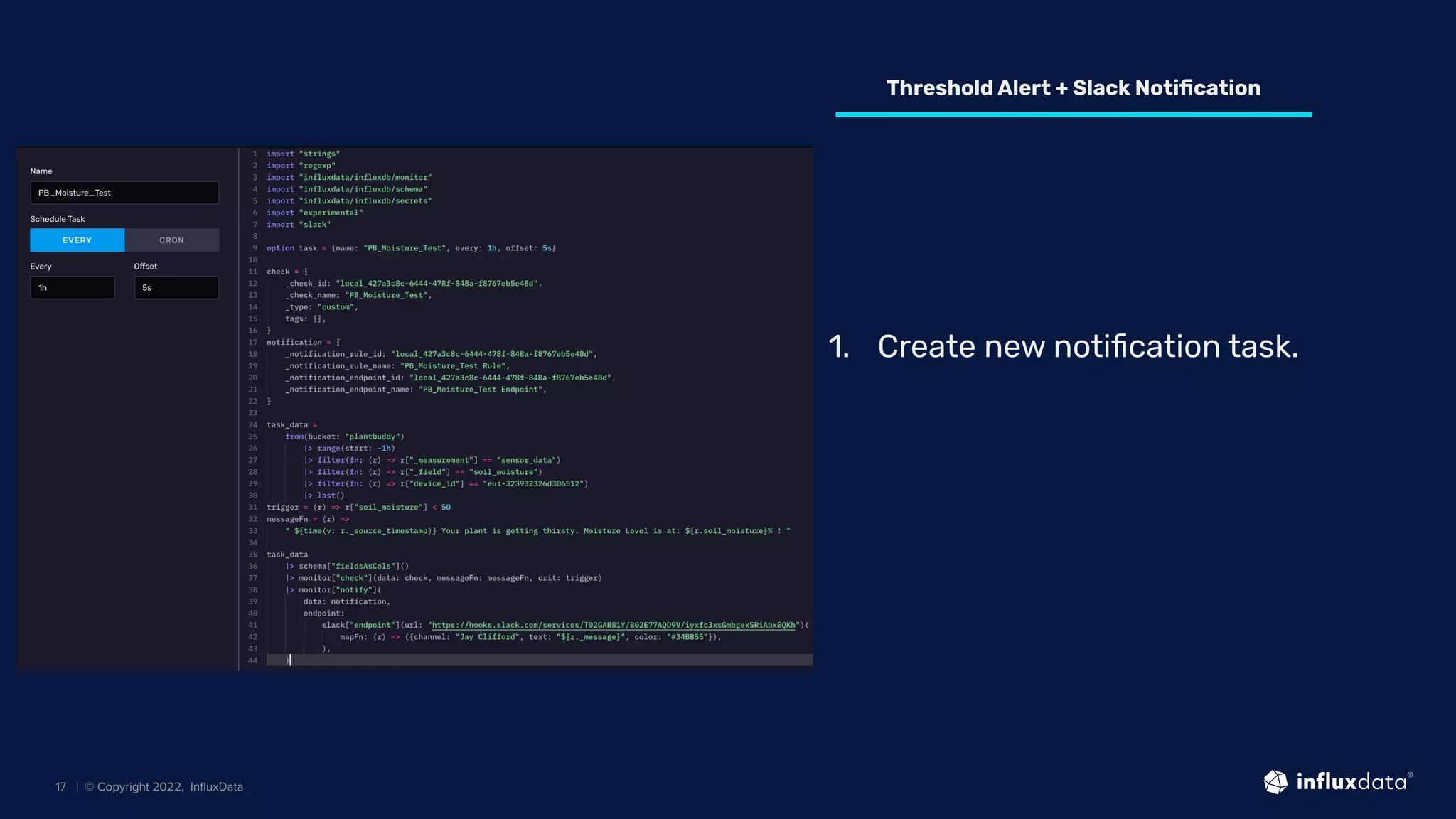

Threshold Alert + Slack Notification
1. Create new notification task.
| © Copyright 2022, InfluxData
Next Steps

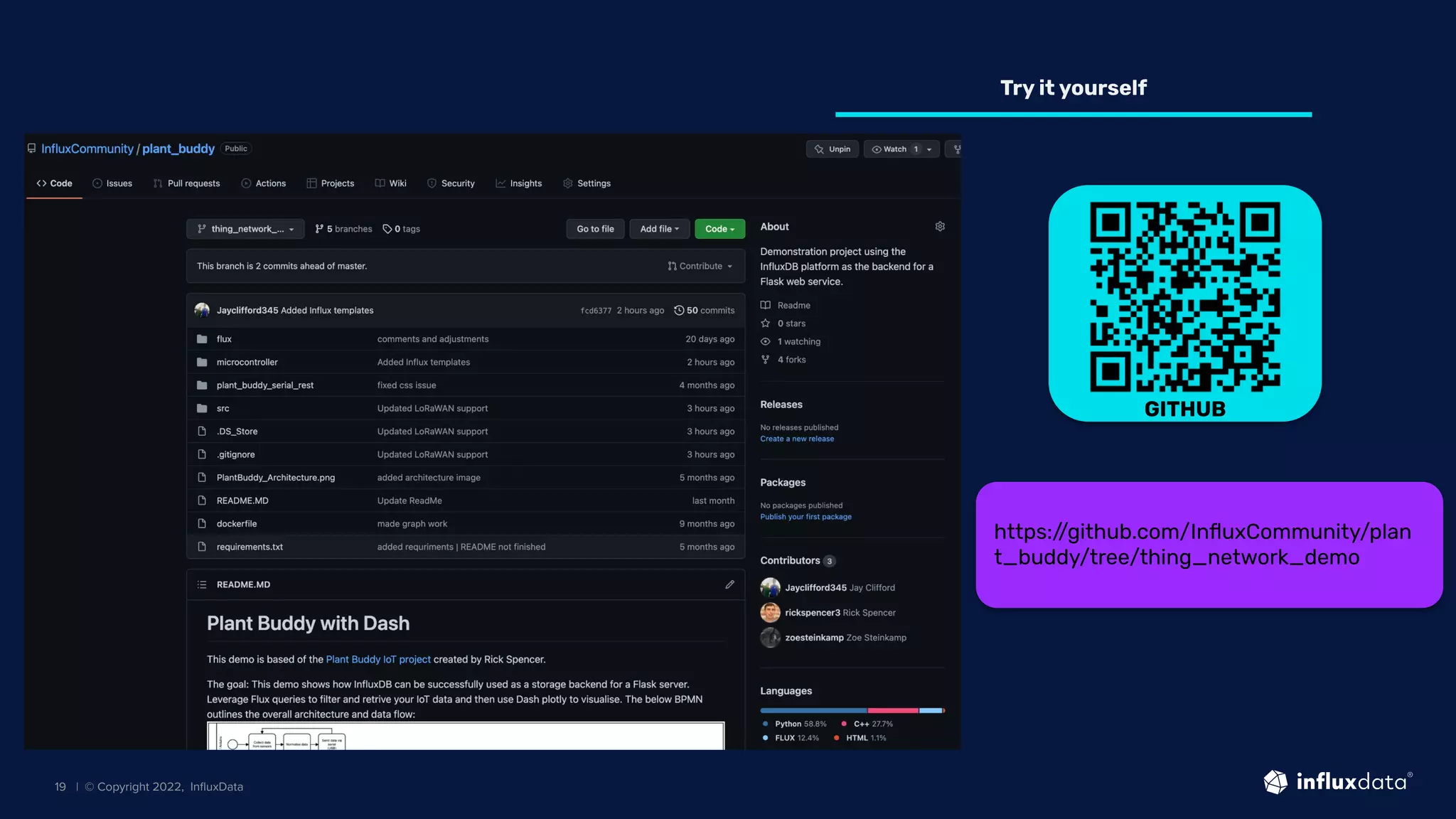

| © Copyright 2022, InfluxData
19
Try it yourself
GITHUB
https:/
/github.com/InfluxCommunity/plan
t_buddy/tree/thing_network_demo
| © Copyright 2022, InfluxData
Thank you | Any questions?
| © Copyright 2022, InfluxData
www.influxdata.com
