BruCON 2010 Lightning Talks - DIY Grid Computing
- 1. DIY grid computing It’s easier than you think! Tomasz ‘tqm’ Miklas

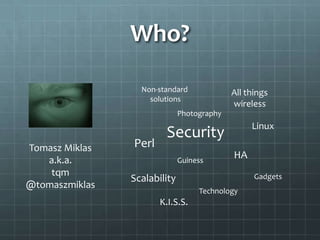

- 2. Who? Non-standard All things solutions wireless Photography Linux Security Tomasz Miklas Perl a.k.a. Guiness HA tqm Gadgets Scalability @tomaszmiklas Technology K.I.S.S.

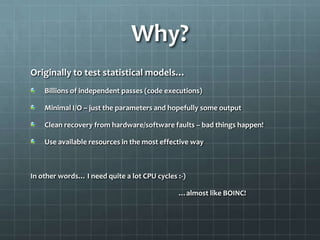

- 3. Why? Originally to teststatistical models… Billions of independent passes (code executions) Minimal I/O – just the parameters and hopefully some output Clean recovery from hardware/software faults – bad things happen! Use available resources in the most effective way In other words… I need quite a lot CPU cycles :-) …almost like BOINC!
- 4. "Make everything assimple as possible, but not simpler” -- Albert Einstein

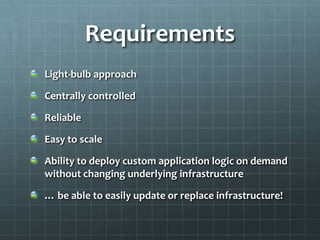

- 5. Requirements Light-bulb approach Centrally controlled Reliable Easyto scale Ability to deploy custom application logic on demand without changing underlying infrastructure … be able to easily update or replace infrastructure!

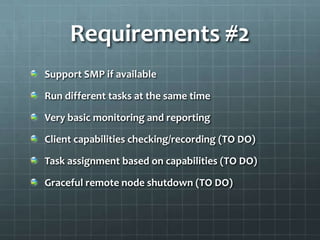

- 6. Requirements #2 Support SMPif available Run different tasks at the same time Very basic monitoring and reporting Client capabilities checking/recording (TO DO) Task assignment based on capabilities (TO DO) Graceful remote node shutdown (TO DO)

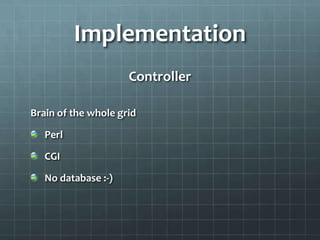

- 7. Implementation Controller Brain of the whole grid Perl CGI No database :-)

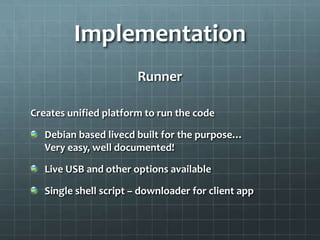

- 8. Implementation Runner Creates unified platform to run the code Debian based livecd built for the purpose… Very easy, well documented! Live USB and other options available Single shell script – downloader for client app

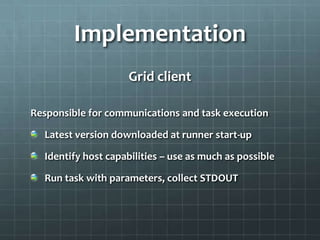

- 9. Implementation Grid client Responsible for communications and task execution Latest version downloaded at runner start-up Identify host capabilities – use as much as possible Run task with parameters, collect STDOUT

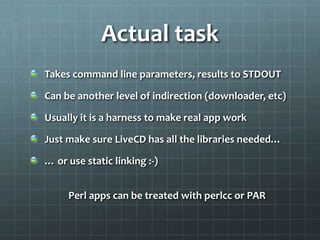

- 10. Actual task Takes commandline parameters, results to STDOUT Can be another level of indirection (downloader, etc) Usually it is a harness to make real app work Just make sure LiveCD has all the libraries needed… … or use static linking :-) Perl apps can be treated with perlcc or PAR

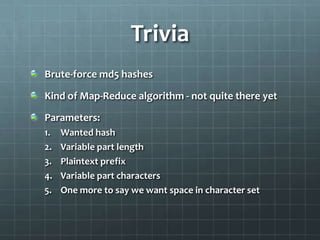

- 11. Trivia Brute-force md5 hashes Kindof Map-Reduce algorithm - not quite there yet Parameters: 1. Wanted hash 2. Variable part length 3. Plaintext prefix 4. Variable part characters 5. One more to say we want space in character set

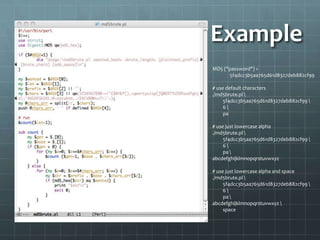

- 12. Example MD5 ("password") = 5f4dcc3b5aa765d61d8327deb882cf99 # use default characters ./md5brute.pl 5f4dcc3b5aa765d61d8327deb882cf99 6 pa # use just lowercase alpha ./md5brute.pl 5f4dcc3b5aa765d61d8327deb882cf99 6 pa abcdefghijklmnopqrstuvwxyz # use just lowercase alpha and space ./md5brute.pl 5f4dcc3b5aa765d61d8327deb882cf99 6 pa abcdefghijklmnopqrstuvwxyz space
- 13. Hardware? #1 – Decommissionedservers 2x Xeon Dual-Core ~3GHz -> 4 CPU cores 2-4GB RAM Whatever HDD + power / cooling / noise issues
- 14. Hardware? #2 – Homelab?! Mixed CPUs 1-4 cores per box NAS storage (if needed) Gigabit network Noise level OK but not for really long runs

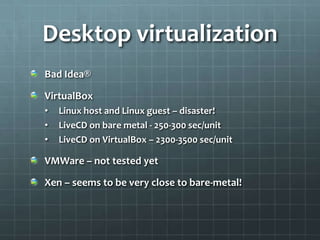

- 15. Desktop virtualization Bad Idea® VirtualBox • Linux host and Linux guest – disaster! • LiveCD on bare metal - 250-300 sec/unit • LiveCD on VirtualBox – 2300-3500 sec/unit VMWare – not tested yet Xen – seems to be very close to bare-metal!
- 16. Cooling is ahot topic! 5 kW cooling in a small room… … one node too many and all is out of control!

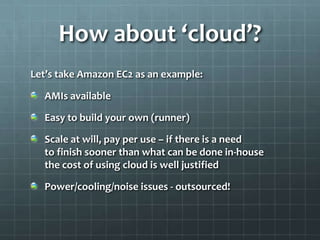

- 17. How about ‘cloud’? Let’stake Amazon EC2 as an example: AMIs available Easy to build your own (runner) Scale at will, pay per use – if there is a need to finish sooner than what can be done in-house the cost of using cloud is well justified Power/cooling/noise issues - outsourced!
- 18. EC2 on abudget Standard on-demand vs. spot instances • $0.085/h vs. $0.029/h - standard (1 EC2 CU) • $0.680/h vs. $0.243/h - XL standard (8 EC2 CU) • $0.170/h vs. $0.062/h - M high-cpu (5 EC2 CU) • $0.680/h vs. $0.246/h - XL high-cpu (20 EC2 CU) US - Virginia is cheaper than California or Europe Find your best bang-for-the-buck before you start :)

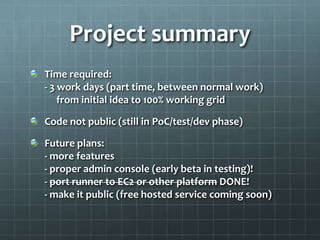

- 19. Project summary Time required: -3 work days (part time, between normal work) from initial idea to 100% working grid Code not public (still in PoC/test/dev phase) Future plans: - more features - proper admin console (early beta in testing)! - port runner to EC2 or other platform DONE! - make it public (free hosted service coming soon)
- 20.

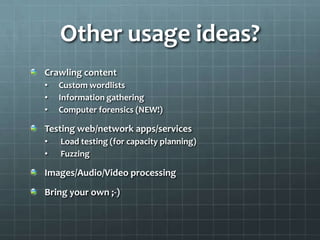

- 21. Other usage ideas? Crawlingcontent • Custom wordlists • Information gathering • Computer forensics (NEW!) Testing web/network apps/services • Load testing (for capacity planning) • Fuzzing Images/Audio/Video processing Bring your own ;-)
- 22.
- 23. ? … most likely at the bar :-]
