1. Build, Test and Extend Integrated Workflows

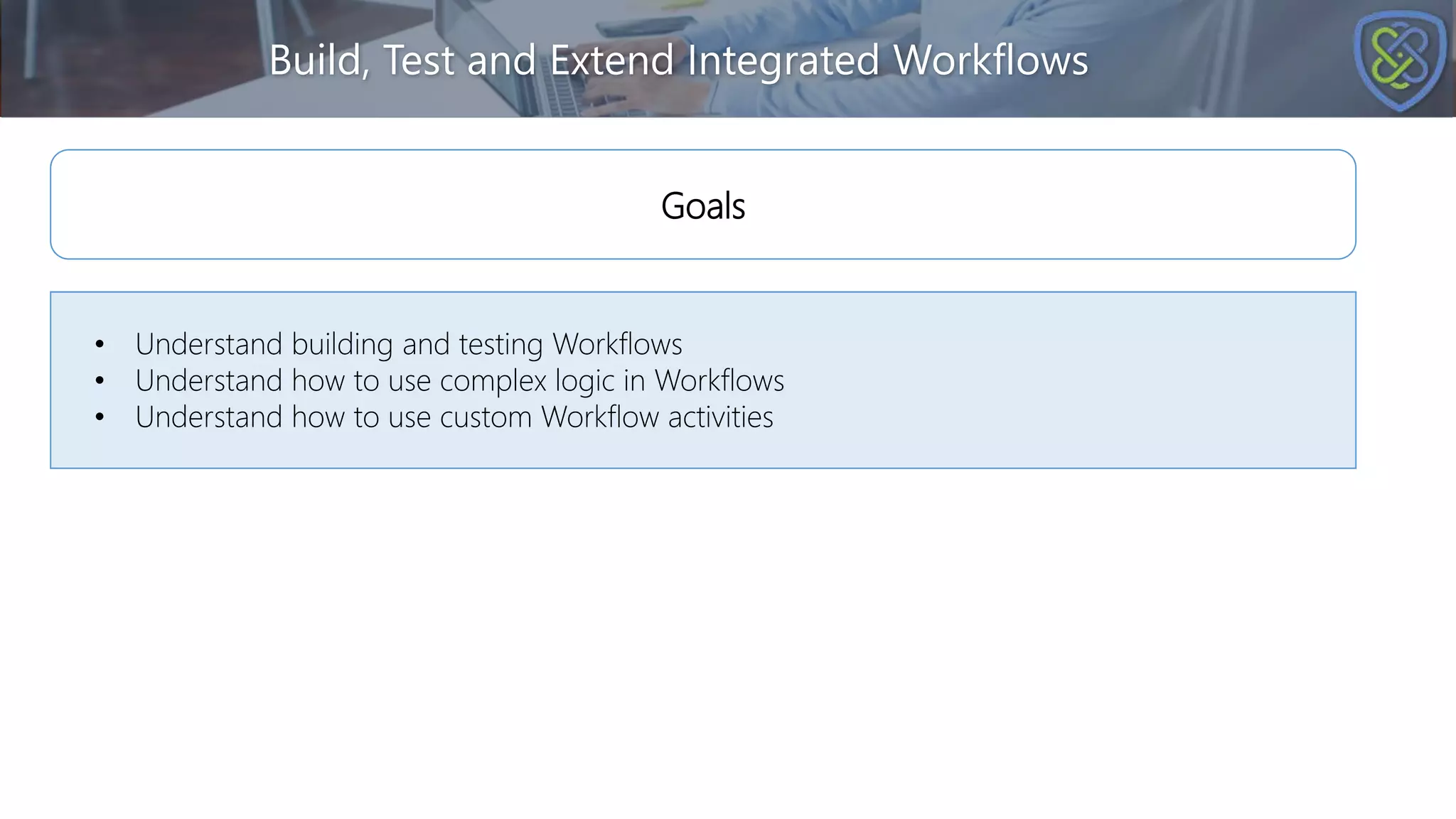

2. Build, Test and Extend Integrated Workflows
• Understand building and testing Workflows
• Understand how to use complex logic in Workflows
• Understand how to use custom Workflow activities
Goals

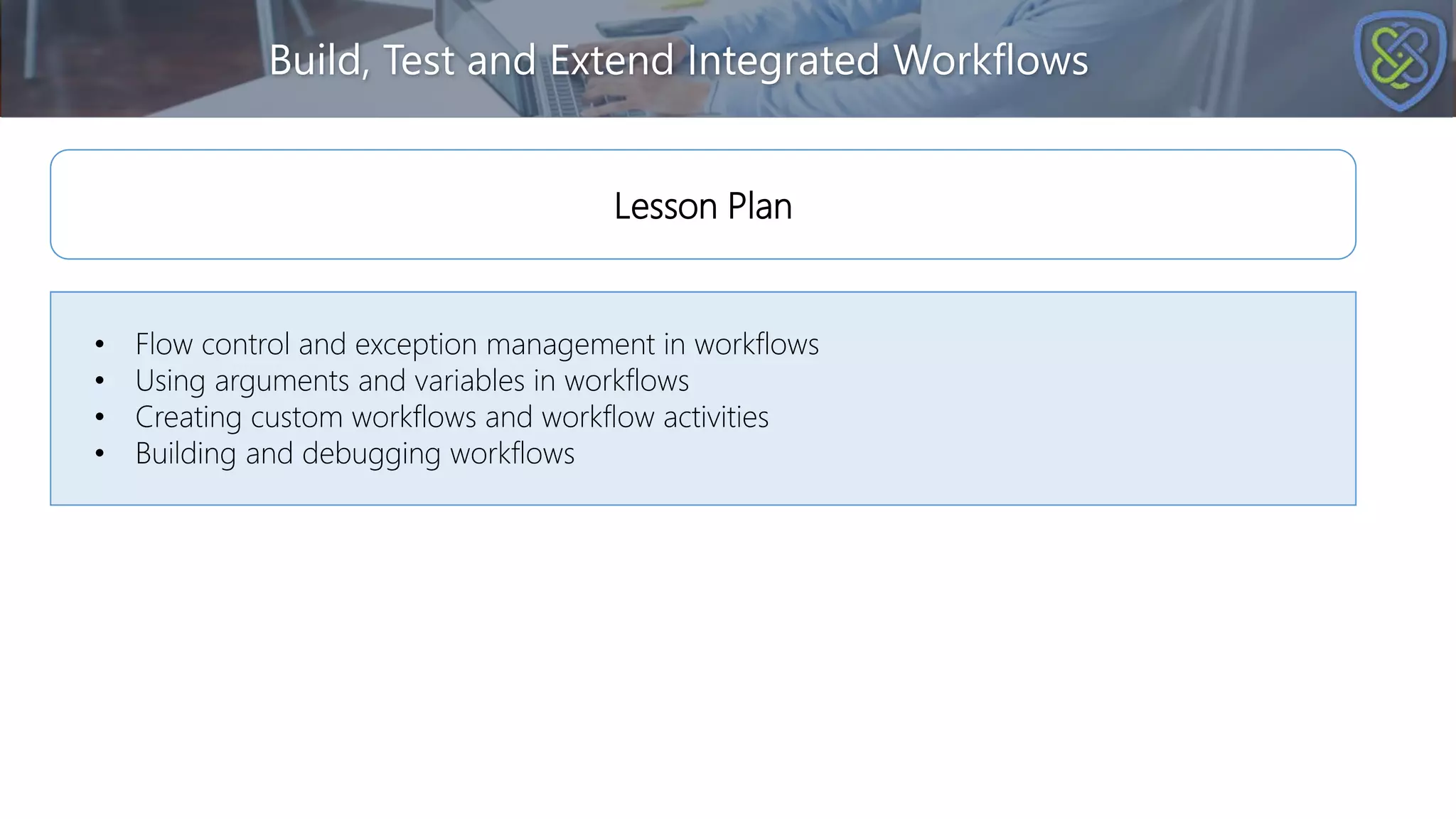

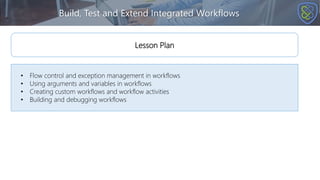

3. Build, Test and Extend Integrated Workflows
• Flow control and exception management in workflows
• Using arguments and variables in workflows
• Creating custom workflows and workflow activities
• Building and debugging workflows
Lesson Plan

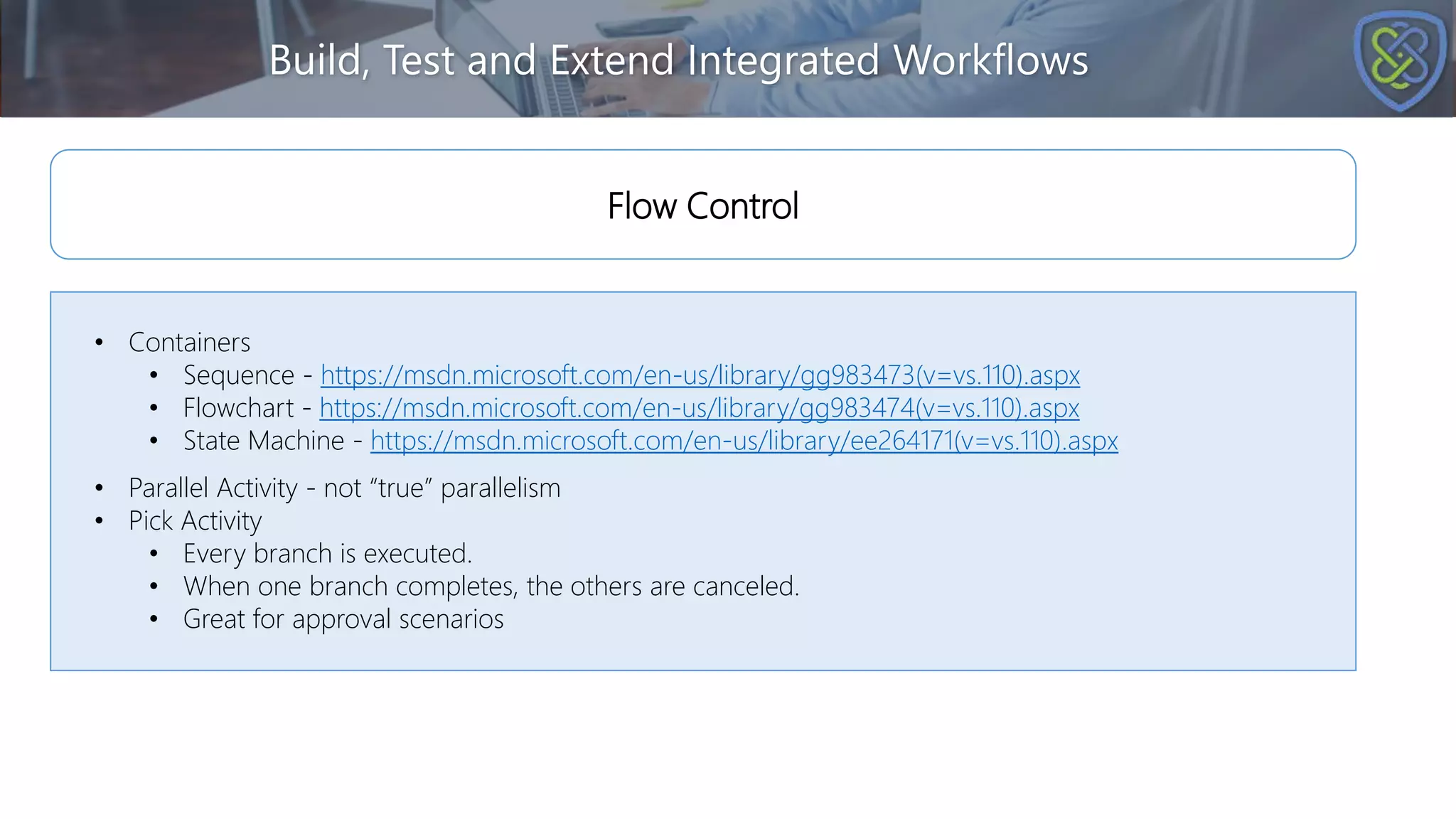

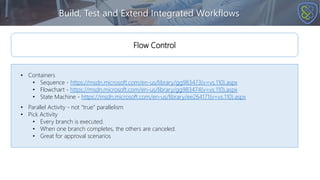

4. Build, Test and Extend Integrated Workflows
• Containers
• Sequence - https://msdn.microsoft.com/en-us/library/gg983473(v=vs.110).aspx
• Flowchart - https://msdn.microsoft.com/en-us/library/gg983474(v=vs.110).aspx
• State Machine - https://msdn.microsoft.com/en-us/library/ee264171(v=vs.110).aspx
• Parallel Activity - not “true” parallelism
• Pick Activity
• Every branch is executed.
• When one branch completes, the others are canceled.
• Great for approval scenarios
Flow Control

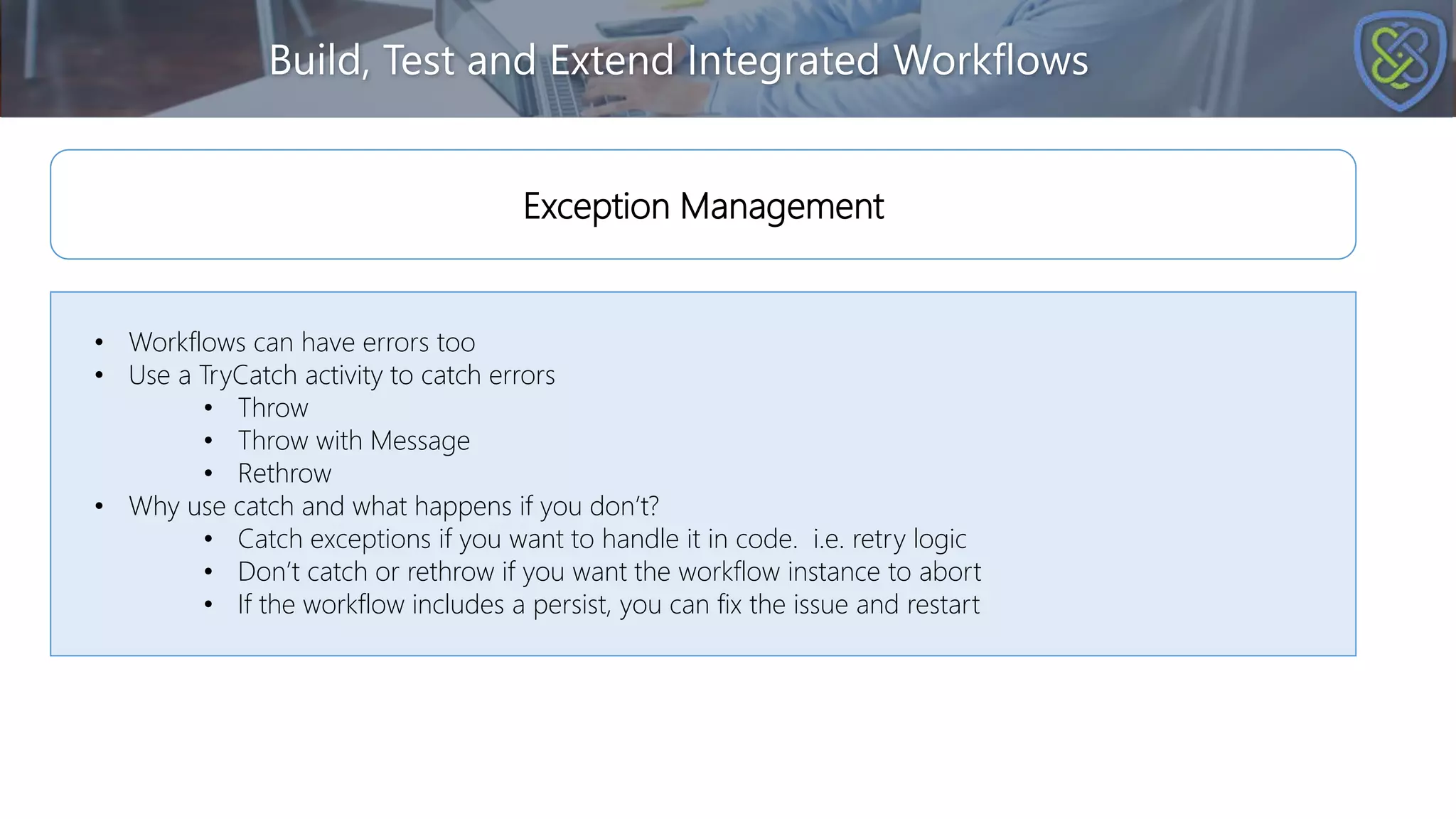

5. Build, Test and Extend Integrated Workflows
• Workflows can have errors too
• Use a TryCatch activity to catch errors
• Throw
• Throw with Message
• Rethrow
• Why use catch and what happens if you don’t?
• Catch exceptions if you want to handle it in code. i.e. retry logic
• Don’t catch or rethrow if you want the workflow instance to abort
• If the workflow includes a persist, you can fix the issue and restart
Exception Management

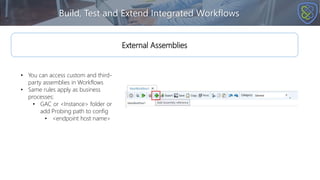

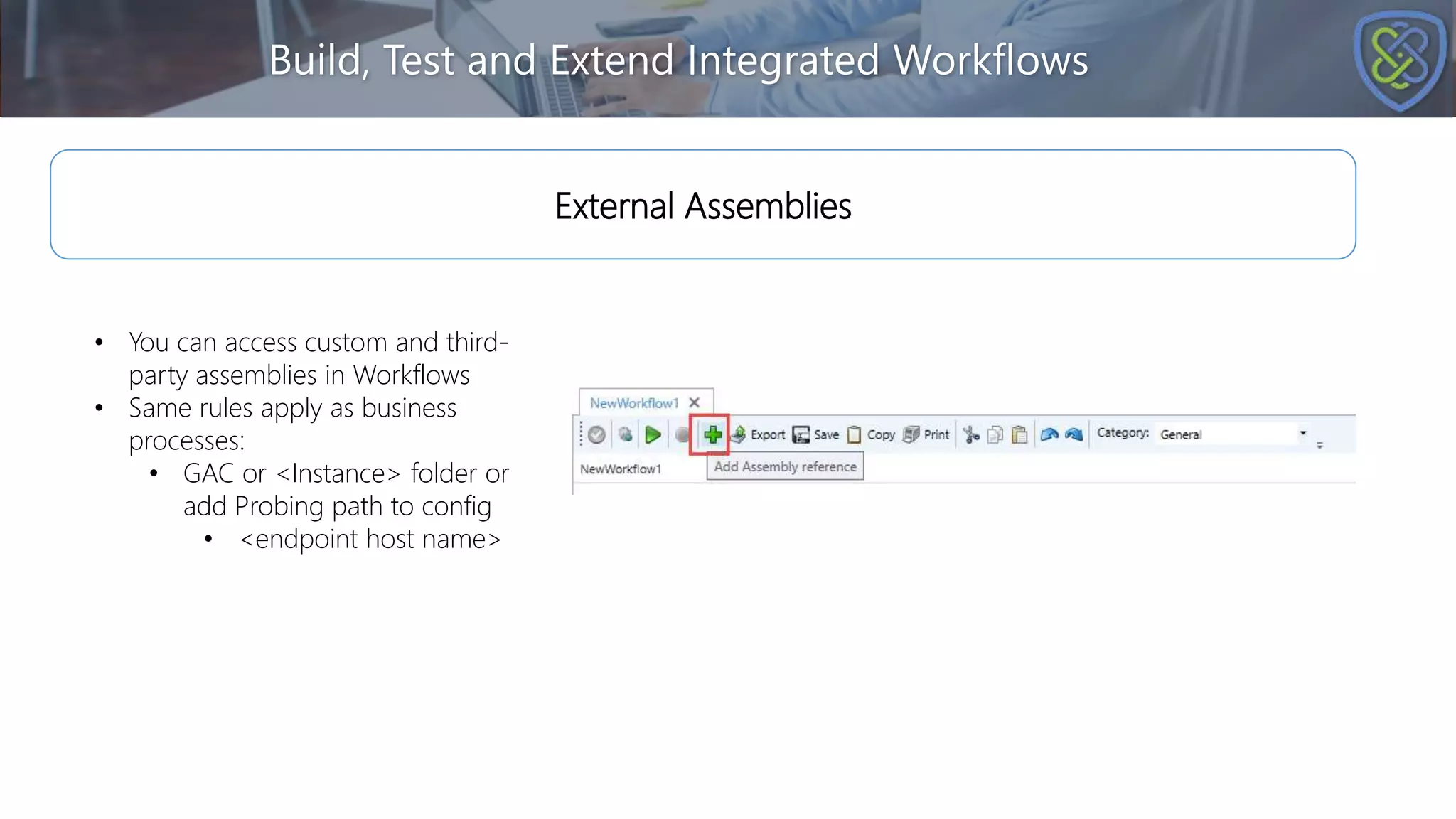

6. Build, Test and Extend Integrated Workflows
• You can access custom and third-
party assemblies in Workflows
• Same rules apply as business
processes:
• GAC or <Instance> folder or
add Probing path to config
• <endpoint host name>
External Assemblies

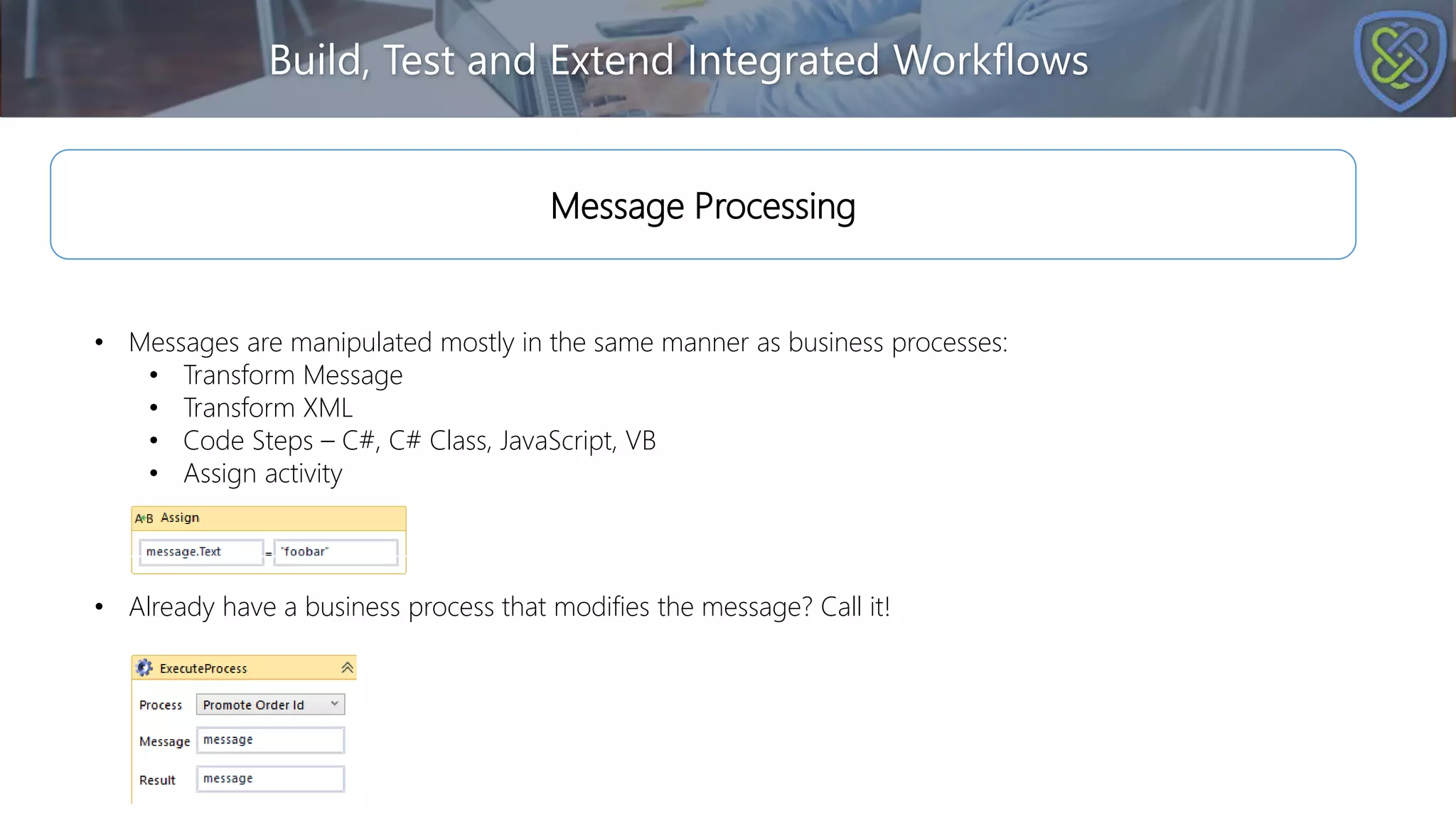

7. Build, Test and Extend Integrated Workflows
• Messages are manipulated mostly in the same manner as business processes:
• Transform Message
• Transform XML
• Code Steps – C#, C# Class, JavaScript, VB
• Assign activity
Message Processing
• Already have a business process that modifies the message? Call it!

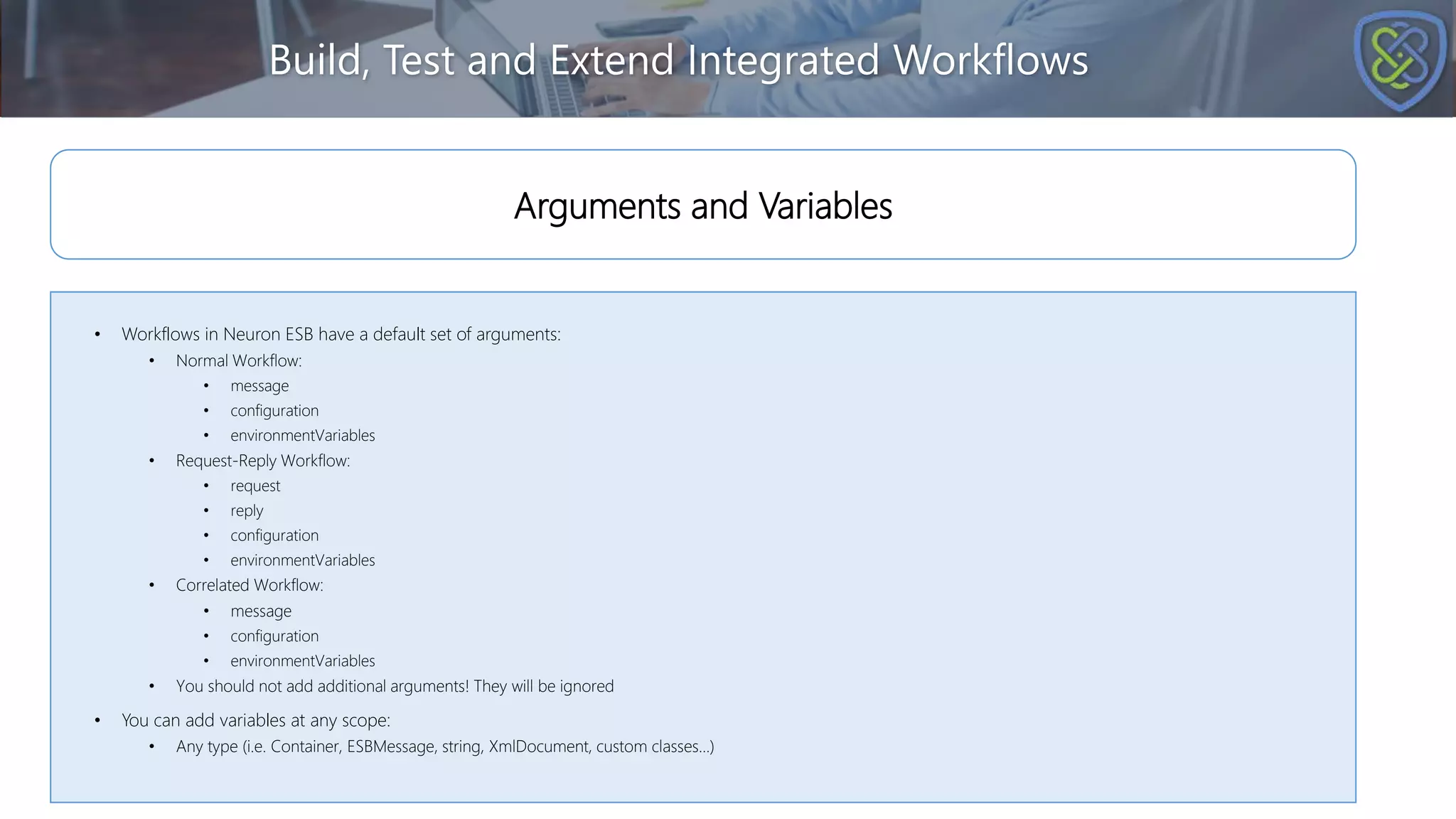

8. Build, Test and Extend Integrated Workflows
• Workflows in Neuron ESB have a default set of arguments:
• Normal Workflow:
• message
• configuration
• environmentVariables
• Request-Reply Workflow:
• request
• reply
• configuration
• environmentVariables
• Correlated Workflow:
• message
• configuration
• environmentVariables
• You should not add additional arguments! They will be ignored
• You can add variables at any scope:
• Any type (i.e. Container, ESBMessage, string, XmlDocument, custom classes…)
Arguments and Variables

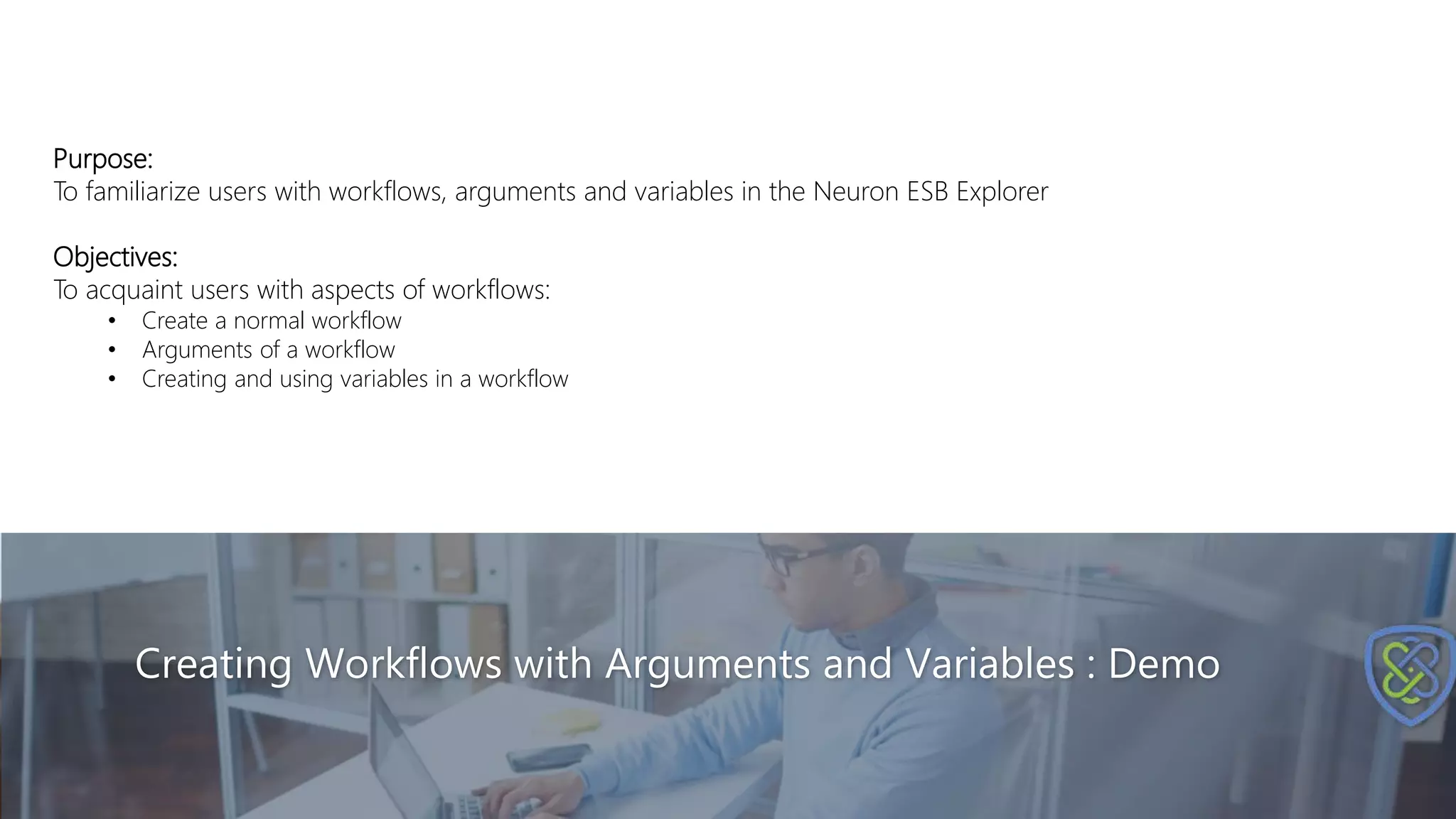

9. Creating Workflows with Arguments and Variables : Demo
Purpose:
To familiarize users with workflows, arguments and variables in the Neuron ESB Explorer
Objectives:
To acquaint users with aspects of workflows:
• Create a normal workflow
• Arguments of a workflow
• Creating and using variables in a workflow

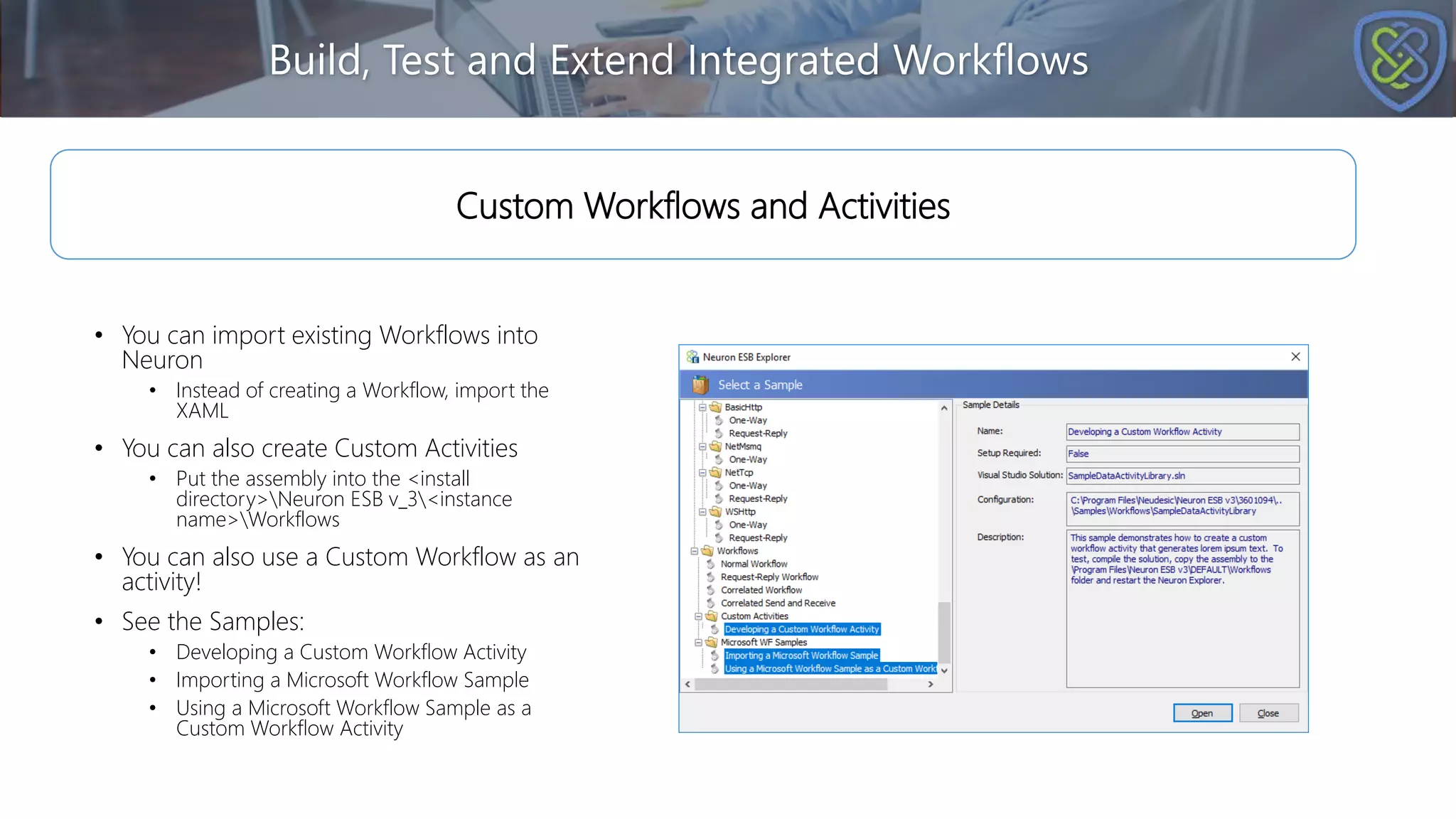

10. Build, Test and Extend Integrated Workflows
• You can import existing Workflows into
Neuron
• Instead of creating a Workflow, import the
XAML
• You can also create Custom Activities
• Put the assembly into the <install
directory>Neuron ESB v_3<instance
name>Workflows
• You can also use a Custom Workflow as an
activity!
• See the Samples:
• Developing a Custom Workflow Activity
• Importing a Microsoft Workflow Sample
• Using a Microsoft Workflow Sample as a
Custom Workflow Activity
Custom Workflows and Activities

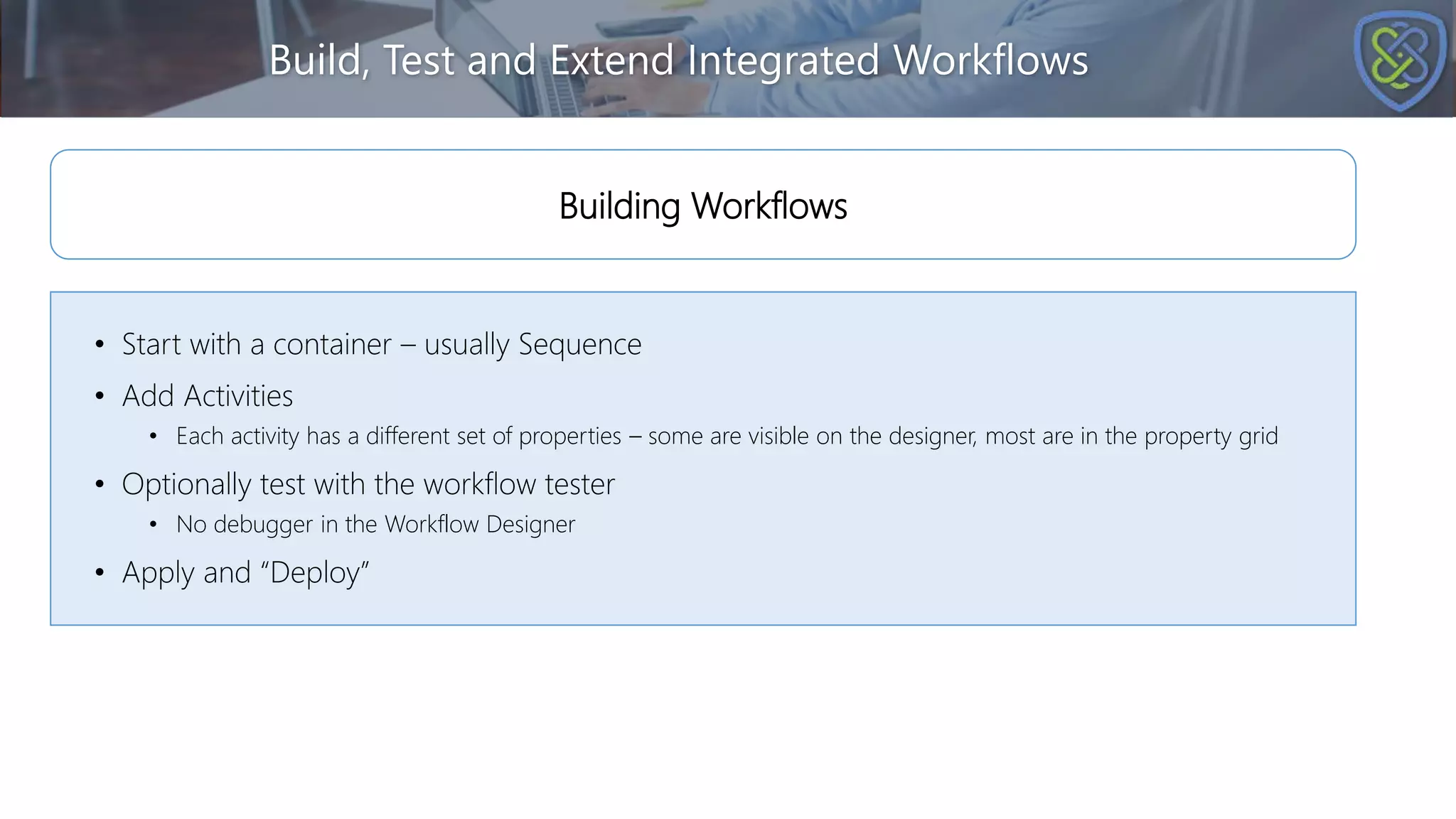

11. Build, Test and Extend Integrated Workflows
• Start with a container – usually Sequence
• Add Activities
• Each activity has a different set of properties – some are visible on the designer, most are in the property grid
• Optionally test with the workflow tester
• No debugger in the Workflow Designer
• Apply and “Deploy”
Building Workflows

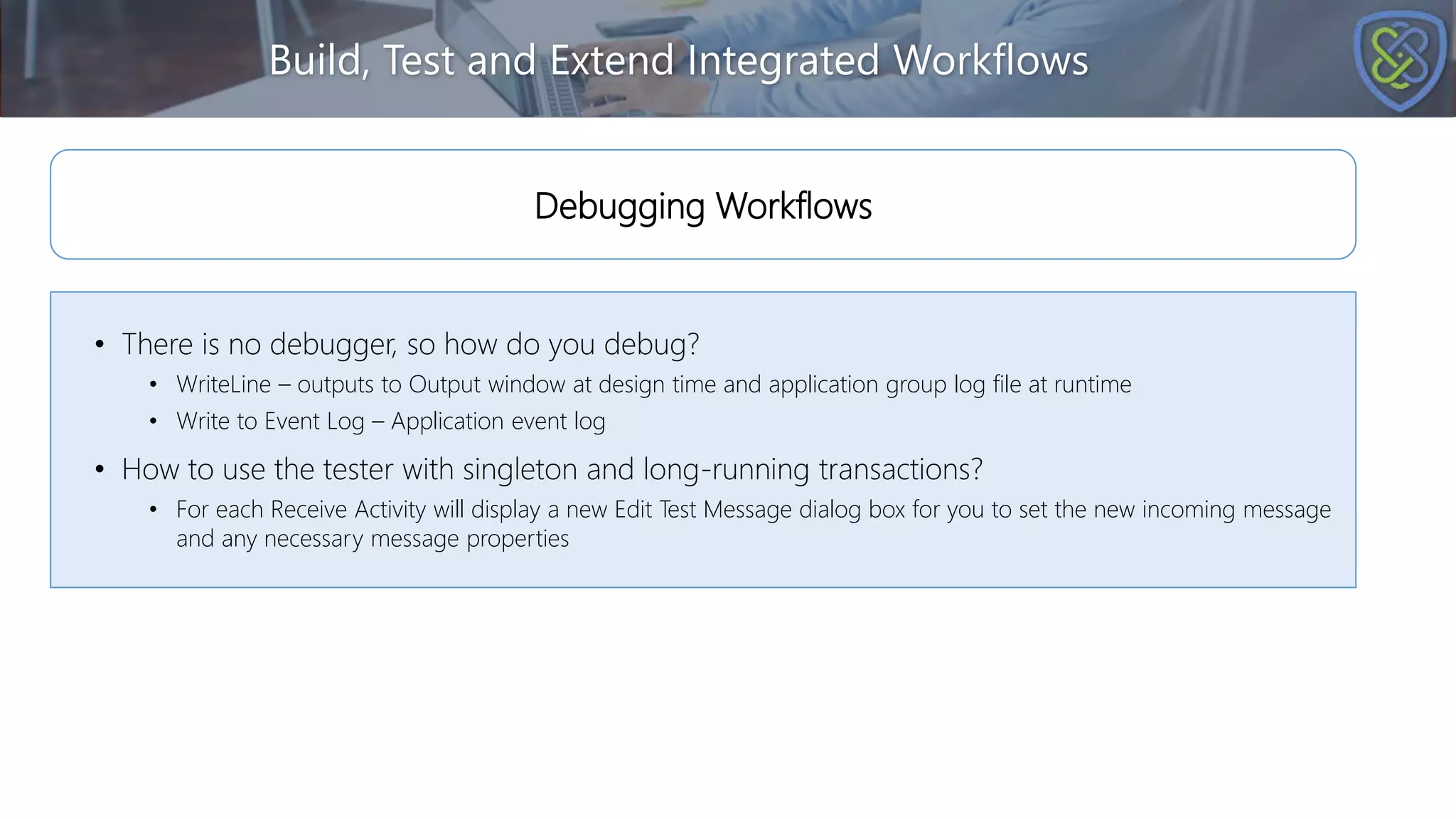

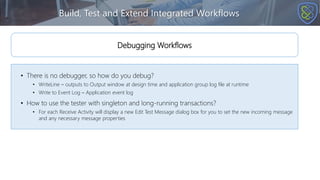

12. Build, Test and Extend Integrated Workflows
• There is no debugger, so how do you debug?
• WriteLine – outputs to Output window at design time and application group log file at runtime
• Write to Event Log – Application event log
• How to use the tester with singleton and long-running transactions?
• For each Receive Activity will display a new Edit Test Message dialog box for you to set the new incoming message
and any necessary message properties
Debugging Workflows

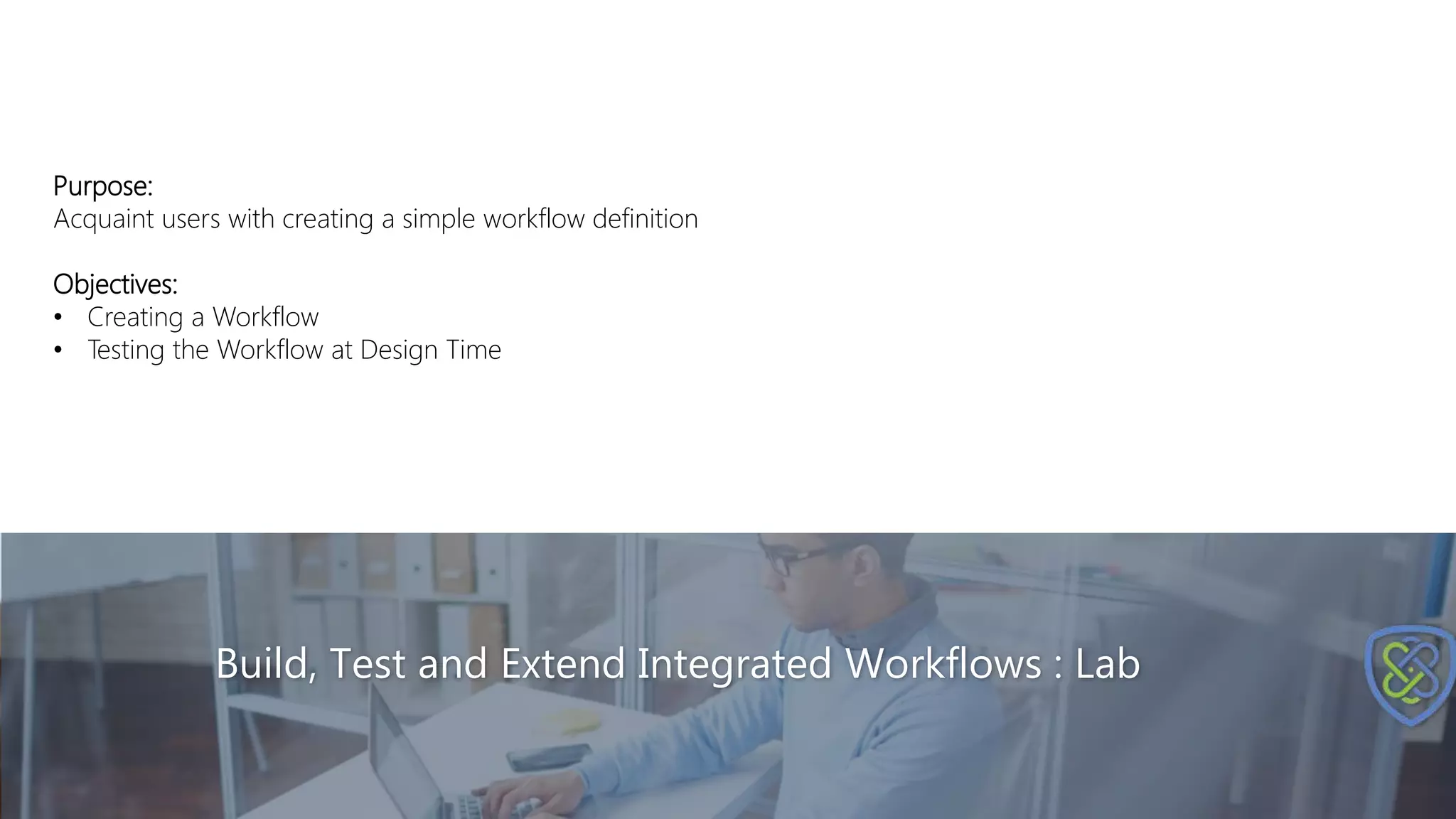

13. Build, Test and Extend Integrated Workflows : Lab
Purpose:
Acquaint users with creating a simple workflow definition
Objectives:
• Creating a Workflow
• Testing the Workflow at Design Time

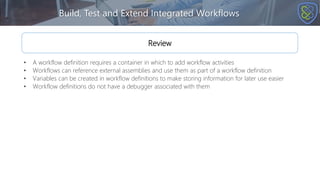

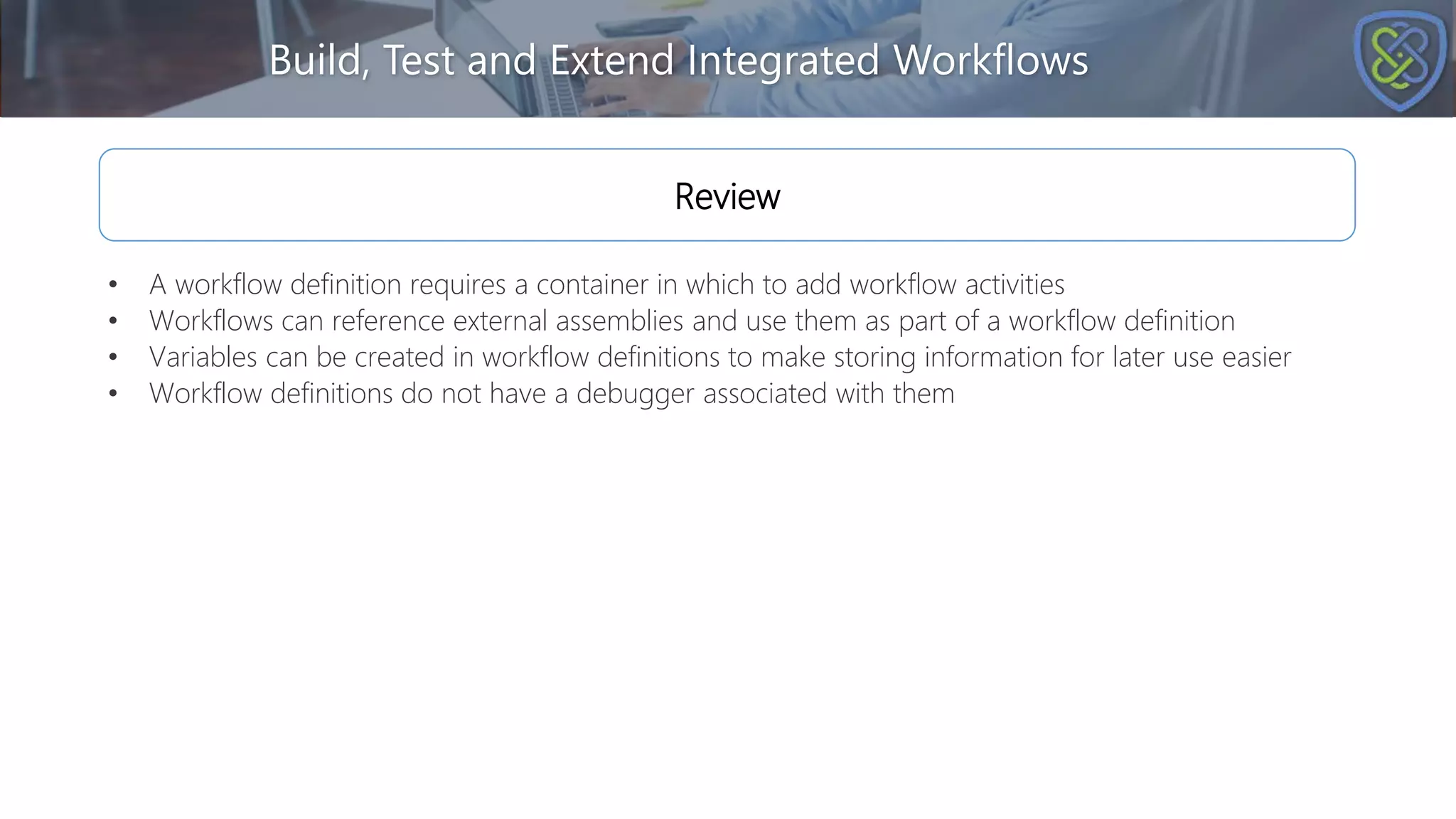

14. Build, Test and Extend Integrated Workflows
Review
• A workflow definition requires a container in which to add workflow activities
• Workflows can reference external assemblies and use them as part of a workflow definition
• Variables can be created in workflow definitions to make storing information for later use easier
• Workflow definitions do not have a debugger associated with them
