A presentation showing how one can create high quality agile software architecture documentation by creating a mashup of Confluence and the Sparx Enterprise Architect UML tool. *Update:* The source code for the Sparx EA diagram export tool is now available on github: https://github.com/perspilling/eatools

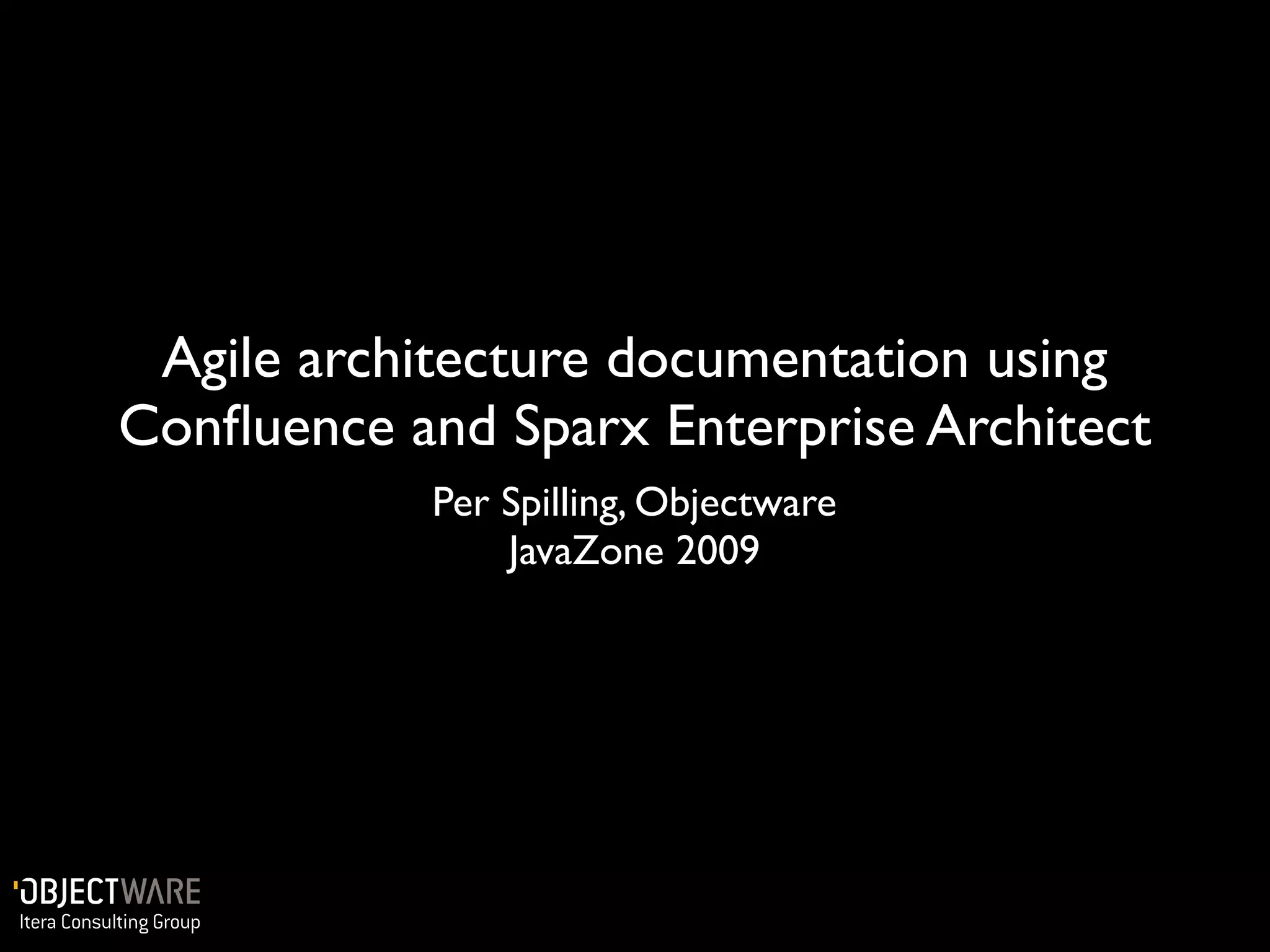

1. Agile architecture documentation using
Confluence and Sparx Enterprise Architect
Per Spilling, Objectware
JavaZone 2009

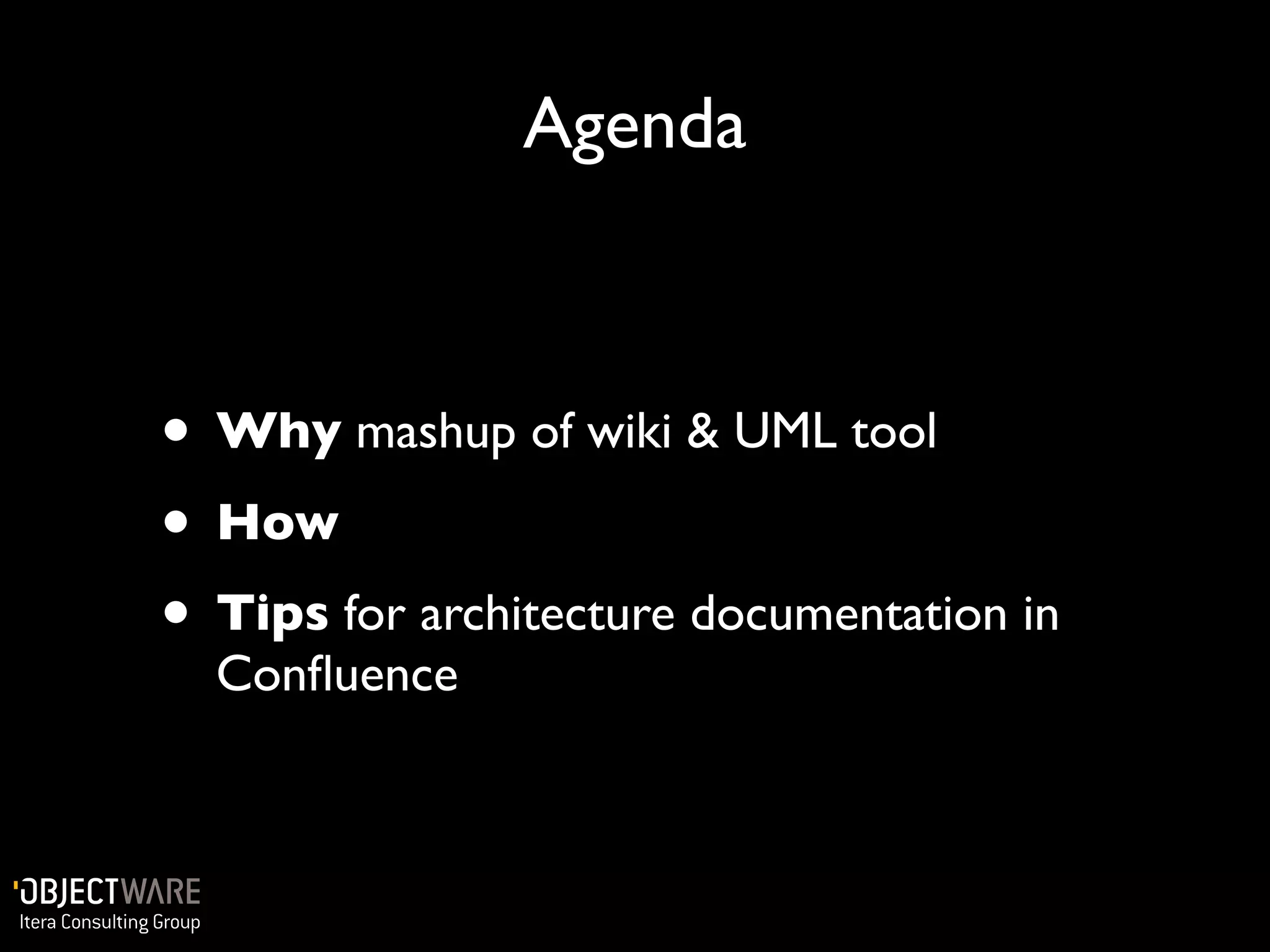

2. Agenda
• Why mashup of wiki & UML tool
• How
• Tips for architecture documentation in
Confluence

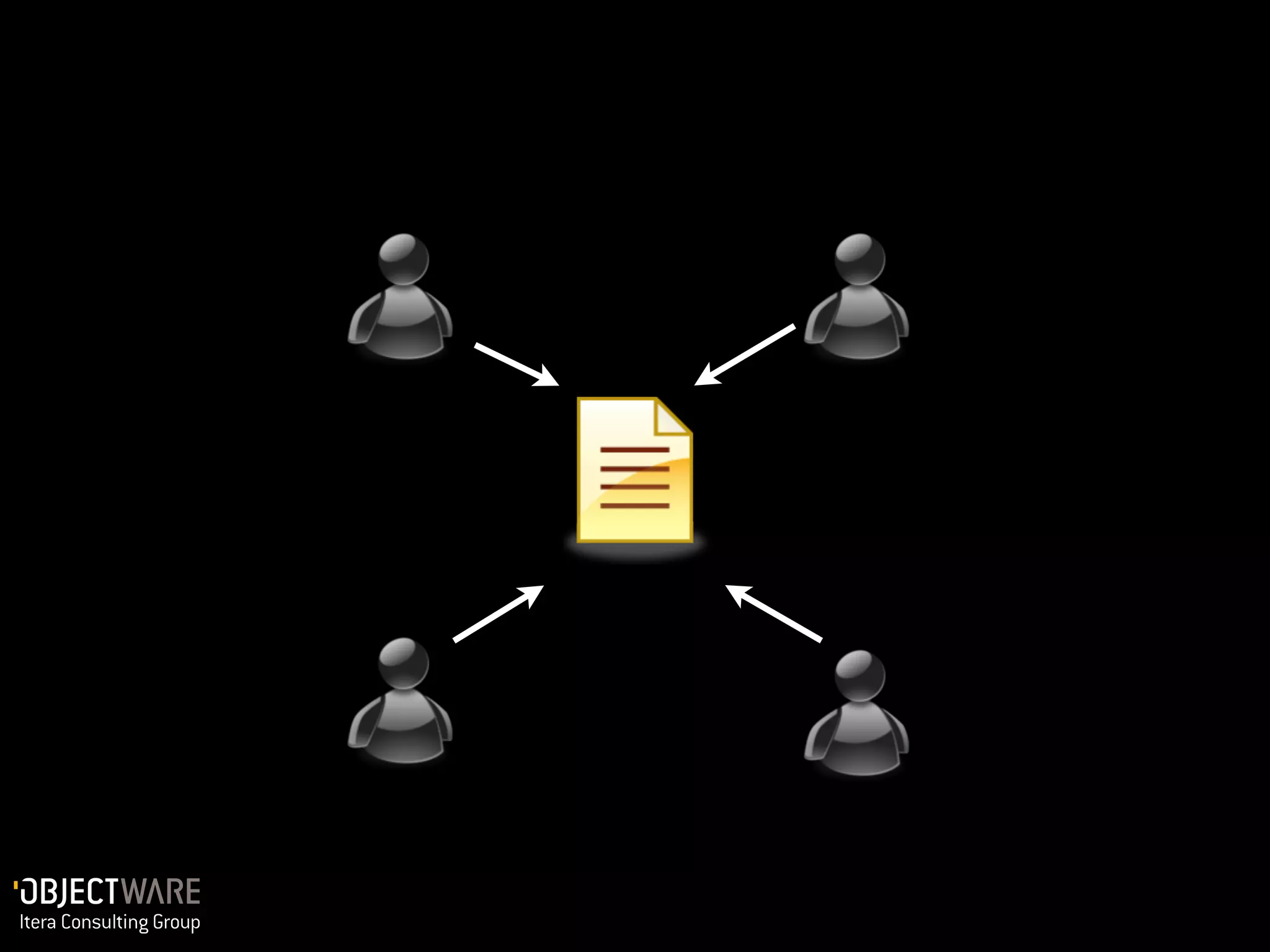

3. Typical problems with traditional
documentation

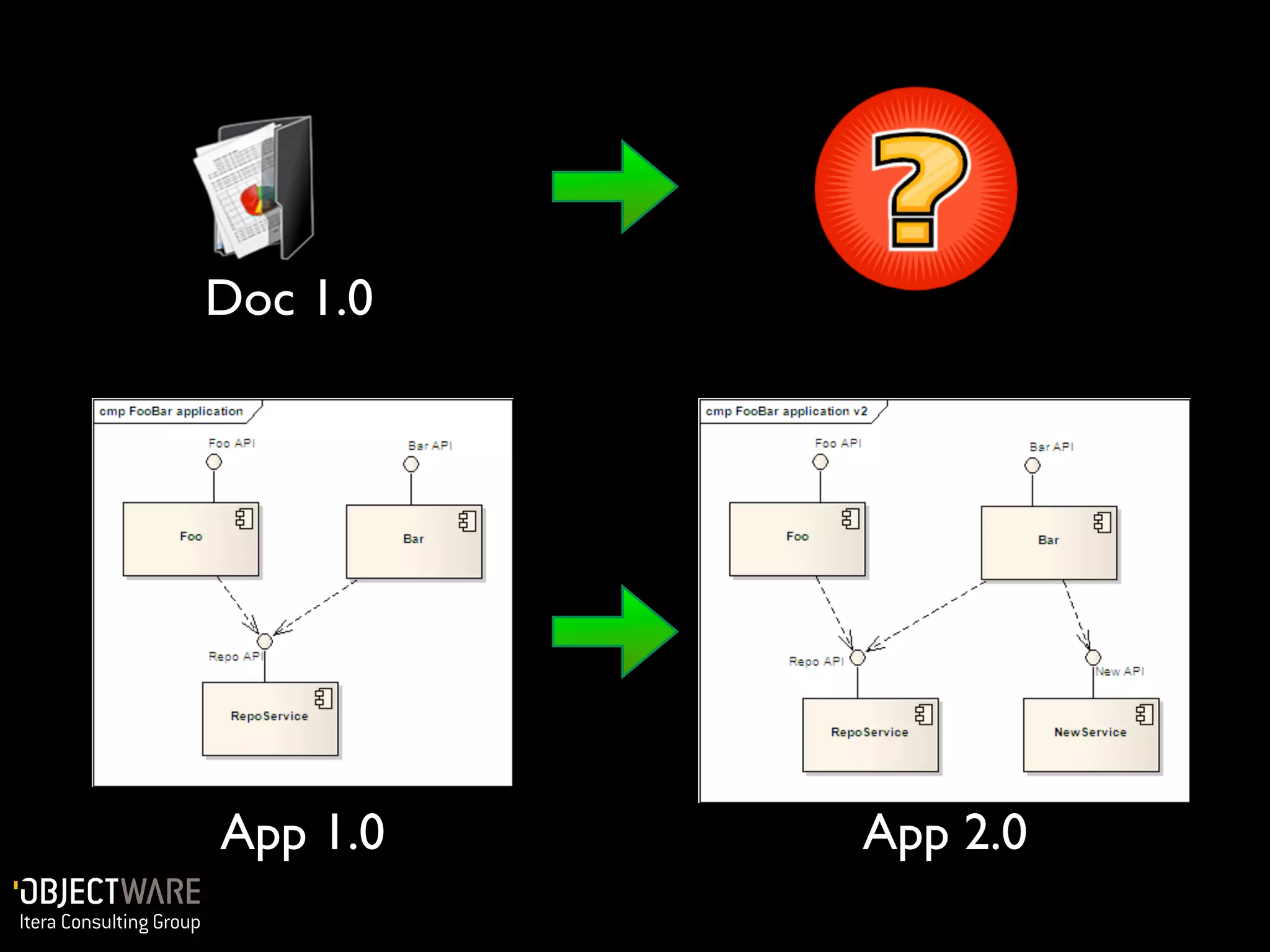

4. Doc 1.0
App 1.0 App 2.0

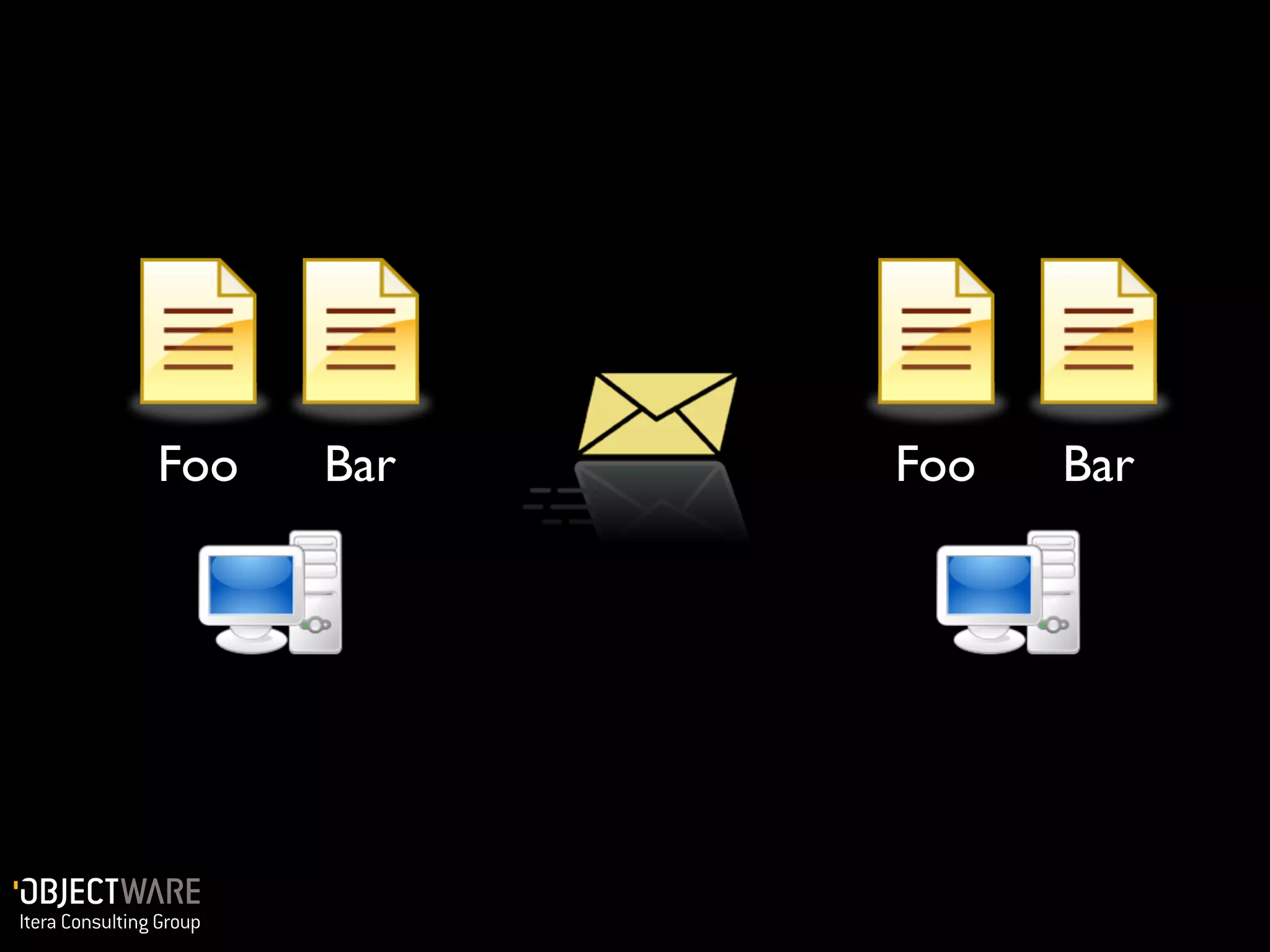

5. Foo Bar Foo Bar

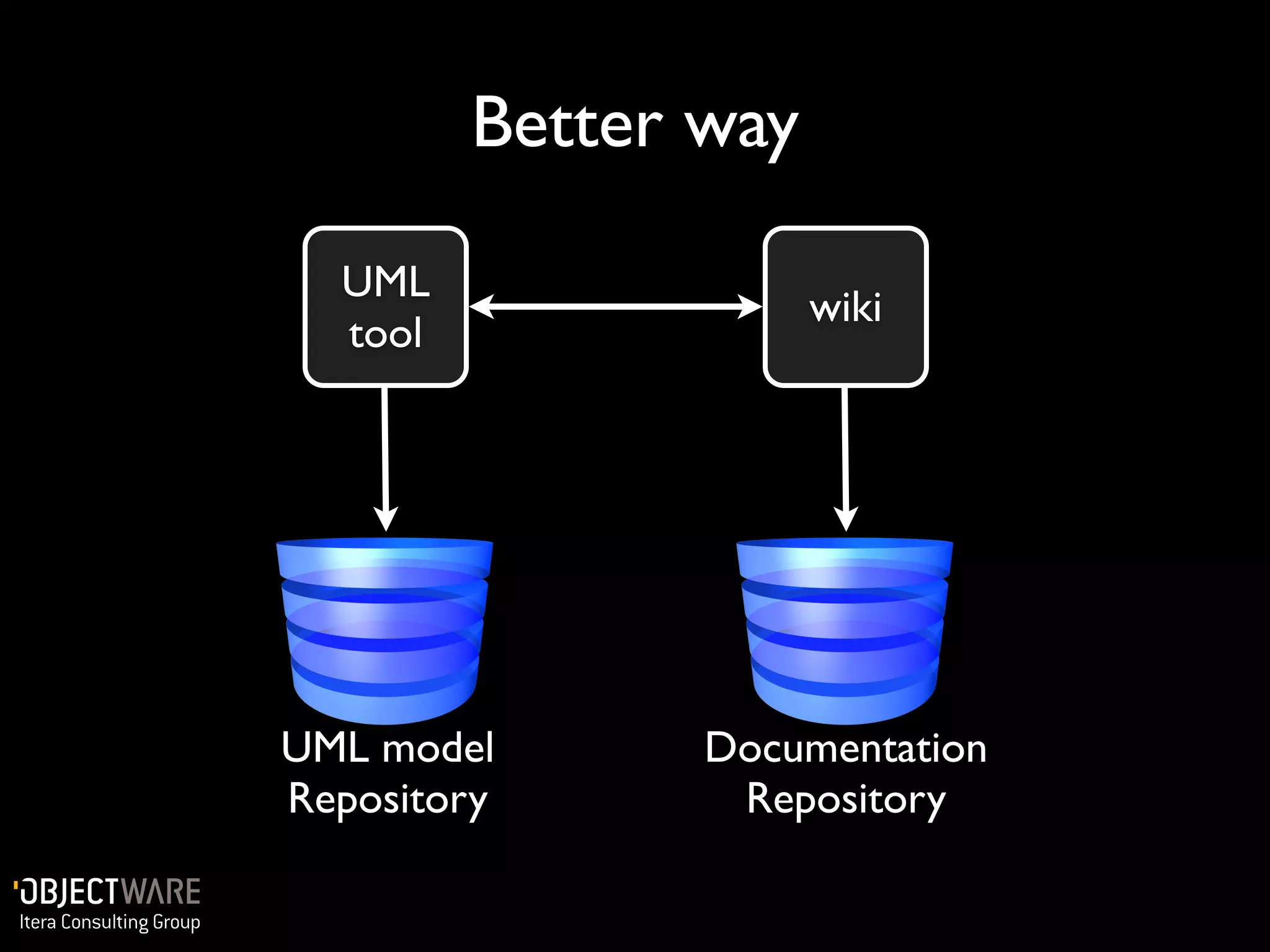

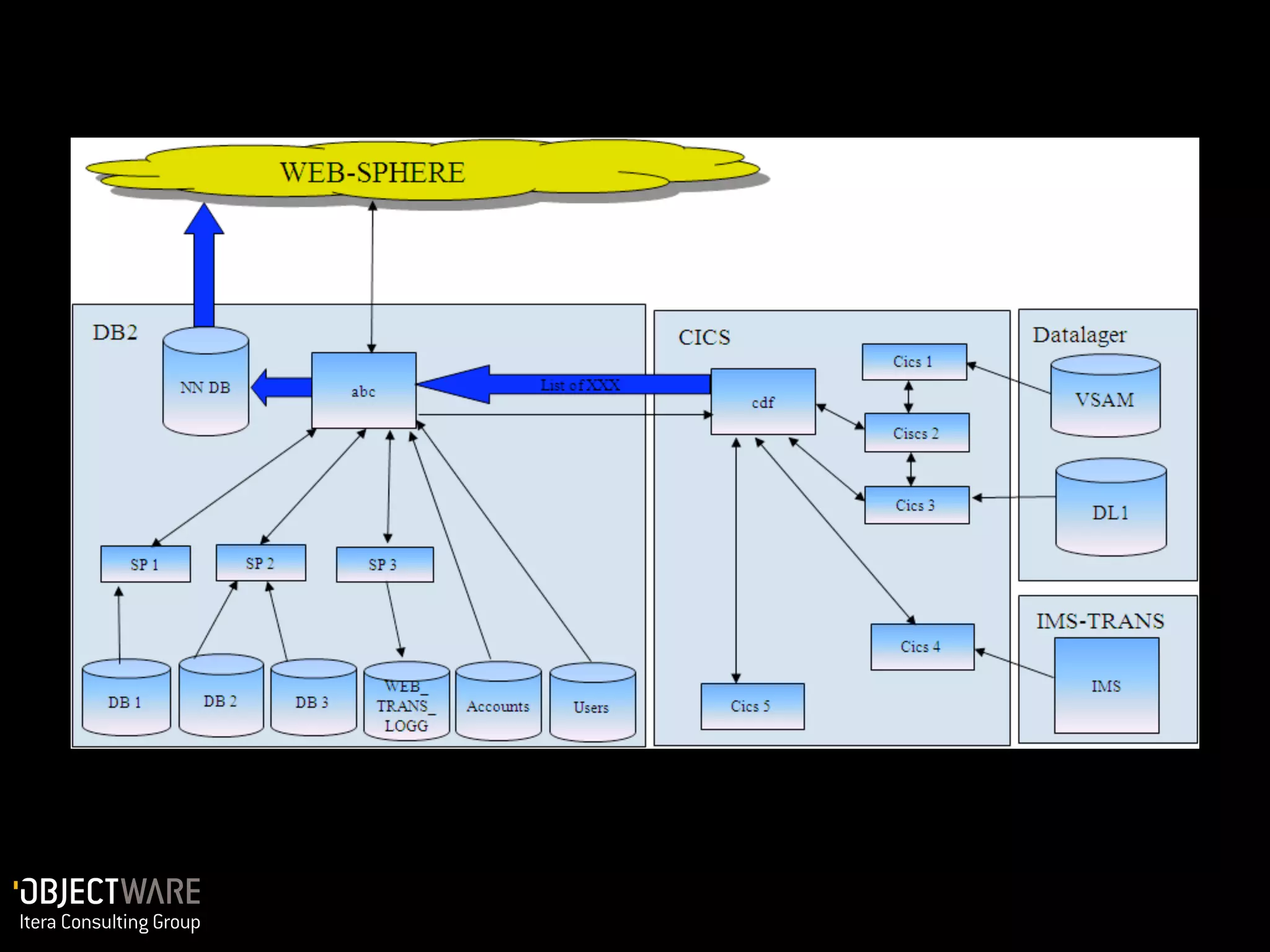

9. Better way
UML
wiki
tool
UML model Documentation
Repository Repository

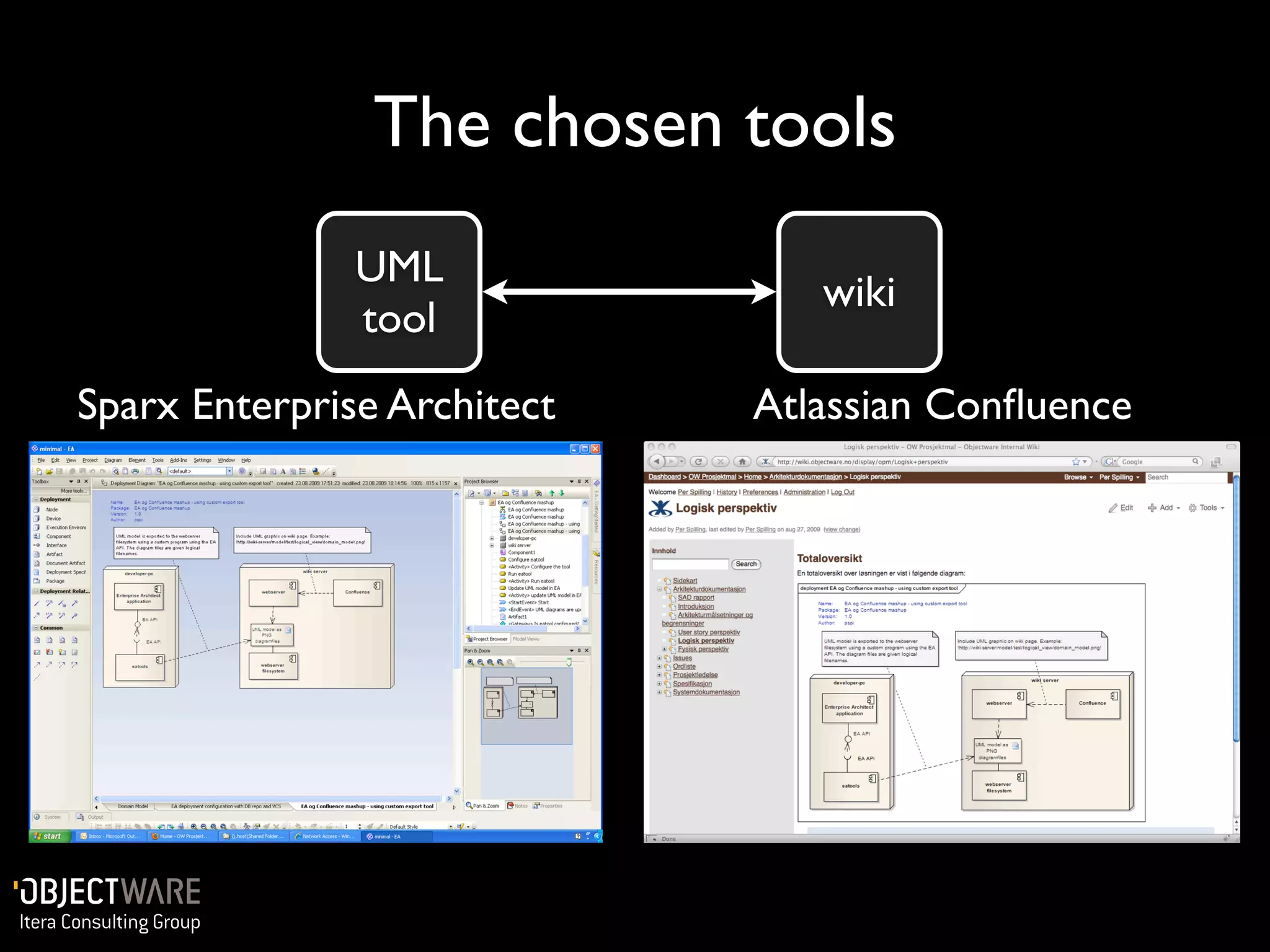

10. The chosen tools
UML
wiki
tool
Sparx Enterprise Architect Atlassian Confluence

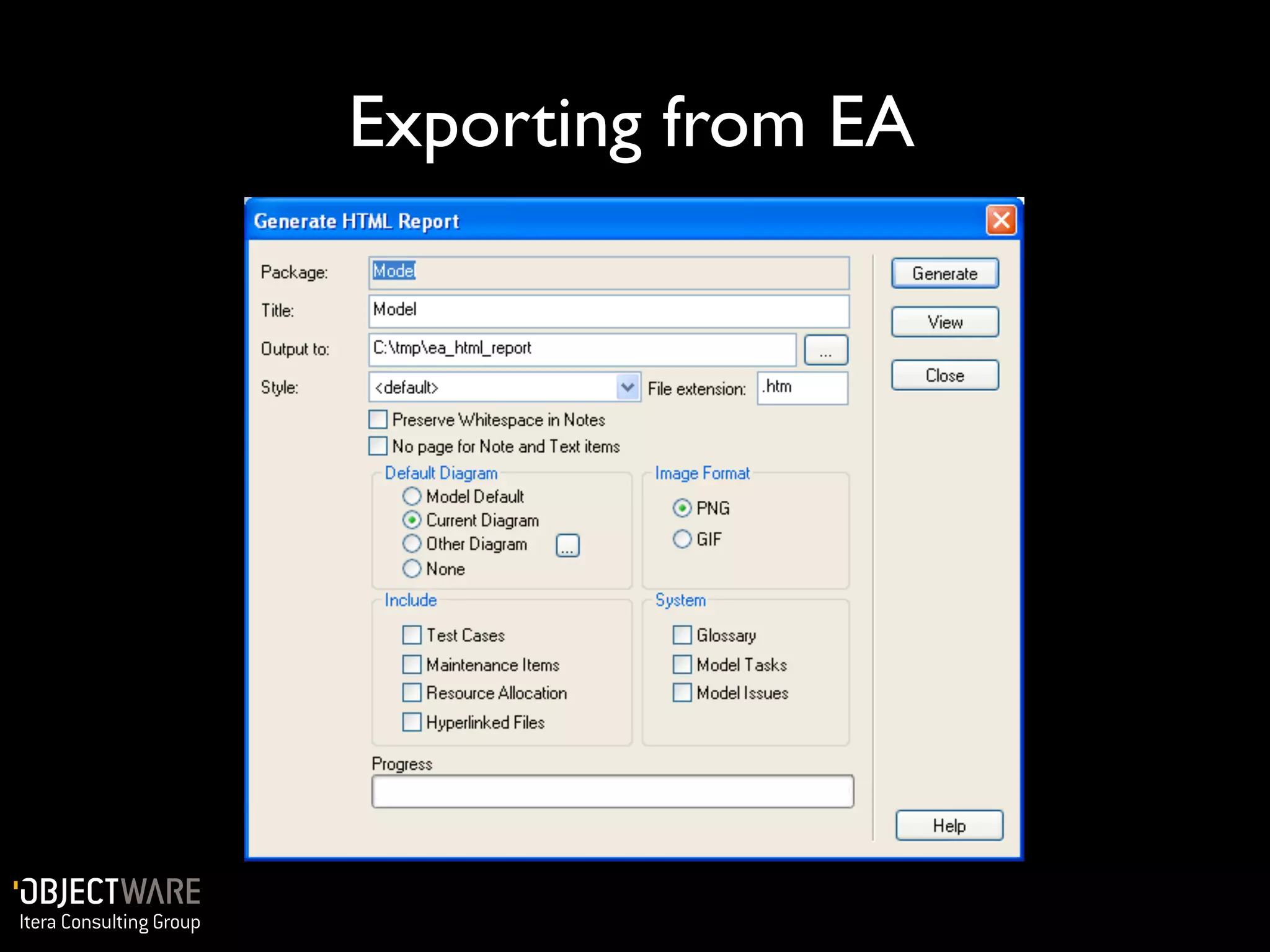

14. Exporting from EA

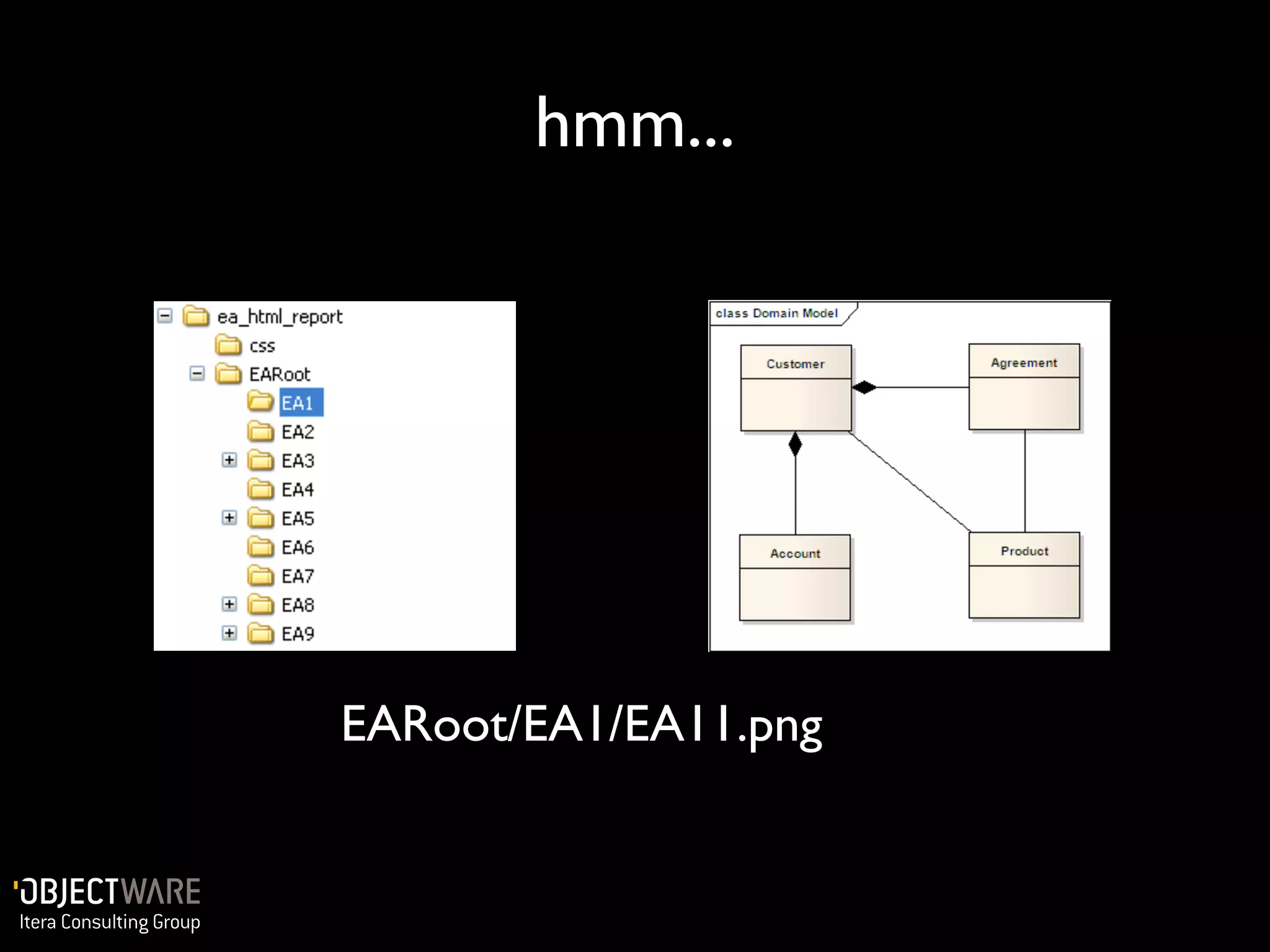

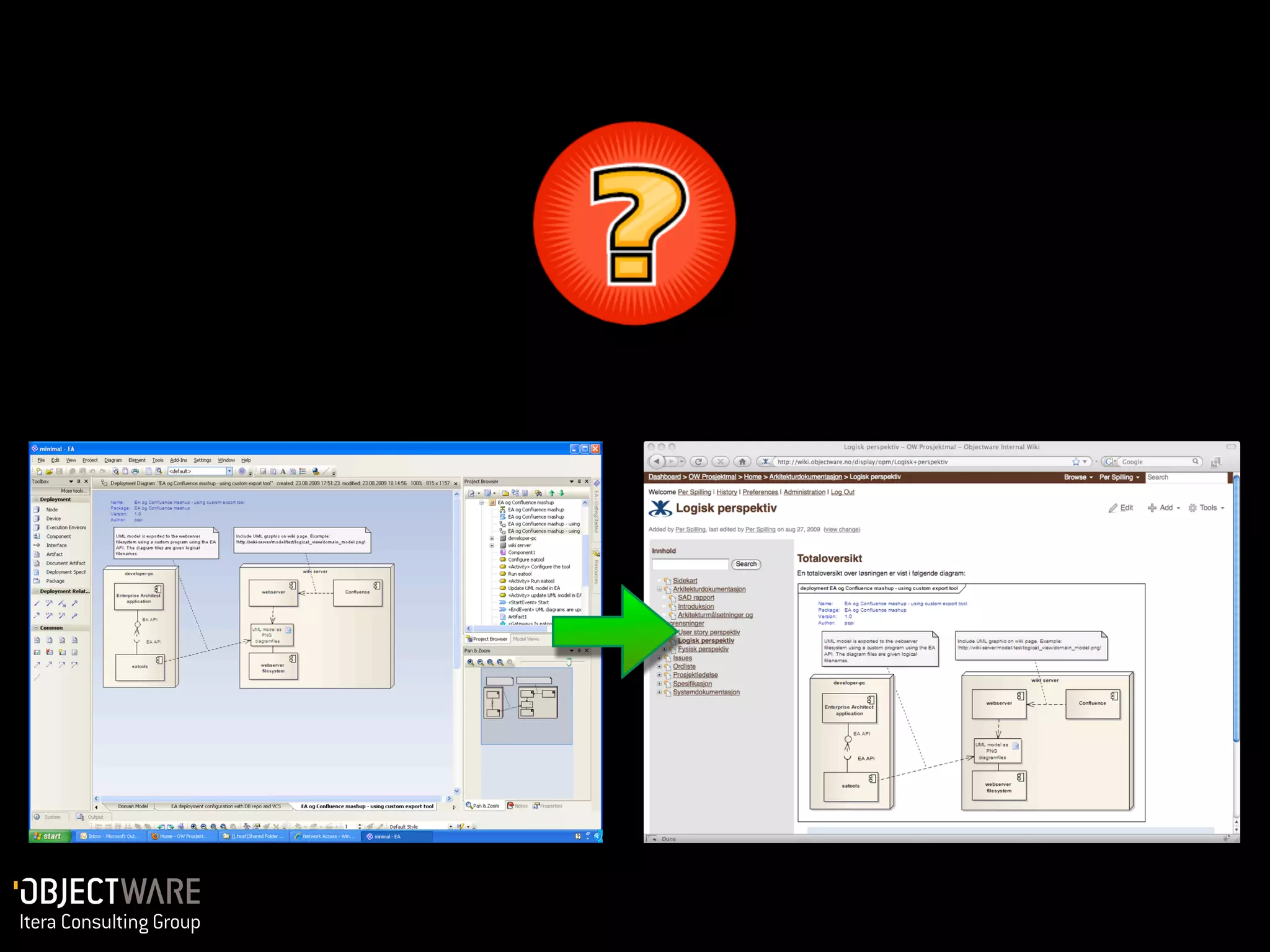

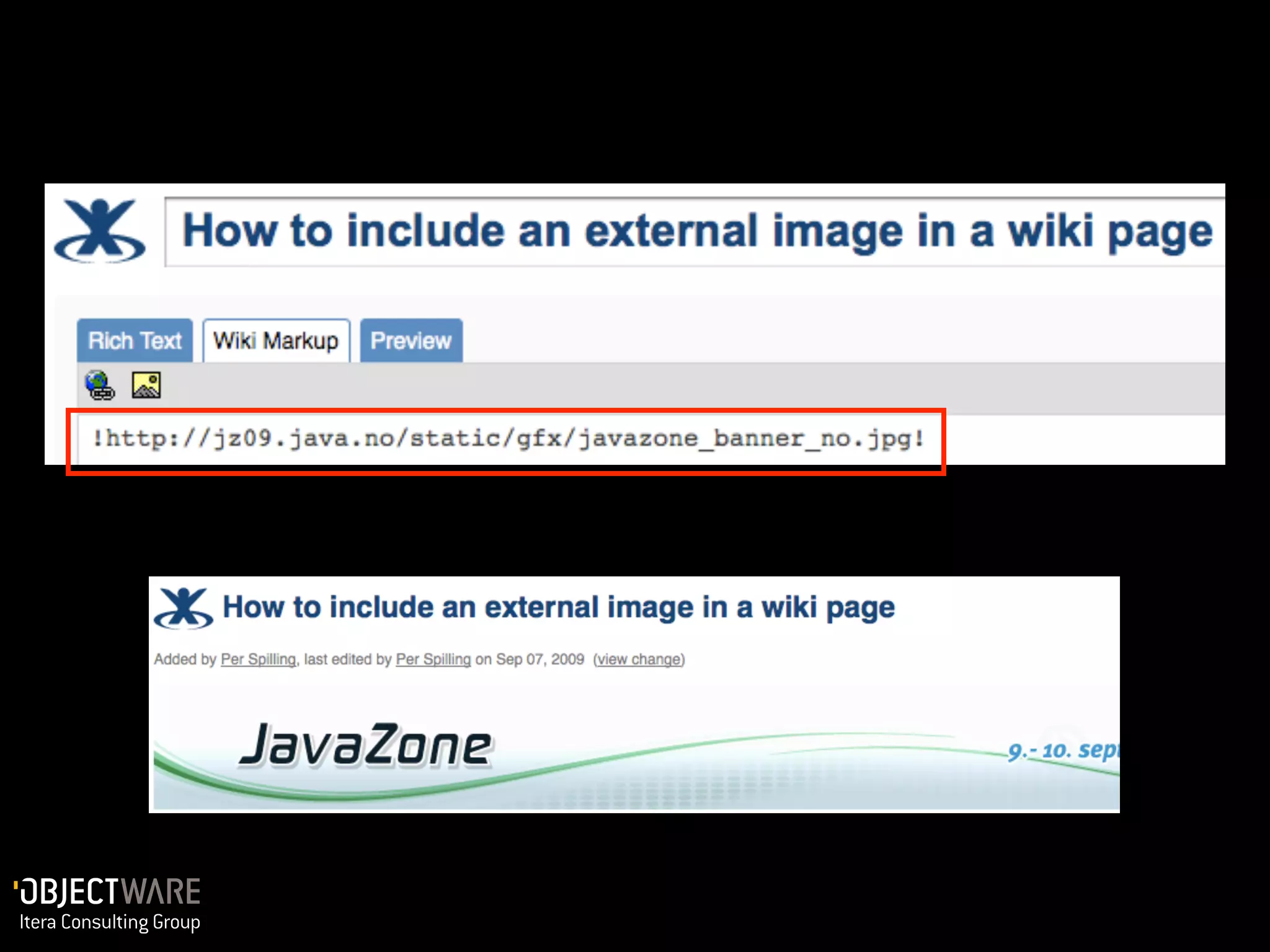

15. hmm...

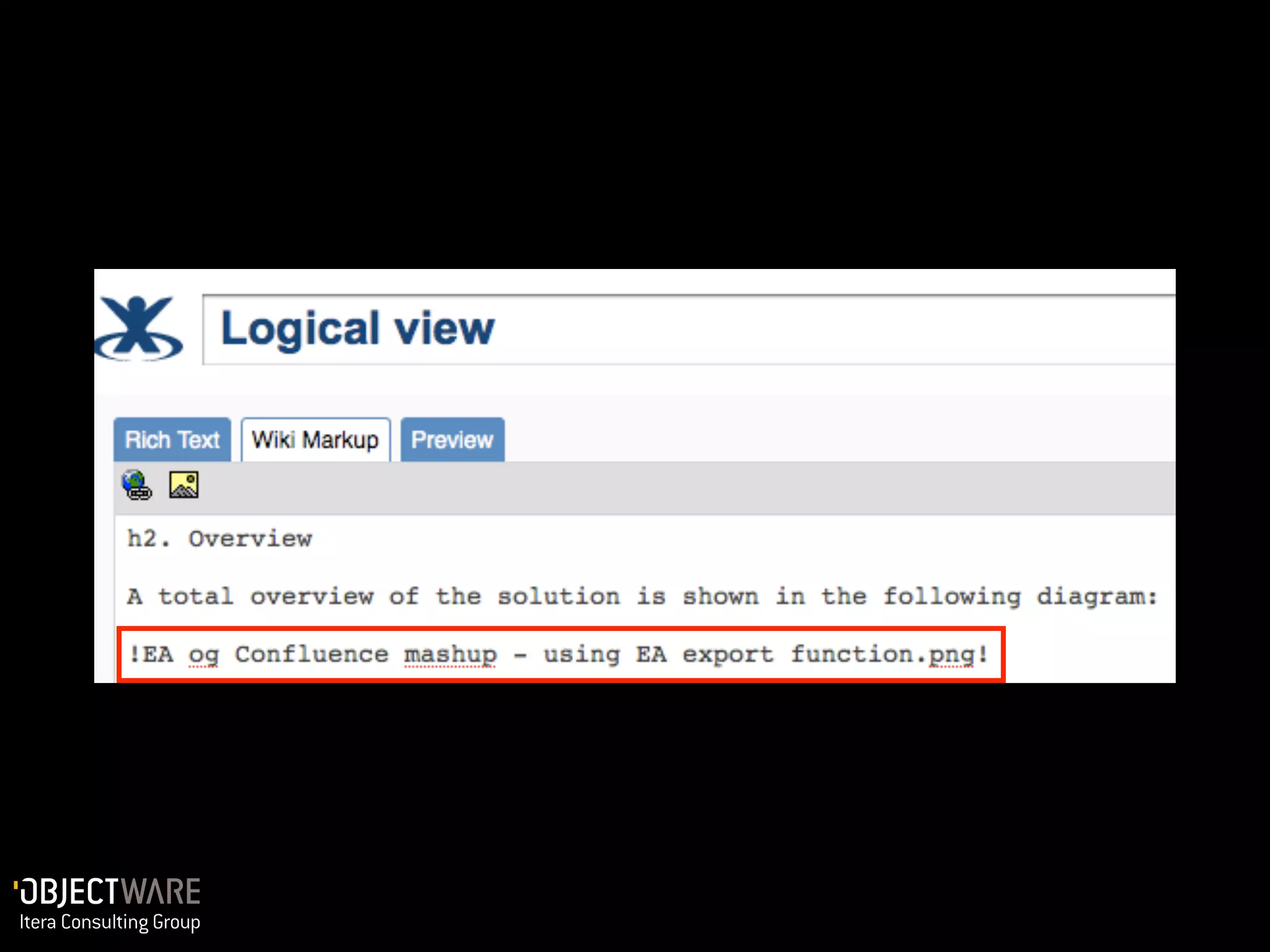

EARoot/EA1/EA11.png

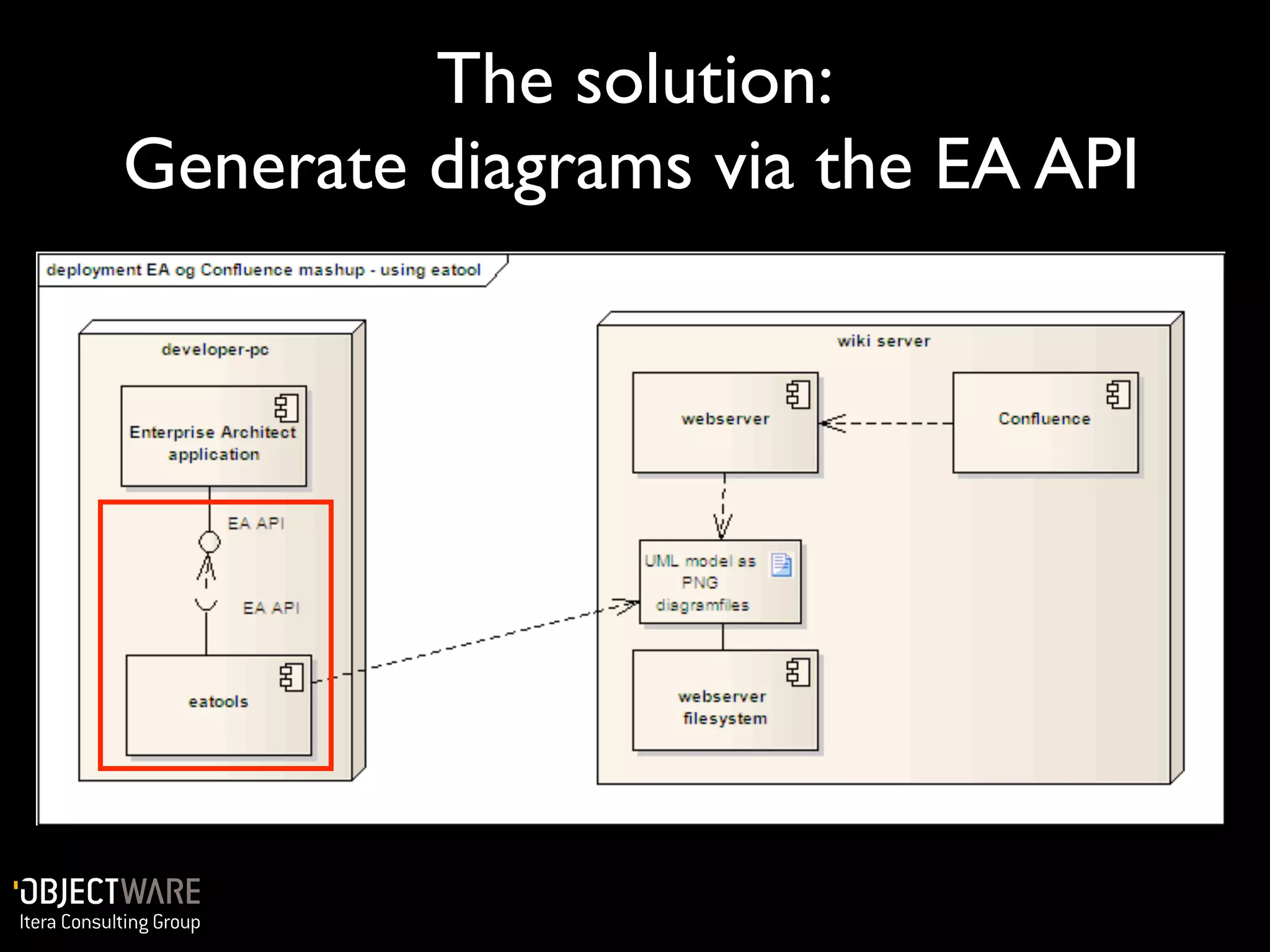

16. The solution:
Generate diagrams via the EA API

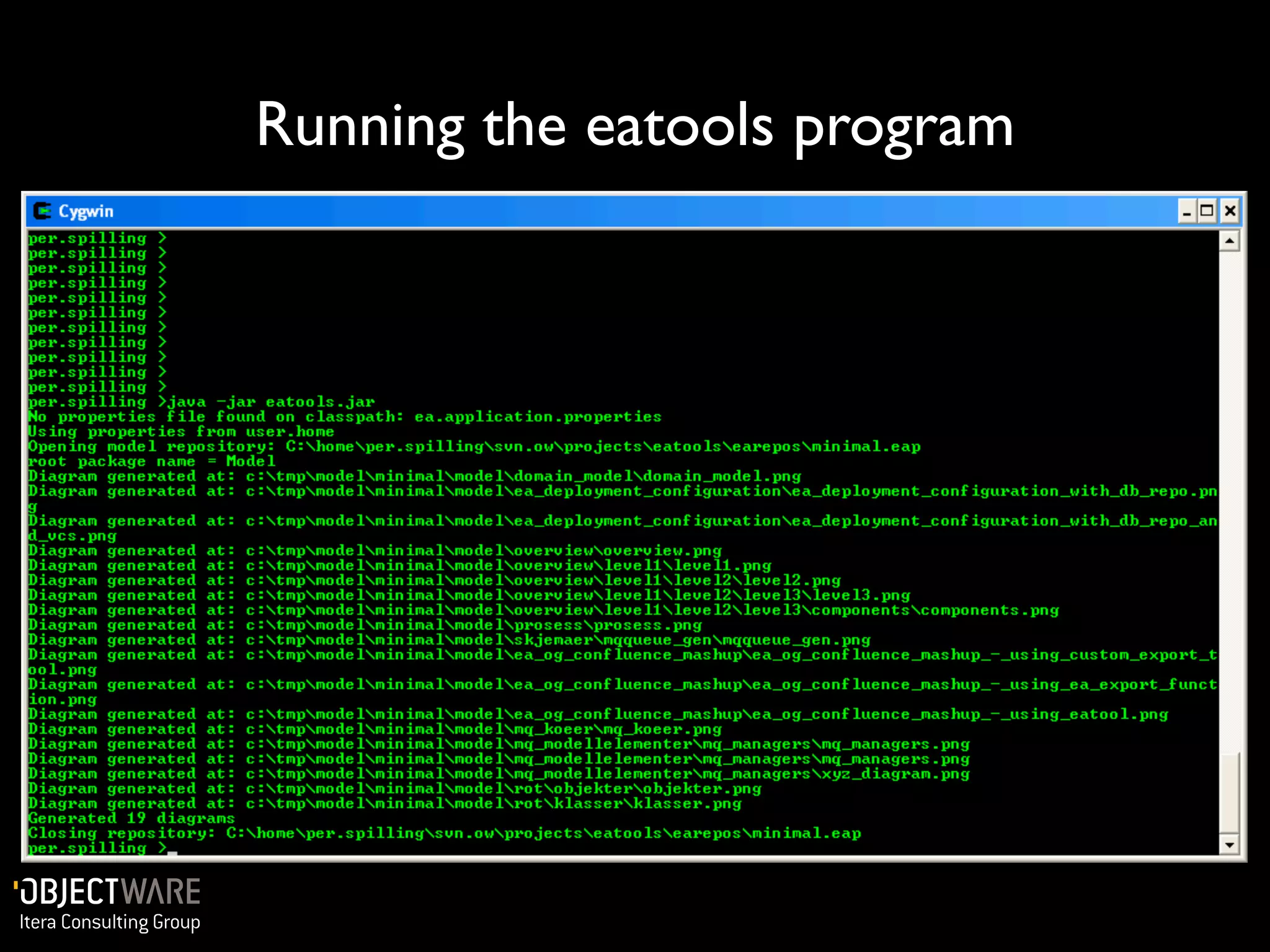

17. Running the eatools program

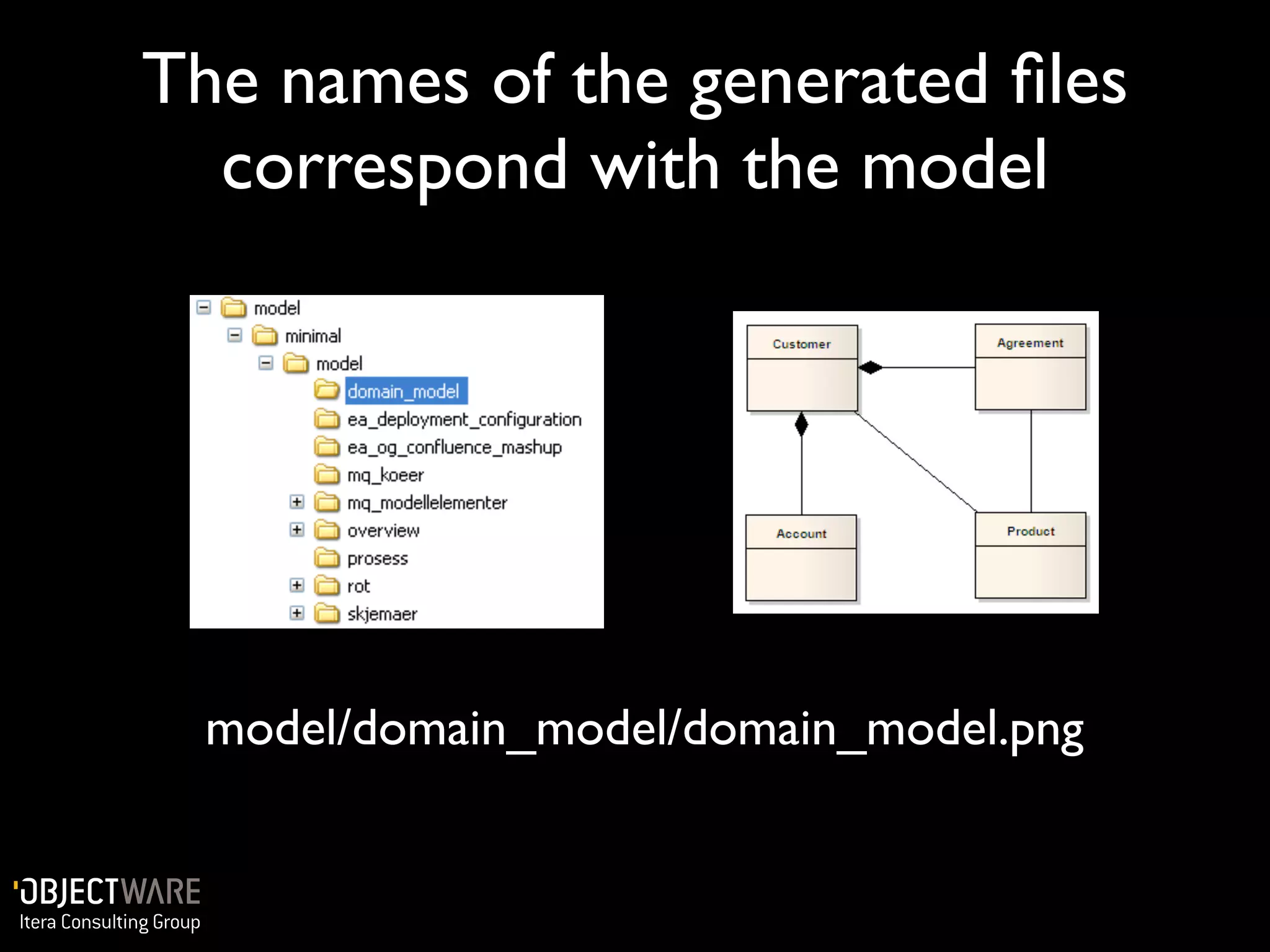

18. The names of the generated files
correspond with the model
model/domain_model/domain_model.png

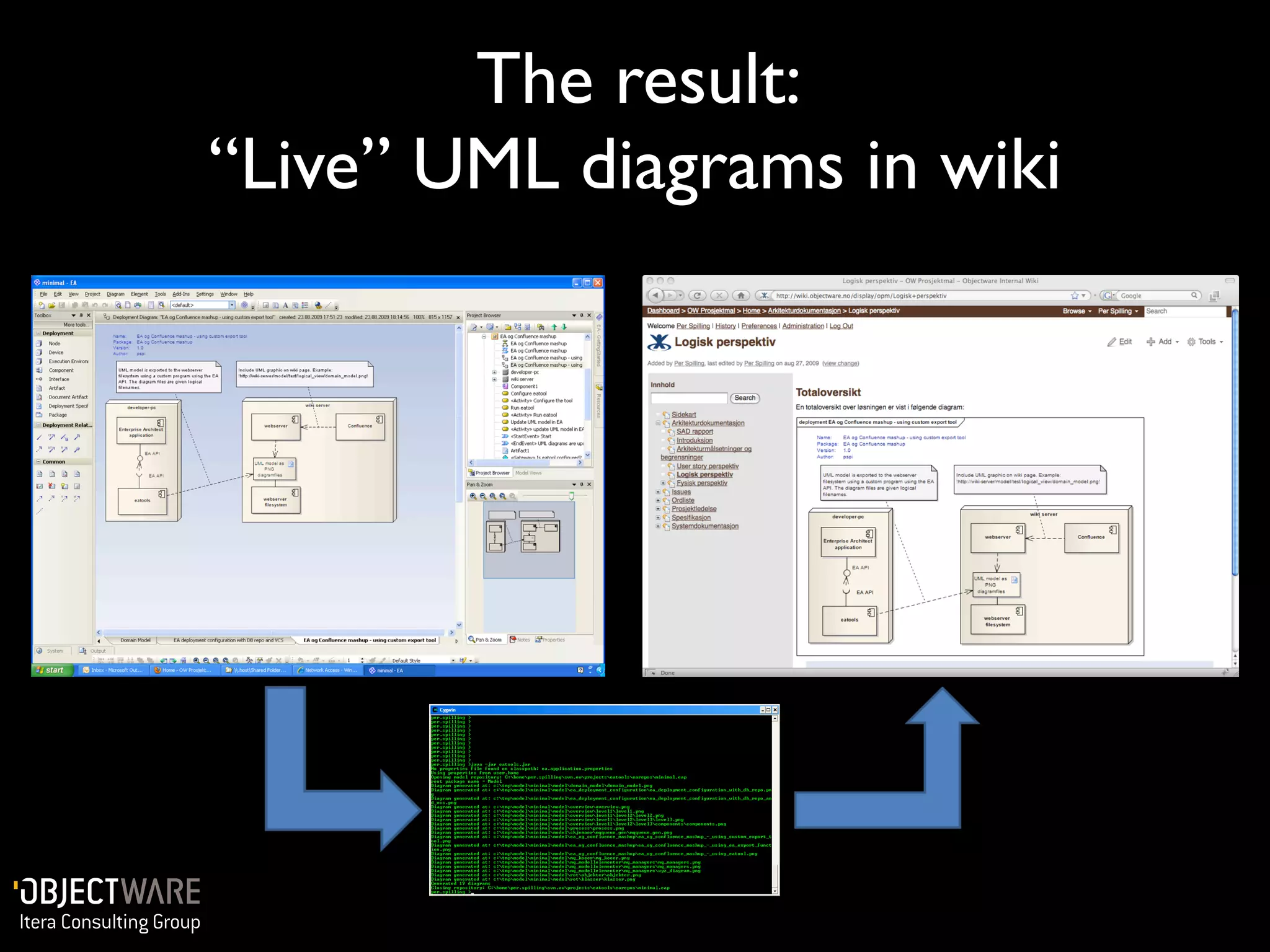

19. The result:
“Live” UML diagrams in wiki

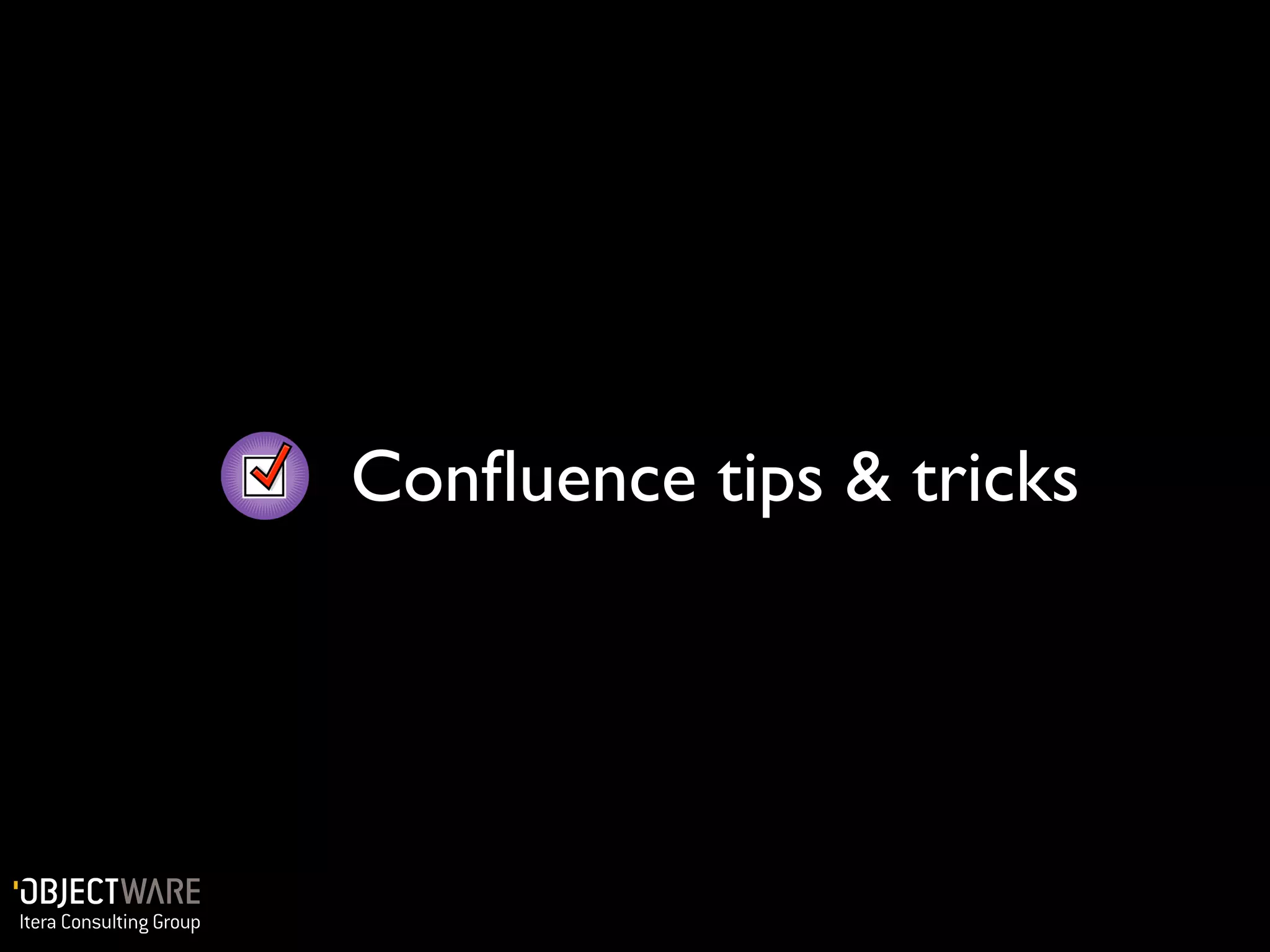

20. Confluence tips & tricks

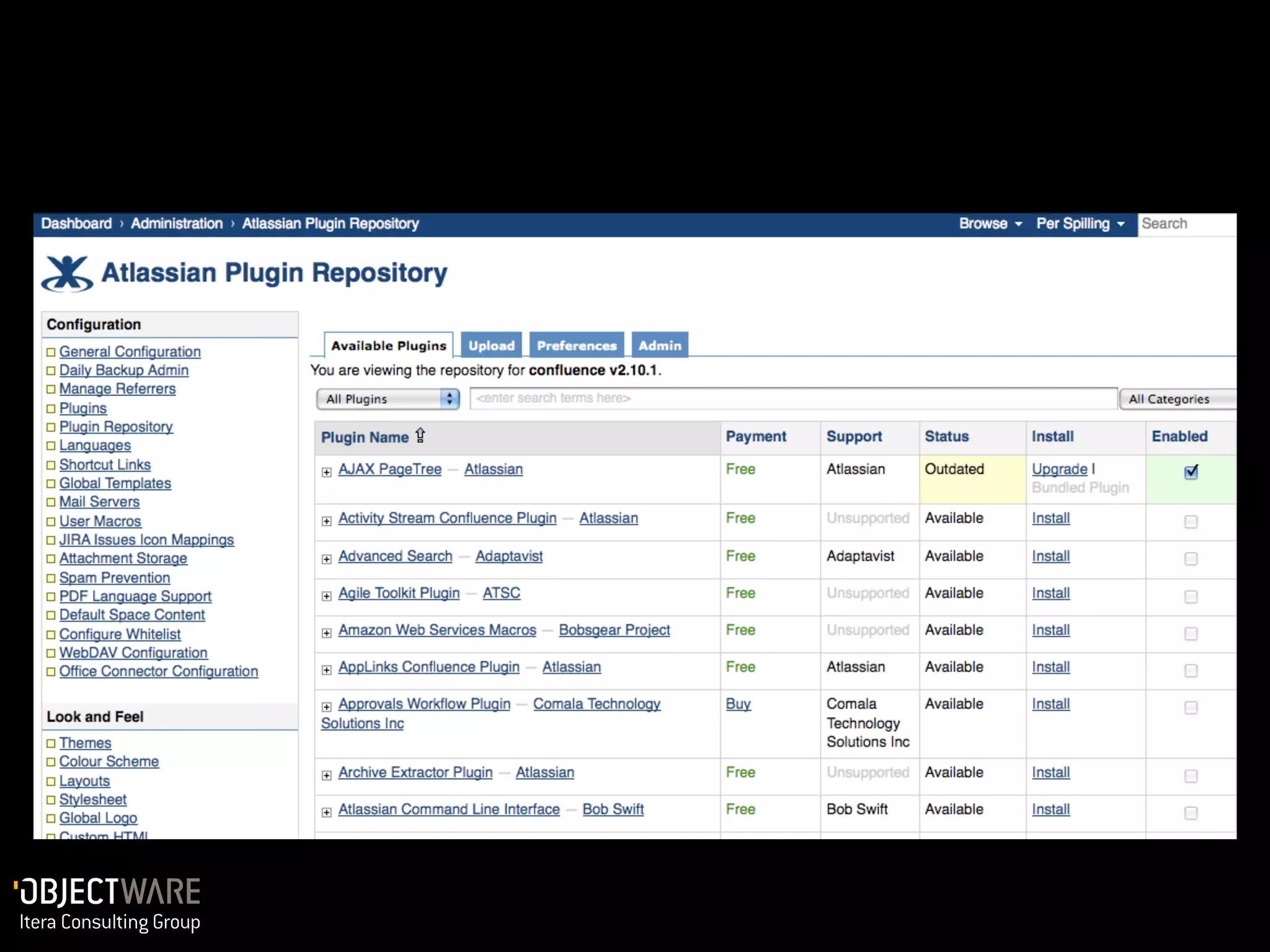

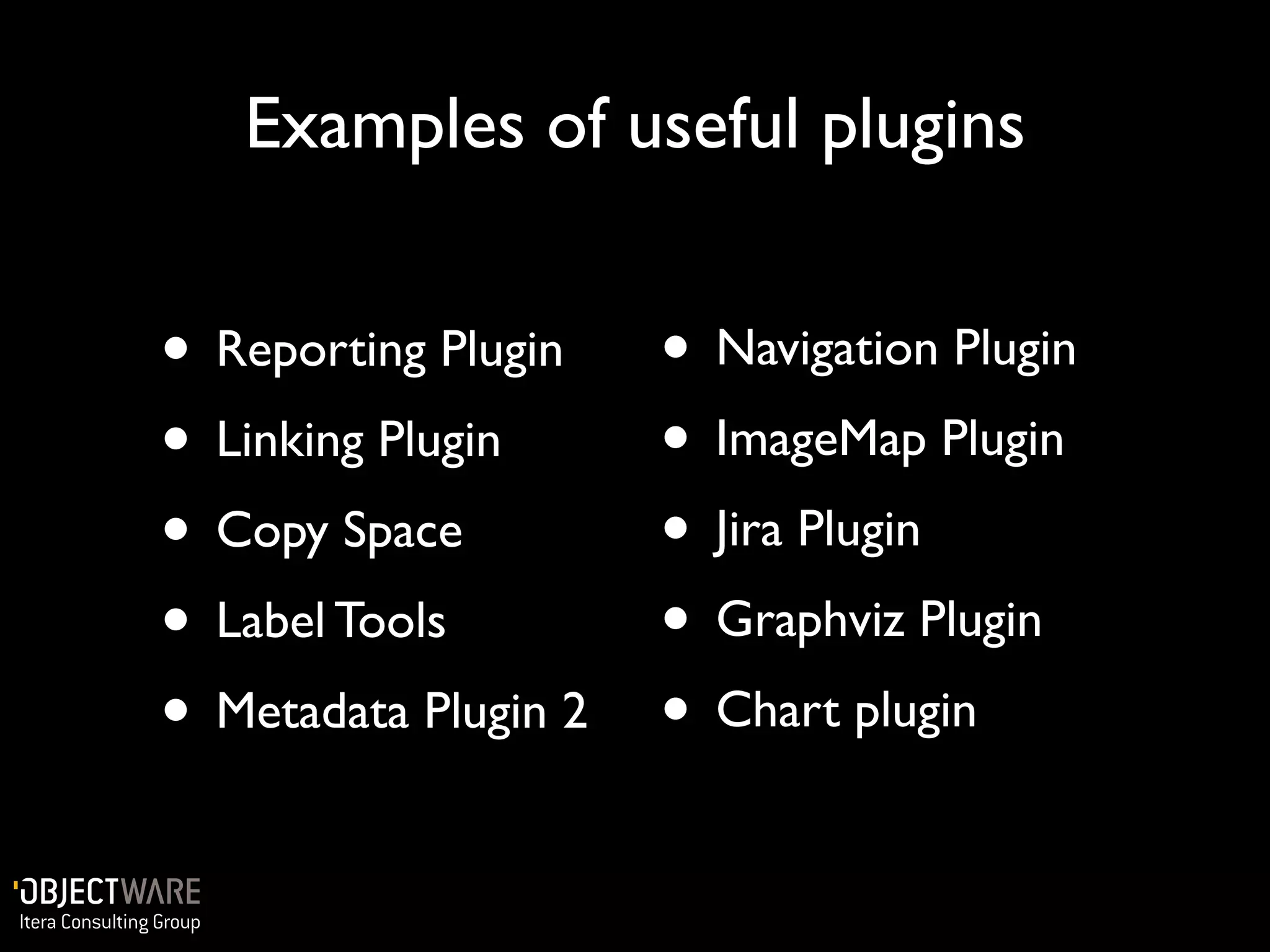

22. Examples of useful plugins
• Reporting Plugin • Navigation Plugin
• Linking Plugin • ImageMap Plugin
• Copy Space • Jira Plugin
• Label Tools • Graphviz Plugin
• Metadata Plugin 2 • Chart plugin

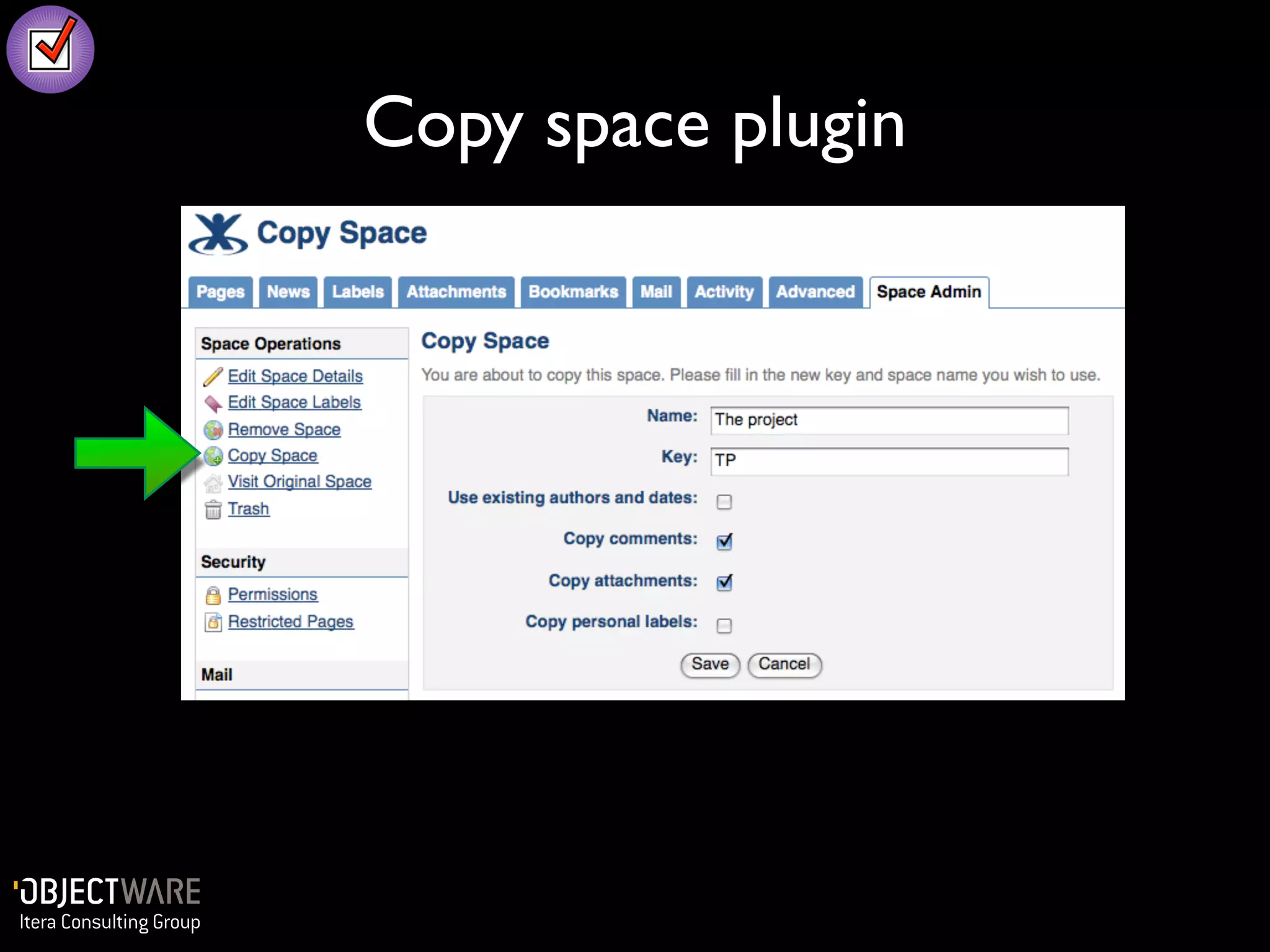

23. Copy space plugin

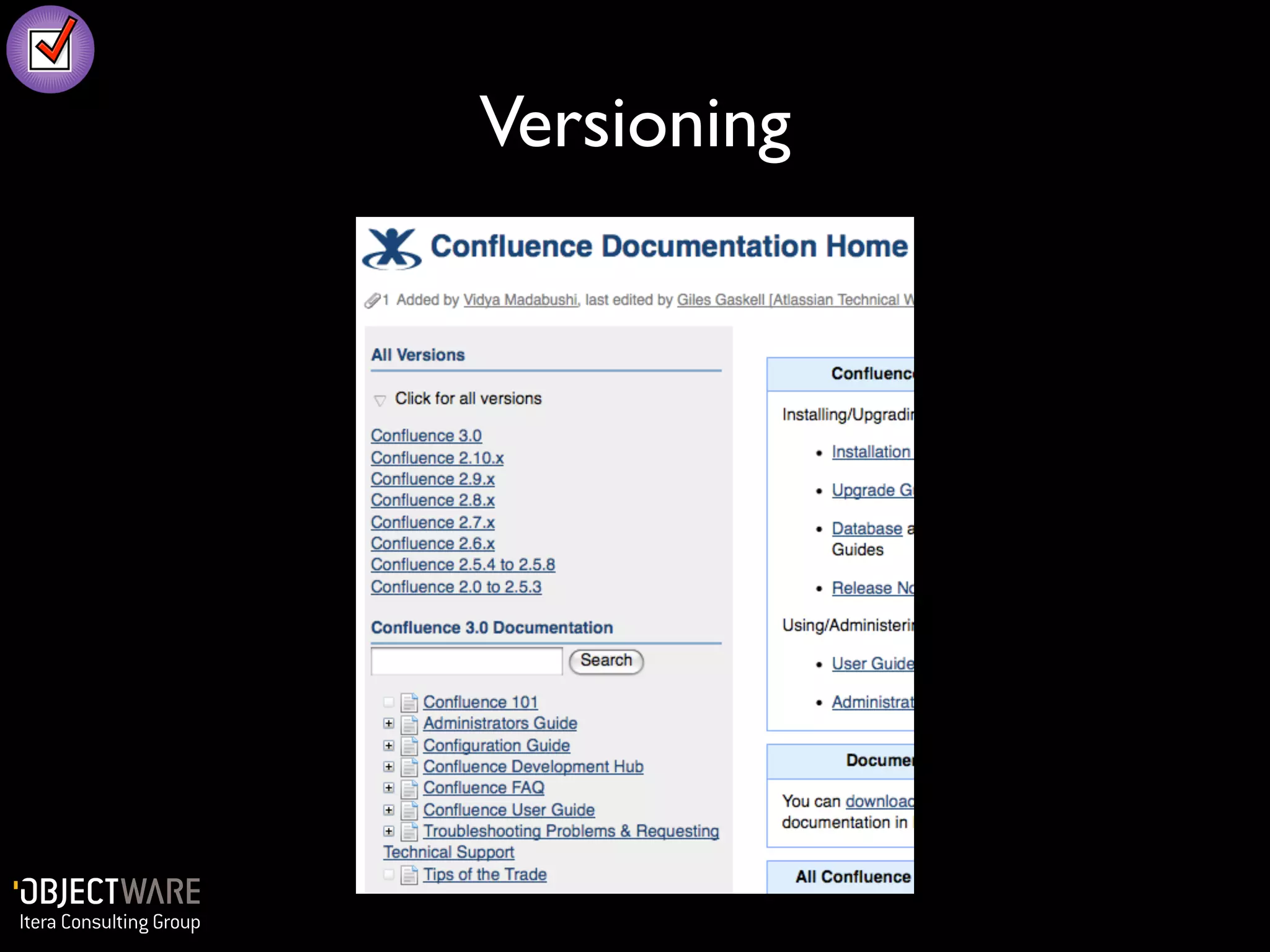

24. Versioning

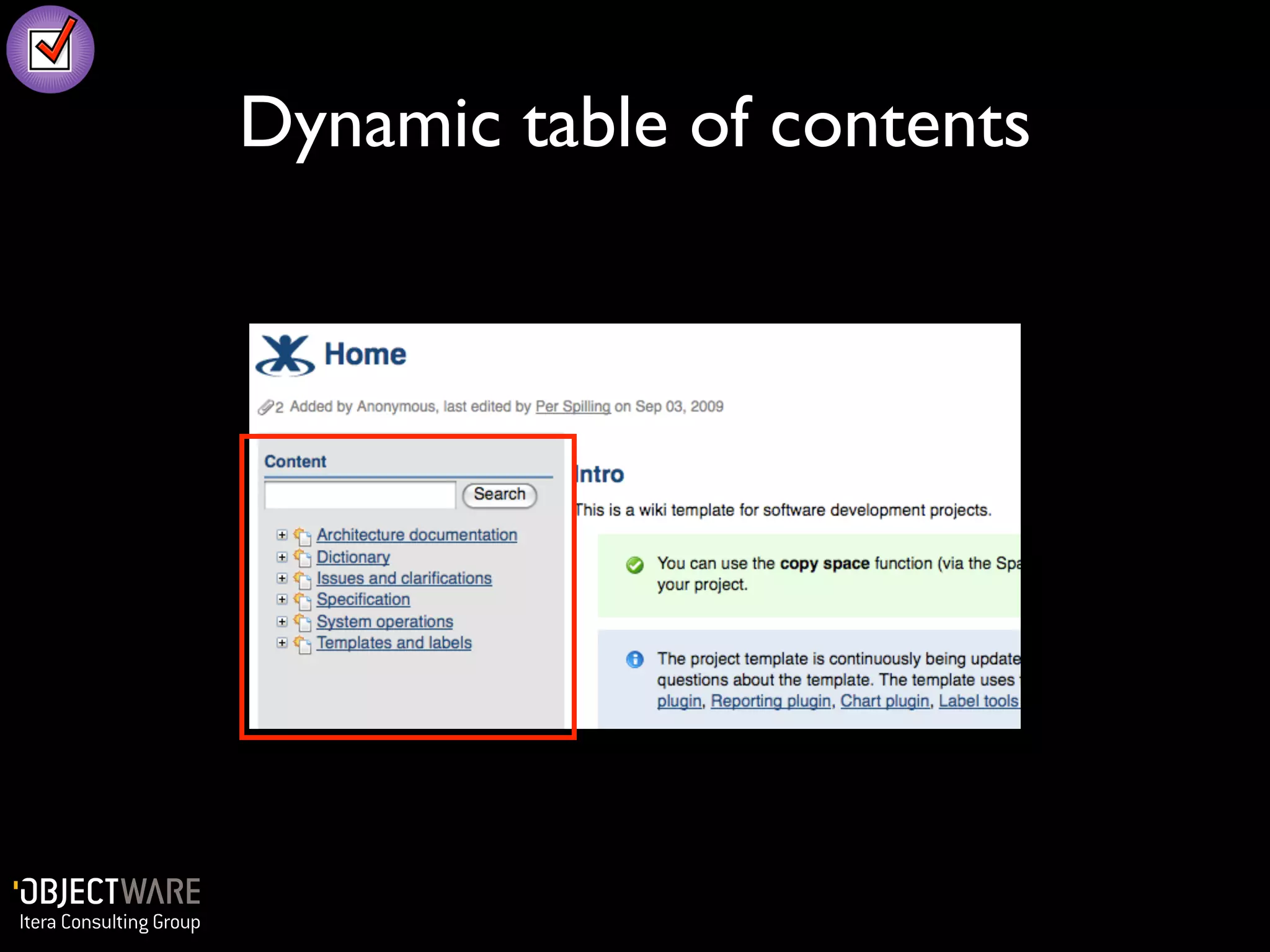

25. Dynamic table of contents

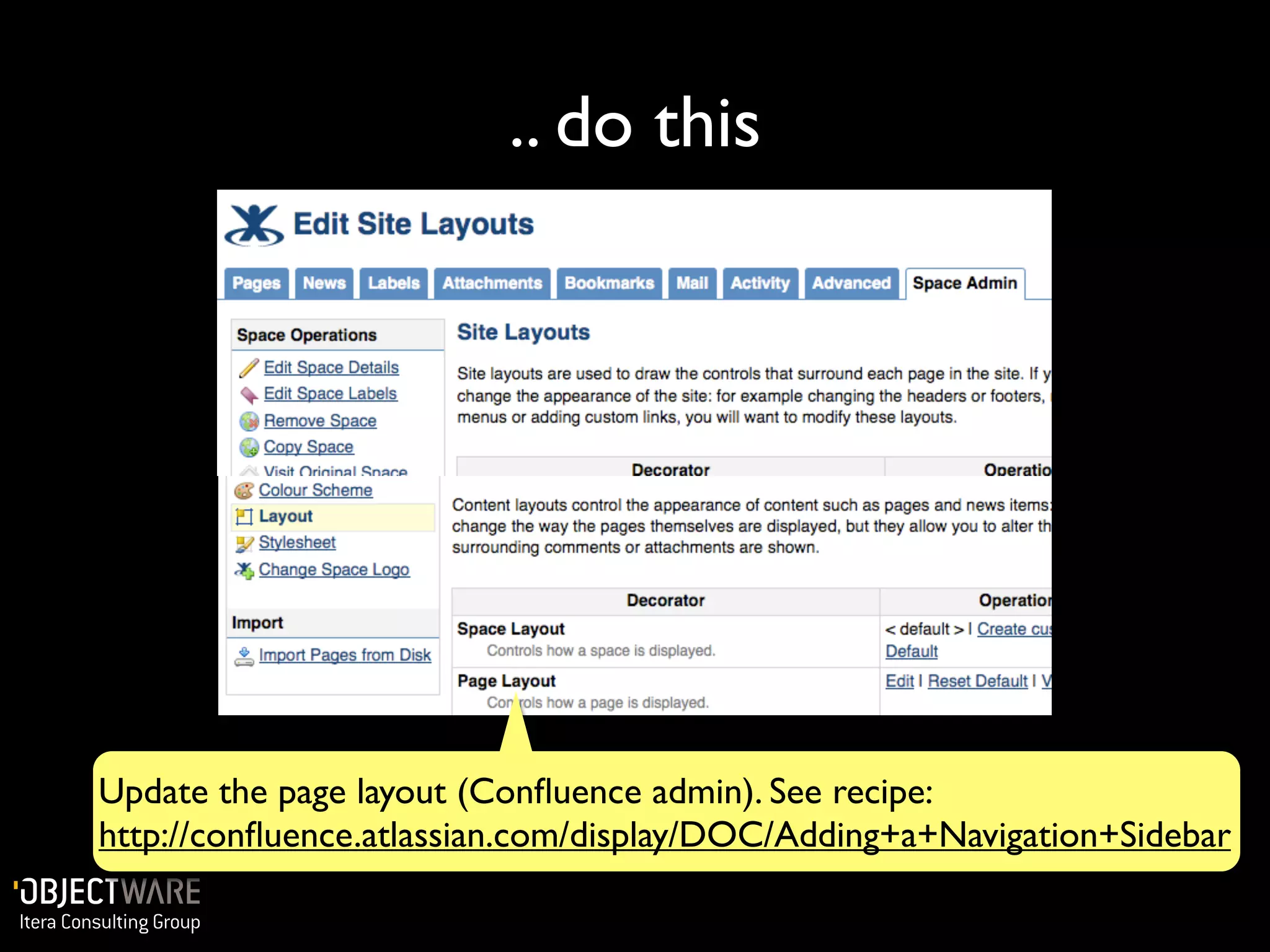

26. .. do this
Update the page layout (Confluence admin). See recipe:
http://confluence.atlassian.com/display/DOC/Adding+a+Navigation+Sidebar

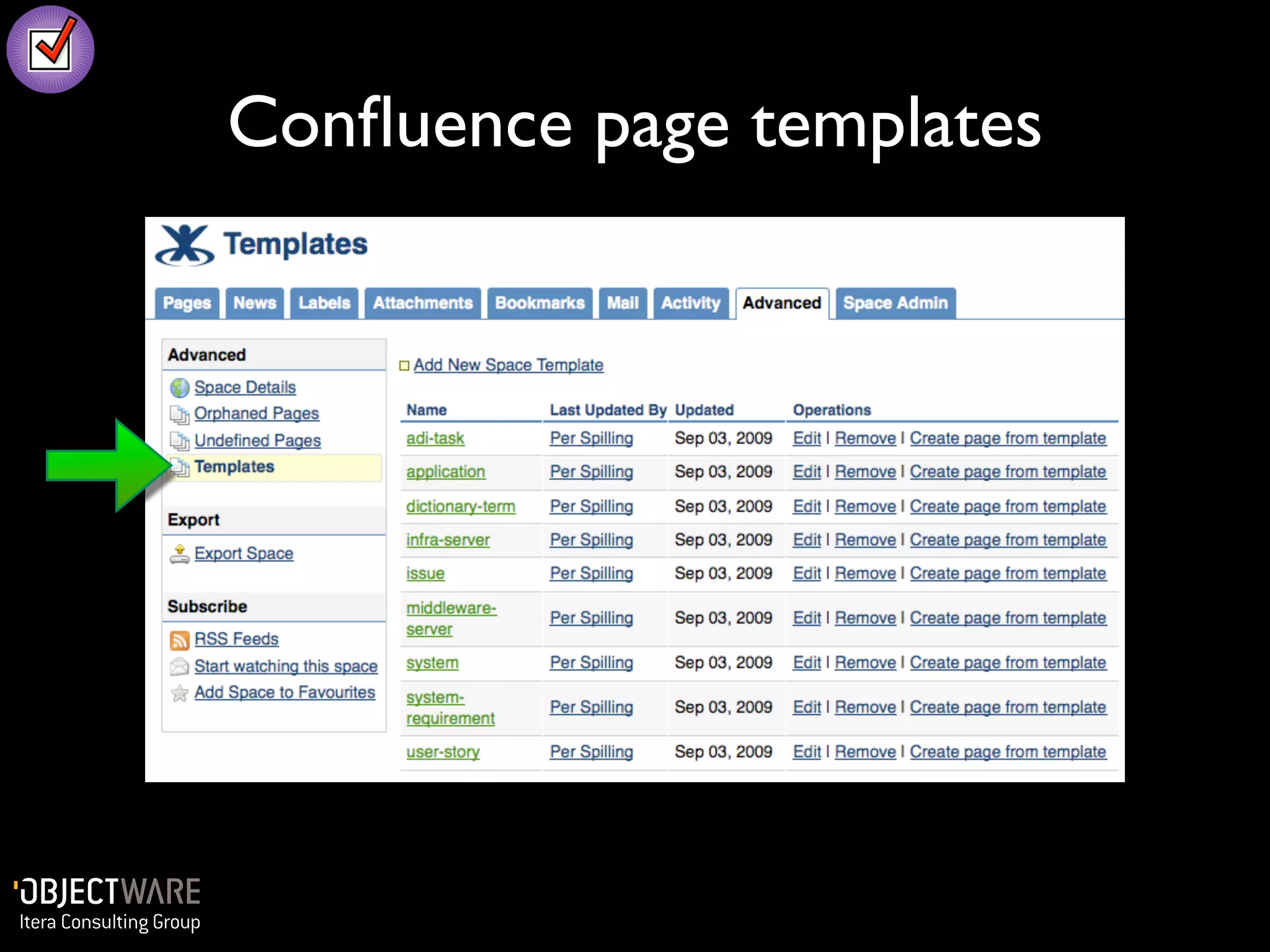

27. Confluence page templates

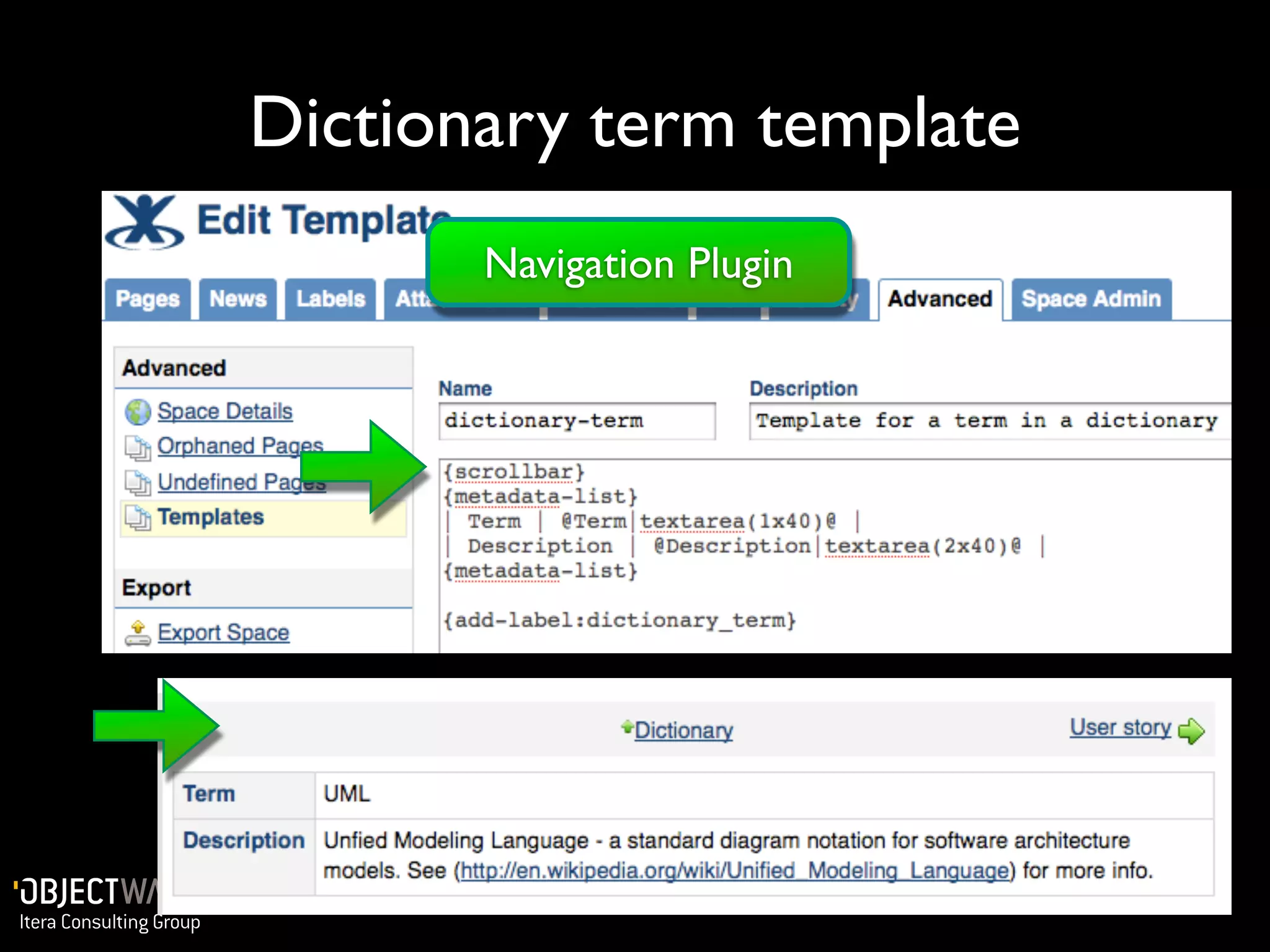

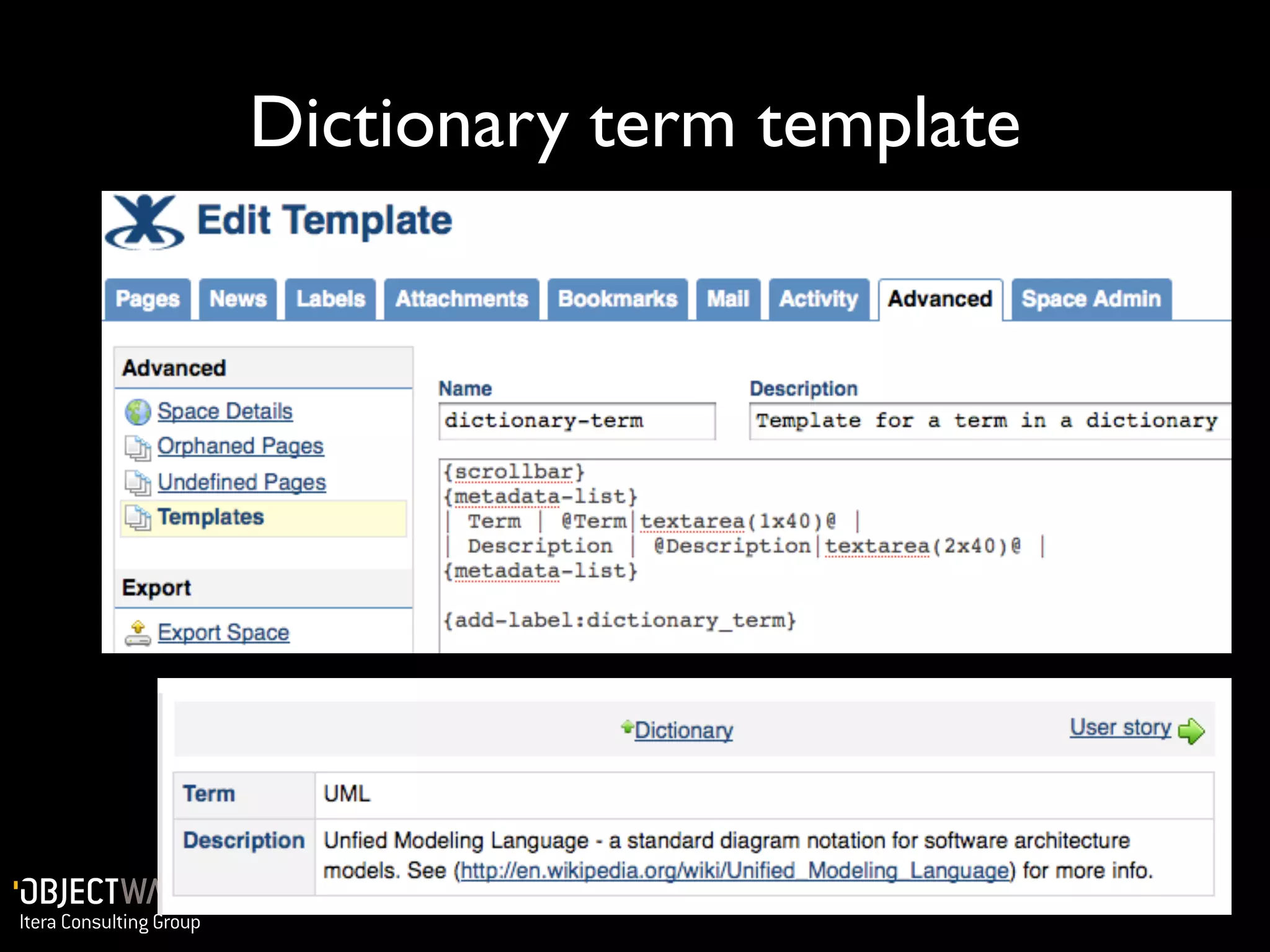

28. Dictionary term template

29. Dictionary term template
Navigation Plugin

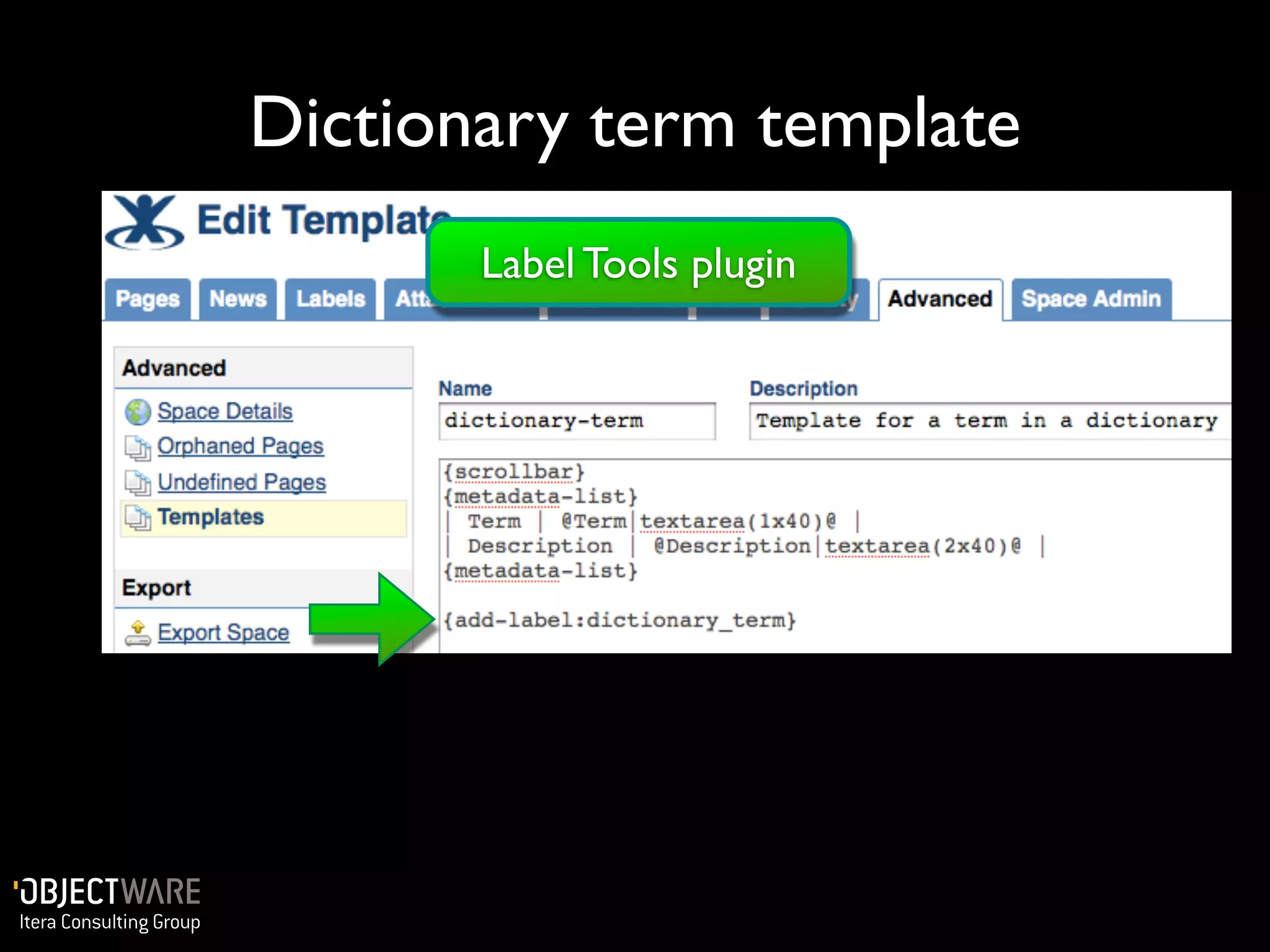

30. Dictionary term template
Metadata Plugin 2

31. Dictionary term template
Label Tools plugin

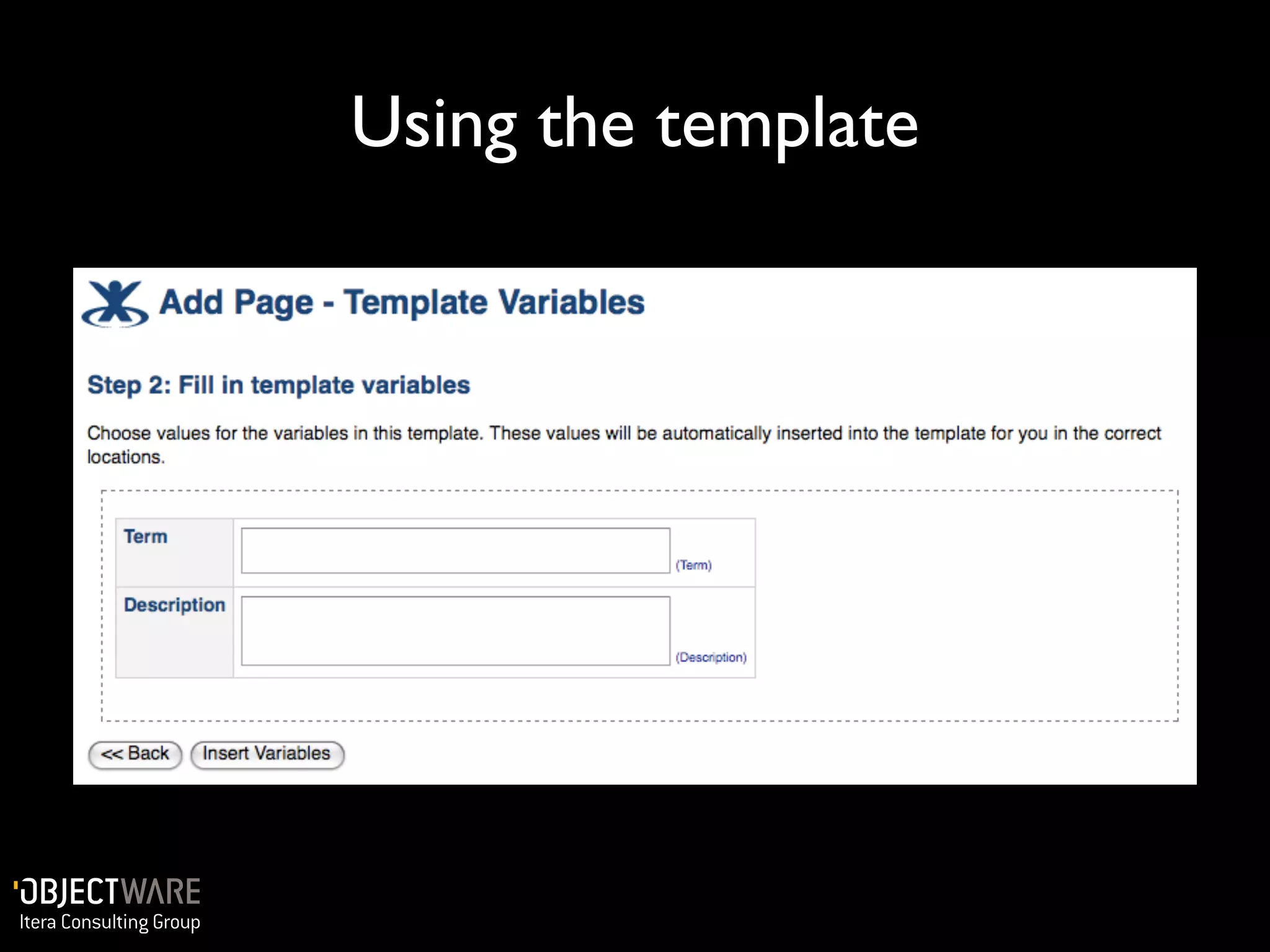

32. Using the template

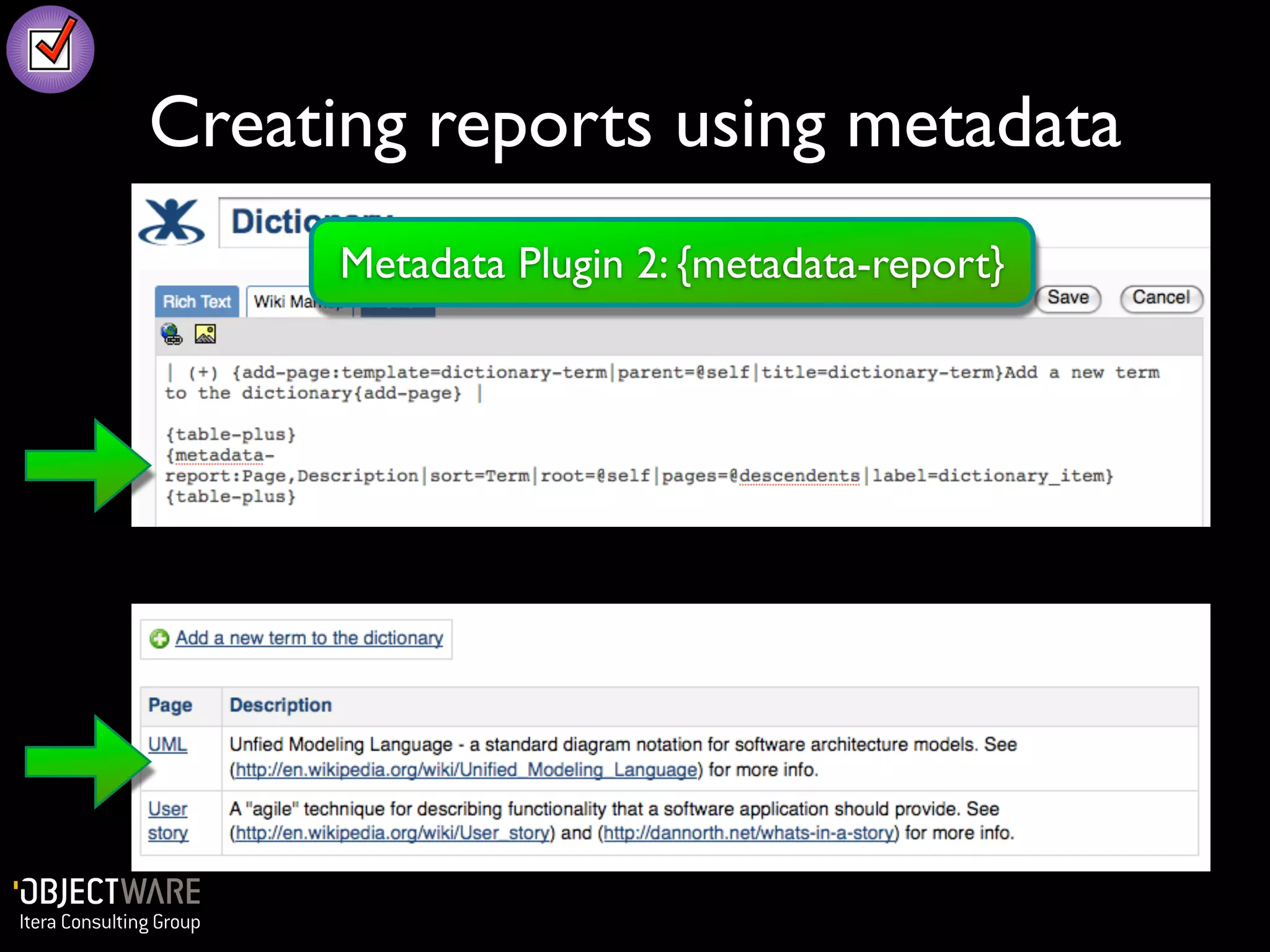

33. Creating reports using metadata
Metadata Plugin 2: {metadata-report}

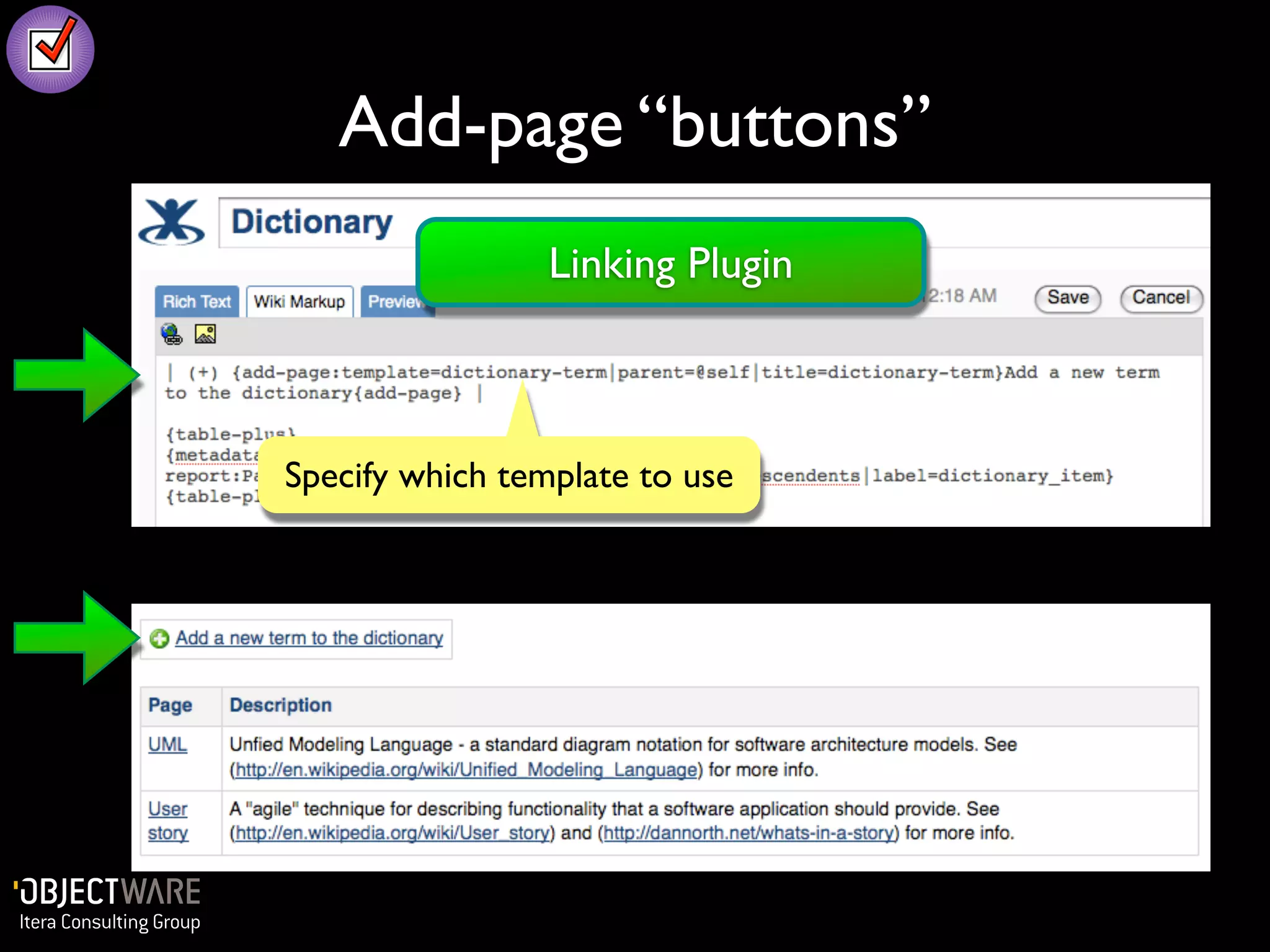

34. Add-page “buttons”
Linking Plugin
Specify which template to use

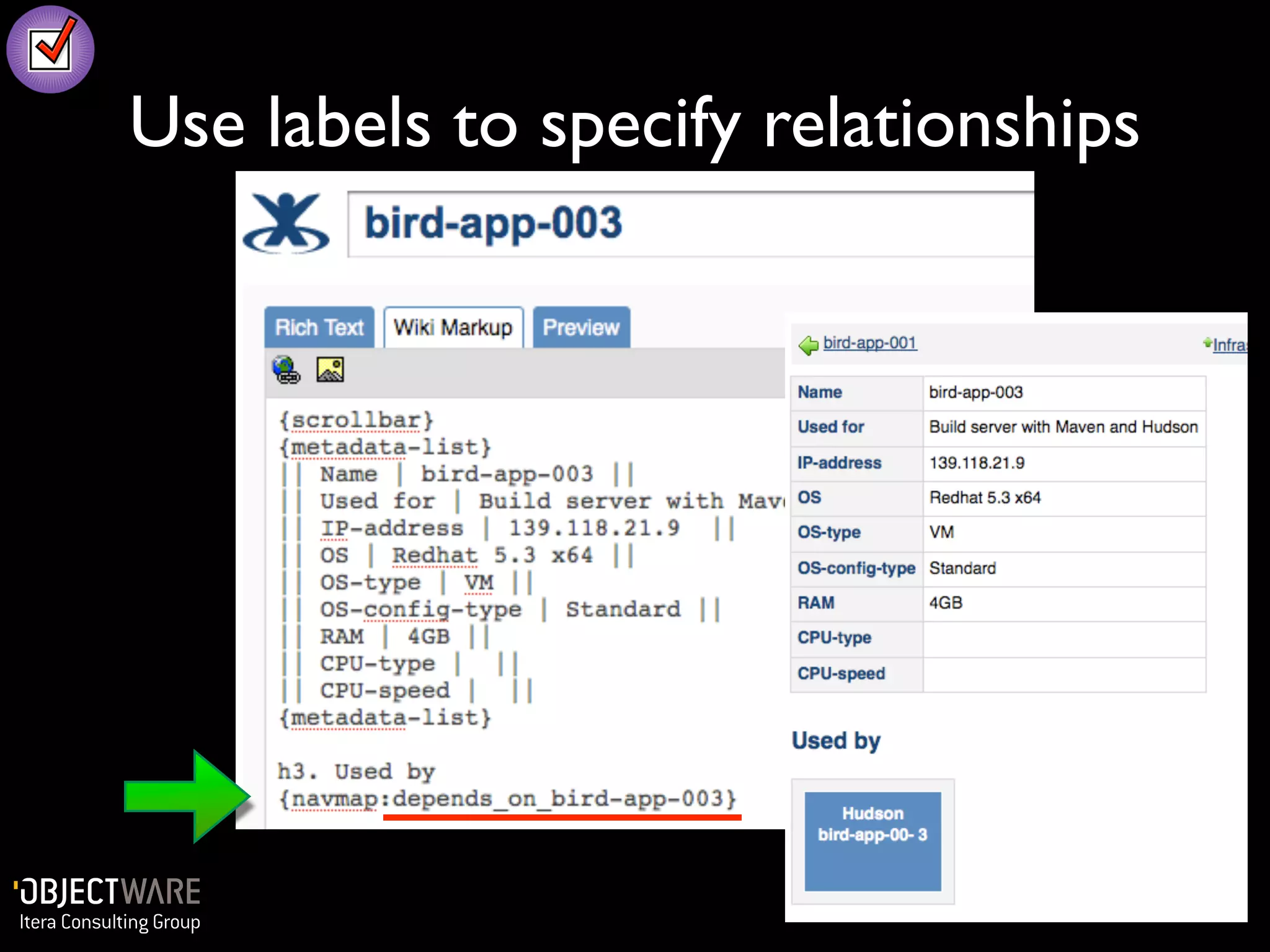

35. Use labels to specify relationships

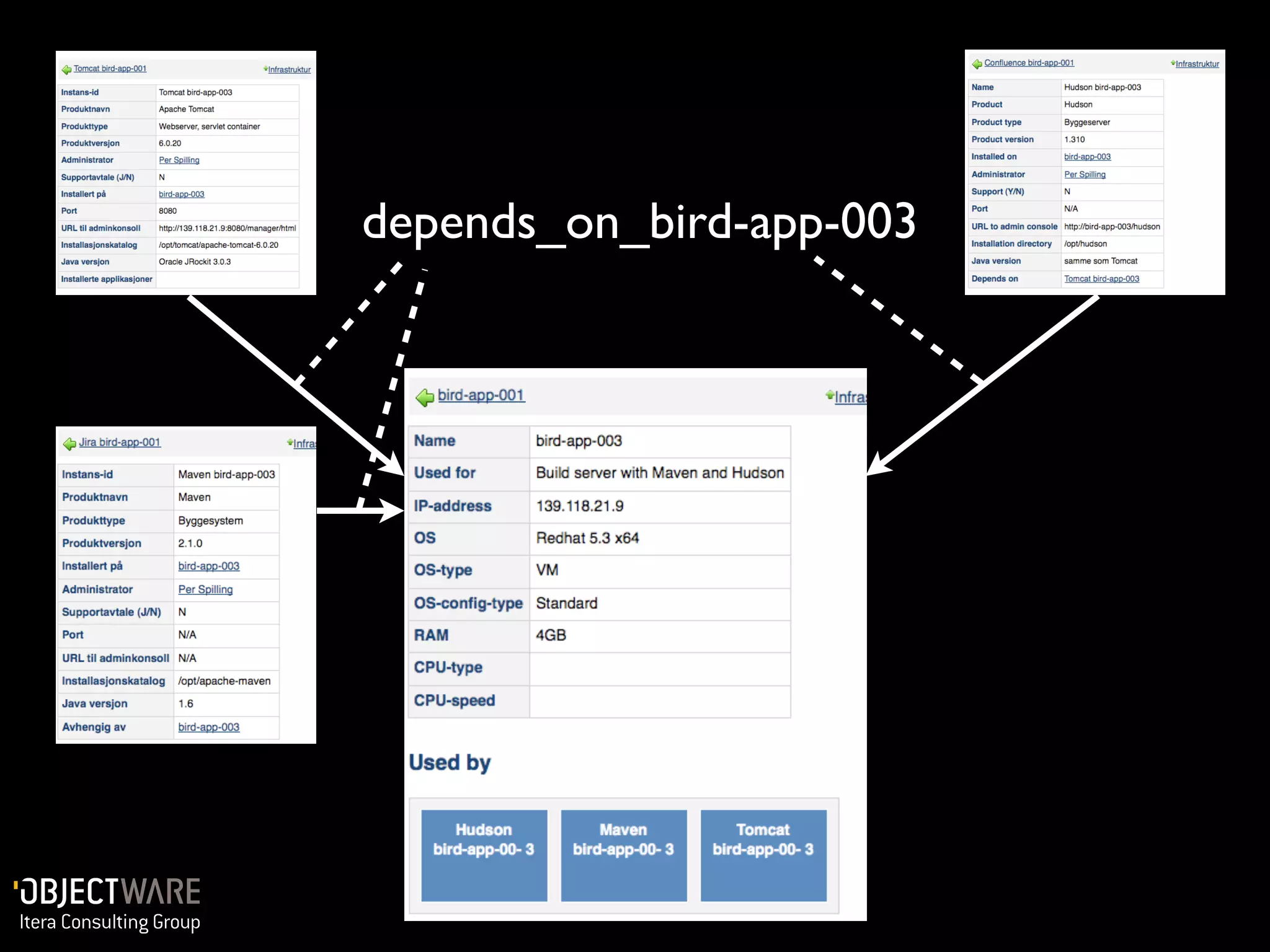

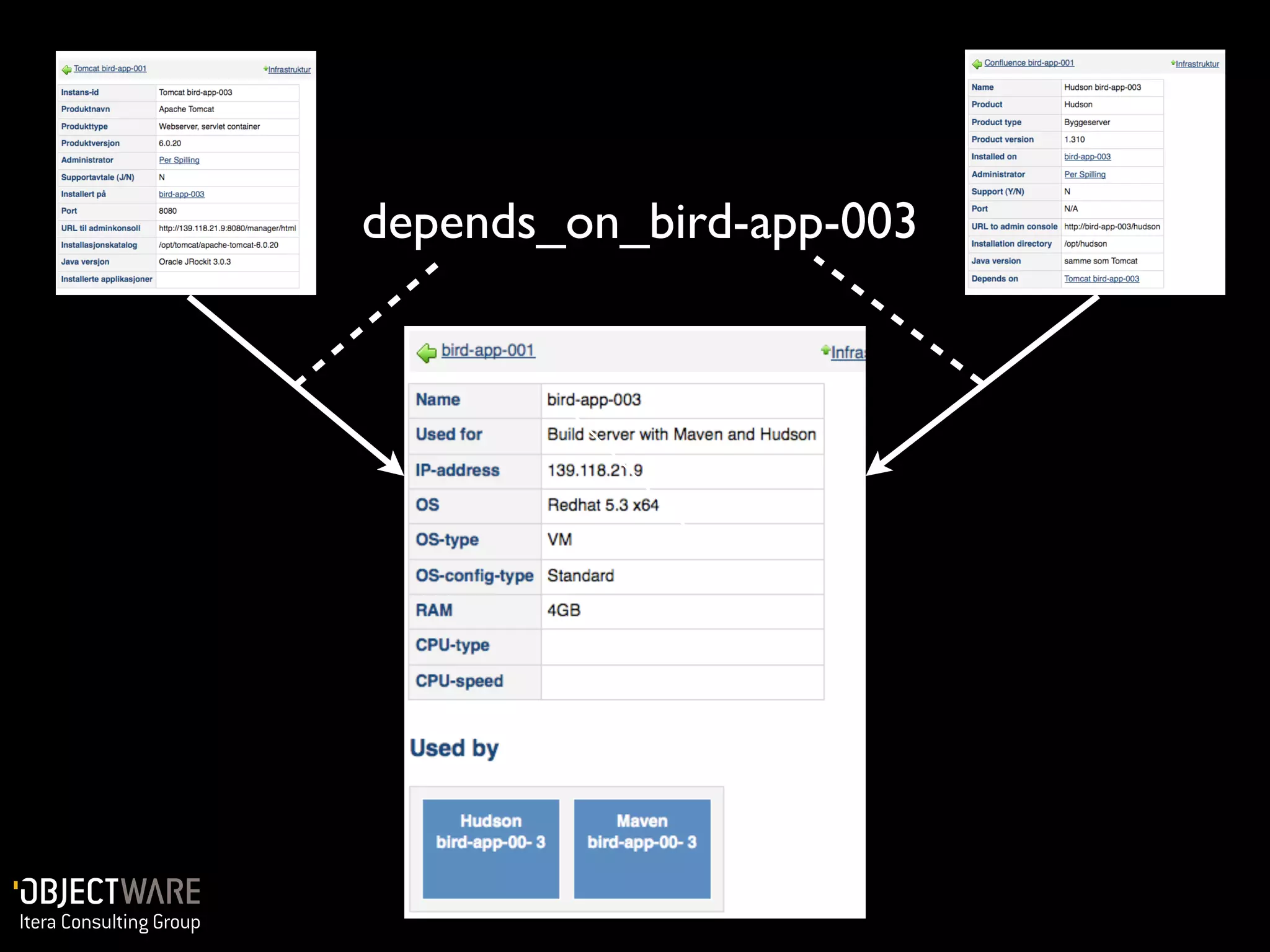

36. depends_on_bird-app-003

37. depends_on_bird-app-003

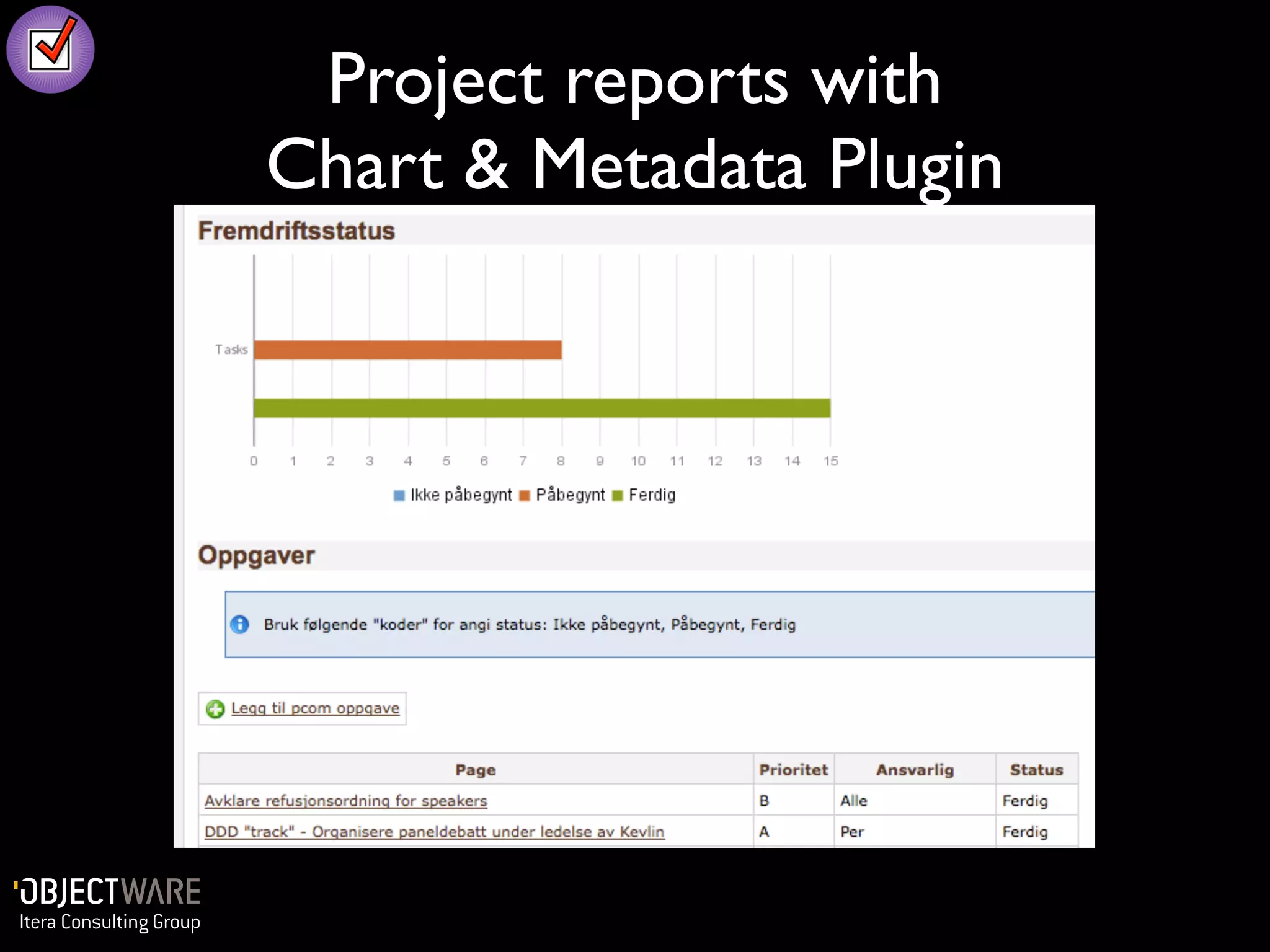

38. Project reports with
Chart & Metadata Plugin

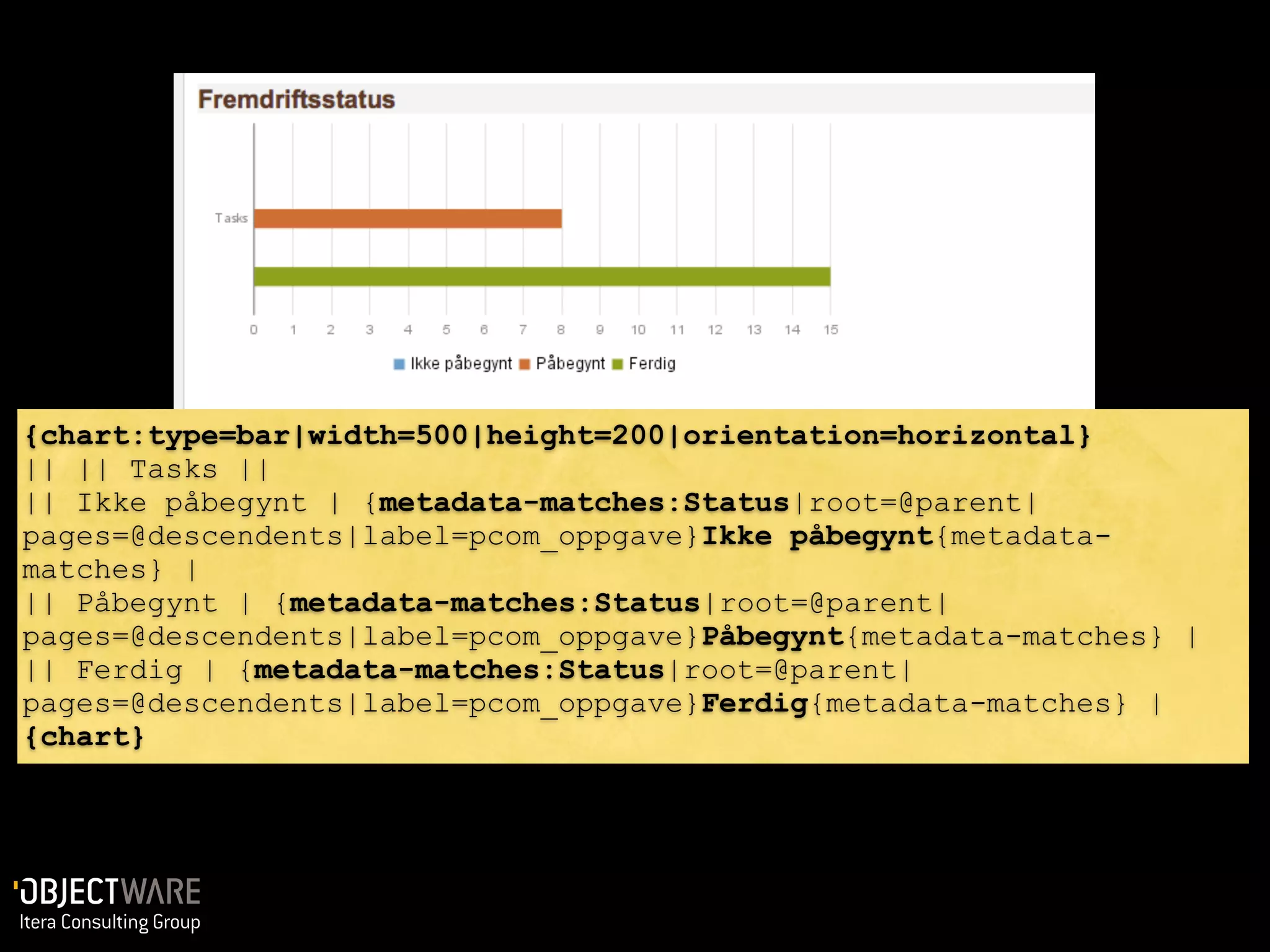

39. {chart:type=bar|width=500|height=200|orientation=horizontal}
|| || Tasks ||
|| Ikke påbegynt | {metadata-matches:Status|root=@parent|
pages=@descendents|label=pcom_oppgave}Ikke påbegynt{metadata-
matches} |
|| Påbegynt | {metadata-matches:Status|root=@parent|
pages=@descendents|label=pcom_oppgave}Påbegynt{metadata-matches} |
|| Ferdig | {metadata-matches:Status|root=@parent|
pages=@descendents|label=pcom_oppgave}Ferdig{metadata-matches} |
{chart}

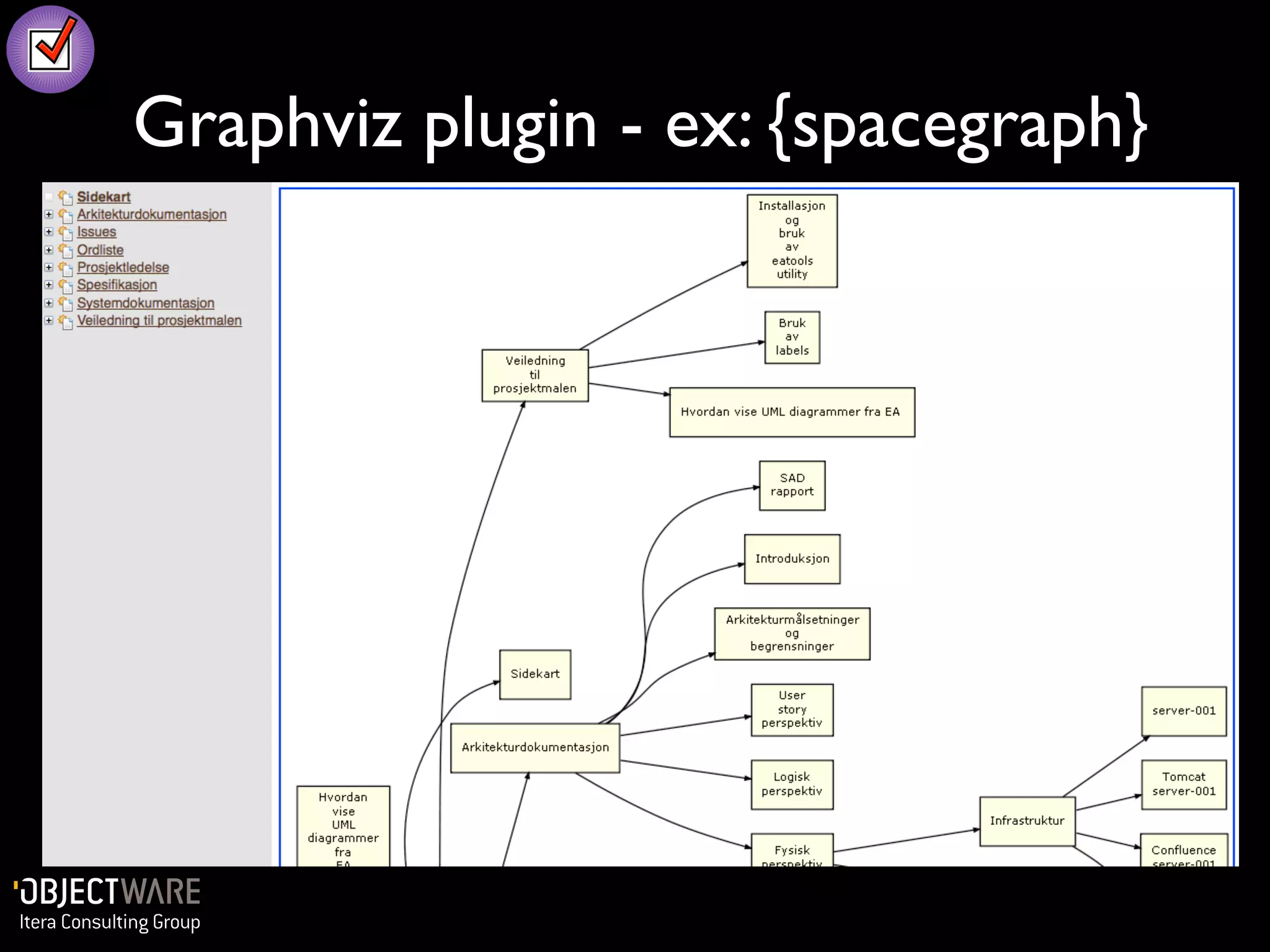

40. Graphviz plugin - ex: {spacegraph}

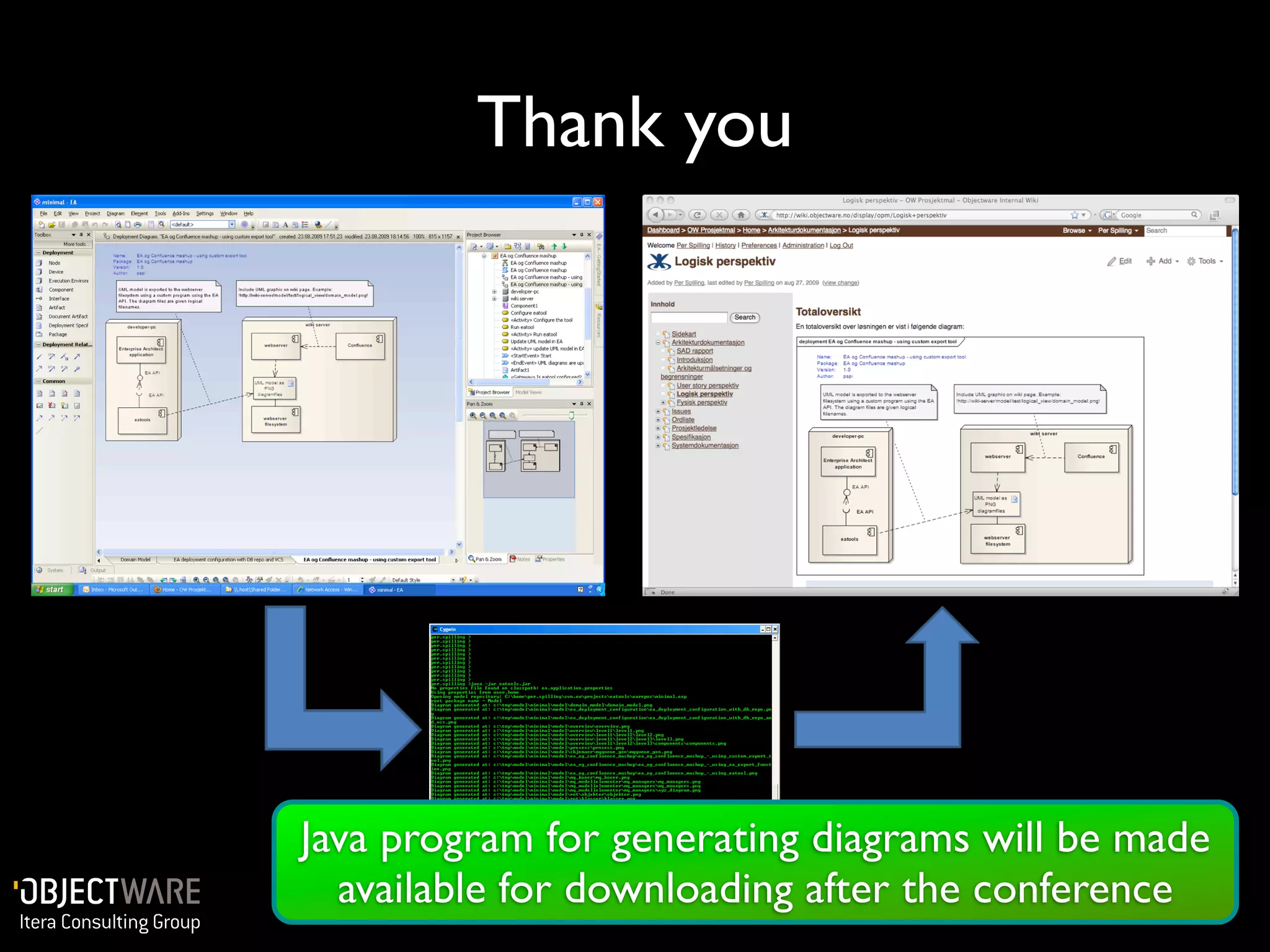

41. Thank you
Java program for generating diagrams will be made
available for downloading after the conference
