This document discusses improvements in YUI 3 compared to YUI 2, including how YUI 3 is lighter, faster and easier to use. It provides examples of code in YUI 2 and 3, highlighting improvements like sandboxing with modules, selector APIs and the use of Node and NodeList wrappers. It also covers topics like dynamic script loading, dependency management, events and custom events in YUI 3. Finally, it discusses some techniques for improving frontend performance like avoiding iframes and flushing content early.

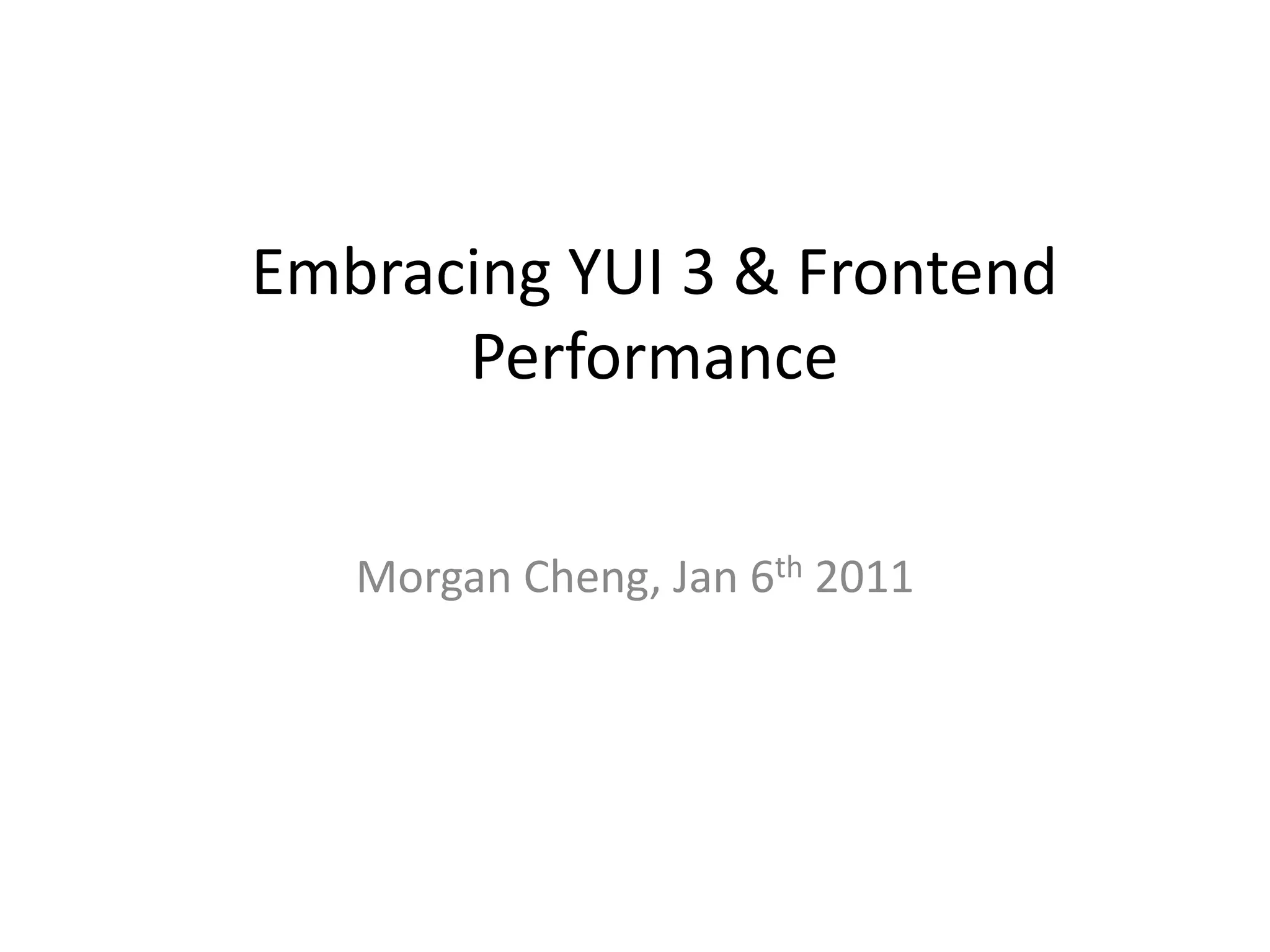

1. Embracing YUI 3 & Frontend PerformanceMorgan Cheng, Jan 6th 2011

2. YUI 3LighterFasterEasier to use

3. YUI 2 to YUI 3

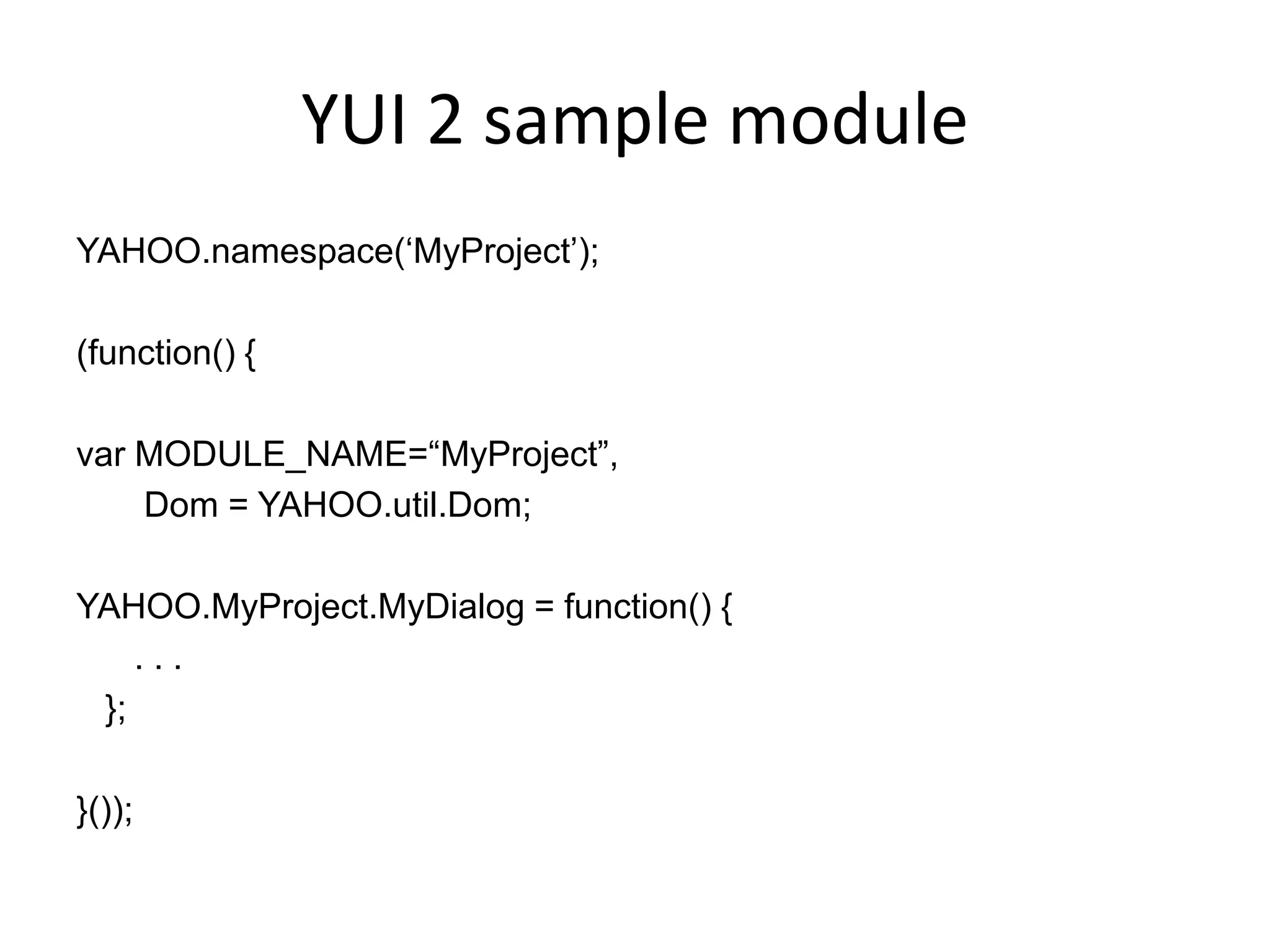

4. YUI 2 sample module YAHOO.namespace(‘MyProject’);(function() {var MODULE_NAME=“MyProject”, Dom = YAHOO.util.Dom;YAHOO.MyProject.MyDialog = function() { . . . };}());

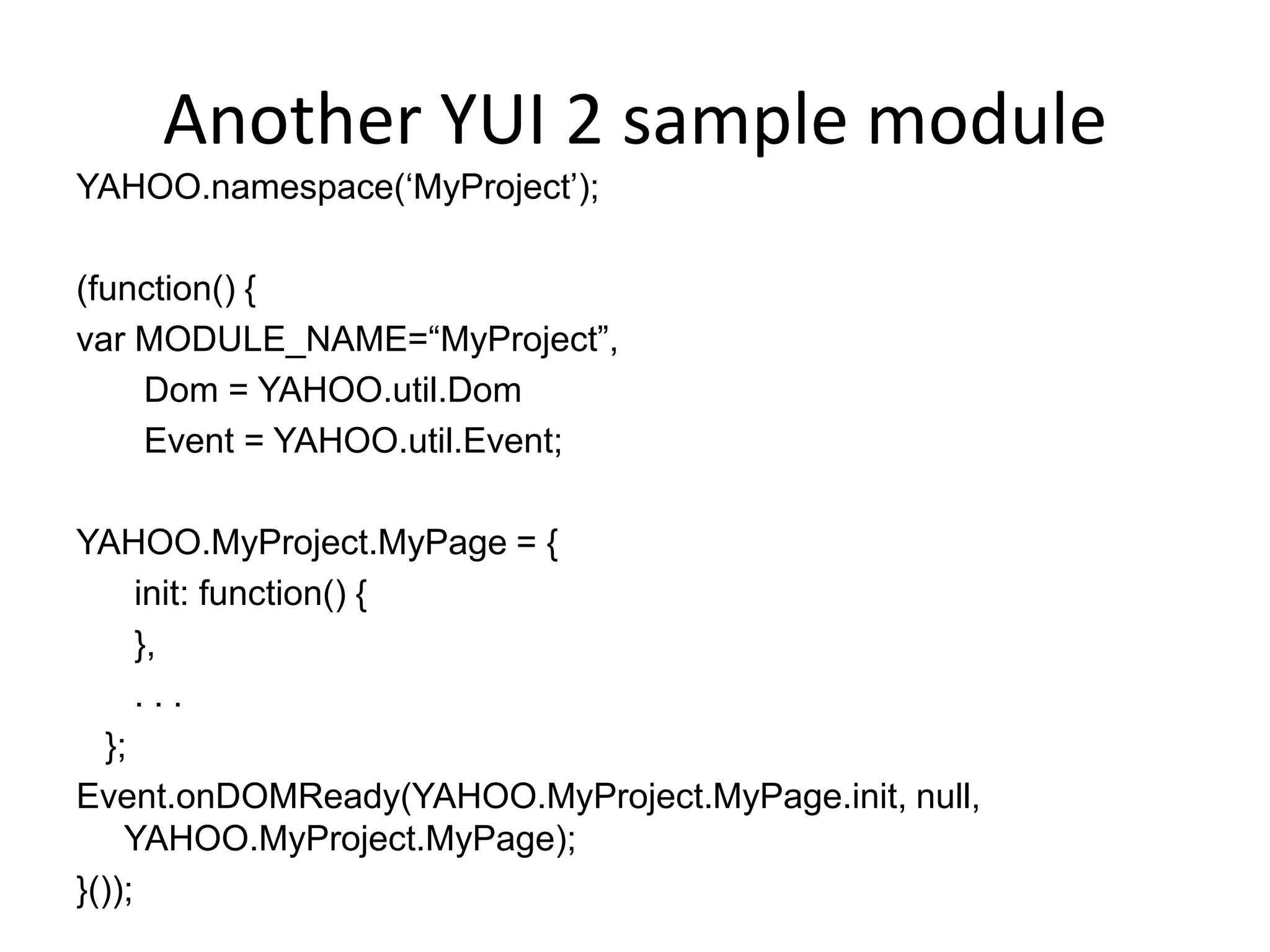

5. Another YUI 2 sample moduleYAHOO.namespace(‘MyProject’);(function() {var MODULE_NAME=“MyProject”, Dom = YAHOO.util.Dom Event = YAHOO.util.Event;YAHOO.MyProject.MyPage = { init: function() { }, . . . };Event.onDOMReady(YAHOO.MyProject.MyPage.init, null, YAHOO.MyProject.MyPage);}());

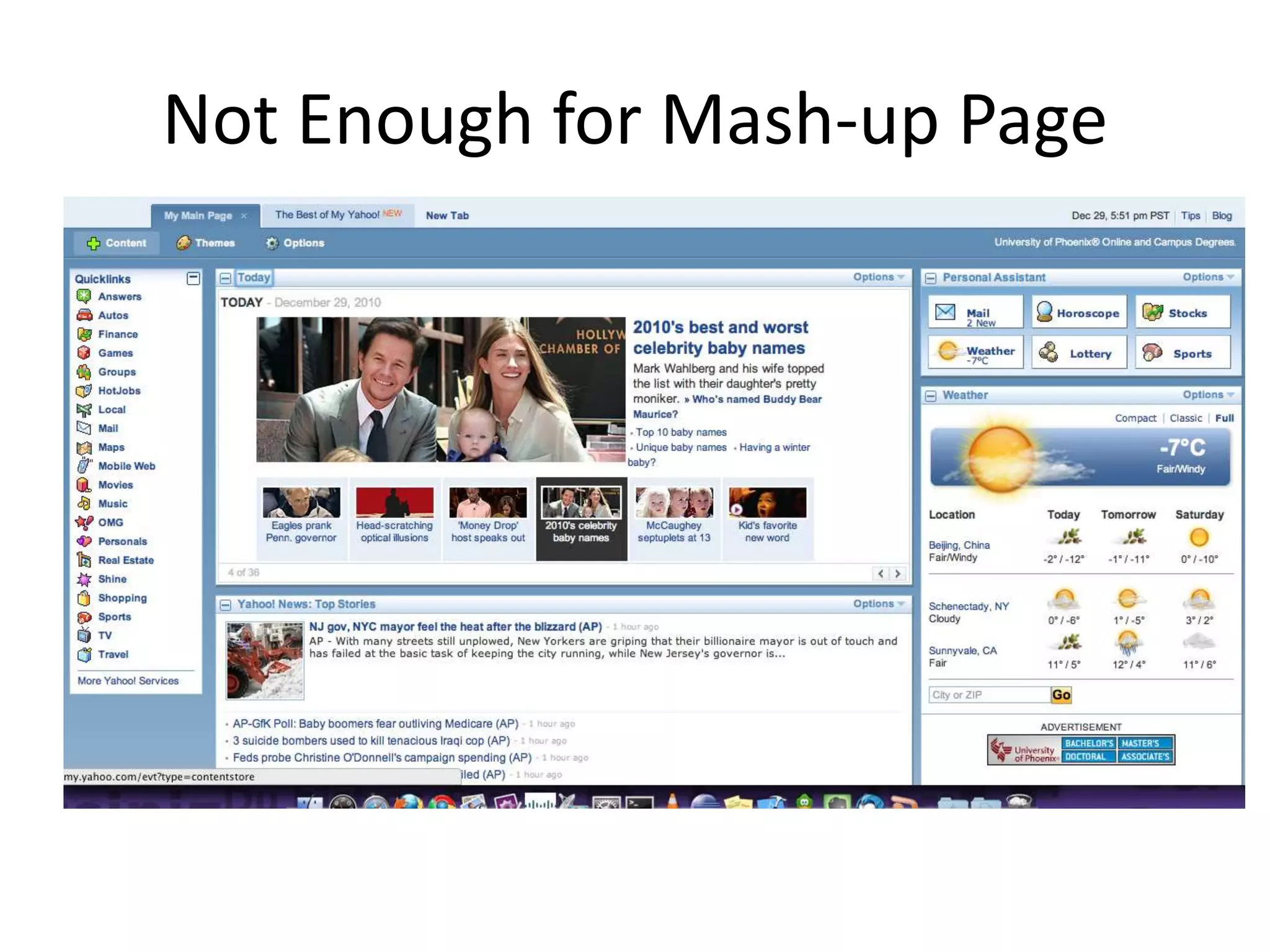

6. Not Enough for Mash-up Page

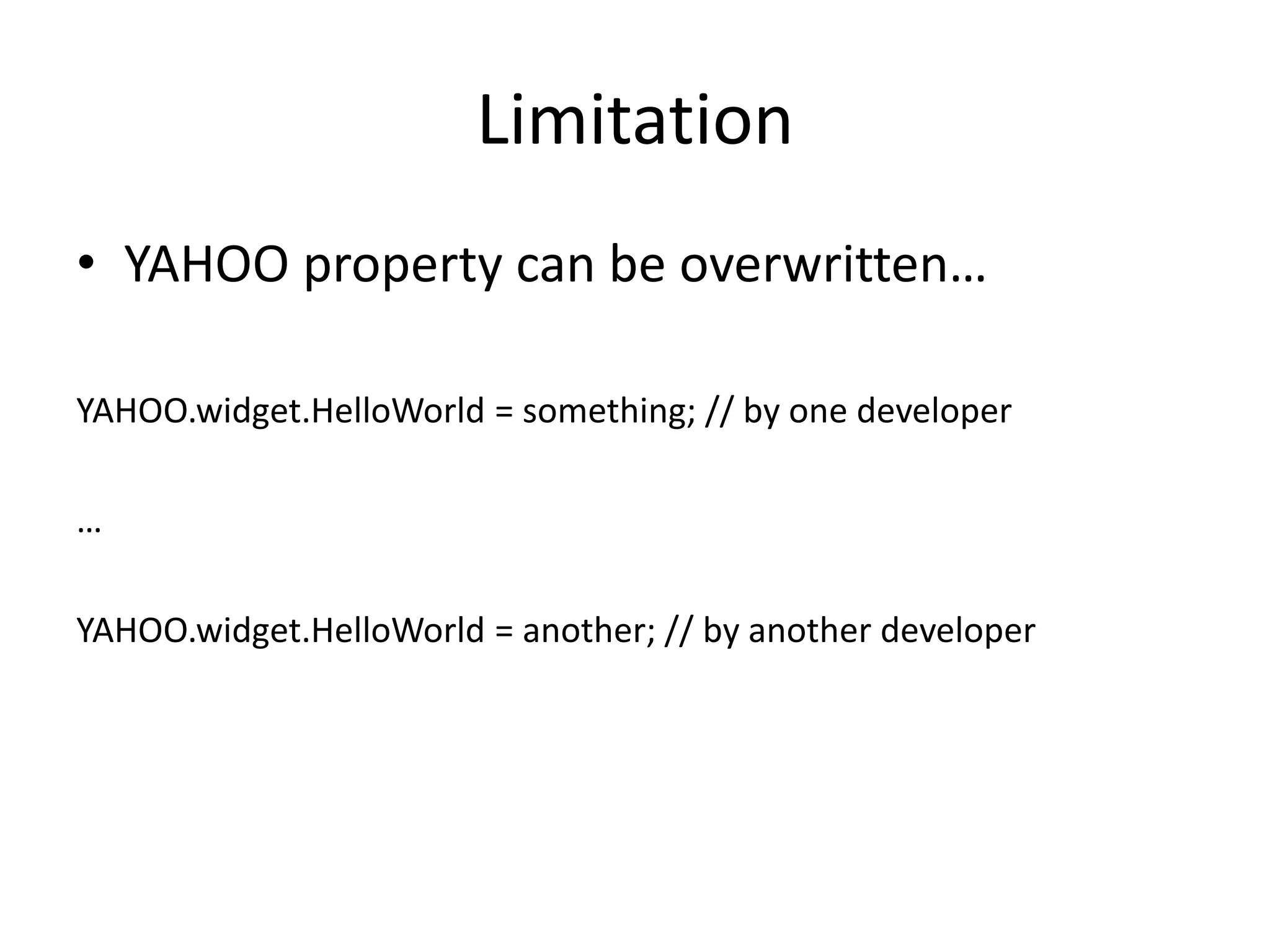

7. LimitationYAHOO property can be overwritten…YAHOO.widget.HelloWorld = something; // by one developer…YAHOO.widget.HelloWorld = another; // by another developer

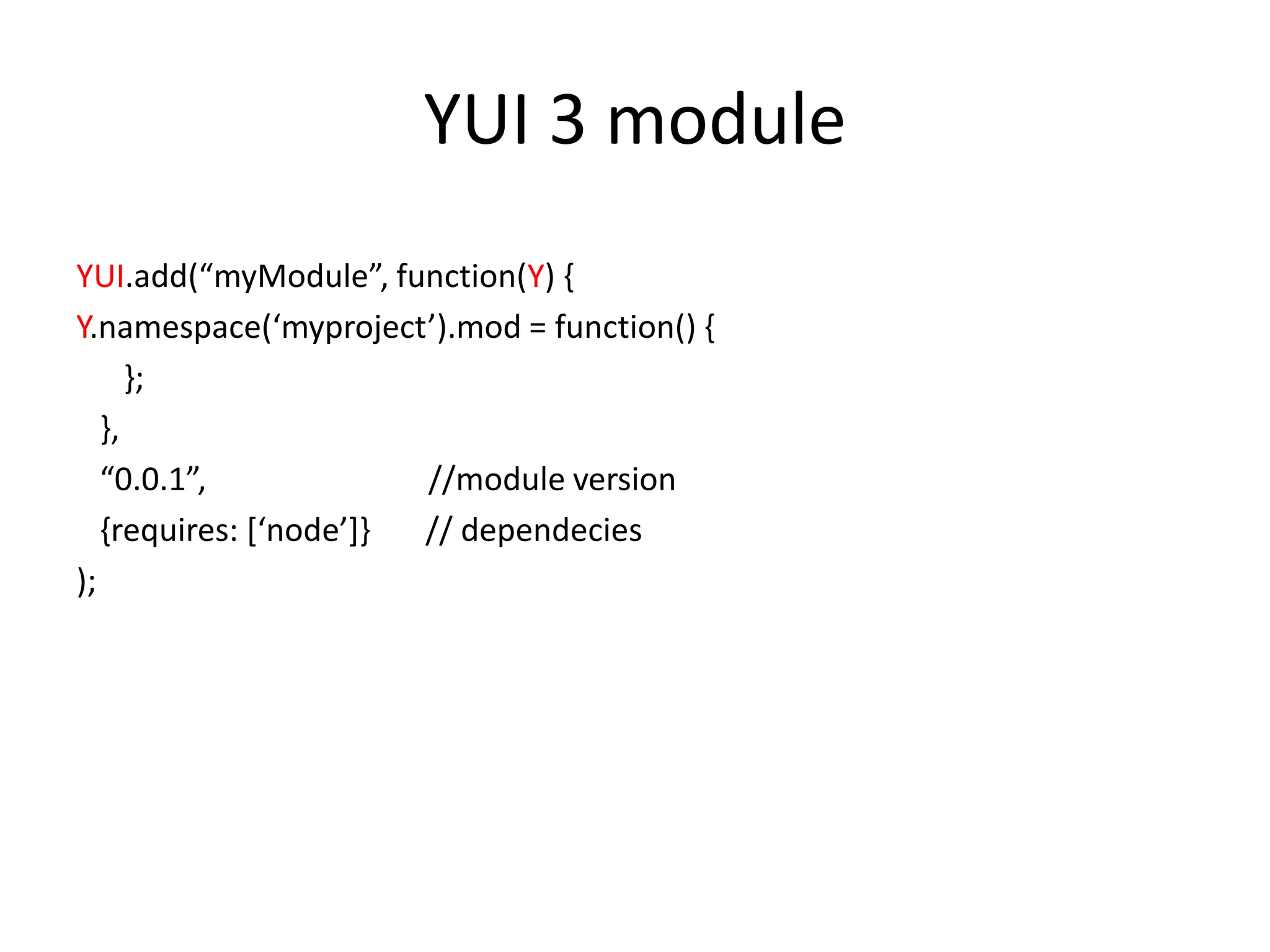

8. YUI 3 moduleYUI.add(“myModule”, function(Y) {Y.namespace(‘myproject’).mod = function() { }; }, “0.0.1”, //module version {requires: [‘node’]} // dependecies);

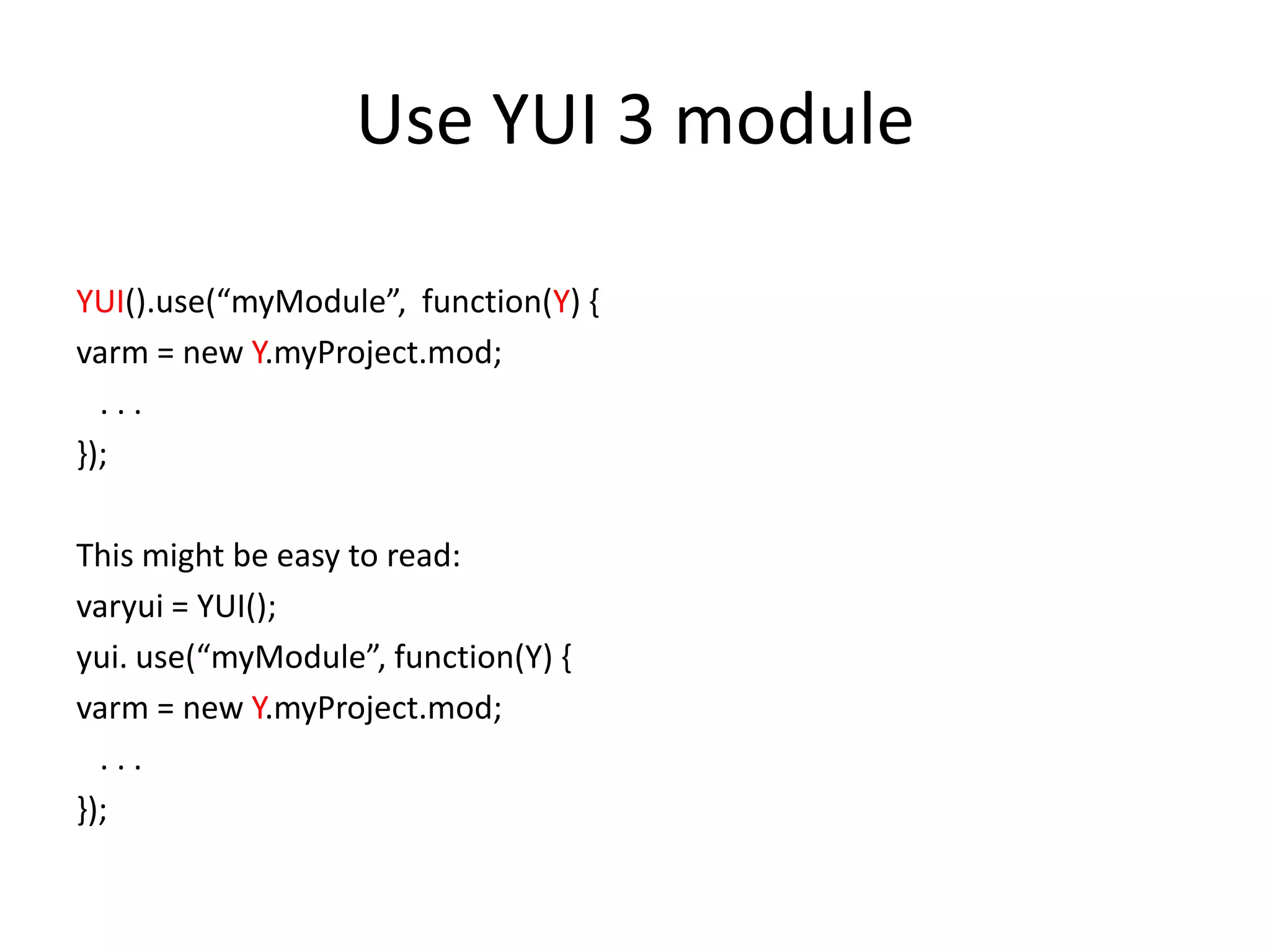

9. Use YUI 3 moduleYUI().use(“myModule”, function(Y) {varm = new Y.myProject.mod; . . .});This might be easy to read:varyui = YUI();yui. use(“myModule”, function(Y) {varm = new Y.myProject.mod; . . .});

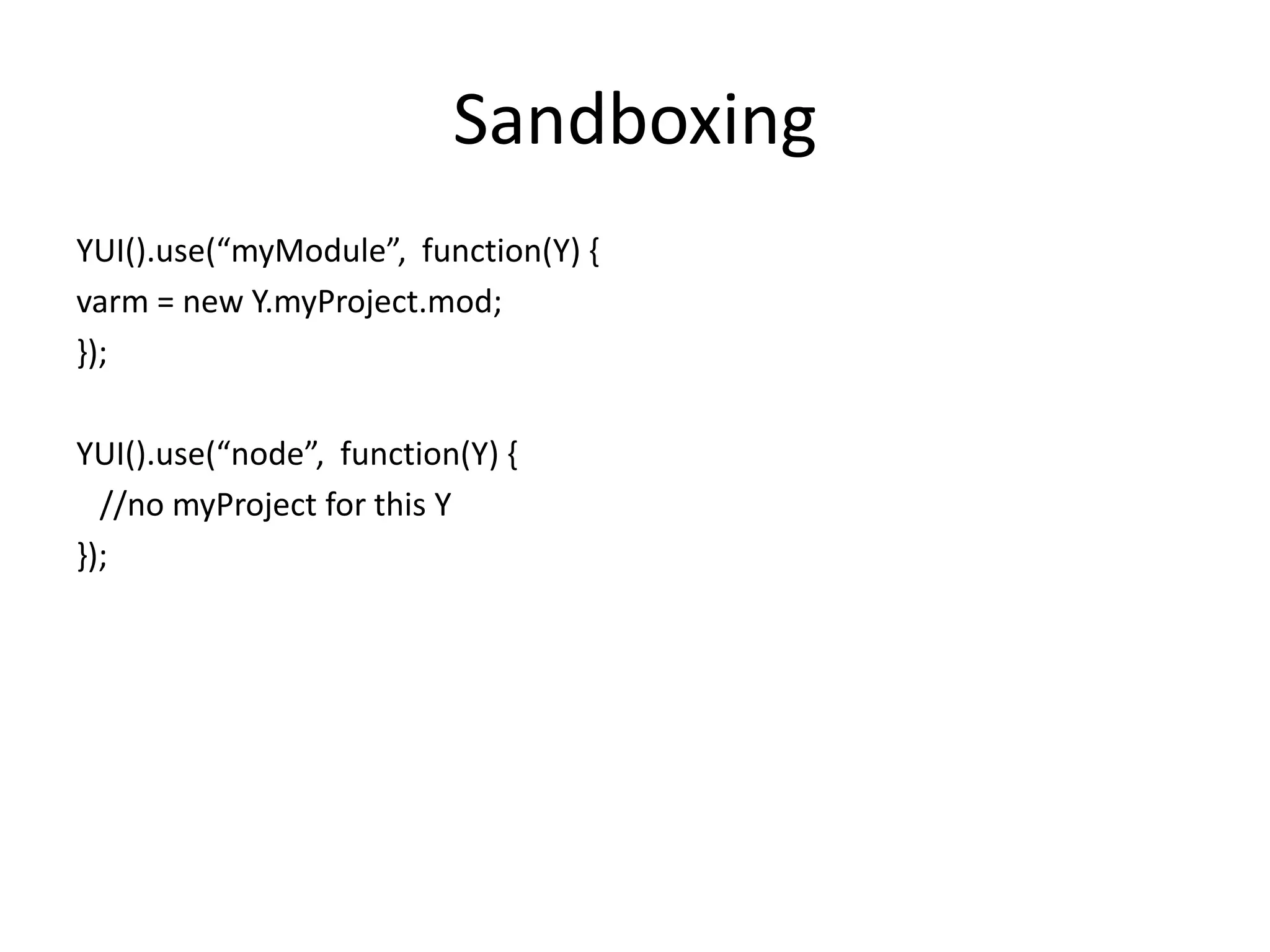

10. SandboxingYUI().use(“myModule”, function(Y) {varm = new Y.myProject.mod;});YUI().use(“node”, function(Y) { //no myProject for this Y});

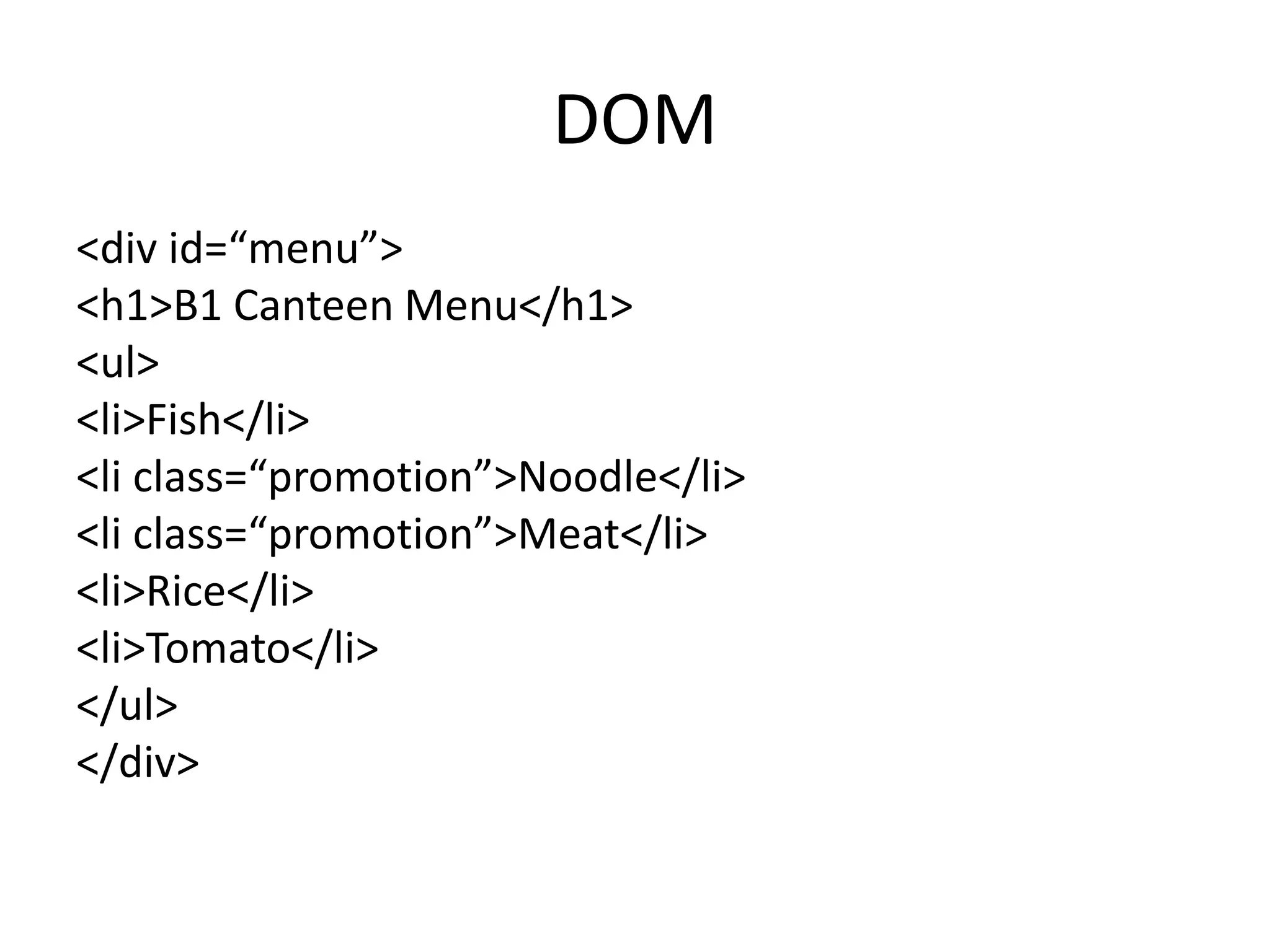

11. DOM<div id=“menu”> <h1>B1 Canteen Menu</h1> <ul> <li>Fish</li> <li class=“promotion”>Noodle</li> <li class=“promotion”>Meat</li> <li>Rice</li> <li>Tomato</li> </ul></div>

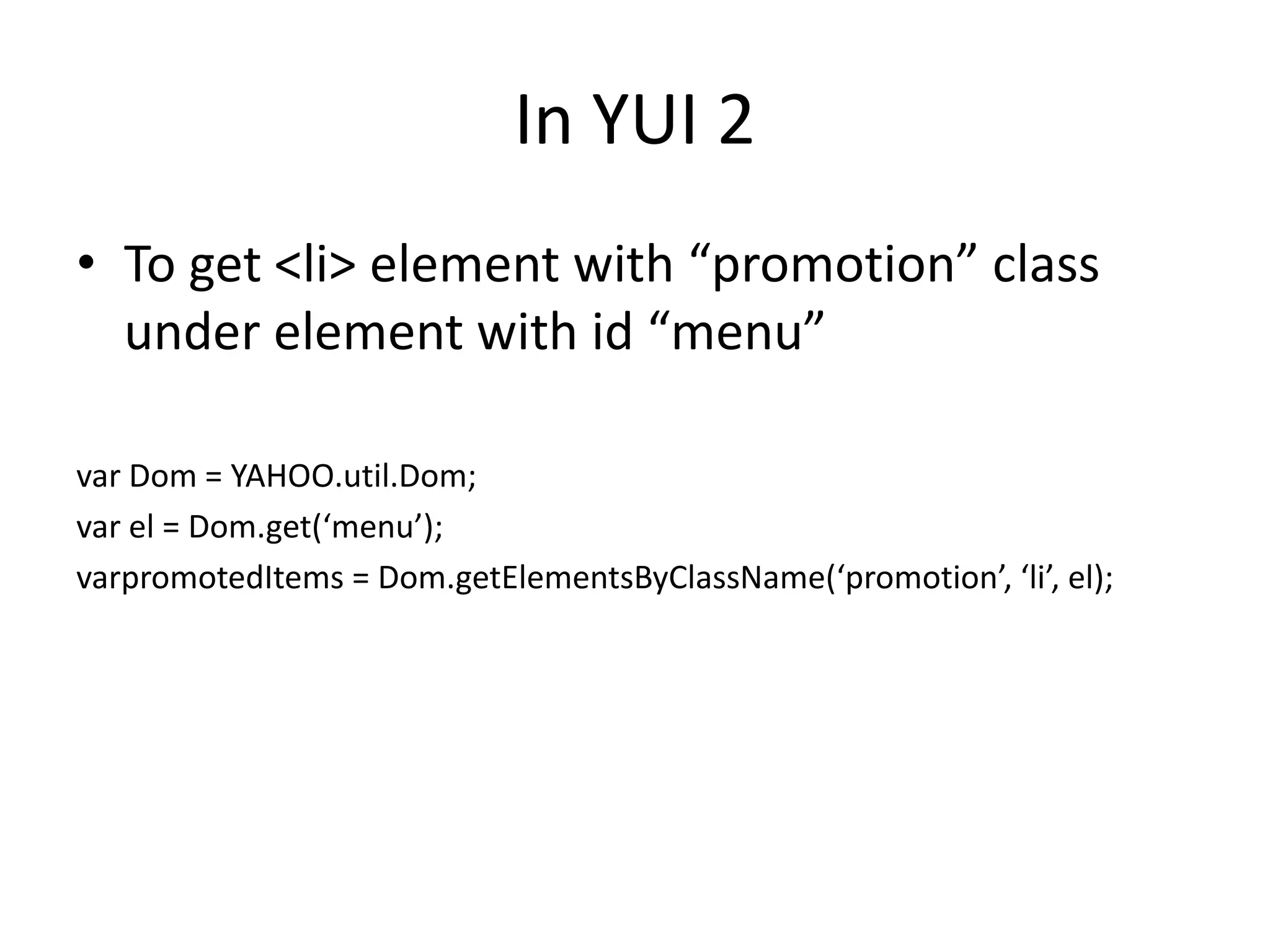

12. In YUI 2To get <li> element with “promotion” class under element with id “menu”var Dom = YAHOO.util.Dom;var el = Dom.get(‘menu’);varpromotedItems = Dom.getElementsByClassName(‘promotion’, ‘li’, el);

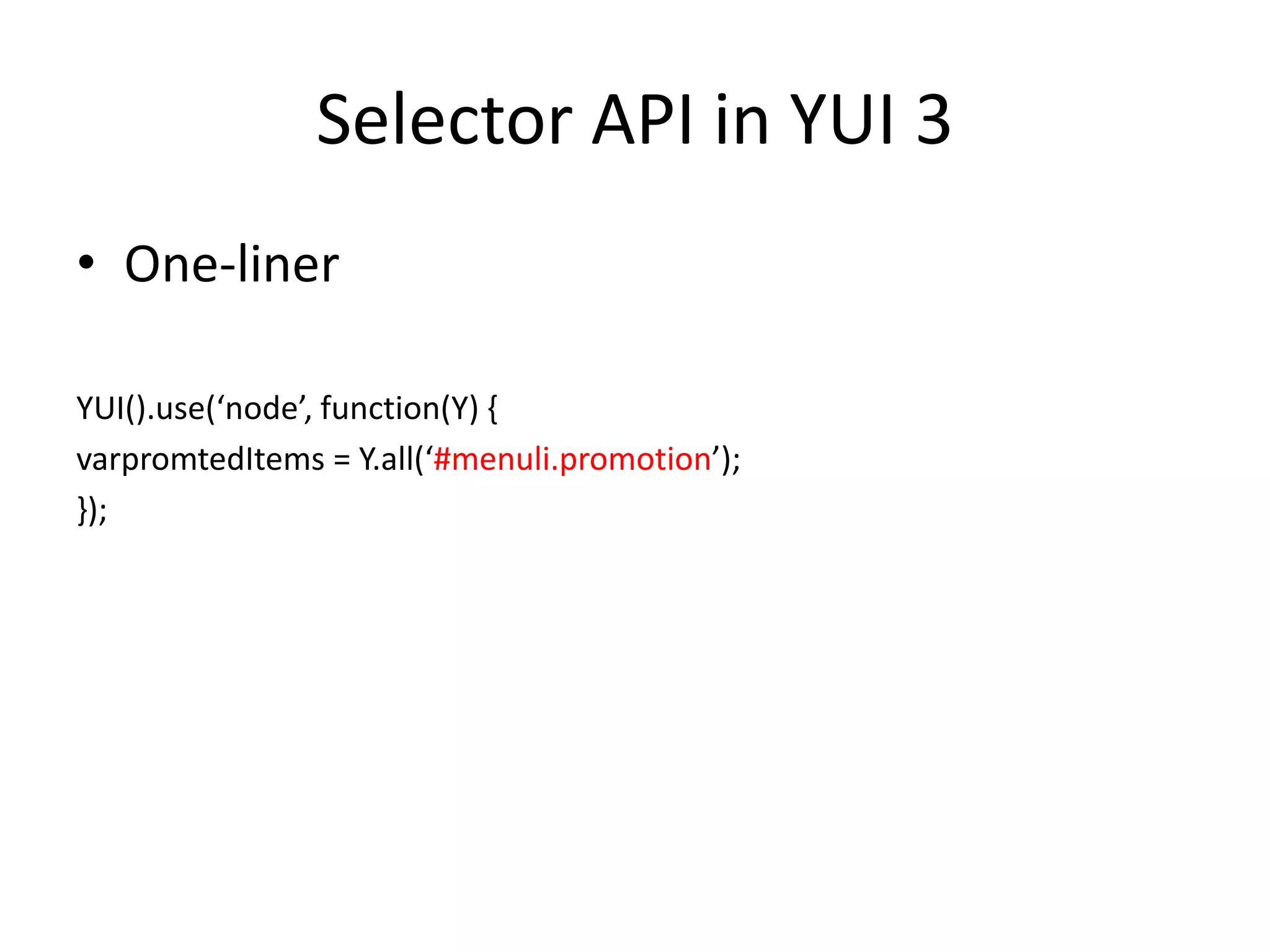

13. Selector API in YUI 3One-linerYUI().use(‘node’, function(Y) {varpromtedItems = Y.all(‘#menuli.promotion’);});

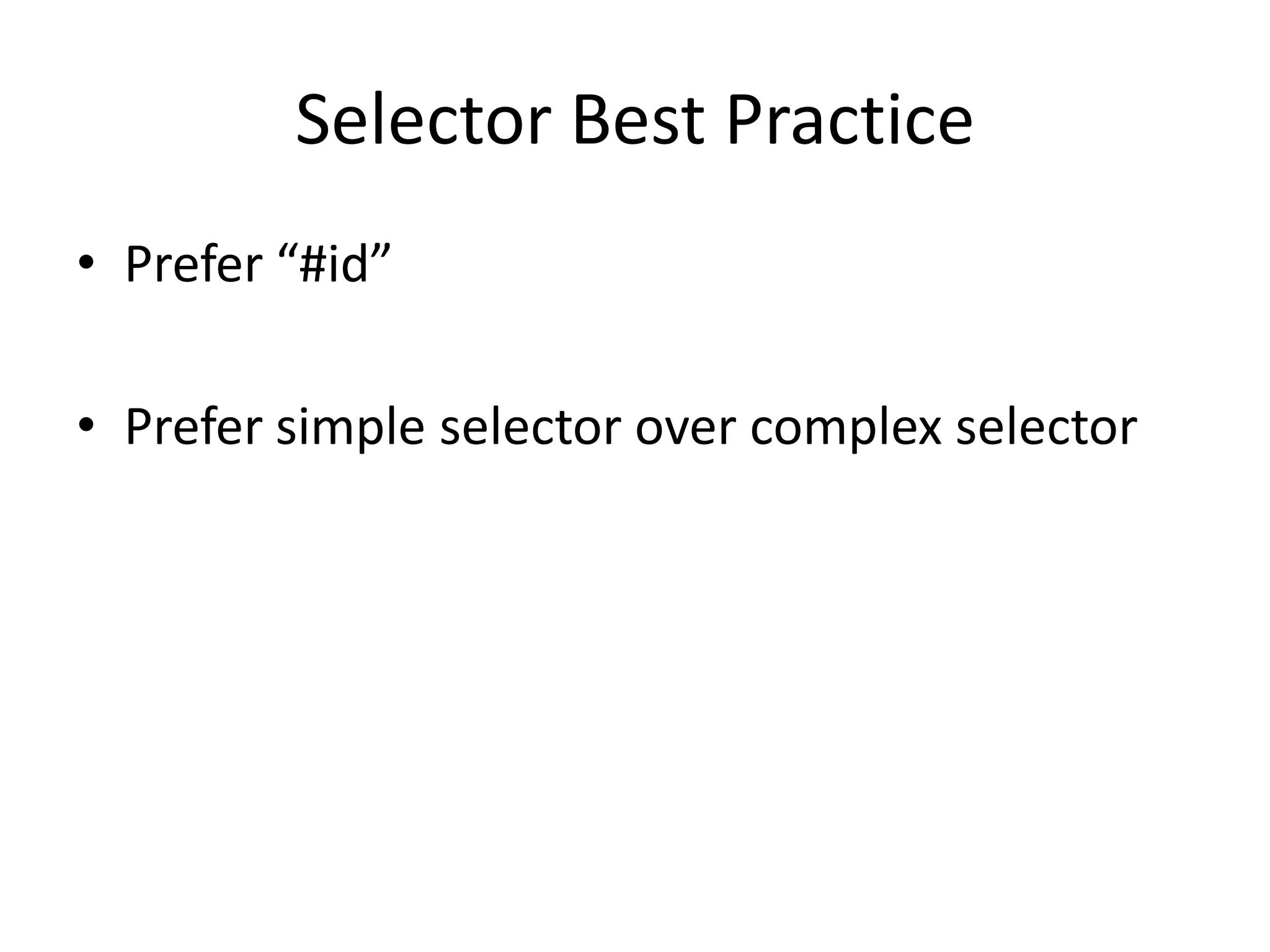

14. Selector Best PracticePrefer “#id”Prefer simple selector over complex selector

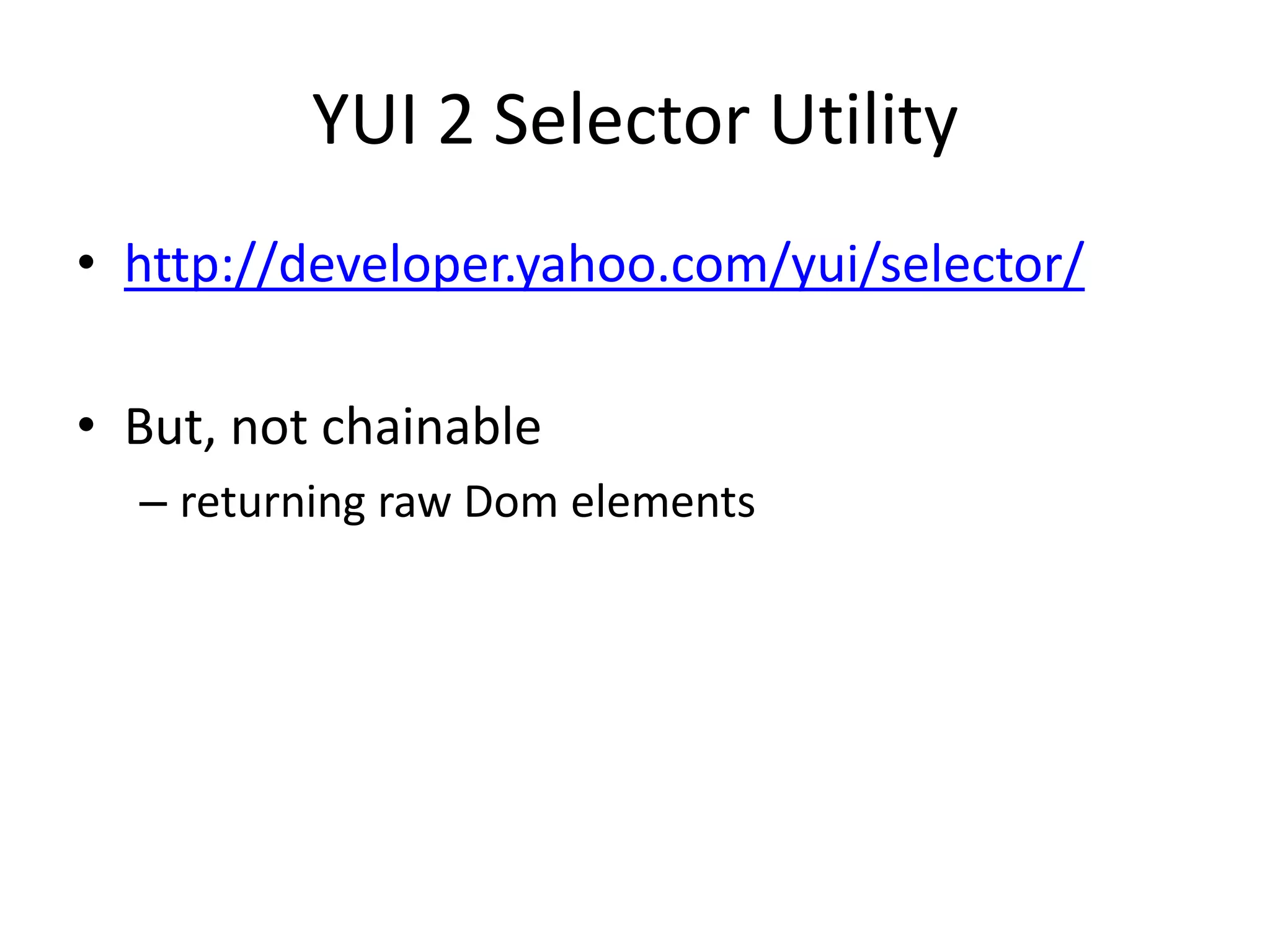

15. YUI 2 Selector Utilityhttp://developer.yahoo.com/yui/selector/But, not chainablereturning raw Dom elements

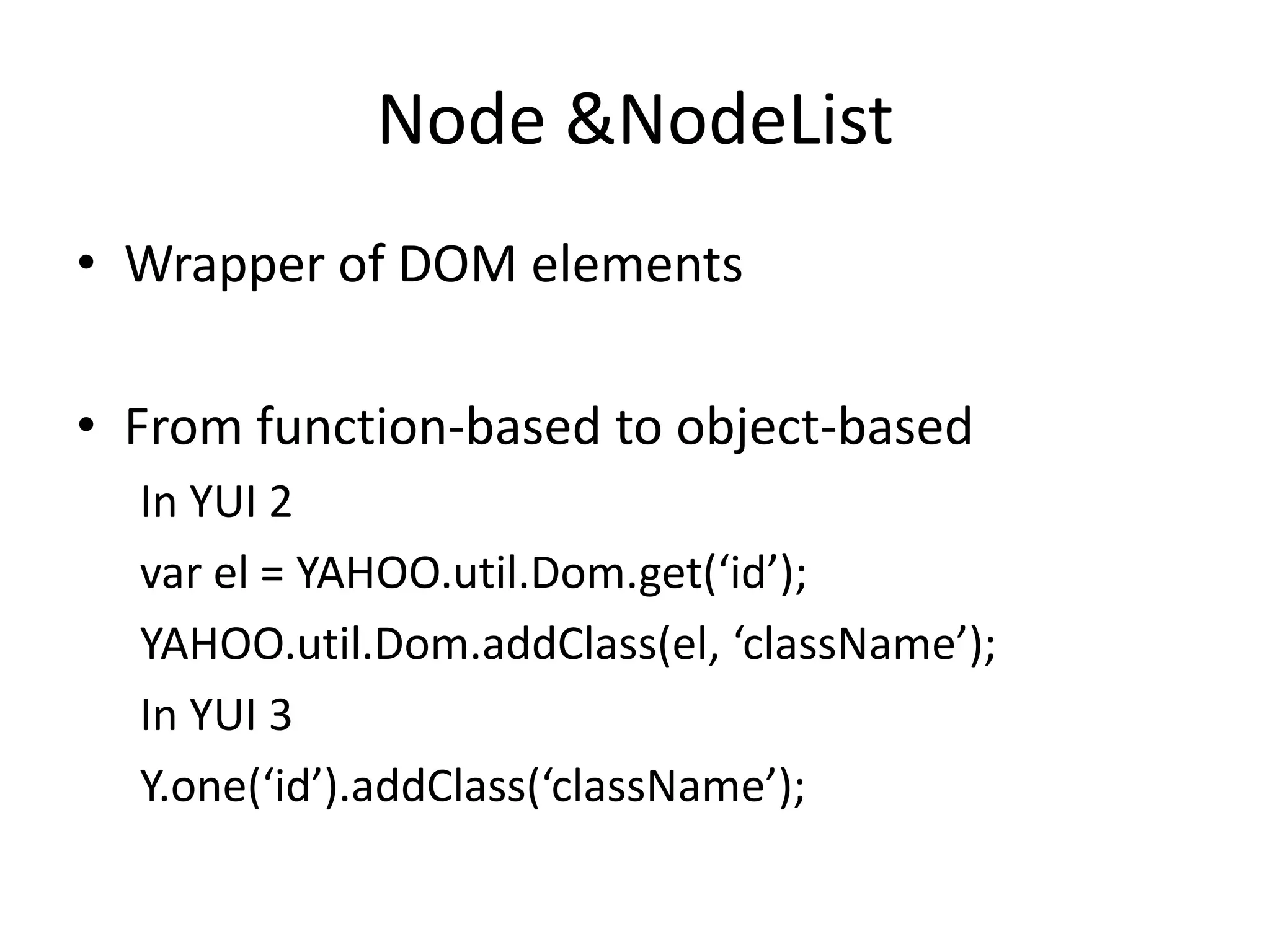

16. Node & NodeListWrapper of DOM elementsFrom function-based to object-basedIn YUI 2var el = YAHOO.util.Dom.get(‘id’);YAHOO.util.Dom.addClass(el, ‘className’);In YUI 3Y.one(‘id’).addClass(‘className’);

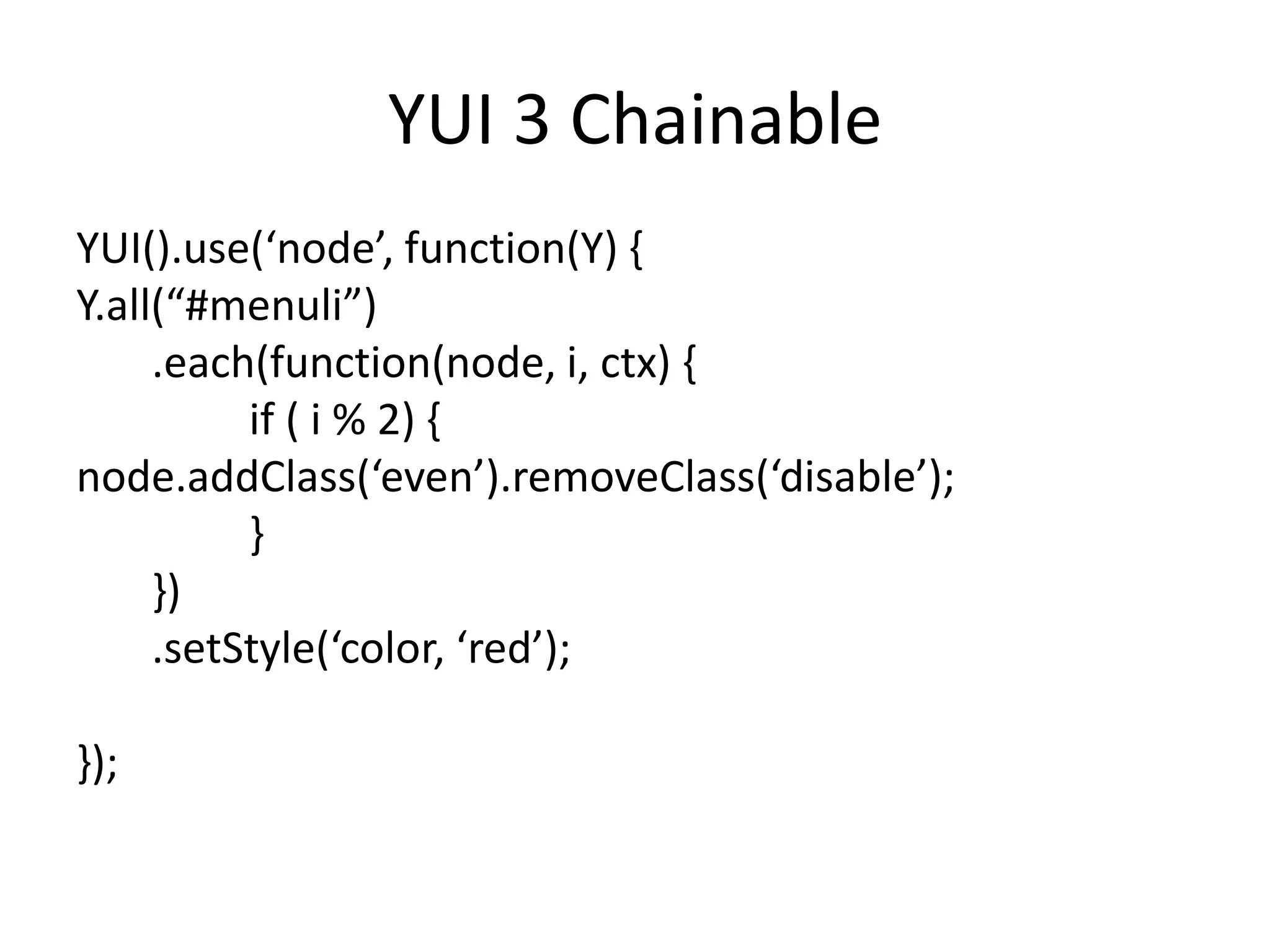

17. YUI 3 ChainableYUI().use(‘node’, function(Y) {Y.all(“#menuli”) .each(function(node, i, ctx) { if ( i % 2) { node.addClass(‘even’).removeClass(‘disable’); } }) .setStyle(‘color, ‘red’);});

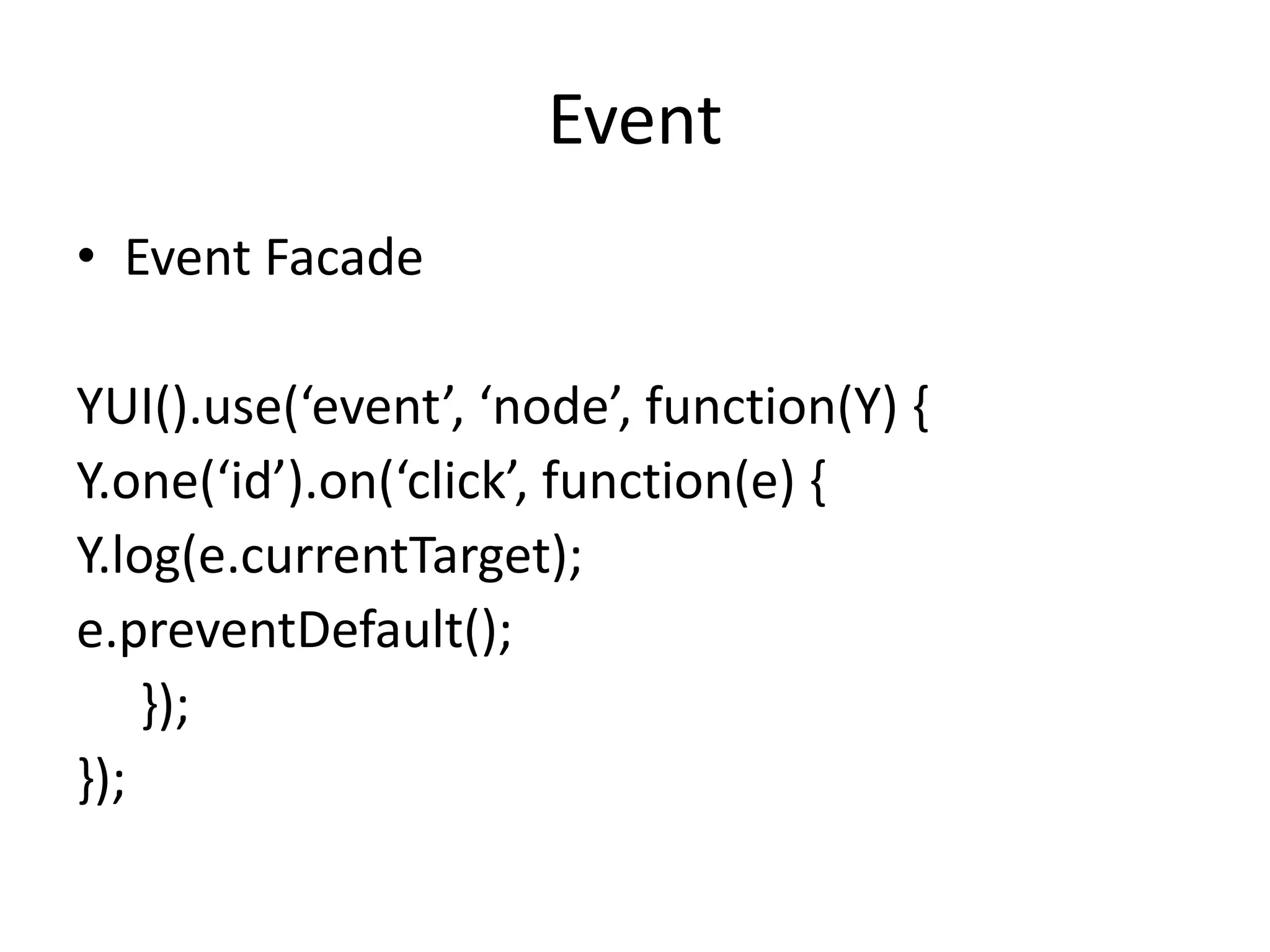

18. EventEvent FacadeYUI().use(‘event’, ‘node’, function(Y) {Y.one(‘id’).on(‘click’, function(e) {Y.log(e.currentTarget); e.preventDefault(); });});

19. Wait, but how does these stuff get loaded into page?

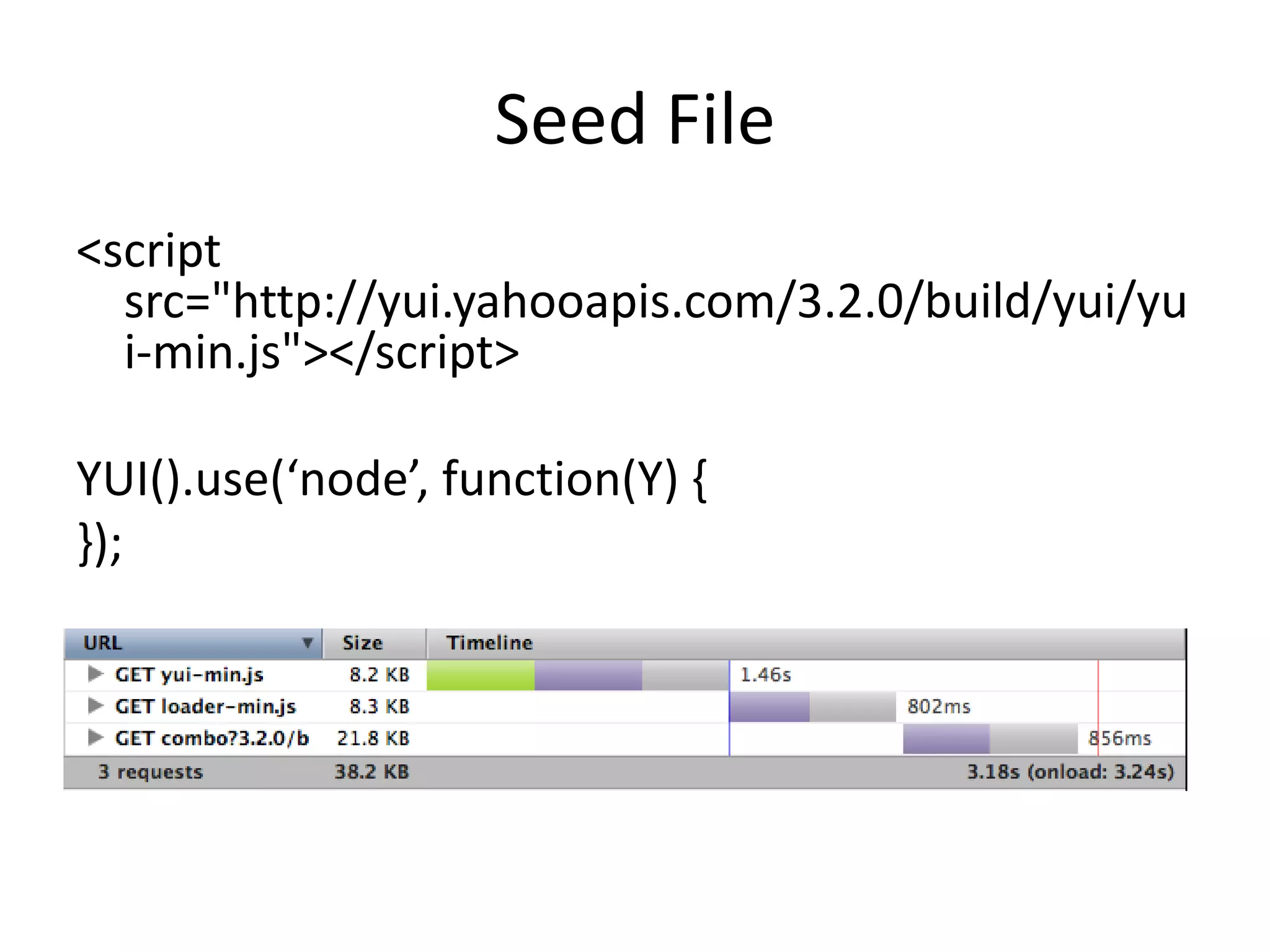

20. Seed File<script src="http://yui.yahooapis.com/3.2.0/build/yui/yui-min.js"></script>YUI().use(‘node’, function(Y) {});

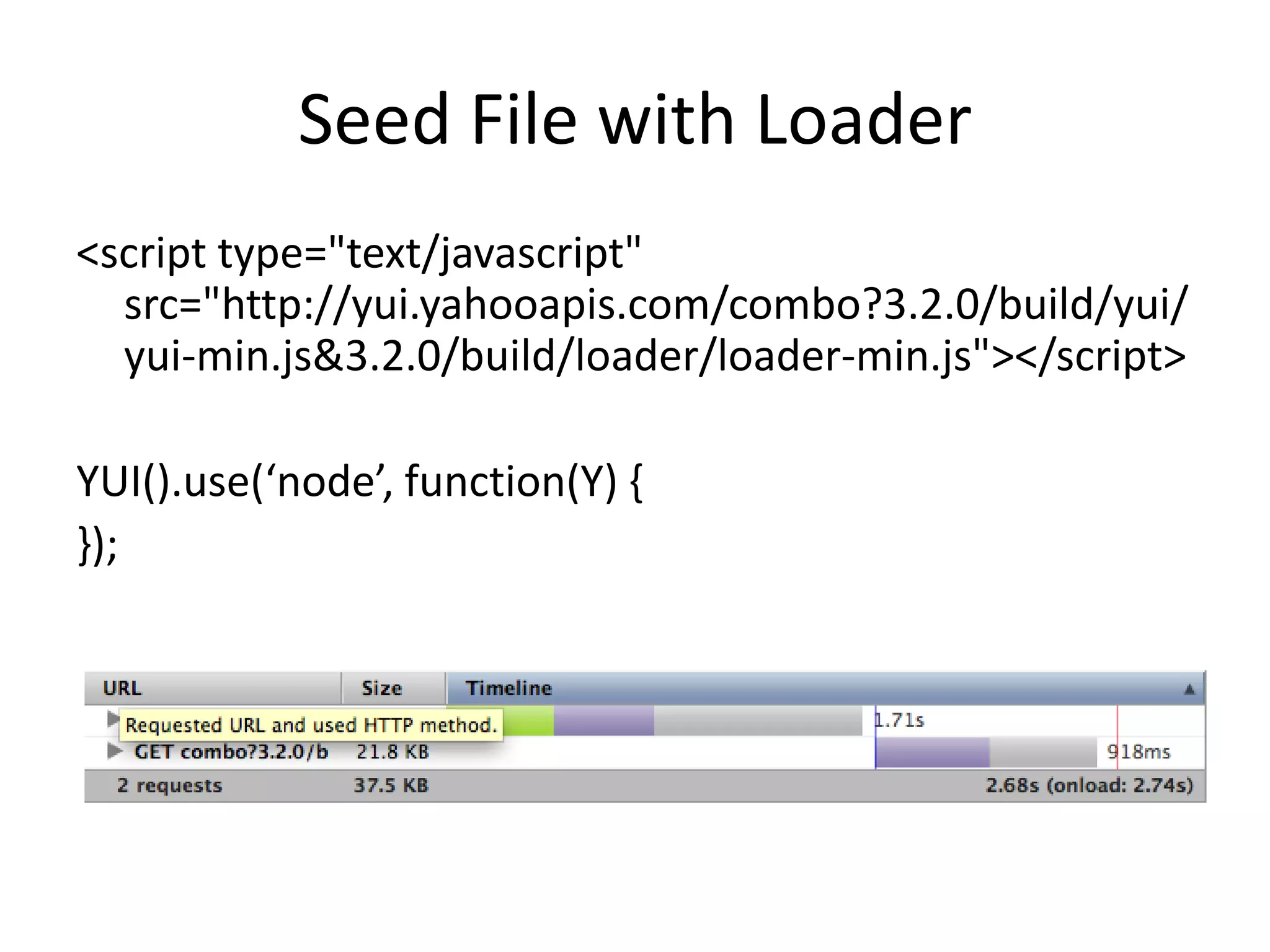

21. Seed File with Loader<script type="text/javascript" src="http://yui.yahooapis.com/combo?3.2.0/build/yui/yui-min.js&3.2.0/build/loader/loader-min.js"></script>YUI().use(‘node’, function(Y) {});

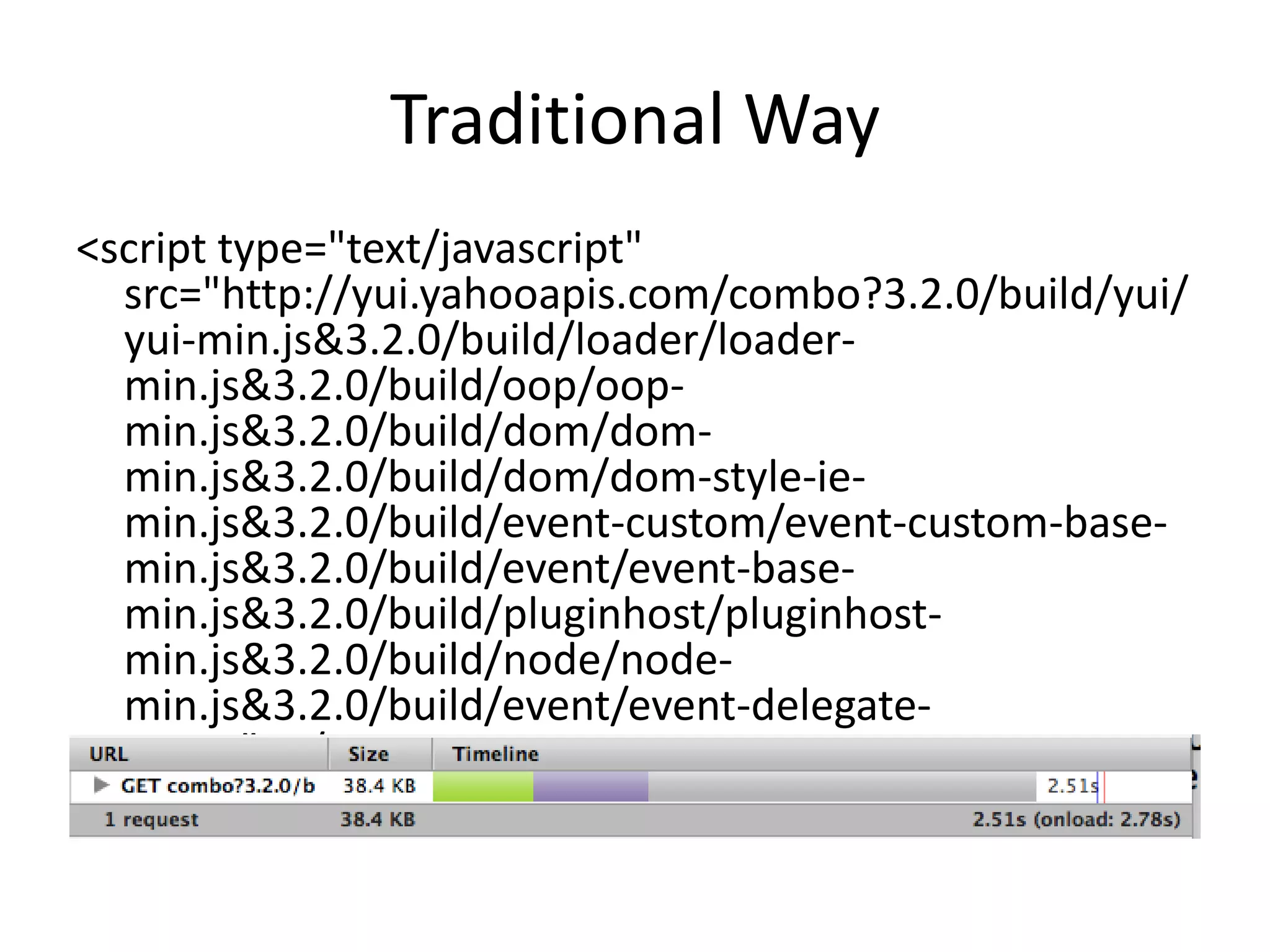

22. Traditional Way<script type="text/javascript" src="http://yui.yahooapis.com/combo?3.2.0/build/yui/yui-min.js&3.2.0/build/loader/loader-min.js&3.2.0/build/oop/oop-min.js&3.2.0/build/dom/dom-min.js&3.2.0/build/dom/dom-style-ie-min.js&3.2.0/build/event-custom/event-custom-base-min.js&3.2.0/build/event/event-base-min.js&3.2.0/build/pluginhost/pluginhost-min.js&3.2.0/build/node/node-min.js&3.2.0/build/event/event-delegate-min.js"></script>

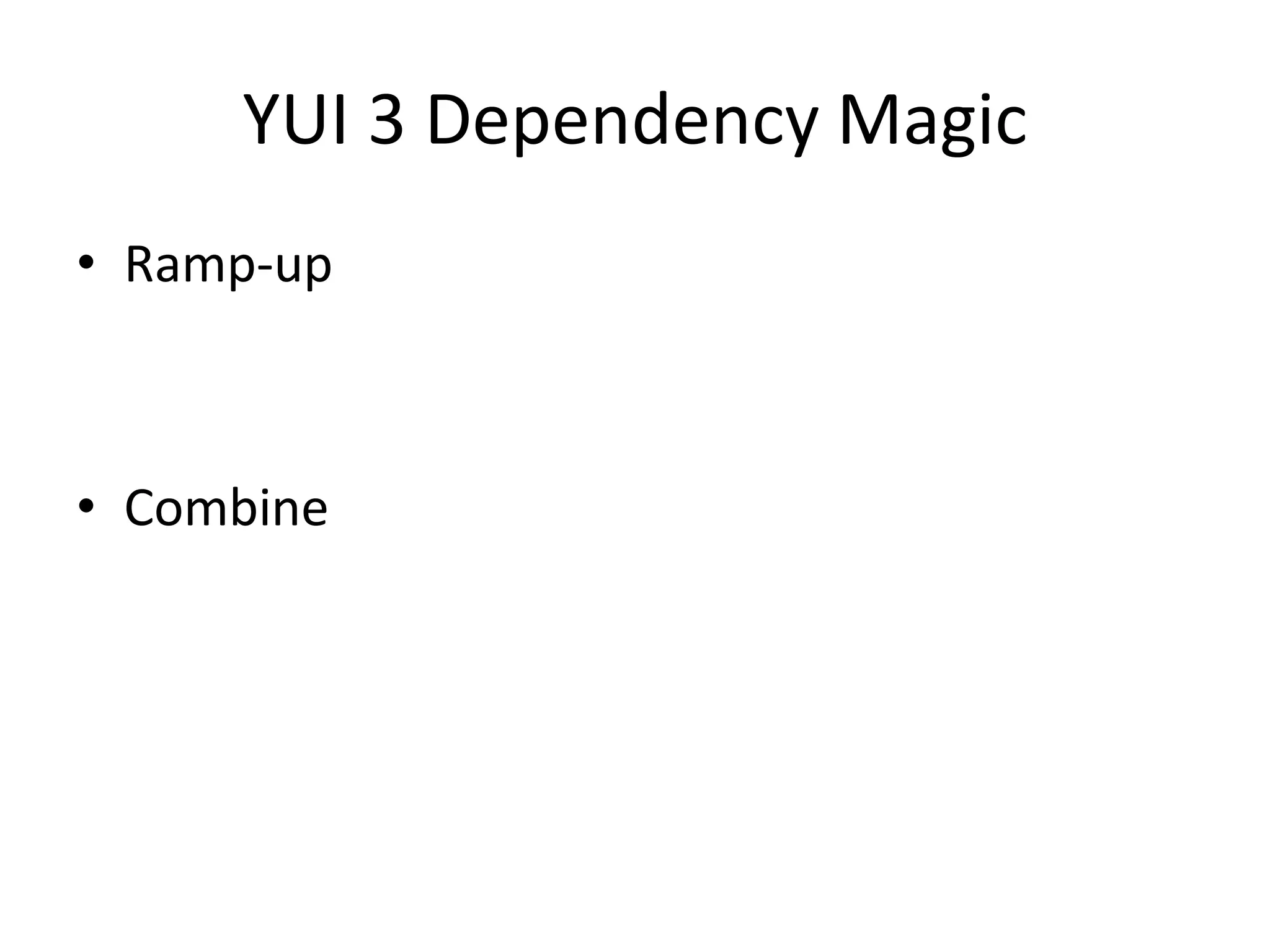

23. YUI 3 Dependency MagicRamp-upCombine

24. JavaScript Blocks

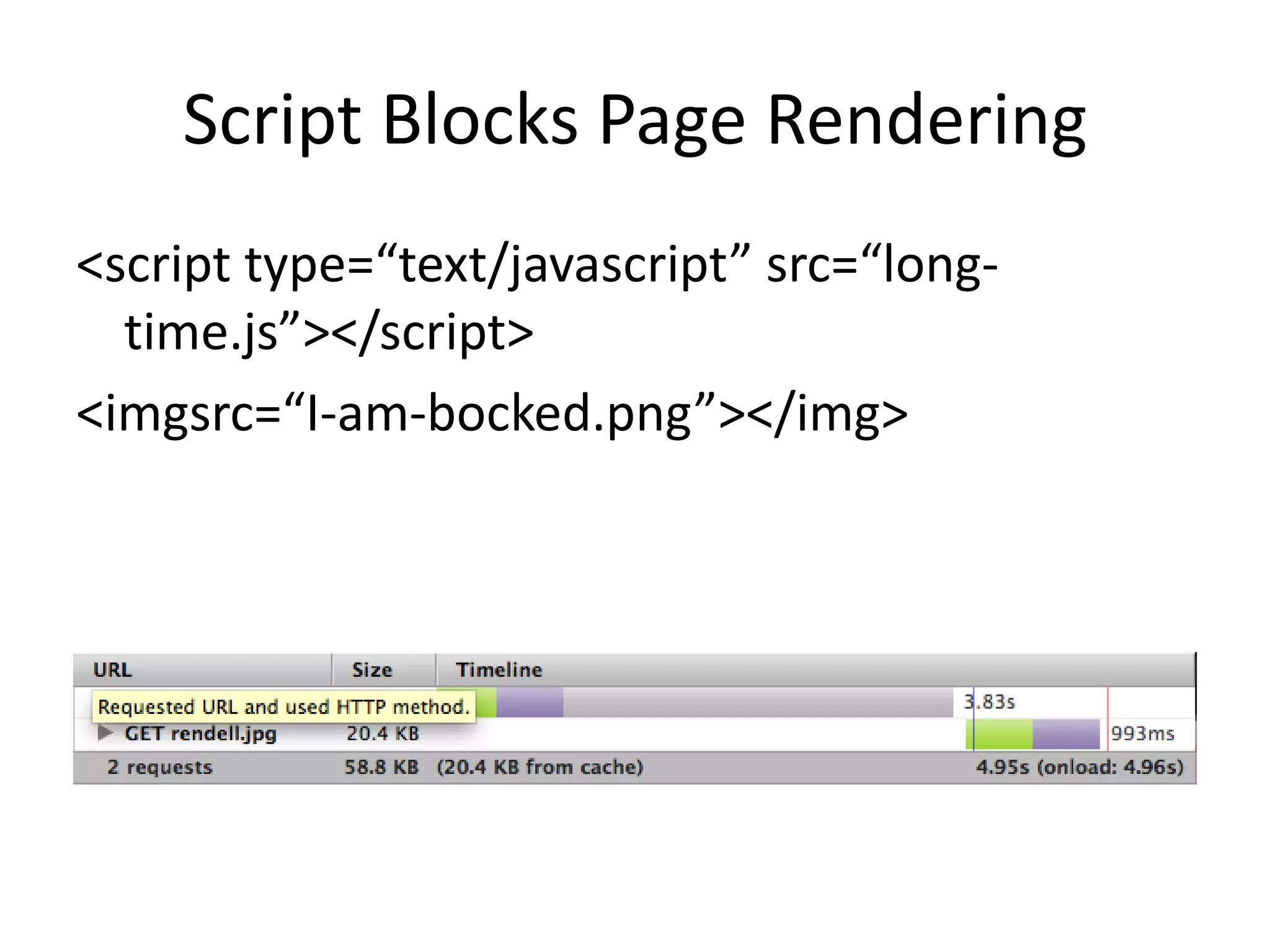

25. Script Blocks Page Rendering<script type=“text/javascript” src=“long-time.js”></script><imgsrc=“I-am-bocked.png”></img>

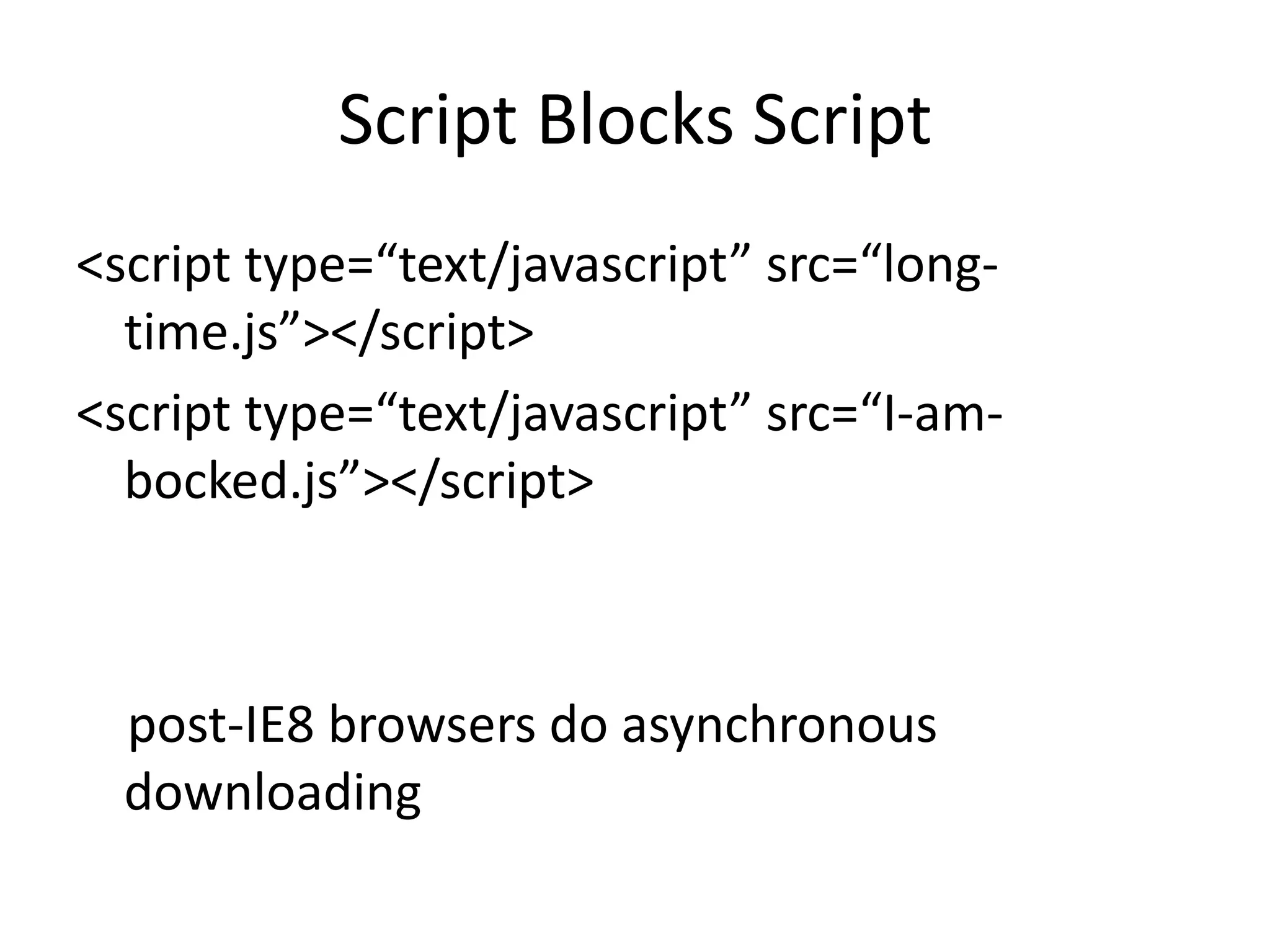

26. Script Blocks Script<script type=“text/javascript” src=“long-time.js”></script><script type=“text/javascript” src=“I-am-bocked.js”></script> post-IE8 browsers do asynchronous downloading

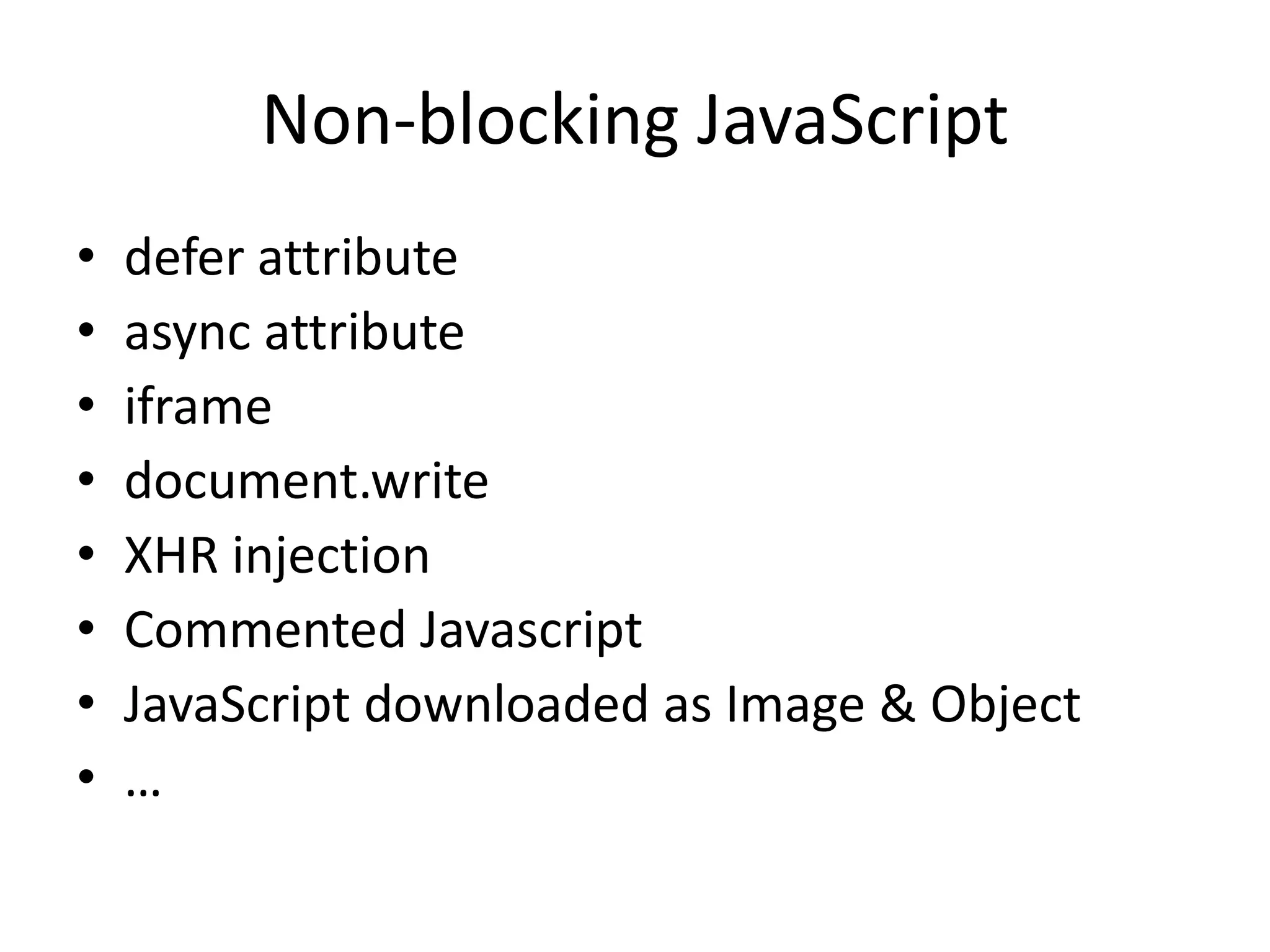

27. Non-blocking JavaScriptdefer attributeasync attributeiframedocument.writeXHR injectionCommented JavascriptJavaScript downloaded as Image & Object…

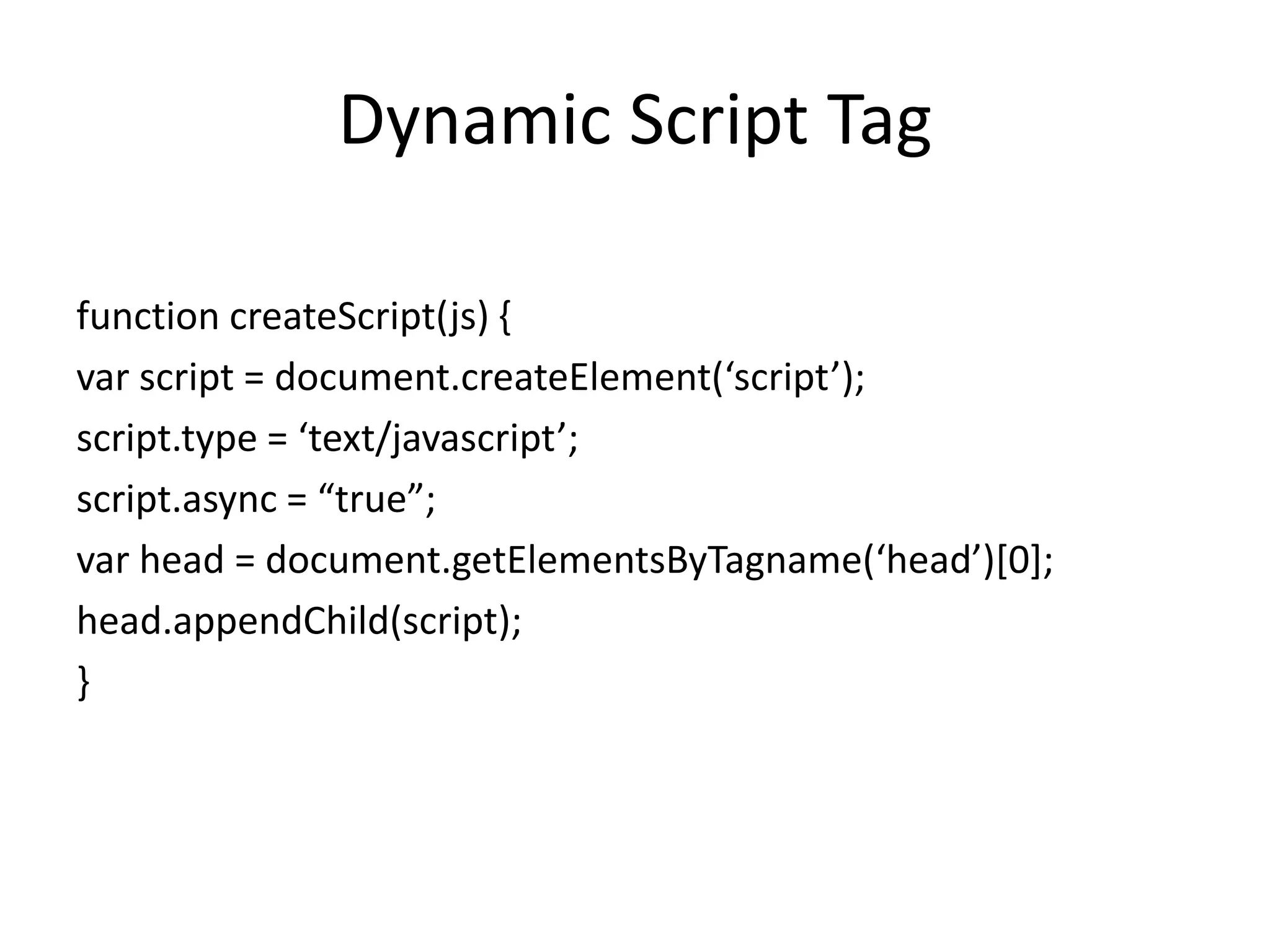

28. Dynamic Script Tagfunction createScript(js) {var script = document.createElement(‘script’);script.type = ‘text/javascript’;script.async = “true”;var head = document.getElementsByTagname(‘head’)[0]; head.appendChild(script);}

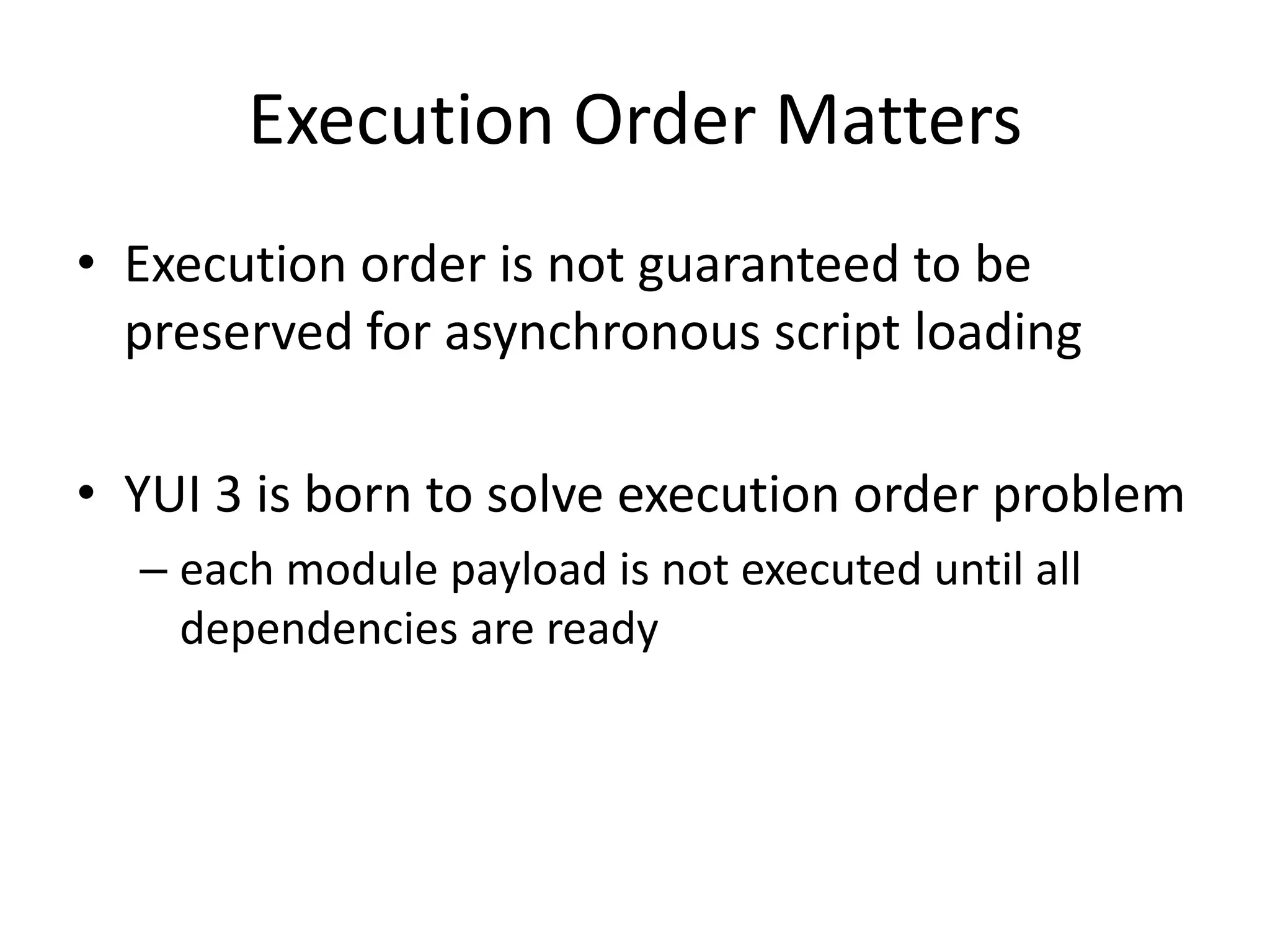

29. Execution Order MattersExecution order is not guaranteed to be preserved for asynchronous script loadingYUI 3 is born to solve execution order problemeach module payload is not executed until all dependencies are ready

30. Don’t Get Excited Too Early

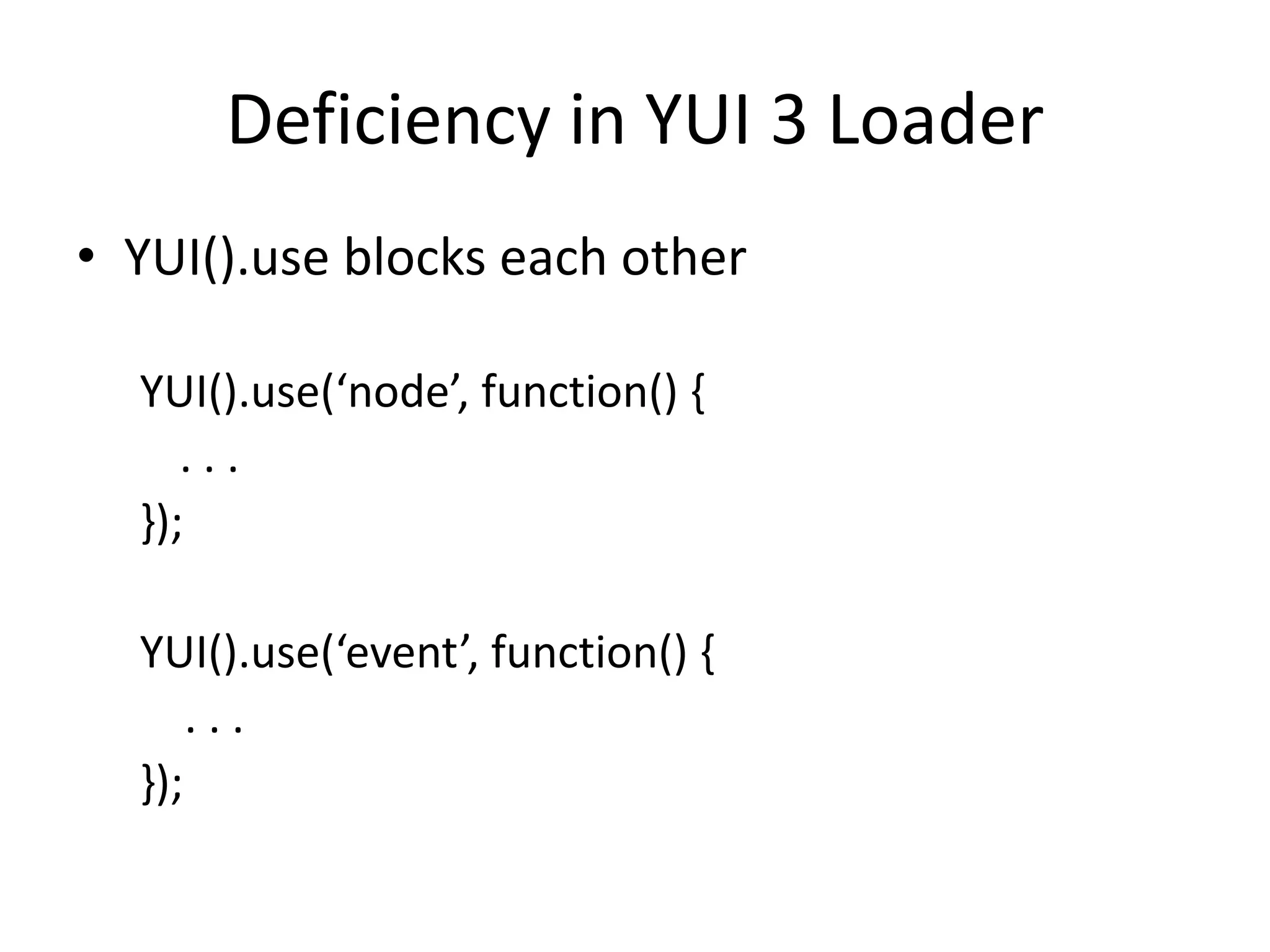

31. Deficiency in YUI 3 LoaderYUI().use blocks each otherYUI().use(‘node’, function() { . . .});YUI().use(‘event’, function() { . . .});

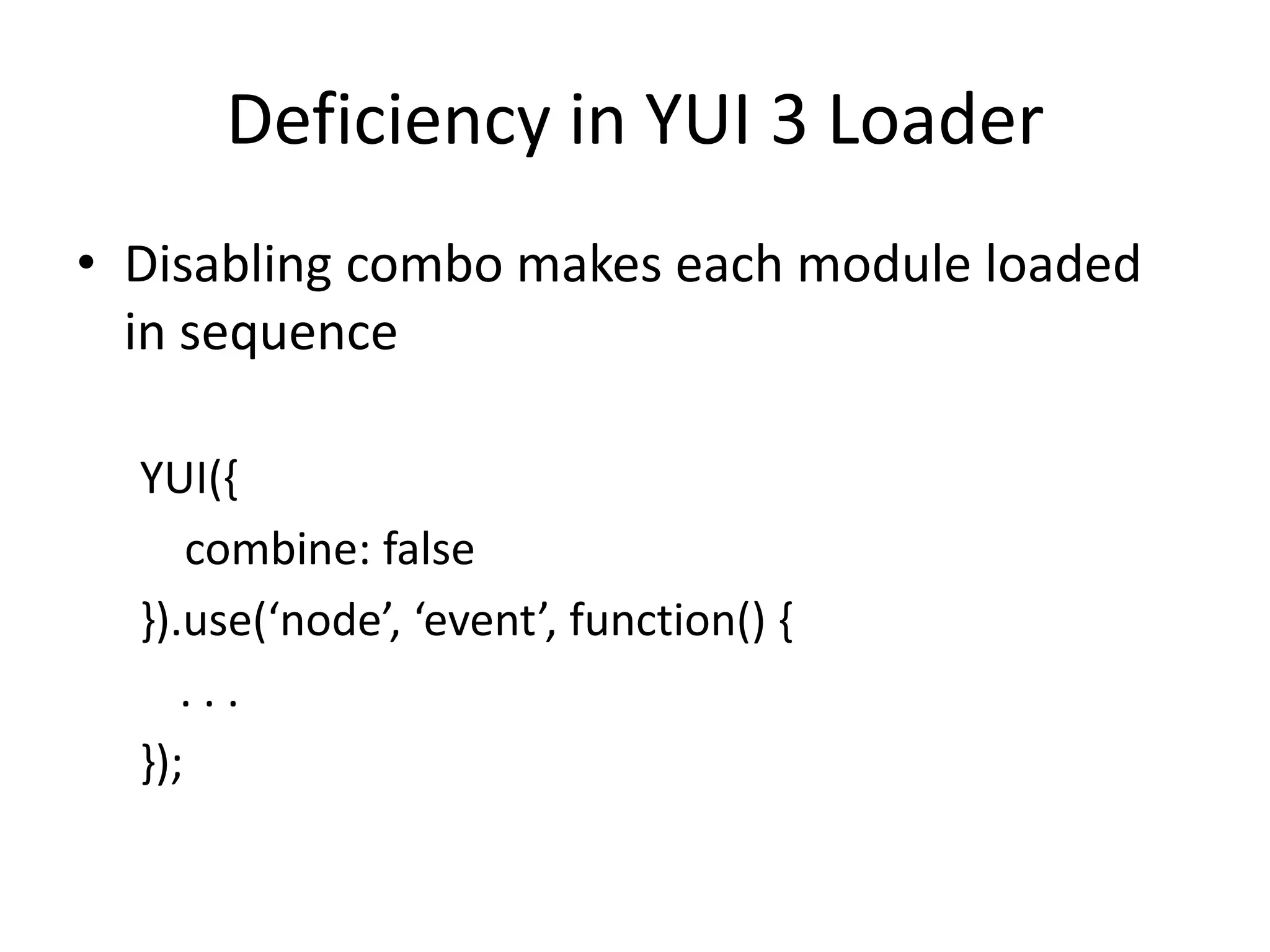

32. Deficiency in YUI 3 LoaderDisabling combo makes each module loaded in sequenceYUI({ combine: false}).use(‘node’, ‘event’, function() { . . .});

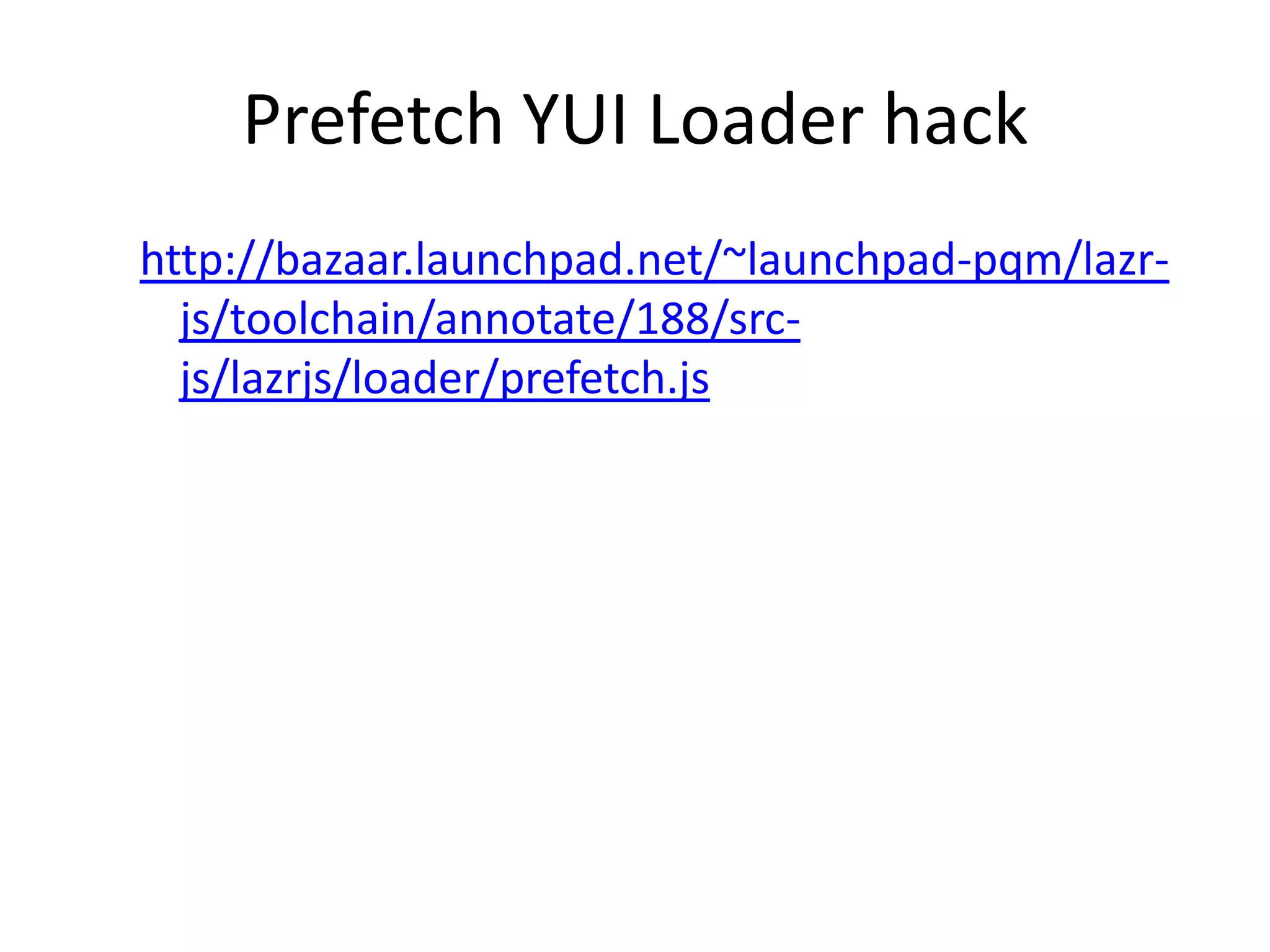

33. Prefetch YUI Loader hackhttp://bazaar.launchpad.net/~launchpad-pqm/lazr-js/toolchain/annotate/188/src-js/lazrjs/loader/prefetch.js

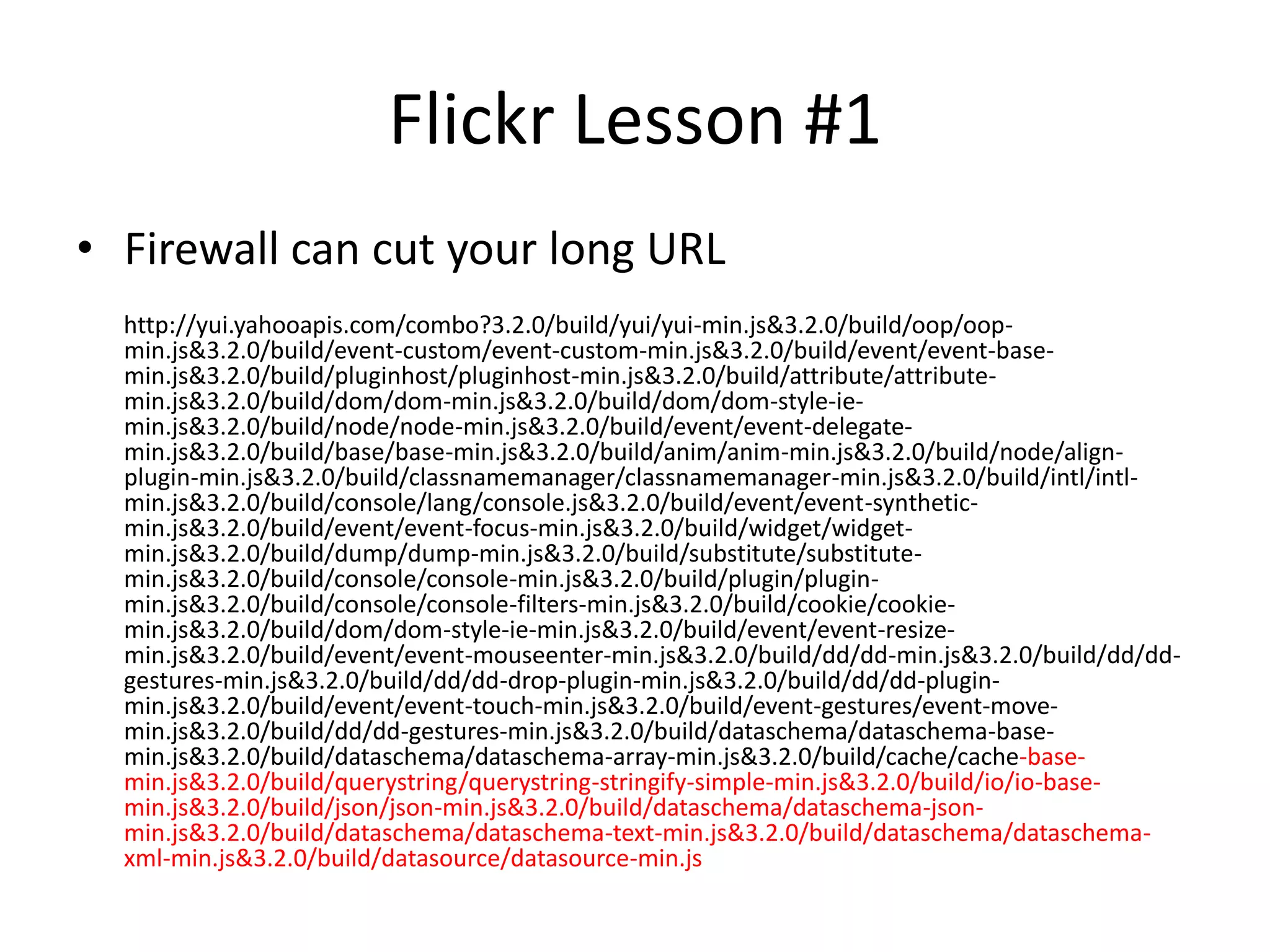

34. Flickr Lesson #1Firewall can cut your long URL http://yui.yahooapis.com/combo?3.2.0/build/yui/yui-min.js&3.2.0/build/oop/oop-min.js&3.2.0/build/event-custom/event-custom-min.js&3.2.0/build/event/event-base-min.js&3.2.0/build/pluginhost/pluginhost-min.js&3.2.0/build/attribute/attribute-min.js&3.2.0/build/dom/dom-min.js&3.2.0/build/dom/dom-style-ie-min.js&3.2.0/build/node/node-min.js&3.2.0/build/event/event-delegate-min.js&3.2.0/build/base/base-min.js&3.2.0/build/anim/anim-min.js&3.2.0/build/node/align-plugin-min.js&3.2.0/build/classnamemanager/classnamemanager-min.js&3.2.0/build/intl/intl-min.js&3.2.0/build/console/lang/console.js&3.2.0/build/event/event-synthetic-min.js&3.2.0/build/event/event-focus-min.js&3.2.0/build/widget/widget-min.js&3.2.0/build/dump/dump-min.js&3.2.0/build/substitute/substitute-min.js&3.2.0/build/console/console-min.js&3.2.0/build/plugin/plugin-min.js&3.2.0/build/console/console-filters-min.js&3.2.0/build/cookie/cookie-min.js&3.2.0/build/dom/dom-style-ie-min.js&3.2.0/build/event/event-resize-min.js&3.2.0/build/event/event-mouseenter-min.js&3.2.0/build/dd/dd-min.js&3.2.0/build/dd/dd-gestures-min.js&3.2.0/build/dd/dd-drop-plugin-min.js&3.2.0/build/dd/dd-plugin-min.js&3.2.0/build/event/event-touch-min.js&3.2.0/build/event-gestures/event-move-min.js&3.2.0/build/dd/dd-gestures-min.js&3.2.0/build/dataschema/dataschema-base-min.js&3.2.0/build/dataschema/dataschema-array-min.js&3.2.0/build/cache/cache-base-min.js&3.2.0/build/querystring/querystring-stringify-simple-min.js&3.2.0/build/io/io-base-min.js&3.2.0/build/json/json-min.js&3.2.0/build/dataschema/dataschema-json-min.js&3.2.0/build/dataschema/dataschema-text-min.js&3.2.0/build/dataschema/dataschema-xml-min.js&3.2.0/build/datasource/datasource-min.js

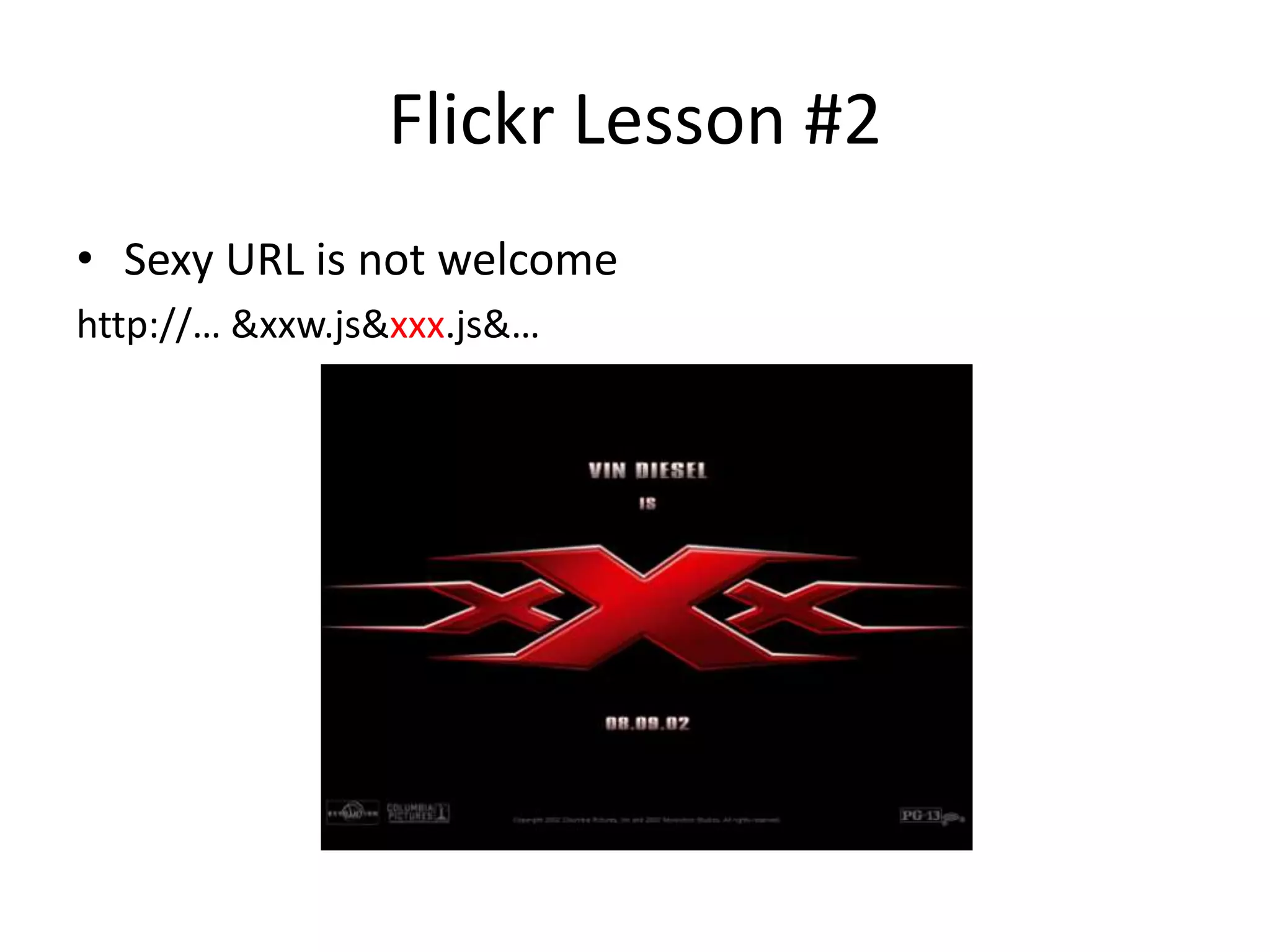

35. Flickr Lesson #2Sexy URL is not welcomehttp://… &xxw.js&xxx.js&…

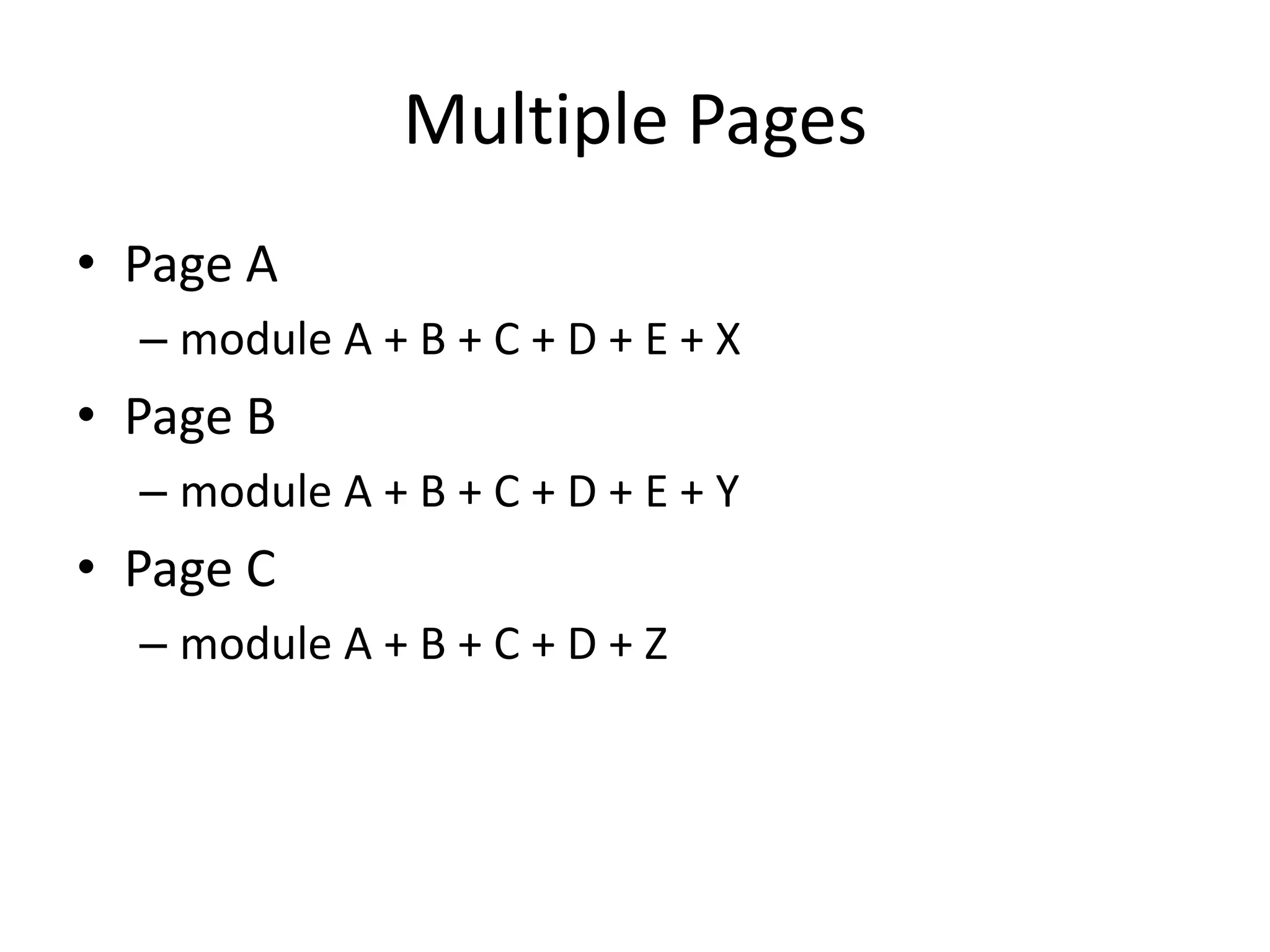

36. Multiple PagesPage Amodule A + B + C + D + E + XPage Bmodule A + B + C + D + E + YPage Cmodule A + B + C + D + Z

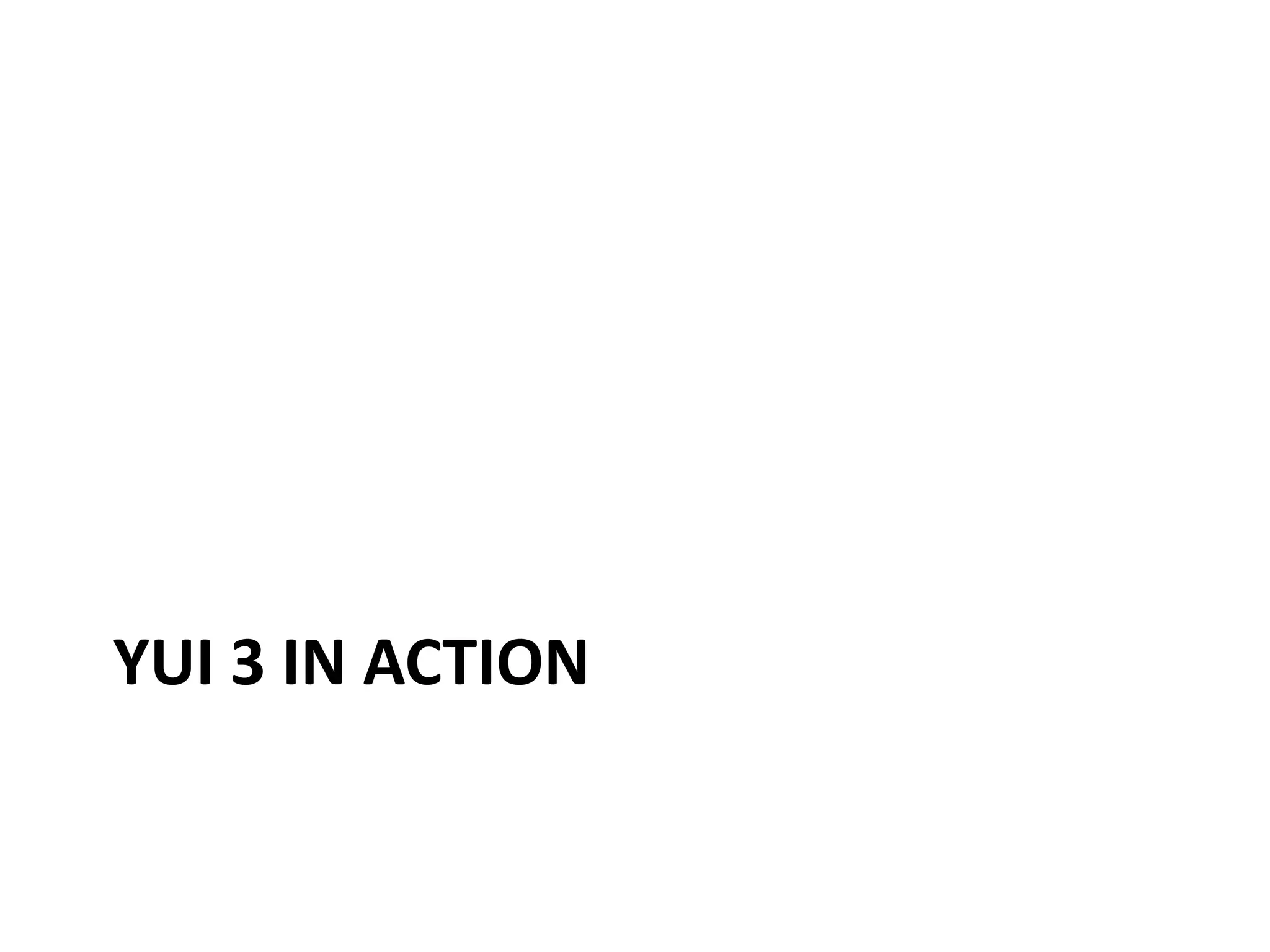

37. YUI 3 in Action

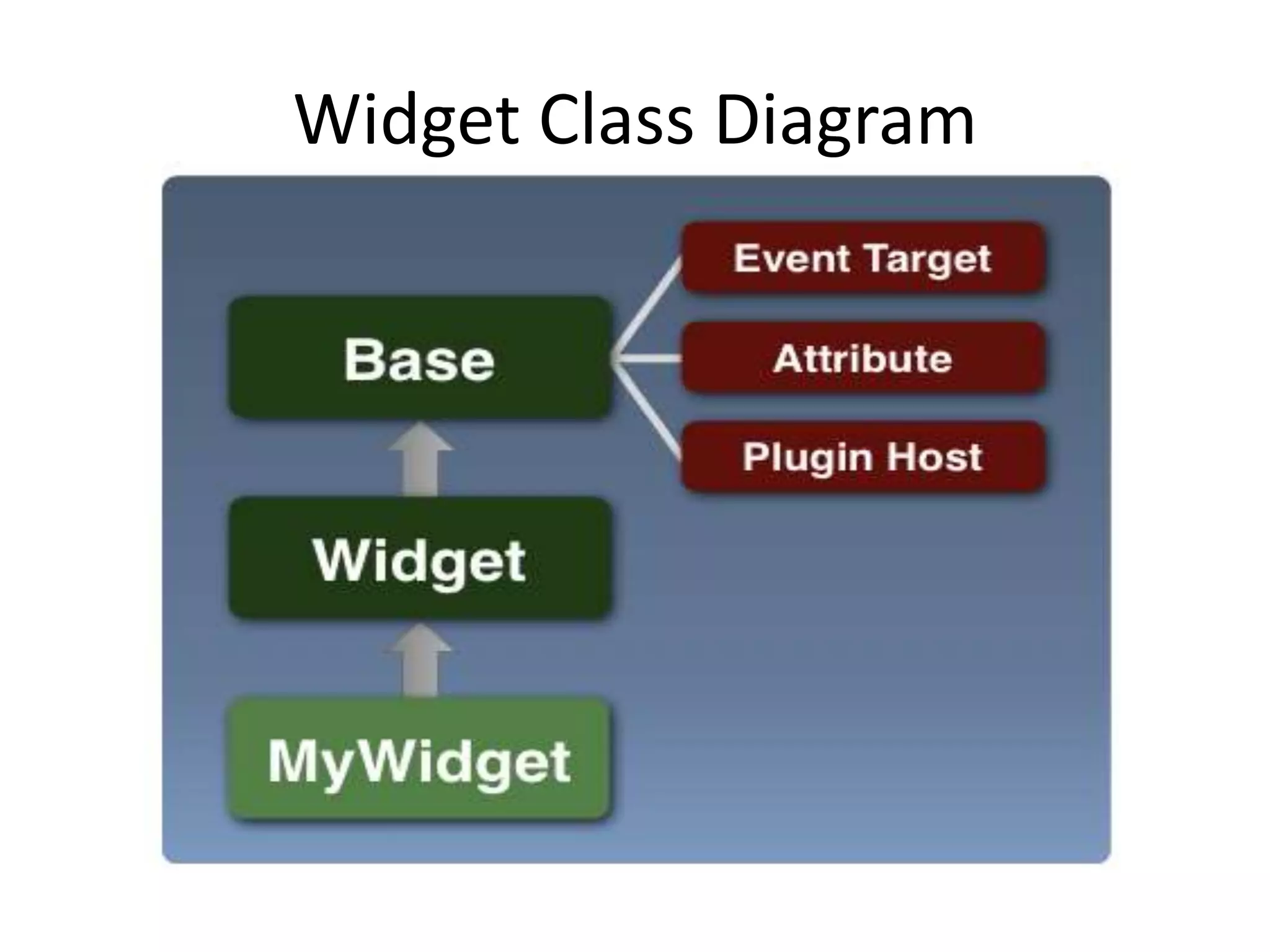

38. Widget Class Diagram

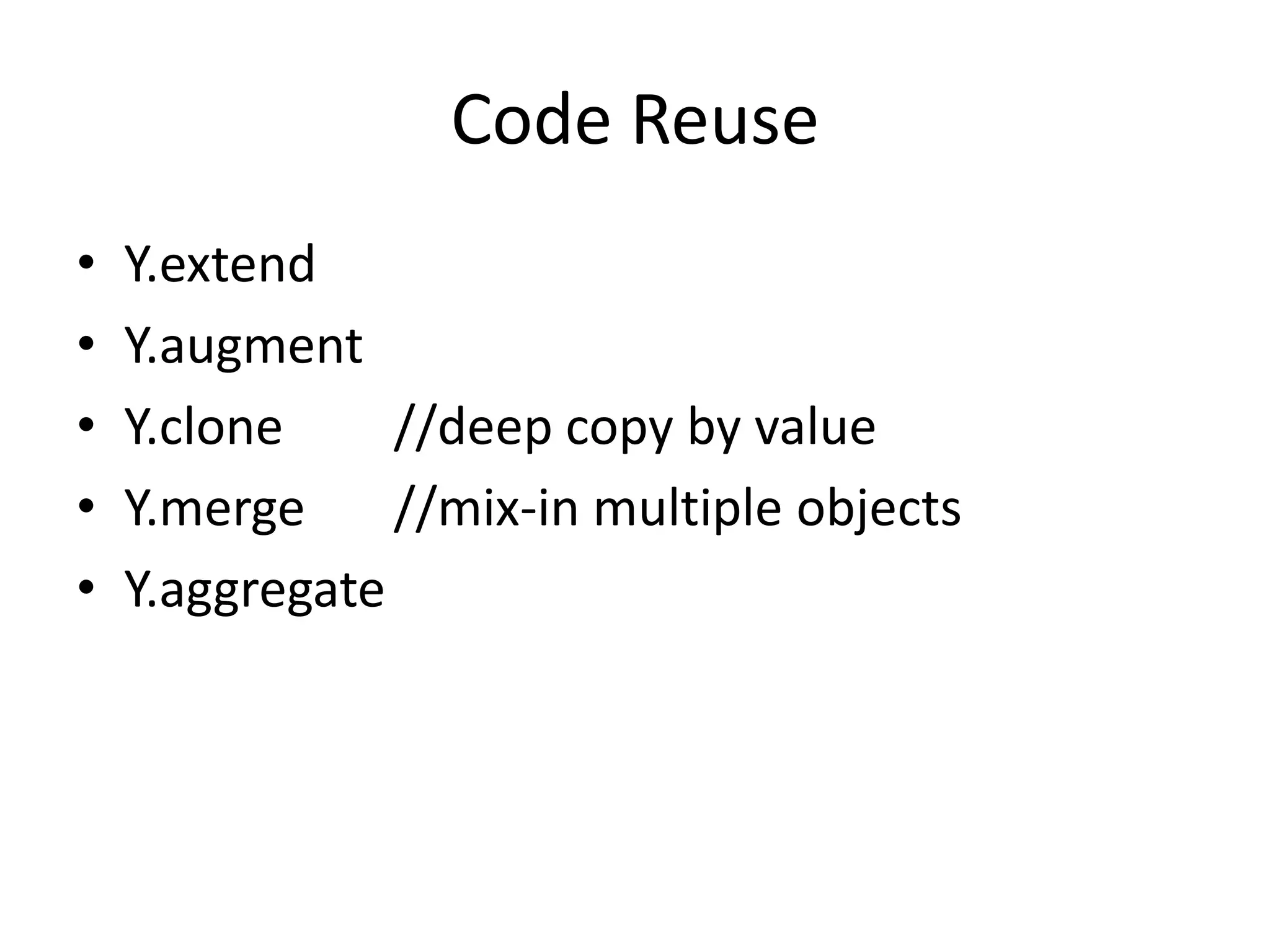

39. Code ReuseY.extendY.augmentY.clone //deep copy by valueY.merge //mix-in multiple objectsY.aggregate

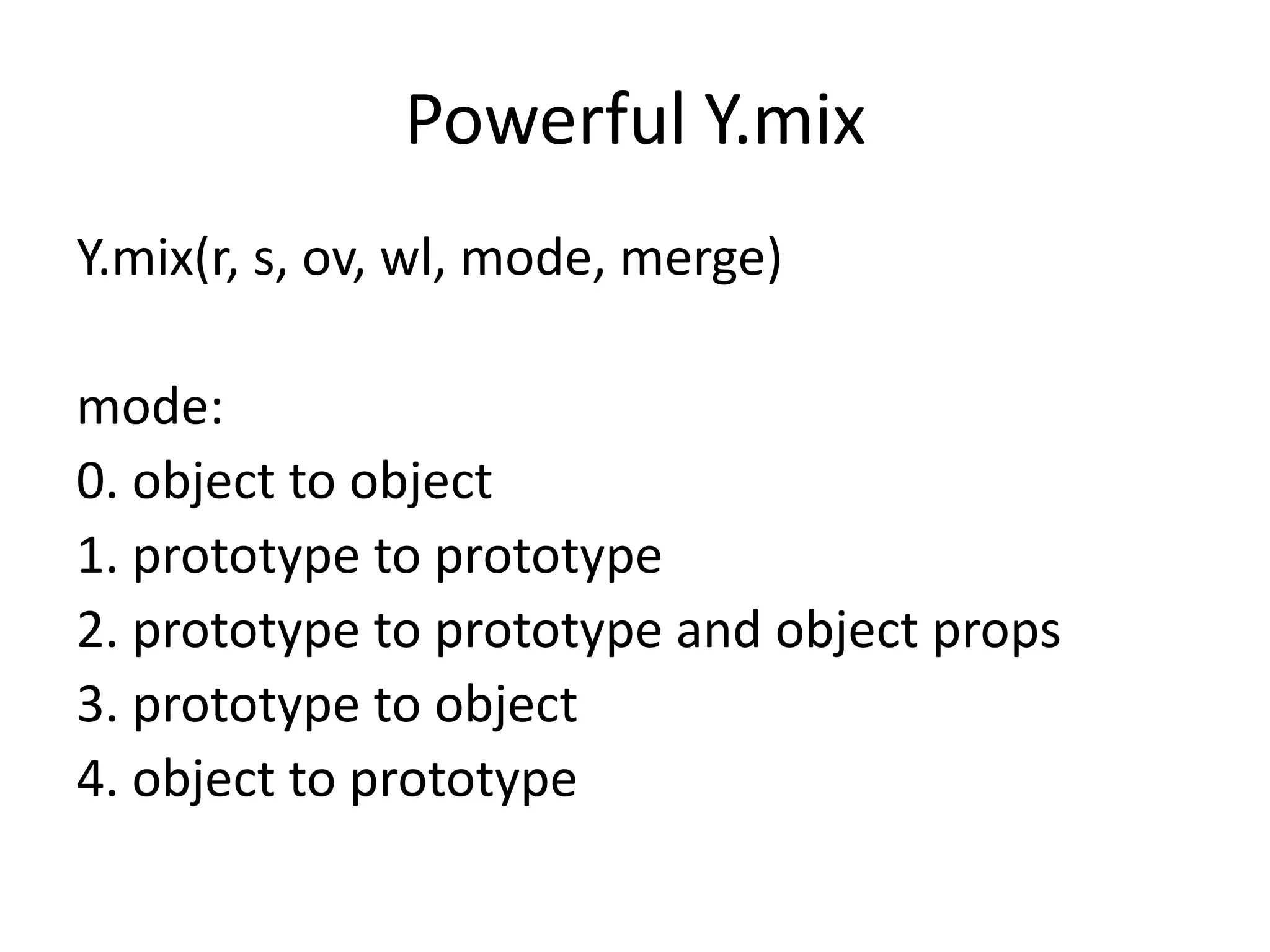

40. Powerful Y.mixY.mix(r, s, ov, wl, mode, merge)mode:0. object to object1. prototype to prototype2. prototype to prototype and object props3. prototype to object 4. object to prototype

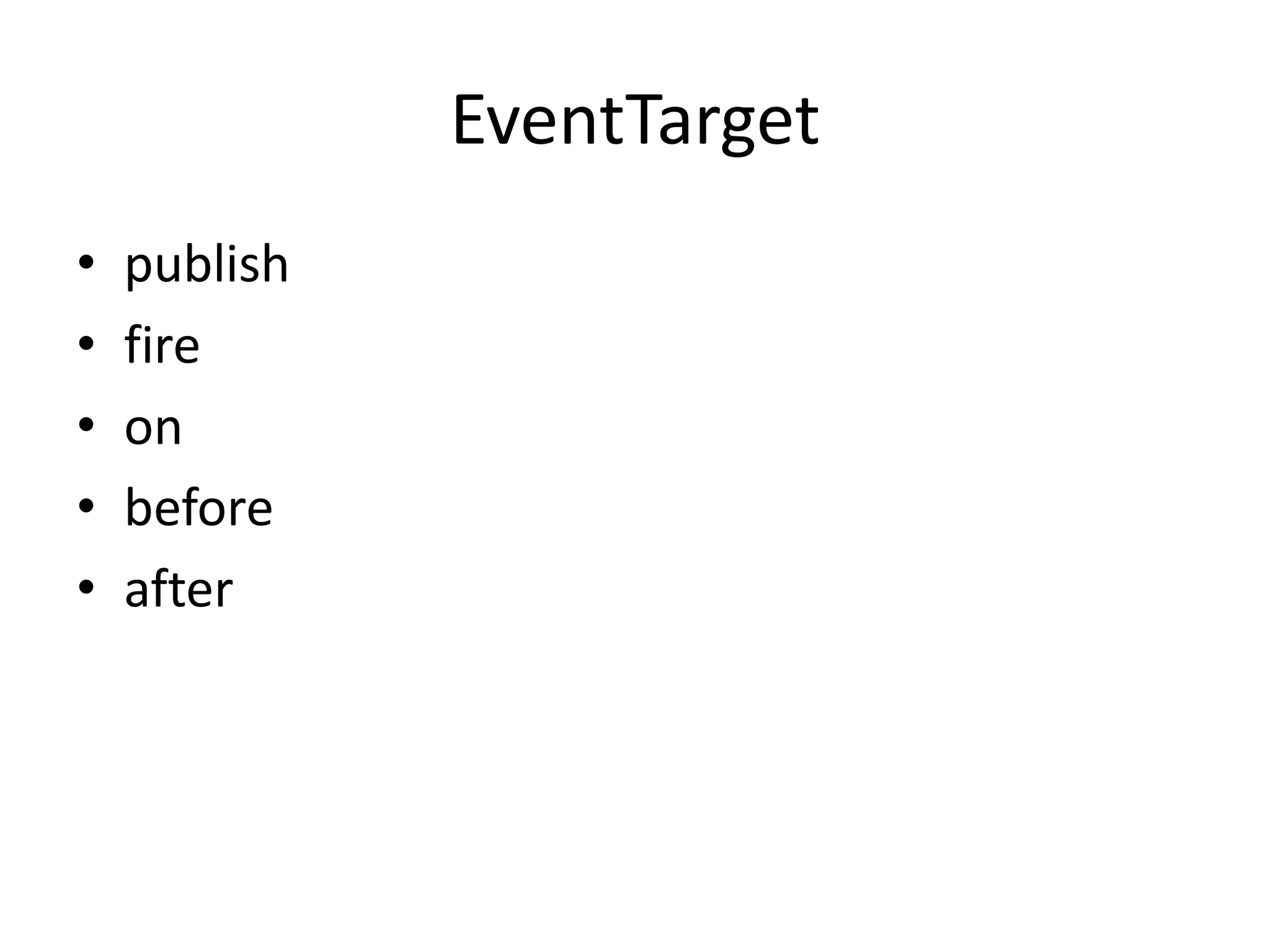

41. EventTargetpublishfireonbeforeafter

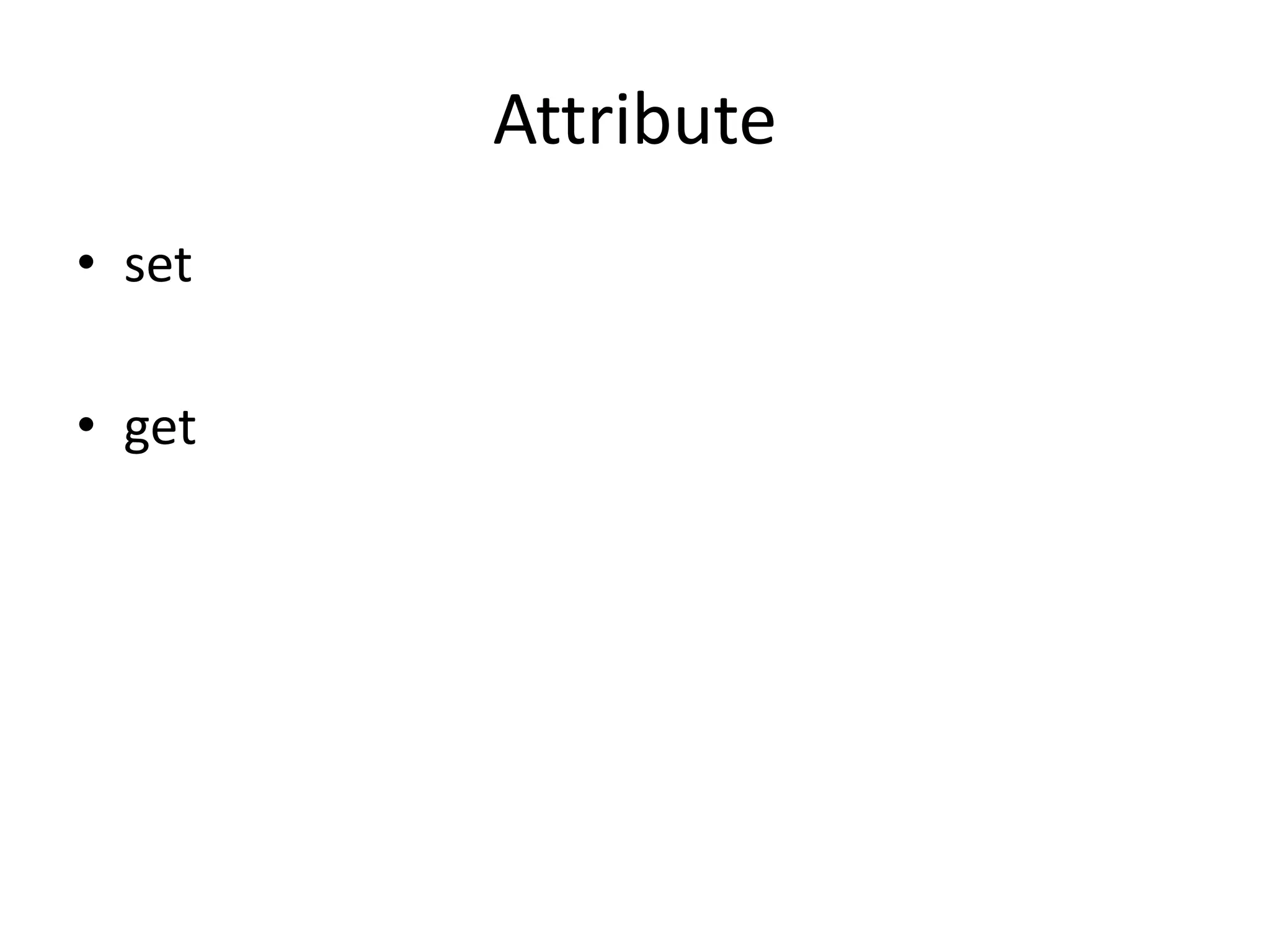

42. Attributesetget

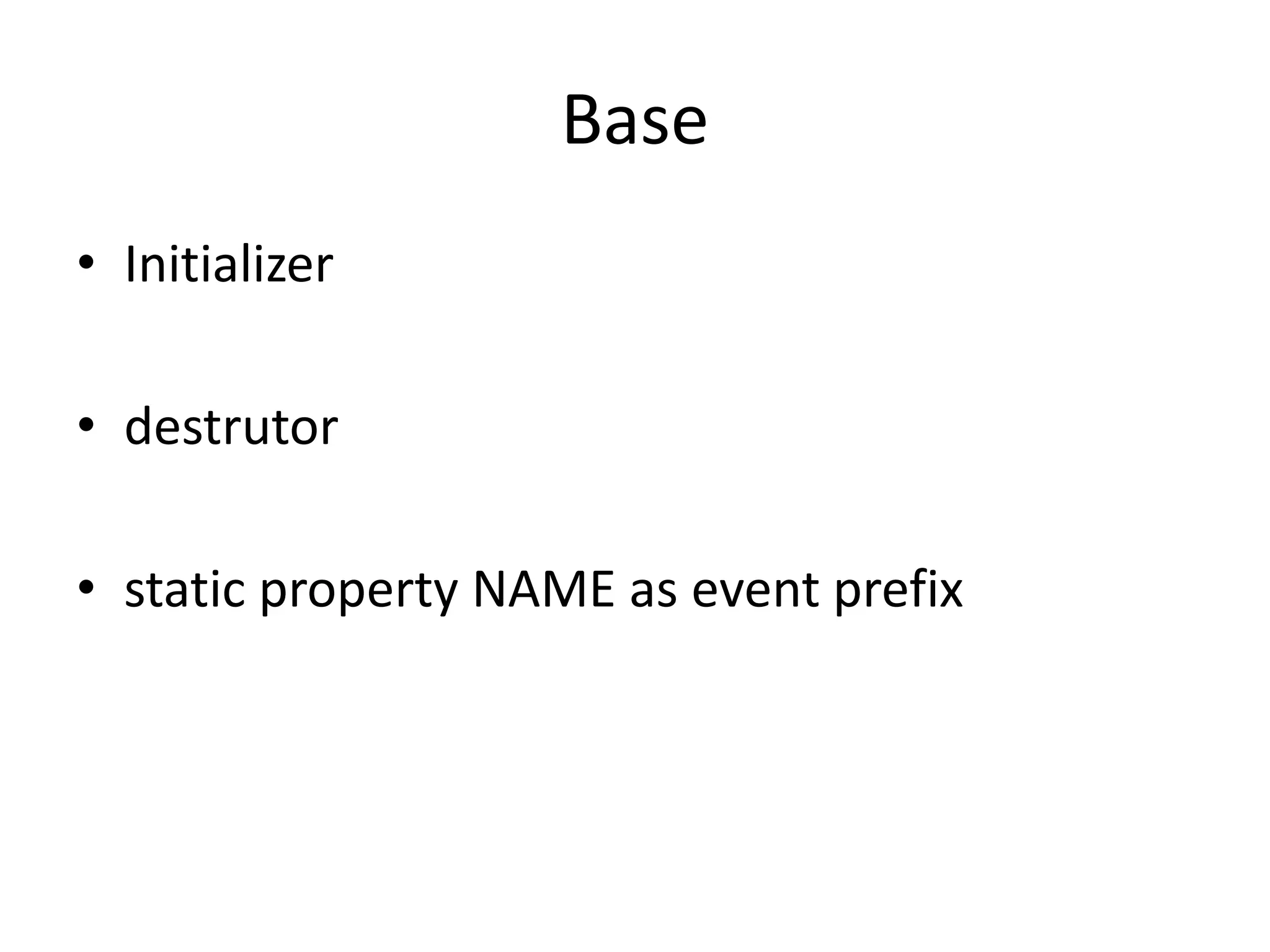

43. BaseInitializerdestrutorstatic property NAME as event prefix

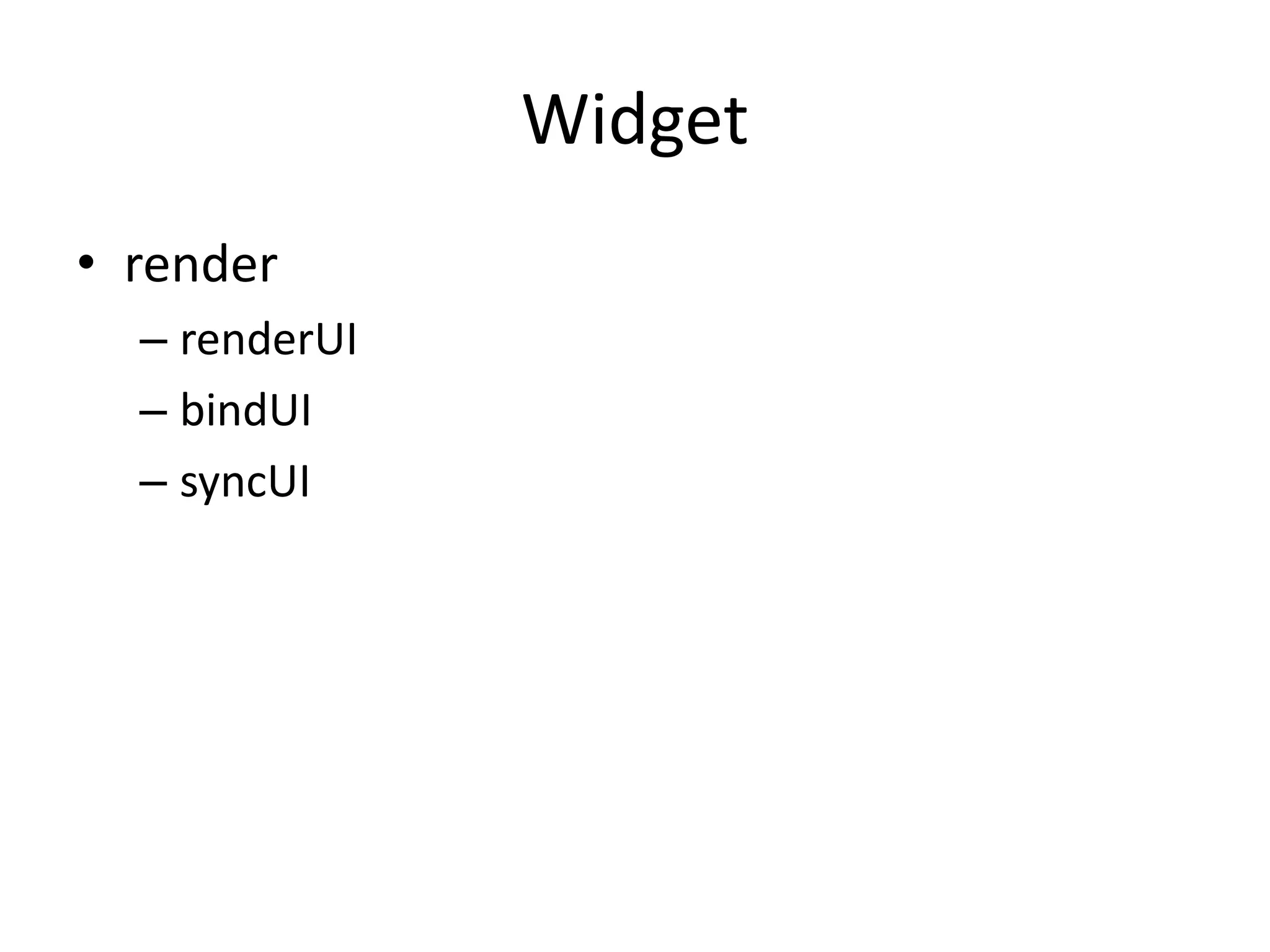

44. WidgetrenderrenderUIbindUIsyncUI

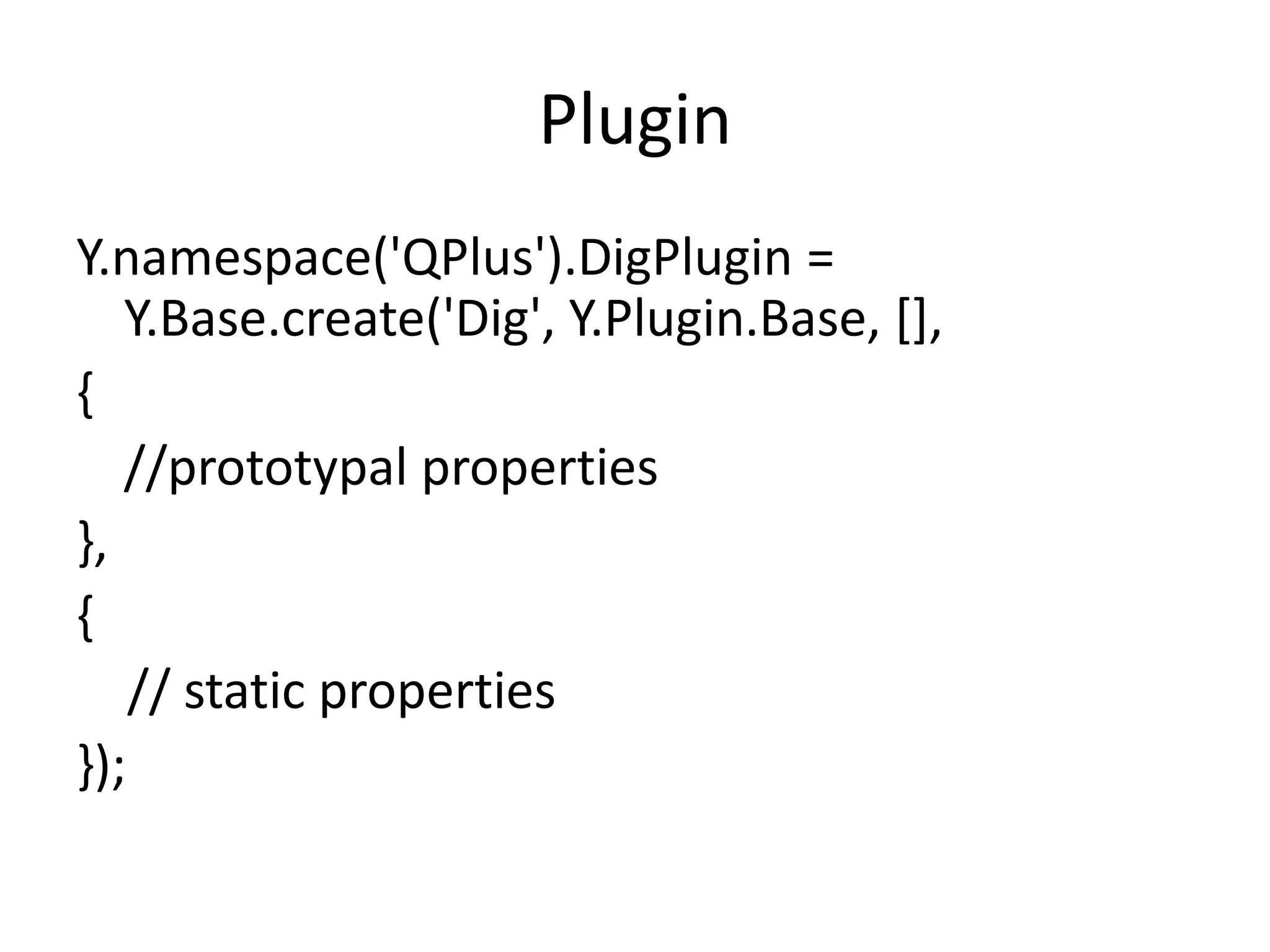

45. PluginY.namespace('QPlus').DigPlugin = Y.Base.create('Dig', Y.Plugin.Base, [], { //prototypal properties},{ // static properties});

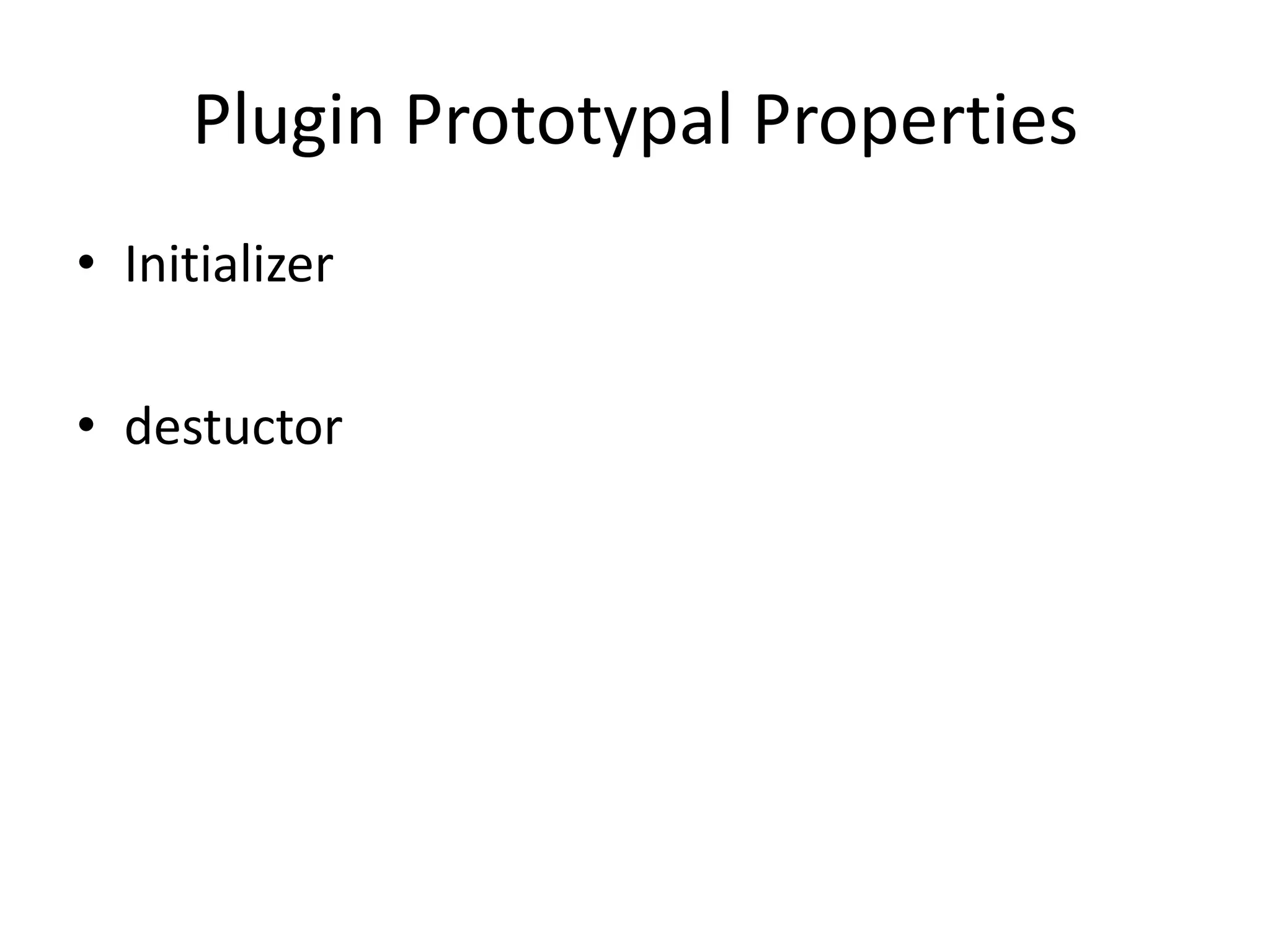

46. Plugin Prototypal PropertiesInitializerdestuctor

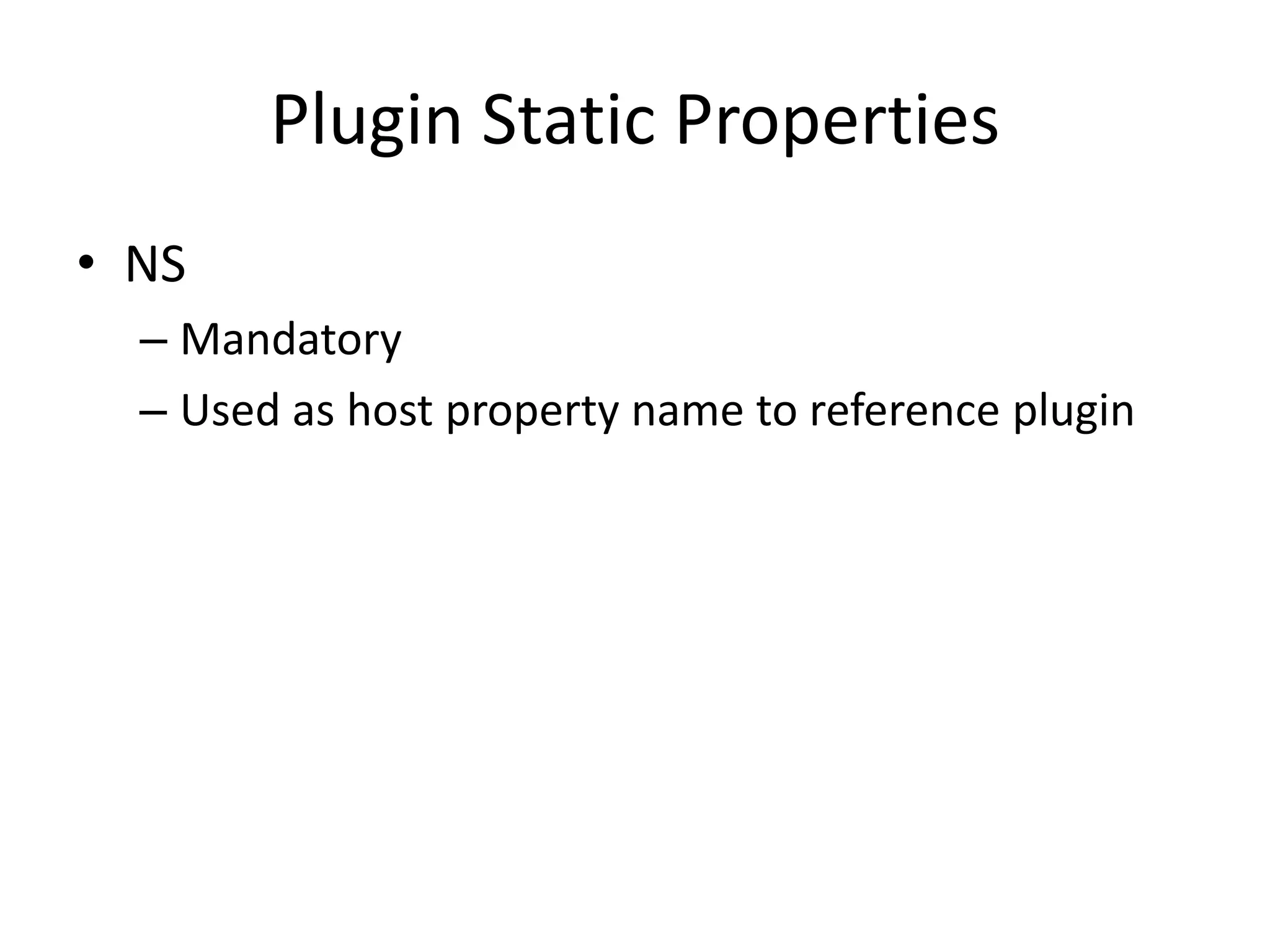

47. Plugin Static PropertiesNSMandatoryUsed as host property name to reference plugin

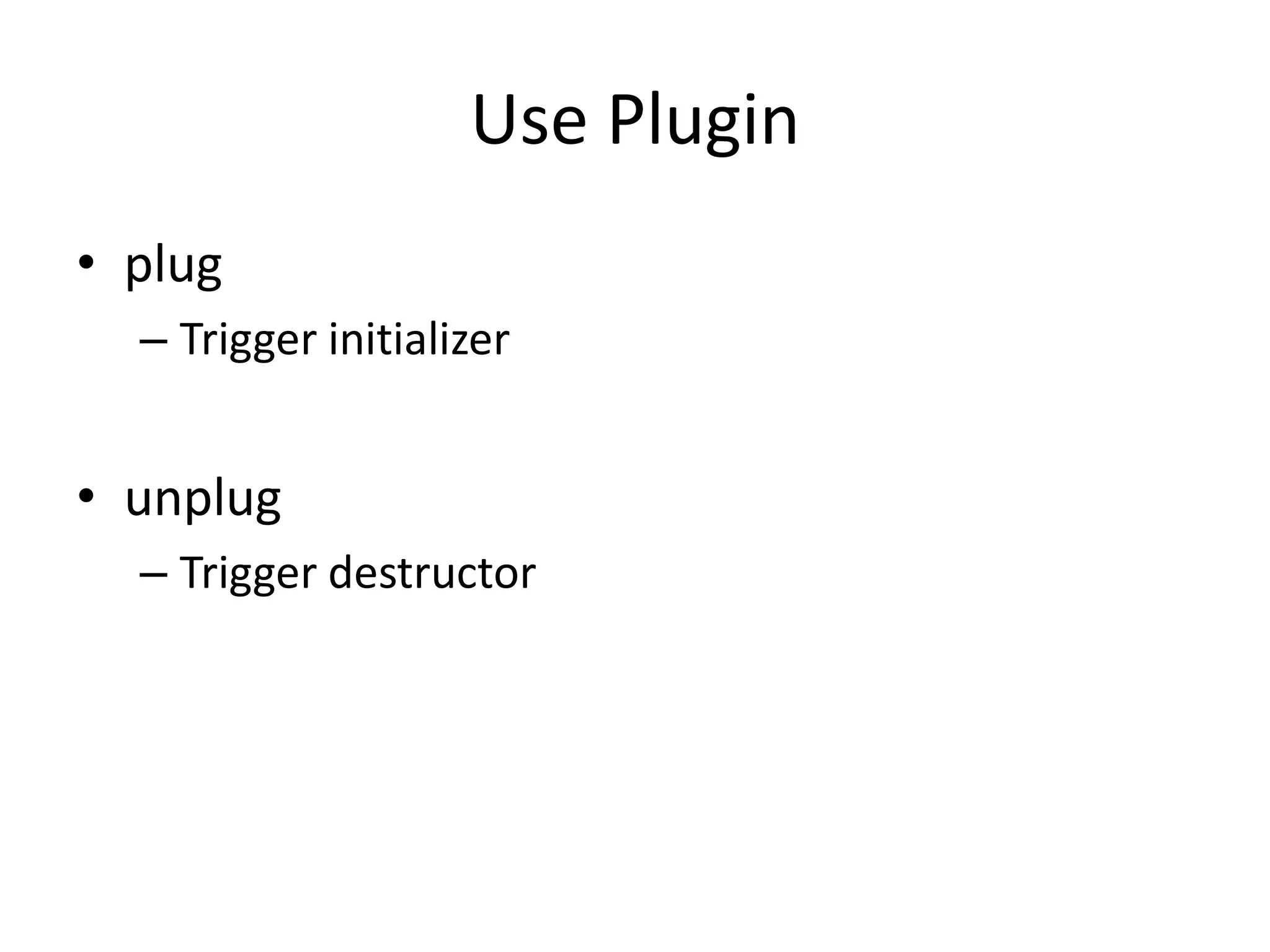

48. Use PluginplugTrigger initializerunplugTrigger destructor

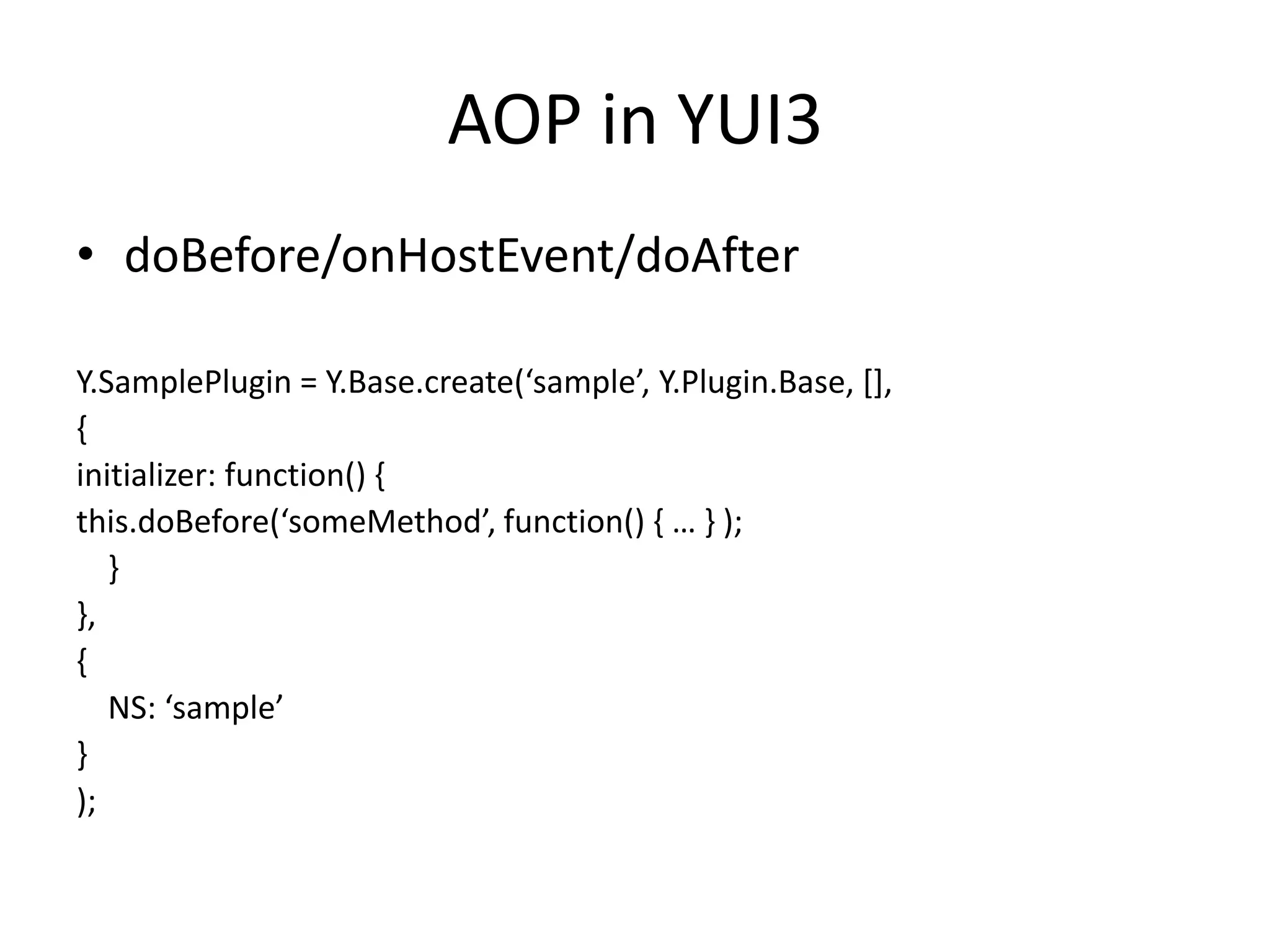

49. AOP in YUI3doBefore/onHostEvent/doAfterY.SamplePlugin = Y.Base.create(‘sample’, Y.Plugin.Base, [],{initializer: function() {this.doBefore(‘someMethod’, function() { … } ); }},{ NS: ‘sample’});

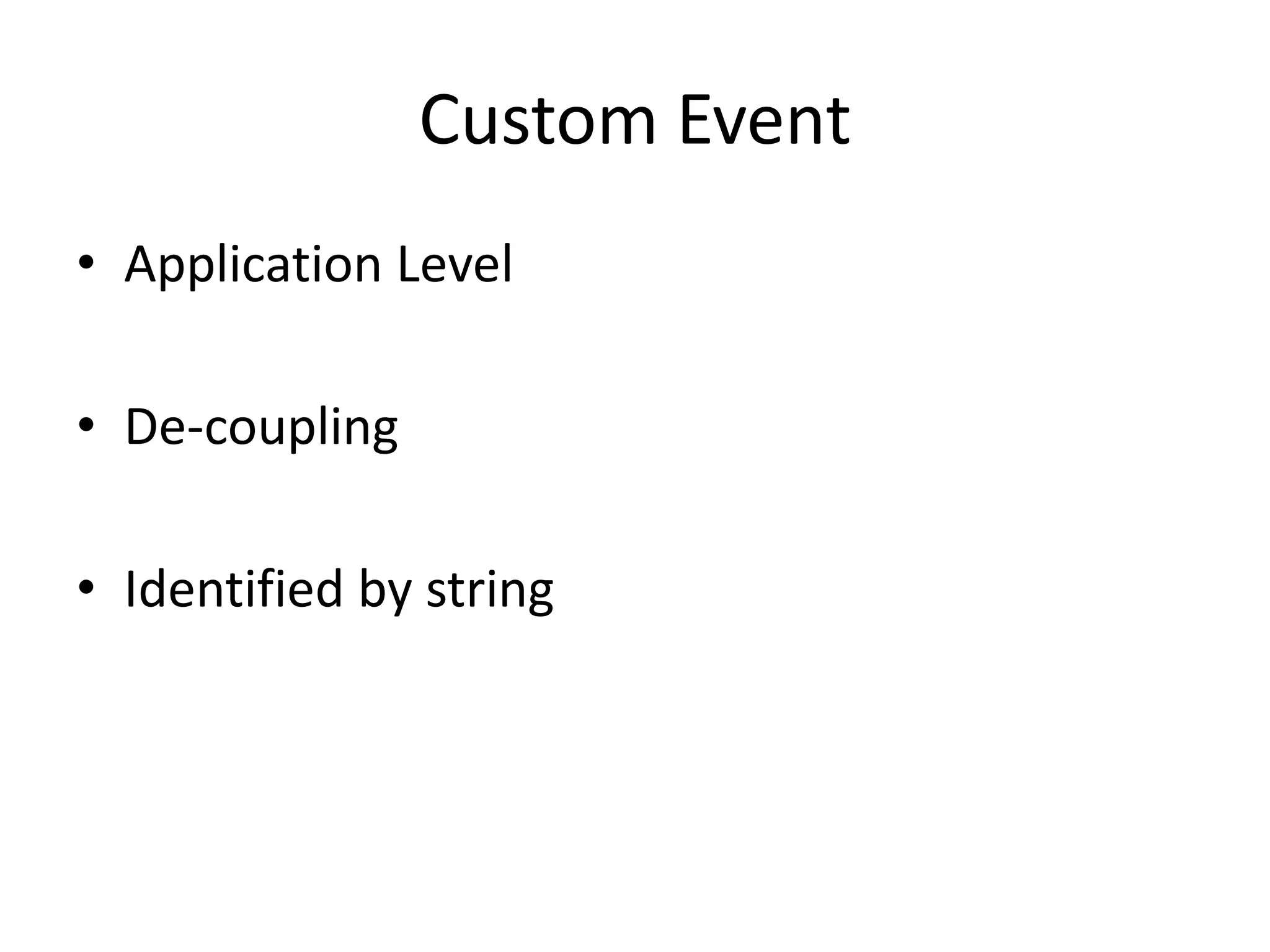

50. Custom EventApplication LevelDe-coupling Identified by string

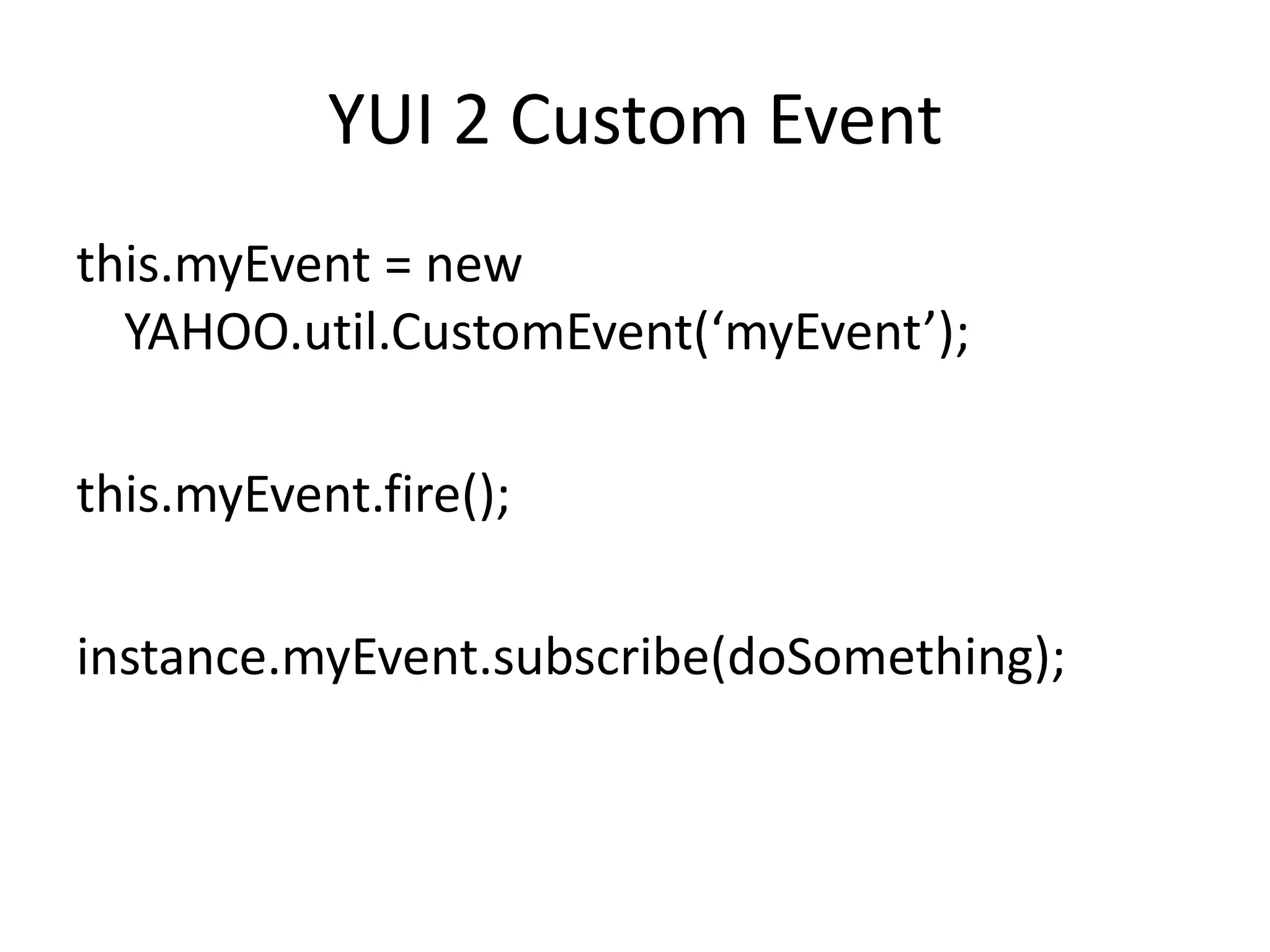

51. YUI 2 Custom Eventthis.myEvent = new YAHOO.util.CustomEvent(‘myEvent’);this.myEvent.fire();instance.myEvent.subscribe(doSomething);

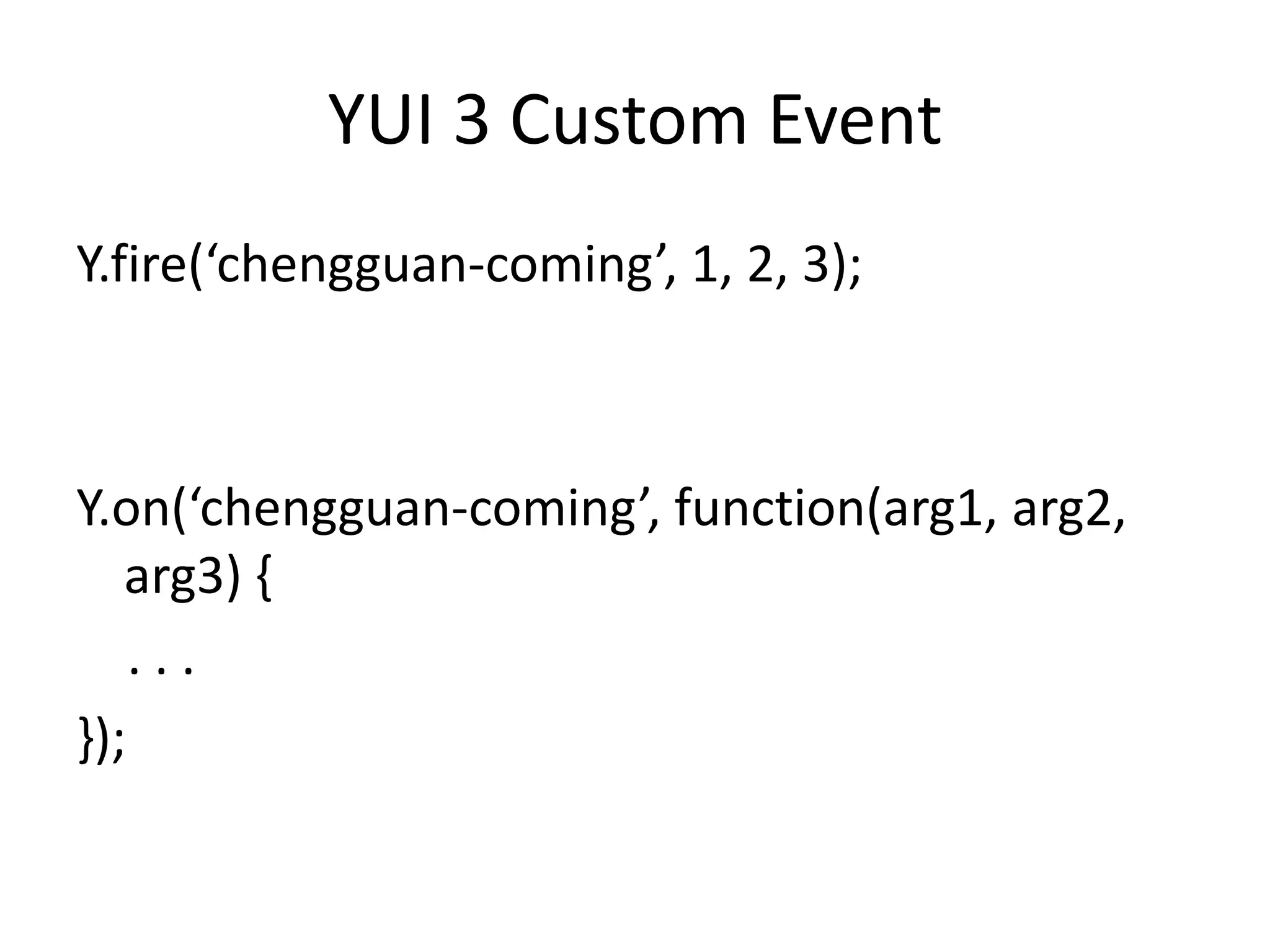

52. YUI 3 Custom EventY.fire(‘chengguan-coming’, 1, 2, 3);Y.on(‘chengguan-coming’, function(arg1, arg2, arg3) { . . .});

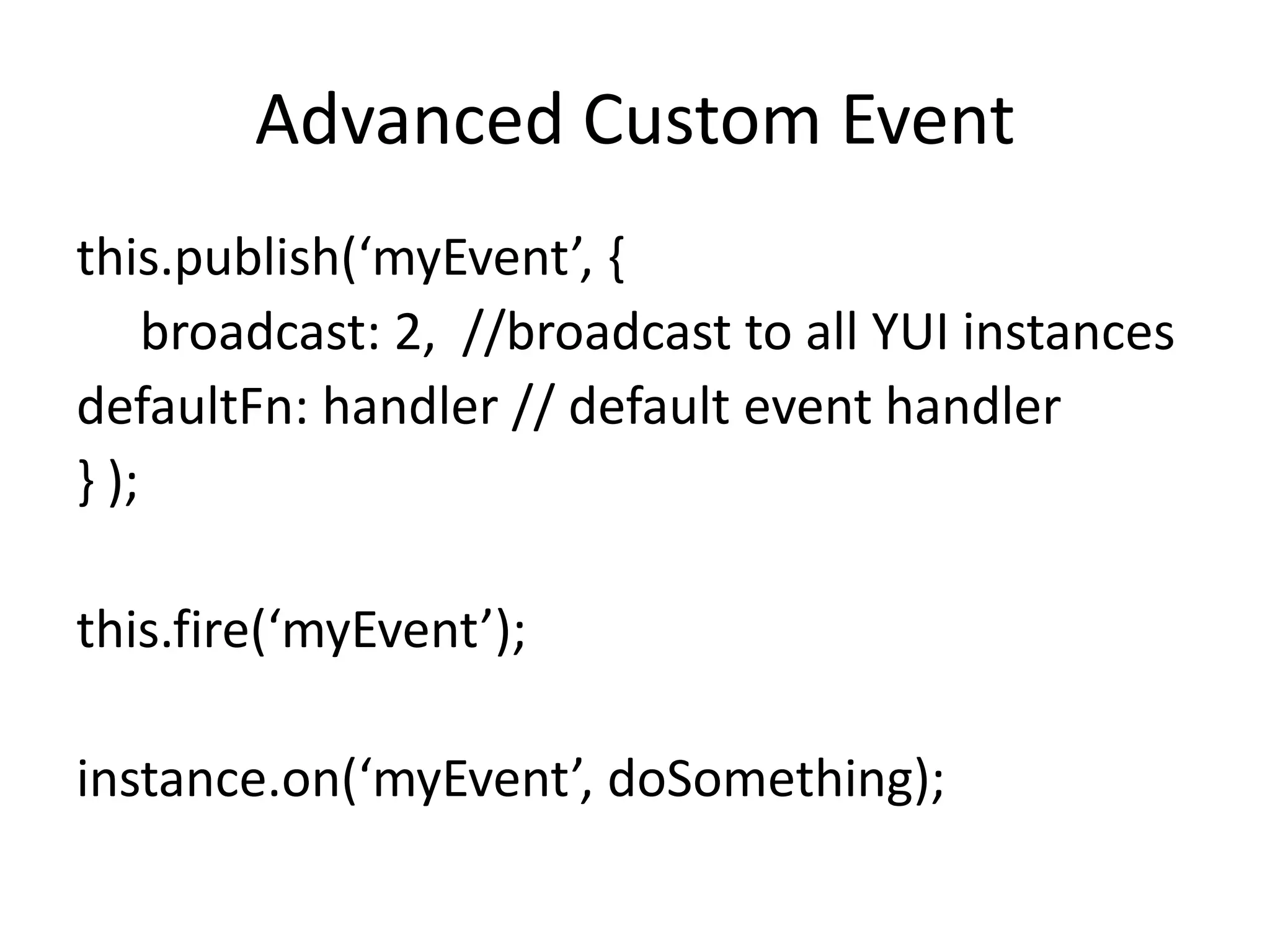

53. Advanced Custom Eventthis.publish(‘myEvent’, { broadcast: 2, //broadcast to all YUI instancesdefaultFn: handler // default event handler} );this.fire(‘myEvent’);instance.on(‘myEvent’, doSomething);

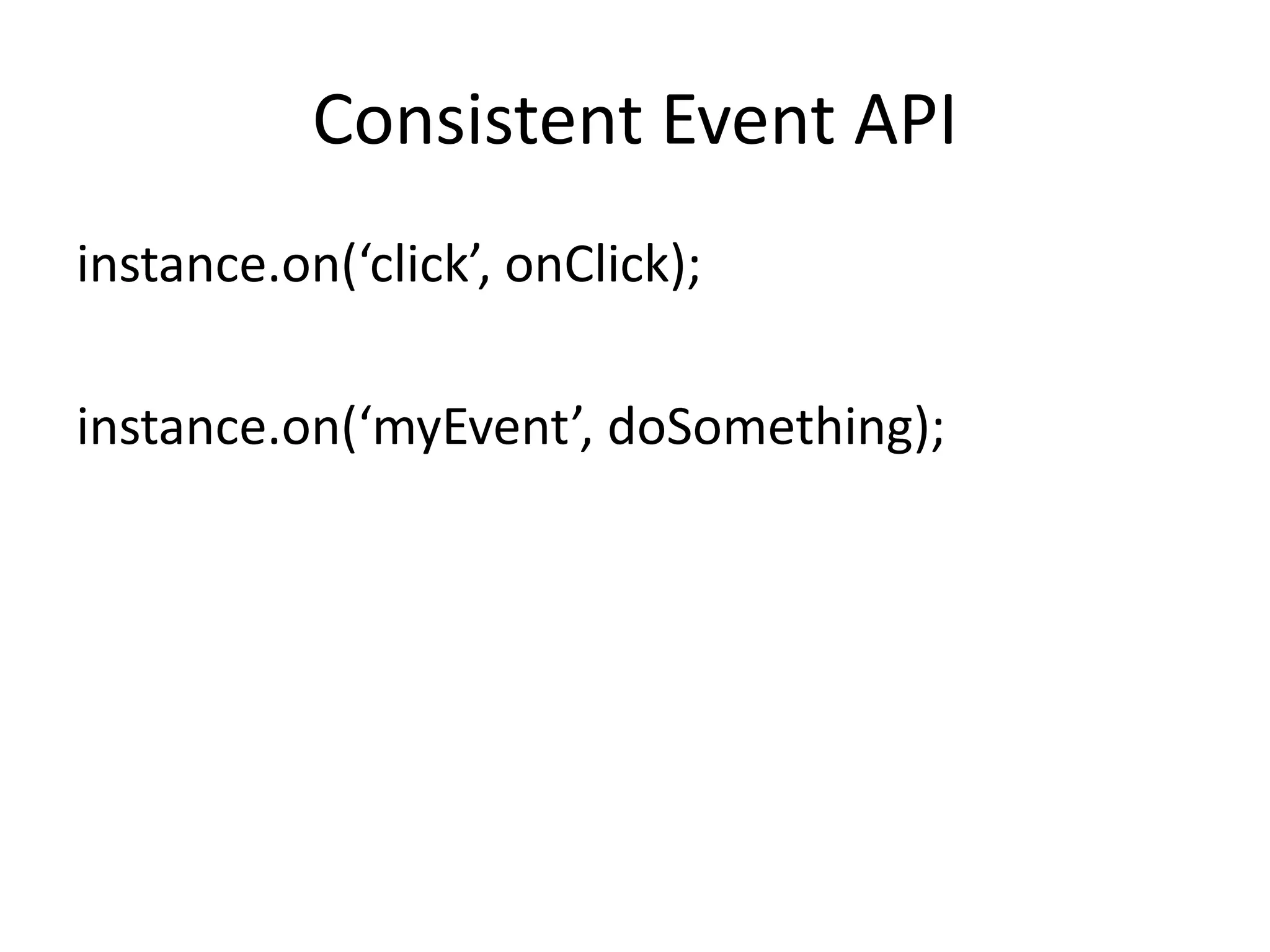

54. Consistent Event APIinstance.on(‘click’, onClick);instance.on(‘myEvent’, doSomething);

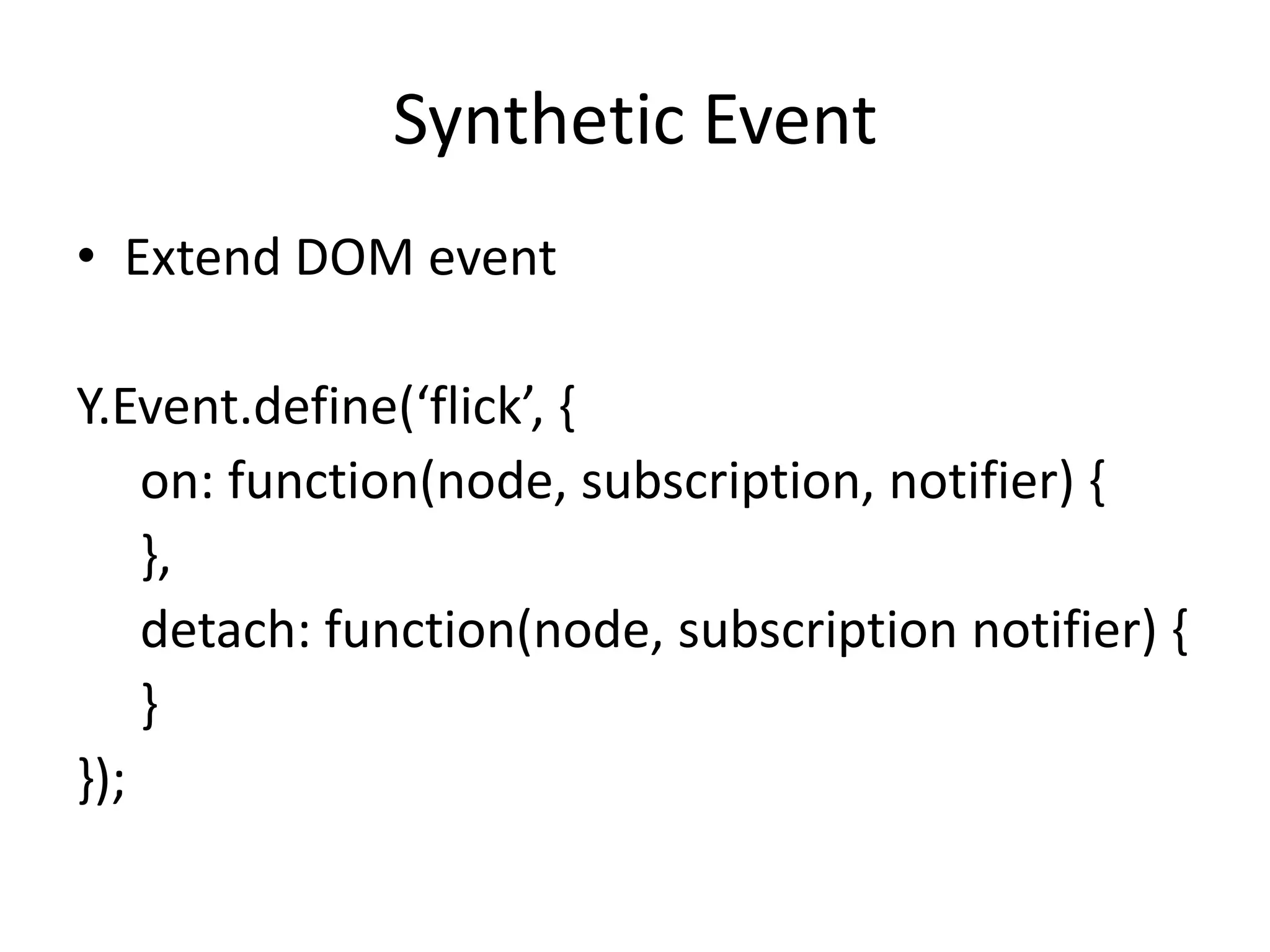

55. Synthetic EventExtend DOM eventY.Event.define(‘flick’, { on: function(node, subscription, notifier) { }, detach: function(node, subscription notifier) { }});

56. Frontend Performance Improvments

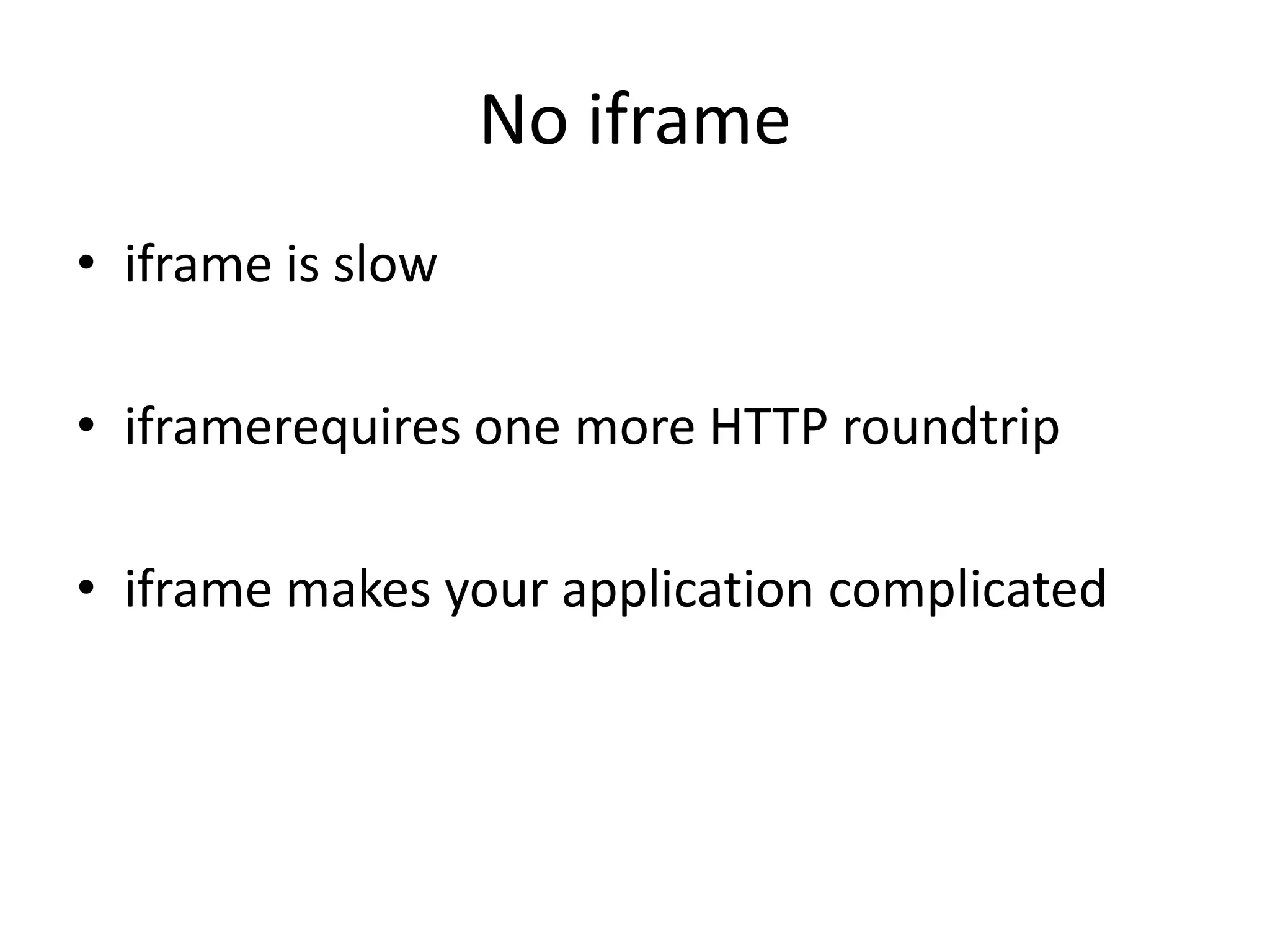

57. No iframeiframe is slowiframerequires one more HTTP roundtripiframe makes your application complicated

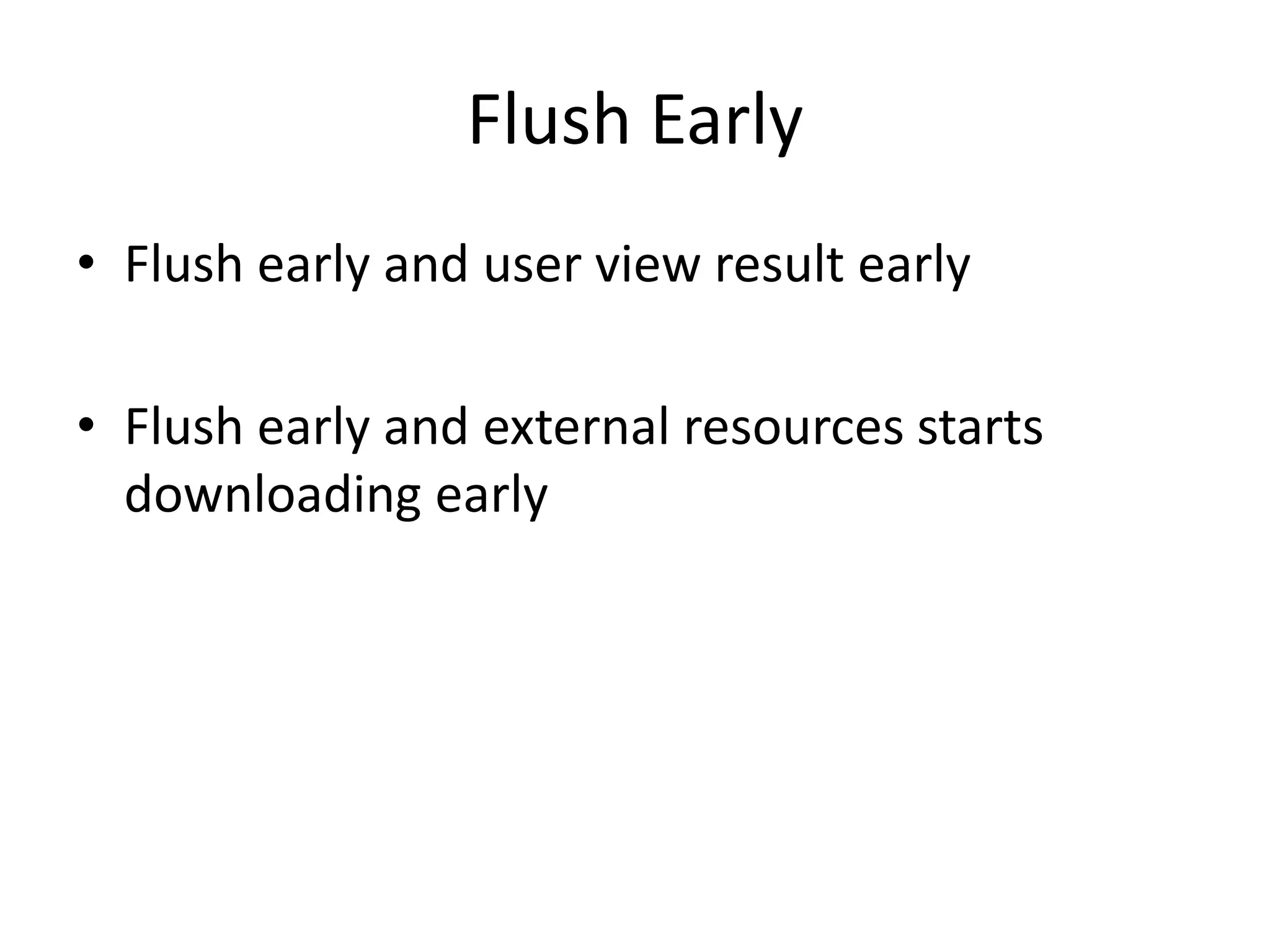

58. Flush Early Flush early and user view result earlyFlush early and external resources starts downloading early

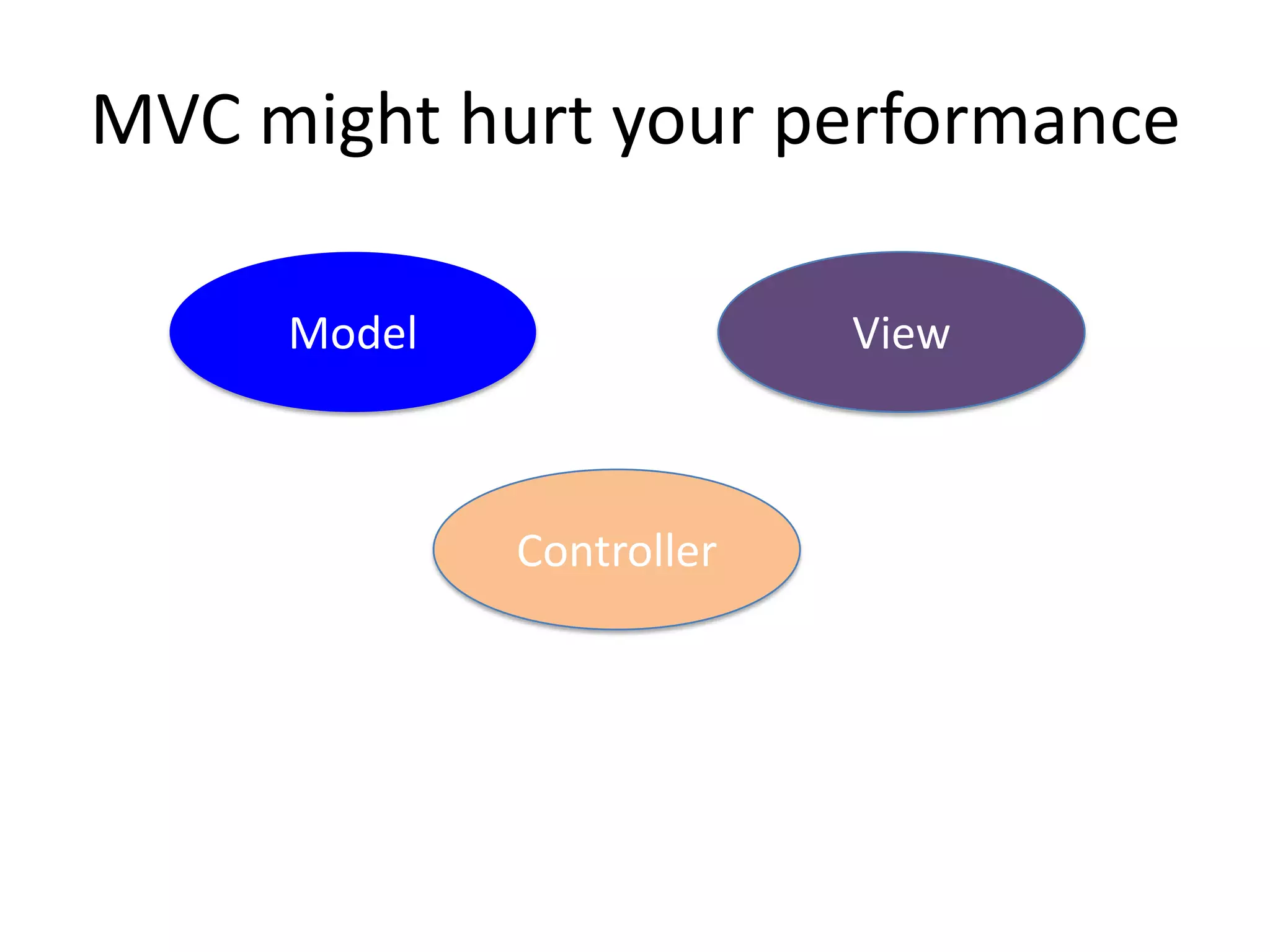

59. MVC might hurt your performanceModelViewController

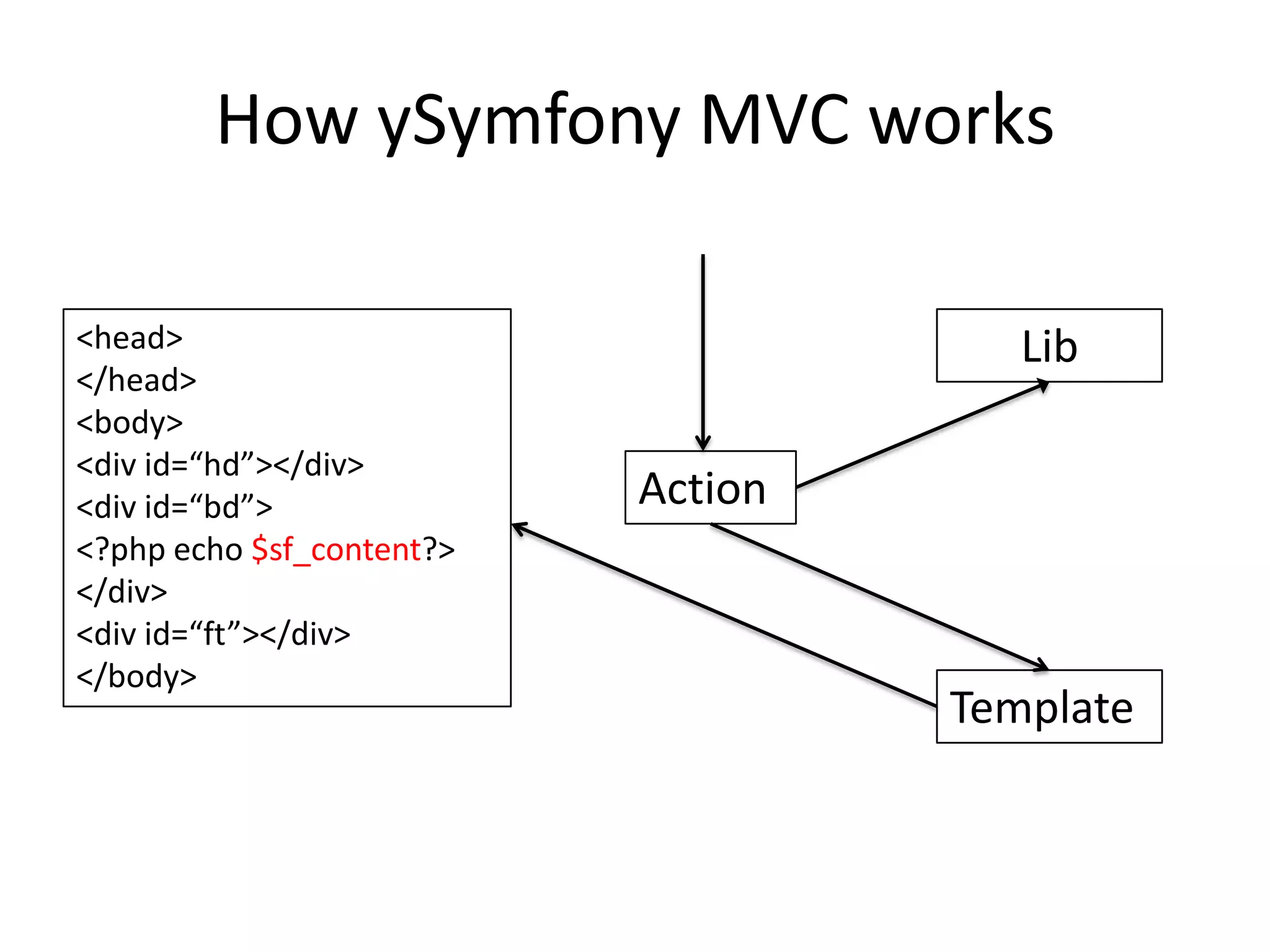

60. How ySymfony MVC works<head></head><body> <div id=“hd”></div> <div id=“bd”> <?php echo $sf_content?> </div> <div id=“ft”></div></body>LibActionTemplate

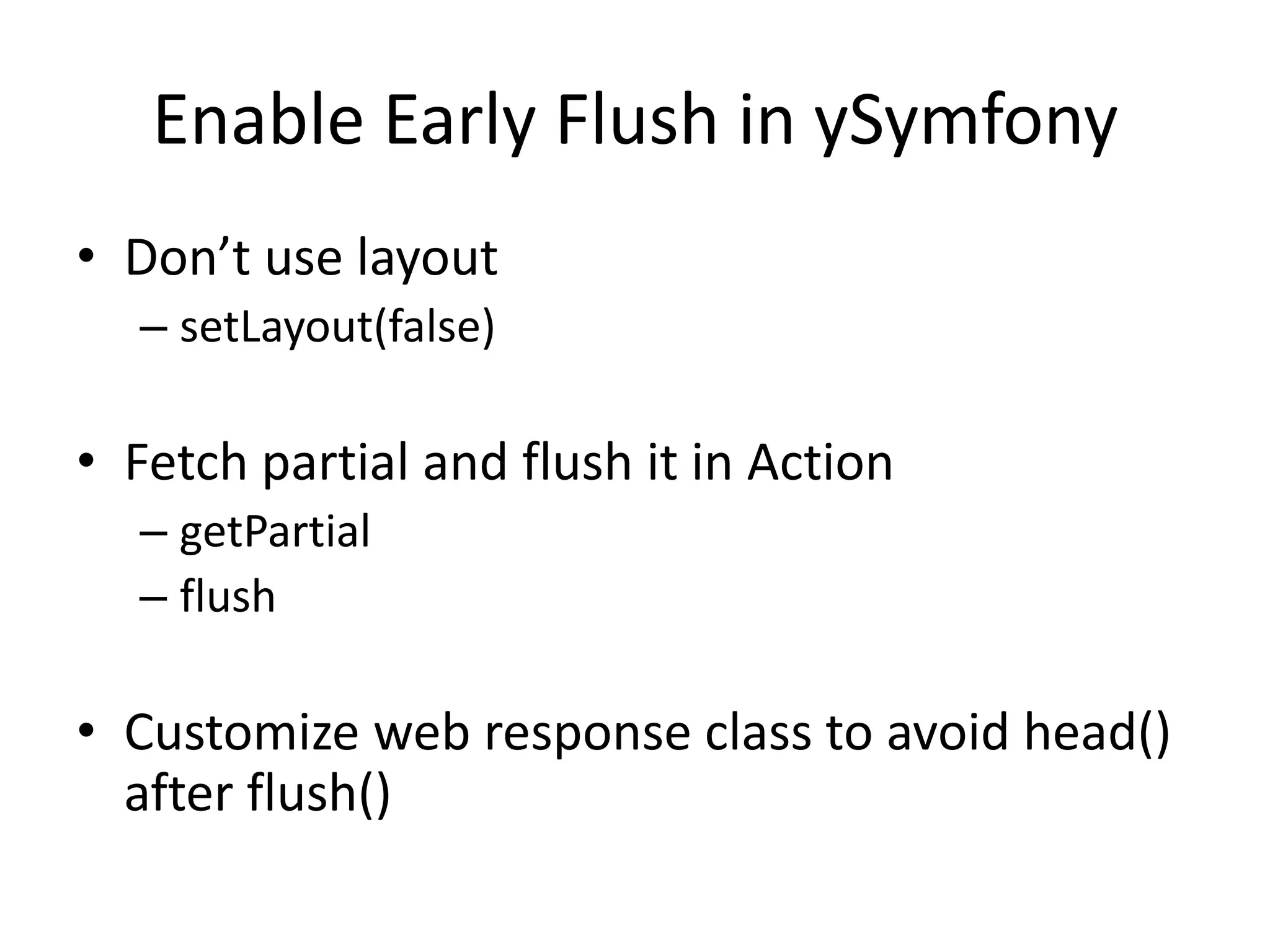

61. Enable Early Flush in ySymfonyDon’t use layoutsetLayout(false)Fetch partial and flush it in ActiongetPartialflushCustomize web response class to avoid head() after flush()

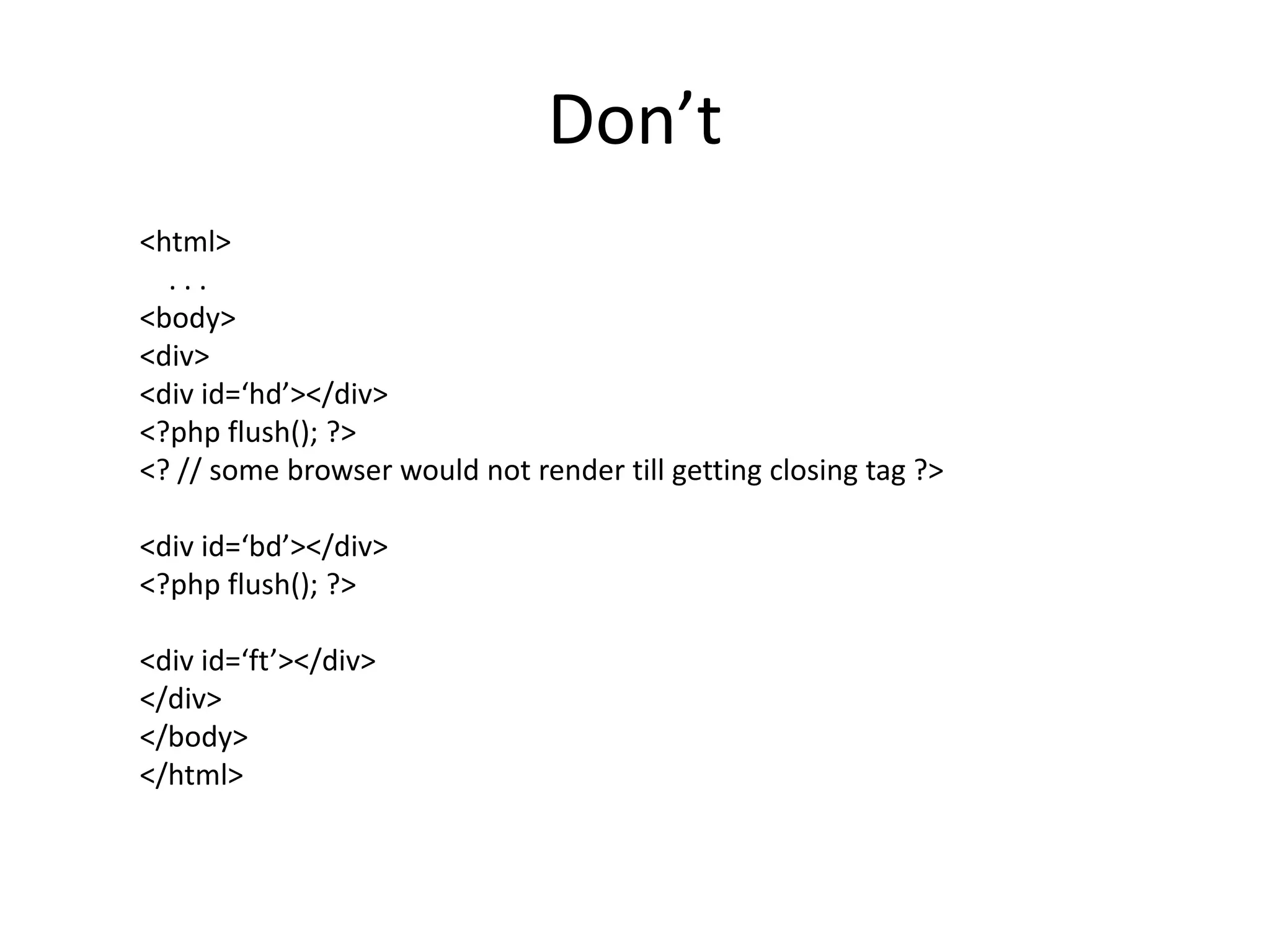

62. Don’t<html> . . . <body> <div> <div id=‘hd’></div> <?php flush(); ?> <? // some browser would not render till getting closing tag ?> <div id=‘bd’></div> <?php flush(); ?> <div id=‘ft’></div> </div> </body></html>

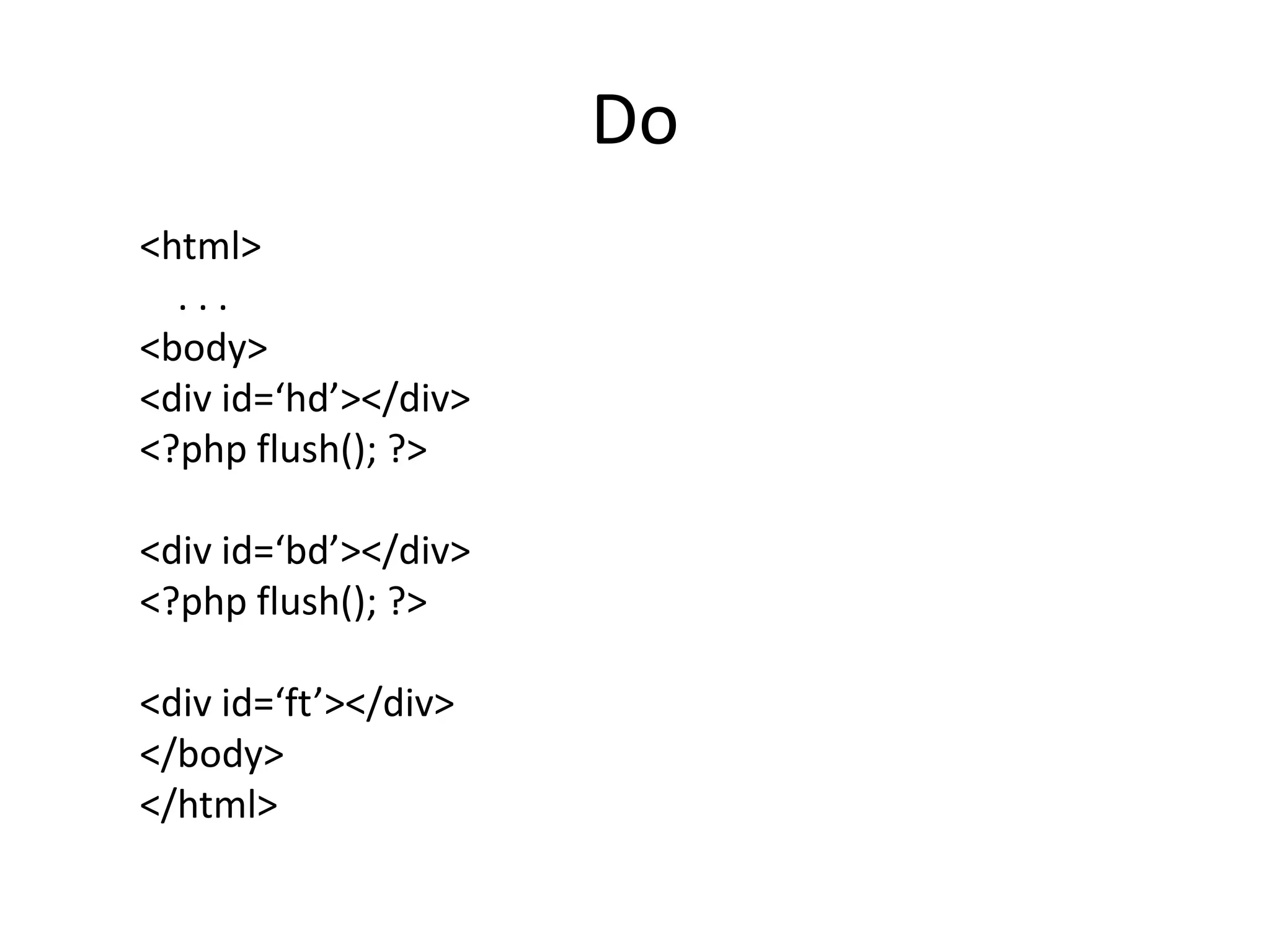

63. Do<html> . . . <body> <div id=‘hd’></div> <?php flush(); ?> <div id=‘bd’></div> <?php flush(); ?> <div id=‘ft’></div> </body></html>

64. JavaScript Loading Strategy

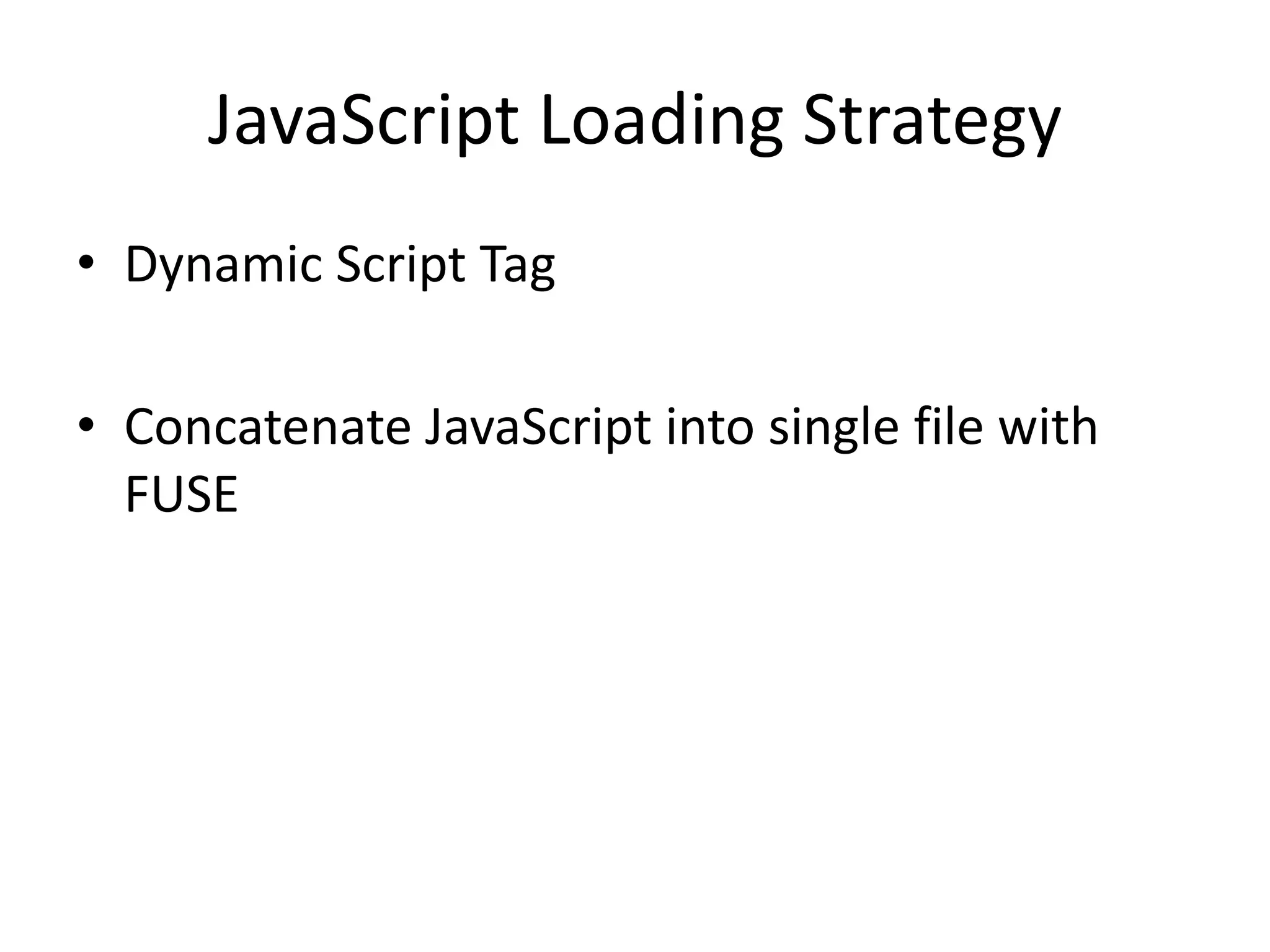

65. JavaScript Loading StrategyDynamic Script TagConcatenate JavaScript into single file with FUSE

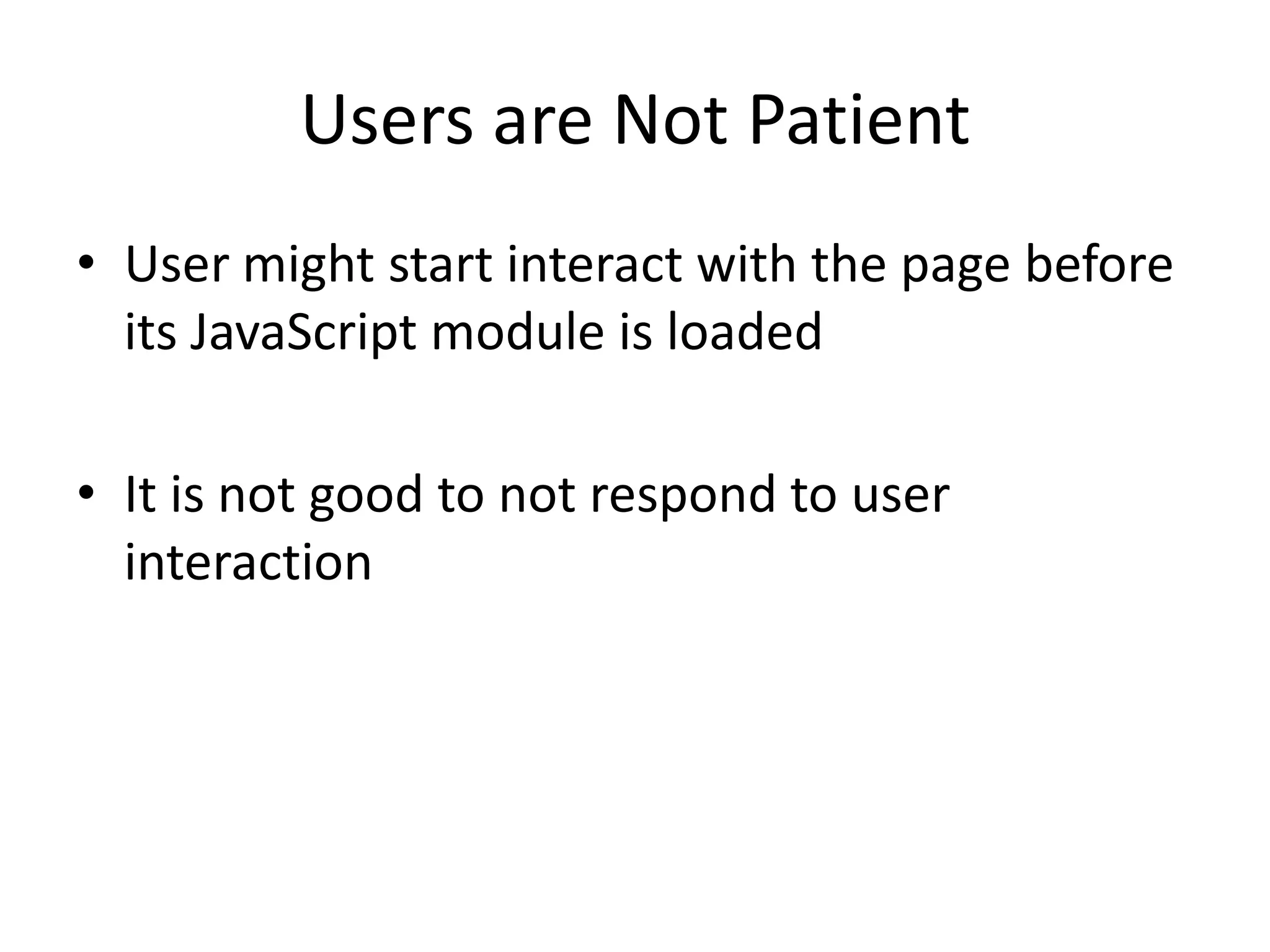

66. Users are Not PatientUser might start interact with the page before its JavaScript module is loadedIt is not good to not respond to user interaction

67. Put User Actions into Queue

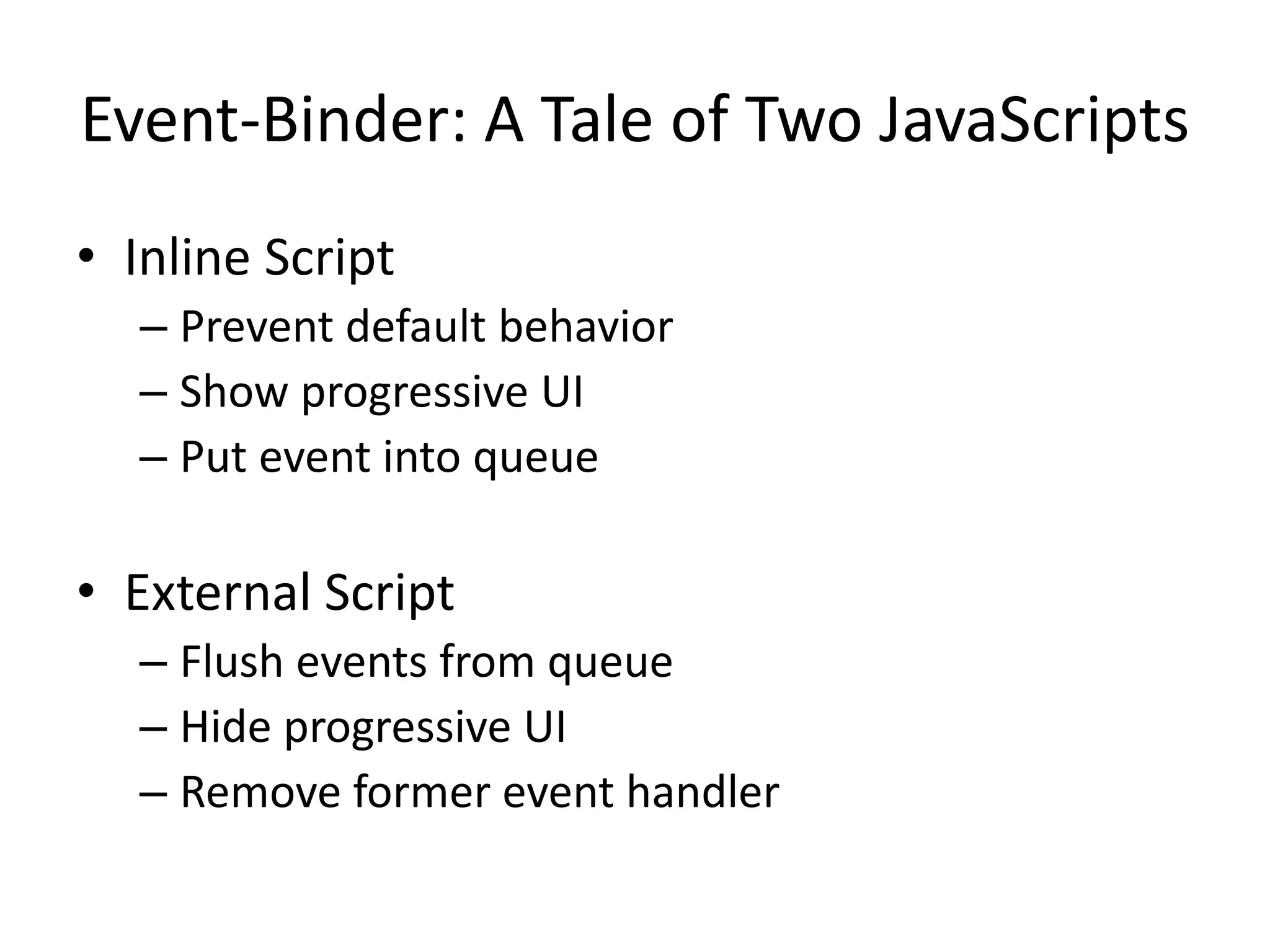

68. Event-Binder: A Tale of Two JavaScriptsInline ScriptPrevent default behaviorShow progressive UIPut event into queueExternal ScriptFlush events from queueHide progressive UIRemove former event handler

69. Just at Scratch Line

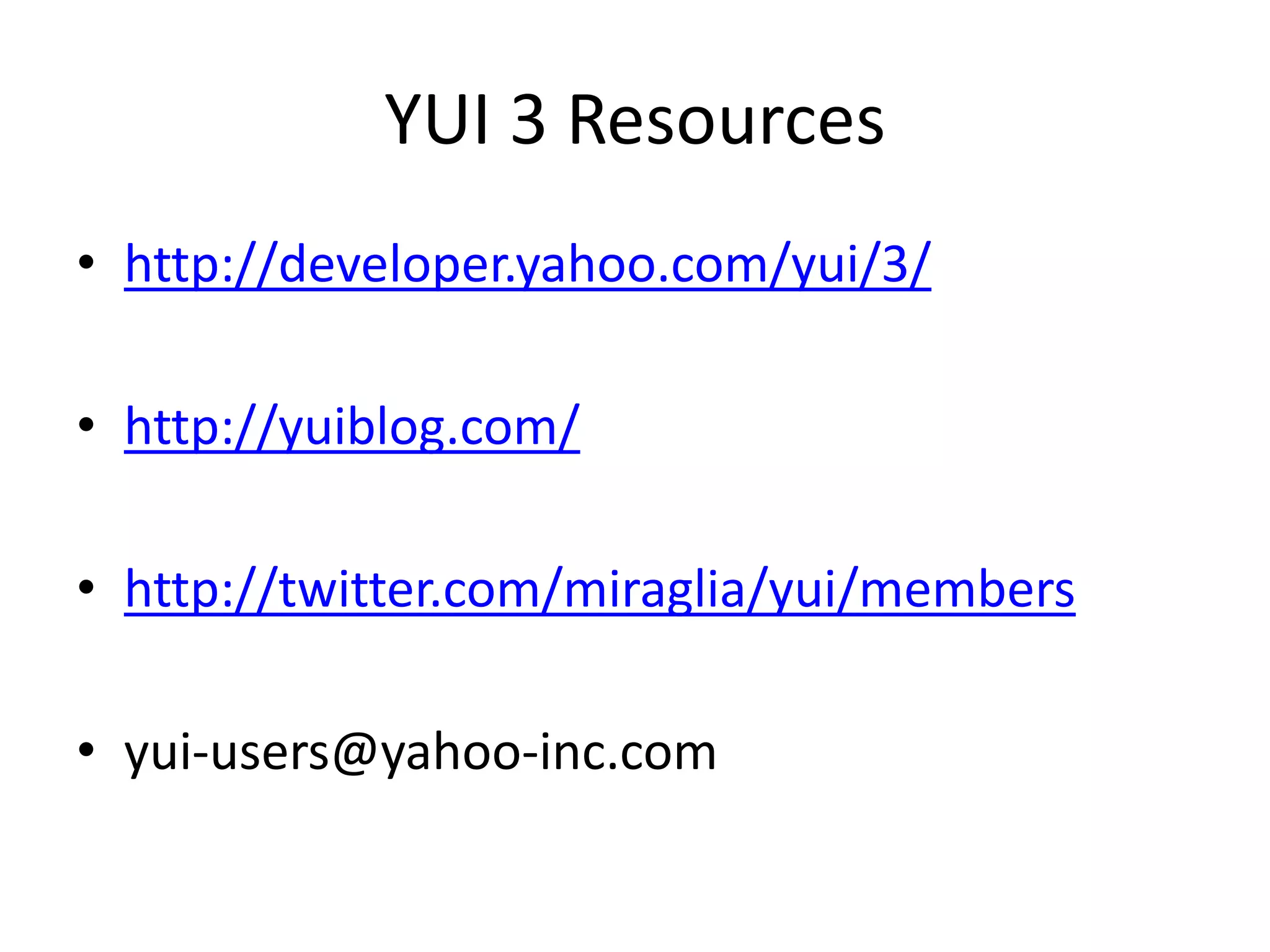

70. YUI 3 Resourceshttp://developer.yahoo.com/yui/3/http://yuiblog.com/http://twitter.com/miraglia/yui/membersyui-users@yahoo-inc.com

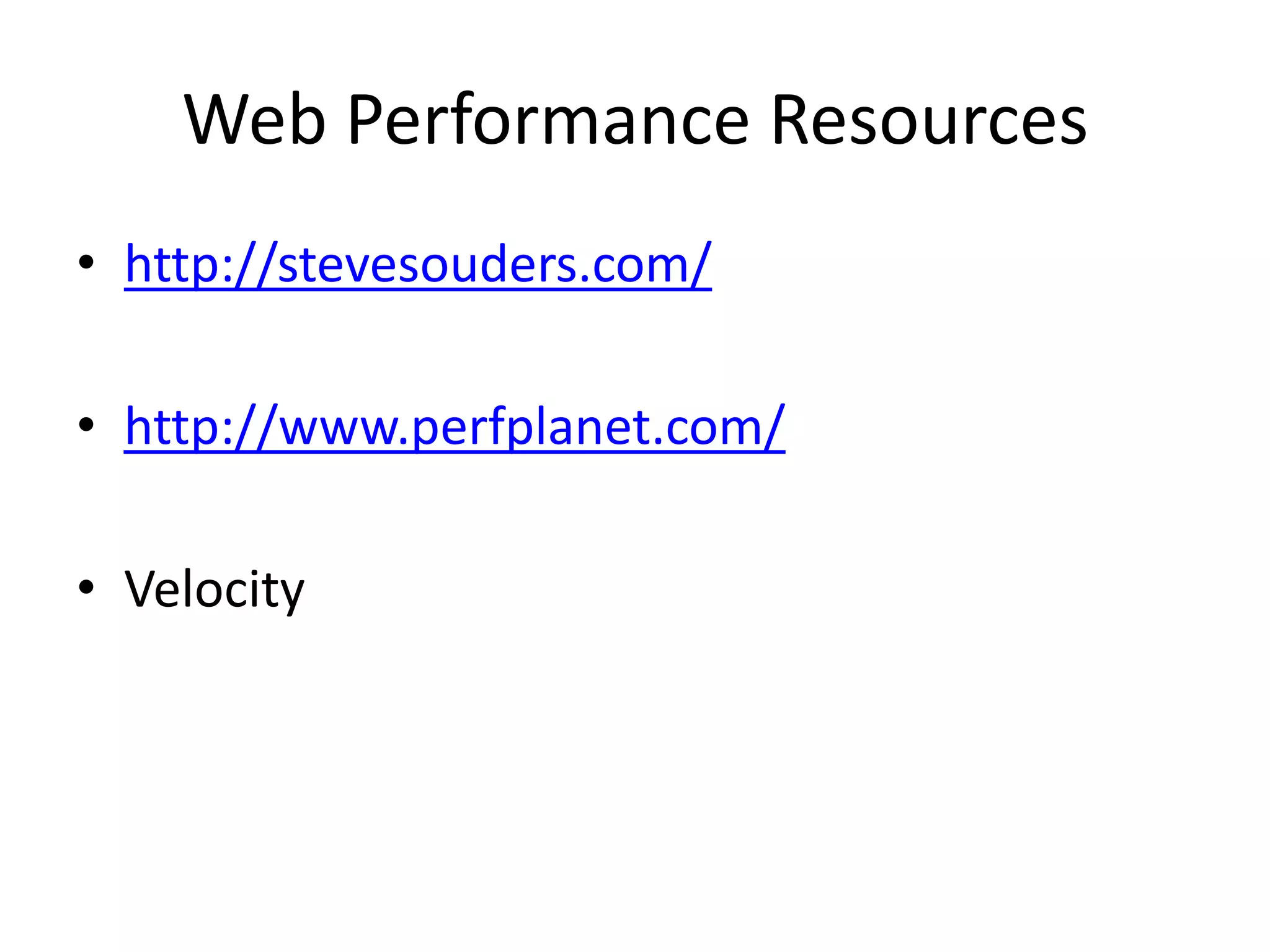

71. Web Performance Resourceshttp://stevesouders.com/http://www.perfplanet.com/Velocity

72. Thanks
