The document discusses Linux memory management architecture including NUMA, zones, buddy system, memory allocation and free APIs. It explains how Linux uses the buddy system to allocate and free pages from zones. Pages can be of different migrate types and the allocator may borrow from other types if necessary. The buddy system searches for free pages starting from the smallest order and may split or coalesce pages as needed.

1. Buddy System
5/1 OSDI

2. Big picture for Linux memory
management architecture
Source: https://blog.csdn.net/S_E_A_N/article/details/5829978

3. NUMA & Node
• NUMA (hardware perspective)
• Stands for Non-Uniform Memory Access model.
• Different CPU has different memory access time.
• Provide scalable memory bandwidth.
• Node (software perspective)
• Partition physical memory to different node for different CPU.
• Memory accesses to memory on “closer” nodes.
• Split node into different zone.

4. Core-API for memory management
• Allocate
• Free
void * kmalloc(size_t size, gfp_t flags)
void * vmalloc(unsigned long size)
Allocate memory that smaller than page size.
Allocate virtually contiguous memory.
Create a cache from slab allocator.void * kmem_cache_alloc
Free memory.
Deallocate an object.
void kvfree(const void * addr)
void kmem_cache_free

5. Data Structures

6. Zone & Zone Type
start index of mem_map belonging to zone
table of different order
gfp.h
mmzone.h
mmzone.h

7. Free Area & Page
link block of pages
store order in buddy system
number of free pages
link first page
mmzone.h
mm_types.h

8. mem_map
name
zone_start_pfn
free_area[MAX_ORDER]
…
zone
0
1
2
3
…
k
…
MAX_ORDER - 1
lru
free_list
page

9. Init

10. Every zone has its own free_area !
page_alloc.c

11. • Init free_list
• Empty nr_free
page_alloc.c

12. Allocate Page

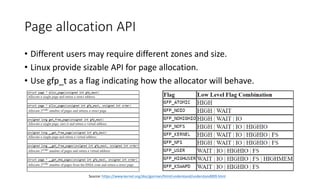

13. Page allocation API
• Different users may require different zones and size.
• Linux provide sizable API for page allocation.
• Use gfp_t as a flag indicating how the allocator will behave.
Source: https://www.kernel.org/doc/gorman/html/understand/understand009.html

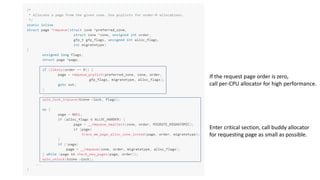

14. If the request page order is zero,
call per-CPU allocator for high performance.
Enter critical section, call buddy allocator
for requesting page as small as possible.

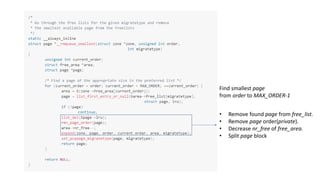

15. Find smallest page
from order to MAX_ORDER-1
• Remove found page from free_list.
• Remove page order(private).
• Decrease nr_free of free_area.
• Split page block

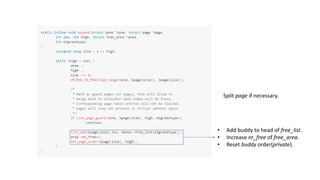

16. Split page if necessary.
• Add buddy to head of free_list.
• Increase nr_free of free_area.
• Reset buddy order(private).

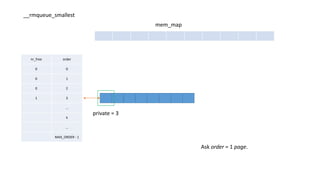

17. nr_free order
0 0
0 1
0 2
1 3
…
k
…
MAX_ORDER - 1
mem_map
Ask order = 1 page.
private = 3
__rmqueue_smallest

18. nr_free order
0 0
0 1
0 2
1 3
…
k
…
MAX_ORDER - 1
mem_map
1. free_list is empty.
2. Try next order.
private = 3
current_order
__rmqueue_smallest

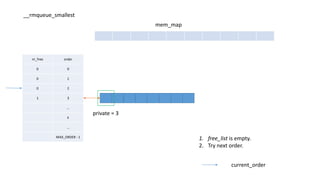

19. nr_free order
0 0
0 1
0 2
1 3
…
k
…
MAX_ORDER - 1
mem_map
private = 3
current_order
1. free_list is empty.
2. Try next order.
__rmqueue_smallest

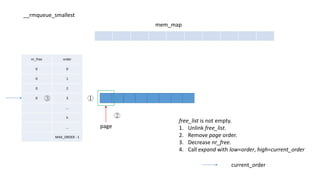

20. nr_free order
0 0
0 1
0 2
0 3
…
k
…
MAX_ORDER - 1
mem_map
free_list is not empty.
1. Unlink free_list.
2. Remove page order.
3. Decrease nr_free.
4. Call expand with low=order, high=current_order
page
current_order
①
②
③
__rmqueue_smallest

21. mem_map
*area
high: 3
low: 1
size: 8
page
nr_free order
0 0
0 1
0 2
0 3
…
k
…
MAX_ORDER - 1
expand

22. nr_free order
0 0
0 1
1 2
0 3
…
k
…
MAX_ORDER - 1
mem_map
*area
high: 2
low: 1
size: 4
1. area point to previous order.
2. Decrease high.
3. Half size.
4. Add buddy to free_list.
5. Increase nr_free.
6. Reset page order.
page
private = 2
①
②
③
④
⑤
⑥
expand
page + 4

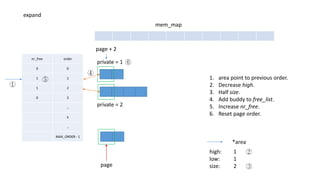

23. nr_free order
0 0
1 1
1 2
0 3
…
k
…
MAX_ORDER - 1
mem_map
*area
high: 1
low: 1
size: 2
1. area point to previous order.
2. Decrease high.
3. Half size.
4. Add buddy to free_list.
5. Increase nr_free.
6. Reset page order.
page
private = 1
private = 2
①
⑤
④
⑥
②
③
expand
page + 2

24. Free Page

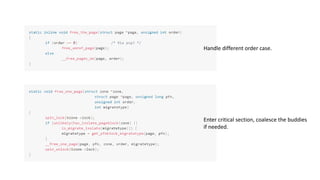

25. Handle different order case.
Enter critical section, coalesce the buddies
if needed.

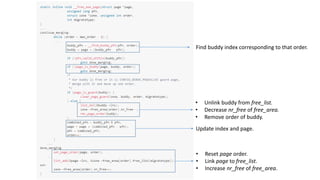

26. • Unlink buddy from free_list.
• Decrease nr_free of free_area.
• Remove order of buddy.
Update index and page.
Find buddy index corresponding to that order.
• Reset page order.
• Link page to free_list.
• Increase nr_free of free_area.

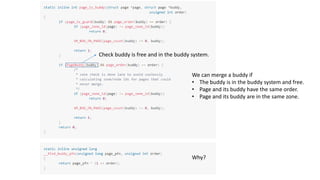

27. We can merge a buddy if
• The buddy is in the buddy system and free.
• Page and its buddy have the same order.
• Page and its buddy are in the same zone.
Check buddy is free and in the buddy system.
Why?

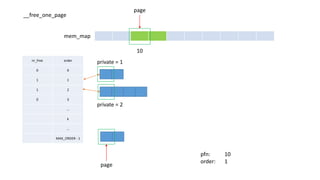

28. nr_free order
0 0
1 1
1 2
0 3
…
k
…
MAX_ORDER - 1
mem_map
page
private = 1
private = 2
pfn: 10
order: 1
10
page
__free_one_page

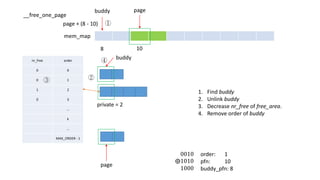

29. nr_free order
0 0
0 1
1 2
0 3
…
k
…
MAX_ORDER - 1
mem_map
page
private = 2
order: 1
pfn: 10
buddy_pfn: 8
10
0010
⨁1010
1000
8
buddy
page
buddy
1. Find buddy
2. Unlink buddy
3. Decrease nr_free of free_area.
4. Remove order of buddy
④
①
②③
page + (8 - 10)
__free_one_page

30. nr_free order
0 0
0 1
1 2
0 3
…
k
…
MAX_ORDER - 1
mem_map
private = 2
order: 2
pfn: 10
buddy_pfn: 8
combined_pfn: 8
8
page
1010
∧ 1000
1000
page
1. Update page.
2. Update pfn.
3. Increase order.
①
②③
8
__free_one_page

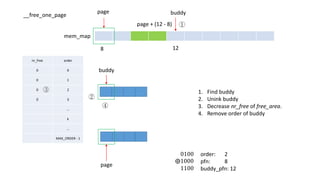

31. nr_free order
0 0
0 1
0 2
0 3
…
k
…
MAX_ORDER - 1
mem_map
page
8
buddy
buddy
1. Find buddy
2. Unink buddy
3. Decrease nr_free of free_area.
4. Remove order of buddy
page
①
②
③
④
order: 2
pfn: 8
buddy_pfn: 12
0100
⨁1000
1100
12
page + (12 - 8)
__free_one_page

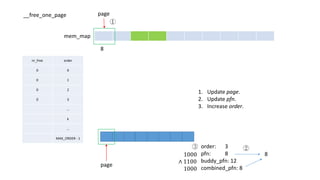

32. nr_free order
0 0
0 1
0 2
0 3
…
k
…
MAX_ORDER - 1
mem_map
8
1. Update page.
2. Update pfn.
3. Increase order.
page
page
①
order: 3
pfn: 8
buddy_pfn: 12
combined_pfn: 8
1000
∧ 1100
1000
②③
8
__free_one_page

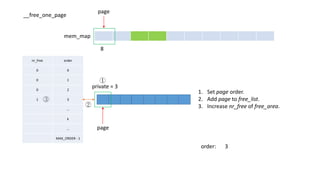

33. nr_free order
0 0
0 1
0 2
1 3
…
k
…
MAX_ORDER - 1
mem_map
8
1. Set page order.
2. Add page to free_list.
3. Increase nr_free of free_area.
page
page
private = 3
①
②
③
order: 3
__free_one_page

34. Migrate Type

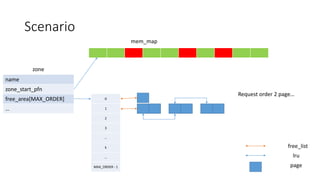

35. Scenario
mem_map
name
zone_start_pfn
free_area[MAX_ORDER]
…
zone
0
1
2
3
…
k
…
MAX_ORDER - 1
lru
free_list
page
Request order 2 page…

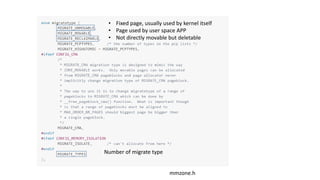

36. Number of migrate type
mmzone.h
• Fixed page, usually used by kernel itself
• Page used by user space APP
• Not directly movable but deletable

37. mem_map
name
zone_start_pfn
free_area[MAX_ORDER]
…
zone
0
1
2
3
…
k
…
MAX_ORDER - 1
lru
free_list
page
MIGRATE_UNMOVABLE
MIGRATE_MOVABLE
MIGRATE_RECLAIMABLE

38. Init all page as MIGRATE_MOVABLE.
page_alloc.c

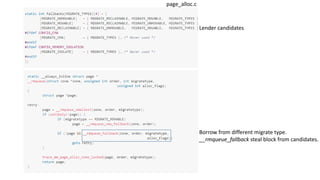

39. page_alloc.c
Lender candidates
Borrow from different migrate type.
__rmqueue_fallback steal block from candidates.

40. The End

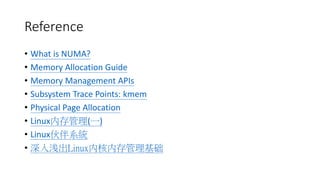

41. Reference
• What is NUMA?
• Memory Allocation Guide
• Memory Management APIs
• Subsystem Trace Points: kmem
• Physical Page Allocation
• Linux内存管理(一)
• Linux伙伴系統
• 深入浅出Linux内核内存管理基础
