Bs webgl소모임004

WebGL 입문4
초미니? 2D엔진 만들기!
ProjectBS – WebGL 소모임

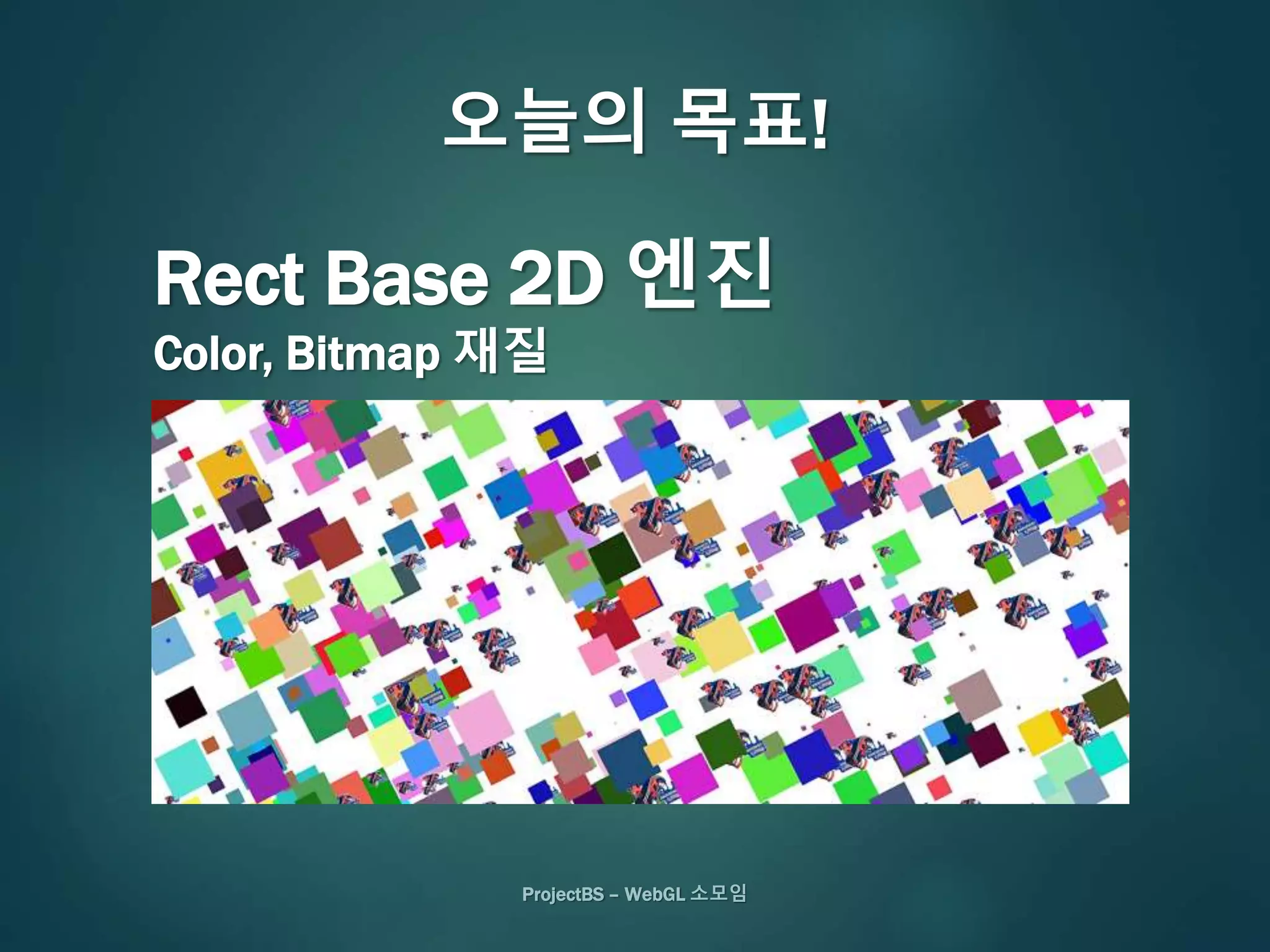

오늘의 목표!
Rect Base 2D 엔진
Color, Bitmap 재질

TODO LIST!
1. 초기화!
2. 쉐이더파서!
3. 버퍼생성기!
4. 텍스쳐생성기!
5. 메쉬구조체!
6. 재질구조체!
7. 루프관리!
8. 렌더러!

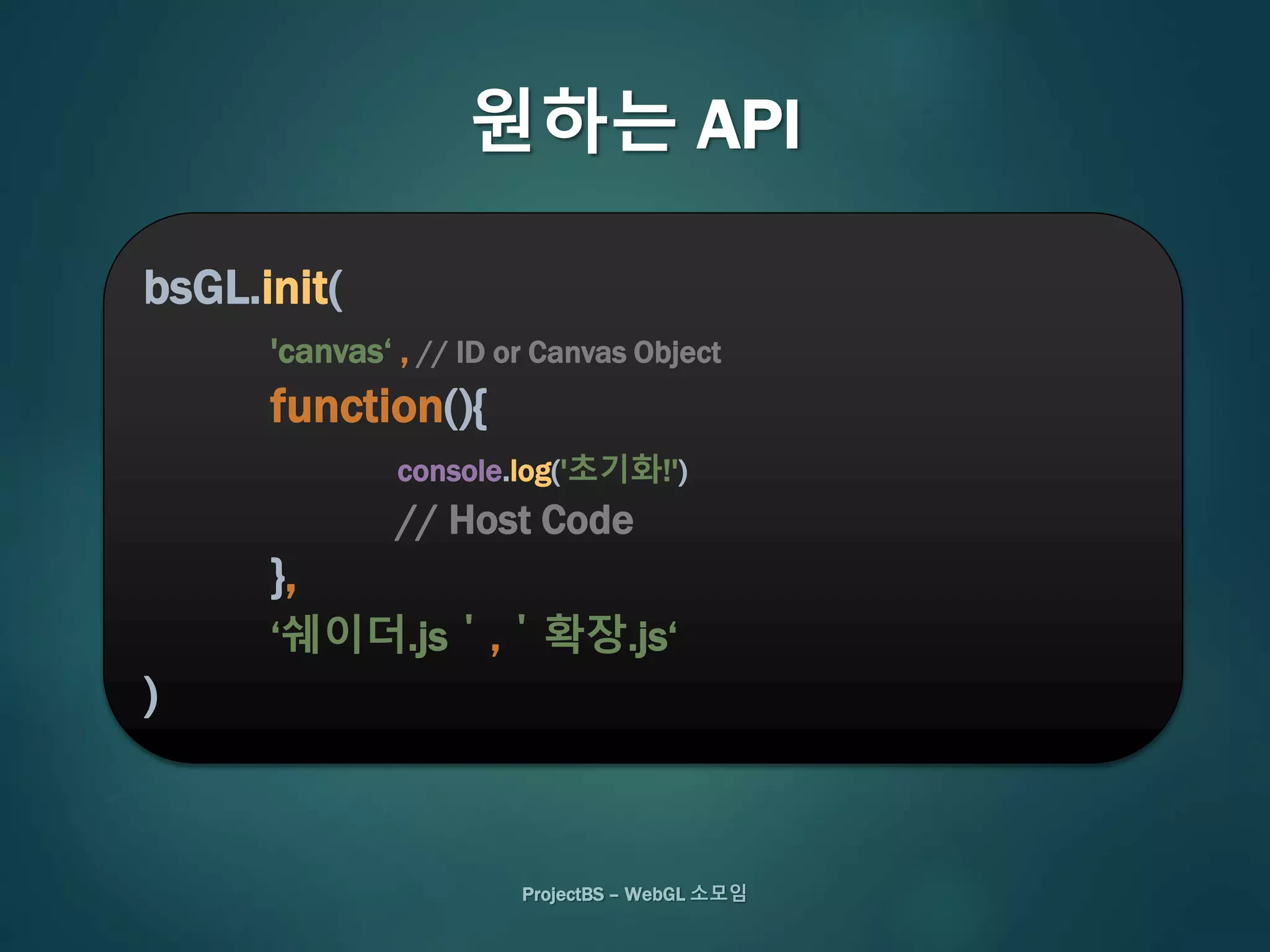

원하는 API
bsGL.init(
'canvas‘ , // ID or Canvas Object
function(){
console.log('초기화!')
// Host Code
},
‘쉐이더.js＇,＇확장.js‘
)

bsGL.init(
'canvas‘ , // ID or Canvas Object
function(){
console.log('초기화!')
// Host Code
},
‘쉐이더.js＇,＇확장.js‘
)
Gl객체 찾기
확장,
쉐이더.js
로딩 / 파싱
호스트 실행

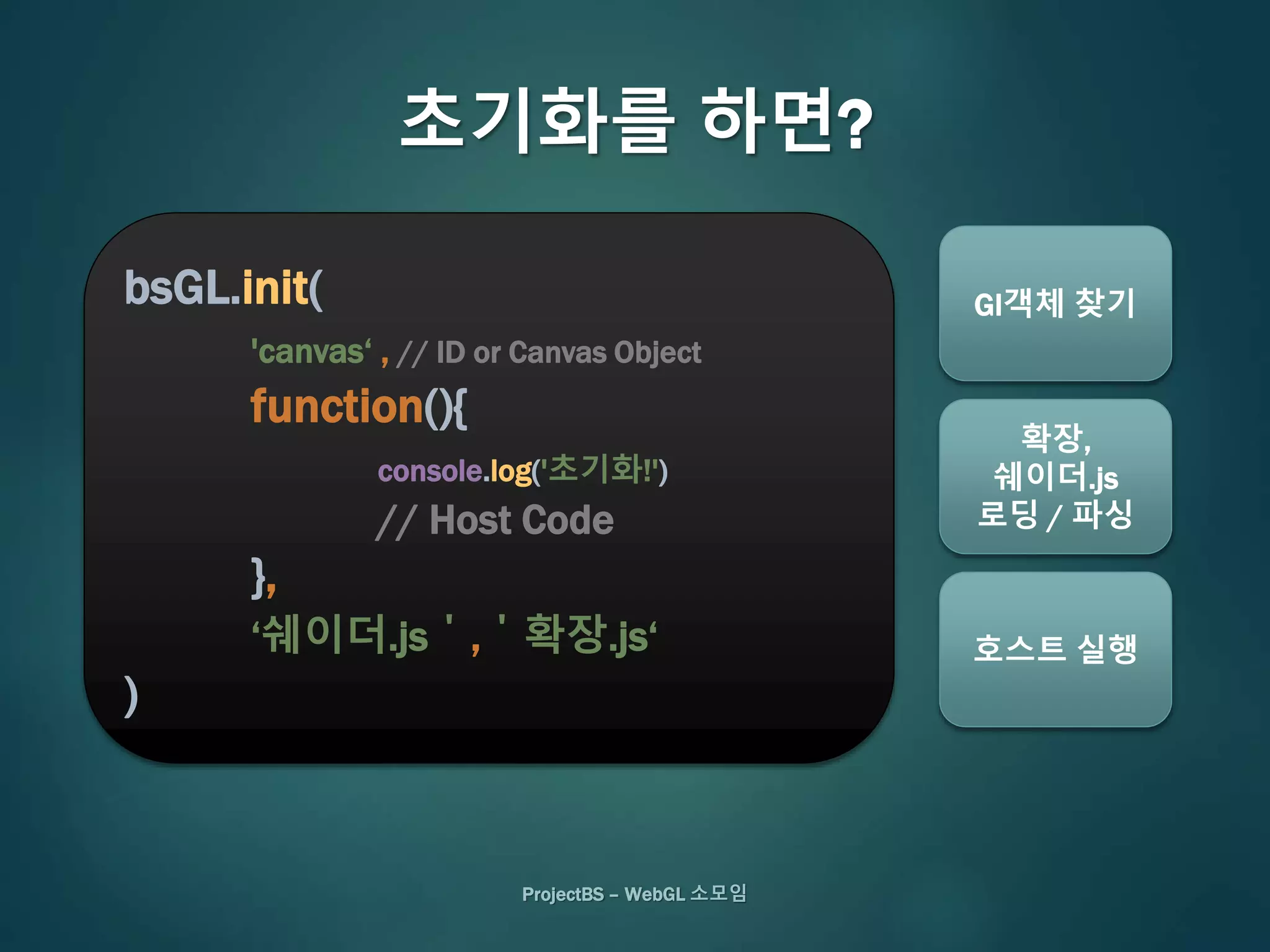

초기화를 하면?

var bsGL = (function () {
var W = window, DOC = document, HEAD = DOC.getElementsByTagName('head')[0];
var API = {
gl: null, cvs: null,
VBOS: {}, UVBOS: {}, IBOS: {}, // 버퍼관리용 공간
PROGRAMS: {}, TEXTURES: {}, // 프로그램 텍스쳐 공간
LOOPS: {}, // 루프를 관리할 공간
SHADER_SOURCES: {}, // 파싱된 쉐이더를 관리할 공간
children: [], // 루트의 자식객체를 관리할 공간
init: function ($cvs, $func) {
// 먼가 실행
}
}
return API
})();
가볍게 엔진구조체 생각!
bsGL.init(~~~)
bsGL.children.push(~~~)

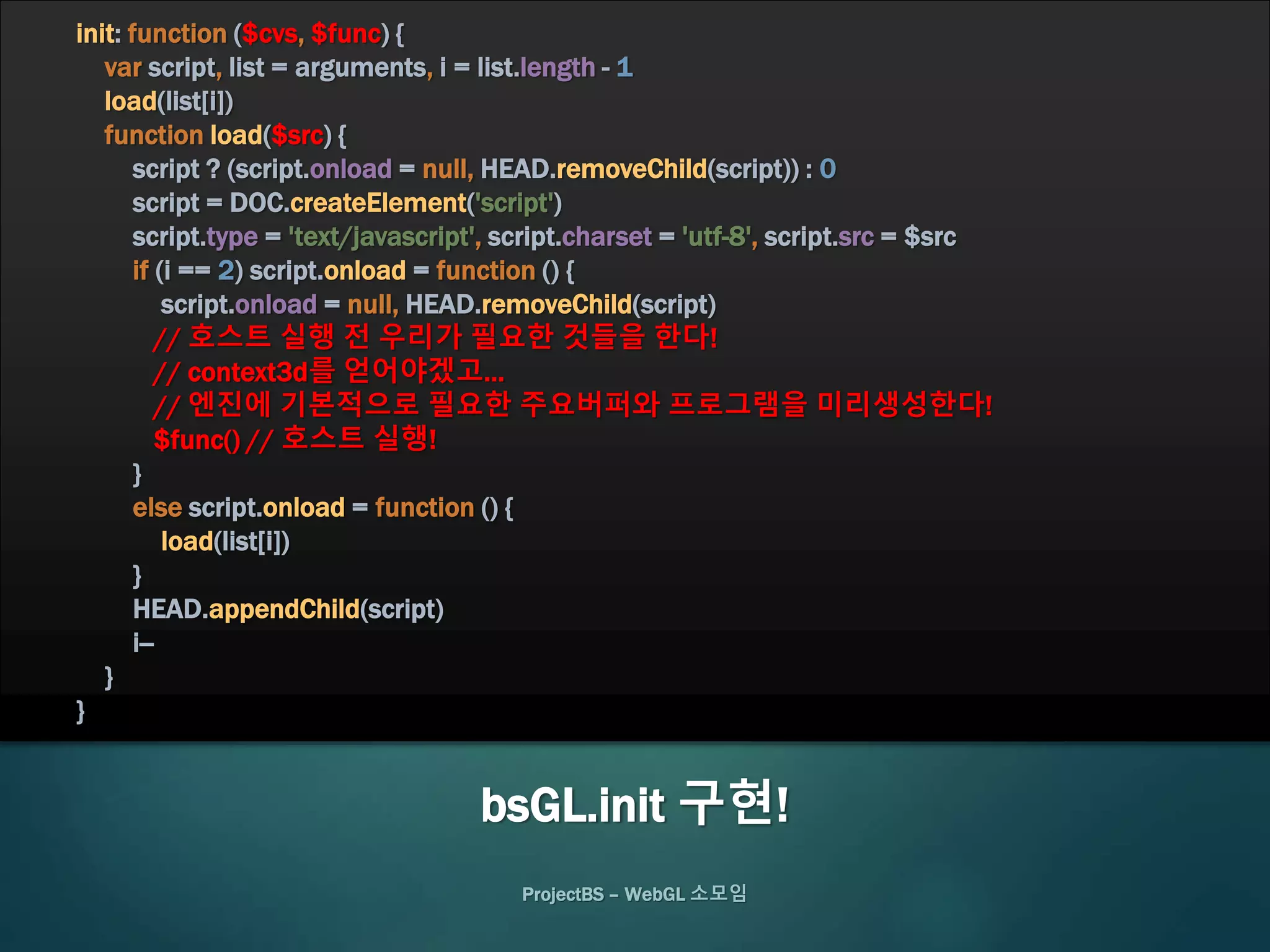

bsGL.init 구현!
init: function ($cvs, $func) {
var script, list = arguments, i = list.length - 1
load(list[i])
function load($src) {
script ? (script.onload = null, HEAD.removeChild(script)) : 0
script = DOC.createElement('script')
script.type = 'text/javascript', script.charset = 'utf-8', script.src = $src
if (i == 2) script.onload = function () {
script.onload = null, HEAD.removeChild(script)
// 호스트 실행 전 우리가 필요한 것들을 한다!
// context3d를 얻어야겠고…
// 엔진에 기본적으로 필요한 주요버퍼와 프로그램을 미리생성한다!
$func() // 호스트 실행!
}
else script.onload = function () {
load(list[i])
}
HEAD.appendChild(script)
i--
}
}

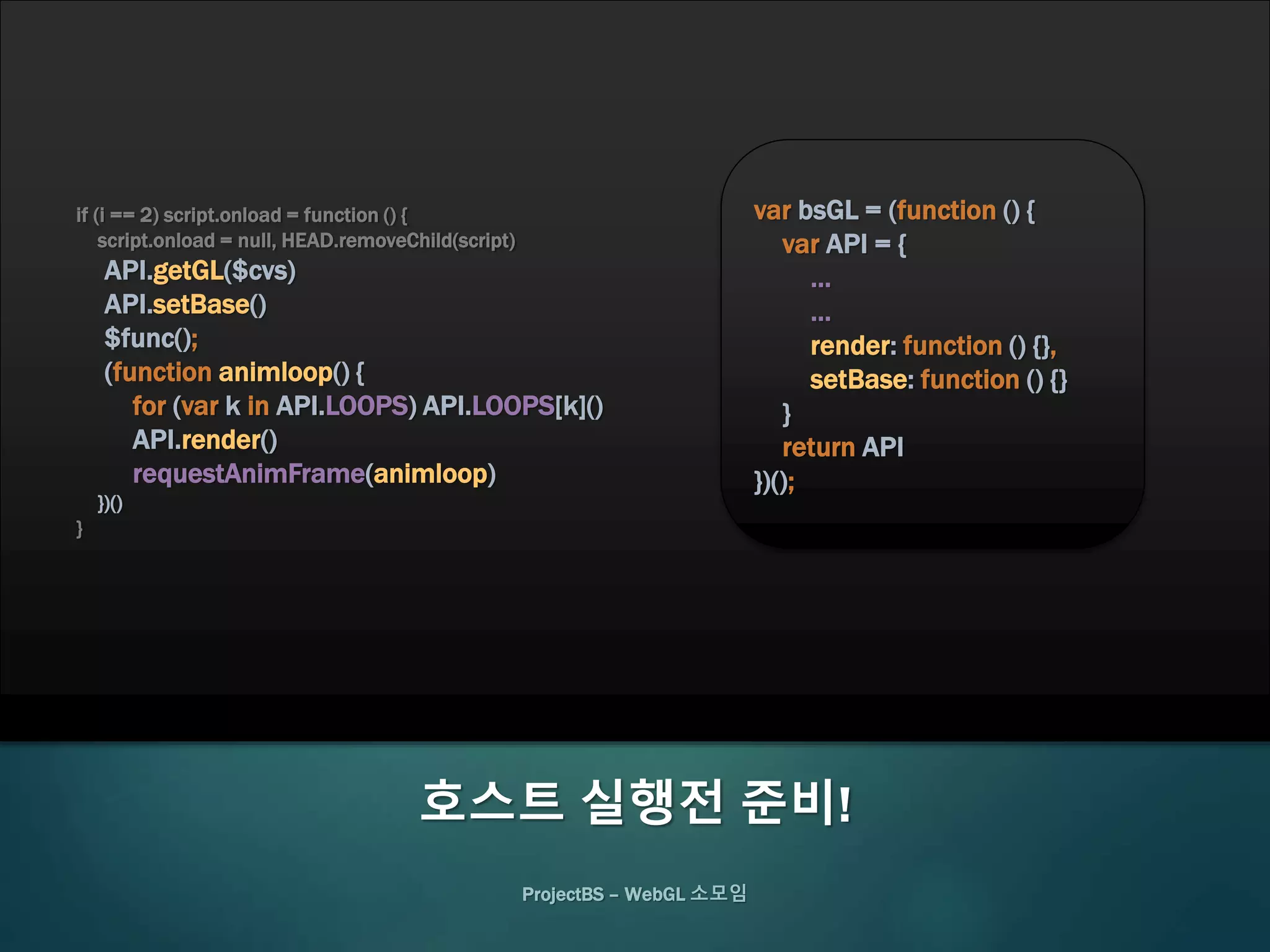

호스트 실행전 준비!
if (i == 2) script.onload = function () {
script.onload = null, HEAD.removeChild(script)
API.getGL($cvs)
API.setBase()
$func();
(function animloop() {
for (var k in API.LOOPS) API.LOOPS[k]()
API.render()
requestAnimFrame(animloop)
})()
}
var bsGL = (function () {
var API = {
…
…
render: function () {},
setBase: function () {}
}
return API
})();

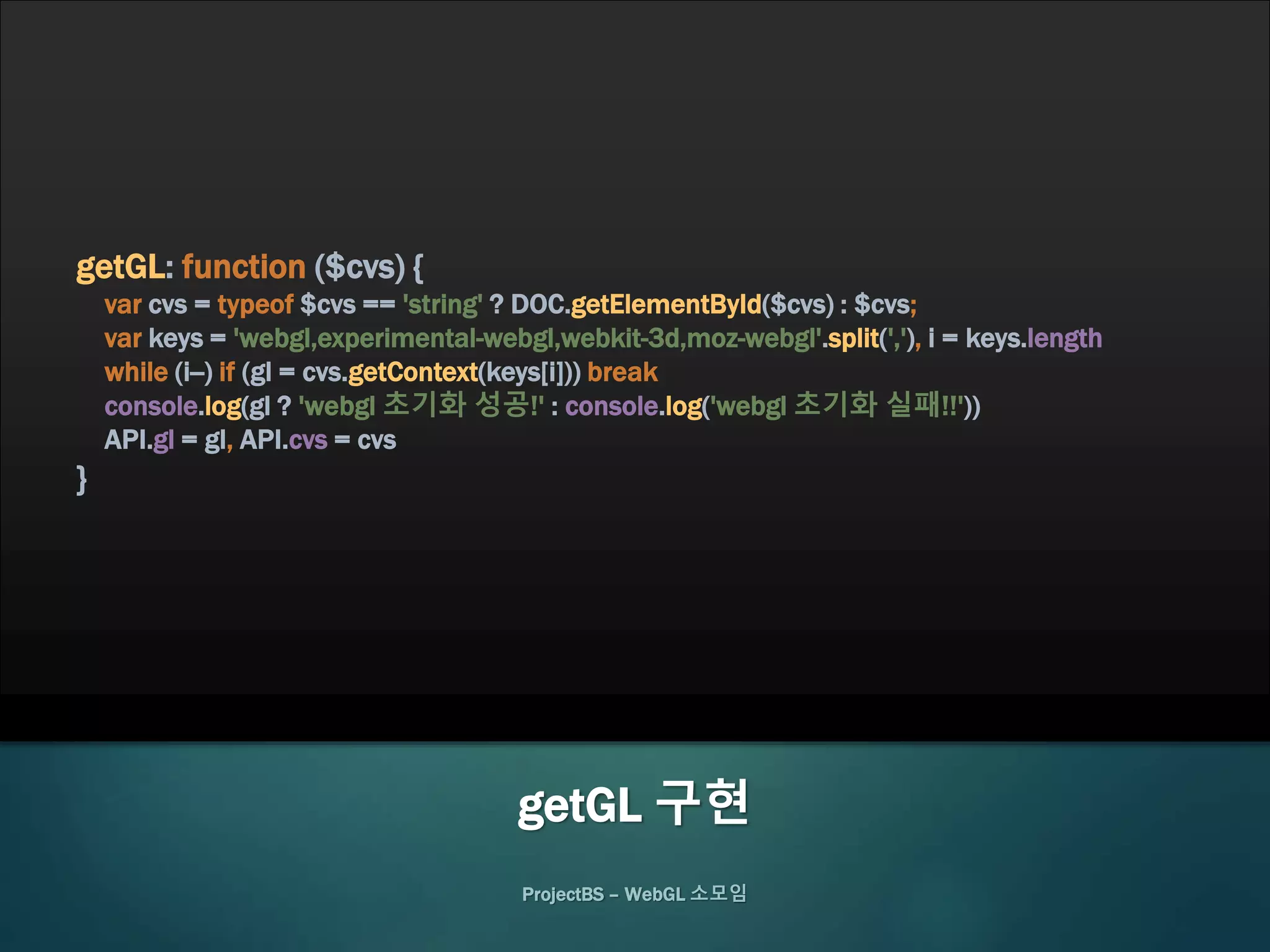

getGL 구현
getGL: function ($cvs) {
var cvs = typeof $cvs == 'string' ? DOC.getElementById($cvs) : $cvs;
var keys = 'webgl,experimental-webgl,webkit-3d,moz-webgl'.split(','), i = keys.length
while (i--) if (gl = cvs.getContext(keys[i])) break
console.log(gl ? 'webgl 초기화 성공!' : console.log('webgl 초기화 실패!!'))
API.gl = gl, API.cvs = cvs
}

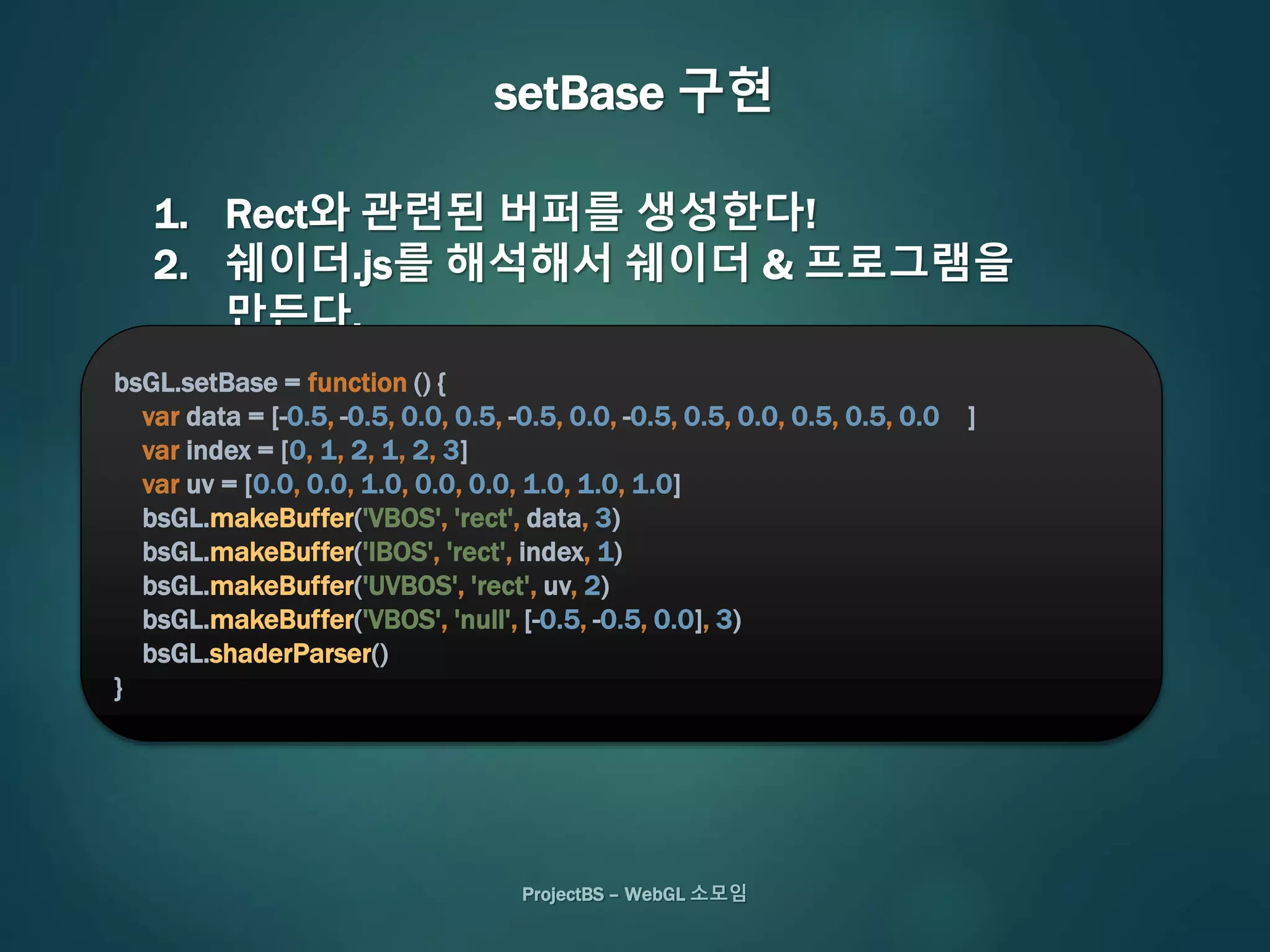

setBase 구현
1. Rect와 관련된 버퍼를 생성한다!
2. 쉐이더.js를 해석해서 쉐이더 & 프로그램을
만든다.
bsGL.setBase = function () {
var data = [-0.5, -0.5, 0.0, 0.5, -0.5, 0.0, -0.5, 0.5, 0.0, 0.5, 0.5, 0.0 ]
var index = [0, 1, 2, 1, 2, 3]
var uv = [0.0, 0.0, 1.0, 0.0, 0.0, 1.0, 1.0, 1.0]
bsGL.makeBuffer('VBOS', 'rect', data, 3)
bsGL.makeBuffer('IBOS', 'rect', index, 1)
bsGL.makeBuffer('UVBOS', 'rect', uv, 2)
bsGL.makeBuffer('VBOS', 'null', [-0.5, -0.5, 0.0], 3)
bsGL.shaderParser()
}

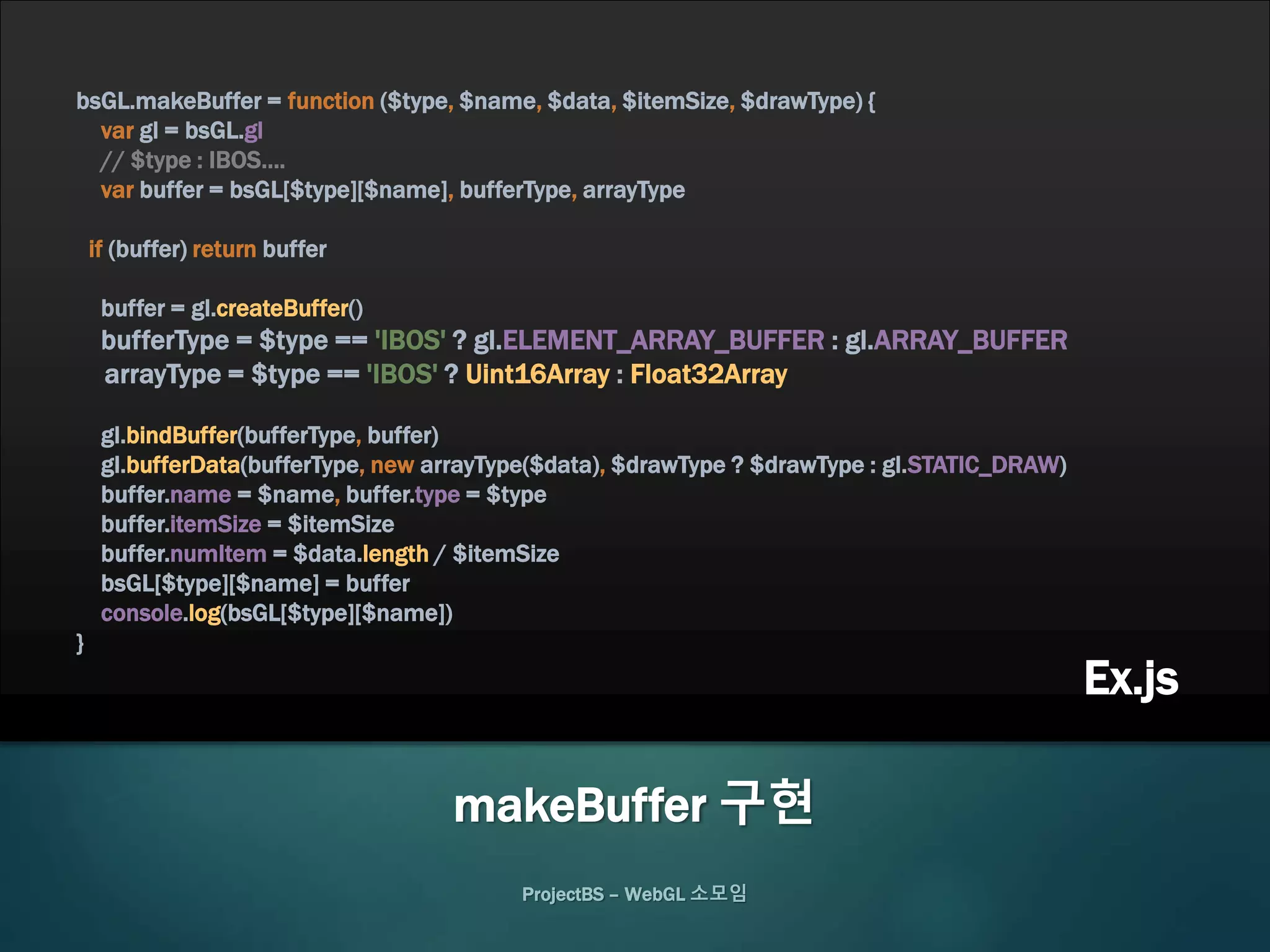

makeBuffer 구현
bsGL.makeBuffer = function ($type, $name, $data, $itemSize, $drawType) {
var gl = bsGL.gl
// $type : IBOS….
var buffer = bsGL[$type][$name], bufferType, arrayType
if (buffer) return buffer
buffer = gl.createBuffer()
bufferType = $type == 'IBOS' ? gl.ELEMENT_ARRAY_BUFFER : gl.ARRAY_BUFFER
arrayType = $type == 'IBOS' ? Uint16Array : Float32Array
gl.bindBuffer(bufferType, buffer)
gl.bufferData(bufferType, new arrayType($data), $drawType ? $drawType : gl.STATIC_DRAW)
buffer.name = $name, buffer.type = $type
buffer.itemSize = $itemSize
buffer.numItem = $data.length / $itemSize
bsGL[$type][$name] = buffer
console.log(bsGL[$type][$name])
}
Ex.js

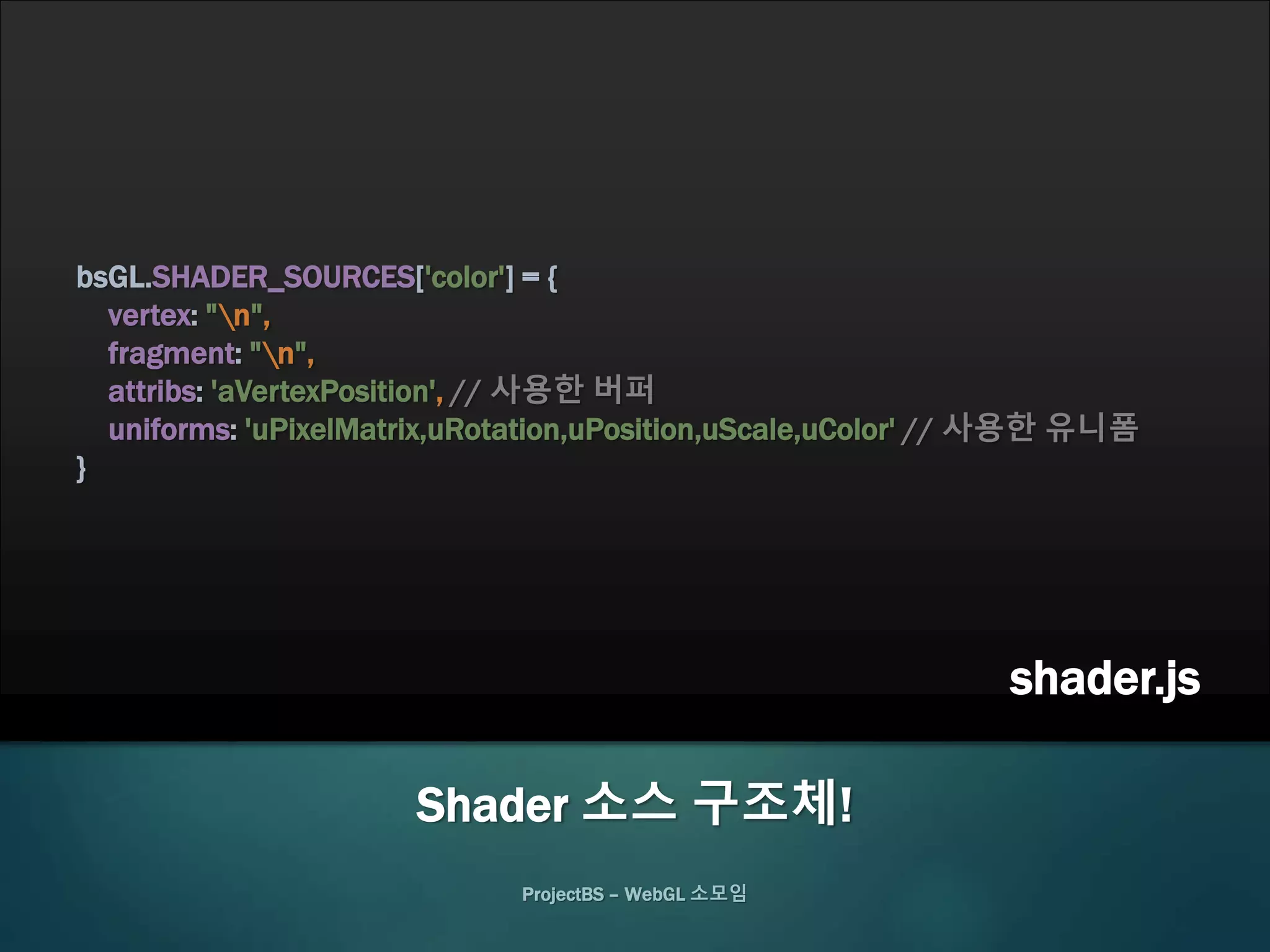

Shader 소스 구조체!
bsGL.SHADER_SOURCES['color'] = {
vertex: "n",
fragment: "n",
attribs: 'aVertexPosition', // 사용한 버퍼
uniforms: 'uPixelMatrix,uRotation,uPosition,uScale,uColor' // 사용한 유니폼
}
shader.js

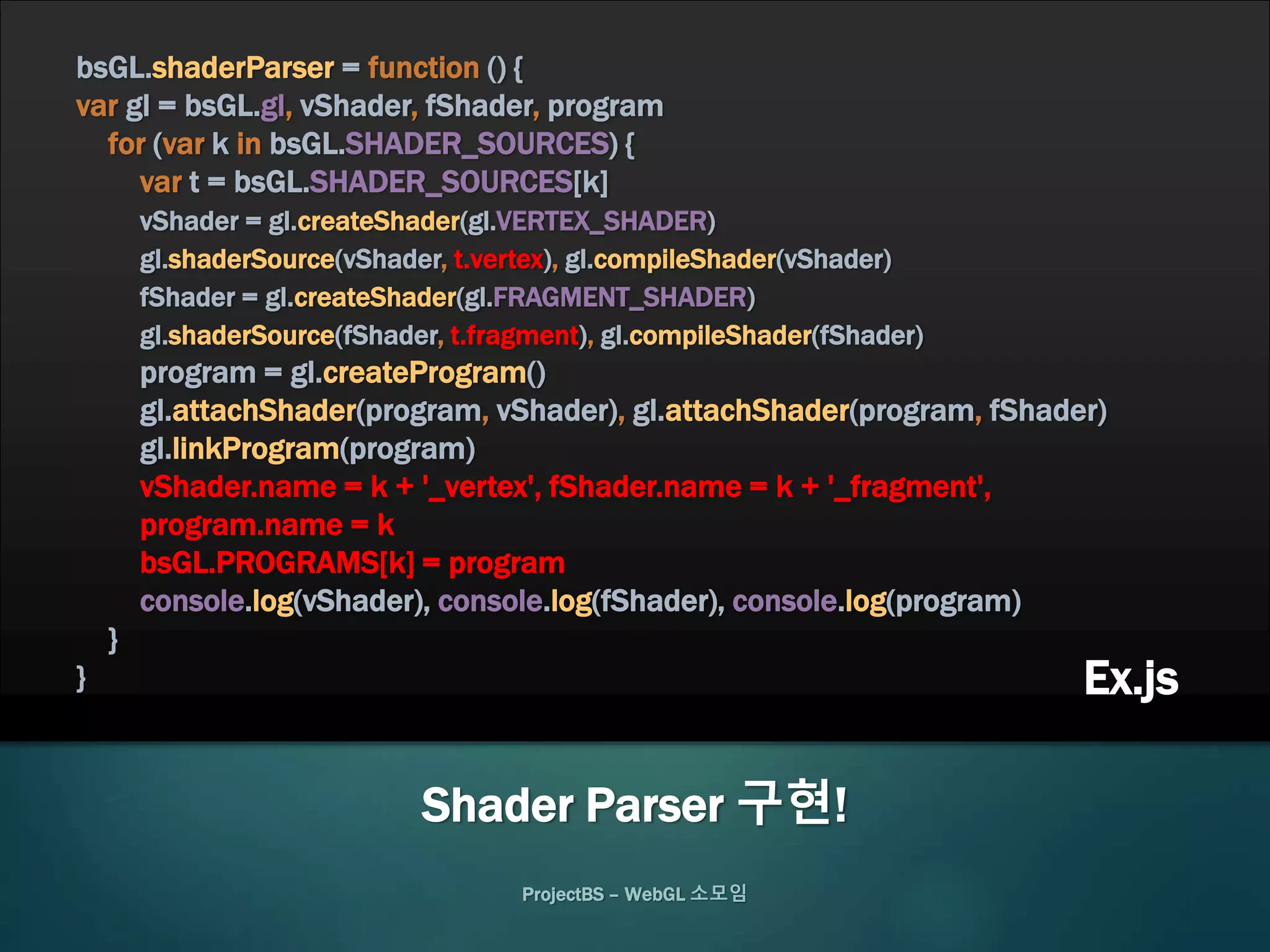

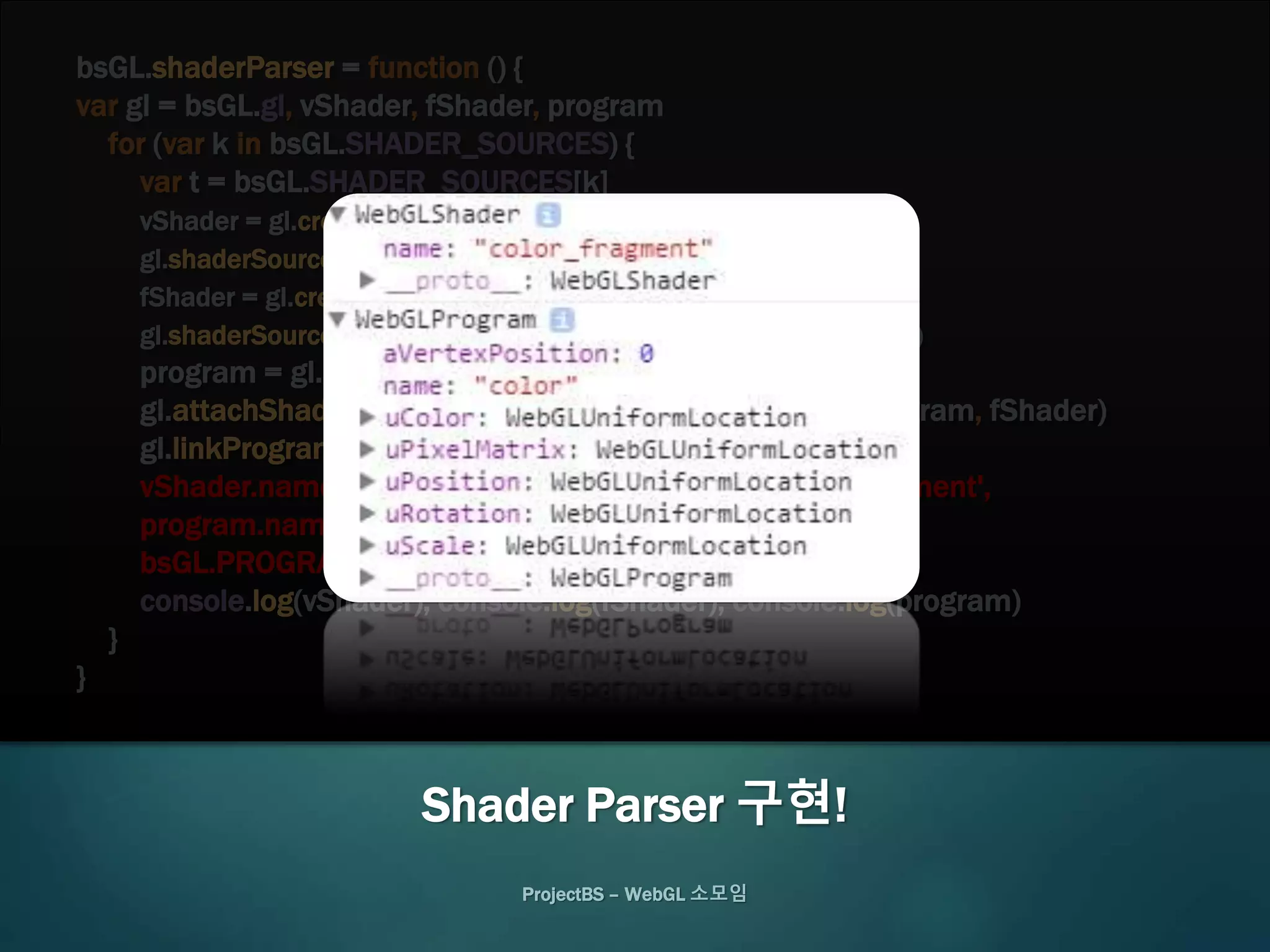

Shader Parser 구현!
bsGL.shaderParser = function () {
var gl = bsGL.gl, vShader, fShader, program
for (var k in bsGL.SHADER_SOURCES) {
var t = bsGL.SHADER_SOURCES[k]
vShader = gl.createShader(gl.VERTEX_SHADER)
gl.shaderSource(vShader, t.vertex), gl.compileShader(vShader)
fShader = gl.createShader(gl.FRAGMENT_SHADER)
gl.shaderSource(fShader, t.fragment), gl.compileShader(fShader)
program = gl.createProgram()
gl.attachShader(program, vShader), gl.attachShader(program, fShader)
gl.linkProgram(program)
vShader.name = k + '_vertex', fShader.name = k + '_fragment',
program.name = k
bsGL.PROGRAMS[k] = program
console.log(vShader), console.log(fShader), console.log(program)
}
} Ex.js

bsGL.shaderParser = function () {
var t = bsGL.SHADER_SOURCES[k]
vShader = gl.createShader(gl.VERTEX_SHADER)
gl.shaderSource(vShader, t.vertex), gl.compileShader(vShader)
fShader = gl.createShader(gl.FRAGMENT_SHADER)
gl.shaderSource(fShader, t.fragment), gl.compileShader(fShader)
program = gl.createProgram()
gl.attachShader(program, vShader), gl.attachShader(program, fShader)
gl.linkProgram(program)
vShader.name = k + '_vertex', fShader.name = k + '_fragment',
program.name = k
console.log(vShader), console.log(fShader), console.log(program)
}
}

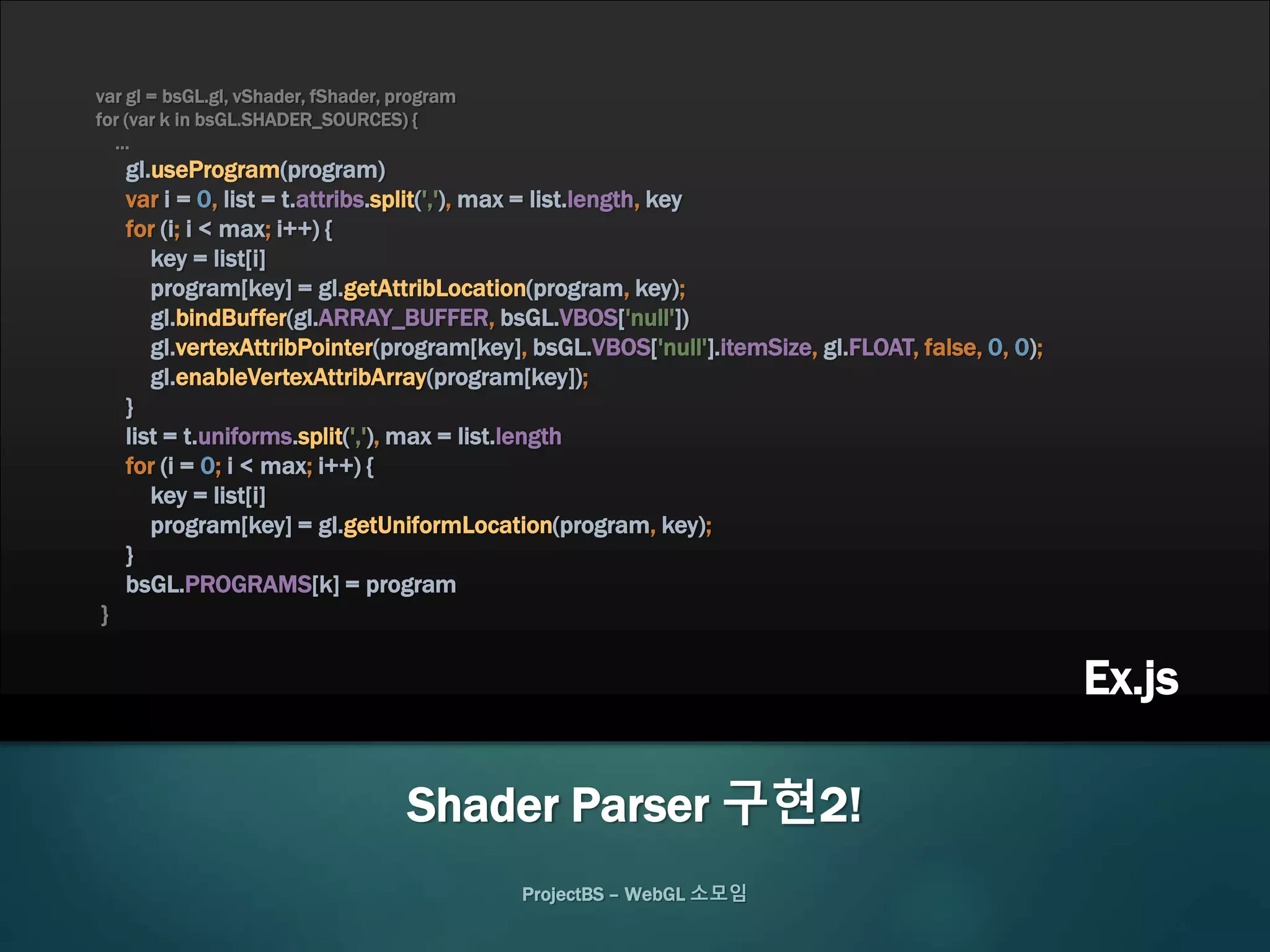

Shader Parser 구현!

…
gl.useProgram(program)
var i = 0, list = t.attribs.split(','), max = list.length, key
for (i; i < max; i++) {
key = list[i]
program[key] = gl.getAttribLocation(program, key);
gl.bindBuffer(gl.ARRAY_BUFFER, bsGL.VBOS['null'])
gl.vertexAttribPointer(program[key], bsGL.VBOS['null'].itemSize, gl.FLOAT, false, 0, 0);
gl.enableVertexAttribArray(program[key]);
}
list = t.uniforms.split(','), max = list.length
for (i = 0; i < max; i++) {
key = list[i]
program[key] = gl.getUniformLocation(program, key);
}
}
Shader Parser 구현2!
Ex.js

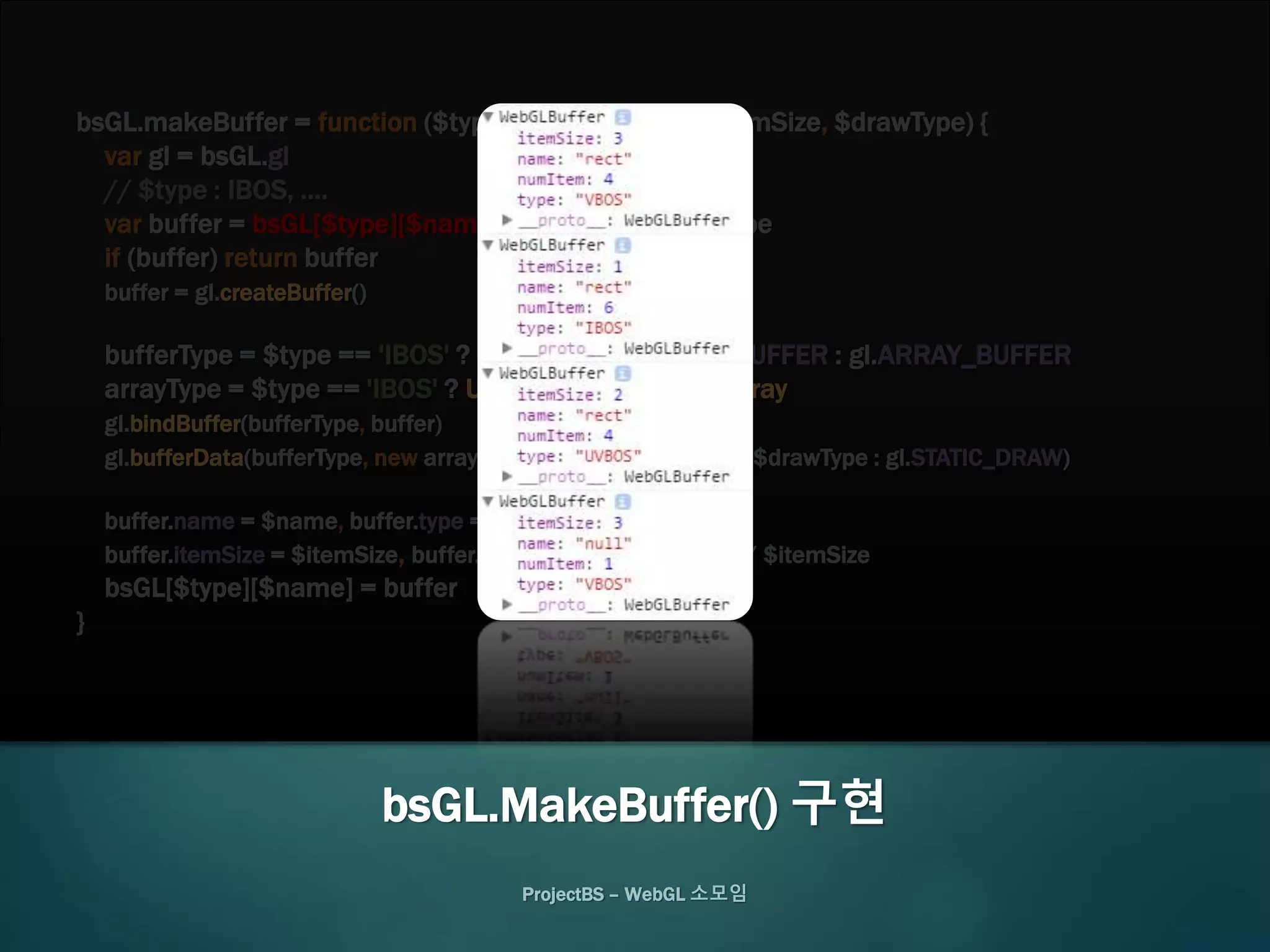

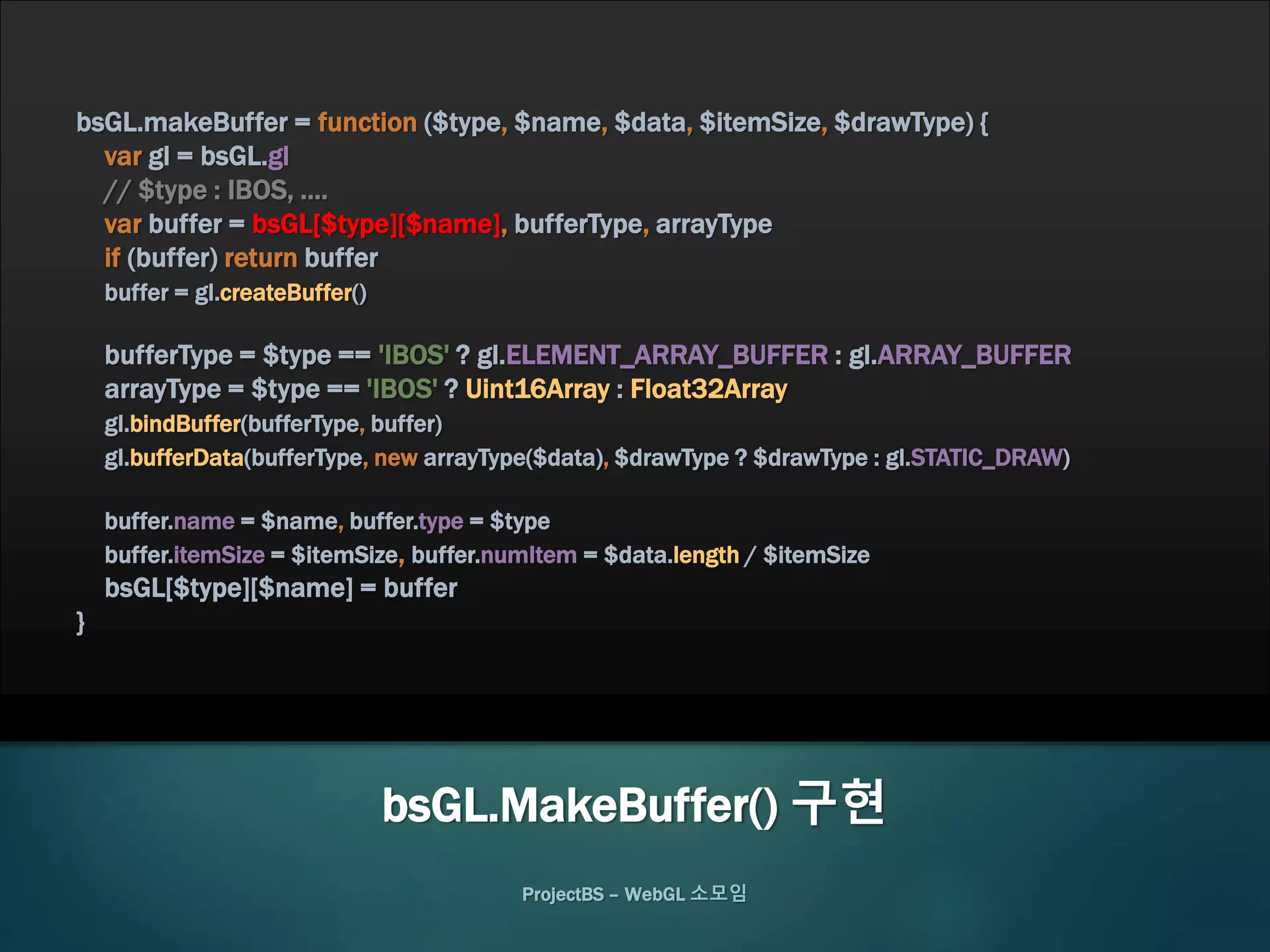

bsGL.makeBuffer = function ($type, $name, $data, $itemSize, $drawType) {
var gl = bsGL.gl
// $type : IBOS, ....
var buffer = bsGL[$type][$name], bufferType, arrayType
if (buffer) return buffer
buffer = gl.createBuffer()
bufferType = $type == 'IBOS' ? gl.ELEMENT_ARRAY_BUFFER : gl.ARRAY_BUFFER
arrayType = $type == 'IBOS' ? Uint16Array : Float32Array
gl.bindBuffer(bufferType, buffer)
gl.bufferData(bufferType, new arrayType($data), $drawType ? $drawType : gl.STATIC_DRAW)
buffer.name = $name, buffer.type = $type
buffer.itemSize = $itemSize, buffer.numItem = $data.length / $itemSize
bsGL[$type][$name] = buffer
}
bsGL.MakeBuffer() 구현

더 필요한건?
1. 초기화! – 대충완료 -_-?
2. 쉐이더파서! - 대충완료
3. 버퍼생성기! - 대충완료
4. 텍스쳐생성기!
5. 메쉬구조체!
6. 재질구조체!
7. 렌더러!

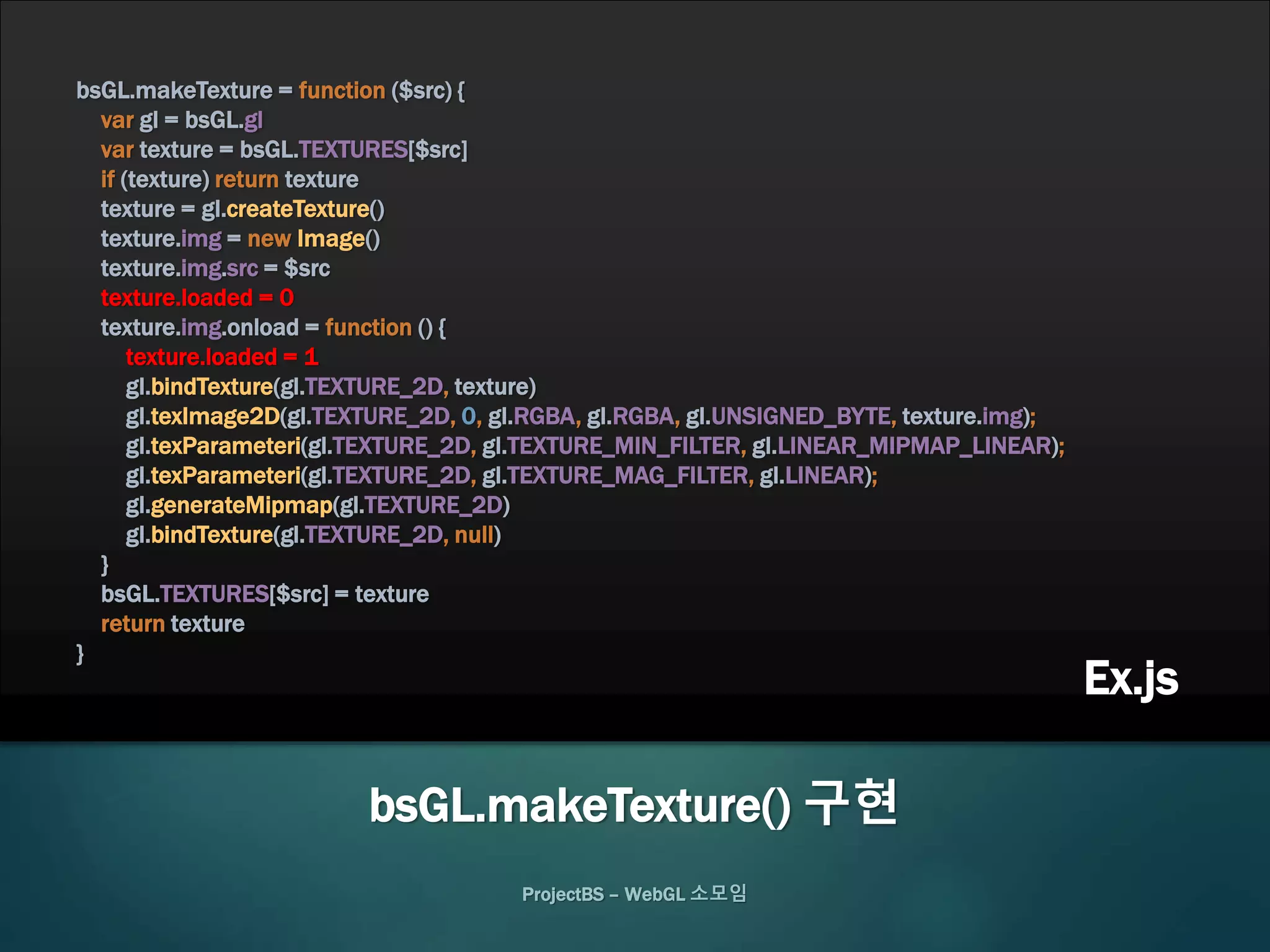

bsGL.makeTexture = function ($src) {
var gl = bsGL.gl
var texture = bsGL.TEXTURES[$src]
if (texture) return texture
texture = gl.createTexture()
texture.img = new Image()
texture.img.src = $src
texture.loaded = 0
texture.img.onload = function () {
texture.loaded = 1
gl.bindTexture(gl.TEXTURE_2D, texture)
gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGBA, gl.RGBA, gl.UNSIGNED_BYTE, texture.img);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR_MIPMAP_LINEAR);
gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.LINEAR);
gl.generateMipmap(gl.TEXTURE_2D)
gl.bindTexture(gl.TEXTURE_2D, null)
}
bsGL.TEXTURES[$src] = texture
return texture
}
bsGL.makeTexture() 구현
Ex.js

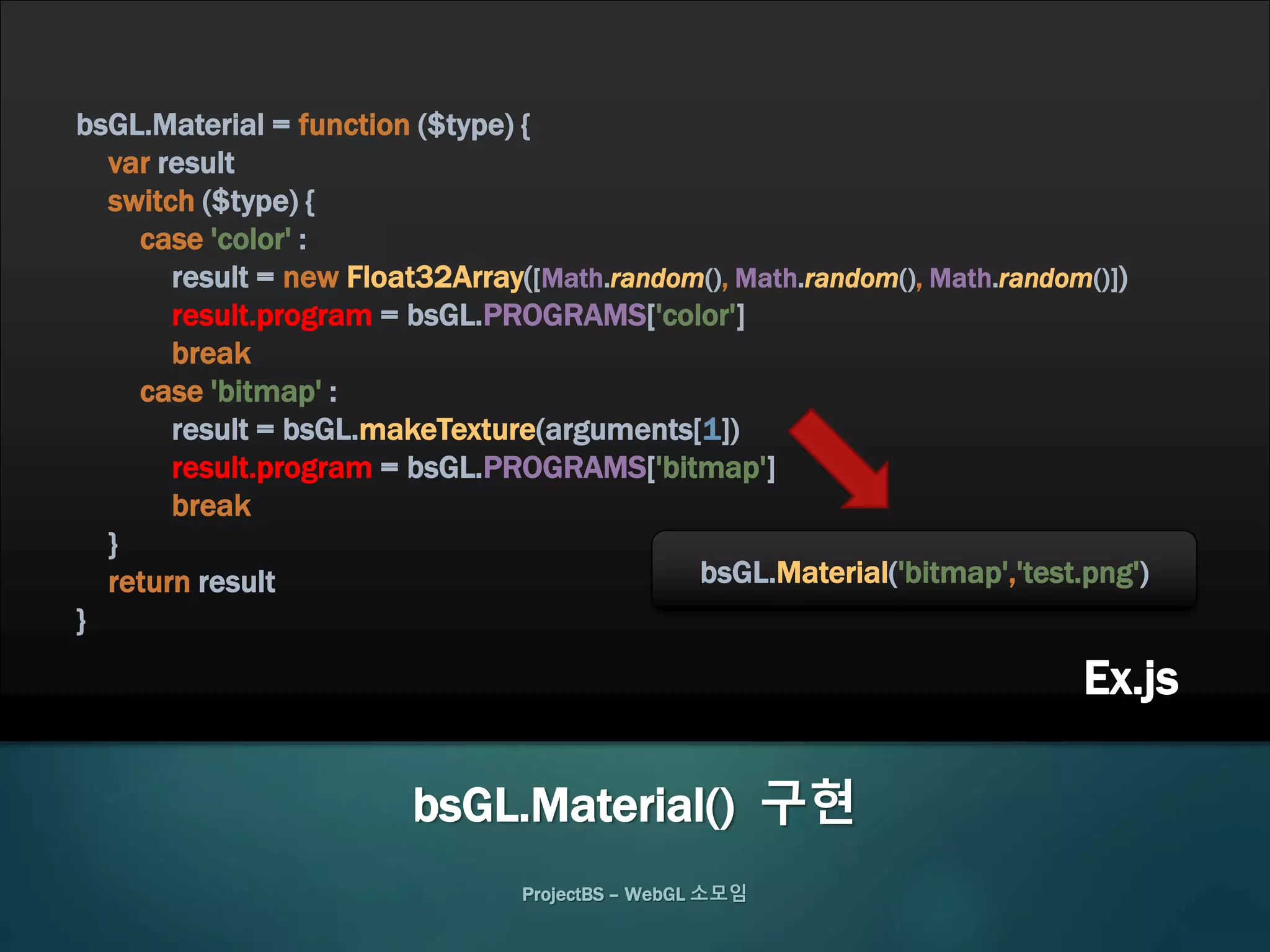

bsGL.Material = function ($type) {
var result
switch ($type) {
case 'color' :
result = new Float32Array([Math.random(), Math.random(), Math.random()])
result.program = bsGL.PROGRAMS['color']
break
case 'bitmap' :
result = bsGL.makeTexture(arguments[1])
result.program = bsGL.PROGRAMS['bitmap']
break
}
return result
}
bsGL.Material() 구현
bsGL.Material('bitmap','test.png')
Ex.js

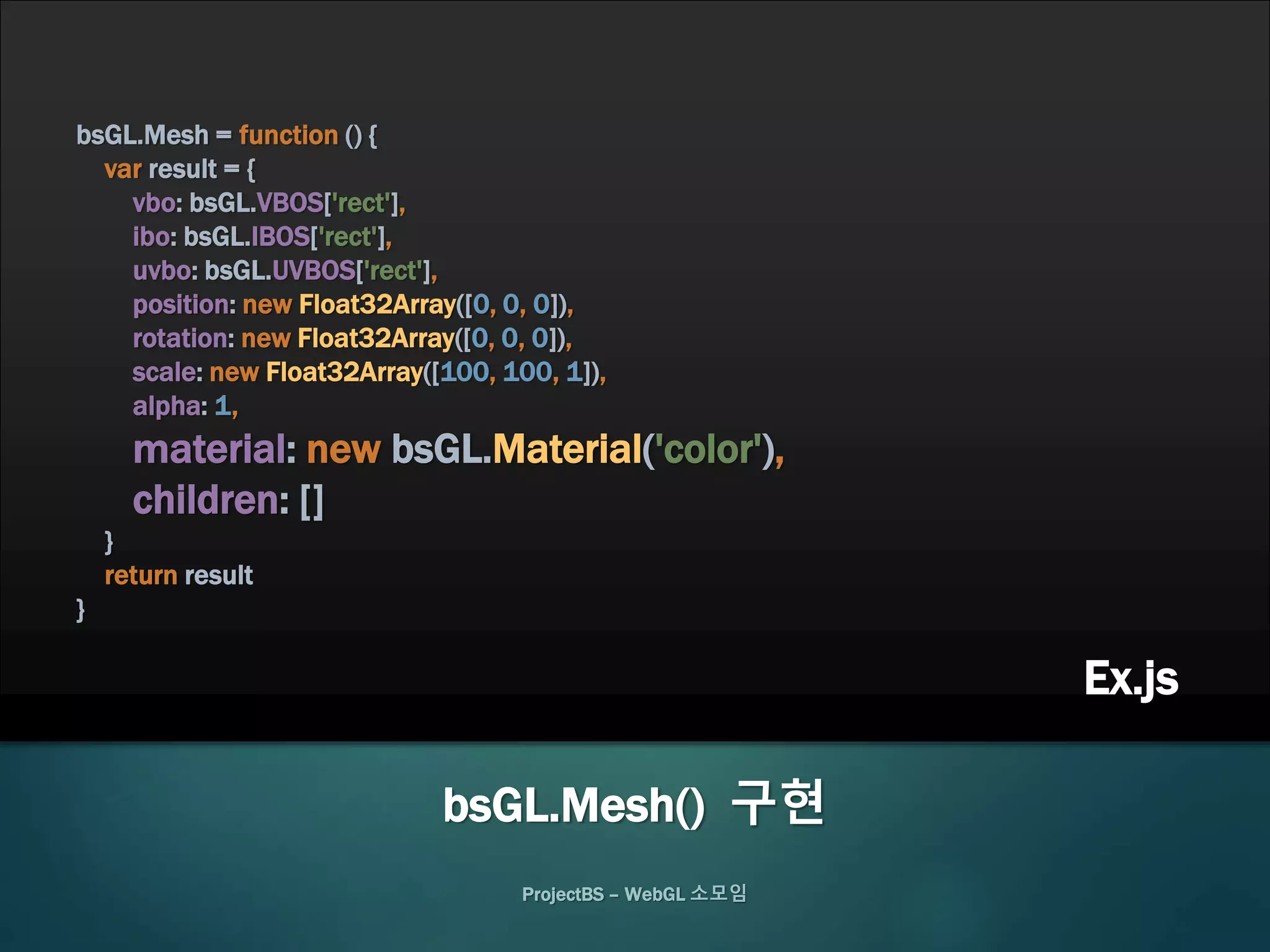

bsGL.Mesh = function () {
var result = {
vbo: bsGL.VBOS['rect'],
ibo: bsGL.IBOS['rect'],
uvbo: bsGL.UVBOS['rect'],
position: new Float32Array([0, 0, 0]),
rotation: new Float32Array([0, 0, 0]),
scale: new Float32Array([100, 100, 1]),
alpha: 1,
material: new bsGL.Material('color'),
children: []
}
return result
}
bsGL.Mesh() 구현
Ex.js

드디어 렌더러!
가장 기초적인 렌더방식으로!

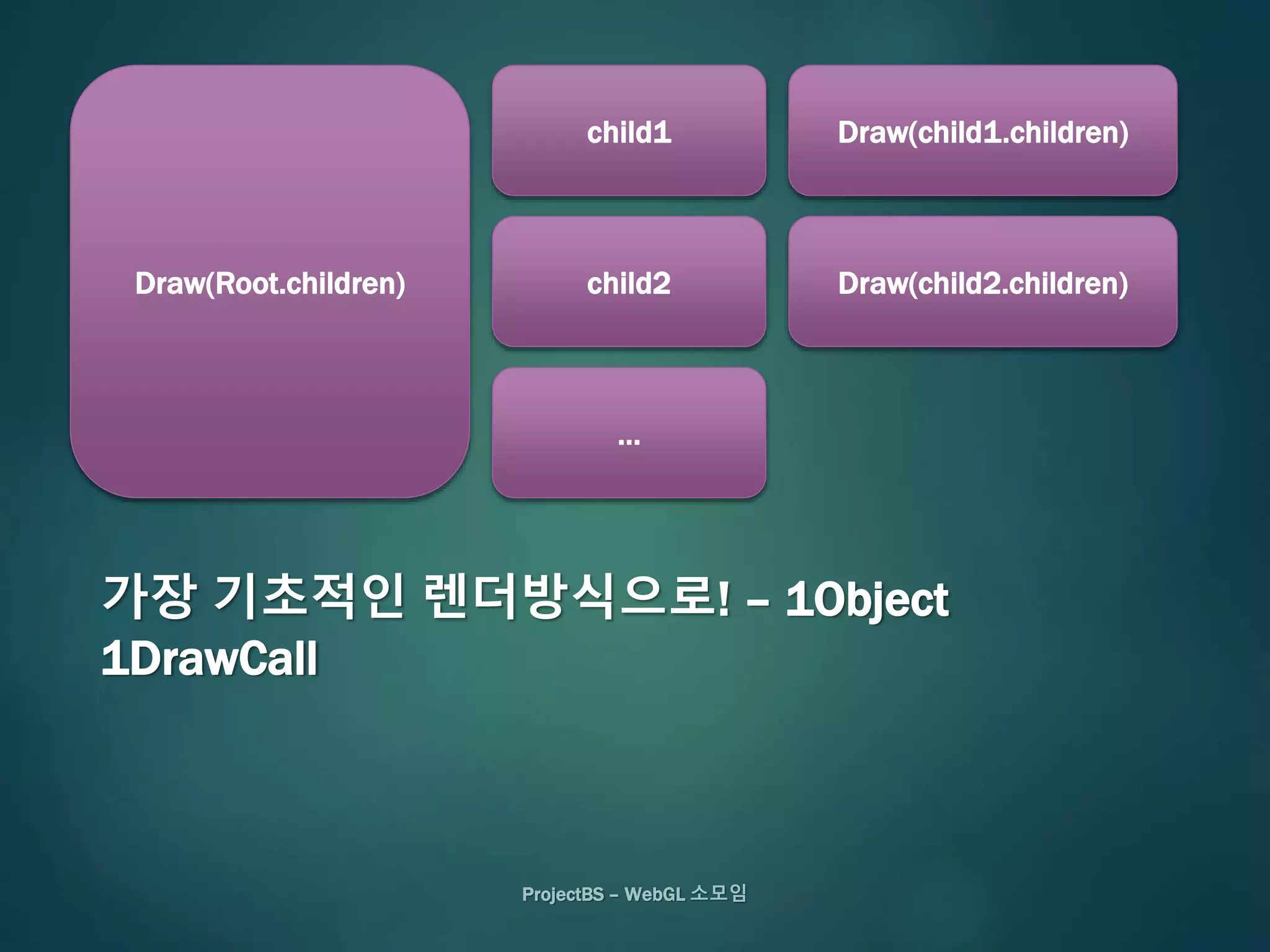

Draw(Root.children)
child1
child2
…
Draw(child1.children)
Draw(child2.children)
가장 기초적인 렌더방식으로! – 1Object
1DrawCall

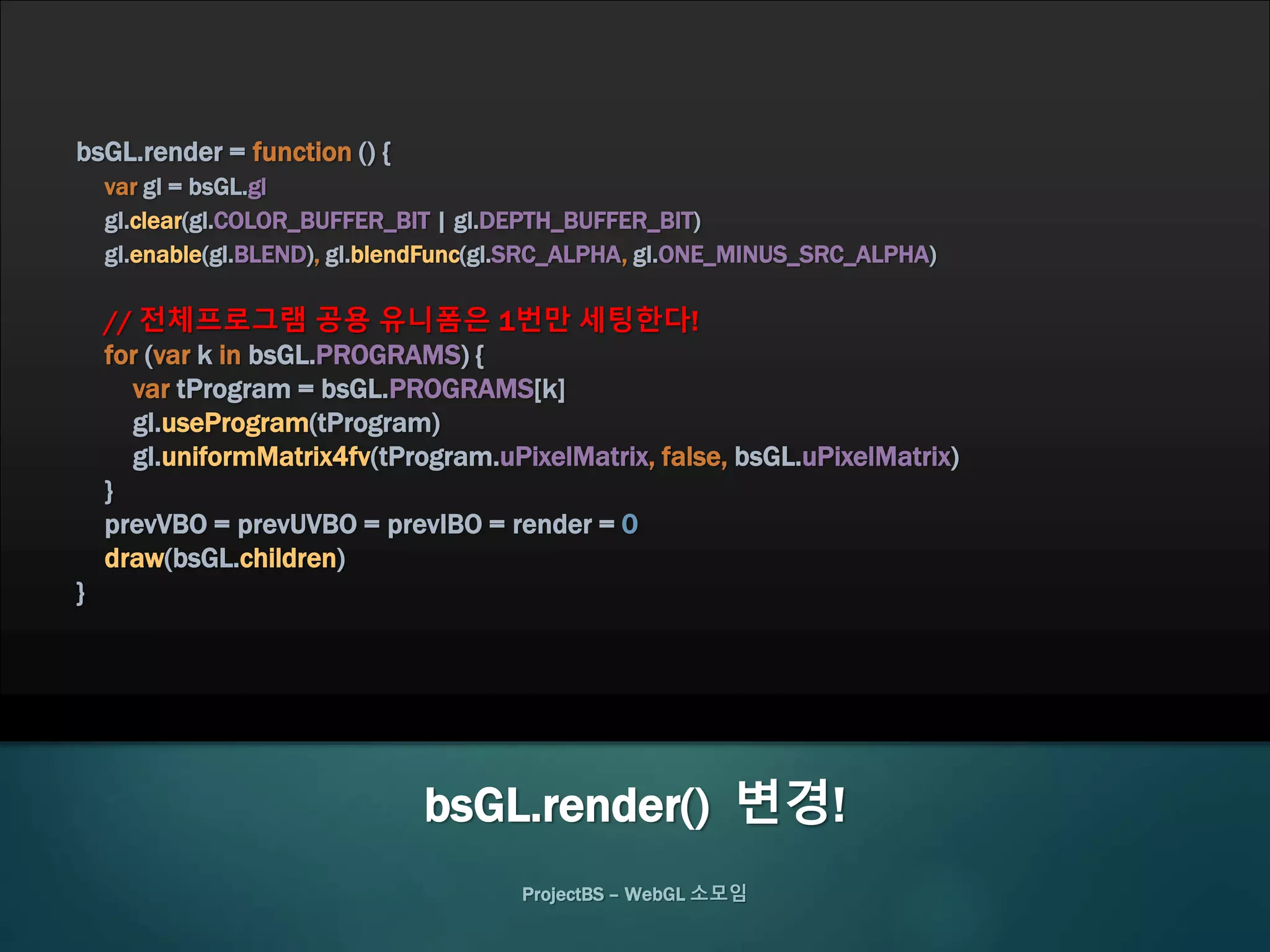

bsGL.render = function () {
var gl = bsGL.gl
gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT)
gl.enable(gl.BLEND), gl.blendFunc(gl.SRC_ALPHA, gl.ONE_MINUS_SRC_ALPHA)
// 전체프로그램 공용 유니폼은 1번만 세팅한다!
for (var k in bsGL.PROGRAMS) {
var tProgram = bsGL.PROGRAMS[k]
gl.useProgram(tProgram)
gl.uniformMatrix4fv(tProgram.uPixelMatrix, false, bsGL.uPixelMatrix)
}
prevVBO = prevUVBO = prevIBO = render = 0
draw(bsGL.children)
}
bsGL.render() 변경!

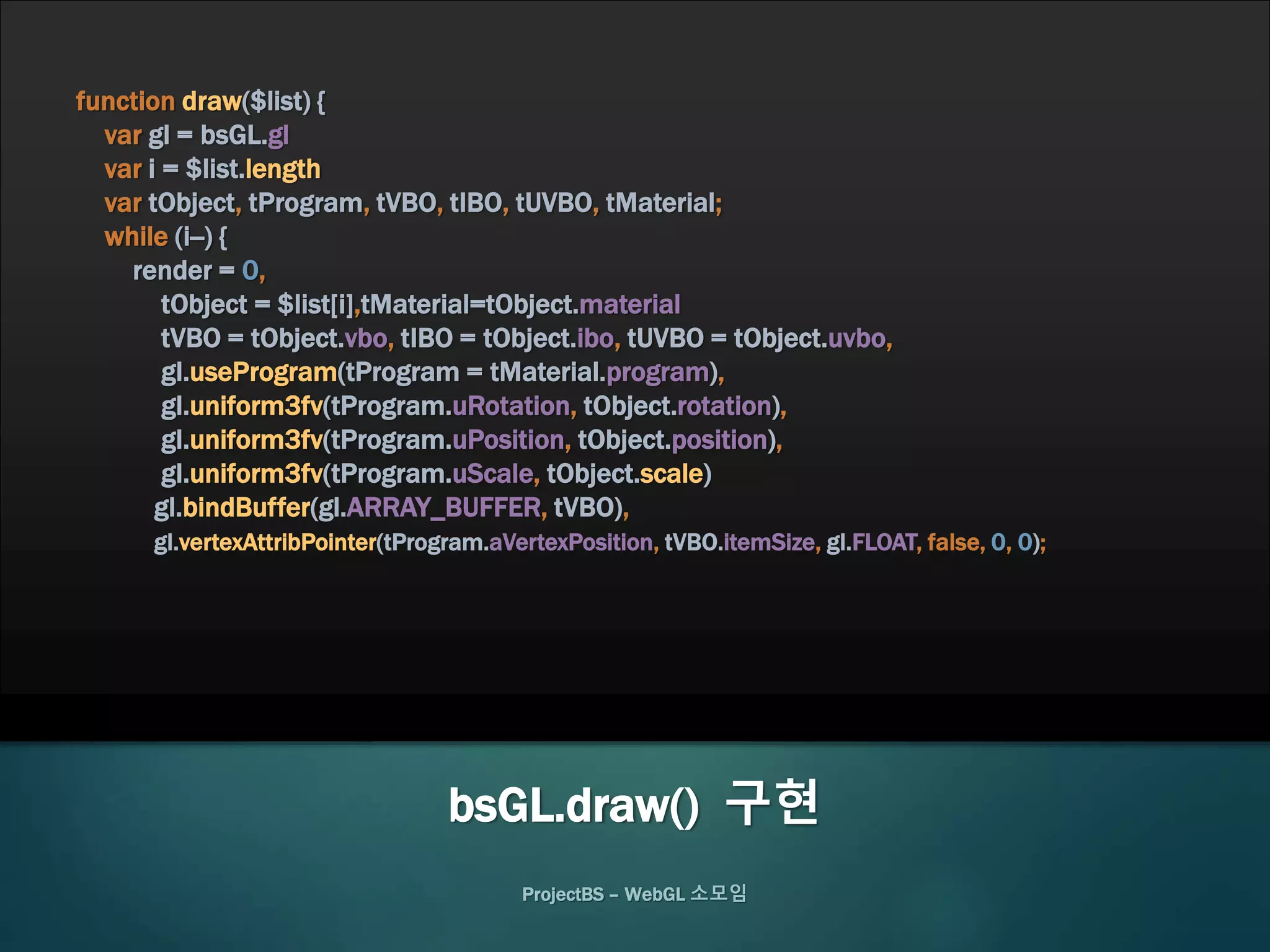

function draw($list) {
var gl = bsGL.gl
var i = $list.length
var tObject, tProgram, tVBO, tIBO, tUVBO, tMaterial;
while (i--) {
render = 0,
tObject = $list[i],tMaterial=tObject.material
tVBO = tObject.vbo, tIBO = tObject.ibo, tUVBO = tObject.uvbo,
gl.useProgram(tProgram = tMaterial.program),
gl.uniform3fv(tProgram.uRotation, tObject.rotation),
gl.uniform3fv(tProgram.uPosition, tObject.position),
gl.uniform3fv(tProgram.uScale, tObject.scale)
gl.bindBuffer(gl.ARRAY_BUFFER, tVBO),
gl.vertexAttribPointer(tProgram.aVertexPosition, tVBO.itemSize, gl.FLOAT, false, 0, 0);
bsGL.draw() 구현

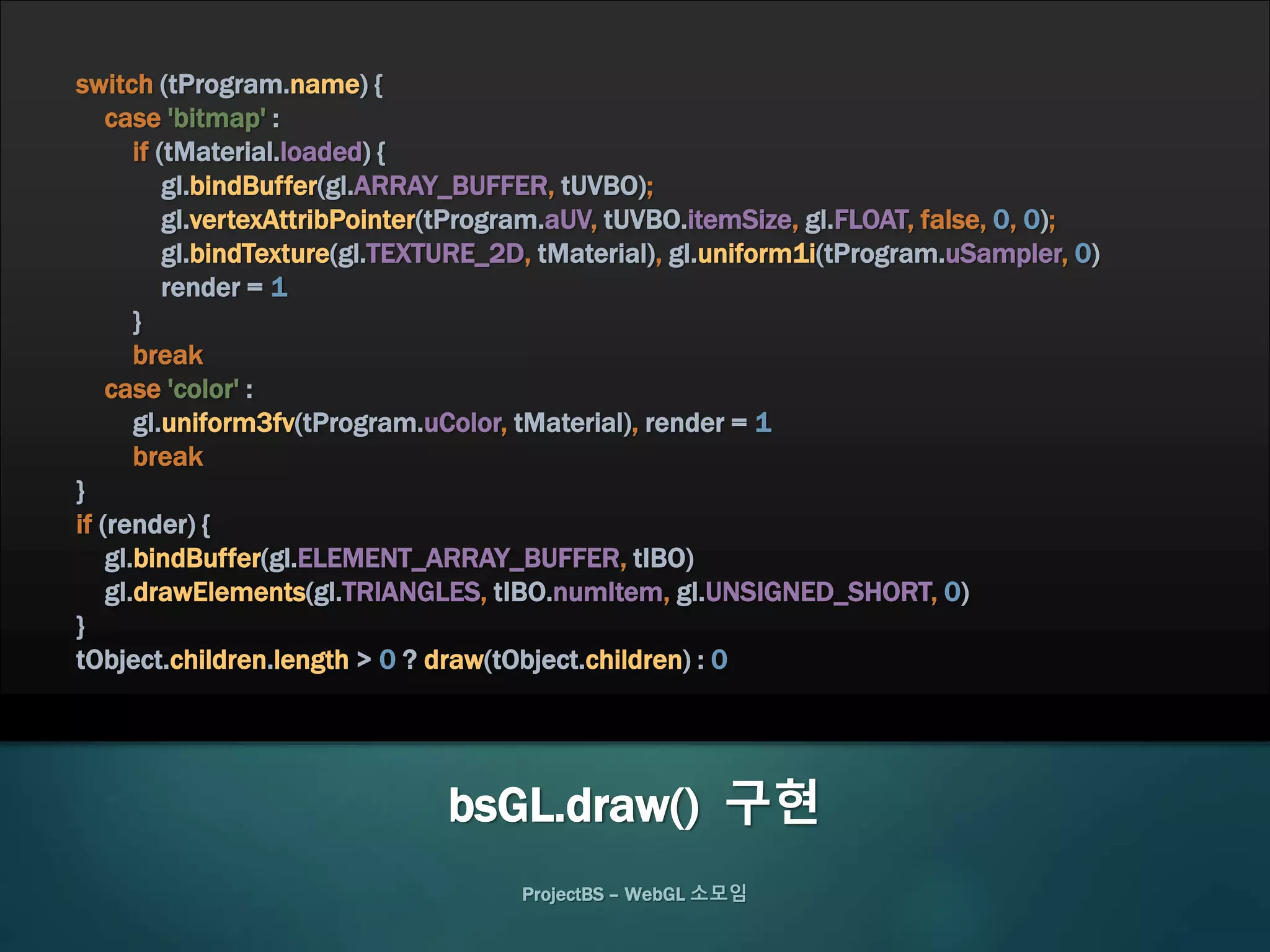

switch (tProgram.name) {
case 'bitmap' :
if (tMaterial.loaded) {
gl.bindBuffer(gl.ARRAY_BUFFER, tUVBO);
gl.vertexAttribPointer(tProgram.aUV, tUVBO.itemSize, gl.FLOAT, false, 0, 0);
gl.bindTexture(gl.TEXTURE_2D, tMaterial), gl.uniform1i(tProgram.uSampler, 0)
render = 1
}
break
case 'color' :
gl.uniform3fv(tProgram.uColor, tMaterial), render = 1
break
}
if (render) {
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, tIBO)
gl.drawElements(gl.TRIANGLES, tIBO.numItem, gl.UNSIGNED_SHORT, 0)
}
tObject.children.length > 0 ? draw(tObject.children) : 0
bsGL.draw() 구현

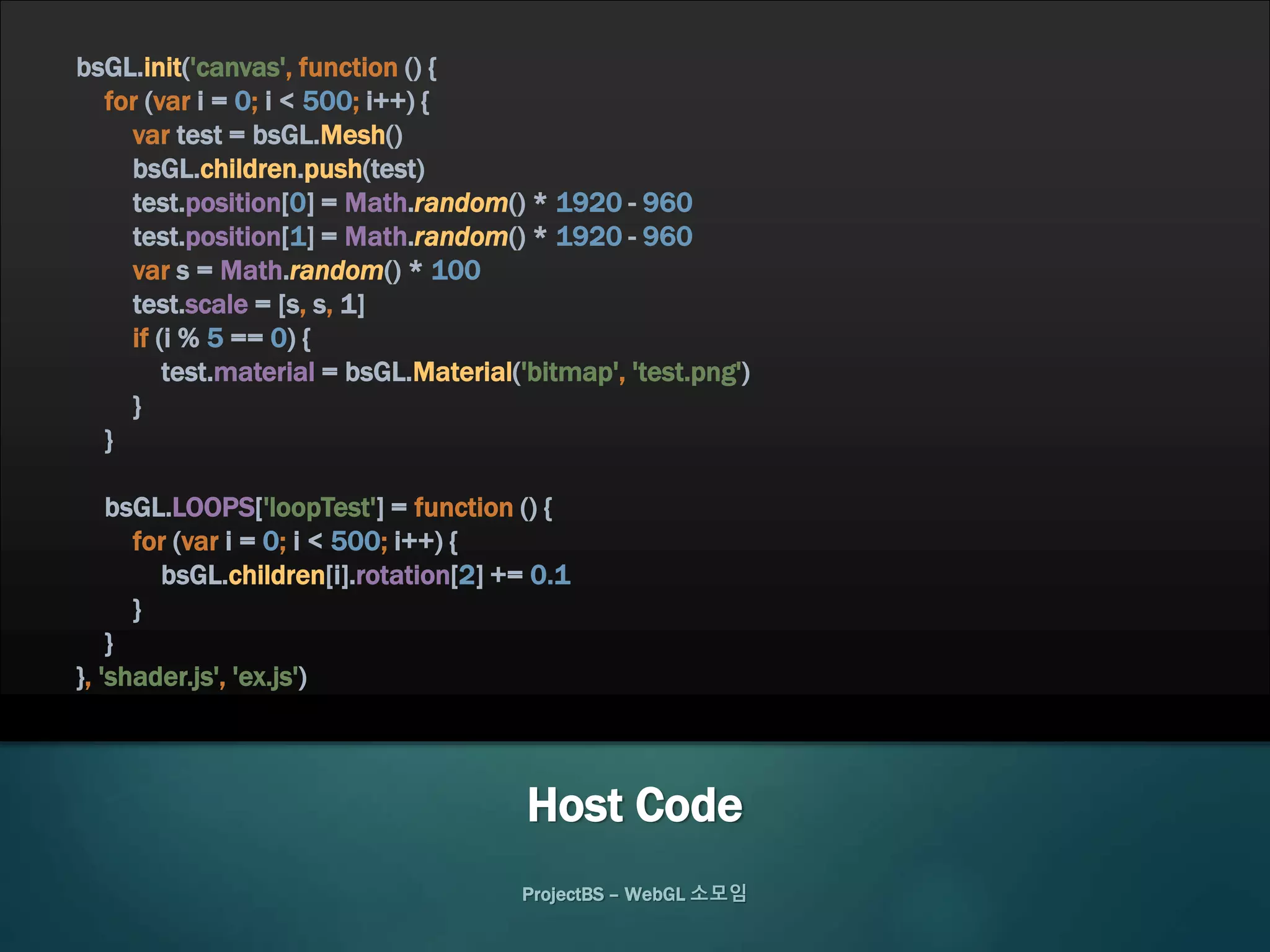

bsGL.init('canvas', function () {
for (var i = 0; i < 500; i++) {
var test = bsGL.Mesh()
bsGL.children.push(test)
test.position[0] = Math.random() * 1920 - 960
test.position[1] = Math.random() * 1920 - 960
var s = Math.random() * 100
test.scale = [s, s, 1]
if (i % 5 == 0) {
test.material = bsGL.Material('bitmap', 'test.png')
}
}
bsGL.LOOPS['loopTest'] = function () {
for (var i = 0; i < 500; i++) {
bsGL.children[i].rotation[2] += 0.1
}
}
}, 'shader.js', 'ex.js')
Host Code

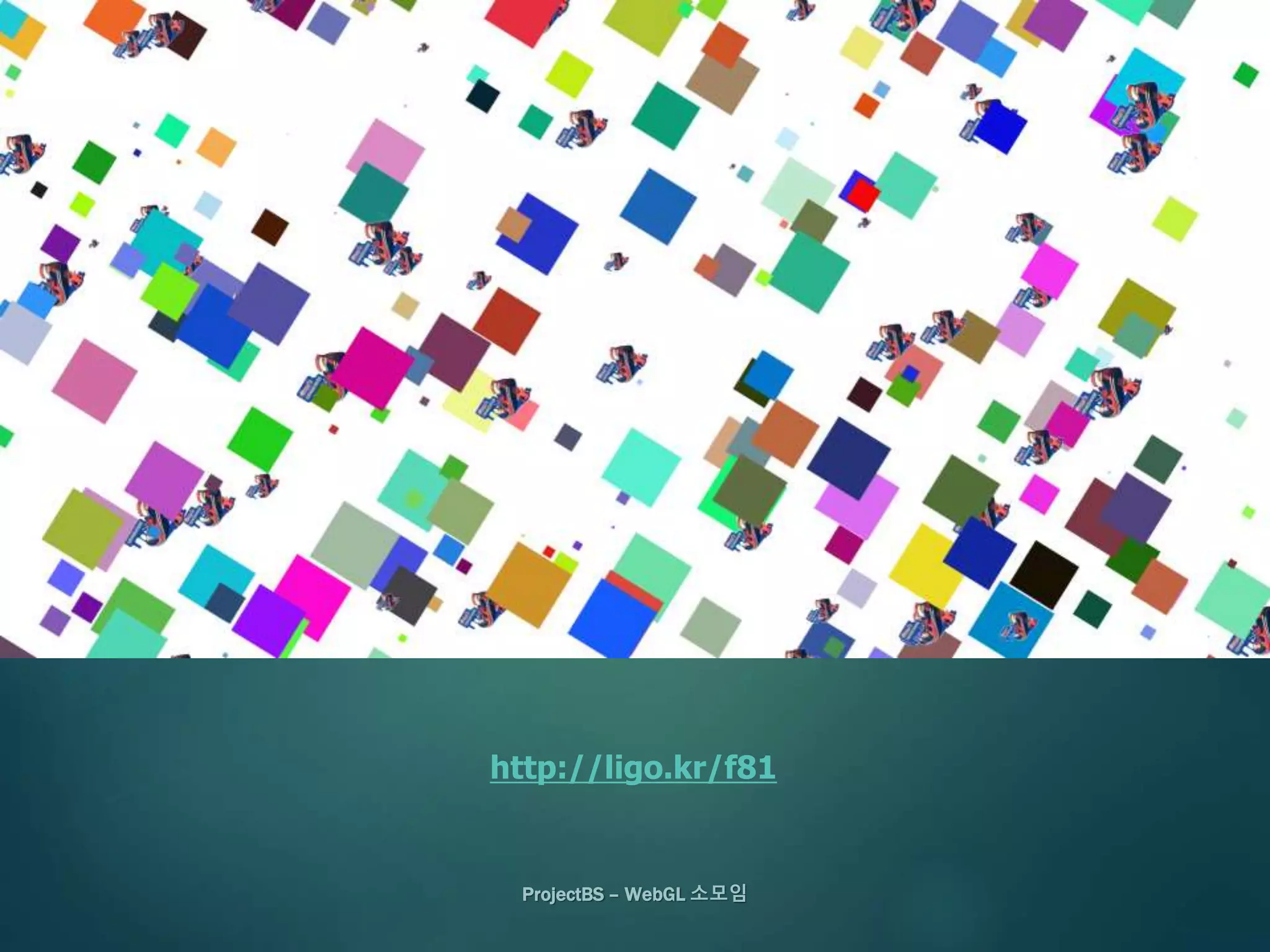

http://ligo.kr/f81

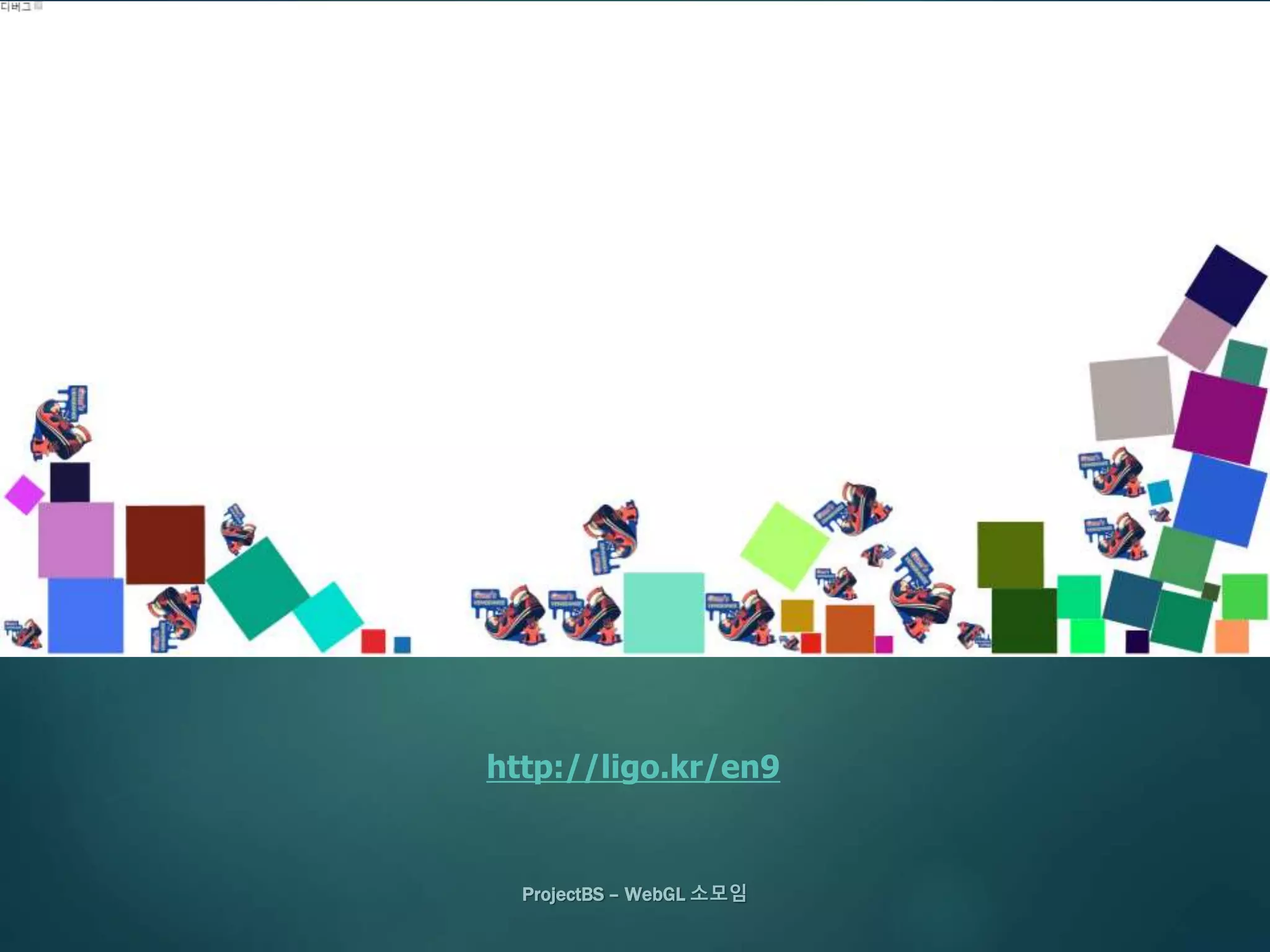

http://ligo.kr/en9

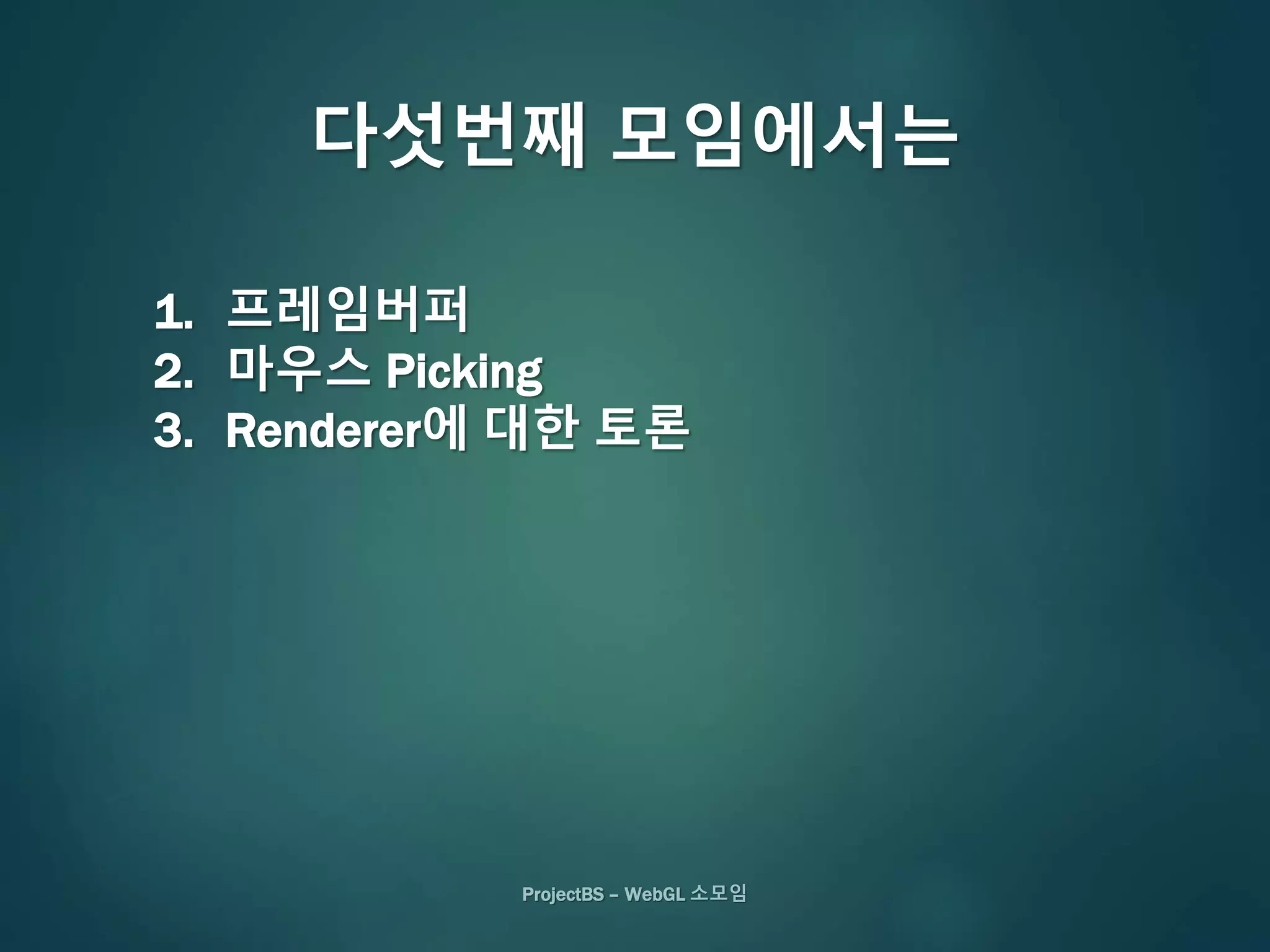

다섯번째 모임에서는
1. 프레임버퍼
2. 마우스 Picking
3. Renderer에 대한 토론

End
www.Bswebgl.com – 런치프로젝트 webGL
https://github.com/projectBS/webGL
https://www.facebook.com/groups/bs5js/
