The document introduces using Puppeteer to implement performance budgets on continuous integration tests. It provides examples of using Puppeteer to measure performance metrics from a page, define budgets for those metrics, and assert that the measured metrics do not exceed the defined budgets. It also demonstrates using Puppeteer and the Chrome DevTools Protocol to monitor frames per second and detect memory leaks.

1. Introducing perf
budgets on CI with
Puppeteer
with the help of minions

2. Önder Ceylan
@onderceylan
Sharing knowledge on #javascript, #typescript, #angular, #ionic and #pwa
JS Squad Lead @LINKIT
Speaker, Organiser @ITNEXT
Speaker, Organiser @GDG NL

3. Chrome

4. Chrome
canarychromiumchrome

5. Headless Chrome

6. Headless Chrome
chrome —-headless —-remote-debugging-port=9222

7. Puppeteer

8. Puppeteer
npm i puppeteer

9. –Puppeteer docs
“Most things that you can do
manually in the browser can be
done using Puppeteer! ”

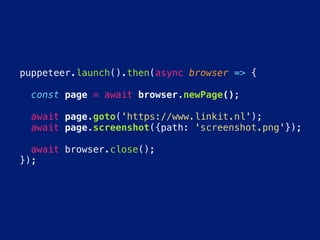

10. puppeteer.launch().then(async browser => {
const page = await browser.newPage();
await page.goto('https://www.linkit.nl');
await page.screenshot({path: 'screenshot.png'});
await browser.close();
});

11. pptr.dev

12. try-puppeteer.appspot.com

13. DEMOS

14. Side by side page load

15. const devices = require('puppeteer/DeviceDescriptors');
const nexus5X = devices['Nexus 5X'];
const browser = await puppeteer.launch({
headless: false,
args: [
`--window-size=${DEFAULT_VIEWPORT.width},${DEFAULT_VIEWPORT.height}`,
CENTER_WINDOWS_ON_SCREEN ? `--window-position=${x},${y}` : `--window-position=${dx},0`,
],
});
const page = await browser.newPage();
await page.emulate(nexus5X);
const session = await page.target().createCDPSession();
// Emulate "Slow 3G" according to WebPageTest
await session.send('Network.emulateNetworkConditions', {
offline: false,
latency: 400,
downloadThroughput: Math.floor(400 * 1024 / 8), // 400 Kbps
uploadThroughput: Math.floor(400 * 1024 / 8) // 400 Kbps
});
await session.send('Emulation.setCPUThrottlingRate', {rate: 4});
Side by side page load

16. Code coverage test

17. const pti = require('puppeteer-to-istanbul');
const page = await browser.newPage();
await page.coverage.startJSCoverage();
await page.goto('https://www.linkit.nl/');
const jsCoverage = await page.coverage.stopJSCoverage();
pti.write(jsCoverage);
await page.close();
Code coverage test

18. Chrome DevTools

19. throttle network
track memory usage
emulate devices
run audits

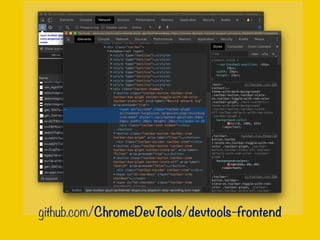

20. github.com/ChromeDevTools/devtools-frontend

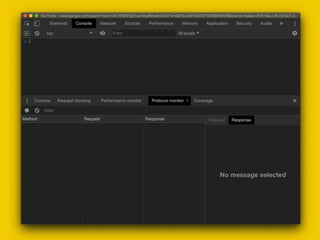

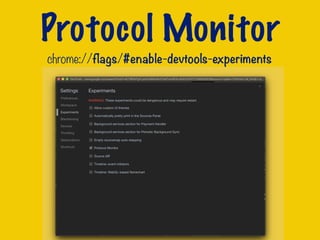

21. Protocol Monitor
chrome://flags/#enable-devtools-experiments

23. chrome —-remote-debugging-port=9222
Chrome DevTools
Protocol

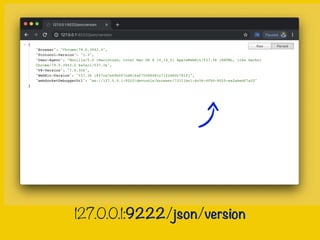

24. 127.0.0.1:9222/json/version

25. chromedevtools.github.io/devtools-protocol

26. Using DevTools
Protocol with PPTR

27. puppeteer.launch().then(async browser => {
const page = await browser.newPage();
await page.goto('https://www.linkit.nl');
const session = await page.target().createCDPSession();
session.on('Performance.metrics', (metrics, title) => {
console.log({ metrics, title });
});
await session.send(‘Performance.enable');
const metrics = await session.send('Performance.getMetrics');
await browser.close();
});

28. DEMOS
even more

29. Budgets on metrics

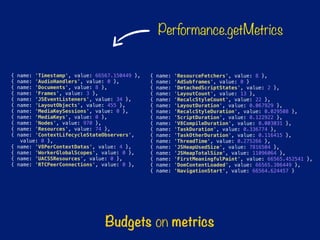

30. Budgets on metrics
{ name: 'Timestamp', value: 66567.150449 },
{ name: 'AudioHandlers', value: 0 },
{ name: 'Documents', value: 8 },
{ name: 'Frames', value: 3 },
{ name: 'JSEventListeners', value: 34 },
{ name: 'LayoutObjects', value: 455 },
{ name: 'MediaKeySessions', value: 0 },
{ name: 'MediaKeys', value: 0 },
{ name: 'Nodes', value: 970 },
{ name: 'Resources', value: 74 },
{ name: 'ContextLifecycleStateObservers',
value: 0 },
{ name: 'V8PerContextDatas', value: 4 },
{ name: 'WorkerGlobalScopes', value: 0 },
{ name: 'UACSSResources', value: 0 },
{ name: 'RTCPeerConnections', value: 0 },
{ name: 'ResourceFetchers', value: 8 },
{ name: 'AdSubframes', value: 0 }
{ name: 'DetachedScriptStates', value: 2 },
{ name: 'LayoutCount', value: 13 },
{ name: 'RecalcStyleCount', value: 22 },
{ name: 'LayoutDuration', value: 0.067929 },
{ name: 'RecalcStyleDuration', value: 0.029508 },
{ name: 'ScriptDuration', value: 0.122922 },
{ name: 'V8CompileDuration', value: 0.003031 },
{ name: 'TaskDuration', value: 0.336774 },
{ name: 'TaskOtherDuration', value: 0.116415 },
{ name: 'ThreadTime', value: 0.275266 },
{ name: 'JSHeapUsedSize', value: 7816504 },
{ name: 'JSHeapTotalSize', value: 11096064 },
{ name: 'FirstMeaningfulPaint', value: 66565.452541 },
{ name: 'DomContentLoaded', value: 66565.386449 },
{ name: 'NavigationStart', value: 66564.624457 }
Performance.getMetrics

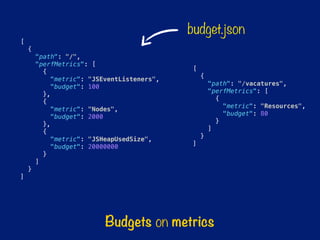

31. Budgets on metrics
[
{
"path": "/",
"perfMetrics": [
{
"metric": "JSEventListeners",
"budget": 100
},
{
"metric": "Nodes",
"budget": 2000
},
{
"metric": "JSHeapUsedSize",
"budget": 20000000
}
]
}
]
[
{
"path": "/vacatures",
"perfMetrics": [
{
"metric": "Resources",
"budget": 80
}
]
}
]
budget.json

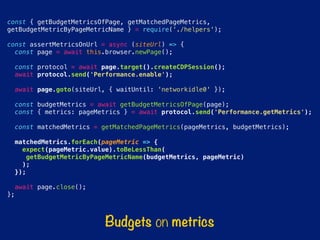

32. const { getBudgetMetricsOfPage, getMatchedPageMetrics,
getBudgetMetricByPageMetricName } = require(‘./helpers');
const assertMetricsOnUrl = async (siteUrl) => {
const page = await this.browser.newPage();
const protocol = await page.target().createCDPSession();
await protocol.send('Performance.enable');
await page.goto(siteUrl, { waitUntil: 'networkidle0' });
const budgetMetrics = await getBudgetMetricsOfPage(page);
const { metrics: pageMetrics } = await protocol.send('Performance.getMetrics');
const matchedMetrics = getMatchedPageMetrics(pageMetrics, budgetMetrics);
matchedMetrics.forEach(pageMetric => {
expect(pageMetric.value).toBeLessThan(
getBudgetMetricByPageMetricName(budgetMetrics, pageMetric)
);
});
await page.close();
};

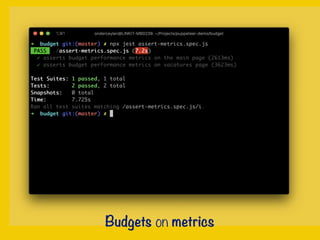

Budgets on metrics

33. beforeAll(async () => {
this.browser = await puppeteer.launch();
});
afterAll(async () => {
await this.browser.close();
});
test('asserts budget performance metrics on the main page', async() => {
await assertMetricsOnUrl('https://www.linkit.nl/');
});
test('asserts budget performance metrics on vacatures page', async() => {
await assertMetricsOnUrl('https://www.linkit.nl/vacatures');
});
Budgets on metrics

34. Monitoring

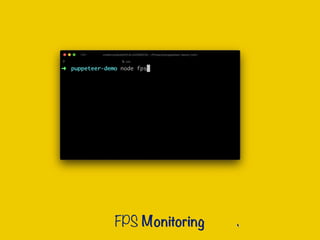

35. FPS Monitoring

36. const protocol = await page.target().createCDPSession();
await protocol.send('Overlay.setShowFPSCounter', { show: true });
await page.goto('https://www.linkit.nl');
// Do graphical regressions here by interacting with the page
await protocol.send('Input.synthesizeScrollGesture', {
x: 100,
y: 100,
yDistance: -400,
repeatCount: 3
});
await page.screenshot({
path: 'fps.jpeg',
type: 'jpeg',
clip: {
x:0,
y:0,
width: 370,
height: 370
}
});
FPS Monitoring

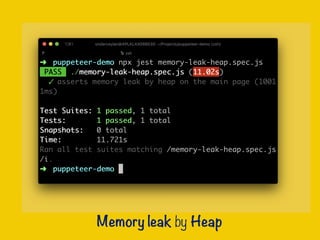

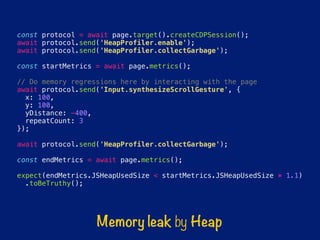

37. Memory leak by Heap

38. const protocol = await page.target().createCDPSession();
await protocol.send('HeapProfiler.enable');
await protocol.send('HeapProfiler.collectGarbage');
const startMetrics = await page.metrics();
// Do memory regressions here by interacting with the page
await protocol.send('Input.synthesizeScrollGesture', {
x: 100,
y: 100,
yDistance: -400,
repeatCount: 3
});
await protocol.send('HeapProfiler.collectGarbage');
const endMetrics = await page.metrics();
expect(endMetrics.JSHeapUsedSize < startMetrics.JSHeapUsedSize * 1.1)
.toBeTruthy();
Memory leak by Heap

39. Thank you!
@onderceylan
https://github.com/onderceylan/puppeteer-demos
