The oil analysis report summarizes oil sampling and testing results for an engine in a Briteforce lighting tower over several sampling dates from March to July 2014. The report shows normal wear rates and contaminant levels within specifications. Viscosity was also within the operating range. The diagnosis is that all readings are normal, and the next scheduled resample is recommended to continue monitoring.

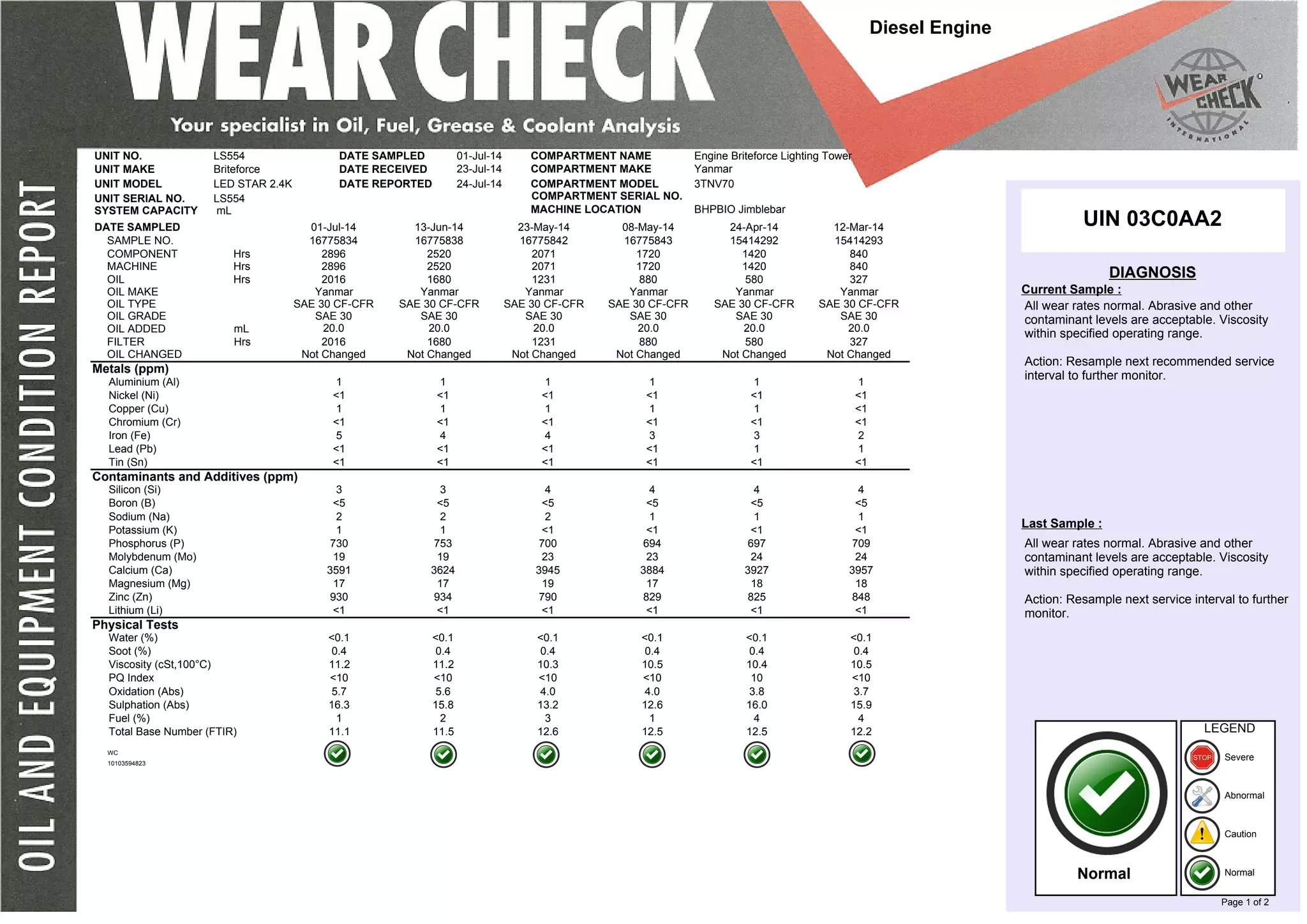

1. DATE SAMPLED 01-Jul-14 13-Jun-14 23-May-14 08-May-14 12-Mar-1424-Apr-14
SAMPLE NO. 16775834 16775838 16775842 16775843 15414292 15414293
COMPONENT
MACHINE
OIL
OIL MAKE
OIL TYPE
OIL GRADE
OIL ADDED
FILTER
OIL CHANGED
Hrs
Hrs
Hrs
2896 2520 2071 1720 1420 840
2896 2520 2071 1720 1420 840
2016 1680 1231 880 580 327
Yanmar Yanmar Yanmar Yanmar Yanmar Yanmar
SAE 30 CF-CFR SAE 30 CF-CFR SAE 30 CF-CFR SAE 30 CF-CFR SAE 30 CF-CFR SAE 30 CF-CFR
SAE 30 SAE 30
20.0 20.0 20.0 20.0 20.020.0mL
Hrs 2016 1680 1231 880 580 327
Not Changed Not Changed Not Changed Not Changed Not ChangedNot Changed
UNIT NO. LS554 DATE SAMPLED 01-Jul-14 COMPARTMENT NAME Engine Briteforce Lighting Tower
UNIT MAKE Briteforce DATE RECEIVED 23-Jul-14 COMPARTMENT MAKE Yanmar
UNIT MODEL LED STAR 2.4K DATE REPORTED 24-Jul-14 COMPARTMENT MODEL 3TNV70
UNIT SERIAL NO. LS554 COMPARTMENT SERIAL NO.
SYSTEM CAPACITY mL MACHINE LOCATION BHPBIO Jimblebar
SAE 30SAE 30SAE 30SAE 30
Metals (ppm)
Aluminium (Al) 1 1 1 1 1 1
Nickel (Ni) <1 <1 <1 <1 <1 <1
Copper (Cu) 1 1 1 1 1 <1
Chromium (Cr) <1 <1 <1 <1 <1 <1
Iron (Fe) 5 4 4 3 3 2
Lead (Pb) <1 <1 <1 <1 1 1
Tin (Sn) <1 <1 <1 <1 <1 <1
Contaminants and Additives (ppm)
Silicon (Si) 3 3 4 4 4 4
Boron (B) <5 <5 <5 <5 <5 <5
Sodium (Na) 2 2 2 1 1 1
Potassium (K) 1 1 <1 <1 <1 <1
Phosphorus (P) 730 753 700 694 697 709
Molybdenum (Mo) 19 19 23 23 24 24
Calcium (Ca) 3591 3624 3945 3884 3927 3957
Magnesium (Mg) 17 17 19 17 18 18
Zinc (Zn) 930 934 790 829 825 848
Lithium (Li) <1 <1 <1 <1 <1 <1
Physical Tests
Water (%) <0.1 <0.1 <0.1 <0.1 <0.1 <0.1
Soot (%) 0.4 0.4 0.4 0.4 0.4 0.4
Viscosity (cSt,100°C) 11.2 11.2 10.3 10.5 10.4 10.5
PQ Index <10 <10 <10 <10 10 <10
Oxidation (Abs) 5.7 5.6 4.0 4.0 3.8 3.7
Sulphation (Abs) 16.3 15.8 13.2 12.6 16.0 15.9
Fuel (%) 1 2 3 1 4 4
Total Base Number (FTIR) 11.1 11.5 12.6 12.5 12.5 12.2
WC
10103594823
Diesel Engine
LEGEND
Severe
Abnormal
Caution
NormalNormal
All wear rates normal. Abrasive and other
contaminant levels are acceptable. Viscosity
within specified operating range.
Action: Resample next service interval to further
monitor.
Last Sample :
DIAGNOSIS
All wear rates normal. Abrasive and other
contaminant levels are acceptable. Viscosity
within specified operating range.
Action: Resample next recommended service
interval to further monitor.
UIN 03C0AA2
Current Sample :
Page 1 of 2

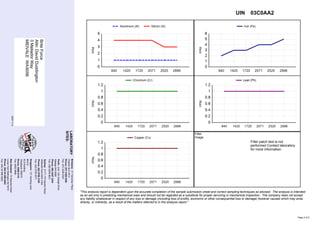

2. 03C0AA2UIN
"This analysis report is dependent upon the accurate completion of the sample submission sheet and correct sampling techniques as advised. The analysis is intended
as an aid only in predicting mechanical wear and should not be regarded as a substitute for proper servicing or mechanical inspection. The company does not accept
any liability whatsoever in respect of any loss or damage (including loss of profits, economic or other consequential loss or damage) however caused which may arise
directly, or indirectly, as a result of the matters referred to in this analysis report."
BriteForce
Attn:DavidDuddington
3MeliadorWay
MIDVALEWA6056
0007v1.4
LABORATORY
SITES:
Brisbane:41YarramanPlace
VirginiaQLD4014
Phone:(07)33266300
Fax:(07)33266321
Singapore:121GentingLane
#04-01
Phone:65890118
Fax:62839689
NewZealand:74SeaviewRoad
LowerHuttWellingtonNZ5010
Phone:(64)045866202
Fax:(64)045866262
ALSBuilding
Singapore349572
Perth:Unit1/30OxleighDrive
MalagaWA6090
Phone:(08)93473244
Fax:(08)92498631
Sydney:2/171-175NewtonRoad
WetherillParkNSW2164
Phone:(02)87863150
Fax:(02)97255071
Filter patch test is not
performed Contact laboratory
for more information
Filter
