This document summarizes Tim Cunningham's presentation on using ColdFusion API Manager. Some key points include: - ColdFusion API Manager can help manage and publish APIs, including access control, analytics, versioning and portals. - Primoris faced challenges with inconsistent documentation and APIs from other companies. API Manager helps address these issues. - While ColdFusion API Manager claims to be easy to set up, there are sometimes additional steps needed, especially for non-ColdFusion or legacy APIs. Swagger can help integrate documentation. - Swagger and OpenAPI specifications are useful for documenting APIs in a standardized, machine-readable format that keeps documentation and code in sync.

1. ColdFusion Summit 2016

2. Tim Cunningham –VP of Primoris Services
• CF Developer over 17 years
• Targeting the Insurance & Financial services market
• Payment Processing
• Credit Cards
• Banking
• Claims Disbursement
• Block Chain financial contracts
• Was initially a CF API manager skeptic

3. What is it?
• ColdFusion API Manager helps you to create
APIs that expose core functionalities of
application and other backend systems.
• These APIs are then published and managed
at runtime.
• Essentially it is a proxy for any API

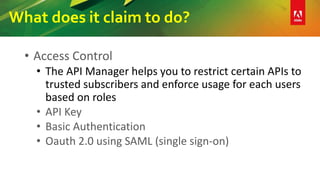

4. What does it claim to do?
• Access Control
• The API Manager helps you to restrict certain APIs to
trusted subscribers and enforce usage for each users
based on roles
• API Key
• Basic Authentication
• Oauth 2.0 using SAML (single sign-on)

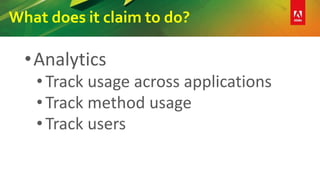

5. What does it claim to do?
•Analytics
•Track usage across applications
•Track method usage
•Track users

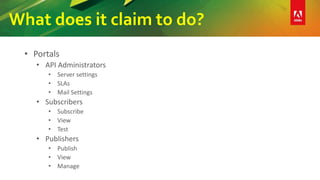

6. What does it claim to do?
• Portals
• API Administrators
• Server settings
• SLAs
• Mail Settings
• Subscribers
• Subscribe
• View
• Test
• Publishers
• Publish
• View
• Manage

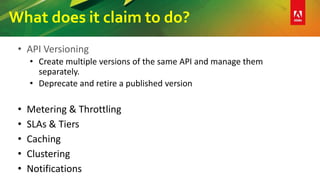

7. What does it claim to do?
• API Versioning
• Create multiple versions of the same API and manage them
separately.
• Deprecate and retire a published version
• Metering & Throttling
• SLAs & Tiers
• Caching
• Clustering
• Notifications

8. Our Challenge
• Primoris is a Payments Services Company
• Most of our products are APIs
• Many of our products rely on other companies APIs.
• ABA Banking apis
• Verfied by Visa Merchants
• Wells Fargo
• Consistently Inconsistent
• Age
• Language
• Documentation
• Versioning Schemes

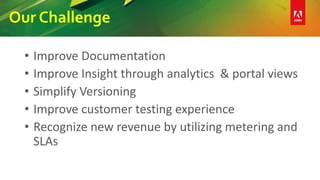

9. Our Challenge
• Improve Documentation
• Improve Insight through analytics & portal views
• Simplify Versioning
• Improve customer testing experience
• Recognize new revenue by utilizing metering and
SLAs

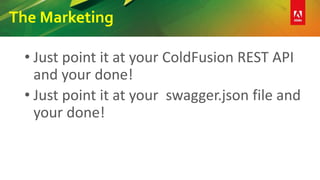

10. The Marketing
• Just point it at your ColdFusion REST API
and your done!
• Just point it at your swagger.json file and
your done!

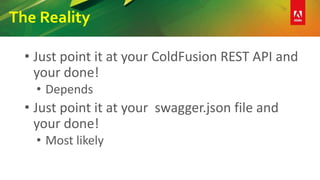

11. The Reality
• Just point it at your ColdFusion REST API and
your done!
• Depends
• Just point it at your swagger.json file and
your done!
• Most likely

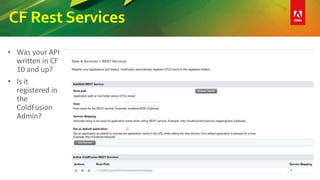

12. CF Rest Services
• Was your API
written in CF
10 and up?
• Is it
registered in
the
ColdFusion
Admin?

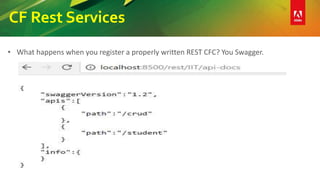

13. CF Rest Services
• What happens when you register a properly written REST CFC? You Swagger.

14. CF Rest Services
• What we decided to do.
• Don’t rewrite service
• Manually add service to API manager
• Add Swagger to exisiting custom CF REST
Services

15. Trigger warning
Gratuitous XML

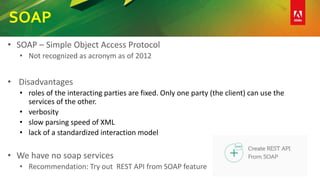

16. SOAP
• SOAP – Simple Object Access Protocol
• Not recognized as acronym as of 2012
• Disadvantages
• roles of the interacting parties are fixed. Only one party (the client) can use the
services of the other.
• verbosity
• slow parsing speed of XML
• lack of a standardized interaction model
• We have no soap services
• Recommendation: Try out REST API from SOAP feature

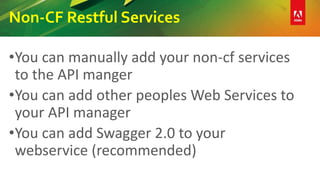

17. Non-CF Restful Services
•You can manually add your non-cf services
to the API manger
•You can add other peoples Web Services to
your API manager
•You can add Swagger 2.0 to your
webservice (recommended)

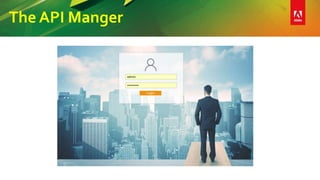

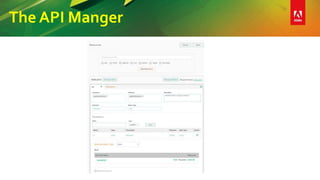

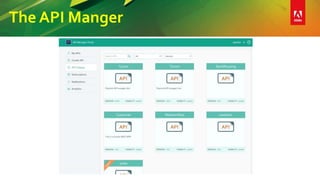

18. The API Manger

19. The API Manger

20. The API Manger

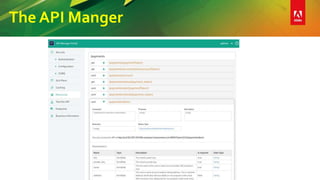

21. The API Manger

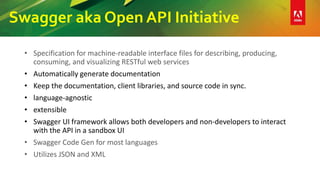

22. Swagger aka Open API Initiative
• Specification for machine-readable interface files for describing, producing,
consuming, and visualizing RESTful web services
• Automatically generate documentation
• Keep the documentation, client libraries, and source code in sync.
• language-agnostic
• extensible
• Swagger UI framework allows both developers and non-developers to interact
with the API in a sandbox UI
• Swagger Code Gen for most languages
• Utilizes JSON and XML

23. Swagger aka Open API Initiative

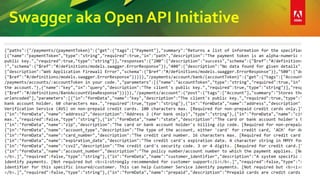

24. Swagger aka Open API Initiative

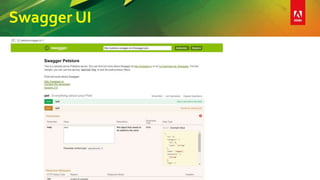

25. Swagger UI

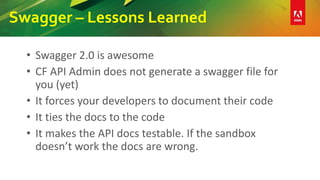

26. Swagger – Lessons Learned
• Swagger 2.0 is awesome
• CF API Admin does not generate a swagger file for
you (yet)
• It forces your developers to document their code
• It ties the docs to the code
• It makes the API docs testable. If the sandbox
doesn’t work the docs are wrong.

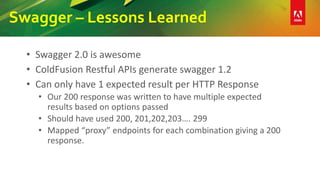

27. Swagger – Lessons Learned
• Swagger 2.0 is awesome
• ColdFusion Restful APIs generate swagger 1.2
• Can only have 1 expected result per HTTP Response
• Our 200 response was written to have multiple expected
results based on options passed
• Should have used 200, 201,202,203…. 299
• Mapped “proxy” endpoints for each combination giving a 200
response.

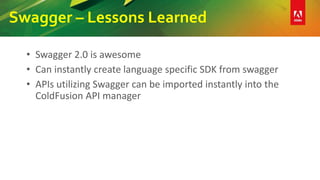

28. Swagger – Lessons Learned
• Swagger 2.0 is awesome
• Can instantly create language specific SDK from swagger
• APIs utilizing Swagger can be imported instantly into the
ColdFusion API manager

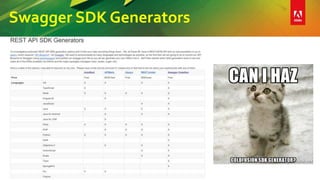

29. Swagger SDK Generators

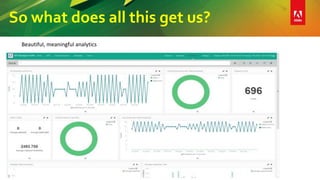

30. So what does all this get us?
Beautiful, meaningful analytics

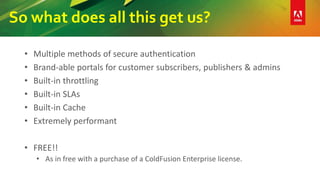

31. So what does all this get us?
• Multiple methods of secure authentication
• Brand-able portals for customer subscribers, publishers & admins
• Built-in throttling
• Built-in SLAs
• Built-in Cache
• Extremely performant
• FREE!!
• As in free with a purchase of a ColdFusion Enterprise license.

32. Thank you!
Don’t forget to fill out
your survey!
Time to head to Ria Ra
Pub at the “Shoppes” of
Mandalay Bay

33. Thank you!
