The More the Merrier, Clustering in ColdFusion
Elishia Dvorak | ColdFusion Solution Consultant & Evangelist
Nimit Sharma | Software Engineer, ColdFusion
© 2014 Adobe Systems Incorporated. All Rights Reserved. Adobe Confidential.

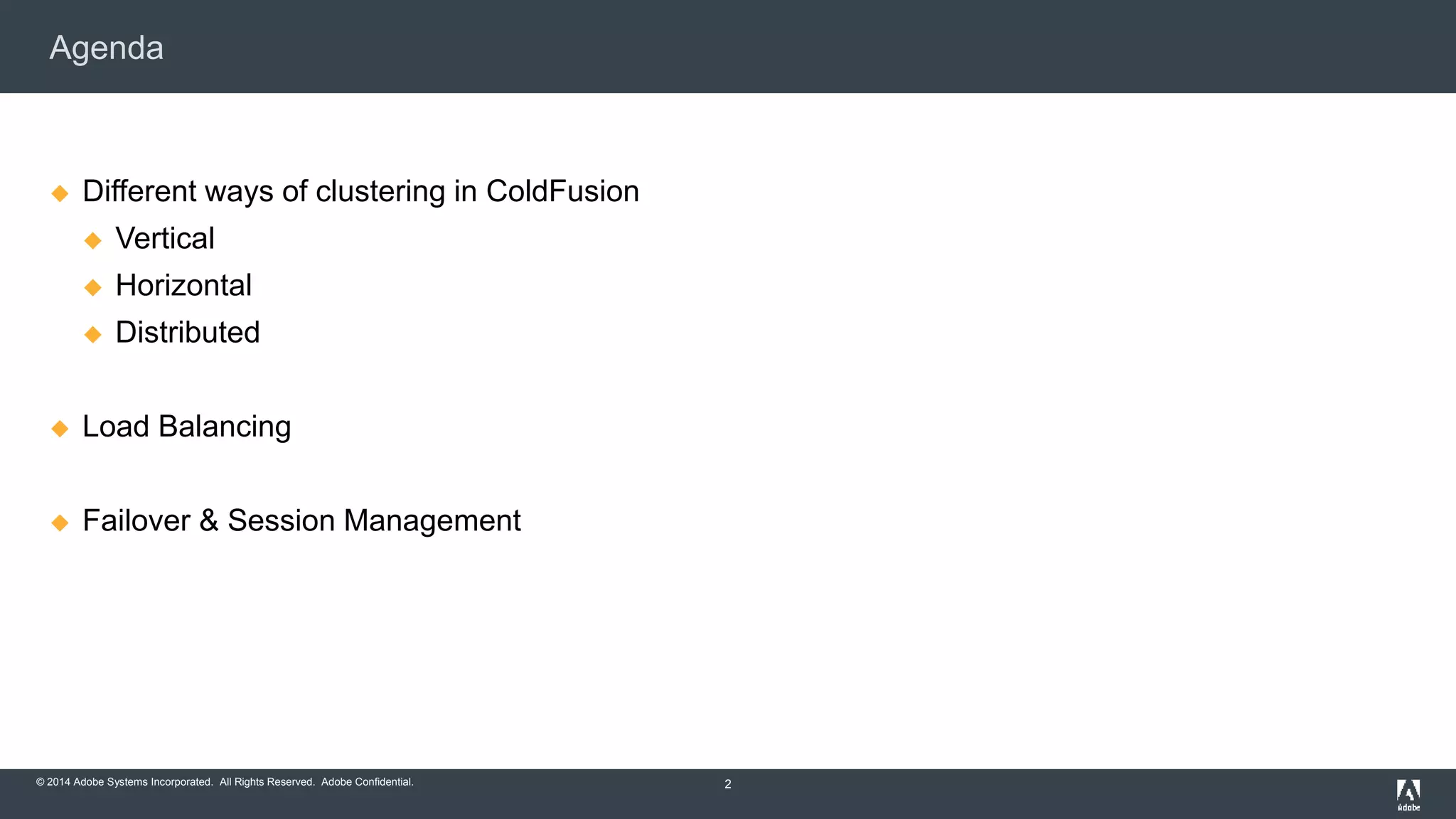

Agenda
 Different ways of clustering in ColdFusion
 Vertical
 Horizontal
 Distributed
 Load Balancing
 Failover & Session Management
2

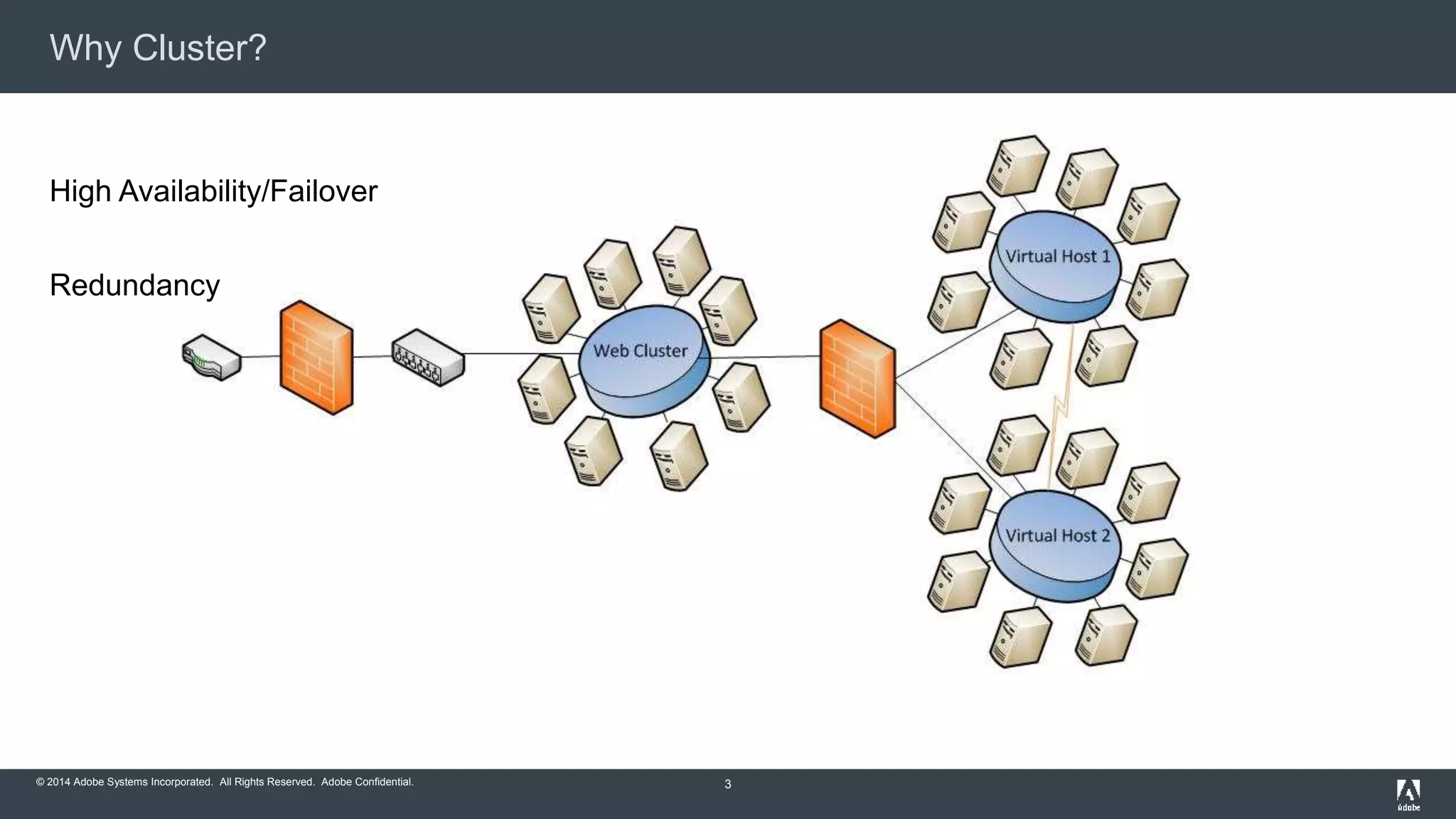

Why Cluster?
High Availability/Failover
Redundancy
3

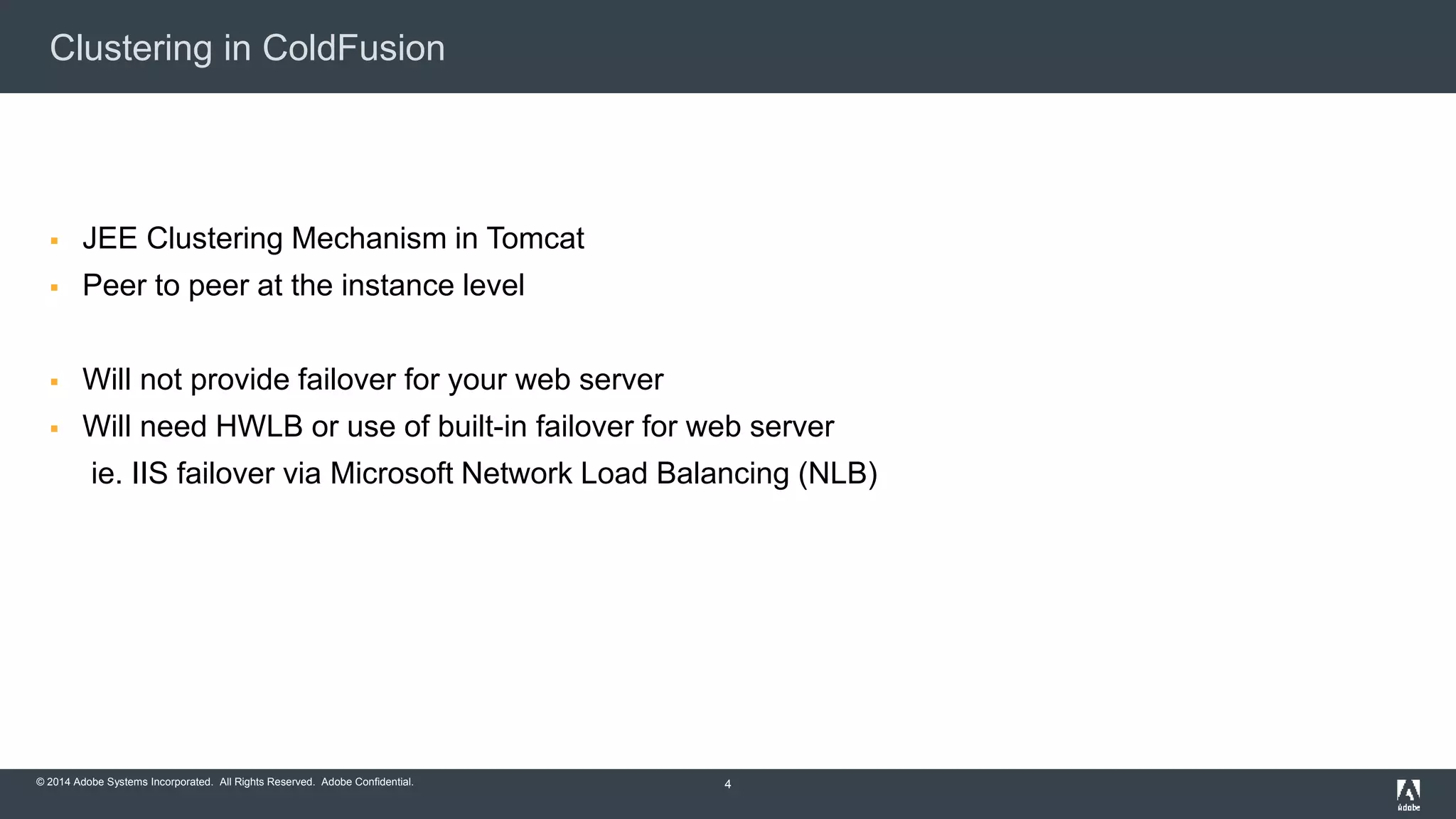

Clustering in ColdFusion
 JEE Clustering Mechanism in Tomcat
 Peer to peer at the instance level
 Will not provide failover for your web server
 Will need HWLB or use of built-in failover for web server
ie. IIS failover via Microsoft Network Load Balancing (NLB)
4

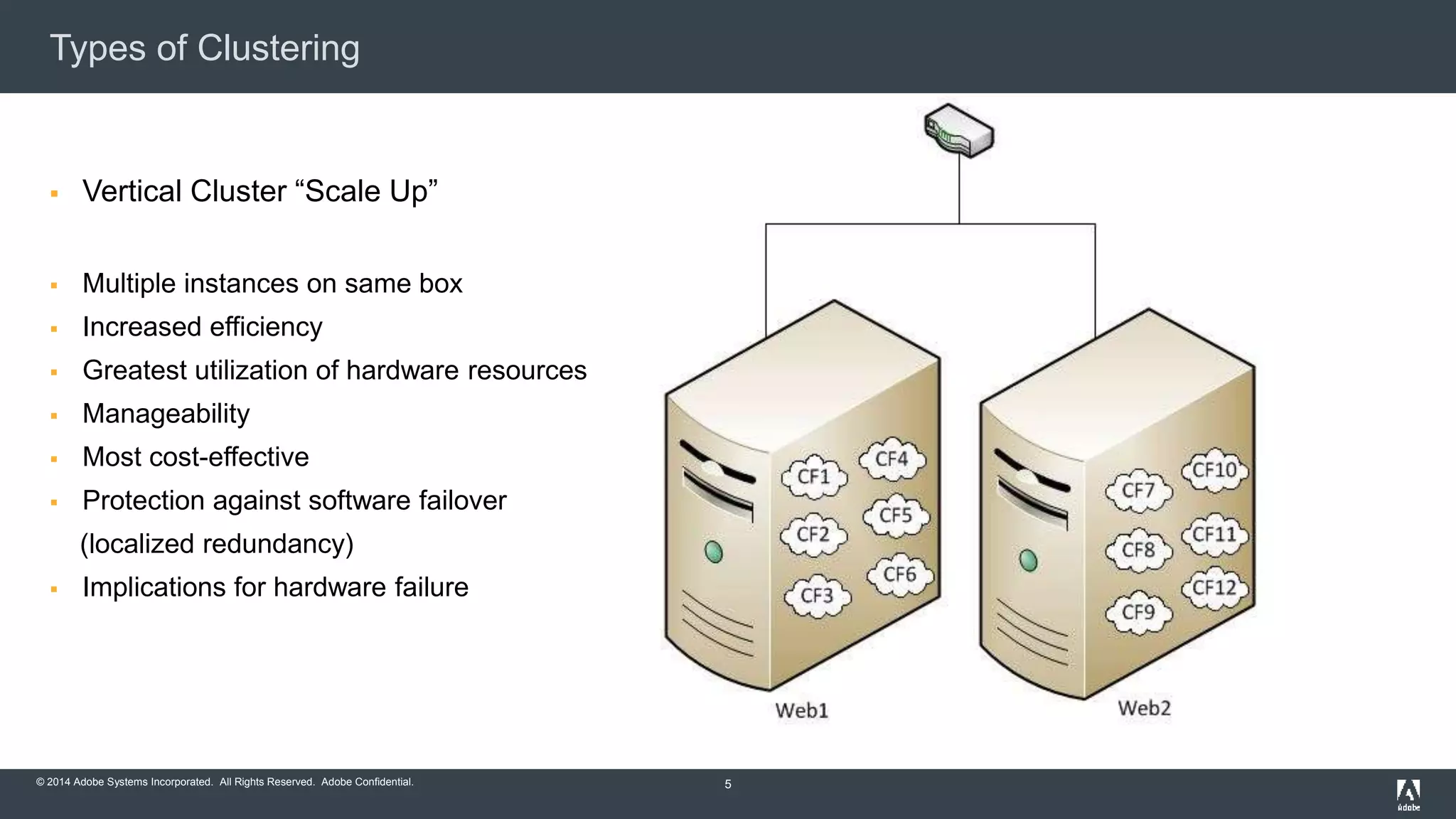

Types of Clustering
 Vertical Cluster “Scale Up”
 Multiple instances on same box
 Increased efficiency
 Greatest utilization of hardware resources
 Manageability
 Most cost-effective
 Protection against software failover
(localized redundancy)
 Implications for hardware failure
5

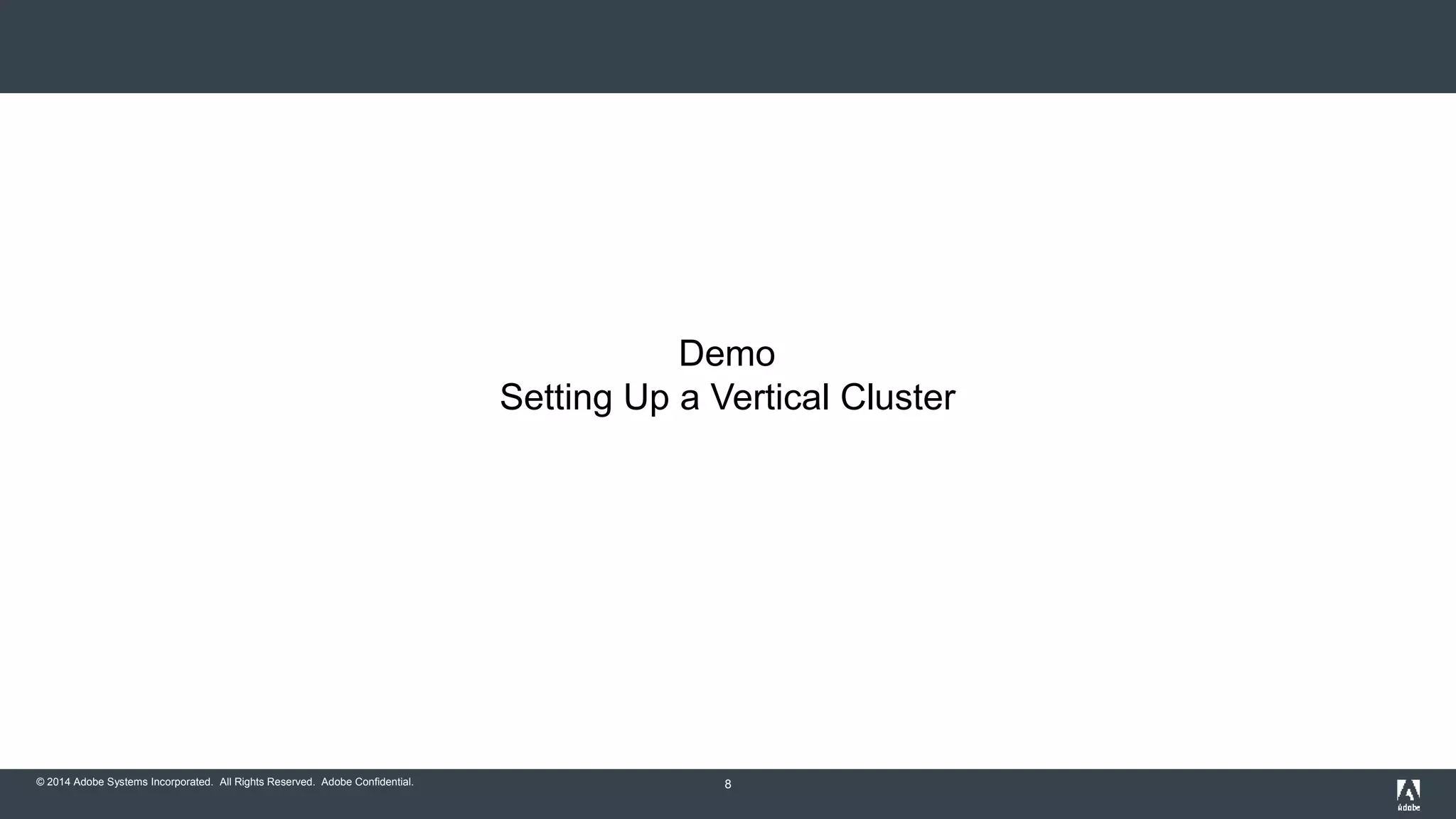

Demo
Setting Up a Vertical Cluster

Types of Clustering

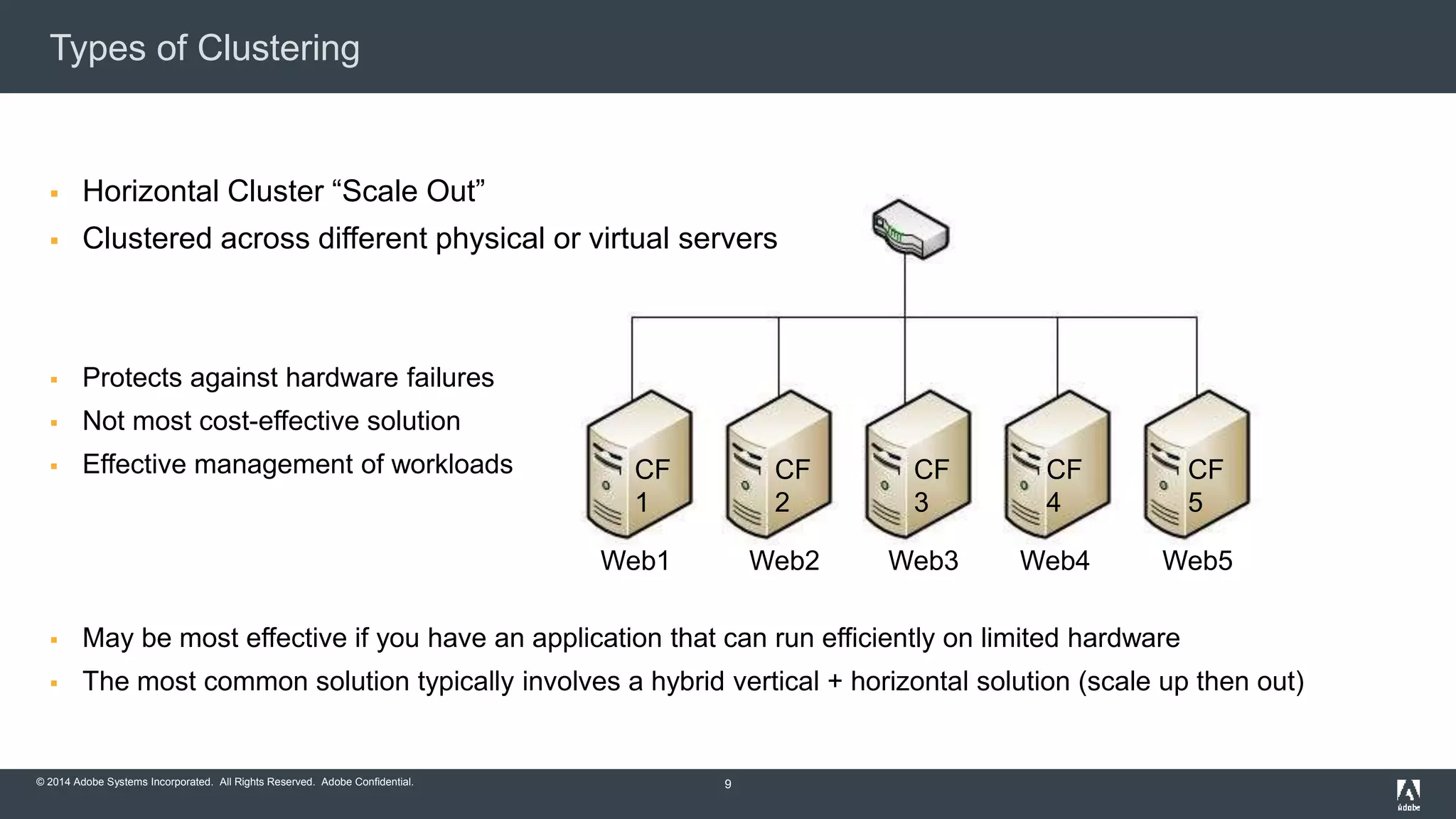

 Horizontal Cluster “Scale Out”
 Clustered across different physical or virtual servers
 Protects against hardware failures
 Not most cost-effective solution
 Effective management of workloads
 May be most effective if you have an application that can run efficiently on limited hardware
 The most common solution typically involves a hybrid vertical + horizontal solution (scale up then out)
9
CF
1
CF
2
CF
3
CF
4
CF
5
Web1 Web2 Web3 Web4 Web5

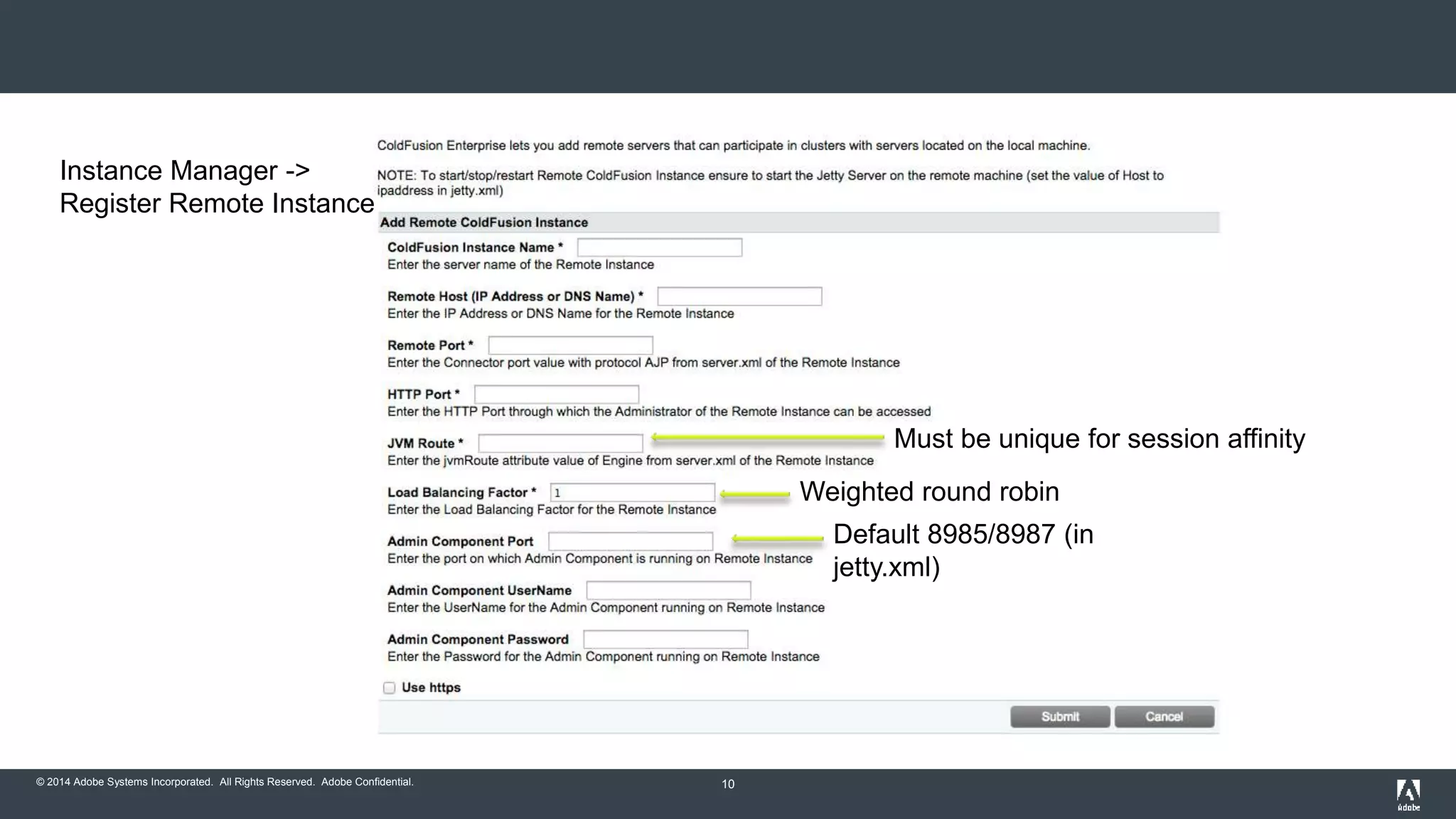

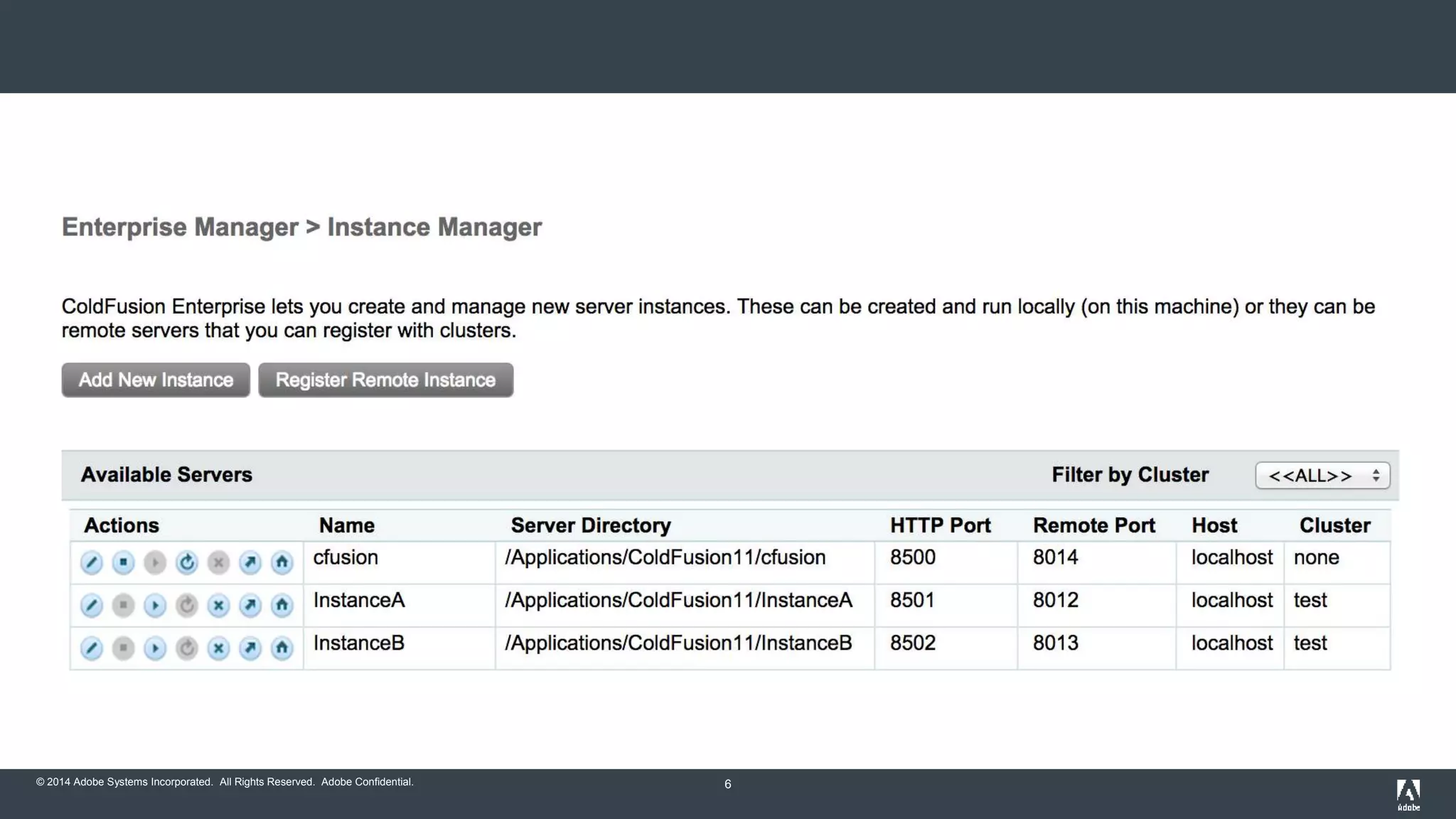

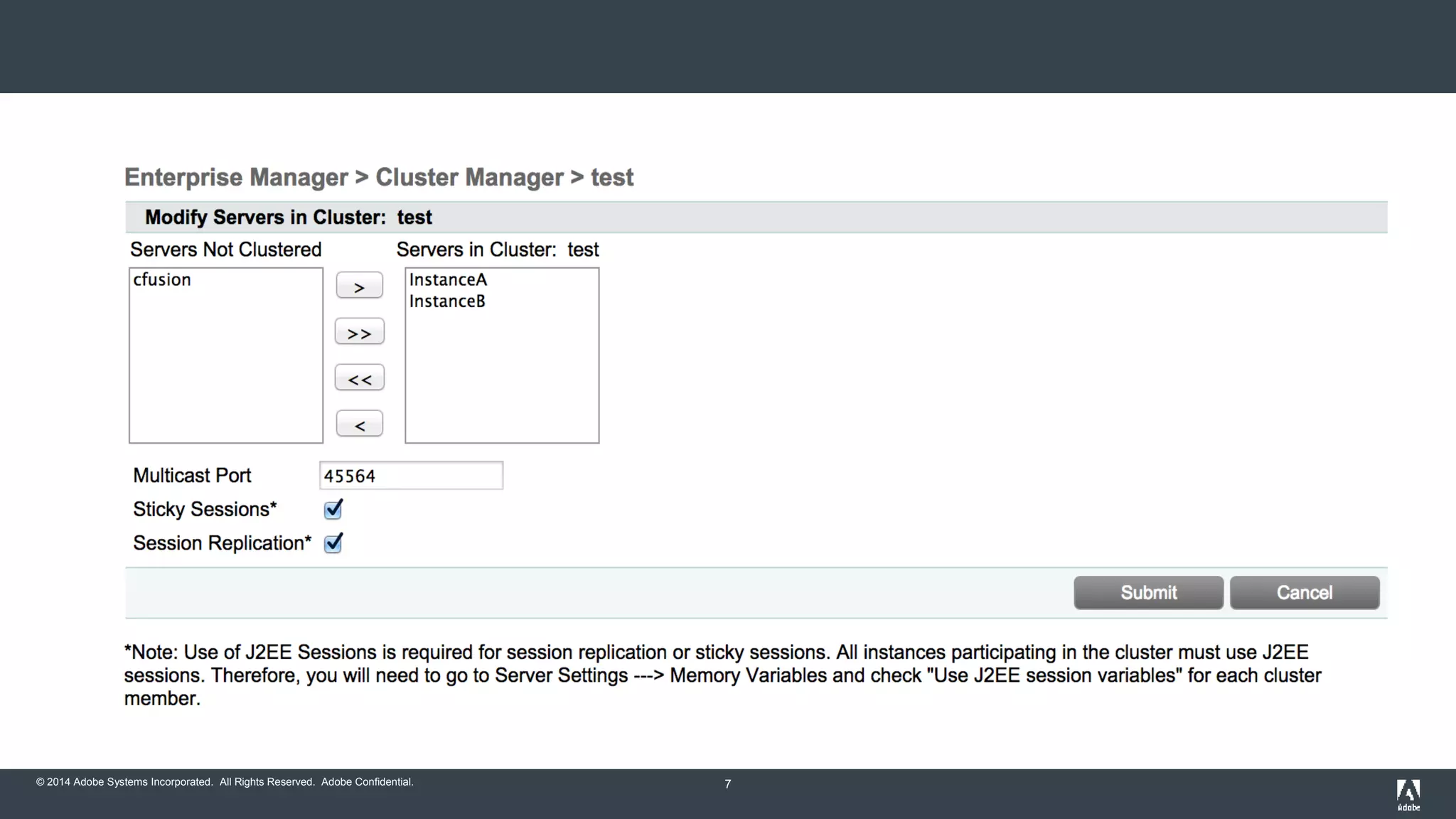

Instance Manager ->
Register Remote Instance
Must be unique for session affinity
Weighted round robin
Default 8985/8987 (in
jetty.xml)

Demo
Setting Up a Horizontal ColdFusion Cluster

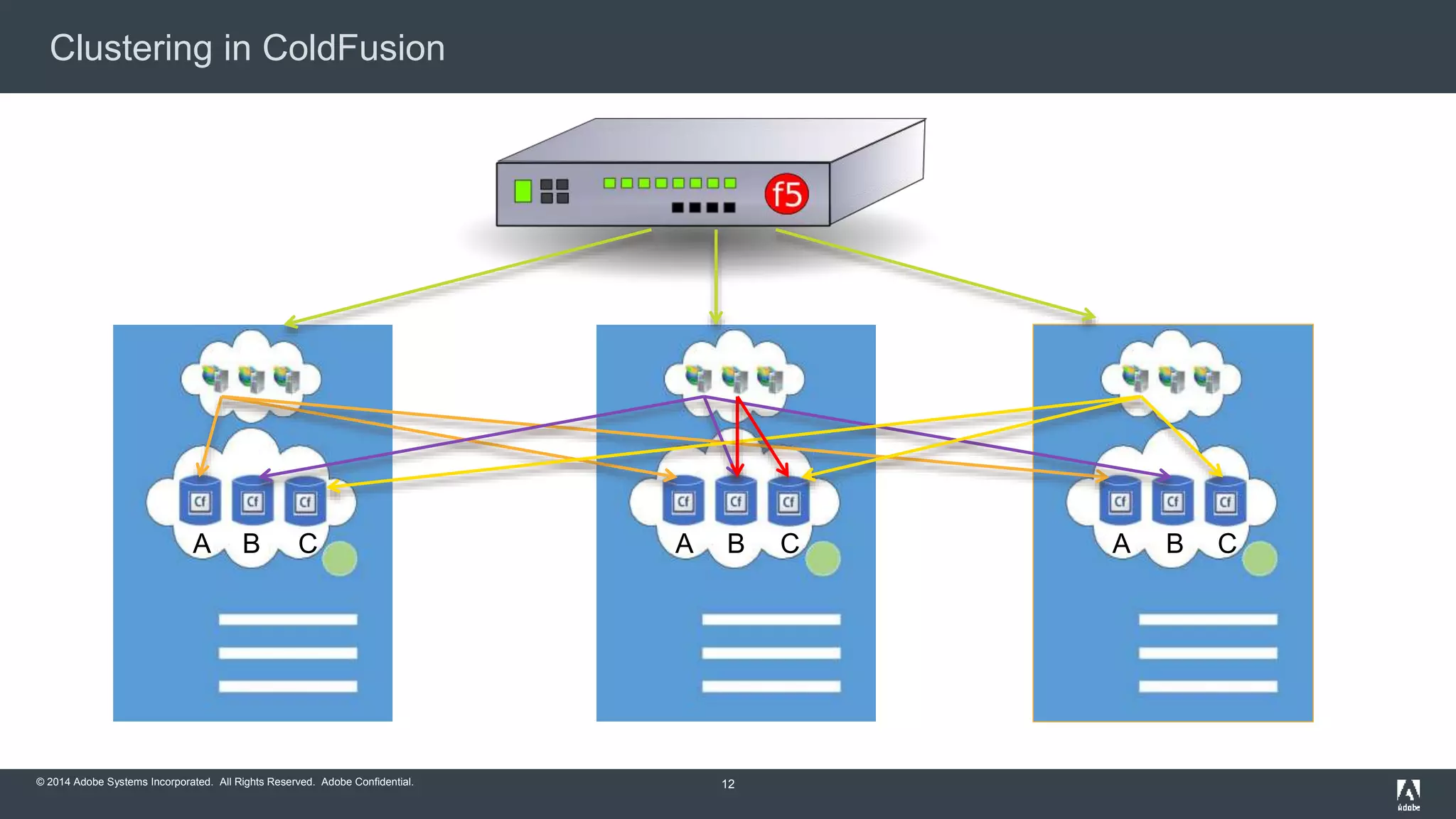

Clustering in ColdFusion
A B C A B C A B C
12

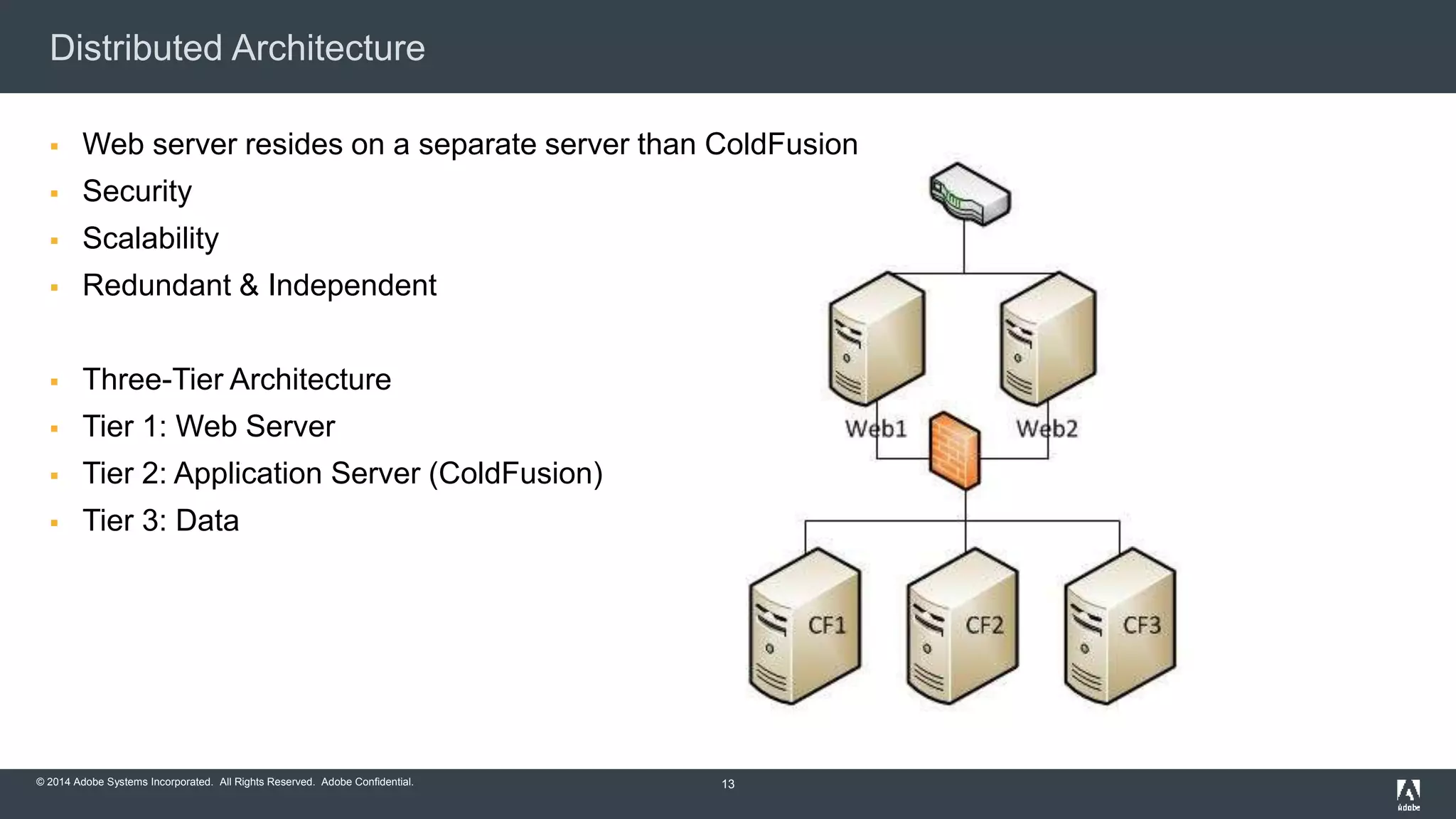

Distributed Architecture
 Web server resides on a separate server than ColdFusion
 Security
 Scalability
 Redundant & Independent
 Three-Tier Architecture
 Tier 1: Web Server
 Tier 2: Application Server (ColdFusion)
 Tier 3: Data
13

Demo
Distributed Architecture

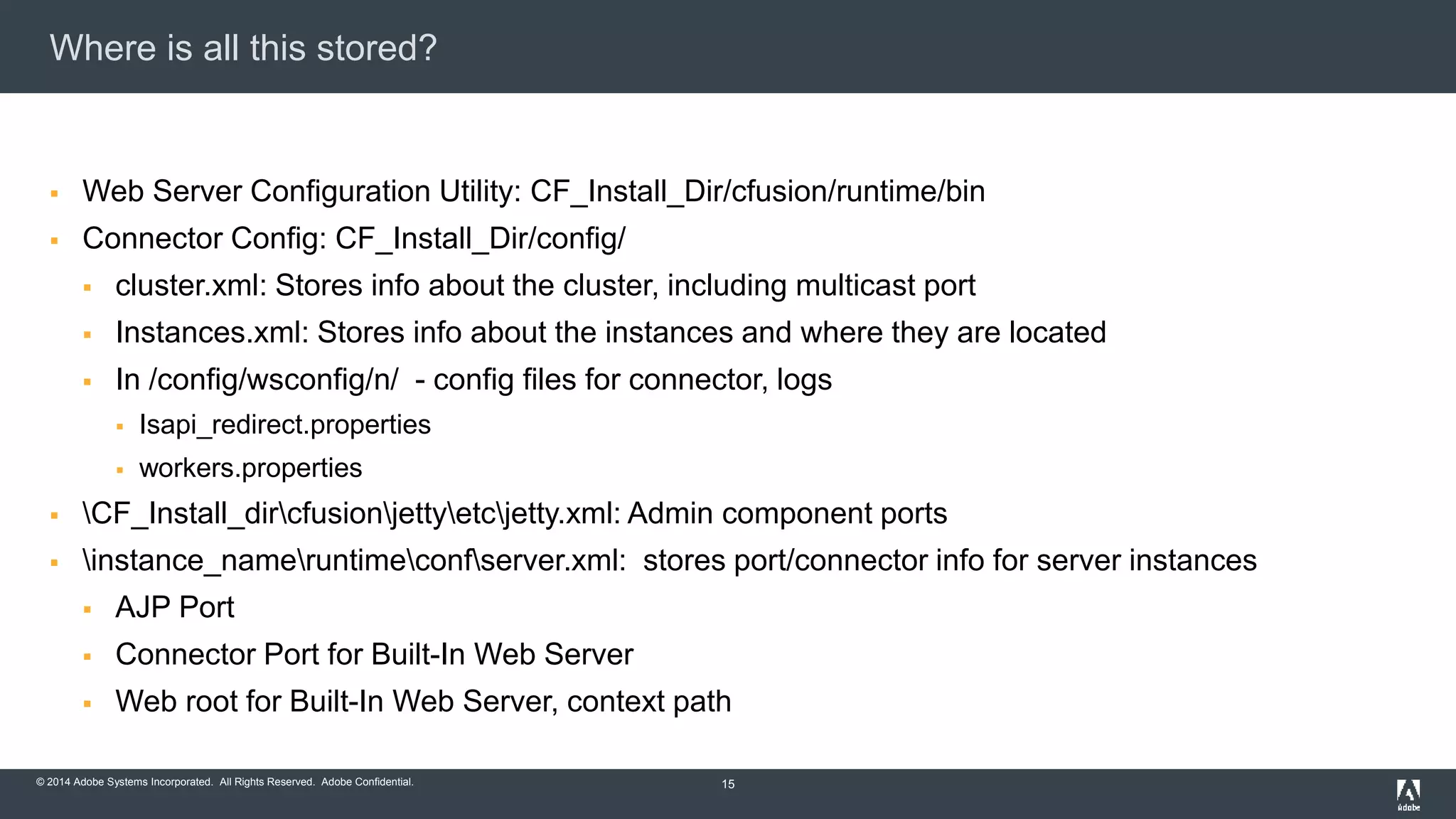

Where is all this stored?
 Web Server Configuration Utility: CF_Install_Dir/cfusion/runtime/bin
 Connector Config: CF_Install_Dir/config/
 cluster.xml: Stores info about the cluster, including multicast port
 Instances.xml: Stores info about the instances and where they are located
 In /config/wsconfig/n/ - config files for connector, logs
 Isapi_redirect.properties
 workers.properties
 CF_Install_dircfusionjettyetcjetty.xml: Admin component ports
 instance_nameruntimeconfserver.xml: stores port/connector info for server instances
 AJP Port
 Connector Port for Built-In Web Server
 Web root for Built-In Web Server, context path
15

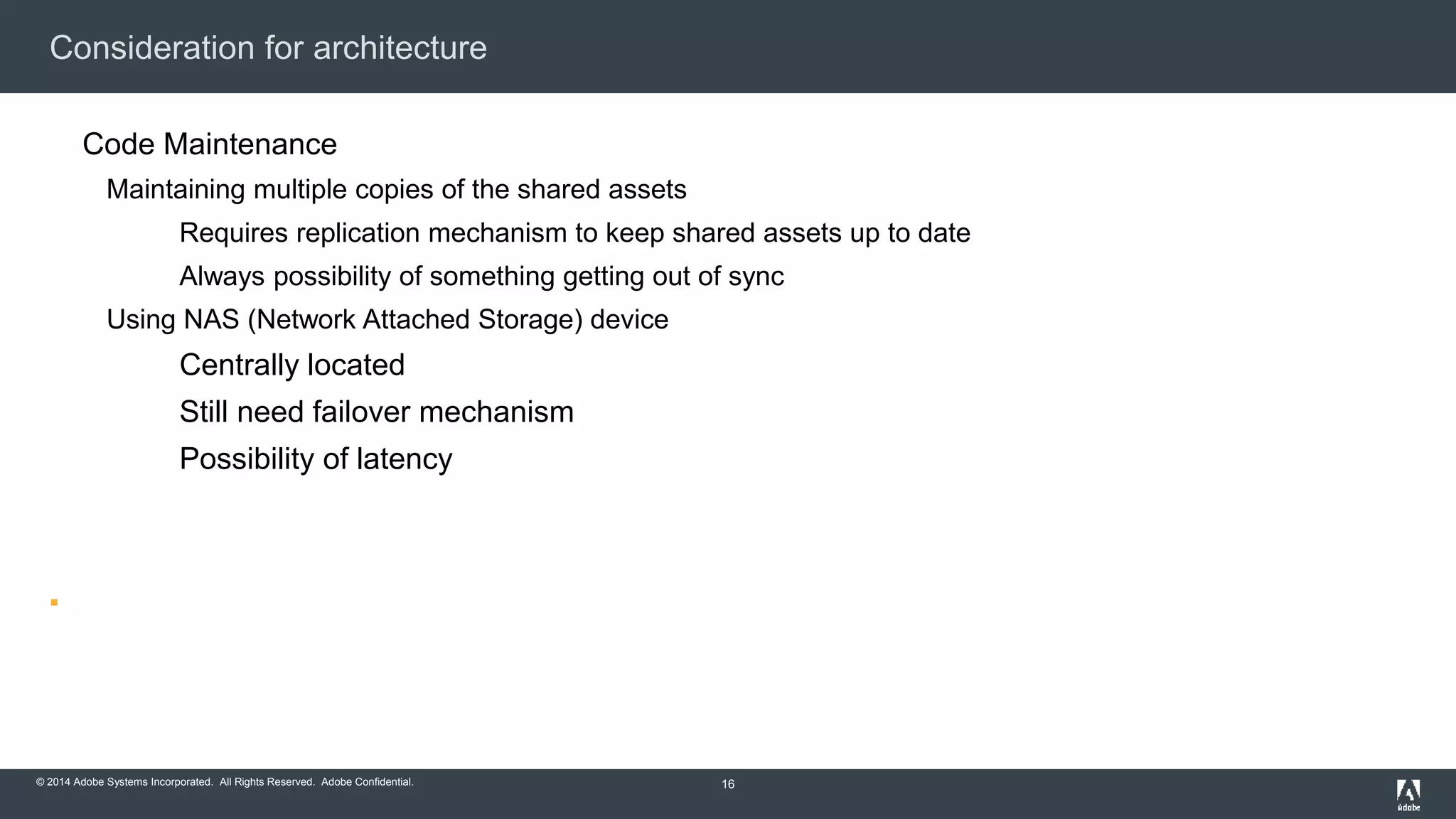

Consideration for architecture
Code Maintenance
Maintaining multiple copies of the shared assets
Requires replication mechanism to keep shared assets up to date
Always possibility of something getting out of sync
Using NAS (Network Attached Storage) device
Centrally located
Still need failover mechanism
Possibility of latency

16

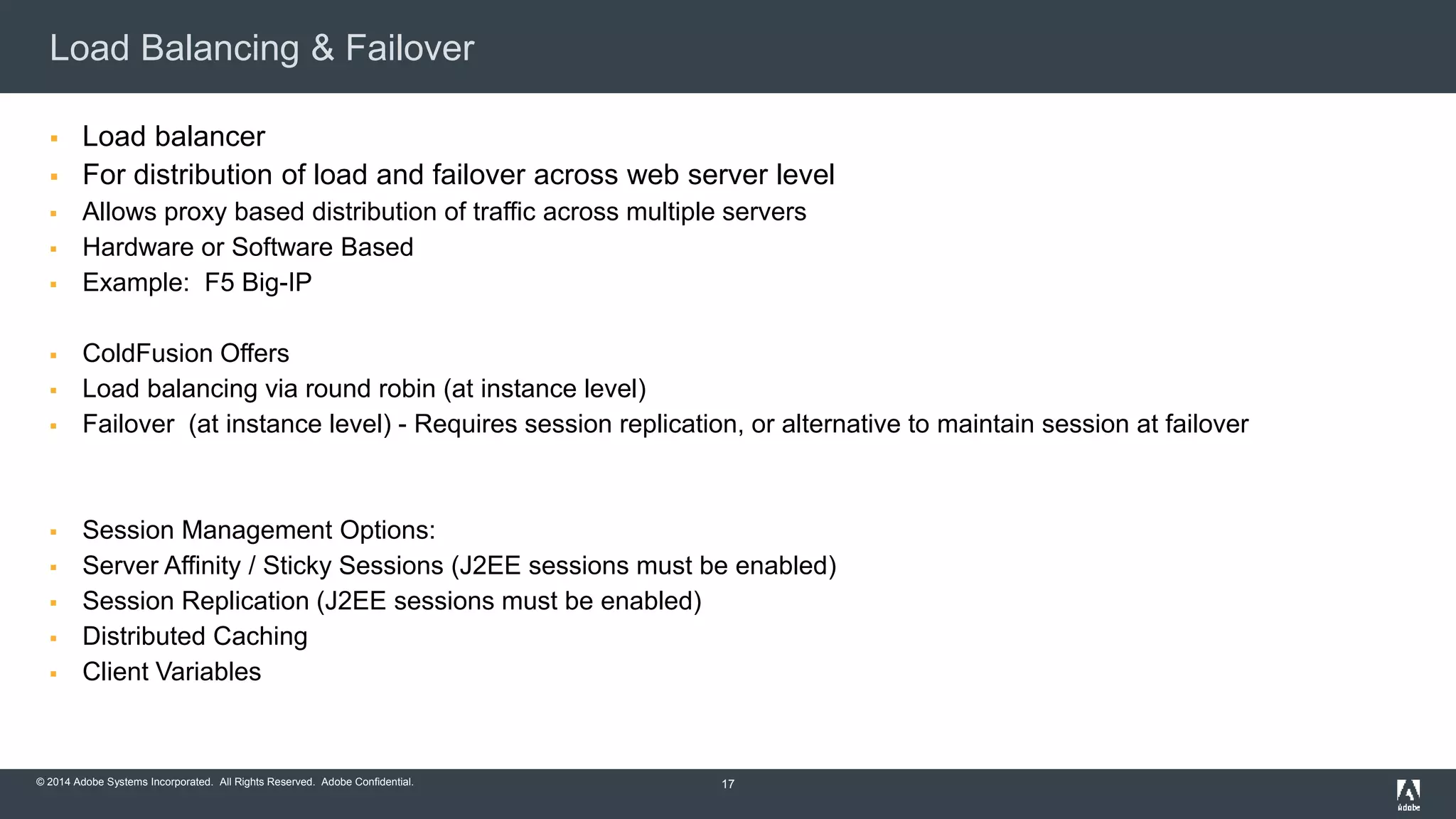

Load Balancing & Failover
 Load balancer
 For distribution of load and failover across web server level
 Allows proxy based distribution of traffic across multiple servers
 Hardware or Software Based
 Example: F5 Big-IP
 ColdFusion Offers
 Load balancing via round robin (at instance level)
 Failover (at instance level) - Requires session replication, or alternative to maintain session at failover
 Session Management Options:
 Server Affinity / Sticky Sessions (J2EE sessions must be enabled)
 Session Replication (J2EE sessions must be enabled)
 Distributed Caching
 Client Variables
17

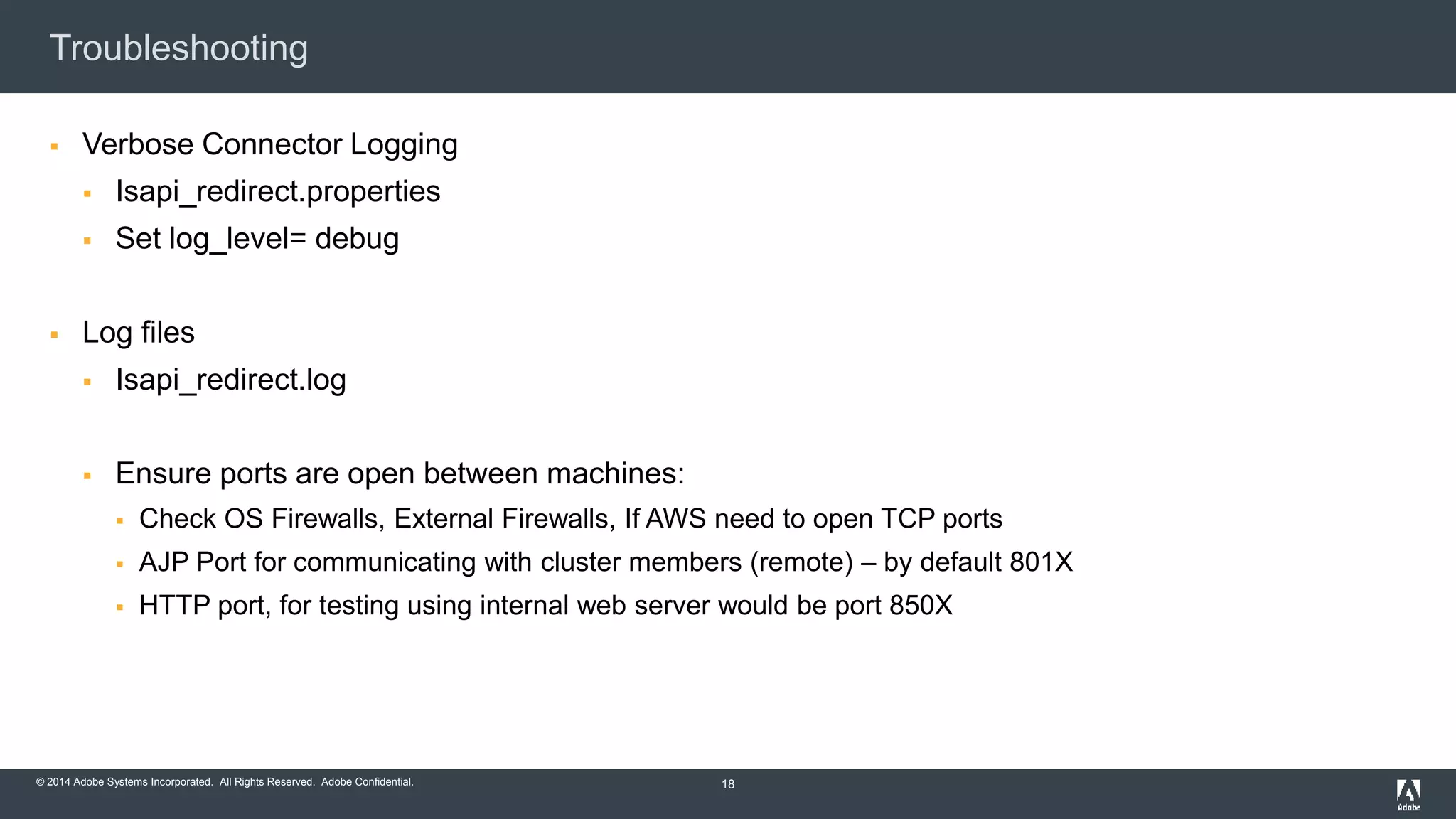

Troubleshooting
 Verbose Connector Logging
 Isapi_redirect.properties
 Set log_level= debug
 Log files
 Isapi_redirect.log
 Ensure ports are open between machines:
 Check OS Firewalls, External Firewalls, If AWS need to open TCP ports
 AJP Port for communicating with cluster members (remote) – by default 801X
 HTTP port, for testing using internal web server would be port 850X
18

PDFg Clustering and Scalability
Nimit Sharma
19

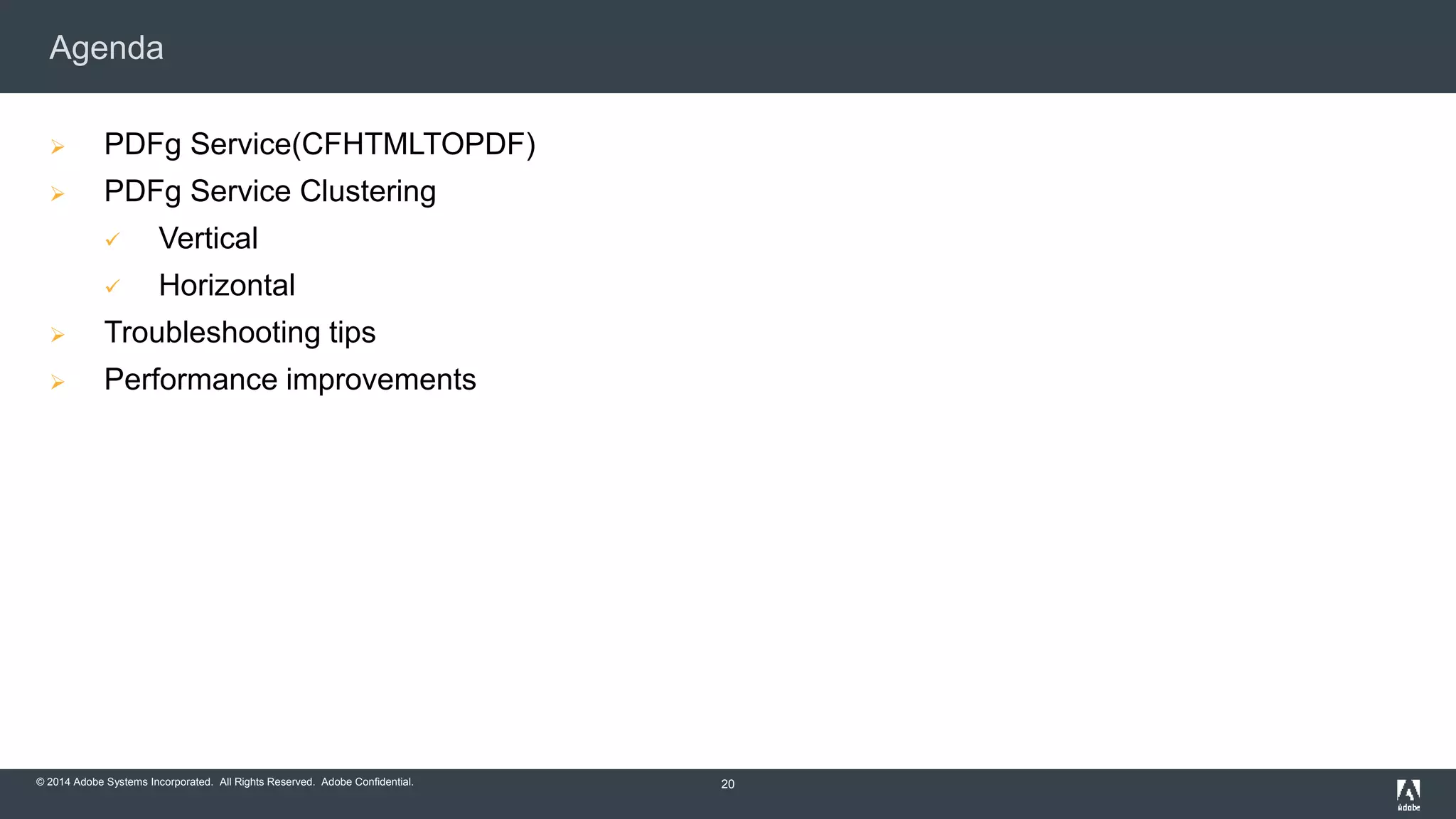

Agenda
 PDFg Service(CFHTMLTOPDF)
 PDFg Service Clustering
 Vertical
 Horizontal
 Troubleshooting tips
 Performance improvements
20

PDFg Service
21

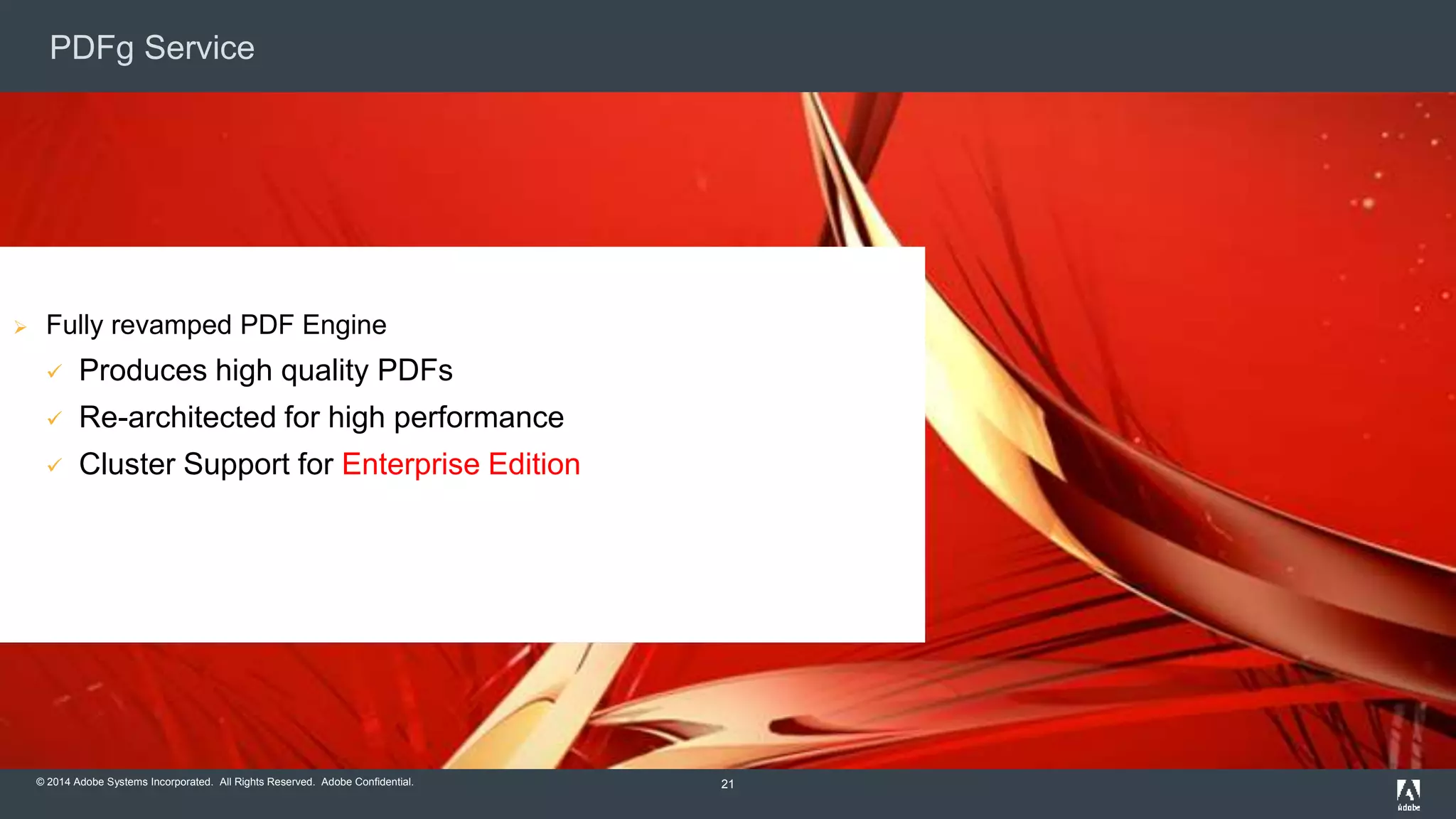

 Fully revamped PDF Engine
 Produces high quality PDFs
 Re-architected for high performance
 Cluster Support for Enterprise Edition

PDFg Service
22

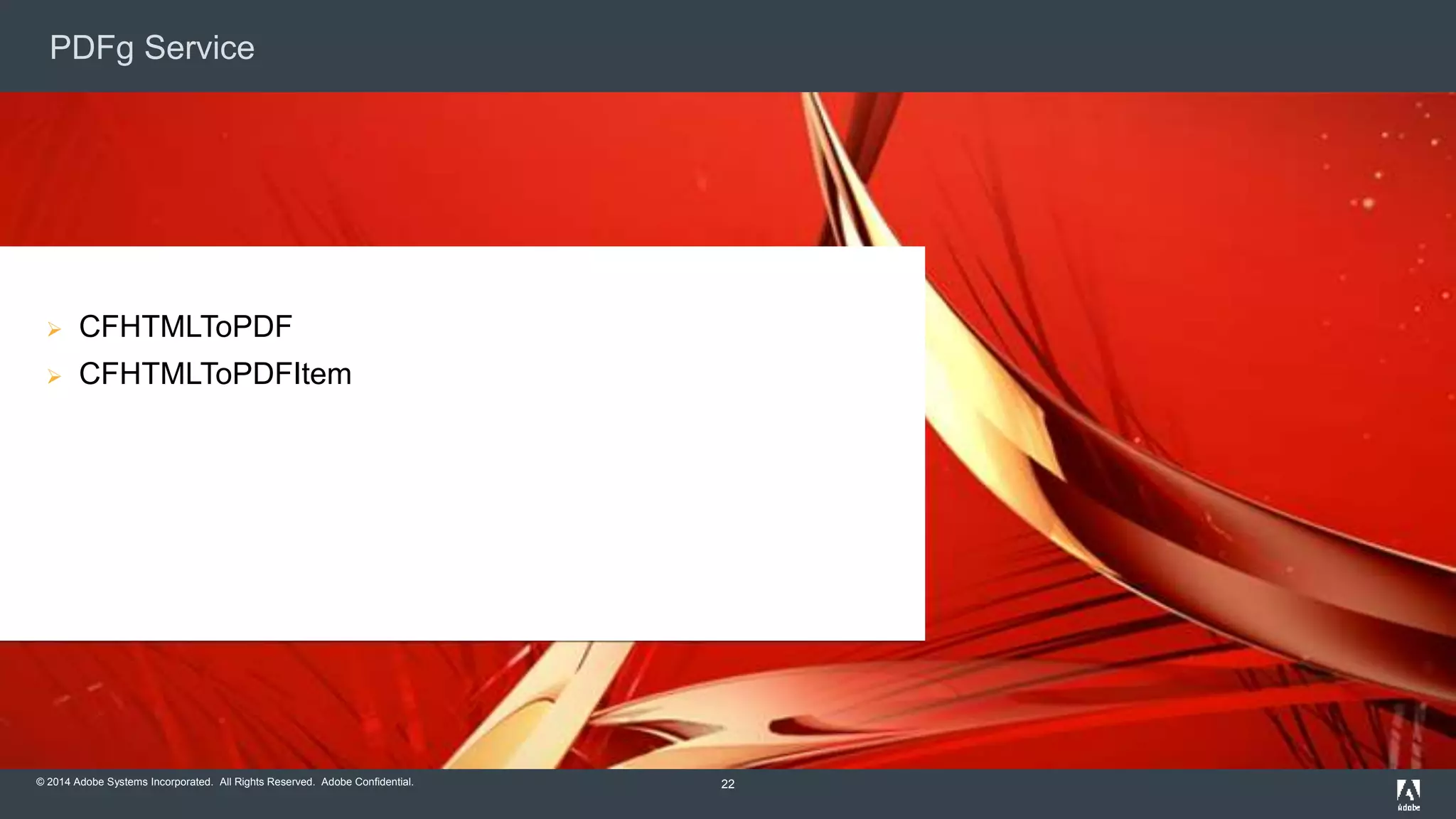

 CFHTMLToPDF
 CFHTMLToPDFItem

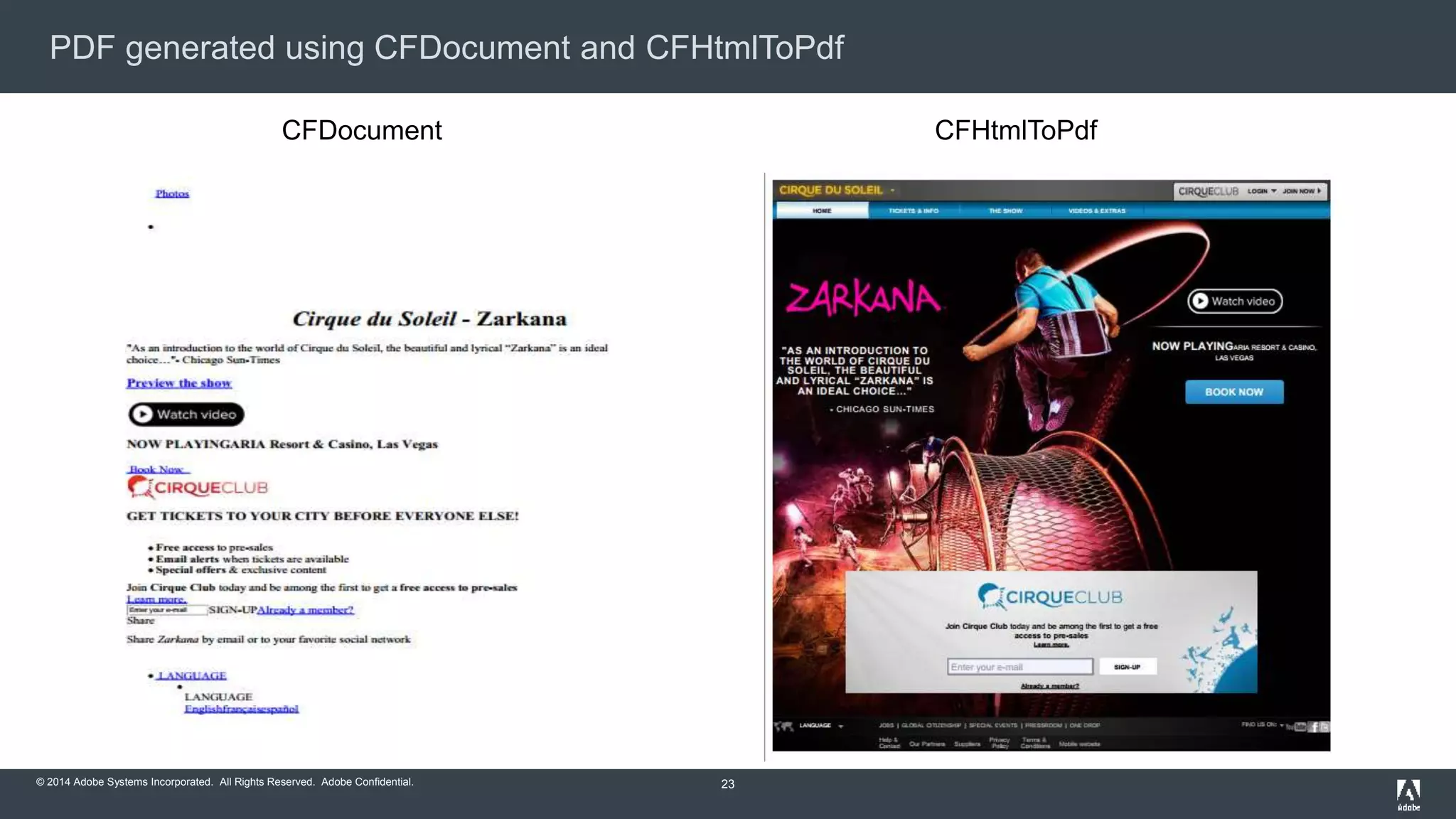

PDF generated using CFDocument and CFHtmlToPdf
CFDocument CFHtmlToPdf
23

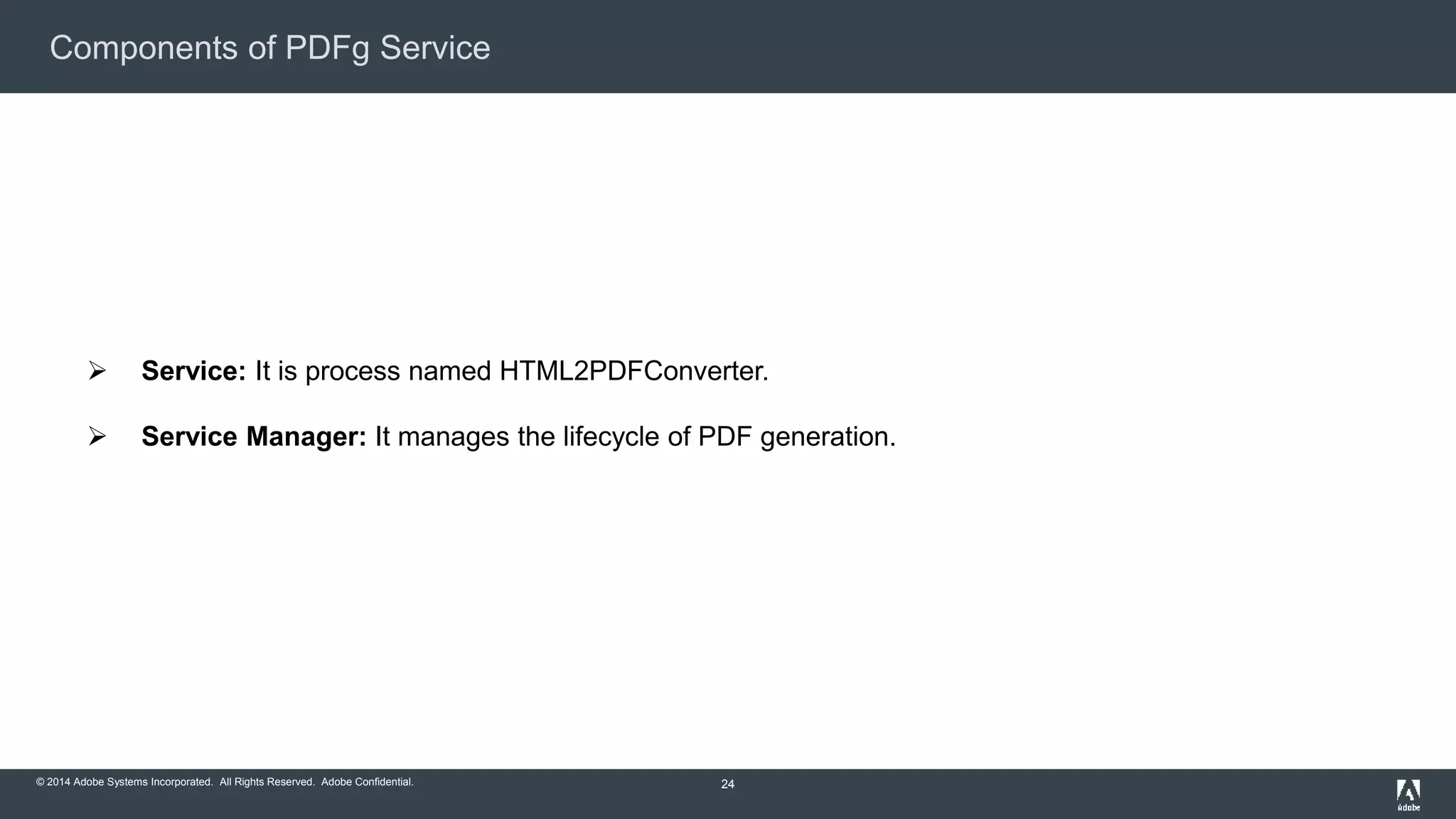

Components of PDFg Service
 Service: It is process named HTML2PDFConverter.
 Service Manager: It manages the lifecycle of PDF generation.
24

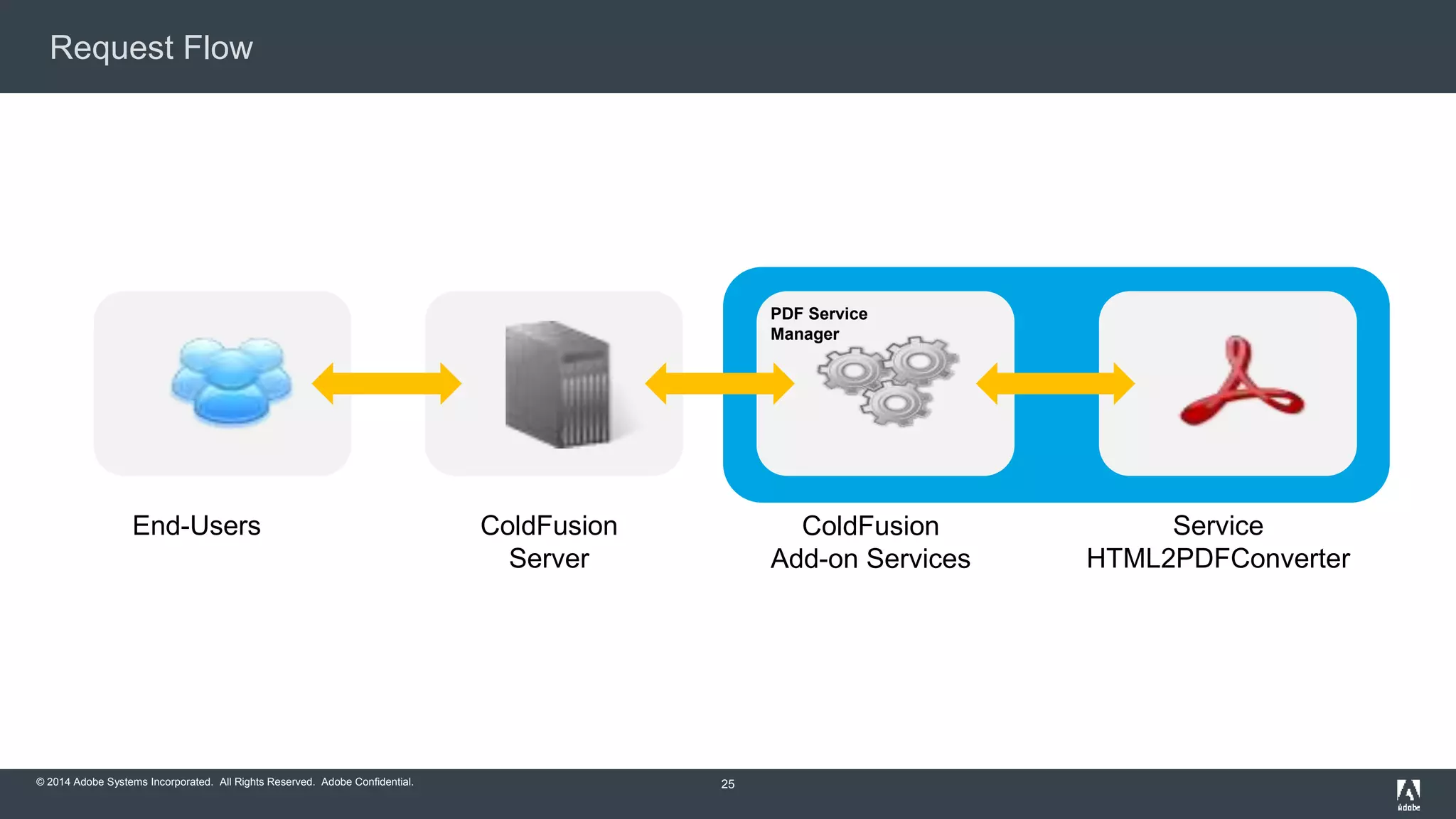

Request Flow
25
End-Users ColdFusion
Server
ColdFusion
Add-on Services
Service
HTML2PDFConverter
PDF Service
Manager

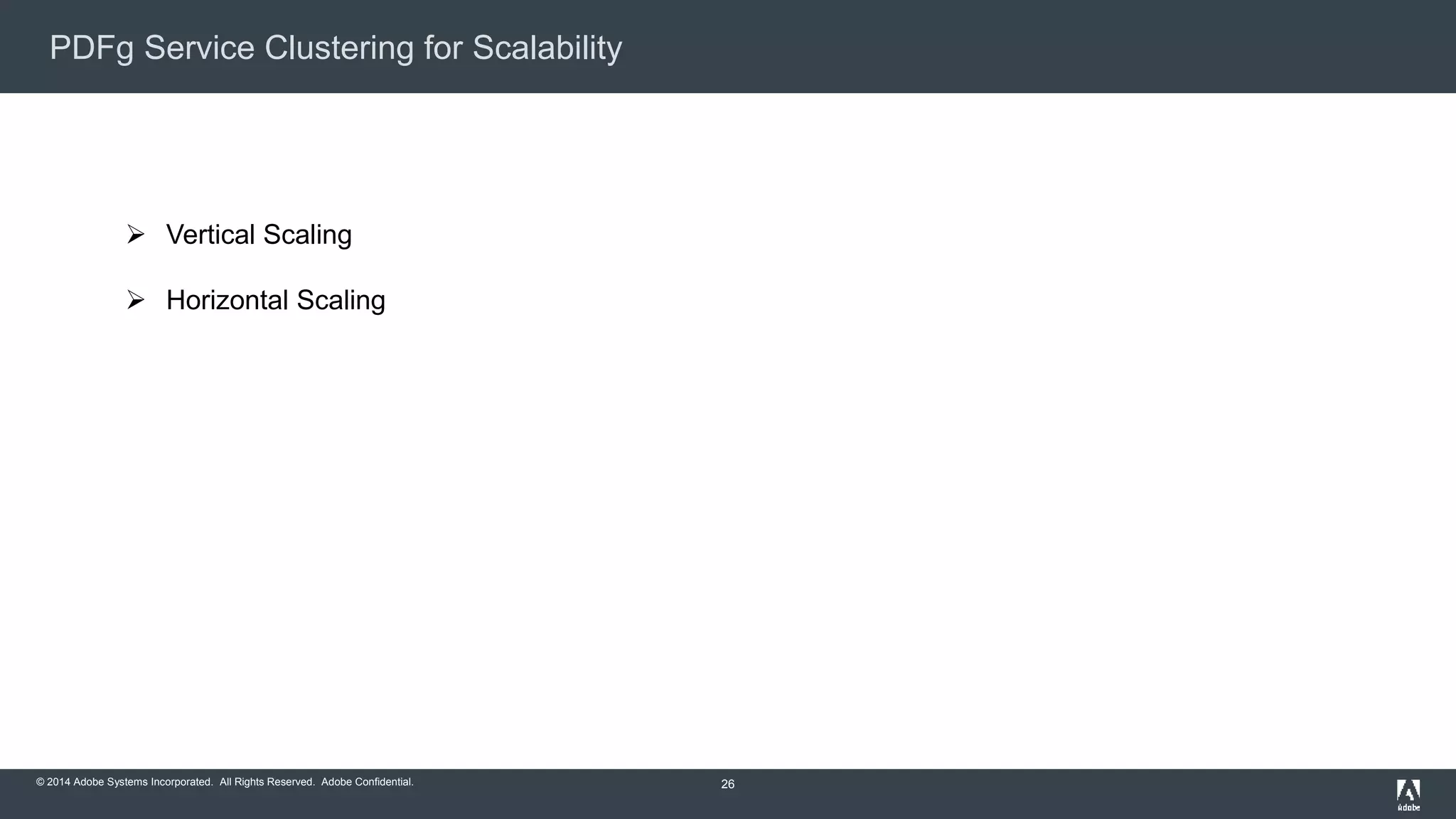

PDFg Service Clustering for Scalability
26
 Vertical Scaling
 Horizontal Scaling

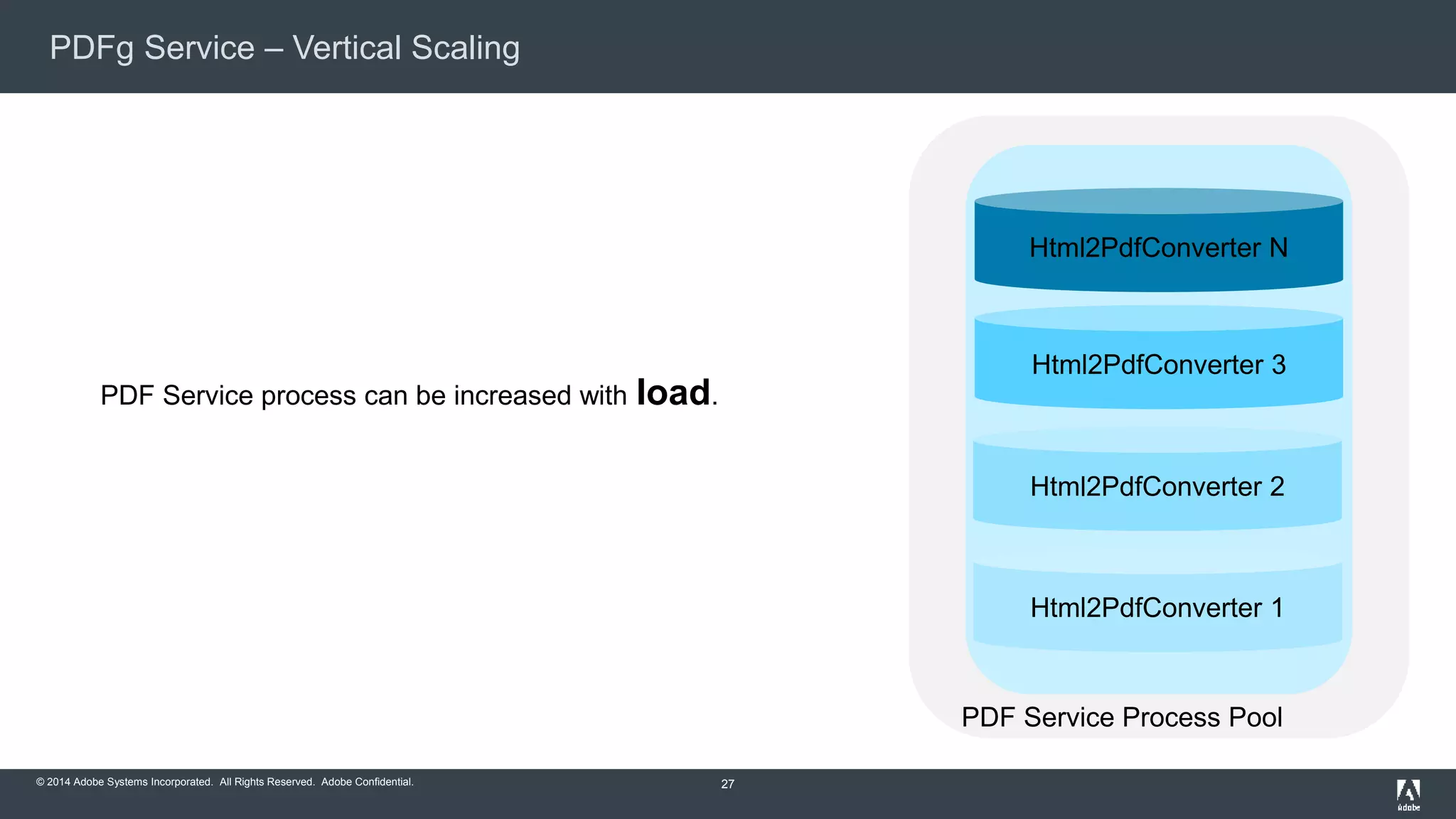

PDFg Service – Vertical Scaling
27
Html2PdfConverter N
Html2PdfConverter 3
Html2PdfConverter 2
Html2PdfConverter 1
PDF Service Process Pool
PDF Service process can be increased with load.

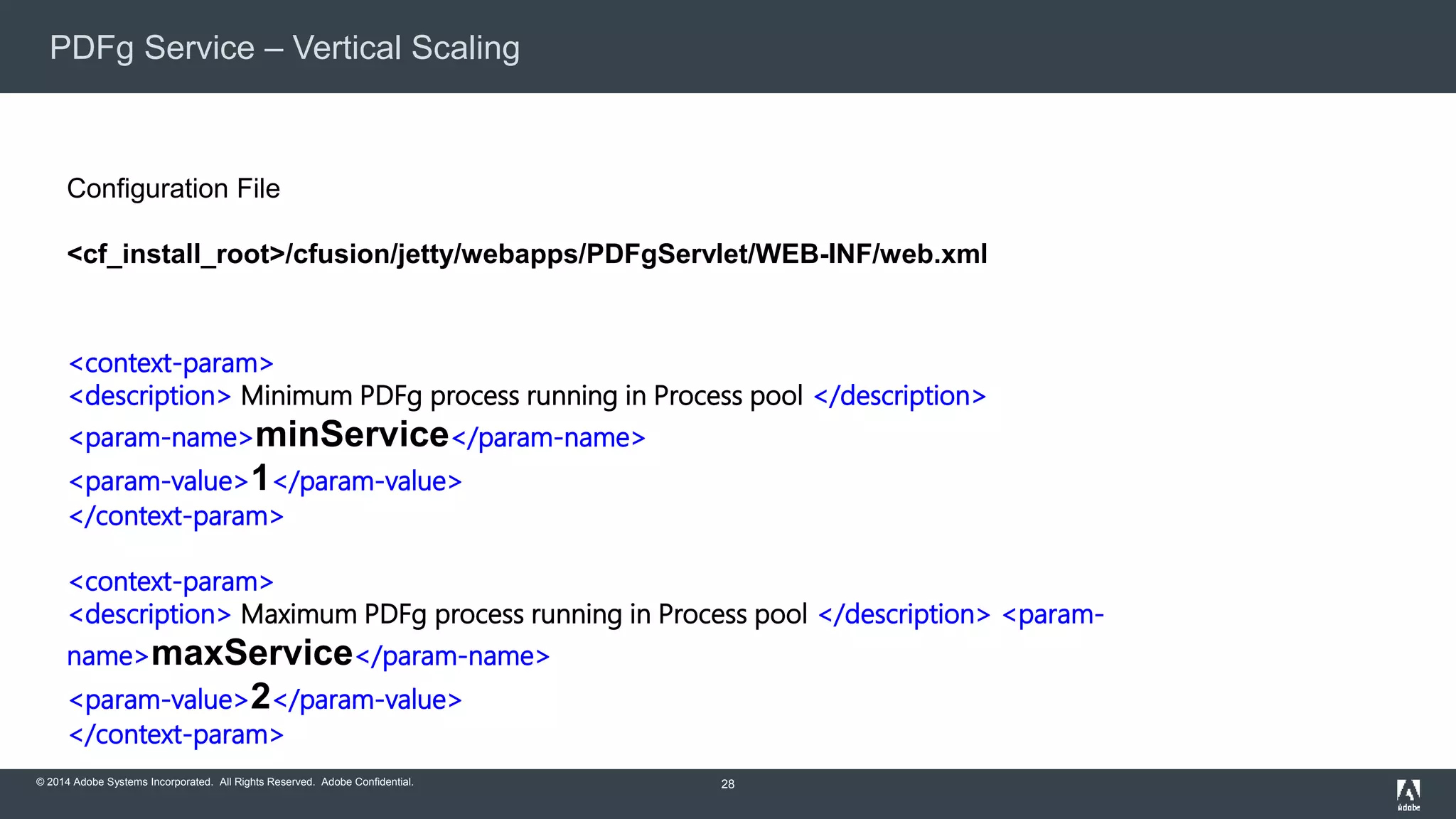

PDFg Service – Vertical Scaling
28
Configuration File
<cf_install_root>/cfusion/jetty/webapps/PDFgServlet/WEB-INF/web.xml
<context-param>
<description> Minimum PDFg process running in Process pool </description>
<param-name>minService</param-name>
<param-value>1</param-value>
</context-param>
<context-param>
<description> Maximum PDFg process running in Process pool </description> <param-name>
maxService</param-name>
<param-value>2</param-value>
</context-param>

Demo

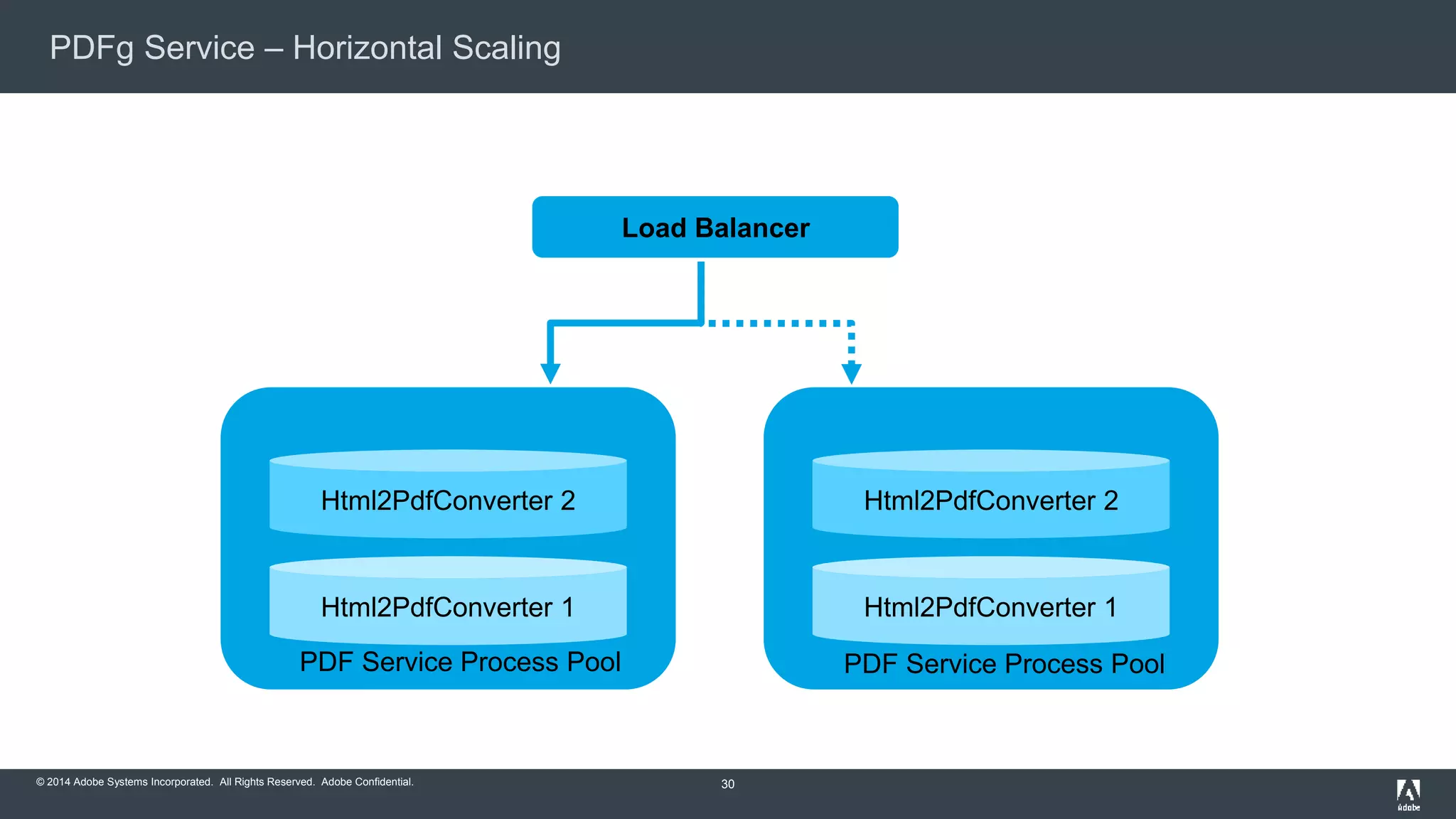

PDFg Service – Horizontal Scaling
Load Balancer
30
Html2PdfConverter 2
Html2PdfConverter 1
Html2PdfConverter 2
Html2PdfConverter 1

PDFg Service – Horizontal Scaling

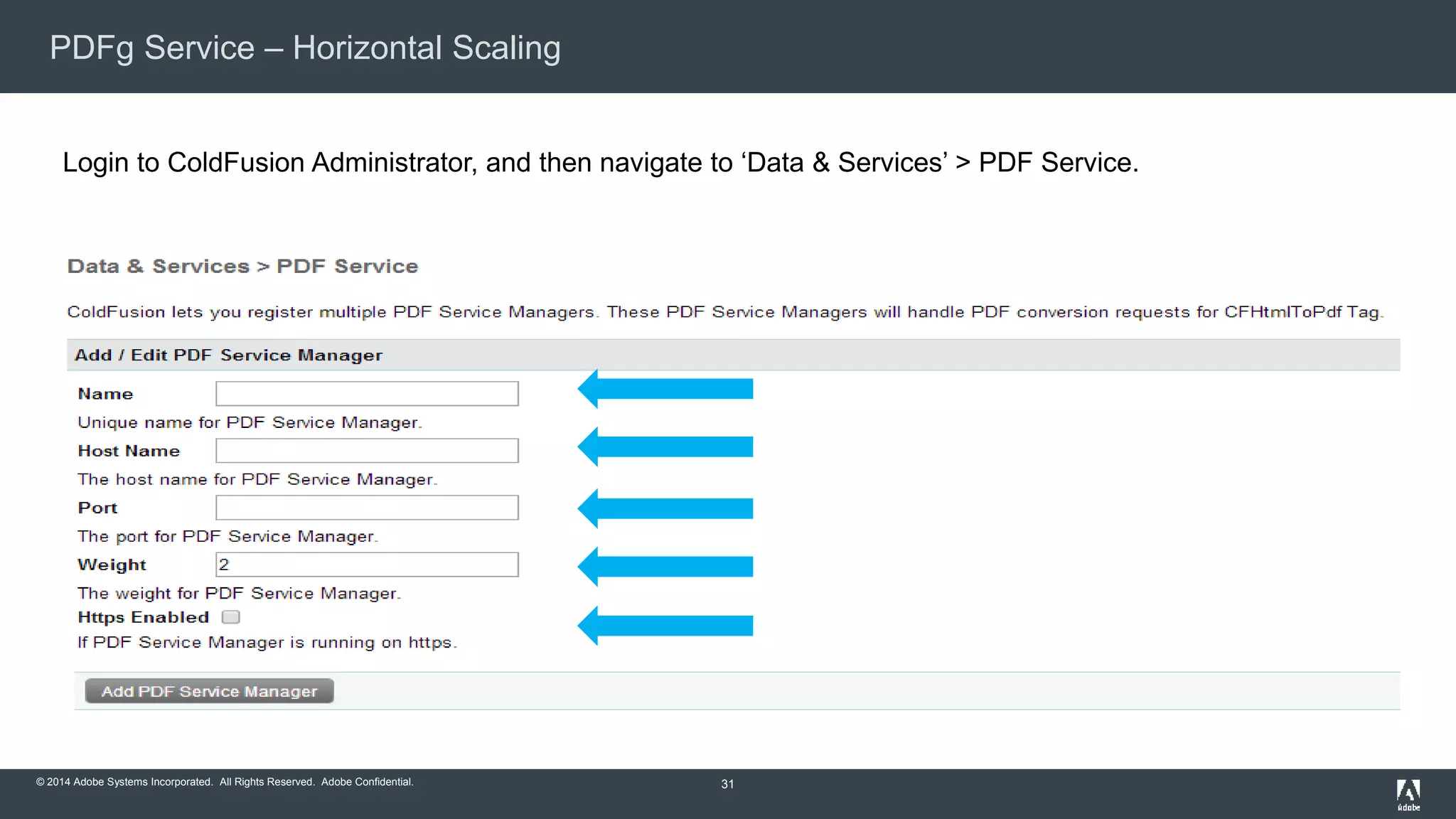

Login to ColdFusion Administrator, and then navigate to ‘Data & Services’ > PDF Service.
31

List PDF Service Managers

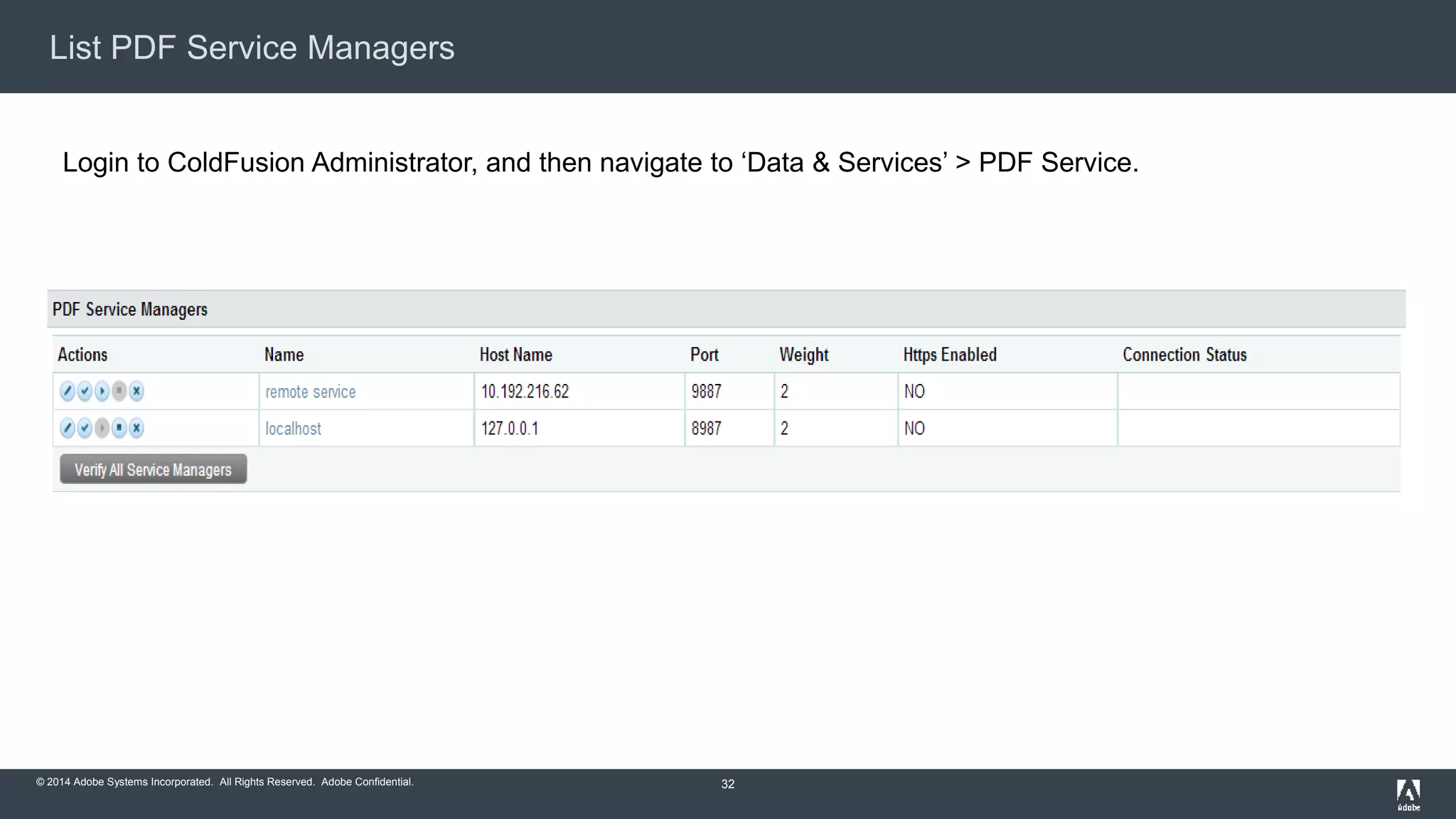

Login to ColdFusion Administrator, and then navigate to ‘Data & Services’ > PDF Service.
32

Demo

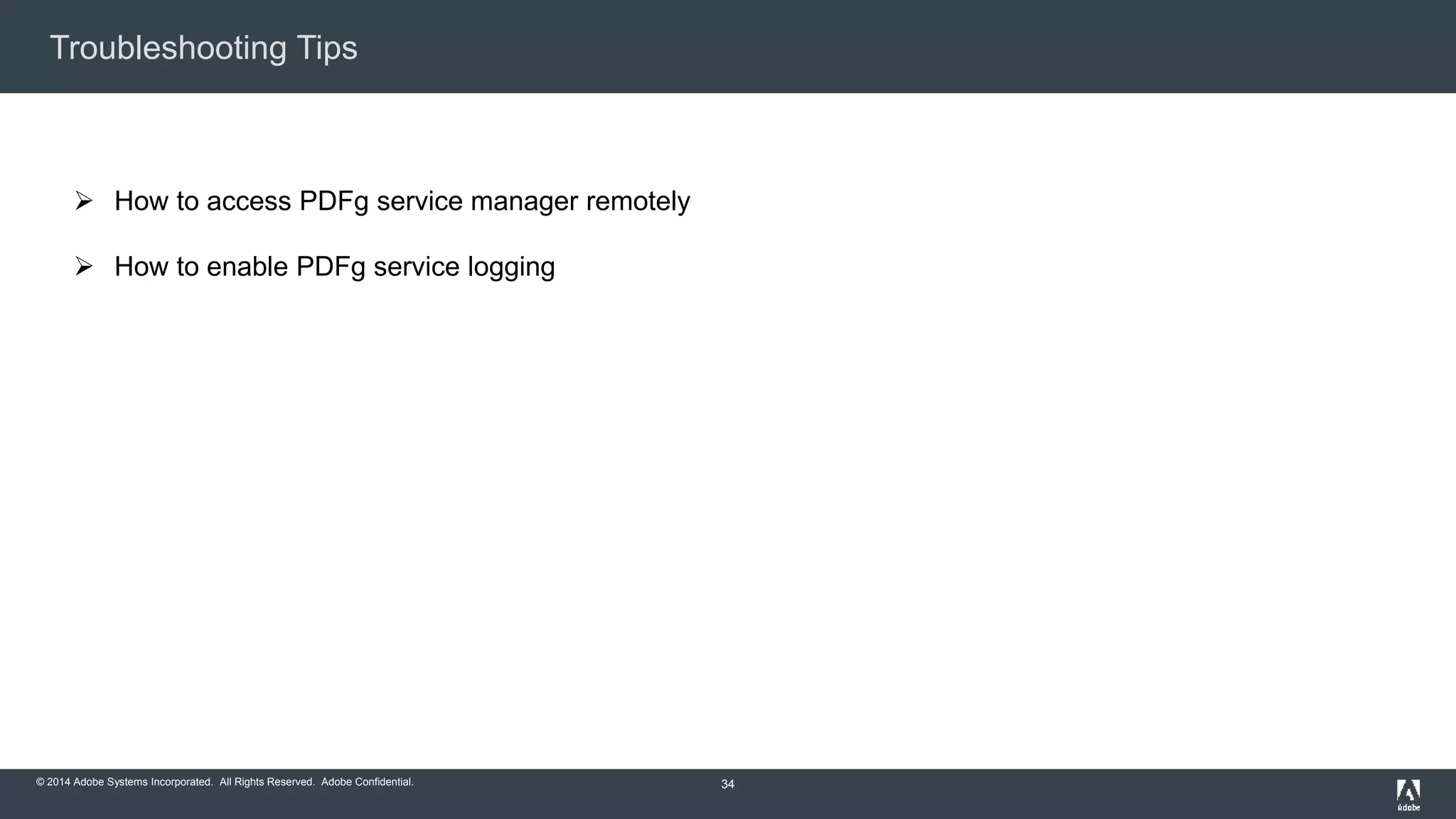

Troubleshooting Tips
34
 How to access PDFg service manager remotely
 How to enable PDFg service logging

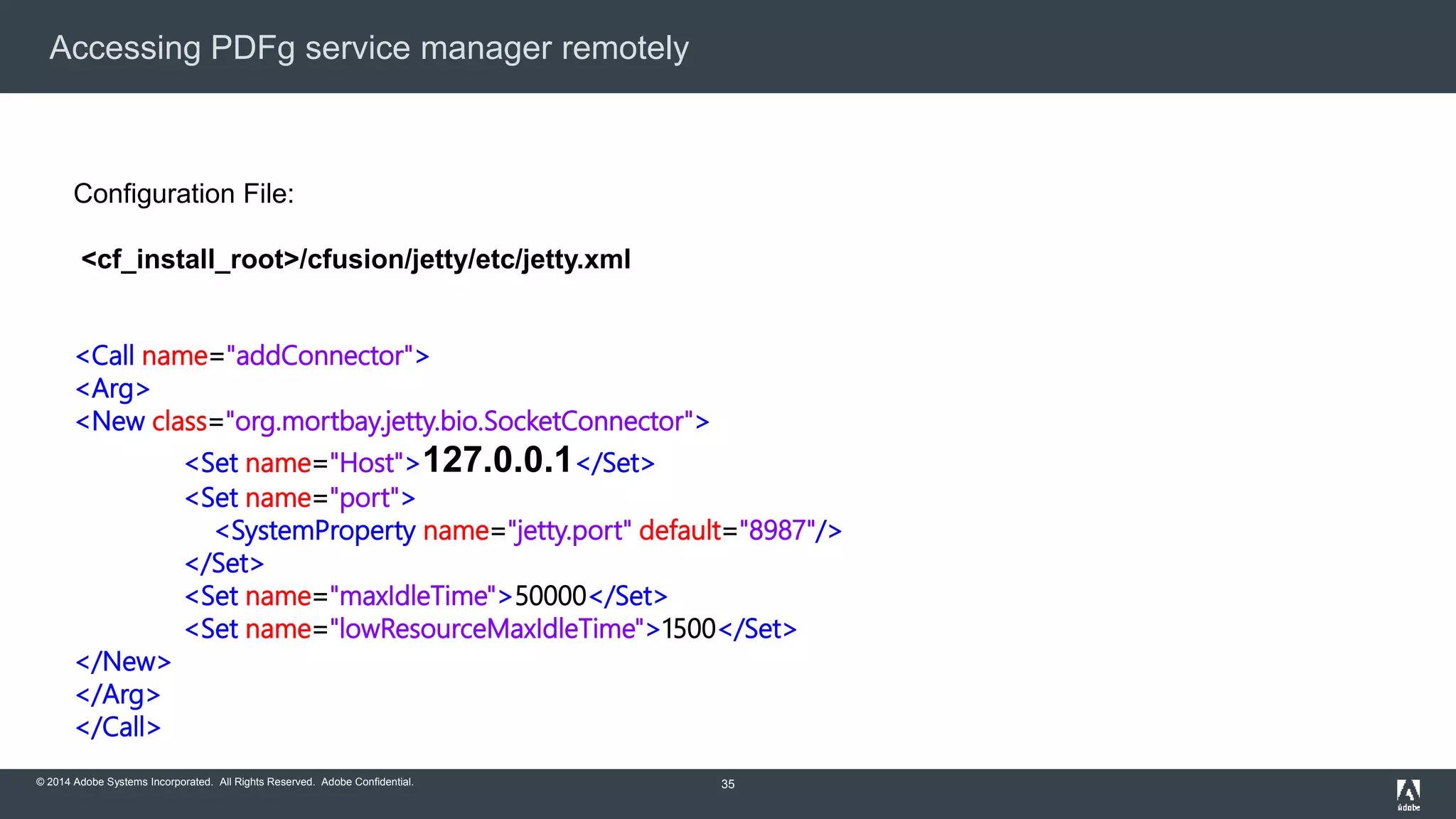

Accessing PDFg service manager remotely
35
Configuration File:
<cf_install_root>/cfusion/jetty/etc/jetty.xml
<Call name="addConnector">
<Arg>
<New class="org.mortbay.jetty.bio.SocketConnector">
<Set name="Host">127.0.0.1</Set>
<Set name="port">
<SystemProperty name="jetty.port" default="8987"/>
</Set>
<Set name="maxIdleTime">50000</Set>
<Set name="lowResourceMaxIdleTime">1500</Set>
</New>
</Arg>
</Call>

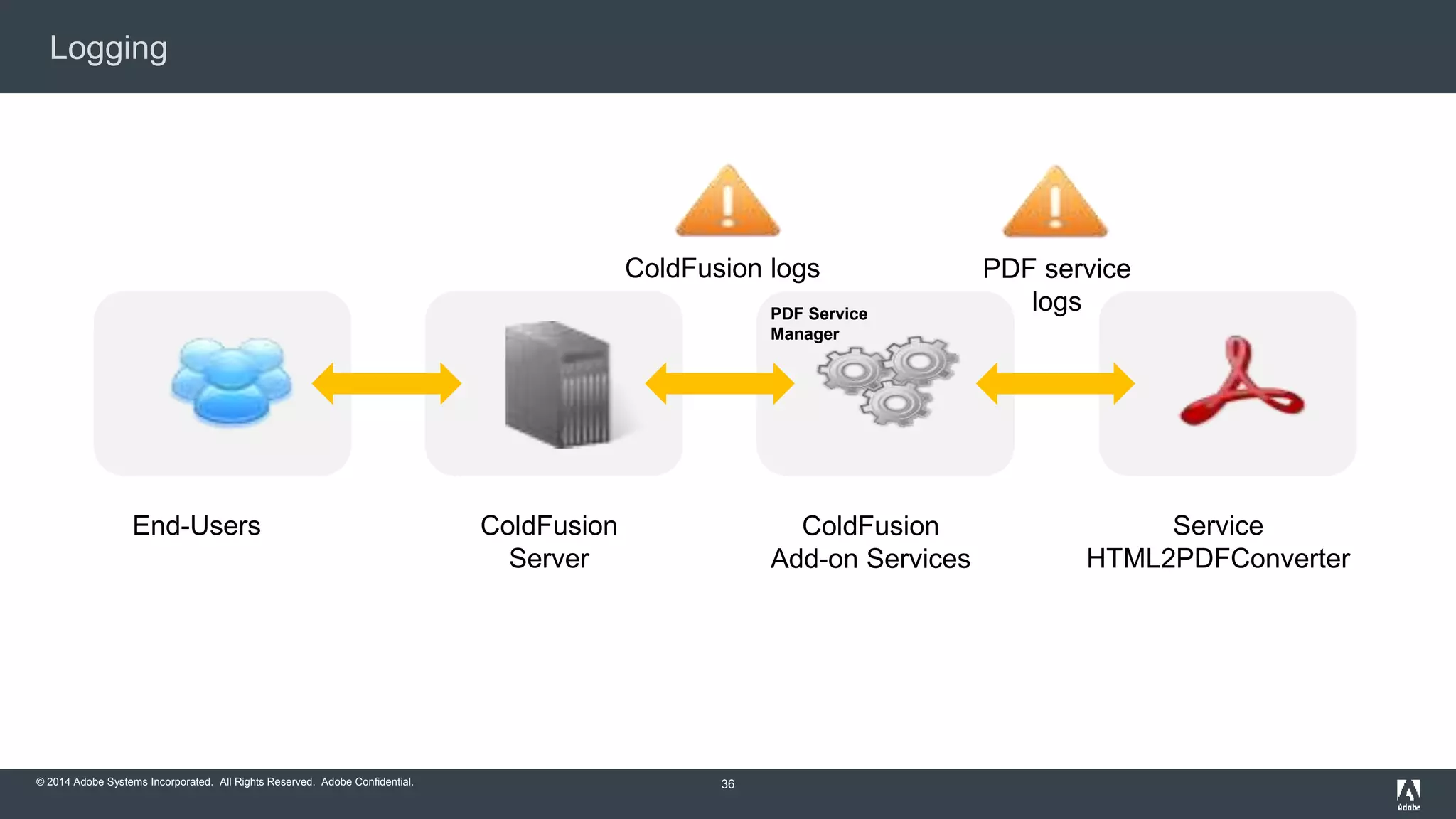

Logging
End-Users ColdFusion
Server
ColdFusion logs PDF service
ColdFusion
Add-on Services
Service
HTML2PDFConverter
logs PDF Service
Manager

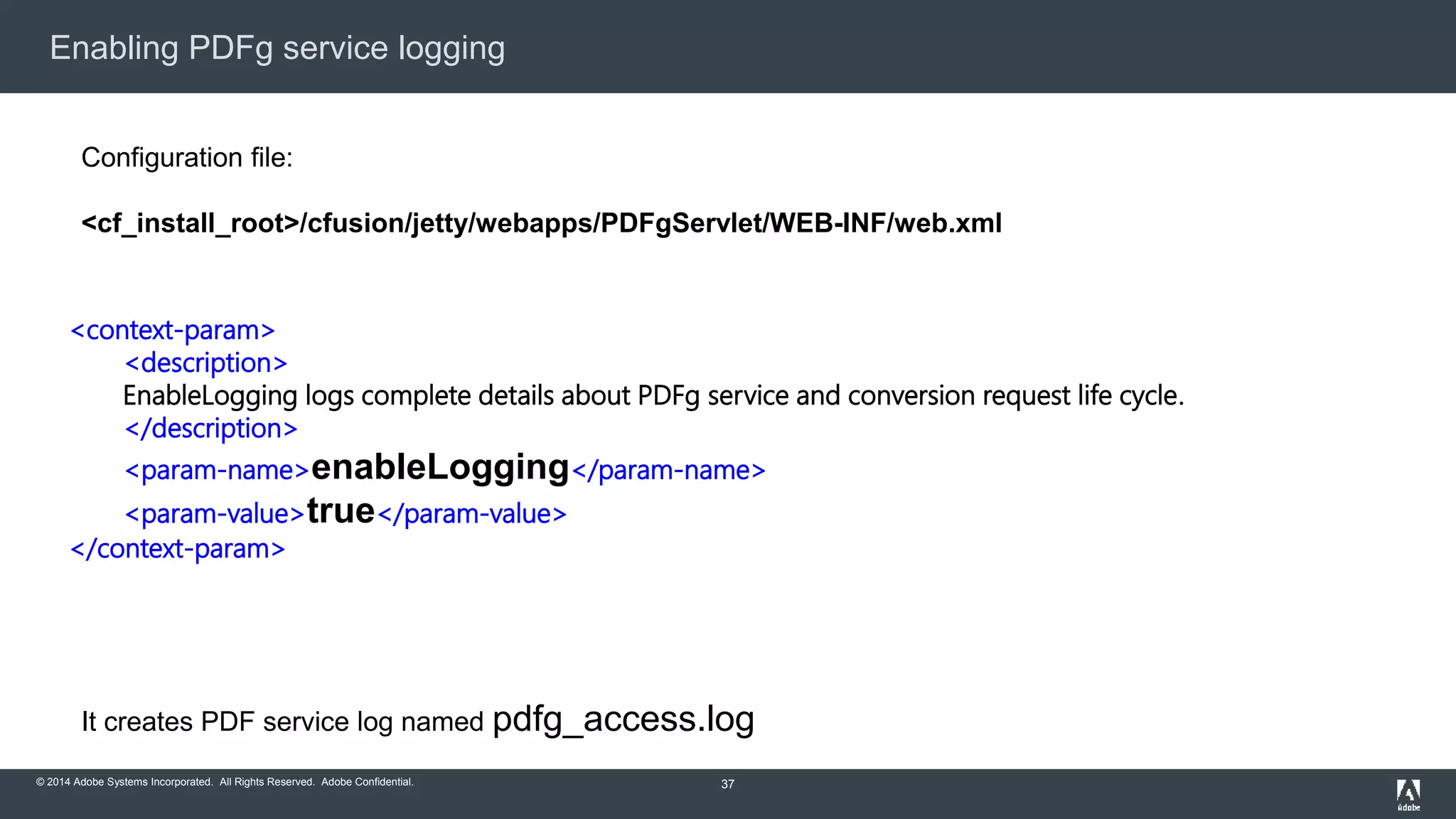

Enabling PDFg service logging
<context-param>
<description>
EnableLogging logs complete details about PDFg service and conversion request life cycle.
</description>
<param-name>enableLogging</param-name>
<param-value>true</param-value>
</context-param>
37
Configuration file:
<cf_install_root>/cfusion/jetty/webapps/PDFgServlet/WEB-INF/web.xml
It creates PDF service log named pdfg_access.log

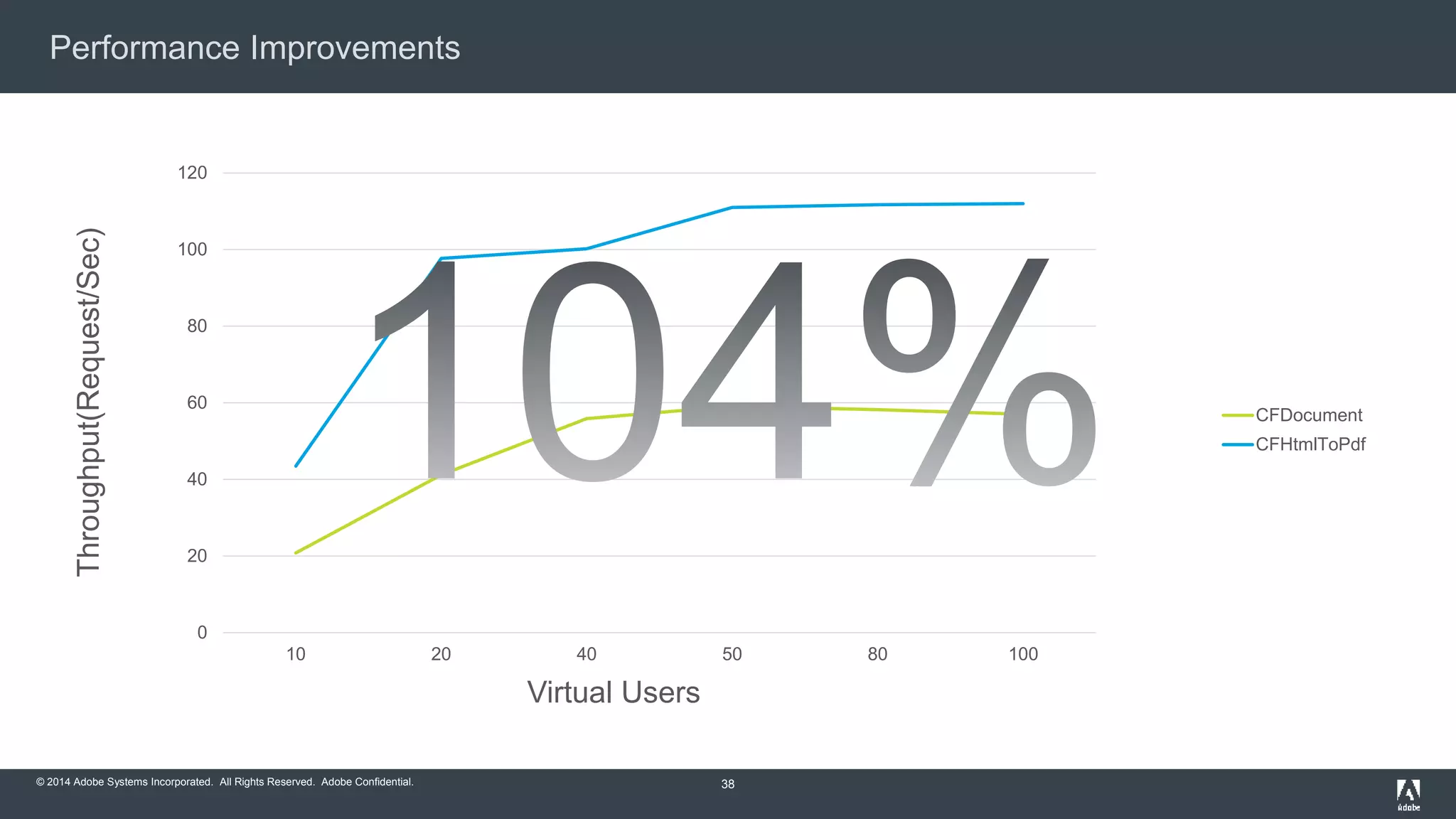

Performance Improvements
120
100
80
60
40
20
38
0
10 20 40 50 80 100
Throughput(Request/Sec)
Virtual Users
CFDocument
CFHtmlToPdf

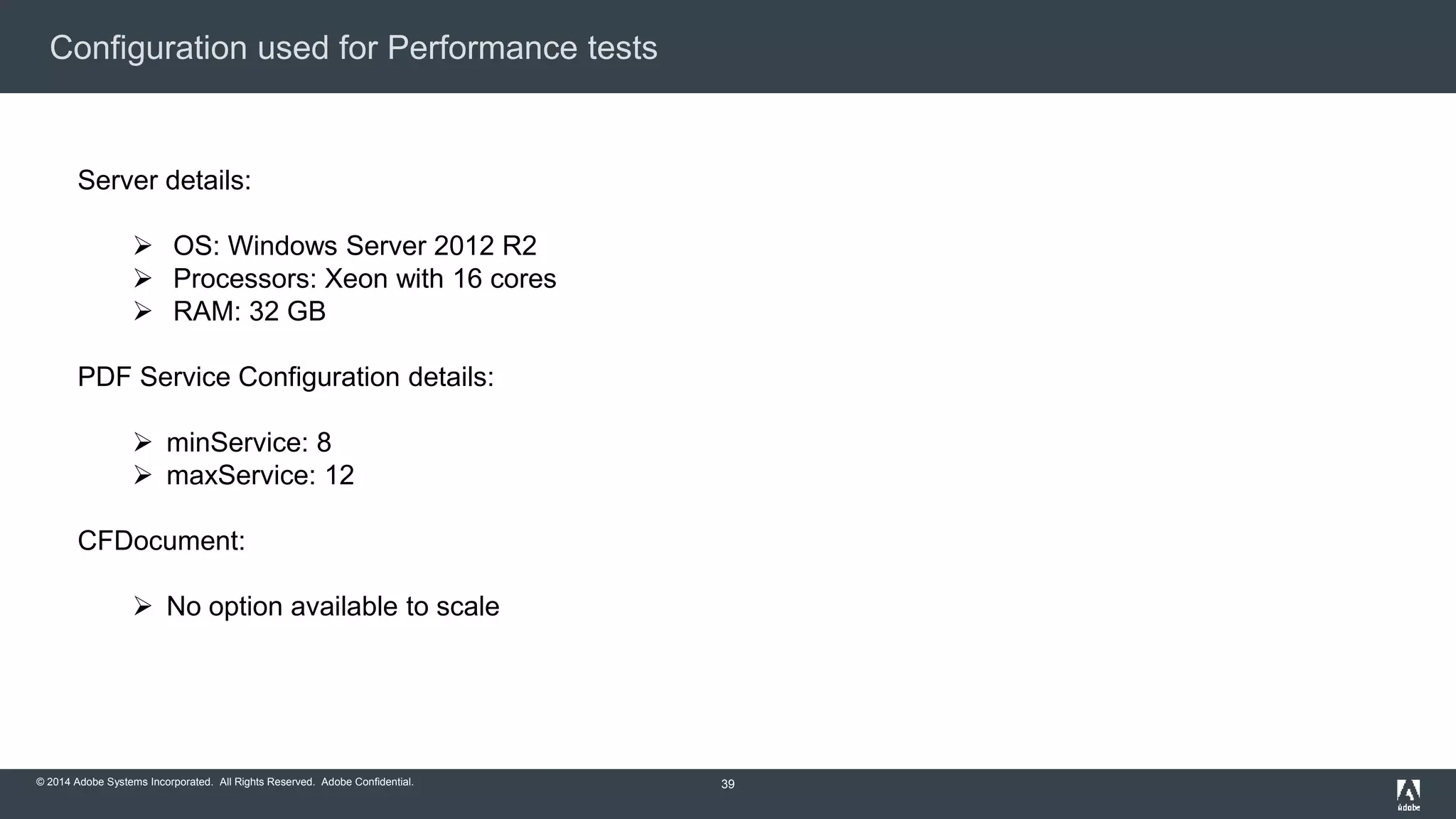

Configuration used for Performance tests
39
Server details:
 OS: Windows Server 2012 R2
 Processors: Xeon with 16 cores
 RAM: 32 GB
PDF Service Configuration details:
 minService: 8
 maxService: 12
CFDocument:
 No option available to scale

Nimit Sharma
nimsharm@adobe.com
@nimsharm
Elishia Dvorak
elishia@adobe.com
@elishdvorak
