1. Lead By : HOK Architects
Project Location : Perungudi, OMR, Chennai
Total Land Area : 5 Acres
No. of Units : 298 Units
Towers : 2 Towers(2B + G + 26 Floors)
Unit Variants : 3 BHK

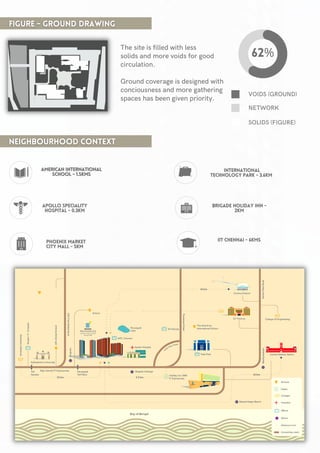

2. The site is filled with less
solids and more voids for good
circulation.
Ground coverage is designed with
conciousness and more gathering
spaces has been given priority.
VOIDS (GROUND)
NETWORK
SOLIDS (FIGURE)
American International
American International
School - 1.5kms
School - 1.5kms
Apollo Speciality
Apollo Speciality
Hospital - 0.3km
Hospital - 0.3km
Phoenix Market
Phoenix Market
City Mall - 5km
City Mall - 5km
International
International
Technology Park - 3.6km
Technology Park - 3.6km
Brigade Holiday Inn -
Brigade Holiday Inn -
2km
2km
IIT Chennai - 6kms
IIT Chennai - 6kms
62%

3. SECONDARY NETWORK (PEDESTRIAN)
PRIMARY NETWORK (VEHICULAR)
6 units / floor
g+26
EXIT
EXIT
ENTRY
ENTRY

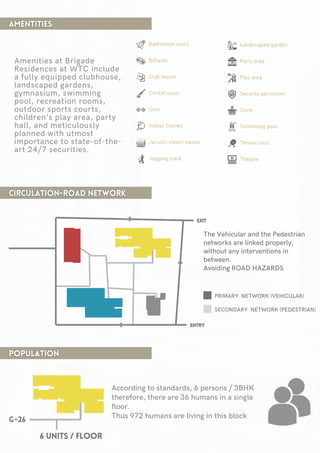

The Vehicular and the Pedestrian
networks are linked properly,
without any interventions in
between.
Avoiding ROAD HAZARDS
According to standards, 6 persons / 3BHK
therefore, there are 36 humans in a single
floor.
Thus 972 humans are living in this block
Amenities at Brigade
Residences at WTC include
a fully equipped clubhouse,
landscaped gardens,
gymnasium, swimming
pool, recreation rooms,
outdoor sports courts,
children’s play area, party
hall, and meticulously
planned with utmost
importance to state-of-the-
art 24/7 securities.

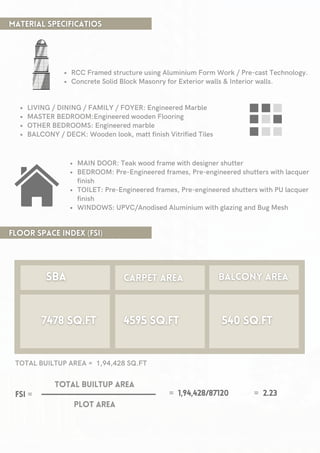

4. LIVING / DINING / FAMILY / FOYER: Engineered Marble
MASTER BEDROOM:Engineered wooden Flooring
OTHER BEDROOMS: Engineered marble
BALCONY / DECK: Wooden look, matt finish Vitrified Tiles
RCC Framed structure using Aluminium Form Work / Pre-cast Technology.
Concrete Solid Block Masonry for Exterior walls & Interior walls.
MAIN DOOR: Teak wood frame with designer shutter
BEDROOM: Pre-Engineered frames, Pre-engineered shutters with lacquer
finish
TOILET: Pre-Engineered frames, Pre-engineered shutters with PU lacquer
finish
WINDOWS: UPVC/Anodised Aluminium with glazing and Bug Mesh
TOTAL BUILTUP AREA = 1,94,428 SQ.FT
TOTAL BUILTUP AREA
PLOT AREA
FSI = = 1,94,428/87120 = 2.23

5. CORE
1
2
3
4
5 6
LIFT

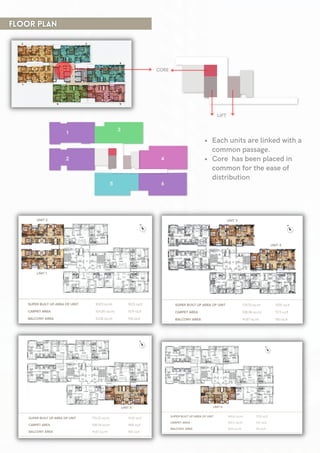

Each units are linked with a
common passage.
Core has been placed in
common for the ease of
distribution

6. Living
Room
Dinning
Room
Bath
Room
Bath
Room
Bath
Room
Bed Room 3
Bed Room 2
Bed Room 1 Kitchen
Walk-in
Passage

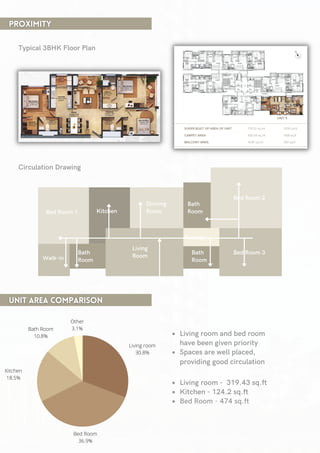

Typical 3BHK Floor Plan
Circulation Drawing
Bed Room
36.9%
Living room
30.8%
Kitchen
18.5%
Bath Room
10.8%
Other
3.1%
Living room and bed room
have been given priority
Spaces are well placed,
providing good circulation
Living room - 319.43 sq.ft
Kitchen - 124.2 sq.ft
Bed Room - 474 sq.ft
