1. PARKSIDE HOUSING
COMPLEX, BANGALORE
CHINMOY GHOSH
BARCH/10002/17

2. INTRODUCTION
ARCHITECTS: MINDSPACE
AREA : 28500 SQ. METER (7 ACRES)
STRUCTURAL CONSULTANTS: S.
ASSOCIATES
CLIENTS: BCV DEVELOPER
LEAD ARCHITECTS: SANJAY MOHE,
AVINASH ANKALGE, SRAVANI
VOBILESETTY, GOWTHAM SRINATH
LANDSCAPE DESIGNERS: DESIGN MILIEU
LOCATION: BANGALORE
No. of blocks = 9
Total no. of dwelling units = 250
FAR = 1.8
POPULATION CAPACITY = 1500

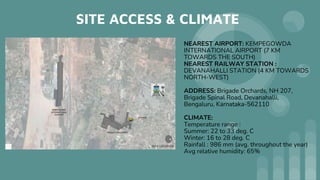

3. SITE ACCESS & CLIMATE
NEAREST AIRPORT: KEMPEGOWDA
INTERNATIONAL AIRPORT (7 KM
TOWARDS THE SOUTH)
NEAREST RAILWAY STATION :
DEVANAHALLI STATION (4 KM TOWARDS
NORTH-WEST)
ADDRESS: Brigade Orchards, NH 207,
Brigade Spinal Road, Devanahalli,
Bengaluru, Karnataka-562110
CLIMATE:
Temperature range :
Summer: 22 to 33 deg. C
Winter: 16 to 28 deg. C
Rainfall : 986 mm (avg. throughout the year)
Avg relative humidity: 65%

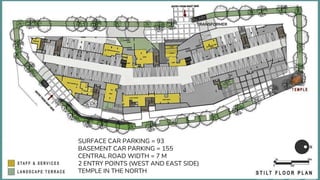

4. SURFACE CAR PARKING = 93
BASEMENT CAR PARKING = 155
CENTRAL ROAD WIDTH = 7 M
2 ENTRY POINTS (WEST AND EAST SIDE)
TEMPLE IN THE NORTH
TRANSFORMER

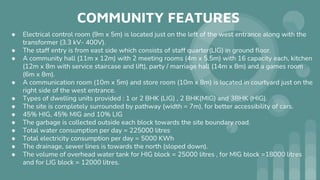

5. COMMUNITY FEATURES
● Electrical control room (9m x 5m) is located just on the left of the west entrance along with the
transformer (3.3 kV- 400V).
● The staff entry is from east side which consists of staff quarter(LIG) in ground floor.
● A community hall (11m x 12m) with 2 meeting rooms (4m x 5.5m) with 16 capacity each, kitchen
(12m x 8m with service staircase and lift), party / marriage hall (14m x 8m) and a games room
(6m x 8m).
● A communication room (10m x 5m) and store room (10m x 8m) is located in courtyard just on the
right side of the west entrance.
● Types of dwelling units provided : 1 or 2 BHK (LIG) , 2 BHK(MIG) and 3BHK (HIG).
● The site is completely surrounded by pathway (width = 7m), for better accessibility of cars.
● 45% HIG, 45% MIG and 10% LIG
● The garbage is collected outside each block towards the site boundary road.
● Total water consumption per day = 225000 litres
● Total electricity consumption per day = 5000 KWh
● The drainage, sewer lines is towards the north (sloped down).
● The volume of overhead water tank for HIG block = 25000 litres , for MIG block =18000 litres
and for LIG block = 12000 litres.

6. SERVICES
ROAD

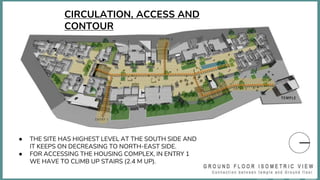

7. CIRCULATION, ACCESS AND
CONTOUR
● THE SITE HAS HIGHEST LEVEL AT THE SOUTH SIDE AND
IT KEEPS ON DECREASING TO NORTH-EAST SIDE.
● FOR ACCESSING THE HOUSING COMPLEX, IN ENTRY 1
WE HAVE TO CLIMB UP STAIRS (2.4 M UP).

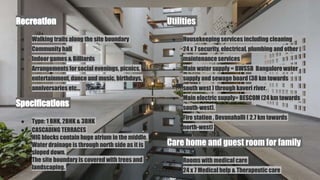

8. Recreation
● Walking trails along the site boundary
● Community hall
● Indoor games & Billiards
● Arrangements for social evenings, picnics,
entertainment, dance and music, birthdays,
anniversaries etc...
Specifications
● Type: 1 BHK, 2BHK & 3BHK
● CASCADING TERRACES
● HIG blocks contain huge atrium in the middle.
● Water drainage is through north side as it is
sloped down.
● The site boundary is covered with trees and
landscaping.
Utilities
● Housekeeping services including cleaning
● 24 x 7 security, electrical, plumbing and other
maintenance services
● Main water supply = BWSSB Bangalorewater
supply and sewage board (38 km towards
south west ) through kaveri river.
● Main electric supply= BESCOM (24 km towards
south-west).
● Fire station , Devanahalli ( 2.7 km towards
north-west)
Care home and guest room for family
● Rooms with medical care
● 24 x 7 Medical help & Therapeutic care

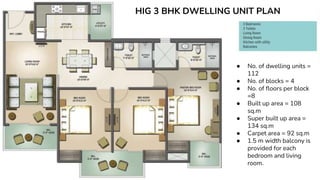

9. HIG 3 BHK DWELLING UNIT PLAN
● No. of dwelling units =
112
● No. of blocks = 4
● No. of floors per block
=8
● Built up area = 108
sq.m
● Super built up area =
134 sq.m
● Carpet area = 92 sq.m
● 1.5 m width balcony is
provided for each
bedroom and living
room.

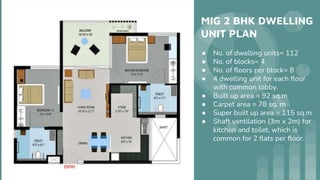

10. MIG 2 BHK DWELLING
UNIT PLAN
● No. of dwelling units= 112
● No. of blocks= 4
● No. of floors per block= 8
● 4 dwelling unit for each floor
with common lobby.
● Built up area = 92 sq.m
● Carpet area = 78 sq. m
● Super built up area = 115 sq.m
● Shaft ventilation (3m x 2m) for
kitchen and toilet, which is
common for 2 flats per floor.

11. ● 4 dwelling units per
floor.
● No. of floors = 7
● No. of dwelling unit
=26
● Types of dwelling unit
are 1BHK, 2 BHK
● Carpet area =46 sq.m
● Built up area = 55
sq.m
● Super built up area=
64 sq.m
● It is located just on the
left side of east
entrance.
● The ground floor is
basically staff
quarters.
LIG FLOOR PLAN

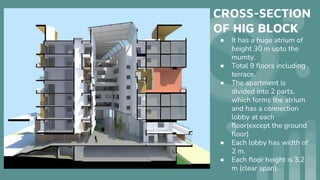

12. CROSS-SECTION
OF HIG BLOCK
● It has a huge atrium of
height 30 m upto the
mumty.
● Total 9 floors including
terrace.
● The apartment is
divided into 2 parts,
which forms the atrium
and has a connection
lobby at each
floor(except the ground
floor)
● Each lobby has width of
2 m.
● Each floor height is 3.2
m (clear span).

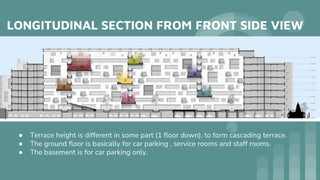

13. LONGITUDINAL SECTION FROM FRONT SIDE VIEW
● Terrace height is different in some part (1 floor down), to form cascading terrace.
● The ground floor is basically for car parking , service rooms and staff rooms.
● The basement is for car parking only.

14. IMPORTANT
LANDMARKS
NORTH :
● Devanahalli police station (2.5 km)
● Manasa hospital (2.8 km)
● Civil court (2.4 km)
● Oxford english school (2.2 km)
● Nalanda college (1.5 km)
● Town municipality, FIRE station (2.6 km)
SOUTH :
● Sri Krishna college (0.5 km)
● Brigade Orchards sports arena (1.1 km)
EAST :
● Brigade Orchards Shopping mall (0.7km)
WEST :
● Akash hospital (2.3km)
● Akash International school (2.3km)
● Akash institute of medical science &
research center (2.1 km)
FIRE STATION

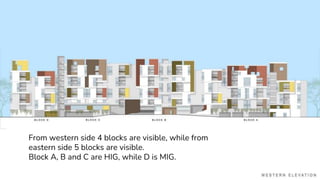

15. From western side 4 blocks are visible, while from
eastern side 5 blocks are visible.
Block A, B and C are HIG, while D is MIG.

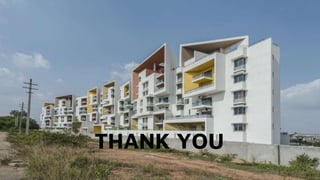

16. THANK YOU
