1. GREEN WALL
CASE STUDY IN
BRIGADE OPUS
JNANESH PREETHAN | 1IS19AT015 | 7TH SEM

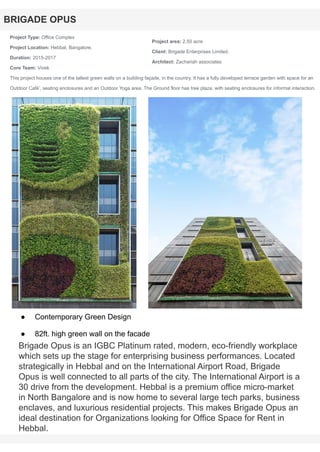

2. BRIGADE OPUS
● Contemporary Green Design
● 82ft. high green wall on the facade
Brigade Opus is an IGBC Platinum rated, modern, eco-friendly workplace
which sets up the stage for enterprising business performances. Located
strategically in Hebbal and on the International Airport Road, Brigade
Opus is well connected to all parts of the city. The International Airport is a
30 drive from the development. Hebbal is a premium office micro-market
in North Bangalore and is now home to several large tech parks, business
enclaves, and luxurious residential projects. This makes Brigade Opus an
ideal destination for Organizations looking for Office Space for Rent in
Hebbal.
Project Type: Office Complex
Project Location: Hebbal, Bangalore.
Duration: 2015-2017
Core Team: Vivek
This project houses one of the tallest green walls on a building façade, in the country. It has a fully developed terrace garden with space for an
Outdoor Café’, seating enclosures and an Outdoor Yoga area. The Ground floor has tree plaza, with seating enclosures for informal interaction.
Project area: 2.50 acre
Client: Brigade Enterprises Limited.
Architect: Zachariah associates

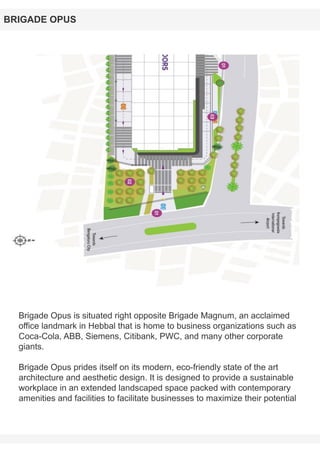

3. Brigade Opus is situated right opposite Brigade Magnum, an acclaimed
office landmark in Hebbal that is home to business organizations such as
Coca-Cola, ABB, Siemens, Citibank, PWC, and many other corporate
giants.
Brigade Opus prides itself on its modern, eco-friendly state of the art
architecture and aesthetic design. It is designed to provide a sustainable
workplace in an extended landscaped space packed with contemporary
amenities and facilities to facilitate businesses to maximize their potential
BRIGADE OPUS

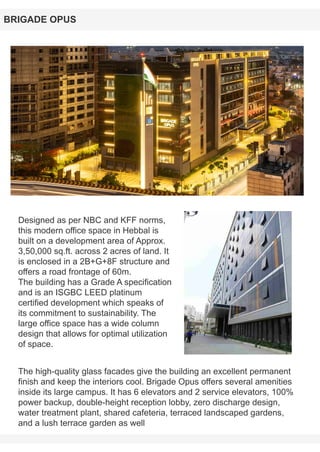

4. Designed as per NBC and KFF norms,
this modern office space in Hebbal is
built on a development area of Approx.
3,50,000 sq.ft. across 2 acres of land. It
is enclosed in a 2B+G+8F structure and
offers a road frontage of 60m.
The building has a Grade A specification
and is an ISGBC LEED platinum
certified development which speaks of
its commitment to sustainability. The
large office space has a wide column
design that allows for optimal utilization
of space.
BRIGADE OPUS
The high-quality glass facades give the building an excellent permanent
finish and keep the interiors cool. Brigade Opus offers several amenities
inside its large campus. It has 6 elevators and 2 service elevators, 100%
power backup, double-height reception lobby, zero discharge design,
water treatment plant, shared cafeteria, terraced landscaped gardens,
and a lush terrace garden as well

5. The most unique feature of this commercial office space is its magnificent green
bio-wall on the northern facade of the building, facing the International Airport
Road. This bio-wall hosts a variety of plant species such as Foxtail Fern, Mondo
grass, Lilyturf, etc with a total of 15,750 plants. The 82 feet high and 52 feet wide
bio-wall not only provides insulation to keep the internal temperature of the
building consistent but also provides a soothing, serene appeal to onlookers. The
wall can be automated and monitored with natural air purification and
humidification systems. It is supported by a water-saving drip irrigation system to
keep the wall rejuvenated and alive. This state-of-the-art unique feature truly adds
to the diversity of Brigade Opus, Hebbal.
BRIGADE OPUS

6. BRIGADE OPUS
SECTION DETAILS

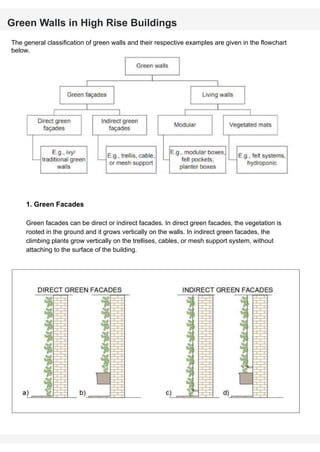

7. Green Walls in High Rise Buildings
The general classification of green walls and their respective examples are given in the flowchart
below.
1. Green Facades
Green facades can be direct or indirect facades. In direct green facades, the vegetation is
rooted in the ground and it grows vertically on the walls. In indirect green facades, the
climbing plants grow vertically on the trellises, cables, or mesh support system, without
attaching to the surface of the building.

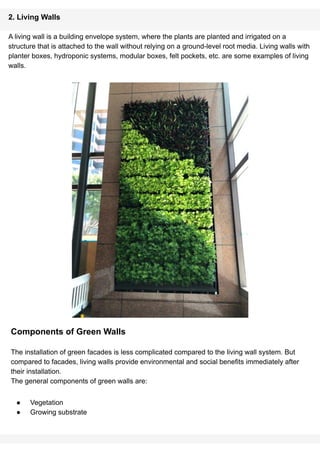

8. 2. Living Walls
A living wall is a building envelope system, where the plants are planted and irrigated on a
structure that is attached to the wall without relying on a ground-level root media. Living walls with
planter boxes, hydroponic systems, modular boxes, felt pockets, etc. are some examples of living
walls.
Components of Green Walls
The installation of green facades is less complicated compared to the living wall system. But
compared to facades, living walls provide environmental and social benefits immediately after
their installation.
The general components of green walls are:
● Vegetation
● Growing substrate
