Brick partition walls
- 1. B R IC K P A R T I T I O N W A L L S NEHA RAJESH KIRTI BHATT || RNO2019009

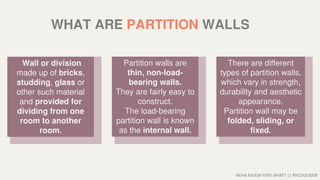

- 2. NEHA RAJESH KIRTIBHATT || RNO2019009 WHAT ARE PARTITION WALLS Wall or division made up of bricks, studding, glass or other such material and provided for dividing from one room to another room. Partition walls are thin, non-load- bearing walls. They are fairly easy to construct. The load-bearing partition wall is known as the internal wall. There are different types of partition walls, which vary in strength, durability and aesthetic appearance. Partition wall may be folded, sliding, or fixed.

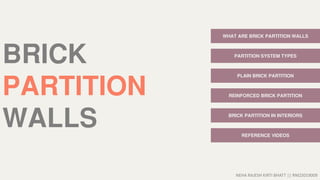

- 3. NEHA RAJESH KIRTIBHATT || RNO2019009 BRICK PARTITION WALLS WHAT ARE BRICK PARTITION WALLS PARTITION SYSTEM TYPES REFERENCE VIDEOS PLAIN BRICK PARTITION REINFORCED BRICK PARTITION BRICK PARTITION IN INTERIORS
- 4. NEHA RAJESH KIRTIBHATT || RNO2019009 WHAT ARE BRICK PARTITION WALLS PARTITION WALLS MADE OF BRICKS ARE BRICK PARTITION WALLS ADVANTAGES DISADVANTAGES • TAKE A LOT OF TIME TO CONSTRUCT • CANNOT BE USED IN SEISMIC ZONES • CAUSES FLUORESCSENCE WHEN WALL IS NOT EXPOSED TO AIR • ARE HARD TO CLEAN • ROUGH SURFACES MAY CAUSE MOLD IF NOT CLEANED PROPERLY • COLOUR OF LOW QUALITY BRICK CHANGES WHEN EXPOSED TO SUN FOR A LONG TIME • RAW MATERIAL IS USED TO CONSTRUCT- ECONOMICAL • HARD, DURABLE, REUSABLE, RECYCLABLE • LESS ENVIRONNMENTAL POLLUTION DUE TO MANUFACTURING PROCESS • VERY LOW MAINTAINENCE COST • FIRE RESISTANT, SOUND-PROOF • DIFFERENT ORIENTATION AND SIZES GIVE DIFFERENT SURFACE TEXTURES
- 5. NEHA RAJESH KIRTIBHATT || RNO2019009 PARTITION SYSTEM TYPES THESE ARE FURTHER DIVIDED INTO THREE TYPES BRICK PARTITION PLAIN REINFORCED NOGGED • BUILT USING BRICKS THAT ARE LAID IN CEMENT MORTAR • PLASTERED ON BOTH SIDES. • EXTREMELY STRONG AND RESISTANT TO FIRE. • THE STRONGEST TYPE OF BRICK PARTITION WALL • SIMILAR TO A PLAIN BRICK PARTITION • CONTAINS STEEL MESHED STRIPS THAT ARE ADDED TO THE WALL FOR ADDITIONAL STRENGTH. • CONTAINS BRICKS THAT ARE PLACED IN A WOODEN FRAME. • SECURED WITH MORTAR. • PLASTERED ON BOTH SIDES.
- 6. NEHA RAJESH KIRTIBHATT || RNO2019009 PLAIN BRICK PARTITION FEATURES • CANNOT TAKE HEAVY LOAD • HEIGHT OF HALF BRICK THICK WALL IS NOT MORE THAN 2000MM • CHEAPEST AND SIMPLEST TYPE OF PARTITION • CAN WORK AS A VISUAL BARRIER • UPTO AN EXTENT CAN ALSO SERVE AS A SOUND AND HET BARRIER • WELL PLASTERED ON BOTH SIDES CONSTRUCTION • THROUGH NORMAL STRETCHER BOND CONSTRUCTION PLAIN BRICK PARTITION
- 7. NEHA RAJESH KIRTIBHATT || RNO2019009 REINFORCED BRICK PARTITION FEATURES • MORE DURABLE AND POSSESES MORE STRENGTH THAN PLAIN BRICK PARTITION • CAN BE OF FULL FLOOR HEIGHT OR RESTRICTED TO 2000 TO 2500MM • SERVES A VISUAL, SOUND, FIRE AND HEAT BARRIER CONSTRUCTION • THROUGH NORMAL RBW CONSTRUCTION • REINFORCEMENT IS PUT UP AT EVERY 3RD AND 4TH BRICK COURSE. • REINFORCEMNT MAY BE IN THE FORM OF WIRE MESH, EXMET (STEEL MESHED STRIPS), HOOP-IRON OR STEEL BARS REINFORCEMENTS REINFORCED BRICK PARTITION
- 8. NEHA RAJESH KIRTIBHATT || RNO2019009 BRICK PARTITION IN INTERIORS

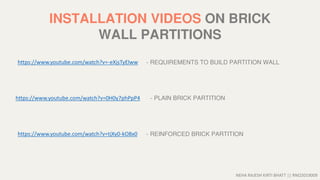

- 9. NEHA RAJESH KIRTIBHATT || RNO2019009 INSTALLATION VIDEOS ON BRICK WALL PARTITIONS https://www.youtube.com/watch?v=0H0y7phPpP4 https://www.youtube.com/watch?v=tjXy0-kO8x0 https://www.youtube.com/watch?v=-eXjsTyElww - REQUIREMENTS TO BUILD PARTITION WALL - PLAIN BRICK PARTITION - REINFORCED BRICK PARTITION
