- 1. Brewing Your Own Game Engine The Pros & Cons of Using Open Source Software to Rapidly Develop Cross-platform Indie Games and Tools Ye Feng

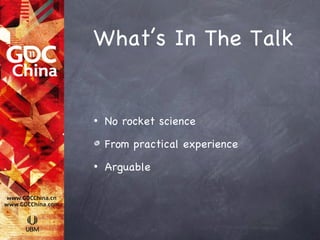

- 2. What’s In TheTalk • No rocket science From practical experience • Arguable
- 3.

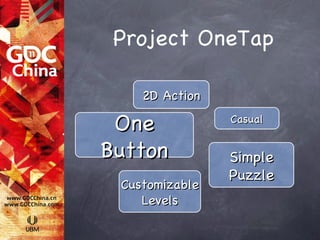

- 4. Project OneTap 2D Action One Casual Button Simple Puzzle Customizable Levels

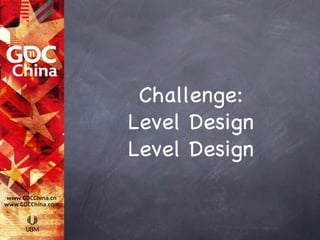

- 5.

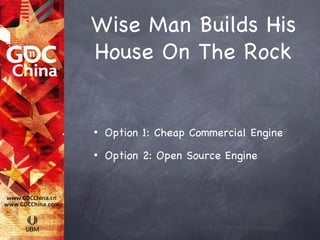

- 6. Wise Man BuildsHis House On The Rock • Option 1: Cheap Commercial Engine • Option 2: Open Source Engine

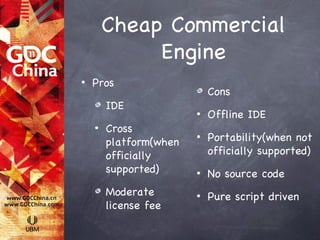

- 7. Cheap Commercial Engine • Pros Cons IDE • Offline IDE • Cross platform(when • Portability(when not officially officially supported) supported) • No source code Moderate • Pure script driven license fee

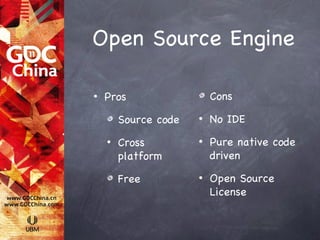

- 8. Open Source Engine • Pros Cons Source code • No IDE • Cross • Pure native code platform driven Free • Open Source License

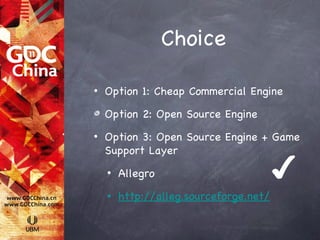

- 9. Choice • Option 1: Cheap Commercial Engine Option 2: Open Source Engine • Option 3: Open Source Engine + Game Support Layer • Allegro ✔ • http://alleg.sourceforge.net/
- 10.

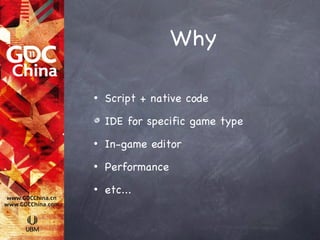

- 11. Why • Script + native code IDE for specific game type • In-game editor • Performance • etc...

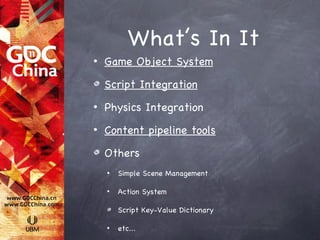

- 12. What’s In It • Game Object System Script Integration • Physics Integration • Content pipeline tools Others • Simple Scene Management • Action System Script Key-Value Dictionary • etc...
- 13.

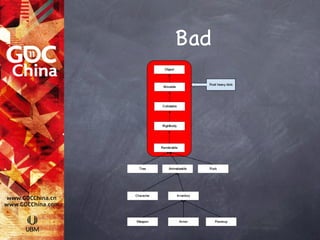

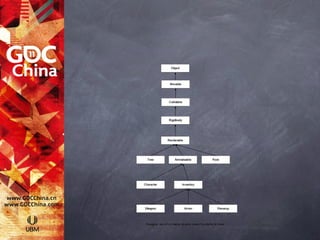

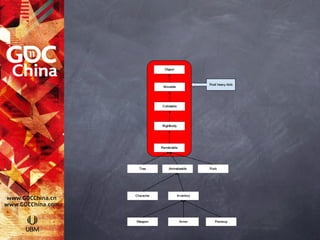

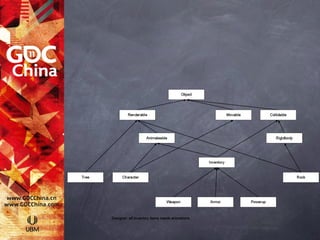

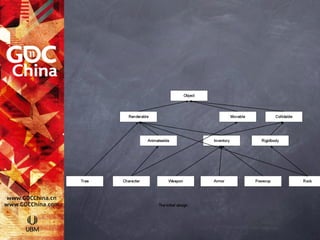

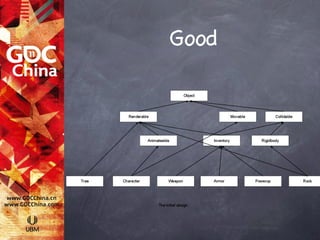

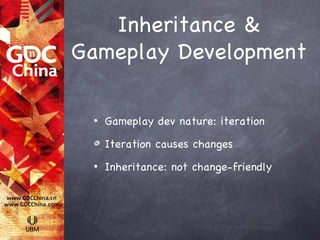

- 14. Inheritance & Gameplay Development • Gameplay dev nature: iteration Iteration causes changes • Inheritance: not change-friendly
- 15.
- 16.
- 22.
- 23. Design Pattern Favor objectcomposition over class inheritance

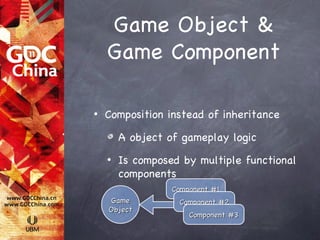

- 24. Game Object & Game Component • Composition instead of inheritance A object of gameplay logic • Is composed by multiple functional components Component #1 Game Component #2 Object Component #3

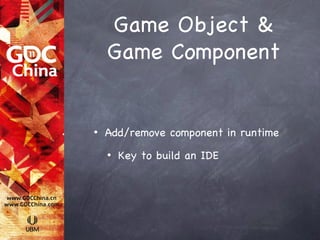

- 25. Game Object & Game Component • Add/remove component in runtime • Key to build an IDE

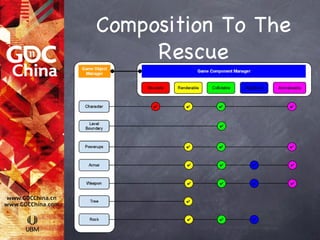

- 26. Composition To The Rescue

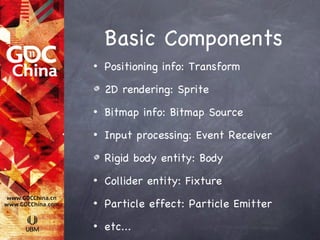

- 27. Basic Components • Positioning info: Transform 2D rendering: Sprite • Bitmap info: Bitmap Source • Input processing: Event Receiver Rigid body entity: Body • Collider entity: Fixture • Particle effect: Particle Emitter • etc...

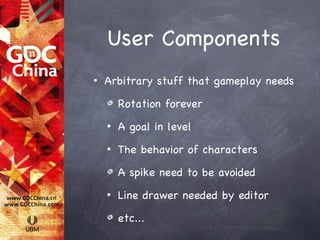

- 28. User Components • Arbitrary stuff that gameplay needs Rotation forever • A goal in level • The behavior of characters A spike need to be avoided • Line drawer needed by editor etc...

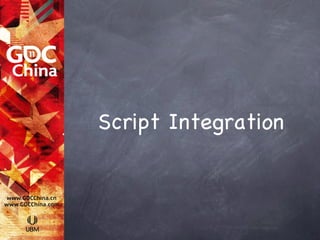

- 29.
- 30.

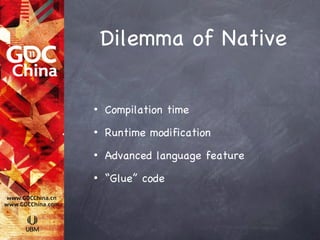

- 31. Dilemma of Native • Compilation time • Runtime modification • Advanced language feature • “Glue” code

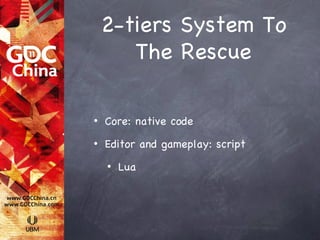

- 32. 2-tiers System To The Rescue • Core: native code • Editor and gameplay: script • Lua
- 33. Related Works • Communication between native and script • Export tools/libraries • Script API
- 34. Communication - Native & Script • Simple interfaces/engine API • tolua • http://www.tecgraf.puc-rio.br/~celes/ • Simple, no compilation cost • Complex interfaces • Lua C API

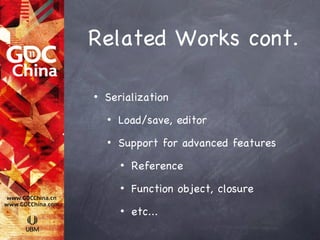

- 35. Related Works cont. • Serialization • Load/save, editor • Support for advanced features • Reference • Function object, closure • etc...

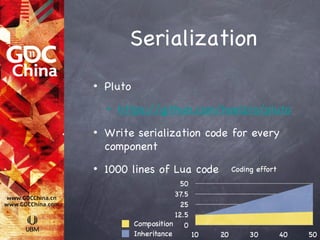

- 36. Serialization • Pluto • https://github.com/hoelzro/pluto • Write serialization code for every component • 1000 lines of Lua code

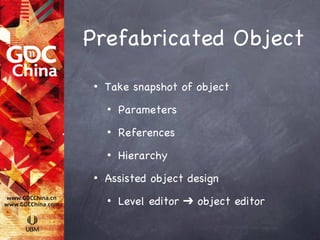

- 37. Prefabricated Object • Take snapshot of object • Parameters • References • Hierarchy • Assisted object design • Level editor ➔ object editor

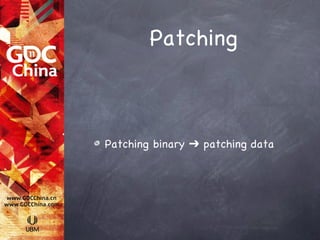

- 38. Patching Patching binary ➔patching data
- 39.

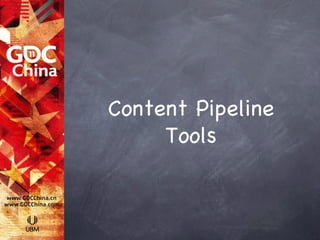

- 40. Content Pipeline Tools
- 41.

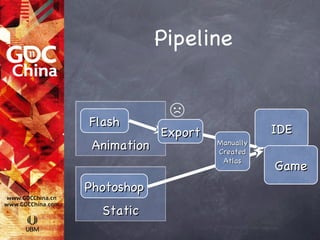

- 42. Pipeline Flash ☹ Export IDE Animation Manually Created Atlas Game Photoshop Static
- 43. Solution • swfdec • Open source Flash player • LGPL • swfdec-dumper • Surface ➔ disk • https://github.com/fengye/swfdec-dum

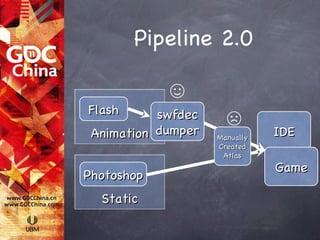

- 44. Pipeline 2.0 ☺ Flash swfdec ☹ Animation dumper Manually IDE Created Atlas Game Photoshop Static

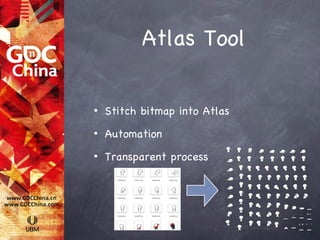

- 45. Atlas Tool • Stitch bitmap into Atlas • Automation • Transparent process

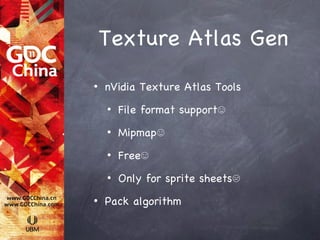

- 46. Texture Atlas Gen • nVidia Texture Atlas Tools • File format support☺ • Mipmap☺ • Free☺ • Only for sprite sheets☹ • Pack algorithm
- 47. Pipeline 3.0 ☺ Flash swfdec dumper ☺ Animation Texture IDE Atlas Gen Photoshop Game Static
- 48.
- 49. Issues • Debugger • Coroutine/fiber • Reference leak • Script loader

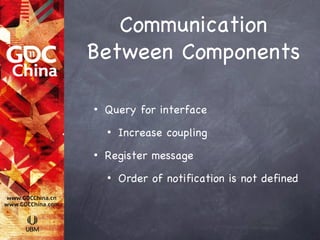

- 50. Communication Between Components • Query for interface • Increase coupling • Register message • Order of notification is not defined
- 51.

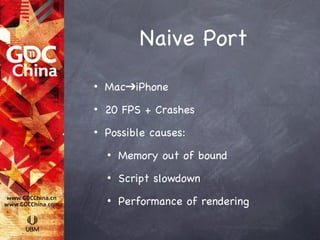

- 52. Naive Port • Mac➔iPhone • 20 FPS + Crashes • Possible causes: • Memory out of bound • Script slowdown • Performance of rendering
- 53. Memory Limitation • Unified memory architecture • User program up to 112M - iPhone 4
- 54. Beyond Memory Limitation • 2D Games - bitmap texture heavy Preallocate bitmap space • 22 x 1M x 4 bpp = 88M • Atlas Stitch small bitmap into atlas • Automation tool is a must

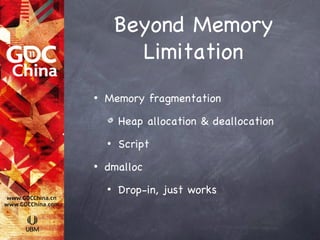

- 55. Beyond Memory Limitation • Memory fragmentation Heap allocation & deallocation • Script • dmalloc • Drop-in, just works

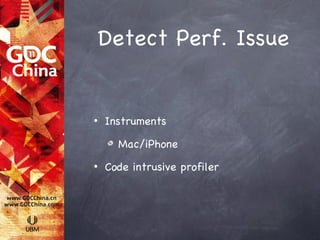

- 56. Detect Perf. Issue • Instruments Mac/iPhone • Code intrusive profiler
- 57. Detect Perf. Issue • Found by intrusive profiler: High draw call count • Found by instruments: • Renderer utilization 100% • Tiler utilization 9 ％

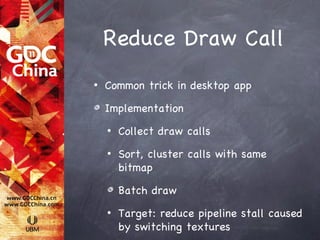

- 58. Reduce Draw Call • Common trick in desktop app Implementation • Collect draw calls • Sort, cluster calls with same bitmap Batch draw • Target: reduce pipeline stall caused by switching textures

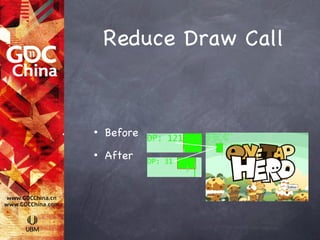

- 59. Reduce Draw Call • Before • After
- 60. Rendering Optimization • Fillrate Number of texels written to memory per second • Desktop app, pixel-shader heavy • Fillrate bottleneck ✔ • Reduce framebuffer size ➔ boost frame rate
- 61. Fillrate Optimization • Hardware limit: 221M/sec 60 FPS: 3.6M/frame • 30 FPS: 7.2M/frame • 2D Game Alpha-blend heavy • Hard to utilize Z-buffer

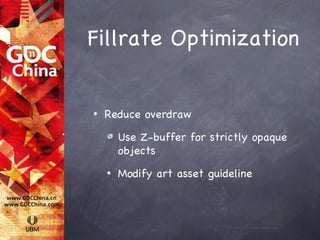

- 62. Fillrate Optimization • Reduce overdraw Use Z-buffer for strictly opaque objects • Modify art asset guideline
- 63.
Editor's Notes
- #24 GoF ：我们的经验显示，设计师经常过分强调将继承作为重用技术，而事实上，如果着重以对象组合作为重用技术，则可以获得更多的可重用性以及简单的设计。
