This document describes a low temperature incubator model ACM-I03429B made by Technocracy Pvt. Ltd. for testing biochemical oxygen demand of wastewater. The incubator has a temperature range of 2°C to 90°C and is used to determine levels of organic matter and nitrogen in wastewater samples. It has features like PID temperature control, LED display, forced air circulation and can be used for applications like BOD determinations, enzyme assays, and bacterial culturing.

1. TECHNOCRACY PVT. LTD.
BOD OR LOW TEMP
INCUBATOR
MODEL NO. - ACM- I03429B
R

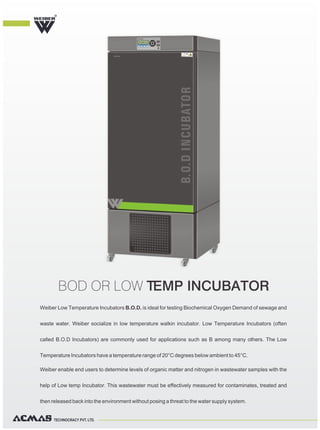

2. TECHNOCRACY PVT. LTD.
Weiber Low Temperature Incubators B.O.D. is ideal for testing Biochemical Oxygen Demand of sewage and
waste water. Weiber socialize in low temperature walkin incubator. Low Temperature Incubators (often
called B.O.D Incubators) are commonly used for applications such as B among many others. The Low
Temperature Incubators have a temperature range of 20°C degrees below ambient to 45°C.
Weiber enable end users to determine levels of organic matter and nitrogen in wastewater samples with the
help of Low temp Incubator. This wastewater must be effectively measured for contaminates, treated and
then released back into the environment without posing a threat to the water supply system.
BOD OR LOW TEMP INCUBATOR
R

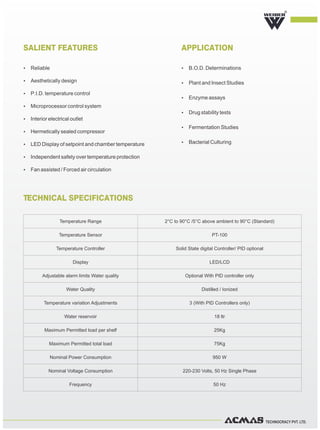

3. TECHNOCRACY PVT. LTD.
TECHNICAL SPECIFICATIONS
R
SALIENT FEATURES APPLICATION
Ÿ Reliable
Ÿ Aesthetically design
Ÿ P.I.D. temperature control
Ÿ Microprocessor control system
Ÿ Interior electrical outlet
Ÿ Hermetically sealed compressor
Ÿ LED Display of setpoint and chamber temperature
Ÿ Independent safety over temperature protection
Ÿ Fan assisted / Forced air circulation
Ÿ B.O.D. Determinations
Ÿ Plant and Insect Studies
Ÿ Enzyme assays
Ÿ Drug stability tests
Ÿ Fermentation Studies
Ÿ Bacterial Culturing
Temperature Range 2°C to 90°C /5°C above ambient to 90°C (Standard)
Temperature Sensor PT-100
Temperature Controller Solid State digital Controller/ PID optional
Display LED/LCD
Adjustable alarm limits Water quality Optional With PID controller only
Water Quality Distilled / Ionized
Temperature variation Adjustments 3 (With PID Controllers only)
Water reservoir 18 ltr
Maximum Permitted load per shelf 25Kg
Maximum Permitted total load 75Kg
Nominal Power Consumption 950 W
Nominal Voltage Consumption 220-230 Volts, 50 Hz Single Phase
Frequency 50 Hz

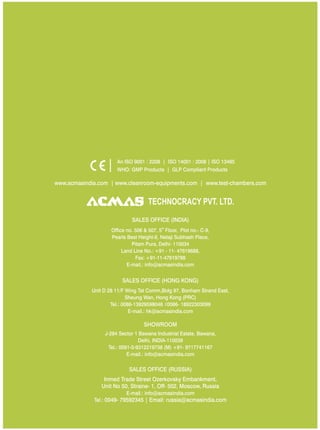

4. SALES OFFICE (HONG KONG)
