This document provides information on a dairy incubator manufactured by Weiber Technologies Pvt. Ltd. The incubator maintains optimal temperature, humidity, and other conditions to ensure proper environment for dairy products. It has features such as low maintenance, energy efficiency, and temperature control. The technical specifications include a temperature range of 2-90°C, PT-100 temperature sensor, solid state digital or PID temperature controller, and 18L water reservoir.

1. DAIRY INCUBATOR
MODEL NO. - ACM- I03427D
R

2. TECHNOLOGIES PVT. LTD.
Weiber manufactures and supplies high quality Dairy incubators in India which offers several advantages to
food processing industries. The incubator maintains optimal temperature, humidity and other conditions such
as the carbon dioxide (CO2) and oxygen content of the atmosphere inside the chamber to ensure proper
condition for dairy products. Weiber pre-fabricated Customized walk in environmental chambers are suitable
for all industrial incubator applications such as those used in food processing industries in the form of Dairy
Incubators.
DAIRY INCUBATOR
R

3. TECHNOLOGIES PVT. LTD.
TECHNICAL SPECIFICATIONS
R
SALIENT FEATURES
Ÿ Low service costs
Ÿ Service can be carried out from the top/front
Ÿ Low Maintenance
Ÿ CFC free cooling
Ÿ Energy Efficient
Ÿ Versatile usage
Ÿ Ergonomic Design
Ÿ Long life
Ÿ Calibration And Protocol Documentation
Ÿ Double walled, outside mild steel powder coated.
Ÿ Good grade silicon gasket fitted on the chamber and magnetic gasket fitted on outer metal door ensures
zero leakage.
Temperature Range 2°C to 90°C /5°C above ambient to 90°C (Standard)
Temperature Sensor PT-100
Temperature Controller Solid State digital Controller/ PID optional
Display LED/LCD
Adjustable alarm limits Water quality Optional With PID controller only
Water Quality Distilled / Ionized
Temperature variation Adjustments 3 (With PID Controllers only)
Water reservoir 18 ltr
Maximum Permitted load per shelf 25Kg
Maximum Permitted total load 75Kg
Nominal Power Consumption 950 W
Nominal Voltage Consumption 220-230 Volts, 50 Hz Single Phase
Frequency 50 Hz

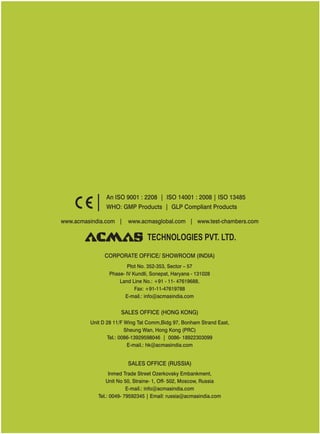

4. www.acmasindia.com | www.test-chambers.comwww.acmasglobal.com |
