This document provides specifications for a biochemical oxygen demand incubator. The incubator has an inner chamber measuring approximately 0.5 x 0.5 x 0.8 meters made of stainless steel. It has a temperature range of 5 to 50 degrees Celsius controlled by a thermostat with an accuracy of ±0.5 degrees. Additional features include shelves, motorized air circulation, an insulated wall, and a glass door to monitor samples without temperature disturbance.

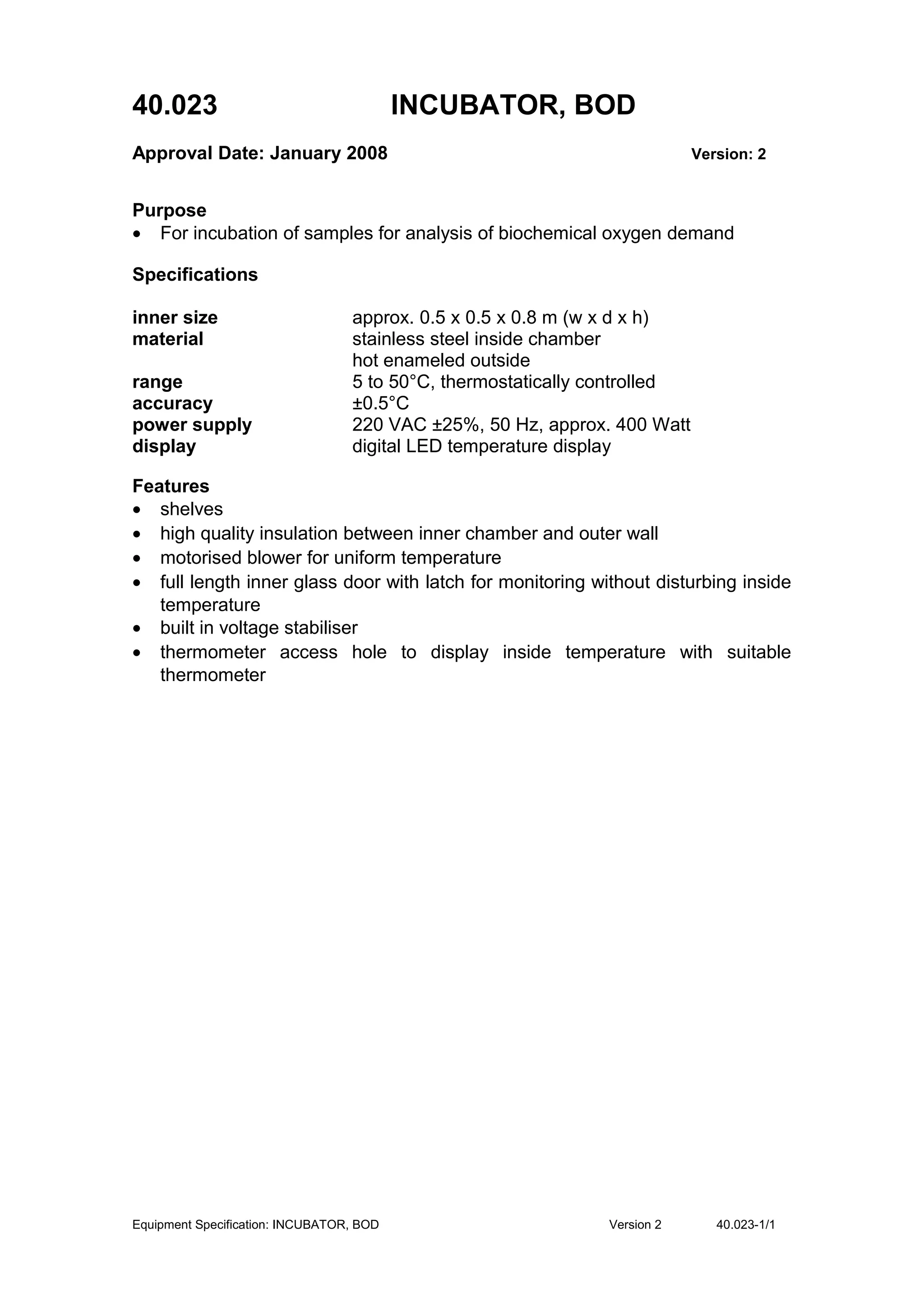

1. 40.023 INCUBATOR, BOD
Approval Date: January 2008 Version: 2
Purpose
• For incubation of samples for analysis of biochemical oxygen demand
Specifications
inner size approx. 0.5 x 0.5 x 0.8 m (w x d x h)
material stainless steel inside chamber
hot enameled outside
range 5 to 50°C, thermostatically controlled
accuracy ±0.5°C
power supply 220 VAC ±25%, 50 Hz, approx. 400 Watt
display digital LED temperature display
Features
• shelves
• high quality insulation between inner chamber and outer wall
• motorised blower for uniform temperature
• full length inner glass door with latch for monitoring without disturbing inside
temperature
• built in voltage stabiliser
• thermometer access hole to display inside temperature with suitable
thermometer
Equipment Specification: INCUBATOR, BOD Version 2 40.023-1/1
